MongoDB and Hadoop work powerfully together as complementary technologies. Learn how the Hadoop connector enables sophisticated processing of data sourced directly from MongoDB.

1. MongoDB, Hadoop, & Spark
{ Name: ‘Bryan Reinero’,
Title: ‘Developer Advocate’,
Twitter: ‘@blimpyacht’,
Email: ‘bryan@mongdb.com’,
Web: ‘mongodb.com/bryan’ }

2. 2
Data Management

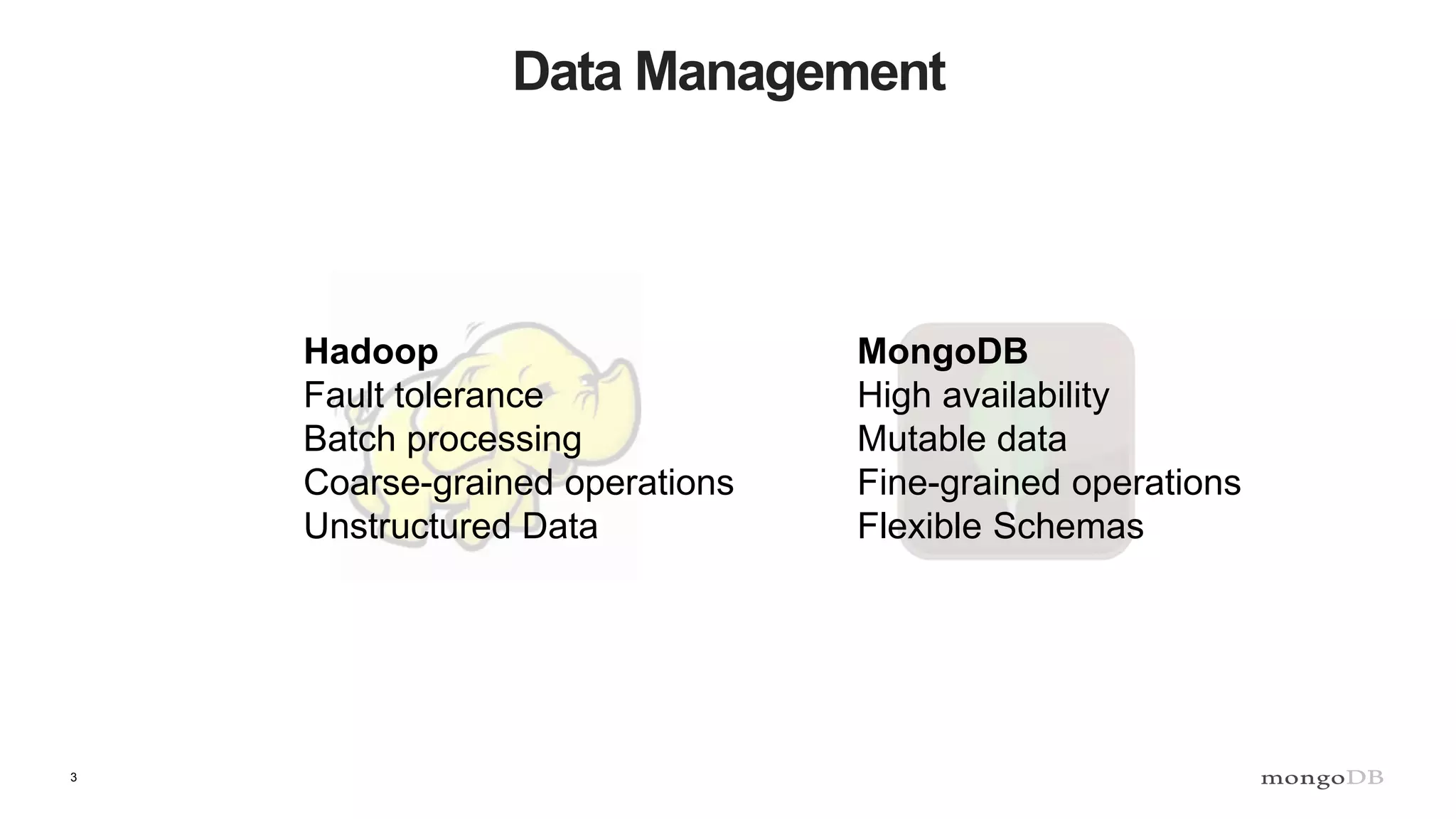

3. 3
Data Management
Hadoop
Fault tolerance
Batch processing
Coarse-grained operations
Unstructured Data
MongoDB
High availability
Mutable data
Fine-grained operations
Flexible Schemas

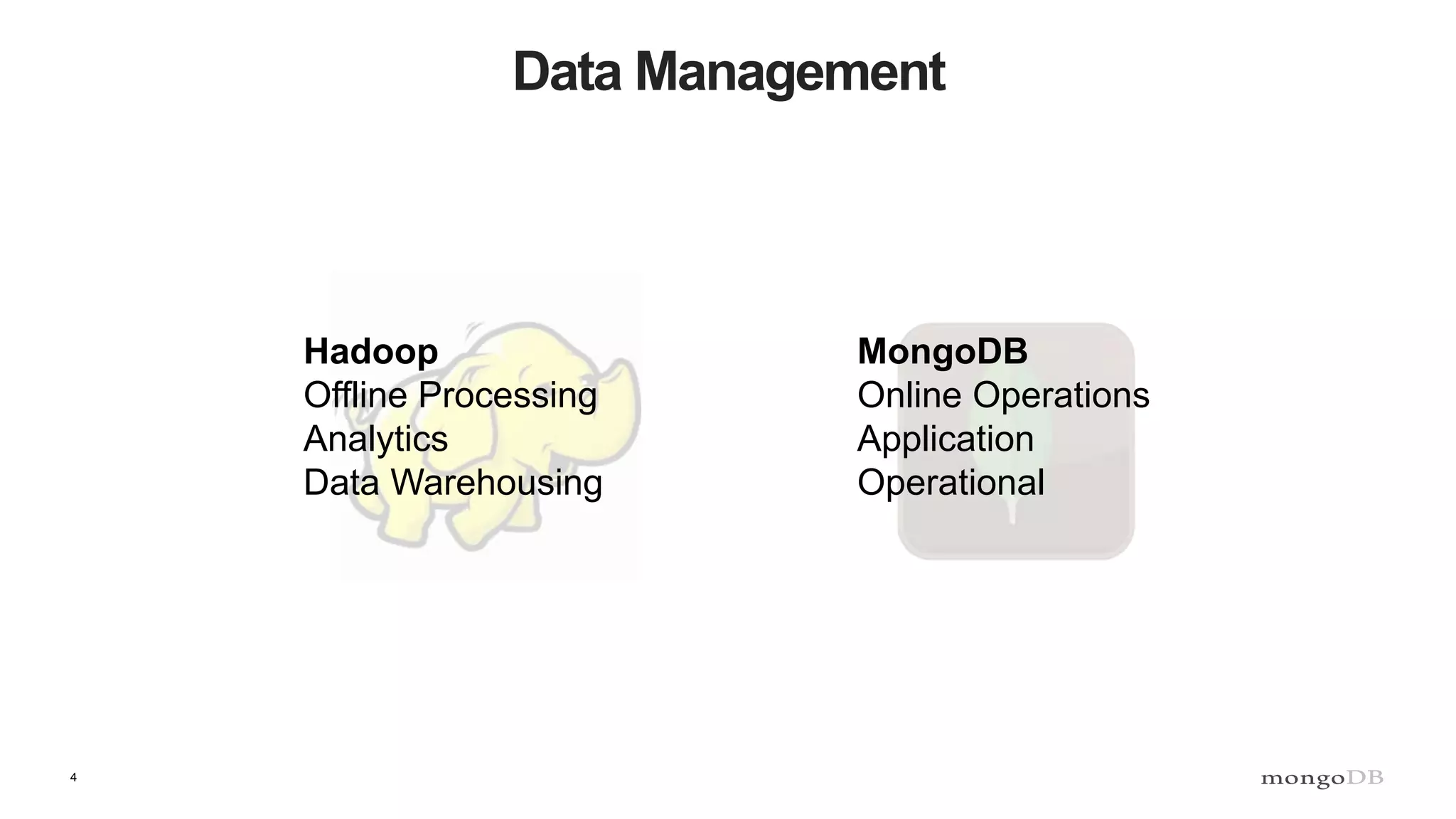

4. 4
Data Management
Hadoop
Offline Processing
Analytics
Data Warehousing
MongoDB
Online Operations
Application
Operational

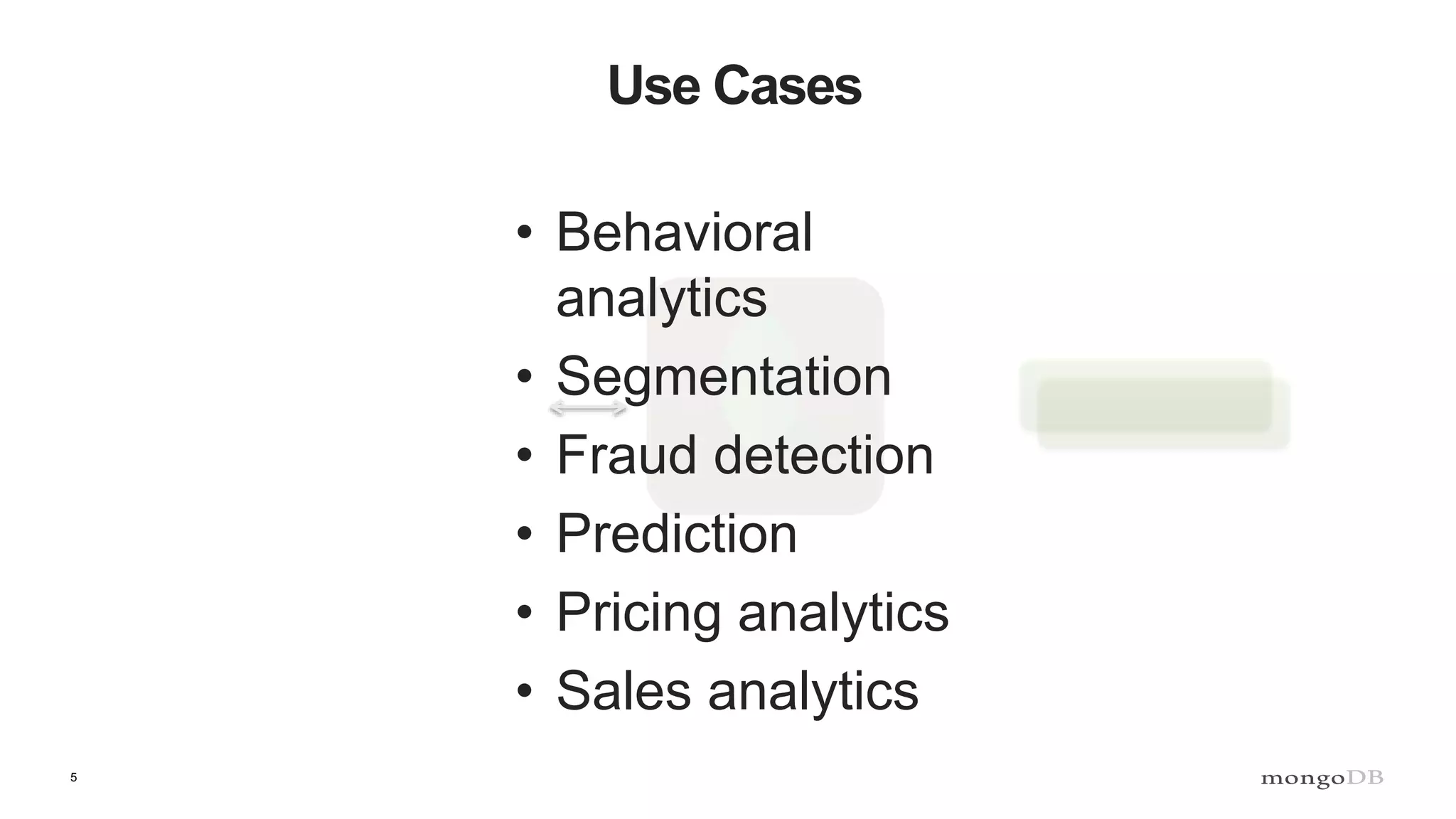

5. 5
Use Cases
• Behavioral
analytics
• Segmentation
• Fraud detection
• Prediction
• Pricing analytics
• Sales analytics

6. 6

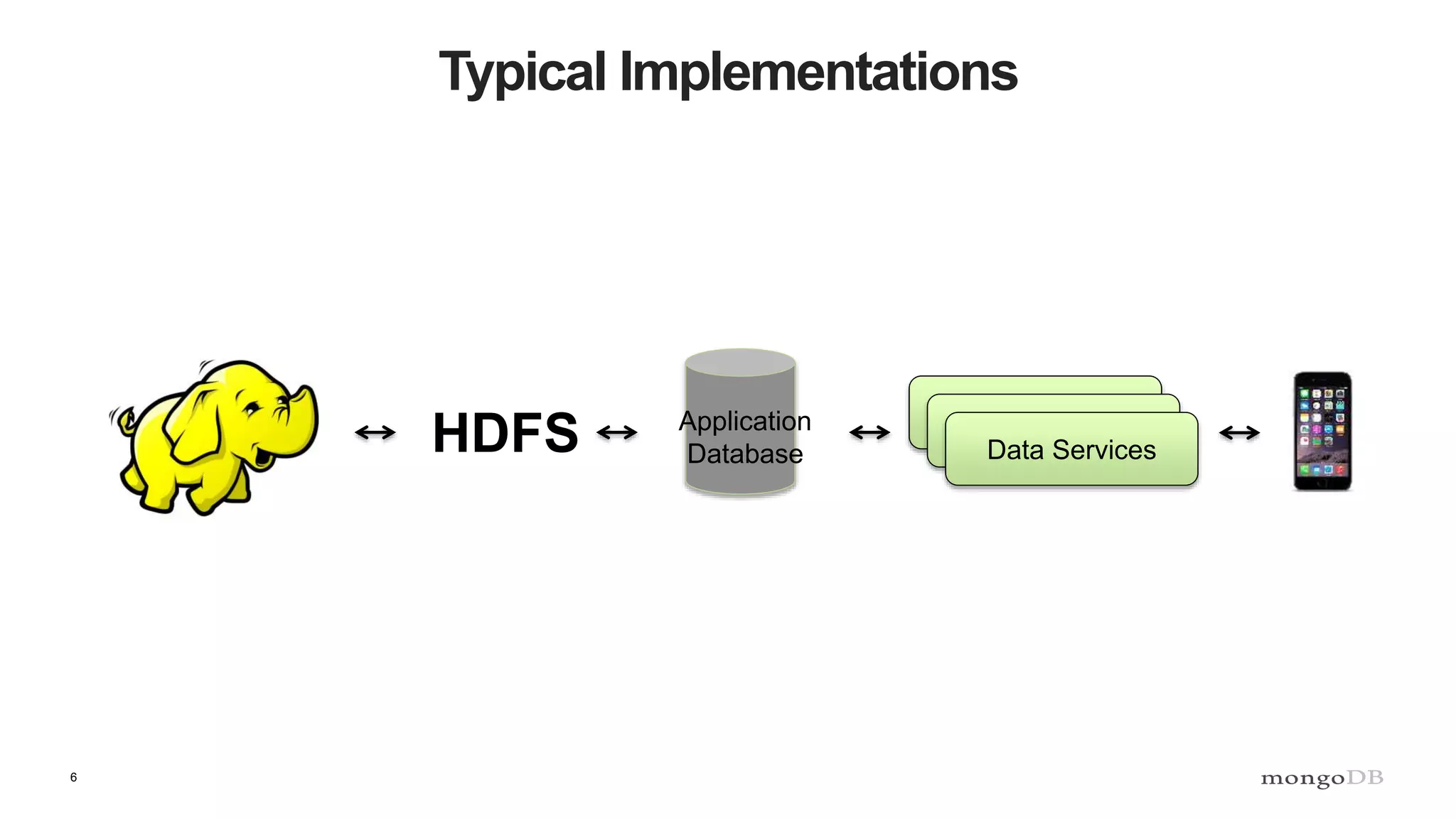

Typical Implementations
Data ServicesHDFS Application
Database

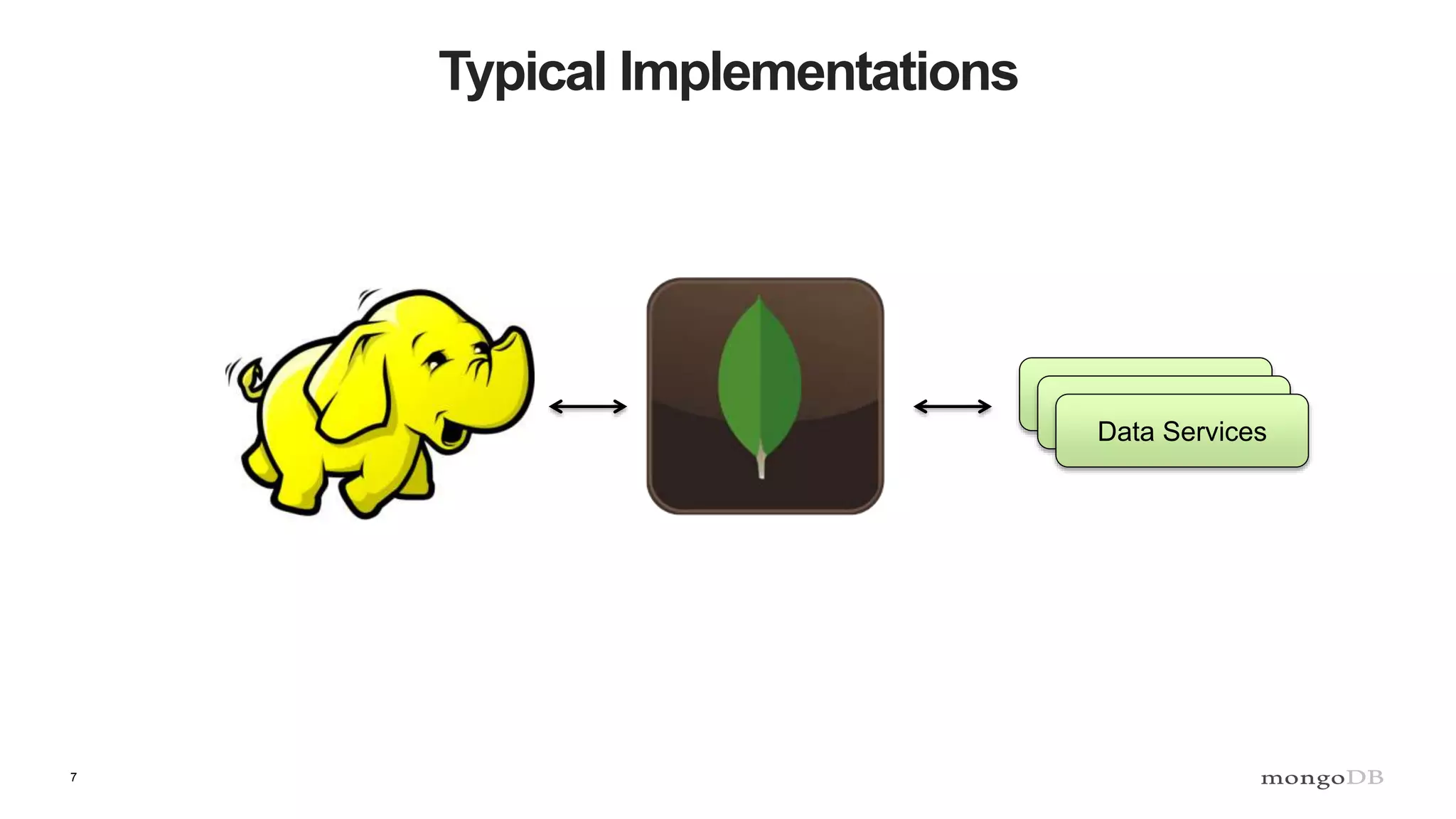

7. 7
Typical Implementations
Data Services

8. Using the Connector

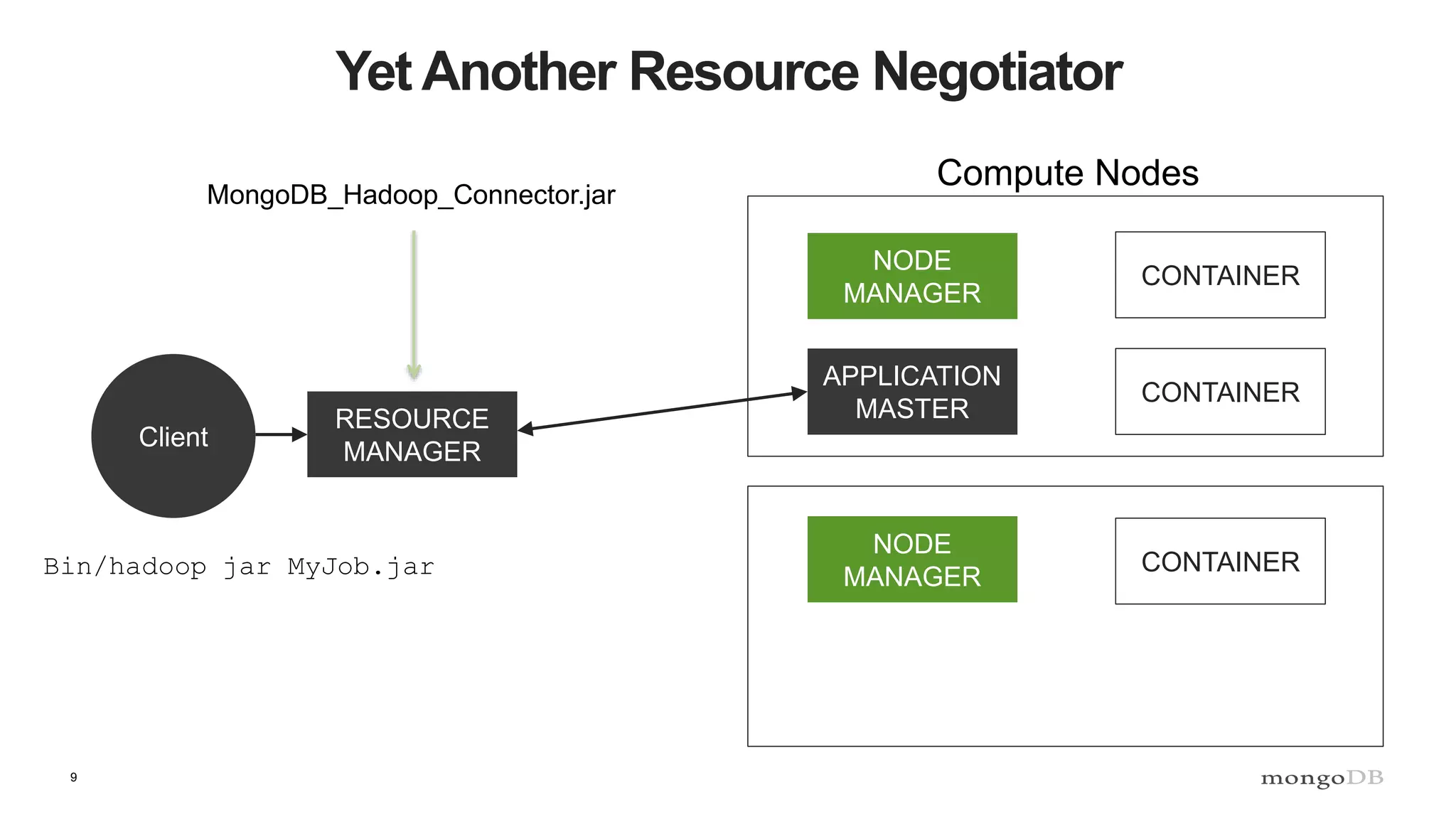

9. 9
Yet Another Resource Negotiator
Compute Nodes
Client
NODE
MANAGER
NODE
MANAGER
RESOURCE
MANAGER
APPLICATION
MASTER
CONTAINER
CONTAINER
CONTAINER
Bin/hadoop jar MyJob.jar
MongoDB_Hadoop_Connector.jar

10. 10

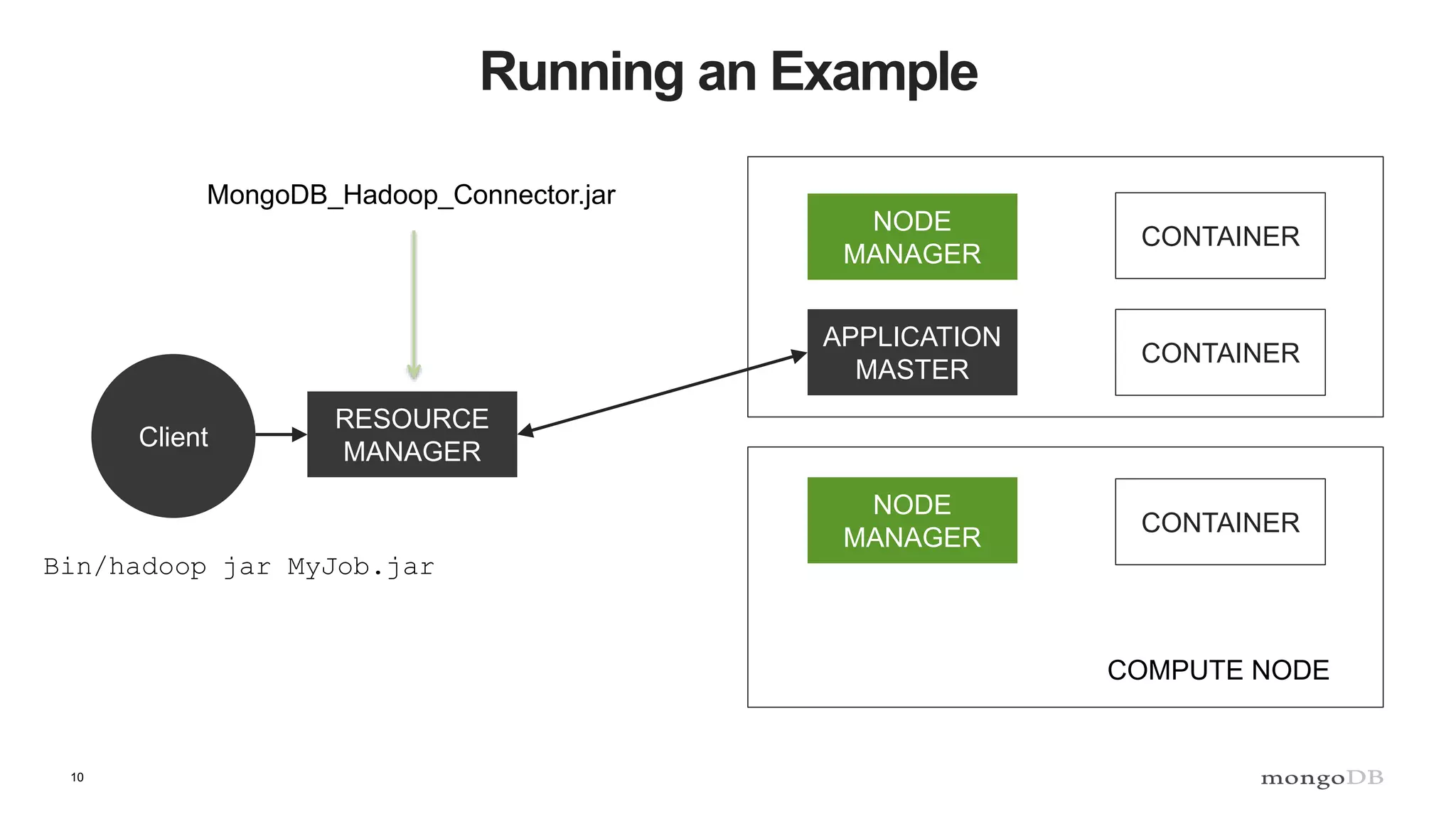

Running an Example
COMPUTE NODE
Client
NODE
MANAGER
NODE
MANAGER
RESOURCE
MANAGER
APPLICATION
MASTER
CONTAINER
CONTAINER
CONTAINER
Bin/hadoop jar MyJob.jar
MongoDB_Hadoop_Connector.jar

11. 11

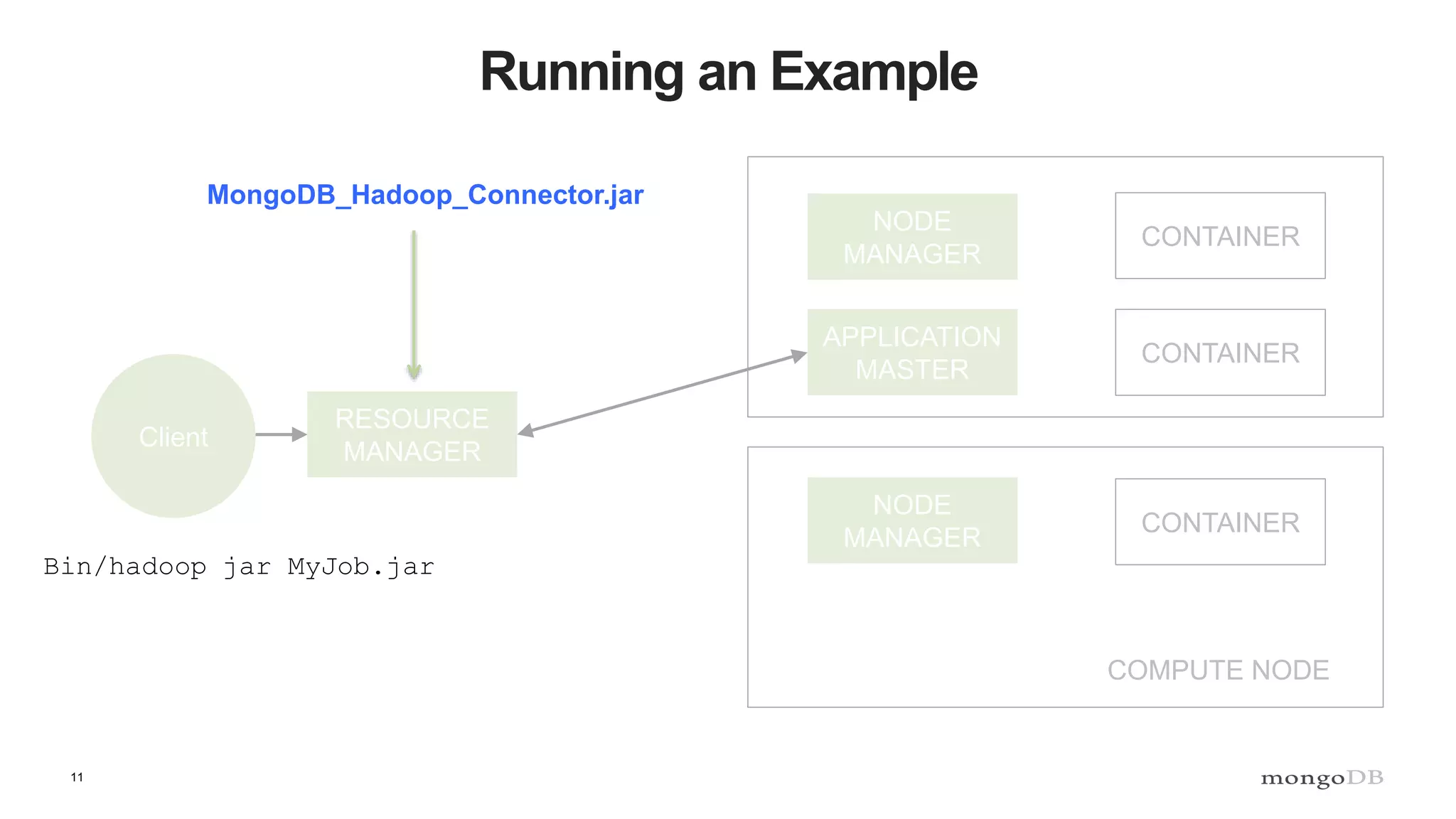

Running an Example
COMPUTE NODE
Client
NODE
MANAGER
NODE
MANAGER
RESOURCE
MANAGER
APPLICATION
MASTER
CONTAINER
CONTAINER
CONTAINER
Bin/hadoop jar MyJob.jar
MongoDB_Hadoop_Connector.jar

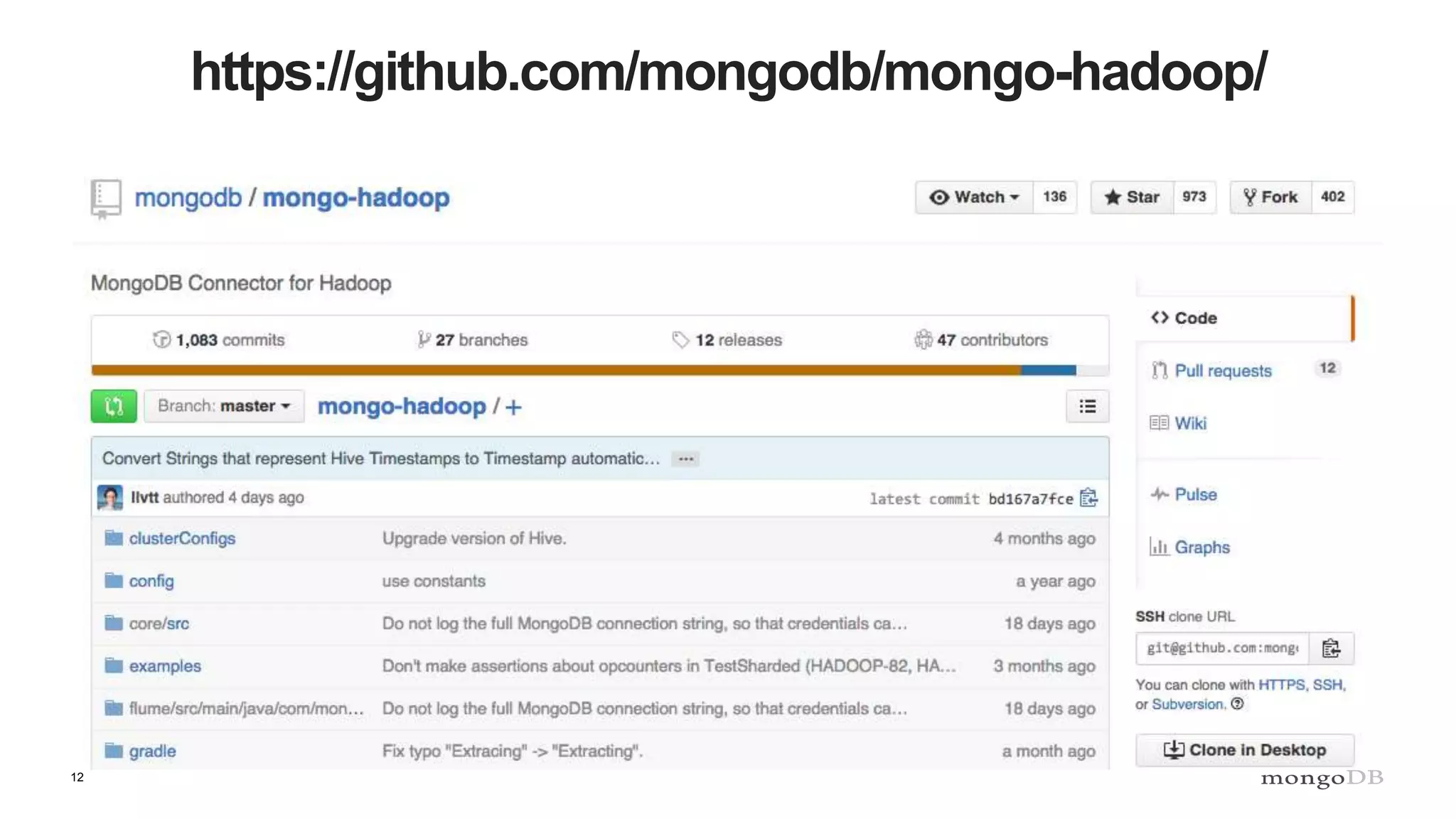

12. 12
https://github.com/mongodb/mongo-hadoop/

13. 13

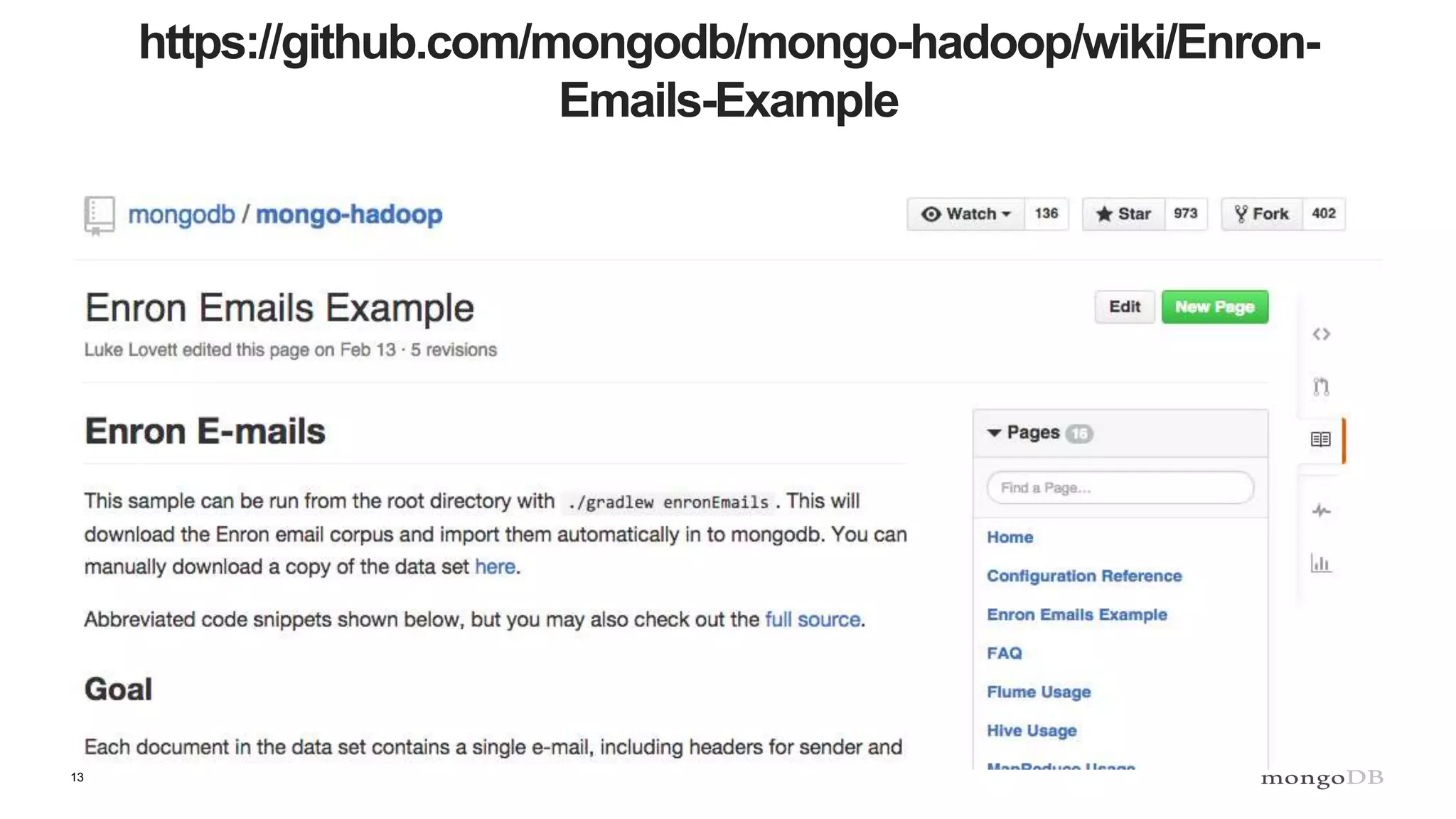

https://github.com/mongodb/mongo-hadoop/wiki/Enron-
Emails-Example

14. 14

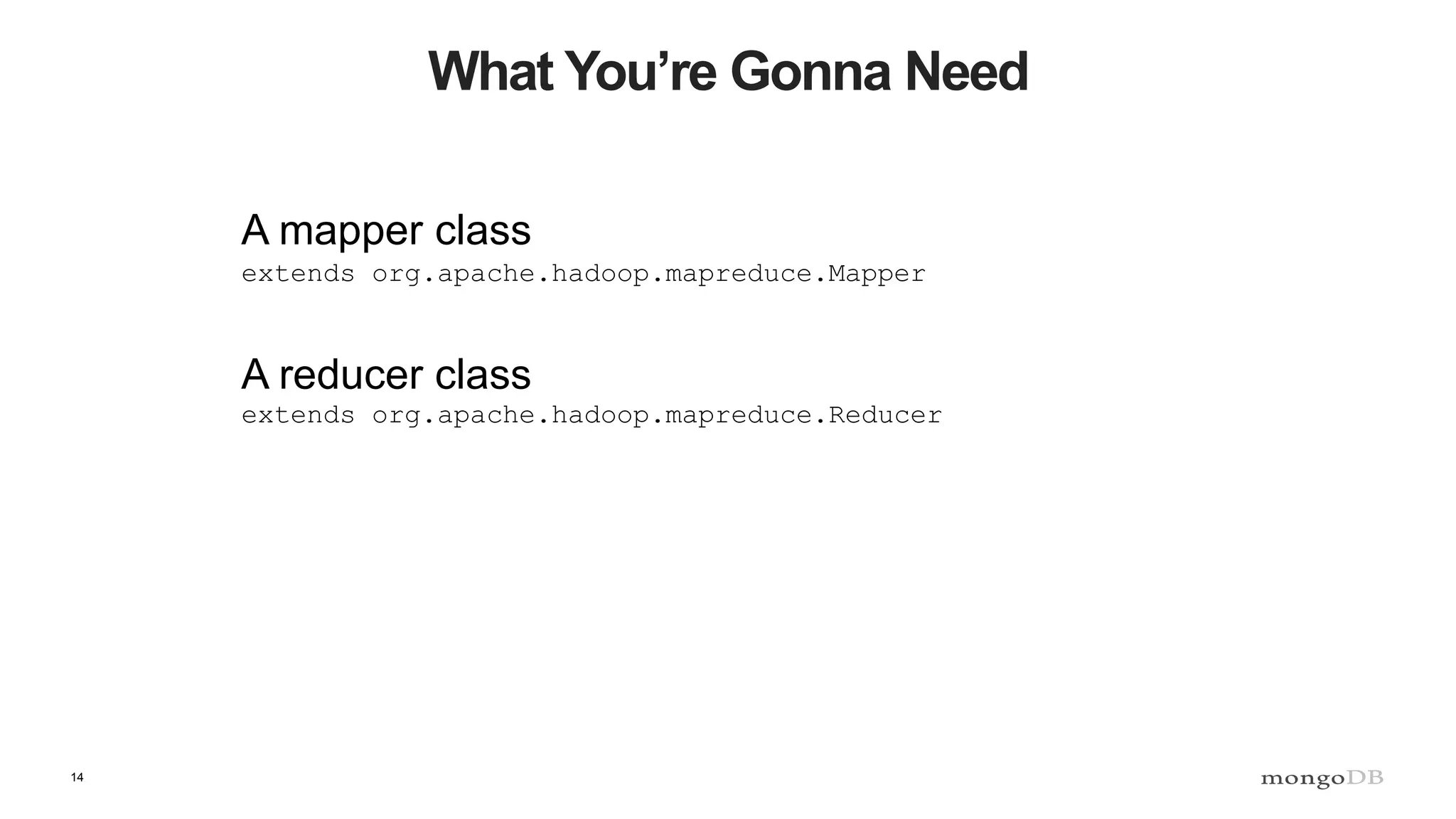

What You’re Gonna Need
A reducer class
extends org.apache.hadoop.mapreduce.Reducer
A mapper class
extends org.apache.hadoop.mapreduce.Mapper

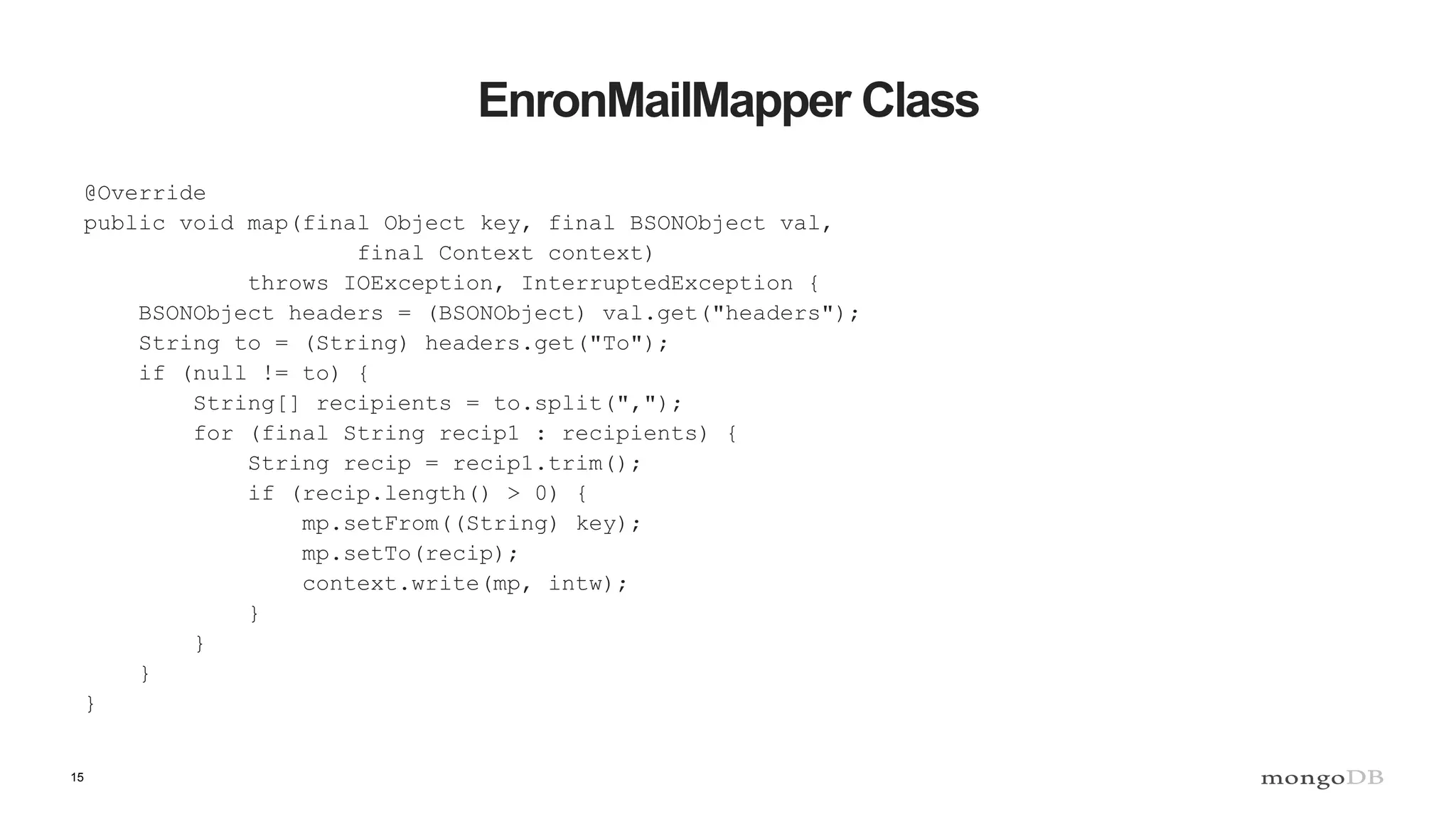

15. 15
EnronMailMapper Class
@Override
public void map(final Object key, final BSONObject val,
final Context context)
throws IOException, InterruptedException {
BSONObject headers = (BSONObject) val.get("headers");
String to = (String) headers.get("To");
if (null != to) {
String[] recipients = to.split(",");
for (final String recip1 : recipients) {
String recip = recip1.trim();
if (recip.length() > 0) {
mp.setFrom((String) key);
mp.setTo(recip);
context.write(mp, intw);
}
}
}
}

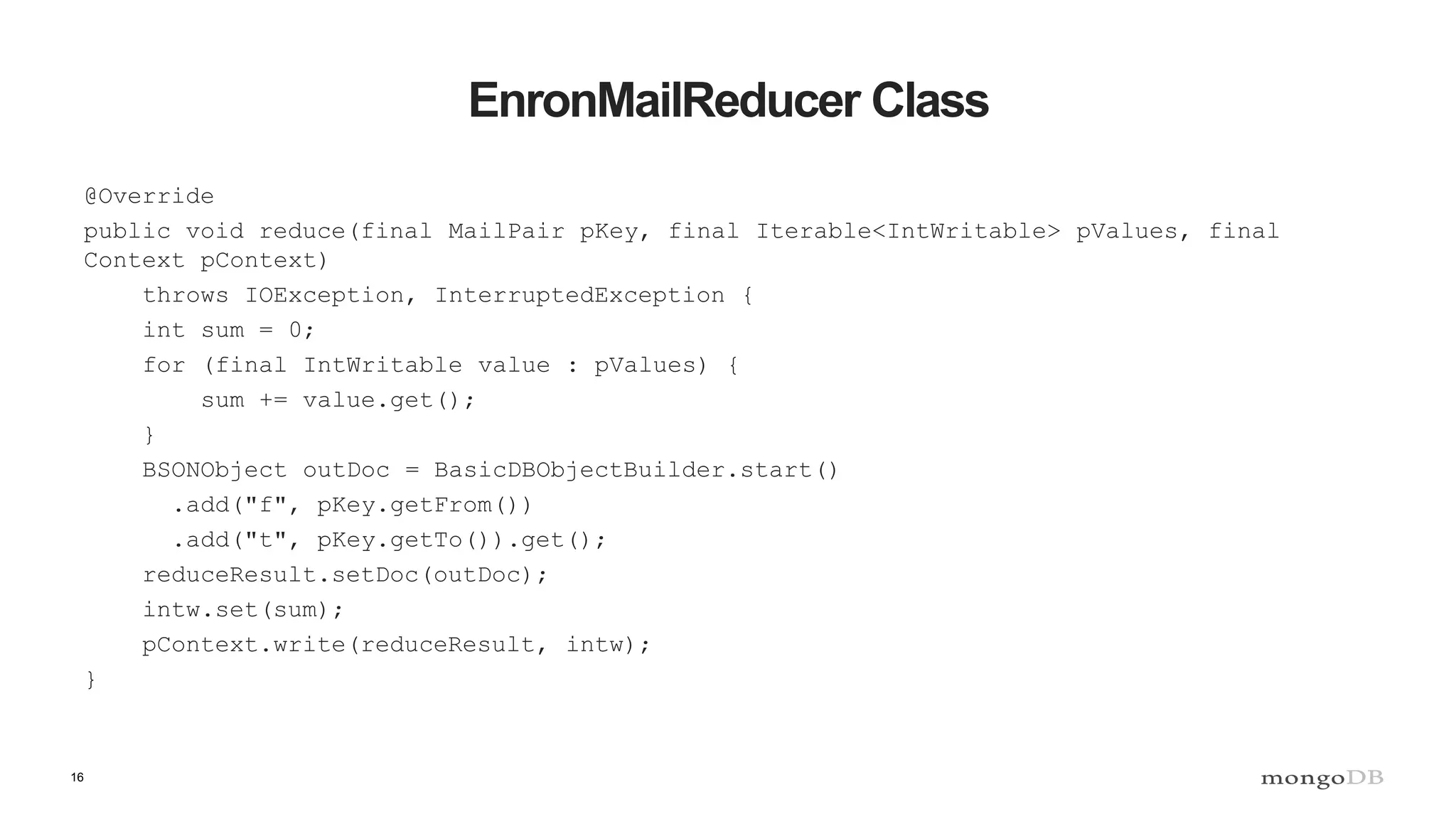

16. 16
EnronMailReducer Class
@Override
public void reduce(final MailPair pKey, final Iterable<IntWritable> pValues, final
Context pContext)
throws IOException, InterruptedException {
int sum = 0;
for (final IntWritable value : pValues) {
sum += value.get();
}
BSONObject outDoc = BasicDBObjectBuilder.start()
.add("f", pKey.getFrom())
.add("t", pKey.getTo()).get();
reduceResult.setDoc(outDoc);
intw.set(sum);
pContext.write(reduceResult, intw);
}

17. 17

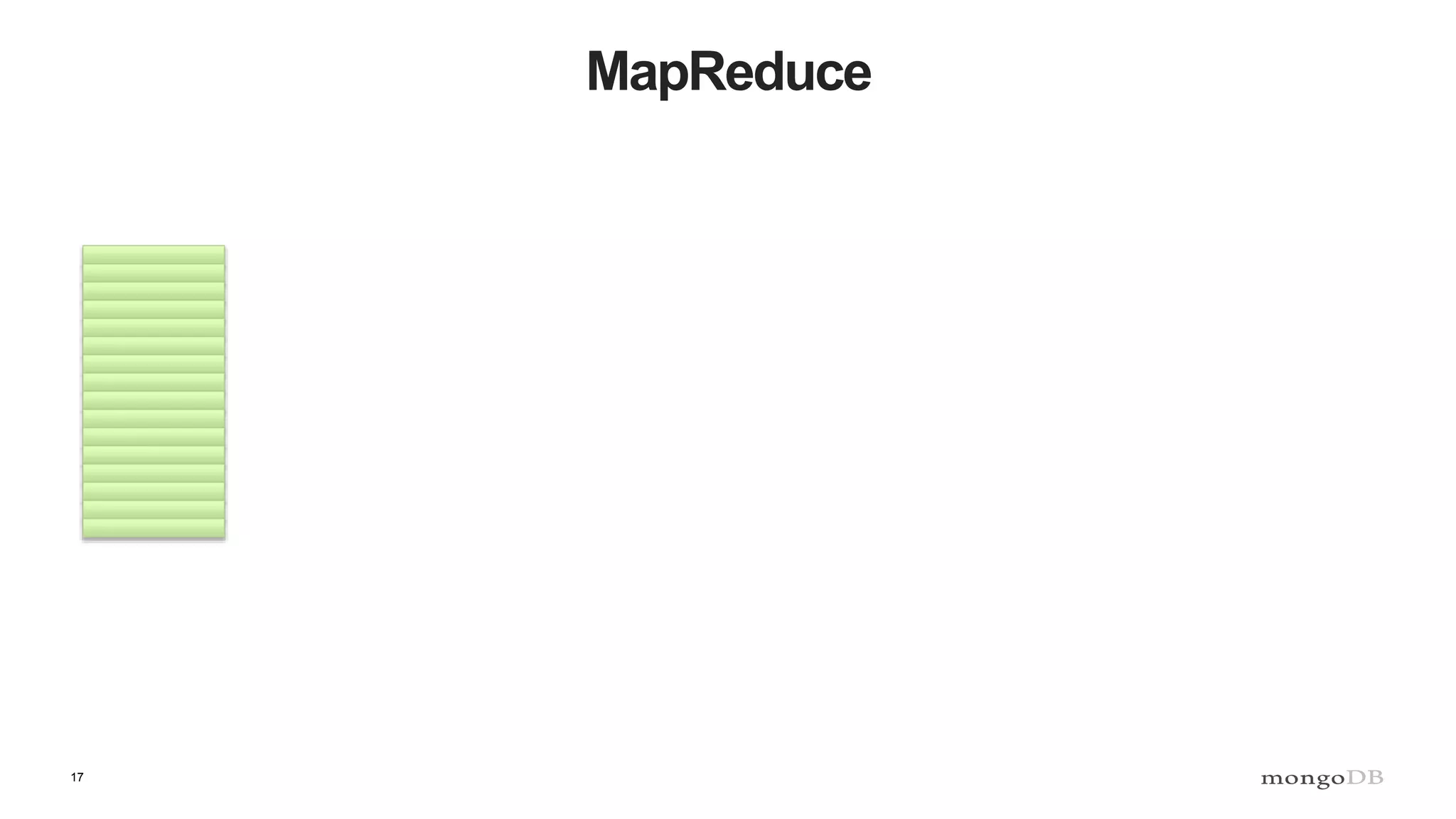

MapReduce

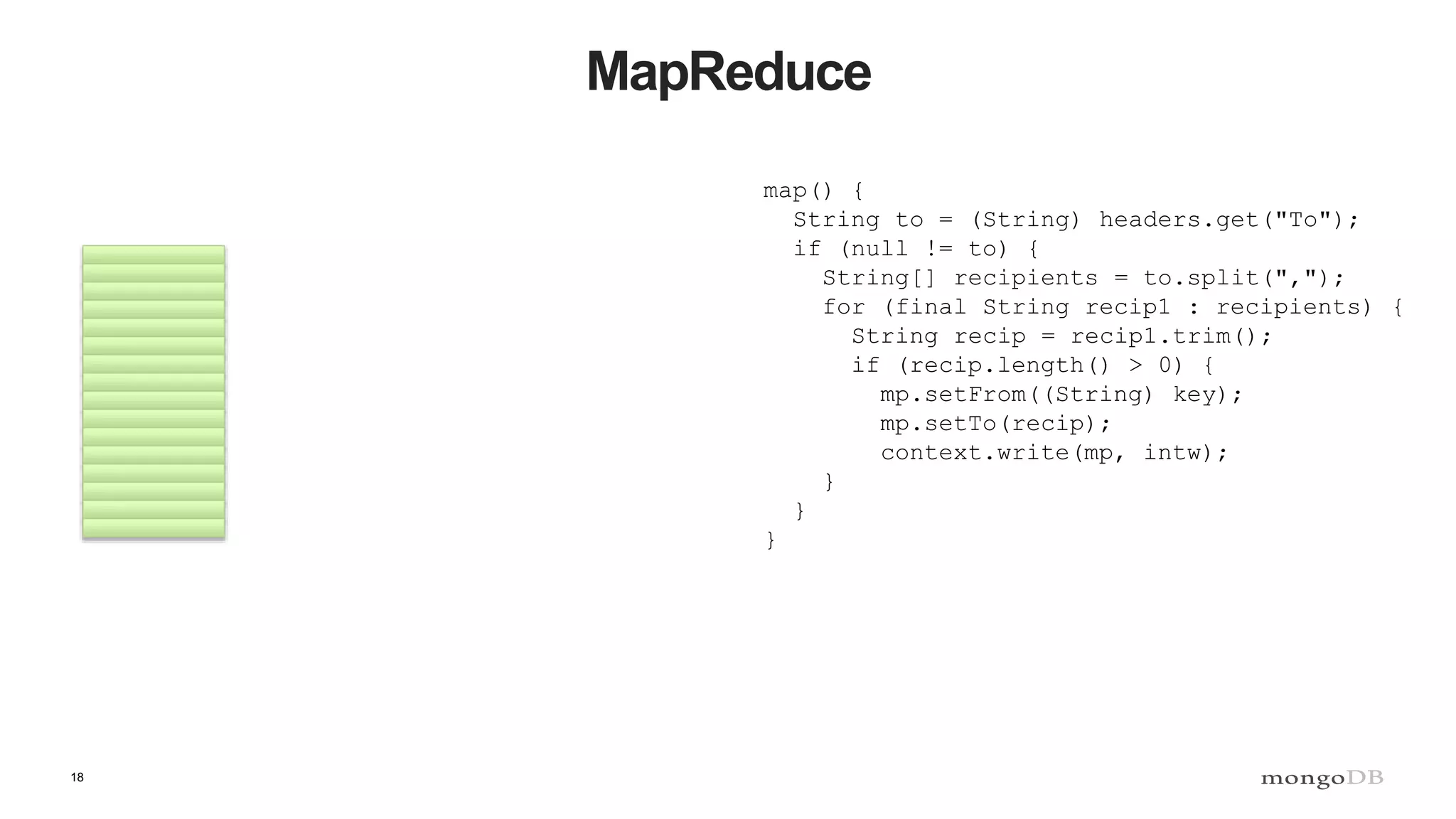

18. 18
MapReduce
map() {
String to = (String) headers.get("To");
if (null != to) {
String[] recipients = to.split(",");
for (final String recip1 : recipients) {
String recip = recip1.trim();
if (recip.length() > 0) {
mp.setFrom((String) key);
mp.setTo(recip);
context.write(mp, intw);
}
}
}

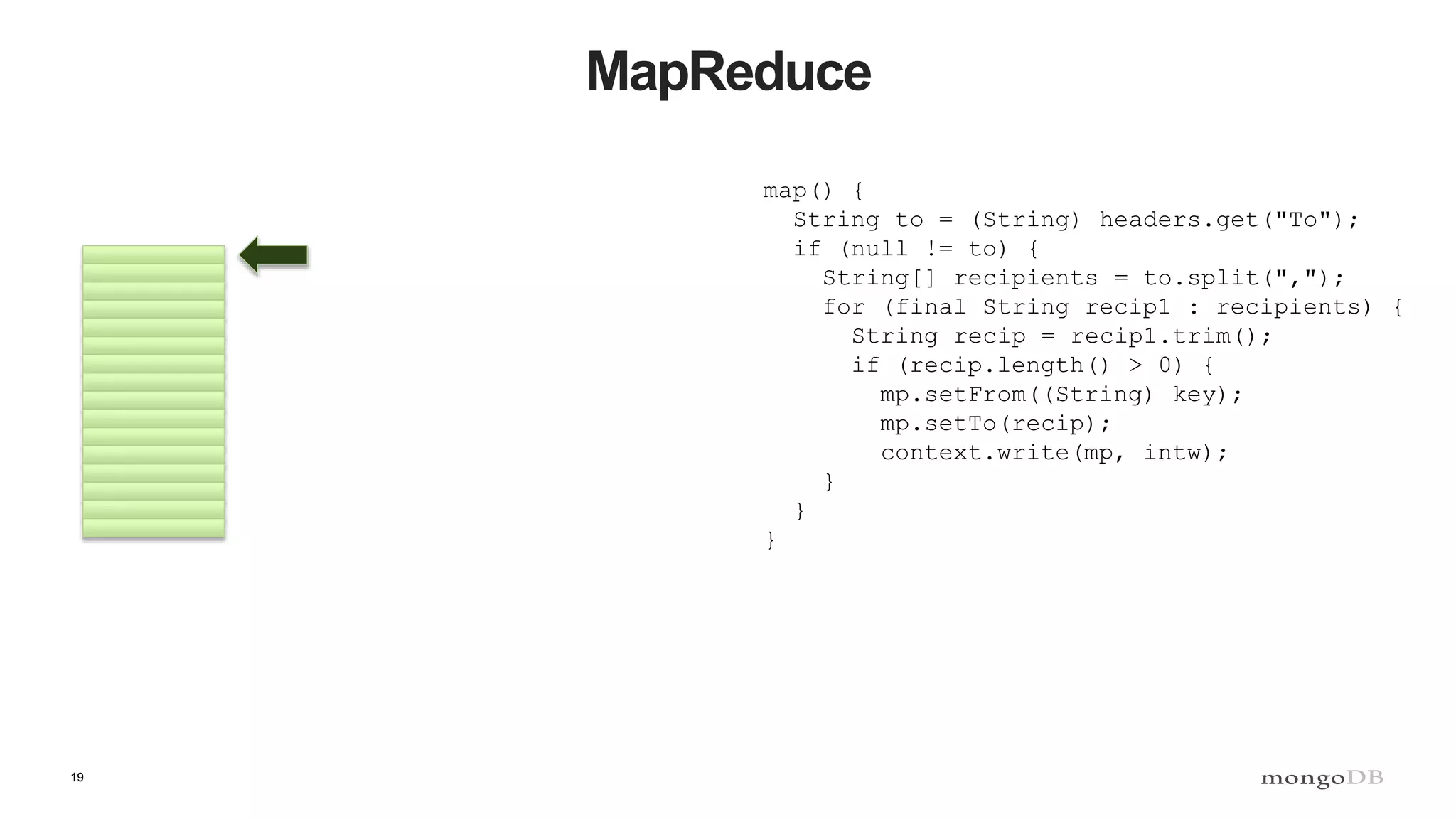

19. 19
MapReduce
map() {
String to = (String) headers.get("To");
if (null != to) {
String[] recipients = to.split(",");
for (final String recip1 : recipients) {
String recip = recip1.trim();
if (recip.length() > 0) {
mp.setFrom((String) key);
mp.setTo(recip);
context.write(mp, intw);
}
}
}

20. 20

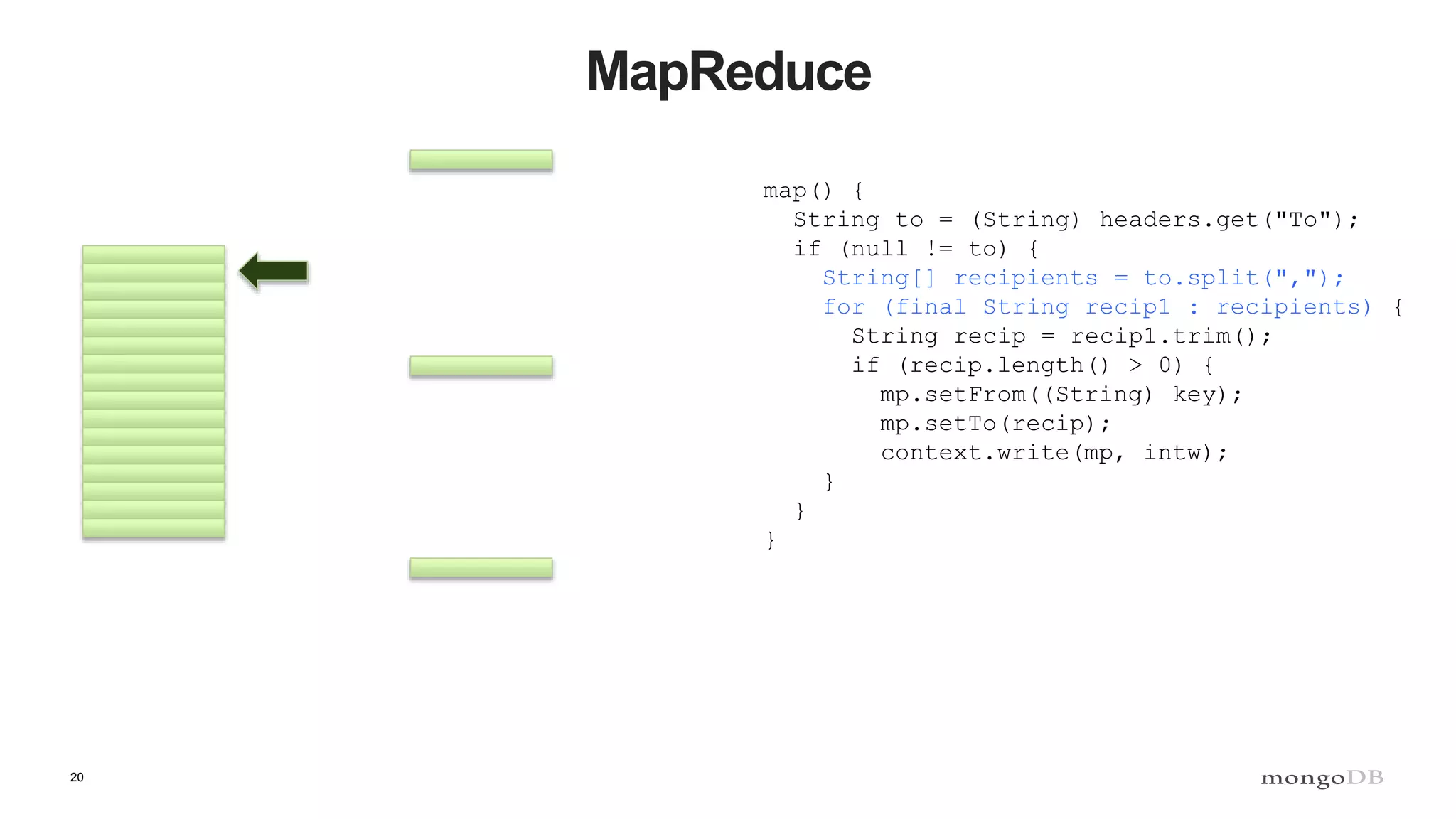

MapReduce
map() {
String to = (String) headers.get("To");
if (null != to) {
String[] recipients = to.split(",");
for (final String recip1 : recipients) {
String recip = recip1.trim();
if (recip.length() > 0) {
mp.setFrom((String) key);
mp.setTo(recip);
context.write(mp, intw);
}
}
}

21. 21

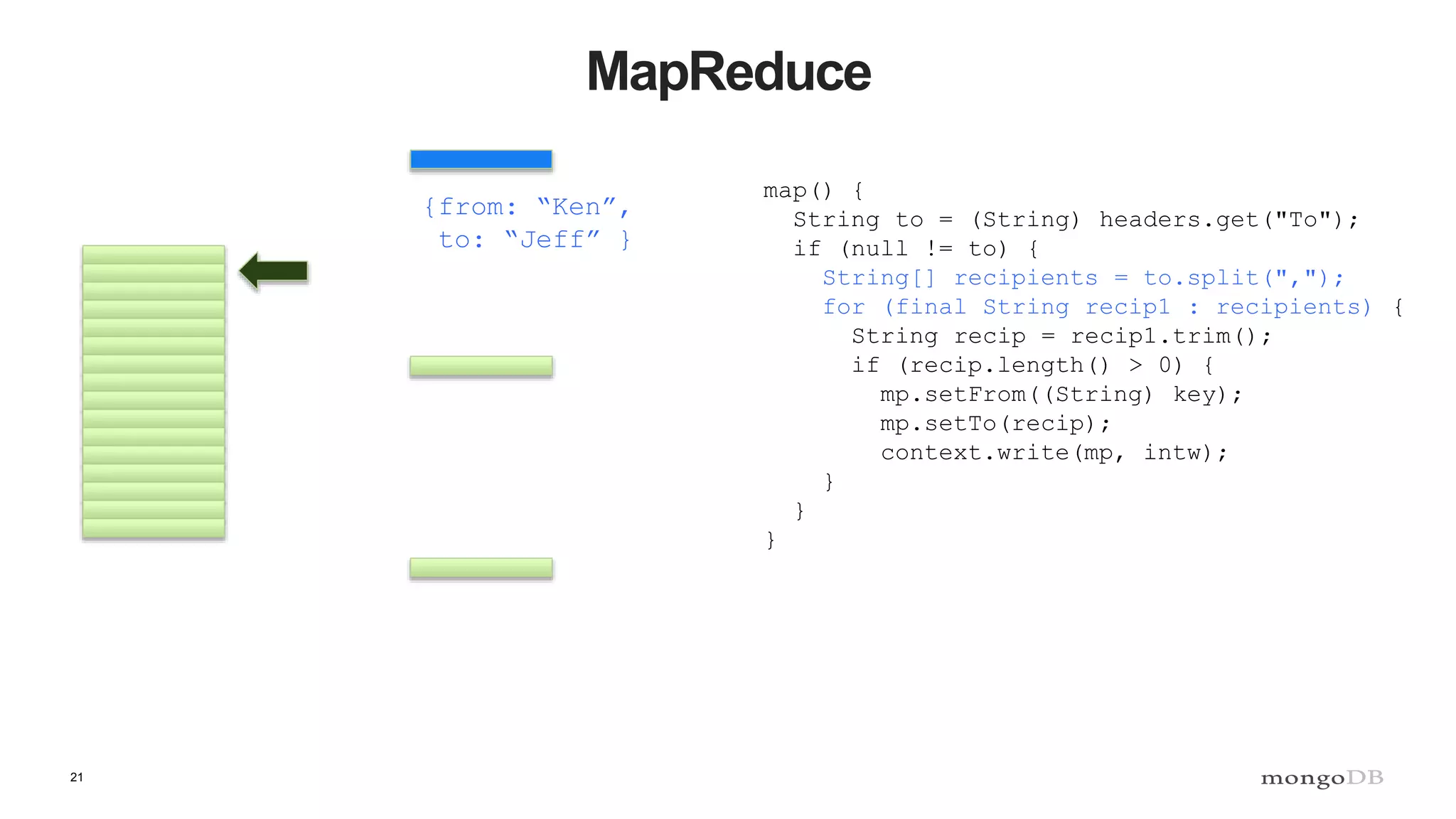

MapReduce
{from: “Ken”,
to: “Jeff” }
map() {
String to = (String) headers.get("To");
if (null != to) {
String[] recipients = to.split(",");
for (final String recip1 : recipients) {
String recip = recip1.trim();
if (recip.length() > 0) {
mp.setFrom((String) key);
mp.setTo(recip);
context.write(mp, intw);
}
}
}

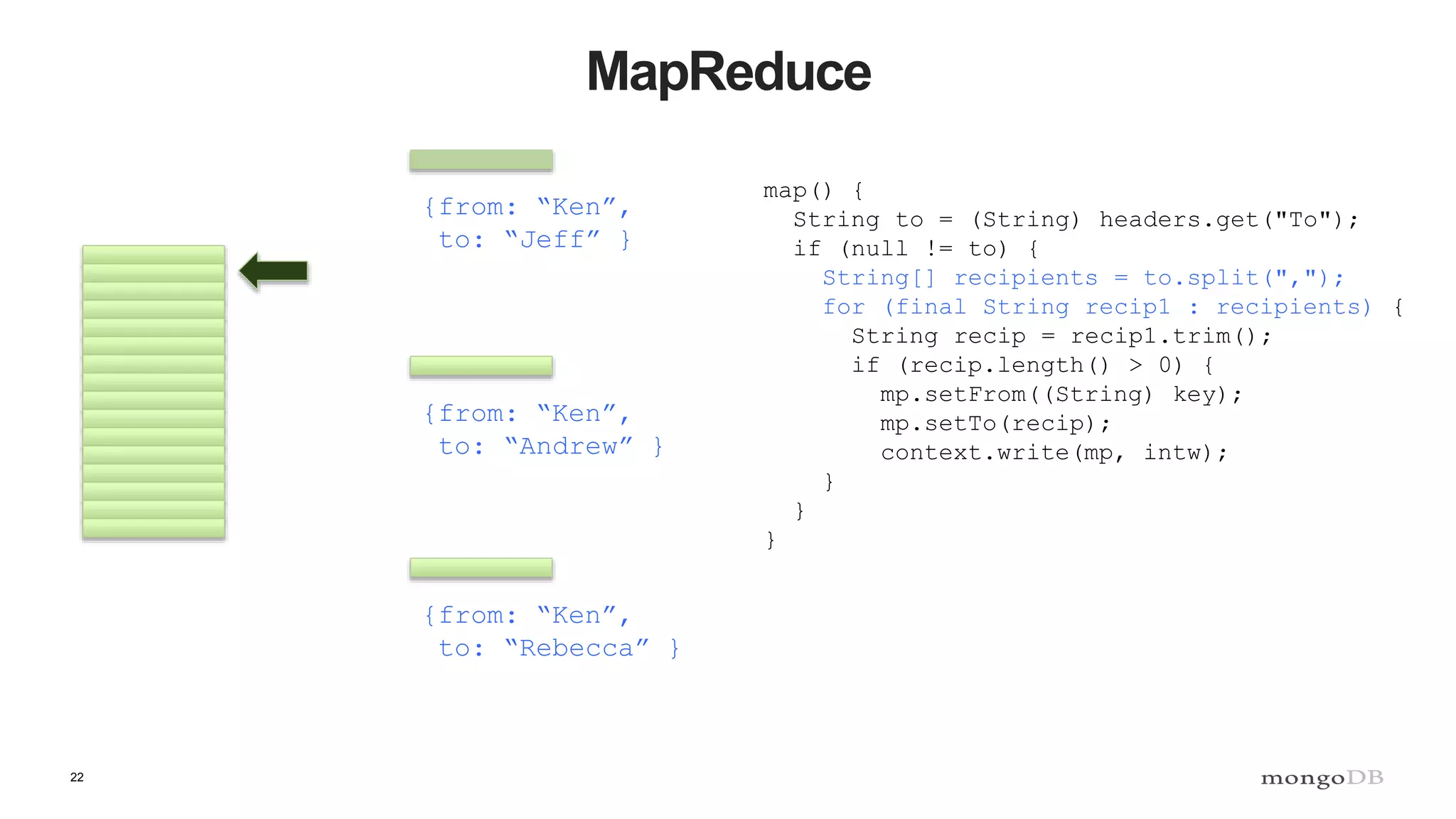

22. 22
MapReduce
{from: “Ken”,
to: “Jeff” }
map() {
String to = (String) headers.get("To");
if (null != to) {
String[] recipients = to.split(",");
for (final String recip1 : recipients) {
String recip = recip1.trim();
if (recip.length() > 0) {
mp.setFrom((String) key);
mp.setTo(recip);
context.write(mp, intw);
}
}
}
{from: “Ken”,
to: “Andrew” }
{from: “Ken”,
to: “Rebecca” }

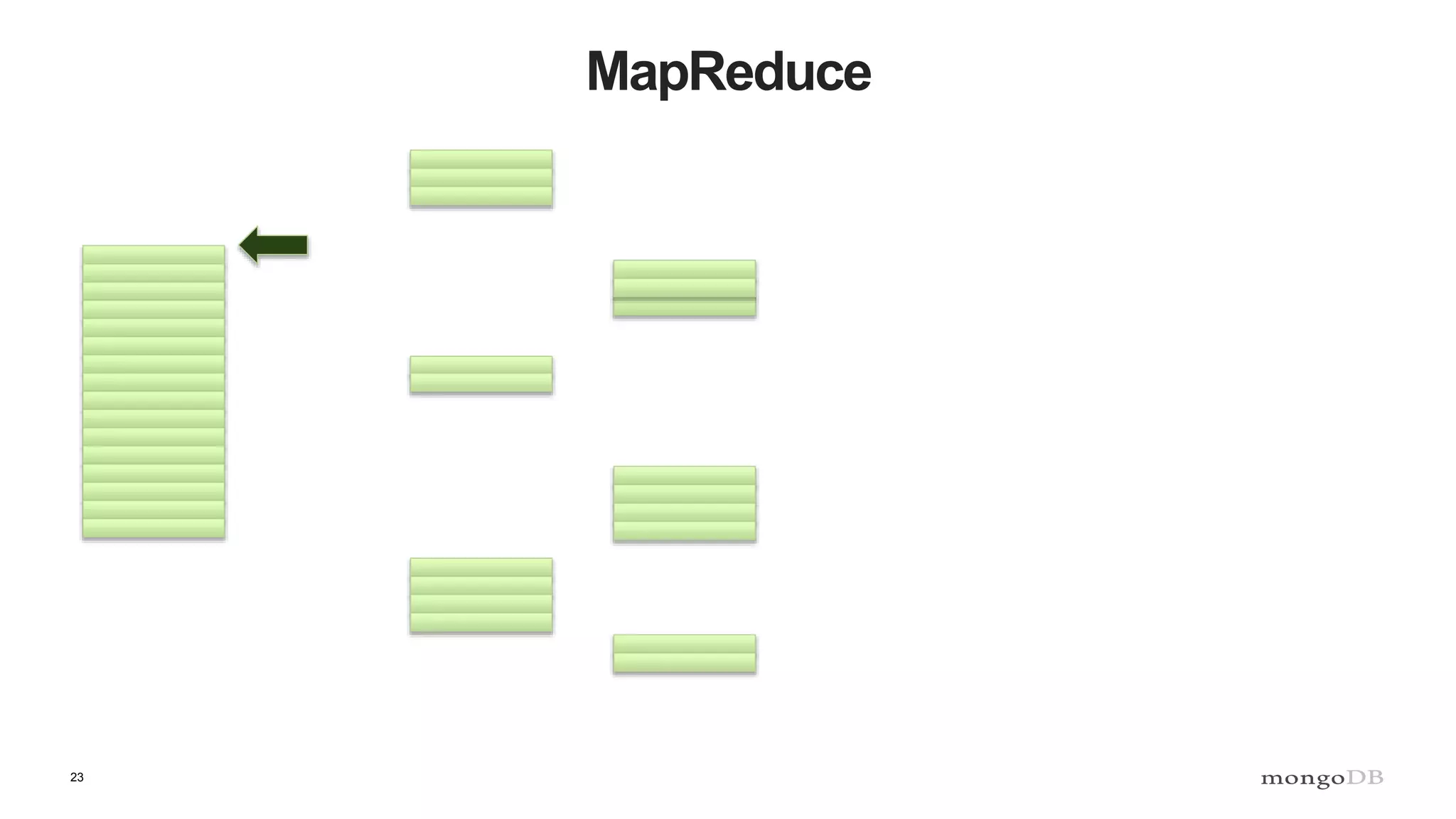

23. 23
MapReduce

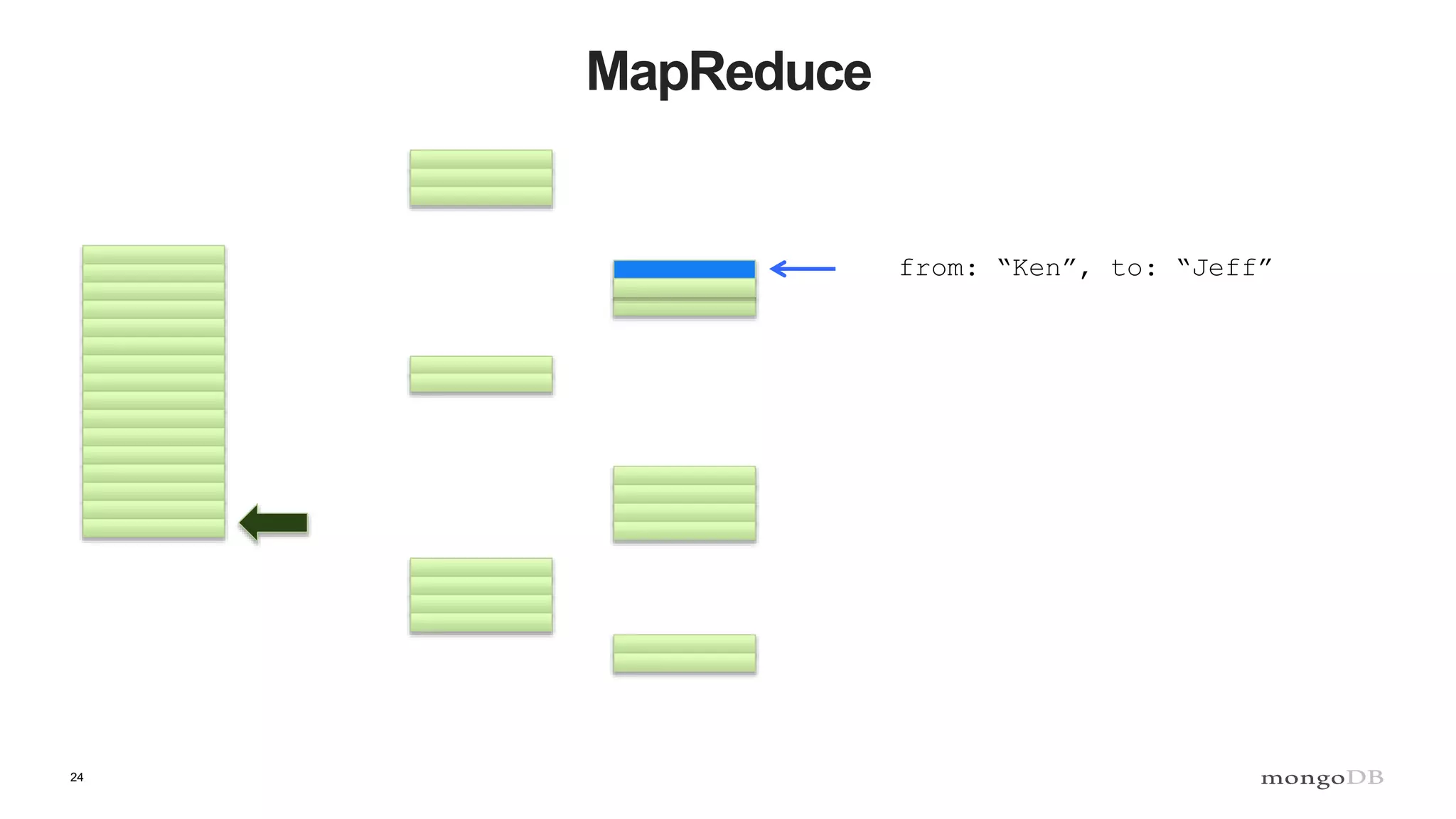

24. 24
MapReduce
from: “Ken”, to: “Jeff”

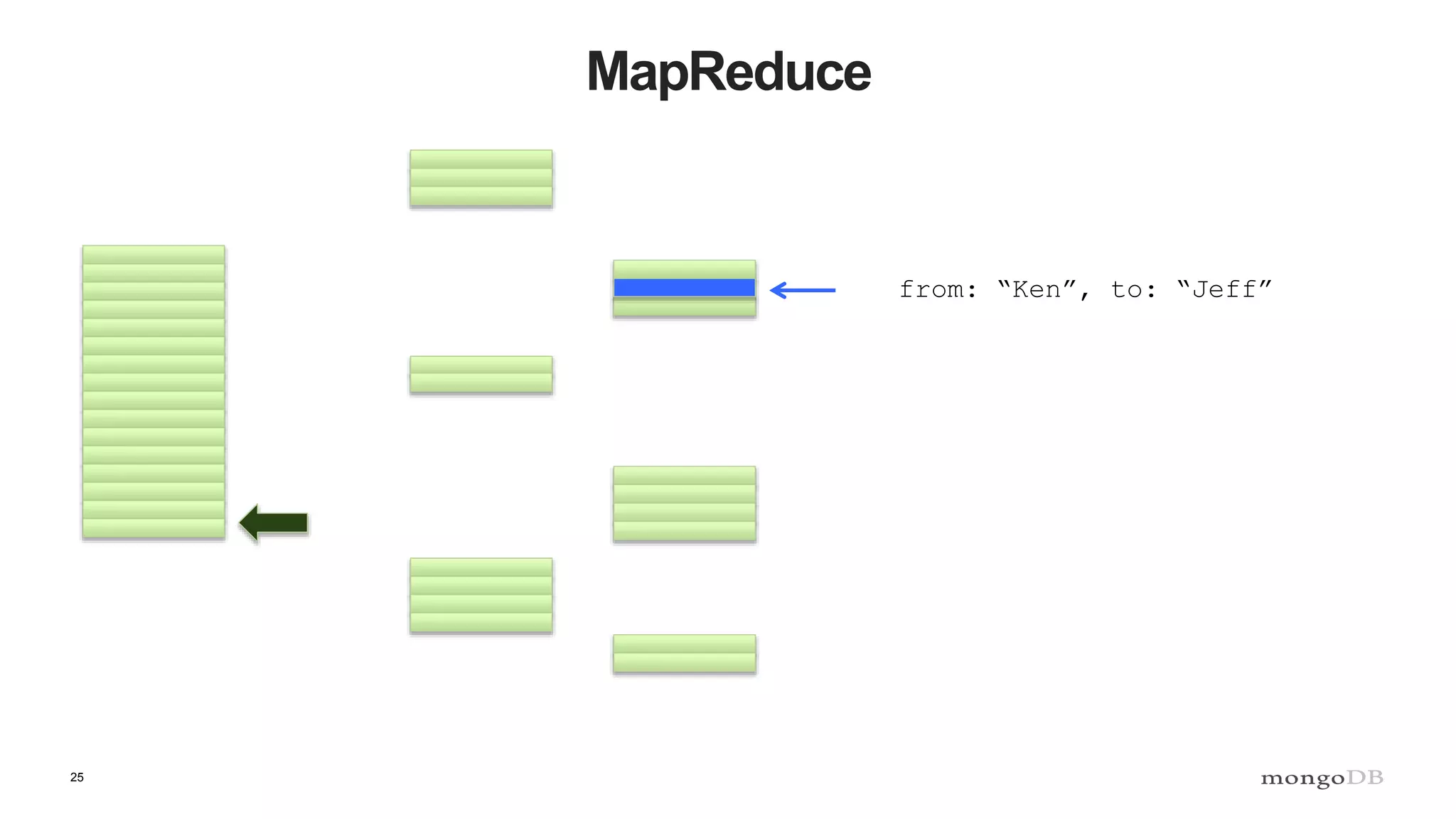

25. 25
MapReduce
from: “Ken”, to: “Jeff”

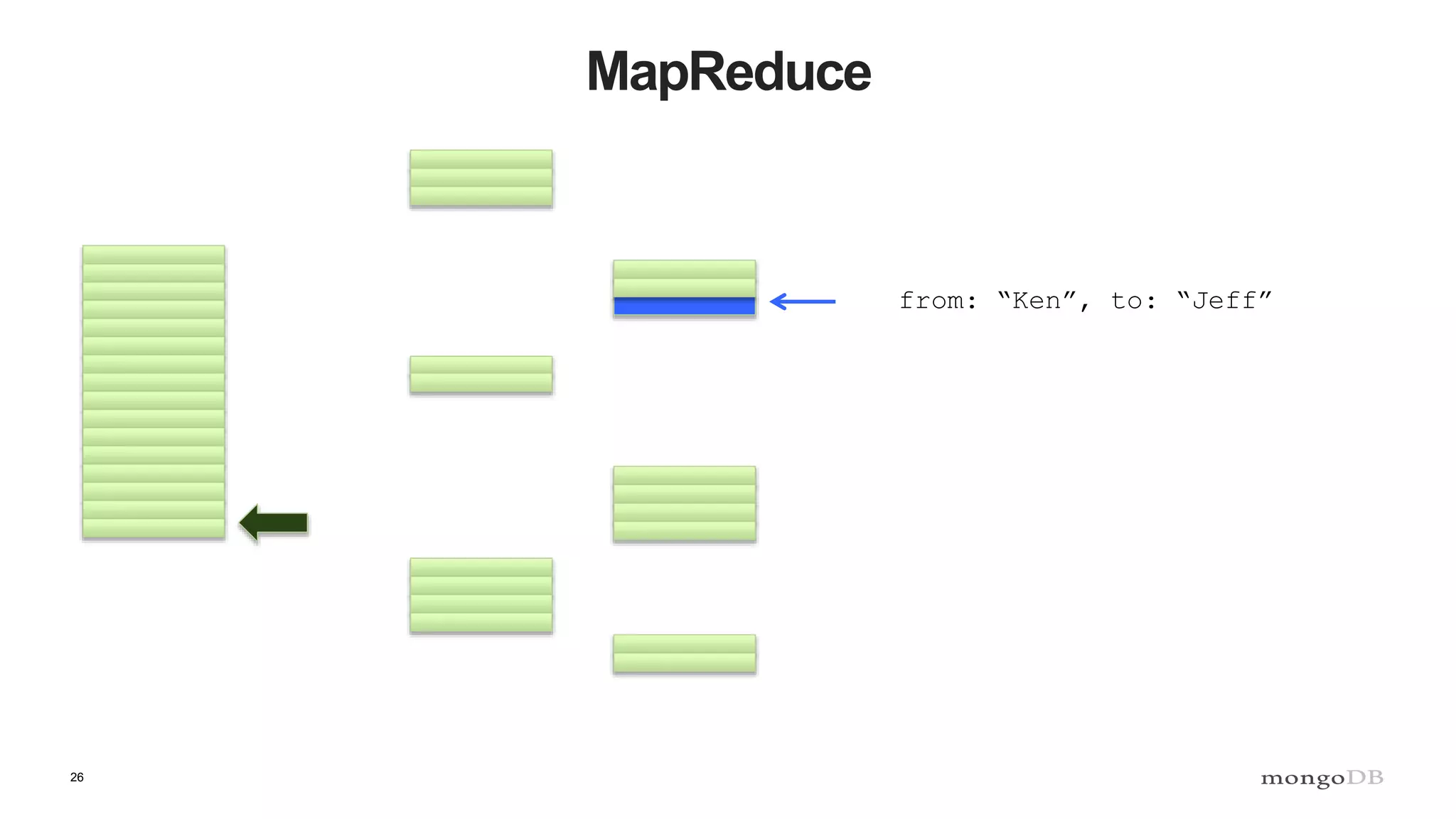

26. 26
MapReduce
from: “Ken”, to: “Jeff”

27. 27
MapReduce
from: “Ken”, to: “Andrew”

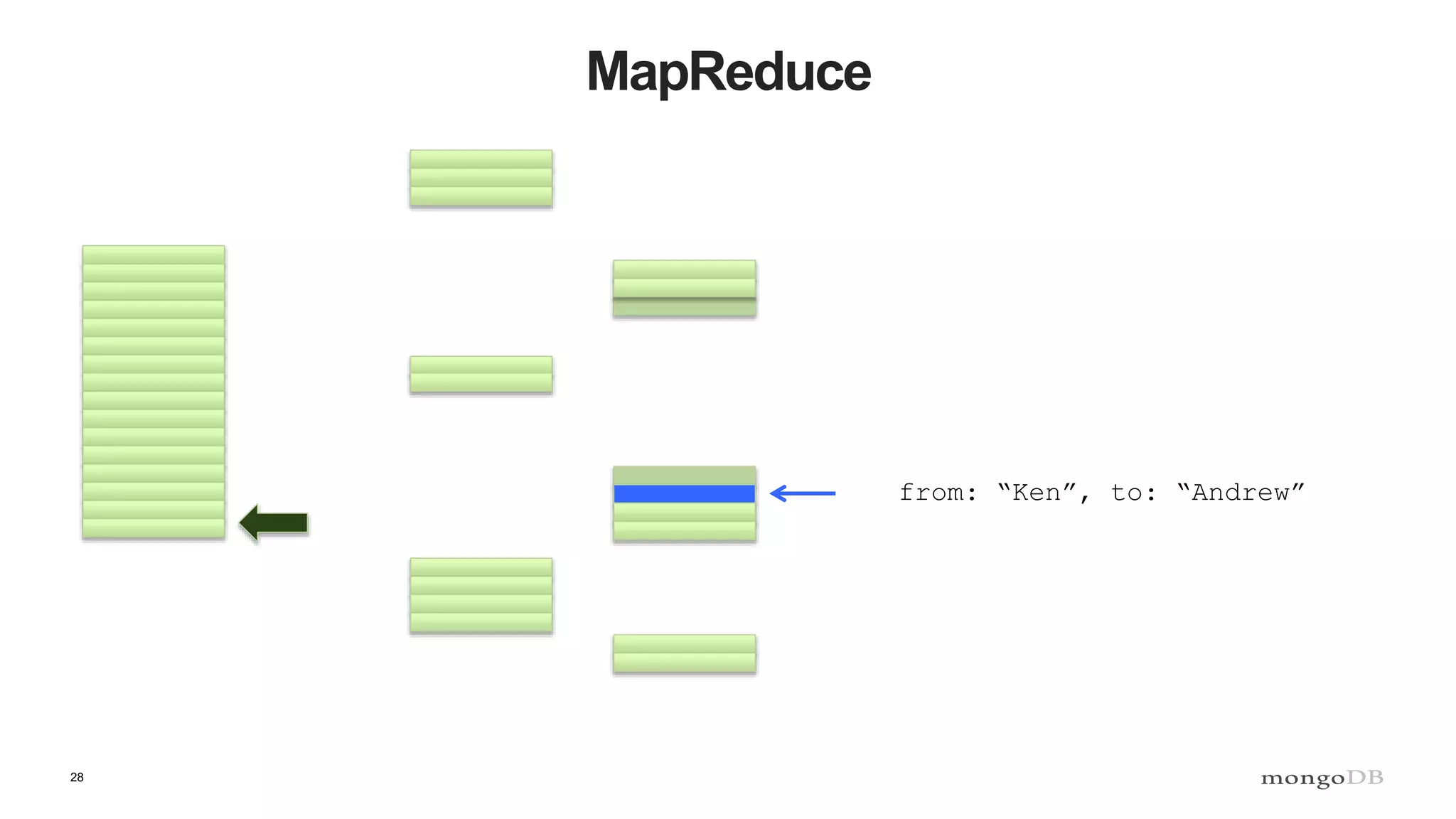

28. 28
MapReduce
from: “Ken”, to: “Andrew”

29. 29

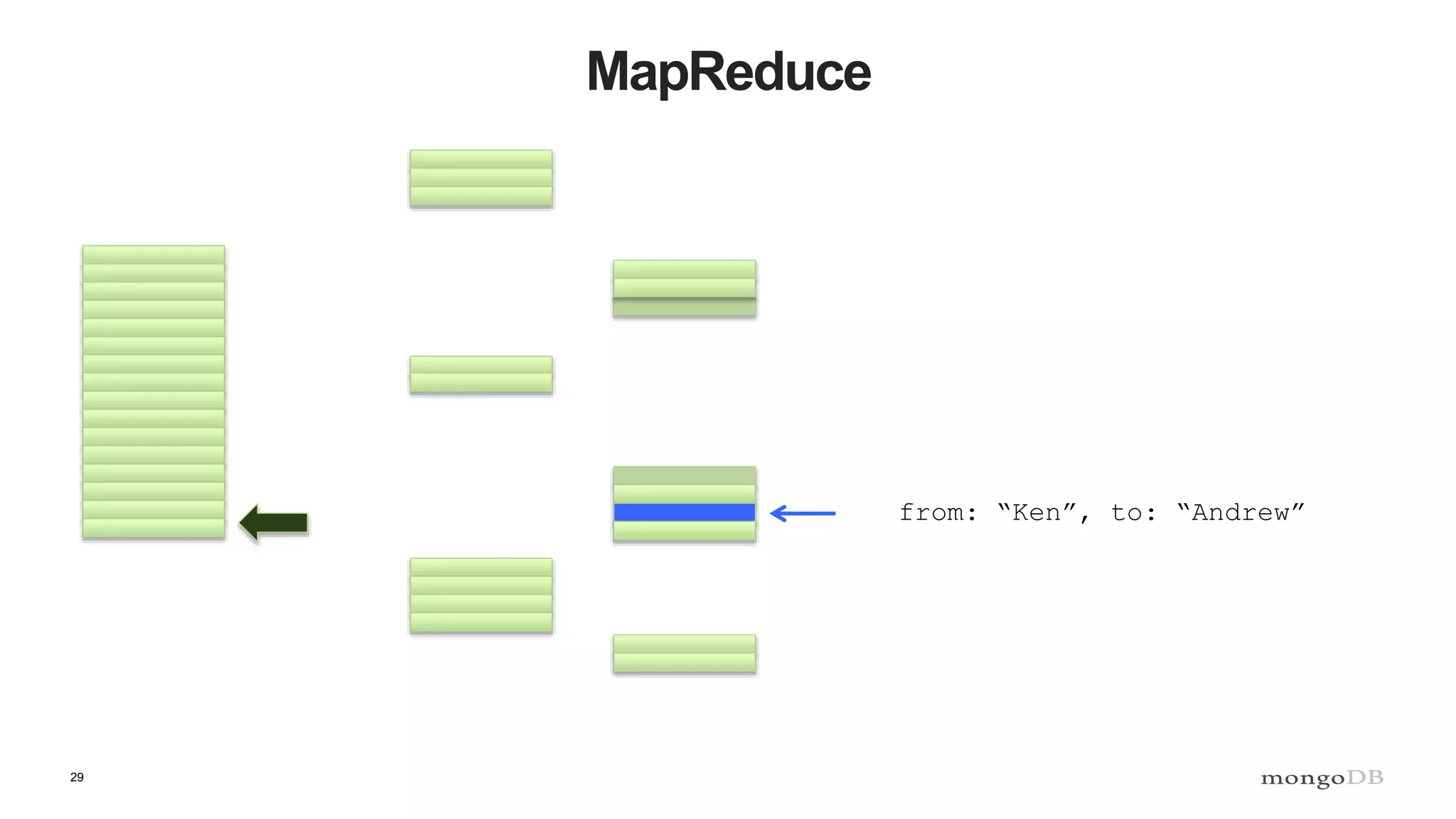

MapReduce
from: “Ken”, to: “Andrew”

30. 30
MapReduce
from: “Ken”, to: “Andrew”

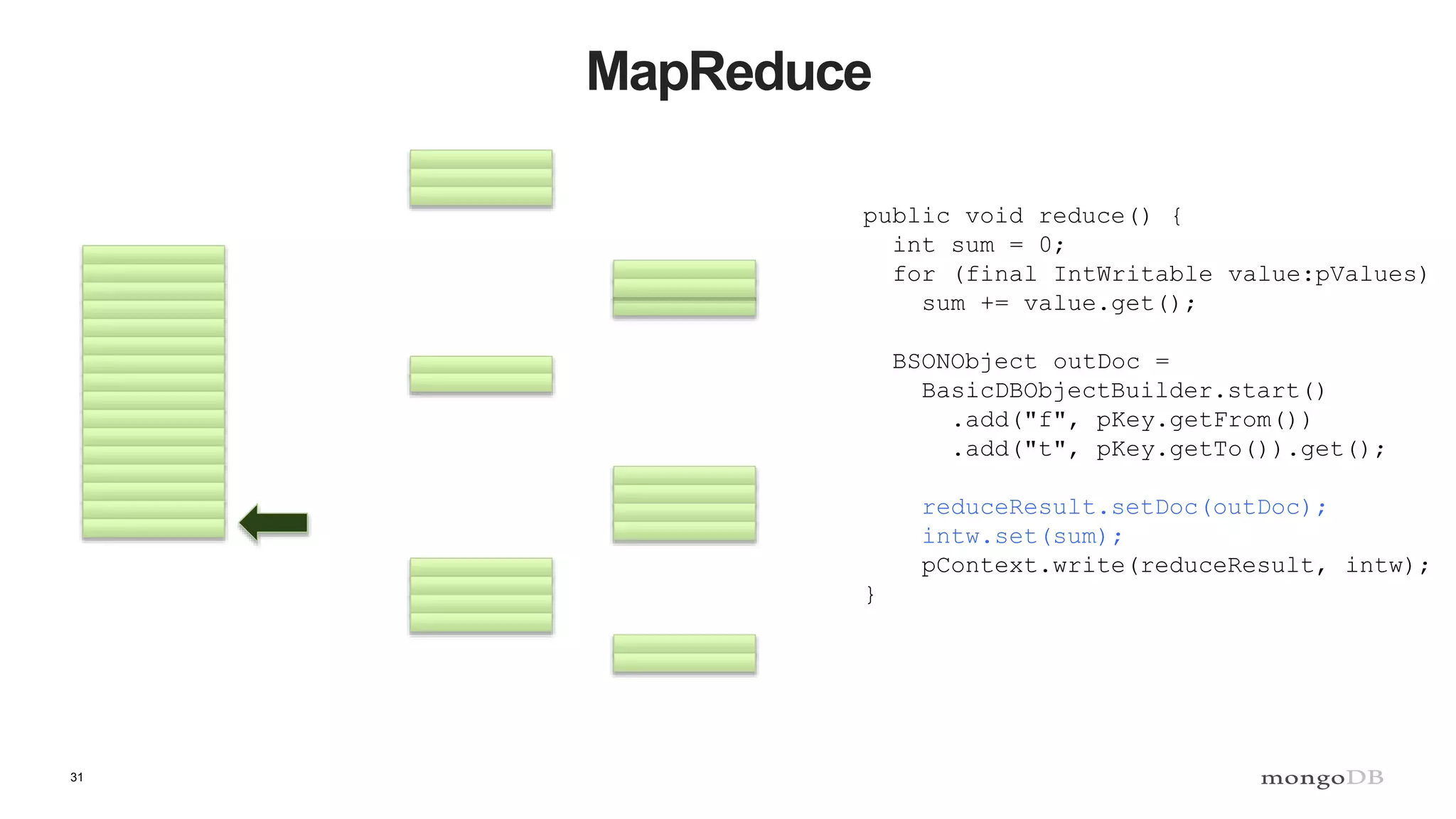

31. 31
MapReduce
public void reduce() {
int sum = 0;
for (final IntWritable value:pValues)
sum += value.get();
BSONObject outDoc =
BasicDBObjectBuilder.start()
.add("f", pKey.getFrom())
.add("t", pKey.getTo()).get();
reduceResult.setDoc(outDoc);
intw.set(sum);
pContext.write(reduceResult, intw);
}

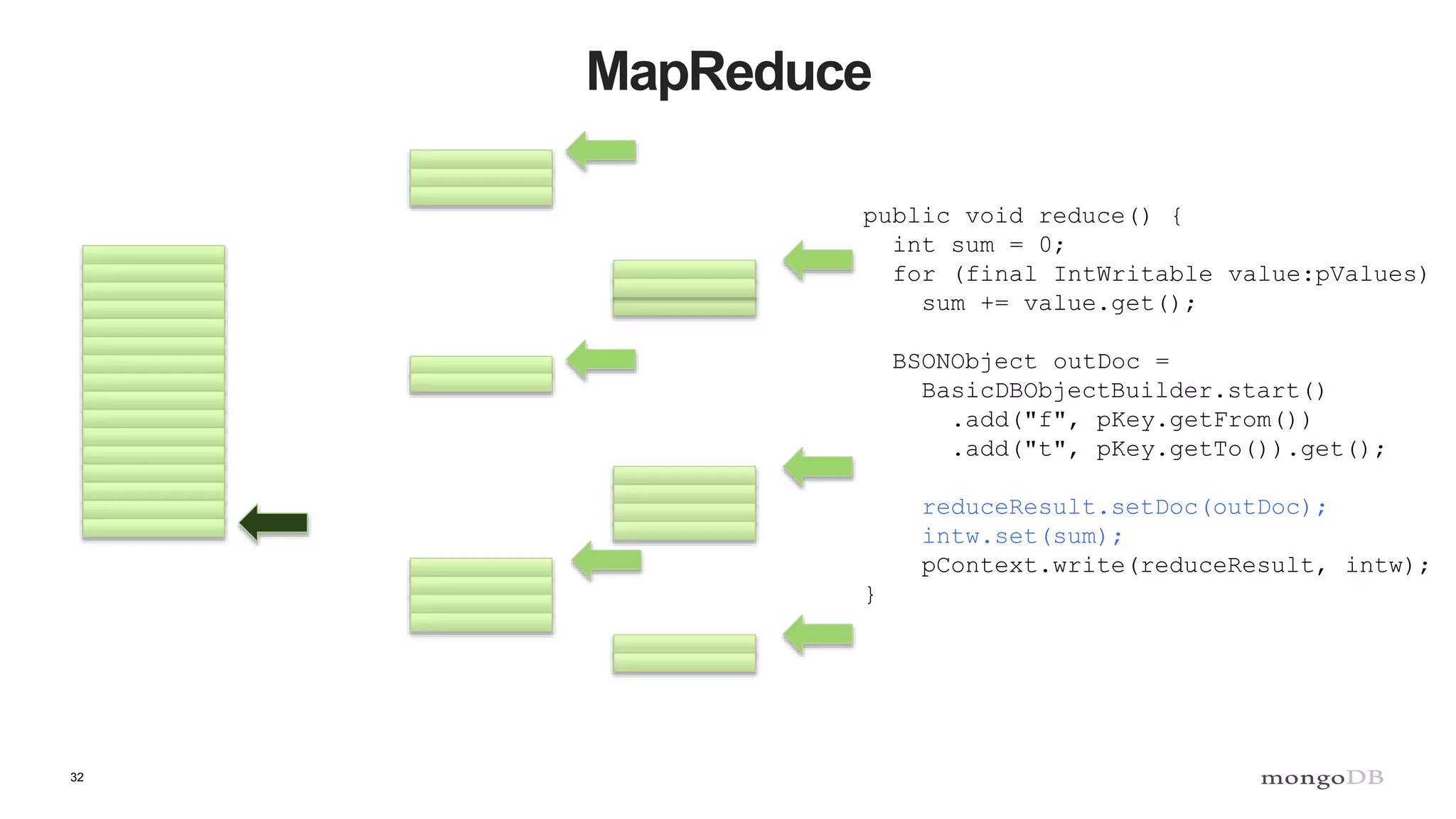

32. 32
MapReduce
public void reduce() {
int sum = 0;
for (final IntWritable value:pValues)
sum += value.get();
BSONObject outDoc =
BasicDBObjectBuilder.start()
.add("f", pKey.getFrom())
.add("t", pKey.getTo()).get();
reduceResult.setDoc(outDoc);
intw.set(sum);
pContext.write(reduceResult, intw);
}

33. Sharding & Input Splits

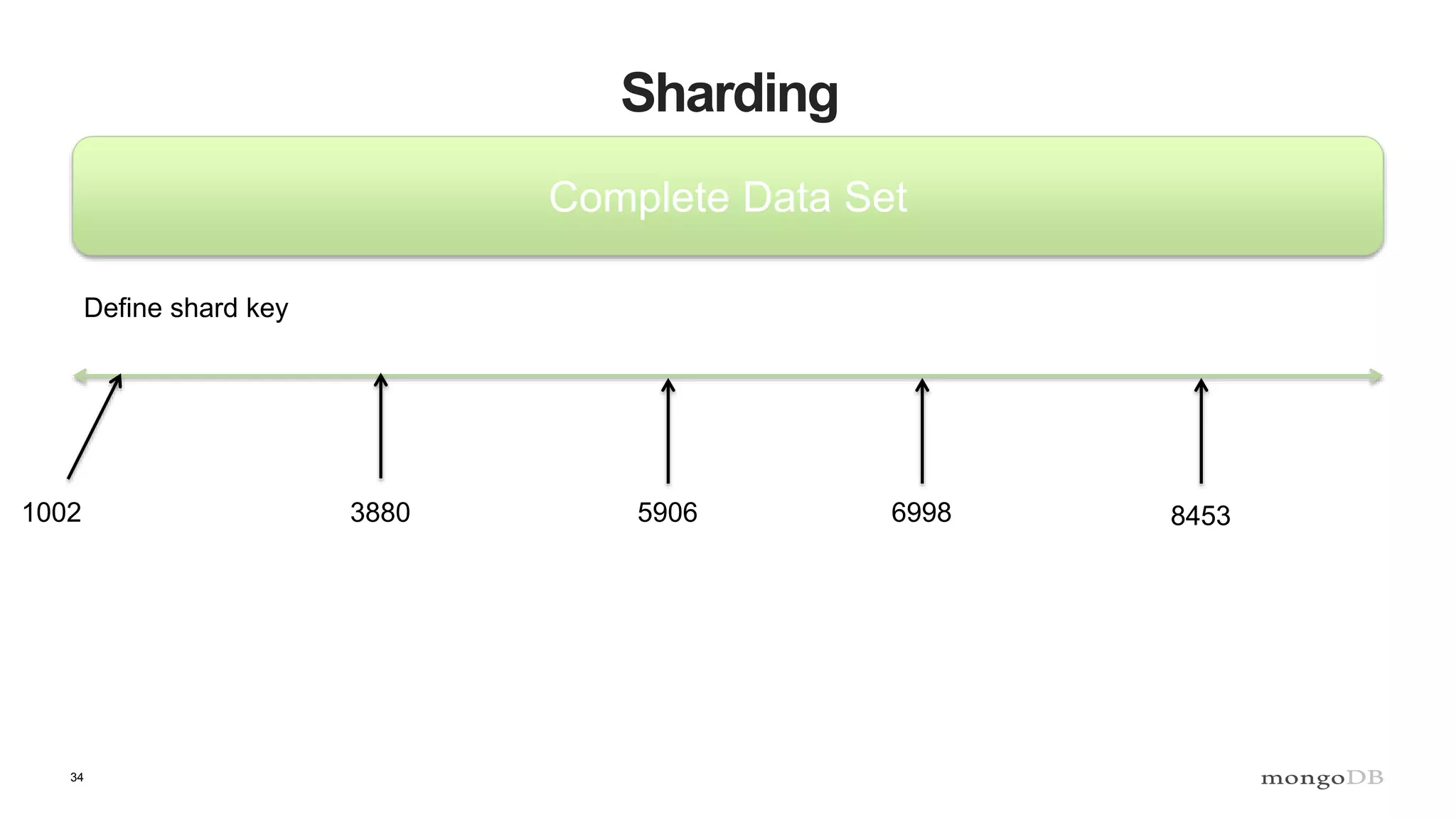

34. 34
Sharding
Complete Data Set
Define shard key
5906 84531002 69983880

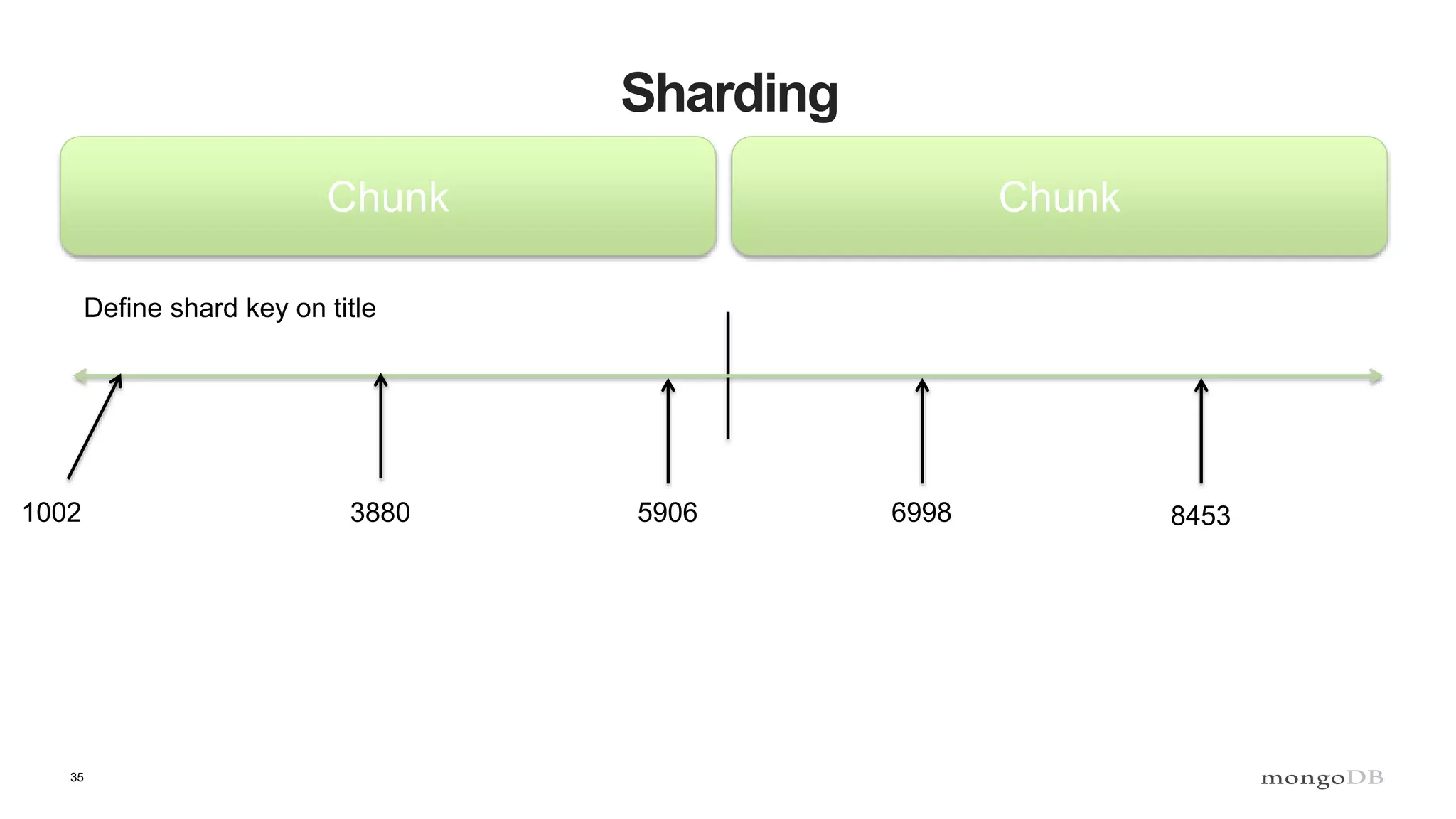

35. 35
Sharding
Chunk Chunk
Define shard key on title
5906 84531002 69983880

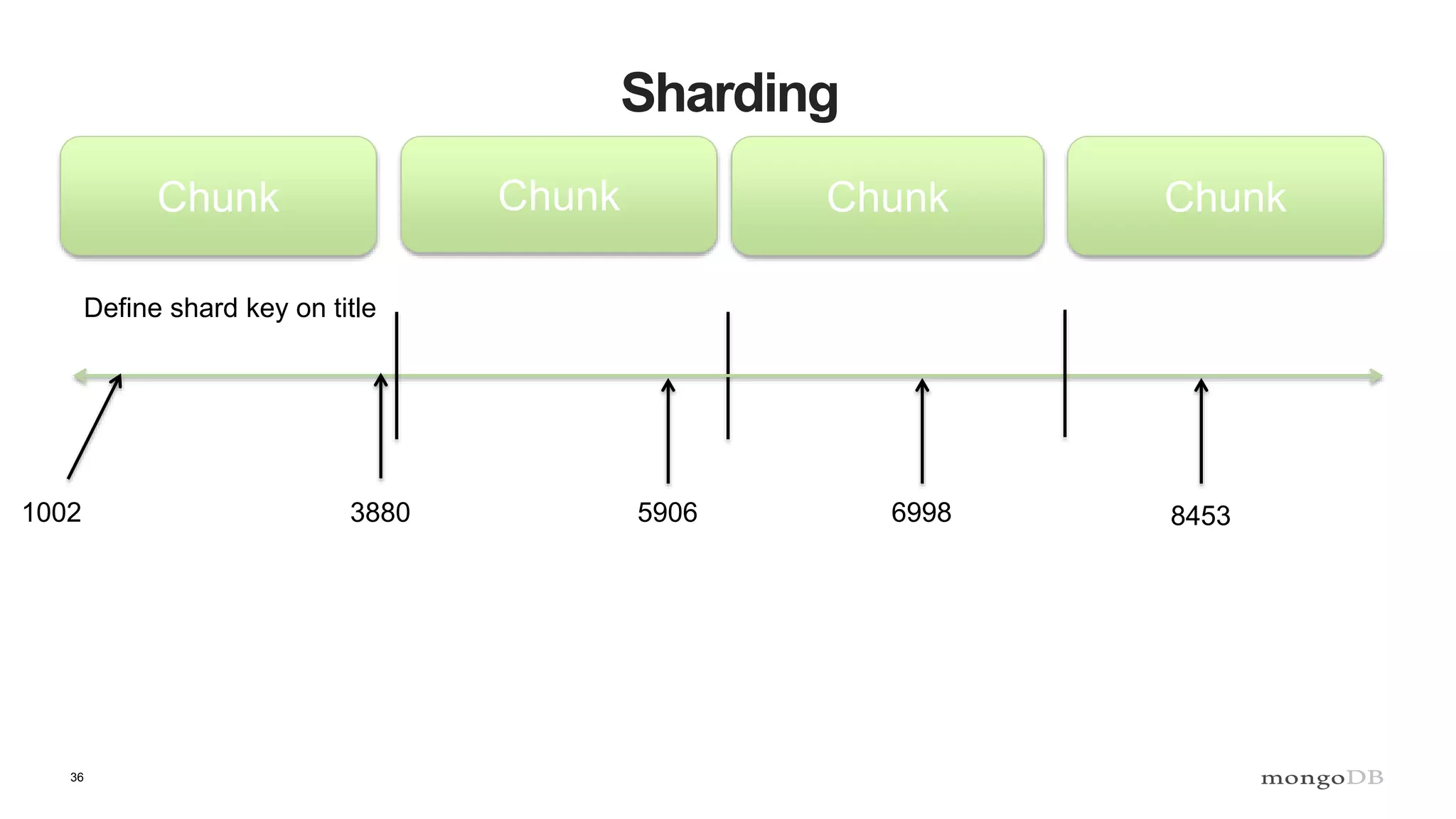

36. 36
Sharding
Chunk Chunk ChunkChunk
Define shard key on title
5906 84531002 69983880

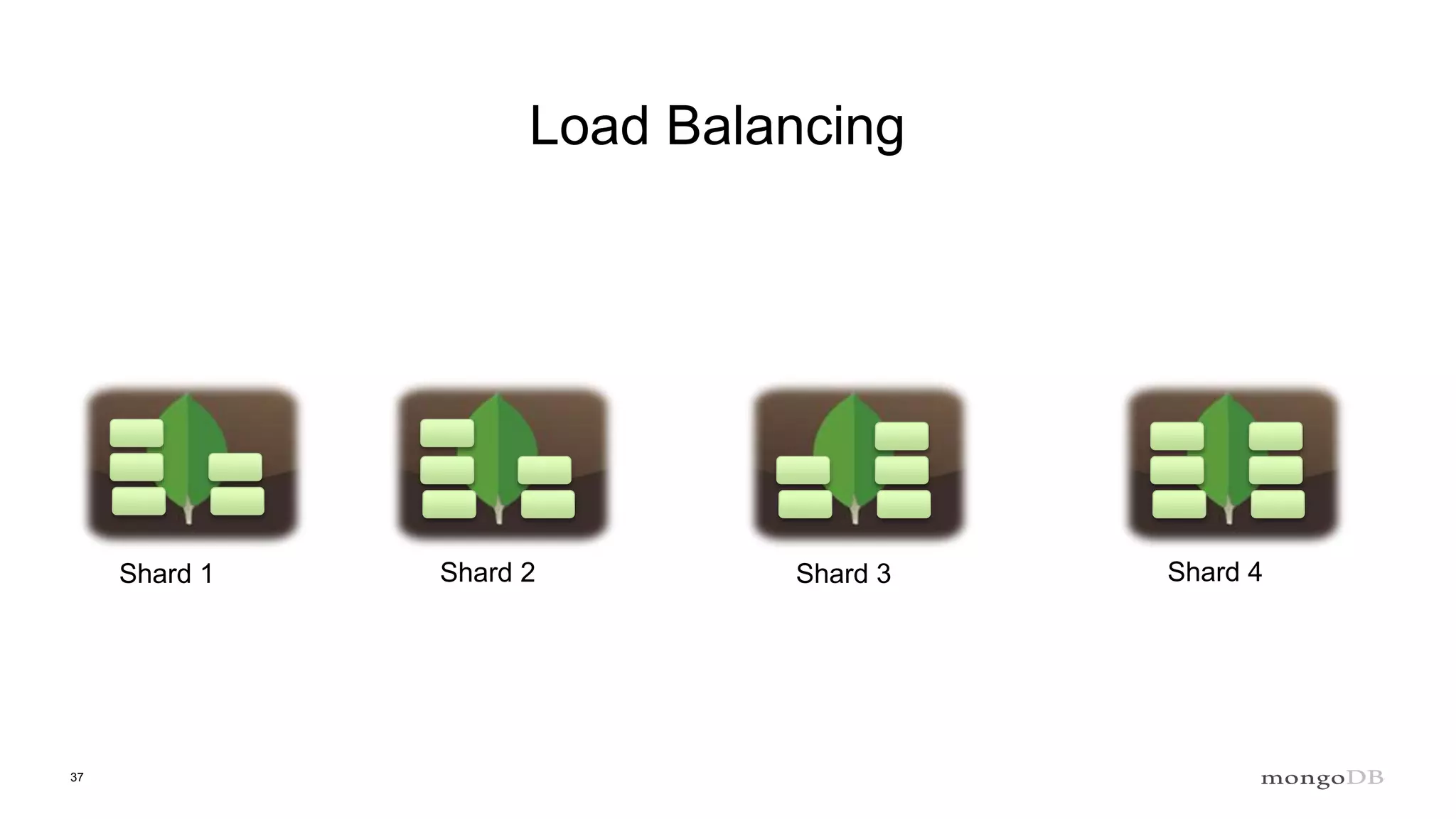

37. 37
Shard 1 Shard 2 Shard 3 Shard 4
Load Balancing

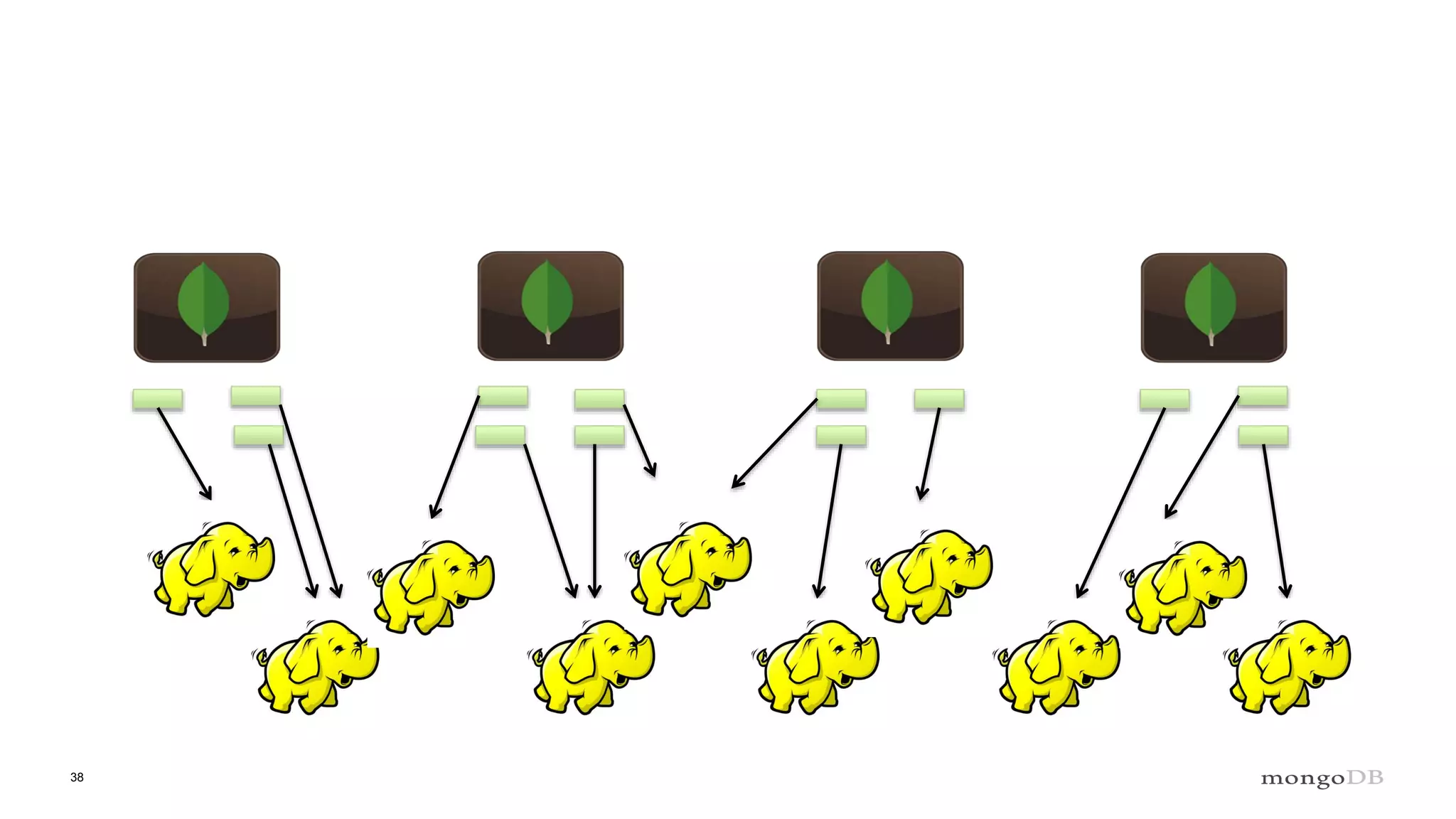

38. 38

39. 39

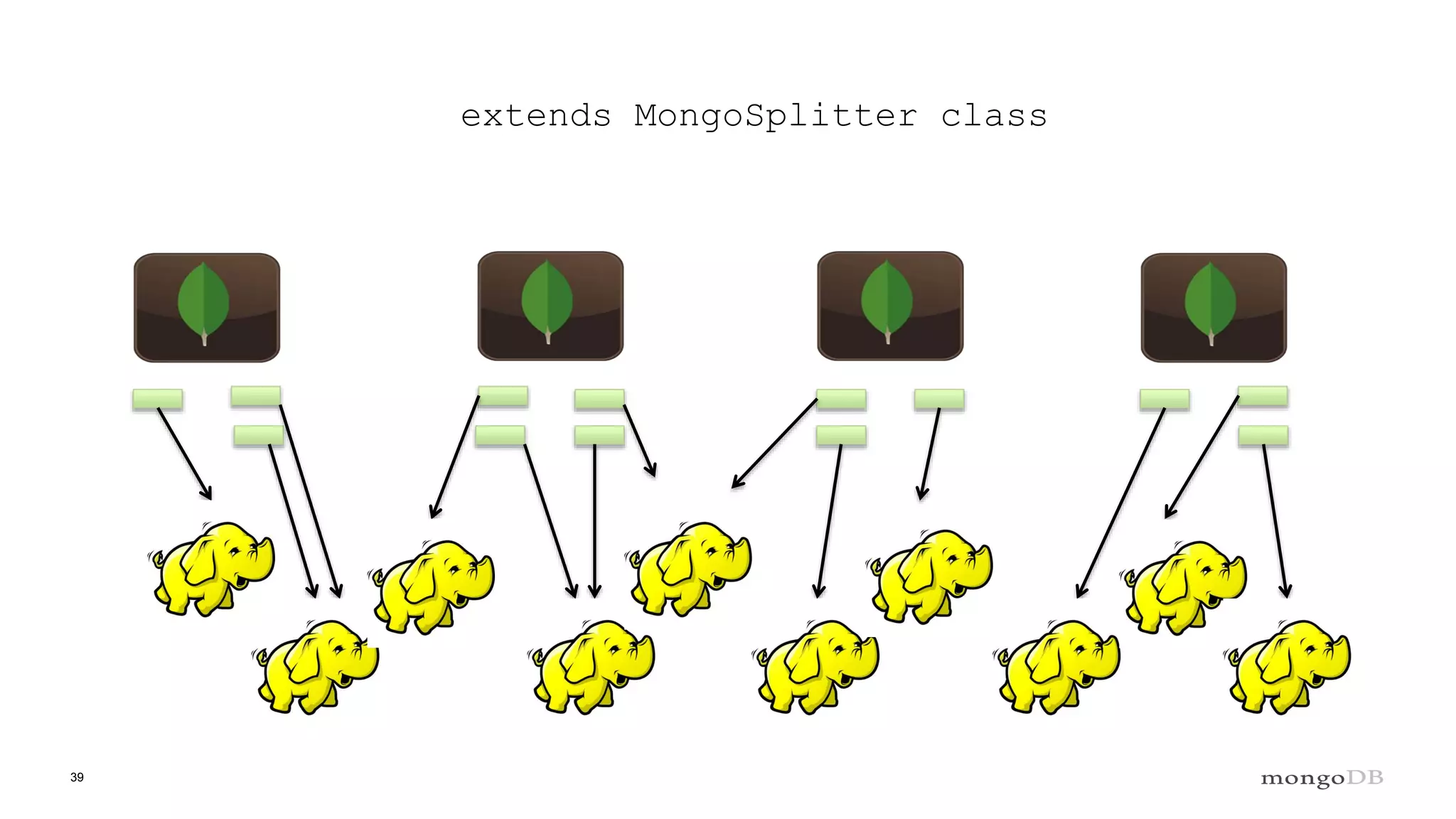

extends MongoSplitter class

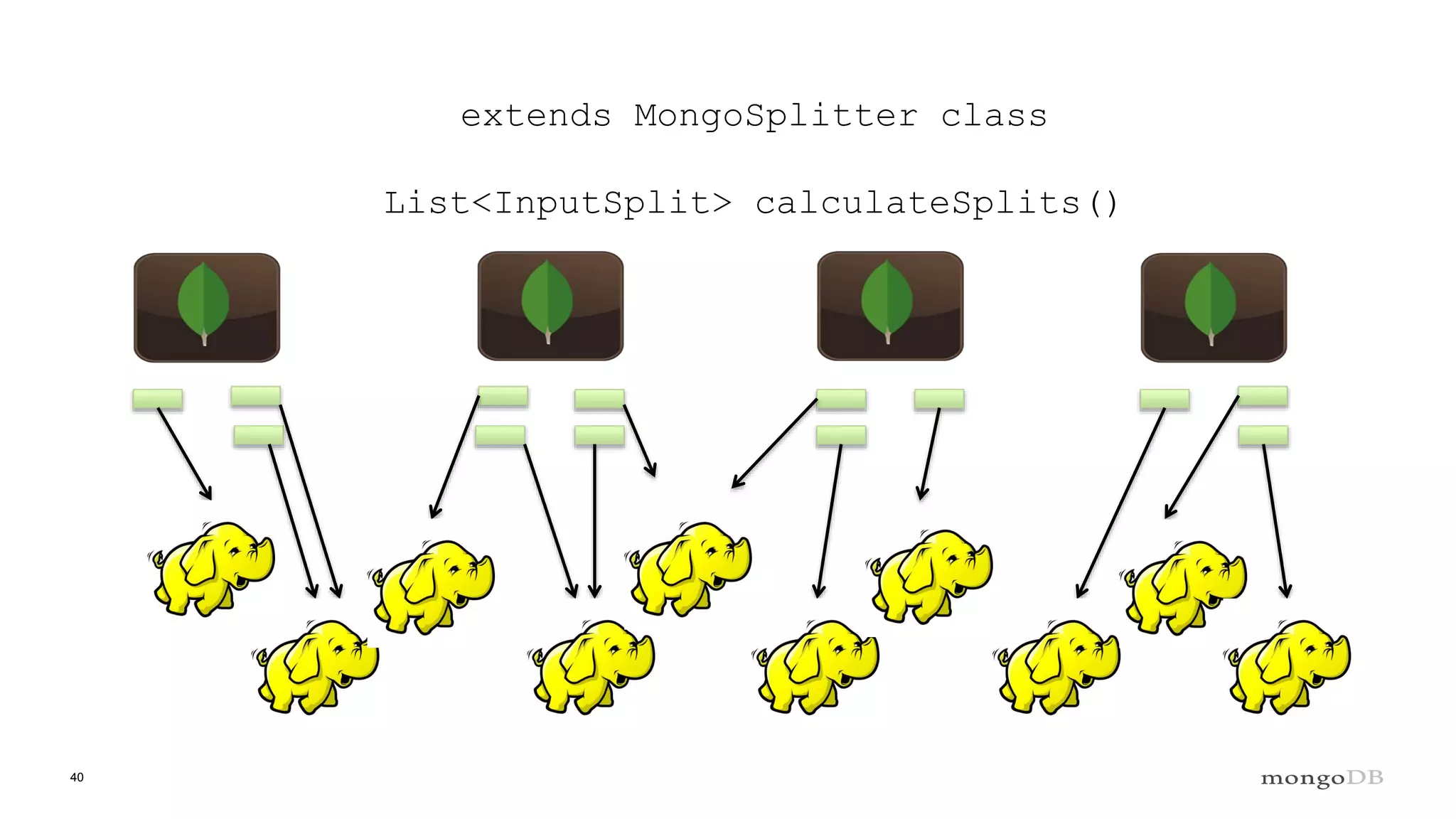

40. 40
extends MongoSplitter class
List<InputSplit> calculateSplits()

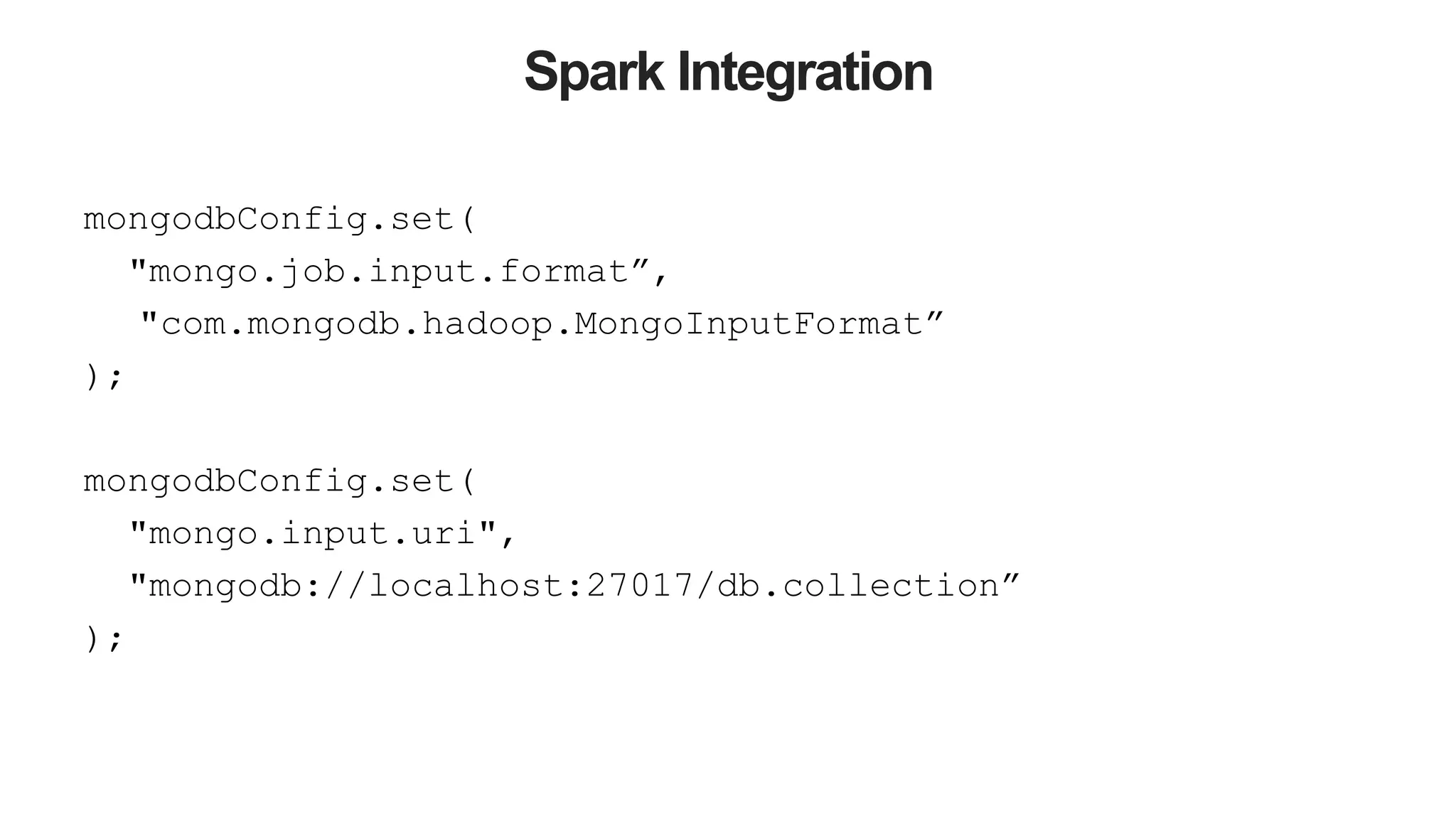

42. Spark Integration
mongodbConfig.set(
"mongo.job.input.format”,
"com.mongodb.hadoop.MongoInputFormat”
);
mongodbConfig.set(
"mongo.input.uri",
"mongodb://localhost:27017/db.collection”
);

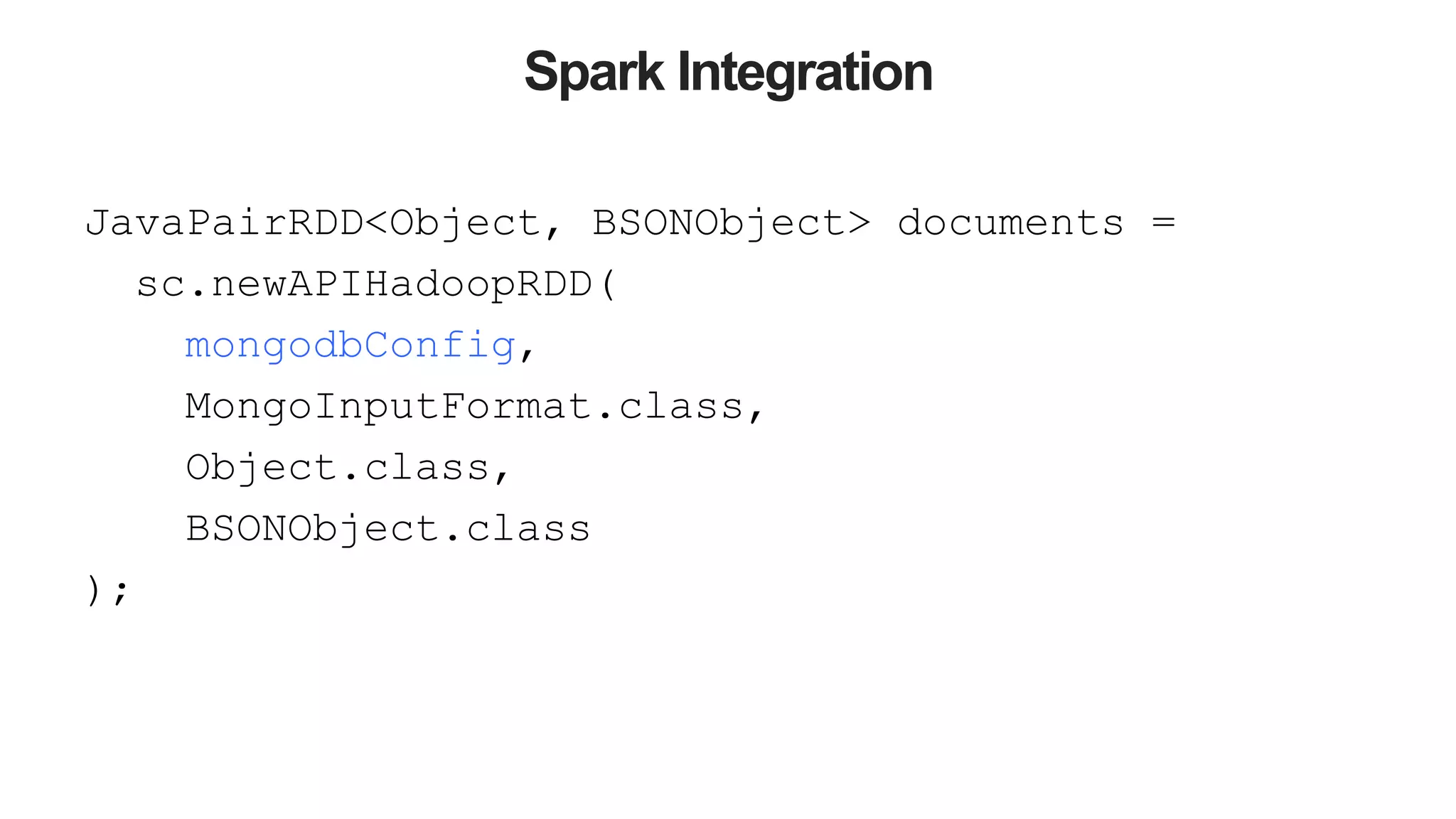

43. Spark Integration
JavaPairRDD<Object, BSONObject> documents =
sc.newAPIHadoopRDD(
mongodbConfig,
MongoInputFormat.class,
Object.class,
BSONObject.class
);

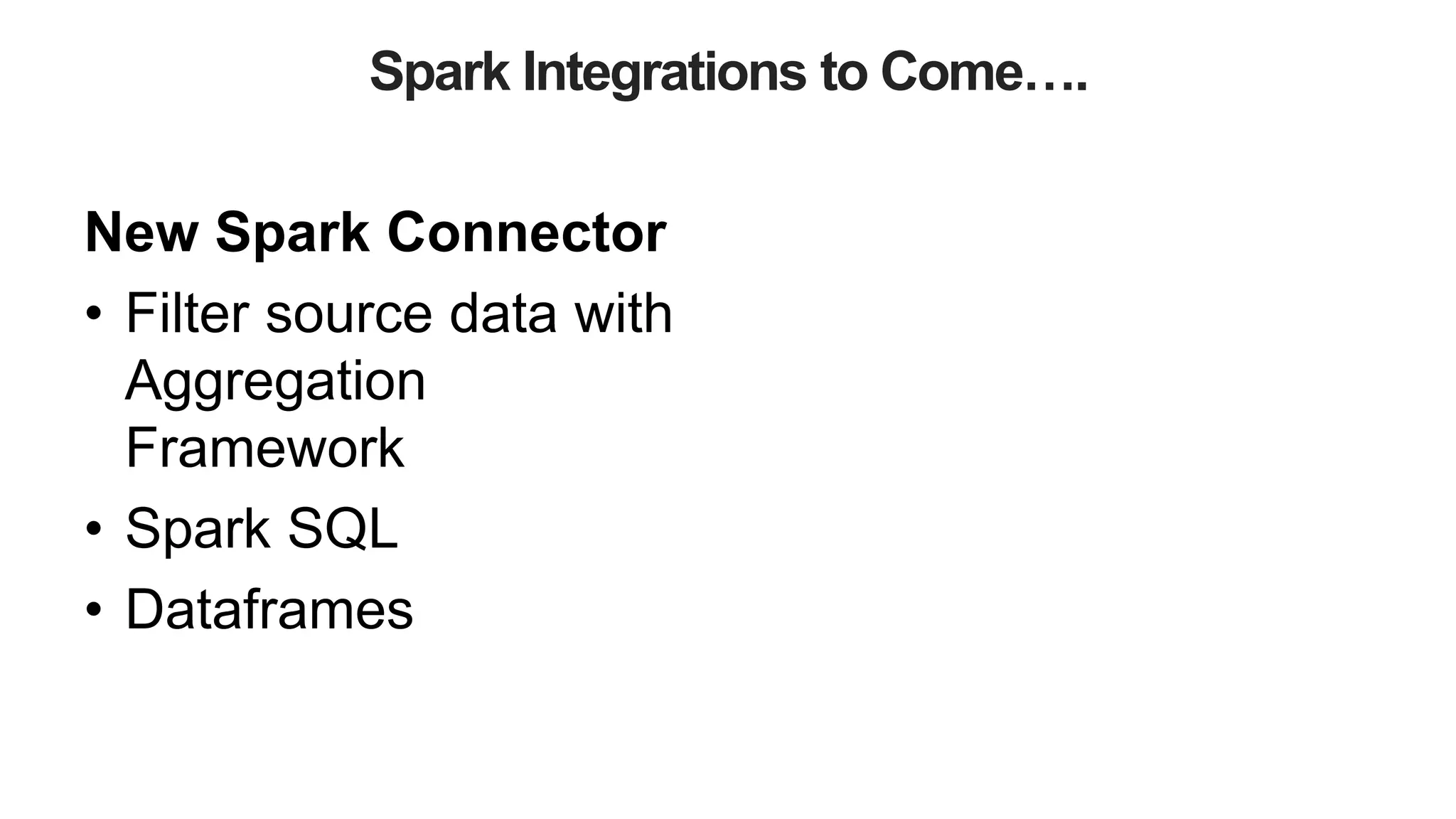

44. Spark Integrations to Come….
New Spark Connector
• Filter source data with
Aggregation
Framework
• Spark SQL
• Dataframes

45. Isolating Workloads

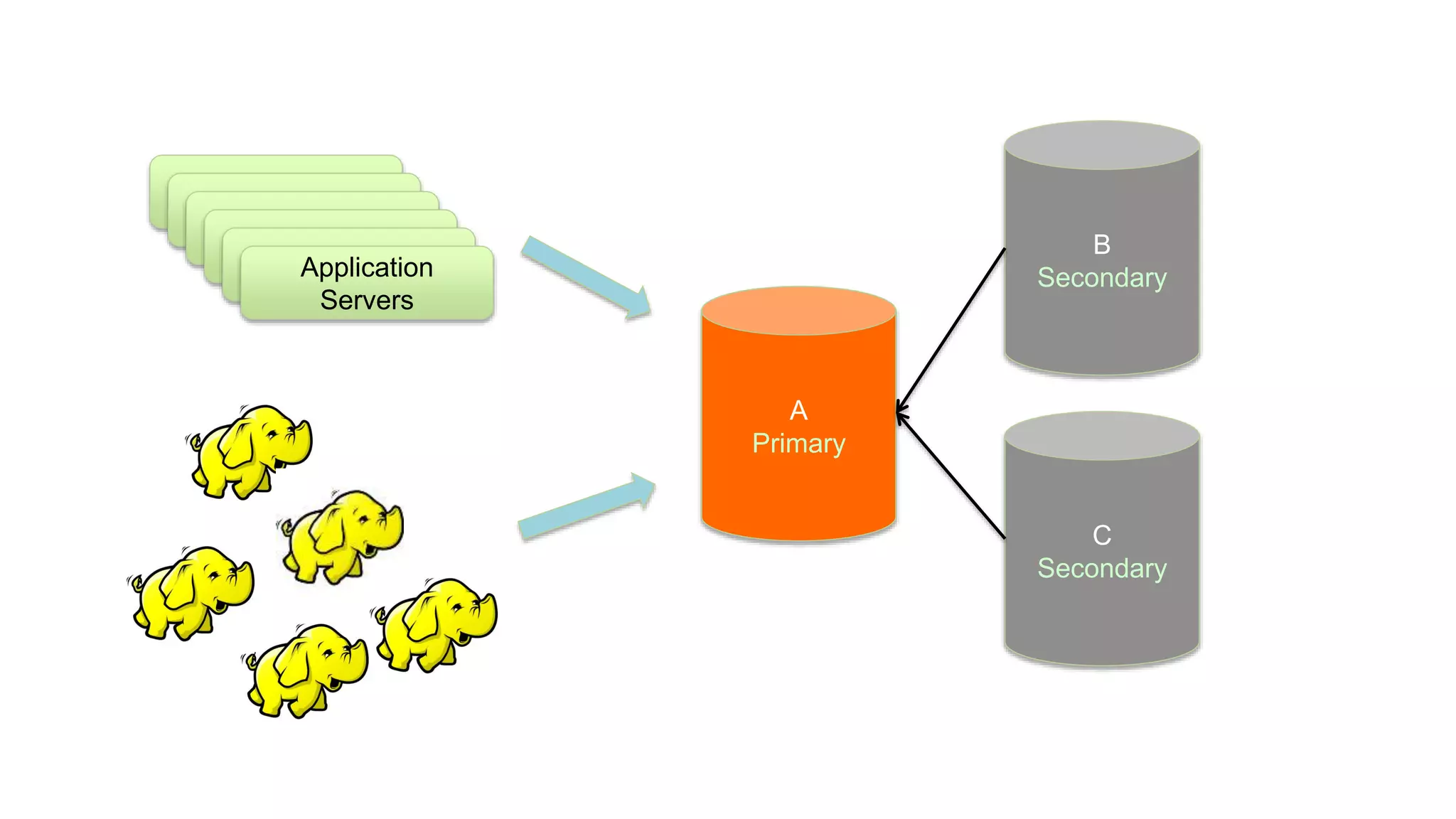

46. A
Primary
B
Secondary
C
Secondary
Application
Servers

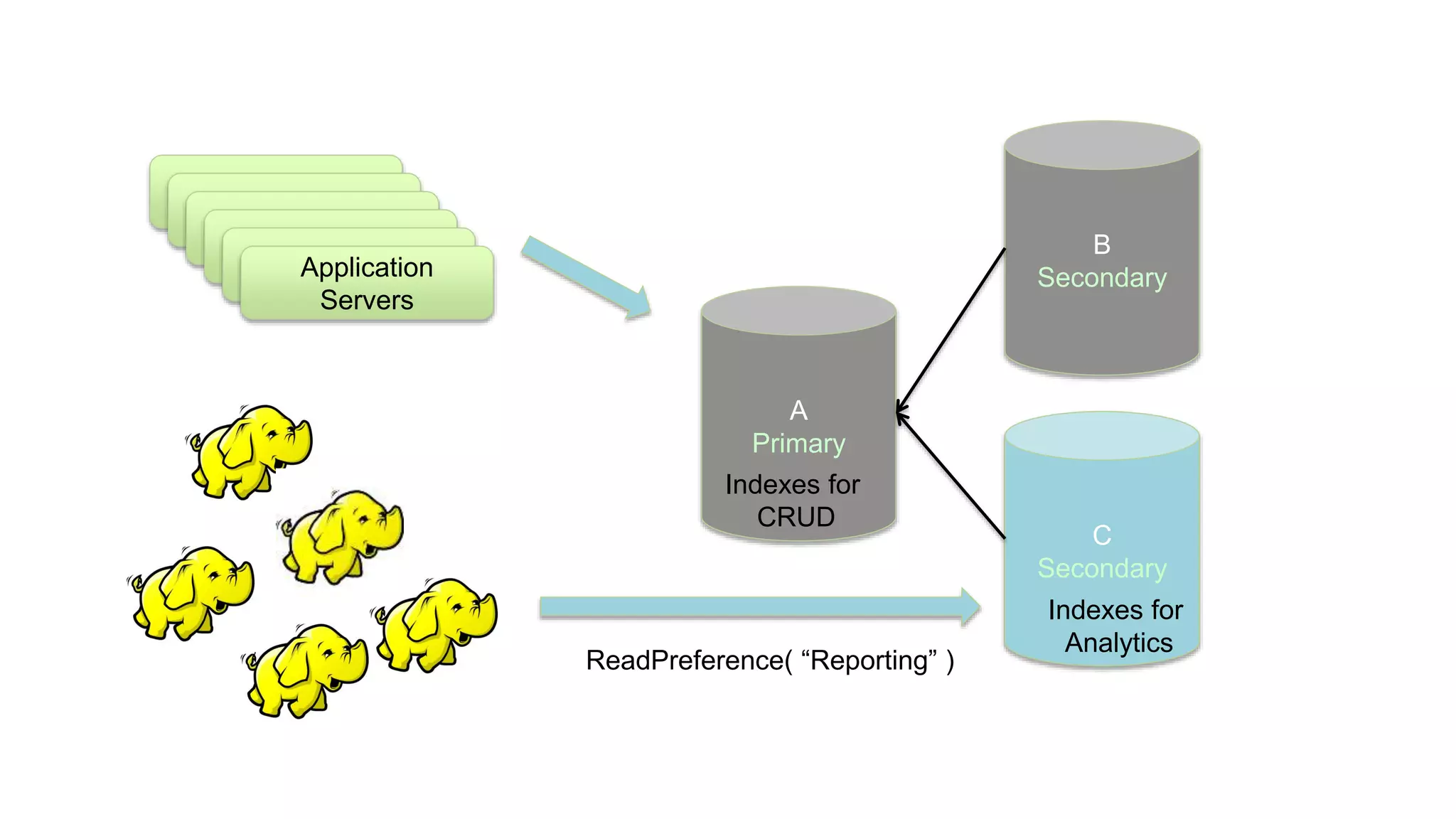

47. A
Primary
B
Secondary
C
Secondary
Application
Servers
Indexes for
CRUD
Indexes for
Analytics
ReadPreference( “Reporting” )

48. MongoDB + Hadoop + Spark
Benefits
• Access to machine learning
libs
• Closed loop processing
• Reduced deployment
complexity
• Leverage MongoDB
caching
• Persist intermediary results

49. Thanks!
{ name: ‘Bryan Reinero’,
title: ‘Developer Advocate’,
twitter: ‘@blimpyacht’,
code: ‘github.com/breinero’
email: ‘bryan@mongdb.com’ }
