Update 5 models in SPICE PARK(APR2018)

1
S P I C E P A R
K株式会社ビー・テクノロジー
www.beetech.info
All Rights Reserved Copyright (C) Bee Technologies Inc.
スパイス・パーク
2 0 1 8
年4 一四月

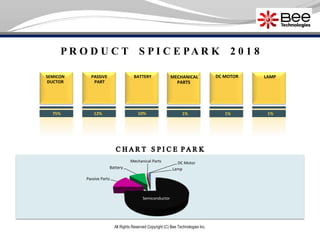

P R O D U C T S P I C E PA R K 2 0 1 8
Semiconductor
Passive Parts
Battery
Mechanical Parts DC Motor
Lamp
SEMICON
DUCTOR
75%
PASSIVE
PART
12%
BATTERY
10%
MECHANICAL
PARTS
1%
DC MOTOR
1%
LAMP
1%

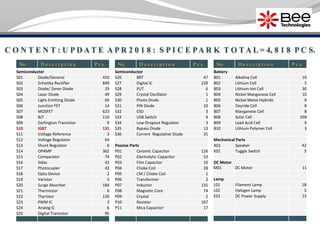

C O N T E N T : U P D A T E A P R 2 0 1 8 : S P I C E PA R K T O T A L = 4, 8 1 8 P C S.
No. D e s c r i p t i o n P c s.
Semiconductor
S01 Diode/General 410
S02 Schottky Rectifier 849
S03 Diode/ Zener Diode 29
S04 Laser Diode 49
S05 Light-Emitting Diode 60
S06 Junction FET 14
S07 MOSFET 623
S08 BJT 110
S09 Darlington Transistor 9
S10 IGBT 131
S11 Voltage Reference 3
S12 Voltage Regulator 64
S13 Shunt Regulator 6
S14 OPAMP 362
S15 Comparator 74
S16 Sidac 42
S17 Photocupler 43
S18 Opto Device 2
S19 Varistor 3
S20 Surge Absorber 184
S21 Thermistor 6
S22 Thyristor 130
S23 PWM IC 3
S24 Analog IC 6
S25 Digital Transistor 95
Semiconductor
S26 BRT 47
S27 Digital IC 239
S28 PUT 6
S29 Crystal Oscillator 1
S30 Photo Diode 1
S31 PIN Diode 10
S32 ESD 3
S33 USB Switch 4
S34 Low-Dropout Regulator 3
S35 Bypass Diode 13
S36 Current Regulative Diode 31
Passive Parts
P01 Ceramic Capacitor 126
P02 Electrolytic Capacitor 53
P03 Film Capacitor 10
P04 Choke Coil 28
P05 CM / Choke Coil 1
P06 Transformer 2
P07 Inductor 131
P08 Magnetic Core 74
P09 Crystal 2
P10 Resistor 167
P11 Mica Capacitor 17
Battery
B01 Alkaline Cell 10
B02 Lithium Cell 5
B03 Lithium-Ion Cell 30
B04 Nickel Manganese Cell 10
B05 Nickel Metal-Hydride 9
B06 Oxyride Cell 8
B07 Manganese Cell 8
B08 Solar Cell 358
B09 Lead Acid Cell 9
B10 Lithium Polymer Cell 3
Mechanical Parts
A01 Speaker 42
K01 Toggle Switch 3
DC Motor
M01 DC Motor 11
Lamp
L01 Filament Lamp 18
L02 Halogen Lamp 3
E01 DC Power Supply 15

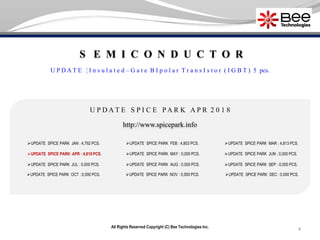

4All Rights Reserved Copyright (C) Bee Technologies Inc.
S E M I C O N D U C T O R
U P D A T E ¦ I n s u l a t e d – G a t e B I p o l a r T r a n s I s t o r ( I G B T ) 5 pcs.
U P D A T E S P I C E P A R K A P R 2 0 1 8
UPDATE SPICE PARK JAN : 4,792 PCS.
UPDATE SPICE PARK APR : 4,818 PCS.
UPDATE SPICE PARK JUL : 0,000 PCS.
UPDATE SPICE PARK OCT : 0,000 PCS.
UPDATE SPICE PARK FEB : 4,803 PCS.
UPDATE SPICE PARK MAY : 0,000 PCS.
UPDATE SPICE PARK AUG : 0,000 PCS.
UPDATE SPICE PARK NOV : 0,000 PCS.
UPDATE SPICE PARK MAR : 4,813 PCS.
UPDATE SPICE PARK JUN : 0,000 PCS.
UPDATE SPICE PARK SEP : 0,000 PCS.
UPDATE SPICE PARK DEC : 0,000 PCS.
http://www.spicepark.info

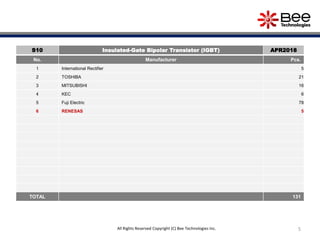

S10 Insulated-Gate Bipolar Transistor (IGBT) APR2018
No. Manufacturer Pcs.
1 International Rectifier 5
2 TOSHIBA 21
3 MITSUBISHI 16
4 KEC 6
5 Fuji Electric 78
6 RENESAS 5
TOTAL 131

S10 : Insulated-Gate Bipolar Transistor (IGBT)
No. Part Number Manufacturer Pol IGBT(TYPE) FWD(TYPE) Simulator Simulator Update
1 IRG4BC20SD-S IR N-channel Standard FWDP PSpice N/A 2006
2 IRG4IBC20KD IR N-channel Standard FWDP PSpice N/A 2006
3 IRG4PC50KD IR N-channel Standard FWDP PSpice N/A 2006
4 IRG4PF50W IR N-channel Standard Without PSpice N/A 2006
5 IRG4PH50KD IR N-channel Standard FWDP PSpice N/A 2006
6 GT8J101 TOSHIBA N-channel Standard Without PSpice N/A 2006
7 GT8J102(SM) TOSHIBA N-channel Standard Without PSpice N/A 2006
8 GT8Q101 TOSHIBA N-channel Standard Without PSpice N/A 2006
9 GT10J321 TOSHIBA N-channel Standard FWDP PSpice N/A 2006
12 GT15J103(SM) TOSHIBA N-channel Standard Without PSpice N/A 2006
15 GT10Q301 TOSHIBA N-channel Professional FWD(SP) PSpice LTspice Apr-11
16 GT10Q301 TOSHIBA N-channel Professional FWDP PSpice LTspice Apr-11
17 GT10Q301 TOSHIBA N-channel Professional FWDS PSpice LTspice Apr-11
18 GT15J321 TOSHIBA N-channel Professional FWD(SP) PSpice LTspice Apr-11
19 GT15J321 TOSHIBA N-channel Professional FWDP PSpice LTspice Apr-11
20 GT15J321 TOSHIBA N-channel Professional FWDS PSpice LTspice Apr-11
21 GT15M321 TOSHIBA N-channel Professional FWD(SP) PSpice LTspice Apr-11
22 GT15M321 TOSHIBA N-channel Professional FWDP PSpice LTspice Apr-11
23 GT15M321 TOSHIBA N-channel Professional FWDS PSpice LTspice Apr-11
24 GT20J321 TOSHIBA N-channel Professional FWD(SP) PSpice LTspice Apr-11
25 GT20J321 TOSHIBA N-channel Professional FWDP PSpice LTspice Apr-11

26 GT20J321 TOSHIBA N-channel Professional FWDS PSpice LTspice Apr-11
27 CM200HA-24H MITSUBISHI N-channel Professional FWDP PSpice N/A Jul-10
28 CM200HA-24H MITSUBISHI N-channel Standard FWDS PSpice N/A Jul-10
30 CM300HA-12H MITSUBISHI N-channel Professional FWDS PSpice N/A Jul-10
33 CM450HA-5F MITSUBISHI N-channel Professional FWDP PSpice N/A Jul-10
34 CM450HA-5F MITSUBISHI N-channel Professional FWDS PSpice N/A Jul-10
35 CM600HA-5F MITSUBISHI N-channel Professional FWDP PSpice N/A Jul-10
36 CM600HA-5F MITSUBISHI N-channel Professional FWDS PSpice N/A Jul-10
41 CM600HU-12H MITSUBISHI N-channel Professional FWDP PSpice N/A Jul-10
42 CM600HU-12H MITSUBISHI N-channel Professional FWDS PSpice N/A Jul-10
43 KGH15N120NDA KEC N-channel Professional FWD(SP) PSpice N/A Sep-10
44 KGH15N120NDA KEC N-channel Professional FWDP PSpice N/A Sep-10
45 KGH15N120NDA KEC N-channel Professional FWDS PSpice N/A Sep-10
46 KGH25N120NDA KEC N-channel Professional FWD(SP) PSpice N/A Sep-10
47 KGH25N120NDA KEC N-channel Professional FWDP PSpice N/A Sep-10
48 KGH25N120NDA KEC N-channel Professional FWDS PSpice N/A Sep-10
49 1MB03D-120 Fuji Electric N-channel Professional FWD(SP) PSpice N/A Jan-11
50 1MB03D-120 Fuji Electric N-channel Professional FWDP PSpice N/A Jan-11

51 1MB03D-120 Fuji Electric N-channel Professional FWDS PSpice N/A Jan-11
52 1MB05-120 Fuji Electric N-channel Professional FWDS PSpice N/A Jan-11
56 1MB08-120 Fuji Electric N-channel Professional Without PSpice N/A Jan-11
72 1MBC03-120 Fuji Electric N-channel Professional Without PSpice N/A Jan-11
74 1MBC05D-060 Fuji Electric N-channel Professional FWD(SP) PSpice N/A Jan-11
75 1MBC05D-060 Fuji Electric N-channel Professional FWDP PSpice N/A Jan-11

76 1MBC05D-060 Fuji Electric N-channel Professional FWDS PSpice N/A Jan-11
78 1MBC10D-060 Fuji Electric N-channel Professional FWD(SP) PSpice N/A Jan-11
79 1MBC10D-060 Fuji Electric N-channel Professional FWDP PSpice N/A Jan-11
80 1MBC10D-060 Fuji Electric N-channel Professional FWDS PSpice N/A Jan-11
82 1MBG05D-060 Fuji Electric N-channel Professional FWD(SP) PSpice N/A Jan-11
83 1MBG05D-060 Fuji Electric N-channel Professional FWDP PSpice N/A Jan-11
84 1MBG05D-060 Fuji Electric N-channel Professional FWDS PSpice N/A Jan-11
85 1MBG10D-060 Fuji Electric N-channel Professional FWD(SP) PSpice N/A Jan-11
86 1MBG10D-060 Fuji Electric N-channel Professional FWDP PSpice N/A Jan-11
87 1MBG10D-060 Fuji Electric N-channel Professional FWDS PSpice N/A Jan-11
88 1MBH03D-120 Fuji Electric N-channel Professional FWD(SP) PSpice N/A Jan-11
89 1MBH03D-120 Fuji Electric N-channel Professional FWDP PSpice N/A Jan-11
90 1MBH03D-120 Fuji Electric N-channel Professional FWDS PSpice N/A Jan-11

106 1MBH15-120 Fuji Electric N-channel Professional Without PSpice N/A Jan-11

11

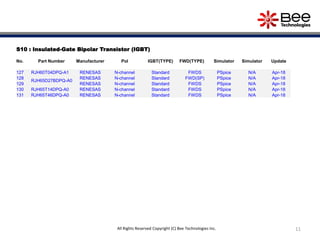

127 RJH60T04DPQ-A1 RENESAS N-channel Standard FWDS PSpice N/A Apr-18
128
RJH65D27BDPQ-A0
RENESAS N-channel Standard FWD(SP) PSpice N/A Apr-18
129 RENESAS N-channel Standard FWDS PSpice N/A Apr-18
