SPICEモデルの全リスト(スパイス・パーク 2015年6月度 4,381モデル)
This document lists specifications for 282 general purpose rectifier diodes from 12 manufacturers including Fairchild, Fuji, International Rectifier, Intersil, and ROHM. Each diode part is listed along with its manufacturer, model, thermal characteristics, and date last updated. The document provides a comprehensive reference list for general purpose rectifier diodes from various sources for use in circuit design and simulation work.
More Related Content
Similar to SPICEモデルの全リスト(スパイス・パーク 2015年6月度 4,381モデル)
SPICEモデルの全リスト(スパイス・パーク 2015年6月度 4,381モデル)
- 1. S P IC E P A R K 2015年 06月 スパイス・パークの全SPICEモデルリスト ビー・テクノロジー www.beetech.info All Rights Reserved Copyright (C) Siam Bee Technologies 1
- 2. No. Description pcs. Semiconductor S27/Digital IC 239 S28/ PUT 6 S29/ Crystal Oscillator 1 S30/ Photo Diode 1 S31/ PIN Diode 8 S32/ ESD 3 S33/ USB Switch 4 S34/ Low-Dropout Regulator 3 S35/ Bypass Diode 13 Passive Parts P01/ Ceramic Capacitor 127 P02/ Electrolytic Capacitor 53 P03/ Film Capacitor 10 P04/ Choke Coil 28 P05/ CM / Choke Coil 1 P06/ Transformer 2 P07/ Inductor 131 P08/ Magnetic Core 74 P09/ Crystal 2 P10/ Resistor 167 P11/ Mica Capacitor 17 No. Description pcs. Semiconductor S01/ Diode/General 282 S02/ Schottky Rectifier 634 S03/ Diode/Zener Diode 29 S04/ Laser Diode 49 S05/ Light-Emitting Diode 60 S06/ Junction FET 14 S07/ MOSFET 623 S08/ BJT 110 S09/ Darlington Transistor 9 S10/ IGBT 126 S11/ Voltage Reference 3 S12/ Voltage Regulator 64 S13/ Shunt Regulator 6 S14/ OPAMP 362 S15/ Comparator 74 S16/ Sidac 42 S17/ Photocupler 43 S18/ Opto Device 2 S19/ Varistor 3 S20/ Surge Absorber 184 S21/ Thermistor 6 S22/ Thyristor 123 S23/ PWM IC 3 S24/ Analog IC 6 S25/ Digital Transistor 95 S26/ BRT 47 No. Description pcs. Battery B01/ Alkaline Cell 10 B02/ Lithium Cell 5 B03/ Lithium-Ion Cell 30 B04/ Nickel Manganese Cell 10 B05/ Nickel Metal-Hydride 9 B06/ Oxyride Cell 8 B07/ Manganese Cell 8 B08/ Solar Cell 308 B09/ Lead Acid Cell 9 B10/ Lithium Polymer Cell 3 Mechanical Parts K01/ Toggle Switch 3 A01/ SPEAKER 42 DC Motor M01/ DC Motor 11 Lamp L01/ Filament Lamp 18 L02/ Halogen Lamp 3 E01/ DC Power Supply 15 CONTENT : JUN2015 : SPICEPARK TOTAL = 4,381 PCS. 2
- 3. SEMICONDUCTOR All Rights ReservedCopyright (C) Bee Technologies Inc. S01 S02 S03 S04 S05 S06 S07 S08 S09 S10 S11 S12 S13 S14 S15 S16 S17 S18 S19 S20 S21 S22 S23 S24 S25 S26 S27 S28 S29 S30 S31 S32 S33 S34 S35 3 UPDATE JUN2015
- 4. No. Manufacturer Pcs. 1FAIRCHILD 26 2 FUJI 2 3 International Rectifier 4 4 INTERSIL 52 5 Micro Commercial Component 2 6 Panasonic 6 7 PHILIP 2 8 ROHM 81 9 SANKEN 2 10 Shindengen 22 11 TOSHIBA 94 12 VISHAY 10 13 WTE Power Semiconductors 2 TOTAL 282 Diode/General Purpose Rectifier S01 SPICE PARK JUN2015 All Rights Reserved Copyright (C) Bee Technologies Inc. 4
- 5. No. Part NumberManufacturer Model Type Thermal Update 1 RURD460S FAIRCHILD Professional TC=25C 2006 2 FAIRCHILD Standard TC=25C 2006 3 FAIRCHILD Professional TC=80C 2006 4 FAIRCHILD Standard TC=80C 2006 5 FAIRCHILD Professional TC=110C 2006 6 FAIRCHILD Standard TC=110C 2006 7 FAIRCHILD Professional TC=150C 2006 8 FAIRCHILD Standard TC=150C 2006 9 RURD660S FAIRCHILD Professional TC=25C 2006 10 FAIRCHILD Standard TC=25C 2006 11 FAIRCHILD Professional TC=80C 2006 12 FAIRCHILD Standard TC=80C 2006 13 FAIRCHILD Professional TC=110C 2006 14 FAIRCHILD Standard TC=110C 2006 15 FAIRCHILD Professional TC=150C 2006 16 FAIRCHILD Standard TC=150C 2006 17 RURG3060 FAIRCHILD Professional TC=25C 2006 18 FAIRCHILD Standard TC=25C 2006 19 FAIRCHILD Professional TC=80C 2006 20 FAIRCHILD Standard TC=80C 2006 21 FAIRCHILD Professional TC=110C 2006 22 FAIRCHILD Standard TC=110C 2006 23 FAIRCHILD Professional TC=150C 2006 24 FAIRCHILD Standard TC=150C 2006 25 1N5408 FAIRCHILD Professional TC=25C Oct-10 No. Part Number Manufacturer Model Type Thermal Update 26 1N5408 FAIRCHILD Standard TC=25C Oct-10 27 YG963S6R Fuji Electric Professional TC=25C 2006 28 Fuji Electric Standard TC=25C 2006 29 HFA08TB60 IR Professional TC=25C 2006 30 IR Standard TC=25C 2006 31 IR Professional TC=80C 2006 32 IR Standard TC=80C 2006 33 RHRG7560 INTERSIL Professional TC=25C 2006 34 INTERSIL Standard TC=25C 2006 35 INTERSIL Professional TC=80C 2006 36 INTERSIL Standard TC=80C 2006 37 INTERSIL Professional TC=110C 2006 38 INTERSIL Standard TC=110C 2006 39 RHRG50120 INTERSIL Professional TC=25C 2006 40 INTERSIL Standard TC=25C 2006 41 INTERSIL Professional TC=80C 2006 42 INTERSIL Standard TC=80C 2006 43 INTERSIL Professional TC=110C 2006 44 INTERSIL Standard TC=110C 2006 45 INTERSIL Professional TC=150C 2006 46 INTERSIL Standard TC=150C 2006 47 RHRG75120 INTERSIL Professional TC=25C 2006 48 RHRG75120 INTERSIL Standard TC=25C 2006 49 RHRG75120 INTERSIL Professional TC=80C 2006 50 RHRG75120 INTERSIL Standard TC=80C 2006 S01 SPICE PARK Diode/General Purpose Rectifier 5
- 6. No. Part NumberManufacturer Model Type Thermal Update 76 RURG8060 INTERSIL Standard TC=150C 2006 77 RURP15120 INTERSIL Professional TC=25C 2006 78 INTERSIL Standard TC=25C 2006 79 INTERSIL Professional TC=80C 2006 80 INTERSIL Standard TC=80C 2006 81 INTERSIL Professional TC=110C 2006 82 INTERSIL Standard TC=110C 2006 83 INTERSIL Professional TC=150C 2006 84 INTERSIL Standard TC=150C 2006 85 MB252W MCC Professional TC=25C 2006 86 MCC Standard TC=25C 2006 87 MA2YF80 Panasonic Professional TC=25C Nov-08 88 Panasonic Standard TC=25C Nov-08 89 MA3X152K0L Panasonic Professional TC=25C Sep-11 90 Panasonic Standard TC=25C Sep-11 91 MA4S111 Panasonic Professional TC=25C Sep-11 92 Panasonic Standard TC=25C Sep-11 93 BYW29E PHILIP Professional TC=25C 2006 94 PHILIP Standard TC=25C 2006 95 1SR139-400 ROHM Professional TC=25C 2006 96 1SR139-400 ROHM Standard TC=25C 2006 97 1SR139-400 ROHM Professional TC=80C 2006 98 1SR139-400 ROHM Standard TC=80C 2006 99 1SR139-400 ROHM Professional TC=110C 2006 100 1SR139-400 ROHM Standard TC=110C 2006 No. Part Number Manufacturer Model Type Thermal Update 51 RHRG75120 INTERSIL Professional TC=110C 2006 52 RHRG75120 INTERSIL Standard TC=110C 2006 53 RHRP30120 INTERSIL Professional TC=25C 2006 54 INTERSIL Standard TC=25C 2006 55 INTERSIL Professional TC=80C 2006 56 INTERSIL Standard TC=80C 2006 57 INTERSIL Professional TC=110C 2006 58 INTERSIL Standard TC=110C 2006 59 INTERSIL Professional TC=150C 2006 60 INTERSIL Standard TC=150C 2006 61 RURG5060 INTERSIL Professional TC=25C 2006 62 INTERSIL Standard TC=25C 2006 63 INTERSIL Professional TC=80C 2006 64 INTERSIL Standard TC=80C 2006 65 INTERSIL Professional TC=110C 2006 66 INTERSIL Standard TC=110C 2006 67 INTERSIL Professional TC=150C 2006 68 INTERSIL Standard TC=150C 2006 69 RURG8060 INTERSIL Professional TC=25C 2006 70 RURG8060 INTERSIL Standard TC=25C 2006 71 RURG8060 INTERSIL Professional TC=80C 2006 72 RURG8060 INTERSIL Standard TC=80C 2006 73 RURG8060 INTERSIL Professional TC=110C 2006 74 RURG8060 INTERSIL Standard TC=110C 2006 75 RURG8060 INTERSIL Professional TC=150C 2006 S01 SPICE PARK Diode/General Purpose Rectifier 6
- 7. No. Part NumberManufacturer Model Type Thermal Update 101 1SR139-400 ROHM Professional TC=150C 2006 102 1SR139-400 ROHM Standard TC=150C 2006 103 1SR139-600 ROHM Professional TC=25C 2006 104 1SR139-600 ROHM Standard TC=25C 2006 105 1SR139-600 ROHM Professional TC=80C 2006 106 1SR139-600 ROHM Standard TC=80C 2006 107 1SR139-600 ROHM Professional TC=110C 2006 108 1SR139-600 ROHM Standard TC=110C 2006 109 1SR139-600 ROHM Professional TC=150C 2006 110 1SR139-600 ROHM Standard TC=150C 2006 111 1SR153-400 ROHM Professional TC=25C 2006 112 1SR153-400 ROHM Standard TC=25C 2006 113 1SR153-400 ROHM Professional TC=80C 2006 114 1SR153-400 ROHM Standard TC=80C 2006 115 1SR153-400 ROHM Professional TC=110C 2006 116 1SR153-400 ROHM Standard TC=110C 2006 117 1SR153-400 ROHM Professional TC=150C 2006 118 1SR153-400 ROHM Standard TC=150C 2006 119 1SR154-400 ROHM Professional TC=25C 2006 120 1SR154-400 ROHM Standard TC=25C 2006 121 1SR154-400 ROHM Professional TC=80C 2006 122 1SR154-400 ROHM Standard TC=80C 2006 123 1SR154-400 ROHM Professional TC=110C 2006 124 1SR154-400 ROHM Standard TC=110C 2006 125 1SR154-400 ROHM Professional TC=150C 2006 No. Part Number Manufacturer Model Type Thermal Update 126 1SR154-400 ROHM Standard TC=150C 2006 127 1SR154-600 ROHM Professional TC=25C 2006 128 1SR154-600 ROHM Standard TC=25C 2006 129 1SR154-600 ROHM Professional TC=80C 2006 130 1SR154-600 ROHM Standard TC=80C 2006 131 1SR154-600 ROHM Professional TC=110C 2006 132 1SR154-600 ROHM Standard TC=110C 2006 133 1SR154-600 ROHM Professional TC=150C 2006 134 1SR154-600 ROHM Standard TC=150C 2006 135 1SR156-400 ROHM Professional TC=25C 2006 136 1SR156-400 ROHM Standard TC=25C 2006 137 1SR156-400 ROHM Professional TC=80C 2006 138 1SR156-400 ROHM Standard TC=80C 2006 139 1SR156-400 ROHM Professional TC=110C 2006 140 1SR156-400 ROHM Standard TC=110C 2006 141 1SR156-400 ROHM Professional TC=150C 2006 142 1SR156-400 ROHM Standard TC=150C 2006 143 1SR159-200 ROHM Professional TC=25C 2006 144 1SR159-200 ROHM Standard TC=25C 2006 145 1SR159-200 ROHM Professional TC=80C 2006 146 1SR159-200 ROHM Standard TC=80C 2006 147 1SR159-200 ROHM Professional TC=110C 2006 148 1SR159-200 ROHM Standard TC=110C 2006 149 1SR159-200 ROHM Professional TC=150C 2006 150 1SR159-200 ROHM Standard TC=150C 2006 S01 SPICE PARK Diode/General Purpose Rectifier 7
- 8. No. Part NumberManufacturer Model Type Thermal Update 151 1SS4001 ROHM Professional TC=25C Nov-08 152 ROHM Standard TC=25C Nov-08 153 FML-G14S SANKEN Professional TC=25C 2006 154 SANKEN Standard TC=25C 2006 155 D1NL20U SHINDENGEN Professional TC=25C 2006 156 SHINDENGEN Standard TC=25C 2006 157 D3SB80 SHINDENGEN Professional TC=25C 2006 158 D5LC20U SHINDENGEN Professional TC=25C 2006 159 D25XB80 SHINDENGEN Professional TC=25C 2006 160 SF3L60U SHINDENGEN Professional TC=25C 2006 161 SHINDENGEN Standard TC=25C 2006 162 SF20LC30 SHINDENGEN Professional TC=25C 2006 163 SHINDENGEN Standard TC=25C 2006 164 S2L20U SHINDENGEN Professional TC=25C 2006 165 SHINDENGEN Standard TC=25C 2006 166 SF10LC40 SHINDENGEN Professional TC=25C 2006 167 SHINDENGEN Standard TC=25C 2006 168 S3K60 SHINDENGEN Professional TC=25C Nov-08 169 SHINDENGEN Standard TC=25C Nov-08 170 S3L60 SHINDENGEN Professional TC=25C Nov-08 171 SHINDENGEN Standard TC=25C Nov-08 172 DG1E60 SHINDENGEN Professional TC=25C Oct-10 173 SHINDENGEN Standard TC=25C Oct-10 174 D3SB80 SHINDENGEN Standard TC=25C Sep-11 175 D5LC20U SHINDENGEN Standard TC=25C Sep-11 No. Part Number Manufacturer Model Type Thermal Update 176 D25XB80 SHINDENGEN Standard TC=25C Sep-11 177 20GL2C41A TOSHIBA Professional TC=25C 2006 178 TOSHIBA Standard TC=25C 2006 179 TOSHIBA Professional TC=80C 2006 180 TOSHIBA Standard TC=80C 2006 181 TOSHIBA Professional TC=110C 2006 182 TOSHIBA Standard TC=110C 2006 183 TOSHIBA Professional TC=150C 2006 184 TOSHIBA Standard TC=150C 2006 185 5GLZ47A TOSHIBA Professional TC=25C 2006 186 TOSHIBA Standard TC=25C 2006 187 TOSHIBA Professional TC=80C 2006 188 TOSHIBA Standard TC=80C 2006 189 TOSHIBA Professional TC=110C 2006 190 TOSHIBA Standard TC=110C 2006 191 TOSHIBA Professional TC=150C 2006 192 TOSHIBA Standard TC=150C 2006 193 1R5GZ41 TOSHIBA Professional TC=25C 2006 194 TOSHIBA Standard TC=25C 2006 195 1S1834 TOSHIBA Professional TC=25C 2006 196 TOSHIBA Standard TC=25C 2006 197 1S1887 TOSHIBA Professional TC=25C 2006 198 TOSHIBA Standard TC=25C 2006 199 1S1887A TOSHIBA Professional TC=25C 2006 200 TOSHIBA Standard TC=25C 2006 S01 SPICE PARK Diode/General Purpose Rectifier 8
- 9. No. Part NumberManufacturer Model Type Thermal Update 201 10DL2C41A TOSHIBA Professional TC=25C 2006 202 TOSHIBA Standard TC=25C 2006 203 10DL2C48A TOSHIBA Professional TC=25C 2006 204 TOSHIBA Standard TC=25C 2006 205 10DL2CZ47A TOSHIBA Professional TC=25C 2006 206 TOSHIBA Standard TC=25C 2006 207 20DL2C41A TOSHIBA Professional TC=25C 2006 208 TOSHIBA Standard TC=25C 2006 209 20DL2C48A TOSHIBA Professional TC=25C 2006 210 TOSHIBA Standard TC=25C 2006 211 20DL2CZ47A TOSHIBA Professional TC=25C 2006 212 TOSHIBA Standard TC=25C 2006 213 S5688J TOSHIBA Professional TC=25C 2006 214 TOSHIBA Standard TC=25C 2006 215 CRG02 TOSHIBA Professional TC=25C 2006 216 TOSHIBA Standard TC=25C 2006 217 S5277G TOSHIBA Professional TC=25C 2006 218 TOSHIBA Standard TC=25C 2006 219 S5295G TOSHIBA Professional TC=25C 2006 220 TOSHIBA Standard TC=25C 2006 221 S5566G TOSHIBA Professional TC=25C 2006 222 TOSHIBA Standard TC=25C 2006 223 S5688G TOSHIBA Professional TC=25C 2006 224 TOSHIBA Standard TC=25C 2006 225 TVR1G TOSHIBA Professional TC=25C 2006 No. Part Number Manufacturer Model Type Thermal Update 226 TVR1G TOSHIBA Standard TC=25C 2006 227 TVR2G TOSHIBA Professional TC=25C 2006 228 TOSHIBA Standard TC=25C 2006 229 TVR5G TOSHIBA Professional TC=25C 2006 230 TOSHIBA Standard TC=25C 2006 231 U1GC44 TOSHIBA Professional TC=25C 2006 232 TOSHIBA Standard TC=25C 2006 233 U2GC44 TOSHIBA Professional TC=25C 2006 234 TOSHIBA Standard TC=25C 2006 235 U05GH44 TOSHIBA Professional TC=25C 2006 236 TOSHIBA Standard TC=25C 2006 237 1SS187 TOSHIBA Professional TC=25C Nov-08 238 TOSHIBA Standard TC=25C Nov-08 239 1SS250 TOSHIBA Professional TC=25C Nov-08 240 TOSHIBA Standard TC=25C Nov-08 241 1SS272 TOSHIBA Professional TC=25C Nov-08 242 TOSHIBA Standard TC=25C Nov-08 243 1SS370 TOSHIBA Professional TC=25C Nov-08 244 TOSHIBA Standard TC=25C Nov-08 245 1SS397 TOSHIBA Professional TC=25C Nov-08 246 TOSHIBA Standard TC=25C Nov-08 247 CMH08 TOSHIBA Professional TC=25C Nov-08 248 TOSHIBA Standard TC=25C Nov-08 249 CRH01 TOSHIBA Professional TC=25C Nov-08 250 TOSHIBA Standard TC=25C Nov-08 S01 SPICE PARK Diode/General Purpose Rectifier 9
- 10. No. Part NumberManufacturer Model Type Thermal Update 251 1SS412 TOSHIBA Professional TC=25C Nov-08 252 TOSHIBA Standard TC=25C Nov-08 253 CMH04 TOSHIBA Professional TC=25C Nov-08 254 TOSHIBA Standard TC=25C Nov-08 255 CLH01 TOSHIBA Professional TC=25C Nov-08 256 TOSHIBA Standard TC=25C Nov-08 257 CLH02 TOSHIBA Professional TC=25C Nov-08 258 TOSHIBA Standard TC=25C Nov-08 259 CMH05A TOSHIBA Professional TC=25C Nov-08 260 TOSHIBA Standard TC=25C Nov-08 261 CMH07 TOSHIBA Professional TC=25C Nov-08 262 TOSHIBA Standard TC=25C Nov-08 263 1SS184 TOSHIBA Professional TC=25C Sep-11 264 TOSHIBA Standard TC=25C Sep-11 265 1SS193 TOSHIBA Professional TC=25C Sep-11 266 TOSHIBA Standard TC=25C Sep-11 267 1SS196 TOSHIBA Professional TC=25C Sep-11 268 TOSHIBA Standard TC=25C Sep-11 269 1SS336 TOSHIBA Professional TC=25C Sep-11 270 TOSHIBA Standard TC=25C Sep-11 271 UF5401 VISHAY Professional TC=25C 2006 272 VISHAY Standard TC=25C 2006 273 UF5402 VISHAY Professional TC=25C 2006 274 VISHAY Standard TC=25C 2006 275 UF5404 VISHAY Professional TC=25C 2006 No. Part Number Manufacturer Model Type Thermal Update 276 UF5404 VISHAY Standard TC=25C 2006 277 UF5406 VISHAY Professional TC=25C 2006 278 VISHAY Standard TC=25C 2006 279 UF5408 VISHAY Professional TC=25C 2006 280 VISHAY Standard TC=25C 2006 281 KBU810 WTE Professional TC=25C Oct-10 282 WTE Standard TC=25C Oct-10 S01 SPICE PARK Diode/General Purpose Rectifier 10
- 11. S02 SPICE PARKJUN2015 No. Manufacturer Pcs. 1 CREE 55 2 General Semiconductor 2 3 HITACHI 4 4 International Rectifier 12 5 NIEC 99 6 On Semiconductor 8 7 Philips 2 8 RENESAS 11 9 ROHM 83 10 SANKEN 4 11 Shindengen 95 12 TOSHIBA 139 13 TOREX 28 14 STMicroelectronics 5 15 Infineon 87 TOTAL 634 All Rights Reserved Copyright (C) Bee Technologies Inc. 11 Diode/ Schottky Rectifier : TOSHIBA UPDATE 19 PCS.
- 12. S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer Type Vrrm (V) IF,Io(A) Thermal Model Remark Update 1 CSD01060A CREE Single 600 1 25C SiC SBD Professional 2006 2 CSD01060E CREE Single 600 1 25C SiC SBD Professional 2006 3 CSD04060A CREE Single 600 4 25C SiC SBD Professional 2006 4 CSD04060B CREE Single 600 4 25C SiC SBD Professional 2006 5 CSD04060E CREE Single 600 4 25C SiC SBD Professional 2006 6 CSD05120A CREE Single 1200 5 25C SiC SBD Professional 2006 7 CSD06060A CREE Single 600 6 25C SiC SBD Professional 2006 8 CSD06060B CREE Single 600 6 25C SiC SBD Professional 2006 9 CSD06060G CREE Single 600 6 25C SiC SBD Professional 2006 10 CSD10030A CREE Single 300 10 25C SiC SBD Professional 2006 11 CSD10060A CREE Single 600 10 25C SiC SBD Professional 2006 12 CSD10060G CREE Single 600 10 25C SiC SBD Professional 2006 13 CSD10120A CREE Single 1200 10 25C SiC SBD Professional 2006 14 CSD10120D CREE Single 1200 10 25C SiC SBD Professional 2006 15 CSD20030D CREE Single 300 20 25C SiC SBD Professional 2006 16 CSD20060D CREE Single 600 20 25C SiC SBD Professional 2006 17 CSD20120D CREE Single 1200 20 25C SiC SBD Professional 2006 18 C3D02060A CREE Single 600 2 25C SiC SBD Professional Dec-10 19 C2D05120 CREE Single 1200 5 25C SiC SBD Professional Dec-10 20 C2D10120 CREE Single 1200 10 25C SiC SBD Professional Dec-10 21 C2D10120D CREE Dual 1200 10 25C SiC SBD Professional Dec-10 22 C2D20120D CREE Dual 1200 20 25C SiC SBD Professional Dec-10 23 C3D02060E CREE Single 600 2 25C SiC SBD Professional Dec-10 24 C3D02060F CREE Single 600 2 25C SiC SBD Professional Dec-10 25 C3D03060A CREE Single 600 3 25C SiC SBD Professional Dec-10 12
- 13. S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer Type Vrrm (V) IF,Io(A) Thermal Model Remark Update 26 C3D03060E CREE Single 600 3 25C SiC SBD Professional Dec-10 27 C3D03060F CREE Single 600 3 25C SiC SBD Professional Dec-10 28 C3D04060A CREE Single 600 4 25C SiC SBD Professional Dec-10 29 C3D04060E CREE Single 600 4 25C SiC SBD Professional Dec-10 30 C3D04060F CREE Single 600 4 25C SiC SBD Professional Dec-10 31 C3D06060A CREE Single 600 6 25C SiC SBD Professional Dec-10 32 C3D06060G CREE Single 600 6 25C SiC SBD Professional Dec-10 33 C3D08060A CREE Single 600 8 25C SiC SBD Professional Dec-10 34 C3D08060G CREE Single 600 8 25C SiC SBD Professional Dec-10 35 C3D10060A CREE Single 600 10 25C SiC SBD Professional Dec-10 36 C3D10060G CREE Single 600 10 25C SiC SBD Professional Dec-10 37 C3D20060D CREE Dual 600 20 25C SiC SBD Professional Dec-10 38 CPW3-1700S010 CREE Single 1700 10 25C SiC SBD Professional Dec-10 39 CPW3-1700S025 CREE Single 1700 25 25C SiC SBD Professional Dec-10 40 C4D15120A CREE Single 1200 15 25C SiC SBD Professional Sep-12 41 C4D20120A CREE Single 1200 20 25C SiC SBD Professional Sep-12 42 C4D20120D CREE Dual 1200 16/32 25C SiC SBD Professional Sep-12 43 C4D30120D CREE Dual 1200 21.5/43 25C SiC SBD Professional Sep-12 44 C4D40120D CREE Dual 1200 27 25C SiC SBD Professional Sep-12 45 C4D40120D CREE Dual 1200 27 25C SiC SBD Standard Sep-12 46 C3D25170H CREE Single 1700 25 25C SiC SBD Professional Oct-12 47 C4D02120A CREE Single 1200 2 25C SiC SBD Professional Oct-12 48 C4D02120E CREE Single 1200 6.9 25C SiC SBD Professional Oct-12 49 C4D05120A CREE Single 1200 5 25C SiC SBD Professional Oct-12 50 C4D05120E CREE Single 1200 9 25C SiC SBD Professional Oct-12 13
- 14. S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer Type Vrrm (V) IF,Io(A) Thermal Model Remark Update 51 C4D08120A CREE Single 1200 7.5 25C SiC SBD Professional Oct-12 52 C4D08120E CREE Single 1200 12 25C SiC SBD Professional Oct-12 53 C4D10120A CREE Single 1200 10 25C SiC SBD Professional Oct-12 54 C4D10120D CREE Dual 1200 18 25C SiC SBD Professional Oct-12 55 C4D10120E CREE Single 1200 6 25C SiC SBD Professional Oct-12 56 SB350 General Semi Single 50 3 25C SBD Standard 2006 57 General Semi Single 50 3 25C SBD Professional 2006 58 HRU0203A HITACHI Single 30 0.2 25C SBD Standard 2006 59 HITACHI Single 30 0.2 25C SBD Professional 2006 60 HRW0702A HITACHI Single 20 0.7 25C SBD Standard 2006 61 HITACHI Single 20 0.7 25C SBD Professional 2006 62 IDV02S60C Infineon Single 600 2 25C SiC SBD Professional Nov-10 63 IDV03S60C Infineon Single 600 3 25C SiC SBD Professional Nov-10 64 IDV04S60C Infineon Single 600 4 25C SiC SBD Professional Nov-10 65 IDV05S60C Infineon Single 600 5 25C SiC SBD Professional Nov-10 66 IDV06S60C Infineon Single 600 6 25C SiC SBD Professional Nov-10 67 IDH10SG60C Infineon Single 600 10 25C SiC SBD Professional Nov-10 68 IDH02SG120 Infineon Single 1200 2 25C SiC SBD Professional May-11 69 IDH03SG60C Infineon Single 600 3 25C SiC SBD Professional May-11 70 IDH04SG60C Infineon Single 600 4 25C SiC SBD Professional May-11 71 IDH05S120 Infineon Single 1200 5 25C SiC SBD Professional May-11 72 IDH05SG60C Infineon Single 600 26 25C SiC SBD Professional May-11 73 IDH06SG60C Infineon Single 600 32 25C SiC SBD Professional May-11 74 IDH04S60C Infineon Single 600 4 25C SiC SBD Professional Jun-11 75 IDH05S60C Infineon Single 600 5 25C SiC SBD Professional Jun-11 14
- 15. S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer Type Vrrm (V) IF,Io(A) Thermal Model Remark Update 76 IDH06S60C Infineon Single 600 6 25C SiC SBD Professional Jun-11 77 IDH08S60C Infineon Single 600 8 25C SiC SBD Professional Jun-11 78 IDH10S60C Infineon Single 600 10 25C SiC SBD Professional Jun-11 79 IDH12S60C Infineon Single 600 12 25C SiC SBD Professional Jun-11 80 IDH15S120 Infineon Single 1200 15 25C SiC SBD Professional Jun-11 81 IDH16S60C Infineon Single 600 16 25C SiC SBD Professional Jun-11 82 IDY10S120 Infineon Dual 1200 10 25C SiC SBD Professional Jun-11 83 IDY15S120 Infineon Dual 1200 15 25C SiC SBD Professional Jun-11 84 IDB06S60C Infineon Single 600 6 25C SiC SBD Professional Jul-11 85 IDB10S60C Infineon Single 600 10 25C SiC SBD Professional Jul-11 86 IDD03SG60C Infineon Single 600 3 25C SiC SBD Professional Jul-11 87 IDD04S60C Infineon Single 600 4 25C SiC SBD Professional Jul-11 88 SDD04S60 Infineon Single 600 4 25C SiC SBD Professional Jul-11 89 SDT04S60 Infineon Single 600 4 25C SiC SBD Professional Jul-11 90 SDT06S60 Infineon Single 600 6 25C SiC SBD Professional Jul-11 91 SDT08S60 Infineon Single 600 8 25C SiC SBD Professional Jul-11 92 SDT10S60 Infineon Single 600 10 25C SiC SBD Professional Jul-11 93 SDT12S60 Infineon Single 600 12 25C SiC SBD Professional Jul-11 94 IDD04SG60C Infineon Single 600 4 25C SiC SBD Professional Aug-11 95 IDD05SG60C Infineon Single 600 5 25C SiC SBD Professional Aug-11 96 IDD06SG60C Infineon Single 600 6 25C SiC SBD Professional Aug-11 97 IDD08SG60C Infineon Single 600 8 25C SiC SBD Professional Aug-11 98 IDD09SG60C Infineon Single 600 9 25C SiC SBD Professional Aug-11 99 IDD10SG60C Infineon Single 600 10 25C SiC SBD Professional Aug-11 100 IDD12SG60C Infineon Single 600 12 25C SiC SBD Professional Aug-11 15
- 16. S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer Type Vrrm (V) IF,Io(A) Thermal Model Remark Update 101 IDH08S120 Infineon Single 1200 7.5 25C SiC SBD Professional Aug-11 102 IDH08SG60C Infineon Single 600 8 25C SiC SBD Professional Aug-11 103 IDH09SG60C Infineon Single 600 9 25C SiC SBD Professional Aug-11 104 IDH10S120 Infineon Single 1200 10 25C SiC SBD Professional Aug-11 105 IDH12SG60C Infineon Single 600 12 25C SiC SBD Professional Aug-11 106 IDT02S60C Infineon Single 600 2 25C SiC SBD Professional Aug-11 107 IDT03S60C Infineon Single 600 3 25C SiC SBD Professional Aug-11 108 IDT04S60C Infineon Single 600 4 25C SiC SBD Professional Aug-11 109 IDT05S60C Infineon Single 600 5 25C SiC SBD Professional Aug-11 110 IDT06S60C Infineon Single 600 6 25C SiC SBD Professional Aug-11 111 IDT08S60C Infineon Single 600 8 25C SiC SBD Professional Aug-11 112 IDT10S60C Infineon Single 600 10 25C SiC SBD Professional Aug-11 113 IDT12S60C Infineon Single 600 12 25C SiC SBD Professional Aug-11 114 IDT16S60C Infineon Single 600 16 25C SiC SBD Professional Aug-11 115 SDB06S60 Infineon Single 600 6 25C SiC SBD Professional Aug-11 116 SDT05S60 Infineon Single 600 5 25C SiC SBD Professional Aug-11 117 6CWQ04FN IR Dual 40 3.5 25C SBD Standard 2006 118 IR Dual 40 3.5 25C SBD Professional 2006 119 6CWQ06FN IR Dual 60 7 25C SBD Standard 2006 120 IR Dual 60 7 25C SBD Professional 2006 121 30WQ04FN IR Dual 40 3.5 25C SBD Standard 2006 122 IR Dual 40 3.5 25C SBD Professional 2006 123 30WQ06FN IR Single 60 3.5 25C SBD Standard 2006 124 IR Single 60 3.5 25C SBD Professional 2006 125 30WQ10FN IR Single 100 3.5 25C SBD Standard 2006 16
- 17. S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer Type Vrrm (V) IF,Io(A) Thermal Model Remark Update 126 30WQ10FN IR Single 100 3.5 25C SBD Professional 2006 127 50WQ04FN IR Single 40 5.5 25C SBD Standard 2006 128 IR Single 40 5.5 25C SBD Professional 2006 129 11DQ03L NIEC Single 40 1 25C SBD Standard 2006 130 11DQ04 NIEC Single 40 1 25C SBD Standard 2006 131 11DQ06 NIEC Single 60 1 25C SBD Standard 2006 132 11DQ09 NIEC Single 90 1 25C SBD Standard 2006 133 11DQ10 NIEC Single 100 1 25C SBD Standard 2006 134 11EQ04 NIEC Single 40 1 25C SBD Standard 2006 135 11EQ06 NIEC Single 60 1 25C SBD Standard 2006 136 11EQ09 NIEC Single 60 1 25C SBD Standard 2006 137 11EQ10 NIEC Single 100 1 25C SBD Standard 2006 138 11EQS03L NIEC Single 30 1 25C SBD Standard 2006 139 11EQS04 NIEC Single 40 1 25C SBD Standard 2006 140 11EQS06 NIEC Single 60 1 25C SBD Standard 2006 141 11EQS09 NIEC Single 90 1 25C SBD Standard 2006 142 11EQS10 NIEC Single 100 1 25C SBD Standard 2006 143 21DQ03L NIEC Single 30 1 25C SBD Standard 2006 144 21DQ04 NIEC Single 10 1.4 25C SBD Standard 2006 145 21DQ06 NIEC Single 60 1.1 25C SBD Standard 2006 146 21DQ09 NIEC Single 90 1.3 25C SBD Standard 2006 147 21DQ10 NIEC Single 100 1.3 25C SBD Standard 2006 148 31DQ03L NIEC Single 30 1.9 25C SBD Standard 2006 149 31DQ04 NIEC Single 40 1.7 25C SBD Standard 2006 150 31DQ06 NIEC Single 60 1.6 25C SBD Standard 2006 17
- 18. S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer Type Vrrm (V) IF,Io(A) Thermal Model Remark Update 151 31DQ09 NIEC Single 90 1.7 25C SBD Standard 2006 152 31DQ10 NIEC Single 100 1.7 25C SBD Standard 2006 153 EA20QS04 NIEC Single 40 1.7 25C SBD Standard 2006 154 EA20QS04-F NIEC Single 40 1.7 25C SBD Standard 2006 155 EA20QS06 NIEC Single 60 1.4 25C SBD Standard 2006 156 EA20QS06-F NIEC Single 60 1.4 25C SBD Standard 2006 157 EA20QS09 NIEC Single 90 1.7 25C SBD Standard 2006 158 EA20QS09-F NIEC Single 90 1.7 25C SBD Standard 2006 159 EA20QS10 NIEC Single 100 1.7 25C SBD Standard 2006 160 EA20QS10-F NIEC Single 100 1.7 25C SBD Standard 2006 161 EA30QS03L NIEC Single 30 1.7 25C SBD Standard 2006 162 EA30QS03L-F NIEC Single 30 1.7 25C SBD Standard 2006 163 EA30QS04 NIEC Single 40 1.8 25C SBD Standard 2006 164 EA30QS04-F NIEC Single 40 1.8 25C SBD Standard 2006 165 EA30QS06 NIEC Single 60 1.3 25C SBD Standard 2006 166 EA30QS06-F NIEC Single 60 1.3 25C SBD Standard 2006 167 EA30QS09 NIEC Single 90 1.6 25C SBD Standard 2006 168 EA30QS09-F NIEC Single 90 1.6 25C SBD Standard 2006 169 EA30QS10 NIEC Single 90 1.6 25C SBD Standard 2006 170 EA30QS10-F NIEC Single 100 1.6 25C SBD Standard 2006 171 EC10LA03 NIEC Single 30 1 25C SBD Standard 2006 172 EC10QS04 NIEC Single 40 0.91 25C SBD Standard 2006 173 EC10QS06 NIEC Single 60 0.72 25C SBD Standard 2006 174 EC10QS09 NIEC Single 90 0.92 25C SBD Standard 2006 175 EC10QS10 NIEC Single 100 0.89 25C SBD Standard 2006 18
- 19. S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer Type Vrrm (V) IF,Io(A) Thermal Model Remark Update 176 EC21QS03L NIEC Single 30 1.3 25C SBD Standard 2006 177 EC21QS06 NIEC Single 60 1 25C SBD Standard 2006 178 EC21QS09 NIEC Single 90 1.3 25C SBD Standard 2006 179 EC21QS10 NIEC Single 100 1.3 25C SBD Standard 2006 180 EC30LA02 NIEC Single 20 2.1 25C SBD Standard 2006 181 EC31QS03L NIEC Single 30 1.3 25C SBD Standard 2006 182 EC31QS04 NIEC Single 40 1.3 25C SBD Standard 2006 183 EC31QS06 NIEC Single 60 1 25C SBD Standard 2006 184 EC31QS09 NIEC Single 90 1.3 25C SBD Standard 2006 185 EC31QS10 NIEC Single 100 1.3 25C SBD Standard 2006 186 ECL06B03 NIEC Single 30 6 25C SBD Standard 2006 187 EP05Q03L NIEC Single 30 0.49 25C SBD Standard 2006 188 EP05Q04 NIEC Single 40 0.43 25C SBD Standard 2006 189 EP05Q06 NIEC Single 60 0.4 25C SBD Standard 2006 190 EP10LA03 NIEC Single 30 0.8 25C SBD Standard 2006 191 EP10QY03 NIEC Single 30 0.8 25C SBD Standard 2006 192 ESL30B03-F NIEC Single 30 3 25C SBD Standard 2006 193 FSL05A015 NIEC Single 15 5 25C SBD Standard 2006 194 FSQ05A03L NIEC Single 30 5 25C SBD Standard 2006 195 FSQ05A04 NIEC Single 40 5 25C SBD Standard 2006 196 FSQ05A04B NIEC Single 40 5 25C SBD Standard 2006 197 FSQ05A06 NIEC Single 60 5 25C SBD Standard 2006 198 FSQ05A06B NIEC Single 60 5 25C SBD Standard 2006 199 FSQ10A04 NIEC Single 40 10 25C SBD Standard 2006 200 FSQ10A04B NIEC Single 40 10 25C SBD Standard 2006 19
- 20. S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer Type Vrrm (V) IF,Io(A) Thermal Model Remark Update 201 FSQ10A06 NIEC Single 60 10 25C SBD Standard 2006 202 FSQ10A06B NIEC Single 60 10 25C SBD Standard 2006 203 GSQ05A03LB NIEC Single 30 5 25C SBD Standard 2006 204 GSQ05A04B NIEC Single 40 5 25C SBD Standard 2006 205 GSQ05A06 NIEC Single 60 5 25C SBD Standard 2006 206 GSQ10A04 NIEC Single 40 10 25C SBD Standard 2006 207 GSQ10A04B NIEC Single 40 10 25C SBD Standard 2006 208 GSQ10A06 NIEC Single 60 10 25C SBD Standard 2006 209 GSQ10A06B NIEC Single 60 10 25C SBD Standard 2006 210 KSL60A01B NIEC Single 10 60 25C SBD Standard 2006 211 KSQ15A04 NIEC Single 40 15 25C SBD Standard 2006 212 KSQ15A04B NIEC Single 40 15 25C SBD Standard 2006 213 KSQ15A06 NIEC Single 60 15 25C SBD Standard 2006 214 KSQ15A06B NIEC Single 60 15 25C SBD Standard 2006 215 KSQ30A04 NIEC Single 40 30 25C SBD Standard 2006 216 KSQ30A04B NIEC Single 40 30 25C SBD Standard 2006 217 KSQ30A06 NIEC Single 60 30 25C SBD Standard 2006 218 KSQ30A06B NIEC Single 60 30 25C SBD Standard 2006 219 KSQ60A03LB NIEC Single 30 60 25C SBD Standard 2006 220 KSQ60A03LE NIEC Single 30 60 25C SBD Standard 2006 221 KSQ60A04B NIEC Single 40 60 25C SBD Standard 2006 222 KSQ60A04E NIEC Single 40 60 25C SBD Standard 2006 223 KSQ60A06B NIEC Single 60 60 25C SBD Standard 2006 224 KSQ60A06E NIEC Single 60 60 25C SBD Standard 2006 225 NSQ03A03L NIEC Single 30 1.6 25C SBD Standard 2006 20
- 21. S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer Type Vrrm (V) IF,Io(A) Thermal Model Remark Update 226 NSQ03A04 NIEC Single 40 1.62 25C SBD Standard 2006 227 NSQ03A06 NIEC Single 60 1.6 25C SBD Standard 2006 228 1N5818 On Semi Single 30 1 25C SBD Standard 2006 229 On Semi Single 30 1 25C SBD Professional 2006 230 1N5819 On Semi Single 40 1 25C SBD Standard 2006 231 On Semi Single 40 1 25C SBD Professional 2006 232 1N5820 On Semi Single 20 3 25C SBD Standard 2006 233 On Semi Single 20 3 25C SBD Professional 2006 234 1N5822 On Semi Single 40 3 25C SBD Standard 2006 235 On Semi Single 40 3 25C SBD Professional 2006 236 PBYR10100 Philips Single 100 10 25C SBD Standard 2006 237 Philips Single 100 10 25C SBD Professional 2006 238 HRB0502A RENESAS Single 20 0.5 25C SBD Standard 2006 239 HRC0201A RENESAS Single 15 0.2 25C SBD Standard 2006 240 HRC0203C RENESAS Single 30 0.2 25C SBD Standard 2006 241 HRU0302A RENESAS Single 20 0.3 25C SBD Standard 2006 242 HRW0203A RENESAS Single 30 0.2 25C SBD Standard 2006 243 HRW0502A RENESAS Single 20 0.5 25C SBD Standard 2006 244 HRW0703A RENESAS Single 30 0.7 25C SBD Standard 2006 245 HSC278 RENESAS Single 30 0.03 25C SBD Standard 2006 246 HSD226 RENESAS Single 25 0.05 25C SBD Standard 2006 247 HSL226 RENESAS Single 25 0.05 25C SBD Standard 2006 248 HSU226 RENESAS Single 25 0.05 25C SBD Standard 2006 249 RB051L-40 ROHM Single 40 3 25C SBD Standard 2006 250 RB051L-40 ROHM Single 40 3 25C SBD Professional 2006 21
- 22. S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer Type Vrrm (V) IF,Io(A) Thermal Model Remark Update 251 RB060L-40 ROHM Single 40 2 25C SBD Standard 2006 252 RB060L-40 ROHM Single 40 2 25C SBD Professional 2006 253 RB160L-40 ROHM Single 40 1 25C SBD Standard 2006 254 RB160L-40 ROHM Single 40 1 25C SBD Professional 2006 255 SCS110AG ROHM Single 600 10 25C SiC SBD Standard Feb-11 256 SCS110AG ROHM Single 600 10 25C SiC SBD Professional Feb-11 257 SCS110AG ROHM Single 600 10 75C SiC SBD Standard Feb-11 258 SCS110AG ROHM Single 600 10 75C SiC SBD Professional Feb-11 259 SCS110AG ROHM Single 600 10 125C SiC SBD Standard Feb-11 260 SCS110AG ROHM Single 600 10 125C SiC SBD Professional Feb-11 261 SCS110AG ROHM Single 600 10 -25C SiC SBD Standard Feb-11 262 SCS110AG ROHM Single 600 10 -25C SiC SBD Professional Feb-11 263 SCS205KG ROHM Single 1200 5 25C SiC SBD Professional May-14 264 SCS206AG ROHM Single 650 6 25C SiC SBD Professional May-14 265 SCS206AJ ROHM Single 650 6 25C SiC SBD Professional May-14 266 SCS206AM ROHM Single 650 6 25C SiC SBD Professional May-14 267 SCS208AG ROHM Single 650 8 25C SiC SBD Professional May-14 268 SCS208AJ ROHM Single 650 8 25C SiC SBD Professional May-14 269 SCS208AM ROHM Single 650 8 25C SiC SBD Professional May-14 270 SCS210AG ROHM Single 650 10 25C SiC SBD Professional May-14 271 SCS210AJ ROHM Single 650 10 25C SiC SBD Professional May-14 272 SCS210AM ROHM Single 650 10 25C SiC SBD Professional Jun-14 273 SCS210KG ROHM Single 1200 10 25C SiC SBD Professional Jun-14 274 SCS212AG ROHM Single 650 12 25C SiC SBD Professional Jun-14 275 SCS212AM ROHM Single 650 12 25C SiC SBD Professional Jun-14 22
- 23. S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer Type Vrrm (V) IF,Io(A) Thermal Model Remark Update 276 SCS215AE ROHM Single 650 15 25C SiC SBD Professional Jun-14 277 SCS215AG ROHM Single 650 15 25C SiC SBD Professional Jun-14 278 SCS215AJ ROHM Single 650 15 25C SiC SBD Professional Jun-14 279 SCS215AM ROHM Single 650 15 25C SiC SBD Professional Jun-14 280 SCS215KG ROHM Single 1200 15 25C SiC SBD Professional Jun-14 281 SCS220AE ROHM Single 650 20 25C SiC SBD Professional Jun-14 282 SCS220AE2 ROHM Single 650 10/20* 25C SiC SBD Professional Jun-14 283 SCS220AG ROHM Single 650 20 25C SiC SBD Professional Jun-14 284 SCS220AM ROHM Single 650 20 25C SiC SBD Professional Jun-14 285 SCS105KG ROHM Single 1200 5 25C SiC SBD Professional Jul-14 286 SCS106AG ROHM Single 600 6 25C SiC SBD Professional Jul-14 287 SCS106AM ROHM Single 600 6 25C SiC SBD Professional Jul-14 288 SCS108AG ROHM Single 600 8 25C SiC SBD Professional Jul-14 289 SCS108AM ROHM Single 600 8 25C SiC SBD Professional Jul-14 290 SCS110AG ROHM Single 600 10 25C SiC SBD Professional Jul-14 291 SCS110AM ROHM Single 600 10 25C SiC SBD Professional Jul-14 292 SCS110KE2 ROHM Single 1200 10 25C SiC SBD Professional Jul-14 293 SCS110KG ROHM Single 1200 10 25C SiC SBD Professional Jul-14 294 SCS112AG ROHM Single 600 12 25C SiC SBD Professional Jul-14 295 SCS112AM ROHM Single 600 12 25C SiC SBD Professional Jul-14 296 SCS120AE2 ROHM Single 600 20 25C SiC SBD Professional Jul-14 29 SCS120AG ROHM Single 600 20 25C SiC SBD Professional Jul-14 298 SCS120KE2 ROHM Single 1200 20 25C SiC SBD Professional Jul-14 299 SCS120KG ROHM Single 1200 20 25C SiC SBD Professional Jul-14 300 SCS140AE2 ROHM Single 600 40 25C SiC SBD Professional Jul-14 23
- 24. S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer Type Vrrm (V) IF,Io(A) Thermal Model Remark Update 301 SCS210KE2 ROHM Single 1200 10 25C SiC SBD Professional Jul-14 302 SCS220KE2 ROHM Single 1200 20 25C SiC SBD Professional Jul-14 303 SCS220KG ROHM Single 1200 20 25C SiC SBD Professional Jul-14 304 SCS230AE2 ROHM Single 650 30 25C SiC SBD Professional Jul-14 305 SCS230KE2 ROHM Single 1200 30 25C SiC SBD Professional Jul-14 306 SCS240AE2 ROHM Single 650 40 25C SiC SBD Professional Jul-14 307 SCS240KE2 ROHM Single 1200 40 25C SiC SBD Professional Jul-14 308 S6201 ROHM Single 650 6 25C SiC SBD Professional Dec-14 309 S6202 ROHM Single 650 10 25C SiC SBD Professional Dec-14 310 S6203 ROHM Single 650 20 25C SiC SBD Professional Dec-14 311 S6204 ROHM Single 650 8 25C SiC SBD Professional Dec-14 312 S6205 ROHM Single 650 12 25C SiC SBD Professional Dec-14 313 S6207 ROHM Single 650 15 25C SiC SBD Professional Dec-14 314 S6301 ROHM Single 1200 5 25C SiC SBD Professional Dec-14 315 S6302 ROHM Single 1200 10 25C SiC SBD Professional Dec-14 316 S6304 ROHM Single 1200 20 25C SiC SBD Professional Dec-14 317 S6306 ROHM Single 1200 15 25C SiC SBD Professional Dec-14 318 SCS205KGHR ROHM Single 1200 5 25C SiC SBD Professional Dec-14 319 SCS206AGHR ROHM Single 650 6 25C SiC SBD Professional Dec-14 320 SCS208AGHR ROHM Single 650 8 25C SiC SBD Professional Dec-14 321 SCS210AGHR ROHM Single 650 10 25C SiC SBD Professional Dec-14 322 SCS210KE2HR ROHM Single 1200 5A/10A 25C SiC SBD Professional Dec-14 323 SCS212AGHR ROHM Single 650 12 25C SiC SBD Professional Dec-14 324 SCS215AGHR ROHM Single 650 15 25C SiC SBD Professional Dec-14 325 SCS215KGHR ROHM Single 1200 15 25C SiC SBD Professional Dec-14 24
- 25. S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer Type Vrrm (V) IF,Io(A) Thermal Model Remark Update 326 SCS220AE2HR ROHM Single 650 10A/20A 25C SiC SBD Professional Dec-14 327 SCS220AGHR ROHM Single 650 20 25C SiC SBD Professional Dec-14 328 SCS220KE2HR ROHM Single 1200 10A/20A 25C SiC SBD Professional Dec-14 329 SCS220KGHR ROHM Single 1200 20 25C SiC SBD Professional Dec-14 330 SCS230AE2HR ROHM Single 650 15A/30A 25C SiC SBD Professional Dec-14 331 SCS240AE2HR ROHM Single 650 20A/40A 25C SiC SBD Professional Dec-14 332 EK13 SANKEN Single 30 1.5 25C SBD Standard 2006 333 SANKEN Single 30 1.5 25C SBD Professional 2006 334 RK39 SANKEN Single 90 2 25C SBD Standard 2006 335 SANKEN Single 90 2 25C SBD Professional 2006 336 D1FH3 Shindengen Single 30 3 25C SBD Standard 2006 337 D1FM3 Shindengen Single 30 5 25C SBD Standard 2006 338 D1FP3 Shindengen Single 30 2 25C SBD Standard 2006 339 D1FS4 Shindengen Single 40 1.1 25C SBD Standard 2006 340 D1FS4A Shindengen Single 40 1.5 25C SBD Standard 2006 341 D1FS6 Shindengen Single 60 1.1 25C SBD Standard 2006 342 D1NS4 Shindengen Single 40 1 25C SBD Standard 2006 343 D1NS6 Shindengen Single 60 1 25C SBD Standard 2006 344 D2FS4 Shindengen Single 40 1.6 25C SBD Standard 2006 345 D2FS6 Shindengen Single 60 1.5 25C SBD Standard 2006 346 D2S6M Shindengen Single 60 2 25C SBD Standard 2006 347 D3FP3 Shindengen Single 30 3 25C SBD Standard 2006 348 D3FS4A Shindengen Dual 40 2.6 25C SBD Standard 2006 349 D3FS6 Shindengen Single 60 3 25C SBD Standard 2006 350 D3S6M Shindengen Single 60 3 25C SBD Standard 2006 25
- 26. S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer Type Vrrm (V) IF,Io(A) Thermal Model Remark Update 351 D4SC6M Shindengen Dual 60 4 25C SBD Standard 2006 352 D5S4M Shindengen Single 40 5 25C SBD Standard 2006 353 D5S6M Shindengen Single 60 5 25C SBD Standard 2006 354 D5S9M Shindengen Single 90 5 25C SBD Standard 2006 355 D5SC4M Shindengen Single 40 5 25C SBD Standard 2006 356 D10SC4M Shindengen Dual 40 10 25C SBD Standard 2006 357 D30SC4M Shindengen Dual 40 30 25C SBD Standard 2006 358 DE3S6M Shindengen Single 60 3 25C SBD Standard 2006 359 DE5PC3 Shindengen Dual 30 5 25C SBD Standard 2006 360 DE5S4M Shindengen Single 40 5 25C SBD Standard 2006 361 DE5S6M Shindengen Single 60 5 25C SBD Standard 2006 362 DE5SC3ML Shindengen Dual 30 5 25C SBD Standard 2006 363 DE5SC4M Shindengen Dual 40 5 25C SBD Standard 2006 364 DE5SC6M Shindengen Dual 60 5 25C SBD Standard 2006 365 DE10P3 Shindengen Single 30 10 25C SBD Standard 2006 366 DE10PC3 Shindengen Dual 30 10 25C SBD Standard 2006 367 DE10S3L Shindengen Single 30 10 25C SBD Standard 2006 368 DE10SC3L Shindengen Dual 30 10 25C SBD Standard 2006 369 DE10SC4 Shindengen Dual 40 10 25C SBD Standard 2006 370 DF10SC4M Shindengen Dual 40 10 25C SBD Standard 2006 371 DF10SC6 Shindengen Dual 60 10 25C SBD Standard 2006 372 DF10SC9 Shindengen Dual 90 10 25C SBD Standard 2006 373 DF15JC10 Shindengen Dual 100 15 25C SBD Standard 2006 374 DF15SC4M Shindengen Dual 40 15 25C SBD Standard 2006 375 DF20JC10 Shindengen Dual 100 20 25C SBD Standard 2006 26
- 27. S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer Type Vrrm (V) IF,Io(A) Thermal Model Remark Update 376 DF20PC3M Shindengen Dual 30 20 25C SBD Standard 2006 377 DF20SC4M Shindengen Dual 40 20 25C SBD Standard 2006 378 DF20SC9M Shindengen Dual 90 20 25C SBD Standard 2006 379 DF25SC6M Shindengen Dual 60 25 25C SBD Standard 2006 380 DF30JC6 Shindengen Dual 60 30 25C SBD Standard 2006 381 DF30JC10 Shindengen Dual 100 30 25C SBD Standard 2006 382 DF30PC3M Shindengen Dual 30 30 25C SBD Standard 2006 383 DF30SC3ML Shindengen Dual 30 30 25C SBD Standard 2006 384 DF30SC4M Shindengen Dual 40 30 25C SBD Standard 2006 385 DF40PC3 Shindengen Dual 30 40 25C SBD Standard 2006 386 DF40SC3L Shindengen Dual 30 40 25C SBD Standard 2006 387 DF40SC4 Shindengen Dual 40 40 25C SBD Standard 2006 388 DG1H3 Shindengen Single 30 1 25C SBD Standard 2006 389 DG1M3 Shindengen Single 30 1 25C SBD Standard 2006 390 DG1M3A Shindengen Single 30 1 25C SBD Standard 2006 391 M1FH3 Shindengen Single 30 1.5 25C SBD Standard 2006 392 M1FM3 Shindengen Single 30 3 25C SBD Standard 2006 393 M1FP3 Shindengen Single 30 1.29 25C SBD Standard 2006 394 M1FS4 Shindengen Single 40 1.33 25C SBD Standard 2006 395 M1FS6 Shindengen Single 60 1.2 25C SBD Standard 2006 396 M2FM3 Shindengen Single 30 6 25C SBD Standard 2006 397 S2S6M Shindengen Single 60 1.3 25C SBD Standard 2006 398 S5S4M Shindengen Single 40 5 25C SBD Standard 2006 399 S10SC4M Shindengen Dual 40 10 25C SBD Standard 2006 400 S15SC4M Shindengen Dual 40 15 25C SBD Standard 2006 27
- 28. S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer Type Vrrm (V) IF,Io(A) Thermal Model Remark Update 401 S15SCA4M Shindengen Dual 40 15 25C SBD Standard 2006 402 S20SC4M Shindengen Dual 40 20 25C SBD Standard 2006 403 S25SC6M Shindengen Dual 60 25 25C SBD Standard 2006 404 S40HC3 Shindengen Dual 30 40 25C SBD Standard 2006 405 S60HC3 Shindengen Dual 30 60 25C SBD Standard 2006 406 S60SC6M Shindengen Dual 60 60 25C SBD Standard 2006 407 SF5S4 Shindengen Single 40 5 25C SBD Standard 2006 408 SF5S6 Shindengen Single 60 5 25C SBD Standard 2006 409 SF5SC3L Shindengen Dual 30 5 25C SBD Standard 2006 410 SF10SC6 Shindengen Dual 60 10 25C SBD Standard 2006 411 SF15JC6 Shindengen Dual 60 15 25C SBD Standard 2006 412 SF15SC6 Shindengen Single 60 15 25C SBD Standard 2006 413 SF20H1R5 Shindengen Single 15 20 25C SBD Standard 2006 414 SF20JC6 Shindengen Dual 60 20 25C SBD Standard 2006 415 SF20SC3L Shindengen Dual 30 20 25C SBD Standard 2006 416 SF30H1R5 Shindengen Single 15 30 25C SBD Standard 2006 417 SF30JC6 Shindengen Dual 60 30 25C SBD Standard 2006 418 SF30SC6 Shindengen Dual 60 30 25C SBD Standard 2006 419 S30SC4MT Shindengen Dual 45 30 25C SBD Standard Jul-10 420 Shindengen Dual 45 30 25C SBD Professional Jul-10 421 S60SC4MT Shindengen Dual 40 60 25C SBD Standard Jul-10 422 Shindengen Dual 40 60 25C SBD Professional Jul-10 423 S60SC6MT Shindengen Dual 60 60 25C SBD Standard Jul-10 424 Shindengen Dual 60 60 25C SBD Professional Jul-10 425 SG10SC4M Shindengen Dual 40 10 25C SBD Standard Jul-10 28
- 29. 29 S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer VRRM (V) IF,Io(A) Thermal Model Remark Update 426 2GWJ42C Shindengen 40 2 25C SBD Standard 2006 427 5FWJ2C48M Shindengen 30 5 25C SBD Standard 2006 428 5FWJ2CZ47M Shindengen 30 5 25C SBD Standard 2006 429 5GWJ2C48C Shindengen 40 5 25C SBD Standard 2006 430 5GWJ2CZ47C Shindengen 40 5 25C SBD Standard 2006 431 5GWJZ47 Shindengen 40 5 25C SBD Standard 2006 432 10FWJ2C48M Shindengen 30 10 25C SBD Standard 2006 433 10FWJ2CZ47M Shindengen 30 10 25C SBD Standard 2006 434 10GWJ2CZ47C Shindengen 40 10 25C SBD Standard 2006 435 20FWJ2C48M Shindengen 30 20 25C SBD Standard 2006 436 30GWJ2C42C Shindengen 40 30 25C SBD Standard 2006 437 30GWJ2C48C Shindengen 40 30 25C SBD Standard 2006 438 30GWJ2CZ47C Shindengen 40 30 25C SBD Standard 2006 439 30QWK2CZ47 Shindengen 120 30 25C SBD Standard 2006 440 CMS01 Shindengen 30 3 25C SBD Standard 2006 441 CMS02 Shindengen 30 3 25C SBD Standard 2006 442 CMS04 Shindengen 30 5 25C SBD Standard 2006 443 CMS05 Shindengen 30 5 25C SBD Standard 2006 444 CMS06 Shindengen 30 2 25C SBD Standard 2006 445 CMS07 Shindengen 30 2 25C SBD Standard 2006 446 CMS08 Shindengen 30 1 25C SBD Standard 2006 447 CMS09 Shindengen 30 1 25C SBD Standard 2006 448 CMS10 Shindengen 40 1 25C SBD Standard 2006 449 Shindengen 40 1 25C SBD Professional 2006 450 CMS11 Shindengen 40 2 25C SBD Standard 2006
- 30. S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer Type Vrrm (V) IF,Io(A) Thermal Model Remark Update 451 XBS104V14R TOREX Single 40 1 25C SBD Professional Jan-10 452 XBS203V17R TOREX Single 30 2 25C SBD Standard Jan-10 453 TOREX Single 30 2 25C SBD Professional Jan-10 454 XBS204S17R TOREX Single 40 2 25C SBD Standard Jan-10 455 TOREX Single 40 2 25C SBD Professional Jan-10 456 XBS206S17R TOREX Single 60 2 25C SBD Standard Jan-10 457 TOREX Single 60 2 25C SBD Professional Jan-10 458 XBS303V17R TOREX Single 30 3 25C SBD Standard Jan-10 459 TOREX Single 30 3 25C SBD Professional Jan-10 460 XBS304S17R TOREX Single 40 3 25C SBD Standard Jan-10 461 TOREX Single 40 3 25C SBD Professional Jan-10 462 XBS306S17R TOREX Single 60 3 25C SBD Standard Jan-10 463 TOREX Single 60 3 25C SBD Professional Jan-10 464 1FWJ43L TOSHIBA Single 30 1 25C SBD Standard 2006 465 1FWJ43N TOSHIBA Single 30 1 25C SBD Standard 2006 466 1GWJ42 TOSHIBA Single 40 1 25C SBD Standard 2006 467 1SS271 TOSHIBA Dual 6 0.03 25C SBD Standard 2006 468 1SS293 TOSHIBA Single 40 0.1 25C SBD Standard 2006 469 1SS294 TOSHIBA Single 40 0.1 25C SBD Standard 2006 470 1SS319 TOSHIBA Dual 40 0.1 25C SBD Standard 2006 471 1SS322 TOSHIBA Single 40 0.1 25C SBD Standard 2006 472 1SS348 TOSHIBA Single 80 0.1 25C SBD Standard 2006 473 1SS349 TOSHIBA Single 20 1 25C SBD Standard 2006 474 TOSHIBA Single 20 1 25C SBD Professional 2006 475 1SS357 TOSHIBA Single 40 0.1 25C SBD Standard 2006 30
- 31. S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer Type Vrrm (V) IF,Io(A) Thermal Model Remark Update 476 1SS367 TOSHIBA Single 10 0.1 25C SBD Standard 2006 477 1SS372 TOSHIBA Dual 10 0.1 25C SBD Standard 2006 478 1SS374 TOSHIBA Dual 10 0.1 25C SBD Standard 2006 479 1SS377 TOSHIBA Dual 10 0.1 25C SBD Standard 2006 480 1SS378 TOSHIBA Dual 10 0.1 25C SBD Standard 2006 481 1SS383 TOSHIBA Dual 40 0.1 25C SBD Standard 2006 482 1SS385F TOSHIBA Dual 10 0.1 25C SBD Standard 2006 483 1SS388 TOSHIBA Single 40 0.1 25C SBD Standard 2006 484 1SS391 TOSHIBA Dual 10 0.1 25C SBD Standard 2006 485 1SS393 TOSHIBA Dual 40 0.1 25C SBD Standard 2006 486 1SS394 TOSHIBA Single 10 0.1 25C SBD Standard 2006 487 1SS395 TOSHIBA Single 10 0.1 25C SBD Standard 2006 488 1SS396 TOSHIBA Dual 40 0.1 25C SBD Standard 2006 489 1SS402 TOSHIBA Dual 20 0.05 25C SBD Standard 2006 490 1SS404 TOSHIBA Single 20 0.3 25C SBD Standard 2006 491 1SS405 TOSHIBA Single 20 0.05 25C SBD Standard 2006 492 2FWJ42M TOSHIBA Single 30 2 25C SBD Standard 2006 493 2FWJ42N TOSHIBA Single 30 2 25C SBD Standard 2006 494 2GWJ42 TOSHIBA Single 40 2 25C SBD Standard 2006 495 2GWJ42C TOSHIBA Single 40 2 25C SBD Standard 2006 496 5FWJ2C48M TOSHIBA Dual 30 5 25C SBD Standard 2006 497 5FWJ2CZ47M TOSHIBA Dual 30 5 25C SBD Standard 2006 498 5GWJ2C48C TOSHIBA Dual 40 5 25C SBD Standard 2006 499 5GWJ2CZ47C TOSHIBA Dual 40 5 25C SBD Standard 2006 500 5GWJZ47 TOSHIBA Single 40 5 25C SBD Standard 2006 31
- 32. S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer Type Vrrm (V) IF,Io(A) Thermal Model Remark Update 501 10FWJ2C48M TOSHIBA Dual 30 10 25C SBD Standard 2006 502 10FWJ2CZ47M TOSHIBA Dual 30 10 25C SBD Standard 2006 503 10GWJ2CZ47C TOSHIBA Dual 40 10 25C SBD Standard 2006 504 20FWJ2C48M TOSHIBA Dual 30 20 25C SBD Standard 2006 505 30GWJ2C42C TOSHIBA Dual 40 30 25C SBD Standard 2006 506 30GWJ2C48C TOSHIBA Dual 40 30 25C SBD Standard 2006 507 30GWJ2CZ47C TOSHIBA Dual 40 30 25C SBD Standard 2006 508 30QWK2CZ47 TOSHIBA Dual 120 30 25C SBD Standard 2006 509 CMS01 TOSHIBA Single 30 3 25C SBD Standard 2006 510 CMS02 TOSHIBA Single 30 3 25C SBD Standard 2006 511 CMS04 TOSHIBA Single 30 5 25C SBD Standard 2006 512 CMS05 TOSHIBA Single 30 5 25C SBD Standard 2006 513 CMS06 TOSHIBA Single 30 2 25C SBD Standard 2006 514 CMS07 TOSHIBA Single 30 2 25C SBD Standard 2006 515 CMS08 TOSHIBA Single 30 1 25C SBD Standard 2006 516 CMS09 TOSHIBA Single 30 1 25C SBD Standard 2006 517 CMS10 TOSHIBA Single 40 1 25C SBD Standard 2006 518 TOSHIBA Single 40 1 25C SBD Professional 2006 519 CMS11 TOSHIBA Single 40 2 25C SBD Standard 2006 520 CMS14 TOSHIBA Single 60 2 25C SBD Standard 2006 521 CMS15 TOSHIBA Single 60 3 25C SBD Standard 2006 522 CMS16 TOSHIBA Single 40 3 25C SBD Standard 2006 523 TOSHIBA Single 40 3 25C SBD Professional 2006 524 CRS01 TOSHIBA Single 30 1 25C SBD Standard 2006 525 CRS02 TOSHIBA Single 30 1 25C SBD Standard 2006 32
- 33. S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer Type Vrrm (V) IF,Io(A) Thermal Model Remark Update 526 CRS03 TOSHIBA Single 30 1 25C SBD Standard 2006 527 CRS04 TOSHIBA Single 40 1 25C SBD Standard 2006 528 TOSHIBA Single 40 1 25C SBD Professional 2006 529 CRS08 TOSHIBA Single 30 1.5 25C SBD Standard 2006 530 CRS09 TOSHIBA Single 30 1.5 25C SBD Standard 2006 531 CRS12 TOSHIBA Single 60 1 25C SBD Standard 2006 532 CUS02 TOSHIBA Single 30 1 25C SBD Standard 2006 533 HN2S01F TOSHIBA Treble 10 0.1 25C SBD Standard 2006 534 HN2S01FU TOSHIBA Treble 10 0.1 25C SBD Standard 2006 535 HN2S02FU TOSHIBA Treble 40 0.1 25C SBD Standard 2006 536 HN2S02JE TOSHIBA Dual 40 0.1 25C SBD Standard 2006 537 HN2S03FE TOSHIBA Treble 20 0.05 25C SBD Standard 2006 538 HN2S03FU TOSHIBA Treble 20 0.05 25C SBD Standard 2006 539 JDH3D01S TOSHIBA Single 4 0.025 25C SBD Standard 2006 540 TPCF8E02 TOSHIBA Dual 30 1 25C SBD Standard 2006 541 U1FWJ44L TOSHIBA Single 30 1 25C SBD Standard 2006 542 U1FWJ44M TOSHIBA Single 30 1 25C SBD Standard 2006 543 U1FWJ44N TOSHIBA Single 30 1 25C SBD Standard 2006 544 U1GWJ2C49 TOSHIBA Dual 40 1 25C SBD Standard 2006 545 U1GWJ44 TOSHIBA Single 40 1 25C SBD Standard 2006 546 TOSHIBA Single 40 1 25C SBD Professional 2006 547 U1GWJ49 TOSHIBA Single 40 1 25C SBD Standard 2006 548 U2FWJ44N TOSHIBA Single 30 2 25C SBD Standard 2006 549 U2GWJ44 TOSHIBA Single 40 2 25C SBD Standard 2006 550 U5FWJ2C48M TOSHIBA Dual 30 5 25C SBD Standard 2006 33
- 34. S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer Type Vrrm (V) IF,Io(A) Thermal Model Remark Update 551 U5GWJ2C42C TOSHIBA Dual 40 5 25C SBD Standard 2006 552 U5GWJ2C48C TOSHIBA Dual 40 5 25C SBD Standard 2006 553 U10FWJ2C48M TOSHIBA Dual 30 100 25C SBD Standard 2006 554 U10GWJ2C48C TOSHIBA Dual 40 100 25C SBD Standard 2006 555 U30FWJ2C48M TOSHIBA Dual 30 30 25C SBD Standard 2006 556 U30FWJ2C53M TOSHIBA Dual 30 30 25C SBD Standard 2006 557 U30GWJ2C48C TOSHIBA Dual 40 30 25C SBD Standard 2006 558 U30GWJ2C53C TOSHIBA Dual 40 30 25C SBD Standard 2006 559 U30QWK2C53 TOSHIBA Dual 120 30 25C SBD Standard 2006 560 CUS08F30 TOSHIBA Single 30 0.8 25C SBD Professional Dec-11 561 TOSHIBA Single 30 0.8 25C SBD Standard Dec-11 562 CUS10F30 TOSHIBA Single 30 1 25C SBD Professional Dec-11 563 TOSHIBA Single 30 1 25C SBD Standard Dec-11 564 CUS520 TOSHIBA Single 30 0.2 25C SBD Professional Dec-11 565 TOSHIBA Single 30 0.2 25C SBD Standard Dec-11 566 CUS521 TOSHIBA Single 30 0.2 25C SBD Professional Dec-11 567 TOSHIBA Single 30 0.2 25C SBD Standard Dec-11 568 CUS551V30 TOSHIBA Single 30 0.5 25C SBD Professional Dec-11 569 TOSHIBA Single 30 0.5 25C SBD Standard Dec-11 570 DSF07S30U TOSHIBA Single 30 0.7 25C SBD Professional Dec-11 571 TOSHIBA Single 30 0.7 25C SBD Standard Dec-11 572 TRS6E65C TOSHIBA Single 650 6 25C SiC SBD Professional Jan-14 573 TRS8E65C TOSHIBA Single 650 8 25C SiC SBD Professional Jan-14 574 TRS10E65C TOSHIBA Single 650 10 25C SiC SBD Professional Jan-14 575 TRS12E65C TOSHIBA Single 650 12 25C SiC SBD Professional Jan-14 34
- 35. 35 S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer Type Vrrm (V) IF,Io(A) Thermal Model Remark Update 576 TRS6A65C TOSHIBA Single 650 6 25C SiC SBD Professional Jan-15 577 TRS8A65C TOSHIBA Single 650 8 25C SiC SBD Professional Jan-15 578 TRS10A65C TOSHIBA Single 650 10 25C SiC SBD Professional Jan-15 579 TRS12A65C TOSHIBA Single 650 12 25C SiC SBD Professional Jan-15 580 TRS12N65D TOSHIBA Dual 650 6 25C SiC SBD Professional Jan-15 581 TRS16N65D TOSHIBA Dual 650 8 25C SiC SBD Professional Jan-15 582 TRS20N65D TOSHIBA Dual 650 10 25C SiC SBD Professional Jan-15 583 TRS24N65D TOSHIBA Dual 650 12 25C SiC SBD Professional Jan-15 584 IDH02G65C5 Infineon Single 650 2 25C SiC SBD Professional Feb-15 585 IDH03G65C5 Infineon Single 650 3 25C SiC SBD Professional Feb-15 586 IDH04G65C5 Infineon Single 650 4 25C SiC SBD Professional Feb-15 587 IDH05G65C5 Infineon Single 650 5 25C SiC SBD Professional Feb-15 588 IDH06G65C5 Infineon Single 650 6 25C SiC SBD Professional Feb-15 589 IDH08G65C5 Infineon Single 650 8 25C SiC SBD Professional Feb-15 590 IDH09G65C5 Infineon Single 650 9 25C SiC SBD Professional Feb-15 591 IDH10G65C5 Infineon Single 650 10 25C SiC SBD Professional Feb-15 592 IDH12G65C5 Infineon Single 650 12 25C SiC SBD Professional Feb-15 593 IDH16G65C5 Infineon Single 650 16 25C SiC SBD Professional Feb-15 594 IDH20G65C5 Infineon Single 650 20 25C SiC SBD Professional Feb-15 595 IDK02G65C5 nfineon Single 650 2 25C SiC SBD Professional Mar-15 596 IDK03G65C5 nfineon Single 650 3 25C SiC SBD Professional Mar-15 597 IDK04G65C5 nfineon Single 650 4 25C SiC SBD Professional Mar-15 598 IDK05G65C5 nfineon Single 650 5 25C SiC SBD Professional Mar-15 599 IDK06G65C5 nfineon Single 650 6 25C SiC SBD Professional Mar-15 600 IDK08G65C5 nfineon Single 650 8 25C SiC SBD Professional Mar-15
- 36. 36 S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer Type Vrrm (V) IF,Io(A) Thermal Model Remark Update 601 IDK09G65C5 nfineon Single 650 9 25C SiC SBD Professional Mar-15 602 IDK10G65C5 nfineon Single 650 10 25C SiC SBD Professional Mar-15 603 IDK12G65C5 nfineon Single 650 12 25C SiC SBD Professional Mar-15 604 IDL02G65C5 nfineon Single 650 2 25C SiC SBD Professional Mar-15 605 IDL04G65C5 nfineon Single 650 4 25C SiC SBD Professional Mar-15 606 IDL06G65C5 nfineon Single 650 6 25C SiC SBD Professional Mar-15 607 IDL08G65C5 nfineon Single 650 8 25C SiC SBD Professional Mar-15 608 IDL10G65C5 Infineon Single 650 10 25C SiC SBD Professional Apr-15 609 IDL12G65C5 Infineon Single 650 12 25C SiC SBD Professional Apr-15 610 IDW10G65C5 Infineon Single 650 10 25C SiC SBD Professional Apr-15 611 IDW12G65C5 Infineon Single 650 12 25C SiC SBD Professional Apr-15 612 IDW16G65C5 Infineon Single 650 16 25C SiC SBD Professional Apr-15 613 IDW20G65C5 Infineon Single 650 20 25C SiC SBD Professional Apr-15 614 IDW30G65C5 Infineon Single 650 30 25C SiC SBD Professional Apr-15 615 IDW40G65C5 Infineon Single 650 40 25C SiC SBD Professional Apr-15 616 CBS05F30 TOSHIBA Single 30 0.5 25C SiC SBD Professional Jun-15 617 CBS10S30 TOSHIBA Single 30 1 25C SiC SBD Professional Jun-15 618 CBS10S40 TOSHIBA Single 40 1 25C SiC SBD Professional Jun-15 619 CCS15S30 TOSHIBA Single 30 1.5 25C SiC SBD Professional Jun-15 620 CES388 TOSHIBA Single 45 0.1 25C SiC SBD Professional Jun-15 621 CES520 TOSHIBA Single 30 0.2 25C SiC SBD Professional Jun-15 622 CES521 TOSHIBA Single 30 0.2 25C SiC SBD Professional Jun-15 623 CTS05S40 TOSHIBA Single 40 0.5 25C SiC SBD Professional Jun-15 624 CTS520 TOSHIBA Single 30 0.2 25C SiC SBD Professional Jun-15 625 CTS521 TOSHIBA Single 30 0.2 25C SiC SBD Professional Jun-15
- 37. 37 S02 SPICE PARK Diode/Schottky Rectifier No. Part Number Manufacturer Type Vrrm (V) IF,Io(A) Thermal Model Remark Update 626 CUS05S40 TOSHIBA Single 40 0.5 25C SiC SBD Professional Jun-15 627 CUS10S30 TOSHIBA Single 30 1 25C SiC SBD Professional Jun-15 628 CUS10S40 TOSHIBA Single 40 1 25C SiC SBD Professional Jun-15 629 CUS15S30 TOSHIBA Single 30 1.5 25C SiC SBD Professional Jun-15 630 CUS15S40 TOSHIBA Single 40 1.5 25C SiC SBD Professional Jun-15 631 CUS357 TOSHIBA Single 45 0.3 25C SiC SBD Professional Jun-15 632 CVJ10F30 TOSHIBA Dual 32 1 25C SiC SBD Professional Jun-15 633 TRS16A65C TOSHIBA Single 650 16 25C SiC SBD Professional Jun-15 634 TRS20J120C TOSHIBA Single 1200 20 25C SiC SBD Professional Jun-15
- 38. S03 SPICE PARKJUN2015 Diode/ Zener Diode No. Manufacturer Pcs. 1 TOSHIBA 27 2 Panasonic 2 TOTAL 29 All Rights Reserved Copyright (C) Bee Technologies Inc. 38
- 39. Diode/ Zener Diode No.Part Number Class Manufacturer Vz(V):Min Vz(V):Max Iz(A) Model Type Update 1 02CZ2_2 X TOSHIBA 2.05 2.26 0.005 Professional 2006 2 02CZ2_2 X TOSHIBA 2.05 2.26 0.005 Standard 2006 3 02CZ2_7 X TOSHIBA 2.5 2.75 0.005 Professional 2006 4 02CZ2_7 X TOSHIBA 2.5 2.75 0.005 Standard 2006 5 02DZ5_6 X TOSHIBA 5.3 5.63 0.005 Standard 2006 6 02DZ5_6 Y TOSHIBA 5.43 5.81 0.005 Standard 2006 7 02DZ5_6 Z TOSHIBA 5.61 6 0.005 Standard 2006 8 02DZ2_4 X TOSHIBA 22.8 24.11 0.005 Standard 2006 9 02DZ2_4 Y TOSHIBA 23.61 24.92 0.005 Standard 2006 10 02DZ2_4 Z TOSHIBA 24.42 25.6 0.005 Standard 2006 11 CMZB12 N/A TOSHIBA 10.8 13.2 10 Standard+ May-13 12 CMZB13 N/A TOSHIBA 11.7 14.3 10 Standard+ May-13 13 CMZB15 N/A TOSHIBA 13.5 16.5 10 Standard+ May-13 14 CMZB16 N/A TOSHIBA 14.4 17.6 10 Standard+ May-13 15 CMZB18 N/A TOSHIBA 16.2 19.8 10 Standard+ May-13 16 CMZB20 N/A TOSHIBA 18 22 10 Standard+ May-13 17 CMZB22 N/A TOSHIBA 19.8 24.2 10 Standard May-13 18 CMZB24 N/A TOSHIBA 21.6 26.4 10 Standard+ May-13 19 CMZB27 N/A TOSHIBA 24.3 29.7 10 Standard+ May-13 20 CMZB30 N/A TOSHIBA 27 33 10 Standard+ May-13 21 CMZB33 N/A TOSHIBA 29.7 36.3 10 Standard+ May-13 22 CMZB36 N/A TOSHIBA 32.4 39.6 9 Standard+ May-13 23 CMZB39 N/A TOSHIBA 35.1 42.9 8 Standard+ May-13 24 CMZB43 N/A TOSHIBA 38.7 47.3 7 Standard+ May-13 25 CMZB47 N/A TOSHIBA 42.3 51.7 6 Standard+ May-13 S03 SPICE PARK 39
- 40. No. Part NumberClass Manufacturer Vz(V):Min Vz(V):Max Iz(A) Model Type Update 26 CMZB51 N/A TOSHIBA 45.9 56.1 6 Standard+ May-13 27 CMZB53 N/A TOSHIBA 47.7 58.3 5 Standard+ May-13 28 MALS068X N/A Panasonic 6.5 7.5 0.005 Professional 2006 29 MALS068X N/A Panasonic 6.5 7.5 0.005 Standard 2006 Diode/ Zener Diode S03 SPICE PARK 40
- 41. S04 SPICE PARKJUN2015 Diode/ Laser Diode No. Manufacturer Pcs. 1 MITSUBISHI 6 2 NICHIA 3 3 SANYO 27 4 SONY 9 5 HITACHI 4 TOTAL 49 All Rights Reserved Copyright (C) Bee Technologies Inc. 41
- 42. Diode/ Laser Diode No.Part Number Manufacturer Update 1 ML120G14 MITSUBISHI 2006 2 ML120G18 MITSUBISHI 2006 3 ML120G20 MITSUBISHI 2006 4 ML776H10 MITSUBISHI 2006 5 ML976H10 MITSUBISHI 2006 6 ML7924 MITSUBISHI 2006 7 NDHU110APAE2 NICHIA 2006 8 NDHV310ACA NICHIA 2006 9 NDHV310APC NICHIA 2006 10 DL-3038-033 SANYO 2006 11 DL-3039-011 SANYO 2006 12 DL-3147-021 SANYO 2006 13 DL-3147-041 SANYO 2006 14 DL-3147-141 SANYO 2006 15 DL-3147-161 SANYO 2006 16 DL-3147-241 SANYO 2006 17 DL-3147-261 SANYO 2006 18 DL-3148-021 SANYO 2006 19 DL-3148-023 SANYO 2006 20 DL-3148-033 SANYO 2006 21 DL-3149-054 SANYO 2006 22 DL-3149-055 SANYO 2006 23 DL-3149-056 SANYO 2006 24 DL-3149-070 SANYO 2006 25 DL-3150-101 SANYO 2006 No. Part Number Manufacturer Update 26 DL-3150-102 SANYO 2006 27 DL-3150-103 SANYO 2006 28 DL-3150-105 SANYO 2006 29 DL-4038-021 SANYO 2006 30 DL-4038-025 SANYO 2006 31 DL-4039-011 SANYO 2006 32 DL-6140-201 SANYO 2006 33 DL-7140-201 SANYO 2006 34 DL-3147-060 SANYO 2006 35 DL-3148-025 SANYO 2006 36 DL-7240-201P SANYO 2006 37 SLD304XT SONY 2006 38 SLD322V SONY 2006 39 SLD322XT SONY 2006 40 SLD323V SONY 2006 41 SLD301V SONY 2006 42 SLD302V SONY 2006 43 SLD1121VS SONY 2006 44 SLD1133VS SONY 2006 45 SLD1137VS SONY 2006 46 HL6714G HITACHI 2006 47 HL6738MG HITACHI 2006 48 HL7859MG HITACHI 2006 49 HL8325G HITACHI 2006 S04 SPICE PARK 42
- 43. S05 SPICE PARKJUN2015 Light-Emitting Diode (LED) No. Manufacturer Pcs. 1 Opto Supply 26 2 PARA LIGHT 6 3 SANYO 13 4 STANLEY 4 5 TOSHIBA 10 6 TOYODA GOSEI 1 TOTAL 60 All Rights Reserved Copyright (C) Bee Technologies Inc. 43
- 44. Light-Emitting Diode (LED) No.Part Number Model Type Manufacturer Color Thermal Update 1 OSUB3131P Standard Opto Supply Blue Ta=25C˚ 2006 2 OSUB3131P Professional Opto Supply Blue Ta=25C˚ 2006 3 OSWT5111A Standard Opto Supply White Ta=60C˚ 2006 4 OSWT5111A Professional Opto Supply White Ta=60C˚ 2006 5 OSWT5111A Standard Opto Supply White Ta=40C˚ 2006 6 OSWT5111A Professional Opto Supply White Ta=40C˚ 2006 7 OSWT5111A Standard Opto Supply White Ta=25C˚ 2006 8 OSWT5111A Professional Opto Supply White Ta=25C˚ 2006 9 OSWT5111A Standard Opto Supply White Ta=0C˚ 2006 10 OSWT5111A Professional Opto Supply White Ta=0C˚ 2006 11 OSWT5111A Standard Opto Supply White Ta=-20C˚ 2006 12 OSWT5111A Professional Opto Supply White Ta=-20C˚ 2006 13 OSWT5111A Standard Opto Supply White Ta=-40C˚ 2006 14 OSWT5111A Professional Opto Supply White Ta=-40C˚ 2006 15 OSWT5161A Standard Opto Supply White Ta=60C˚ 2006 16 OSWT5161A Professional Opto Supply White Ta=60C˚ 2006 17 OSWT5161A Standard Opto Supply White Ta=40C˚ 2006 18 OSWT5161A Professional Opto Supply White Ta=40C˚ 2006 19 OSWT5161A Standard Opto Supply White Ta=25C˚ 2006 20 OSWT5161A Professional Opto Supply White Ta=25C˚ 2006 21 OSWT5161A Standard Opto Supply White Ta=0C˚ 2006 22 OSWT5161A Professional Opto Supply White Ta=0C˚ 2006 23 OSWT5161A Standard Opto Supply White Ta=-20C˚ 2006 24 OSWT5161A Professional Opto Supply White Ta=-20C˚ 2006 25 OSWT5161A Standard Opto Supply White Ta=-40C˚ 2006 S05 SPICE PARK 44
- 45. No. Part NumberModel Type Manufacturer Color Thermal Update 26 OSWT5161A Professional Opto Supply White Ta=-40C˚ 2006 27 EP204K-35G1R1B1-CA Standard PARA LIGHT Blue Ta=25C˚ 2006 28 EP204K-35G1R1B1-CA Professional PARA LIGHT Blue Ta=25C˚ 2006 29 EP204K-35G1R1B1-CA Standard PARA LIGHT Red Ta=25C˚ 2006 30 EP204K-35G1R1B1-CA Professional PARA LIGHT Red Ta=25C˚ 2006 31 EP204K-35G1R1B1-CA Standard PARA LIGHT Green Ta=25C˚ 2006 32 EP204K-35G1R1B1-CA Professional PARA LIGHT Green Ta=25C˚ 2006 33 SLP-WB89A-51 Standard SANYO White Ta=60dC˚ 2006 34 SLP-WB89A-51 Professional SANYO White Ta=60C˚ 2006 35 SLP-WB89A-51 Standard SANYO White Ta=40C˚ 2006 36 SLP-WB89A-51 Professional SANYO White Ta=40C˚ 2006 37 SLP-WB89A-51 Standard SANYO White Ta=25C˚ 2006 38 SLP-WB89A-51 Professional SANYO White Ta=25C˚ 2006 39 SLP-WB89A-51 Standard SANYO White Ta=0C˚ 2006 40 SLP-WB89A-51 Professional SANYO White Ta=0C˚ 2006 41 SLP-WB89A-51 Standard SANYO White Ta=-20C˚ 2006 42 SLP-WB89A-51 Professional SANYO White Ta=-20C˚ 2006 43 SLP-WB89A-51 Standard SANYO White Ta=-40C˚ 2006 44 SLP-WB89A-51 Professional SANYO White Ta=-40C˚ 2006 45 SLP-0H118A-51 Professional SANYO Blue Ta=25C˚ 2006 46 EFR5365S Standard STANLEY Red Ta=25C˚ 2006 47 EFR5365S Professional STANLEY Red Ta=25C˚ 2006 48 FY3863X Standard STANLEY Yellow Ta=25C˚ 2006 49 FY3863X Professional STANLEY Yellow Ta=25C˚ 2006 50 TLWH1100 Standard TOSHIBA White Ta=60C˚ 2006 S05 SPICE PARK Light-Emitting Diode (LED) 45
- 46. No. Part NumberModel Type Manufacturer Color Thermal Update 51 TLWH1100 Professional TOSHIBA White Ta=60C˚ 2006 52 TLWH1100 Standard TOSHIBA White Ta=40C˚ 2006 53 TLWH1100 Professional TOSHIBA White Ta=40C˚ 2006 54 TLWH1100 Standard TOSHIBA White Ta=25C˚ 2006 55 TLWH1100 Professional TOSHIBA White Ta=25C˚ 2006 56 TLWH1100 Standard TOSHIBA White Ta=-20C˚ 2006 57 TLWH1100 Professional TOSHIBA White Ta=-20C˚ 2006 58 TLWH1100 Standard TOSHIBA White Ta=-40C˚ 2006 59 TLWH1100 Professional TOSHIBA White Ta=-40C˚ 2006 60 E1L5-YC1A Professional TOYODA GOSEI Green Ta=25C˚ 2006 S05 SPICE PARK Light-Emitting Diode (LED) 46
- 47. S06 SPICE PARKJUN2015 Junction FET No. Manufacturer Pcs. 1 Vishay Siliconix 14 TOTAL 14 All Rights Reserved Copyright (C) Bee Technologies Inc. 47
- 48. Junction FET No. PartNumber Manufacturer Update 1 J270 Vishay Siliconix 2006 2 SST270 Vishay Siliconix 2006 3 J271 Vishay Siliconix 2006 4 SST271 Vishay Siliconix 2006 5 2N3819 Vishay Siliconix 2006 6 2N4416 Vishay Siliconix 2006 7 2N4416A Vishay Siliconix 2006 8 SST4416 Vishay Siliconix 2006 9 2N5484 Vishay Siliconix 2006 10 SST5484 Vishay Siliconix 2006 11 2N5485 Vishay Siliconix 2006 12 SST5485 Vishay Siliconix 2006 13 2N5486 Vishay Siliconix 2006 14 SST5486 Vishay Siliconix 2006 S06 SPICE PARK 48
- 49. S07 SPICE PARKJUN2015 MOSFET No. Manufacturer Pcs. 1 Fuji Electric 18 2 HITACHI 2 3 Infineon Technologies 14 4 International Rectifier 12 5 NEC 50 6 Panasonic 10 7 ROHM 9 8 SANYO 40 9 SHINDENGEN 3 10 TOSHIBA 465 TOTAL 623 All Rights Reserved Copyright (C) Bee Technologies Inc. 49
- 50. MOSFET No. Part NumberManufacturer Pol Model Type Update 1 2SK3603-01MR Fuji Electric N-Channel Standard+BDS 2006 2 2SK3611-01MR Fuji Electric N-Channel Standard+BDS 2006 3 2SK3644-01 Fuji Electric N-Channel Standard+BDS 2006 4 2SK3677-01MR Fuji Electric N-Channel Standard+BDS 2006 5 2SK3681-01 Fuji Electric N-Channel Standard+BDS 2006 6 2SK3728-01MR Fuji Electric N-Channel Standard+BDS 2006 7 2SK3770-01MR Fuji Electric N-Channel Standard+BDS 2006 8 Fuji Electric N-Channel Professional+BDS 2006 9 Fuji Electric N-Channel Professional+BDP 2006 10 2SK3872-01L Fuji Electric N-Channel Standard+BDS 2006 11 Fuji Electric N-Channel Professional+BDS 2006 12 Fuji Electric N-Channel Professional+BDP 2006 13 2SK3872-01S Fuji Electric N-Channel Standard+BDS 2006 14 Fuji Electric N-Channel Professional+BDS 2006 15 Fuji Electric N-Channel Professional+BDP 2006 16 2SK3872-01SJ Fuji Electric N-Channel Standard+BDS 2006 17 Fuji Electric N-Channel Professional+BDS 2006 18 Fuji Electric N-Channel Professional+BDP 2006 19 2SJ527 HITACHI P-Channel Standard+BDS 2006 20 HITACHI P-Channel Professional+BD(SP) 2006 21 SPA11N60C3 Infineon T N-Channel Professional+BD(SP) 2006 22 SPB02N60C3 Infineon T N-Channel Professional+BD(SP) 2006 23 SPB11N60C3 Infineon T N-Channel Professional+BD(SP) 2006 24 SPD02N60C3 Infineon T N-Channel Professional+BD(SP) 2006 25 SPI11N60C3 Infineon T N-Channel Professional+BD(SP) 2006 S07 SPICE PARK 50
- 51. No. Part NumberManufacturer Pol Model Type Update 26 SPP02N60C3 Infineon T N-Channel Professional+BD(SP) 2006 27 SPP11N60C3 Infineon T N-Channel Professional+BD(SP) 2006 28 SPU02N60C3 Infineon T N-Channel Professional+BD(SP) 2006 29 SPW47N60C3 Infineon T N-Channel Professional+BD(SP) 2006 30 SPA20N60CFD Infineon T N-Channel Professional+BD(SP) 2006 31 SPW11N60CFD Infineon T N-Channel Professional+BD(SP) 2006 32 SPW20N60CFD Infineon T N-Channel Professional+BD(SP) 2006 33 SPW35N60CFD Infineon T N-Channel Professional+BD(SP) 2006 34 SPW47N60CFD Infineon T N-Channel Professional+BD(SP) 2006 35 IRFB9N30A International R N-Channel Standard+BDS 2006 36 International R N-Channel Professional+BDS 2006 37 International R N-Channel Professionall+BDP 2006 38 IRFB9N60A International R N-Channel Standard+BDS 2006 39 International R N-Channel Professional+BDS 2006 40 International R N-Channel Professionall+BDP 2006 41 IRFB9N65A International R N-Channel Standard+BDS 2006 42 International R N-Channel Professional+BDS 2006 43 International R N-Channel Professionall+BDP 2006 44 IRFIB7N50A International R N-Channel Standard+BDS 2006 45 International R N-Channel Professional+BDS 2006 46 International R N-Channel Professionall+BDP 2006 47 2SJ448 NEC P-Channel Standard+BDS 2006 48 NEC P-Channel Professional+BDP 2006 49 2SJ492 NEC P-Channel Standard+BDS 2006 50 NEC P-Channel Professional+BDP 2006 S07 SPICE PARK MOSFET 51
- 52. No. Part NumberManufacturer Pol Model Type Update 51 2SJ493 NEC P-Channel Standard+BDS 2006 52 2SJ493 NEC P-Channel Professional+BDP 2006 53 2SJ494 NEC P-Channel Standard+BDS 2006 54 2SJ494 NEC P-Channel Professional+BDP 2006 55 2SJ495 NEC P-Channel Standard+BDS 2006 56 2SJ495 NEC P-Channel Professional+BDP 2006 57 2SK2409 NEC N-Channel Standard+BDS 2006 58 2SK2409 NEC N-Channel Professional+BDP 2006 59 2SK2410 NEC N-Channel Standard+BDS 2006 60 2SK2410 NEC N-Channel Professional+BDP 2006 61 2SK2412 NEC N-Channel Standard+BDS 2006 62 2SK2412 NEC N-Channel Professional+BDP 2006 63 2SK2414 NEC N-Channel Standard+BDS 2006 64 2SK2414 NEC N-Channel Professional+BDP 2006 65 2SK2415 NEC N-Channel Standard+BDS 2006 66 2SK2415 NEC N-Channel Professional+BDP 2006 67 2SK2461 NEC N-Channel Standard+BDS 2006 68 2SK2461 NEC N-Channel Professional+BDP 2006 69 2SK2462 NEC N-Channel Standard+BDS 2006 70 2SK2462 NEC N-Channel Professional+BDP 2006 71 2SK3057 NEC N-Channel Standard+BDS 2006 72 2SK3057 NEC N-Channel Professional+BDP 2006 73 2SK3058 NEC N-Channel Standard+BDS 2006 74 2SK3058 NEC N-Channel Professional+BDP 2006 75 2SK3062 NEC N-Channel Standard+BDS 2006 76 2SK3062 NEC N-Channel Professional+BDP 2006 S07 SPICE PARK MOSFET 52
- 53. No. Part NumberManufacturer Pol Model Type Update 77 2SK3108 NEC N-Channel Standard+BDS 2006 78 NEC N-Channel Professional+BDP 2006 79 2SK3109 NEC N-Channel Standard+BDS 2006 80 NEC N-Channel Professional+BDP 2006 81 2SK3110 NEC N-Channel Standard+BDS 2006 82 NEC N-Channel Professional+BDP 2006 83 2SK3111 NEC N-Channel Standard+BDS 2006 84 NEC N-Channel Professional+BDP 2006 85 2SK3435 NEC N-Channel Standard+BDS 2006 86 NEC N-Channel Professional+BDP 2006 87 2SK3454 NEC N-Channel Standard+BDS 2006 88 NEC N-Channel Professional+BDP 2006 89 2SK4075 NEC N-Channel Standard+BDS Dec-07 90 NEC N-Channel Professional+BDP Dec-07 91 2SK4076 NEC N-Channel Standard+BDS Dec-07 92 NEC N-Channel Professional+BDP Dec-07 93 2SK4077 NEC N-Channel Standard+BDS Dec-07 94 NEC N-Channel Professional+BDP Dec-07 95 2SK4078 NEC N-Channel Standard+BDS Dec-07 96 NEC N-Channel Professional+BDP Dec-07 97 2SJ0536 Panasonic P-Channel Standard+BDS 2006 98 Panasonic P-Channel Professional+BDP 2006 99 2SK3546J Panasonic N-Channel Standard+BDS 2006 100 2SK3546J Panasonic N-Channel Professional+BDP 2006 S07 SPICE PARK MOSFET 53
- 54. No. Part NumberManufacturer Pol Model Type Update 101 2SK3938 Panasonic N-Channel Standard+BDS 2006 102 2SK3938 Panasonic N-Channel Professional+BDP 2006 103 MTM23223 Panasonic N-Channel Standard+BDS 2006 104 MTM23223 Panasonic N-Channel Professional+BDP 2006 105 2SK4029 Panasonic N-Channel Standard+BDS 2006 106 2SK4029 Panasonic N-Channel Professional+BDP 2006 107 2SJ650 SANYO P-Channel Standard+BDS Feb-10 108 2SJ650 SANYO P-Channel Professional+BDP Feb-10 109 2SJ651 SANYO P-Channel Standard+BDS Feb-10 110 2SJ651 SANYO P-Channel Professional+BDP Feb-10 111 2SJ652 SANYO P-Channel Standard+BDS Feb-10 112 2SJ652 SANYO P-Channel Professional+BDP Feb-10 113 2SJ654 SANYO P-Channel Standard+BDS Feb-10 114 2SJ654 SANYO P-Channel Professional+BDP Feb-10 115 2SJ655 SANYO P-Channel Standard+BDS Feb-10 116 2SJ655 SANYO P-Channel Professional+BDP Feb-10 117 2SJ656 SANYO P-Channel Standard+BDS Feb-10 118 2SJ656 SANYO P-Channel Professional+BDP Feb-10 119 2SJ657 SANYO P-Channel Standard+BDS Feb-10 120 2SJ657 SANYO P-Channel Professional+BDP Feb-10 S07 SPICE PARK MOSFET 54
- 55. No. Part NumberManufacturer Pol Model Type Update 121 2SK2740 ROHM N-Channel Standard+FWDS 2006 122 2SK3019 ROHM N-Channel Professional+FWDP Sep-11 123 2SK3019 ROHM N-Channel Standard+FWDS Sep-11 124 RJU002N06 ROHM N-Channel Professional+FWDP Sep-11 125 RJU002N06 ROHM N-Channel Standard+FWDS Sep-11 126 SCT2080KE ROHM N-Channel Professional+BDP Aug-13 127 SCT2080KE ROHM N-Channel Standard+BDS Aug-13 128 SCH2080KE ROHM N-Channel Professional+BDP Aug-13 129 SCH2080KE ROHM N-Channel Standard+BDS Aug-13 S07 SPICE PARK MOSFET 55
- 56. No. Part NumberManufacturer Pol Model Type Update 130 2SJ683-TL-E SANYO P-Channel Standard+BDS Feb-10 131 2SJ683-TL-E SANYO P-Channel Professional+BDP Feb-10 132 2SK3703 SANYO N-Channel Standard+BDS Feb-10 133 2SK3703 SANYO N-Channel Professional+BDP Feb-10 134 2SK3704 SANYO N-Channel Standard+BDS Feb-10 135 2SK3704 SANYO N-Channel Professional+BDP Feb-10 136 2SK3705 SANYO N-Channel Standard+BDS Feb-10 137 2SK3705 SANYO N-Channel Professional+BDP Feb-10 138 2SK4062LS SANYO N-Channel Standard+BDS Feb-10 139 2SK4062LS SANYO N-Channel Professional+BDP Feb-10 140 2SK4063LS SANYO N-Channel Standard+BDS Feb-10 141 2SK4063LS SANYO N-Channel Professional+BDP Feb-10 142 2SK4064LS SANYO N-Channel Standard+BDS Feb-10 143 2SK4064LS SANYO N-Channel Professional+BDP Feb-10 144 2SK4065-DL-E SANYO N-Channel Standard+BDS Feb-10 145 2SK4065-DL-E SANYO N-Channel Professional+BDP Feb-10 146 2SK4066-DL-E SANYO N-Channel Standard+BDS Feb-10 147 2SK4066-DL-E SANYO N-Channel Professional+BDP Feb-10 148 2SK4087LS SANYO N-Channel Standard+BDS Feb-10 149 2SK4087LS SANYO N-Channel Professional+BDP Feb-10 150 2SK4101LS SANYO N-Channel Standard+BDS Feb-10 151 2SK4101LS SANYO N-Channel Professional+BDP Feb-10 152 2SK4122LS SANYO N-Channel Standard+BDS Feb-10 153 2SK4122LS SANYO N-Channel Professional+BDP Feb-10 154 2SK4125 SANYO N-Channel Standard+BDS Feb-10 S07 SPICE PARK MOSFET 56
- 57. No. Part NumberManufacturer Pol Model Type Update 155 2SK4125 SANYO N-Channel Professional+BDP Feb-10 156 2SK2563 SHINDENGEN N-Channel Standard+BDS 2006 157 2SK2563 SHINDENGEN N-Channel Professional+BDS 2006 158 2SK2563 SHINDENGEN N-Channel Professional+BDP 2006 159 TPC6003 TOSHIBA N-Channel Professional+BDP 2006 160 TPC6104 TOSHIBA P-Channel Professional+BDP 2006 161 TPC8018-H TOSHIBA P-Channel Professional+BDP 2006 162 TPC8024-H TOSHIBA N-Channel Professional+BDP 2006 163 TPC8A02-H TOSHIBA N-Channel Professional+BDP+ZD 2006 164 TPCA8005-H TOSHIBA N-Channel Professional+BDSP 2006 165 TPCM8001-H TOSHIBA N-Channel Professional+BDSP 2006 166 TPCP8001-H TOSHIBA N-Channel Professional+BDSP 2006 167 2SJ334 TOSHIBA P-Channel Standard+BDS 2006 168 2SJ334 TOSHIBA P-Channel Professional+BDP 2006 169 2SJ349 TOSHIBA P-Channel Standard+BDS 2006 170 2SJ349 TOSHIBA P-Channel Professional+BDP 2006 171 2SJ407 TOSHIBA P-Channel Standard+BDS 2006 172 2SJ407 TOSHIBA P-Channel Professional+BDP 2006 173 2SJ438 TOSHIBA P-Channel Standard+BDS 2006 174 2SJ438 TOSHIBA P-Channel Professional+BDP 2006 175 2SJ464 TOSHIBA P-Channel Standard+BDS 2006 176 2SJ464 TOSHIBA P-Channel Professional+BDP 2006 177 2SJ509 TOSHIBA P-Channel Standard+BDS 2006 178 2SJ509 TOSHIBA P-Channel Professional+BDP 2006 179 2SJ537 TOSHIBA N-Channel Standard+BDS 2006 180 2SJ537 TOSHIBA N-Channel Professional+BDP 2006 S07 SPICE PARK MOSFET 57
- 58. No. Part NumberManufacturer Pol Model Type Update 181 2SK1544 TOSHIBA N-Channel Standard+BDS 2006 182 2SK1544 TOSHIBA N-Channel Professional+BDP 2006 183 2SK1825 TOSHIBA N-Channel Standard+BDS 2006 184 2SK1825 TOSHIBA N-Channel Professional+BDP 2006 185 2SK1826 TOSHIBA N-Channel Standard+BDS 2006 186 2SK1826 TOSHIBA N-Channel Professional+BDP 2006 187 2SK1828 TOSHIBA N-Channel Standard+BDS 2006 188 2SK1828 TOSHIBA N-Channel Professional+BDP 2006 189 2SK2201 TOSHIBA N-Channel Standard+BDS 2006 190 2SK2201 TOSHIBA N-Channel Professional+BDP 2006 191 2SK2417 TOSHIBA N-Channel Standard+BDS 2006 192 2SK2417 TOSHIBA N-Channel Professional+BDP 2006 193 2SK2508 TOSHIBA N-Channel Standard+BDS 2006 194 2SK2508 TOSHIBA N-Channel Professional+BDP 2006 195 2SK2543 TOSHIBA N-Channel Standard+BDS 2006 196 2SK2543 TOSHIBA N-Channel Professional+BDP 2006 197 2SK2601 TOSHIBA N-Channel Standard+BDS 2006 198 2SK2601 TOSHIBA N-Channel Professional+BDP 2006 199 2SK2610 TOSHIBA N-Channel Standard+BDS 2006 200 2SK2610 TOSHIBA N-Channel Professional+BDP 2006 201 2SK2611 TOSHIBA N-Channel Standard+BDS 2006 202 2SK2611 TOSHIBA N-Channel Professional+BDP 2006 203 2SK2661 TOSHIBA N-Channel Standard+BDS 2006 204 2SK2661 TOSHIBA N-Channel Professional+BD(SP) 2006 S07 SPICE PARK MOSFET 58
- 59. No. Part NumberManufacturer Pol Model Type Update 205 2SK2698 TOSHIBA N-Channel Standard+BDS 2006 206 2SK2698 TOSHIBA N-Channel Professional+BDP 2006 207 2SK2700 TOSHIBA N-Channel Standard+BDS 2006 208 2SK2700 TOSHIBA N-Channel Professional+BDP 2006 209 2SK2718 TOSHIBA N-Channel Standard+BDS 2006 210 2SK2718 TOSHIBA N-Channel Professional+BDP 2006 211 2SK2916 TOSHIBA N-Channel Standard+BDS 2006 212 2SK2916 TOSHIBA N-Channel Professional+BDP 2006 213 2SK2920 TOSHIBA N-Channel Standard+BDS 2006 214 2SK2920 TOSHIBA N-Channel Professional+BDP 2006 215 2SK2962 TOSHIBA N-Channel Standard+BDS 2006 216 2SK2962 TOSHIBA N-Channel Professional+BDP 2006 217 2SK2963 TOSHIBA N-Channel Standard+BDS 2006 218 2SK2963 TOSHIBA N-Channel Professional+BDP 2006 219 2SK2989 TOSHIBA N-Channel Standard+BDS 2006 220 2SK2989 TOSHIBA N-Channel Professional+BDP 2006 221 2SK2992 TOSHIBA N-Channel Standard+BDS 2006 222 2SK2992 TOSHIBA N-Channel Professional+BDP 2006 223 2SK3301 TOSHIBA N-Channel Standard+BDS 2006 224 2SK3301 TOSHIBA N-Channel Professional+BDP 2006 225 2SK3561 TOSHIBA N-Channel Standard+BDS 2006 226 2SK3561 TOSHIBA N-Channel Professional+BDP 2006 227 2SK3565 TOSHIBA N-Channel Standard+BDS 2006 228 2SK3565 TOSHIBA N-Channel Professional+BDP 2006 229 2SK3568 TOSHIBA N-Channel Standard+BDS 2006 230 2SK3568 TOSHIBA N-Channel Professional+BDP 2006 S07 SPICE PARK MOSFET 59
- 60. No. Part NumberManufacturer Pol Model Type Update 231 2SK3670 TOSHIBA N-Channel Standard+BDS 2006 232 2SK3670 TOSHIBA N-Channel Professional+BDP 2006 233 2SK3799 TOSHIBA N-Channel Standard+BDS 2006 234 2SK3799 TOSHIBA N-Channel Professional+BDP 2006 235 2SK3843 TOSHIBA N-Channel Standard+BDS 2006 236 2SK3843 TOSHIBA N-Channel Professional+BDP 2006 237 2SK3844 TOSHIBA N-Channel Standard+BDS 2006 238 2SK3844 TOSHIBA N-Channel Professional+BDP 2006 239 2SK3869 TOSHIBA N-Channel Standard+BDS 2006 240 2SK3869 TOSHIBA N-Channel Professional+BDP 2006 241 2SK3940 TOSHIBA N-Channel Standard+BDS 2006 242 2SK3940 TOSHIBA N-Channel Professional+BDP 2006 243 2SK3994 TOSHIBA N-Channel Standard+BDS 2006 244 2SK3994 TOSHIBA N-Channel Professional+BDP 2006 245 MP4212 TOSHIBA N&P Standard+BDS 2006 246 MP4212 TOSHIBA N&P Professional+BDP 2006 247 SSM3J112TU TOSHIBA P-Channel Standard+BDS 2006 248 SSM3J112TU TOSHIBA P-Channel Professional+BDP 2006 249 SSM3K15FS TOSHIBA N-Channel Standard+BDS 2006 250 SSM3K15FS TOSHIBA N-Channel Professional+BDP 2006 251 SSM3K7002FU TOSHIBA N-Channel Standard+BDS 2006 252 SSM3K7002FU TOSHIBA N-Channel Professional+BDP 2006 253 TPC6105 TOSHIBA P-Channel Standard+BDS 2006 254 TPC6105 TOSHIBA P-Channel Professional+BDP 2006 S07 SPICE PARK MOSFET 60
- 61. No. Part NumberManufacturer Pol Model Type Update 255 TPC6107 TOSHIBA P-Channel Standard+BDS 2006 256 TOSHIBA P-Channel Professional+BDP 2006 257 TPC6108 TOSHIBA P-Channel Standard+BDS 2006 258 TOSHIBA P-Channel Professional+BDP 2006 259 TPC8110 TOSHIBA P-Channel Standard+BDS 2006 260 TOSHIBA P-Channel Professional+BDP 2006 261 TPC8203 TOSHIBA N-Channel Standard+BDS 2006 262 TOSHIBA N-Channel Professional+BDP 2006 263 TPC8212-H TOSHIBA N-Channel Standard+BDS 2006 264 TOSHIBA N-Channel Professional+BDP 2006 265 TPC8406-H TOSHIBA N&P Professional+BDP 2006 266 TOSHIBA N&P Professional+BDSP 2006 267 TPCA8003-H TOSHIBA N-Channel Standard+BDS 2006 268 TOSHIBA N-Channel Professional+BDP 2006 269 TPCA8004-H TOSHIBA N-Channel Standard+BDS 2006 270 TOSHIBA N-Channel Professional+BDP 2006 271 TPCA8011-H TOSHIBA N-Channel Standard+BDS 2006 272 TOSHIBA N-Channel Professional+BDP 2006 273 TPCA8015-H TOSHIBA N-Channel Standard+BDS 2006 274 TOSHIBA N-Channel Professional+BDP 2006 275 TPCA8104 TOSHIBA P-Channel Standard+BDS 2006 276 TOSHIBA P-Channel Professional+BDP 2006 277 TPCF8102 TOSHIBA P-Channel Standard+BDS 2006 278 TOSHIBA P-Channel Professional+BDP 2006 279 TPCF8302 TOSHIBA P-Channel Standard+BDS 2006 S07 SPICE PARK MOSFET 61
- 62. No. Part NumberManufacturer Pol Model Type Update 280 TOSHIBA P-Channel Professional+BDP 2006 281 TPCM8003-H TOSHIBA N-Channel Standard+BDS 2006 282 TOSHIBA N-Channel Professional+BDP 2006 283 TPCP8401 TOSHIBA N&P Standard+BDS 2006 284 TOSHIBA N&P Professional+BDP 2006 285 TPCP8402 TOSHIBA N&P Standard+BDS 2006 286 TOSHIBA N&P Professional+BDP 2006 287 TPCP8AA1 TOSHIBA N-Channel Professional+BDS+SBD 2006 288 TOSHIBA P-Channel Professional+BDP+SBD 2006 289 SSM3J13T TOSHIBA P-Channel Standard+BDS 2006 290 TOSHIBA P-Channel Professional+BDS 2006 291 TOSHIBA P-Channel Professional+BDP 2006 292 SSM5H05TU TOSHIBA N-Channel Standard+BDS+SBD 2006 293 TOSHIBA N-Channel Professional+BDS+SBD 2006 294 TOSHIBA N-Channel Professional+BDP+SBD 2006 295 SSM5H08TU TOSHIBA N-Channel Standard+BDS 2006 296 TOSHIBA N-Channel Professional+BDS 2006 297 TOSHIBA N-Channel Professional+BDP 2006 298 SSM6J51TU TOSHIBA P-Channel Standard+BDS 2006 299 TOSHIBA P-Channel Professional+BDS 2006 300 TOSHIBA P-Channel Professional+BDP 2006 301 TPC6005 TOSHIBA N-Channel Standard+BDS 2006 302 TOSHIBA N-Channel Professional+BDS 2006 303 TOSHIBA N-Channel Professional+BDP 2006 304 TPC8114 TOSHIBA P-Channel Standard+BDS 2006 S07 SPICE PARK MOSFET 62
- 63. No. Part NumberManufacturer Pol Model Type Update 305 TPC8114 TOSHIBA P-Channel Professional+BDS 2006 306 TPC8114 TOSHIBA P-Channel Professional+BDP 2006 307 TPCF8A01 TOSHIBA N-Channel Standard+BDS 2006 308 TOSHIBA N-Channel Professional+BDS 2006 309 TOSHIBA N-Channel Professional+BDP 2006 310 2SJ511 TOSHIBA P-Channel Standard+BDS Mar-08 311 TOSHIBA P-Channel Professional+BDP Mar-08 312 SSM3J108TU TOSHIBA P-Channel Standard+BDS Mar-08 313 TOSHIBA P-Channel Professional+BDP Mar-08 314 SSM3J115TU TOSHIBA P-Channel Standard+BDS Mar-08 315 TOSHIBA P-Channel Professional+BDP Mar-08 316 SSM3J117TU TOSHIBA P-Channel Standard+BDS Mar-08 317 TOSHIBA P-Channel Professional+BDP Mar-08 318 SSM3J15FS TOSHIBA P-Channel Standard+BDS Mar-08 319 TOSHIBA P-Channel Professional+BDP Mar-08 320 SSM3J16FS TOSHIBA P-Channel Standard+BDS Mar-08 321 TOSHIBA P-Channel Professional+BDP Mar-08 322 SSM3K101TU TOSHIBA N-Channel Standard+BDS Mar-08 323 TOSHIBA N-Channel Professional+BDP Mar-08 324 SSM3K102TU TOSHIBA N-Channel Standard+BDS Mar-08 325 TOSHIBA N-Channel Professional+BDP Mar-08 326 SSM3K104TU TOSHIBA N-Channel Standard+BDS Mar-08 327 TOSHIBA N-Channel Professional+BDP Mar-08 328 SSM3K116TU TOSHIBA N-Channel Standard+BDS Mar-08 329 TOSHIBA N-Channel Professional+BDP Mar-08 S07 SPICE PARK MOSFET 63
- 64. No. Part NumberManufacturer Pol Model Type Update 330 SSM3K126TU TOSHIBA N-Channel Standard+BDS Mar-08 331 TOSHIBA N-Channel Professional+BDP Mar-08 332 SSM3K15FU TOSHIBA N-Channel Standard+BDS Mar-08 333 TOSHIBA N-Channel Professional+BDP Mar-08 334 SSM3K16FU TOSHIBA N-Channel Standard+BDS Mar-08 335 TOSHIBA N-Channel Professional+BDP Mar-08 336 SSM6P54TU TOSHIBA P-Channel Standard+BDS Mar-08 337 TOSHIBA P-Channel Professional+BDP Mar-08 338 TPC6109-H TOSHIBA P-Channel Standard+BDS Mar-08 339 TOSHIBA P-Channel Professional+BDP Mar-08 340 TPC8032-H TOSHIBA N-Channel Standard+BDS Mar-08 341 TOSHIBA N-Channel Professional+BDP Mar-08 342 TPCM8002-H TOSHIBA N-Channel Standard+BDS Mar-08 343 TOSHIBA N-Channel Professional+BDP Mar-08 344 TPCP8102 TOSHIBA P-Channel Standard+BDS Mar-08 345 TOSHIBA P-Channel Professional+BDP Mar-08 346 TPCP8302 TOSHIBA P-Channel Standard+BDS Mar-08 347 TOSHIBA P-Channel Professional+BDP Mar-08 348 2SK3569 TOSHIBA N-Channel Standard+BDS Oct-11 349 TOSHIBA N-Channel Professional+BDP Oct-11 350 2SK3662 TOSHIBA N-Channel Standard+BDS Oct-11 351 TOSHIBA N-Channel Professional+BDP Oct-11 352 2SK3797 TOSHIBA N-Channel Standard+BDS Oct-11 353 TOSHIBA N-Channel Professional+BDP Oct-11 354 2SK3911 TOSHIBA N-Channel Standard+BDS Oct-11 S07 SPICE PARK MOSFET 64
- 65. No. Part NumberManufacturer Pol Model Type Update 355 2SK3911 TOSHIBA N-Channel Professional+BDP Oct-11 356 TPC8213-H TOSHIBA N-Channel Professional+BD(SP) Oct-11 357 TPC8214-H TOSHIBA N-Channel Professional+BD(SP) Oct-11 358 TPCF8103 TOSHIBA P-Channel Standard+BDS Oct-11 359 TOSHIBA P-Channel Professional+BDP Oct-11 360 TPCF8104 TOSHIBA P-Channel Standard+BDS Oct-11 361 TOSHIBA P-Channel Professional+BDP Oct-11 362 TPCP8J01 TOSHIBA P-Channel Standard+BDS+BRT Oct-11 363 TOSHIBA P-Channel Professional+BDP+BRT Oct-11 364 TPCP8002 TOSHIBA N-Channel Standard+BDS Oct-11 365 TOSHIBA N-Channel Professional+BD(SP) Oct-11 366 2SJ567 TOSHIBA P-Channel Standard+BDS Nov-11 367 TOSHIBA P-Channel Professional+BDP Nov-11 368 2SK3669 TOSHIBA N-Channel Standard+BDS Nov-11 369 TOSHIBA N-Channel Professional+BDP Nov-11 370 2SK3846 TOSHIBA N-Channe Standard+BDS Nov-11 371 TOSHIBA N-Channe Professional+BDP Nov-11 372 2SK3863 TOSHIBA N-Channe Standard+BDS Nov-11 373 TOSHIBA N-Channe Professional+BDP Nov-11 374 2SK3903 TOSHIBA N-Channe Standard+BDS Nov-11 375 TOSHIBA N-Channe Professional+BDP Nov-11 376 2SK3905 TOSHIBA N-Channe Standard+BDS Nov-11 377 TOSHIBA N-Channe Professional+BDP Nov-11 S07 SPICE PARK MOSFET 65
- 66. No. Part NumberManufacturer Pol Model Type Update 378 SSM6J206FE TOSHIBA P-Channel Standard+BDS Nov-11 379 TOSHIBA P-Channel Professional+BDP Nov-11 380 SSM6K203FE TOSHIBA N-Channe Standard+BDS Nov-11 381 TOSHIBA N-Channe Professional+BDP Nov-11 382 TPC8107 TOSHIBA P-Channel Standard+BDS Nov-11 383 TOSHIBA P-Channel Professional+BDP Nov-11 384 TPCA8012-H TOSHIBA N-Channe Professional+BD(SP) Nov-11 385 TK30A06J3 TOSHIBA N-Channe Standard+BDS Jan-12 386 TOSHIBA N-Channe Professional+BDP Jan-12 387 TPC8027 TOSHIBA N-Channe Standard+BDS Jan-12 388 TOSHIBA N-Channe Professional+BDP Jan-12 389 TPC8028 TOSHIBA N-Channe Standard+BDS Jan-12 390 TOSHIBA N-Channe Professional+BDP Jan-12 391 TPC8029 TOSHIBA N-Channe Standard+BDS Jan-12 392 TOSHIBA N-Channe Professional+BDP Jan-12 393 TPC8111 TOSHIBA P-Channe Standard+BDS Jan-12 394 TOSHIBA P-Channe Professional+BDP Jan-12 395 TPC8117 TOSHIBA P-Channe Standard+BDS Jan-12 396 TOSHIBA P-Channe Professional+BDP Jan-12 397 TPC8118 TOSHIBA P-Channe Standard+BDS Jan-12 398 TOSHIBA P-Channe Professional+BDP Jan-12 399 TPCA8018-H TOSHIBA N-Channe Professional+BD(SP) Jan-12 400 TPCA8019-H TOSHIBA N-Channe Professional+BD(SP) Jan-12 401 TPCA8023-H TOSHIBA N-Channe Professional+BD(SP) Jan-12 S07 SPICE PARK MOSFET 66
- 67. No. Part NumberManufacturer Pol Model Type Update 402 2SK4012 TOSHIBA N-Channe Standard+BDS Feb-12 403 TOSHIBA N-Channe Professional+BDP Feb-12 404 2SK4026 TOSHIBA N-Channe Standard+BDS Feb-12 405 TOSHIBA N-Channe Professional+BDP Feb-12 406 2SK4042 TOSHIBA N-Channe Standard+BDS Feb-12 407 TOSHIBA N-Channe Professional+BDP Feb-12 408 SSM6L13TU TOSHIBA N&P-Channe Standard+BDS+N&P Feb-12 409 TOSHIBA N&P-Channe Professional+BDP+N&P Feb-12 410 SSM6N29TU TOSHIBA N-Channe Standard+BDS Feb-12 411 TOSHIBA N-Channe Professional+BDP Feb-12 412 TK15H50C TOSHIBA N-Channe Standard+BDS Feb-12 413 TOSHIBA N-Channe Professional+BDP Feb-12 414 TPC6007-H TOSHIBA N-Channe Standard+BDS Feb-12 415 TOSHIBA N-Channe Professional+BDP Feb-12 416 TPC8012-H TOSHIBA N-Channe Standard+BDS Feb-12 417 TOSHIBA N-Channe Professional+BDP Feb-12 418 TPC8025 TOSHIBA N-Channe Standard+BDS Feb-12 419 TOSHIBA N-Channe Professional+BDP Feb-12 420 TPCP8203 TOSHIBA N-Channe Standard+BDS Feb-12 421 TOSHIBA N-Channe Professional+BDP Feb-12 422 2SJ304 TOSHIBA P-Channel Standard+BDS Mar-12 423 TOSHIBA P-Channel Professional+BDP Mar-12 424 2SK2229 TOSHIBA N-Channel Standard+BDS Mar-12 425 TOSHIBA N-Channel Professional+BDP Mar-12 S07 SPICE PARK MOSFET 67
- 68. No. Part NumberManufacturer Pol Model Type Update 426 2SK2233 TOSHIBA N-Channel Standard+BDS Mar-12 427 TOSHIBA N-Channel Professional+BDP Mar-12 428 2SK2350 TOSHIBA N-Channel Standard+BDS Mar-12 429 TOSHIBA N-Channel Professional+BDP Mar-12 430 2SK2886 TOSHIBA N-Channel Standard+BDS Mar-12 431 TOSHIBA N-Channel Professional+BDP Mar-12 432 2SK3444 TOSHIBA N-Channel Standard+BDS Mar-12 433 TOSHIBA N-Channel Professional+BDP Mar-12 434 2SK4002 TOSHIBA N-Channel Standard+BDS Mar-12 435 TOSHIBA N-Channel Professional+BDP Mar-12 436 2SK4108 TOSHIBA N-Channel Standard+BDS Mar-12 437 TOSHIBA N-Channel Professional+BDP Mar-12 438 SSM3J16FU TOSHIBA P-Channel Standard+BDS Mar-12 439 TOSHIBA P-Channel Professional+BDP Mar-12 440 SSM3J16FV TOSHIBA P-Channel Standard+BDS Mar-12 441 TOSHIBA P-Channel Professional+BDP Mar-12 442 SSM3K15FV TOSHIBA N-Channel Standard+BDS Mar-12 443 TOSHIBA N-Channel Professional+BDP Mar-12 444 SSM3K16FV TOSHIBA N-Channel Standard+BDS Mar-12 445 TOSHIBA N-Channel Professional+BDP Mar-12 446 TPC8026 TOSHIBA N-Channel Standard+BDS Mar-12 447 TOSHIBA N-Channel Professional+BDP Mar-12 448 TPCP8402 TOSHIBA N&P-Channel Standard+BDS+N&P Mar-12 449 TOSHIBA N&P-Channel Professional+BDP+N&P Mar-12 S07 SPICE PARK MOSFET 68
- 69. No. Part NumberManufacturer Pol Model Type Update 450 2SK3906 TOSHIBA N-Channel Standard+BDS Jun-12 451 TOSHIBA N-Channel Professional+BDP Jun-12 452 SSM3J120TU TOSHIBA P-Channel Standard+BDS Jun-12 453 TOSHIBA P-Channel Professional+BDP Jun-12 454 SSM3K123TU TOSHIBA N-Channel Standard+BDS Jun-12 455 TOSHIBA N-Channel Professional+BDP Jun-12 456 TK40J60T TOSHIBA N-Channel Standard+BDS Jun-12 457 TOSHIBA N-Channel Professional+BDP Jun-12 458 TPCA8006-H TOSHIBA N-Channel Standard+BDS Jun-12 459 TOSHIBA N-Channel Professional+BDP Jun-12 460 TPCA8008-H TOSHIBA N-Channel Professional+BD(SP) Jun-12 461 TPCA8014-H TOSHIBA N-Channel Professional+BD(SP) Jun-12 462 TPCA8016-H TOSHIBA N-Channel Professional+BD(SP) Jun-12 463 TPCA8028-H TOSHIBA N-Channel Professional+BD(SP) Jun-12 464 TPCF8402 TOSHIBA N&P-Channel Standard+BDS Jun-12 465 TOSHIBA N&P-Channel Professional+BDP Jun-12 466 2SJ380 TOSHIBA P-Channel Standard+BDS Jul-12 467 2SJ380 TOSHIBA P-Channel Professional+BDP Jul-12 468 2SK4021 TOSHIBA N-Channel Standard+BDS Jul-12 469 2SK4021 TOSHIBA N-Channel Professional+BDP Jul-12 470 SSM3J14T TOSHIBA P-Channel Standard+BDS Jul-12 471 SSM3J14T TOSHIBA P-Channel Professional+BDP Jul-12 472 SSM3J109TU TOSHIBA P-Channel Standard+BDS Jul-12 473 SSM3J109TU TOSHIBA P-Channel Professional+BDP Jul-12 474 SSM3J113TU TOSHIBA P-Channel Standard+BDS Jul-12 S07 SPICE PARK MOSFET 69
- 70. No. Part NumberManufacturer Pol Model Type Update 475 SSM3J113TU TOSHIBA P-Channel Professional+BDP Jul-12 476 SSM3J314T TOSHIBA P-Channel Standard+BDS Jul-12 477 SSM3J314T TOSHIBA P-Channel Professional+BDP Jul-12 478 SSM3K14T TOSHIBA N-Channel Standard+BDS Jul-12 479 SSM3K14T TOSHIBA N-Channel Professional+BDP Jul-12 480 SSM3K35FS TOSHIBA N-Channel Standard+BDS Jul-12 481 SSM3K35FS TOSHIBA N-Channel Professional+BDP Jul-12 482 TPC6004 TOSHIBA N-Channel Standard+BDS Jul-12 483 TPC6004 TOSHIBA N-Channel Professional+BDP Jul-12 484 TPC6103 TOSHIBA P-Channel Standard+BDS Jul-12 485 TPC6103 TOSHIBA P-Channel Professional+BDP Jul-12 486 TPCA8A02-H TOSHIBA N-Channel Professional+BD(SP) Jul-12 487 2SK2782 TOSHIBA N-Channel Standard+BDS Aug-12 488 2SK2782 TOSHIBA N-Channel Professional+BDP Aug-12 489 2SK3667 TOSHIBA N-Channel Standard+BDS Aug-12 490 SSM3J305T TOSHIBA P-Channel Standard+BDS Aug-12 491 SSM3J305T TOSHIBA P-Channel Professional+BDP Aug-12 492 SSM3K7002AF TOSHIBA N-Channel Standard+BDS Aug-12 493 SSM3K7002AF TOSHIBA N-Channel Professional+BDP Aug-12 494 SSM3K7002F TOSHIBA N-Channel Standard+BDS Aug-12 495 SSM3K7002F TOSHIBA N-Channel Professional+BDP Aug-12 496 TK10A60D TOSHIBA N-Channel Standard+BDS Aug-12 497 TK12A50D TOSHIBA N-Channel Standard+BDS Aug-12 S07 SPICE PARK MOSFET 70
- 71. No. Part NumberManufacturer Pol Model Type Update 498 TK20A60U TOSHIBA N-Channel Standard+BDS Aug-12 499 TK20A60U TOSHIBA N-Channel Professional+BDP Aug-12 500 2SK2615 TOSHIBA N-Channel Professional+BDP Jan-13 501 2SK2615 TOSHIBA N-Channel Standard+BDS Jan-13 502 2SK3934 TOSHIBA N-Channel Professional+BDP Jan-13 503 2SK3934 TOSHIBA N-Channel Standard+BDS Jan-13 504 SSM3J129TU TOSHIBA P-Channel Professional+BDP Jan-13 505 SSM3J129TU TOSHIBA P-Channel Standard+BDS Jan-13 506 TK8A50D TOSHIBA N-Channel Professional+BDP Jan-13 507 TK8A50D TOSHIBA N-Channel Standard+BDS Jan-13 508 TK11A55D TOSHIBA N-Channel Professional+BDP Jan-13 509 TK11A55D TOSHIBA N-Channel Standard+BDS Jan-13 510 TK14A55D TOSHIBA N-Channel Professional+BDP Jan-13 511 TK14A55D TOSHIBA N-Channel Standard+BDS Jan-13 512 TK15A50D TOSHIBA N-Channel Professional+BDP Jan-13 513 TK15A50D TOSHIBA N-Channel Standard+BDS Jan-13 514 TPC8109 TOSHIBA P-Channel Professional+BDP Jan-13 515 TPC8109 TOSHIBA P-Channel Standard+BDS Jan-13 516 TPC8115 TOSHIBA P-Channel Professional+BDP Jan-13 517 TPC8115 TOSHIBA P-Channel Standard+BDS Jan-13 518 TPC8119 TOSHIBA P-Channel Professional+BDP Jan-13 519 TPC8119 TOSHIBA P-Channel Standard+BDS Jan-13 520 2SJ668 TOSHIBA P-Channel Professional+BDP Feb-13 521 2SJ668 TOSHIBA P-Channel Standard+BDS Feb-13 522 2SK4017 TOSHIBA N-Channel Professional+BDP Feb-13 523 2SK4017 TOSHIBA N-Channel Standard+BDS Feb-13 524 TK10A50D TOSHIBA N-Channel Professional+BDP Feb-13 S07 SPICE PARK MOSFET 71

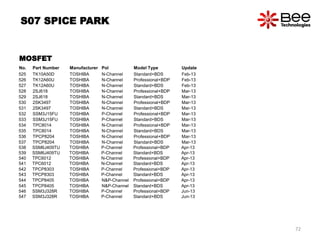

- 72. No. Part NumberManufacturer Pol Model Type Update 525 TK10A50D TOSHIBA N-Channel Standard+BDS Feb-13 526 TK12A60U TOSHIBA N-Channel Professional+BDP Feb-13 527 TK12A60U TOSHIBA N-Channel Standard+BDS Feb-13 528 2SJ618 TOSHIBA N-Channel Professional+BDP Mar-13 529 2SJ618 TOSHIBA N-Channel Standard+BDS Mar-13 530 2SK3497 TOSHIBA N-Channel Professional+BDP Mar-13 531 2SK3497 TOSHIBA N-Channel Standard+BDS Mar-13 532 SSM3J15FU TOSHIBA P-Channel Professional+BDP Mar-13 533 SSM3J15FU TOSHIBA P-Channel Standard+BDS Mar-13 534 TPC8014 TOSHIBA N-Channel Professional+BDP Mar-13 535 TPC8014 TOSHIBA N-Channel Standard+BDS Mar-13 536 TPCP8204 TOSHIBA N-Channel Professional+BDP Mar-13 537 TPCP8204 TOSHIBA N-Channel Standard+BDS Mar-13 538 SSM6J409TU TOSHIBA P-Channel Professional+BDP Apr-13 539 SSM6J409TU TOSHIBA P-Channel Standard+BDS Apr-13 540 TPC6012 TOSHIBA N-Channel Professional+BDP Apr-13 541 TPC6012 TOSHIBA N-Channel Standard+BDS Apr-13 542 TPCP8303 TOSHIBA P-Channel Professional+BDP Apr-13 543 TPCP8303 TOSHIBA P-Channel Standard+BDS Apr-13 544 TPCP8405 TOSHIBA N&P-Channel Professional+BDP Apr-13 545 TPCP8405 TOSHIBA N&P-Channel Standard+BDS Apr-13 546 SSM3J328R TOSHIBA P-Channel Professional+BDP Jun-13 547 SSM3J328R TOSHIBA P-Channel Standard+BDS Jun-13 S07 SPICE PARK MOSFET 72
- 73. No. Part NumberManufacturer Pol Model Type Update 548 SSM3K318T TOSHIBA N-Channel Professional+BDP Jun-13 549 SSM3K318T TOSHIBA N-Channel Standard+BDS Jun-13 550 SSM6N24TU TOSHIBA N-Channel Professional+BDP Jun-13 551 SSM6N24TU TOSHIBA N-Channel Standard+BDS Jun-13 552 TK65E10N1 TOSHIBA N-Channel Professional+BDP Jun-13 553 TK65E10N1 TOSHIBA N-Channel Standard+BDS Jun-13 554 TK65L60V TOSHIBA N-Channel Professional+BDP Jun-13 555 TK65L60V TOSHIBA N-Channel Standard+BDS Jun-13 556 TPCC8105 TOSHIBA P-Channel Professional+BDP Jun-13 557 TPCC8105 TOSHIBA P-Channel Standard+BDS Jun-13 558 TPCP8305 TOSHIBA P-Channel Professional+BDP Jun-13 559 TPCP8305 TOSHIBA P-Channel Standard+BDS Jun-13 560 TPH4R606NH TOSHIBA P-Channel Professional+BDP Jun-13 561 TPH4R606NH TOSHIBA P-Channel Standard+BDS Jun-13 562 2SK4207 TOSHIBA N-Channel Professional+BDP Jul-13 563 2SK4207 TOSHIBA N-Channel Standard+BDS Jul-13 564 SSM3J130TU TOSHIBA P-Channel Professional+BDP Jul-13 565 SSM3J130TU TOSHIBA P-Channel Standard+BDS Jul-13 566 SSM3J132TU TOSHIBA P-Channel Professional+BDP Jul-13 567 SSM3J132TU TOSHIBA P-Channel Standard+BDS Jul-13 568 SSM3K320T TOSHIBA N-Channel Professional+BDP Jul-13 569 SSM3K320T TOSHIBA N-Channel Standard+BDS Jul-13 570 SSM4K27CT TOSHIBA N-Channel Professional+BDP Jul-13 571 SSM4K27CT TOSHIBA N-Channel Standard+BDS Jul-13 S07 SPICE PARK MOSFET 73

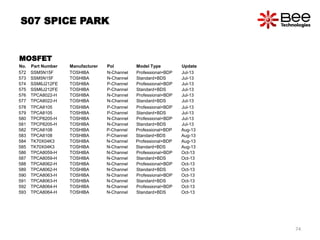

- 74. No. Part NumberManufacturer Pol Model Type Update 572 SSM5N15F TOSHIBA N-Channel Professional+BDP Jul-13 573 SSM5N15F TOSHIBA N-Channel Standard+BDS Jul-13 574 SSM6J212FE TOSHIBA P-Channel Professional+BDP Jul-13 575 SSM6J212FE TOSHIBA P-Channel Standard+BDS Jul-13 576 TPCA8022-H TOSHIBA N-Channel Professional+BDP Jul-13 577 TPCA8022-H TOSHIBA N-Channel Standard+BDS Jul-13 578 TPCA8105 TOSHIBA P-Channel Professional+BDP Jul-13 579 TPCA8105 TOSHIBA P-Channel Standard+BDS Jul-13 580 TPCP8205-H TOSHIBA N-Channel Professional+BDP Jul-13 581 TPCP8205-H TOSHIBA N-Channel Standard+BDS Jul-13 582 TPCA8108 TOSHIBA P-Channel Professional+BDP Aug-13 583 TPCA8108 TOSHIBA P-Channel Standard+BDS Aug-13 584 TK70X04K3 TOSHIBA N-Channel Professional+BDP Aug-13 585 TK70X04K3 TOSHIBA N-Channel Standard+BDS Aug-13 586 TPCA8059-H TOSHIBA N-Channel Professional+BDP Oct-13 587 TPCA8059-H TOSHIBA N-Channel Standard+BDS Oct-13 588 TPCA8062-H TOSHIBA N-Channel Professional+BDP Oct-13 589 TPCA8062-H TOSHIBA N-Channel Standard+BDS Oct-13 590 TPCA8063-H TOSHIBA N-Channel Professional+BDP Oct-13 591 TPCA8063-H TOSHIBA N-Channel Standard+BDS Oct-13 592 TPCA8064-H TOSHIBA N-Channel Professional+BDP Oct-13 593 TPCA8064-H TOSHIBA N-Channel Standard+BDS Oct-13 S07 SPICE PARK MOSFET 74

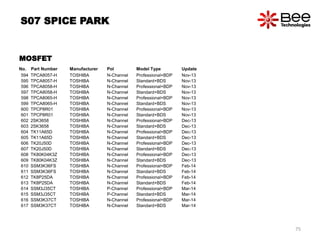

- 75. No. Part NumberManufacturer Pol Model Type Update 594 TPCA8057-H TOSHIBA N-Channel Professional+BDP Nov-13 595 TPCA8057-H TOSHIBA N-Channel Standard+BDS Nov-13 596 TPCA8058-H TOSHIBA N-Channel Professional+BDP Nov-13 597 TPCA8058-H TOSHIBA N-Channel Standard+BDS Nov-13 598 TPCA8065-H TOSHIBA N-Channel Professional+BDP Nov-13 599 TPCA8065-H TOSHIBA N-Channel Standard+BDS Nov-13 600 TPCP8R01 TOSHIBA N-Channel Professional+BDP Nov-13 601 TPCP8R01 TOSHIBA N-Channel Standard+BDS Nov-13 602 2SK3658 TOSHIBA N-Channel Professional+BDP Dec-13 603 2SK3658 TOSHIBA N-Channel Standard+BDS Dec-13 604 TK11A65D TOSHIBA N-Channel Professional+BDP Dec-13 605 TK11A65D TOSHIBA N-Channel Standard+BDS Dec-13 606 TK20J50D TOSHIBA N-Channel Professional+BDP Dec-13 607 TK20J50D TOSHIBA N-Channel Standard+BDS Dec-13 608 TK80K04K3Z TOSHIBA N-Channel Professional+BDP Dec-13 609 TK80K04K3Z TOSHIBA N-Channel Standard+BDS Dec-13 610 SSM3K36FS TOSHIBA N-Channel Professional+BDP Feb-14 611 SSM3K36FS TOSHIBA N-Channel Standard+BDS Feb-14 612 TK8P25DA TOSHIBA N-Channel Professional+BDP Feb-14 613 TK8P25DA TOSHIBA N-Channel Standard+BDS Feb-14 614 SSM3J35CT TOSHIBA P-Channel Professional+BDP Mar-14 615 SSM3J35CT TOSHIBA P-Channel Standard+BDS Mar-14 616 SSM3K37CT TOSHIBA N-Channel Professional+BDP Mar-14 617 SSM3K37CT TOSHIBA N-Channel Standard+BDS Mar-14 S07 SPICE PARK MOSFET 75
- 76. No. Part NumberManufacturer Pol Model Type Update 618 TK50J60U TOSHIBA N-Channel Professional+BDP Mar-14 619 TK50J60U TOSHIBA N-Channel Standard+BDS Mar-14 620 TPCA8128 TOSHIBA P-Channel Professional+BDP Mar-14 621 TPCA8128 TOSHIBA P-Channel Standard+BDS Mar-14 622 TPCC8066-H TOSHIBA N-Channel Professional+BDP Mar-14 623 TPCC8066-H TOSHIBA N-Channel Standard+BDS Mar-14 S07 SPICE PARK MOSFET 76

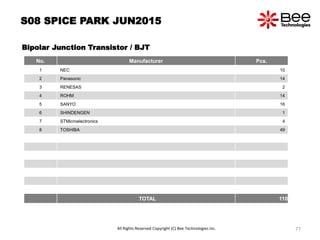

- 77. S08 SPICE PARKJUN2015 Bipolar Junction Transistor / BJT No. Manufacturer Pcs. 1 NEC 10 2 Panasonic 14 3 RENESAS 2 4 ROHM 14 5 SANYO 16 6 SHINDENGEN 1 7 STMicroelectronics 4 8 TOSHIBA 49 TOTAL 110 All Rights Reserved Copyright (C) Bee Technologies Inc. 77
- 78. Bipolar Junction Transistor/ BJT No. Part Number Manufacturer Type Update 1 2SC945 NEC NPN 2006 2 2SC2334-AZ NEC NPN 7-Dec 3 2SC2690-AZ NEC NPN 7-Dec 4 2SC3736-AZ NEC NPN 7-Dec 5 2SC4176-A NEC NPN 7-Dec 6 2SC4177-A NEC NPN 7-Dec 7 2SC4331-AZ NEC NPN 7-Dec 8 2SC3632-AZ NEC NPN 8-Dec 9 2SC4331-AZ(K) NEC NPN 8-Dec 10 2SC3632 NEC NPN 8-Mar 11 2SA2004 Panasonic PNP 2006 12 2SA2079 Panasonic PNP 2006 13 2SC5505 Panasonic NPN 2006 14 2SD2623 Panasonic NPN 2006 15 2SA2009 Panasonic PNP 8-Mar 16 2SA2046 Panasonic PNP 8-Mar 17 2SA2084 Panasonic PNP 8-Mar 18 2SA2161J Panasonic PNP 8-Mar 19 2SC5848001JN Panasonic NPN 8-Mar 20 2SA1532 Panasonic PNP 8-Mar 21 2SA1790 Panasonic PNP 8-Mar 22 2SA1890 Panasonic PNP 8-Mar 23 2SA2174J Panasonic PNP 8-Mar 24 UP05C8G Panasonic NPN 8-Mar 25 2SC2547 RENESAS NPN 2006 No. Part Number Manufacturer Type Thermal Update 26 2SC2979 RENESAS NPN 2006 27 2SC1740S ROHM NPN 2006 28 2SC3359S ROHM NPN 2006 29 2SC3415S ROHM NPN 2006 30 2SC4015 ROHM NPN 2006 31 2SD1782K ROHM NPN 2006 32 2SA1036KT146R ROHM PNP Dec-08 33 2SA1037AKT146R ROHM PNP Dec-08 34 2SA1576AT106R ROHM PNP Dec-08 35 2SA1577T106Q ROHM PNP Dec-08 36 2SA1774TLR ROHM PNP Dec-08 37 QST6TR ROHM PNP Dec-08 38 QST7TR ROHM PNP Dec-08 39 US6T6TR ROHM PNP Dec-08 40 US6T7TR ROHM PNP Dec-08 41 2SC3467D SANYO NPN Tc=25C˚ 2006 42 2SC3467D SANYO NPN Tc=80C˚ 2006 43 2SC3467D SANYO NPN Tc=110C˚ 2006 44 2SC3467D SANYO NPN Tc=150C˚ 2006 45 2SC3150 SANYO NPN 2006 46 2SC3153 SANYO NPN 2006 47 TG6063 SANYO PNP 2006 48 TG6064 SANYO NPN 2006 49 2SC5808-TL-E SANYO NPN Dec-08 50 2SC5823-TL-E SANYO NPN Dec-08 S08 SPICE PARK 78
- 79. No. Part NumberManufacturer Type Update 51 2SC5980 SANYO NPN 8-Dec 52 2SC6081 SANYO NPN 8-Dec 53 2SC6082 SANYO NPN 8-Dec 54 2SC6084 SANYO NPN 8-Dec 55 2SC6102 SANYO NPN 8-Dec 56 2SC6113 SANYO NPN 8-Dec 57 2SC4054 SHINDENGEN NPN 2006 58 2N3055 STMicroelectronics NPN 2006 59 BUL381D STMicroelectronics NPN 2006 60 BUL416 STMicroelectronics NPN 2006 61 MJ2955 STMicroelectronics PNP 2006 62 2SA1015 TOSHIBA PNP 2006 63 2SA1162(Y) TOSHIBA PNP 2006 64 2SA1202(Y) TOSHIBA PNP 2006 65 2SA1298(Y) TOSHIBA PNP 2006 66 2SA1586(Y) TOSHIBA PNP 2006 67 2SA1680 TOSHIBA PNP 2006 68 2SA1837 TOSHIBA PNP 2006 69 2SA2121 TOSHIBA PNP 2006 70 2SA950(Y) TOSHIBA PNP 2006 71 2SA968 TOSHIBA PNP 2006 72 2SB1375 TOSHIBA PNP 2006 73 2SB906 TOSHIBA PNP 2006 74 2SC1815 TOSHIBA NPN 2006 75 2SC1959 TOSHIBA NPN 2006 No. Part Number Manufacturer Type Update 76 2SC2240 TOSHIBA NPN 2006 77 2SC2482 TOSHIBA NPN 2006 78 2SC2655 TOSHIBA NPN 2006 79 2SC2712 TOSHIBA NPN 2006 80 2SC2878 TOSHIBA NPN 2006 81 2SC3112 TOSHIBA NPN 2006 82 2SC3265 TOSHIBA NPN 2006 83 2SC3328(Y) TOSHIBA NPN 2006 84 2SC3329 TOSHIBA NPN 2006 85 2SC3405 TOSHIBA NPN 2006 86 2SC4408 TOSHIBA NPN 2006 87 2SC4686A TOSHIBA NPN 2006 88 2SC4738FV TOSHIBA NPN 2006 89 2SC4793 TOSHIBA NPN 2006 90 2SC5122 TOSHIBA NPN 2006 91 2SC5172 TOSHIBA NPN 2006 92 2SC5201 TOSHIBA NPN 2006 93 2SC5460 TOSHIBA NPN 2006 94 2SC5949 TOSHIBA NPN 2006 95 2SC732TM TOSHIBA NPN 2006 96 2SD2012 TOSHIBA NPN 2006 97 2SA1202 TOSHIBA PNP Mar-08 98 2SA1020(Y) TOSHIBA PNP Mar-08 99 2SA1300 TOSHIBA PNP Mar-08 100 2SA2070 TOSHIBA PNP Mar-08 Bipolar Junction Transistor / BJT S08 SPICE PARK 79
- 80. No. Part NumberManufacturer Type Update 101 2SC6077 TOSHIBA NPN Mar-08 102 2SC6078 TOSHIBA NPN Mar-08 103 2SA1313 TOSHIBA PNP Apr-10 104 2SC3325 TOSHIBA NPN Apr-10 105 2SA1955FV-B TOSHIBA PNP Dec-12 106 2SA2154MFV-Y TOSHIBA PNP Dec-12 107 2SC4118-Y TOSHIBA NPN Dec-12 108 2SC5376FV-B TOSHIBA NPN Dec-12 109 2SC5703 TOSHIBA NPN Dec-12 110 2SC6026MFV-Y TOSHIBA NPN Dec-12 Bipolar Junction Transistor / BJT S08 SPICE PARK 80
- 81. S09 SPICE PARKJUN2015 Darlington Transistor No. Manufacturer Pcs. 1 NEC 4 2 SANYO 4 3 TOSHIBA 1 TOTAL 9 All Rights Reserved Copyright (C) Bee Technologies Inc. 81
- 82. No. Part NumberManufacturer Update 1 2SD560 NEC 2006 2 2SD985 NEC 2006 3 2SD986 NEC 2006 4 2SD1164-Z NEC 2006 5 2SD1827 SANYO 2006 6 2SD1830 SANYO 2006 7 2SD2048 SANYO 2006 8 2SD2049 SANYO 2006 9 2SB1020A TOSHIBA 2006 Darlington Transistor S09 SPICE PARK 82
- 83. S10 SPICE PARKJUN2015 INSULATED-GATE BIPOLAR TRANSISTOR (IGBT) No. Manufacturer Pcs. 1 International Rectifier 5 2 TOSHIBA 21 3 MITSUBISHI 16 4 KEC 6 5 Fuji Electric 78 TOTAL 126 All Rights Reserved Copyright (C) Bee Technologies Inc. 83
- 84. IGBT No. Part NumberManufacturer Pol IGBT(TYPE) FWD(TYPE) Simulator Simulator Update 1 IRG4BC20SD-S IR N-channel Standard FWDP Pspice N/A 2006 2 IRG4IBC20KD IR N-channel Standard FWDP Pspice N/A 2006 3 IRG4PC50KD IR N-channel Standard FWDP Pspice N/A 2006 4 IRG4PF50W IR N-channel Standard Without Pspice N/A 2006 5 IRG4PH50KD IR N-channel Standard FWDP Pspice N/A 2006 6 GT8J101 TOSHIBA N-channel Standard Without Pspice N/A 2006 7 GT8J102(SM) TOSHIBA N-channel Standard Without Pspice N/A 2006 8 GT8Q101 TOSHIBA N-channel Standard Without Pspice N/A 2006 9 GT10J321 TOSHIBA N-channel Standard FWDP Pspice N/A 2006 10 GT15J101 TOSHIBA N-channel Standard Without Pspice N/A 2006 11 GT15J102 TOSHIBA N-channel Standard Without Pspice N/A 2006 12 GT15J103(SM) TOSHIBA N-channel Standard Without Pspice N/A 2006 13 GT15Q101 TOSHIBA N-channel Standard Without Pspice N/A 2006 14 GT25Q101 TOSHIBA N-channel Standard Without Pspice N/A 2006 15 GT10Q301 TOSHIBA N-channel Professional FWD(SP) Pspice LTspice Apr-11 16 GT10Q301 TOSHIBA N-channel Professional FWDP Pspice LTspice Apr-11 17 GT10Q301 TOSHIBA N-channel Professional FWDS Pspice LTspice Apr-11 18 GT15J321 TOSHIBA N-channel Professional FWD(SP) Pspice LTspice Apr-11 19 GT15J321 TOSHIBA N-channel Professional FWDP Pspice LTspice Apr-11 20 GT15J321 TOSHIBA N-channel Professional FWDS Pspice LTspice Apr-11 21 GT15M321 TOSHIBA N-channel Professional FWD(SP) Pspice LTspice Apr-11 22 GT15M321 TOSHIBA N-channel Professional FWDP Pspice LTspice Apr-11 23 GT15M321 TOSHIBA N-channel Professional FWDS Pspice LTspice Apr-11 24 GT20J321 TOSHIBA N-channel Professional FWD(SP) Pspice LTspice Apr-11 25 GT20J321 TOSHIBA N-channel Professional FWDP Pspice LTspice Apr-11 S10 SPICE PARK 84
- 85. No. Part NumberManufacturer Pol IGBT(TYPE) FWD(TYPE) Simulator Simulator Update 26 GT20J321 TOSHIBA N-channel Professional FWDS Pspice LTspice Apr-11 27 CM200HA-24H MITSUBISHI N-channel Professional FWDP Pspice N/A Jul-10 28 CM200HA-24H MITSUBISHI N-channel Standard FWDS Pspice N/A Jul-10 29 CM300HA-12H MITSUBISHI N-channel Professional FWDP Pspice N/A Jul-10 30 CM300HA-12H MITSUBISHI N-channel Professional FWDS Pspice N/A Jul-10 31 CM400HA-12H MITSUBISHI N-channel Professional FWDP Pspice N/A Jul-10 32 CM400HA-12H MITSUBISHI N-channel Professional FWDS Pspice N/A Jul-10 33 CM450HA-5F MITSUBISHI N-channel Professional FWDP Pspice N/A Jul-10 34 CM450HA-5F MITSUBISHI N-channel Professional FWDS Pspice N/A Jul-10 35 CM600HA-5F MITSUBISHI N-channel Professional FWDP Pspice N/A Jul-10 36 CM600HA-5F MITSUBISHI N-channel Professional FWDS Pspice N/A Jul-10 37 CM600HA-12H MITSUBISHI N-channel Professional FWDP Pspice N/A Jul-10 38 CM600HA-12H MITSUBISHI N-channel Professional FWDS Pspice N/A Jul-10 39 CM600HA-24H MITSUBISHI N-channel Professional FWDP Pspice N/A Jul-10 40 CM600HA-24H MITSUBISHI N-channel Professional FWDS Pspice N/A Jul-10 41 CM600HU-12H MITSUBISHI N-channel Professional FWDP Pspice N/A Jul-10 42 CM600HU-12H MITSUBISHI N-channel Professional FWDS Pspice N/A Jul-10 43 KGH15N120NDA KEC N-channel Professional FWD(SP) Pspice N/A Sep-10 44 KGH15N120NDA KEC N-channel Professional FWDP Pspice N/A Sep-10 45 KGH15N120NDA KEC N-channel Professional FWDS Pspice N/A Sep-10 46 KGH25N120NDA KEC N-channel Professional FWD(SP) Pspice N/A Sep-10 47 KGH25N120NDA KEC N-channel Professional FWDP Pspice N/A Sep-10 48 KGH25N120NDA KEC N-channel Professional FWDS Pspice N/A Sep-10 49 1MB03D-120 Fuji Electric N-channel Professional FWD(SP) Pspice N/A Jan-11 50 1MB03D-120 Fuji Electric N-channel Professional FWDP Pspice N/A Jan-11 IGBT S10 SPICE PARK 85
- 86. No. Part NumberManufacturer Pol IGBT(TYPE) FWD(TYPE) Simulator Simulator Update 51 1MB03D-120 Fuji Electric N-channel Professional FWDS Pspice N/A Jan-11 52 1MB05-120 Fuji Electric N-channel Professional FWDS Pspice N/A Jan-11 53 1MB05D-120 Fuji Electric N-channel Professional FWD(SP) Pspice N/A Jan-11 54 1MB05D-120 Fuji Electric N-channel Professional FWDP Pspice N/A Jan-11 55 1MB05D-120 Fuji Electric N-channel Professional FWDS Pspice N/A Jan-11 56 1MB08-120 Fuji Electric N-channel Professional Without Pspice N/A Jan-11 57 1MB08D-120 Fuji Electric N-channel Professional FWD(SP) Pspice N/A Jan-11 58 1MB08D-120 Fuji Electric N-channel Professional FWDP Pspice N/A Jan-11 59 1MB08D-120 Fuji Electric N-channel Professional FWDS Pspice N/A Jan-11 60 1MB10-120 Fuji Electric N-channel Professional Without Pspice N/A Jan-11 61 1MB10D-120 Fuji Electric N-channel Professional FWD(SP) Pspice N/A Jan-11 62 1MB10D-120 Fuji Electric N-channel Professional FWDP Pspice N/A Jan-11 63 1MB10D-120 Fuji Electric N-channel Professional FWDS Pspice N/A Jan-11 64 1MB15D-060 Fuji Electric N-channel Professional FWD(SP) Pspice N/A Jan-11 65 1MB15D-060 Fuji Electric N-channel Professional FWDP Pspice N/A Jan-11 66 1MB15D-060 Fuji Electric N-channel Professional FWDS Pspice N/A Jan-11 67 1MB20-060 Fuji Electric N-channel Professional Without Pspice N/A Jan-11 68 1MB20D-060 Fuji Electric N-channel Professional FWD(SP) Pspice N/A Jan-11 69 1MB20D-060 Fuji Electric N-channel Professional FWDP Pspice N/A Jan-11 70 1MB20D-060 Fuji Electric N-channel Professional FWDS Pspice N/A Jan-11 71 1MB30-060 Fuji Electric N-channel Professional Without Pspice N/A Jan-11 72 1MBC03-120 Fuji Electric N-channel Professional Without Pspice N/A Jan-11 73 1MBC05-060 Fuji Electric N-channel Professional Without Pspice N/A Jan-11 74 1MBC05D-060 Fuji Electric N-channel Professional FWD(SP) Pspice N/A Jan-11 75 1MBC05D-060 Fuji Electric N-channel Professional FWDP Pspice N/A Jan-11 IGBT S10 SPICE PARK 86
- 87. No. Part NumberManufacturer Pol IGBT(TYPE) FWD(TYPE) Simulator Simulator Update 76 1MBC05D-060 Fuji Electric N-channel Professional FWDS Pspice N/A Jan-11 77 1MBC10-060 Fuji Electric N-channel Professional Without Pspice N/A Jan-11 78 1MBC10D-060 Fuji Electric N-channel Professional FWD(SP) Pspice N/A Jan-11 79 1MBC10D-060 Fuji Electric N-channel Professional FWDP Pspice N/A Jan-11 80 1MBC10D-060 Fuji Electric N-channel Professional FWDS Pspice N/A Jan-11 81 1MBC15-060 Fuji Electric N-channel Professional Without Pspice N/A Jan-11 82 1MBG05D-060 Fuji Electric N-channel Professional FWD(SP) Pspice N/A Jan-11 83 1MBG05D-060 Fuji Electric N-channel Professional FWDP Pspice N/A Jan-11 84 1MBG05D-060 Fuji Electric N-channel Professional FWDS Pspice N/A Jan-11 85 1MBG10D-060 Fuji Electric N-channel Professional FWD(SP) Pspice N/A Jan-11 86 1MBG10D-060 Fuji Electric N-channel Professional FWDP Pspice N/A Jan-11 87 1MBG10D-060 Fuji Electric N-channel Professional FWDS Pspice N/A Jan-11 88 1MBH03D-120 Fuji Electric N-channel Professional FWD(SP) Pspice N/A Jan-11 89 1MBH03D-120 Fuji Electric N-channel Professional FWDP Pspice N/A Jan-11 90 1MBH03D-120 Fuji Electric N-channel Professional FWDS Pspice N/A Jan-11 91 1MBH05D-060 Fuji Electric N-channel Professional FWD(SP) Pspice N/A Jan-11 92 1MBH05D-060 Fuji Electric N-channel Professional FWDP Pspice N/A Jan-11 93 1MBH05D-060 Fuji Electric N-channel Professional FWDS Pspice N/A Jan-11 94 1MBH05D-120 Fuji Electric N-channel Professional FWD(SP) Pspice N/A Jan-11 95 1MBH05D-120 Fuji Electric N-channel Professional FWDP Pspice N/A Jan-11 96 1MBH05D-120 Fuji Electric N-channel Professional FWDS Pspice N/A Jan-11 97 1MBH08D-120 Fuji Electric N-channel Professional FWD(SP) Pspice N/A Jan-11 98 1MBH08D-120 Fuji Electric N-channel Professional FWDP Pspice N/A Jan-11 99 1MBH08D-120 Fuji Electric N-channel Professional FWDS Pspice N/A Jan-11 100 1MBH10D-060 Fuji Electric N-channel Professional FWD(SP) Pspice N/A Jan-11 IGBT S10 SPICE PARK 87
- 88. No. Part NumberManufacturer Pol IGBT(TYPE) FWD(TYPE) Simulator Simulator Update 101 1MBH10D-060 Fuji Electric N-channel Professional FWDP Pspice N/A Jan-11 102 1MBH10D-060 Fuji Electric N-channel Professional FWDS Pspice N/A Jan-11 103 1MBH10D-120 Fuji Electric N-channel Professional FWD(SP) Pspice N/A Jan-11 104 1MBH10D-120 Fuji Electric N-channel Professional FWDP Pspice N/A Jan-11 105 1MBH10D-120 Fuji Electric N-channel Professional FWDS Pspice N/A Jan-11 106 1MBH15-120 Fuji Electric N-channel Professional Without Pspice N/A Jan-11 107 1MBH15D-060 Fuji Electric N-channel Professional FWD(SP) Pspice N/A Jan-11 108 1MBH15D-060 Fuji Electric N-channel Professional FWDP Pspice N/A Jan-11 109 1MBH15D-060 Fuji Electric N-channel Professional FWDS Pspice N/A Jan-11 110 1MBH15D-120 Fuji Electric N-channel Professional FWD(SP) Pspice N/A Jan-11 111 1MBH15D-120 Fuji Electric N-channel Professional FWDP Pspice N/A Jan-11 112 1MBH15D-120 Fuji Electric N-channel Professional FWDS Pspice N/A Jan-11 113 1MBH20D-060 Fuji Electric N-channel Professional FWD(SP) Pspice N/A Jan-11 114 1MBH20D-060 Fuji Electric N-channel Professional FWDP Pspice N/A Jan-11 115 1MBH20D-060 Fuji Electric N-channel Professional FWDS Pspice N/A Jan-11 116 1MBH25-120 Fuji Electric N-channel Professional Without Pspice N/A Jan-11 117 1MBH25D-120 Fuji Electric N-channel Professional FWD(SP) Pspice N/A Jan-11 118 1MBH25D-120 Fuji Electric N-channel Professional FWDP Pspice N/A Jan-11 119 1MBH25D-120 Fuji Electric N-channel Professional FWDS Pspice N/A Jan-11 120 1MBH30D-060 Fuji Electric N-channel Professional FWD(SP) Pspice N/A Jan-11 121 1MBH30D-060 Fuji Electric N-channel Professional FWDP Pspice N/A Jan-11 122 1MBH30D-060 Fuji Electric N-channel Professional FWDS Pspice N/A Jan-11 123 1MBH50-060 Fuji Electric N-channel Professional Without Pspice N/A Jan-11 124 1MBH50D-060 Fuji Electric N-channel Professional FWD(SP) Pspice N/A Jan-11 125 1MBH50D-060 Fuji Electric N-channel Professional FWDP Pspice N/A Jan-11 126 1MBH50D-060 Fuji Electric N-channel Professional FWDS Pspice N/A Jan-11 IGBT S10 SPICE PARK 88
- 89. S11 SPICE PARKJUN2015 Voltage Reference No. Manufacturer Pcs. 1 NEC 3 TOTAL 3 All Rights Reserved Copyright (C) Bee Technologies Inc. 89
- 90. No. Part NumberManufacturer Update 1 RD5.6F NEC 2006 2 RD6.2F NEC 2006 3 RD6.8F NEC 2006 Voltage Reference S11 SPICE PARK 90
- 91. S12 SPICE PARKJUN2015 Voltage Regulator No. Manufacturer Pcs. 1 NEC Corporation 64 TOTAL 64 All Rights Reserved Copyright (C) Bee Technologies Inc. 91

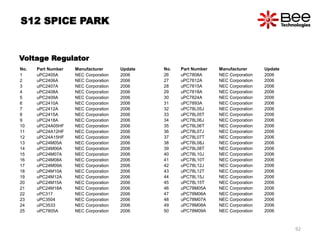

- 92. Voltage Regulator No. PartNumber Manufacturer Update 1 uPC2405A NEC Corporation 2006 2 uPC2406A NEC Corporation 2006 3 uPC2407A NEC Corporation 2006 4 uPC2408A NEC Corporation 2006 5 uPC2409A NEC Corporation 2006 6 uPC2410A NEC Corporation 2006 7 uPC2412A NEC Corporation 2006 8 uPC2415A NEC Corporation 2006 9 uPC2418A NEC Corporation 2006 10 uPC24A05HF NEC Corporation 2006 11 uPC24A12HF NEC Corporation 2006 12 uPC24A15HF NEC Corporation 2006 13 uPC24M05A NEC Corporation 2006 14 uPC24M06A NEC Corporation 2006 15 uPC24M07A NEC Corporation 2006 16 uPC24M08A NEC Corporation 2006 17 uPC24M09A NEC Corporation 2006 18 uPC24M10A NEC Corporation 2006 19 uPC24M12A NEC Corporation 2006 20 uPC24M15A NEC Corporation 2006 21 uPC24M18A NEC Corporation 2006 22 uPC317 NEC Corporation 2006 23 uPC3504 NEC Corporation 2006 24 uPC3533 NEC Corporation 2006 25 uPC7805A NEC Corporation 2006 No. Part Number Manufacturer Update 26 uPC7808A NEC Corporation 2006 27 uPC7812A NEC Corporation 2006 28 uPC7815A NEC Corporation 2006 29 uPC7818A NEC Corporation 2006 30 uPC7824A NEC Corporation 2006 31 uPC7893A NEC Corporation 2006 32 uPC78L05J NEC Corporation 2006 33 uPC78L05T NEC Corporation 2006 34 uPC78L06J NEC Corporation 2006 35 uPC78L06T NEC Corporation 2006 36 uPC78L07J NEC Corporation 2006 37 uPC78L07T NEC Corporation 2006 38 uPC78L08J NEC Corporation 2006 39 uPC78L08T NEC Corporation 2006 40 uPC78L10J NEC Corporation 2006 41 uPC78L10T NEC Corporation 2006 42 uPC78L12J NEC Corporation 2006 43 uPC78L12T NEC Corporation 2006 44 uPC78L15J NEC Corporation 2006 45 uPC78L15T NEC Corporation 2006 46 uPC78M05A NEC Corporation 2006 47 uPC78M06A NEC Corporation 2006 48 uPC78M07A NEC Corporation 2006 49 uPC78M08A NEC Corporation 2006 50 uPC78M09A NEC Corporation 2006 S12 SPICE PARK 92
- 93. No. Part NumberManufacturer Update 51 uPC78M10A NEC Corporation 2006 52 uPC78M12A NEC Corporation 2006 53 uPC78M15A NEC Corporation 2006 54 uPC78M18A NEC Corporation 2006 55 uPC78M24A NEC Corporation 2006 56 uPC78N05H NEC Corporation 2006 57 uPC78N08H NEC Corporation 2006 58 uPC78N10H NEC Corporation 2006 59 uPC78N12H NEC Corporation 2006 60 uPC78N15H NEC Corporation 2006 61 uPC78N18H NEC Corporation 2006 62 uPC78N24H NEC Corporation 2006 63 uPC3018 NEC Corporation 2006 64 uPC3025 NEC Corporation 2006 Voltage Regulator S12 SPICE PARK 93
- 94. S13 SPICE PARKJUN2015 Shunt Regulator No. Manufacturer Pcs. 1 Panasonic 2 2 JRC 1 3 NEC 1 4 TOSHIBA 2 TOTAL 6 All Rights Reserved Copyright (C) Bee Technologies Inc. 94
- 95. No. Part NumberManufacturer Update 1 AN1431T Panasonic 2006 2 AN1432NT Panasonic 2006 3 NJM431 JRC 2006 4 uPC1093 NEC 2006 5 TA76L431S TOSHIBA 2006 6 TA76432F TOSHIBA 2006 Shunt Regulator S13 SPICE PARK 95
- 96. S14 SPICE PARKJUN2015 OPAMP No. Manufacturer Pcs. 1 NEW JAPAN RADIO 262 2 BURR BROWN 2 3 NEC ELECTRONICS 43 4 RENESAS 3 5 SANYO 7 6 SEIKO INSTRUMENT 1 7 STMicroelectronics 10 8 TOSHIBA 29 9 ROHM 5 TOTAL 362 All Rights Reserved Copyright (C) Bee Technologies Inc. 96
- 97. OPAMP No. Part NumberManufacturer Update 1 NJM022 NEW JAPAN RADIO 2006 2 NJM022D NEW JAPAN RADIO 2006 3 NJM022L NEW JAPAN RADIO 2006 4 NJM022M NEW JAPAN RADIO 2006 5 NJM022V NEW JAPAN RADIO 2006 6 NJM022B NEW JAPAN RADIO 2006 7 NJM022BD NEW JAPAN RADIO 2006 8 NJM022BL NEW JAPAN RADIO 2006 9 NJM022BM NEW JAPAN RADIO 2006 10 NJM022BV NEW JAPAN RADIO 2006 11 NJM062 NEW JAPAN RADIO 2006 12 NJM062D NEW JAPAN RADIO 2006 13 NJM062L NEW JAPAN RADIO 2006 14 NJM062M NEW JAPAN RADIO 2006 15 NJM062V NEW JAPAN RADIO 2006 16 NJM064 NEW JAPAN RADIO 2006 17 NJM064D NEW JAPAN RADIO 2006 18 NJM064M NEW JAPAN RADIO 2006 19 NJM064V NEW JAPAN RADIO 2006 20 NJM072 NEW JAPAN RADIO 2006 21 NJM072B NEW JAPAN RADIO 2006 22 NJM072BD NEW JAPAN RADIO 2006 23 NJM072BL NEW JAPAN RADIO 2006 24 NJM072BM NEW JAPAN RADIO 2006 25 NJM072BV NEW JAPAN RADIO 2006 No. Part Number Manufacturer Update 26 NJM072D NEW JAPAN RADIO 2006 27 NJM072L NEW JAPAN RADIO 2006 28 NJM072M NEW JAPAN RADIO 2006 29 NJM074 NEW JAPAN RADIO 2006 30 NJM082 NEW JAPAN RADIO 2006 31 NJM082B NEW JAPAN RADIO 2006 32 NJM082BD NEW JAPAN RADIO 2006 33 NJM082BL NEW JAPAN RADIO 2006 34 NJM082BM NEW JAPAN RADIO 2006 35 NJM082BV NEW JAPAN RADIO 2006 36 NJM082D NEW JAPAN RADIO 2006 37 NJM082L NEW JAPAN RADIO 2006 38 NJM082M NEW JAPAN RADIO 2006 39 NJM084 NEW JAPAN RADIO 2006 40 NJM353 NEW JAPAN RADIO 2006 41 NJM353M NEW JAPAN RADIO 2006 42 NJM1458 NEW JAPAN RADIO 2006 43 NJM1458M NEW JAPAN RADIO 2006 44 NJM2041 NEW JAPAN RADIO 2006 45 NJM2041M NEW JAPAN RADIO 2006 46 NJM2041L NEW JAPAN RADIO 2006 47 NJM2043 NEW JAPAN RADIO 2006 48 NJM2058 NEW JAPAN RADIO 2006 49 NJM2058M NEW JAPAN RADIO 2006 50 NJM2058V NEW JAPAN RADIO 2006 S14 SPICE PARK 97
- 98. No. Part NumberManufacturer Update 51 NJM2059 NEW JAPAN RADIO 2006 52 NJM2059M NEW JAPAN RADIO 2006 53 NJM2059V NEW JAPAN RADIO 2006 54 NJM2060 NEW JAPAN RADIO 2006 55 NJM2060M NEW JAPAN RADIO 2006 56 NJM2060V NEW JAPAN RADIO 2006 57 NJM2068 NEW JAPAN RADIO 2006 58 NJM2068L NEW JAPAN RADIO 2006 59 NJM2068M NEW JAPAN RADIO 2006 60 NJM2068V NEW JAPAN RADIO 2006 61 NJM2082 NEW JAPAN RADIO 2006 62 NJM2100 NEW JAPAN RADIO 2006 63 NJM2107 NEW JAPAN RADIO 2006 64 NJM2107F3 NEW JAPAN RADIO 2006 65 NJM2112 NEW JAPAN RADIO 2006 66 NJM2114 NEW JAPAN RADIO 2006 67 NJM2115 NEW JAPAN RADIO 2006 68 NJM2119 NEW JAPAN RADIO 2006 69 NJM2120 NEW JAPAN RADIO 2006 70 NJM2121 NEW JAPAN RADIO 2006 71 NJM2125 NEW JAPAN RADIO 2006 72 NJM2130 NEW JAPAN RADIO 2006 73 NJM2130F3 NEW JAPAN RADIO 2006 74 NJM2132 NEW JAPAN RADIO 2006 75 NJM2132L NEW JAPAN RADIO 2006 No. Part Number Manufacturer Update 76 NJM2132M NEW JAPAN RADIO 2006 77 NJM2132V NEW JAPAN RADIO 2006 78 NJM2136 NEW JAPAN RADIO 2006 79 NJM2137 NEW JAPAN RADIO 2006 80 NJM2138 NEW JAPAN RADIO 2006 81 NJM2140 NEW JAPAN RADIO 2006 82 NJM2141 NEW JAPAN RADIO 2006 83 NJM2147 NEW JAPAN RADIO 2006 84 NJM2147M NEW JAPAN RADIO 2006 85 NJM2162 NEW JAPAN RADIO 2006 86 NJM2162L NEW JAPAN RADIO 2006 87 NJM2162M NEW JAPAN RADIO 2006 88 NJM2162V NEW JAPAN RADIO 2006 89 NJM2164 NEW JAPAN RADIO 2006 90 NJM2164M NEW JAPAN RADIO 2006 91 NJM2164V NEW JAPAN RADIO 2006 92 NJM2712 NEW JAPAN RADIO 2006 93 NJM2716 NEW JAPAN RADIO 2006 94 NJM2717 NEW JAPAN RADIO 2006 95 NJM2730 NEW JAPAN RADIO 2006 96 NJM2732 NEW JAPAN RADIO 2006 97 NJM2734 NEW JAPAN RADIO 2006 98 NJM2737 NEW JAPAN RADIO 2006 99 NJM2740 NEW JAPAN RADIO 2006 100 NJM2741 NEW JAPAN RADIO 2006 OPAMP S14 SPICE PARK 98
- 99. No. Part NumberManufacturer Update 101 NJM2742 NEW JAPAN RADIO 2006 102 NJM2742M NEW JAPAN RADIO 2006 103 NJM2742RB1 NEW JAPAN RADIO 2006 104 NJM2742V NEW JAPAN RADIO 2006 105 NJM2743 NEW JAPAN RADIO 2006 106 NJM2745 NEW JAPAN RADIO 2006 107 NJM2746 NEW JAPAN RADIO 2006 108 NJM2747 NEW JAPAN RADIO 2006 109 NJM2902 NEW JAPAN RADIO 2006 110 NJM2902M NEW JAPAN RADIO 2006 111 NJM2902V NEW JAPAN RADIO 2006 112 NJM2904 NEW JAPAN RADIO 2006 113 NJM2904L NEW JAPAN RADIO 2006 114 NJM2904M NEW JAPAN RADIO 2006 115 NJM2904V NEW JAPAN RADIO 2006 116 NJM3403A NEW JAPAN RADIO 2006 117 NJM3403AM NEW JAPAN RADIO 2006 118 NJM3403AV NEW JAPAN RADIO 2006 119 NJM3404A NEW JAPAN RADIO 2006 120 NJM3404AL NEW JAPAN RADIO 2006 121 NJM3404AM NEW JAPAN RADIO 2006 122 NJM3404AV NEW JAPAN RADIO 2006 123 NJM3414A NEW JAPAN RADIO 2006 124 NJM411 NEW JAPAN RADIO 2006 125 NJM4556A NEW JAPAN RADIO 2006 No. Part Number Manufacturer Update 126 NJM4556AL NEW JAPAN RADIO 2006 127 NJM4556AM NEW JAPAN RADIO 2006 128 NJM4556AV NEW JAPAN RADIO 2006 129 NJM4558 NEW JAPAN RADIO 2006 130 NJM4558L NEW JAPAN RADIO 2006 131 NJM4558M NEW JAPAN RADIO 2006 132 NJM4558V NEW JAPAN RADIO 2006 133 NJM4559 NEW JAPAN RADIO 2006 134 NJM4559L NEW JAPAN RADIO 2006 135 NJM4559M NEW JAPAN RADIO 2006 136 NJM4559V NEW JAPAN RADIO 2006 137 NJM4560 NEW JAPAN RADIO 2006 138 NJM4560L NEW JAPAN RADIO 2006 139 NJM4560M NEW JAPAN RADIO 2006 140 NJM4562 NEW JAPAN RADIO 2006 141 NJM4562L NEW JAPAN RADIO 2006 142 NJM4562M NEW JAPAN RADIO 2006 143 NJM4565 NEW JAPAN RADIO 2006 144 NJM4565L NEW JAPAN RADIO 2006 145 NJM4565M NEW JAPAN RADIO 2006 146 NJM4565V NEW JAPAN RADIO 2006 147 NJM4580 NEW JAPAN RADIO 2006 148 NJM4580E NEW JAPAN RADIO 2006 149 NJM4580L NEW JAPAN RADIO 2006 150 NJM4580M NEW JAPAN RADIO 2006 OPAMP S14 SPICE PARK 99

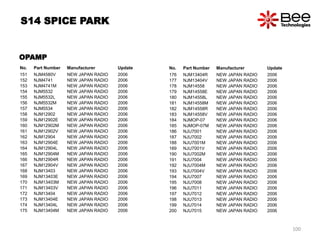

- 100. No. Part NumberManufacturer Update 151 NJM4580V NEW JAPAN RADIO 2006 152 NJM4741 NEW JAPAN RADIO 2006 153 NJM4741M NEW JAPAN RADIO 2006 154 NJM5532 NEW JAPAN RADIO 2006 155 NJM5532L NEW JAPAN RADIO 2006 156 NJM5532M NEW JAPAN RADIO 2006 157 NJM5534 NEW JAPAN RADIO 2006 158 NJM12902 NEW JAPAN RADIO 2006 159 NJM12902E NEW JAPAN RADIO 2006 160 NJM12902M NEW JAPAN RADIO 2006 161 NJM12902V NEW JAPAN RADIO 2006 162 NJM12904 NEW JAPAN RADIO 2006 163 NJM12904E NEW JAPAN RADIO 2006 164 NJM12904L NEW JAPAN RADIO 2006 165 NJM12904M NEW JAPAN RADIO 2006 166 NJM12904R NEW JAPAN RADIO 2006 167 NJM12904V NEW JAPAN RADIO 2006 168 NJM13403 NEW JAPAN RADIO 2006 169 NJM13403E NEW JAPAN RADIO 2006 170 NJM13403M NEW JAPAN RADIO 2006 171 NJM13403V NEW JAPAN RADIO 2006 172 NJM13404 NEW JAPAN RADIO 2006 173 NJM13404E NEW JAPAN RADIO 2006 174 NJM13404L NEW JAPAN RADIO 2006 175 NJM13404M NEW JAPAN RADIO 2006 No. Part Number Manufacturer Update 176 NJM13404R NEW JAPAN RADIO 2006 177 NJM13404V NEW JAPAN RADIO 2006 178 NJM14558 NEW JAPAN RADIO 2006 179 NJM14558E NEW JAPAN RADIO 2006 180 NJM14558L NEW JAPAN RADIO 2006 181 NJM14558M NEW JAPAN RADIO 2006 182 NJM14558R NEW JAPAN RADIO 2006 183 NJM14558V NEW JAPAN RADIO 2006 184 NJMOP-07 NEW JAPAN RADIO 2006 185 NJMOP-07M NEW JAPAN RADIO 2006 186 NJU7001 NEW JAPAN RADIO 2006 187 NJU7002 NEW JAPAN RADIO 2006 188 NJU7001M NEW JAPAN RADIO 2006 189 NJU7001V NEW JAPAN RADIO 2006 190 NJU7002M NEW JAPAN RADIO 2006 191 NJU7004 NEW JAPAN RADIO 2006 192 NJU7004M NEW JAPAN RADIO 2006 193 NJU7004V NEW JAPAN RADIO 2006 194 NJU7007 NEW JAPAN RADIO 2006 195 NJU7008 NEW JAPAN RADIO 2006 196 NJU7011 NEW JAPAN RADIO 2006 197 NJU7012 NEW JAPAN RADIO 2006 198 NJU7013 NEW JAPAN RADIO 2006 199 NJU7014 NEW JAPAN RADIO 2006 200 NJU7015 NEW JAPAN RADIO 2006 OPAMP S14 SPICE PARK 100
- 101. No. Part NumberManufacturer Update 201 NJU7016 NEW JAPAN RADIO 2006 202 NJU7019 NEW JAPAN RADIO 2006 203 NJU7021 NEW JAPAN RADIO 2006 204 NJU7021M NEW JAPAN RADIO 2006 205 NJU7021V NEW JAPAN RADIO 2006 206 NJU7022 NEW JAPAN RADIO 2006 207 NJU7022M NEW JAPAN RADIO 2006 208 NJU7024 NEW JAPAN RADIO 2006 209 NJU7024M NEW JAPAN RADIO 2006 210 NJU7024V NEW JAPAN RADIO 2006 211 NJU7031 NEW JAPAN RADIO 2006 212 NJU7031M NEW JAPAN RADIO 2006 213 NJU7031V NEW JAPAN RADIO 2006 214 NJU7032 NEW JAPAN RADIO 2006 215 NJU7032M NEW JAPAN RADIO 2006 216 NJU7034 NEW JAPAN RADIO 2006 217 NJU7034M NEW JAPAN RADIO 2006 218 NJU7034V NEW JAPAN RADIO 2006 219 NJU7042 NEW JAPAN RADIO 2006 220 NJU7043 NEW JAPAN RADIO 2006 221 NJU7051D NEW JAPAN RADIO 2006 222 NJU7051M NEW JAPAN RADIO 2006 223 NJU7051V NEW JAPAN RADIO 2006 224 NJU7052D NEW JAPAN RADIO 2006 225 NJU7052M NEW JAPAN RADIO 2006 No. Part Number Manufacturer Update 226 NJU7054D NEW JAPAN RADIO 2006 227 NJU7054M NEW JAPAN RADIO 2006 228 NJU7054V NEW JAPAN RADIO 2006 229 NJU7061D NEW JAPAN RADIO 2006 230 NJU7061M NEW JAPAN RADIO 2006 231 NJU7061V NEW JAPAN RADIO 2006 232 NJU7062D NEW JAPAN RADIO 2006 233 NJU7062M NEW JAPAN RADIO 2006 234 NJU7064D NEW JAPAN RADIO 2006 235 NJU7064M NEW JAPAN RADIO 2006 236 NJU7064V NEW JAPAN RADIO 2006 237 NJU7071D NEW JAPAN RADIO 2006 238 NJU7071M NEW JAPAN RADIO 2006 239 NJU7071V NEW JAPAN RADIO 2006 240 NJU7072D NEW JAPAN RADIO 2006 241 NJU7072M NEW JAPAN RADIO 2006 242 NJU7074D NEW JAPAN RADIO 2006 243 NJU7074M NEW JAPAN RADIO 2006 244 NJU7074V NEW JAPAN RADIO 2006 245 NJU7091A NEW JAPAN RADIO 2006 246 NJU7092A NEW JAPAN RADIO 2006 247 NJU7093A NEW JAPAN RADIO 2006 248 NJU7094 NEW JAPAN RADIO 2006 249 NJU7095 NEW JAPAN RADIO 2006 250 NJU7096 NEW JAPAN RADIO 2006 OPAMP S14 SPICE PARK 101
- 102. No. Part NumberManufacturer Update 251 NJM2143 NEW JAPAN RADIO Mar-08 252 NJM2710 NEW JAPAN RADIO Mar-08 253 NJM2711 NEW JAPAN RADIO Mar-08 254 NJM2720 NEW JAPAN RADIO Mar-08 255 NJM2721 NEW JAPAN RADIO Mar-08 256 NJM2722 NEW JAPAN RADIO Mar-08 257 NJM2732SCC NEW JAPAN RADIO Mar-08 258 NJM2749 NEW JAPAN RADIO Mar-08 259 NJM2749A NEW JAPAN RADIO Mar-08 260 MUSES01 NEW JAPAN RADIO Mar-11 261 MUSES02 NEW JAPAN RADIO Mar-11 262 MUSES8820 NEW JAPAN RADIO Mar-11 263 TA75S01F TOSHIBA 2006 264 TA75W01FU TOSHIBA 2006 265 TA75S558F TOSHIBA 2006 266 TC75S51F TOSHIBA 2006 267 TC75S51FU TOSHIBA 2006 268 TC75S51FE TOSHIBA 2006 269 TC75S54F TOSHIBA 2006 270 TC75S54FU TOSHIBA 2006 271 TC75S54FE TOSHIBA 2006 272 TC75S55F TOSHIBA 2006 273 TC75S55FU TOSHIBA 2006 274 TC75S55FE TOSHIBA 2006 275 TC75S60F TOSHIBA 2006 No. Part Number Manufacturer Update 276 TC75S60FU TOSHIBA 2006 277 TC75W51FK TOSHIBA 2006 278 TC75W51FU TOSHIBA 2006 279 TC75W54FK TOSHIBA 2006 280 TC75W54FU TOSHIBA 2006 281 TC75W60FK TOSHIBA 2006 282 TC75W60FU TOSHIBA 2006 283 TA75W558FU TOSHIBA Mar-08 284 TA75358F TOSHIBA Mar-08 285 TA75358P TOSHIBA Mar-08 286 TA75558F TOSHIBA Mar-08 287 TA75558P TOSHIBA Mar-08 288 TA75558S TOSHIBA Mar-08 289 TA75559F TOSHIBA Mar-08 290 TA75559P TOSHIBA Mar-08 291 TA75559S TOSHIBA Mar-08 292 HA17358A RENESAS Mar-08 293 HA17558 RENESAS Mar-08 294 HA17558B RENESAS Mar-08 295 LA6082D SANYO 2006 296 LA6082M SANYO 2006 297 LA6083D SANYO 2006 298 LA6458M SANYO 2006 299 LA6220PM SANYO Mar-10 300 LA6324N SANYO Mar-10 OPAMP S14 SPICE PARK 102
- 103. No. Part NumberManufacturer Update 301 LA6358AM SANYO Mar-10 302 MC3303 STMicroelectronics 2006 303 MC33078 STMicroelectronics 2006 304 MC33171 STMicroelectronics 2006 305 MC1458 STMicroelectronics Mar-08 306 MC1558 STMicroelectronics Mar-08 307 MC3403 STMicroelectronics Mar-08 308 MC3503 STMicroelectronics Mar-08 309 MC4558 STMicroelectronics Mar-08 310 MC33172 STMicroelectronics Mar-08 311 MC35172 STMicroelectronics Mar-08 312 uPC324C NEC ELECTRONICS 2006 313 uPC324G2 NEC ELECTRONICS 2006 314 uPC358C NEC ELECTRONICS 2006 315 uPC358G2 NEC ELECTRONICS 2006 316 uPC741C NEC ELECTRONICS 2006 317 uPC741G2 NEC ELECTRONICS 2006 318 uPC1458C NEC ELECTRONICS 2006 319 uPC1458G2 NEC ELECTRONICS 2006 320 uPC3403C NEC ELECTRONICS 2006 321 uPC3403G2 NEC ELECTRONICS 2006 322 uPC4061C NEC ELECTRONICS 2006 323 uPC4061G2 NEC ELECTRONICS 2006 324 uPC4062C NEC ELECTRONICS 2006 325 uPC4062G2 NEC ELECTRONICS 2006 No. Part Number Manufacturer Update 326 uPC4064C NEC ELECTRONICS 2006 327 uPC4064G2 NEC ELECTRONICS 2006 328 uPC4091C NEC ELECTRONICS 2006 329 uPC4091G2 NEC ELECTRONICS 2006 330 uPC4092C NEC ELECTRONICS 2006 331 uPC4092G2 NEC ELECTRONICS 2006 332 uPC4093C NEC ELECTRONICS 2006 333 uPC4093G2 NEC ELECTRONICS 2006 334 uPC4250C NEC ELECTRONICS 2006 335 uPC4250G2 NEC ELECTRONICS 2006 336 uPC4556C NEC ELECTRONICS 2006 337 uPC4556G2 NEC ELECTRONICS 2006 338 uPC4558C NEC ELECTRONICS 2006 339 uPC4558G2 NEC ELECTRONICS 2006 340 uPC4560C NEC ELECTRONICS 2006 341 uPC4560G2 NEC ELECTRONICS 2006 342 uPC4071C NEC ELECTRONICS Mar-08 343 uPC4071G2 NEC ELECTRONICS Mar-08 344 uPC4072C NEC ELECTRONICS Mar-08 345 uPC4072G2 NEC ELECTRONICS Mar-08 346 uPC4072HA NEC ELECTRONICS Mar-08 347 uPC4074C NEC ELECTRONICS Mar-08 348 uPC4074G2 NEC ELECTRONICS Mar-08 349 uPC4082C NEC ELECTRONICS Mar-08 350 uPC4082G2 NEC ELECTRONICS Mar-08 OPAMP S14 SPICE PARK 103
- 104. No. Part NumberManufacturer Update 351 uPC4084C NEC ELECTRONICS Mar-08 352 uPC4094C NEC ELECTRONICS Mar-08 353 uPC4094G2 NEC ELECTRONICS Mar-08 354 uPC4570C NEC ELECTRONICS Mar-08 355 OPA2652 BURR BROWN 2006 356 OPA685 BURR BROWN 2006 357 S-89110A SEIKO INSTRUMENT 2006 358 BA2115F ROHM Feb-10 359 BA4558R ROHM Feb-10 360 BA4560R ROHM Feb-10 361 BA14741F ROHM Feb-10 362 BA15532F ROHM Feb-10 OPAMP S14 SPICE PARK 104
- 105. S15 SPICE PARKJUN2015 Comparator No. Manufacturer Pcs. 1 NATIONAL 28 2 NEC 7 3 NJR 20 4 RENESAS 1 5 TOSHIBA 18 TOTAL 74 All Rights Reserved Copyright (C) Bee Technologies Inc. 105
- 106. Comparator No. Part NumberManufacturer Update 1 LMC6762 NATIONAL 2006 2 LM111H NATIONAL 2006 3 LM111H/883 NATIONAL 2006 4 LM111J/8 NATIONAL 2006 5 LM111J/8/883 NATIONAL 2006 6 LM111J/883 NATIONAL 2006 7 LM119H NATIONAL 2006 8 LM119H/883 NATIONAL 2006 9 LM119J NATIONAL 2006 10 LM119J/883 NATIONAL 2006 11 LM119W/883 NATIONAL 2006 12 LM119WG/883 NATIONAL 2006 13 LM211H NATIONAL 2006 14 LM211J/8 NATIONAL 2006 15 LM211M NATIONAL 2006 16 LM219J NATIONAL 2006 17 LM311H NATIONAL 2006 18 LM311M NATIONAL 2006 19 LM311N NATIONAL 2006 20 LM311N/14 NATIONAL 2006 21 LM319AH NATIONAL 2006 22 LM319AJ NATIONAL 2006 23 LM319AM NATIONAL 2006 24 LM319AN NATIONAL 2006 25 LM319H NATIONAL 2006 No. Part Number Manufacturer Update 26 LM319J NATIONAL 2006 27 LM319M NATIONAL 2006 28 LM319N NATIONAL 2006 29 uPC311C NEC 2006 30 uPC311G2 NEC 2006 31 uPC339C NEC 2006 32 uPC339G2 NEC 2006 33 uPC393C NEC 2006 34 uPC393G2 NEC 2006 35 uPC393HA NEC 2006 36 NJM2403 NJR 2006 37 NJM2407 NJR 2006 38 NJM2887 NJR 2006 39 NJM2901 NJR 2006 40 NJM2903 NJR 2006 41 NJM311D NJR 2006 42 NJM311M NJR 2006 43 NJM319D NJR 2006 44 NJM319M NJR 2006 45 NJM319V NJR 2006 46 NJU7108 NJR 2006 47 NJU7109 NJR 2006 48 NJU7104AD NJR Dec-08 49 NJU7104AM NJR Dec-08 50 NJU7112AD NJR Dec-08 S15 SPICE PARK 106

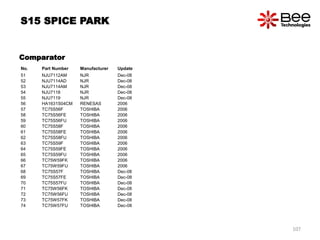

- 107. No. Part NumberManufacturer Update 51 NJU7112AM NJR Dec-08 52 NJU7114AD NJR Dec-08 53 NJU7114AM NJR Dec-08 54 NJU7118 NJR Dec-08 55 NJU7119 NJR Dec-08 56 HA1631S04CM RENESAS 2006 57 TC75S56F TOSHIBA 2006 58 TC75S56FE TOSHIBA 2006 59 TC75S56FU TOSHIBA 2006 60 TC75S58F TOSHIBA 2006 61 TC75S58FE TOSHIBA 2006 62 TC75S58FU TOSHIBA 2006 63 TC75S59F TOSHIBA 2006 64 TC75S59FE TOSHIBA 2006 65 TC75S59FU TOSHIBA 2006 66 TC75W59FK TOSHIBA 2006 67 TC75W59FU TOSHIBA 2006 68 TC75S57F TOSHIBA Dec-08 69 TC75S57FE TOSHIBA Dec-08 70 TC75S57FU TOSHIBA Dec-08 71 TC75W56FK TOSHIBA Dec-08 72 TC75W56FU TOSHIBA Dec-08 73 TC75W57FK TOSHIBA Dec-08 74 TC75W57FU TOSHIBA Dec-08 Comparator S15 SPICE PARK 107
- 108. S16 SPICE PARKJUN2015 SIDAC No. Manufacturer Pcs. 1 Motorola 5 2 ON Semiconductor 6 3 SHINDENGEN 31 TOTAL 42 All Rights Reserved Copyright (C) Bee Technologies Inc. 108
- 109. SIDAC No. Part NumberManufacturer Update 1 MKP1V120 Motorola 2006 2 MKP1V130 Motorola 2006 3 MKP3V110 Motorola 2006 4 MKP3V120 Motorola 2006 5 MKP3V130 Motorola 2006 6 MKP1V120 ON Semiconductor 2006 7 MKP1V130 ON Semiconductor 2006 8 MKP1V160 ON Semiconductor 2006 9 MKP1V240 ON Semiconductor 2006 10 MKP3V120 ON Semiconductor 2006 11 MKP3V240 ON Semiconductor 2006 12 G1V(A)10C SHINDENGEN 2006 13 G1V(A)14C SHINDENGEN 2006 14 G1V(A)15C SHINDENGEN 2006 15 G1V(A)20C SHINDENGEN 2006 16 G1V(A)8C SHINDENGEN 2006 17 G1V(B)22C SHINDENGEN 2006 18 G1V(B)8C SHINDENGEN 2006 19 K1V(A)10 SHINDENGEN 2006 20 K1V(A)11 SHINDENGEN 2006 21 K1V(A)12 SHINDENGEN 2006 22 K1V(A)14 SHINDENGEN 2006 23 K1V(A)16 SHINDENGEN 2006 24 K1V10 SHINDENGEN 2006 25 K1V11 SHINDENGEN 2006 No. Part Number Manufacturer Update 26 K1V12 SHINDENGEN 2006 27 K1V14 SHINDENGEN 2006 28 K1V16 SHINDENGEN 2006 29 K1V18 SHINDENGEN 2006 30 K1V24 SHINDENGEN 2006 31 K1V26 SHINDENGEN 2006 32 K1V5 SHINDENGEN 2006 33 K1V6 SHINDENGEN 2006 34 K1V8 SHINDENGEN 2006 35 K1V22 SHINDENGEN 2006 36 K1V24(W) SHINDENGEN 2006 37 K1V22(W) SHINDENGEN 2006 38 K1V26(W) SHINDENGEN 2006 39 K1V33(W) SHINDENGEN 2006 40 K1V34(W) SHINDENGEN 2006 41 K1V36(W) SHINDENGEN 2006 42 K1V38(W) SHINDENGEN 2006 S16 SPICE PARK 109
- 110. S17 SPICE PARKJUN2015 Photo coupler No. Manufacturer Pcs. 1 SHARP 12 2 NEC 6 3 TOSHIBA 25 TOTAL 43 All Rights Reserved Copyright (C) Bee Technologies Inc. 110
- 111. Photo coupler No. PartNumber Manufacturer Output Note Update 1 PC123 SHARP Transistor 2006 2 PC111LY SHARP Transistor 2006 3 PC815 SHARP Transistor 2006 4 PC825 SHARP Transistor 2006 5 PC829 SHARP Transistor 2006 6 PC851 SHARP Transistor 2006 7 PC356NT SHARP Transistor 2006 8 PC357NT SHARP Transistor 2006 9 PC817X SHARP Transistor 2006 10 PC3Q66Q SHARP Transistor Mar-08 11 PC3Q67Q SHARP Transistor Mar-08 12 PC123FY SHARP Transistor Mar-08 13 TLP421 TOSHIBA Transistor Class=A 2006 14 TLP421 TOSHIBA Transistor Class=B 2006 15 TLP621 TOSHIBA Transistor Class=A 2006 16 TLP621 TOSHIBA Transistor Class=B 2006 17 TLP628 TOSHIBA Transistor Class=A 2006 18 TLP628 TOSHIBA Transistor Class=B 2006 19 TLP521-1 TOSHIBA Transistor Class=A 2006 20 TLP521-1 TOSHIBA Transistor Class=B 2006 21 TLP521-2 TOSHIBA Transistor Class=A 2006 22 TLP521-2 TOSHIBA Transistor Class=B 2006 23 TLP521-4 TOSHIBA Transistor Class=A 2006 24 TLP521-4 TOSHIBA Transistor Class=B 2006 25 TPS852 TOSHIBA IC 2006 No. Part Number Manufacturer Output Update 26 TLP629 TOSHIBA Transistor 2006 27 TLP624 TOSHIBA Transistor 2006 28 TLP124 TOSHIBA Transistor Mar-08 29 TLP280 TOSHIBA Transistor Mar-08 30 TLP281 TOSHIBA Transistor Mar-08 31 TLP320 TOSHIBA Transistor Mar-08 32 TLP421GP TOSHIBA Transistor Mar-08 33 TLP620 TOSHIBA Transistor Mar-08 34 TLP621 TOSHIBA Transistor Mar-08 35 TLP630 TOSHIBA Transistor Mar-08 36 TLP632 TOSHIBA Transistor Mar-08 37 TLP732 TOSHIBA Transistor Mar-08 38 PS2501-1 NEC Transistor 2006 39 PS2501-2 NEC Transistor 2006 40 PS2501-4 NEC Transistor 2006 41 PS2501L-1 NEC Transistor 2006 42 PS2501L-2 NEC Transistor 2006 43 PS2501L-4 NEC Transistor 2006 S17 SPICE PARK 111

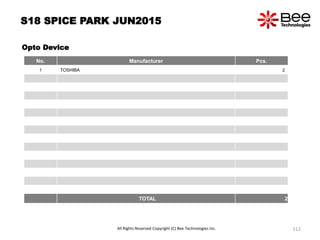

- 112. S18 SPICE PARKJUN2015 Opto Device No. Manufacturer Pcs. 1 TOSHIBA 2 TOTAL 2 All Rights Reserved Copyright (C) Bee Technologies Inc. 112
- 113. Opto Device No. PartNumber Manufacturer Update 1 TOTX179 TOSHIBA 2006 2 TORX179 TOSHIBA 2006 S18 SPICE PARK 113
- 114. S19 SPICE PARKJUN2015 Varistor No. Manufacturer Pcs. 1 SHINDENGEN 3 TOTAL 3 All Rights Reserved Copyright (C) Bee Technologies Inc. 114
- 115. Varistor No. Part NumberManufacturer Update 1 Part Number SHINDENGEN 2006 2 VR60B(A) SHINDENGEN 2006 3 VR60BP(A) SHINDENGEN 2006 S19 SPICE PARK 115
- 116. S20 SPICE PARKJUN2015 Surge Absorber (ZNR) No. Manufacturer Pcs. 1 Panasonic 184 TOTAL 184 All Rights Reserved Copyright (C) Bee Technologies Inc. 116
- 117. Surge Absorber (ZNR) No.Part Number Series Manufacture Update 1 ERZV05D101 5Series Panasonic 2006 2 ERZV05D121 5Series Panasonic 2006 3 ERZV05D151 5Series Panasonic 2006 4 ERZV05D180 5Series Panasonic 2006 5 ERZV05D201 5Series Panasonic 2006 6 ERZV05D220 5Series Panasonic 2006 7 ERZV05D221 5Series Panasonic 2006 8 ERZV05D241 5Series Panasonic 2006 9 ERZV05D270 5Series Panasonic 2006 10 ERZV05D271 5Series Panasonic 2006 11 ERZV05D330 5Series Panasonic 2006 12 ERZV05D331 5Series Panasonic 2006 13 ERZV05D361 5Series Panasonic 2006 14 ERZV05D390 5Series Panasonic 2006 15 ERZV05D391 5Series Panasonic 2006 16 ERZV05D431 5Series Panasonic 2006 17 ERZV05D470 5Series Panasonic 2006 18 ERZV05D471 5Series Panasonic 2006 19 ERZV05D560 5Series Panasonic 2006 20 ERZV05D680 5Series Panasonic 2006 21 ERZV05D820 5Series Panasonic 2006 22 ERZV07D121 7Series Panasonic 2006 23 ERZV07D151 7Series Panasonic 2006 24 ERZV07D180 7Series Panasonic 2006 25 ERZV07D201 7Series Panasonic 2006 No. Part Number Series Manufacture Update 26 ERZV07D221 7Series Panasonic 2006 27 ERZV07D241 7Series Panasonic 2006 28 ERZV07D270 7Series Panasonic 2006 29 ERZV07D271 7Series Panasonic 2006 30 ERZV07D330 7Series Panasonic 2006 31 ERZV07D331 7Series Panasonic 2006 32 ERZV07D361 7Series Panasonic 2006 33 ERZV07D390 7Series Panasonic 2006 34 ERZV07D391 7Series Panasonic 2006 35 ERZV07D431 7Series Panasonic 2006 36 ERZV07D470 7Series Panasonic 2006 37 ERZV07D471 7Series Panasonic 2006 38 ERZV07D511 7Series Panasonic 2006 39 ERZV07D560 7Series Panasonic 2006 40 ERZV07D680 7Series Panasonic 2006 41 ERZV07D820 7Series Panasonic 2006 42 ERZV09D101 9Series Panasonic 2006 43 ERZV09D121 9Series Panasonic 2006 44 ERZV09D151 9Series Panasonic 2006 45 ERZV09D180 9Series Panasonic 2006 46 ERZV09D201 9Series Panasonic 2006 47 ERZV09D220 9Series Panasonic 2006 48 ERZV09D221 9Series Panasonic 2006 49 ERZV09D241 9Series Panasonic 2006 50 ERZV09D270 9Series Panasonic 2006 S20 SPICE PARK 117
- 118. No. Part NumberSeries Manufacture Update 51 ERZV09D271 9Series Panasonic 2006 52 ERZV09D330 9Series Panasonic 2006 53 ERZV09D331 9Series Panasonic 2006 54 ERZV09D361 9Series Panasonic 2006 55 ERZV09D390 9Series Panasonic 2006 56 ERZV09D391 9Series Panasonic 2006 57 ERZV09D431 9Series Panasonic 2006 58 ERZV09D470 9Series Panasonic 2006 59 ERZV09D471 9Series Panasonic 2006 60 ERZV09D511 9Series Panasonic 2006 61 ERZV09D560 9Series Panasonic 2006 62 ERZV09D680 9Series Panasonic 2006 63 ERZV09D820 9Series Panasonic 2006 64 ERZV10D101 10Series Panasonic 2006 65 ERZV10D102 10Series Panasonic 2006 66 ERZV10D112 10Series Panasonic 2006 67 ERZV10D121 10Series Panasonic 2006 68 ERZV10D151 10Series Panasonic 2006 69 ERZV10D180 10Series Panasonic 2006 70 ERZV10D201 10Series Panasonic 2006 71 ERZV10D220 10Series Panasonic 2006 72 ERZV10D221 10Series Panasonic 2006 73 ERZV10D241 10Series Panasonic 2006 74 ERZV10D270 10Series Panasonic 2006 75 ERZV10D271 10Series Panasonic 2006 No. Part Number Series Manufacture Update 76 ERZV10D330 10Series Panasonic 2006 77 ERZV10D331 10Series Panasonic 2006 78 ERZV10D361 10Series Panasonic 2006 79 ERZV10D390 10Series Panasonic 2006 80 ERZV10D391 10Series Panasonic 2006 81 ERZV10D431 10Series Panasonic 2006 82 ERZV10D470 10Series Panasonic 2006 83 ERZV10D471 10Series Panasonic 2006 84 ERZV10D511 10Series Panasonic 2006 85 ERZV10D560 10Series Panasonic 2006 86 ERZV10D621 10Series Panasonic 2006 87 ERZV10D680 10Series Panasonic 2006 88 ERZV10D681 10Series Panasonic 2006 89 ERZV10D751 10Series Panasonic 2006 90 ERZV10D820 10Series Panasonic 2006 91 ERZV10D821 10Series Panasonic 2006 92 ERZV10D911 10Series Panasonic 2006 93 ERZV14D101 14Series Panasonic 2006 94 ERZV14D102 14Series Panasonic 2006 95 ERZV14D112 14Series Panasonic 2006 96 ERZV14D121 14Series Panasonic 2006 97 ERZV14D151 14Series Panasonic 2006 98 ERZV14D180 14Series Panasonic 2006 99 ERZV14D182CS 14Series Panasonic 2006 100 ERZV14D201 14Series Panasonic 2006 Surge Absorber (ZNR) S20 SPICE PARK 118
- 119. No. Part NumberSeries Manufacture Update 101 ERZV14D220 14Series Panasonic 2006 102 ERZV14D221 14Series Panasonic 2006 103 ERZV14D241 14Series Panasonic 2006 104 ERZV14D270 14Series Panasonic 2006 105 ERZV14D271 14Series Panasonic 2006 106 ERZV14D330 14Series Panasonic 2006 107 ERZV14D331 14Series Panasonic 2006 108 ERZV14D361 14Series Panasonic 2006 109 ERZV14D390 14Series Panasonic 2006 110 ERZV14D391 14Series Panasonic 2006 111 ERZV14D431 14Series Panasonic 2006 112 ERZV14D470 14Series Panasonic 2006 113 ERZV14D471 14Series Panasonic 2006 114 ERZV14D511 14Series Panasonic 2006 115 ERZV14D560 14Series Panasonic 2006 116 ERZV14D621 14Series Panasonic 2006 117 ERZV14D680 14Series Panasonic 2006 118 ERZV14D681 14Series Panasonic 2006 119 ERZV14D751 14Series Panasonic 2006 120 ERZV14D820 14Series Panasonic 2006 121 ERZV14D821 14Series Panasonic 2006 122 ERZV14D911 14Series Panasonic 2006 123 ERZV20D101 20Series Panasonic 2006 124 ERZV20D102 20Series Panasonic 2006 125 ERZV20D112 20Series Panasonic 2006 No. Part Number Series Manufacture Update 126 ERZV20D121 20Series Panasonic 2006 127 ERZV20D151 20Series Panasonic 2006 128 ERZV20D180 20Series Panasonic 2006 129 ERZV20D182 20Series Panasonic 2006 130 ERZV20D201 20Series Panasonic 2006 131 ERZV20D220 20Series Panasonic 2006 132 ERZV20D221 20Series Panasonic 2006 133 ERZV20D241 20Series Panasonic 2006 134 ERZV20D270 20Series Panasonic 2006 135 ERZV20D271 20Series Panasonic 2006 136 ERZV20D330 20Series Panasonic 2006 137 ERZV20D331 20Series Panasonic 2006 138 ERZV20D361 20Series Panasonic 2006 139 ERZV20D390 20Series Panasonic 2006 140 ERZV20D391 20Series Panasonic 2006 141 ERZV20D431 20Series Panasonic 2006 142 ERZV20D470 20Series Panasonic 2006 143 ERZV20D471 20Series Panasonic 2006 144 ERZV20D511 20Series Panasonic 2006 145 ERZV20D560 20Series Panasonic 2006 146 ERZV20D621 20Series Panasonic 2006 147 ERZV20D680 20Series Panasonic 2006 148 ERZV20D681 20Series Panasonic 2006 149 ERZV20D751 20Series Panasonic 2006 150 ERZV20D820 20Series Panasonic 2006 Surge Absorber (ZNR) S20 SPICE PARK 119
- 120. No. Part NumberSeries Manufacture Update 151 ERZV20D821 20Series Panasonic 2006 152 ERZV20D911 20Series Panasonic 2006 153 ERZC20EK102 20Series Panasonic Jun-08 154 ERZC20EK112 20Series Panasonic Jun-08 155 ERZC20EK201 20Series Panasonic Jun-08 156 ERZC20EK241 20Series Panasonic Jun-08 157 ERZC20EK271 20Series Panasonic Jun-08 158 ERZC20EK361 20Series Panasonic Jun-08 159 ERZC20EK391 20Series Panasonic Jun-08 160 ERZC20EK431 20Series Panasonic Jun-08 161 ERZC20EK471 20Series Panasonic Jun-08 162 ERZC20EK511 20Series Panasonic Jun-08 163 ERZC20EK621 20Series Panasonic Jun-08 164 ERZC20EK681 20Series Panasonic Jun-08 165 ERZC20EK751 20Series Panasonic Jun-08 166 ERZC20EK781 20Series Panasonic Jun-08 167 ERZC20EK821 20Series Panasonic Jun-08 168 ERZC20EK911 20Series Panasonic Jun-08 169 ERZC32EK102 32Series Panasonic Jun-08 170 ERZC32EK112 32Series Panasonic Jun-08 171 ERZC32EK201 32Series Panasonic Jun-08 172 ERZC32EK241 32Series Panasonic Jun-08 173 ERZC32EK271 32Series Panasonic Jun-08 174 ERZC32EK361 32Series Panasonic Jun-08 175 ERZC32EK391 32Series Panasonic Jun-08 No. Part Number Series Manufacture Update 176 ERZC32EK431 32Series Panasonic Jun-08 177 ERZC32EK471 32Series Panasonic Jun-08 178 ERZC32EK511 32Series Panasonic Jun-08 179 ERZC32EK621 32Series Panasonic Jun-08 180 ERZC32EK681 32Series Panasonic Jun-08 181 ERZC32EK751 32Series Panasonic Jun-08 182 ERZC32EK781 32Series Panasonic Jun-08 183 ERZC32EK821 32Series Panasonic Jun-08 184 ERZC32EK911 32Series Panasonic Jun-08 Surge Absorber (ZNR) S20 SPICE PARK 120
- 121. S21 SPICE PARKJUN2015 Thermistor No. Manufacturer Pcs. 1 Ishizuka Electronics 6 TOTAL 6 All Rights Reserved Copyright (C) Bee Technologies Inc. 121
- 122. Thermistor No. Part NumberManufacturer Update 1 3D-22 Ishizuka Electronics 2006 2 4D-22 Ishizuka Electronics 2006 3 6D-22 Ishizuka Electronics 2006 4 8D-13 Ishizuka Electronics 2006 5 16D-13 Ishizuka Electronics 2006 6 5D-11 Ishizuka Electronics 2006 S21 SPICE PARK 122
- 123. S22 SPICE PARKJUN2015 Thyristor No. Manufacturer Pcs. 1 MOTOROLA 38 2 NEC 22 3 On Semiconductor 35 4 PHILIPS 21 5 TOSHIBA 7 TOTAL 123 All Rights Reserved Copyright (C) Bee Technologies Inc. 123
- 124. Thyristor No. Part NumberManufacturer Update 1 MCR12DSM MOTOROLA 2006 2 MCR12DSN MOTOROLA 2006 3 MCR22-2 MOTOROLA 2006 4 MCR22-3 MOTOROLA 2006 5 MCR22-4 MOTOROLA 2006 6 MCR22-6 MOTOROLA 2006 7 MCR22-8 MOTOROLA 2006 8 MCR72-2 MOTOROLA 2006 9 MCR72-3 MOTOROLA 2006 10 MCR72-4 MOTOROLA 2006 11 MCR72-6 MOTOROLA 2006 12 MCR72-8 MOTOROLA 2006 13 MCR72-10 MOTOROLA 2006 14 MCR310-2 MOTOROLA 2006 15 MCR310-3 MOTOROLA 2006 16 MCR310-4 MOTOROLA 2006 17 MCR310-6 MOTOROLA 2006 18 MCR310-8 MOTOROLA 2006 19 MCR310-10 MOTOROLA 2006 20 MCR265-2 MOTOROLA 2006 21 MCR265-4 MOTOROLA 2006 22 MCR265-6 MOTOROLA 2006 23 MCR265-8 MOTOROLA 2006 24 MCR265-10 MOTOROLA 2006 25 MCR264-4 MOTOROLA 2006 No. Part Number Manufacturer Update 26 MCR264-6 MOTOROLA 2006 27 MCR264-8 MOTOROLA 2006 28 MCR264-10 MOTOROLA 2006 29 MCR225-2FP MOTOROLA 2006 30 MCR225-4FP MOTOROLA 2006 31 MCR225-6FP MOTOROLA 2006 32 MCR225-8FP MOTOROLA 2006 33 MCR225-10FP MOTOROLA 2006 34 MCR218-2FP MOTOROLA 2006 35 MCR218-4FP MOTOROLA 2006 36 MCR218-6FP MOTOROLA 2006 37 MCR218-8FP MOTOROLA 2006 38 MCR218-10FP MOTOROLA 2006 39 8P4J NEC 2006 40 2S2M NEC 2006 41 2S4M NEC 2006 42 3P4J NEC 2006 43 3P4J-Z NEC 2006 44 2P4M NEC 2006 45 2P5M NEC 2006 46 2P6M NEC 2006 47 03P2J NEC 2006 48 03P4J NEC 2006 49 03P5J NEC 2006 50 03P2M NEC 2006 S22 SPICE PARK 124
- 125. No. Part NumberManufacturer Update 51 03P4M NEC 2006 52 8P2M NEC 2006 53 8P4M NEC 2006 54 5P4SMA NEC 2006 55 5P6SMA NEC 2006 56 3P4MH NEC 2006 57 3P6MH NEC 2006 58 03P4MG NEC 2006 59 03P6MG NEC 2006 60 03P4MF NEC 2006 61 MCR703A On Semiconductor 2006 62 MCR704A On Semiconductor 2006 63 MCR706A On Semiconductor 2006 64 MCR708A On Semiconductor 2006 65 MCR8DSN On Semiconductor 2006 66 MCR8DSM On Semiconductor 2006 67 MCR72-3 On Semiconductor 2006 68 MCR72-6 On Semiconductor 2006 69 MCR72-8 On Semiconductor 2006 70 MCR716 On Semiconductor 2006 71 MCR718 On Semiconductor 2006 72 MCR69-2 On Semiconductor 2006 73 MCR69-3 On Semiconductor 2006 74 MCR68-2 On Semiconductor 2006 75 MCR12DSM On Semiconductor 2006 No. Part Number Manufacturer Update 76 MCR12DSN On Semiconductor 2006 77 2N6504 On Semiconductor 2006 78 2N6505 On Semiconductor 2006 79 2N6507 On Semiconductor 2006 80 2N6508 On Semiconductor 2006 81 2N6509 On Semiconductor 2006 82 2N6400 On Semiconductor 2006 83 2N6401 On Semiconductor 2006 84 2N6402 On Semiconductor 2006 85 2N6403 On Semiconductor 2006 86 2N6404 On Semiconductor 2006 87 2N6405 On Semiconductor 2006 88 2N6394 On Semiconductor 2006 89 2N6395 On Semiconductor 2006 90 2N6397 On Semiconductor 2006 91 2N6399 On Semiconductor 2006 92 2N5060 On Semiconductor 2006 93 2N5061 On Semiconductor 2006 94 2N5062 On Semiconductor 2006 95 2N5064 On Semiconductor 2006 96 BT145-500R PHILIPS 2006 97 BT145-600R PHILIPS 2006 98 BT145-800R PHILIPS 2006 99 BT151U-500C PHILIPS 2006 100 BT151U-650C PHILIPS 2006 Thyristor S22 SPICE PARK 125
- 126. No. Part NumberManufacturer Update 101 BT151U-800C PHILIPS 2006 102 BT152-400R PHILIPS 2006 103 BT152-600R PHILIPS 2006 104 BT152-800R PHILIPS 2006 105 BT152B-400R PHILIPS 2006 106 BT152B-600R PHILIPS 2006 107 BT152B-800R PHILIPS 2006 108 BT300S-500R PHILIPS 2006 109 BT300S-600R PHILIPS 2006 110 BT300S-800R PHILIPS 2006 111 BTH151S-650R PHILIPS 2006 112 C106D PHILIPS 2006 113 BT151X-500 PHILIPS 2006 114 BT151X-650 PHILIPS 2006 115 BT151X-800 PHILIPS 2006 116 MCR106-6 PHILIPS 2006 117 SF3G48 TOSHIBA 2006 118 SF5G49 TOSHIBA 2006 119 SF5J49 TOSHIBA 2006 120 USF5G49 TOSHIBA 2006 121 USF5J49 TOSHIBA 2006 122 SF10GZ47 TOSHIBA 2006 123 SF10JZ47 TOSHIBA 2006 Thyristor S22 SPICE PARK 126
- 127. S23 SPICE PARKJUN2015 Pulse Width Modulation IC (PWM IC) No. Manufacturer Pcs. 1 Fuji Electronics 1 2 FUJITSU 1 3 JRC 1 TOTAL 3 All Rights Reserved Copyright (C) Bee Technologies Inc. 127
- 128. Pulse Width ModulationIC No. Part Number Manufacturer Update 1 FA5311BP Fuji Electronics 2006 2 MB3800 FUJITSU 2006 3 NJM2374A JRC 2006 S23 SPICE PARK 128
- 129. S24 SPICE PARKJUN2015 Analog IC No. Manufacturer Pcs. 1 New Japan Radio 3 2 TOSHIBA 2 3 ROHM 1 TOTAL 6 All Rights Reserved Copyright (C) Bee Technologies Inc. 129
- 130. Analog IC No. PartNumber Manufacturer Update 1 NJM78LR05 New Japan Radio 2006 2 NJM2887 New Japan Radio 2006 3 NJM2172 New Japan Radio 2006 4 TAH8N401K TOSHIBA 2006 5 TAH6N201U TOSHIBA 2006 6 BA00ASFP ROHM 2006 S24 SPICE PARK 130
- 131. S25 SPICE PARKJUN2015 Digital Transistor No. Manufacturer Pcs. 1 ROHM 95 TOTAL 95 All Rights Reserved Copyright (C) Bee Technologies Inc. 131
- 132. Digital Transistor No. PartNumber Manufacturer Update 1 DTA123EE ROHM 2006 2 DTA123EKA ROHM 2006 3 DTA123ESA ROHM 2006 4 DTA123EUA ROHM 2006 5 DTA143EE ROHM 2006 6 DTA143EKA ROHM 2006 7 DTA143EM ROHM 2006 8 DTA143ESA ROHM 2006 9 DTA143EUA ROHM 2006 10 DTA143XE ROHM 2006 11 DTA143XKA ROHM 2006 12 DTA143XM ROHM 2006 13 DTA143XSA ROHM 2006 14 DTA143XUA ROHM 2006 15 DTA143ZM ROHM 2006 16 DTA143ZE ROHM 2006 17 DTA143ZUA ROHM 2006 18 DTA143ZKA ROHM 2006 19 DTA143ZSA ROHM 2006 20 DTC113ZUA ROHM 2006 21 DTC113ZKA ROHM 2006 22 DTC113ZSA ROHM 2006 23 DTC114EM ROHM 2006 24 DTC114EE ROHM 2006 25 DTC114EUA ROHM 2006 No. Part Number Manufacturer Update 26 DTC114EKA ROHM 2006 27 DTC114ECA ROHM 2006 28 DTC114ESA ROHM 2006 29 DTC114YE ROHM 2006 30 DTC114YM ROHM 2006 31 DTC114YUA ROHM 2006 32 DTC114YKA ROHM 2006 33 DTC114YSA ROHM 2006 34 DTC123EE ROHM 2006 35 DTC123EUA ROHM 2006 36 DTC123EKA ROHM 2006 37 DTC123ESA ROHM 2006 38 DTC123EM ROHM 2006 39 DTC123JE ROHM 2006 40 DTC123JKA ROHM 2006 41 DTC123JM ROHM 2006 42 DTC123JSA ROHM 2006 43 DTC123JUA ROHM 2006 44 DTC123YE ROHM 2006 45 DTC123YUA ROHM 2006 46 DTC123YKA ROHM 2006 47 DTC123YSA ROHM 2006 48 DTC124EM ROHM 2006 49 DTC124EE ROHM 2006 50 DTC124EUA ROHM 2006 S25 SPICE PARK 132
- 133. No. Part NumberManufacturer Update 51 DTC124EKA ROHM 2006 52 DTC124ESA ROHM 2006 53 DTC124XE ROHM 2006 54 DTC124XM ROHM 2006 55 DTC124XUA ROHM 2006 56 DTC124XKA ROHM 2006 57 DTC124XSA ROHM 2006 58 DTC143EE ROHM 2006 59 DTC143EM ROHM 2006 60 DTC143EUA ROHM 2006 61 DTC143EKA ROHM 2006 62 DTC143ESA ROHM 2006 63 DTC143XE ROHM 2006 64 DTC143XKA ROHM 2006 65 DTC143XM ROHM 2006 66 DTC143XSA ROHM 2006 67 DTC143XUA ROHM 2006 68 DTC143ZM ROHM 2006 69 DTC143ZE ROHM 2006 70 DTC143ZUA ROHM 2006 71 DTC143ZKA ROHM 2006 72 DTC143ZSA ROHM 2006 73 DTC144EE ROHM 2006 74 DTC144EUA ROHM 2006 75 DTC144EKA ROHM 2006 No. Part Number Manufacturer Update 76 DTC144ESA ROHM 2006 77 DTC144WE ROHM 2006 78 DTC144WKA ROHM 2006 79 DTC144WSA ROHM 2006 80 DTC144WUA ROHM 2006 81 DTC363EK ROHM 2006 82 DTC363ES ROHM 2006 83 DTC363EU ROHM 2006 84 DTD113EK ROHM 2006 85 DTD113ES ROHM 2006 86 DTD113ZK ROHM 2006 87 DTD113ZU ROHM 2006 88 DTD113ZS ROHM 2006 89 DTD114EK ROHM 2006 90 DTD114ES ROHM 2006 91 DTD123YK ROHM 2006 92 DTD123YS ROHM 2006 93 DTD143EC ROHM 2006 94 DTD143EK ROHM 2006 95 DTD143ES ROHM 2006 S25 SPICE PARK Digital Transistor 133
- 134. S26 SPICE PARKJUN2015 BRT No. Manufacturer Pcs. 1 TOSHIBA 47 TOTAL 47 All Rights Reserved Copyright (C) Bee Technologies Inc. 134
- 135. BRT No. Part NumberManufacturer Update 1 RN1101FV TOSHIBA 2006 2 RN1102FV TOSHIBA 2006 3 RN1103FV TOSHIBA 2006 4 RN1104FV TOSHIBA 2006 5 RN1105FV TOSHIBA 2006 6 RN1106FV TOSHIBA 2006 7 RN1314 TOSHIBA 2006 8 RN1315 TOSHIBA 2006 9 RN1316 TOSHIBA 2006 10 RN1317 TOSHIBA 2006 11 RN1107FS TOSHIBA 2006 12 RN1108FS TOSHIBA 2006 13 RN1109FS TOSHIBA 2006 14 RN1101FT TOSHIBA 2006 15 RN1102FT TOSHIBA 2006 16 RN1103FT TOSHIBA 2006 17 RN1104FT TOSHIBA 2006 18 RN1105FT TOSHIBA 2006 19 RN1106FT TOSHIBA 2006 20 RN1414 TOSHIBA 2006 21 RN1415 TOSHIBA 2006 22 RN1416 TOSHIBA 2006 23 RN1417 TOSHIBA 2006 24 RN1418 TOSHIBA 2006 25 RN1114FV TOSHIBA 2006 No. Part Number Manufacturer Update 26 RN1115FV TOSHIBA 2006 27 RN1116FV TOSHIBA 2006 28 RN1117FV TOSHIBA 2006 29 RN1118FV TOSHIBA 2006 30 RN1114FT TOSHIBA 2006 31 RN1115FT TOSHIBA 2006 32 RN1116FT TOSHIBA 2006 33 RN1117FT TOSHIBA 2006 34 RN1118FT TOSHIBA 2006 35 RN1101FS TOSHIBA 2006 36 RN1102FS TOSHIBA 2006 37 RN1103FS TOSHIBA 2006 38 RN1902AFS TOSHIBA MAY2010 39 RN1903AFS TOSHIBA MAY2010 40 RN1904AFS TOSHIBA MAY2010 41 RN1905AFS TOSHIBA MAY2010 42 RN1906AFS TOSHIBA MAY2010 43 RN1961FS TOSHIBA MAY2010 44 RN1963FS TOSHIBA MAY2010 45 RN1964FS TOSHIBA MAY2010 46 RN1965FS TOSHIBA MAY2010 47 RN1966FS TOSHIBA MAY2010 S26 SPICE PARK 135
- 136. S27 SPICE PARKJUN2015 Digital IC No. Manufacturer Pcs. 1 TOSHIBA 239 TOTAL 239 All Rights Reserved Copyright (C) Bee Technologies Inc. 136
- 137. Digital IC No. PartNumber Manufacturer Update 1 TC7S00F TOSHIBA 2006 2 TC7S08F TOSHIBA 2006 3 TC7S08FU TOSHIBA 2006 4 TC7SET08F TOSHIBA 2006 5 TC7SET08FU TOSHIBA 2006 6 TC7SH08F TOSHIBA 2006 7 TC7SH08FE TOSHIBA 2006 8 TC7SH08FS TOSHIBA 2006 9 TC7SH08FU TOSHIBA 2006 10 TC7W08F TOSHIBA 2006 11 TC7W08FU TOSHIBA 2006 12 TC7WH08FK TOSHIBA 2006 13 TC7WH08FU TOSHIBA 2006 14 TC74AC08F TOSHIBA 2006 15 TC74AC08FN TOSHIBA 2006 16 TC74AC08FT TOSHIBA 2006 17 TC74AC08P TOSHIBA 2006 18 TC74ACT08F TOSHIBA 2006 19 TC74ACT08FN TOSHIBA 2006 20 TC74ACT08FT TOSHIBA 2006 21 TC74ACT08P TOSHIBA 2006 22 TC74AC244F TOSHIBA 2006 23 TC74AC244FT TOSHIBA 2006 24 TC74AC244FW TOSHIBA 2006 25 TC74AC244P TOSHIBA 2006 No. Part Number Manufacturer Update 26 TC74ACT244F TOSHIBA 2006 27 TC74ACT244FT TOSHIBA 2006 28 TC74ACT244FW TOSHIBA 2006 29 TC74ACT244P TOSHIBA 2006 30 TC74LCX244F TOSHIBA 2006 31 TC74LCX244FT TOSHIBA 2006 32 TC74LCX244FW TOSHIBA 2006 33 TC74VCX244FT TOSHIBA 2006 34 TC74VHC244F TOSHIBA 2006 35 TC74VHC244FT TOSHIBA 2006 36 TC74VHC244FW TOSHIBA 2006 37 TC74VHCT244AF TOSHIBA 2006 38 TC74VHCT244AFT TOSHIBA 2006 39 TC74VHCT244AFW TOSHIBA 2006 40 TC74AC245F TOSHIBA 2006 41 TC74AC245FT TOSHIBA 2006 42 TC74AC245FW TOSHIBA 2006 43 TC74AC245P TOSHIBA 2006 44 TC74ACT245F TOSHIBA 2006 45 TC74ACT245FT TOSHIBA 2006 46 TC74ACT245FW TOSHIBA 2006 47 TC74ACT245P TOSHIBA 2006 48 TC74LCX245F TOSHIBA 2006 49 TC74LCX245FT TOSHIBA 2006 50 TC74LCX245FW TOSHIBA 2006 S27 SPICE PARK 137
- 138. No. Part NumberManufacturer Update 51 TC74VCX245FT TOSHIBA 2006 52 TC74VHC245F TOSHIBA 2006 53 TC74VHC245FT TOSHIBA 2006 54 TC74VHC245FW TOSHIBA 2006 55 TC74VHCT245AF TOSHIBA 2006 56 TC74VHCT245AFT TOSHIBA 2006 57 TC74VHCT245AFW TOSHIBA 2006 58 TC74AC540F TOSHIBA 2006 59 TC74AC540FT TOSHIBA 2006 60 TC74AC540FW TOSHIBA 2006 61 TC74AC540P TOSHIBA 2006 62 TC74ACT540F TOSHIBA 2006 63 TC74ACT540FT TOSHIBA 2006 64 TC74ACT540FW TOSHIBA 2006 65 TC74ACT540P TOSHIBA 2006 66 TC74VHC540F TOSHIBA 2006 67 TC74VHC540FT TOSHIBA 2006 68 TC74VHC540FW TOSHIBA 2006 69 TC74VHCT540AF TOSHIBA 2006 70 TC74VHCT540AFT TOSHIBA 2006 71 TC74VHCT540AFW TOSHIBA 2006 72 TC74AC541F TOSHIBA 2006 73 TC74AC541FT TOSHIBA 2006 74 TC74AC541FW TOSHIBA 2006 75 TC74AC541P TOSHIBA 2006 No. Part Number Manufacturer Update 76 TC74ACT541F TOSHIBA 2006 77 TC74ACT541FT TOSHIBA 2006 78 TC74ACT541FW TOSHIBA 2006 79 TC74ACT541P TOSHIBA 2006 80 TC74LCX541F TOSHIBA 2006 81 TC74LCX541FT TOSHIBA 2006 82 TC74LCX541FW TOSHIBA 2006 83 TC74VCX541FT TOSHIBA 2006 84 TC74VHC541F TOSHIBA 2006 85 TC74VHC541FT TOSHIBA 2006 86 TC74VHC541FW TOSHIBA 2006 87 TC74VHCT541AF TOSHIBA 2006 88 TC74VHCT541AFT TOSHIBA 2006 89 TC74VHCT541AFW TOSHIBA 2006 90 TC74AC640F TOSHIBA 2006 91 TC74AC640FT TOSHIBA 2006 92 TC74AC640FW TOSHIBA 2006 93 TC74AC640P TOSHIBA 2006 94 TC74ACT640F TOSHIBA 2006 95 TC74ACT640FT TOSHIBA 2006 96 TC74ACT640FW TOSHIBA 2006 97 TC74ACT640P TOSHIBA 2006 98 TC74HC08AF TOSHIBA 2006 99 TC74HC08AFN TOSHIBA 2006 100 TC74HC08AP TOSHIBA 2006 Digital IC S27 SPICE PARK 138
- 139. No. Part NumberManufacturer Update 101 TC74HCT08AF TOSHIBA 2006 102 TC74HCT08AFN TOSHIBA 2006 103 TC74HCT08AP TOSHIBA 2006 104 TC74VHC08F TOSHIBA 2006 105 TC74VHC08FN TOSHIBA 2006 106 TC74VHC08FT TOSHIBA 2006 107 TC74VHCT08AF TOSHIBA 2006 108 TC74VHCT08AFN TOSHIBA 2006 109 TC74VHCT08AFT TOSHIBA 2006 110 TC7W08FK TOSHIBA 2006 111 TC7S00FU TOSHIBA 2006 112 TC7SET00F TOSHIBA 2006 113 TC7SET00FU TOSHIBA 2006 114 TC7SH00F TOSHIBA 2006 115 TC7SH00FE TOSHIBA 2006 116 TC7SH00FS TOSHIBA 2006 117 TC7SH00FU TOSHIBA 2006 118 TC7SZ125F TOSHIBA 2006 119 TC7SZ125FU TOSHIBA 2006 120 TC7SZ32F TOSHIBA 2006 121 TC7SZ32FU TOSHIBA 2006 122 TC74LCX32F TOSHIBA 2006 123 TC74LCX32FN TOSHIBA 2006 124 TC74LCX32FT TOSHIBA 2006 125 TC7W00F TOSHIBA 2006 No. Part Number Manufacturer Update 126 TC7W00FK TOSHIBA 2006 127 TC7W00FU TOSHIBA 2006 128 TC7WH00FK TOSHIBA 2006 129 TC7WH00FU TOSHIBA 2006 130 TC74AC00F TOSHIBA 2006 131 TC74AC00FN TOSHIBA 2006 132 TC74AC00FT TOSHIBA 2006 133 TC74AC00P TOSHIBA 2006 134 TC74ACT00F TOSHIBA 2006 135 TC74ACT00FN TOSHIBA 2006 136 TC74ACT00FT TOSHIBA 2006 137 TC74ACT00P TOSHIBA 2006 138 TC74HC00AF TOSHIBA 2006 139 TC74HC00AFN TOSHIBA 2006 140 TC74HC00AP TOSHIBA 2006 141 TC74HCT00AF TOSHIBA 2006 142 TC74HCT00AFN TOSHIBA 2006 143 TC74HCT00AP TOSHIBA 2006 144 TC74VHC00F TOSHIBA 2006 145 TC74VHC00FN TOSHIBA 2006 146 TC74VHC00FT TOSHIBA 2006 147 TC74VHCT00AF TOSHIBA 2006 148 TC74VHCT00AFN TOSHIBA 2006 149 TC74VHCT00AFT TOSHIBA 2006 150 TC7S02F TOSHIBA 2006 Digital IC S27 SPICE PARK 139
- 140. No. Part NumberManufacturer Update 151 TC7S02FU TOSHIBA 2006 152 TC7SET02F TOSHIBA 2006 153 TC7SET02FU TOSHIBA 2006 154 TC7SH02F TOSHIBA 2006 155 TC7SH02FE TOSHIBA 2006 156 TC7SH02FS TOSHIBA 2006 157 TC7SH02FU TOSHIBA 2006 158 TC7W02F TOSHIBA 2006 159 TC7W02FK TOSHIBA 2006 160 TC7W02FU TOSHIBA 2006 161 TC7WH02FK TOSHIBA 2006 162 TC7WH02FU TOSHIBA 2006 163 TC74AC02F TOSHIBA 2006 164 TC74AC02FN TOSHIBA 2006 165 TC74AC02FT TOSHIBA 2006 166 TC74AC02P TOSHIBA 2006 167 TC74ACT02F TOSHIBA 2006 168 TC74ACT02FN TOSHIBA 2006 169 TC74ACT02FT TOSHIBA 2006 170 TC74ACT02P TOSHIBA 2006 171 TC74HC02AF TOSHIBA 2006 172 TC74HC02AFN TOSHIBA 2006 173 TC74HC02AP TOSHIBA 2006 174 TC74HCT02AF TOSHIBA 2006 175 TC74HCT02AFN TOSHIBA 2006 No. Part Number Manufacturer Update 176 TC74HCT02AP TOSHIBA 2006 177 TC74VHC02F TOSHIBA 2006 178 TC74VHC02FN TOSHIBA 2006 179 TC74VHC02FT TOSHIBA 2006 180 TC7MB3244FK TOSHIBA 2006 181 TC7MB3245FK TOSHIBA 2006 182 TC7MBD3244AFK TOSHIBA 2006 183 TC7MBD3245AFK TOSHIBA 2006 184 TC7PA175FU TOSHIBA 2006 185 TC7SZ00AFE TOSHIBA 2006 186 TC7WZ74FK TOSHIBA 2006 187 TC7WZ74FU TOSHIBA 2006 188 TC7S04F TOSHIBA 2006 189 TC7S04FU TOSHIBA 2006 190 TC7SET04F TOSHIBA 2006 191 TC7SET04FU TOSHIBA 2006 192 TC7SH04F TOSHIBA 2006 193 TC7SH04FE TOSHIBA 2006 194 TC7SH04FS TOSHIBA 2006 195 TC7SH04FU TOSHIBA 2006 196 TC7W04F TOSHIBA 2006 197 TC7W04FK TOSHIBA 2006 198 TC7W04FU TOSHIBA 2006 199 TC7WH04FK TOSHIBA 2006 200 TC7WH04FU TOSHIBA 2006 Digital IC S27 SPICE PARK 140
- 141. No. Part NumberManufacturer Update 201 TC74AC04F TOSHIBA 2006 202 TC74AC04FN TOSHIBA 2006 203 TC74AC04FT TOSHIBA 2006 204 TC74AC04P TOSHIBA 2006 205 TC74ACT04F TOSHIBA 2006 206 TC74ACT04FT TOSHIBA 2006 207 TC74ACT04P TOSHIBA 2006 208 TC74AC240F TOSHIBA 2006 209 TC74AC240FT TOSHIBA 2006 210 TC74AC240FW TOSHIBA 2006 211 TC74AC240P TOSHIBA 2006 212 TC74ACT240F TOSHIBA 2006 213 TC74ACT240FT TOSHIBA 2006 214 TC74ACT240FW TOSHIBA 2006 215 TC74ACT240P TOSHIBA 2006 216 TC74VHC240F TOSHIBA 2006 217 TC74VHC240FT TOSHIBA 2006 218 TC74VHC240FW TOSHIBA 2006 219 TC74VHCT240AF TOSHIBA 2006 220 TC74VHCT240AFT TOSHIBA 2006 221 TC74VHCT240AFW TOSHIBA 2006 222 TC74HC04AF TOSHIBA 2006 223 TC74HC04AFN TOSHIBA 2006 224 TC74HC04AP TOSHIBA 2006 225 TC74HC10AF TOSHIBA 2006 No. Part Number Manufacturer Update 226 TC74HC10AFN TOSHIBA 2006 227 TC74HC10AP TOSHIBA 2006 228 TC74HCT04AF TOSHIBA 2006 229 TC74HCT04AFN TOSHIBA 2006 230 TC74HCT04AP TOSHIBA 2006 231 TC74HCU04AF TOSHIBA 2006 232 TC74HCU04AFN TOSHIBA 2006 233 TC74HCU04AP TOSHIBA 2006 234 TC74VHC04F TOSHIBA 2006 235 TC74VHC04FN TOSHIBA 2006 236 TC74VHC04FT TOSHIBA 2006 237 TC74VHCT04AF TOSHIBA 2006 238 TC74VHCT04AFN TOSHIBA 2006 239 TC74VHCT04AFT TOSHIBA 2006 Digital IC S27 SPICE PARK 141
- 142. S28 SPICE PARKJUN2015 PUT No. Manufacturer Pcs. 1 TOSHIBA 2 2 NEC 4 TOTAL 6 All Rights Reserved Copyright (C) Bee Technologies Inc. 142
- 143. PUT No. Part NumberManufacturer Update 1 TN41A TOSHIBA 2006 2 TN41B TOSHIBA 2006 3 N13T1 NEC 2006 4 N13T2 NEC 2006 5 U71 NEC 2006 6 U72 NEC 2006 S28 SPICE PARK 143
- 144. S29 SPICE PARKJUN2015 Crystal Oscillator No. Manufacturer Pcs. 1 Dai shin ku 1 TOTAL 1 All Rights Reserved Copyright (C) Bee Technologies Inc. 144
- 145. Crystal Oscillator No. PartNumber Manufacturer Update 1 DOC-49S3 Daishinku 2006 S29 SPICE PARK 145
- 146. S30 SPICE PARKJUN2015 Photo Diode No. Manufacturer Pcs. 1 SEIMENS 1 TOTAL 1 All Rights Reserved Copyright (C) Bee Technologies Inc. 146
- 147. Photo Diode No. PartNumber Manufacturer Update 1 SFH205FA SEIMENS 2006 S30 SPICE PARK 147
- 148. S31 SPICE PARKJUN2015 PIN Diode No. Manufacturer Pcs. 1 Litec Corporation 8 TOTAL 8 All Rights Reserved Copyright (C) Bee Technologies Inc. 148

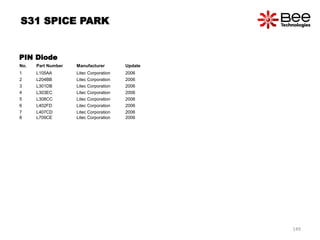

- 149. PIN Diode No. PartNumber Manufacturer Update 1 L105AA Litec Corporation 2006 2 L204BB Litec Corporation 2006 3 L301DB Litec Corporation 2006 4 L303EC Litec Corporation 2006 5 L308CC Litec Corporation 2006 6 L402FD Litec Corporation 2006 7 L407CD Litec Corporation 2006 8 L709CE Litec Corporation 2006 S31 SPICE PARK 149
- 150. S32 SPICE PARKJUN2015 ESD No. Manufacturer Pcs. 1 TOSHIBA 3 TOTAL 3 All Rights Reserved Copyright (C) Bee Technologies Inc. 150

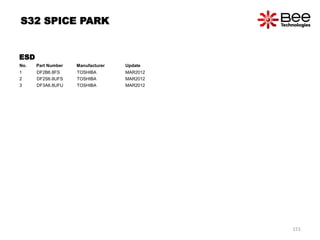

- 151. ESD No. Part NumberManufacturer Update 1 DF2B6.8FS TOSHIBA MAR2012 2 DF2S6.8UFS TOSHIBA MAR2012 3 DF3A6.8UFU TOSHIBA MAR2012 S32 SPICE PARK 151
- 152. S33 SPICE PARKJUN2015 USB Switch No. Manufacturer Pcs. 1 TOSHIBA 4 TOTAL 4 All Rights Reserved Copyright (C) Bee Technologies Inc. 152
- 153. USB Switch No. PartNumber Manufacturer Update 1 TC7USB31FK TOSHIBA MAR2012 2 TC7USB31WBG TOSHIBA MAR2012 3 TC7USB221FT TOSHIBA MAR2012 4 TC7USB221WBG TOSHIBA MAR2012 S33 SPICE PARK 153
- 154. S34 SPICE PARKJUN2015 Low-Dropout Regulator No. Manufacturer Pcs. 1 TOSHIBA 3 TOTAL 3 All Rights Reserved Copyright (C) Bee Technologies Inc. 154
- 155. Low-Dropout Regulator No. PartNumber Manufacturer Update 1 TCR4S15DWBG TOSHIBA MAR2012 2 TCR4S18DWBG TOSHIBA MAR2012 3 TCR4S30DWBG TOSHIBA MAR2012 S34 SPICE PARK 155
- 156. S35 SPICE PARKJUN2015 Bypass Diode No. Manufacturer Pcs. 1 SHINDENGEN 3 2 DIODES 10 TOTAL 13 All Rights Reserved Copyright (C) Bee Technologies Inc. 156
- 157. No. Part NumberManufacturer Model Type Update 1 DF30JC4 ROHM Professional SEP-13 2 DF30JC4 ROHM Standard SEP-13 3 S3V100D ROHM Standard SEP-13 4 SBR8A45SP5 DIODES Professional SEP-13 5 SBR8A45SP5 DIODES Standard SEP-13 6 SBR10U45SP5 DIODES Professional SEP-13 7 SBR10U45SP5 DIODES Standard SEP-13 8 SBR12A45SP5 DIODES Professional SEP-13 9 SBR12A45SP5 DIODES Standard SEP-13 10 SBR15U30SP5 DIODES Professional SEP-13 11 SBR15U30SP5 DIODES Standard SEP-13 12 SBR1045SP5 DIODES Professional SEP-13 13 SBR1045SP5 DIODES Standard SEP-13 Bypass Diode S35 SPICE PARK 157

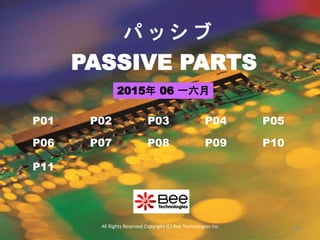

- 158. PASSIVE PARTS パ ッシ ブ P01 P02 P03 P04 P05 P06 P07 P08 P09 P10 P11 All Rights Reserved Copyright (C) Bee Technologies Inc. 2015年 06 一六月 158
- 159. P01 SPICE PARKJUN2015 Ceramic Capacitor No. Manufacturer Pcs. 1 Murata 49 2 Panasonic 48 3 Linkman 30 TOTAL 127 All Rights Reserved Copyright (C) Bee Technologies Inc. 159
- 160. Ceramic Capacitor No. PartNumber Manufacturer Thermal Update 1 DE1B3KX101KA5B Murata Ta=25C 2006 2 DE1B3KX101KA5B Murata Ta=40C 2006 3 DE1B3KX101KA5B Murata Ta=60C 2006 4 DE1B3KX101KA5B Murata Ta=80C 2006 5 DE1B3KX151KA5B Murata Ta=25C 2006 6 DE1B3KX151KA5B Murata Ta=40C 2006 7 DE1B3KX151KA5B Murata Ta=60C 2006 8 DE1B3KX151KA5B Murata Ta=80C 2006 9 DE1B3KX221KA5B Murata Ta=25C 2006 10 DE1B3KX221KA5B Murata Ta=40C 2006 11 DE1B3KX221KA5B Murata Ta=60C 2006 12 DE1B3KX221KA5B Murata Ta=80C 2006 13 DE1B3KX331KA5B Murata Ta=25C 2006 14 DE1B3KX331KA5B Murata Ta=40C 2006 15 DE1B3KX331KA5B Murata Ta=60C 2006 16 DE1B3KX331KA5B Murata Ta=80C 2006 17 DE1B3KX471KA5B Murata Ta=25C 2006 18 DE1B3KX471KA5B Murata Ta=40C 2006 19 DE1B3KX471KA5B Murata Ta=60C 2006 20 DE1B3KX471KA5B Murata Ta=80C 2006 21 DE1B3KX681KA5B Murata Ta=25C 2006 22 DE1B3KX681KA5B Murata Ta=40C 2006 23 DE1B3KX681KA5B Murata Ta=60C 2006 24 DE1B3KX681KA5B Murata Ta=80C 2006 25 DE1E3KX102MA5B Murata Ta=25C 2006 No. Part Number Manufacturer Thermal Update 26 DE1E3KX102MA5B Murata Ta=40C 2006 27 DE1E3KX102MA5B Murata Ta=60C 2006 28 DE1E3KX102MA5B Murata Ta=80C 2006 29 DE1E3KX152MA5B Murata Ta=25C 2006 30 DE1E3KX152MA5B Murata Ta=40C 2006 31 DE1E3KX152MA5B Murata Ta=60C 2006 32 DE1E3KX152MA5B Murata Ta=80C 2006 33 DE1E3KX222MA5B Murata Ta=25C 2006 34 DE1E3KX222MA5B Murata Ta=40C 2006 35 DE1E3KX222MA5B Murata Ta=60C 2006 36 DE1E3KX222MA5B Murata Ta=80C 2006 37 DE1E3KX332MA5B Murata Ta=25C 2006 38 DE1E3KX332MA5B Murata Ta=40C 2006 39 DE1E3KX332MA5B Murata Ta=60C 2006 40 DE1E3KX332MA5B Murata Ta=80C 2006 41 DE1E3KX392MA5B Murata Ta=25C 2006 42 DE1E3KX392MA5B Murata Ta=40C 2006 43 DE1E3KX392MA5B Murata Ta=60C 2006 44 DE1E3KX392MA5B Murata Ta=80C 2006 45 DE1E3KX472MA5B Murata Ta=25C 2006 46 DE1E3KX472MA5B Murata Ta=40C 2006 47 DE1E3KX472MA5B Murata Ta=60C 2006 48 DE1E3KX472MA5B Murata Ta=80C 2006 49 ECKATS101MB Panasonic Ta=25C 2006 50 ECKATS101MB Panasonic Ta=40C 2006 P01 SPICE PARK 160
- 161. No. Part NumberManufacturer Thermal Update 51 ECKATS101MB Panasonic Ta=60C 2006 52 ECKATS101MB Panasonic Ta=80C 2006 53 ECKATS102ME Panasonic Ta=25C 2006 54 ECKATS102ME Panasonic Ta=40C 2006 55 ECKATS102ME Panasonic Ta=60C 2006 56 ECKATS102ME Panasonic Ta=80C 2006 57 ECKATS103ME Panasonic Ta=25C 2006 58 ECKATS103ME Panasonic Ta=40C 2006 59 ECKATS103ME Panasonic Ta=60C 2006 60 ECKATS103ME Panasonic Ta=80C 2006 61 ECKATS152ME Panasonic Ta=25C 2006 62 ECKATS152ME Panasonic Ta=40C 2006 63 ECKATS152ME Panasonic Ta=60C 2006 64 ECKATS152ME Panasonic Ta=80C 2006 65 ECKATS221MB Panasonic Ta=25C 2006 66 ECKATS221MB Panasonic Ta=40C 2006 67 ECKATS221MB Panasonic Ta=60C 2006 68 ECKATS221MB Panasonic Ta=80C 2006 69 ECKATS222ME Panasonic Ta=25C 2006 70 ECKATS222ME Panasonic Ta=40C 2006 71 ECKATS222ME Panasonic Ta=60C 2006 72 ECKATS222ME Panasonic Ta=80C 2006 73 ECKATS332ME Panasonic Ta=25C 2006 74 ECKATS332ME Panasonic Ta=40C 2006 75 ECKATS332ME Panasonic Ta=60C 2006 No. Part Number Manufacturer Thermal Update 76 ECKATS332ME Panasonic Ta=80C 2006 77 ECKATS471MB Panasonic Ta=25C 2006 78 ECKATS471MB Panasonic Ta=40C 2006 79 ECKATS471MB Panasonic Ta=60C 2006 80 ECKATS471MB Panasonic Ta=80C 2006 81 ECKATS472ME Panasonic Ta=25C 2006 82 ECKATS472ME Panasonic Ta=40C 2006 83 ECKATS472ME Panasonic Ta=60C 2006 84 ECKATS472ME Panasonic Ta=80C 2006 85 ECKTBC102ME Panasonic Ta=25C 2006 86 ECKTBC102ME Panasonic Ta=40C 2006 87 ECKTBC102ME Panasonic Ta=60C 2006 88 ECKTBC102ME Panasonic Ta=80C 2006 89 ECKTBC222ME Panasonic Ta=25C 2006 90 ECKTBC222ME Panasonic Ta=40C 2006 91 ECKTBC222ME Panasonic Ta=60C 2006 92 ECKTBC222ME Panasonic Ta=80C 2006 93 ECKTBC472ME Panasonic Ta=25C 2006 94 ECKTBC472ME Panasonic Ta=40C 2006 95 ECKTBC472ME Panasonic Ta=60C 2006 96 ECKTBC472ME Panasonic Ta=80C 2006 97 CCDC50V1P Linkman Ta=25C May-12 98 CCDC50V2P Linkman Ta=25C May-12 99 CCDC50V3P Linkman Ta=25C May-12 100 CCDC50V4P Linkman Ta=25C May-12 Ceramic Capacitor P01 SPICE PARK 161
- 162. No. Part NumberManufacturer Thermal Update 101 CCDC50V5P Linkman Ta=25C May-12 102 CCDC50V6P Linkman Ta=25C May-12 103 CCDC50V7P Linkman Ta=25C May-12 104 CCDC50V8P Linkman Ta=25C May-12 105 CCDC50V9P Linkman Ta=25C May-12 106 CCDC50V10P Linkman Ta=25C May-12 107 CCDC50V15P Linkman Ta=25C May-12 108 CCDC50V20P Linkman Ta=25C May-12 109 CCDC50V22P Linkman Ta=25C May-12 110 CCDC50V33P Linkman Ta=25C May-12 111 CCDC50V39P Linkman Ta=25C May-12 112 CCDC50V47P Linkman Ta=25C May-12 113 CCDC50V68P Linkman Ta=25C May-12 114 CCDC50V100P Linkman Ta=25C May-12 115 CCDC50V103P Linkman Ta=25C May-12 116 CCDC50V104P Linkman Ta=25C May-12 117 CCDC50V150P Linkman Ta=25C May-12 118 CCDC50V220P Linkman Ta=25C May-12 119 CCDC50V223P Linkman Ta=25C May-12 120 CCDC50V330P Linkman Ta=25C May-12 121 CCDC50V470P Linkman Ta=25C May-12 122 CCDC50V473P Linkman Ta=25C May-12 123 CCDC50V680P Linkman Ta=25C May-12 124 CCDC50V1000P Linkman Ta=25C May-12 125 CCDC50V2200P Linkman Ta=25C May-12 No. Part Number Manufacturer Thermal Update 126 CCDC50V4700P Linkman Ta=25C May-12 Ceramic Capacitor P01 SPICE PARK 162
- 163. P02 SPICE PARKJUN2015 Electrolytic Capacitor No. Manufacturer Pcs. 1 ELNA Co.,Ltd. 2 2 Nichicon 16 3 Nippon Chemi-con Corporation 15 4 NITAI 4 5 Panasonic 12 6 Rubycon 4 TOTAL 53 All Rights Reserved Copyright (C) Bee Technologies Inc. 163
- 164. Electrolytic Capacitor No. PartNumber Manufacturer Thermal Update 1 RJJ-35V221MG5-T20 ELNA Co.,Ltd. 25C 2006 2 RJJ-35V561MI5-T4 ELNA Co.,Ltd. 25C 2006 3 SMH200VN270-22A Nippon Chemi-con Corporation 25C 2006 4 TC04RKME25VB-10MF5.0 Nippon Chemi-con Corporation 25C 2006 5 TC04RKME50VB1 Nippon Chemi-con Corporation 25C 2006 6 LXZ25VB220MH12 Nippon Chemi-con Corporation 25C 2006 7 40C 2006 8 60C 2006 9 80C 2006 10 LXZ25VB2200MK35 Nippon Chemi-con Corporation 25C 2006 11 40C 2006 12 60C 2006 13 80C 2006 14 LXZ25VB3300ML30 Nippon Chemi-con Corporation 25C 2006 15 40C 2006 16 60C 2006 17 80C 2006 18 ECEA0JKG101 Panasonic 25C 2006 19 40C 2006 20 60C 2006 21 80C 2006 22 ECEA0JKG221 Panasonic 25C 2006 23 40C 2006 24 60C 2006 25 80C 2006 P02 SPICE PARK 164
- 165. No. Part NumberManufacturer Thermal Update 26 ECEA0JKG470 Panasonic 25C 2006 27 40C 2006 28 60C 2006 29 80C 2006 30 UUG0J103MNR1MS Nichicon 25C 2006 31 40C 2006 32 60C 2006 33 80C 2006 34 UUG1A103MRR1MS Nichicon 25C 2006 35 40C 2006 36 60C 2006 37 80C 2006 38 UUG1C472MNR1MS Nichicon 25C 2006 39 40C 2006 40 60C 2006 41 80C 2006 42 UUG1E332MNR1MS Nichicon 25C 2006 43 40C 2006 44 60C 2006 45 80C 2006 46 200MXP100MK2229 Rubycon 25C 2006 47 40C 2006 48 60C 2006 49 80C 2006 No. Part Number Manufacturer Thermal Update 50 GPR Series NITAI 25C 2006 51 40C 2006 52 60C 2006 53 80C 2006 Electrolytic Capacitor P02 SPICE PARK 165
- 166. P03 SPICE PARKJUN2015 Film Capacitor No. Manufacturer Pcs. 1 Matsushita Electric Industrial 4 2 Okaya Electric Industries 1 3 Linkman 5 TOTAL 10 All Rights Reserved Copyright (C) Bee Technologies Inc. 166
- 167. Film Capacitor No. PartNumber Manufacturer Thermal Update 1 ECQ-B1H102JF3 Matsushita Electric Industrial Ta=25C 2006 2 ECQ-B1H103JF3 Matsushita Electric Industrial Ta=25C 2006 3 ECQV1H104JL3 Matsushita Electric Industrial Ta=25C 2006 4 ECQV1H473JL3 Matsushita Electric Industrial Ta=25C 2006 5 PA104-C Okaya Electric Industries Ta=25C 2006 6 CBB21-250-104J Linkman Ta=25C May-12 7 CL21-DC250V-103 Linkman Ta=25C May-12 8 CL21-DC250V-223 Linkman Ta=25C May-12 9 CL21-DC250V-473 Linkman Ta=25C May-12 10 CL21-DC250V-474 Linkman Ta=25C May-12 P03 SPICE PARK 167
- 168. P04 SPICE PARKJUN2015 Choke Coil No. Manufacturer Pcs. 1 TOKO 14 2 WURTH ELEKTRONIK GmbH & CO.KG 14 TOTAL 28 All Rights Reserved Copyright (C) Bee Technologies Inc. 168
- 169. Choke Coil No. PartNumber Manufacturer Value(uH) Update 1 8RHB TOKO 4.7 2006 2 8RHB TOKO 10 2006 3 8RHB TOKO 22 2006 4 8RHB TOKO 33 2006 5 8RHB TOKO 47 2006 6 8RHB TOKO 82 2006 7 8RHB TOKO 100 2006 8 8RHB TOKO 100 2006 9 8RHB TOKO 220 2006 10 8RHB TOKO 220 2006 11 8RHB TOKO 330 2006 12 8RHB TOKO 330 2006 13 8RHB TOKO 470 2006 14 8RHB TOKO 470 2006 15 214-6215 WURTH ELEKTRONIK GmbH & CO.KG 2006 16 214-6221 WURTH ELEKTRONIK GmbH & CO.KG 2006 17 214-6237 WURTH ELEKTRONIK GmbH & CO.KG 2006 18 214-6243 WURTH ELEKTRONIK GmbH & CO.KG 2006 19 214-6265 WURTH ELEKTRONIK GmbH & CO.KG 2006 20 228-450 WURTH ELEKTRONIK GmbH & CO.KG 2006 21 228-466 WURTH ELEKTRONIK GmbH & CO.KG 2006 22 228-472 WURTH ELEKTRONIK GmbH & CO.KG 2006 23 228-488 WURTH ELEKTRONIK GmbH & CO.KG 2006 24 228-494 WURTH ELEKTRONIK GmbH & CO.KG 2006 25 228-501 WURTH ELEKTRONIK GmbH & CO.KG 2006 P04 SPICE PARK 169
- 170. No. Part NumberManufacturer Update 26 228-517 WURTH ELEKTRONIK GmbH & CO.KG 2006 27 228-523 WURTH ELEKTRONIK GmbH & CO.KG 2006 28 228-539 WURTH ELEKTRONIK GmbH & CO.KG 2006 Choke Coil P04 SPICE PARK 170
- 171. P05 SPICE PARKJUN2015 Common Mode Choke Coil No. Manufacturer Pcs. 1 KOURINGIKEN CO.,LTD. 1 TOTAL 1 All Rights Reserved Copyright (C) Bee Technologies Inc. 171
- 172. Common Mode ChokeCoil No. Part Number Manufacturer Update 1 HR-24-E153 KOURINGIKEN CO.,LTD. 2006 P05 SPICE PARK 172
- 173. P06 SPICE PARKJUN2015 Transformer No. Manufacturer Pcs. 1 CHATCHAWAN ELECTRONIC 1 2 AIHARA ELECTRIC 1 TOTAL 2 All Rights Reserved Copyright (C) Bee Technologies Inc. 173
- 174. Transformer No. Part NumberManufacturer Update 1 T1 CHATCHAWAN ELECTRONIC 2006 2 SD-1603 AIHARA ELECTRIC 2006 P06 SPICE PARK 174
- 175. P07 SPICE PARKJUN2015 Inductor No. Manufacturer Pcs. 1 Murata Manufacturing 127 2 Newport Components 3 3 TAIYOYUDEN 1 TOTAL 131 All Rights Reserved Copyright (C) Bee Technologies Inc. 175
- 176. Inductor No. Part NumberManufacturer Update 1 FBA04HA600AB-00 TAIYOYUDEN 2006 2 22R105 Newport Components 2006 3 22R225 Newport Components 2006 4 22R474 Newport Components 2006 5 LQH2MCN1R0M02 Murata Manufacturing Aug-10 6 LQH2MCN1R0M52 Murata Manufacturing Aug-10 7 LQH2MCN2R2M52 Murata Manufacturing Aug-10 8 LQH2MCN4R7M02 Murata Manufacturing Aug-10 9 LQH2MCN4R7M52 Murata Manufacturing Aug-10 10 LQH2MCN100K02 Murata Manufacturing Aug-10 11 LQH2MCN100M52 Murata Manufacturing Aug-10 12 LQH2MCN220K02 Murata Manufacturing Aug-10 13 LQH2MCN220M52 Murata Manufacturing Aug-10 14 LQH2MCN470K02 Murata Manufacturing Aug-10 15 LQH2MCN820K02 Murata Manufacturing Aug-10 16 LQH3NPN1R0MM0 Murata Manufacturing Aug-10 17 LQH3NPN1R0NG0 Murata Manufacturing Aug-10 18 LQH3NPN1R0NJ0 Murata Manufacturing Aug-10 19 LQH3NPN1R0NM0 Murata Manufacturing Aug-10 20 LQH3NPN1R5NJ0 Murata Manufacturing Aug-10 21 LQH3NPN2R2NJ0 Murata Manufacturing Aug-10 22 LQH3NPN3R3NJ0 Murata Manufacturing Aug-10 23 LQH3NPN4R7MM0 Murata Manufacturing Aug-10 24 LQH3NPN4R7NG0 Murata Manufacturing Aug-10 25 LQH3NPN4R7NJ0 Murata Manufacturing Aug-10 No. Part Number Manufacturer Update 26 LQH3NPN4R7NM0 Murata Manufacturing Aug-10 27 LQH3NPN6R8NJ0 Murata Manufacturing Aug-10 28 LQH3NPN100MM0 Murata Manufacturing Aug-10 29 LQH3NPN100NG0 Murata Manufacturing Aug-10 30 LQH3NPN100NJ0 Murata Manufacturing Aug-10 31 LQH3NPN100NM0 Murata Manufacturing Aug-10 32 LQH3NPN101MG0 Murata Manufacturing Aug-10 33 LQH3NPN101MM0 Murata Manufacturing Aug-10 34 LQH3NPN101NG0 Murata Manufacturing Aug-10 35 LQH3NPN150NJ0 Murata Manufacturing Aug-10 36 LQH3NPN220MJ0 Murata Manufacturing Aug-10 37 LQH3NPN220NJ0 Murata Manufacturing Aug-10 38 LQH3NPN251MG0 Murata Manufacturing Aug-10 39 LQH3NPN251NG0 Murata Manufacturing Aug-10 40 LQH3NPN330MJ0 Murata Manufacturing Aug-10 41 LQH3NPN330NJ0 Murata Manufacturing Aug-10 42 LQH3NPN470MG0 Murata Manufacturing Aug-10 43 LQH3NPN470MJ0 Murata Manufacturing Aug-10 44 LQH3NPN470MM0 Murata Manufacturing Aug-10 45 LQH3NPN470NG0 Murata Manufacturing Aug-10 46 LQH3NPN470NJ0 Murata Manufacturing Aug-10 47 LQH6PPN1R0N43 Murata Manufacturing Aug-10 48 LQH6PPN1R5N43 Murata Manufacturing Aug-10 49 LQH6PPN2R2N43 Murata Manufacturing Aug-10 50 LQH6PPN3R3N43 Murata Manufacturing Aug-10 P07 SPICE PARK 176
- 177. No. Part NumberManufacturer Update 51 LQH6PPN4R7M43 Murata Manufacturing Aug-10 52 LQH6PPN6R8M43 Murata Manufacturing Aug-10 53 LQH6PPN100M43 Murata Manufacturing Aug-10 54 LQH6PPN101M43 Murata Manufacturing Aug-10 55 LQH6PPN150M43 Murata Manufacturing Aug-10 56 LQH6PPN220M43 Murata Manufacturing Aug-10 57 LQH6PPN330M43 Murata Manufacturing Aug-10 58 LQH6PPN470M43 Murata Manufacturing Aug-10 59 LQH6PPN680M43 Murata Manufacturing Aug-10 60 LQH32PN1R0NN0 Murata Manufacturing Aug-10 61 LQH32PN2R2NN0 Murata Manufacturing Aug-10 62 LQH32PN4R7NN0 Murata Manufacturing Aug-10 63 LQH32PN100MN0 Murata Manufacturing Aug-10 64 LQH32PN220MN0 Murata Manufacturing Aug-10 65 LQH44PN1R0NJ0 Murata Manufacturing Aug-10 66 LQH44PN1R0NP0 Murata Manufacturing Aug-10 67 LQH44PN1R5MJ0 Murata Manufacturing Aug-10 68 LQH44PN2R2MJ0 Murata Manufacturing Aug-10 69 LQH44PN2R2MP0 Murata Manufacturing Aug-10 70 LQH44PN3R3MJ0 Murata Manufacturing Aug-10 71 LQH44PN3R3MP0 Murata Manufacturing Aug-10 72 LQH44PN4R7MJ0 Murata Manufacturing Aug-10 73 LQH44PN4R7MP0 Murata Manufacturing Aug-10 74 LQH44PN6R8MJ0 Murata Manufacturing Aug-10 75 LQH44PN6R8MP0 Murata Manufacturing Aug-10 No. Part Number Manufacturer Update 76 LQH44PN100MJ0 Murata Manufacturing Aug-10 77 LQH44PN100MP0 Murata Manufacturing Aug-10 78 LQH44PN150MJ0 Murata Manufacturing Aug-10 79 LQH44PN220MJ0 Murata Manufacturing Aug-10 80 LQH44PN220MP0 Murata Manufacturing Aug-10 81 LQH44PN330MJ0 Murata Manufacturing Aug-10 82 LQH44PN470MJ0 Murata Manufacturing Aug-10 83 LQH55PN1R2NR0 Murata Manufacturing Aug-10 84 LQH55PN2R2NR0 Murata Manufacturing Aug-10 85 LQH55PN4R7NR0 Murata Manufacturing Aug-10 86 LQH55PN100MR0 Murata Manufacturing Aug-10 87 LQH55PN220MR0 Murata Manufacturing Aug-10 88 LQH88PN1R0N38 Murata Manufacturing Aug-10 89 LQH88PN1R5N38 Murata Manufacturing Aug-10 90 LQH88PN2R2N38 Murata Manufacturing Aug-10 91 LQH88PN3R3N38 Murata Manufacturing Aug-10 92 LQH88PN4R7N38 Murata Manufacturing Aug-10 93 LQH88PN6R8N38 Murata Manufacturing Aug-10 94 LQH88PN100M38 Murata Manufacturing Aug-10 95 LQH88PN101M38 Murata Manufacturing Aug-10 96 LQH88PN150M38 Murata Manufacturing Aug-10 97 LQH88PN220M38 Murata Manufacturing Aug-10 98 LQH88PN330M38 Murata Manufacturing Aug-10 99 LQH88PN470M38 Murata Manufacturing Aug-10 100 LQH88PN680M38 Murata Manufacturing Aug-10 Inductor P07 SPICE PARK 177
- 178. No. Part NumberManufacturer Update 101 LQM2HPN1R0MG0 Murata Manufacturing Aug-10 102 LQM2HPN1R0MJ0 Murata Manufacturing Aug-10 103 LQM2HPN1R5MG0 Murata Manufacturing Aug-10 104 LQM2HPN2R2MG0 Murata Manufacturing Aug-10 105 LQM2HPN2R2MJ0 Murata Manufacturing Aug-10 106 LQM2HPN3R3MG0 Murata Manufacturing Aug-10 107 LQM2HPN3R3MJ0 Murata Manufacturing Aug-10 108 LQM2HPN4R7MG0 Murata Manufacturing Aug-10 109 LQM2HPNR47MG0 Murata Manufacturing Aug-10 110 LQM2HPNR56ME0 Murata Manufacturing Aug-10 111 LQM2MPN1R0NG0 Murata Manufacturing Aug-10 112 LQM2MPN1R5NG0 Murata Manufacturing Aug-10 113 LQM2MPN2R2NG0 Murata Manufacturing Aug-10 114 LQM2MPN3R3NG0 Murata Manufacturing Aug-10 115 LQM2MPN4R7NG0 Murata Manufacturing Aug-10 116 LQM2MPNR47NG0 Murata Manufacturing Aug-10 117 LQM21PN1R0MC0 Murata Manufacturing Aug-10 118 LQM21PN1R5MC0 Murata Manufacturing Aug-10 119 LQM21PN2R2MC0 Murata Manufacturing Aug-10 120 LQM21PNR47MC0 Murata Manufacturing Aug-10 121 LQM21PNR54MG0 Murata Manufacturing Aug-10 122 LQM31PN1R0M00 Murata Manufacturing Aug-10 123 LQM31PN1R0MC0 Murata Manufacturing Aug-10 124 LQM31PN1R5M00 Murata Manufacturing Aug-10 125 LQM31PN1R5MC0 Murata Manufacturing Aug-10 No. Part Number Manufacturer Update 126 LQM31PN2R2M00 Murata Manufacturing Aug-10 127 LQM31PN2R2MC0 Murata Manufacturing Aug-10 128 LQM31PN3R3M00 Murata Manufacturing Aug-10 129 LQM31PN4R7M00 Murata Manufacturing Aug-10 130 LQM31PNR47M00 Murata Manufacturing Aug-10 131 LQM31PNR47MC0 Murata Manufacturing Aug-10 Inductor P07 SPICE PARK 178
- 179. P08 SPICE PARKJUN2015 Magnetic Core No. Manufacturer Pcs. 1 FDK 13 2 Ferroxcube 46 3 TDK 15 TOTAL 74 All Rights Reserved Copyright (C) Bee Technologies Inc. 179
- 180. Magnetic Core No. PartNumber Manufacturer Update 1 2H04 FDK 2006 2 2H06 FDK 2006 3 2H07 FDK 2006 4 2H10 FDK 2006 5 2H15 FDK 2006 6 2H15B FDK 2006 7 6H10 FDK 2006 8 6H20 FDK 2006 9 6H40 FDK 2006 10 6H41 FDK 2006 11 6H42 FDK 2006 12 7H10 FDK 2006 13 7H20 FDK 2006 14 4E1 Ferroxcube 2006 15 3E5 Ferroxcube 2006 16 3E6 Ferroxcube 2006 17 3E7 Ferroxcube 2006 18 3E8 Ferroxcube 2006 19 3E9 Ferroxcube 2006 20 3E25 Ferroxcube 2006 21 3E26 Ferroxcube 2006 22 3E27 Ferroxcube 2006 23 3E28 Ferroxcube 2006 24 3E55 Ferroxcube 2006 25 2P40 Ferroxcube 2006 No. Part Number Manufacturer Update 26 2P50 Ferroxcube 2006 27 2P65 Ferroxcube 2006 28 2P80 Ferroxcube 2006 29 2P90 Ferroxcube 2006 30 3B1 Ferroxcube 2006 31 3B7 Ferroxcube 2006 32 3C11 Ferroxcube 2006 33 3C30 Ferroxcube 2006 34 3C34 Ferroxcube 2006 35 3C81 Ferroxcube 2006 36 3C90 Ferroxcube 2006 37 3C91 Ferroxcube 2006 38 3C92 Ferroxcube 2006 39 3C93 Ferroxcube 2006 40 3C94 Ferroxcube 2006 41 3C96 Ferroxcube 2006 42 3D3 Ferroxcube 2006 43 3F3 Ferroxcube 2006 44 3F35 Ferroxcube 2006 45 3F4 Ferroxcube 2006 46 3F45 Ferroxcube 2006 47 3F5 Ferroxcube 2006 48 3H3 Ferroxcube 2006 49 3R1 Ferroxcube 2006 50 3S1 Ferroxcube 2006 No. Part Number Manufacturer Update 51 3S3 Ferroxcube 2006 52 3S4 Ferroxcube 2006 53 4A11 Ferroxcube 2006 54 4A15 Ferroxcube 2006 55 4B1 Ferroxcube 2006 56 4C65 Ferroxcube 2006 57 4D2 Ferroxcube 2006 58 4F1 Ferroxcube 2006 59 4S2 Ferroxcube 2006 60 DN70 TDK 2006 61 H5A TDK 2006 62 H5B2 TDK 2006 63 H5C2 TDK 2006 64 H5C3 TDK 2006 65 HP5 TDK 2006 66 HS10 TDK 2006 67 HS52 TDK 2006 68 HS72 TDK 2006 69 PC40 TDK 2006 70 PC44 TDK 2006 71 PC45 TDK 2006 72 PC46 TDK 2006 73 PC47 TDK 2006 74 PC50 TDK 2006 P08 SPICE PARK 180
- 181. P09 SPICE PARKJUN2015 Crystal No. Manufacturer Pcs. 1 KYOCERA KINSEKI 2 TOTAL 2 All Rights Reserved Copyright (C) Bee Technologies Inc. 181
- 182. Crystal No. Part NumberManufacturer Update 1 HC-49/U-S5.000MHz KYOCERA KINSEKI 2006 2 HC-49/U-S10.000MHz KYOCERA KINSEKI 2006 P09 SPICE PARK 182
- 183. P10 SPICE PARKJUN2015 RESISTOR No. Manufacturer Pcs. 1 MATSUSHITA 167 TOTAL 167 All Rights Reserved Copyright (C) Bee Technologies Inc. 183
- 184. RESISTOR No. Part NumberManufacturer Thermal Update 1 ERF5AJ4R7 MATSUSHITA TA=25C 2006 2 ERF5AJ4R7 MATSUSHITA TA=80C 2006 3 ERF5AJ4R7 MATSUSHITA TA=120C 2006 4 ERF5AJ4R7 MATSUSHITA TA=150C 2006 5 ERF5AJ6R8 MATSUSHITA TA=25C 2006 6 ERF5AJ6R8 MATSUSHITA TA=80C 2006 7 ERF5AJ6R8 MATSUSHITA TA=120C 2006 8 ERF5AJ6R8 MATSUSHITA TA=150C 2006 9 ERF5AJ100 MATSUSHITA TA=25C 2006 10 ERF5AJ100 MATSUSHITA TA=80C 2006 11 ERF5AJ100 MATSUSHITA TA=120C 2006 12 ERF5AJ100 MATSUSHITA TA=150C 2006 13 ERF5AJ101 MATSUSHITA TA=25C 2006 14 ERF5AJ101 MATSUSHITA TA=80C 2006 15 ERF5AJ101 MATSUSHITA TA=120C 2006 16 ERF5AJ101 MATSUSHITA TA=150C 2006 17 ERF5AJ150 MATSUSHITA TA=25C 2006 18 ERF5AJ150 MATSUSHITA TA=80C 2006 19 ERF5AJ150 MATSUSHITA TA=120C 2006 20 ERF5AJ150 MATSUSHITA TA=150C 2006 21 ERF5AJ151 MATSUSHITA TA=25C 2006 22 ERF5AJ151 MATSUSHITA TA=80C 2006 23 ERF5AJ151 MATSUSHITA TA=120C 2006 24 ERF5AJ151 MATSUSHITA TA=150C 2006 25 ERF5AJ220 MATSUSHITA TA=25C 2006 No. Part Number Manufacturer Thermal Update 26 ERF5AJ220 MATSUSHITA TA=80C 2006 27 ERF5AJ220 MATSUSHITA TA=120C 2006 28 ERF5AJ220 MATSUSHITA TA=150C 2006 29 ERF5AJ221 MATSUSHITA TA=25C 2006 30 ERF5AJ221 MATSUSHITA TA=80C 2006 31 ERF5AJ221 MATSUSHITA TA=120C 2006 32 ERF5AJ221 MATSUSHITA TA=150C 2006 33 ERF5AJ330 MATSUSHITA TA=25C 2006 34 ERF5AJ330 MATSUSHITA TA=80C 2006 35 ERF5AJ330 MATSUSHITA TA=120C 2006 36 ERF5AJ331 MATSUSHITA TA=25C 2006 37 ERF5AJ331 MATSUSHITA TA=80C 2006 38 ERF5AJ331 MATSUSHITA TA=120C 2006 39 ERF5AJ331 MATSUSHITA TA=150C 2006 40 ERF5AJ470 MATSUSHITA TA=25C 2006 41 ERF5AJ470 MATSUSHITA TA=80C 2006 42 ERF5AJ470 MATSUSHITA TA=120C 2006 43 ERF5AJ471 MATSUSHITA TA=25C 2006 44 ERF5AJ471 MATSUSHITA TA=80C 2006 45 ERF5AJ471 MATSUSHITA TA=120C 2006 46 ERF5AJ471 MATSUSHITA TA=150C 2006 47 ERF5AJ510 MATSUSHITA TA=25C 2006 48 ERF5AJ510 MATSUSHITA TA=80C 2006 49 ERF5AJ510 MATSUSHITA TA=120C 2006 50 ERF5AJ510 MATSUSHITA TA=150C 2006 P10 SPICE PARK 184
- 185. No. Part NumberManufacturer Thermal Update 51 ERF5AJ680 MATSUSHITA TA=25C 2006 52 ERF5AJ680 MATSUSHITA TA=80C 2006 53 ERF5AJ680 MATSUSHITA TA=120C 2006 54 ERF5AJ680 MATSUSHITA TA=150C 2006 55 ERF5AJ681 MATSUSHITA TA=25C 2006 56 ERF5AJ681 MATSUSHITA TA=80C 2006 57 ERF5AJ681 MATSUSHITA TA=120C 2006 58 ERF5AK1R0 MATSUSHITA TA=25C 2006 59 ERF5AK1R0 MATSUSHITA TA=80C 2006 60 ERF5AK1R0 MATSUSHITA TA=120C 2006 61 ERF5AK1R5 MATSUSHITA TA=25C 2006 62 ERF5AK1R5 MATSUSHITA TA=80C 2006 63 ERF5AK1R5 MATSUSHITA TA=120C 2006 64 ERF5AK1R5 MATSUSHITA TA=150C 2006 65 ERF5AK3R3 MATSUSHITA TA=25C 2006 66 ERF5AK3R3 MATSUSHITA TA=80C 2006 67 ERF5AK3R3 MATSUSHITA TA=120C 2006 68 ERF5AK3R3 MATSUSHITA TA=150C 2006 69 ERF5AKR15 MATSUSHITA TA=25C 2006 70 ERF5AKR15 MATSUSHITA TA=80C 2006 71 ERF5AKR15 MATSUSHITA TA=120C 2006 72 ERF5AKR15 MATSUSHITA TA=150C 2006 73 ERF5AKR22 MATSUSHITA TA=25C 2006 74 ERF5AKR22 MATSUSHITA TA=80C 2006 75 ERF5AKR22 MATSUSHITA TA=120C 2006 No. Part Number Manufacturer Thermal Update 76 ERF5AKR22 MATSUSHITA TA=150C 2006 77 ERF5AKR33 MATSUSHITA TA=25C 2006 78 ERF5AKR33 MATSUSHITA TA=80C 2006 79 ERF5AKR33 MATSUSHITA TA=120C 2006 80 ERF5AKR33 MATSUSHITA TA=150C 2006 81 ERF5AKR47 MATSUSHITA TA=25C 2006 82 ERF5AKR47 MATSUSHITA TA=80C 2006 83 ERF5AKR47 MATSUSHITA TA=120C 2006 84 ERF5AKR47 MATSUSHITA TA=150C 2006 85 ERF5AKR68 MATSUSHITA TA=25C 2006 86 ERF5AKR68 MATSUSHITA TA=80C 2006 87 ERF5AKR68 MATSUSHITA TA=120C 2006 88 ERF5AKR68 MATSUSHITA TA=150C 2006 89 ERF10AJ101 MATSUSHITA TA=25C 2006 90 ERF10AJ101 MATSUSHITA TA=80C 2006 91 ERF10AJ101 MATSUSHITA TA=120C 2006 92 ERF10AJ101 MATSUSHITA TA=150C 2006 93 ERF10AJ120 MATSUSHITA TA=25C 2006 94 ERF10AJ120 MATSUSHITA TA=80C 2006 95 ERF10AJ120 MATSUSHITA TA=120C 2006 96 ERF10AJ120 MATSUSHITA TA=150C 2006 97 ERF10AJ121 MATSUSHITA TA=25C 2006 98 ERF10AJ121 MATSUSHITA TA=80C 2006 99 ERF10AJ121 MATSUSHITA TA=120C 2006 100 ERF10AJ121 MATSUSHITA TA=150C 2006 RESISTOR P10 SPICE PARK 185
- 186. No. Part NumberManufacturer Thermal Update 101 ERF10AJ150 MATSUSHITA TA=25C 2006 102 ERF10AJ150 MATSUSHITA TA=80C 2006 103 ERF10AJ150 MATSUSHITA TA=120C 2006 104 ERF10AJ150 MATSUSHITA TA=150C 2006 105 ERF10AJ151 MATSUSHITA TA=25C 2006 106 ERF10AJ151 MATSUSHITA TA=80C 2006 107 ERF10AJ151 MATSUSHITA TA=120C 2006 108 ERF10AJ151 MATSUSHITA TA=150C 2006 109 ERF10AJ181 MATSUSHITA TA=25C 2006 110 ERF10AJ181 MATSUSHITA TA=80C 2006 111 ERF10AJ181 MATSUSHITA TA=120C 2006 112 ERF10AJ181 MATSUSHITA TA=150C 2006 113 ERF10AJ271 MATSUSHITA TA=25C 2006 114 ERF10AJ271 MATSUSHITA TA=80C 2006 115 ERF10AJ271 MATSUSHITA TA=120C 2006 116 ERF10AJ271 MATSUSHITA TA=150C 2006 117 ERF10AJ301 MATSUSHITA TA=25C 2006 118 ERF10AJ301 MATSUSHITA TA=80C 2006 119 ERF10AJ301 MATSUSHITA TA=120C 2006 120 ERF10AJ301 MATSUSHITA TA=150C 2006 121 ERF10AJ331 MATSUSHITA TA=25C 2006 122 ERF10AJ331 MATSUSHITA TA=80C 2006 123 ERF10AJ331 MATSUSHITA TA=120C 2006 124 ERF10AJ331 MATSUSHITA TA=150C 2006 125 ERF10AJ361 MATSUSHITA TA=25C 2006 No. Part Number Manufacturer Thermal Update 126 ERF10AJ361 MATSUSHITA TA=80C 2006 127 ERF10AJ361 MATSUSHITA TA=120C 2006 128 ERF10AJ361 MATSUSHITA TA=150C 2006 129 ERF10AJ391 MATSUSHITA TA=25C 2006 130 ERF10AJ391 MATSUSHITA TA=80C 2006 131 ERF10AJ391 MATSUSHITA TA=120C 2006 132 ERF10AJ391 MATSUSHITA TA=150C 2006 133 ERF10AJ431 MATSUSHITA TA=25C 2006 134 ERF10AJ431 MATSUSHITA TA=80C 2006 135 ERF10AJ431 MATSUSHITA TA=120C 2006 136 ERF10AJ431 MATSUSHITA TA=150C 2006 137 ERF10AJ510 MATSUSHITA TA=25C 2006 138 ERF10AJ510 MATSUSHITA TA=80C 2006 139 ERF10AJ510 MATSUSHITA TA=120C 2006 140 ERF10AJ560 MATSUSHITA TA=25C 2006 141 ERF10AJ560 MATSUSHITA TA=80C 2006 142 ERF10AJ560 MATSUSHITA TA=120C 2006 143 ERF10AJ560 MATSUSHITA TA=150C 2006 144 ERF10AJ680 MATSUSHITA TA=25C 2006 145 ERF10AJ680 MATSUSHITA TA=80C 2006 146 ERF10AJ680 MATSUSHITA TA=120C 2006 147 ERF10AJ680 MATSUSHITA TA=150C 2006 148 ERF10AJ681 MATSUSHITA TA=25C 2006 149 ERF10AJ681 MATSUSHITA TA=80C 2006 150 ERF10AJ681 MATSUSHITA TA=120C 2006 RESISTOR P10 SPICE PARK 186
- 187. No. Part NumberManufacturer Thermal Update 151 ERF10AJ681 MATSUSHITA TA=150C 2006 152 ERF10AK2R0 MATSUSHITA TA=25C 2006 153 ERF10AK2R0 MATSUSHITA TA=80C 2006 154 ERF10AK2R0 MATSUSHITA TA=120C 2006 155 ERF10AK2R0 MATSUSHITA TA=150C 2006 156 ERF10AK3R0 MATSUSHITA TA=25C 2006 157 ERF10AK3R0 MATSUSHITA TA=80C 2006 158 ERF10AK3R0 MATSUSHITA TA=120C 2006 159 ERF10AK3R0 MATSUSHITA TA=150C 2006 160 ERF10AK5R1 MATSUSHITA TA=25C 2006 161 ERF10AK5R1 MATSUSHITA TA=80C 2006 162 ERF10AK5R1 MATSUSHITA TA=120C 2006 163 ERF10AK5R1 MATSUSHITA TA=150C 2006 164 ERF10AKR33 MATSUSHITA TA=25C 2006 165 ERF10AKR33 MATSUSHITA TA=80C 2006 166 ERF10AKR33 MATSUSHITA TA=120C 2006 167 ERF10AKR33 MATSUSHITA TA=150C 2006 RESISTOR P10 SPICE PARK 187
- 188. P11 SPICE PARKJUN2015 Mica Capacitor/ P11 No. Manufacturer Pcs. 1 Linkman 17 TOTAL 17 All Rights Reserved Copyright (C) Bee Technologies Inc. 188
- 189. Mica Capacitor No. PartNumber Manufacturer Update 1 CY-DC500V5PF Linkman May-12 2 CY-DC500V10PF Linkman May-12 3 CY-DC500V15PF Linkman May-12 4 CY-DC500V20PF Linkman May-12 5 CY-DC500V22PF Linkman May-12 6 CY-DC500V30PF Linkman May-12 7 CY-DC500V33PF Linkman May-12 8 CY-DC500V47PF Linkman May-12 9 CY-DC500V56PF Linkman May-12 10 CY-DC500V68PF Linkman May-12 11 CY-DC500V82PF Linkman May-12 12 CY-DC500V100PF Linkman May-12 13 CY-DC500V150PF Linkman May-12 14 CY-DC500V200PF Linkman May-12 15 CY-DC500V220PF Linkman May-12 16 CY-DC500V330PF Linkman May-12 17 CY-DC500V470PF Linkman May-12 P11 SPICE PARK 189
- 190. B A TT E R Y バ ッ テ リ ー B01 B02 B03 B04 B05 B06 B07 B08 B09 B10 All Rights Reserved Copyright (C) Bee Technologies Inc. 190 2015年 06 一六月
- 191. B01 SPICE PARKJUN2015 Alkaline Cell No. Manufacturer Pcs. 1 TOSHIBA 10 TOTAL 10 All Rights Reserved Copyright (C) Bee Technologies Inc. 191
- 192. Alkaline Cell No. PartNumber Manufacturer RL(ohm) Update 1 LR6AG TOSHIBA 2.2 2006 2 LR6AG TOSHIBA 2.7 2006 3 LR6AG TOSHIBA 3.3 2006 4 LR6AG TOSHIBA 4.7 2006 5 LR6AG TOSHIBA 8.2 2006 6 LR6AG TOSHIBA 10 2006 7 LR6AG TOSHIBA 22 2006 8 LR6AG TOSHIBA 33 2006 9 LR6AG TOSHIBA 51 2006 10 LR6AG TOSHIBA Variable 2006 B01 SPICE PARK 192
- 193. B02 SPICE PARKJUN2015 Lithium Cell No. Manufacturer Pcs. 1 Fuji Films 3 2 Panasonic 2 TOTAL 5 All Rights Reserved Copyright (C) Bee Technologies Inc. 193
- 194. Lithium Cell No. PartNumber Manufacturer Update 1 CR123A Fuji Films 2006 2 CR123A Fuji Films 2006 3 CR123A Fuji Films 2006 4 CR2 Panasonic 2006 5 CR2 Panasonic 2006 B02 SPICE PARK 194
- 195. B03 SPICE PARKJUN2015 Lithium-Ion Cell No. Manufacturer Pcs. 1 NOKIA 8 2 Panasonic 7 3 SANYO 8 4 BAYSUN 7 TOTAL 30 All Rights Reserved Copyright (C) Bee Technologies Inc. 195
- 196. Lithium-Ion Cell No. PartNumber Manufacturer Model Type RL(ohm) Remark Update 1 BLB-2 NOKIA Discharge 10 Ta = 25C 2006 2 NOKIA Discharge 22 Ta = 25C 2006 3 NOKIA Discharge 33 Ta = 25C 2006 4 NOKIA Discharge 51 Ta = 25C 2006 5 NOKIA Discharge Variable Ta = 25C 2006 6 NOKIA Discharge Variable Ta = 0C 2006 7 NOKIA Discharge Variable Ta = 40C 2006 8 NOKIA Discharge Variable Ta = -20C 2006 9 EB-BSD55S Panasonic Discharge 10 Ta = 25C 2006 10 Panasonic Discharge 22 Ta = 25C 2006 11 Panasonic Discharge 33 Ta = 25C 2006 12 Panasonic Discharge 51 Ta = 25C 2006 13 Panasonic Discharge Variable Ta = 25C 2006 14 Panasonic Discharge Variable Ta = 0C 2006 15 Panasonic Discharge Variable Ta = 40C 2006 16 SCP-550 SANYO Discharge 10 Ta = 25C 2006 17 SANYO Discharge 22 Ta = 25C 2006 18 SANYO Discharge 33 Ta = 25C 2006 19 SANYO Discharge 51 Ta = 25C 2006 20 SANYO Discharge Variable Ta = 25C 2006 21 SANYO Discharge Variable Ta = 0C 2006 22 SANYO Discharge Variable Ta = 40C 2006 23 SANYO Discharge Variable Ta =-20C 2006 24 PBT-BAT-0001 BAYSUN Charge + Discharge N/A Ta = 25C Oct-10 25 PBT-BAT-0002 BAYSUN Charge + Discharge N/A Ta = 25C Oct-10 B03 SPICE PARK 196
- 197. No. Part NumberManufacturer Model Type RL(ohm) Remark Update 26 PBT-BAT-0003 BAYSUN Charge + Discharge N/A Ta = 25C Oct-10 27 PBT-BAT-0004 BAYSUN Charge + Discharge N/A Ta = 25C Oct-10 28 PBT-BAT-0007 BAYSUN Charge + Discharge N/A Ta = 25C Oct-10 29 PBT-SET-0001 BAYSUN Charge + Discharge N/A Ta = 25C Oct-10 30 PBT-SET-0004 BAYSUN Charge + Discharge N/A Ta = 25C Oct-10 Lithium-Ion Cell B03 SPICE PARK 197
- 198. B04 SPICE PARKJUN2015 Nickel Manganese (Ni-Manganese) No. Manufacturer Pcs. 1 SONY 10 TOTAL 10 All Rights Reserved Copyright (C) Bee Technologies Inc. 198
- 199. Nickel Manganese(Ni-Manganese) No. PartNumber Manufacturer RL(ohm) Update 1 ZR6DC SONY 2.2 2006 2 ZR6DC SONY 2.7 2006 3 ZR6DC SONY 3.3 2006 4 ZR6DC SONY 4.7 2006 5 ZR6DC SONY 8.2 2006 6 ZR6DC SONY 10 2006 7 ZR6DC SONY 22 2006 8 ZR6DC SONY 33 2006 9 ZR6DC SONY 51 2006 10 ZR6DC SONY variable 2006 B04 SPICE PARK 199
- 200. B05 SPICE PARKJUN2015 Nickel Metal Hydride(Ni-MH) No. Manufacturer Pcs. 1 SANYO 9 TOTAL 9 All Rights Reserved Copyright (C) Bee Technologies Inc. 200
- 201. Nickel Metal Hydride(Ni-MH) No.Part Number Manufacturer RL(ohm) Update 1 HR-3UA SANYO 2.2 2006 2 HR-3UA SANYO 2.7 2006 3 HR-3UA SANYO 3.3 2006 4 HR-3UA SANYO 4.7 2006 5 HR-3UA SANYO 8.2 2006 6 HR-3UA SANYO 10 2006 7 HR-3UA SANYO 22 2006 8 HR-3UA SANYO 33 2006 9 HR-3UA SANYO variable 2006 B05 SPICE PARK 201
- 202. B06 SPICE PARKJUN2015 Oxyride Cell No. Manufacturer Pcs. 1 Panasonic 8 TOTAL 8 All Rights Reserved Copyright (C) Bee Technologies Inc. 202
- 203. Oxyride Cell No. PartNumber Manufacturer RL(ohm) Update 1 ZR6 Panasonic 2.2 2006 2 ZR6 Panasonic 2.7 2006 3 ZR6 Panasonic 3.3 2006 4 ZR6 Panasonic 4.7 2006 5 ZR6 Panasonic 8.2 2006 6 ZR6 Panasonic 10 2006 7 ZR6 Panasonic 22 2006 8 ZR6 Panasonic 33 2006 B06 SPICE PARK 203
- 204. B07 SPICE PARKJUN2015 Manganese Cell No. Manufacturer Pcs. 1 Panasonic 8 TOTAL 8 All Rights Reserved Copyright (C) Bee Technologies Inc. 204
- 205. Manganese Cell No. PartNumber Manufacturer RL(ohm) Update 1 R6NT Panasonic 2.2 2006 2 R6NT Panasonic 2.7 2006 3 R6NT Panasonic 3.3 2006 4 R6NT Panasonic 4.7 2006 5 R6NT Panasonic 10 2006 6 R6NT Panasonic 22 2006 7 R6NT Panasonic 33 2006 8 R6NT Panasonic 47 2006 B07 SPICE PARK 205
- 206. 206 B08 SPICE PARKJUN2015 Solar Cell No. Manufacturer Pcs. 1 bp Solar 27 2 HONDA 4 3 Showa Shell Solar 4 4 Fuji Electric Systems 10 5 KYOCERA 21 6 SANYO 3 7 SHARP 35 8 YOCASOL 16 9 Suntech Power 40 10 MITSUBISHI 16 11 MHI 3 12 Q.CELLS 30 13 FUKUSHIMA SOLAR 1 14 TOSHIBA 2 15 WEST HOLDINGS 4 16 Solar Frontier 6
- 207. 207 B08 SPICE PARKJUN2015 Solar Cell No. Manufacturer Pcs. 17 Panasonic 64 18 DENRYO 22 TOTAL 308
- 208. Solar Cell No. PartNumber Manufacturer Update 1 SX305 bp Solar Aug-09 2 SX310 bp Solar Aug-09 3 SX320 bp Solar Aug-09 4 SX330 bp Solar Aug-09 5 BP340 bp Solar Aug-09 6 BP350 bp Solar Aug-09 7 BP365 bp Solar Aug-09 8 BP365TS bp Solar Aug-09 9 BP375 bp Solar Aug-09 10 BP380 bp Solar Aug-09 11 BP3110 bp Solar Aug-09 12 BP3115 bp Solar Aug-09 13 BP3125 bp Solar Aug-09 14 BP3130 bp Solar Aug-09 15 SX3130 bp Solar Aug-09 16 BP3135 bp Solar Aug-09 17 SX3140 bp Solar Aug-09 18 BP3160 bp Solar Aug-09 19 SX170B bp Solar Aug-09 20 SX170I bp Solar Aug-09 21 BP175B bp Solar Aug-09 22 BP175I bp Solar Aug-09 23 BP4175 bp Solar Aug-09 24 BP4175I bp Solar Aug-09 25 SX3190 bp Solar Aug-09 No. Part Number Manufacturer Update 26 SX3195 bp Solar Aug-09 27 SX3200 bp Solar Aug-09 28 FPV1096SLN Fuji Electric Systems Sep-09 29 FPV2086 Fuji Electric Systems Sep-09 30 FPV2045SFM1 Fuji Electric Systems Dec-09 31 FPV2045SKM1 Fuji Electric Systems Dec-09 32 FPV2090SFM1 Fuji Electric Systems Dec-09 33 FPV2090SKM1 Fuji Electric Systems Dec-09 34 FPV3045COM Fuji Electric Systems Dec-09 35 FPV3090COM Fuji Electric Systems Dec-09 36 TS010A9 Fuji Electric Systems Nov-12 37 TS020A9 Fuji Electric Systems Nov-12 38 HEM115PA HONDA Aug-09 39 HEM115PSA HONDA Aug-09 40 HEM125PA HONDA Aug-09 41 HEM125PSA HONDA Aug-09 42 EH42T-02 KYOCERA Sep-09 43 EH53T-02 KYOCERA Sep-09 44 KD183X-QPE-S KYOCERA Sep-09 45 RD183X-QP-R KYOCERA Sep-09 46 SD46X-QPS-B KYOCERA Sep-09 47 SD62X-QPS-B KYOCERA Sep-09 48 KD140 KYOCERA Arp-14 49 KD140GX-LFBS KYOCERA Arp-14 50 KD140SX-UFBS KYOCERA Arp-14 B08 SPICE PARK 208
- 209. No. Part NumberManufacturer Update 51 KD215GX-LFBS KYOCERA Arp-14 52 KD220 KYOCERA Arp-14 53 KD220GX-LFBS KYOCERA Arp-14 54 KD240GX-LFB2 KYOCERA Arp-14 55 KD245 KYOCERA Arp-14 56 KD245GX-LFB2 KYOCERA Arp-14 57 KD250 KYOCERA Arp-14 58 KD250GX-LFB2 KYOCERA Arp-14 59 KD320 KYOCERA Arp-14 60 KD320GX-LFB KYOCERA Arp-14 61 KD325 KYOCERA Arp-14 62 KD325GX-LFB KYOCERA Arp-14 63 PV-MX185H MITSUBISHI Nov-09 64 PV-MX0925HH MITSUBISHI Nov-09 65 PV-MX0925HL MITSUBISHI Nov-09 66 PV-MX0925HR MITSUBISHI Nov-09 67 PV-MA0870KV MITSUBISHI Arp-14 68 PV-MA1050KH MITSUBISHI Arp-14 69 PV-MA1050KL MITSUBISHI Arp-14 70 PV-MA1050KR MITSUBISHI Arp-14 71 PV-MA1080KH MITSUBISHI Arp-14 72 PV-MA1080KL MITSUBISHI Arp-14 73 PV-MA1080KR MITSUBISHI Arp-14 74 PV-MA1740KW MITSUBISHI Arp-14 75 PV-MA2100KK MITSUBISHI Arp-14 B08 SPICE PARK No. Part Number Manufacturer Update 76 PV-MA2120K MITSUBISHI Arp-14 77 PV-MA2200K MITSUBISHI Arp-14 78 PV-MA2200KS MITSUBISHI Arp-14 79 MA100 MHI Nov-09 80 MT120 MHI Nov-09 81 MT130 MHI Nov-09 82 Q6LM-1600 Q.CELLS Nov-09 83 Q6LM-1620 Q.CELLS Nov-09 84 Q6LM-1640 Q.CELLS Nov-09 85 Q6LM-1660 Q.CELLS Nov-09 86 Q6LM-1680 Q.CELLS Nov-09 87 Q6LTT-1410 Q.CELLS Nov-09 88 Q6LTT-1440 Q.CELLS Nov-09 89 Q6LTT-1460 Q.CELLS Nov-09 90 Q6LTT-1480 Q.CELLS Nov-09 91 Q6LTT-1500 Q.CELLS Nov-09 92 Q6LTT-1520 Q.CELLS Nov-09 93 Q6LTT-1540 Q.CELLS Nov-09 94 Q6LTT-1560 Q.CELLS Nov-09 95 Q6LTT-1580 Q.CELLS Nov-09 96 Q6LTT-1600 Q.CELLS Nov-09 97 Q6LTT-1620 Q.CELLS Nov-09 98 Q6LTT-1640 Q.CELLS Nov-09 99 Q6LTT3-1410 Q.CELLS Nov-09 100 Q6LTT3-1440 Q.CELLS Nov-09 209 Solar Cell
- 210. No. Part NumberManufacturer Update 101 Q6LTT3-1460 Q.CELLS Nov-09 102 Q6LTT3-1480 Q.CELLS Nov-09 103 Q6LTT3-1500 Q.CELLS Nov-09 104 Q6LTT3-1520 Q.CELLS Nov-09 105 Q6LTT3-1540 Q.CELLS Nov-09 106 Q6LTT3-1560 Q.CELLS Nov-09 107 Q6LTT3-1580 Q.CELLS Nov-09 108 Q6LTT3-1600 Q.CELLS Nov-09 109 Q6LTT3-1620 Q.CELLS Nov-09 110 Q6LTT3-1640 Q.CELLS Nov-09 111 Q6LTT3-1660 Q.CELLS Nov-09 112 HIP-200BK5 SANYO Sep-09 113 HIP-210BKH5 SANYO Sep-09 114 HIP-210NKH5 SANYO Sep-09 115 ND-061LV/RV SHARP Sep-12 116 ND-071LU/RU SHARP Sep-12 117 ND-114CV SHARP Sep-12 118 ND-142CU SHARP Sep-12 119 ND-153AU SHARP Sep-12 120 ND-160AV SHARP Sep-12 121 ND-191AV SHARP Sep-12 122 NE-38K1R SHARP Sep-12 123 NE-53K1R SHARP Sep-12 124 NA-H090B1 SHARP Dec-12 125 NA-H090B4 SHARP Dec-09 B08 SPICE PARK 210 Solar Cell No. Part Number Manufacturer Update 126 ND-S0L7H SHARP Dec-09 127 ND-S0L8H SHARP Dec-09 128 ND-V0L7H SHARP Dec-09 129 NT-84L5H SHARP Dec-09 130 NQ-190AA SHARP Nov-12 131 NQ-135AA SHARP Nov-12 132 NU-167BA SHARP Nov-12 133 NU-119CA SHARP Nov-12 134 NU-062LA/RA SHARP Nov-12 135 ND-160BA SHARP Nov-12 136 ND-114CA SHARP Nov-12 137 ND-061LA/RA SHARP Nov-12 138 ND-170AA SHARP Nov-12 139 ND-165AA SHARP Nov-12 140 ND-163AA SHARP Nov-12 141 ND-156AA SHARP Nov-12 142 NE-53K1RA SHARP Nov-12 143 NE-38K1RA SHARP Nov-12 144 ND-240QCJ SHARP Apr-14 145 ND-250QCS SHARP Apr-14 146 ND-F2Q235 SHARP Apr-14 147 ND-F4Q300 SHARP Apr-14 148 ND-Q235F4 SHARP Apr-14 149 ND-Q245F7 SHARP Apr-14
- 211. No. Part NumberManufacturer Update 150 SC70-A Showa Shell Solar Aug-09 151 SC70-RT-A Showa Shell Solar Aug-09 152 SC75-A Showa Shell Solar Aug-09 153 SC75-RT-A Showa Shell Solar Aug-09 154 STP160S-24/Ab-1 Suntech Power Oct-09 155 STP165S-24/Ab-1 Suntech Power Oct-09 156 STP170S-24/Ab-1 Suntech Power Oct-09 157 STP175S-24/Ab-1 Suntech Power Oct-09 158 STP180S-24/Ab-1 Suntech Power Oct-09 159 STP080S-12/Bb-1 Suntech Power Oct-09 160 STP085S-12/Bb-1 Suntech Power Oct-09 161 STP260-24/Vb-1 Suntech Power Oct-09 162 STP270-24/Vb-1 Suntech Power Oct-09 163 STP280-24/Vb-1 Suntech Power Oct-09 164 STP190-18/Ub-1 Suntech Power Oct-09 165 STP200-18/Ub-1 Suntech Power Oct-09 166 STP210-18/Ub-1 Suntech Power Oct-09 167 STP175S-24/Ad Suntech Power Oct-09 168 STP180S-24/Ad Suntech Power Oct-09 169 STP185S-24/Ad Suntech Power Oct-09 170 STP220-20/Wd Suntech Power Oct-09 171 STP225-20/Wd Suntech Power Oct-09 172 STP260-24/Vd Suntech Power Oct-09 173 STP270-24/Vd Suntech Power Oct-09 174 STP280-24/Vd Suntech Power Oct-09 B08 SPICE PARK 211 Solar Cell No. Part Number Manufacturer Update 175 STP190-18/Ud Suntech Power Oct-09 176 STP200-18/Ud Suntech Power Oct-09 177 STP210-18/Ud Suntech Power Oct-09 178 STP005B-12/DEA Suntech Power Oct-09 179 STP010D-12/KEA Suntech Power Oct-09 180 STP020B-12/CEA Suntech Power Oct-09 181 STP030D-12/LEA Suntech Power Oct-09 182 STP040D-12/REA Suntech Power Oct-09 183 STP045D-12/REA Suntech Power Oct-09 184 STP050D-12/MEA Suntech Power Oct-09 185 STP055D-12/MEA Suntech Power Oct-09 186 STP060D-12/SEA Suntech Power Oct-09 187 STP065D-12/SEA Suntech Power Oct-09 188 STP070D-12/SEA Suntech Power Oct-09 189 STP080B-12/BEA Suntech Power Oct-09 190 STP085B-12/BEA Suntech Power Oct-09 191 STP130D-12/TEA Suntech Power Oct-09 192 STP135D-12/TEA Suntech Power Oct-09 193 STP140D-12/TEA Suntech Power Oct-09 194 PCA190 YOCASOL Sep-09 195 PCA195 YOCASOL Sep-09 196 PCA200 YOCASOL Sep-09 197 PCA205 YOCASOL Sep-09 198 PCA210 YOCASOL Sep-09 199 PCA215 YOCASOL Sep-09
- 212. No. Part NumberManufacturer Update 200 PCB180 YOCASOL Nov-09 201 PCB185 YOCASOL Nov-09 202 PCB190 YOCASOL Nov-09 203 PCB195 YOCASOL Nov-09 204 PCB200 YOCASOL Nov-09 205 LDA160 YOCASOL Nov-09 206 LDA165 YOCASOL Nov-09 207 LDA170 YOCASOL Nov-09 208 LDA175 YOCASOL Nov-09 209 LDA180 YOCASOL Nov-09 210 FMS-200 FUKUSHIMA SOLAR Nov-12 211 SPR-210N-WHT-J TOSHIBA Nov-12 212 SPR-240NE-WHT-J TOSHIBA Nov-12 213 SF150-K Solar Frontier Nov-12 214 SF145-K Solar Frontier Nov-12 215 SFL95-C Solar Frontier Nov-12 216 SFL90-C Solar Frontier Nov-12 217 SFL95-RT-C Solar Frontier Nov-12 218 SFL90-RT-C Solar Frontier Nov-12 219 WEST-60-240 WESTHOLDINGS Nov-12 220 WEST5-72-205SI WESTHOLDINGS Nov-12 221 PVM S195 R2 WESTHOLDINGS Nov-12 222 GW-100A WESTHOLDINGS Nov-12 223 VBHN225DJ05 Panasonic Apr-14 224 VBHN238SJ23A Panasonic Apr-14 B08 SPICE PARK 212 Solar Cell No. Part Number Manufacturer Update 225 VBMS240AJ03 Panasonic Apr-14 226 VBMS255AJ04 Panasonic Apr-14 227 AM-5815 Panasonic Aug-14 228 AT-7S63 Panasonic Aug-14 229 AT-7S64 Panasonic Aug-14 230 AT-7664 Panasonic Aug-14 231 AT-7665 Panasonic Aug-14 232 AT-7666 Panasonic Aug-14 233 AT-7963 Panasonic Aug-14 234 AM-1407 Panasonic Sep-14 235 AM-1411 Panasonic Sep-14 236 AM-1417 Panasonic Sep-14 237 AM-1424 Panasonic Sep-14 238 AM-1437 Panasonic Sep-14 239 AM-1454 Panasonic Sep-14 240 AM-1456 Panasonic Sep-14 241 AM-1513 Panasonic Sep-14 242 AM-1801 Panasonic Sep-14 243 AM-1805 Panasonic Sep-14 244 AM-1815 Panasonic Sep-14 245 AM-1816 Panasonic Sep-14 246 AM-1819 Panasonic Sep-14 247 AM-1820 Panasonic Sep-14 248 AM-5302 Panasonic Sep-14 249 AM-5308 Panasonic Sep-14
- 213. No. Part NumberManufacturer Update 250 AM-5412 Panasonic Sep-14 251 AM-5413 Panasonic Sep-14 252 AM-5605 Panasonic Sep-14 253 AM-5608 Panasonic Sep-14 254 AM-5610 Panasonic Sep-14 255 AM-5613 Panasonic Sep-14 256 AM-5706 Panasonic Sep-14 257 AM-5710 Panasonic Sep-14 258 AM-8701 Panasonic Sep-14 259 AM-8702 Panasonic Sep-14 260 AM-8703 Panasonic Sep-14 261 AM-8704 Panasonic Sep-14 262 AM-8705 Panasonic Sep-14 263 AM-8706 Panasonic Sep-14 264 AL-2402 Panasonic Oct-14 265 AM-5S06 Panasonic Oct-14 266 AM-7S03 Panasonic Oct-14 267 AM-30-11 Panasonic Oct-14 268 AM-2709 Panasonic Oct-14 269 AM-8801 Panasonic Oct-14 270 AM-8804 Panasonic Oct-14 271 AT-2400B Panasonic Oct-14 272 AT-2600B Panasonic Oct-14 273 AM-5E02 Panasonic Nov-14 274 AM-7A03 Panasonic Nov-14 B08 SPICE PARK No. Part Number Manufacturer Update 275 AM-7D08 Panasonic Nov-14 276 AM-7E04 Panasonic Nov-14 277 AM-5812 Panasonic Nov-14 278 AM-5813 Panasonic Nov-14 279 AM-5814 Panasonic Nov-14 280 AM-5902 Panasonic Nov-14 281 AM-5904 Panasonic Nov-14 282 AM-5907 Panasonic Nov-14 283 AM-5909 Panasonic Nov-14 284 AM-5912 Panasonic Nov-14 285 AM-5913 Panasonic Nov-14 286 AM-5914 Panasonic Nov-14 287 DB006-12 DENRYO May-15 288 DB010-12 DENRYO May-15 289 DB015-12 DENRYO May-15 290 DB020-12 DENRYO May-15 291 DB030-12 DENRYO May-15 292 DB065-12 DENRYO May-15 293 DB090-12 DENRYO May-15 294 DC005-06 DENRYO May-15 295 KC32T-02 DENRYO May-15 296 KD03 DENRYO May-15 297 KD06 DENRYO May-15 298 KD50SE-RP DENRYO May-15 299 KD70SX-RP DENRYO May-15 213 Solar Cell
- 214. 214 No. Part NumberManufacturer Update 300 KD95SX-RP DENRYO May-15 301 KD135SX-RP DENRYO May-15 302 NA-F128GK DENRYO May-15 303 NT-84L5H DENRYO May-15 304 SJS40B-2P DENRYO May-15 305 ST-1G DENRYO May-15 306 ST-2.5G DENRYO May-15 307 ST-2G DENRYO May-15 308 ST-3G DENRYO May-15 B08 SPICE PARK Solar Cell
- 215. B09 SPICE PARKJUN2015 Lead Acid Cell No. Manufacturer Pcs. 1 GS YUASA 9 TOTAL 9 All Rights Reserved Copyright (C) Bee Technologies Inc. 215
- 216. Lead Acid Cell No.Part Number Manufacturer Update 1 MSE-100-6 GS YUASA Jun-10 2 MSE-150 GS YUASA Jun-10 3 MSE-200 GS YUASA Jun-10 4 MSE-300 GS YUASA Jun-10 5 MSE-500 GS YUASA Jun-10 6 MSE-1000 GS YUASA Jun-10 7 MSE-1500 GS YUASA Jun-10 8 MSE-2000 GS YUASA Jun-10 9 MSE-3000 GS YUASA Jun-10 B09 SPICE PARK 216
- 217. B10 SPICE PARKJUN2015 Lithium Polymer Cell No. Manufacturer Pcs. 1 Kokam 3 TOTAL 3 All Rights Reserved Copyright (C) Bee Technologies Inc. 217
- 218. Lithium Polymer Cell PartNumber Manufacturer Remark Type Update SLPB160460330 Kokam High Energy Density Large Capacity Mar-11 SLPB160460330H Kokam High Power Large Capacity Mar-11 SLPB70205130P Kokam Ultra High Power Large Capacity Mar-11 B10 SPICE PARK 218
- 219. MECHANICAL PARTS メ カニ カ ル A01 K02 All Rights Reserved Copyright (C) Bee Technologies Inc. 219 2015年 06 一六月
- 220. A01 SPICE PARKJUN2015 SPEAKER No. Manufacturer Pcs. 1 FOSTEX 42 TOTAL 42 All Rights Reserved Copyright (C) Bee Technologies Inc. 220
- 221. SPEAKER No. Part NumberManufacturer Update 1 F120A FOSTEX 2006 2 F200A FOSTEX 2006 3 FE83E FOSTEX 2006 4 FE87E FOSTEX 2006 5 FE103E FOSTEX 2006 6 FE107E FOSTEX 2006 7 FE108EZ FOSTEX 2006 8 FE126E FOSTEX 2006 9 FE127E FOSTEX 2006 10 FE166E FOSTEX 2006 11 FE167E FOSTEX 2006 12 FE168EZ FOSTEX 2006 13 FE206E FOSTEX 2006 14 FE207E FOSTEX 2006 15 FE208EZ FOSTEX 2006 16 FF85K FOSTEX 2006 17 FF125K FOSTEX 2006 18 FF165K FOSTEX 2006 19 FF225K FOSTEX 2006 20 FX120 FOSTEX 2006 21 100HT FOSTEX 2006 22 400HT FOSTEX 2006 23 FT7RP FOSTEX 2006 24 FT17H FOSTEX 2006 25 FT28D FOSTEX 2006 No. Part Number Manufacturer Update 26 FT48D FOSTEX 2006 27 FT96H FOSTEX 2006 28 FT207D FOSTEX 2006 29 T90A FOSTEX 2006 30 T500A FOSTEX 2006 31 T900A FOSTEX 2006 32 T925A FOSTEX 2006 33 FW108N FOSTEX 2006 34 FW137 FOSTEX 2006 35 FW167 FOSTEX 2006 36 FW168HP FOSTEX 2006 37 FW168HP-X FOSTEX 2006 38 FW168N FOSTEX 2006 39 FW208N FOSTEX 2006 40 FW405N FOSTEX 2006 41 W300A2 FOSTEX 2006 42 W400A2 FOSTEX 2006 A01 SPICE PARK 221
- 222. K01 SPICE PARKJUN2015 Toggle Switch No. Manufacturer Pcs. 1 NIHON KAIHEIKI 3 TOTAL 3 All Rights Reserved Copyright (C) Bee Technologies Inc. 222
- 223. Toggle Switch No. PartNumber Manufacturer Note Update 1 M-2081E NIHON KAIHEIKI On (1pulse) 2006 2 M-2081E NIHON KAIHEIKI On (2pulse) 2006 3 M-2081E NIHON KAIHEIKI Off 2006 K01 SPICE PARK 223
- 224. DC MOTOR 直 流モ ー タ ー M01 All Rights Reserved Copyright (C) Bee Technologies Inc. 224 2015年 06 一六月
- 225. M01 SPICE PARKJUN2015 DC Motor No. Manufacturer Pcs. 1 MABUCHI MOTOR 6 2 TAMIYA 5 TOTAL 11 All Rights Reserved Copyright (C) Bee Technologies Inc. 225
- 226. DC Motor No. PartNumber Manufacturer Type Normal Voltage (V) Update 1 FA-130 MABUCHI MOTOR DC Motor 1.5 2006 2 RE-140 MABUCHI MOTOR DC Motor 1.5 2006 3 RE-260 MABUCHI MOTOR DC Motor 3 2006 4 RE-280 MABUCHI MOTOR DC Motor 3 2006 5 RS-380PH MABUCHI MOTOR DC Motor 12 2006 6 RS-540SH MABUCHI MOTOR DC Motor 12 2006 7 151333-300 TAMIYA DC Motor 2.4 2006 8 RF-270RH TAMIYA Solar Motor Solar Cell 0.5 2006 9 TAMIYA Solar Motor Solar Cell 1.5 2006 10 RF-500TB TAMIYA Solar Motor Solar Cell 0.5 2006 11 TAMIYA Solar Motor Solar Cell 1.5 2006 M01 SPICE PARK 226
- 227. L A MP ラ ン プ L01 L02 All Rights Reserved Copyright (C) Bee Technologies Inc. 227 2015年 06 一六月
- 228. L01 SPICE PARKJUN2015 Filament Lamp No. Manufacturer Pcs. 1 PHILIPS 15 2 OSRAM GmbH 3 TOTAL 18 All Rights Reserved Copyright (C) Bee Technologies Inc. 228
- 229. Filament Lamp No. PartNumber Manufacturer Wattage (W) Update 1 SOF25W230VES PT. Philips Indonesia 25 2006 2 SOF40W240VES PT. Philips Indonesia 40 2006 3 SOF60W230VES PT. Philips Indonesia 60 2006 4 SOF100W230VES PT. Philips Indonesia 100 2006 5 SLX25W240VES PT. Philips Indonesia 25 2006 6 SLX40W240VES PT. Philips Indonesia 40 2006 7 SLX60W240VES PT. Philips Indonesia 40 2006 8 SLX100W230VES PT. Philips Indonesia 100 2006 9 SP40W230VES PT. Philips Ralin Electronics 40 2006 10 SP60W230VES Philips Lighting Poland 60 2006 11 SP100W230VES Philips Lighting Poland 100 2006 12 LCL40W240VES PT. Philips Indonesia 40 2006 13 LFR40W240VES PT. Philips Indonesia 40 2006 14 CFR25W240VES PT. Philips Indonesia 25 2006 15 CFR40W240VES PT. Philips Indonesia 40 2006 16 BELLA K SIL 40 OSRAM GmbH 40 2006 17 BELLA K SIL 60 OSRAM GmbH 60 2006 18 BELLA K SIL 100 OSRAM GmbH 100 2006 L01 SPICE PARK 229
- 230. L02 SPICE PARKJUN2015 Halogen Lamp No. Manufacturer Pcs. 1 OSRAM GmbH 3 TOTAL 3 All Rights Reserved Copyright (C) Bee Technologies Inc. 230
- 231. Halogen Lamp No. PartNumber Manufacturer Wattage (W) Update 1 64472BT SIL OSRAM GmbH 60 2006 2 64476BT SIL OSRAM GmbH 100 2006 3 64478BT SIL OSRAM GmbH 150 2006 L02 SPICE PARK 231
- 232. E01 SPICE PARKJUN2015 DC Power Supply No. Manufacturer Pcs. 1 KIKUSUI 15 TOTAL 15 All Rights Reserved Copyright (C) Bee Technologies Inc. 232
- 233. DC Power Supply No.Part Number Manufacturer Model Update 1 PAT20-200T KIKUSUI PSpice Apr-12 2 PAT20-400T KIKUSUI PSpice Apr-12 3 PAT30-266T KIKUSUI PSpice Apr-12 4 PAT40-100T KIKUSUI PSpice Apr-12 5 PAT40-200T KIKUSUI PSpice Apr-12 6 PAT60-67T KIKUSUI PSpice Apr-12 7 PAT60-133T KIKUSUI PSpice Apr-12 8 PAT80-100T KIKUSUI PSpice Apr-12 9 PAT160-25T KIKUSUI PSpice Apr-12 10 PAT160-50T KIKUSUI PSpice Apr-12 11 PAT250-32T KIKUSUI PSpice Apr-12 12 PAT350-22.8T KIKUSUI PSpice Apr-12 13 PAT500-16T KIKUSUI PSpice Apr-12 14 PAT650-12.3T KIKUSUI PSpice Apr-12 15 PAT850-9.4T KIKUSUI PSpice Apr-12 E01 SPICE PARK 233
- 234. All Rights ReservedCopyright (C) Bee Technologies Inc. http://www.spicepark.info 234
