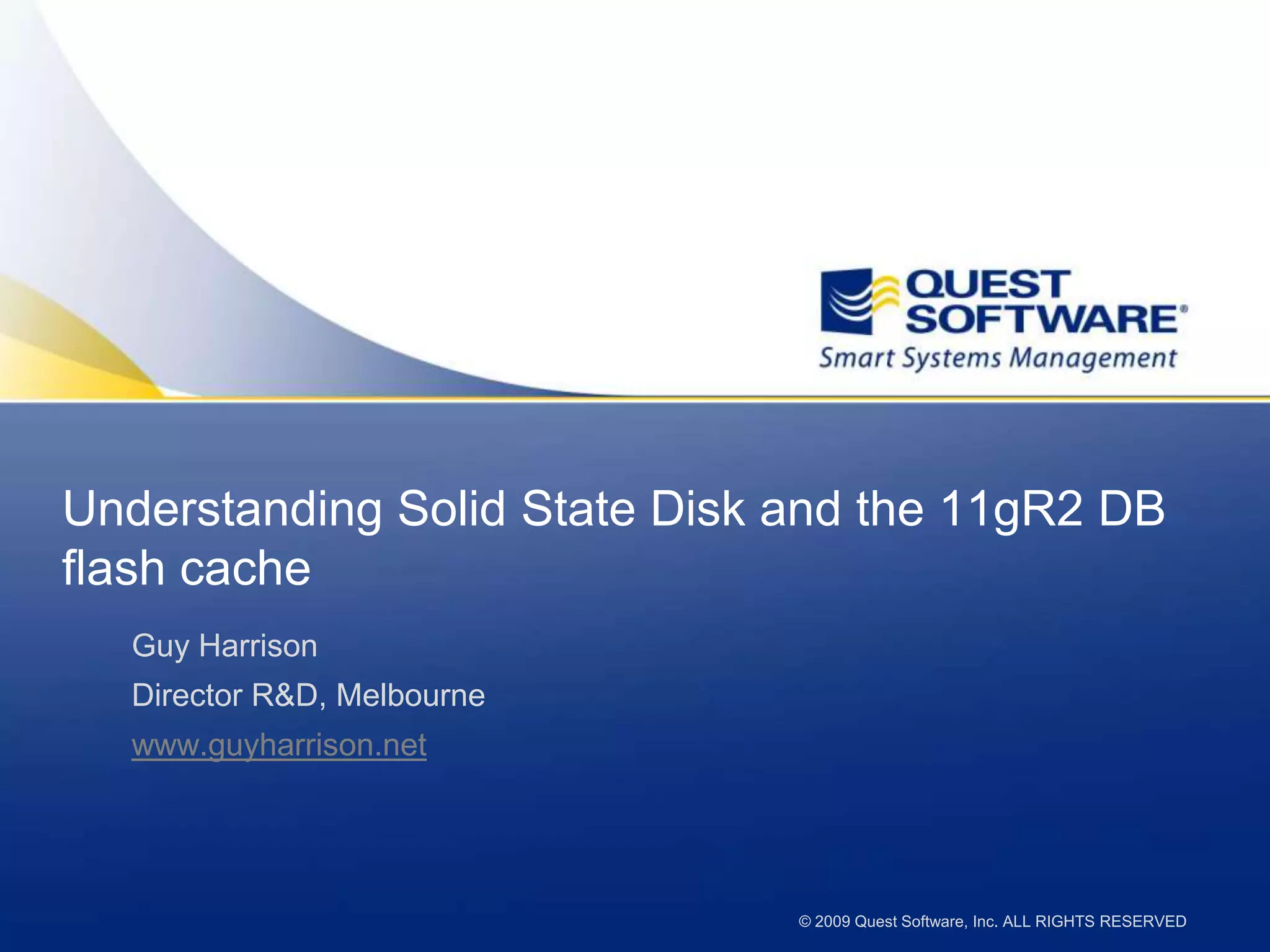

1. Understanding Solid State Disk and the 11gR2 DB flash cache Guy Harrison Director R&D, Melbourne www.guyharrison.net

2. Introductions

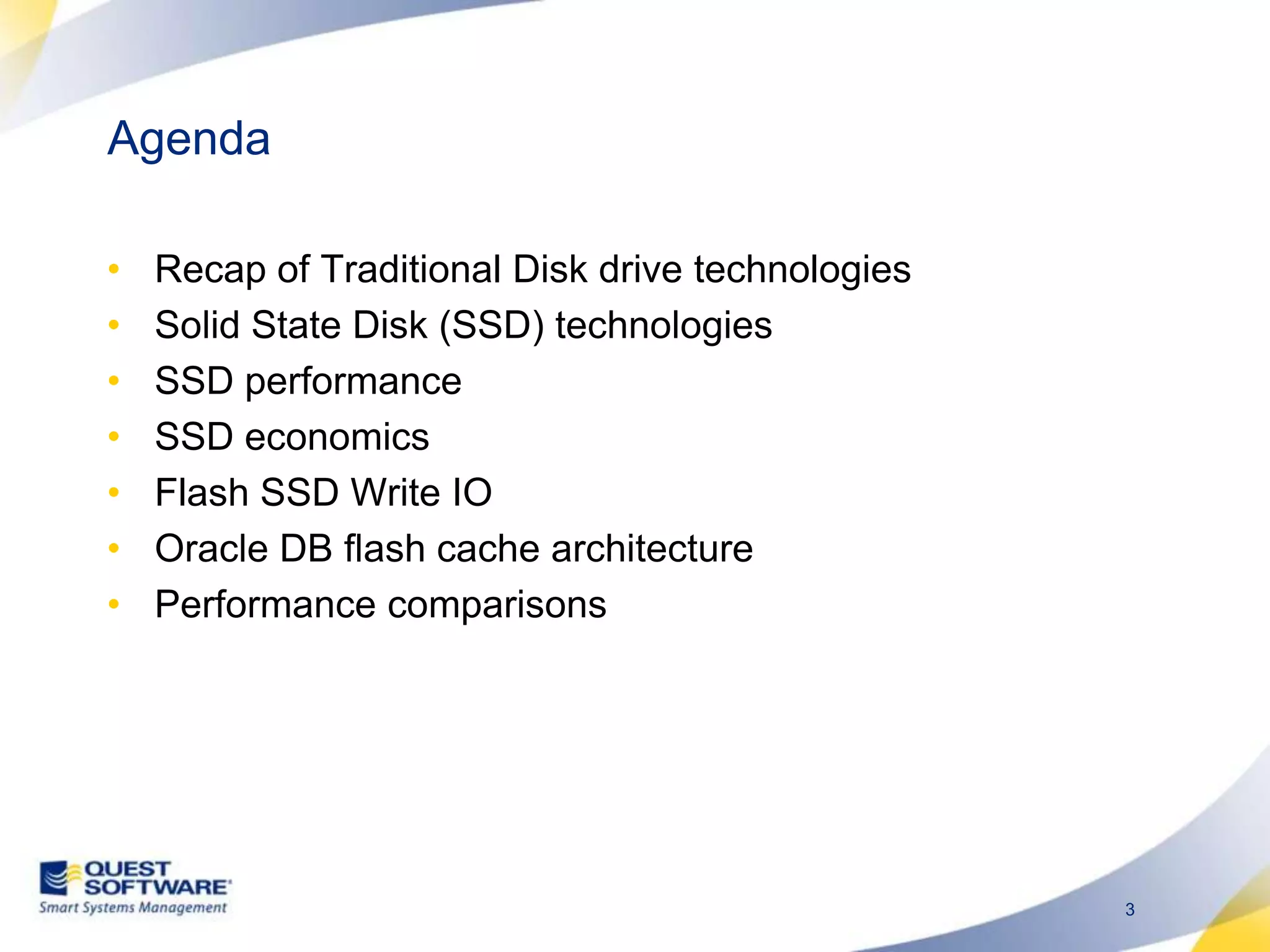

3. Agenda Recap of Traditional Disk drive technologies Solid State Disk (SSD) technologies SSD performance SSD economics Flash SSD Write IO Oracle DB flash cache architecture Performance comparisons

4. 5MB HDD circa 1956

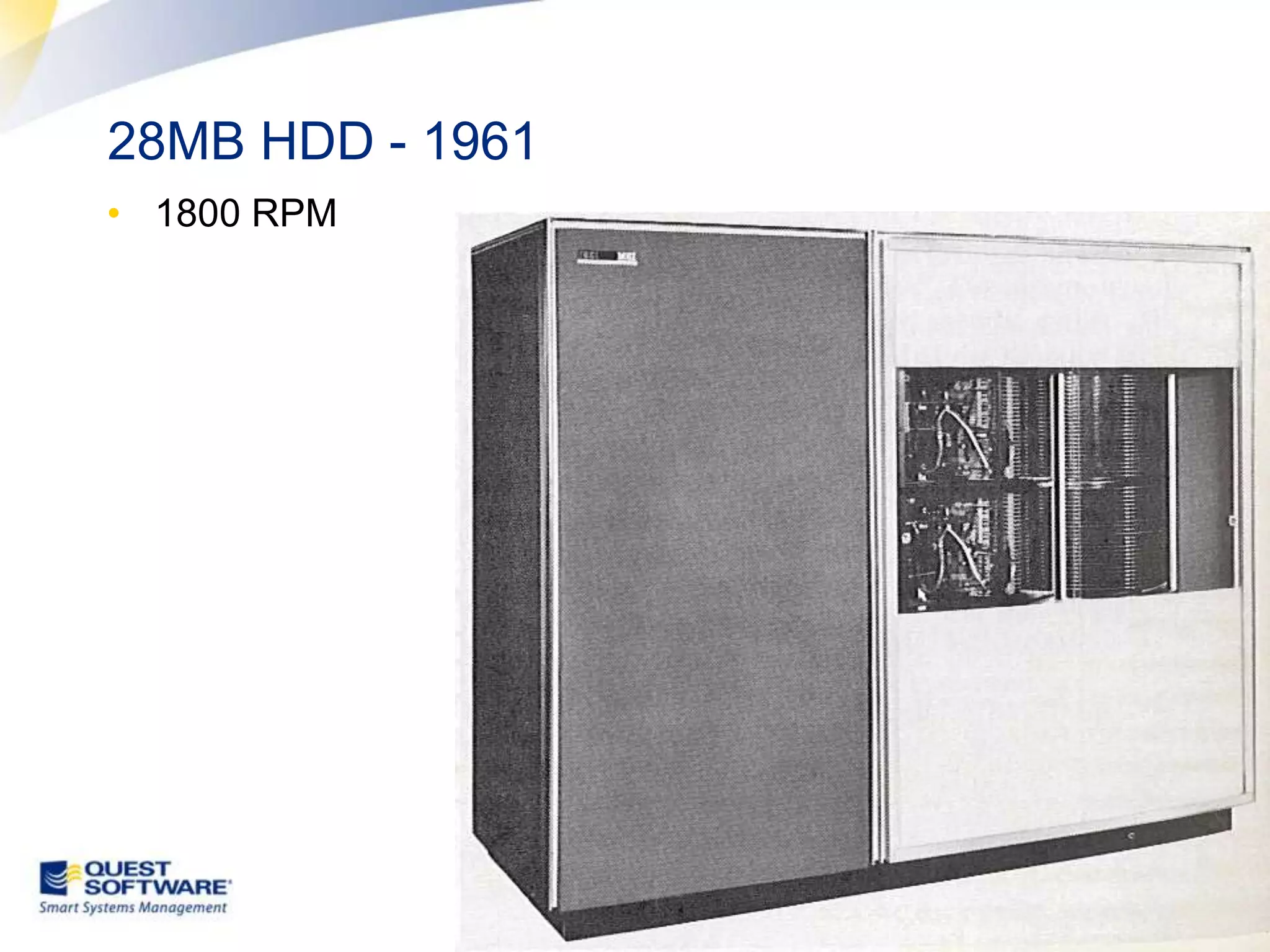

5. 28MB HDD - 1961 1800 RPM

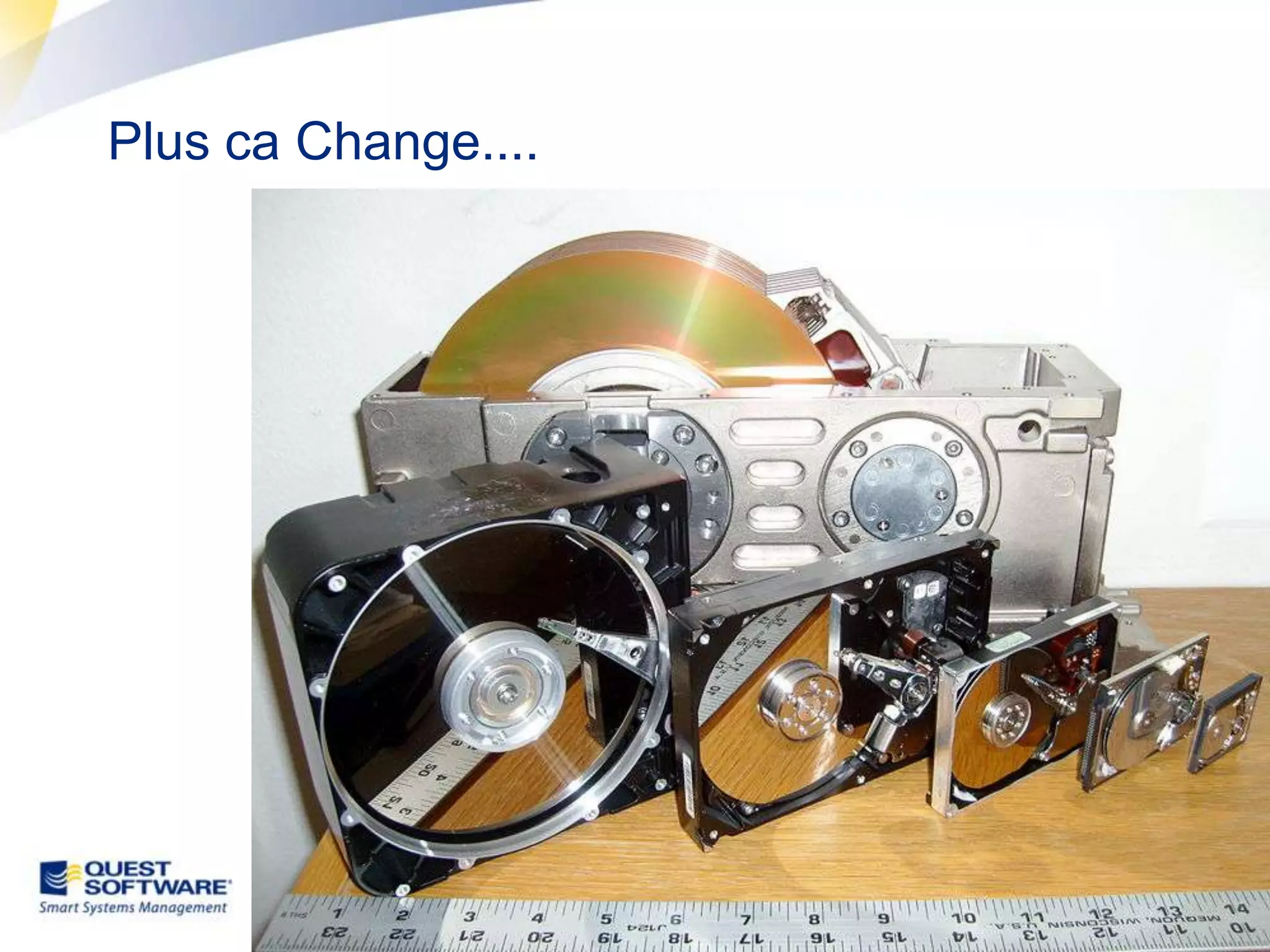

6. Plus ca Change....

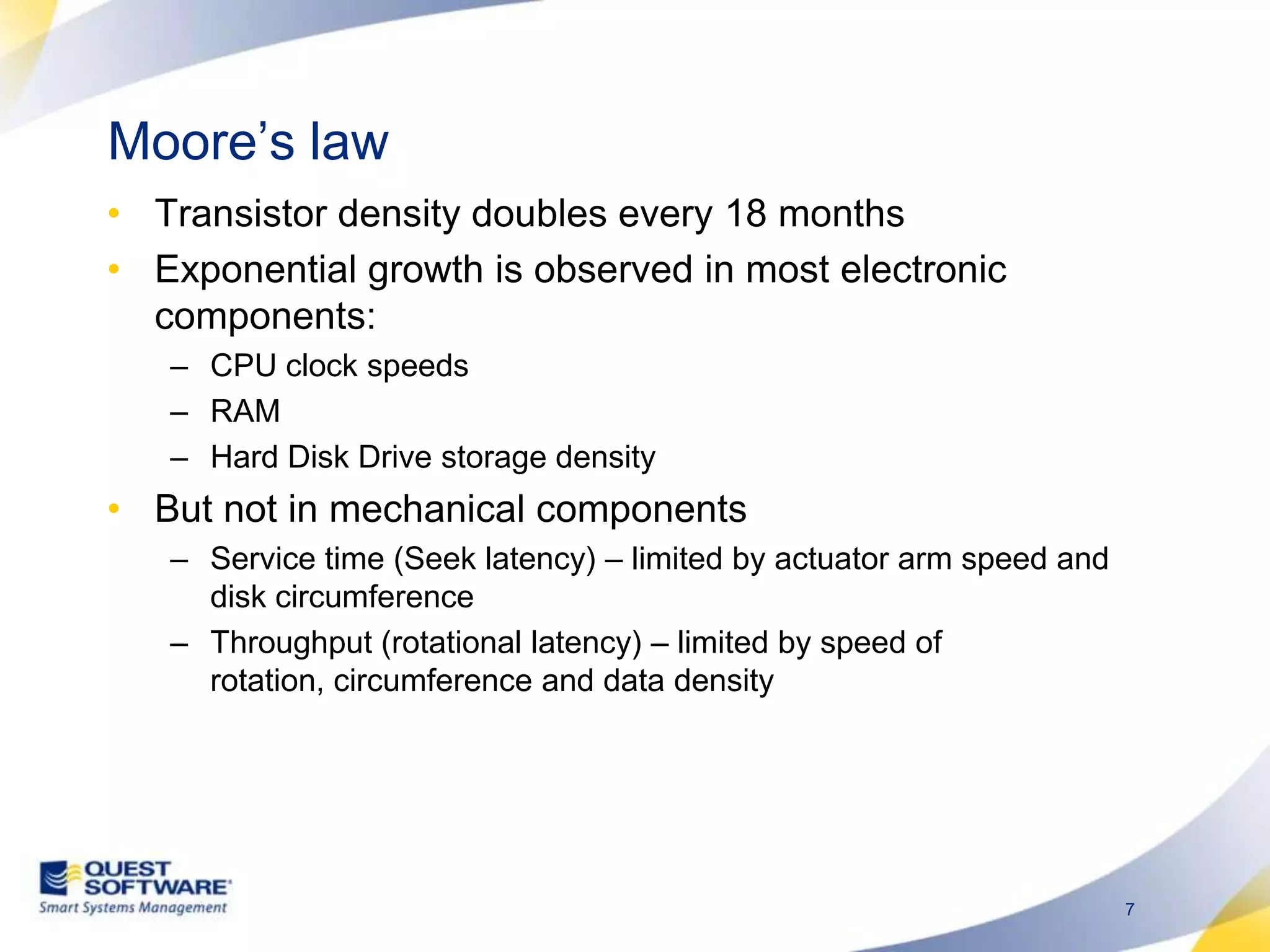

7. Moore’s law Transistor density doubles every 18 months Exponential growth is observed in most electronic components: CPU clock speeds RAM Hard Disk Drive storage density But not in mechanical components Service time (Seek latency) – limited by actuator arm speed and disk circumference Throughput (rotational latency) – limited by speed of rotation, circumference and data density

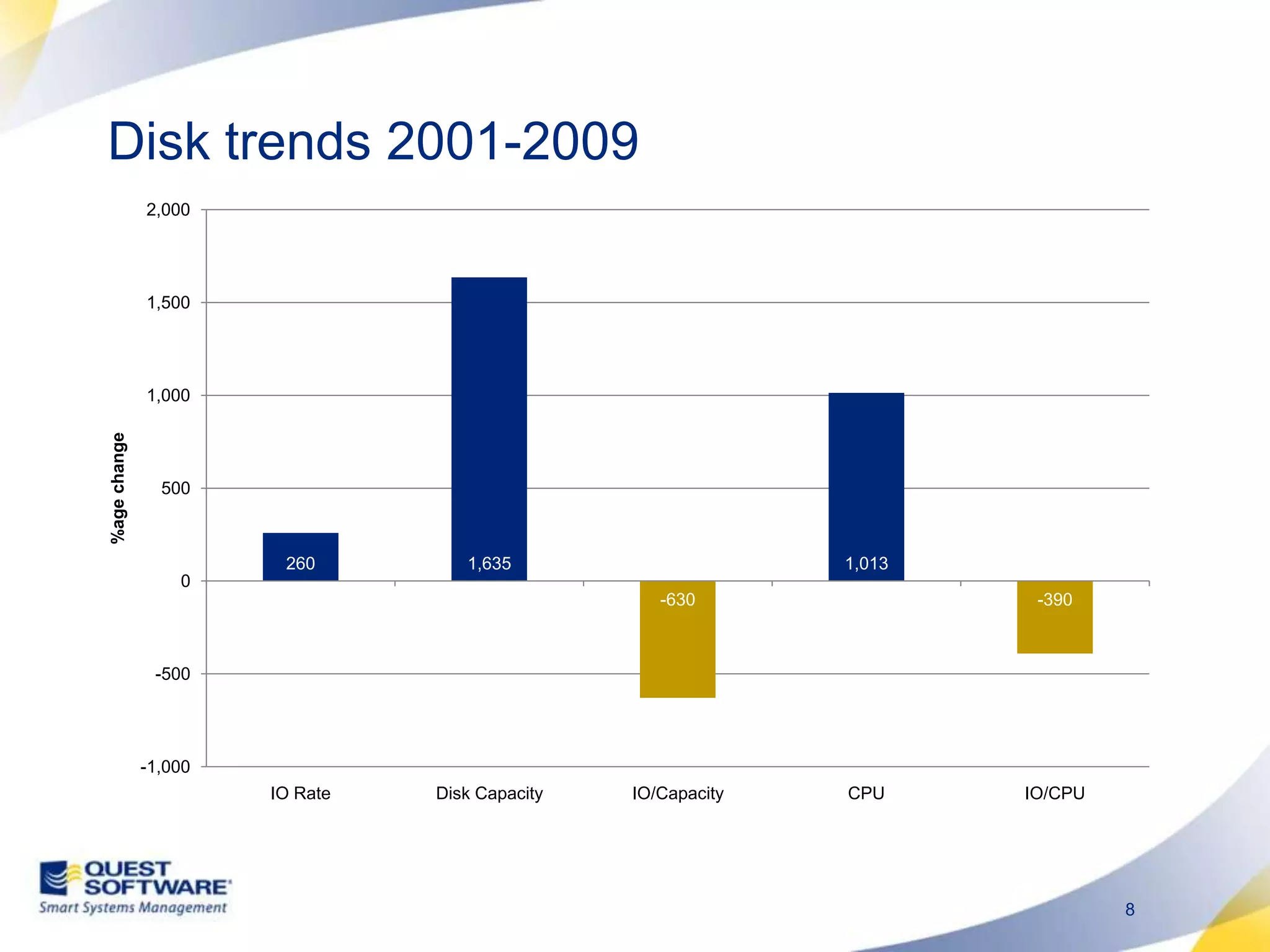

8. Disk trends 2001-2009

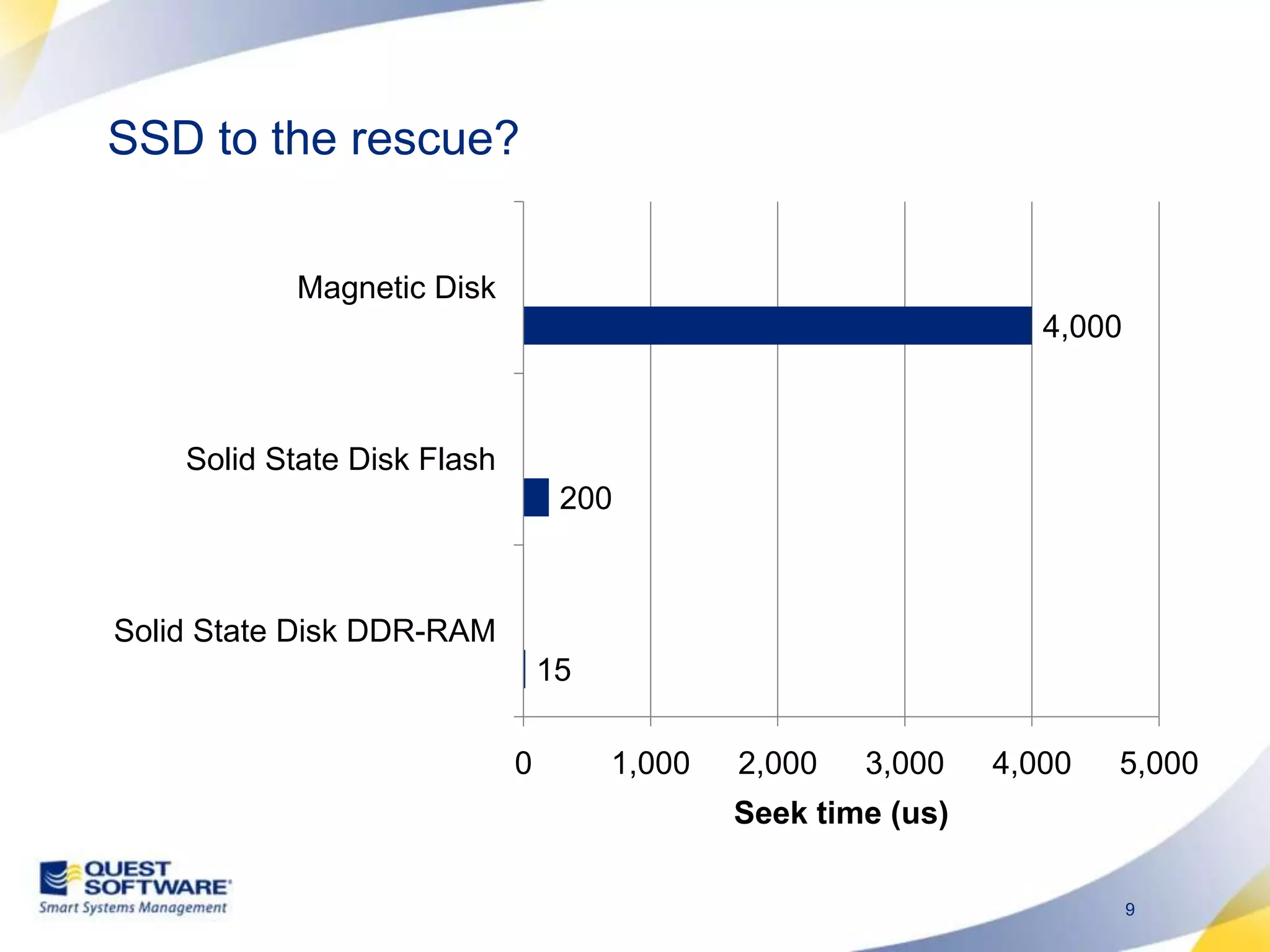

9. SSD to the rescue?

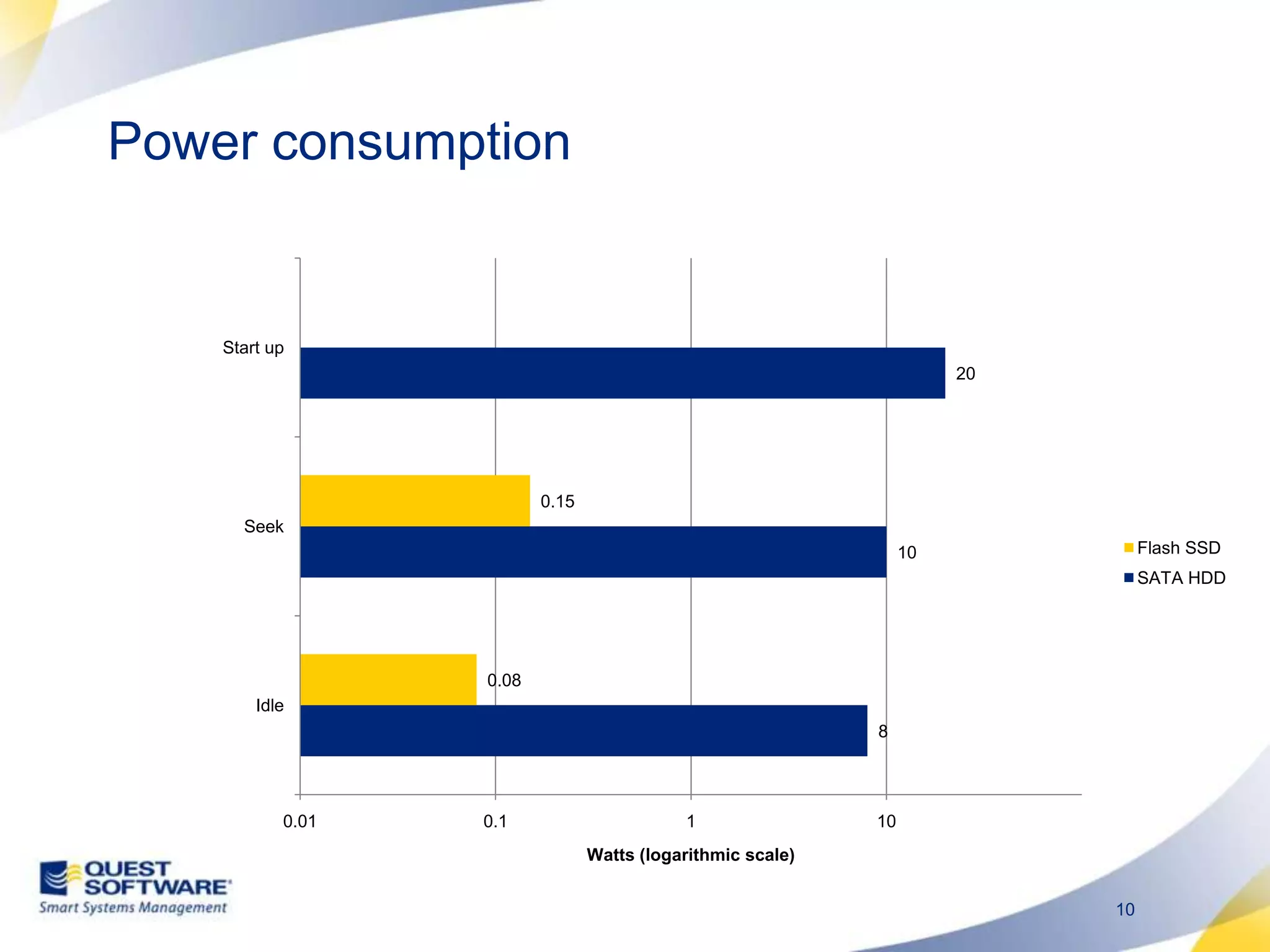

10. Power consumption

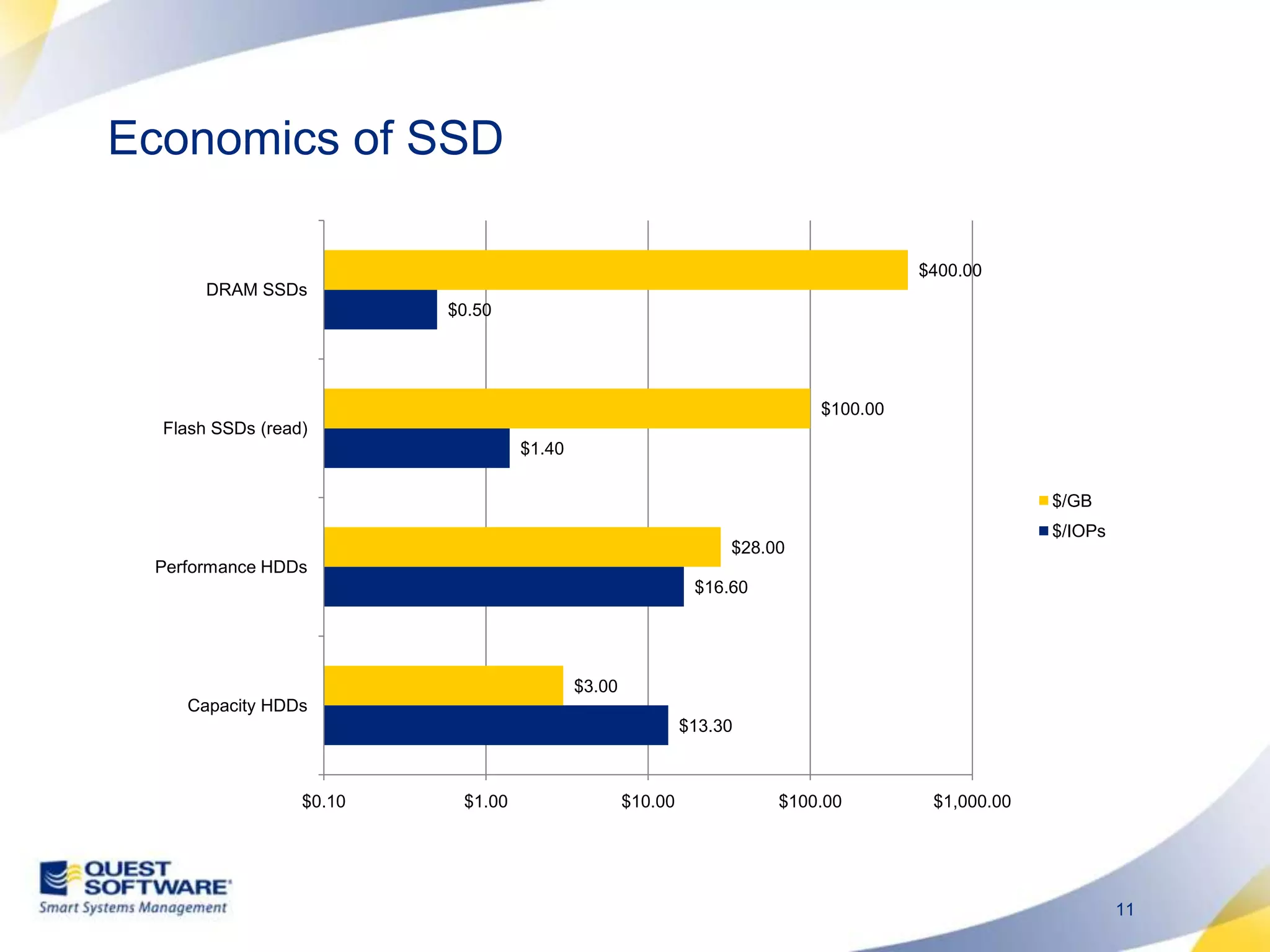

11. Economics of SSD

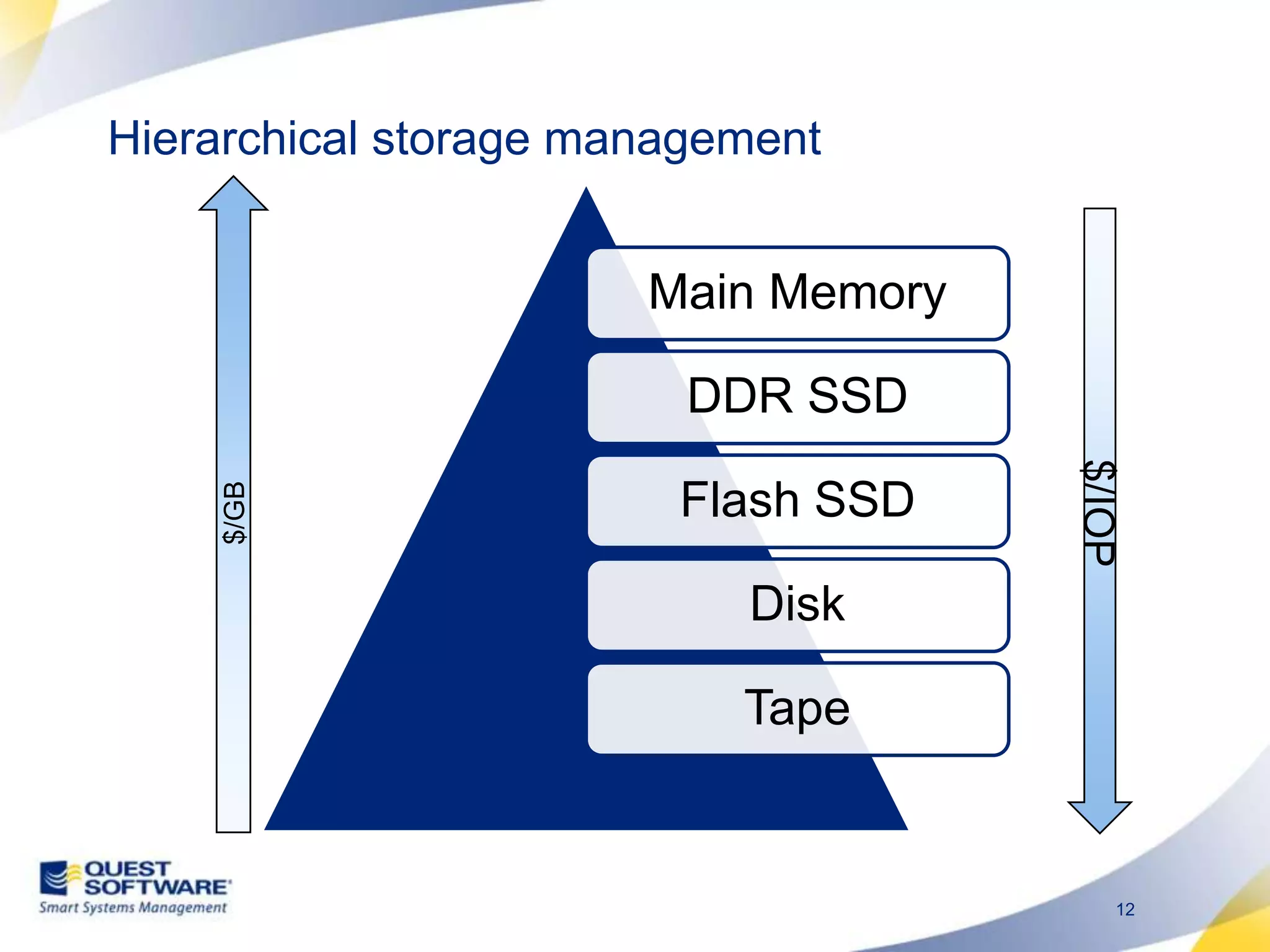

12. Hierarchical storage management $/GB $/IOP

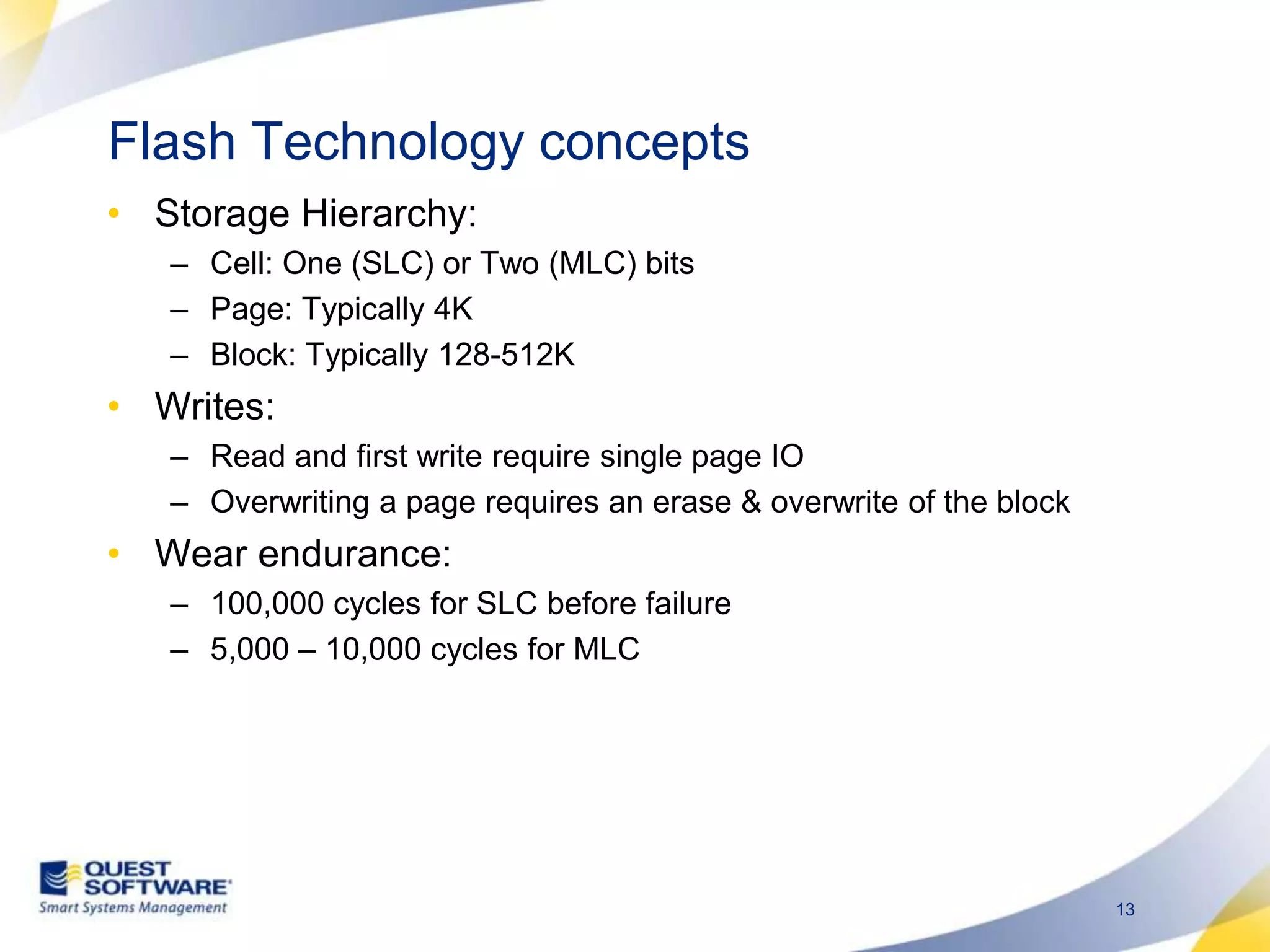

13. Flash Technology concepts Storage Hierarchy: Cell: One (SLC) or Two (MLC) bits Page: Typically 4K Block: Typically 128-512K Writes: Read and first write require single page IO Overwriting a page requires an erase & overwrite of the block Wear endurance: 100,000 cycles for SLC before failure 5,000 – 10,000 cycles for MLC

14. Flash SSD performance

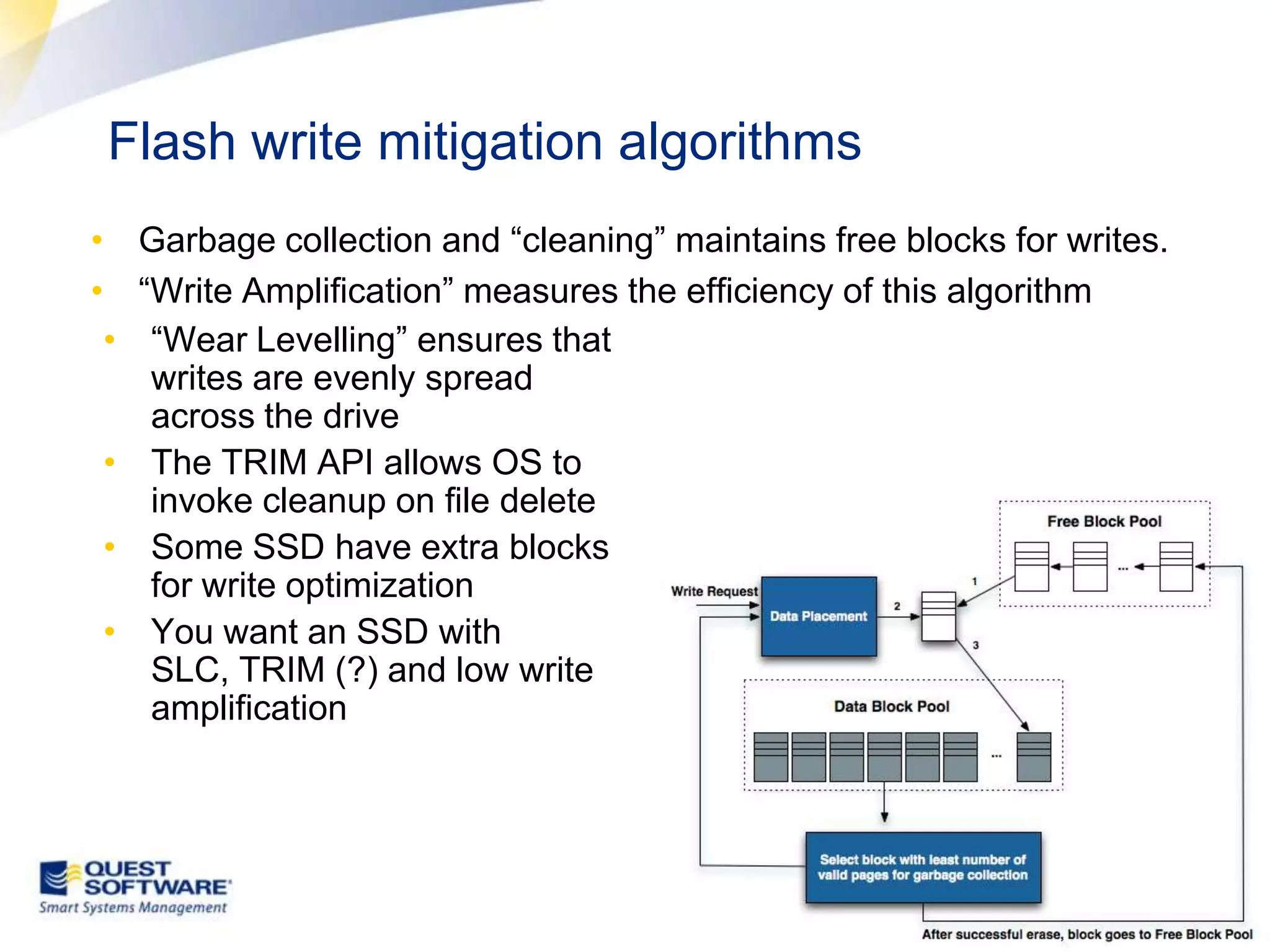

16. “Write Amplification” measures the efficiency of this algorithm“Wear Levelling” ensures that writes are evenly spread across the drive The TRIM API allows OS to invoke cleanup on file delete Some SSD have extra blocks for write optimization You want an SSD with SLC, TRIM (?) and low write amplification

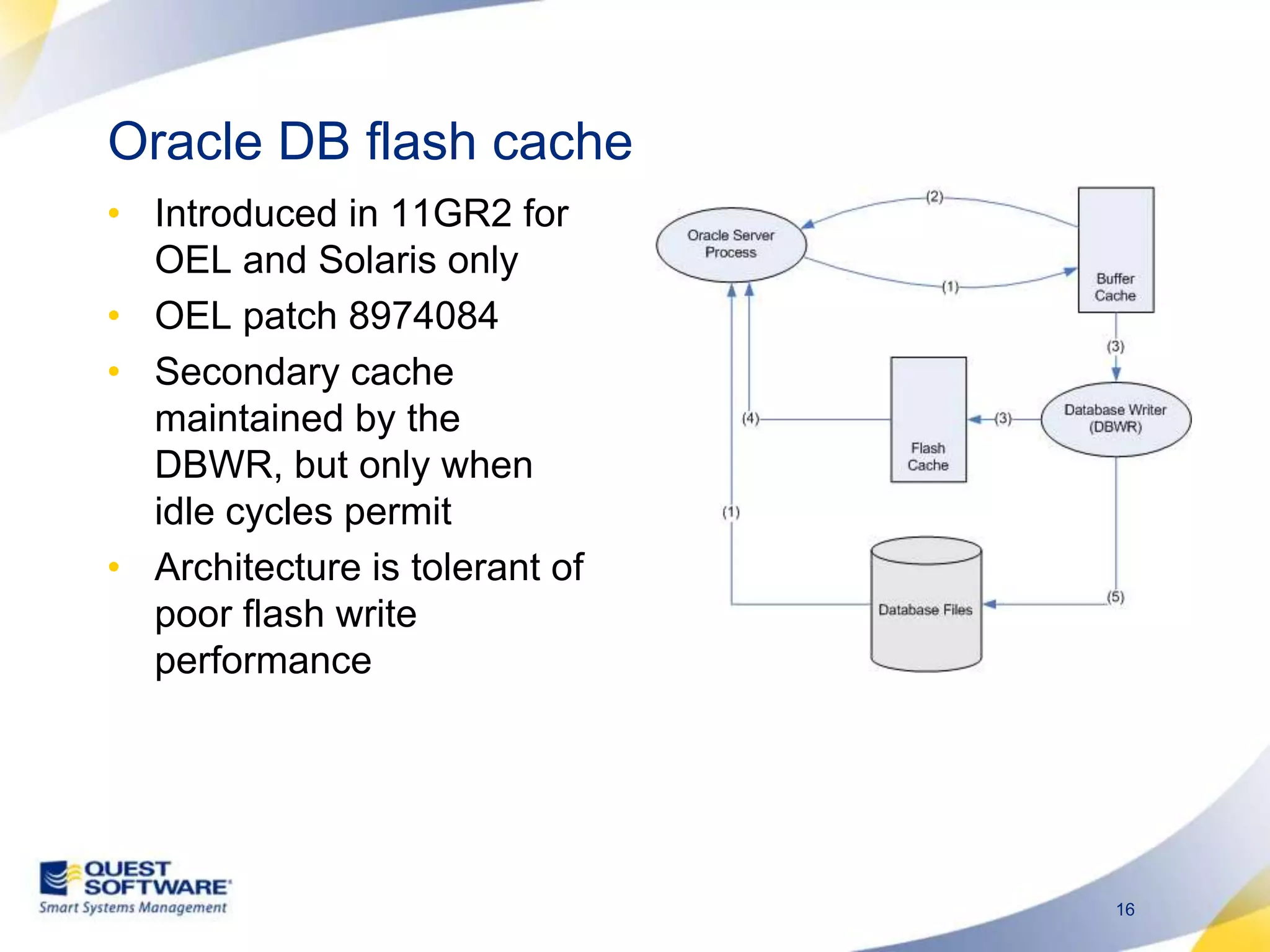

17. Oracle DB flash cache Introduced in 11GR2 for OEL and Solaris only OEL patch 8974084 Secondary cache maintained by the DBWR, but only when idle cycles permit Architecture is tolerant of poor flash write performance

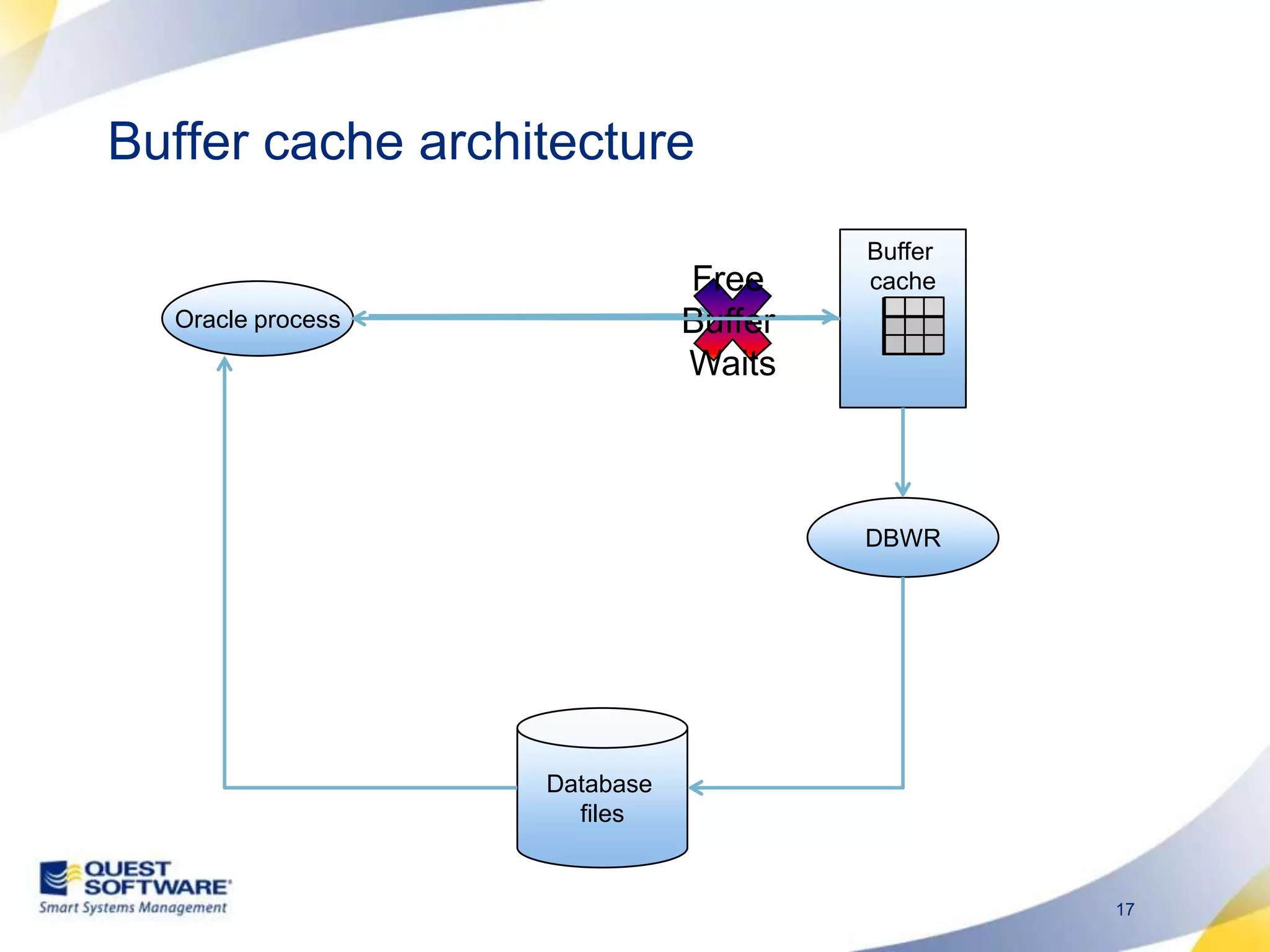

18. Buffer cache architecture Buffer cache Free Buffer Waits Oracle process DBWR Database files

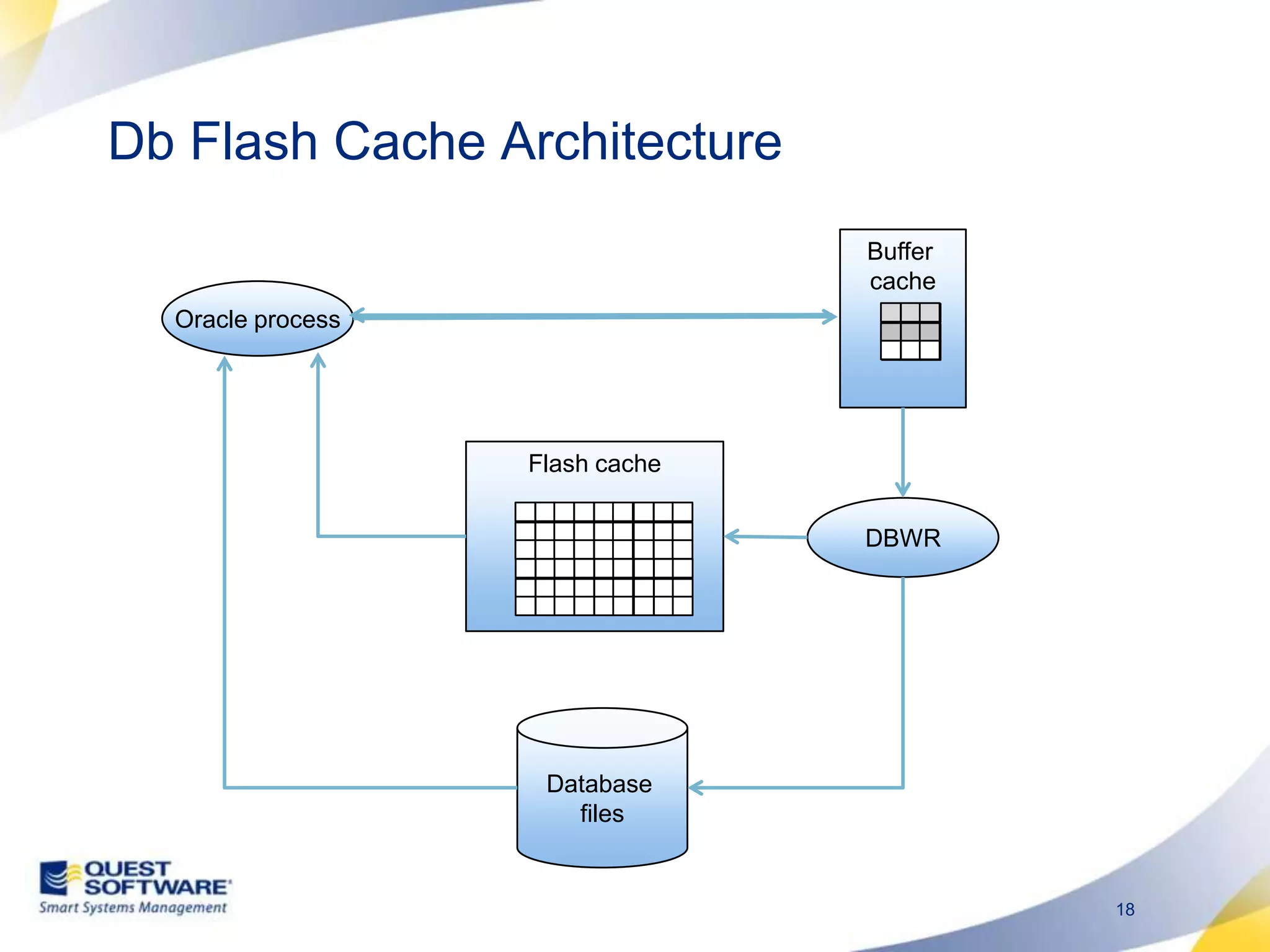

19. Db Flash Cache Architecture Buffer cache Oracle process Flash cache DBWR Database files

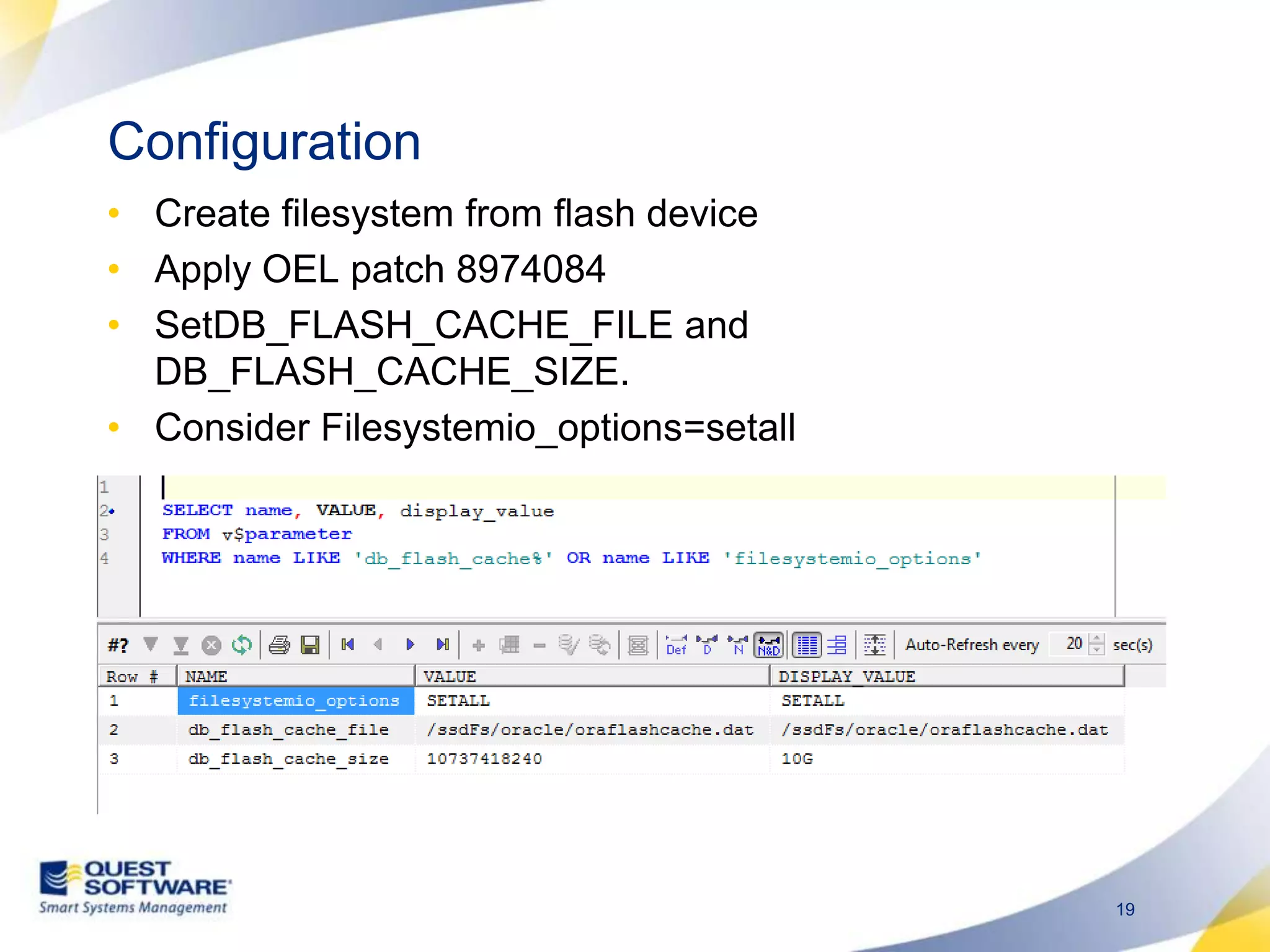

20. Configuration Create filesystem from flash device Apply OEL patch 8974084 SetDB_FLASH_CACHE_FILEand DB_FLASH_CACHE_SIZE. Consider Filesystemio_options=setall

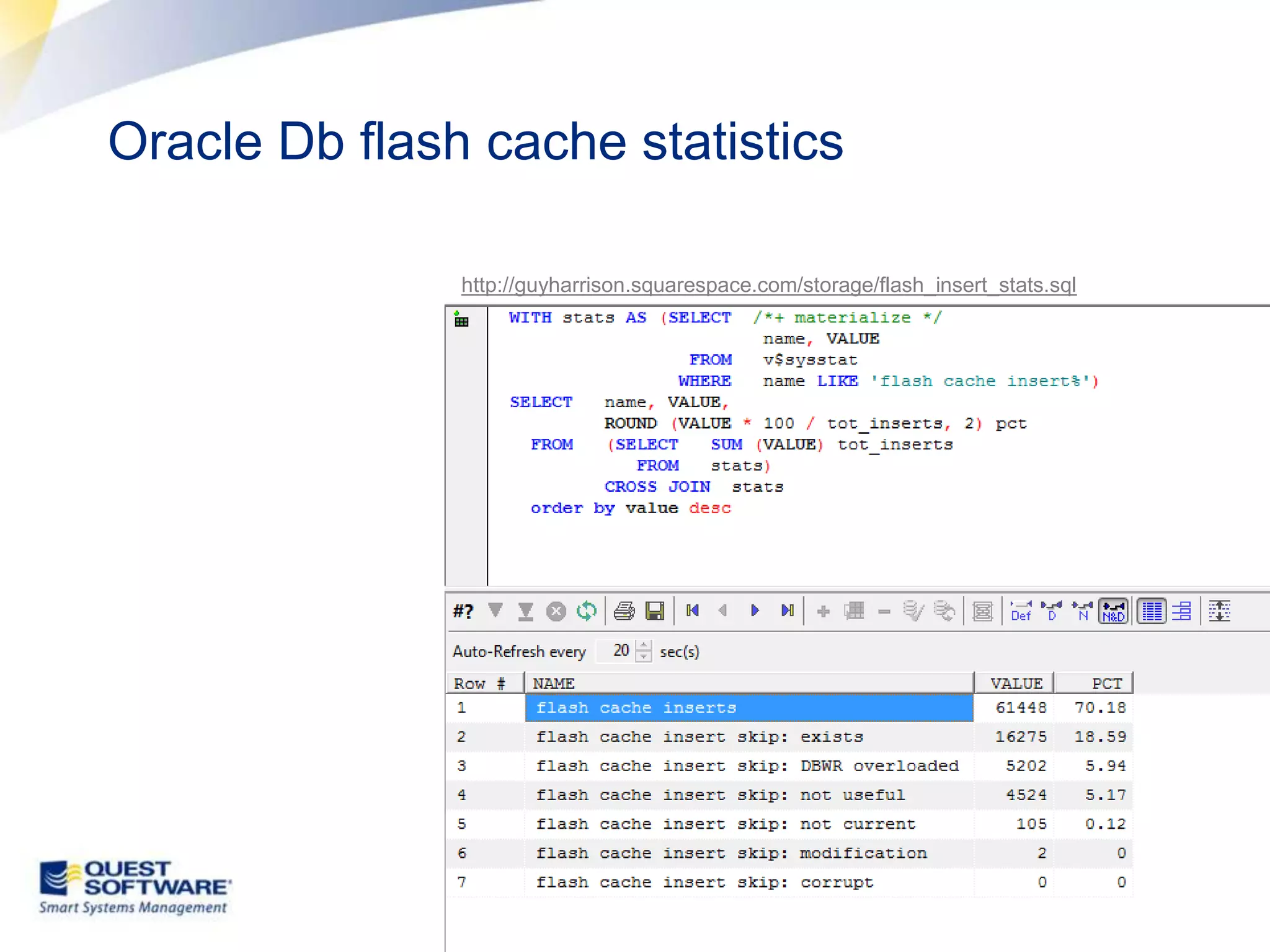

21. Oracle Db flash cache statistics http://guyharrison.squarespace.com/storage/flash_insert_stats.sql

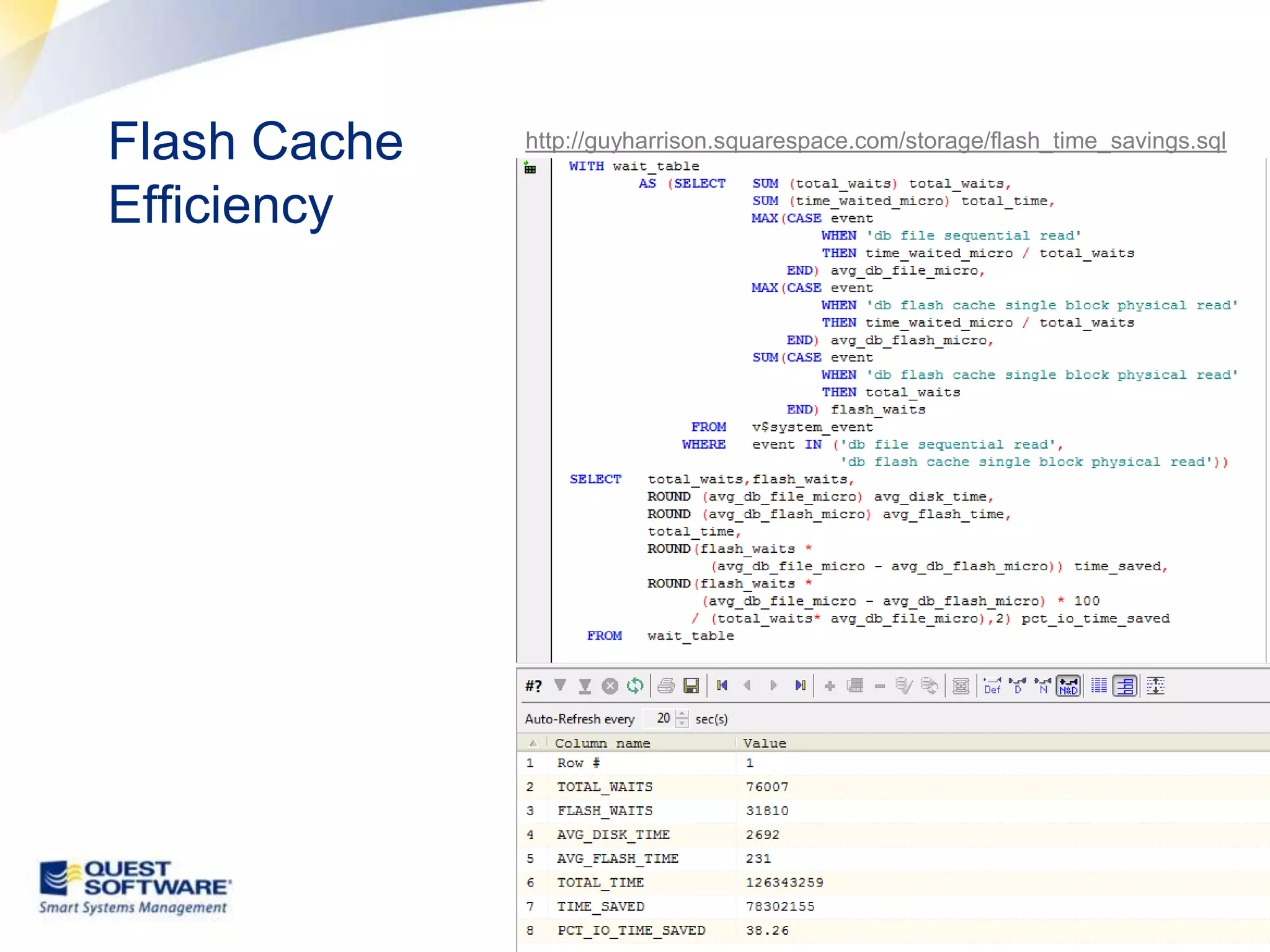

22. Flash Cache Efficiency http://guyharrison.squarespace.com/storage/flash_time_savings.sql

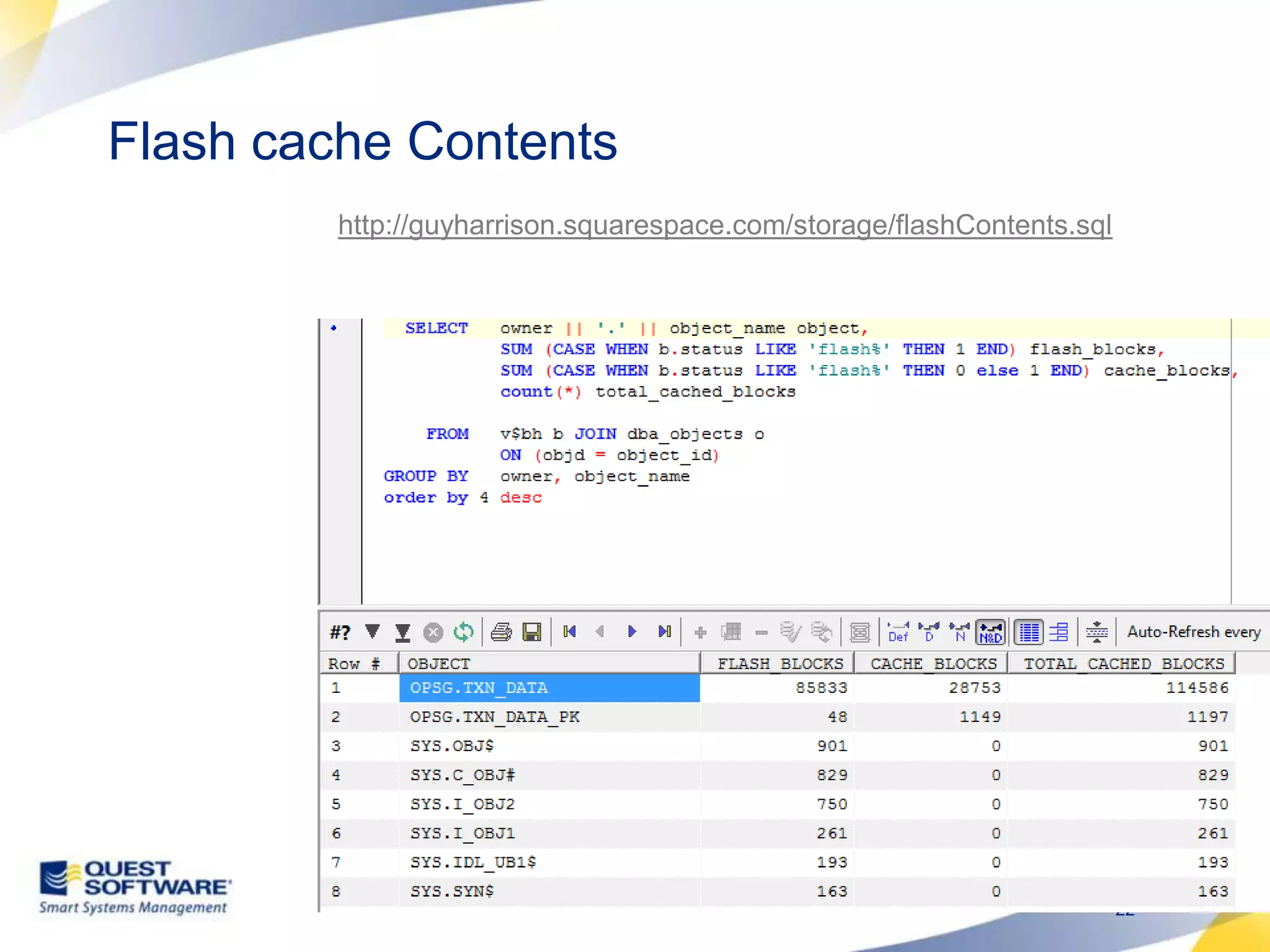

23. Flash cache Contents http://guyharrison.squarespace.com/storage/flashContents.sql

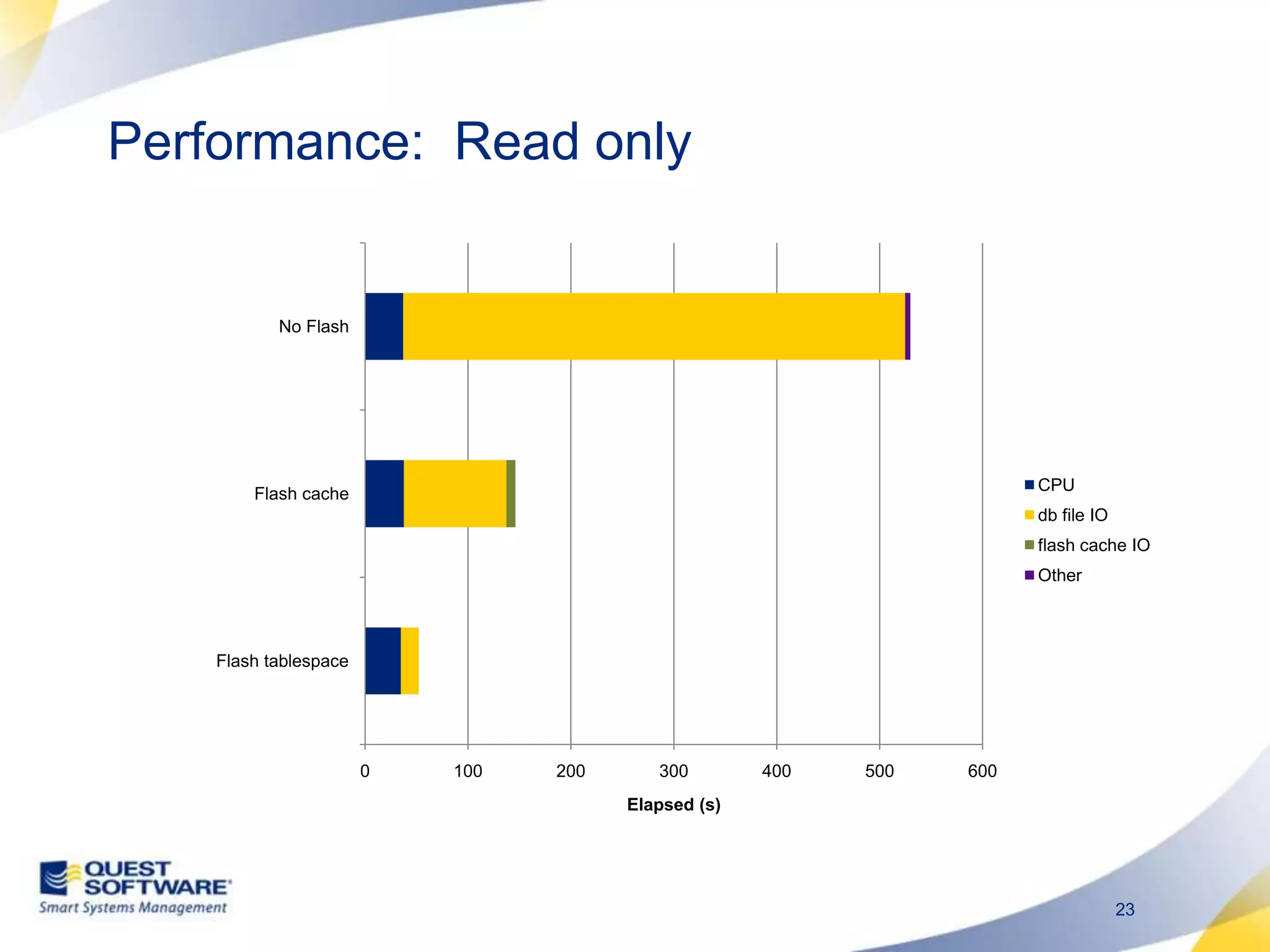

24. Performance: Read only

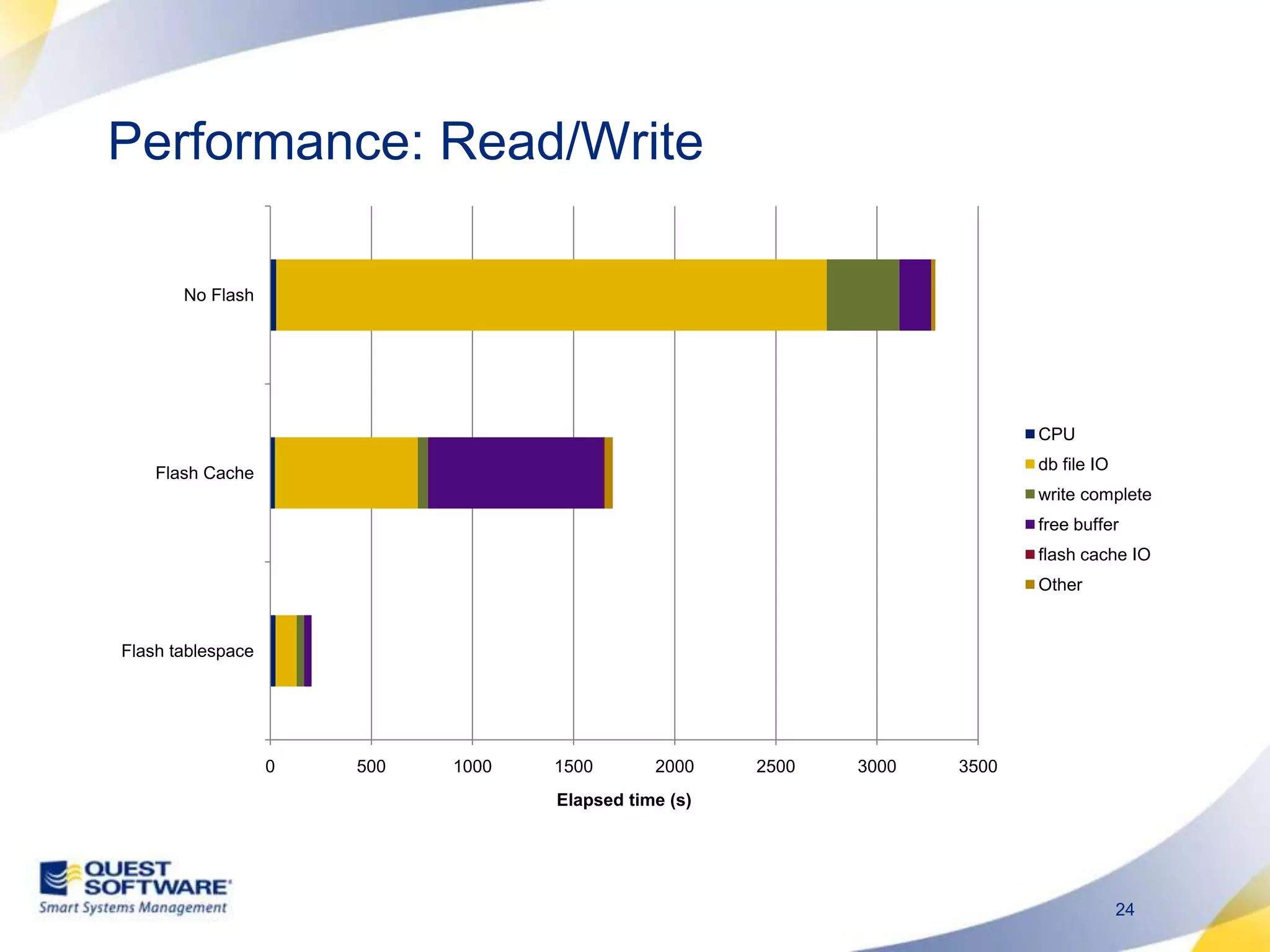

25. Performance: Read/Write

26. Write complete waits Flash cache architecture avoids ‘free buffer waits’ due to flash IO, but write complete waits can still occur on hot blocks. Free buffer waits are still likely against the database files, due to high physical read rates created by the flash cache

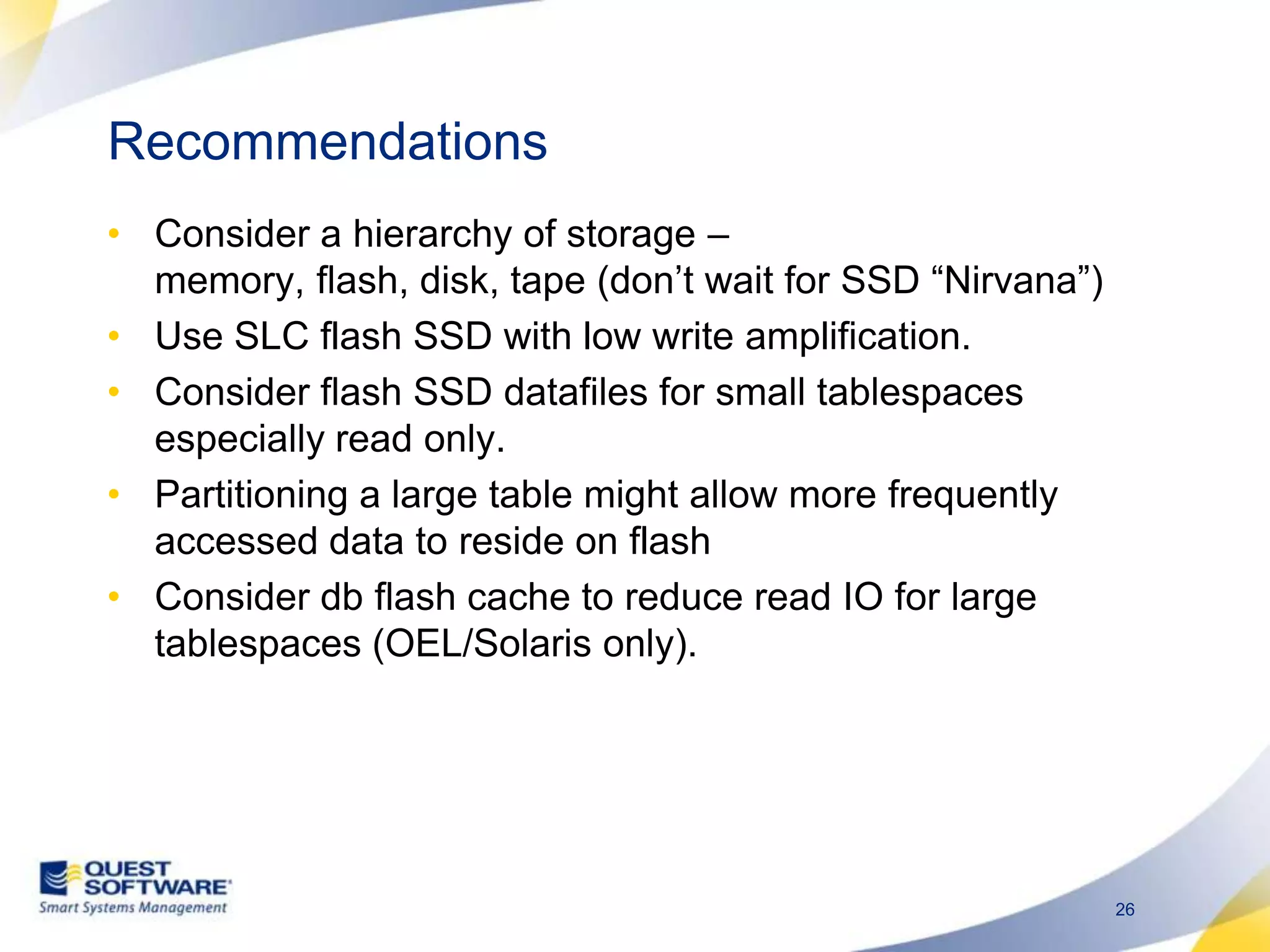

27. Recommendations Consider a hierarchy of storage – memory, flash, disk, tape (don’t wait for SSD “Nirvana”) Use SLC flash SSD with low write amplification. Consider flash SSD datafiles for small tablespaces especially read only. Partitioning a large table might allow more frequently accessed data to reside on flash Consider db flash cache to reduce read IO for large tablespaces (OEL/Solaris only).

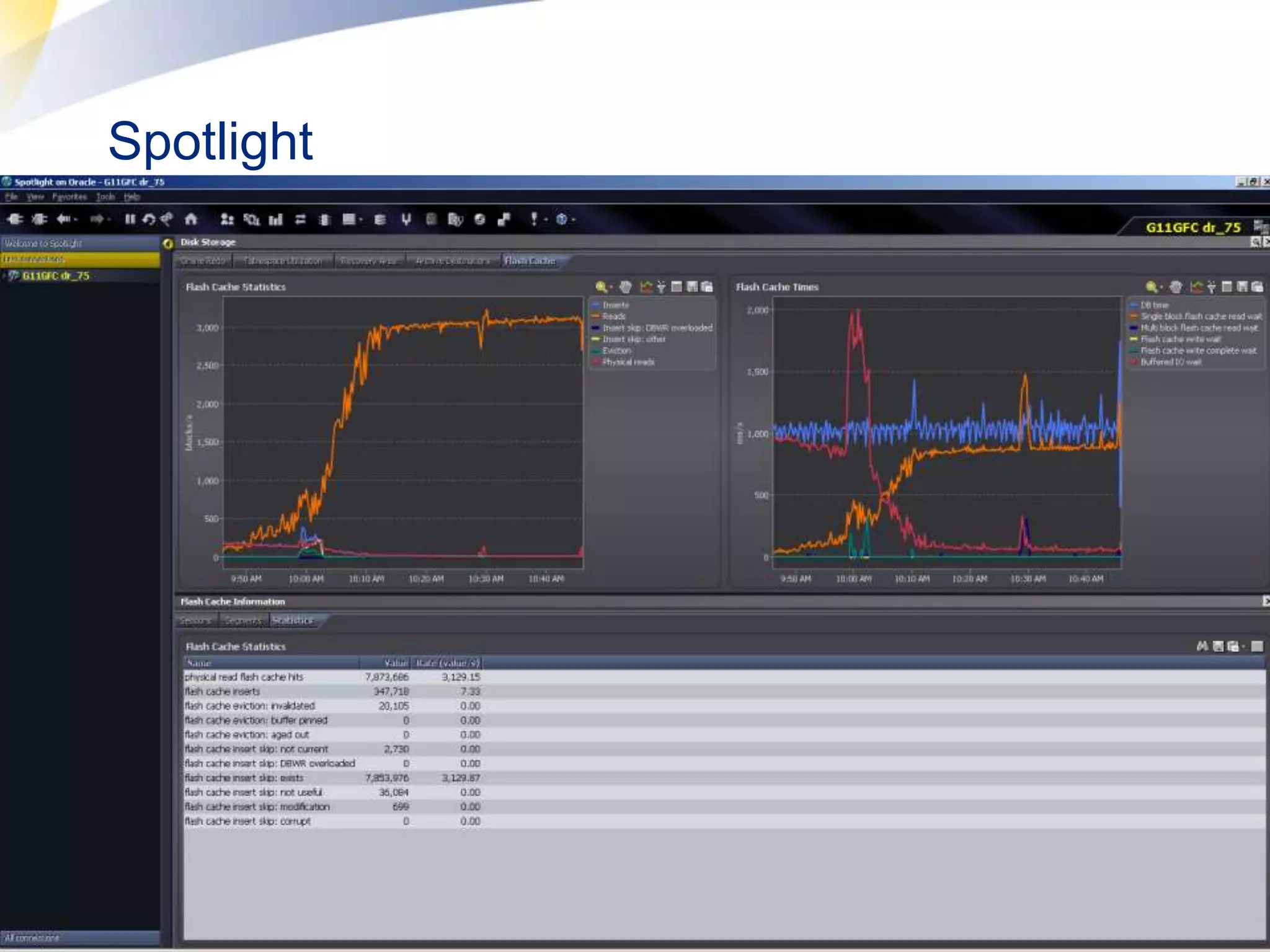

28. Spotlight

31. References Guy Harrison blog (guyharrison.net) postings: http://bit.ly/6yKhlh http://bit.ly/6mrX3k http://bit.ly/dmTFYh Kevin Closson: http://kevinclosson.wordpress.com/2009/12/15/pardon-me-where-is-that-flash-cache-part-ii/ General articles on SSD: http://www.anandtech.com/storage/showdoc.aspx?i=3631 http://en.wikipedia.org/wiki/Flash_memory
