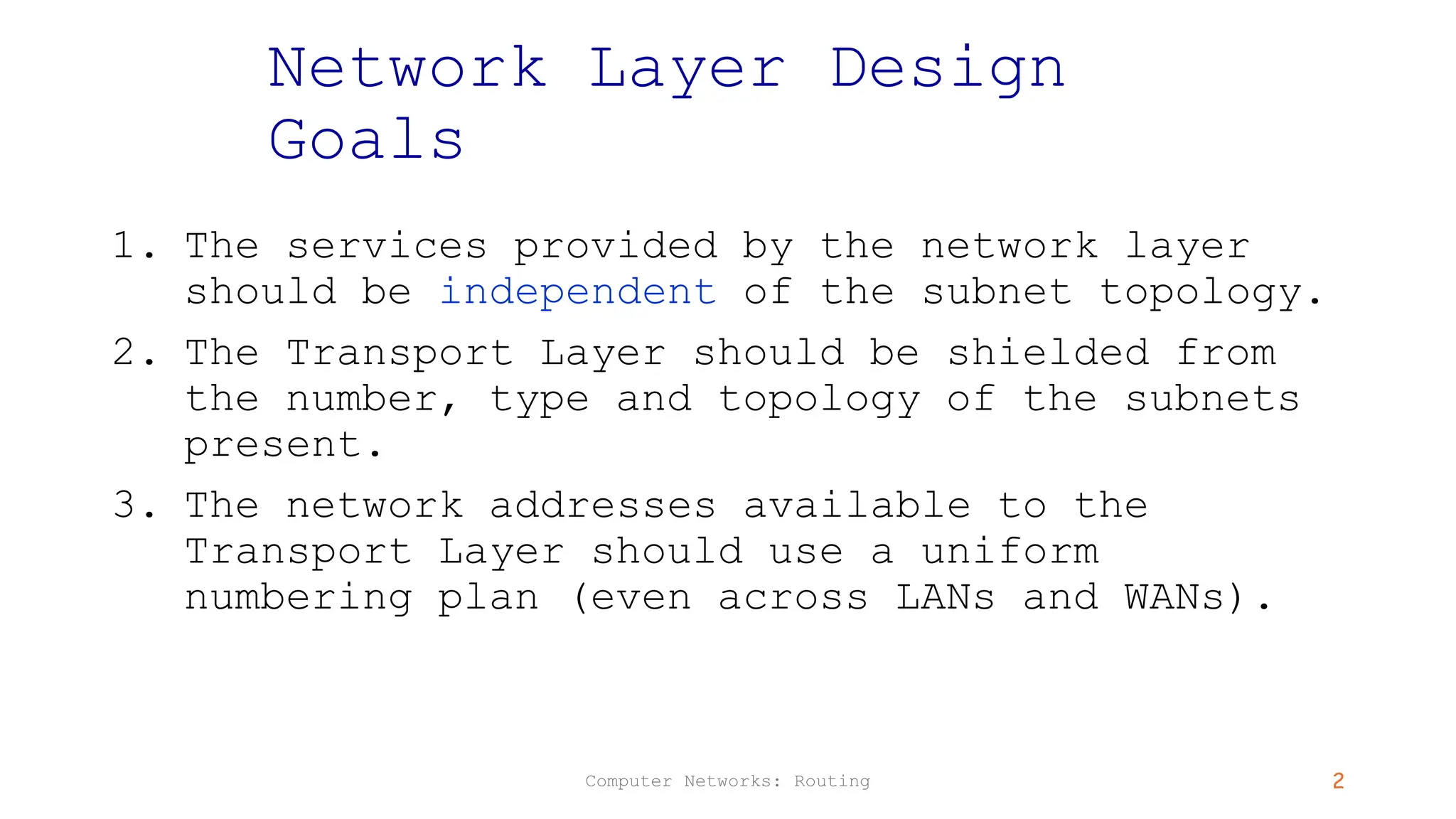

Network Layer Design
Goals
1. The services provided by the network layer
should be independent of the subnet topology.
2. The Transport Layer should be shielded from
the number, type and topology of the subnets
present.
3. The network addresses available to the
Transport Layer should use a uniform
numbering plan (even across LANs and WANs).

3. Computer Networks: Routing 3
Figure 7.2
Physical
layer
Data link
layer
Physical
layer
Data link
layer
End system
a
Network
layer
Physical
layer
Data link
layer
Physical
layer
Data link
layer
Transport
layer
Transport
layer
Messages
Messages
Segments
End system
b
Network
service
Network
service
Copyright ©2000 The McGraw Hill Companies Leon-Garcia & Widjaja: Communication Networks
Network
layer
Network
layer
Network
layer

4. Computer Networks: Routing 4
Application
Transport
Internet
Network
Interface
Application
Transport
Internet
Internet
Network 1 Network 2
Machine A Machine B
Router/Gateway
Network
Interface
Network
Interface
Figure 8.3

5. Computer Networks: Routing 5
R
R
R
R
S
S
S
s
s
s
s
s
s
s
s
s
s
R
s
R
Backbone
To internet or
wide area
network
Organization
Servers
Gateway
Departmental
Server

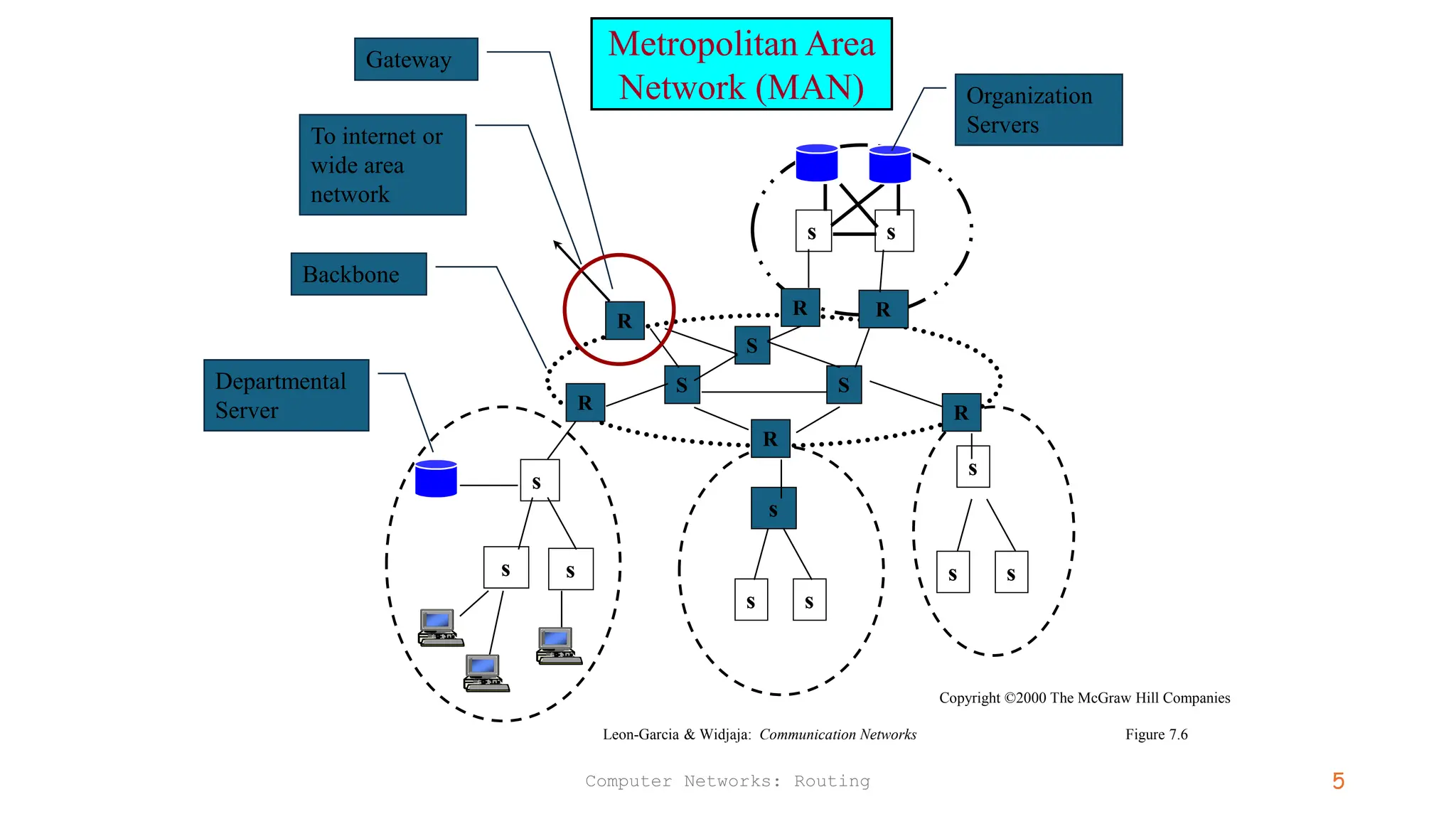

Figure 7.6
Copyright ©2000 The McGraw Hill Companies
Leon-Garcia & Widjaja: Communication Networks
Metropolitan Area
Network (MAN)

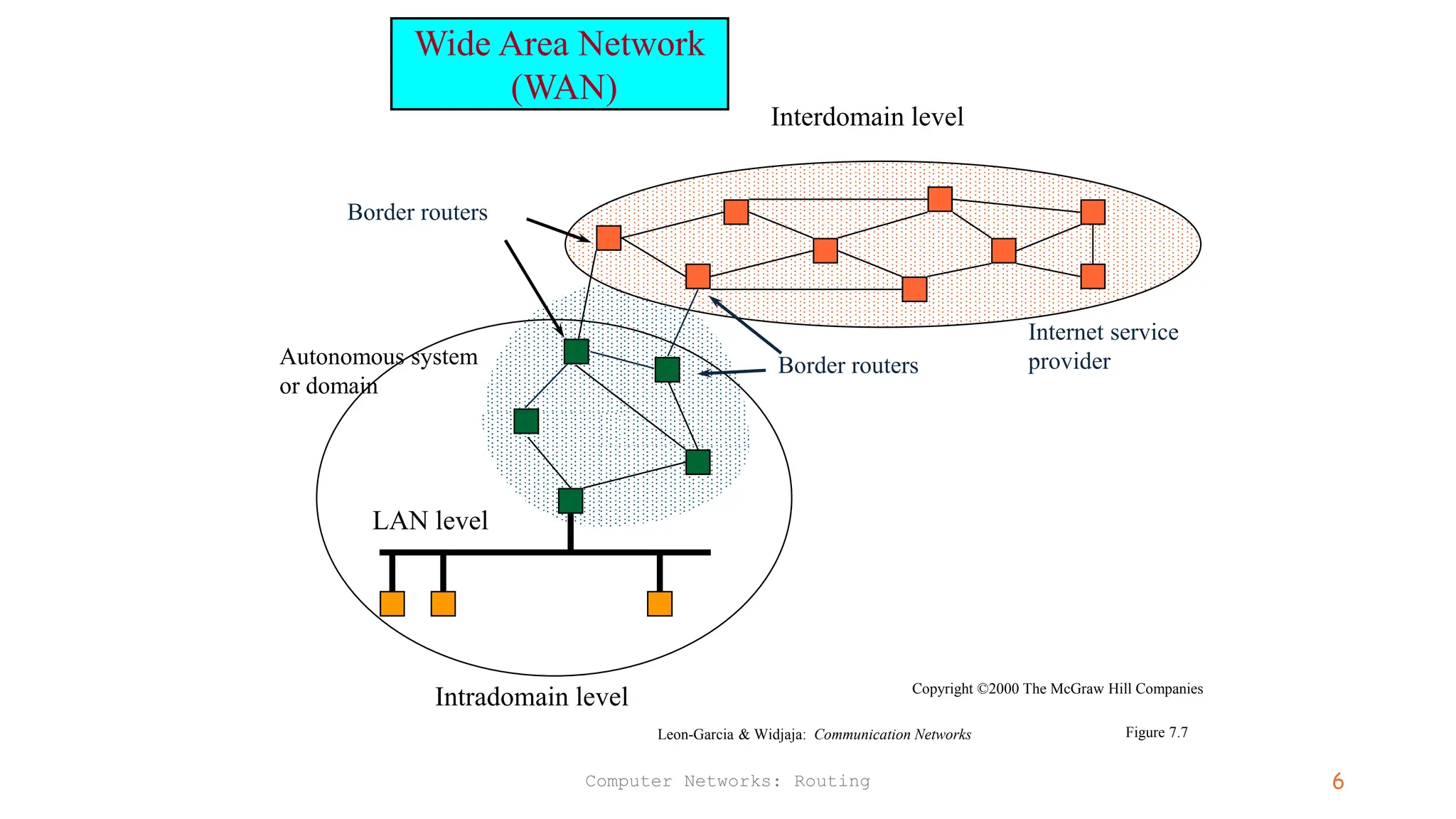

6. Computer Networks: Routing 6
Interdomain level
Intradomain level
LAN level
Autonomous system
or domain
Border routers
Border routers
Figure 7.7
Internet service
provider
Copyright ©2000 The McGraw Hill Companies
Leon-Garcia & Widjaja: Communication Networks
Wide Area Network
(WAN)
