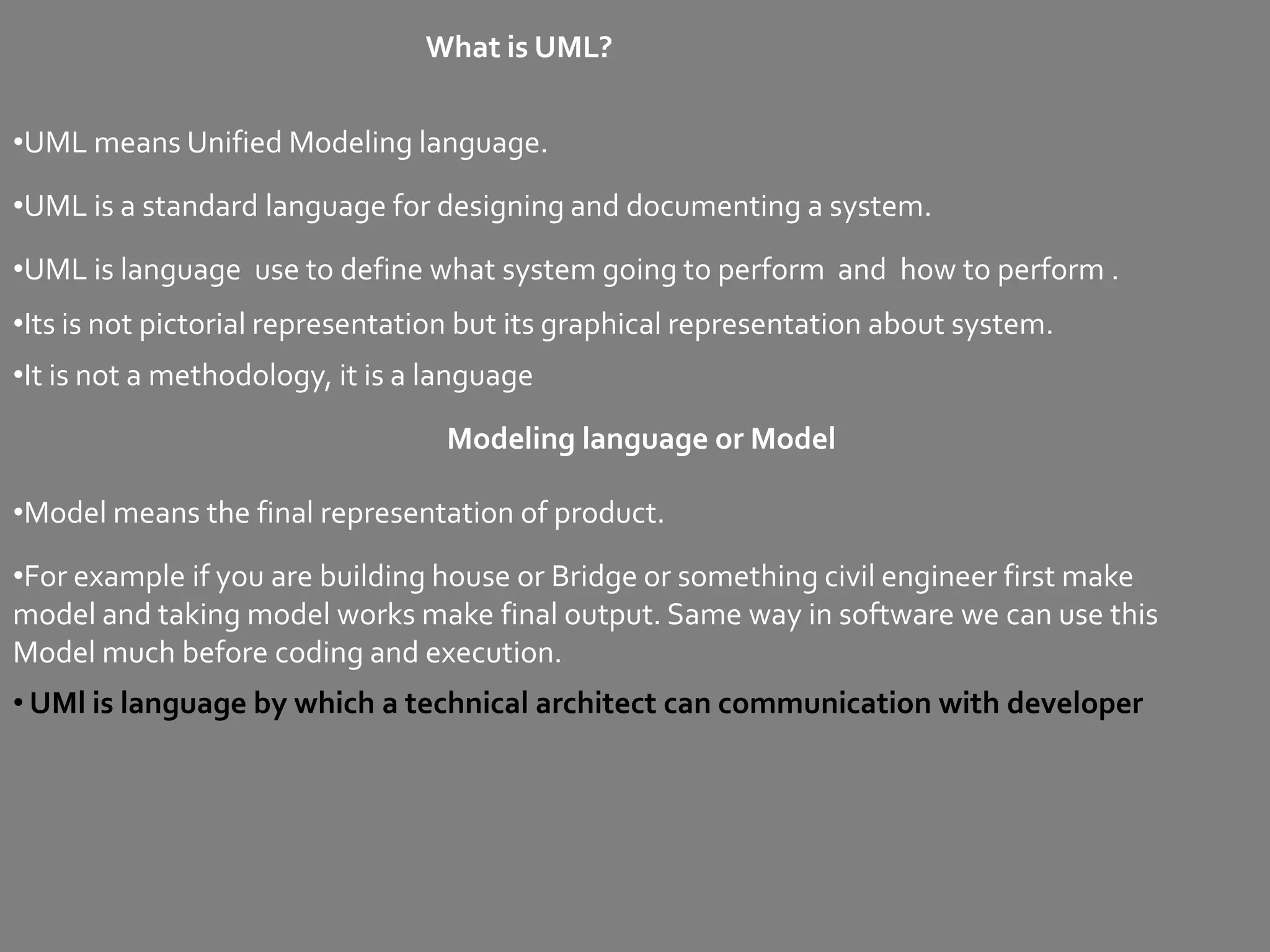

2. What is UML?
•UML means Unified Modeling language.
•UML is a standard language for designing and documenting a system.
•UML is language use to define what system going to perform and how to perform .
•Its is not pictorial representation but its graphical representation about system.
•It is not a methodology, it is a language
Modeling language or Model
•Model means the final representation of product.
•For example if you are building house or Bridge or something civil engineer first make
model and taking model works make final output. Same way in software we can use this
Model much before coding and execution.
• UMl is language by which a technical architect can communication with developer
3.
4. Structural Diagrams:
•Structural diagrams illustrate the static features of a model.
•Static features include classes and association, objects and links, and collaborations. These
static features provide the framework in which the dynamic elements of the model execute.
For example
•A Class defines the behaviors that types of objects can provide.
•An association defines the type of relationship that objects can participate in.
•A Deployment diagram models pieces of hardware (and people) that can perform work.
•Components define pieces of software and procedures that need to be
deployed to processors.
5. Behavioral Diagrams:
•Behavioral diagrams describe how the resources modeled in the Structural diagrams
interact and how they each execute their capabilities.
•The behavioral diagram puts the resources in motion, in contrast to the structural view,
which provides a static definition of the resources.
6. Use Case diagram:
The Use Case diagram models the users' expectation for using the system. The people
and systems that interact with the target system are called actors.
The features of the system that the actors use are called use cases. Some use cases
interact with other use cases, a relationship modeled using dependency arrows.
The goal of the Use Case diagram is to identify all the features that the clients expect the
system to support, but it does not reveal any details about the implementation of these
features.
Use cases can be written many different ways but the most common is to represent a view
of the system from outside the system.
Overview
The Use Case diagram is a unique graphical element, in that it is a diagram used to model
how people expect to use a system. The diagram describes who the relevant users will
be, the services they require of the system, and the services they need to provide to the
system.
7. Use Case Elements:
So use case diagrams are consists of actors, use cases and their relationships.
Actors:
•Now as we have to discuss that the use case diagram is dynamic in nature there should
be some internal or external factors for making the interaction.
•Actors can be defined as something that interacts with the system.
Use Cases:
•A single use case diagram captures a particular functionality of a system.
Relationships:
Include, Extend and Generalization
8. Include:
•Must relationship
•Within an include relationship, one use case explicitly includes the behavior of another use
case at a specified point within a course of action.
•The included use case doesn't stand alone; it has to be connected with one or more base use
cases.
Add To
Watch list
Login
Checkout
9. Extend:
•Optional Relationship
•You generally use this construct to factor out behavior that's optional or that occurs only
under certain conditions
Check <<EXTEND>> Cancel
Order
Order
Status
10. Case Study: CRUD Operations
Brief Description:
•This use case explains the process of Create, update ,Delete and Search of any User
in the system.
Often called as Manage Users
Actors: Use Cases Relationship: Pre-conditions
Create <<INCLUDE>> Only Administrator
User
<<EXTEND>>
Update
Admin User
Manage
User
Delete
User
Search
User
11. Basic Flow of Events:
Create User:
•Admin will go to the User creation form of the system
•Admin will fill all the required information in the form
•Admin will submit the form
•Acknowledgement will shown to user about success/failure of the request
Update User:
•Admin will go to the User lookup (for search) form of the system
•System will display a list of User based on the criteria filled by the user.
•Admin Updates the User information
•System validated the data sent by Admin
Delete User:
•Admin will go to the User lookup (for search) form of the system
•System will display a list of User based on the criteria filled by the user.
•Admin Delete the User information
•System validated the data sent by Admin
12. Manage User Admin: CRUD Operations
System Boundary
Manage <<INCLUDE>> Create
User User
Admin
Update
User
Search
User
Delete
User
13. Post Conditions:
•User details will be created/updated and reflected everywhere in the system
•An successful operation message would be displayed to administrator
Exceptions:
If user don’t have sufficient permission then he will not be able to create/update User
14. Defining the Use Case Approach:
You need to answer questions such as the following:
•What functionality do we need to include and exclude?
•How does this system relate to other systems in our architecture?
•Who will use the system?
•Who or what does the system depend on?
•What products and/or results does the system provide?
•Why do the users/other systems need the specific set of features that this system provides?
15. Advantages OF Use Case
Independent Of programming language.
•Communication with programmers and outside contractors will be more efficient
•The right decisions are made before you are given poorly written code.
•Easy to understand and provide overall grip on project.
17. Add Item to Cart
End Transaction
YES Add
More
Items
NO
NO
Item In
Check Out Basket
?
YES
New
NO
Enter Login Details Custom
er?
YES Account
Enter Account Details
Create Account
Register
Confirmation
NO Account
Details
Correct?
YES
Confirm Order
Make Payment Confirm Payment
18. Invoice Create Invoice Invoice
End Transaction Place Order Order
20. Search Products
System Boundary
Buy <<INCLUDE>> Send
Product Notification
Authenticate Update
User/Login
Database
Write
Customer
Product
Review
Search
Product
View
Product
Search Product Use Case
21. Use Case Merchant Account
System Boundary
Add/Delete
Product
View
Product
Upload
Images
Update
Merchant Add/Dele
Database
te Image
Edit
Personal
Profile
Change
Password
Authenticate
Login <<INCLUDE>> User
Merchant Account
