This document describes the TYR3000, an autonomous VTOL UAV with a coaxial rotor system that offers many applications. It has a ground control station for fully autonomous or operator-controlled flight. It comes equipped with high resolution day and night vision cameras. The UAV provides flexible and affordable aerial surveillance and monitoring for applications such as police, firefighting, infrastructure inspection, and more.

1. TYR3000
COAXIAL VTOL UAV
THE FUTURE IN AERIAL SURVEILLANCE

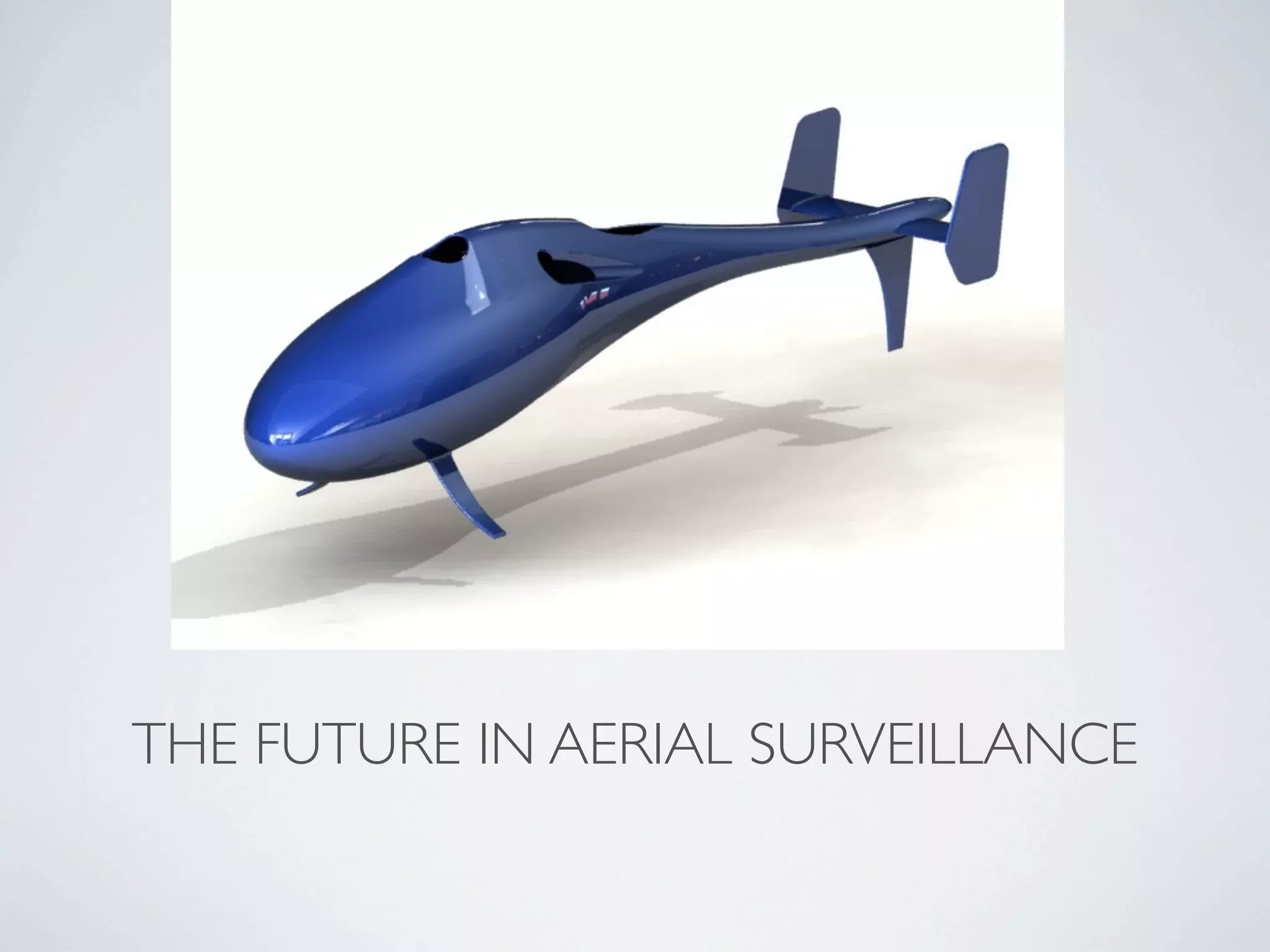

2. THE FUTURE IN AERIAL SURVEILLANCE

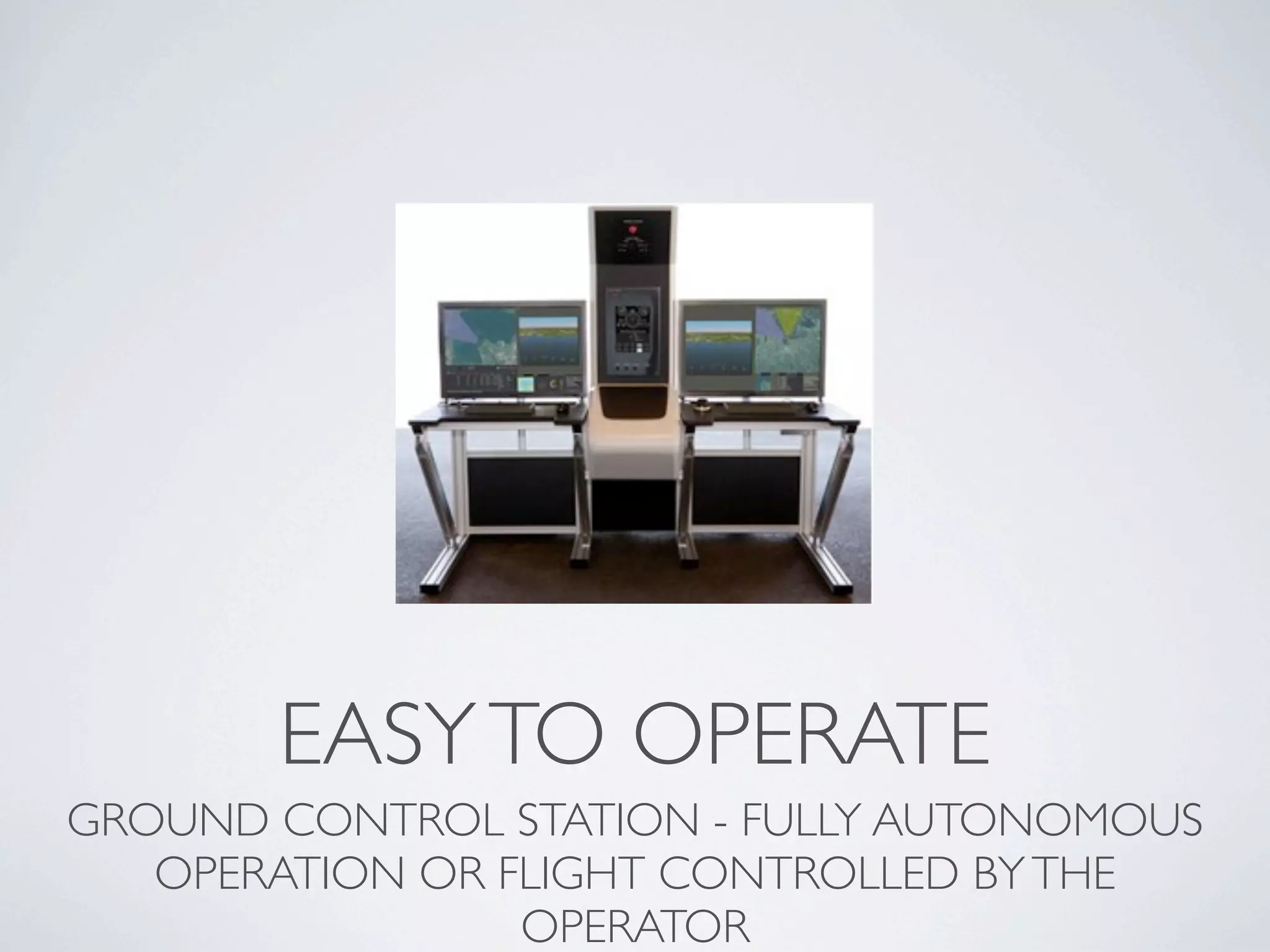

3. EASY TO OPERATE
GROUND CONTROL STATION - FULLY AUTONOMOUS
OPERATION OR FLIGHT CONTROLLED BY THE
OPERATOR

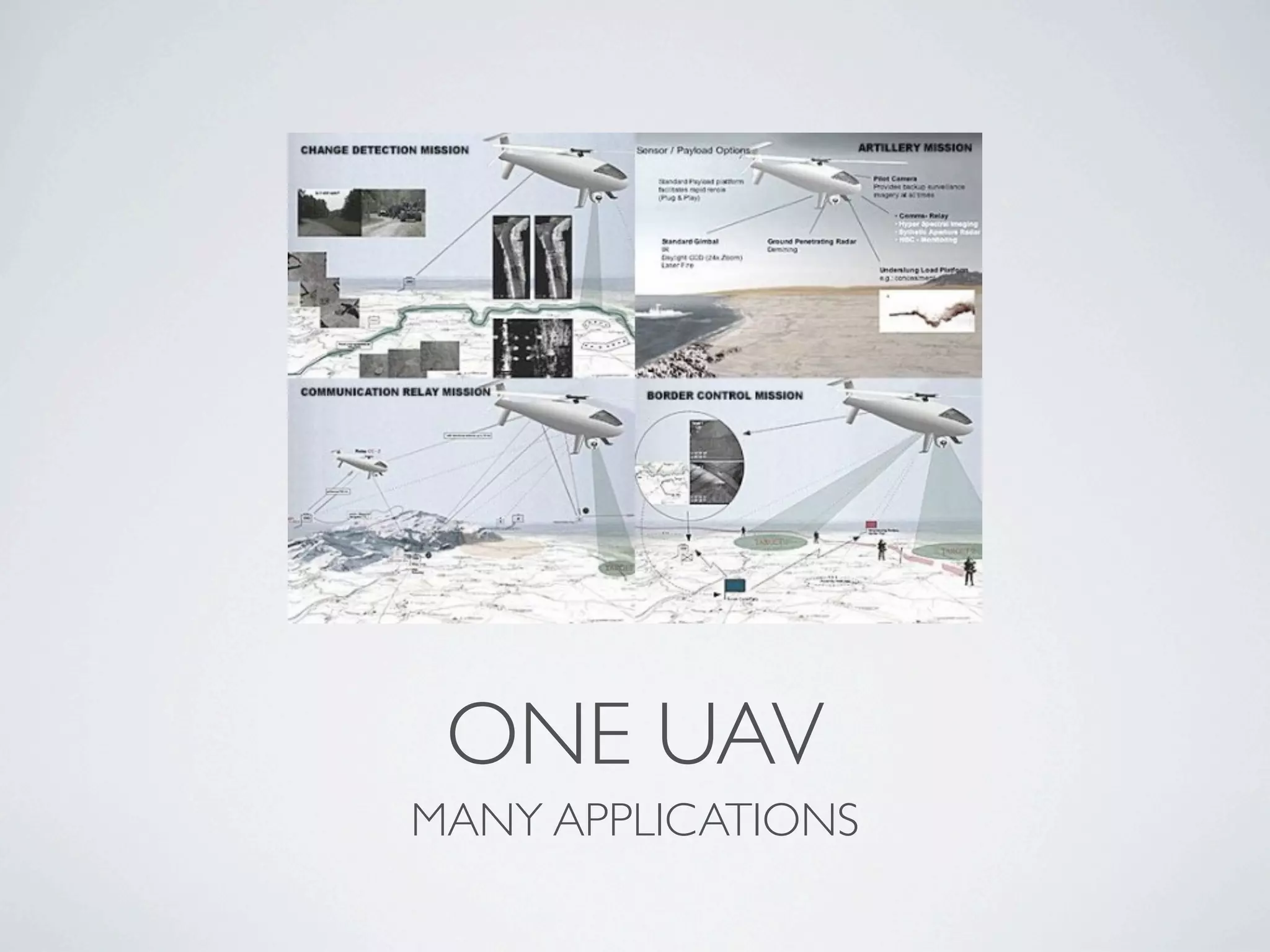

4. ONE UAV
MANY APPLICATIONS

5. PASSIVE AND ACTIVE MISSION
ARMED OR UNARMED AIRCRAFT

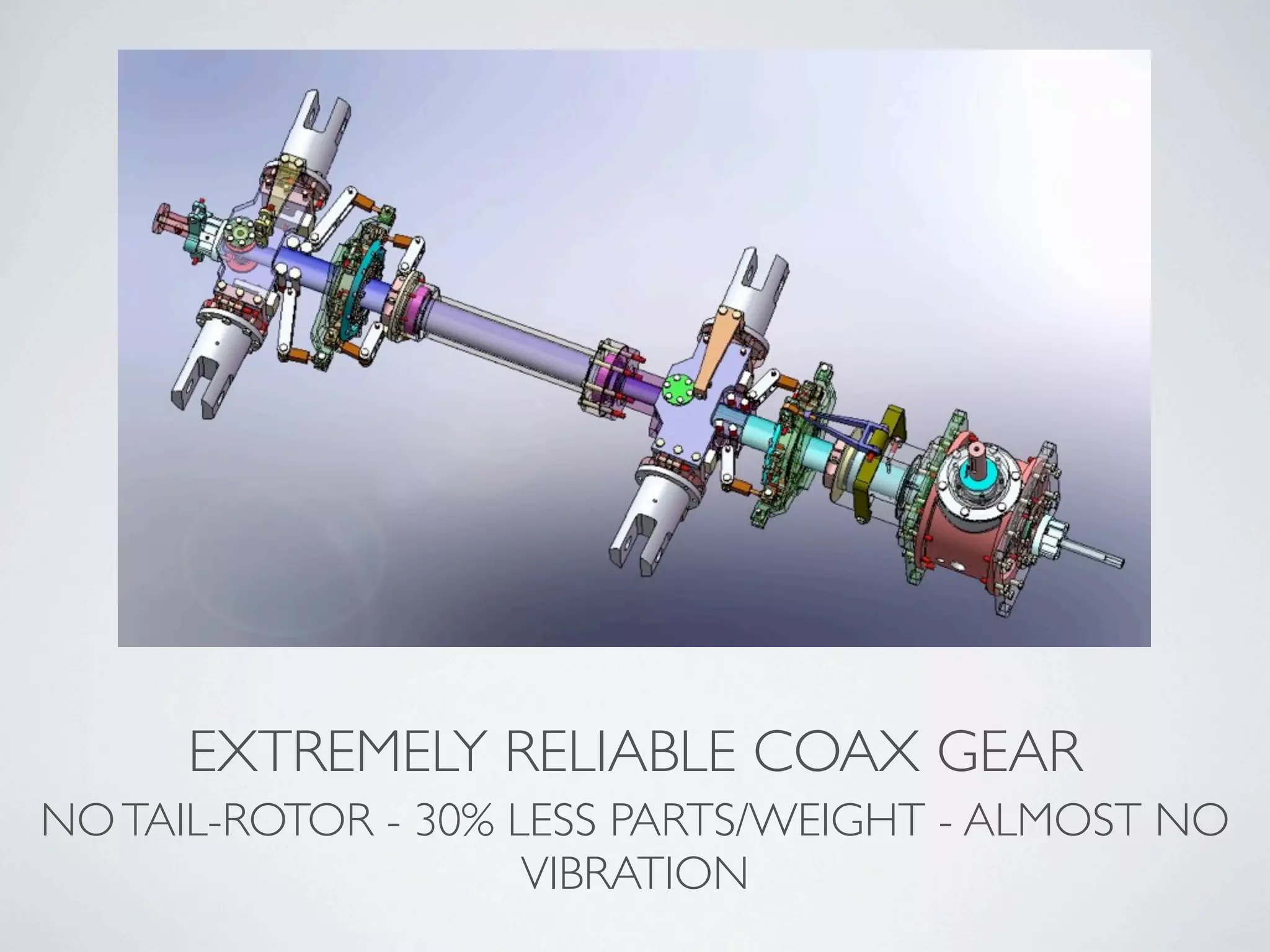

6. EXTREMELY RELIABLE COAX GEAR
NO TAIL-ROTOR - 30% LESS PARTS/WEIGHT - ALMOST NO
VIBRATION

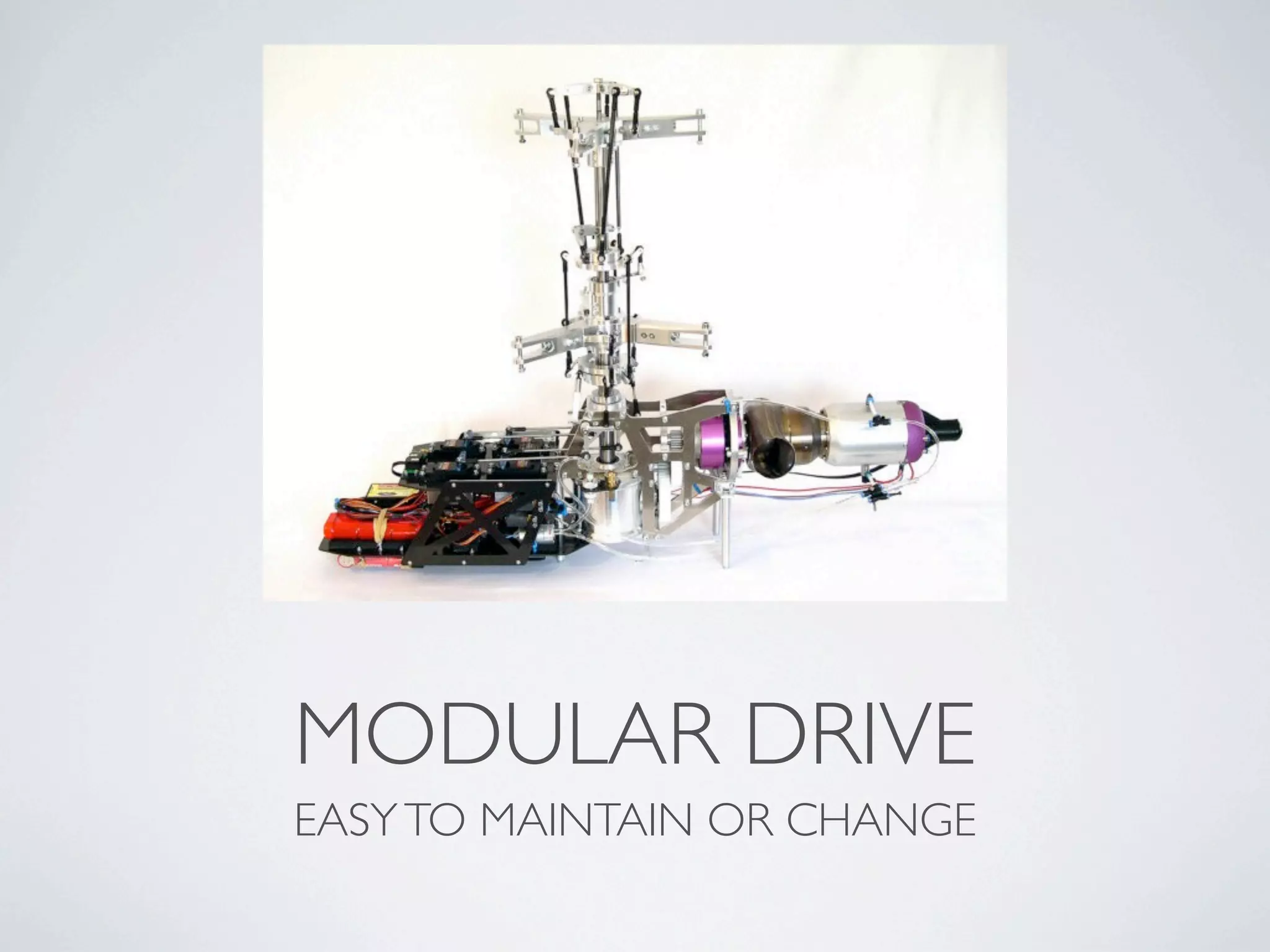

7. MODULAR DRIVE
EASY TO MAINTAIN OR CHANGE

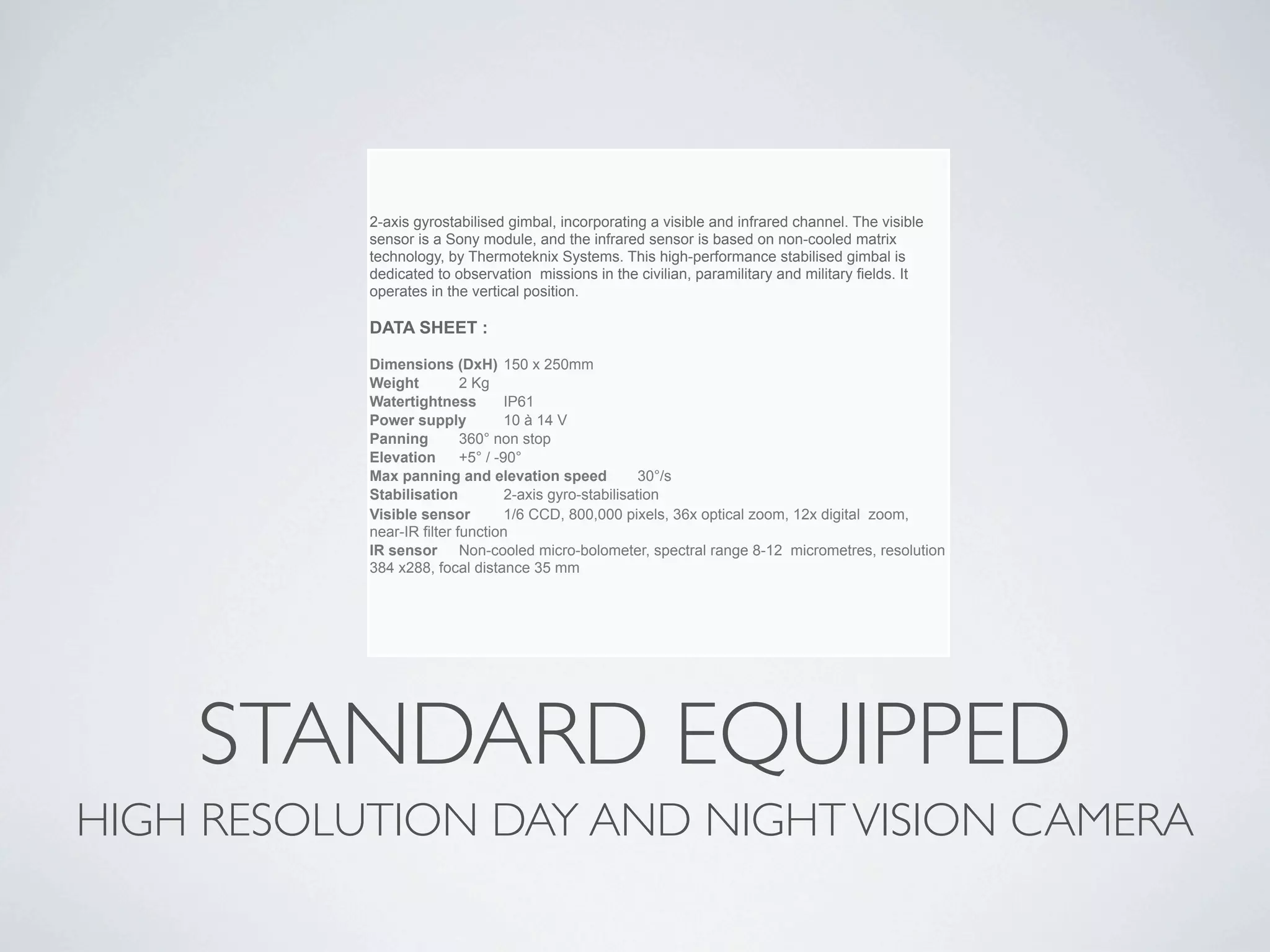

8. 2-axis gyrostabilised gimbal, incorporating a visible and infrared channel. The visible
sensor is a Sony module, and the infrared sensor is based on non-cooled matrix
technology, by Thermoteknix Systems. This high-performance stabilised gimbal is
dedicated to observation missions in the civilian, paramilitary and military fields. It
operates in the vertical position.
DATA SHEET :
Dimensions (DxH)
150 x 250mm
Weight
2 Kg
Watertightness
IP61
Power supply
10 à 14 V
Panning
360° non stop
Elevation
+5° / -90°
Max panning and elevation speed
30°/s
Stabilisation
2-axis gyro-stabilisation
Visible sensor
1/6 CCD, 800,000 pixels, 36x optical zoom, 12x digital zoom,
near-IR filter function
IR sensor
Non-cooled micro-bolometer, spectral range 8-12 micrometres, resolution
384 x288, focal distance 35 mm
STANDARD EQUIPPED
HIGH RESOLUTION DAY AND NIGHT VISION CAMERA

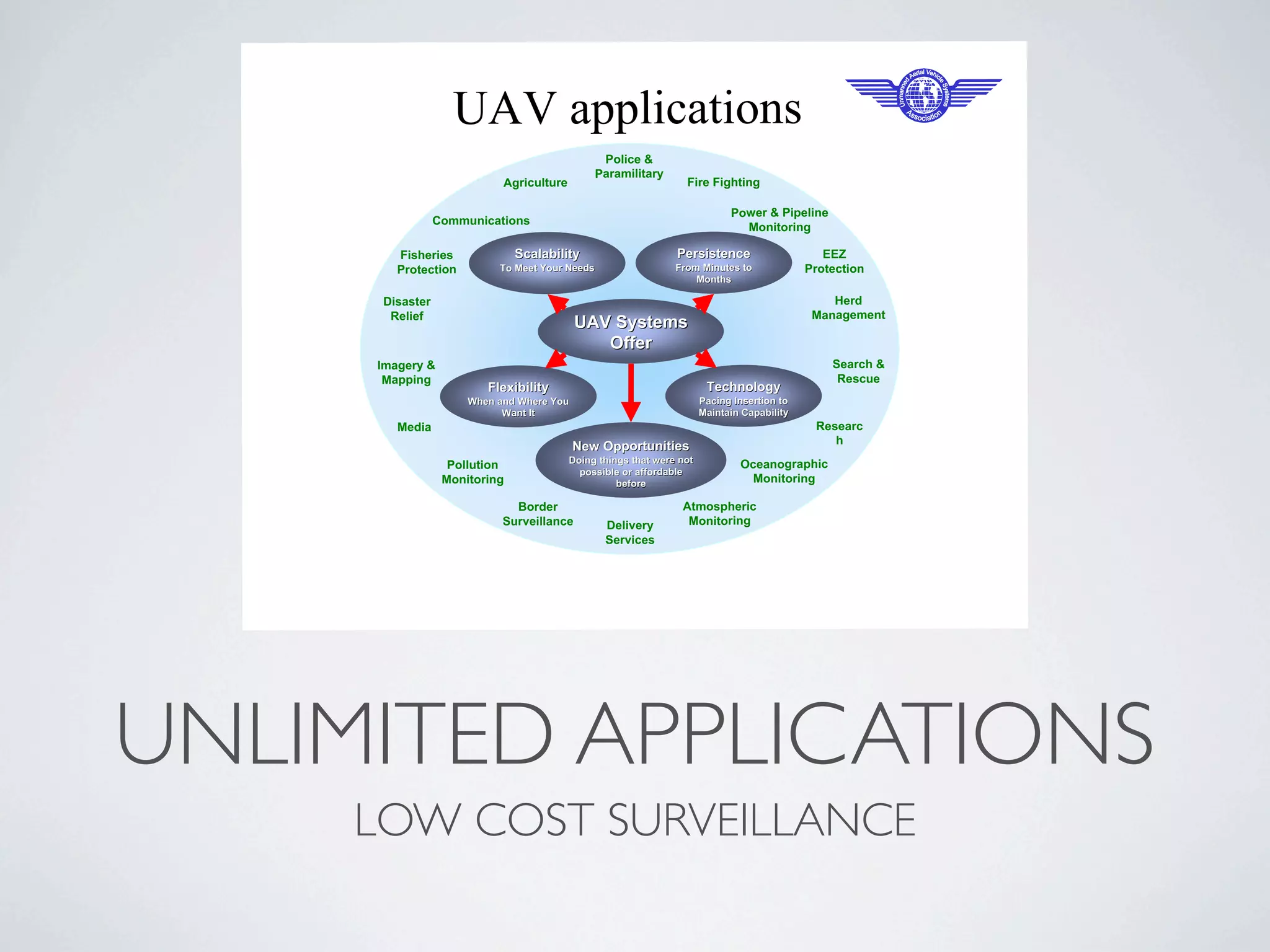

9. UAV applications
Police &
Paramilitary
Agriculture Fire Fighting
Power & Pipeline
Communications
Monitoring
Fisheries Scalability Persistence EEZ
Protection To Meet Your Needs From Minutes to Protection
Months
Disaster Herd
Relief Management
UAV Systems
Offer
Imagery & Search &
Mapping Rescue
Flexibility Technology
When and Where You Pacing Insertion to
Want It Maintain Capability
Media Researc
New Opportunities h
Doing things that were not Oceanographic
Pollution
possible or affordable
Monitoring before Monitoring
Border Atmospheric
Surveillance Delivery Monitoring
Services
UNLIMITED APPLICATIONS
LOW COST SURVEILLANCE

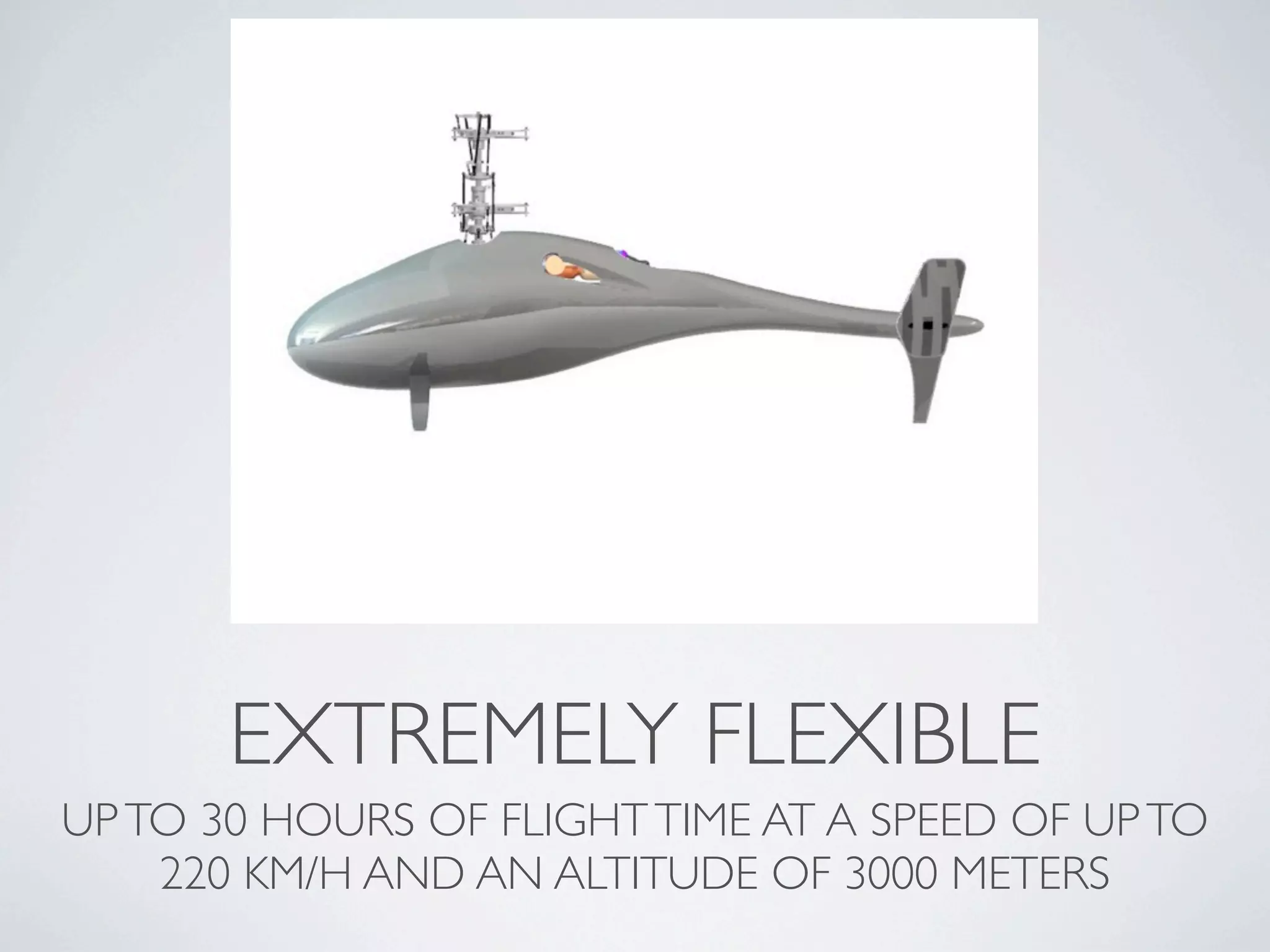

10. EXTREMELY FLEXIBLE
UP TO 30 HOURS OF FLIGHT TIME AT A SPEED OF UP TO
220 KM/H AND AN ALTITUDE OF 3000 METERS
