TYPE 180 is a rotating beacon with a 25W filament bulb that is designed for performance and price competitiveness. It is available in 4 colors and 3 voltages and offers a full range of rotating devices for low cost projects. The beacon has an IP44 rating and rotates at 160+/-30 rpm powered by a 25W filament bulb housed in a chromed metal parabolic mirror. It has a glass reinforced polycarbonate base and dome for durability.

1. ELECTRA | TYPE 180
Rotating Beacon
ROTATING BEACON WITH 25W
FILAMENT BULB. THE IDEAL CHOICE
FOR PERFORMANCE AND PRICE
TYPE 180
Performing and
Price Competitive!
MORE THAN
BRIGHT IDEAS

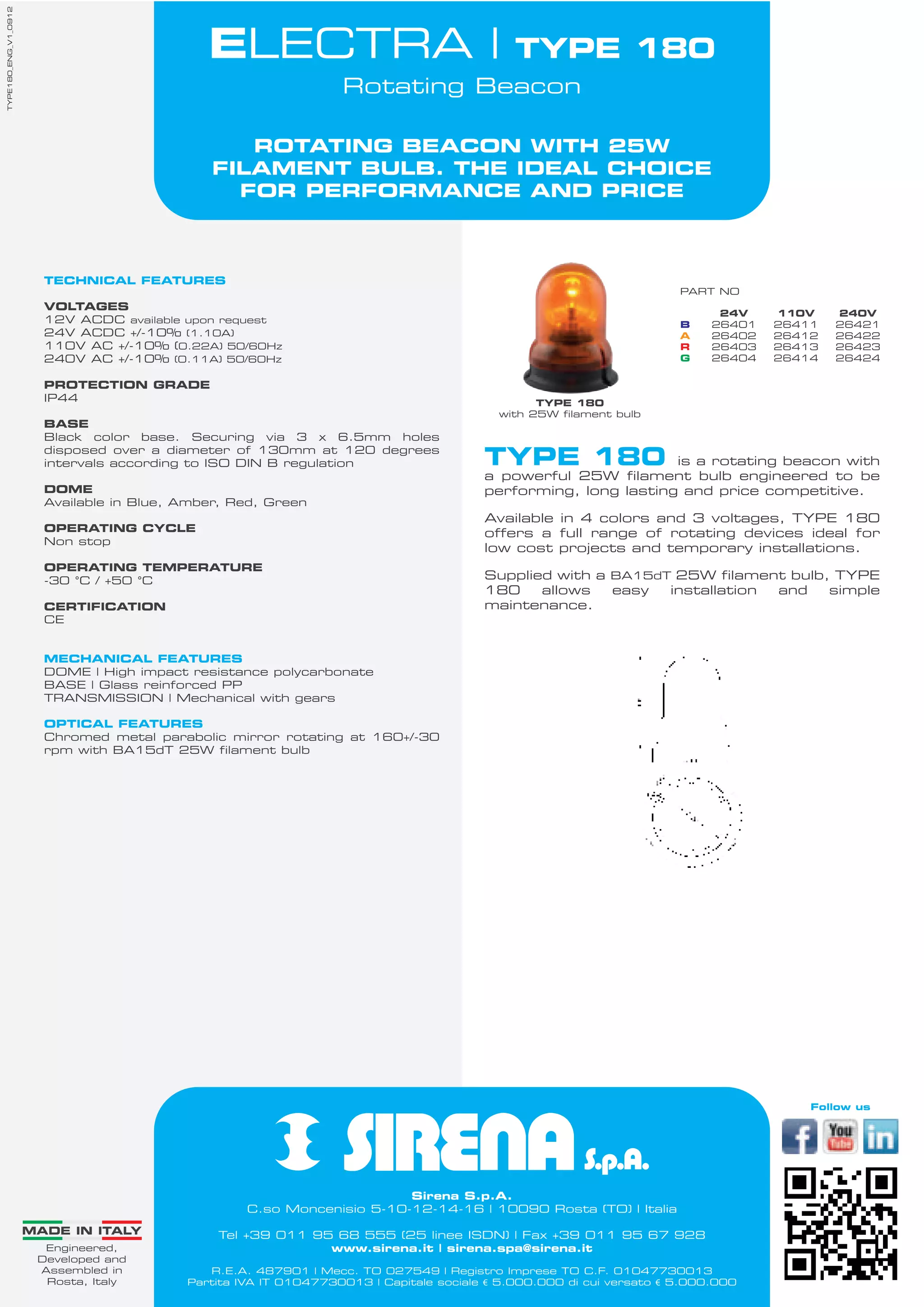

2. TYPE180_ENG_V1_0912
ELECTRA | TYPE 180
Rotating Beacon
ROTATING BEACON WITH 25W
FILAMENT BULB. THE IDEAL CHOICE
FOR PERFORMANCE AND PRICE
TECHNICAL FEATURES
PART NO
VOLTAGES
24V 110V 240V
12V ACDC available upon request B 26401 26411 26421
24V ACDC +/-10% (1.10A) A 26402 26412 26422
110V AC +/-10% (0.22A) 50/60Hz R 26403 26413 26423
240V AC +/-10% (0.11A) 50/60Hz G 26404 26414 26424
PROTECTION GRADE
IP44 TYPE 180
with 25W filament bulb
BASE
Black color base. Securing via 3 x 6.5mm holes
disposed over a diameter of 130mm at 120 degrees
intervals according to ISO DIN B regulation TYPE 180 is a rotating beacon with
a powerful 25W filament bulb engineered to be
DOME performing, long lasting and price competitive.
Available in Blue, Amber, Red, Green
Available in 4 colors and 3 voltages, TYPE 180
OPERATING CYCLE offers a full range of rotating devices ideal for
Non stop
low cost projects and temporary installations.
OPERATING TEMPERATURE
-30 °C / +50 °C Supplied with a BA15dT 25W filament bulb, TYPE
180 allows easy installation and simple
CERTIFICATION maintenance.
CE
MECHANICAL FEATURES
DOME | High impact resistance polycarbonate
BASE | Glass reinforced PP
TRANSMISSION | Mechanical with gears
OPTICAL FEATURES
Chromed metal parabolic mirror rotating at 160+/-30
rpm with BA15dT 25W filament bulb
