The document introduces Oracle Duality Views, which integrate JSON document advantages with relational model benefits while mitigating their limitations. It explains how these views function in Hackolade Studio, detailing their creation, nested objects, and how to forward and reverse-engineer DDL scripts. Additional resources and reading materials related to data modeling and schema design are also provided.

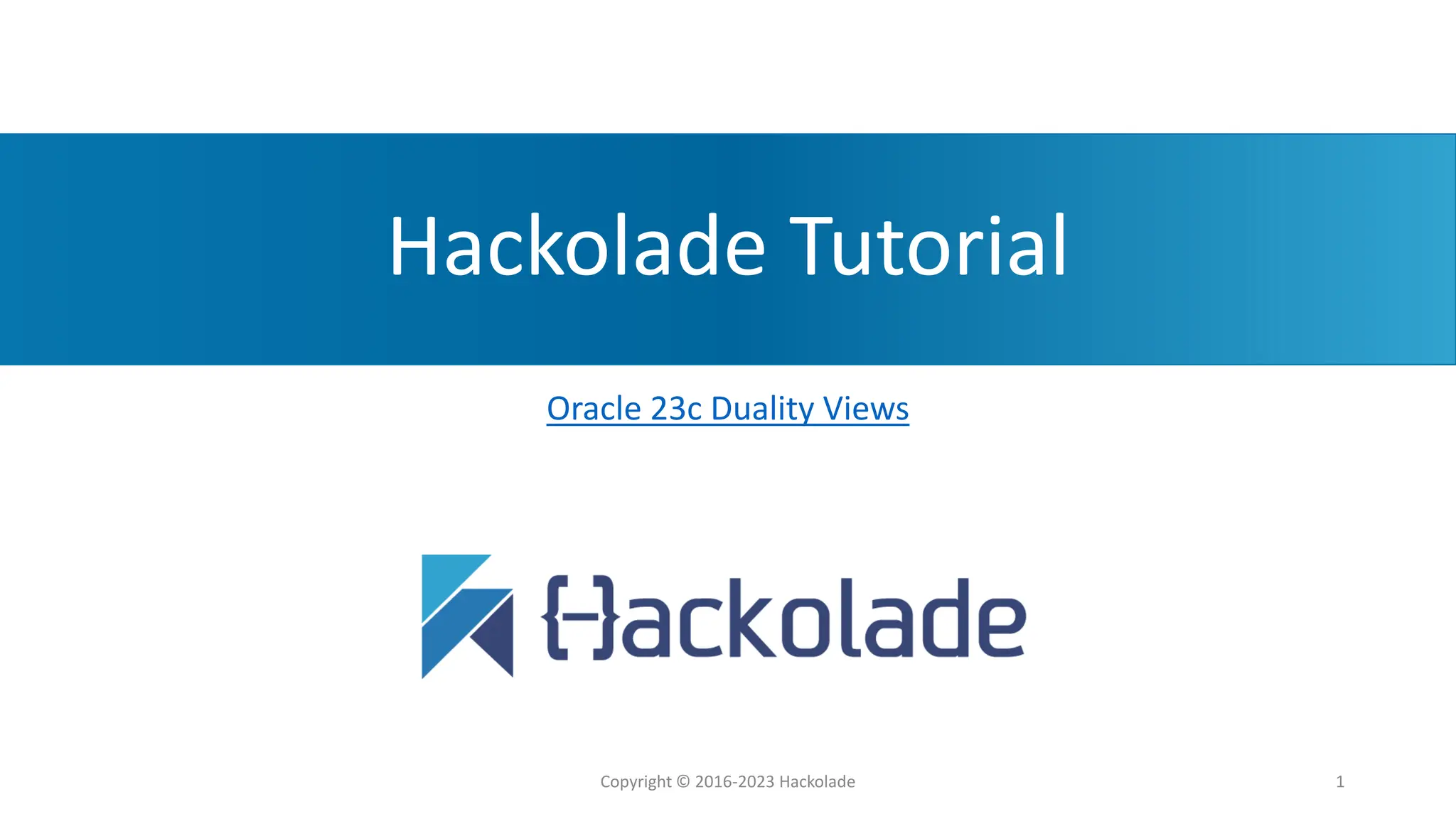

1. Hackolade Tutorial
Oracle 23c Duality Views
Copyright © 2016-2023 Hackolade 1

2. Introduction to Oracle Duality Views
Copyright © 2016-2023 Hackolade 2

3. Asking the question… is answering it!
Copyright © 2016-2023 Hackolade 3

4. Summary of that introduction
Copyright © 2016-2023 Hackolade 4

5. Duality views explained
• JSON-relational duality views combine the advantages of using JSON
documents with the advantages of the relational model, while
avoiding the limitations of each: A duality view exposes data stored
in relational tables as JSON documents
• Duality views are similar to Object-Relational Mappings, but are
different in that they centralise the persistence format of application
objects for all clients (both server-side and client-side applications).
• No need for a mapper: the duality view == the mapping
Copyright © 2016-2023 Hackolade 5

6. Duality views in Hackolade Studio
• The Hackolade Oracle plugin has been adapted to support the data
modeling of duality views, as well as the forward- and reverse-
engineering of the DDL scripts
• A duality is a “special kind of view”, with properties and columns, but
• nested objects of a special kind can be contained in the view
• the syntax of the DDL script introduces some new vocabulary and structure,
which impacts forward- and reverse-engineering
• See this example repository with a sample DDL
• Includes “data” that can be inserted into 23c database
Copyright © 2016-2023 Hackolade 6

7. • Relational tables: • Duality views:
Copyright © 2016-2023 Hackolade 7
Example based on DDL: Car racing
Note that the DDL does NOT expose
the structure of “podium”
blob / JSON document!!!

8. • Relational tables: • Duality views:
Copyright © 2016-2023 Hackolade 8
Example based on database RE: Car racing
Note that the probablistic sampling
of the database RE DOES REVEAL
the structure of “podium”
blob / JSON document!!!

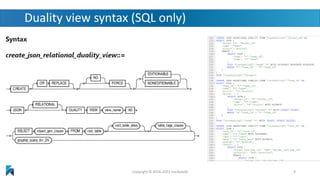

9. Duality view syntax (SQL only)
Copyright © 2016-2023 Hackolade 9

10. Creating a duality view
Copyright © 2016-2023 Hackolade 10
You must choose the root
table from the dropdown list
of tables in the
schema. You may
optionally set a root table
alias.
You may also set the Force
and Editionable flags.
You should of course give
your duality view a name. If
Naming Conventions are
enabled, you provide a
business name which gets
transformed into a technical
name according to the set
rules.

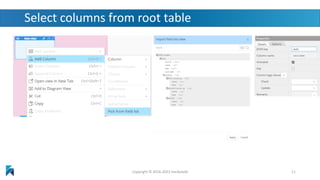

11. Select columns from root table
Copyright © 2016-2023 Hackolade 11

12. Adding a nested object or array subquery
• A duality view and its corresponding top-
level JSON object provides a hierarchy of
JSON objects and arrays, which are defined
in the view definition using nested SQL
subqueries
• Data gathered from a subquery is joined to data
gathered from a parent subquery or the root
table by a relationship between a primary or
unique key in the parent and a foreign key in
the child subquery's WHERE clause
• The cardinality of relationships dictates whether
you use an object or an array type of subquery.
• You may create multi-level nesting to represent
recursive joins
• To add a subquery, invoke the contextual
menu to append a column and choose
Subquery:
Copyright © 2016-2023 Hackolade 12

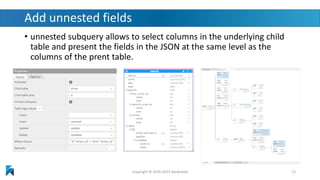

13. Add unnested fields
• unnested subquery allows to select columns in the underlying child
table and present the fields in the JSON at the same level as the
columns of the prent table.
Copyright © 2016-2023 Hackolade 13

14. Forward-engineer to DDL script
Copyright © 2016-2023 Hackolade 14
Hackolade Studio can also reverse-engineer
DDL files including duality views defines in SQL
syntax. This is particularly useful if it is not
possible to connect the application to the
Oracle database instance.
The drawback of DDL file-based reverse-
engineering however is that, in the event of
columns defined with a JSON data type or LOB
containing JSON documents, the application
will not have a chance to sample JSON in
order to infer the schema. Such information
never appears in DDLs and only Hackolade
Studio is able to infer the schema of JSON in
RDBMS.
