ALL TRW coils must show metric weight and size on coil tags and have sticker tags on the outer diameter band at the 6 and 12 o'clock positions with the coil tag bag located at the 3 or 9 o'clock position. Workers must verify the actual weight and size are in metric units on the tag and not write on tags or bags, individually tagging each coil on a skid with only one tag per bag.

1. 2
2a
ALL TRW coils are required to show METRIC
WEIGHT and METRIC SIZE on the bottom
portion of the coil tag.
REL
12.15.15
GEN.SWI.045
WF/RC/JT

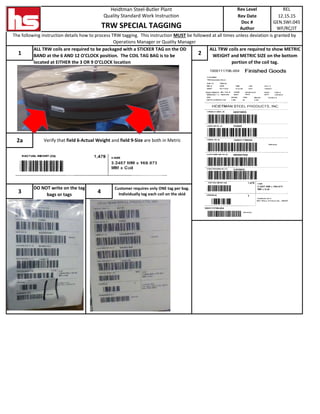

The following instruction details how to process TRW tagging. This instruction MUST be followed at all times unless deviation is granted by
Operations Manager or Quality Manager
Quality Standard Work Instruction
TRW SPECIAL TAGGING
Rev Level
Rev Date
Doc #
Author
Heidtman Steel-Butler Plant
ALL TRW coils are required to be packaged with a STICKER TAG on the OD
BAND at the 6 AND 12 O'CLOCK position. The COIL TAG BAG is to be
located at EITHER the 3 OR 9 O'CLOCK location
1
Verify that field 6-Actual Weight and field 9-Size are both in Metric
3
DO NOT write on the tag
bags or tags
4
Customer requires only ONE tag per bag.
Individually tag each coil on the skid
