26-Jan-23 Advanced Programming
Spring 2002
Programming Tools
Henning Schulzrinne
Dept. of Computer Science
Columbia University
26-Jan-23 Advanced Programming
Spring 2002
2

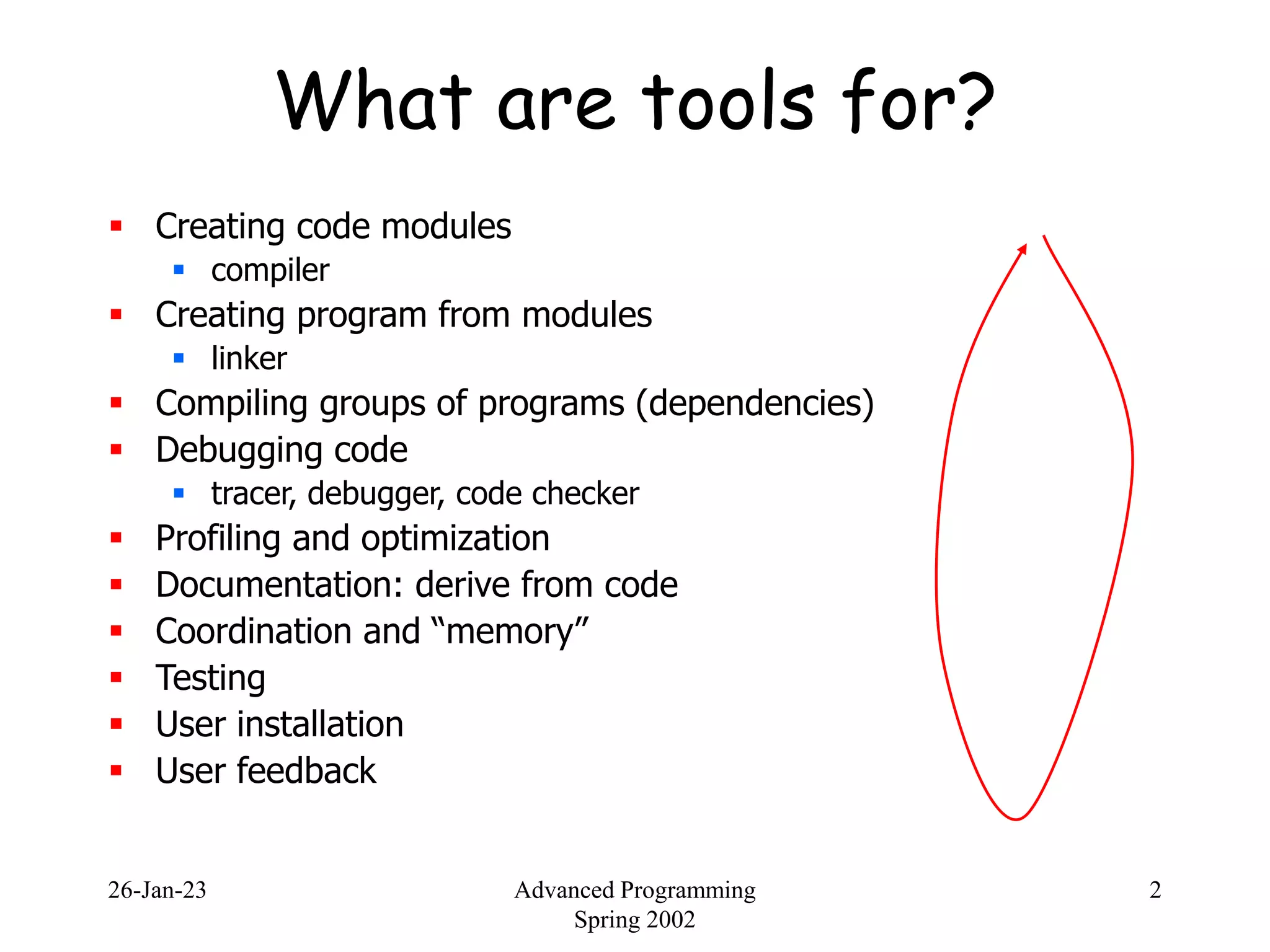

What are tools for?
 Creating code modules
 compiler
 Creating program from modules
 linker
 Compiling groups of programs (dependencies)
 Debugging code
 tracer, debugger, code checker
 Profiling and optimization
 Documentation: derive from code
 Coordination and “memory”
 Testing
 User installation
 User feedback
26-Jan-23 Advanced Programming
Spring 2002
3

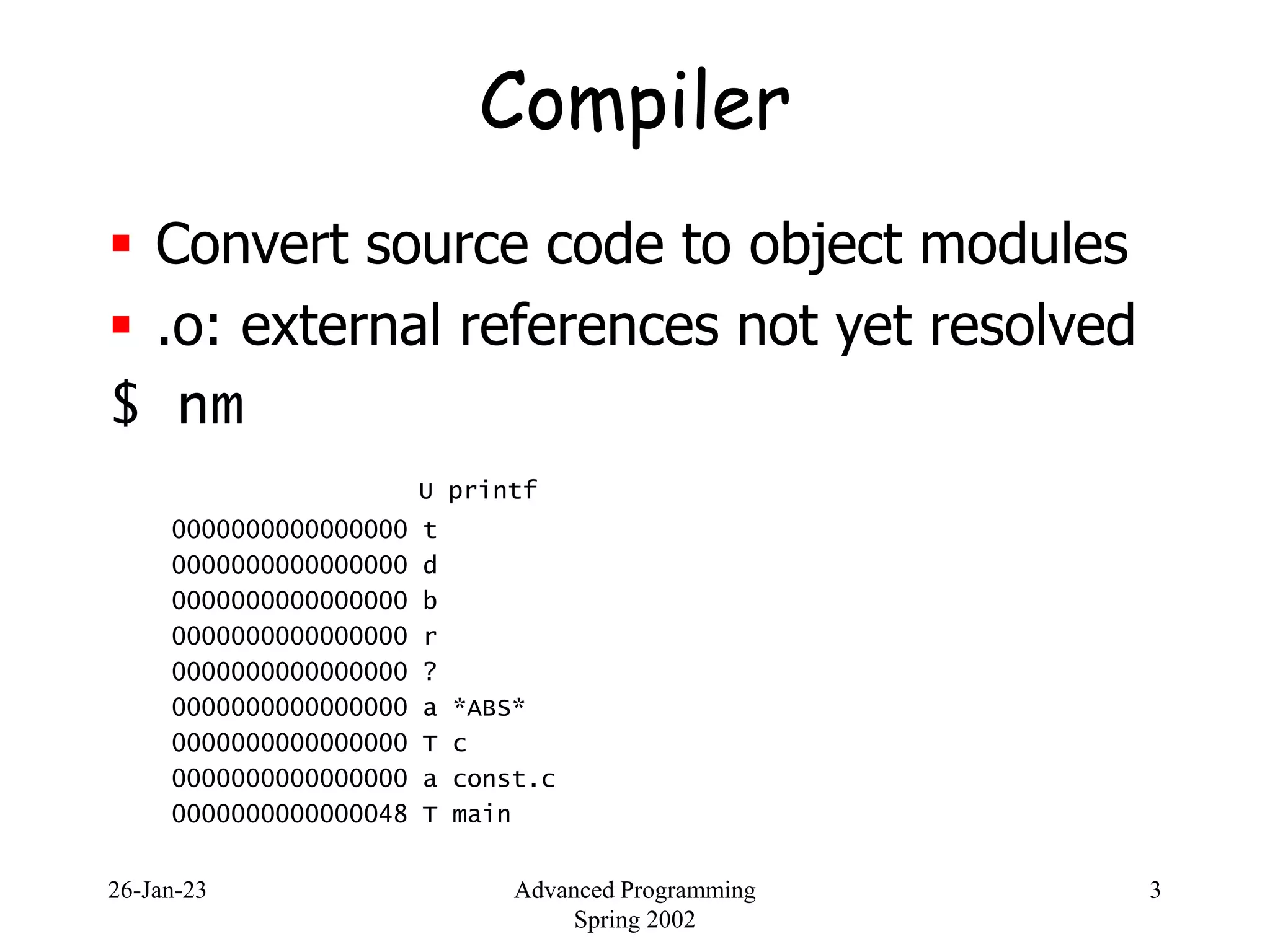

Compiler
 Convert source code to object modules
 .o: external references not yet resolved
$ nm
U printf
0000000000000000 t
0000000000000000 d
0000000000000000 b
0000000000000000 r
0000000000000000 ?
0000000000000000 a *ABS*
0000000000000000 T c
0000000000000000 a const.c
0000000000000048 T main
26-Jan-23 Advanced Programming
Spring 2002
4

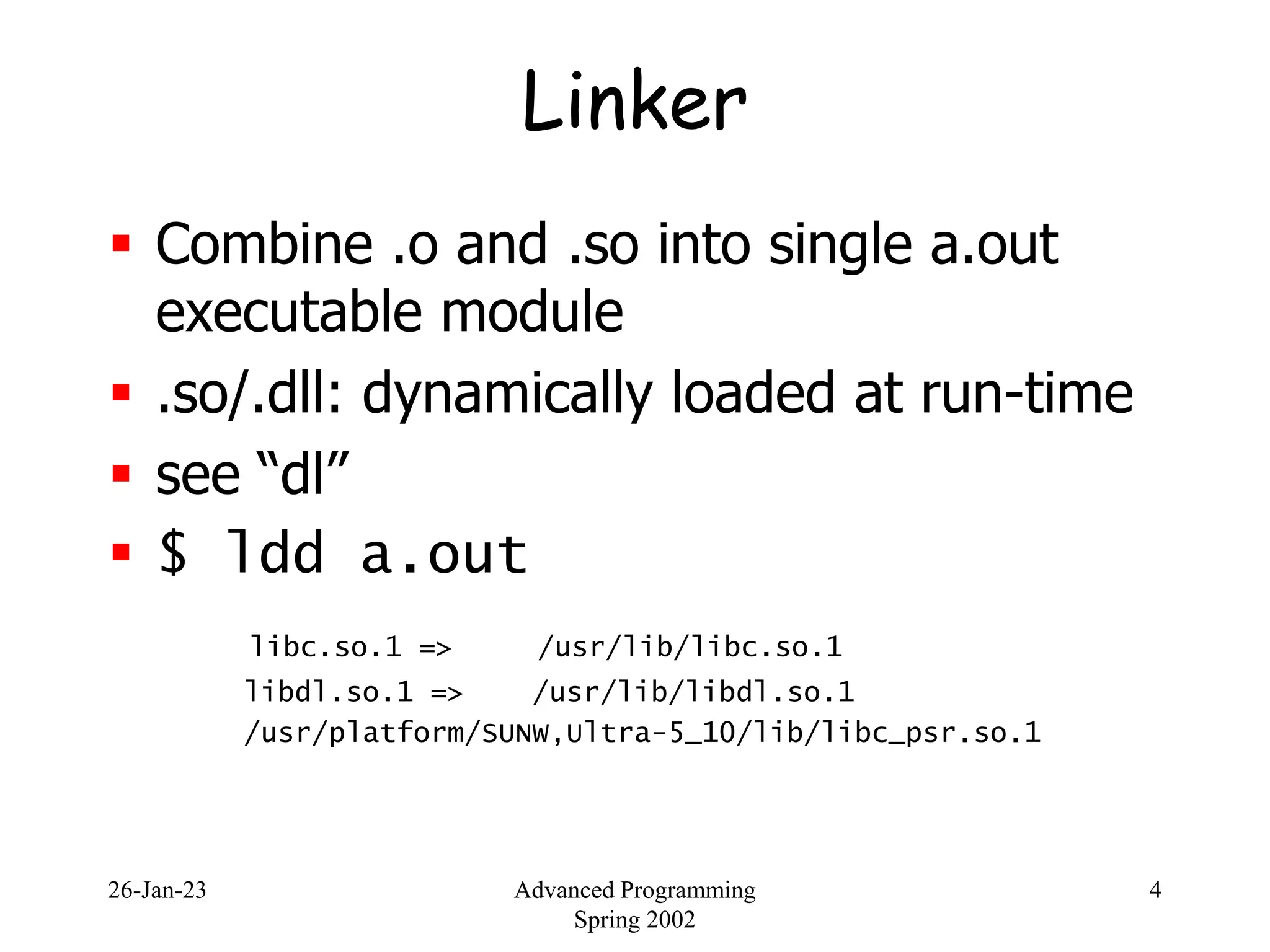

Linker
 Combine .o and .so into single a.out
executable module
 .so/.dll: dynamically loaded at run-time
 see “dl”
 $ ldd a.out
libc.so.1 => /usr/lib/libc.so.1
libdl.so.1 => /usr/lib/libdl.so.1
/usr/platform/SUNW,Ultra-5_10/lib/libc_psr.so.1
26-Jan-23 Advanced Programming
Spring 2002
5

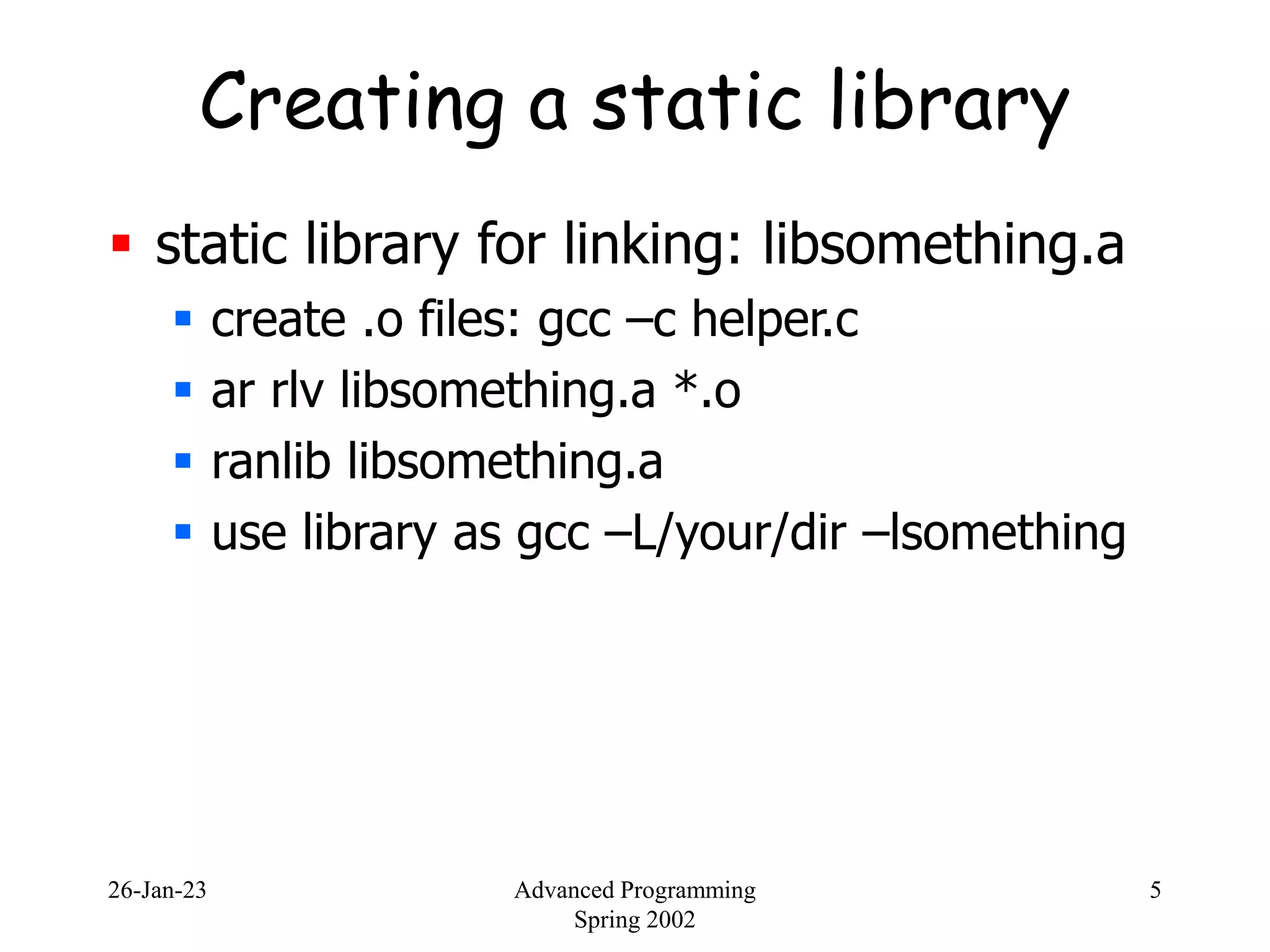

Creating a static library
 static library for linking: libsomething.a
 create .o files: gcc –c helper.c
 ar rlv libsomething.a *.o
 ranlib libsomething.a
 use library as gcc –L/your/dir –lsomething
26-Jan-23 Advanced Programming
Spring 2002
6

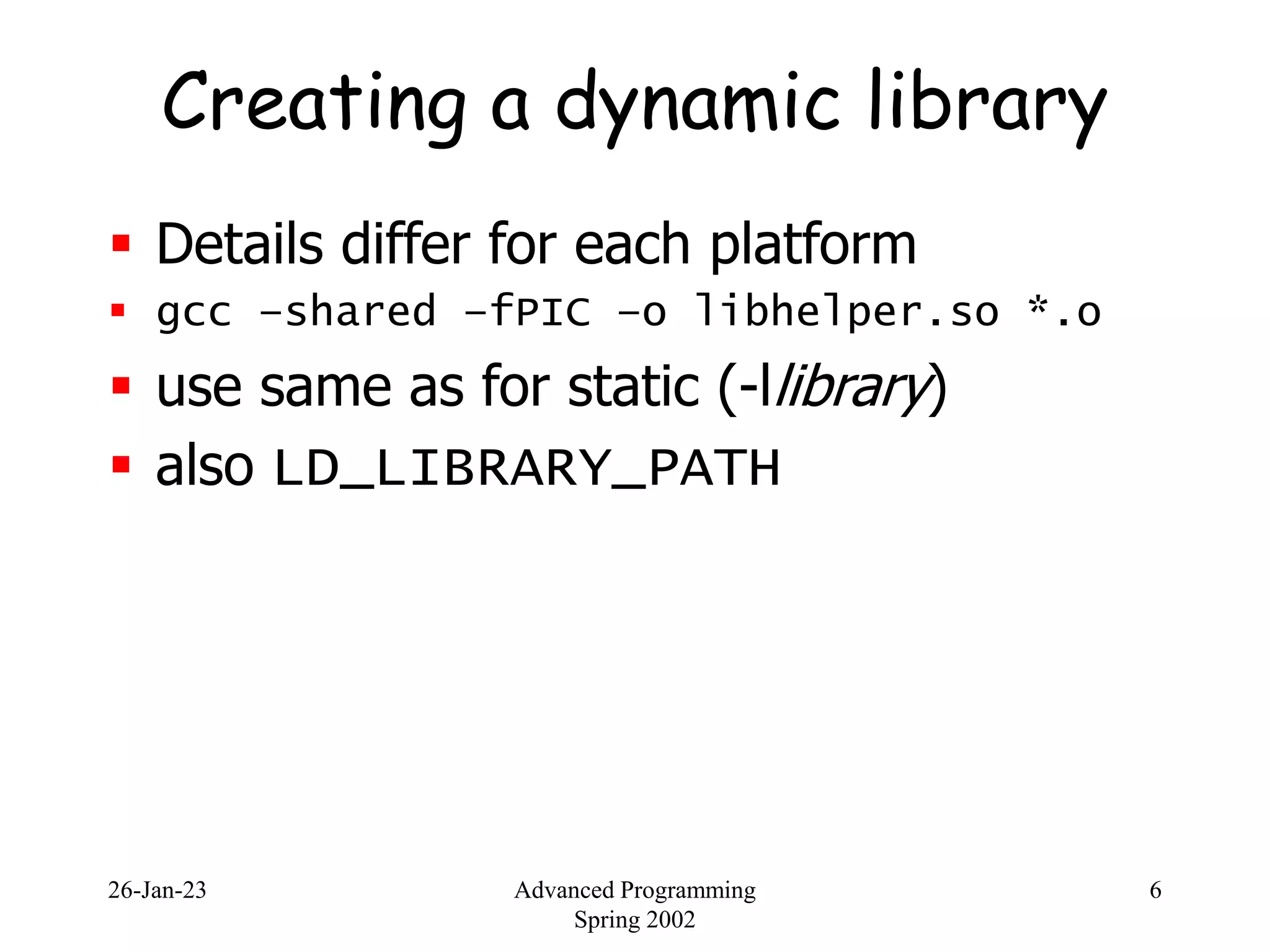

Creating a dynamic library
 Details differ for each platform
 gcc –shared –fPIC –o libhelper.so *.o
 use same as for static (-llibrary)
 also LD_LIBRARY_PATH
26-Jan-23 Advanced Programming
Spring 2002
7

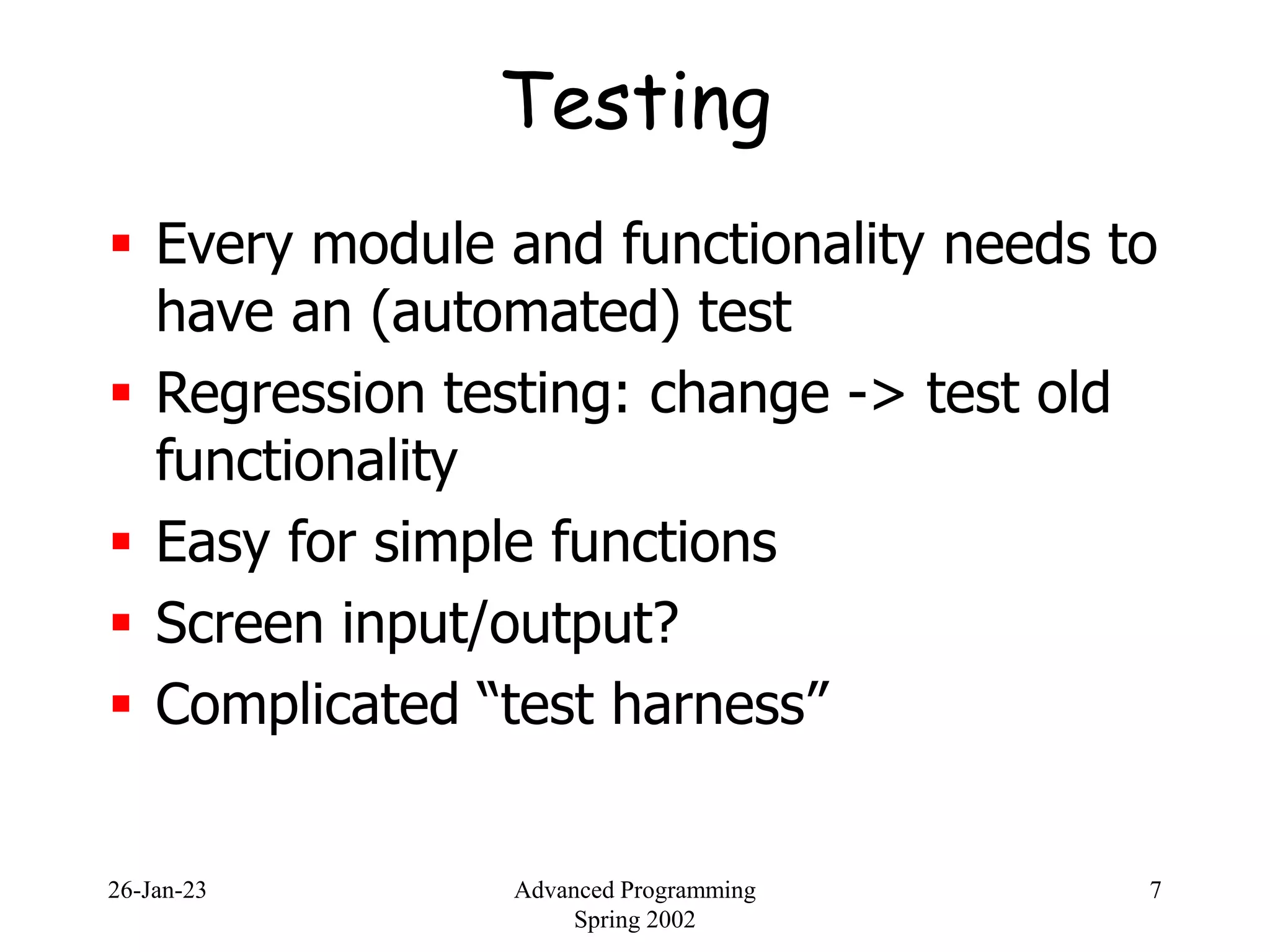

Testing
 Every module and functionality needs to
have an (automated) test
 Regression testing: change -> test old
functionality
 Easy for simple functions
 Screen input/output?
 Complicated “test harness”
26-Jan-23 Advanced Programming
Spring 2002
8

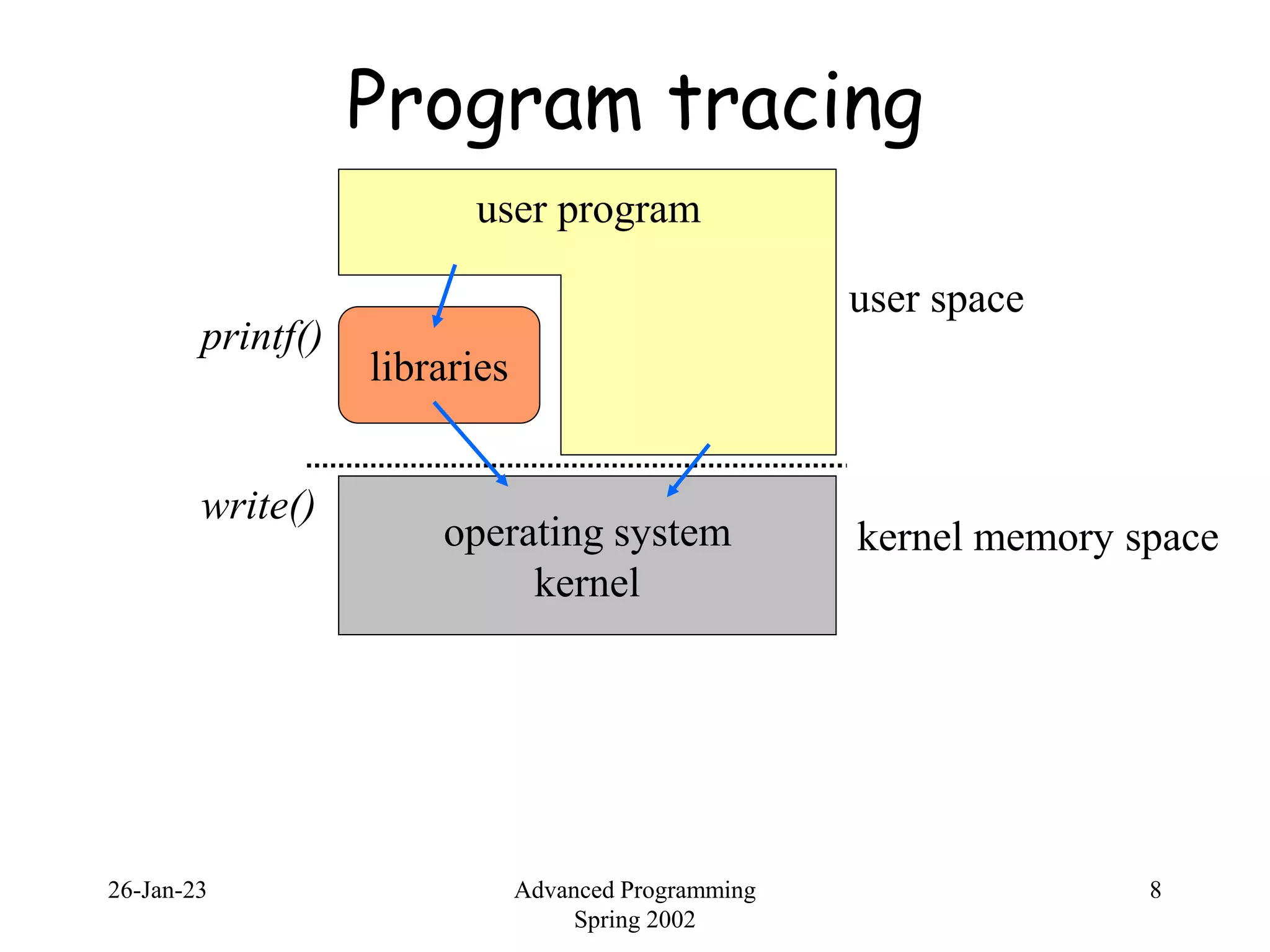

Program tracing
operating system
kernel
libraries
user program
user space
kernel memory space
printf()
write()
26-Jan-23 Advanced Programming
Spring 2002
9

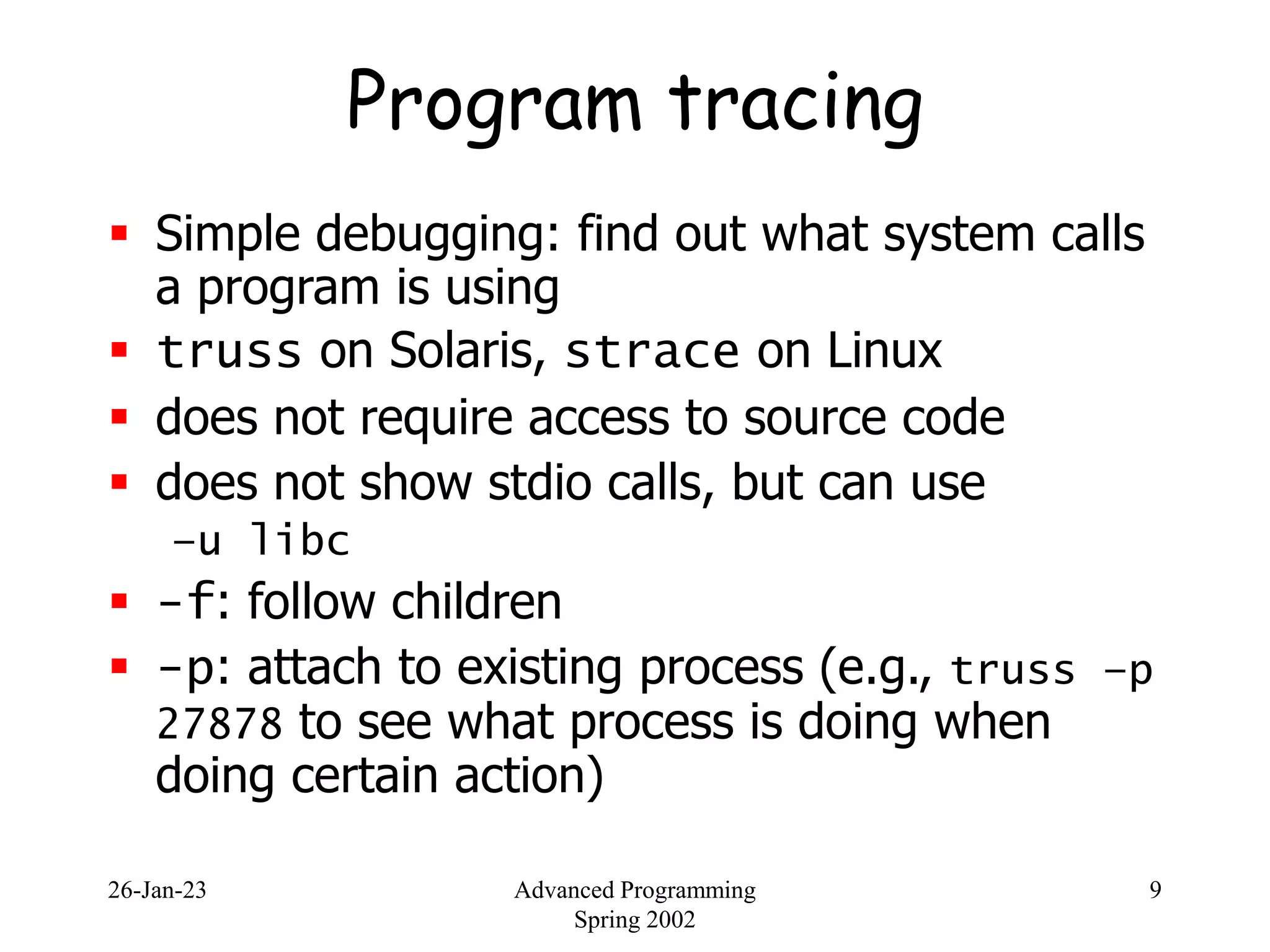

Program tracing
 Simple debugging: find out what system calls
a program is using
 truss on Solaris, strace on Linux
 does not require access to source code
 does not show stdio calls, but can use
–u libc
 -f: follow children
 -p: attach to existing process (e.g., truss –p
27878 to see what process is doing when
doing certain action)
26-Jan-23 Advanced Programming
Spring 2002
10

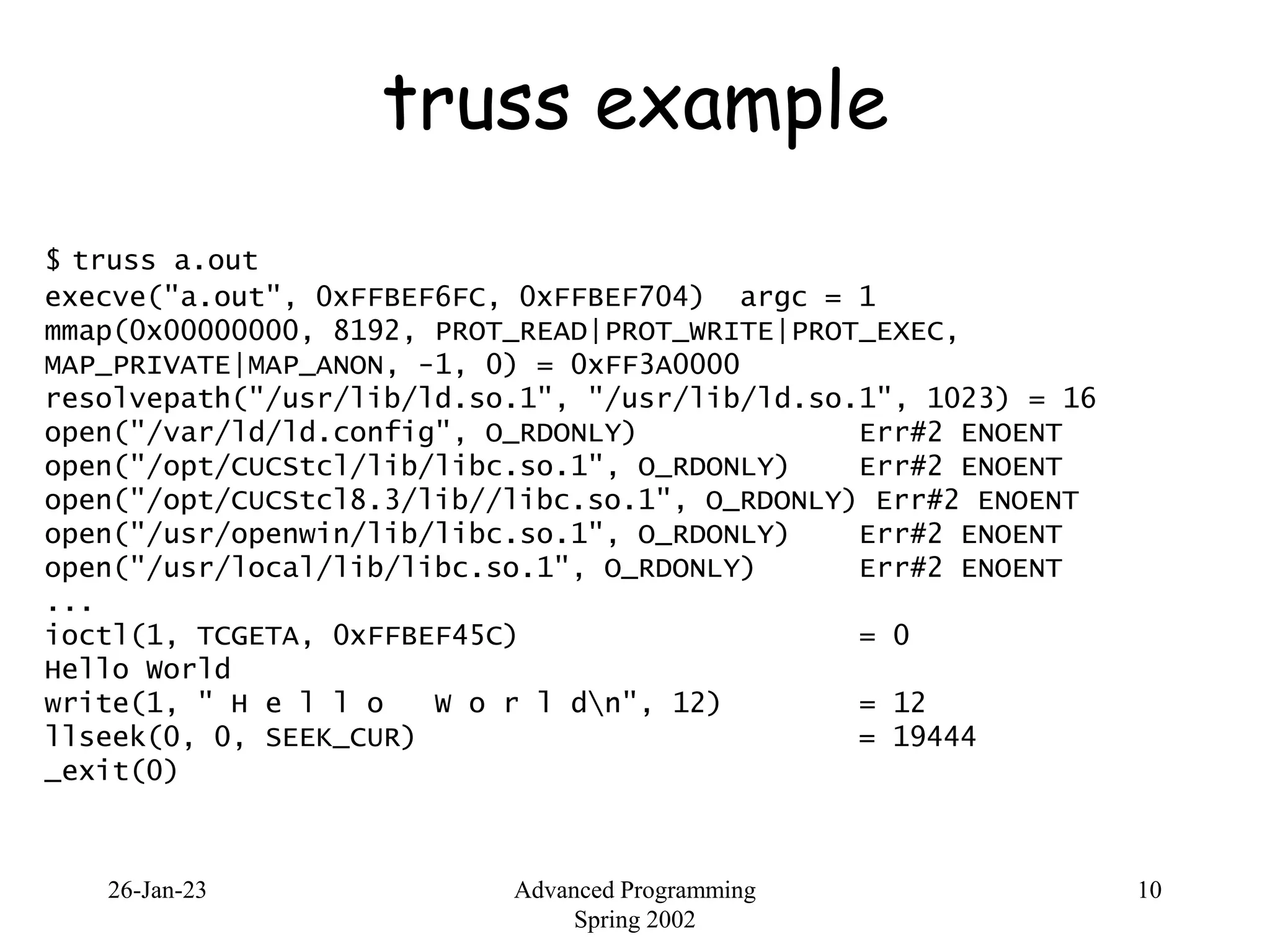

truss example
$ truss a.out
execve("a.out", 0xFFBEF6FC, 0xFFBEF704) argc = 1
mmap(0x00000000, 8192, PROT_READ|PROT_WRITE|PROT_EXEC,
MAP_PRIVATE|MAP_ANON, -1, 0) = 0xFF3A0000
resolvepath("/usr/lib/ld.so.1", "/usr/lib/ld.so.1", 1023) = 16
open("/var/ld/ld.config", O_RDONLY) Err#2 ENOENT
open("/opt/CUCStcl/lib/libc.so.1", O_RDONLY) Err#2 ENOENT
open("/opt/CUCStcl8.3/lib//libc.so.1", O_RDONLY) Err#2 ENOENT
open("/usr/openwin/lib/libc.so.1", O_RDONLY) Err#2 ENOENT
open("/usr/local/lib/libc.so.1", O_RDONLY) Err#2 ENOENT
...
ioctl(1, TCGETA, 0xFFBEF45C) = 0
Hello World
write(1, " H e l l o W o r l dn", 12) = 12
llseek(0, 0, SEEK_CUR) = 19444
_exit(0)
26-Jan-23 Advanced Programming
Spring 2002
11

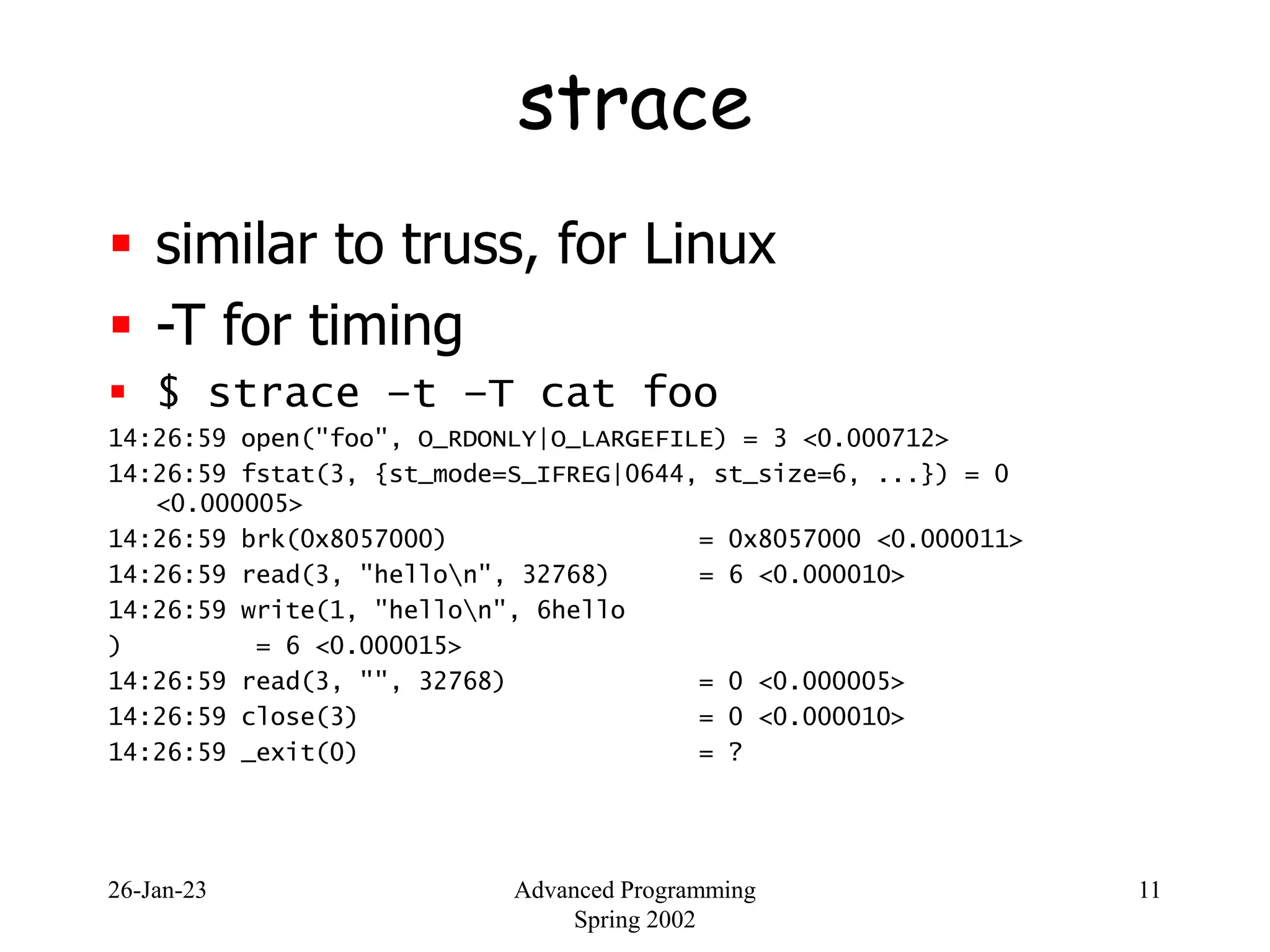

strace
 similar to truss, for Linux
 -T for timing
 $ strace –t –T cat foo
14:26:59 open("foo", O_RDONLY|O_LARGEFILE) = 3 <0.000712>
14:26:59 fstat(3, {st_mode=S_IFREG|0644, st_size=6, ...}) = 0
<0.000005>
14:26:59 brk(0x8057000) = 0x8057000 <0.000011>
14:26:59 read(3, "hellon", 32768) = 6 <0.000010>
14:26:59 write(1, "hellon", 6hello
) = 6 <0.000015>
14:26:59 read(3, "", 32768) = 0 <0.000005>
14:26:59 close(3) = 0 <0.000010>
14:26:59 _exit(0) = ?
26-Jan-23 Advanced Programming
Spring 2002
12

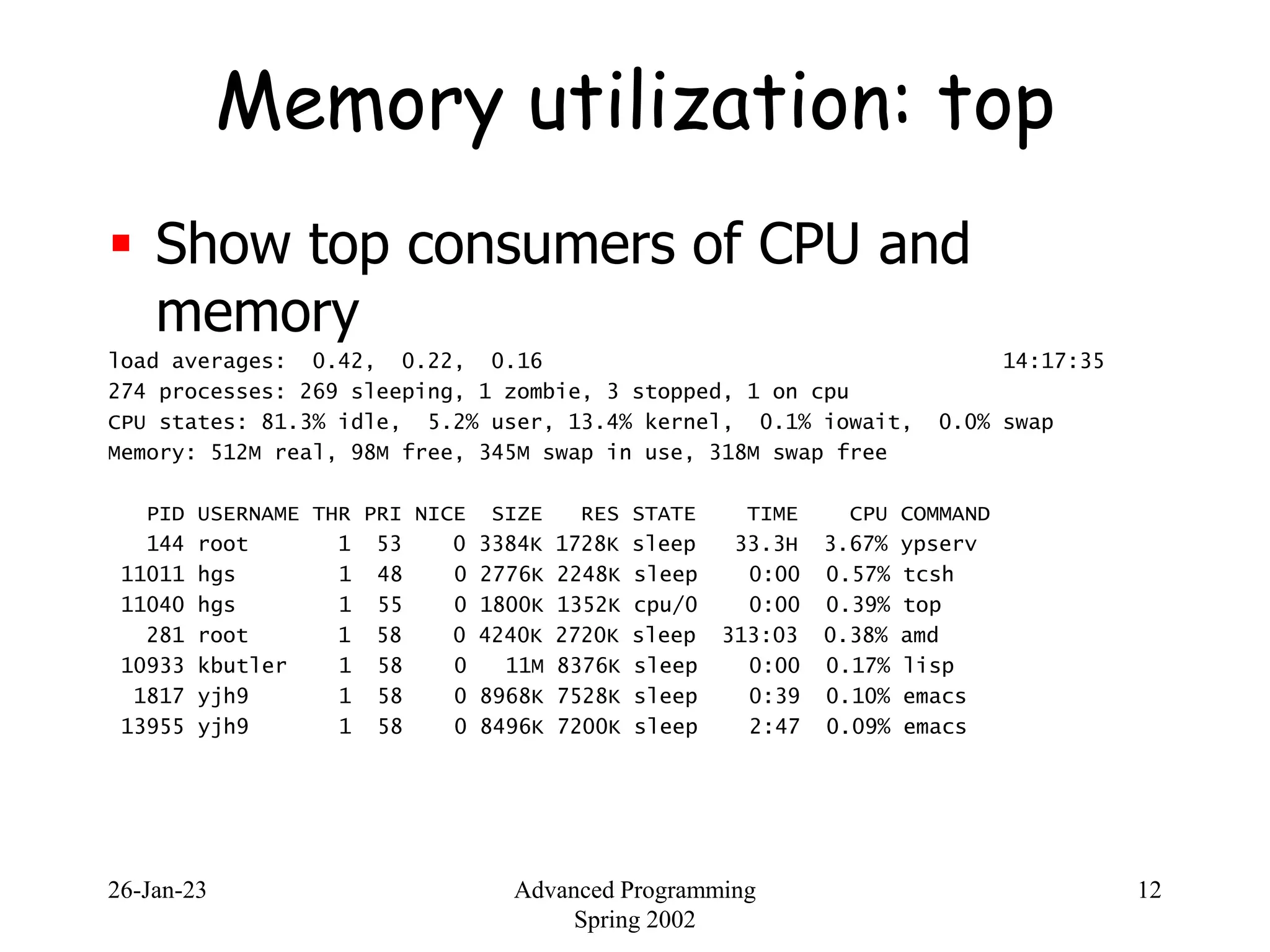

Memory utilization: top
 Show top consumers of CPU and
memory
load averages: 0.42, 0.22, 0.16 14:17:35
274 processes: 269 sleeping, 1 zombie, 3 stopped, 1 on cpu
CPU states: 81.3% idle, 5.2% user, 13.4% kernel, 0.1% iowait, 0.0% swap
Memory: 512M real, 98M free, 345M swap in use, 318M swap free
PID USERNAME THR PRI NICE SIZE RES STATE TIME CPU COMMAND
144 root 1 53 0 3384K 1728K sleep 33.3H 3.67% ypserv
11011 hgs 1 48 0 2776K 2248K sleep 0:00 0.57% tcsh
11040 hgs 1 55 0 1800K 1352K cpu/0 0:00 0.39% top
281 root 1 58 0 4240K 2720K sleep 313:03 0.38% amd
10933 kbutler 1 58 0 11M 8376K sleep 0:00 0.17% lisp
1817 yjh9 1 58 0 8968K 7528K sleep 0:39 0.10% emacs
13955 yjh9 1 58 0 8496K 7200K sleep 2:47 0.09% emacs
26-Jan-23 Advanced Programming
Spring 2002
13

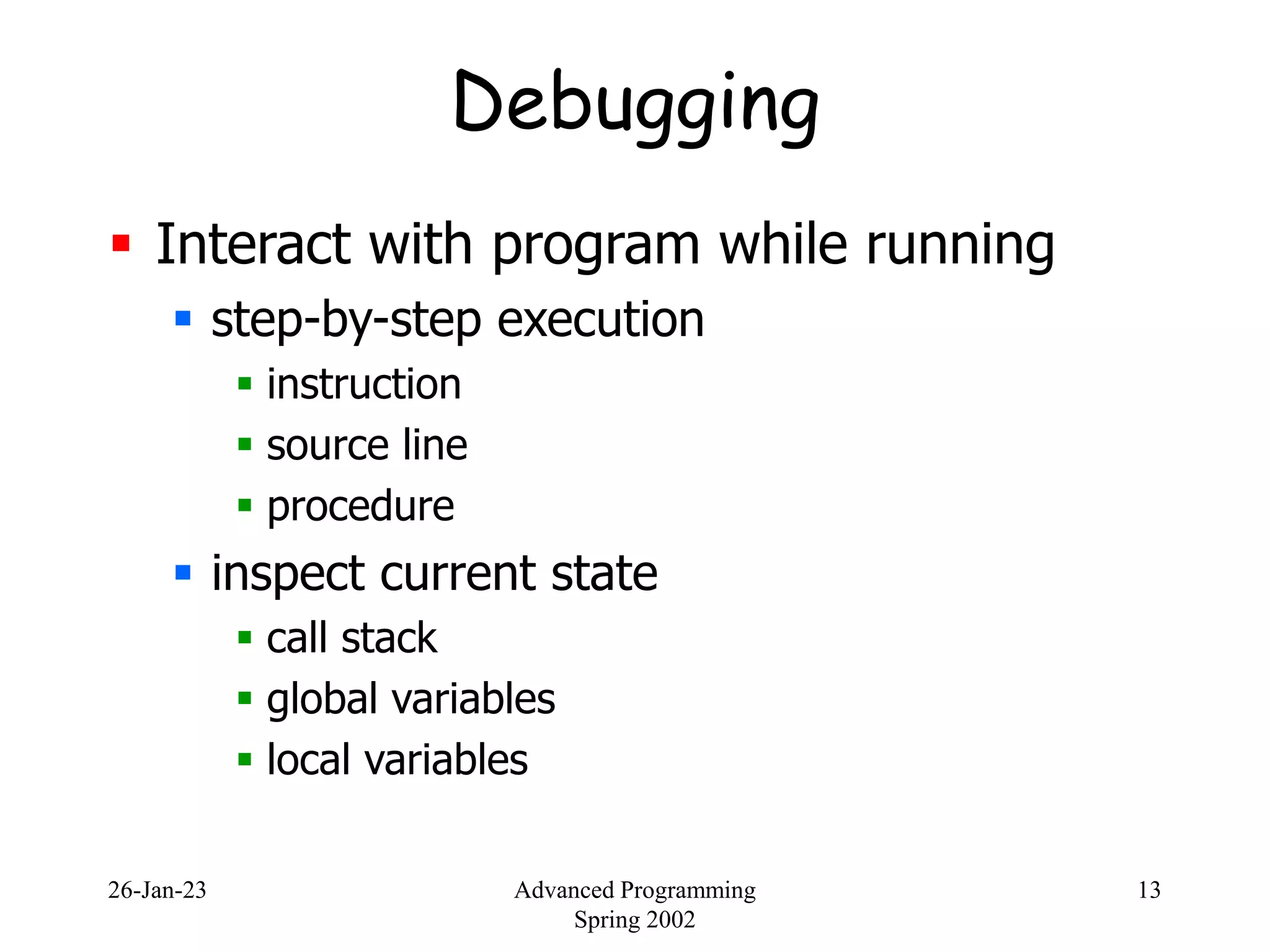

Debugging
 Interact with program while running
 step-by-step execution
 instruction
 source line
 procedure
 inspect current state
 call stack
 global variables
 local variables
26-Jan-23 Advanced Programming
Spring 2002
14

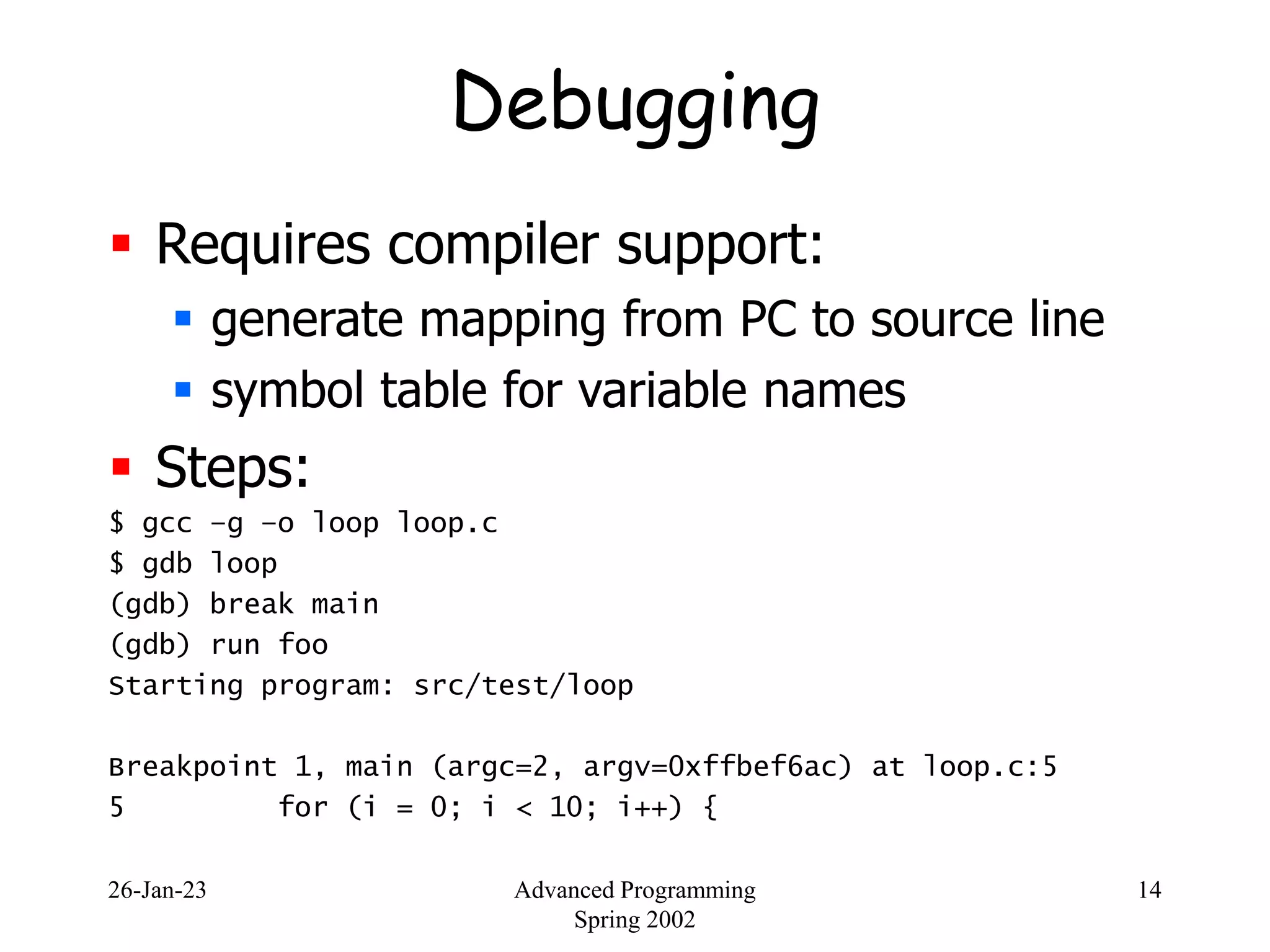

Debugging
 Requires compiler support:
 generate mapping from PC to source line
 symbol table for variable names
 Steps:
$ gcc –g –o loop loop.c
$ gdb loop
(gdb) break main
(gdb) run foo
Starting program: src/test/loop
Breakpoint 1, main (argc=2, argv=0xffbef6ac) at loop.c:5
5 for (i = 0; i < 10; i++) {
26-Jan-23 Advanced Programming
Spring 2002
15

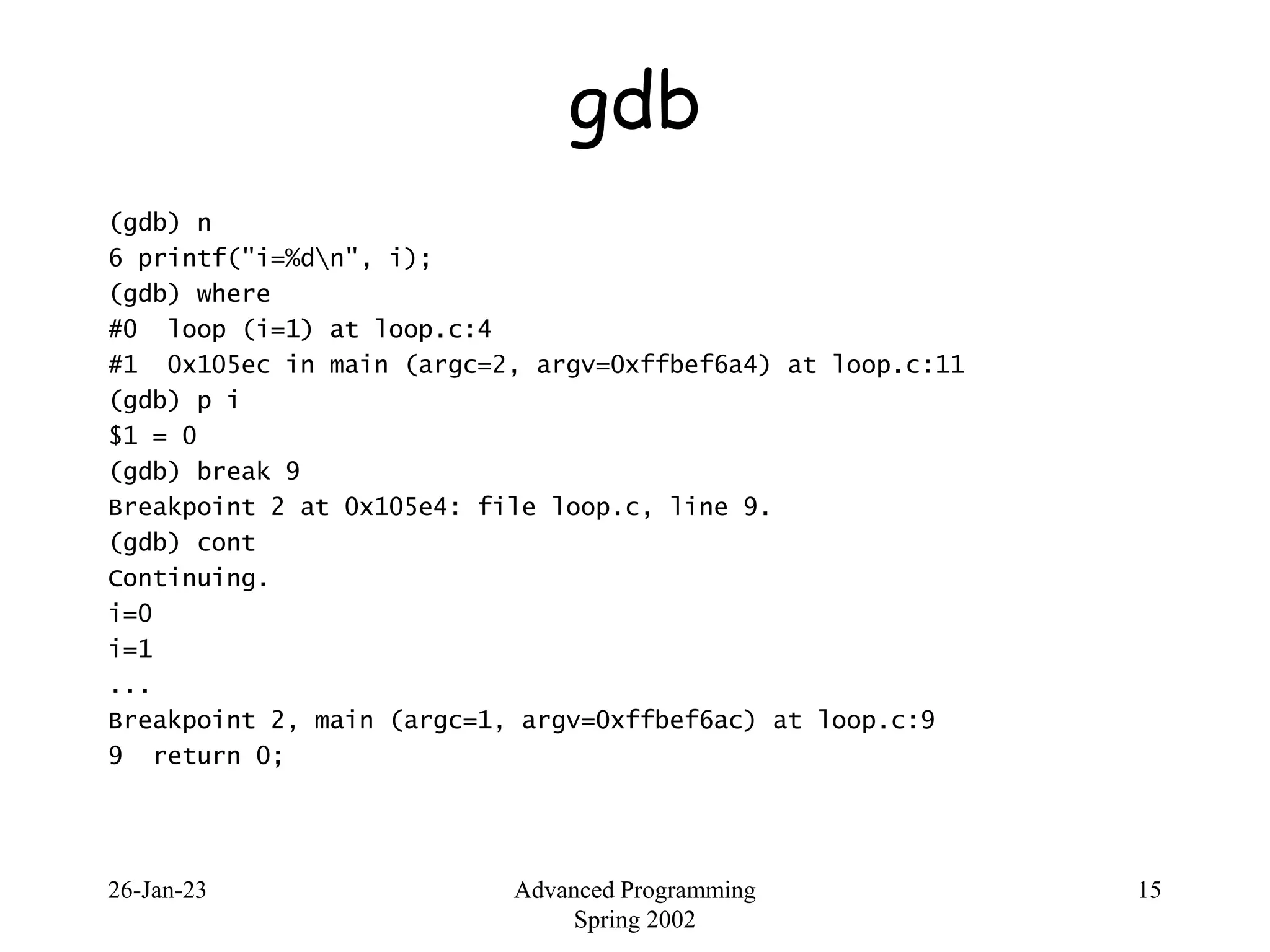

gdb
(gdb) n
6 printf("i=%dn", i);
(gdb) where
#0 loop (i=1) at loop.c:4
#1 0x105ec in main (argc=2, argv=0xffbef6a4) at loop.c:11
(gdb) p i
$1 = 0
(gdb) break 9
Breakpoint 2 at 0x105e4: file loop.c, line 9.
(gdb) cont
Continuing.
i=0
i=1
...
Breakpoint 2, main (argc=1, argv=0xffbef6ac) at loop.c:9
9 return 0;
26-Jan-23 Advanced Programming
Spring 2002
16

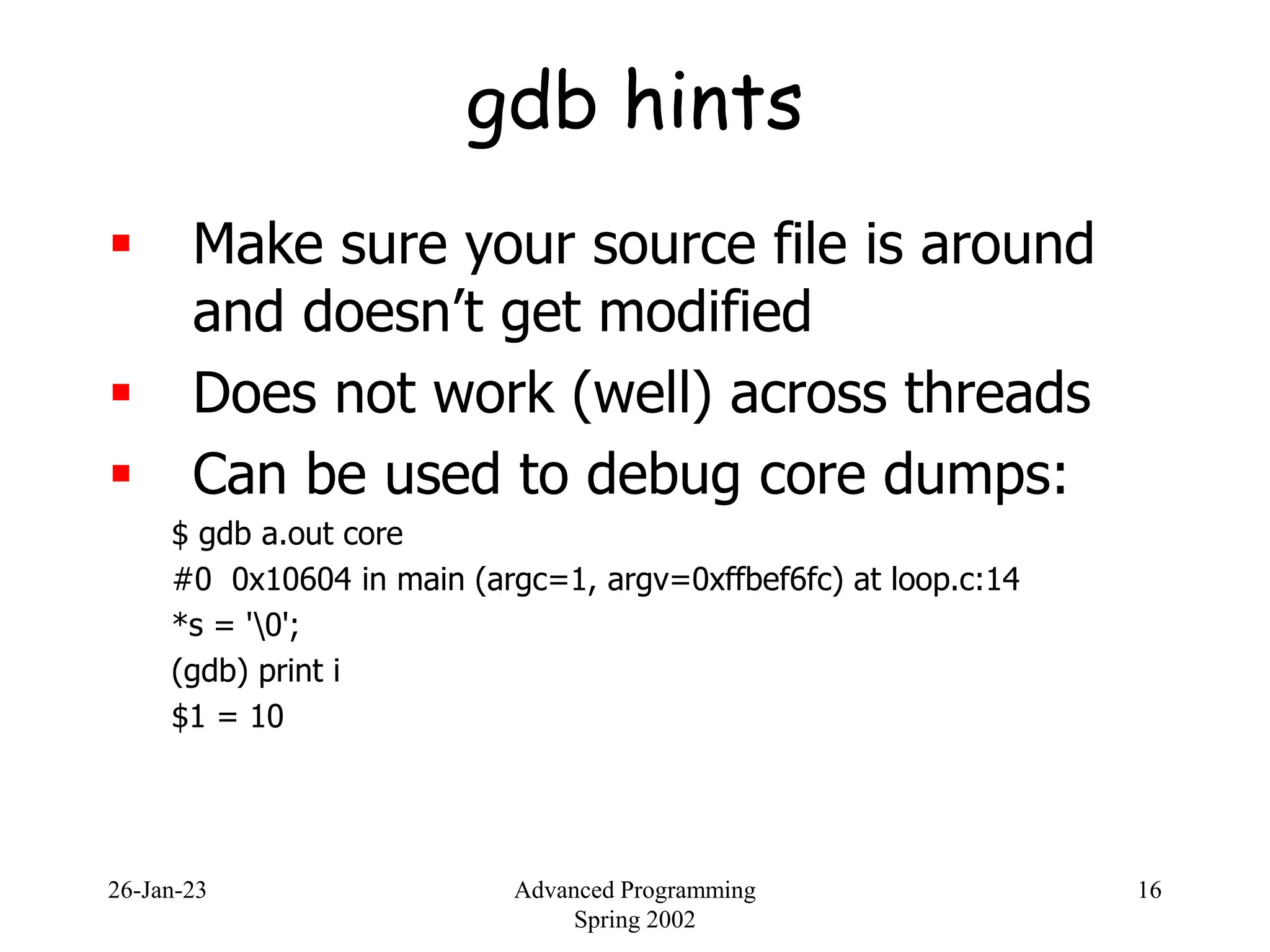

gdb hints
 Make sure your source file is around
and doesn’t get modified
 Does not work (well) across threads
 Can be used to debug core dumps:
$ gdb a.out core
#0 0x10604 in main (argc=1, argv=0xffbef6fc) at loop.c:14
*s = '0';
(gdb) print i
$1 = 10
26-Jan-23 Advanced Programming
Spring 2002
17

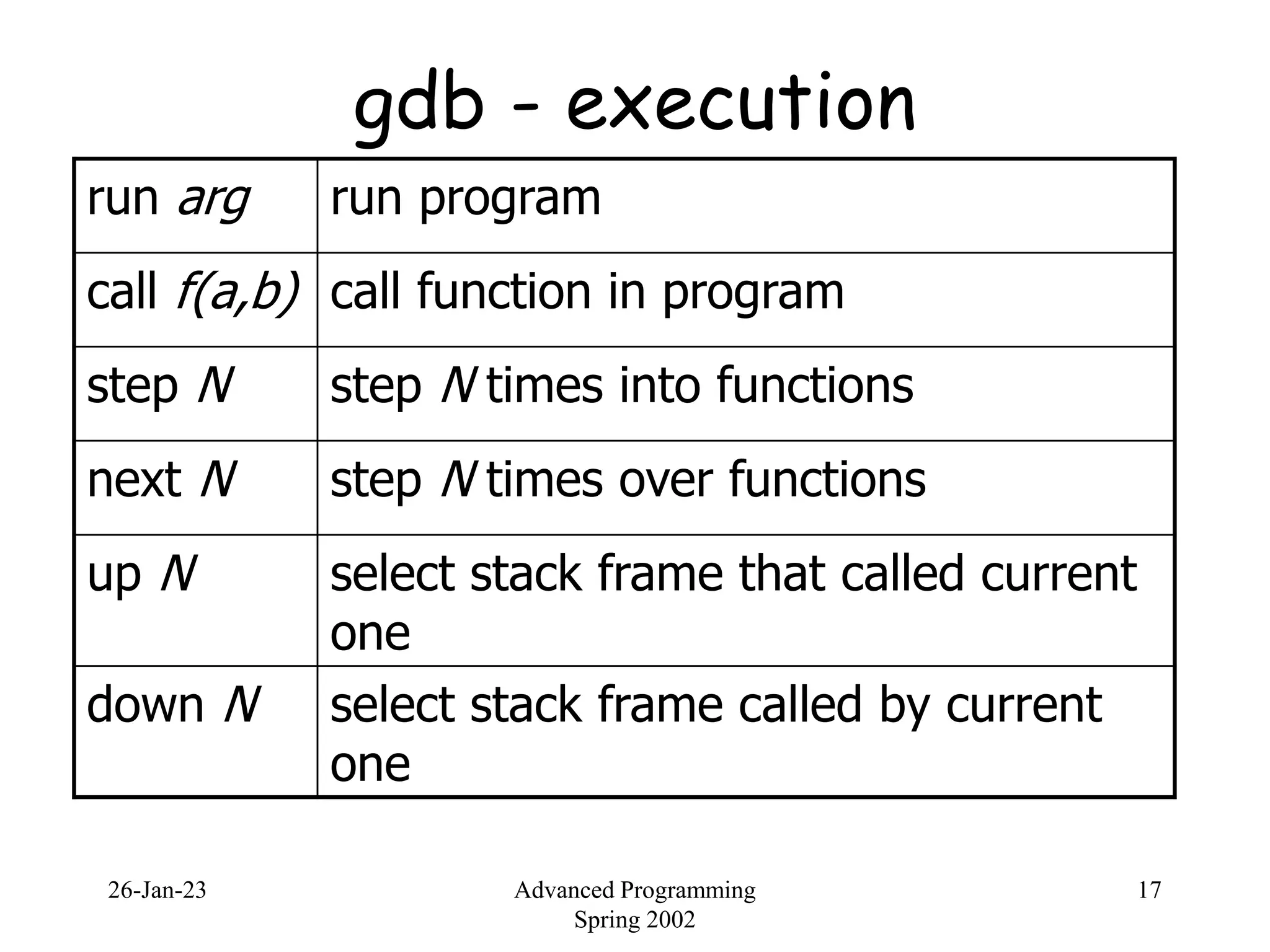

gdb - execution
run arg run program
call f(a,b) call function in program
step N step N times into functions
next N step N times over functions
up N select stack frame that called current
one
down N select stack frame called by current
one
26-Jan-23 Advanced Programming
Spring 2002
18

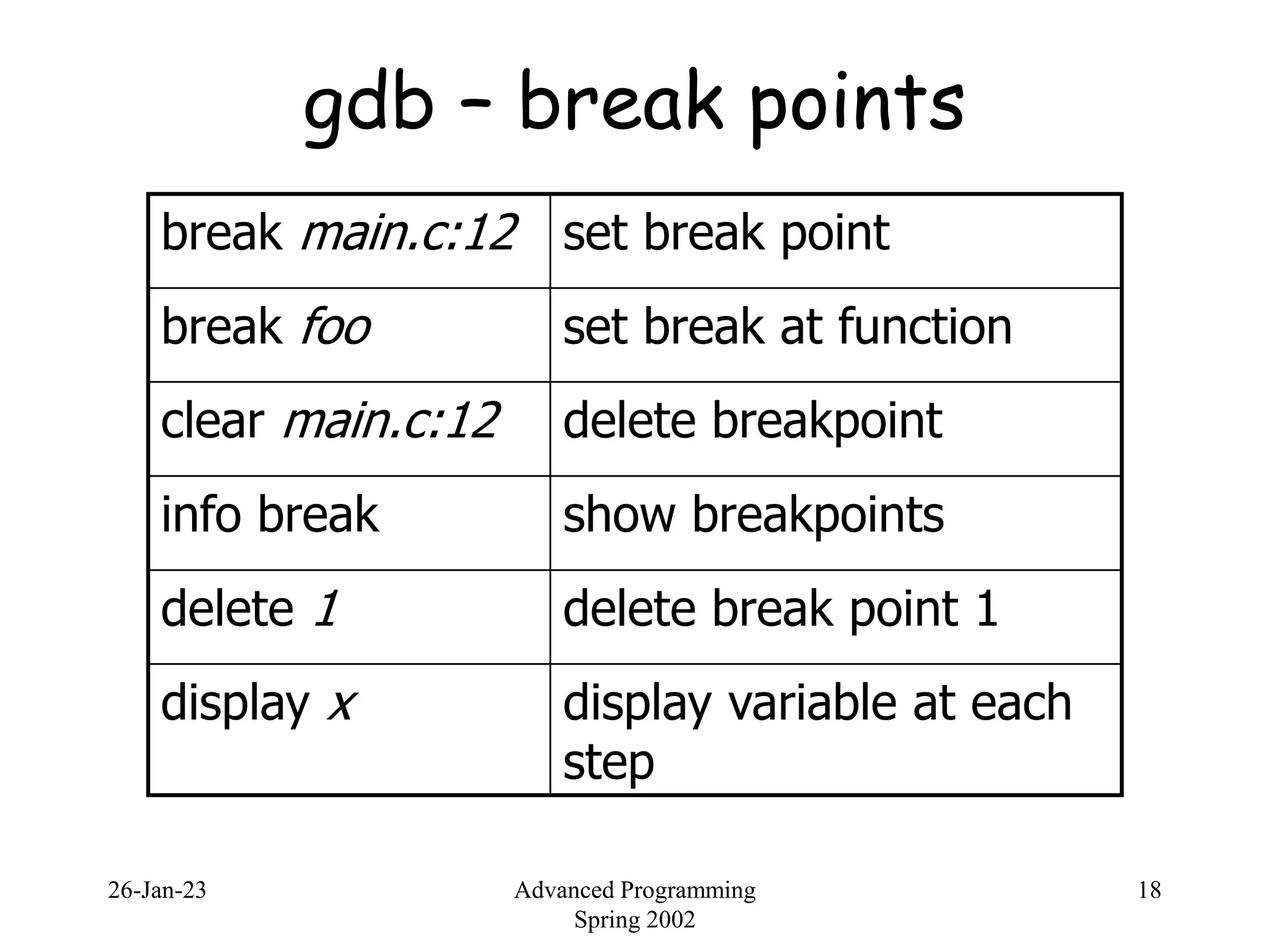

gdb – break points
break main.c:12 set break point
break foo set break at function
clear main.c:12 delete breakpoint
info break show breakpoints
delete 1 delete break point 1
display x display variable at each
step
26-Jan-23 Advanced Programming
Spring 2002
19

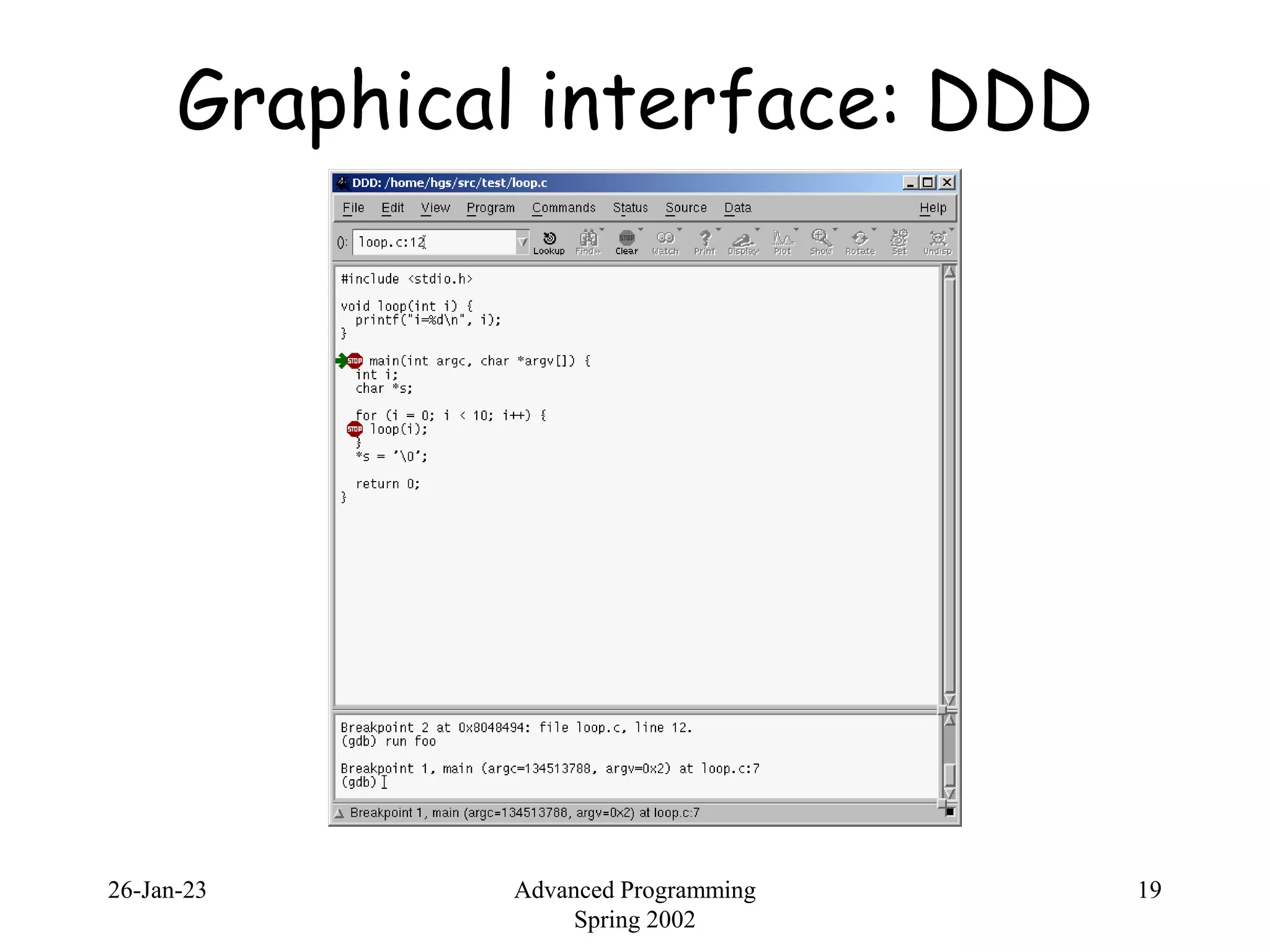

Graphical interface: DDD
26-Jan-23 Advanced Programming
Spring 2002
20

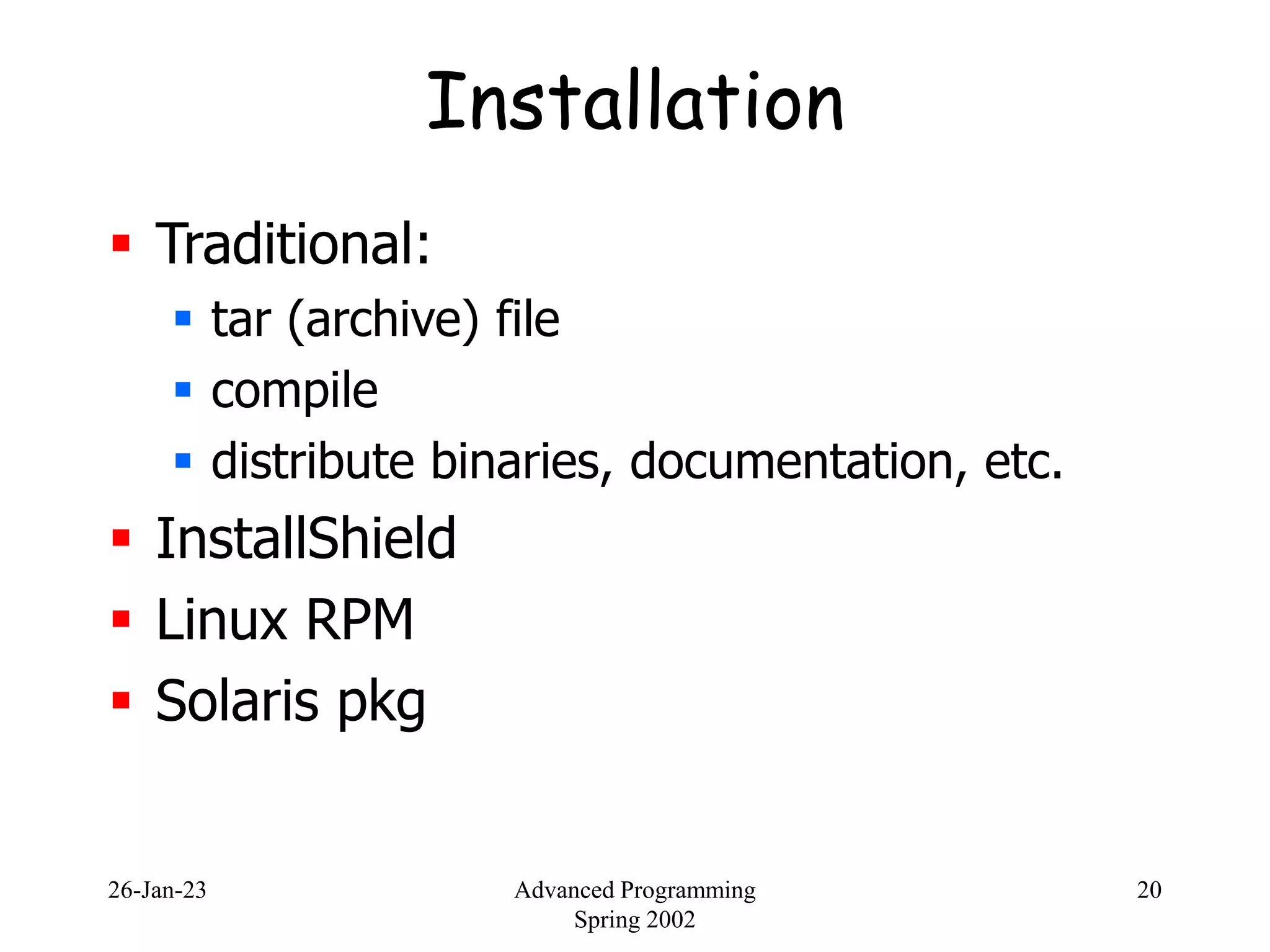

Installation
 Traditional:
 tar (archive) file
 compile
 distribute binaries, documentation, etc.
 InstallShield
 Linux RPM
 Solaris pkg
26-Jan-23 Advanced Programming
Spring 2002
21

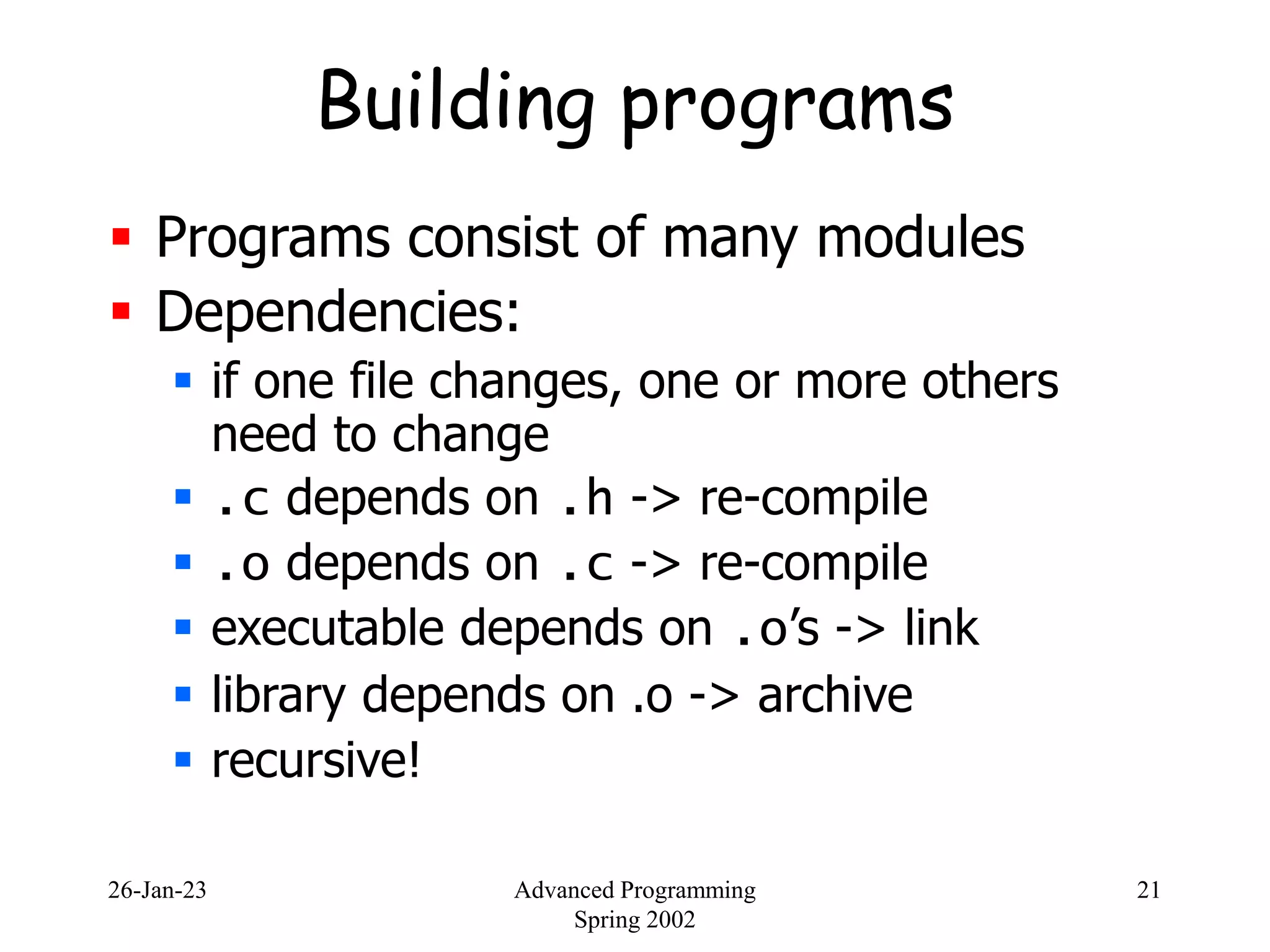

Building programs
 Programs consist of many modules
 Dependencies:
 if one file changes, one or more others
need to change
 .c depends on .h -> re-compile
 .o depends on .c -> re-compile
 executable depends on .o’s -> link
 library depends on .o -> archive
 recursive!
26-Jan-23 Advanced Programming
Spring 2002
22

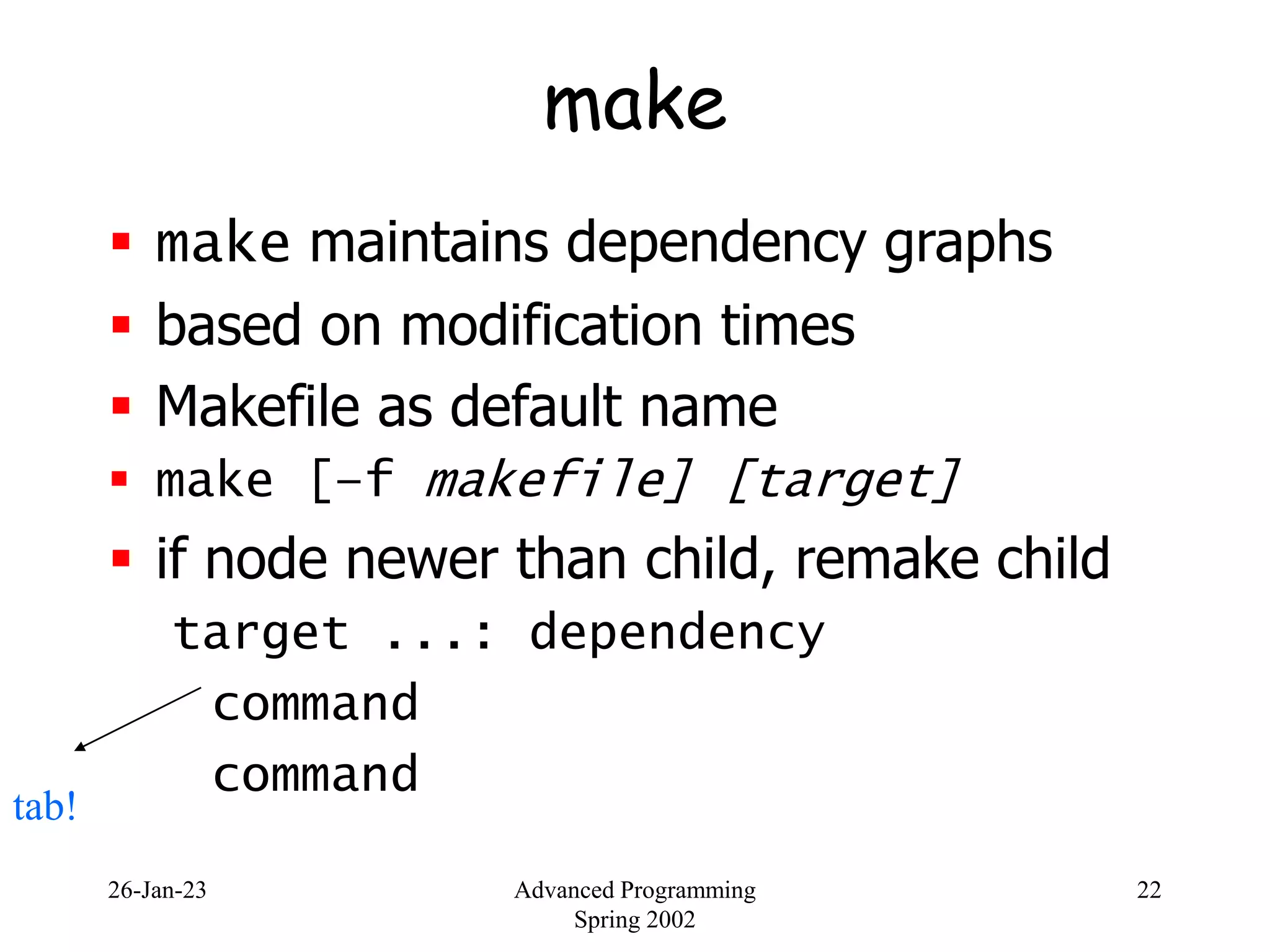

make
 make maintains dependency graphs
 based on modification times
 Makefile as default name
 make [–f makefile] [target]
 if node newer than child, remake child
target ...: dependency
command
command
tab!
26-Jan-23 Advanced Programming
Spring 2002
23

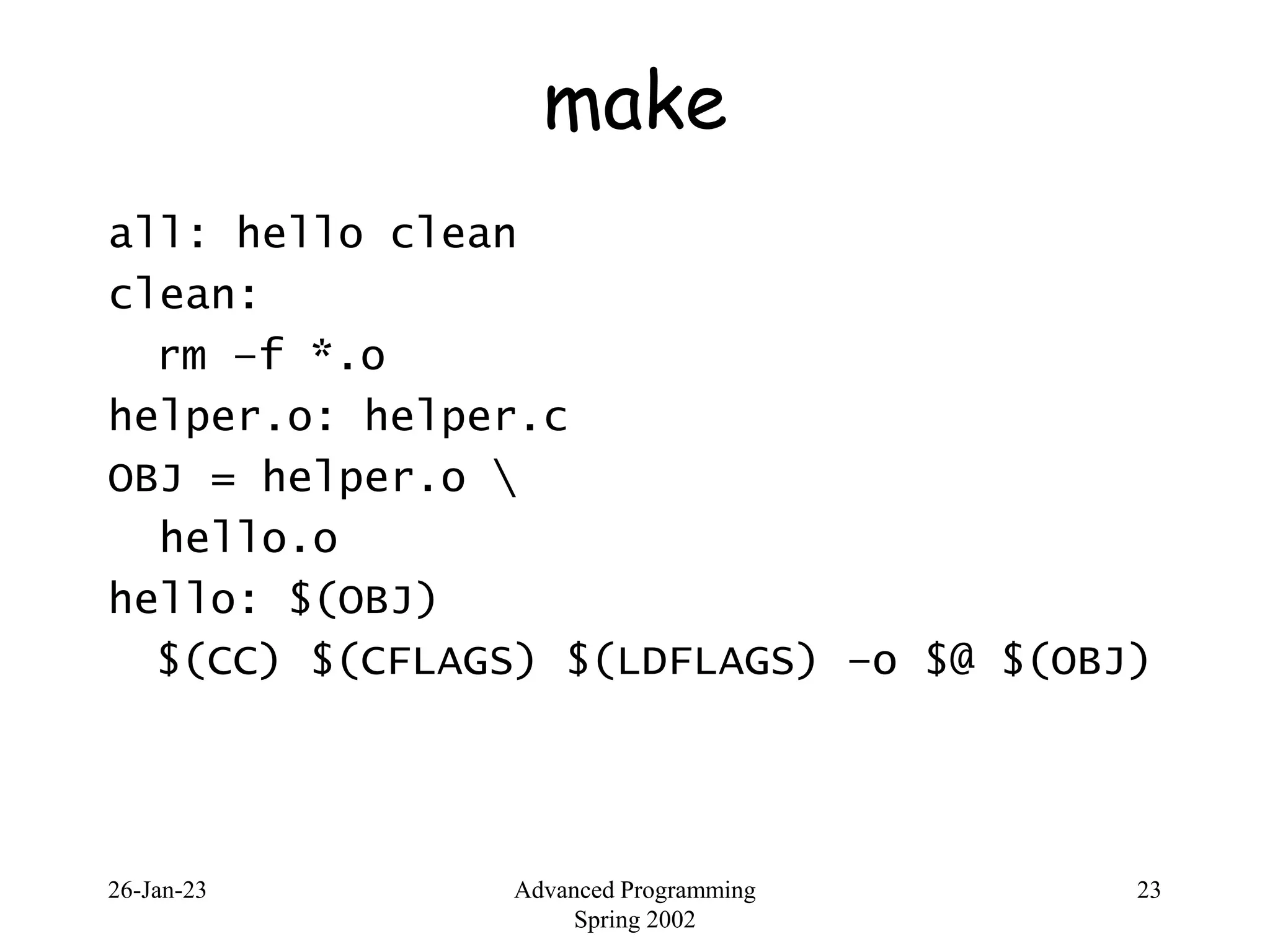

make
all: hello clean
clean:
rm –f *.o
helper.o: helper.c
OBJ = helper.o
hello.o
hello: $(OBJ)
$(CC) $(CFLAGS) $(LDFLAGS) –o $@ $(OBJ)
26-Jan-23 Advanced Programming
Spring 2002
24

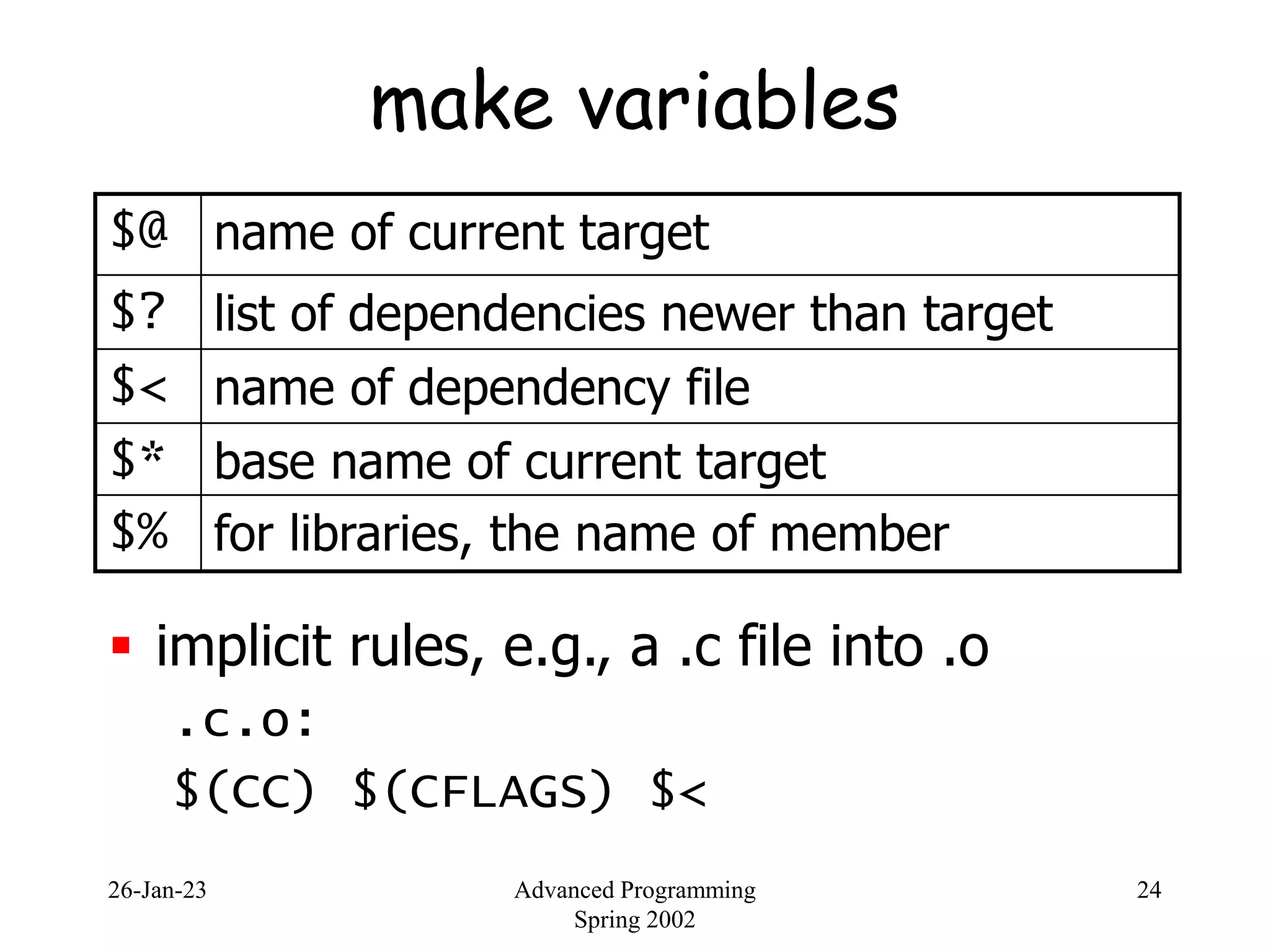

make variables
 implicit rules, e.g., a .c file into .o
.c.o:
$(CC) $(CFLAGS) $<
$@ name of current target
$? list of dependencies newer than target
$< name of dependency file
$* base name of current target
$% for libraries, the name of member
26-Jan-23 Advanced Programming
Spring 2002
25

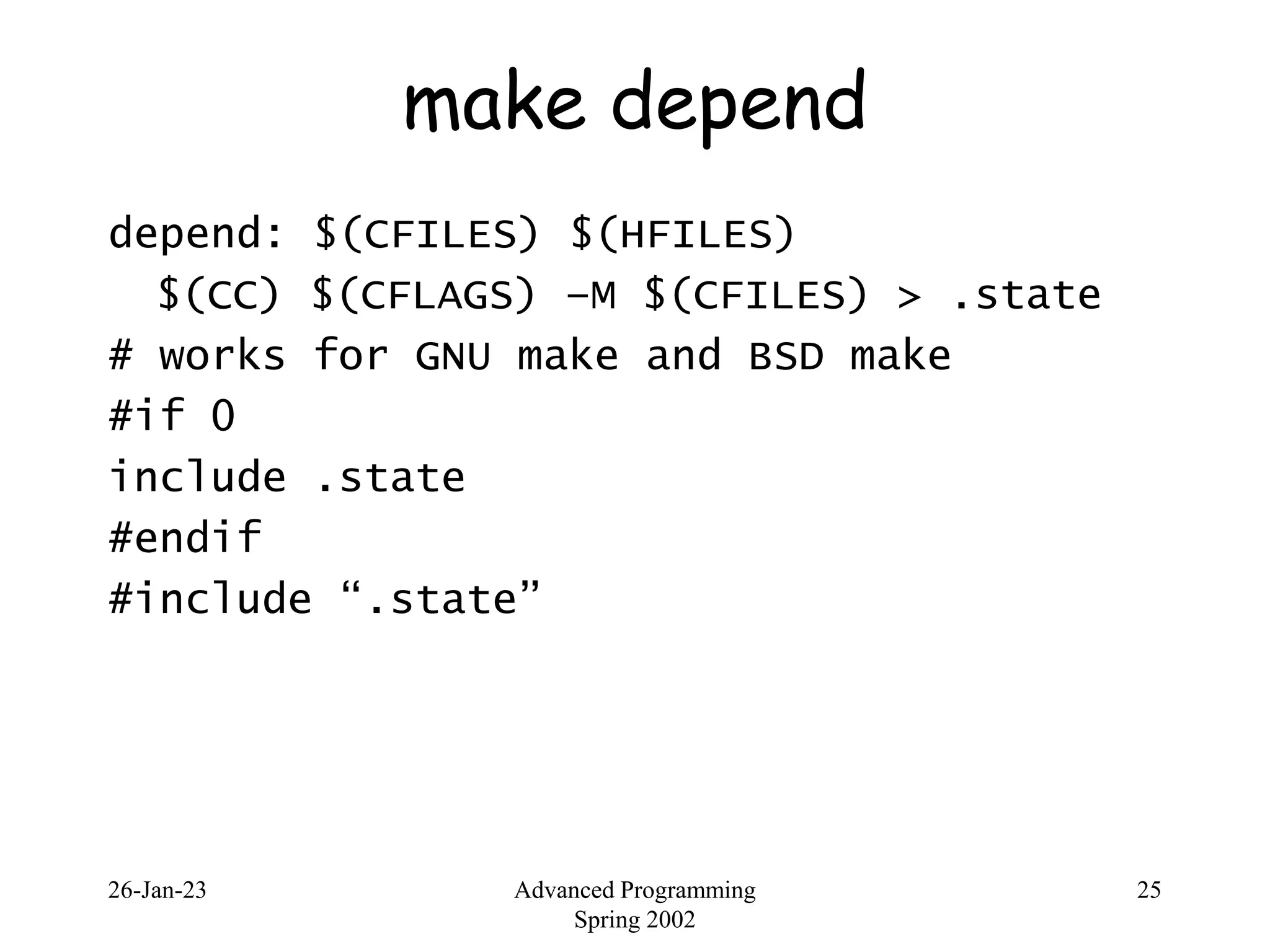

make depend
depend: $(CFILES) $(HFILES)
$(CC) $(CFLAGS) –M $(CFILES) > .state
# works for GNU make and BSD make
#if 0
include .state
#endif
#include “.state”
26-Jan-23 Advanced Programming
Spring 2002
26

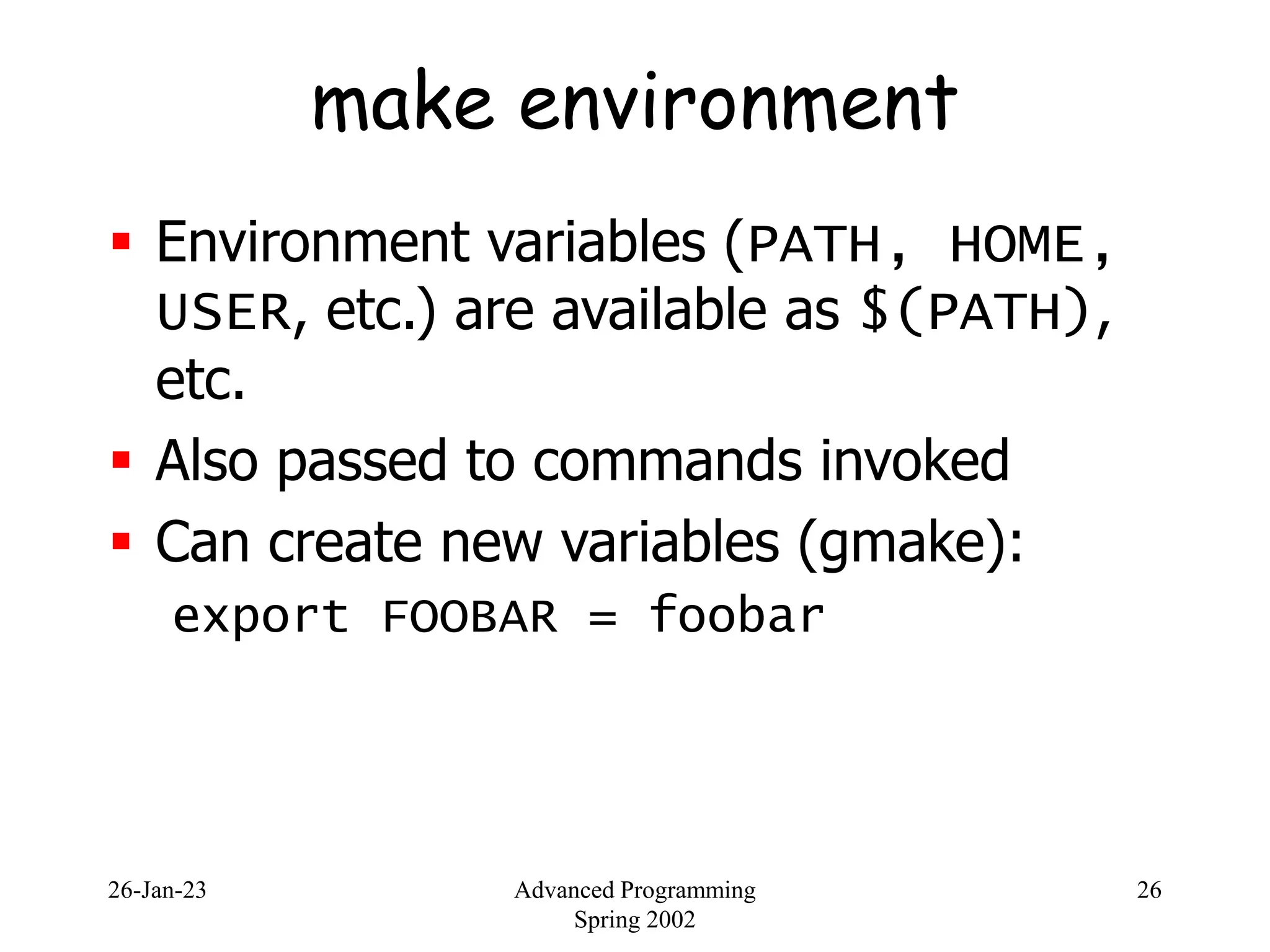

make environment
 Environment variables (PATH, HOME,
USER, etc.) are available as $(PATH),
etc.
 Also passed to commands invoked
 Can create new variables (gmake):
export FOOBAR = foobar
26-Jan-23 Advanced Programming
Spring 2002
27

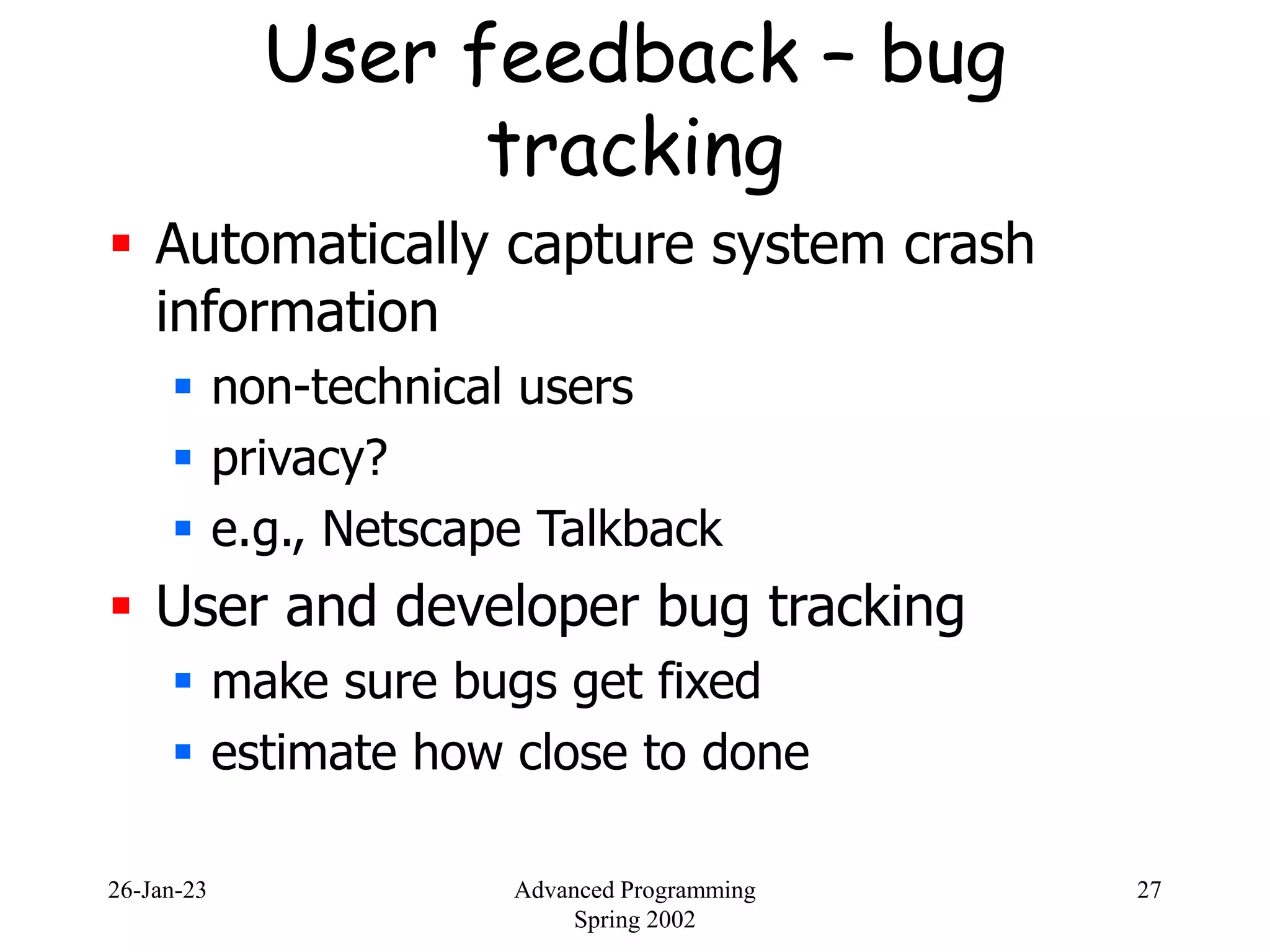

User feedback – bug
tracking
 Automatically capture system crash
information
 non-technical users
 privacy?
 e.g., Netscape Talkback
 User and developer bug tracking
 make sure bugs get fixed
 estimate how close to done
26-Jan-23 Advanced Programming
Spring 2002
28

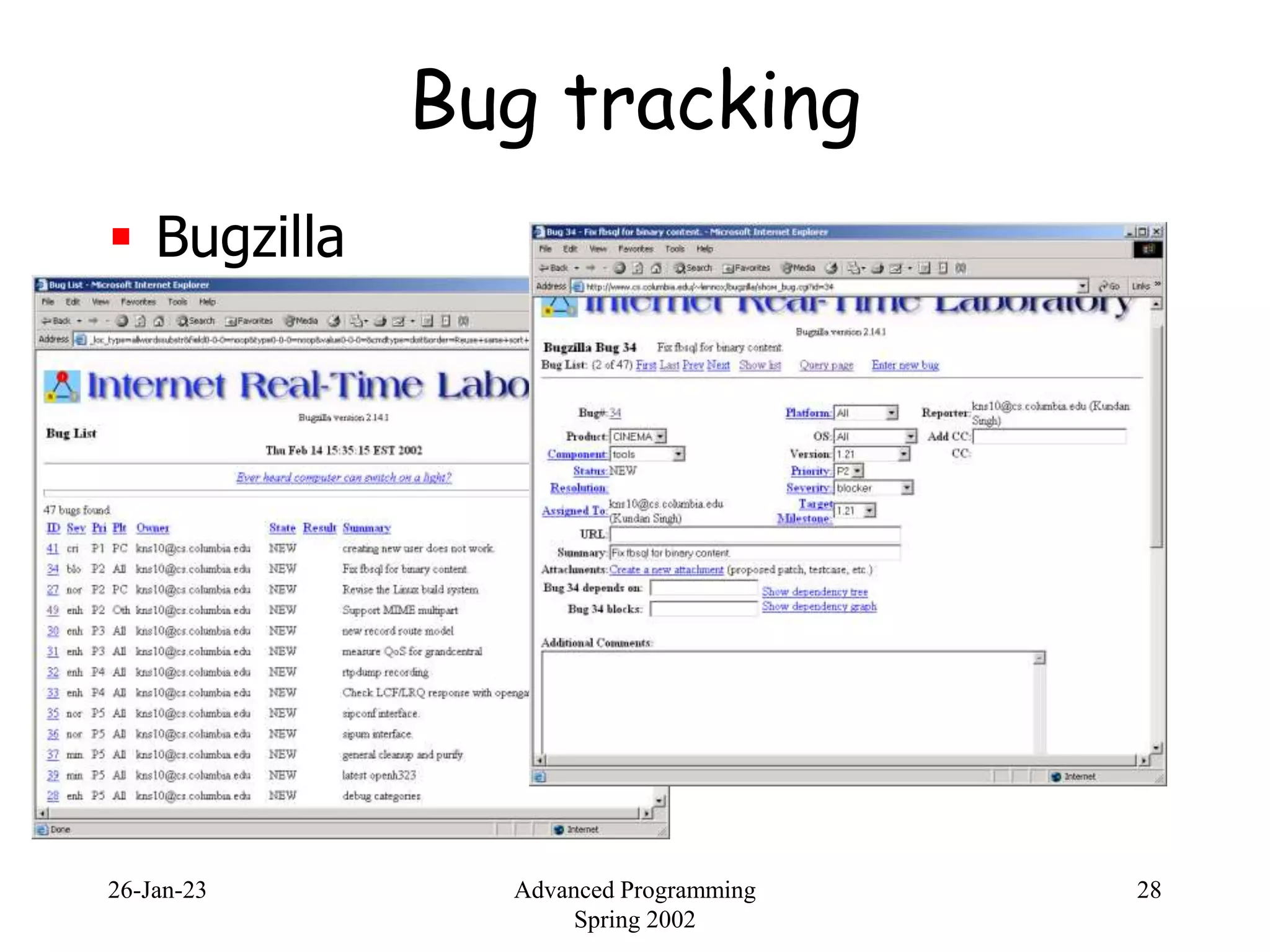

Bug tracking
 Bugzilla
26-Jan-23 Advanced Programming
Spring 2002
29

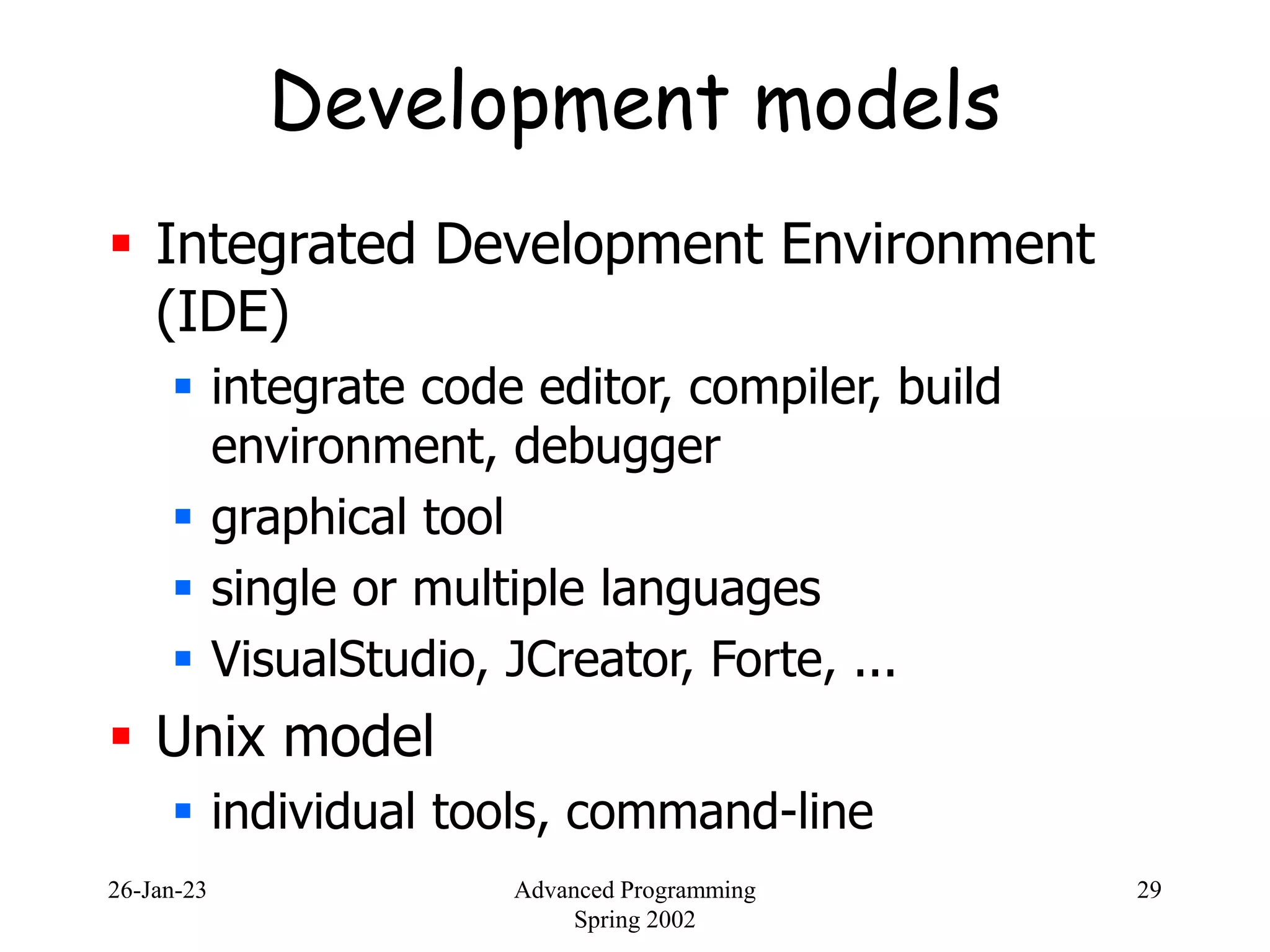

Development models
 Integrated Development Environment
(IDE)
 integrate code editor, compiler, build
environment, debugger
 graphical tool
 single or multiple languages
 VisualStudio, JCreator, Forte, ...
 Unix model
 individual tools, command-line
26-Jan-23 Advanced Programming
Spring 2002
30

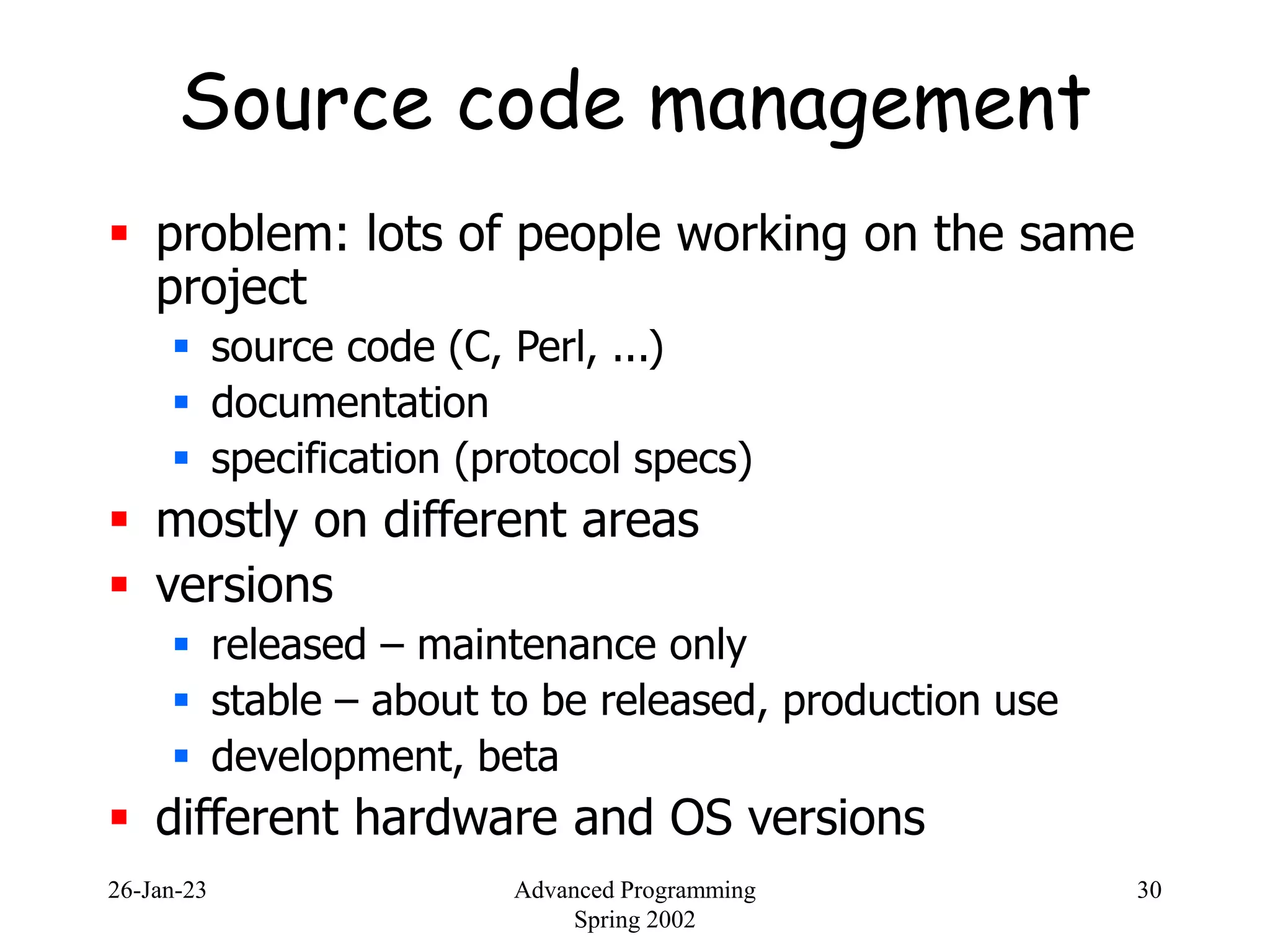

Source code management
 problem: lots of people working on the same
project
 source code (C, Perl, ...)
 documentation
 specification (protocol specs)
 mostly on different areas
 versions
 released – maintenance only
 stable – about to be released, production use
 development, beta
 different hardware and OS versions
26-Jan-23 Advanced Programming
Spring 2002
31

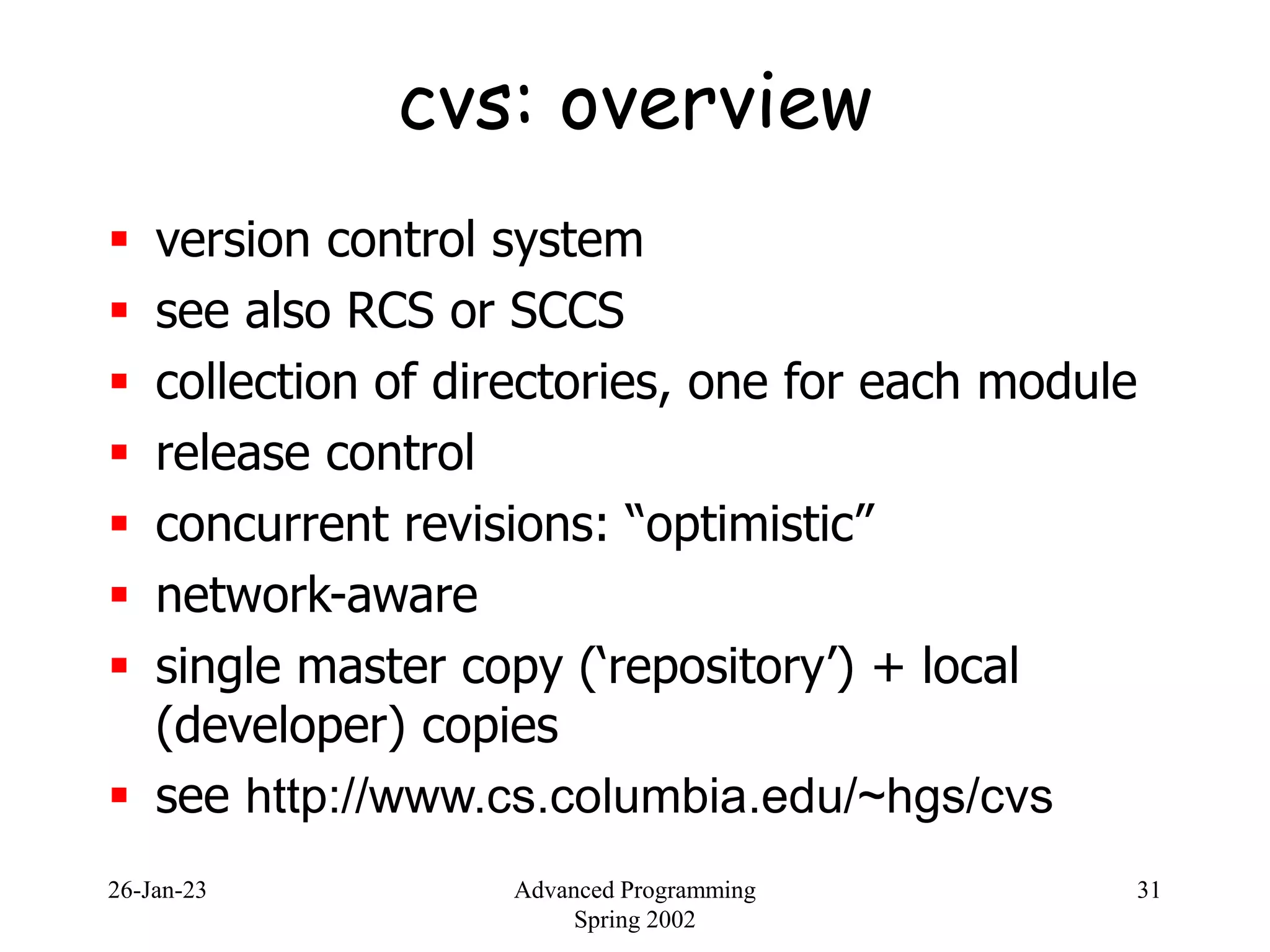

cvs: overview
 version control system
 see also RCS or SCCS
 collection of directories, one for each module
 release control
 concurrent revisions: “optimistic”
 network-aware
 single master copy (‘repository’) + local
(developer) copies
 see http://www.cs.columbia.edu/~hgs/cvs
26-Jan-23 Advanced Programming
Spring 2002
32

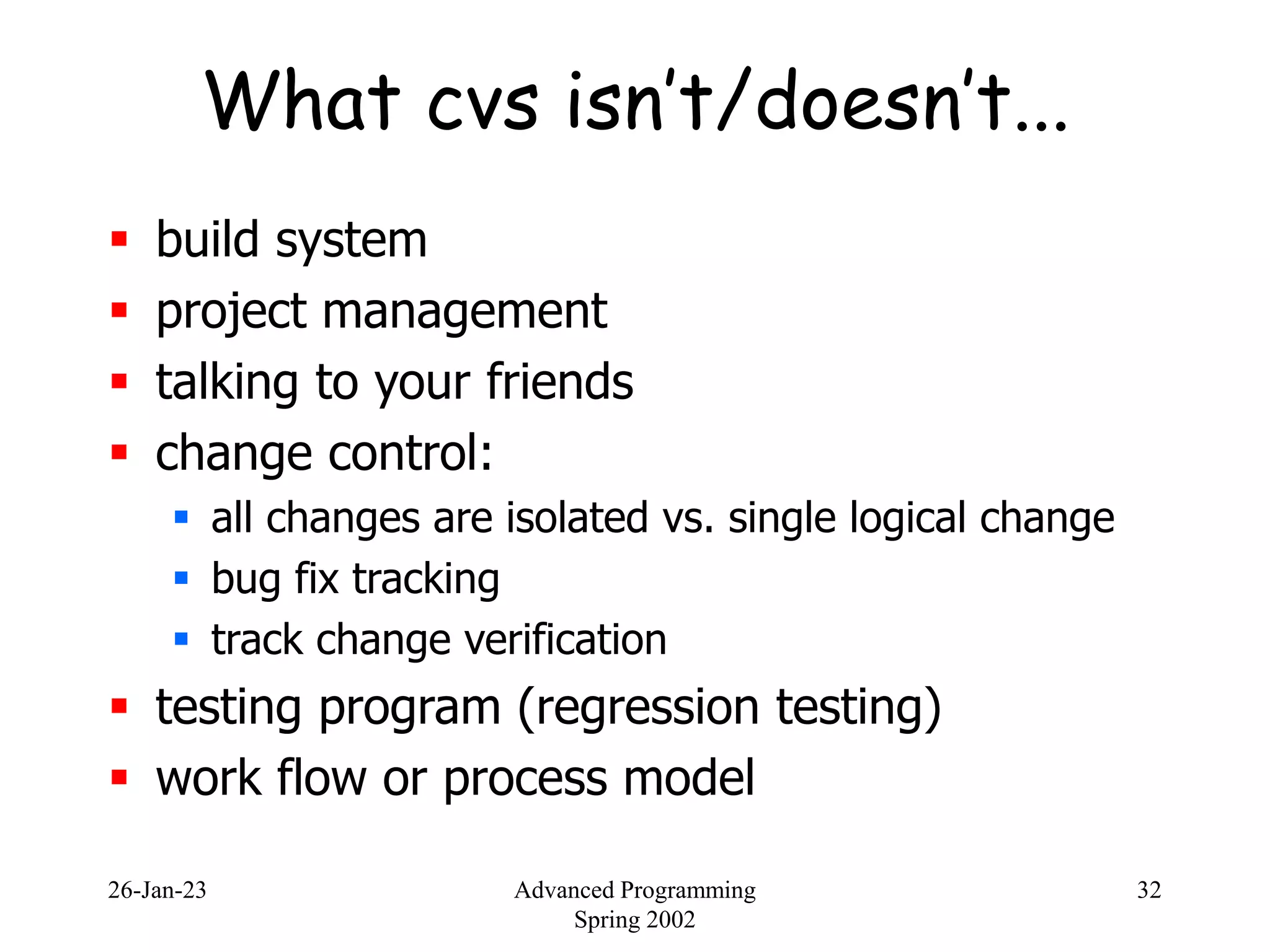

What cvs isn’t/doesn’t...
 build system
 project management
 talking to your friends
 change control:
 all changes are isolated vs. single logical change
 bug fix tracking
 track change verification
 testing program (regression testing)
 work flow or process model
26-Jan-23 Advanced Programming
Spring 2002
33
cvs: setting up a repository
1. create directory (e.g.) cvsroot ->
environment variable or –d
2. cvs -d /usr/local/cvsroot init
3. creates CVSROOT directory for maintenance
files
cvsroot
CVSROOT
history, loginfo, modules, passwd,
...
testcvs
hello.c,v
Makefile.c,v
26-Jan-23 Advanced Programming
Spring 2002
34
cvs: adding a module to a
repository
Source files in src/testcvs
1. setenv CVSROOT ~/src/cvsroot/ or
cvs -d :pserver:alice@tune.cs.columbia.edu:/u/kon/hgs/src/cvsroot login
2. cd testcvs to your working directory
3. cvs import rdir vendortag releasetag:
create rdir under $CVSROOT/ repository
from current directory, with tag vendortag
for branch, tag releasetag for release
(generally, “start”); creates branch 1.1.1
with cvsroot/testcvs/hello.c,v
26-Jan-23 Advanced Programming
Spring 2002
35

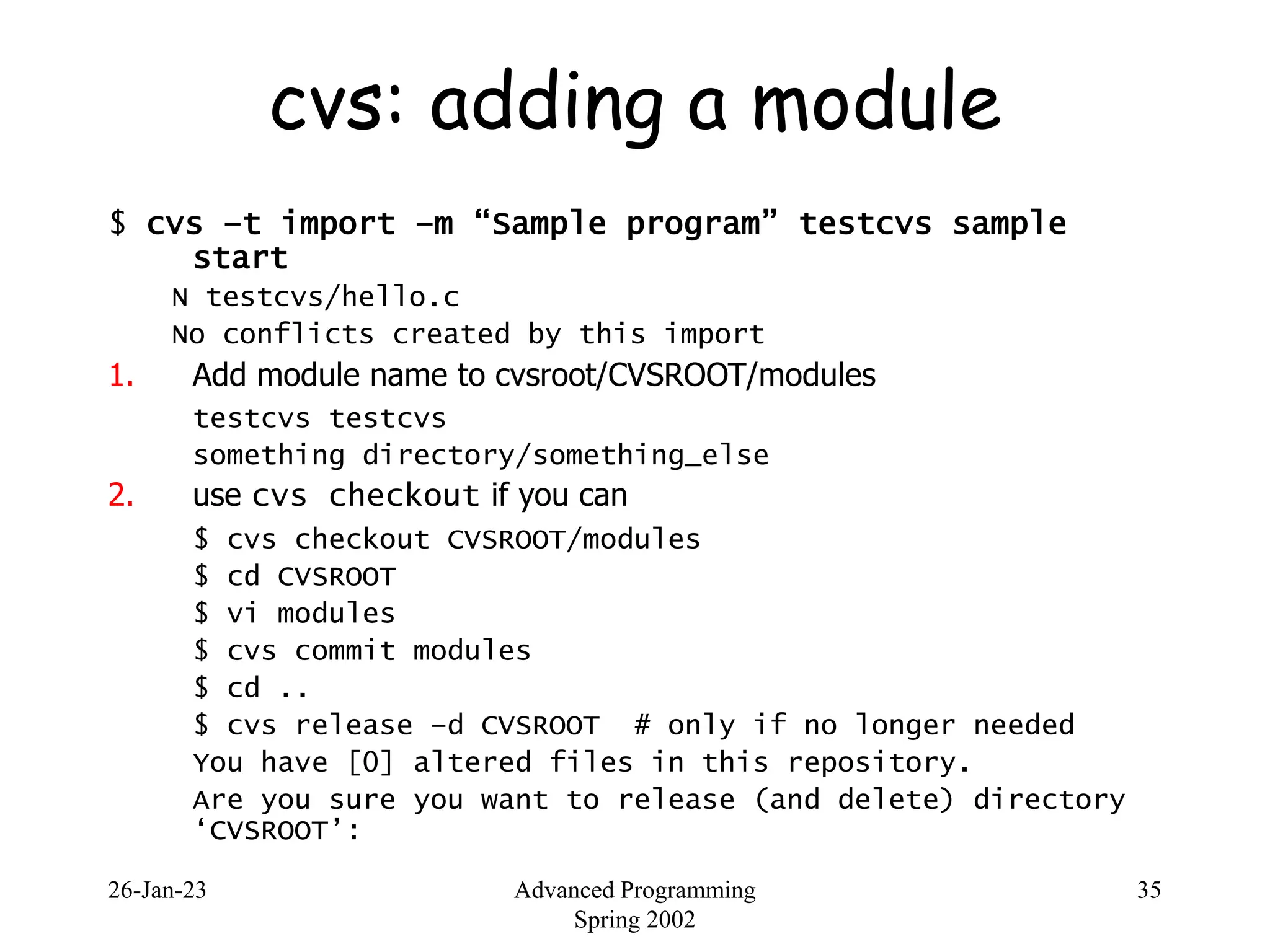

cvs: adding a module
$ cvs –t import –m “Sample program” testcvs sample
start
N testcvs/hello.c
No conflicts created by this import
1. Add module name to cvsroot/CVSROOT/modules
testcvs testcvs
something directory/something_else
2. use cvs checkout if you can
$ cvs checkout CVSROOT/modules
$ cd CVSROOT
$ vi modules
$ cvs commit modules
$ cd ..
$ cvs release –d CVSROOT # only if no longer needed
You have [0] altered files in this repository.
Are you sure you want to release (and delete) directory
‘CVSROOT’:
26-Jan-23 Advanced Programming
Spring 2002
36
cvs: adding a user
1. ypcat passwd | fgrep alice
2. add user entry to CVSROOT/passwd
alice:J21GHe78i3d5Y:hgs
3. add entry to loginfo to generate
email
testcvs /usr/ucb/Mail –s “%s” alice bob
26-Jan-23 Advanced Programming
Spring 2002
37

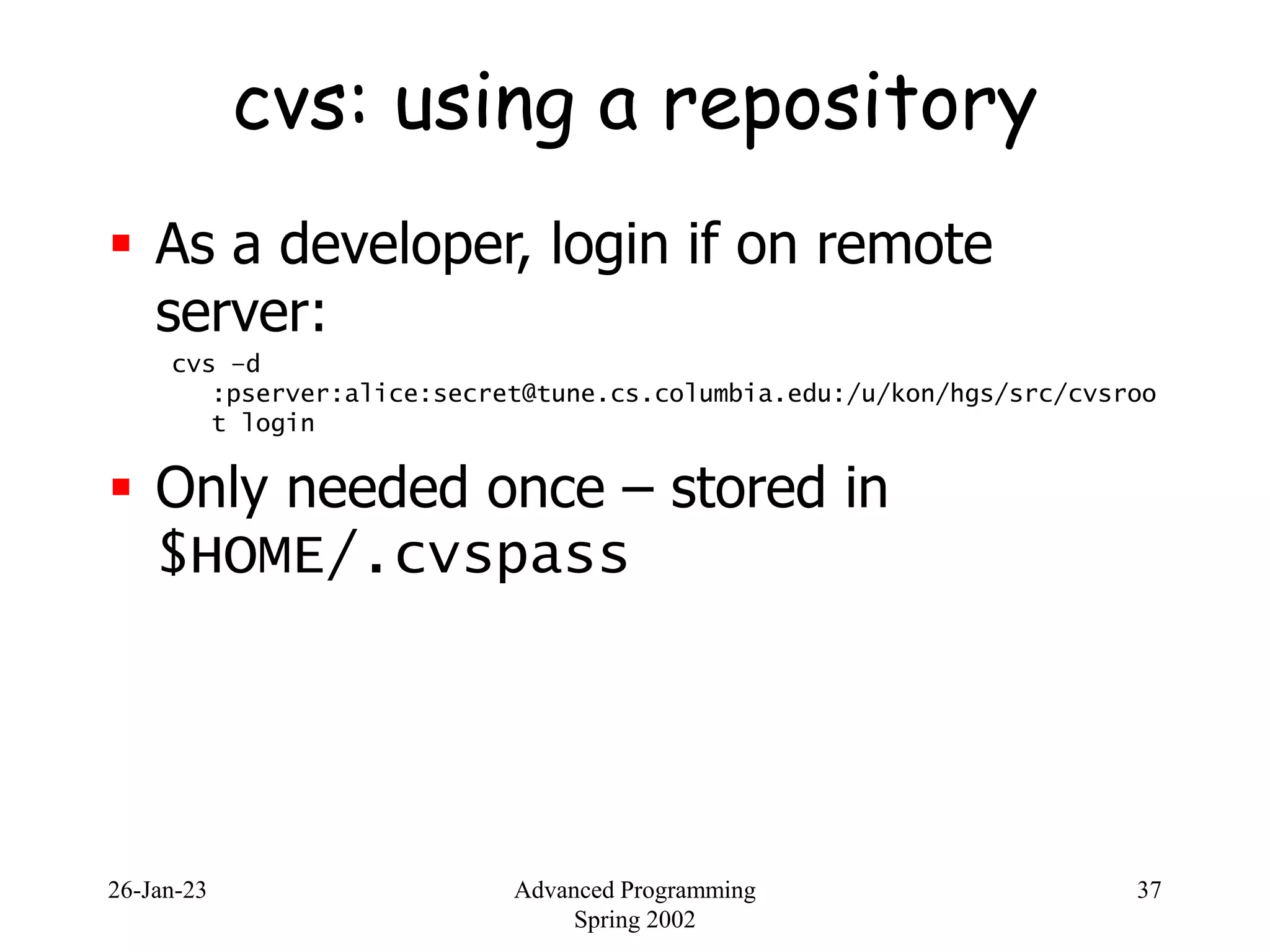

cvs: using a repository
 As a developer, login if on remote
server:
cvs –d
:pserver:alice:secret@tune.cs.columbia.edu:/u/kon/hgs/src/cvsroo
t login
 Only needed once – stored in
$HOME/.cvspass
26-Jan-23 Advanced Programming
Spring 2002
38

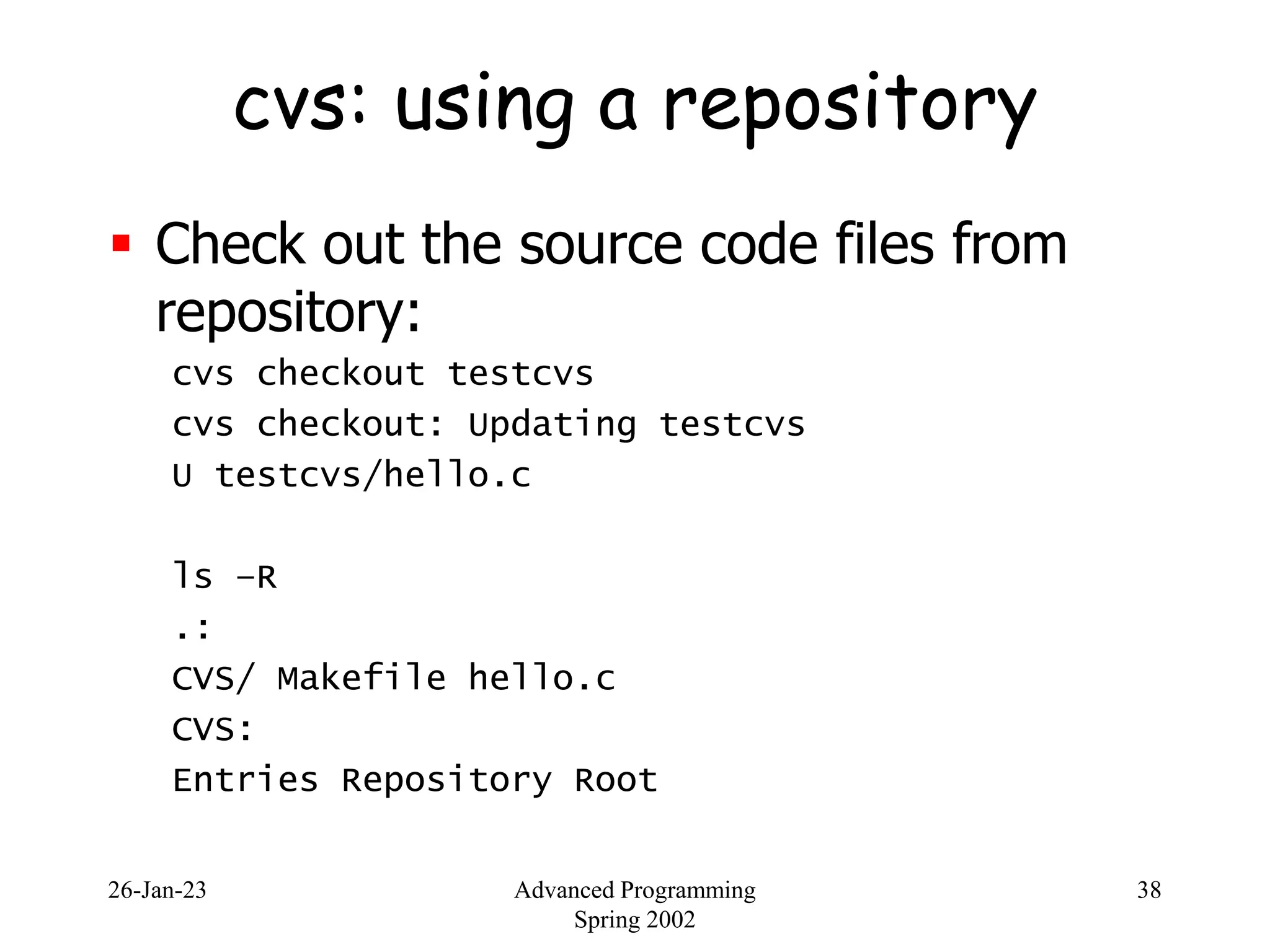

cvs: using a repository
 Check out the source code files from
repository:
cvs checkout testcvs
cvs checkout: Updating testcvs
U testcvs/hello.c
ls –R
.:
CVS/ Makefile hello.c
CVS:
Entries Repository Root
26-Jan-23 Advanced Programming
Spring 2002
39

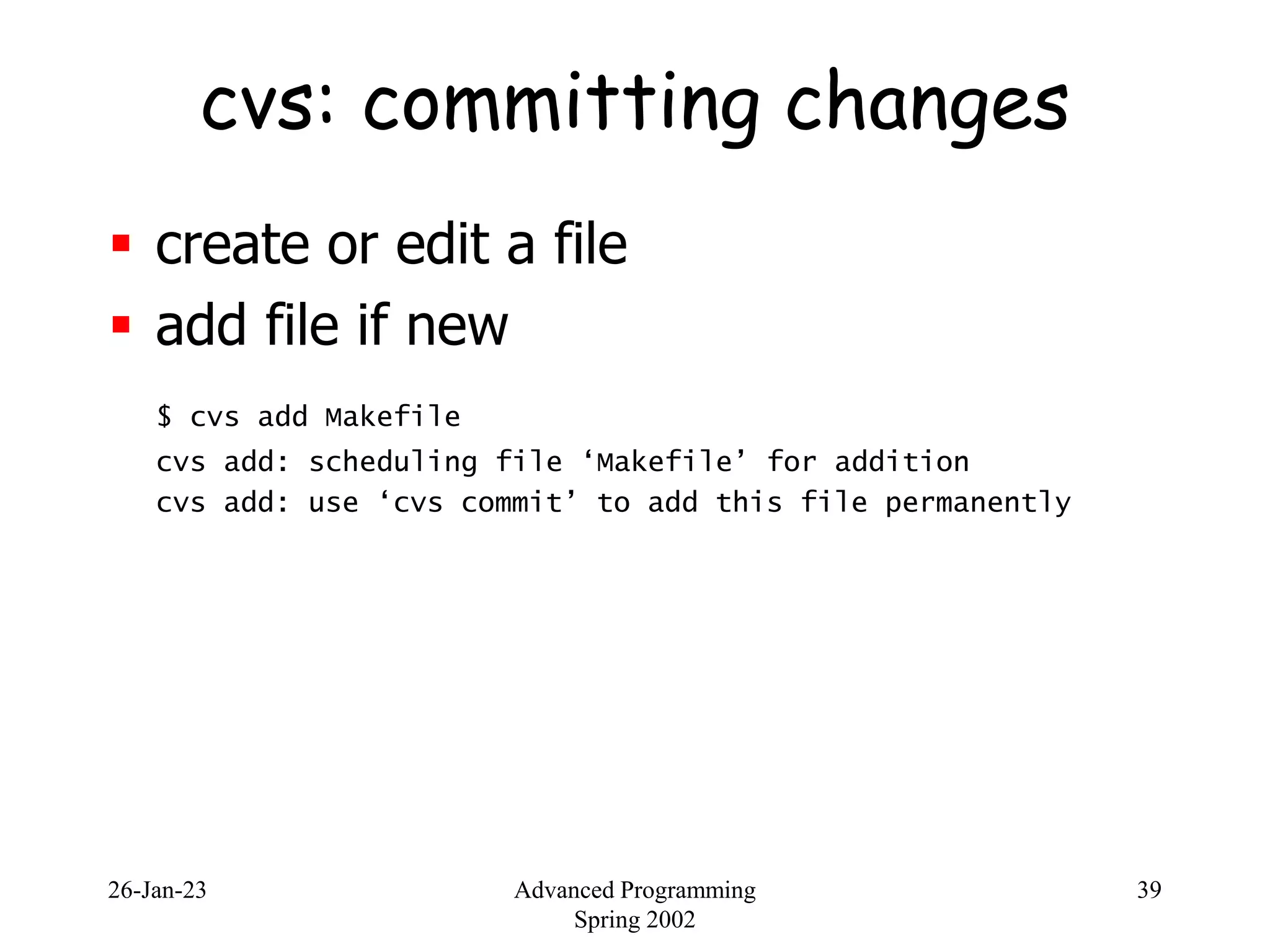

cvs: committing changes
 create or edit a file
 add file if new
$ cvs add Makefile
cvs add: scheduling file ‘Makefile’ for addition
cvs add: use ‘cvs commit’ to add this file permanently
26-Jan-23 Advanced Programming
Spring 2002
40

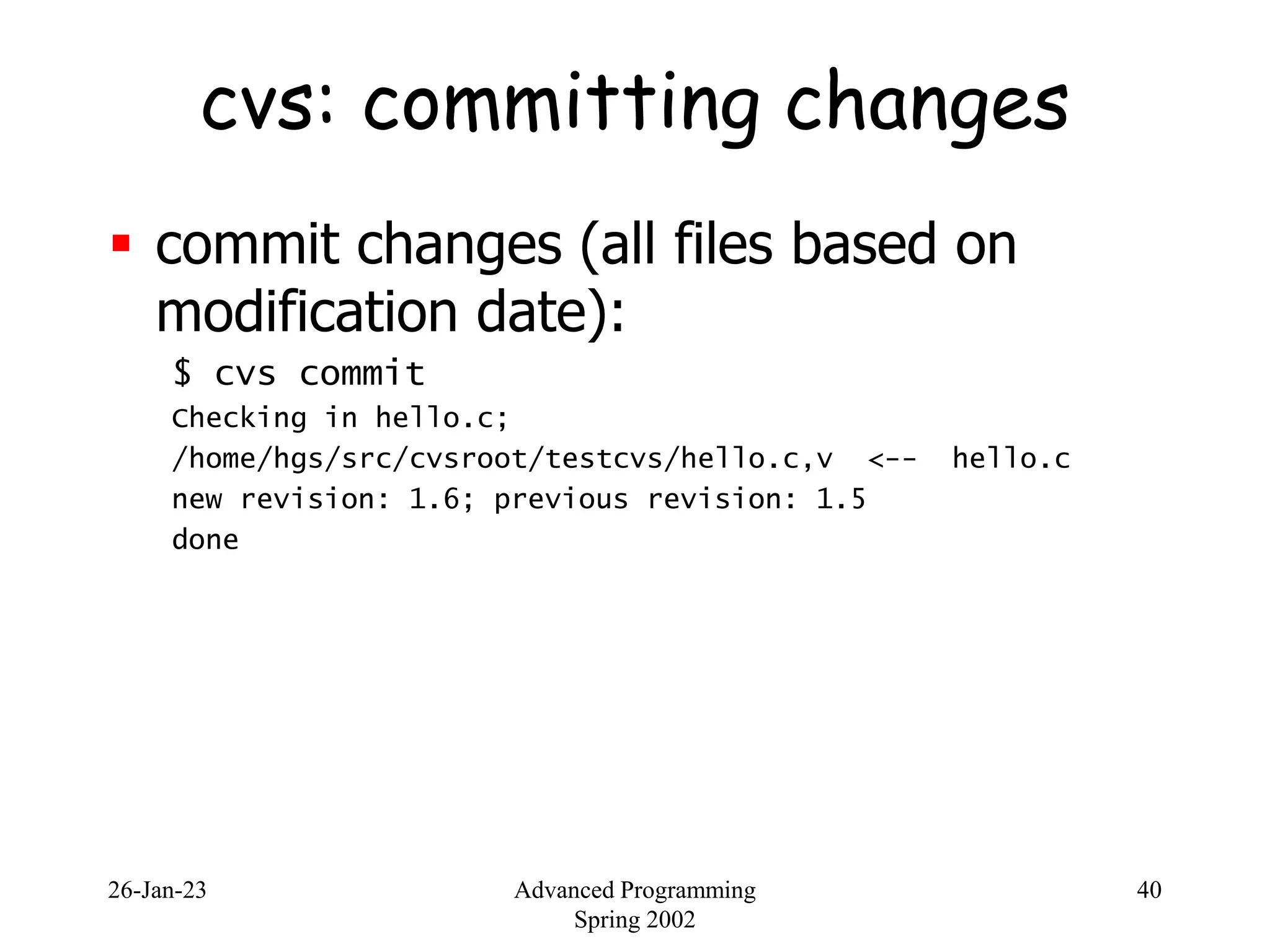

cvs: committing changes
 commit changes (all files based on
modification date):
$ cvs commit
Checking in hello.c;
/home/hgs/src/cvsroot/testcvs/hello.c,v <-- hello.c
new revision: 1.6; previous revision: 1.5
done
26-Jan-23 Advanced Programming
Spring 2002
41

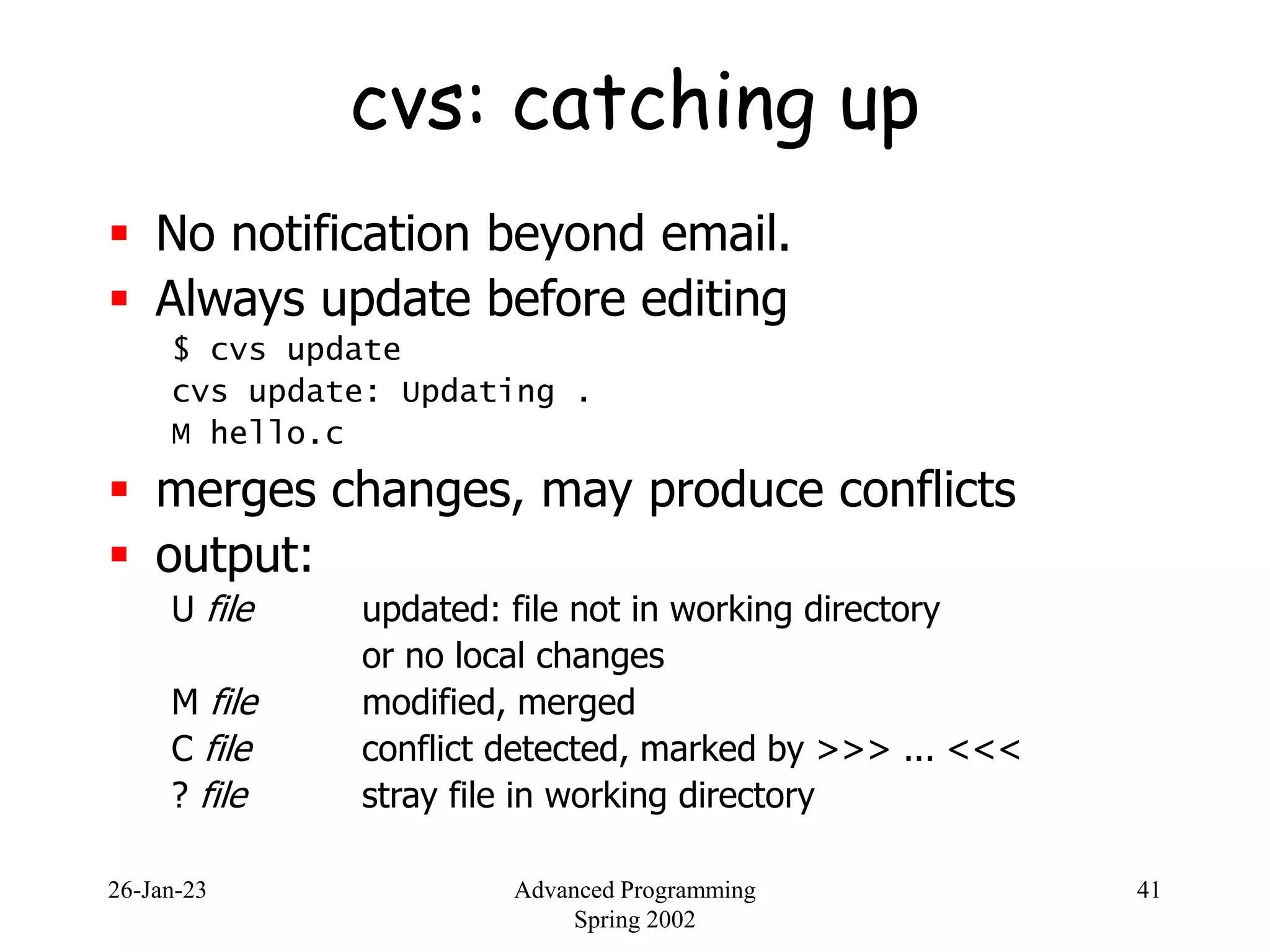

cvs: catching up
 No notification beyond email.
 Always update before editing
$ cvs update
cvs update: Updating .
M hello.c
 merges changes, may produce conflicts
 output:
U file updated: file not in working directory
or no local changes
M file modified, merged
C file conflict detected, marked by >>> ... <<<
? file stray file in working directory
26-Jan-23 Advanced Programming
Spring 2002
42

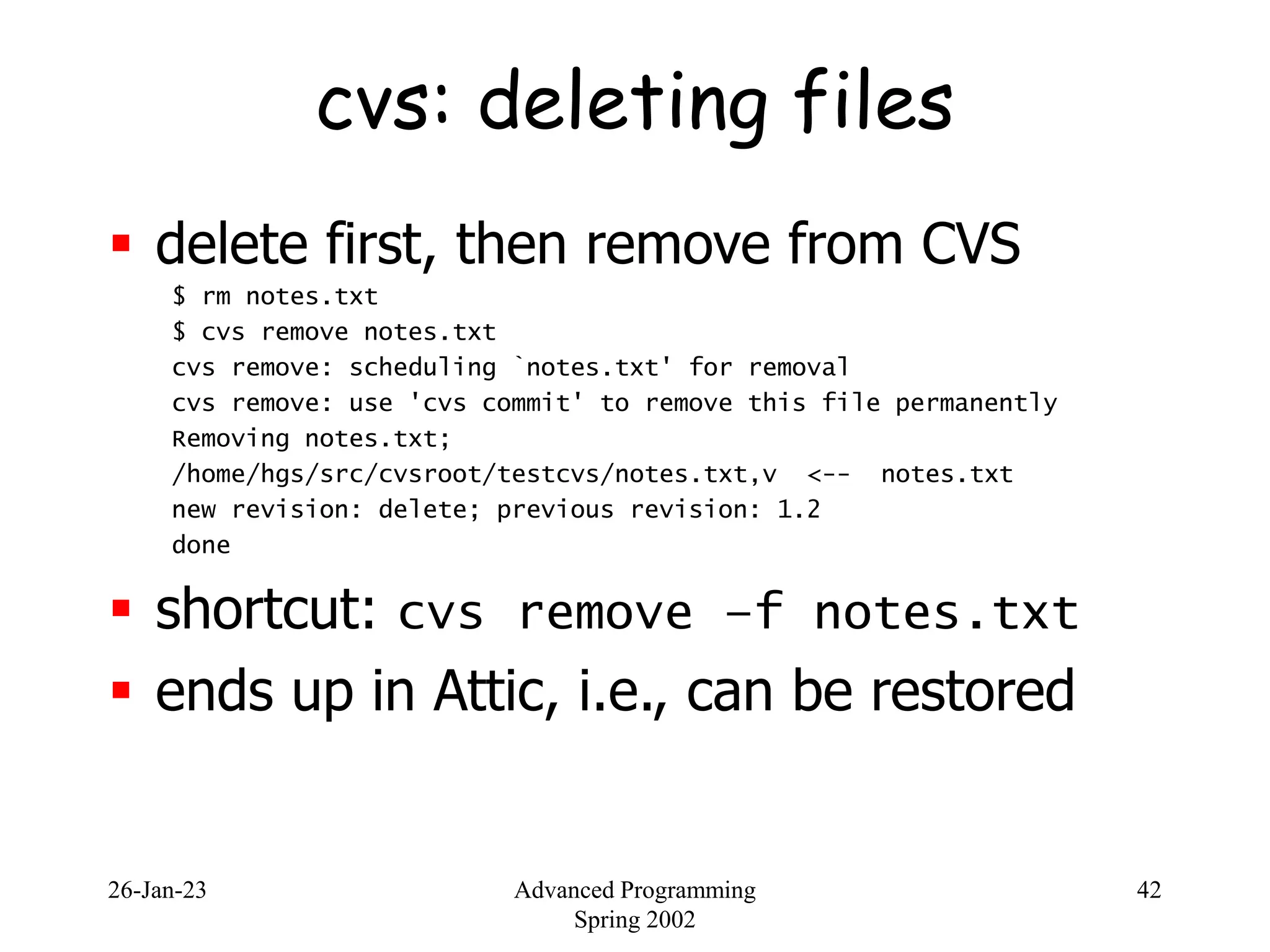

cvs: deleting files
 delete first, then remove from CVS
$ rm notes.txt
$ cvs remove notes.txt
cvs remove: scheduling `notes.txt' for removal
cvs remove: use 'cvs commit' to remove this file permanently
Removing notes.txt;
/home/hgs/src/cvsroot/testcvs/notes.txt,v <-- notes.txt
new revision: delete; previous revision: 1.2
done
 shortcut: cvs remove –f notes.txt
 ends up in Attic, i.e., can be restored
26-Jan-23 Advanced Programming
Spring 2002
43

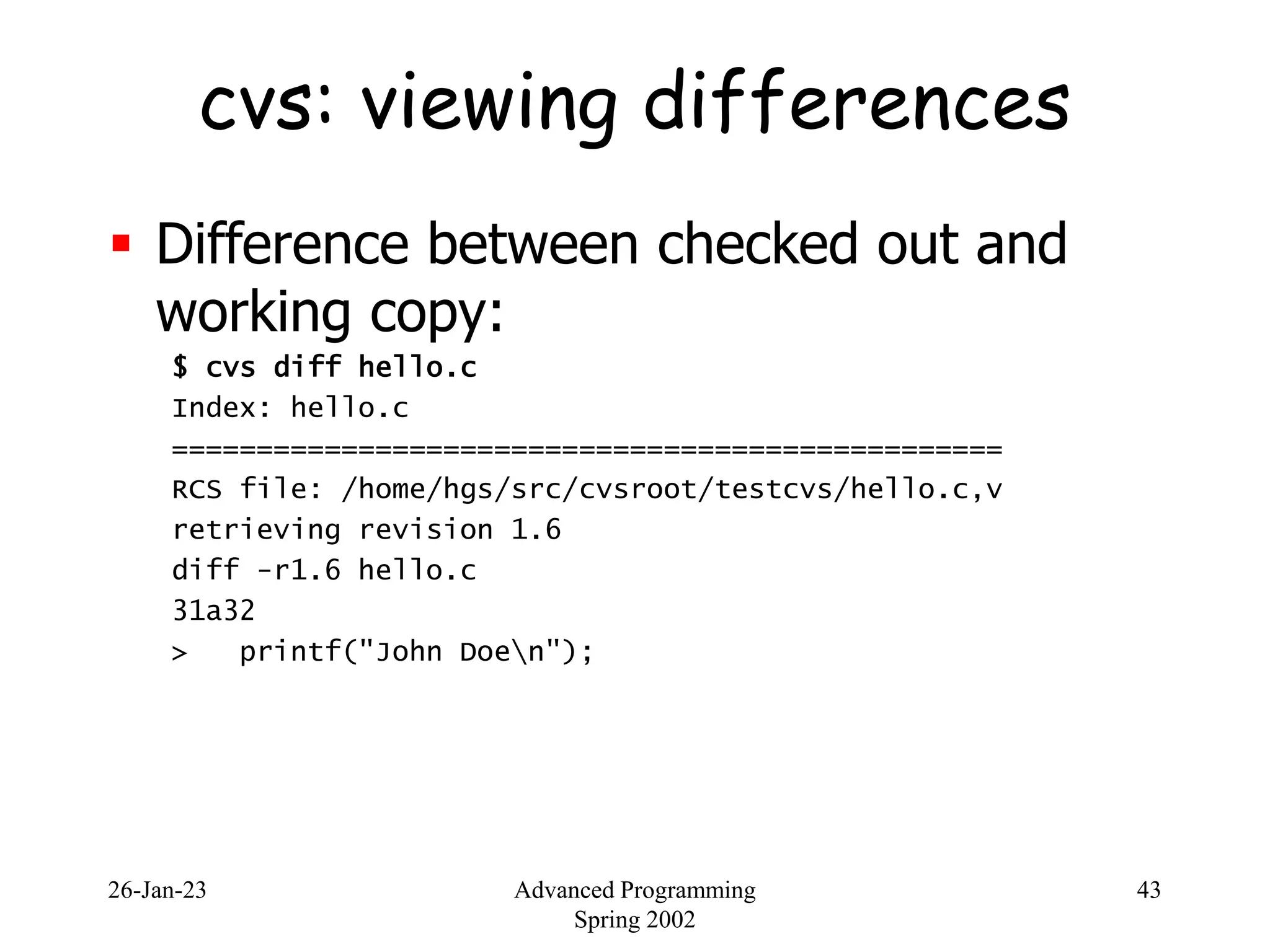

cvs: viewing differences
 Difference between checked out and
working copy:
$ cvs diff hello.c
Index: hello.c
=================================================
RCS file: /home/hgs/src/cvsroot/testcvs/hello.c,v
retrieving revision 1.6
diff -r1.6 hello.c
31a32
> printf("John Doen");
26-Jan-23 Advanced Programming
Spring 2002
44

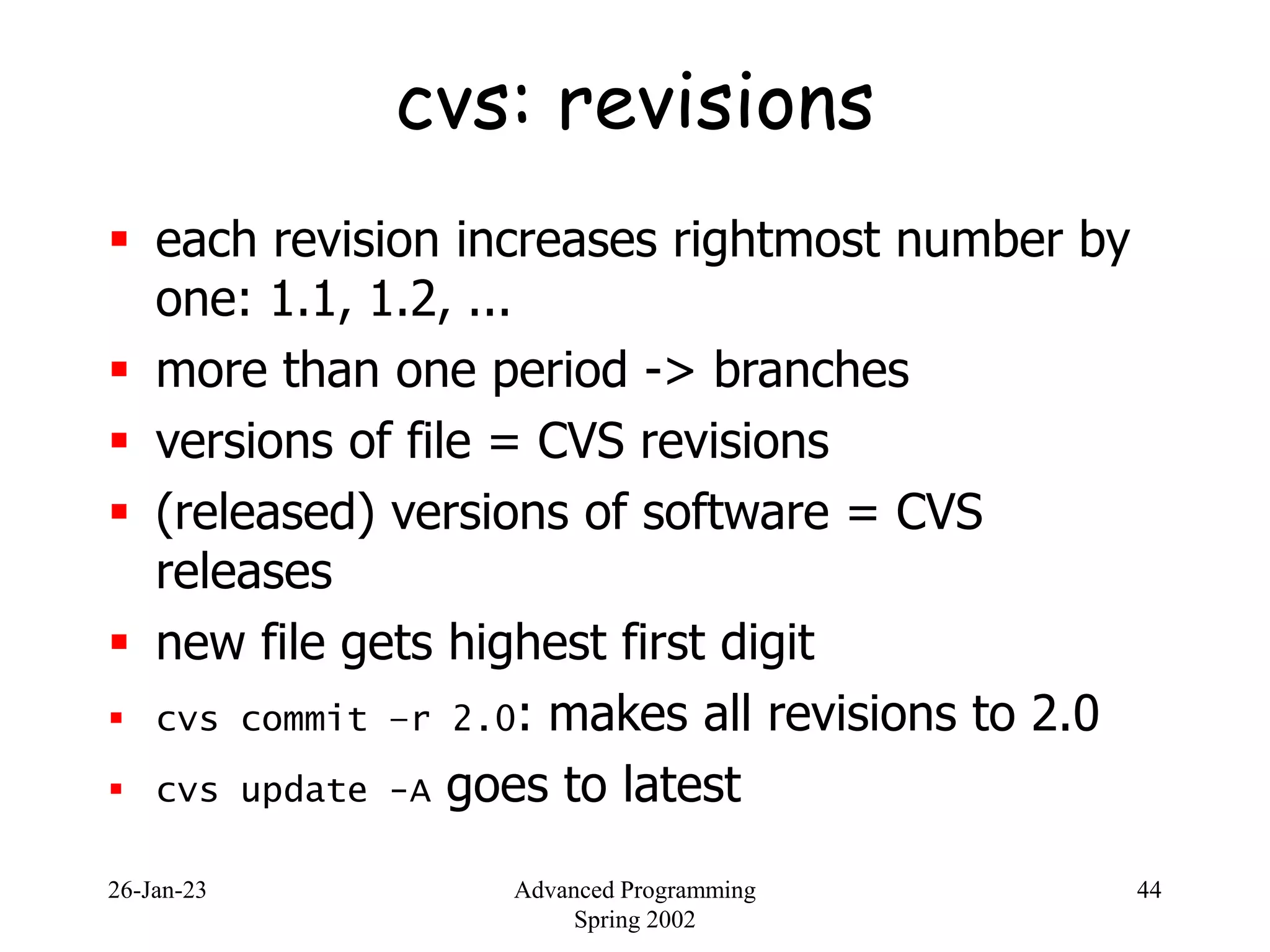

cvs: revisions
 each revision increases rightmost number by
one: 1.1, 1.2, ...
 more than one period -> branches
 versions of file = CVS revisions
 (released) versions of software = CVS
releases
 new file gets highest first digit
 cvs commit –r 2.0: makes all revisions to 2.0
 cvs update -A goes to latest
26-Jan-23 Advanced Programming
Spring 2002
45

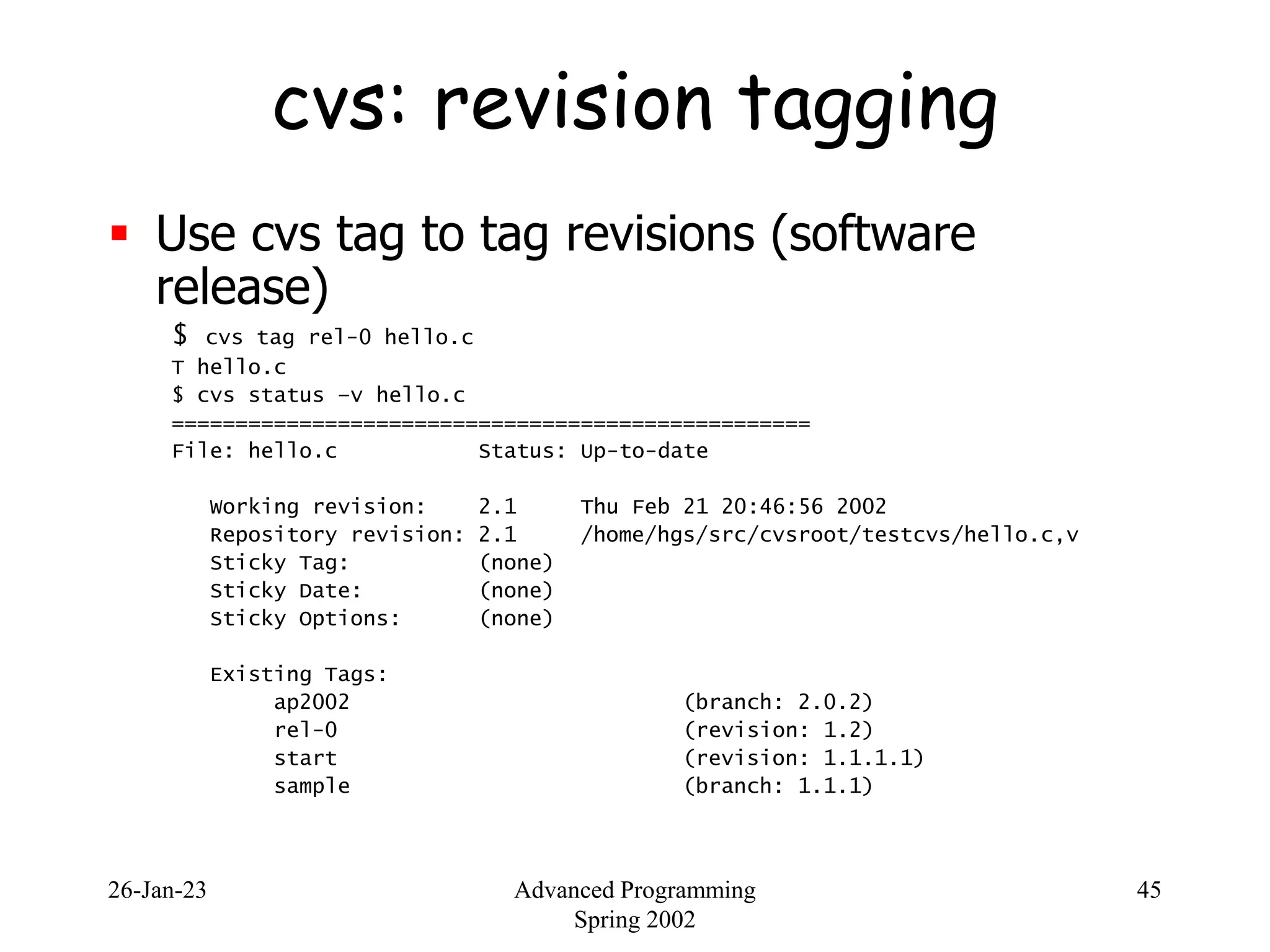

cvs: revision tagging
 Use cvs tag to tag revisions (software
release)
$ cvs tag rel-0 hello.c
T hello.c
$ cvs status –v hello.c
==================================================
File: hello.c Status: Up-to-date
Working revision: 2.1 Thu Feb 21 20:46:56 2002
Repository revision: 2.1 /home/hgs/src/cvsroot/testcvs/hello.c,v
Sticky Tag: (none)
Sticky Date: (none)
Sticky Options: (none)
Existing Tags:
ap2002 (branch: 2.0.2)
rel-0 (revision: 1.2)
start (revision: 1.1.1.1)
sample (branch: 1.1.1)
26-Jan-23 Advanced Programming
Spring 2002
46

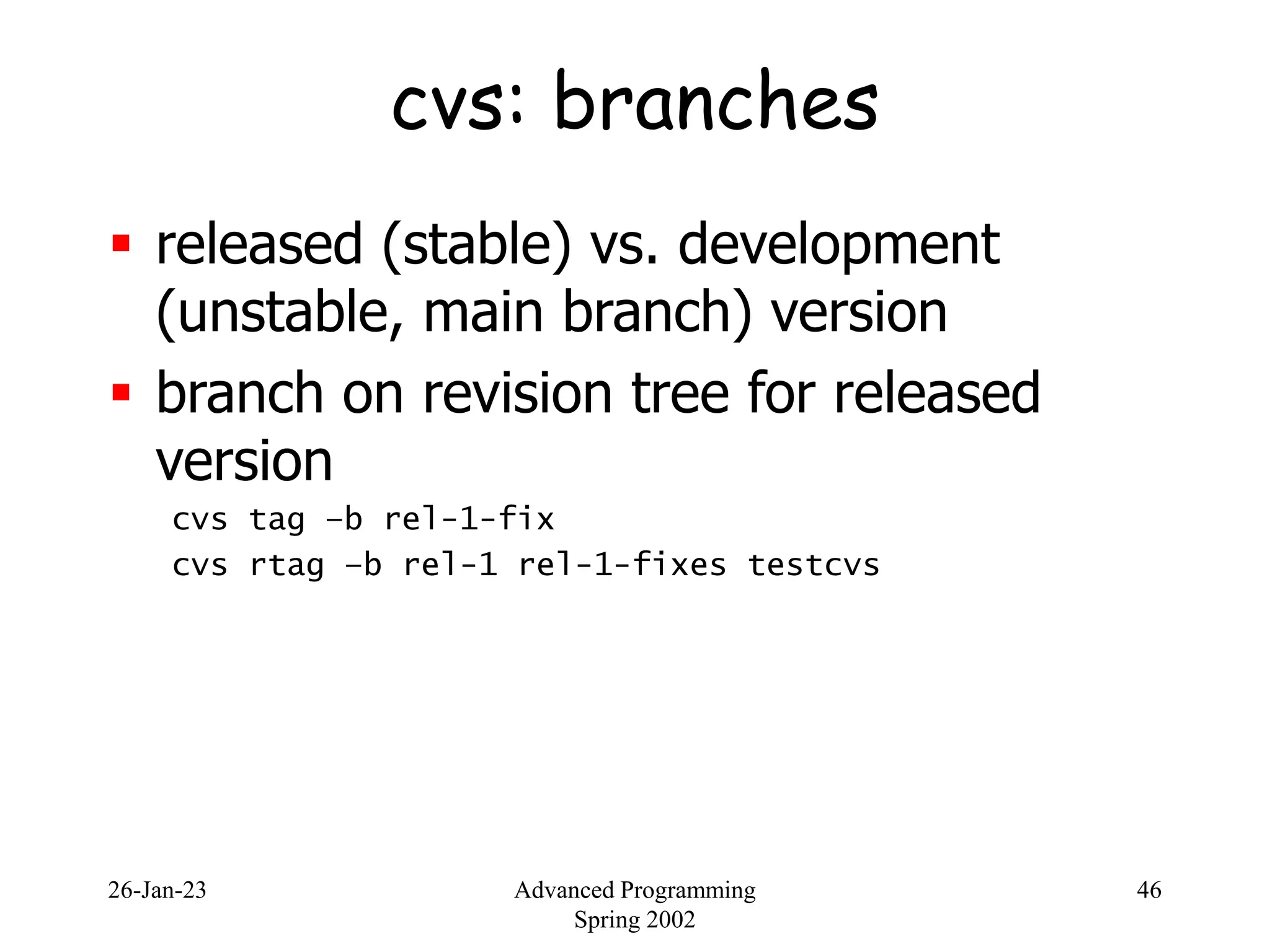

cvs: branches
 released (stable) vs. development
(unstable, main branch) version
 branch on revision tree for released
version
cvs tag –b rel-1-fix
cvs rtag –b rel-1 rel-1-fixes testcvs
26-Jan-23 Advanced Programming
Spring 2002
47

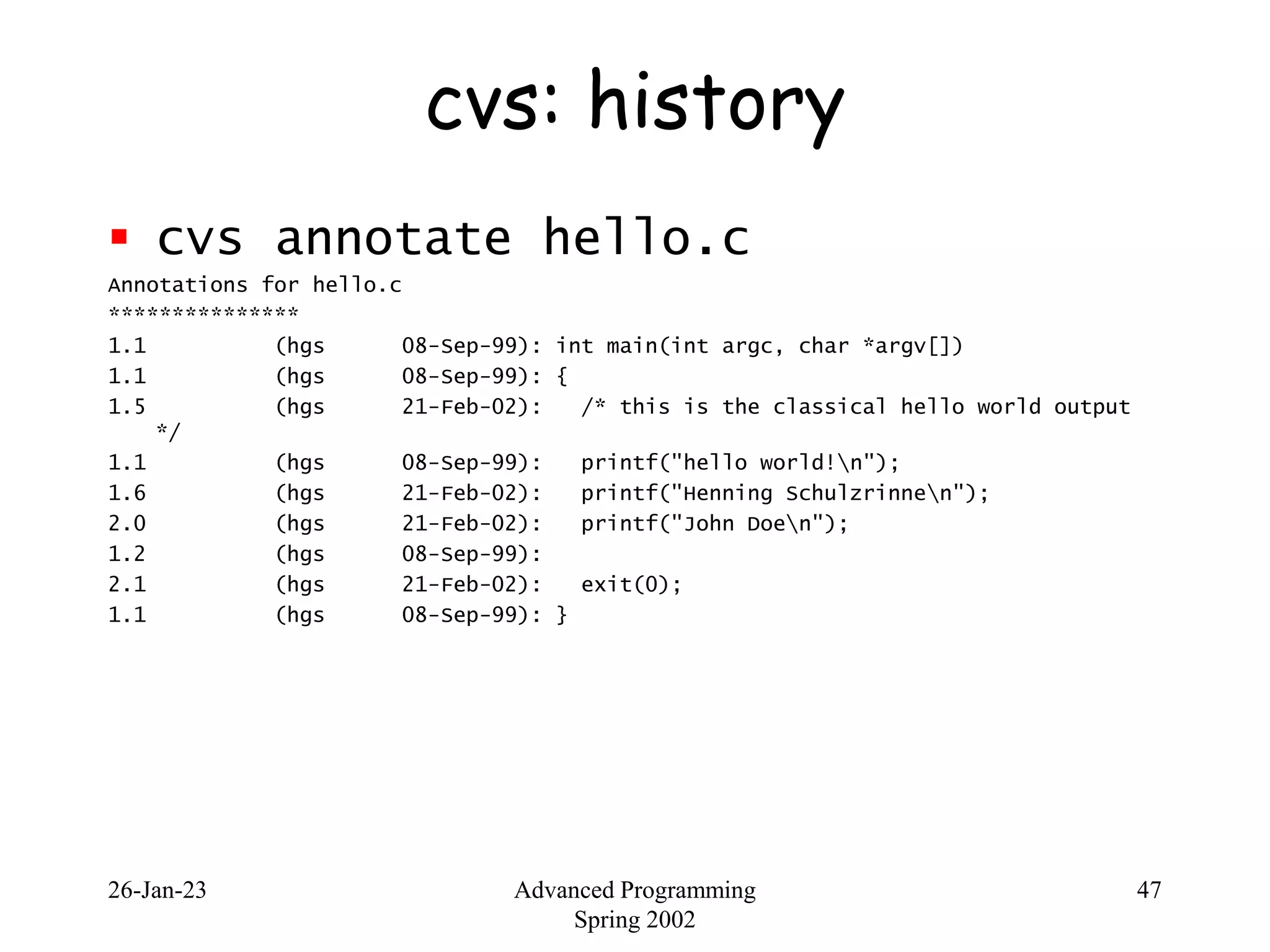

cvs: history
 cvs annotate hello.c
Annotations for hello.c
***************
1.1 (hgs 08-Sep-99): int main(int argc, char *argv[])
1.1 (hgs 08-Sep-99): {
1.5 (hgs 21-Feb-02): /* this is the classical hello world output
*/
1.1 (hgs 08-Sep-99): printf("hello world!n");
1.6 (hgs 21-Feb-02): printf("Henning Schulzrinnen");
2.0 (hgs 21-Feb-02): printf("John Doen");
1.2 (hgs 08-Sep-99):
2.1 (hgs 21-Feb-02): exit(0);
1.1 (hgs 08-Sep-99): }
26-Jan-23 Advanced Programming
Spring 2002
48

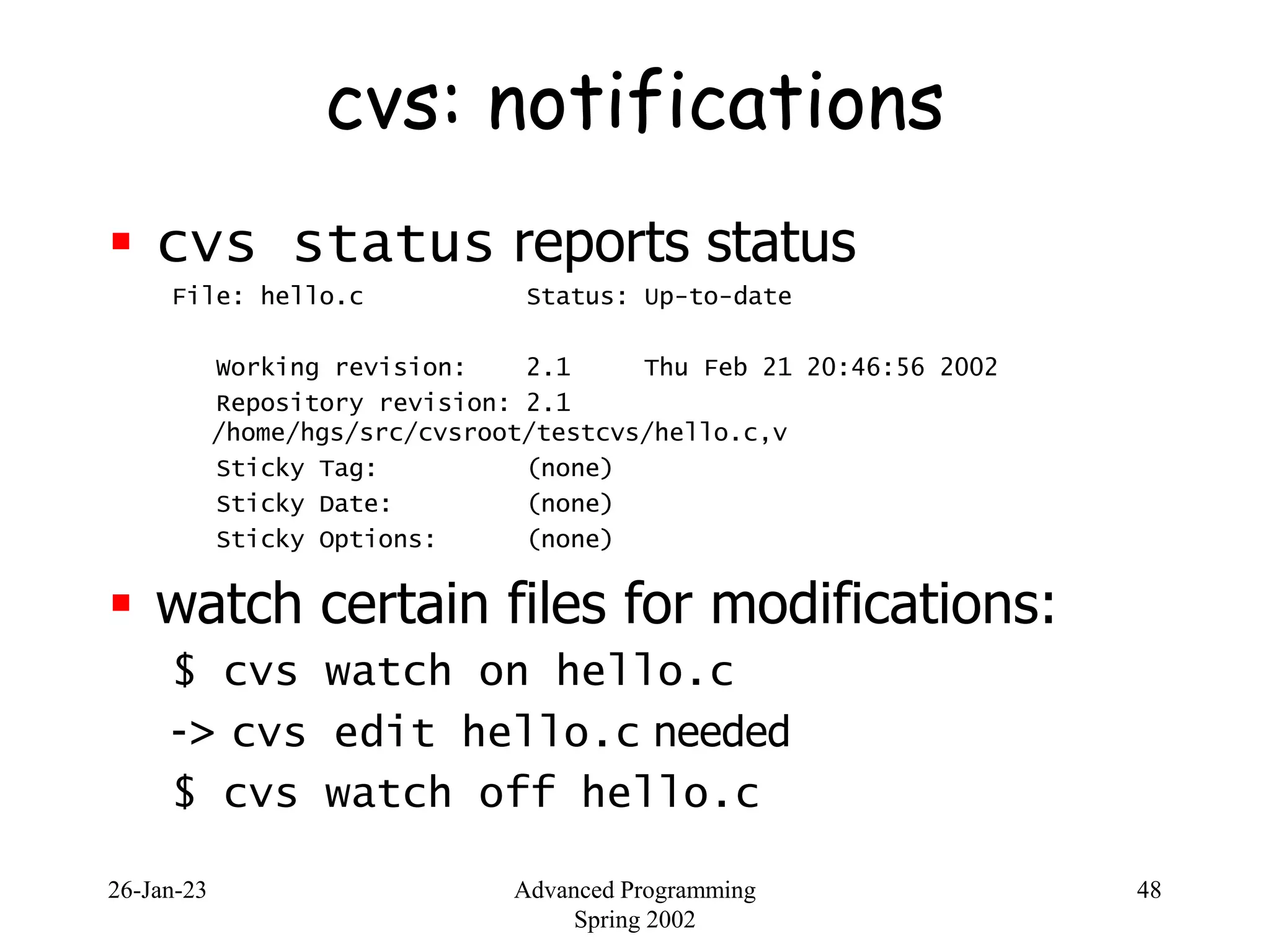

cvs: notifications
 cvs status reports status
File: hello.c Status: Up-to-date
Working revision: 2.1 Thu Feb 21 20:46:56 2002
Repository revision: 2.1
/home/hgs/src/cvsroot/testcvs/hello.c,v
Sticky Tag: (none)
Sticky Date: (none)
Sticky Options: (none)
 watch certain files for modifications:
$ cvs watch on hello.c
-> cvs edit hello.c needed
$ cvs watch off hello.c
26-Jan-23 Advanced Programming
Spring 2002
49

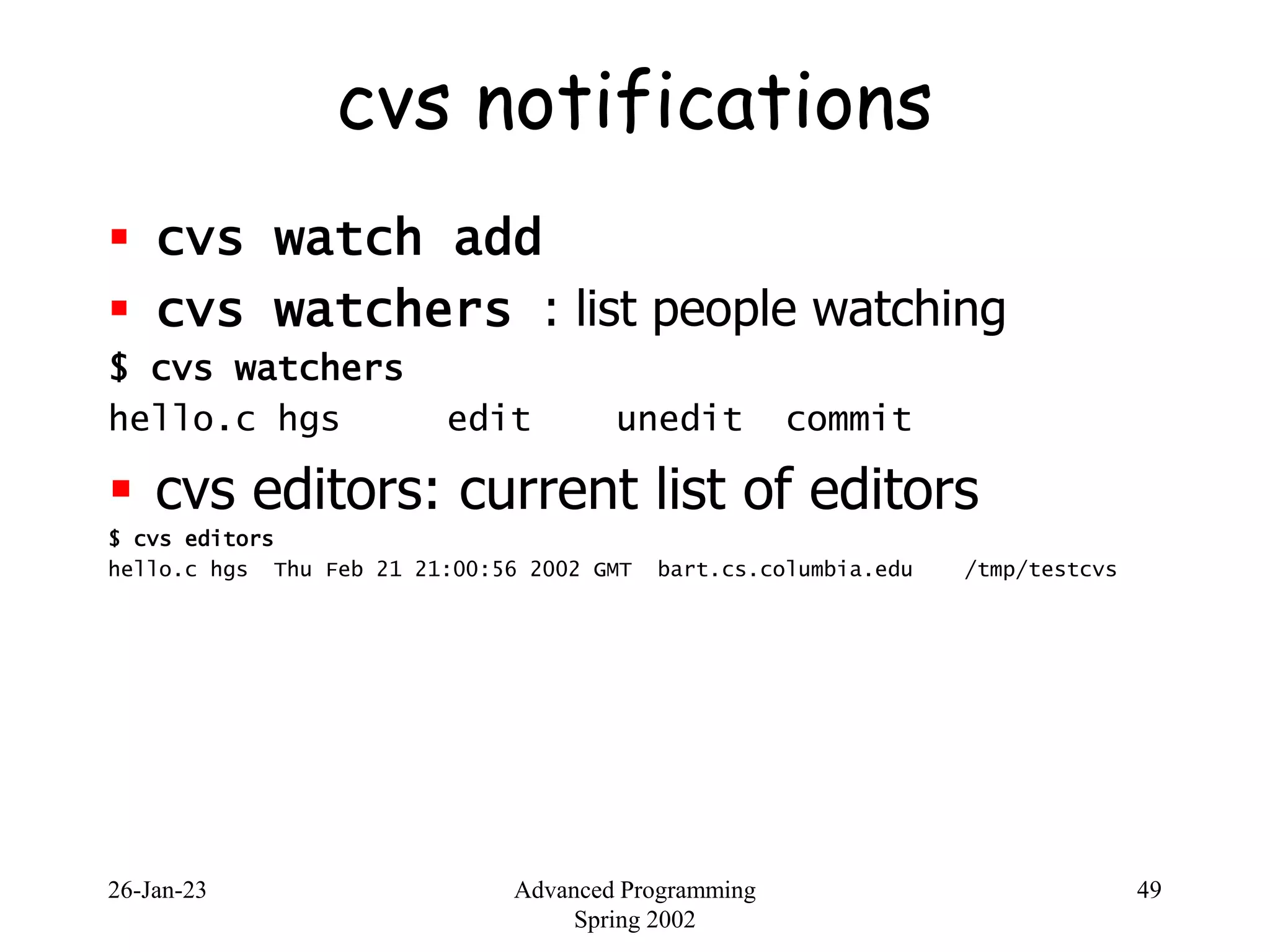

cvs notifications
 cvs watch add
 cvs watchers : list people watching
$ cvs watchers
hello.c hgs edit unedit commit
 cvs editors: current list of editors
$ cvs editors
hello.c hgs Thu Feb 21 21:00:56 2002 GMT bart.cs.columbia.edu /tmp/testcvs
26-Jan-23 Advanced Programming
Spring 2002
50

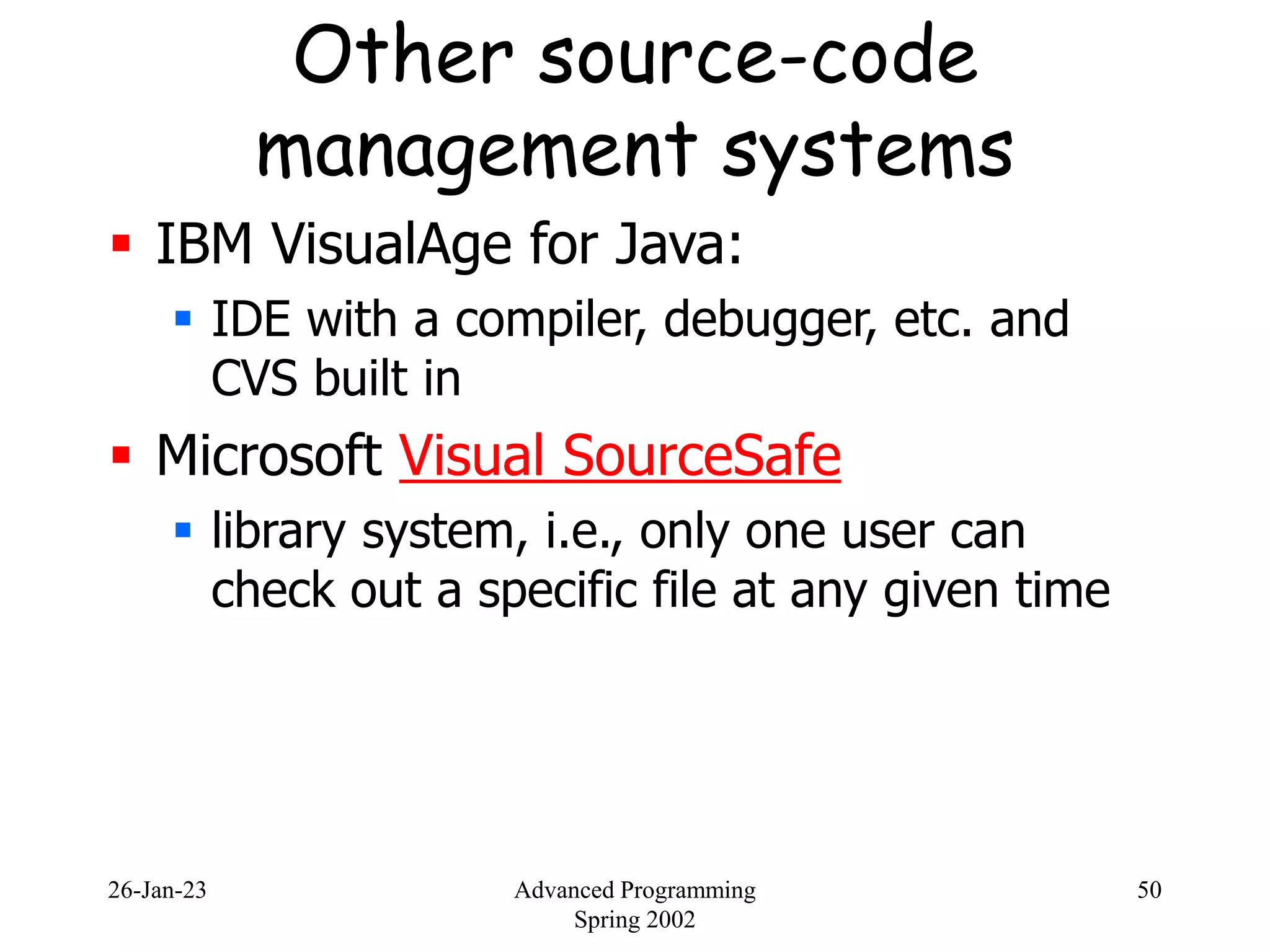

Other source-code
management systems
 IBM VisualAge for Java:
 IDE with a compiler, debugger, etc. and
CVS built in
 Microsoft Visual SourceSafe
 library system, i.e., only one user can
check out a specific file at any given time
26-Jan-23 Advanced Programming
Spring 2002
51

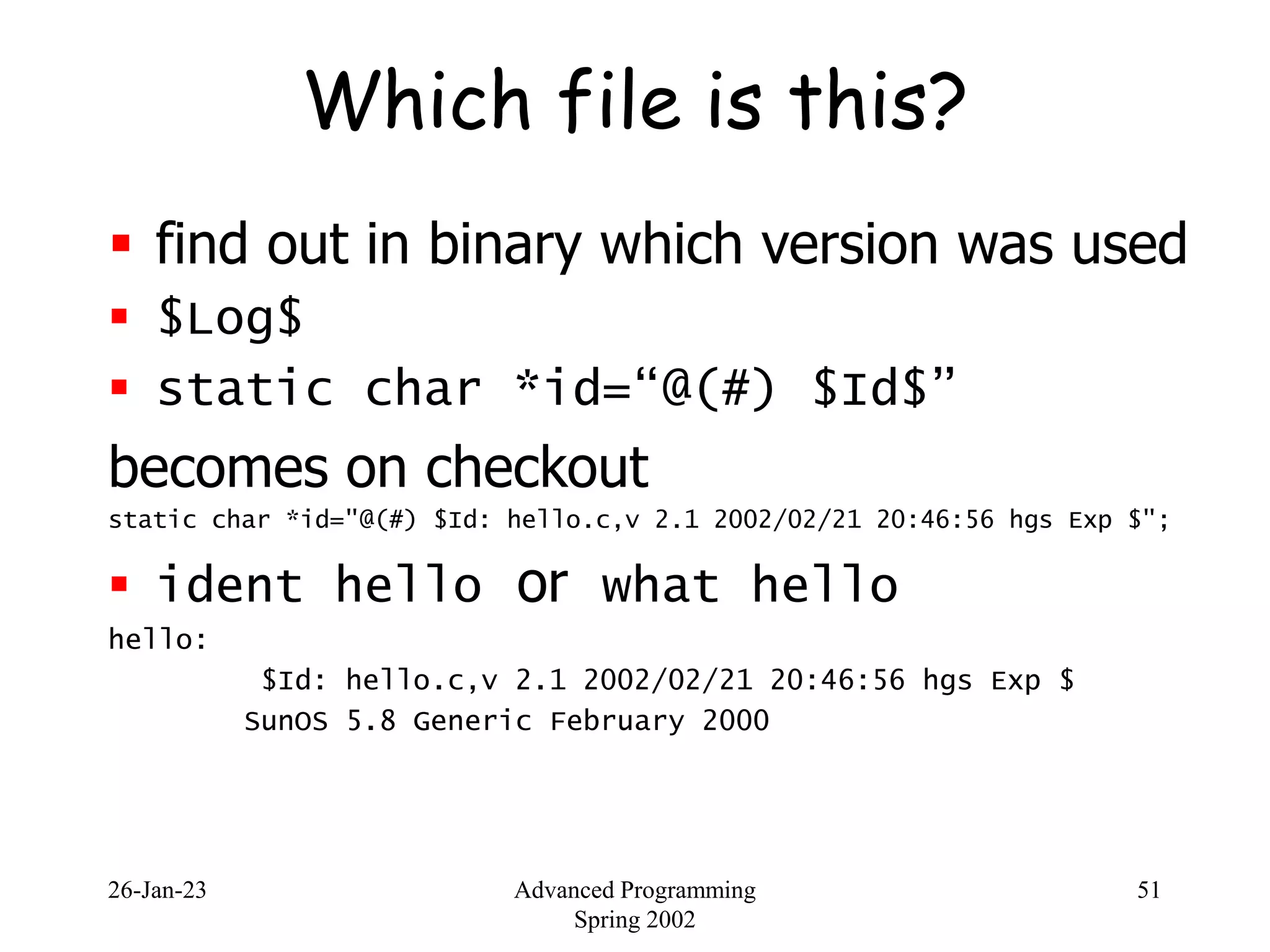

Which file is this?
 find out in binary which version was used
 $Log$
 static char *id=“@(#) $Id$”
becomes on checkout
static char *id="@(#) $Id: hello.c,v 2.1 2002/02/21 20:46:56 hgs Exp $";
 ident hello or what hello
hello:
$Id: hello.c,v 2.1 2002/02/21 20:46:56 hgs Exp $
SunOS 5.8 Generic February 2000
26-Jan-23 Advanced Programming
Spring 2002
52
RPM – RedHat Linux package
manager
 Activities for an application:
 Installation – on different architectures
 Updates
 Inventory: what’s installed
 Un-install
 Each Unix architecture seems to have
one: Solaris pkg, RPM (www.rpm.org),
...
26-Jan-23 Advanced Programming
Spring 2002
53

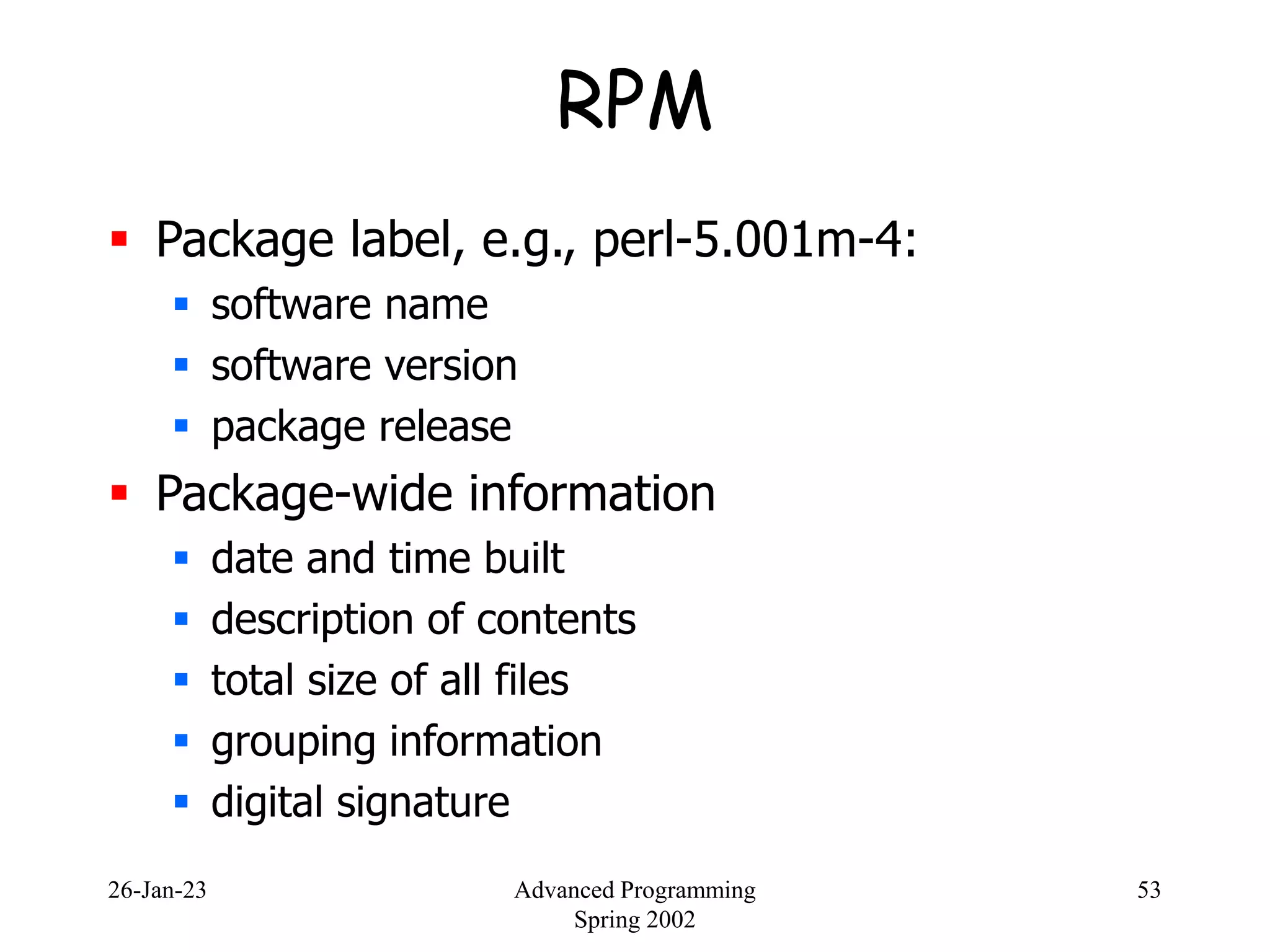

RPM
 Package label, e.g., perl-5.001m-4:
 software name
 software version
 package release
 Package-wide information
 date and time built
 description of contents
 total size of all files
 grouping information
 digital signature
26-Jan-23 Advanced Programming
Spring 2002
54

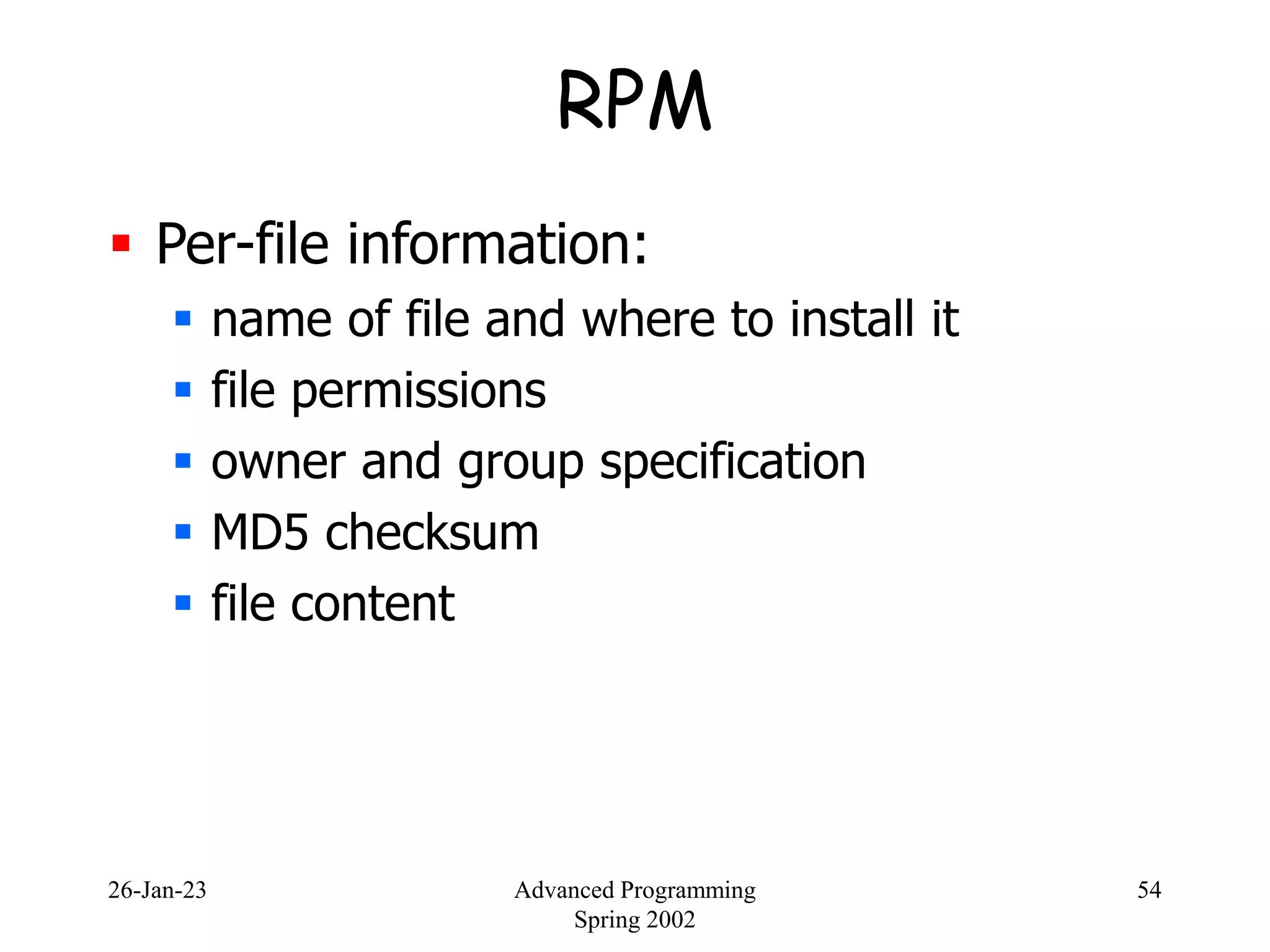

RPM
 Per-file information:
 name of file and where to install it
 file permissions
 owner and group specification
 MD5 checksum
 file content
26-Jan-23 Advanced Programming
Spring 2002
55

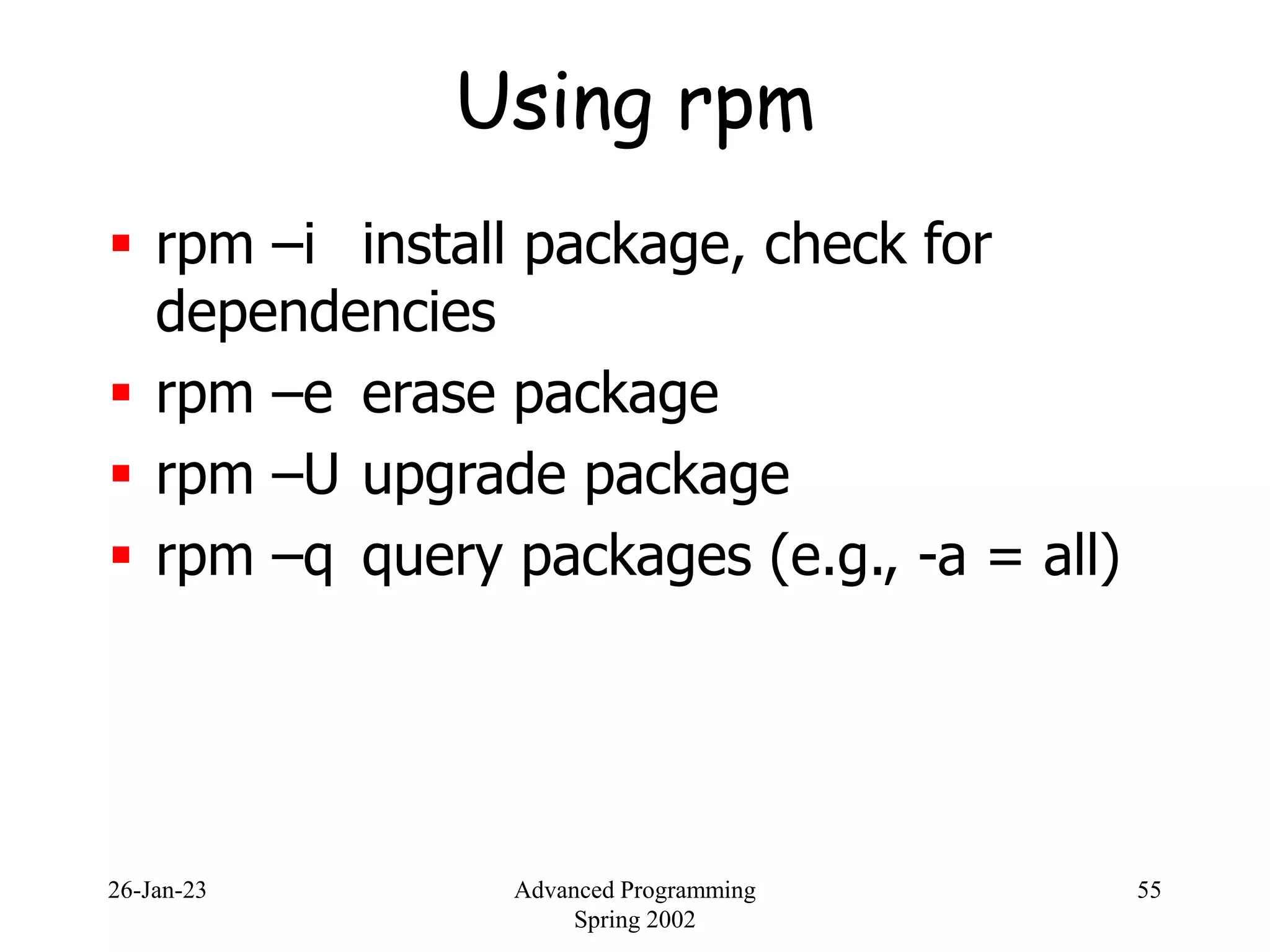

Using rpm
 rpm –i install package, check for
dependencies
 rpm –e erase package
 rpm –U upgrade package
 rpm –q query packages (e.g., -a = all)
26-Jan-23 Advanced Programming
Spring 2002
56

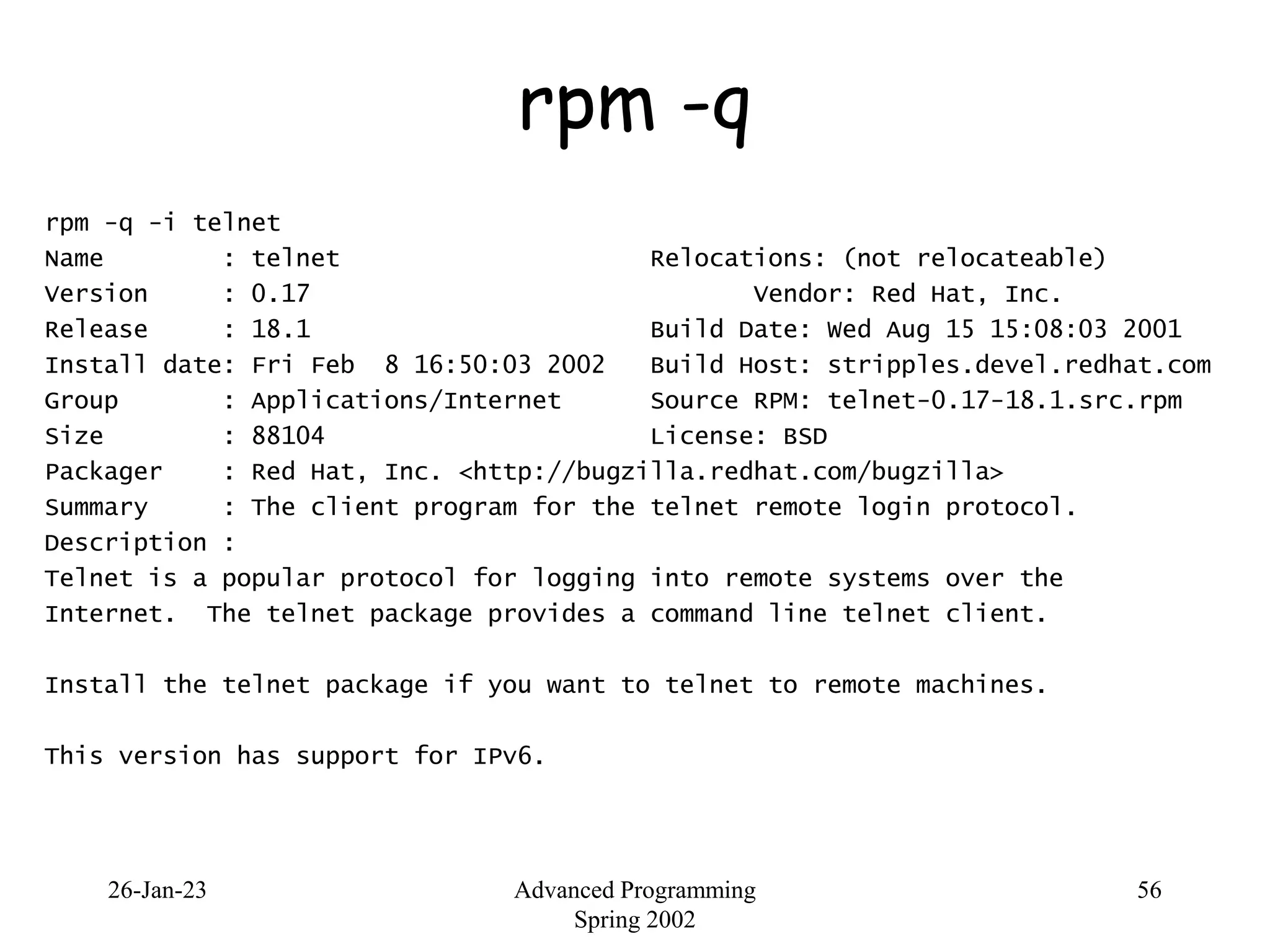

rpm -q
rpm -q -i telnet
Name : telnet Relocations: (not relocateable)
Version : 0.17 Vendor: Red Hat, Inc.
Release : 18.1 Build Date: Wed Aug 15 15:08:03 2001
Install date: Fri Feb 8 16:50:03 2002 Build Host: stripples.devel.redhat.com
Group : Applications/Internet Source RPM: telnet-0.17-18.1.src.rpm
Size : 88104 License: BSD
Packager : Red Hat, Inc. <http://bugzilla.redhat.com/bugzilla>
Summary : The client program for the telnet remote login protocol.
Description :
Telnet is a popular protocol for logging into remote systems over the
Internet. The telnet package provides a command line telnet client.
Install the telnet package if you want to telnet to remote machines.
This version has support for IPv6.
26-Jan-23 Advanced Programming
Spring 2002
57

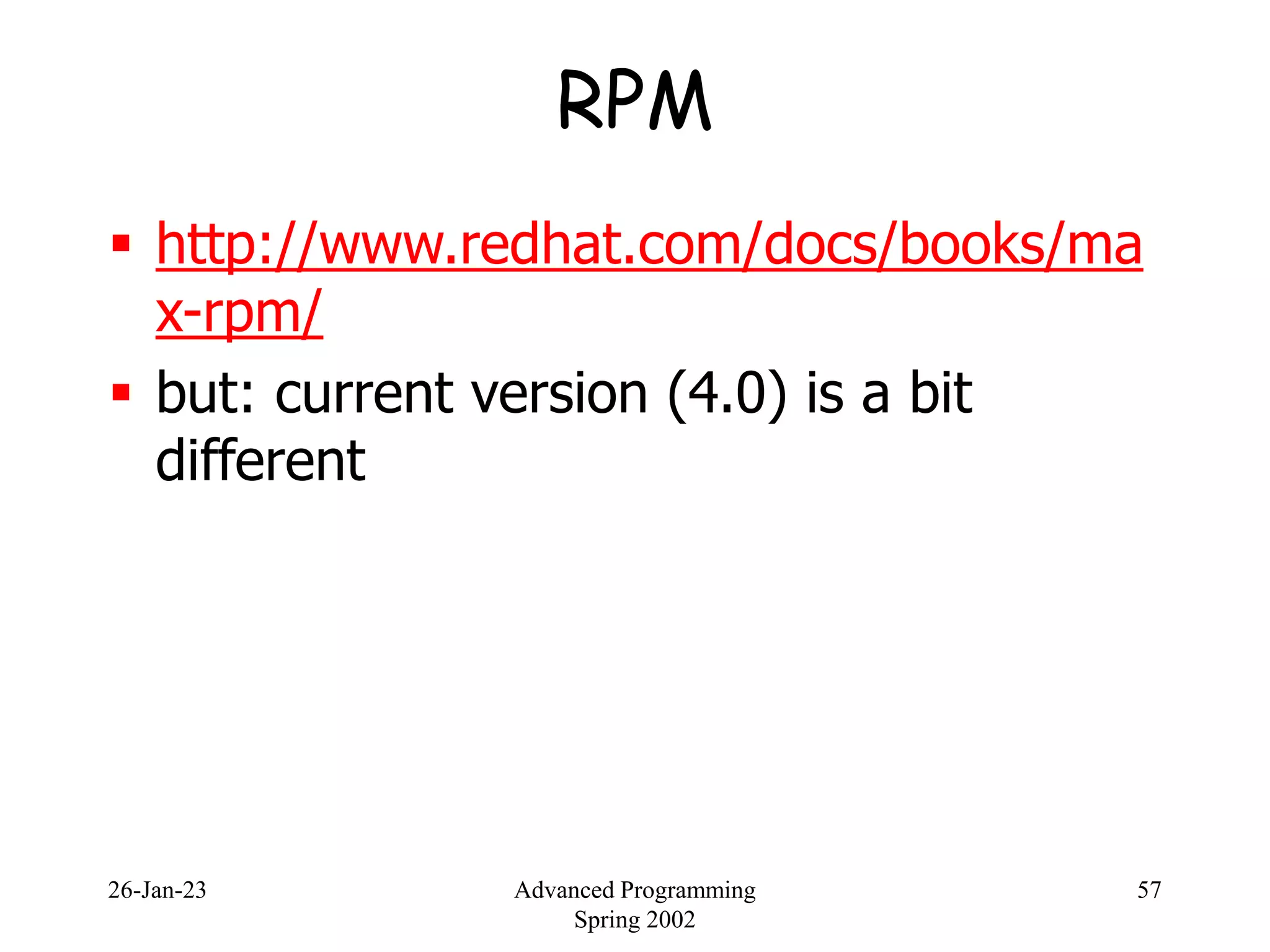

RPM
 http://www.redhat.com/docs/books/ma
x-rpm/
 but: current version (4.0) is a bit
different
26-Jan-23 Advanced Programming
Spring 2002
58

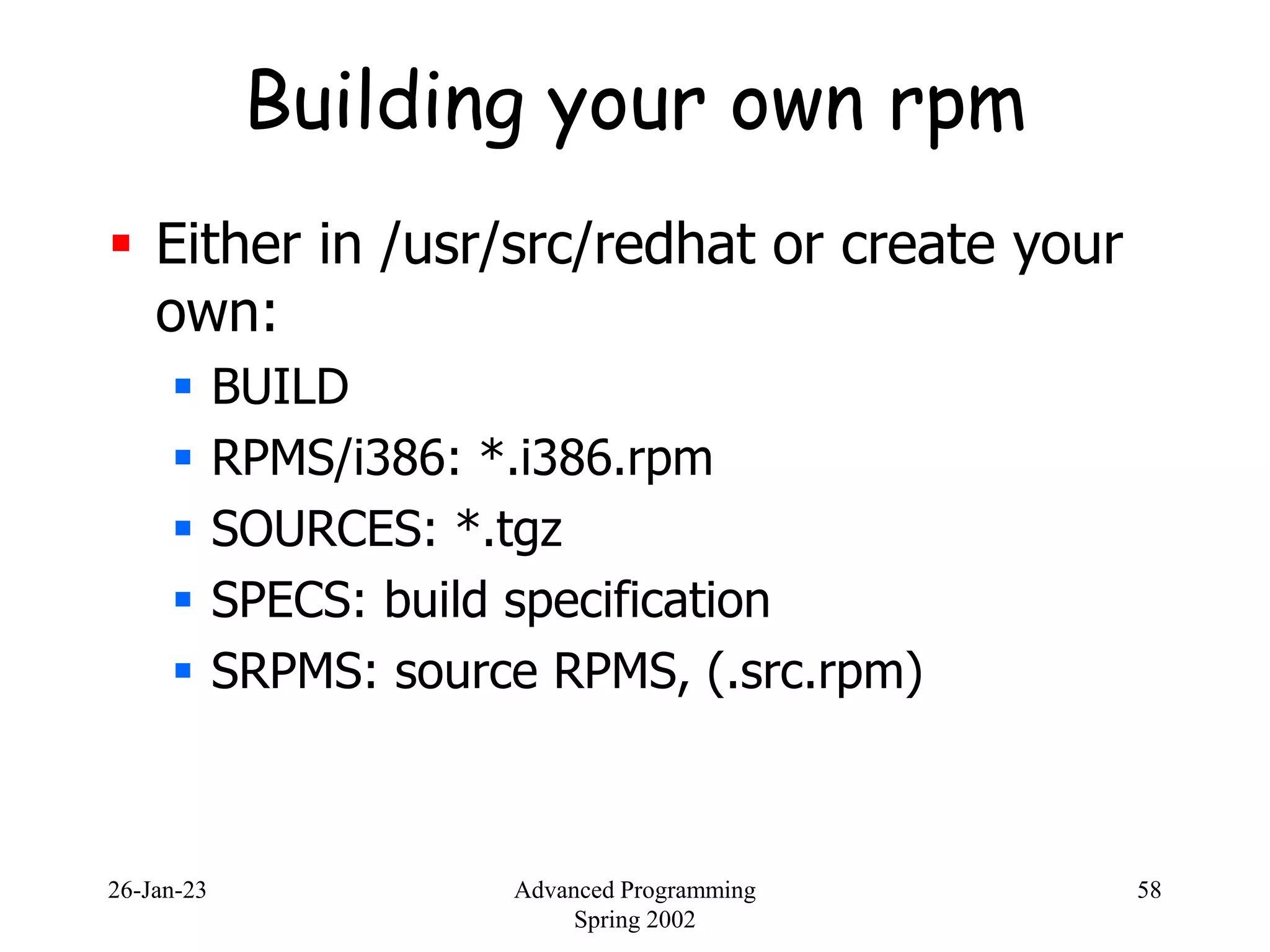

Building your own rpm
 Either in /usr/src/redhat or create your
own:
 BUILD
 RPMS/i386: *.i386.rpm
 SOURCES: *.tgz
 SPECS: build specification
 SRPMS: source RPMS, (.src.rpm)
26-Jan-23 Advanced Programming
Spring 2002
59

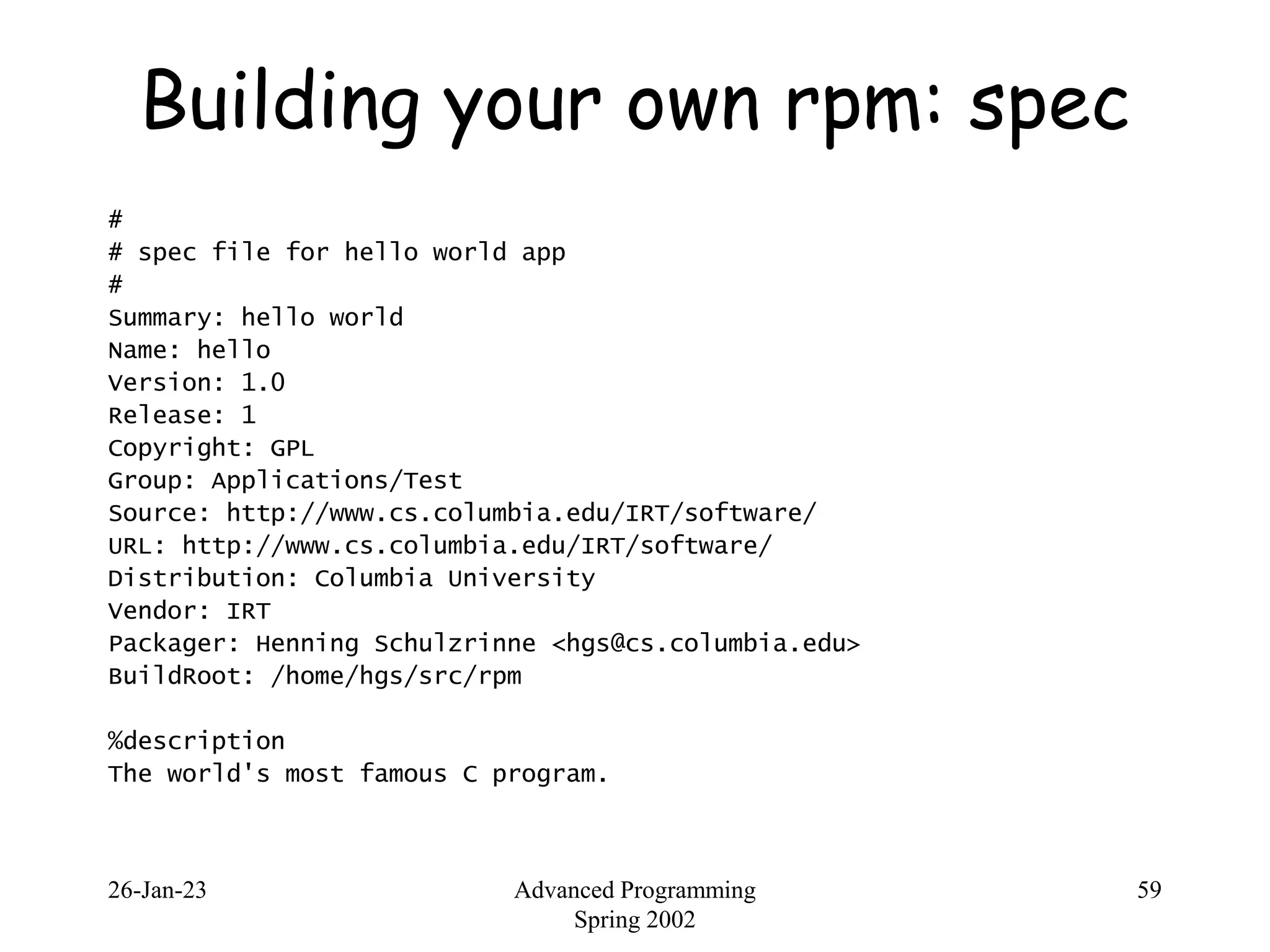

Building your own rpm: spec
#
# spec file for hello world app
#
Summary: hello world
Name: hello
Version: 1.0
Release: 1
Copyright: GPL
Group: Applications/Test
Source: http://www.cs.columbia.edu/IRT/software/
URL: http://www.cs.columbia.edu/IRT/software/
Distribution: Columbia University
Vendor: IRT
Packager: Henning Schulzrinne <hgs@cs.columbia.edu>
BuildRoot: /home/hgs/src/rpm
%description
The world's most famous C program.
26-Jan-23 Advanced Programming
Spring 2002
60

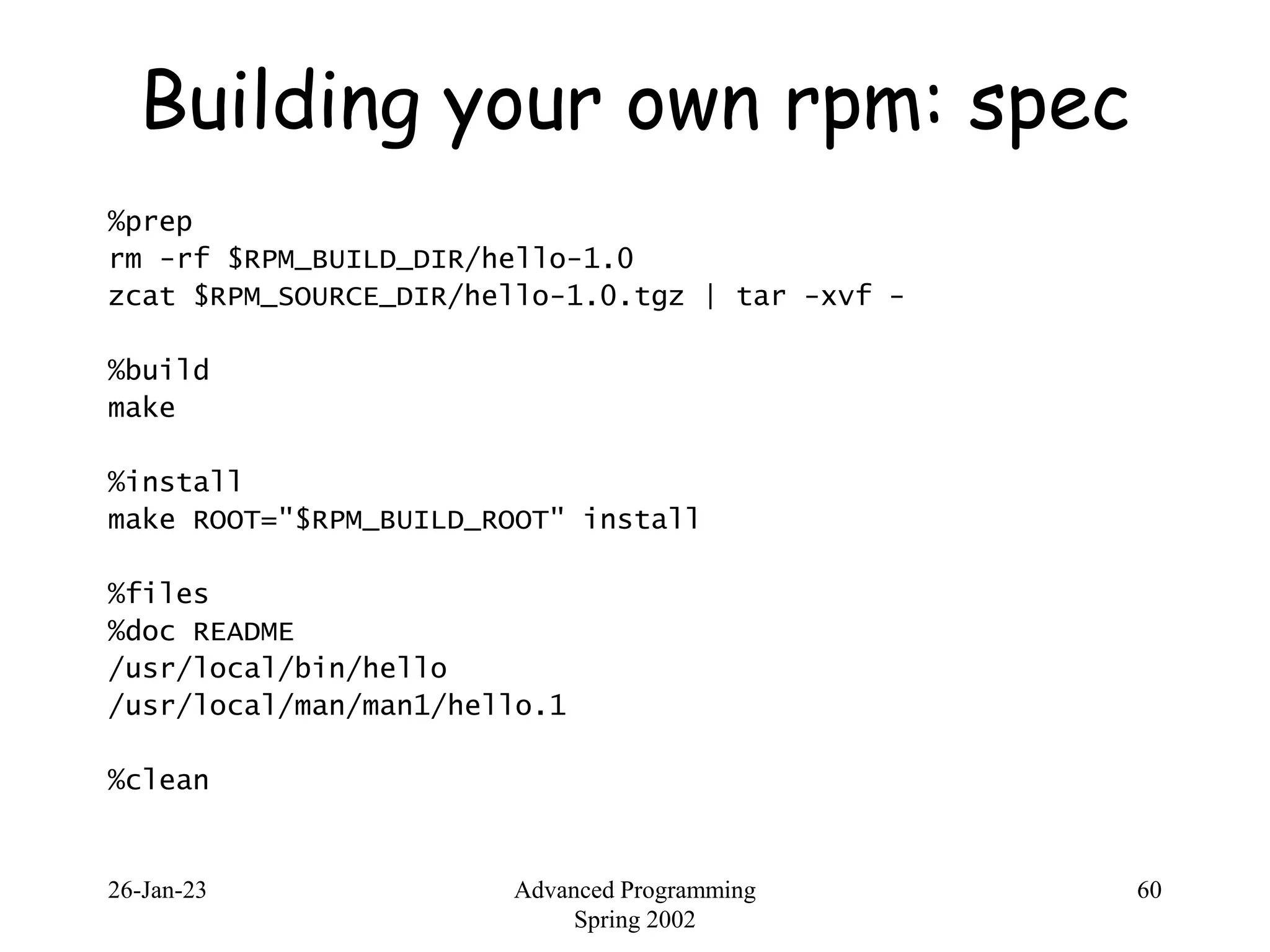

Building your own rpm: spec
%prep
rm -rf $RPM_BUILD_DIR/hello-1.0
zcat $RPM_SOURCE_DIR/hello-1.0.tgz | tar -xvf -
%build
make
%install
make ROOT="$RPM_BUILD_ROOT" install
%files
%doc README
/usr/local/bin/hello
/usr/local/man/man1/hello.1
%clean
26-Jan-23 Advanced Programming
Spring 2002
61

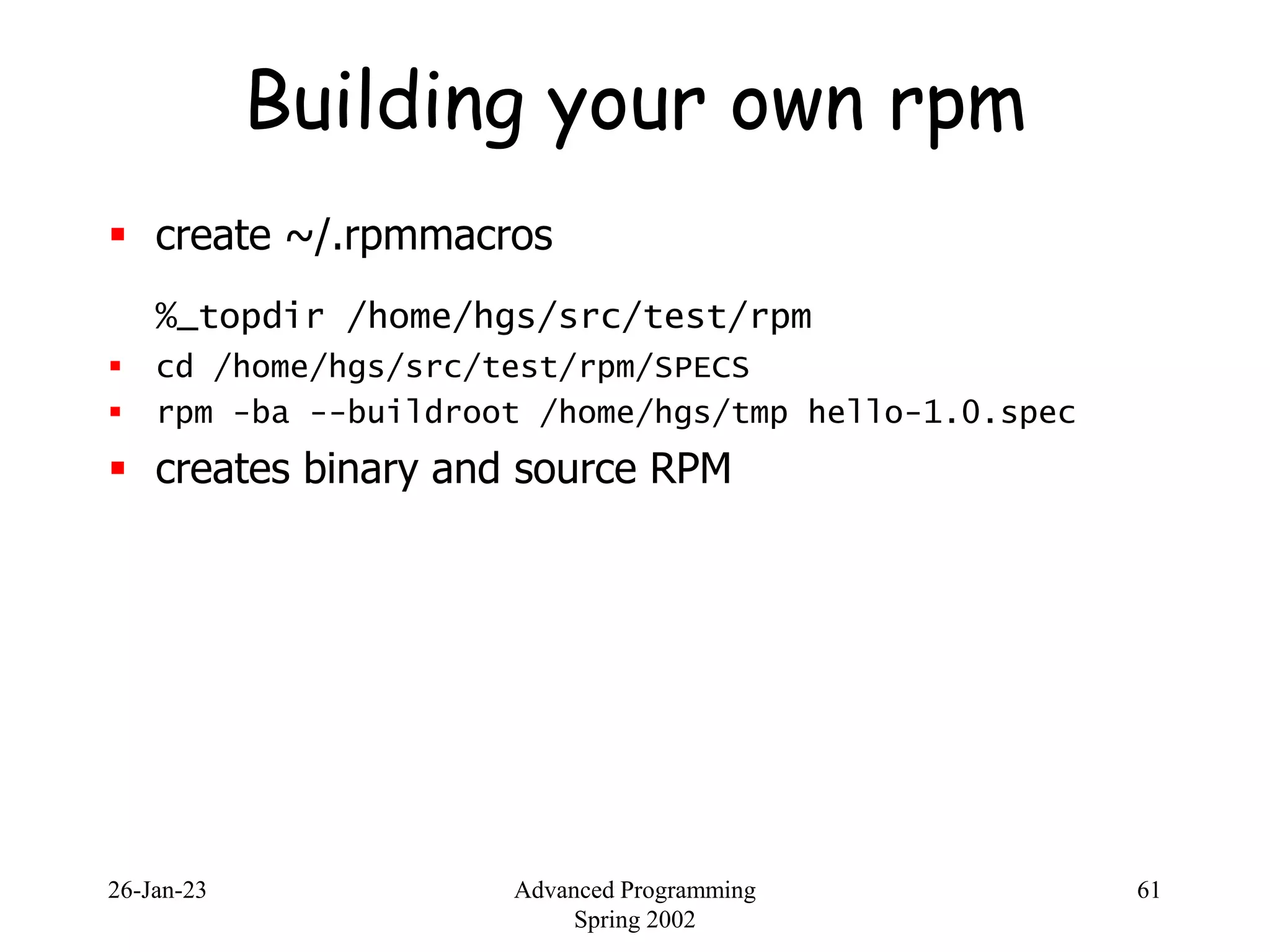

Building your own rpm
 create ~/.rpmmacros
%_topdir /home/hgs/src/test/rpm
 cd /home/hgs/src/test/rpm/SPECS
 rpm -ba --buildroot /home/hgs/tmp hello-1.0.spec
 creates binary and source RPM
26-Jan-23 Advanced Programming
Spring 2002
62

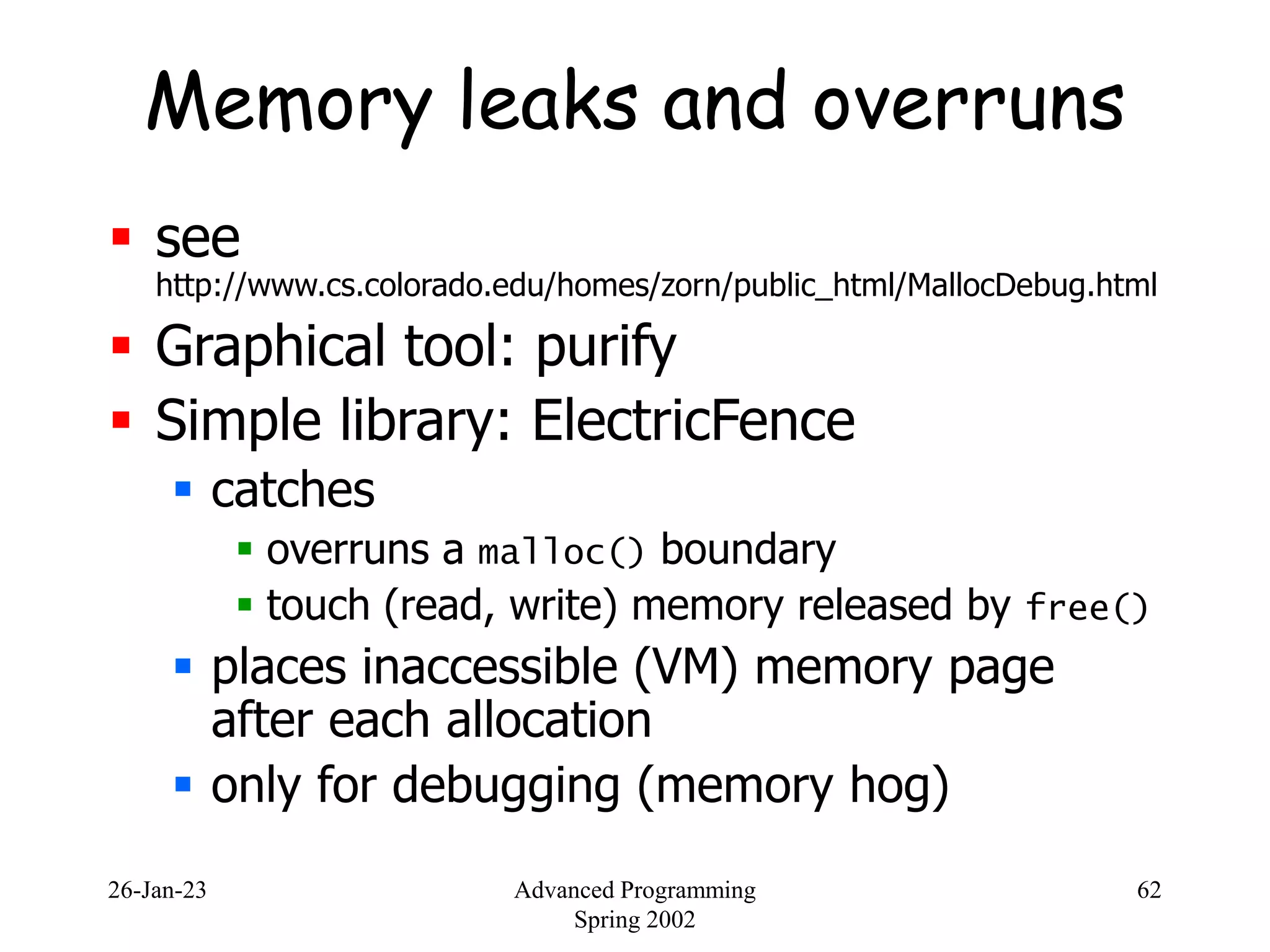

Memory leaks and overruns
 see
http://www.cs.colorado.edu/homes/zorn/public_html/MallocDebug.html
 Graphical tool: purify
 Simple library: ElectricFence
 catches
 overruns a malloc() boundary
 touch (read, write) memory released by free()
 places inaccessible (VM) memory page
after each allocation
 only for debugging (memory hog)
26-Jan-23 Advanced Programming
Spring 2002
63

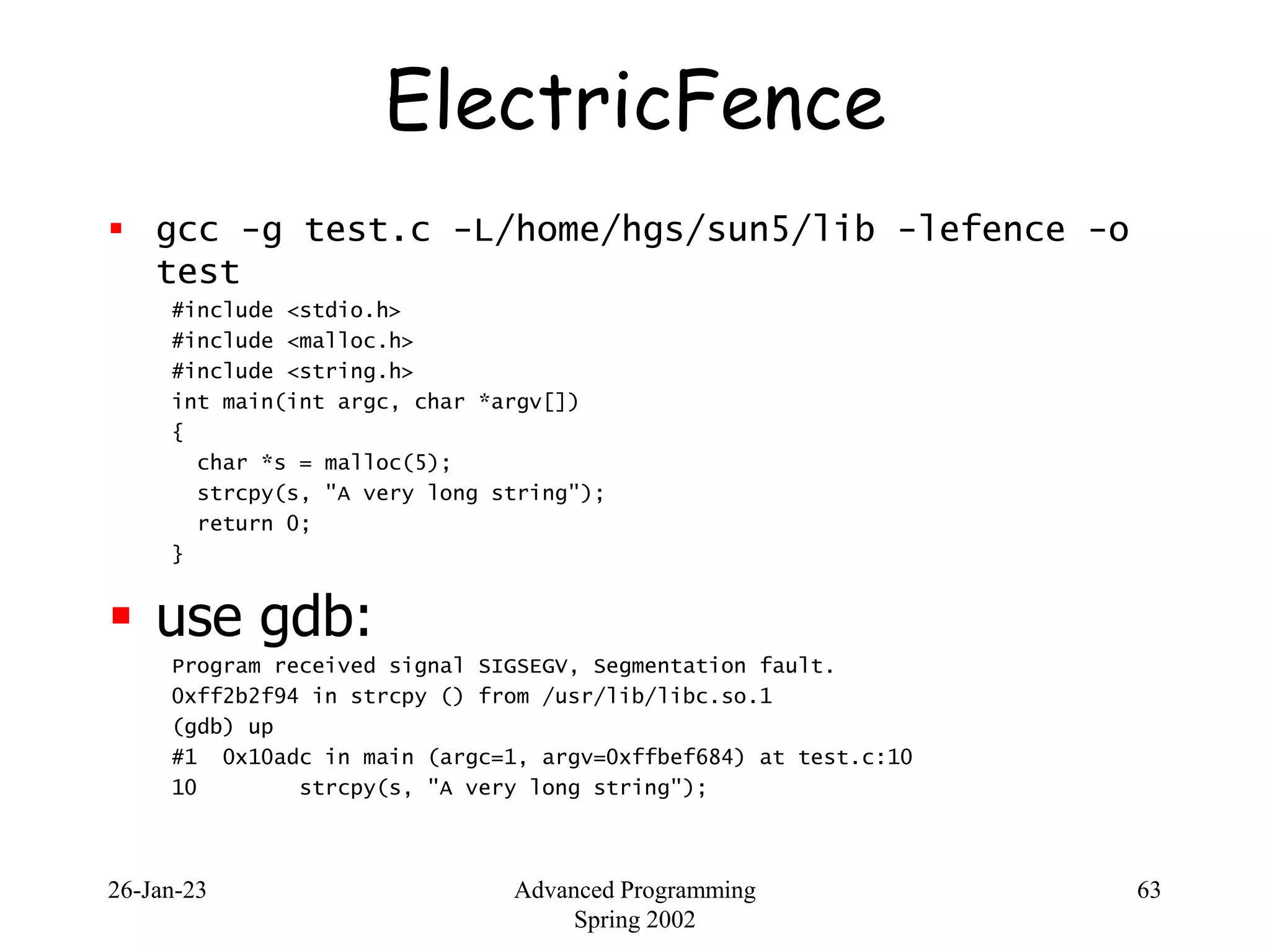

ElectricFence
 gcc -g test.c -L/home/hgs/sun5/lib -lefence -o
test
#include <stdio.h>
#include <malloc.h>
#include <string.h>
int main(int argc, char *argv[])
{
char *s = malloc(5);
strcpy(s, "A very long string");
return 0;
}
 use gdb:
Program received signal SIGSEGV, Segmentation fault.
0xff2b2f94 in strcpy () from /usr/lib/libc.so.1
(gdb) up
#1 0x10adc in main (argc=1, argv=0xffbef684) at test.c:10
10 strcpy(s, "A very long string");
26-Jan-23 Advanced Programming
Spring 2002
64

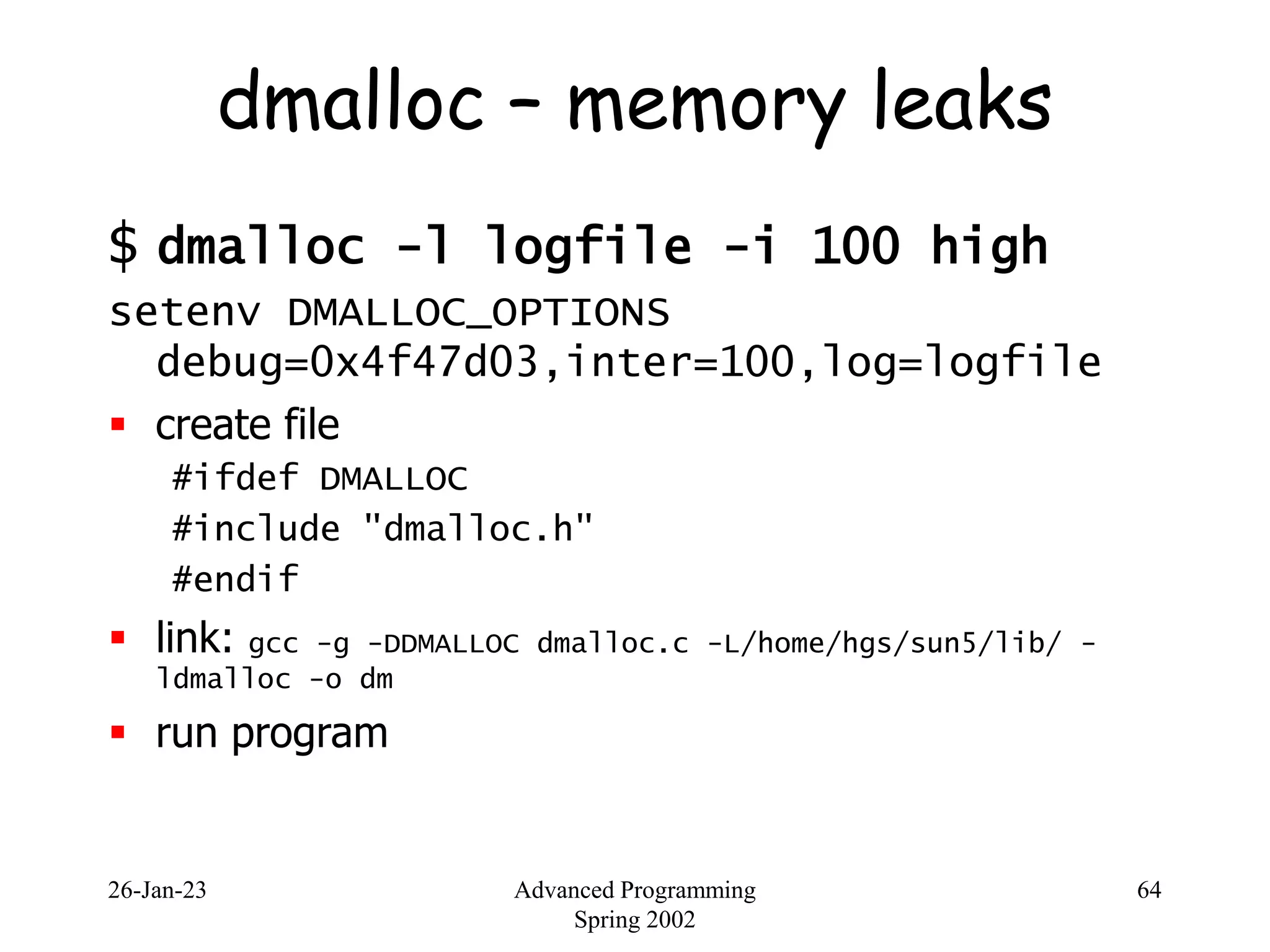

dmalloc – memory leaks
$ dmalloc -l logfile -i 100 high
setenv DMALLOC_OPTIONS
debug=0x4f47d03,inter=100,log=logfile
 create file
#ifdef DMALLOC
#include "dmalloc.h"
#endif
 link: gcc -g -DDMALLOC dmalloc.c -L/home/hgs/sun5/lib/ -
ldmalloc -o dm
 run program
26-Jan-23 Advanced Programming
Spring 2002
65

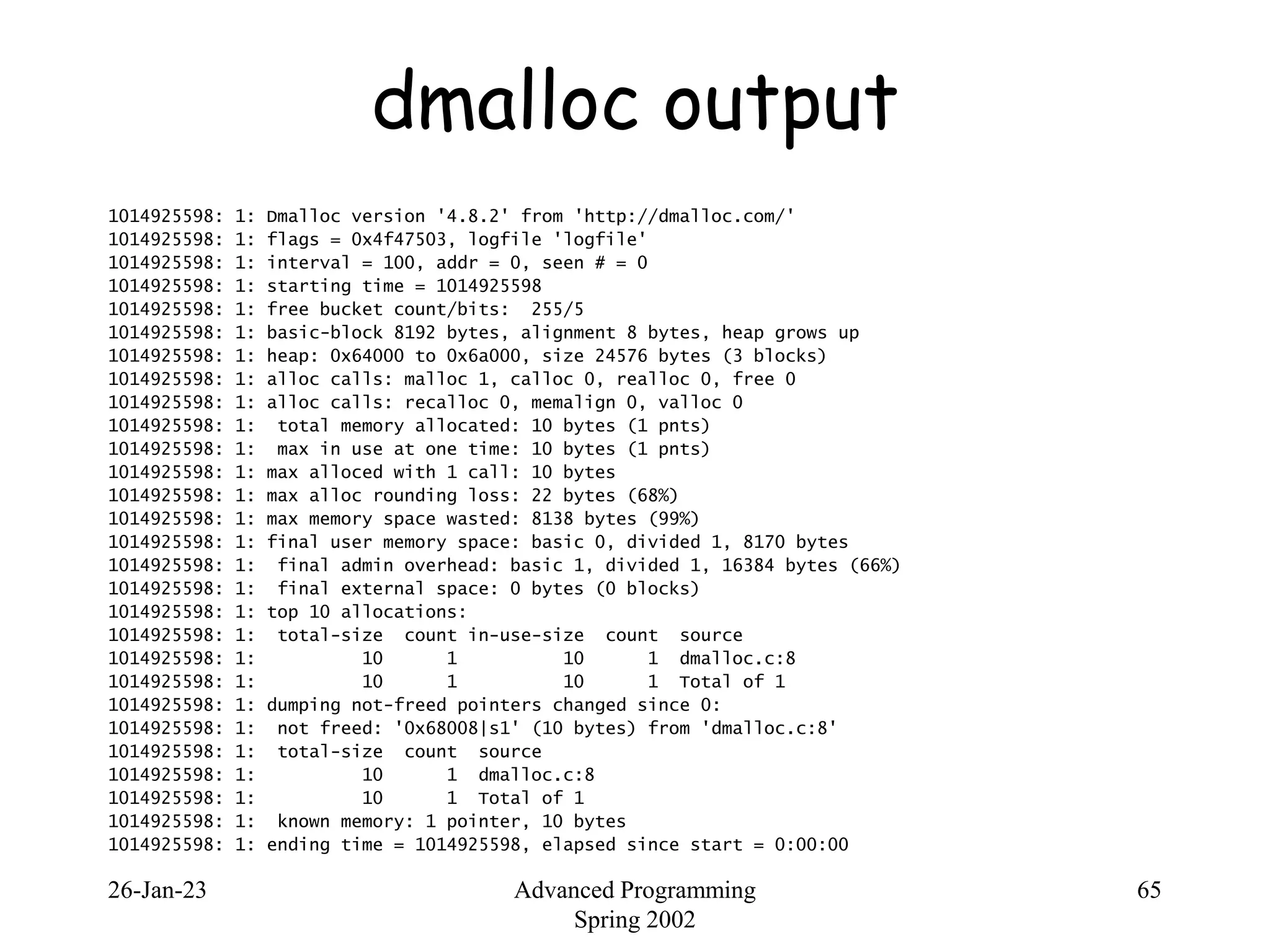

dmalloc output
1014925598: 1: Dmalloc version '4.8.2' from 'http://dmalloc.com/'
1014925598: 1: flags = 0x4f47503, logfile 'logfile'
1014925598: 1: interval = 100, addr = 0, seen # = 0
1014925598: 1: starting time = 1014925598
1014925598: 1: free bucket count/bits: 255/5
1014925598: 1: basic-block 8192 bytes, alignment 8 bytes, heap grows up
1014925598: 1: heap: 0x64000 to 0x6a000, size 24576 bytes (3 blocks)
1014925598: 1: alloc calls: malloc 1, calloc 0, realloc 0, free 0
1014925598: 1: alloc calls: recalloc 0, memalign 0, valloc 0
1014925598: 1: total memory allocated: 10 bytes (1 pnts)
1014925598: 1: max in use at one time: 10 bytes (1 pnts)
1014925598: 1: max alloced with 1 call: 10 bytes
1014925598: 1: max alloc rounding loss: 22 bytes (68%)
1014925598: 1: max memory space wasted: 8138 bytes (99%)
1014925598: 1: final user memory space: basic 0, divided 1, 8170 bytes
1014925598: 1: final admin overhead: basic 1, divided 1, 16384 bytes (66%)
1014925598: 1: final external space: 0 bytes (0 blocks)
1014925598: 1: top 10 allocations:
1014925598: 1: total-size count in-use-size count source
1014925598: 1: 10 1 10 1 dmalloc.c:8
1014925598: 1: 10 1 10 1 Total of 1
1014925598: 1: dumping not-freed pointers changed since 0:
1014925598: 1: not freed: '0x68008|s1' (10 bytes) from 'dmalloc.c:8'
1014925598: 1: total-size count source
1014925598: 1: 10 1 dmalloc.c:8
1014925598: 1: 10 1 Total of 1
1014925598: 1: known memory: 1 pointer, 10 bytes
1014925598: 1: ending time = 1014925598, elapsed since start = 0:00:00
26-Jan-23 Advanced Programming
Spring 2002
66

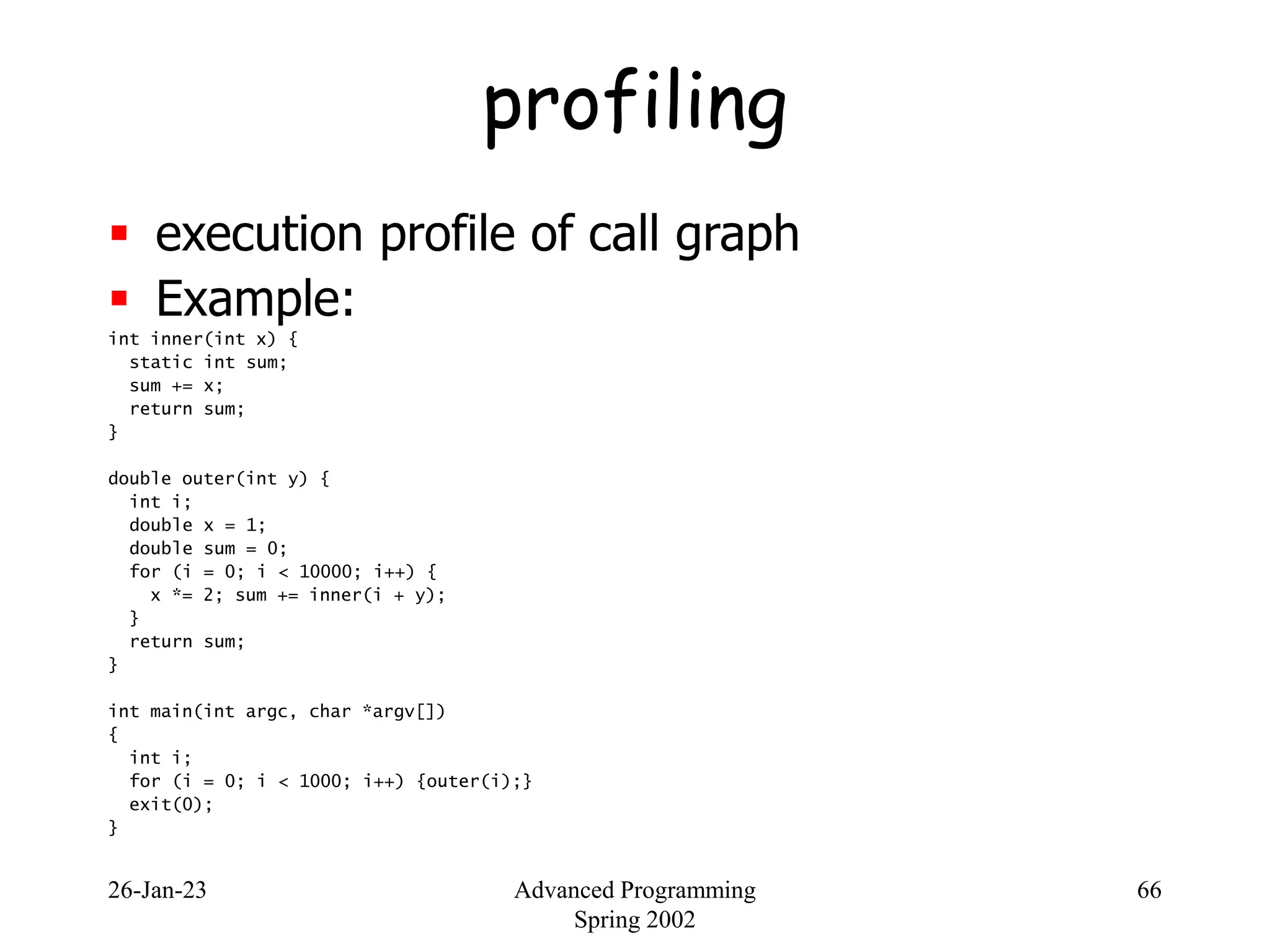

profiling
 execution profile of call graph
 Example:
int inner(int x) {
static int sum;
sum += x;
return sum;
}
double outer(int y) {
int i;
double x = 1;
double sum = 0;
for (i = 0; i < 10000; i++) {
x *= 2; sum += inner(i + y);
}
return sum;
}
int main(int argc, char *argv[])
{
int i;
for (i = 0; i < 1000; i++) {outer(i);}
exit(0);
}
26-Jan-23 Advanced Programming
Spring 2002
67

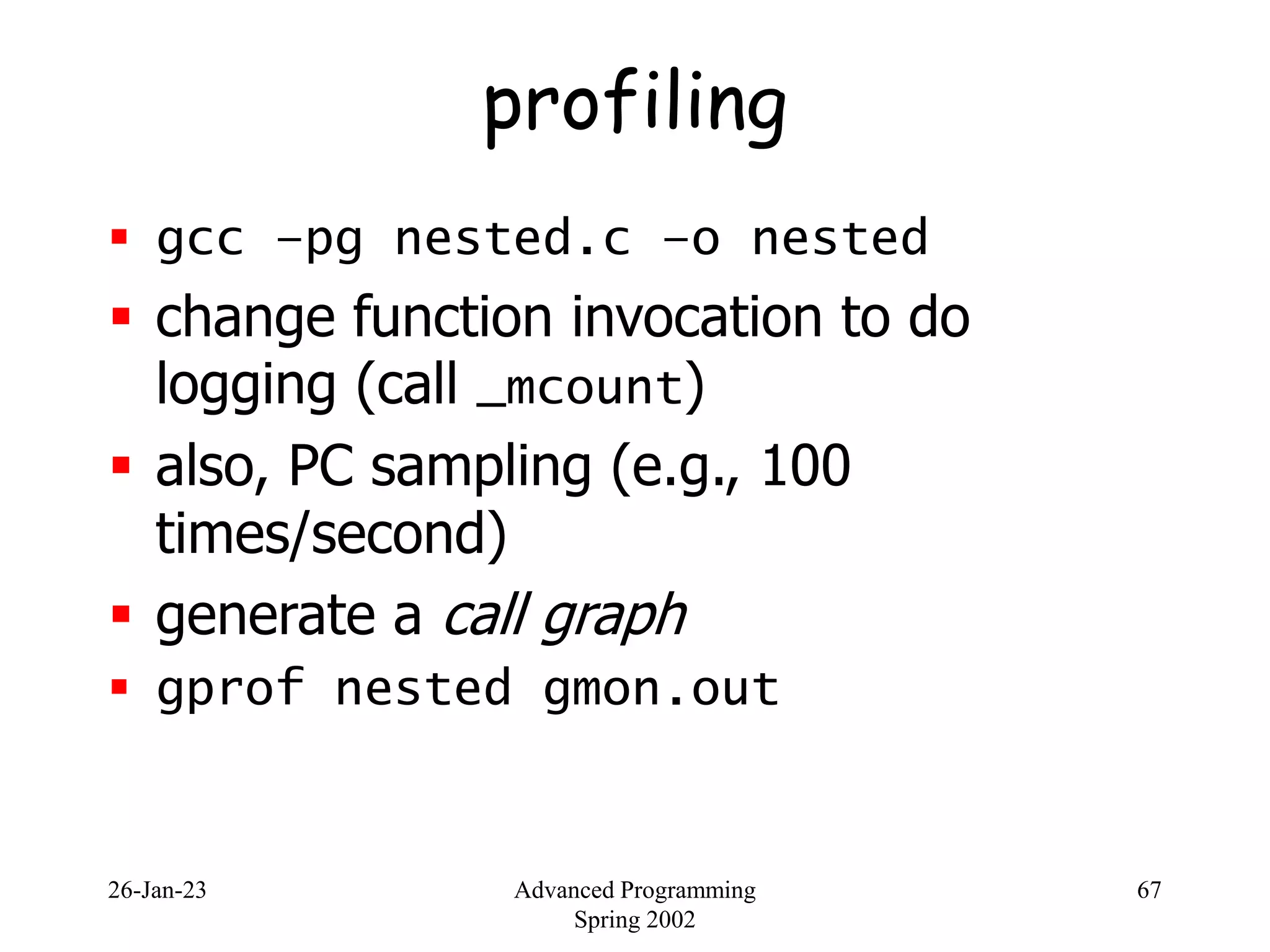

profiling
 gcc –pg nested.c –o nested
 change function invocation to do
logging (call _mcount)
 also, PC sampling (e.g., 100
times/second)
 generate a call graph
 gprof nested gmon.out
26-Jan-23 Advanced Programming
Spring 2002
68

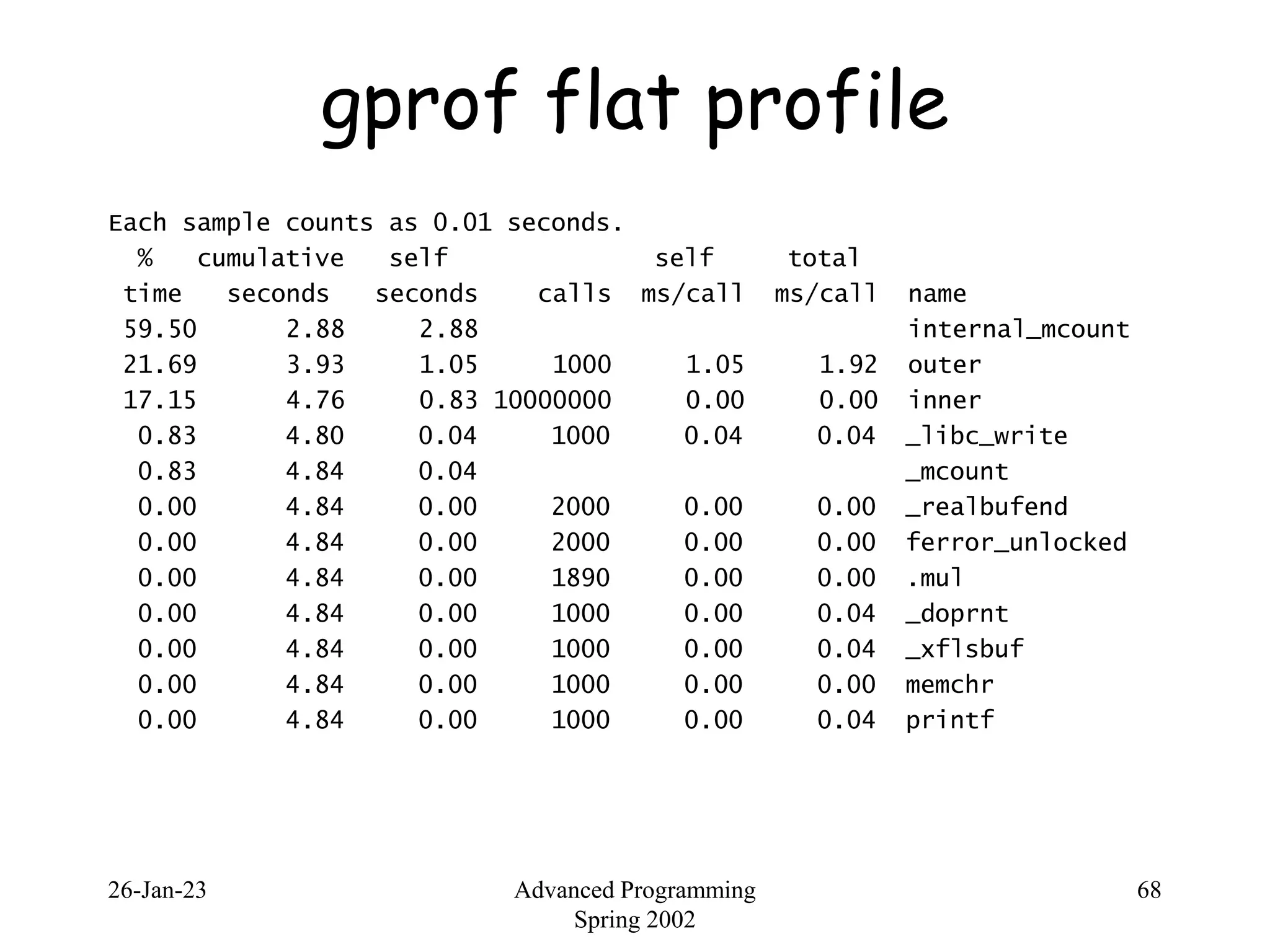

gprof flat profile
Each sample counts as 0.01 seconds.
% cumulative self self total
time seconds seconds calls ms/call ms/call name
59.50 2.88 2.88 internal_mcount
21.69 3.93 1.05 1000 1.05 1.92 outer
17.15 4.76 0.83 10000000 0.00 0.00 inner
0.83 4.80 0.04 1000 0.04 0.04 _libc_write
0.83 4.84 0.04 _mcount
0.00 4.84 0.00 2000 0.00 0.00 _realbufend
0.00 4.84 0.00 2000 0.00 0.00 ferror_unlocked
0.00 4.84 0.00 1890 0.00 0.00 .mul
0.00 4.84 0.00 1000 0.00 0.04 _doprnt
0.00 4.84 0.00 1000 0.00 0.04 _xflsbuf
0.00 4.84 0.00 1000 0.00 0.00 memchr
0.00 4.84 0.00 1000 0.00 0.04 printf
26-Jan-23 Advanced Programming
Spring 2002
69

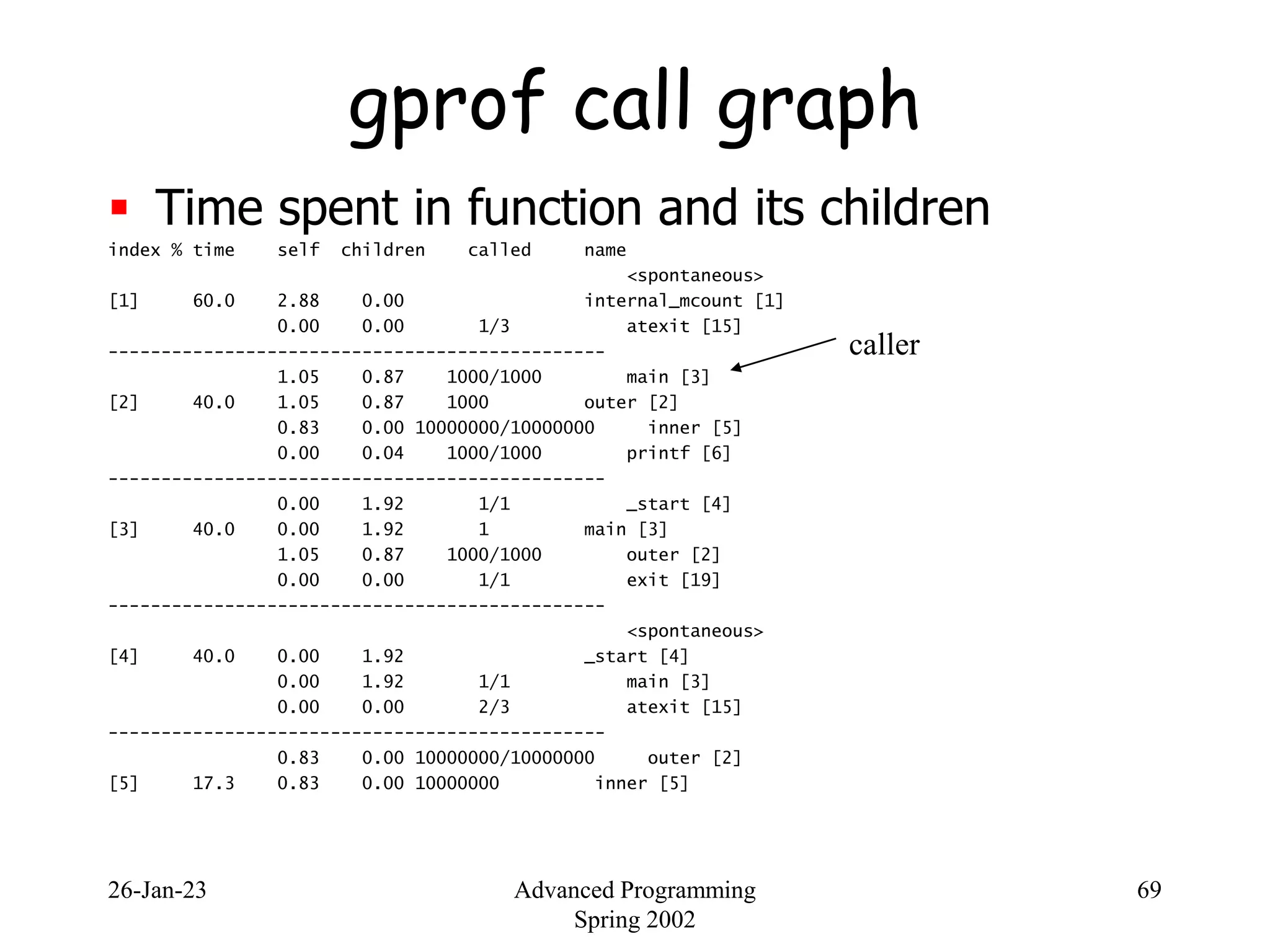

 Time spent in function and its children
index % time self children called name
<spontaneous>
[1] 60.0 2.88 0.00 internal_mcount [1]
0.00 0.00 1/3 atexit [15]
-----------------------------------------------
1.05 0.87 1000/1000 main [3]
[2] 40.0 1.05 0.87 1000 outer [2]
0.83 0.00 10000000/10000000 inner [5]
0.00 0.04 1000/1000 printf [6]
-----------------------------------------------
0.00 1.92 1/1 _start [4]
[3] 40.0 0.00 1.92 1 main [3]
1.05 0.87 1000/1000 outer [2]
0.00 0.00 1/1 exit [19]
-----------------------------------------------
<spontaneous>
[4] 40.0 0.00 1.92 _start [4]
0.00 1.92 1/1 main [3]
0.00 0.00 2/3 atexit [15]
-----------------------------------------------
0.83 0.00 10000000/10000000 outer [2]
[5] 17.3 0.83 0.00 10000000 inner [5]
gprof call graph
caller
26-Jan-23 Advanced Programming
Spring 2002
70

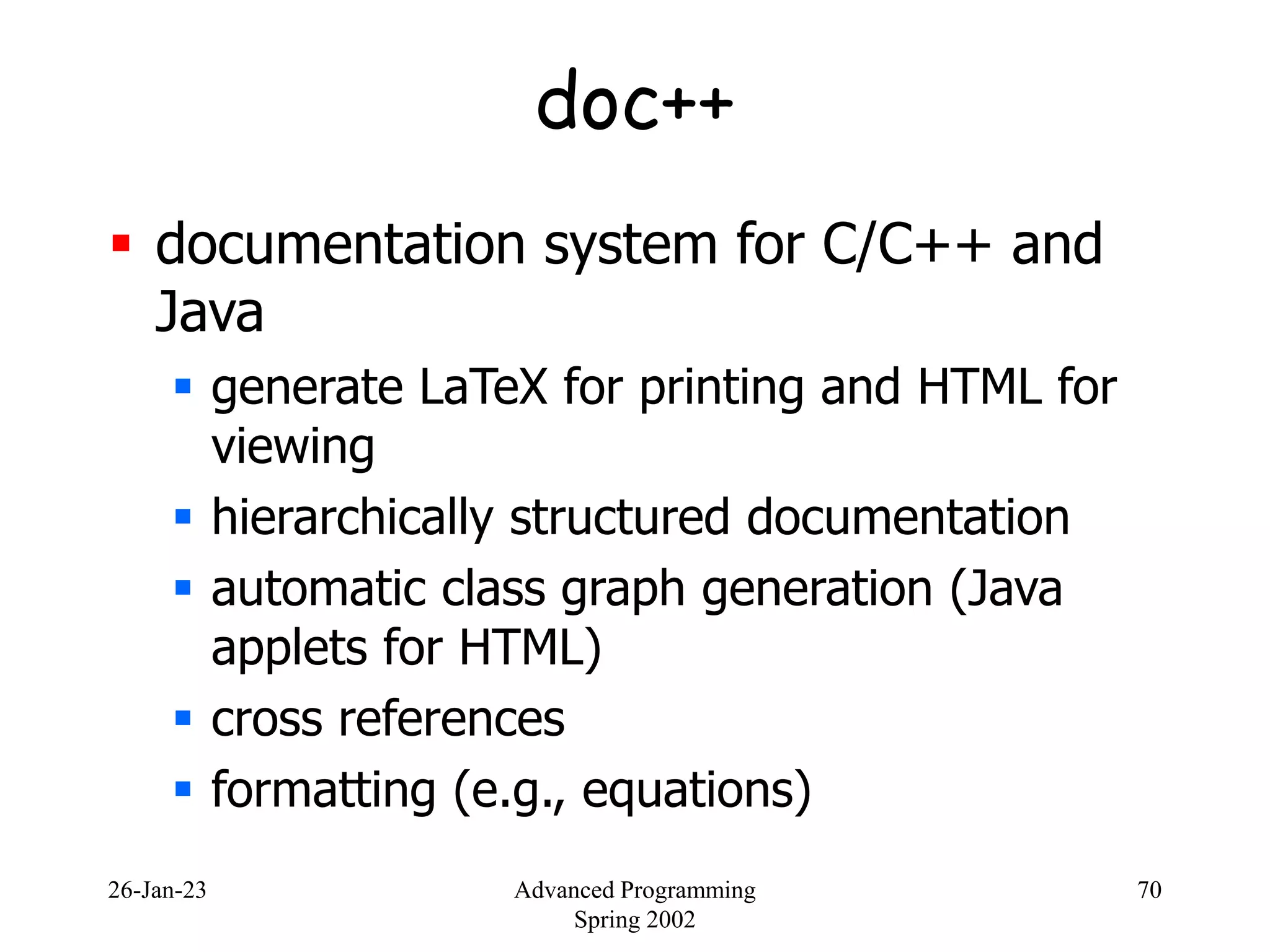

doc++
 documentation system for C/C++ and
Java
 generate LaTeX for printing and HTML for
viewing
 hierarchically structured documentation
 automatic class graph generation (Java
applets for HTML)
 cross references
 formatting (e.g., equations)
26-Jan-23 Advanced Programming
Spring 2002
71

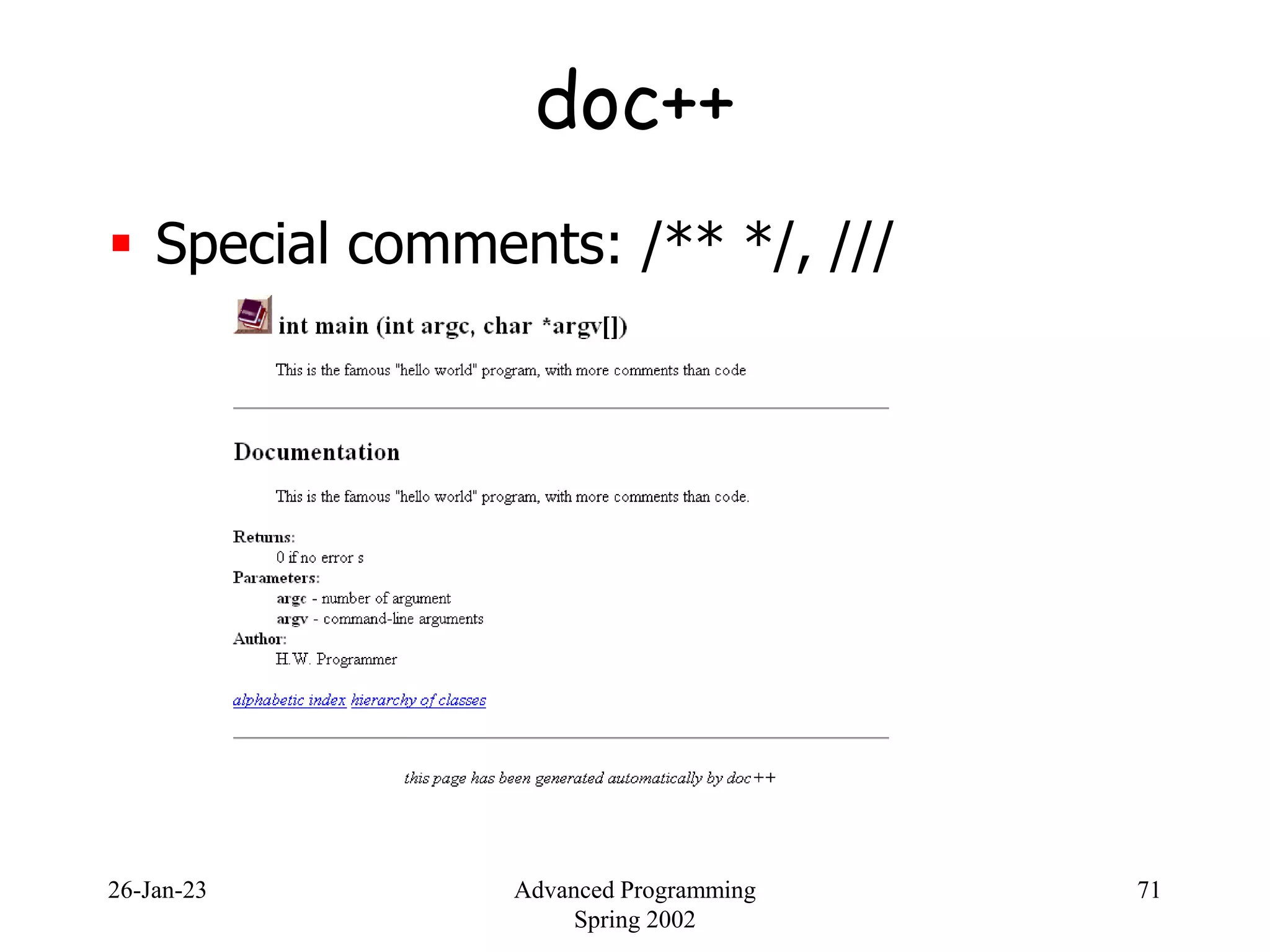

doc++
 Special comments: /** */, ///
26-Jan-23 Advanced Programming
Spring 2002
72

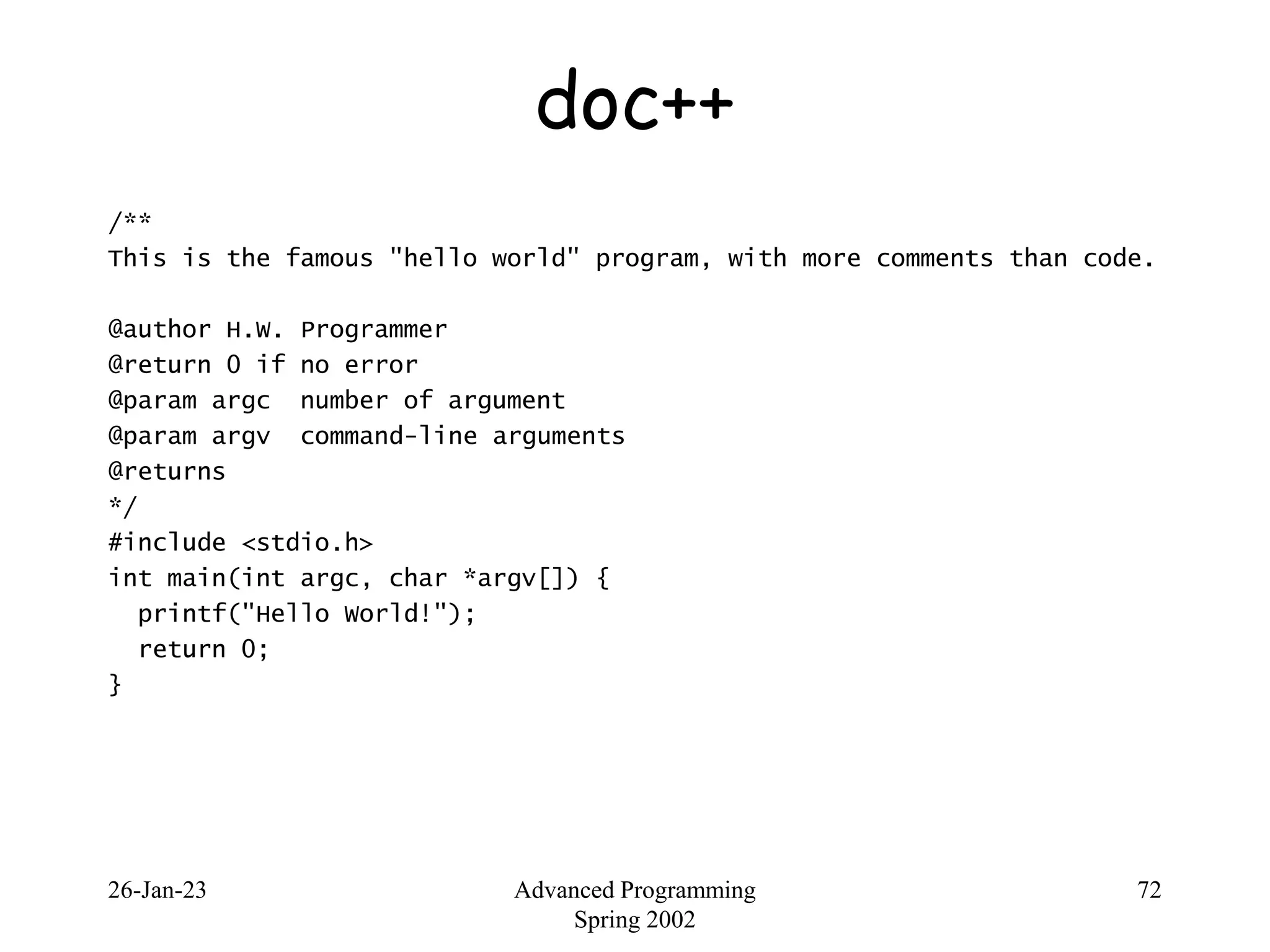

doc++
/**
This is the famous "hello world" program, with more comments than code.
@author H.W. Programmer
@return 0 if no error
@param argc number of argument
@param argv command-line arguments
@returns
*/
#include <stdio.h>
int main(int argc, char *argv[]) {
printf("Hello World!");
return 0;
}
26-Jan-23 Advanced Programming
Spring 2002
73
doc++
 docify to create minimal version
 doc++ -d outdir hello.c
26-Jan-23 Advanced Programming
Spring 2002
74

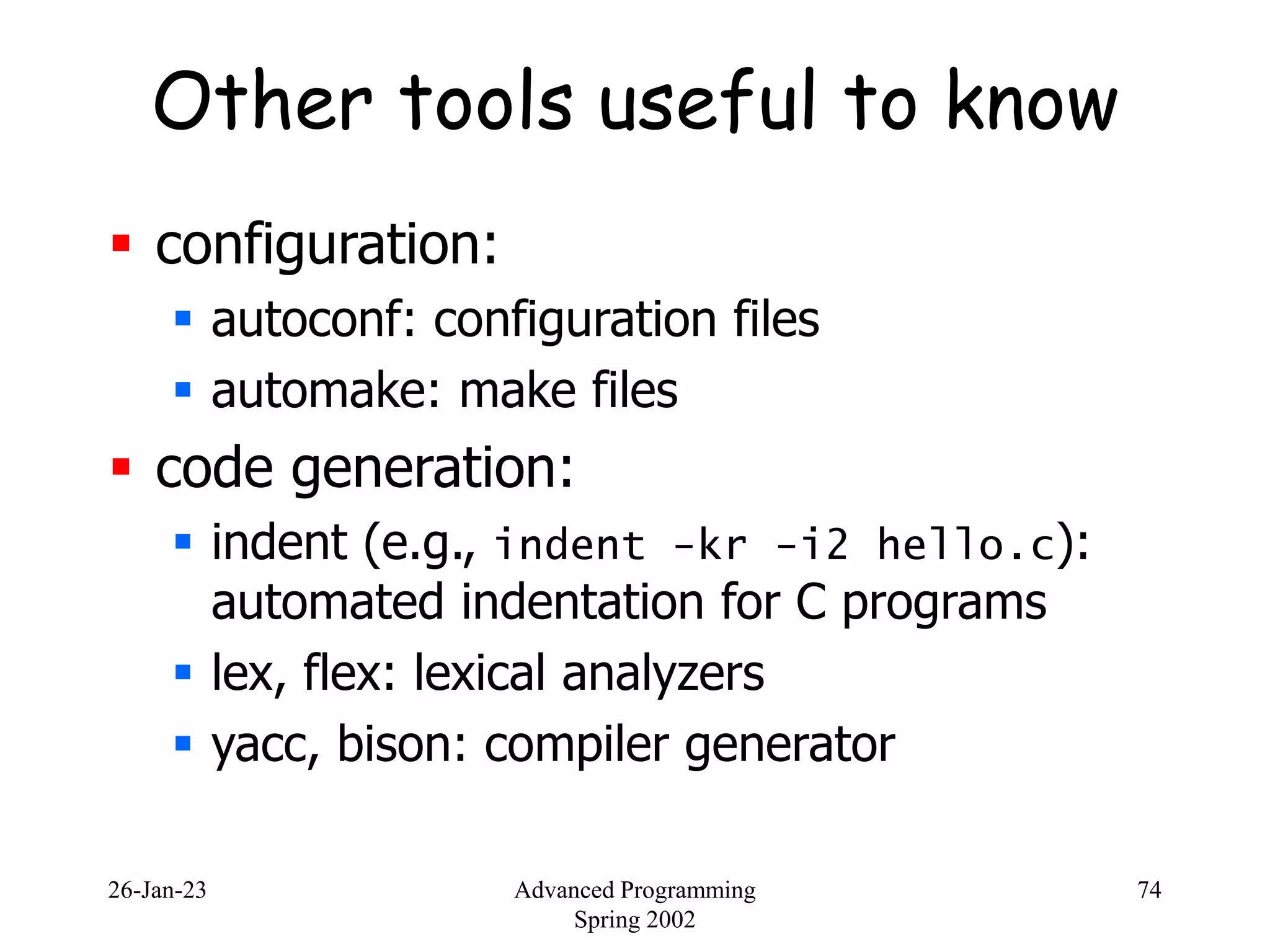

Other tools useful to know
 configuration:
 autoconf: configuration files
 automake: make files
 code generation:
 indent (e.g., indent -kr -i2 hello.c):
automated indentation for C programs
 lex, flex: lexical analyzers
 yacc, bison: compiler generator

More Related Content

Similar to tools.ppt

Direction of building ns2 using cygwin under windows system
Direction of building ns2 using cygwin under windows systemDirection of building ns2 using cygwin under windows system
Direction of building ns2 using cygwin under windows system
yahyaoui hamdi

Recipe to build open splice dds 6.3.xxx Hello World example over Qt 5.2
 Recipe to build open splice dds 6.3.xxx Hello World example over Qt 5.2   Recipe to build open splice dds 6.3.xxx Hello World example over Qt 5.2
Recipe to build open splice dds 6.3.xxx Hello World example over Qt 5.2
Adil Khan

Introductiontoasp netwindbgdebugging-100506045407-phpapp01
Introductiontoasp netwindbgdebugging-100506045407-phpapp01Introductiontoasp netwindbgdebugging-100506045407-phpapp01
Introductiontoasp netwindbgdebugging-100506045407-phpapp01
Camilo Alvarez Rivera

Cray XT Porting, Scaling, and Optimization Best Practices
Cray XT Porting, Scaling, and Optimization Best PracticesCray XT Porting, Scaling, and Optimization Best Practices
Cray XT Porting, Scaling, and Optimization Best Practices
Jeff Larkin

LOSS_C11- Programming Linux 20221006.pdf
LOSS_C11- Programming Linux 20221006.pdfLOSS_C11- Programming Linux 20221006.pdf
LOSS_C11- Programming Linux 20221006.pdf
Thninh2

23_Advanced_Processors controller system
23_Advanced_Processors controller system23_Advanced_Processors controller system
23_Advanced_Processors controller system
stellan7


Similar to tools.ppt (20)

KDD 2016 Streaming Analytics Tutorial
KDD 2016 Streaming Analytics TutorialKDD 2016 Streaming Analytics Tutorial
KDD 2016 Streaming Analytics Tutorial

App container rkt
App container rktApp container rkt
App container rkt

Direction of building ns2 using cygwin under windows system
Direction of building ns2 using cygwin under windows systemDirection of building ns2 using cygwin under windows system
Direction of building ns2 using cygwin under windows system

Reusing your existing software on Android
Reusing your existing software on AndroidReusing your existing software on Android
Reusing your existing software on Android

LibOS as a regression test framework for Linux networking #netdev1.1
LibOS as a regression test framework for Linux networking #netdev1.1LibOS as a regression test framework for Linux networking #netdev1.1
LibOS as a regression test framework for Linux networking #netdev1.1

Recipe to build open splice dds 6.3.xxx Hello World example over Qt 5.2
 Recipe to build open splice dds 6.3.xxx Hello World example over Qt 5.2   Recipe to build open splice dds 6.3.xxx Hello World example over Qt 5.2
Recipe to build open splice dds 6.3.xxx Hello World example over Qt 5.2

PuppetConf 2016: The Challenges with Container Configuration – David Lutterko...
PuppetConf 2016: The Challenges with Container Configuration – David Lutterko...PuppetConf 2016: The Challenges with Container Configuration – David Lutterko...
PuppetConf 2016: The Challenges with Container Configuration – David Lutterko...

Challenges of container configuration
Challenges of container configurationChallenges of container configuration
Challenges of container configuration

The true story_of_hello_world
The true story_of_hello_worldThe true story_of_hello_world
The true story_of_hello_world

Introductiontoasp netwindbgdebugging-100506045407-phpapp01
Introductiontoasp netwindbgdebugging-100506045407-phpapp01Introductiontoasp netwindbgdebugging-100506045407-phpapp01
Introductiontoasp netwindbgdebugging-100506045407-phpapp01

DCEU 18: Tips and Tricks of the Docker Captains
DCEU 18: Tips and Tricks of the Docker CaptainsDCEU 18: Tips and Tricks of the Docker Captains
DCEU 18: Tips and Tricks of the Docker Captains

Network Automation Tools
Network Automation ToolsNetwork Automation Tools
Network Automation Tools

Vlsi lab2
Vlsi lab2Vlsi lab2
Vlsi lab2

Android crash debugging
Android crash debuggingAndroid crash debugging
Android crash debugging

Cray XT Porting, Scaling, and Optimization Best Practices
Cray XT Porting, Scaling, and Optimization Best PracticesCray XT Porting, Scaling, and Optimization Best Practices
Cray XT Porting, Scaling, and Optimization Best Practices

LOSS_C11- Programming Linux 20221006.pdf
LOSS_C11- Programming Linux 20221006.pdfLOSS_C11- Programming Linux 20221006.pdf
LOSS_C11- Programming Linux 20221006.pdf

23_Advanced_Processors controller system
23_Advanced_Processors controller system23_Advanced_Processors controller system
23_Advanced_Processors controller system

Check the version with fixes. Link in description
Check the version with fixes. Link in descriptionCheck the version with fixes. Link in description
Check the version with fixes. Link in description

Readme
ReadmeReadme
Readme

python.ppt
python.pptpython.ppt
python.ppt


Recently uploaded

Data Analytics for Digital Marketing Lecture for Advanced Digital & Social Me...
Data Analytics for Digital Marketing Lecture for Advanced Digital & Social Me...Data Analytics for Digital Marketing Lecture for Advanced Digital & Social Me...
Data Analytics for Digital Marketing Lecture for Advanced Digital & Social Me...
Valters Lauzums

Exploratory Data Analysis - Dilip S.pptx
Exploratory Data Analysis - Dilip S.pptxExploratory Data Analysis - Dilip S.pptx
Exploratory Data Analysis - Dilip S.pptx
DilipVasan

如何办理澳洲悉尼大学毕业证(USYD毕业证书)学位证书成绩单原版一比一
如何办理澳洲悉尼大学毕业证(USYD毕业证书)学位证书成绩单原版一比一如何办理澳洲悉尼大学毕业证(USYD毕业证书)学位证书成绩单原版一比一
如何办理澳洲悉尼大学毕业证(USYD毕业证书)学位证书成绩单原版一比一
w7jl3eyno

一比一原版西悉尼大学毕业证成绩单如何办理
一比一原版西悉尼大学毕业证成绩单如何办理一比一原版西悉尼大学毕业证成绩单如何办理
一比一原版西悉尼大学毕业证成绩单如何办理
pyhepag

一比一原版麦考瑞大学毕业证成绩单如何办理
一比一原版麦考瑞大学毕业证成绩单如何办理一比一原版麦考瑞大学毕业证成绩单如何办理
一比一原版麦考瑞大学毕业证成绩单如何办理
cyebo

edited gordis ebook sixth edition david d.pdf
edited gordis ebook sixth edition david d.pdfedited gordis ebook sixth edition david d.pdf
edited gordis ebook sixth edition david d.pdf
great91

一比一原版(Monash毕业证书)莫纳什大学毕业证成绩单如何办理
一比一原版(Monash毕业证书)莫纳什大学毕业证成绩单如何办理一比一原版(Monash毕业证书)莫纳什大学毕业证成绩单如何办理
一比一原版(Monash毕业证书)莫纳什大学毕业证成绩单如何办理
pyhepag

一比一原版阿德莱德大学毕业证成绩单如何办理
一比一原版阿德莱德大学毕业证成绩单如何办理一比一原版阿德莱德大学毕业证成绩单如何办理
一比一原版阿德莱德大学毕业证成绩单如何办理
pyhepag

Toko Jual Viagra Asli Di Salatiga 081229400522 Obat Kuat Viagra
Toko Jual Viagra Asli Di Salatiga 081229400522 Obat Kuat ViagraToko Jual Viagra Asli Di Salatiga 081229400522 Obat Kuat Viagra
Toko Jual Viagra Asli Di Salatiga 081229400522 Obat Kuat Viagra
adet6151


Recently uploaded (20)

NOAM AAUG Adobe Summit 2024: Summit Slam Dunks
NOAM AAUG Adobe Summit 2024: Summit Slam DunksNOAM AAUG Adobe Summit 2024: Summit Slam Dunks
NOAM AAUG Adobe Summit 2024: Summit Slam Dunks

Data Analytics for Digital Marketing Lecture for Advanced Digital & Social Me...
Data Analytics for Digital Marketing Lecture for Advanced Digital & Social Me...Data Analytics for Digital Marketing Lecture for Advanced Digital & Social Me...
Data Analytics for Digital Marketing Lecture for Advanced Digital & Social Me...

Exploratory Data Analysis - Dilip S.pptx
Exploratory Data Analysis - Dilip S.pptxExploratory Data Analysis - Dilip S.pptx
Exploratory Data Analysis - Dilip S.pptx

Genuine love spell caster )! ,+27834335081) Ex lover back permanently in At...
Genuine love spell caster )! ,+27834335081)   Ex lover back permanently in At...Genuine love spell caster )! ,+27834335081)   Ex lover back permanently in At...
Genuine love spell caster )! ,+27834335081) Ex lover back permanently in At...

如何办理澳洲悉尼大学毕业证(USYD毕业证书)学位证书成绩单原版一比一
如何办理澳洲悉尼大学毕业证(USYD毕业证书)学位证书成绩单原版一比一如何办理澳洲悉尼大学毕业证(USYD毕业证书)学位证书成绩单原版一比一
如何办理澳洲悉尼大学毕业证(USYD毕业证书)学位证书成绩单原版一比一

2024 Q2 Orange County (CA) Tableau User Group Meeting
2024 Q2 Orange County (CA) Tableau User Group Meeting2024 Q2 Orange County (CA) Tableau User Group Meeting
2024 Q2 Orange County (CA) Tableau User Group Meeting

一比一原版西悉尼大学毕业证成绩单如何办理
一比一原版西悉尼大学毕业证成绩单如何办理一比一原版西悉尼大学毕业证成绩单如何办理
一比一原版西悉尼大学毕业证成绩单如何办理

2024 Q1 Tableau User Group Leader Quarterly Call
2024 Q1 Tableau User Group Leader Quarterly Call2024 Q1 Tableau User Group Leader Quarterly Call
2024 Q1 Tableau User Group Leader Quarterly Call

一比一原版麦考瑞大学毕业证成绩单如何办理
一比一原版麦考瑞大学毕业证成绩单如何办理一比一原版麦考瑞大学毕业证成绩单如何办理
一比一原版麦考瑞大学毕业证成绩单如何办理

edited gordis ebook sixth edition david d.pdf
edited gordis ebook sixth edition david d.pdfedited gordis ebook sixth edition david d.pdf
edited gordis ebook sixth edition david d.pdf

How I opened a fake bank account and didn't go to prison
How I opened a fake bank account and didn't go to prisonHow I opened a fake bank account and didn't go to prison
How I opened a fake bank account and didn't go to prison

Atlantic Grupa Case Study (Mintec Data AI)
Atlantic Grupa Case Study (Mintec Data AI)Atlantic Grupa Case Study (Mintec Data AI)
Atlantic Grupa Case Study (Mintec Data AI)

ℂall Girls Kashmiri Gate ℂall Now Chhaya ☎ 9899900591 WhatsApp Number 24/7
ℂall Girls Kashmiri Gate ℂall Now Chhaya ☎ 9899900591 WhatsApp  Number 24/7ℂall Girls Kashmiri Gate ℂall Now Chhaya ☎ 9899900591 WhatsApp  Number 24/7
ℂall Girls Kashmiri Gate ℂall Now Chhaya ☎ 9899900591 WhatsApp Number 24/7

Generative AI for Trailblazers_ Unlock the Future of AI.pdf
Generative AI for Trailblazers_ Unlock the Future of AI.pdfGenerative AI for Trailblazers_ Unlock the Future of AI.pdf
Generative AI for Trailblazers_ Unlock the Future of AI.pdf

一比一原版(Monash毕业证书)莫纳什大学毕业证成绩单如何办理
一比一原版(Monash毕业证书)莫纳什大学毕业证成绩单如何办理一比一原版(Monash毕业证书)莫纳什大学毕业证成绩单如何办理
一比一原版(Monash毕业证书)莫纳什大学毕业证成绩单如何办理

Machine Learning for Accident Severity Prediction
Machine Learning for Accident Severity PredictionMachine Learning for Accident Severity Prediction
Machine Learning for Accident Severity Prediction

Aggregations - The Elasticsearch "GROUP BY"
Aggregations - The Elasticsearch "GROUP BY"Aggregations - The Elasticsearch "GROUP BY"
Aggregations - The Elasticsearch "GROUP BY"

一比一原版阿德莱德大学毕业证成绩单如何办理
一比一原版阿德莱德大学毕业证成绩单如何办理一比一原版阿德莱德大学毕业证成绩单如何办理
一比一原版阿德莱德大学毕业证成绩单如何办理

ℂall Girls Balbir Nagar ℂall Now Chhaya ☎ 9899900591 WhatsApp Number 24/7
ℂall Girls Balbir Nagar ℂall Now Chhaya ☎ 9899900591 WhatsApp  Number 24/7ℂall Girls Balbir Nagar ℂall Now Chhaya ☎ 9899900591 WhatsApp  Number 24/7
ℂall Girls Balbir Nagar ℂall Now Chhaya ☎ 9899900591 WhatsApp Number 24/7

Toko Jual Viagra Asli Di Salatiga 081229400522 Obat Kuat Viagra
Toko Jual Viagra Asli Di Salatiga 081229400522 Obat Kuat ViagraToko Jual Viagra Asli Di Salatiga 081229400522 Obat Kuat Viagra
Toko Jual Viagra Asli Di Salatiga 081229400522 Obat Kuat Viagra


tools.ppt

  • 1. 26-Jan-23 Advanced Programming Spring 2002 Programming Tools Henning Schulzrinne Dept. of Computer Science Columbia University
  • 2. 26-Jan-23 Advanced Programming Spring 2002 2 What are tools for?  Creating code modules  compiler  Creating program from modules  linker  Compiling groups of programs (dependencies)  Debugging code  tracer, debugger, code checker  Profiling and optimization  Documentation: derive from code  Coordination and “memory”  Testing  User installation  User feedback
  • 3. 26-Jan-23 Advanced Programming Spring 2002 3 Compiler  Convert source code to object modules  .o: external references not yet resolved $ nm U printf 0000000000000000 t 0000000000000000 d 0000000000000000 b 0000000000000000 r 0000000000000000 ? 0000000000000000 a *ABS* 0000000000000000 T c 0000000000000000 a const.c 0000000000000048 T main
  • 4. 26-Jan-23 Advanced Programming Spring 2002 4 Linker  Combine .o and .so into single a.out executable module  .so/.dll: dynamically loaded at run-time  see “dl”  $ ldd a.out libc.so.1 => /usr/lib/libc.so.1 libdl.so.1 => /usr/lib/libdl.so.1 /usr/platform/SUNW,Ultra-5_10/lib/libc_psr.so.1
  • 5. 26-Jan-23 Advanced Programming Spring 2002 5 Creating a static library  static library for linking: libsomething.a  create .o files: gcc –c helper.c  ar rlv libsomething.a *.o  ranlib libsomething.a  use library as gcc –L/your/dir –lsomething
  • 6. 26-Jan-23 Advanced Programming Spring 2002 6 Creating a dynamic library  Details differ for each platform  gcc –shared –fPIC –o libhelper.so *.o  use same as for static (-llibrary)  also LD_LIBRARY_PATH
  • 7. 26-Jan-23 Advanced Programming Spring 2002 7 Testing  Every module and functionality needs to have an (automated) test  Regression testing: change -> test old functionality  Easy for simple functions  Screen input/output?  Complicated “test harness”
  • 8. 26-Jan-23 Advanced Programming Spring 2002 8 Program tracing operating system kernel libraries user program user space kernel memory space printf() write()
  • 9. 26-Jan-23 Advanced Programming Spring 2002 9 Program tracing  Simple debugging: find out what system calls a program is using  truss on Solaris, strace on Linux  does not require access to source code  does not show stdio calls, but can use –u libc  -f: follow children  -p: attach to existing process (e.g., truss –p 27878 to see what process is doing when doing certain action)
  • 10. 26-Jan-23 Advanced Programming Spring 2002 10 truss example $ truss a.out execve("a.out", 0xFFBEF6FC, 0xFFBEF704) argc = 1 mmap(0x00000000, 8192, PROT_READ|PROT_WRITE|PROT_EXEC, MAP_PRIVATE|MAP_ANON, -1, 0) = 0xFF3A0000 resolvepath("/usr/lib/ld.so.1", "/usr/lib/ld.so.1", 1023) = 16 open("/var/ld/ld.config", O_RDONLY) Err#2 ENOENT open("/opt/CUCStcl/lib/libc.so.1", O_RDONLY) Err#2 ENOENT open("/opt/CUCStcl8.3/lib//libc.so.1", O_RDONLY) Err#2 ENOENT open("/usr/openwin/lib/libc.so.1", O_RDONLY) Err#2 ENOENT open("/usr/local/lib/libc.so.1", O_RDONLY) Err#2 ENOENT ... ioctl(1, TCGETA, 0xFFBEF45C) = 0 Hello World write(1, " H e l l o W o r l dn", 12) = 12 llseek(0, 0, SEEK_CUR) = 19444 _exit(0)
  • 11. 26-Jan-23 Advanced Programming Spring 2002 11 strace  similar to truss, for Linux  -T for timing  $ strace –t –T cat foo 14:26:59 open("foo", O_RDONLY|O_LARGEFILE) = 3 <0.000712> 14:26:59 fstat(3, {st_mode=S_IFREG|0644, st_size=6, ...}) = 0 <0.000005> 14:26:59 brk(0x8057000) = 0x8057000 <0.000011> 14:26:59 read(3, "hellon", 32768) = 6 <0.000010> 14:26:59 write(1, "hellon", 6hello ) = 6 <0.000015> 14:26:59 read(3, "", 32768) = 0 <0.000005> 14:26:59 close(3) = 0 <0.000010> 14:26:59 _exit(0) = ?
  • 12. 26-Jan-23 Advanced Programming Spring 2002 12 Memory utilization: top  Show top consumers of CPU and memory load averages: 0.42, 0.22, 0.16 14:17:35 274 processes: 269 sleeping, 1 zombie, 3 stopped, 1 on cpu CPU states: 81.3% idle, 5.2% user, 13.4% kernel, 0.1% iowait, 0.0% swap Memory: 512M real, 98M free, 345M swap in use, 318M swap free PID USERNAME THR PRI NICE SIZE RES STATE TIME CPU COMMAND 144 root 1 53 0 3384K 1728K sleep 33.3H 3.67% ypserv 11011 hgs 1 48 0 2776K 2248K sleep 0:00 0.57% tcsh 11040 hgs 1 55 0 1800K 1352K cpu/0 0:00 0.39% top 281 root 1 58 0 4240K 2720K sleep 313:03 0.38% amd 10933 kbutler 1 58 0 11M 8376K sleep 0:00 0.17% lisp 1817 yjh9 1 58 0 8968K 7528K sleep 0:39 0.10% emacs 13955 yjh9 1 58 0 8496K 7200K sleep 2:47 0.09% emacs
  • 13. 26-Jan-23 Advanced Programming Spring 2002 13 Debugging  Interact with program while running  step-by-step execution  instruction  source line  procedure  inspect current state  call stack  global variables  local variables
  • 14. 26-Jan-23 Advanced Programming Spring 2002 14 Debugging  Requires compiler support:  generate mapping from PC to source line  symbol table for variable names  Steps: $ gcc –g –o loop loop.c $ gdb loop (gdb) break main (gdb) run foo Starting program: src/test/loop Breakpoint 1, main (argc=2, argv=0xffbef6ac) at loop.c:5 5 for (i = 0; i < 10; i++) {
  • 15. 26-Jan-23 Advanced Programming Spring 2002 15 gdb (gdb) n 6 printf("i=%dn", i); (gdb) where #0 loop (i=1) at loop.c:4 #1 0x105ec in main (argc=2, argv=0xffbef6a4) at loop.c:11 (gdb) p i $1 = 0 (gdb) break 9 Breakpoint 2 at 0x105e4: file loop.c, line 9. (gdb) cont Continuing. i=0 i=1 ... Breakpoint 2, main (argc=1, argv=0xffbef6ac) at loop.c:9 9 return 0;
  • 16. 26-Jan-23 Advanced Programming Spring 2002 16 gdb hints  Make sure your source file is around and doesn’t get modified  Does not work (well) across threads  Can be used to debug core dumps: $ gdb a.out core #0 0x10604 in main (argc=1, argv=0xffbef6fc) at loop.c:14 *s = '0'; (gdb) print i $1 = 10
  • 17. 26-Jan-23 Advanced Programming Spring 2002 17 gdb - execution run arg run program call f(a,b) call function in program step N step N times into functions next N step N times over functions up N select stack frame that called current one down N select stack frame called by current one
  • 18. 26-Jan-23 Advanced Programming Spring 2002 18 gdb – break points break main.c:12 set break point break foo set break at function clear main.c:12 delete breakpoint info break show breakpoints delete 1 delete break point 1 display x display variable at each step
  • 19. 26-Jan-23 Advanced Programming Spring 2002 19 Graphical interface: DDD
  • 20. 26-Jan-23 Advanced Programming Spring 2002 20 Installation  Traditional:  tar (archive) file  compile  distribute binaries, documentation, etc.  InstallShield  Linux RPM  Solaris pkg
  • 21. 26-Jan-23 Advanced Programming Spring 2002 21 Building programs  Programs consist of many modules  Dependencies:  if one file changes, one or more others need to change  .c depends on .h -> re-compile  .o depends on .c -> re-compile  executable depends on .o’s -> link  library depends on .o -> archive  recursive!
  • 22. 26-Jan-23 Advanced Programming Spring 2002 22 make  make maintains dependency graphs  based on modification times  Makefile as default name  make [–f makefile] [target]  if node newer than child, remake child target ...: dependency command command tab!
  • 23. 26-Jan-23 Advanced Programming Spring 2002 23 make all: hello clean clean: rm –f *.o helper.o: helper.c OBJ = helper.o hello.o hello: $(OBJ) $(CC) $(CFLAGS) $(LDFLAGS) –o $@ $(OBJ)
  • 24. 26-Jan-23 Advanced Programming Spring 2002 24 make variables  implicit rules, e.g., a .c file into .o .c.o: $(CC) $(CFLAGS) $< $@ name of current target $? list of dependencies newer than target $< name of dependency file $* base name of current target $% for libraries, the name of member
  • 25. 26-Jan-23 Advanced Programming Spring 2002 25 make depend depend: $(CFILES) $(HFILES) $(CC) $(CFLAGS) –M $(CFILES) > .state # works for GNU make and BSD make #if 0 include .state #endif #include “.state”
  • 26. 26-Jan-23 Advanced Programming Spring 2002 26 make environment  Environment variables (PATH, HOME, USER, etc.) are available as $(PATH), etc.  Also passed to commands invoked  Can create new variables (gmake): export FOOBAR = foobar
  • 27. 26-Jan-23 Advanced Programming Spring 2002 27 User feedback – bug tracking  Automatically capture system crash information  non-technical users  privacy?  e.g., Netscape Talkback  User and developer bug tracking  make sure bugs get fixed  estimate how close to done
  • 28. 26-Jan-23 Advanced Programming Spring 2002 28 Bug tracking  Bugzilla
  • 29. 26-Jan-23 Advanced Programming Spring 2002 29 Development models  Integrated Development Environment (IDE)  integrate code editor, compiler, build environment, debugger  graphical tool  single or multiple languages  VisualStudio, JCreator, Forte, ...  Unix model  individual tools, command-line
  • 30. 26-Jan-23 Advanced Programming Spring 2002 30 Source code management  problem: lots of people working on the same project  source code (C, Perl, ...)  documentation  specification (protocol specs)  mostly on different areas  versions  released – maintenance only  stable – about to be released, production use  development, beta  different hardware and OS versions
  • 31. 26-Jan-23 Advanced Programming Spring 2002 31 cvs: overview  version control system  see also RCS or SCCS  collection of directories, one for each module  release control  concurrent revisions: “optimistic”  network-aware  single master copy (‘repository’) + local (developer) copies  see http://www.cs.columbia.edu/~hgs/cvs
  • 32. 26-Jan-23 Advanced Programming Spring 2002 32 What cvs isn’t/doesn’t...  build system  project management  talking to your friends  change control:  all changes are isolated vs. single logical change  bug fix tracking  track change verification  testing program (regression testing)  work flow or process model
  • 33. 26-Jan-23 Advanced Programming Spring 2002 33 cvs: setting up a repository 1. create directory (e.g.) cvsroot -> environment variable or –d 2. cvs -d /usr/local/cvsroot init 3. creates CVSROOT directory for maintenance files cvsroot CVSROOT history, loginfo, modules, passwd, ... testcvs hello.c,v Makefile.c,v
  • 34. 26-Jan-23 Advanced Programming Spring 2002 34 cvs: adding a module to a repository Source files in src/testcvs 1. setenv CVSROOT ~/src/cvsroot/ or cvs -d :pserver:alice@tune.cs.columbia.edu:/u/kon/hgs/src/cvsroot login 2. cd testcvs to your working directory 3. cvs import rdir vendortag releasetag: create rdir under $CVSROOT/ repository from current directory, with tag vendortag for branch, tag releasetag for release (generally, “start”); creates branch 1.1.1 with cvsroot/testcvs/hello.c,v
  • 35. 26-Jan-23 Advanced Programming Spring 2002 35 cvs: adding a module $ cvs –t import –m “Sample program” testcvs sample start N testcvs/hello.c No conflicts created by this import 1. Add module name to cvsroot/CVSROOT/modules testcvs testcvs something directory/something_else 2. use cvs checkout if you can $ cvs checkout CVSROOT/modules $ cd CVSROOT $ vi modules $ cvs commit modules $ cd .. $ cvs release –d CVSROOT # only if no longer needed You have [0] altered files in this repository. Are you sure you want to release (and delete) directory ‘CVSROOT’:
  • 36. 26-Jan-23 Advanced Programming Spring 2002 36 cvs: adding a user 1. ypcat passwd | fgrep alice 2. add user entry to CVSROOT/passwd alice:J21GHe78i3d5Y:hgs 3. add entry to loginfo to generate email testcvs /usr/ucb/Mail –s “%s” alice bob
  • 37. 26-Jan-23 Advanced Programming Spring 2002 37 cvs: using a repository  As a developer, login if on remote server: cvs –d :pserver:alice:secret@tune.cs.columbia.edu:/u/kon/hgs/src/cvsroo t login  Only needed once – stored in $HOME/.cvspass
  • 38. 26-Jan-23 Advanced Programming Spring 2002 38 cvs: using a repository  Check out the source code files from repository: cvs checkout testcvs cvs checkout: Updating testcvs U testcvs/hello.c ls –R .: CVS/ Makefile hello.c CVS: Entries Repository Root
  • 39. 26-Jan-23 Advanced Programming Spring 2002 39 cvs: committing changes  create or edit a file  add file if new $ cvs add Makefile cvs add: scheduling file ‘Makefile’ for addition cvs add: use ‘cvs commit’ to add this file permanently
  • 40. 26-Jan-23 Advanced Programming Spring 2002 40 cvs: committing changes  commit changes (all files based on modification date): $ cvs commit Checking in hello.c; /home/hgs/src/cvsroot/testcvs/hello.c,v <-- hello.c new revision: 1.6; previous revision: 1.5 done
  • 41. 26-Jan-23 Advanced Programming Spring 2002 41 cvs: catching up  No notification beyond email.  Always update before editing $ cvs update cvs update: Updating . M hello.c  merges changes, may produce conflicts  output: U file updated: file not in working directory or no local changes M file modified, merged C file conflict detected, marked by >>> ... <<< ? file stray file in working directory
  • 42. 26-Jan-23 Advanced Programming Spring 2002 42 cvs: deleting files  delete first, then remove from CVS $ rm notes.txt $ cvs remove notes.txt cvs remove: scheduling `notes.txt' for removal cvs remove: use 'cvs commit' to remove this file permanently Removing notes.txt; /home/hgs/src/cvsroot/testcvs/notes.txt,v <-- notes.txt new revision: delete; previous revision: 1.2 done  shortcut: cvs remove –f notes.txt  ends up in Attic, i.e., can be restored
  • 43. 26-Jan-23 Advanced Programming Spring 2002 43 cvs: viewing differences  Difference between checked out and working copy: $ cvs diff hello.c Index: hello.c ================================================= RCS file: /home/hgs/src/cvsroot/testcvs/hello.c,v retrieving revision 1.6 diff -r1.6 hello.c 31a32 > printf("John Doen");
  • 44. 26-Jan-23 Advanced Programming Spring 2002 44 cvs: revisions  each revision increases rightmost number by one: 1.1, 1.2, ...  more than one period -> branches  versions of file = CVS revisions  (released) versions of software = CVS releases  new file gets highest first digit  cvs commit –r 2.0: makes all revisions to 2.0  cvs update -A goes to latest
  • 45. 26-Jan-23 Advanced Programming Spring 2002 45 cvs: revision tagging  Use cvs tag to tag revisions (software release) $ cvs tag rel-0 hello.c T hello.c $ cvs status –v hello.c ================================================== File: hello.c Status: Up-to-date Working revision: 2.1 Thu Feb 21 20:46:56 2002 Repository revision: 2.1 /home/hgs/src/cvsroot/testcvs/hello.c,v Sticky Tag: (none) Sticky Date: (none) Sticky Options: (none) Existing Tags: ap2002 (branch: 2.0.2) rel-0 (revision: 1.2) start (revision: 1.1.1.1) sample (branch: 1.1.1)
  • 46. 26-Jan-23 Advanced Programming Spring 2002 46 cvs: branches  released (stable) vs. development (unstable, main branch) version  branch on revision tree for released version cvs tag –b rel-1-fix cvs rtag –b rel-1 rel-1-fixes testcvs
  • 47. 26-Jan-23 Advanced Programming Spring 2002 47 cvs: history  cvs annotate hello.c Annotations for hello.c *************** 1.1 (hgs 08-Sep-99): int main(int argc, char *argv[]) 1.1 (hgs 08-Sep-99): { 1.5 (hgs 21-Feb-02): /* this is the classical hello world output */ 1.1 (hgs 08-Sep-99): printf("hello world!n"); 1.6 (hgs 21-Feb-02): printf("Henning Schulzrinnen"); 2.0 (hgs 21-Feb-02): printf("John Doen"); 1.2 (hgs 08-Sep-99): 2.1 (hgs 21-Feb-02): exit(0); 1.1 (hgs 08-Sep-99): }
  • 48. 26-Jan-23 Advanced Programming Spring 2002 48 cvs: notifications  cvs status reports status File: hello.c Status: Up-to-date Working revision: 2.1 Thu Feb 21 20:46:56 2002 Repository revision: 2.1 /home/hgs/src/cvsroot/testcvs/hello.c,v Sticky Tag: (none) Sticky Date: (none) Sticky Options: (none)  watch certain files for modifications: $ cvs watch on hello.c -> cvs edit hello.c needed $ cvs watch off hello.c
  • 49. 26-Jan-23 Advanced Programming Spring 2002 49 cvs notifications  cvs watch add  cvs watchers : list people watching $ cvs watchers hello.c hgs edit unedit commit  cvs editors: current list of editors $ cvs editors hello.c hgs Thu Feb 21 21:00:56 2002 GMT bart.cs.columbia.edu /tmp/testcvs
  • 50. 26-Jan-23 Advanced Programming Spring 2002 50 Other source-code management systems  IBM VisualAge for Java:  IDE with a compiler, debugger, etc. and CVS built in  Microsoft Visual SourceSafe  library system, i.e., only one user can check out a specific file at any given time
  • 51. 26-Jan-23 Advanced Programming Spring 2002 51 Which file is this?  find out in binary which version was used  $Log$  static char *id=“@(#) $Id$” becomes on checkout static char *id="@(#) $Id: hello.c,v 2.1 2002/02/21 20:46:56 hgs Exp $";  ident hello or what hello hello: $Id: hello.c,v 2.1 2002/02/21 20:46:56 hgs Exp $ SunOS 5.8 Generic February 2000
  • 52. 26-Jan-23 Advanced Programming Spring 2002 52 RPM – RedHat Linux package manager  Activities for an application:  Installation – on different architectures  Updates  Inventory: what’s installed  Un-install  Each Unix architecture seems to have one: Solaris pkg, RPM (www.rpm.org), ...
  • 53. 26-Jan-23 Advanced Programming Spring 2002 53 RPM  Package label, e.g., perl-5.001m-4:  software name  software version  package release  Package-wide information  date and time built  description of contents  total size of all files  grouping information  digital signature
  • 54. 26-Jan-23 Advanced Programming Spring 2002 54 RPM  Per-file information:  name of file and where to install it  file permissions  owner and group specification  MD5 checksum  file content
  • 55. 26-Jan-23 Advanced Programming Spring 2002 55 Using rpm  rpm –i install package, check for dependencies  rpm –e erase package  rpm –U upgrade package  rpm –q query packages (e.g., -a = all)
  • 56. 26-Jan-23 Advanced Programming Spring 2002 56 rpm -q rpm -q -i telnet Name : telnet Relocations: (not relocateable) Version : 0.17 Vendor: Red Hat, Inc. Release : 18.1 Build Date: Wed Aug 15 15:08:03 2001 Install date: Fri Feb 8 16:50:03 2002 Build Host: stripples.devel.redhat.com Group : Applications/Internet Source RPM: telnet-0.17-18.1.src.rpm Size : 88104 License: BSD Packager : Red Hat, Inc. <http://bugzilla.redhat.com/bugzilla> Summary : The client program for the telnet remote login protocol. Description : Telnet is a popular protocol for logging into remote systems over the Internet. The telnet package provides a command line telnet client. Install the telnet package if you want to telnet to remote machines. This version has support for IPv6.
  • 57. 26-Jan-23 Advanced Programming Spring 2002 57 RPM  http://www.redhat.com/docs/books/ma x-rpm/  but: current version (4.0) is a bit different
  • 58. 26-Jan-23 Advanced Programming Spring 2002 58 Building your own rpm  Either in /usr/src/redhat or create your own:  BUILD  RPMS/i386: *.i386.rpm  SOURCES: *.tgz  SPECS: build specification  SRPMS: source RPMS, (.src.rpm)
  • 59. 26-Jan-23 Advanced Programming Spring 2002 59 Building your own rpm: spec # # spec file for hello world app # Summary: hello world Name: hello Version: 1.0 Release: 1 Copyright: GPL Group: Applications/Test Source: http://www.cs.columbia.edu/IRT/software/ URL: http://www.cs.columbia.edu/IRT/software/ Distribution: Columbia University Vendor: IRT Packager: Henning Schulzrinne <hgs@cs.columbia.edu> BuildRoot: /home/hgs/src/rpm %description The world's most famous C program.
  • 60. 26-Jan-23 Advanced Programming Spring 2002 60 Building your own rpm: spec %prep rm -rf $RPM_BUILD_DIR/hello-1.0 zcat $RPM_SOURCE_DIR/hello-1.0.tgz | tar -xvf - %build make %install make ROOT="$RPM_BUILD_ROOT" install %files %doc README /usr/local/bin/hello /usr/local/man/man1/hello.1 %clean
  • 61. 26-Jan-23 Advanced Programming Spring 2002 61 Building your own rpm  create ~/.rpmmacros %_topdir /home/hgs/src/test/rpm  cd /home/hgs/src/test/rpm/SPECS  rpm -ba --buildroot /home/hgs/tmp hello-1.0.spec  creates binary and source RPM
  • 62. 26-Jan-23 Advanced Programming Spring 2002 62 Memory leaks and overruns  see http://www.cs.colorado.edu/homes/zorn/public_html/MallocDebug.html  Graphical tool: purify  Simple library: ElectricFence  catches  overruns a malloc() boundary  touch (read, write) memory released by free()  places inaccessible (VM) memory page after each allocation  only for debugging (memory hog)
  • 63. 26-Jan-23 Advanced Programming Spring 2002 63 ElectricFence  gcc -g test.c -L/home/hgs/sun5/lib -lefence -o test #include <stdio.h> #include <malloc.h> #include <string.h> int main(int argc, char *argv[]) { char *s = malloc(5); strcpy(s, "A very long string"); return 0; }  use gdb: Program received signal SIGSEGV, Segmentation fault. 0xff2b2f94 in strcpy () from /usr/lib/libc.so.1 (gdb) up #1 0x10adc in main (argc=1, argv=0xffbef684) at test.c:10 10 strcpy(s, "A very long string");
  • 64. 26-Jan-23 Advanced Programming Spring 2002 64 dmalloc – memory leaks $ dmalloc -l logfile -i 100 high setenv DMALLOC_OPTIONS debug=0x4f47d03,inter=100,log=logfile  create file #ifdef DMALLOC #include "dmalloc.h" #endif  link: gcc -g -DDMALLOC dmalloc.c -L/home/hgs/sun5/lib/ - ldmalloc -o dm  run program
  • 65. 26-Jan-23 Advanced Programming Spring 2002 65 dmalloc output 1014925598: 1: Dmalloc version '4.8.2' from 'http://dmalloc.com/' 1014925598: 1: flags = 0x4f47503, logfile 'logfile' 1014925598: 1: interval = 100, addr = 0, seen # = 0 1014925598: 1: starting time = 1014925598 1014925598: 1: free bucket count/bits: 255/5 1014925598: 1: basic-block 8192 bytes, alignment 8 bytes, heap grows up 1014925598: 1: heap: 0x64000 to 0x6a000, size 24576 bytes (3 blocks) 1014925598: 1: alloc calls: malloc 1, calloc 0, realloc 0, free 0 1014925598: 1: alloc calls: recalloc 0, memalign 0, valloc 0 1014925598: 1: total memory allocated: 10 bytes (1 pnts) 1014925598: 1: max in use at one time: 10 bytes (1 pnts) 1014925598: 1: max alloced with 1 call: 10 bytes 1014925598: 1: max alloc rounding loss: 22 bytes (68%) 1014925598: 1: max memory space wasted: 8138 bytes (99%) 1014925598: 1: final user memory space: basic 0, divided 1, 8170 bytes 1014925598: 1: final admin overhead: basic 1, divided 1, 16384 bytes (66%) 1014925598: 1: final external space: 0 bytes (0 blocks) 1014925598: 1: top 10 allocations: 1014925598: 1: total-size count in-use-size count source 1014925598: 1: 10 1 10 1 dmalloc.c:8 1014925598: 1: 10 1 10 1 Total of 1 1014925598: 1: dumping not-freed pointers changed since 0: 1014925598: 1: not freed: '0x68008|s1' (10 bytes) from 'dmalloc.c:8' 1014925598: 1: total-size count source 1014925598: 1: 10 1 dmalloc.c:8 1014925598: 1: 10 1 Total of 1 1014925598: 1: known memory: 1 pointer, 10 bytes 1014925598: 1: ending time = 1014925598, elapsed since start = 0:00:00
  • 66. 26-Jan-23 Advanced Programming Spring 2002 66 profiling  execution profile of call graph  Example: int inner(int x) { static int sum; sum += x; return sum; } double outer(int y) { int i; double x = 1; double sum = 0; for (i = 0; i < 10000; i++) { x *= 2; sum += inner(i + y); } return sum; } int main(int argc, char *argv[]) { int i; for (i = 0; i < 1000; i++) {outer(i);} exit(0); }
  • 67. 26-Jan-23 Advanced Programming Spring 2002 67 profiling  gcc –pg nested.c –o nested  change function invocation to do logging (call _mcount)  also, PC sampling (e.g., 100 times/second)  generate a call graph  gprof nested gmon.out
  • 68. 26-Jan-23 Advanced Programming Spring 2002 68 gprof flat profile Each sample counts as 0.01 seconds. % cumulative self self total time seconds seconds calls ms/call ms/call name 59.50 2.88 2.88 internal_mcount 21.69 3.93 1.05 1000 1.05 1.92 outer 17.15 4.76 0.83 10000000 0.00 0.00 inner 0.83 4.80 0.04 1000 0.04 0.04 _libc_write 0.83 4.84 0.04 _mcount 0.00 4.84 0.00 2000 0.00 0.00 _realbufend 0.00 4.84 0.00 2000 0.00 0.00 ferror_unlocked 0.00 4.84 0.00 1890 0.00 0.00 .mul 0.00 4.84 0.00 1000 0.00 0.04 _doprnt 0.00 4.84 0.00 1000 0.00 0.04 _xflsbuf 0.00 4.84 0.00 1000 0.00 0.00 memchr 0.00 4.84 0.00 1000 0.00 0.04 printf
  • 69. 26-Jan-23 Advanced Programming Spring 2002 69  Time spent in function and its children index % time self children called name <spontaneous> [1] 60.0 2.88 0.00 internal_mcount [1] 0.00 0.00 1/3 atexit [15] ----------------------------------------------- 1.05 0.87 1000/1000 main [3] [2] 40.0 1.05 0.87 1000 outer [2] 0.83 0.00 10000000/10000000 inner [5] 0.00 0.04 1000/1000 printf [6] ----------------------------------------------- 0.00 1.92 1/1 _start [4] [3] 40.0 0.00 1.92 1 main [3] 1.05 0.87 1000/1000 outer [2] 0.00 0.00 1/1 exit [19] ----------------------------------------------- <spontaneous> [4] 40.0 0.00 1.92 _start [4] 0.00 1.92 1/1 main [3] 0.00 0.00 2/3 atexit [15] ----------------------------------------------- 0.83 0.00 10000000/10000000 outer [2] [5] 17.3 0.83 0.00 10000000 inner [5] gprof call graph caller
  • 70. 26-Jan-23 Advanced Programming Spring 2002 70 doc++  documentation system for C/C++ and Java  generate LaTeX for printing and HTML for viewing  hierarchically structured documentation  automatic class graph generation (Java applets for HTML)  cross references  formatting (e.g., equations)
  • 71. 26-Jan-23 Advanced Programming Spring 2002 71 doc++  Special comments: /** */, ///
  • 72. 26-Jan-23 Advanced Programming Spring 2002 72 doc++ /** This is the famous "hello world" program, with more comments than code. @author H.W. Programmer @return 0 if no error @param argc number of argument @param argv command-line arguments @returns */ #include <stdio.h> int main(int argc, char *argv[]) { printf("Hello World!"); return 0; }
  • 73. 26-Jan-23 Advanced Programming Spring 2002 73 doc++  docify to create minimal version  doc++ -d outdir hello.c
  • 74. 26-Jan-23 Advanced Programming Spring 2002 74 Other tools useful to know  configuration:  autoconf: configuration files  automake: make files  code generation:  indent (e.g., indent -kr -i2 hello.c): automated indentation for C programs  lex, flex: lexical analyzers  yacc, bison: compiler generator
