Tools and techniques for APIs
- 1. API TOOLS AND TECHNIQUES JasonHarmon @jharmn

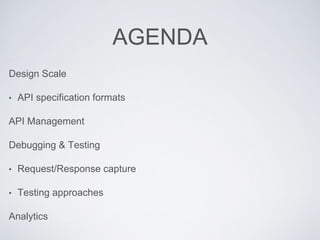

- 2. AGENDA Design Scale • APIspecification formats API Management Debugging & Testing • Request/Response capture • Testing approaches Analytics
- 3.
- 4. DESIGN SCALE Problems • Producingconsistent designs • Prototyping and rapid design iteration • Generate code from design • Generate docs from design

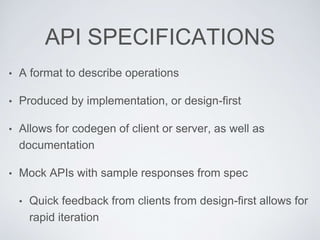

- 5. API SPECIFICATIONS • Aformat to describe operations • Produced by implementation, or design-first • Allows for codegen of client or server, as well as documentation • Mock APIs with sample responses from spec • Quick feedback from clients from design-first allows for rapid iteration

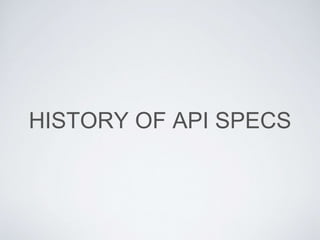

- 6. HISTORY OF APISPECS

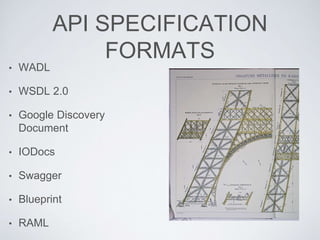

- 7. API SPECIFICATION FORMATS • WADL •WSDL 2.0 • Google Discovery Document • IODocs • Swagger • Blueprint • RAML

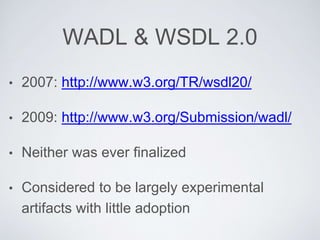

- 8. WADL & WSDL2.0 • 2007: http://www.w3.org/TR/wsdl20/ • 2009: http://www.w3.org/Submission/wadl/ • Neither was ever finalized • Considered to be largely experimental artifacts with little adoption

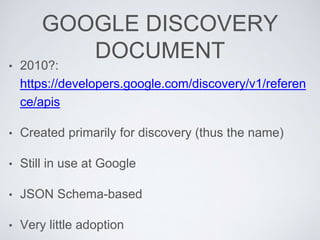

- 9. GOOGLE DISCOVERY DOCUMENT • 2010?: https://developers.google.com/discovery/v1/referen ce/apis •Created primarily for discovery (thus the name) • Still in use at Google • JSON Schema-based • Very little adoption

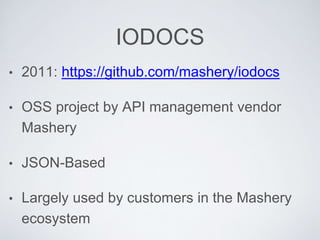

- 10. IODOCS • 2011: https://github.com/mashery/iodocs •OSS project by API management vendor Mashery • JSON-Based • Largely used by customers in the Mashery ecosystem
- 11. SWAGGER • 2011: http://swagger.io/ •OSS by Reverb (https://helloreverb.com/), maker of the Reverb app • Meant to produce spec from implementation • Recent additions allow for design-first • Hyperactive OSS community engagement • Integrated with many products • Now in version 2.0

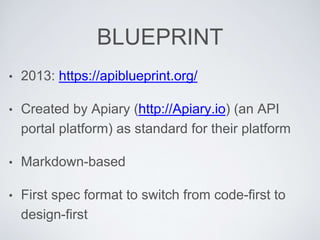

- 12. BLUEPRINT • 2013: https://apiblueprint.org/ •Created by Apiary (http://Apiary.io) (an API portal platform) as standard for their platform • Markdown-based • First spec format to switch from code-first to design-first

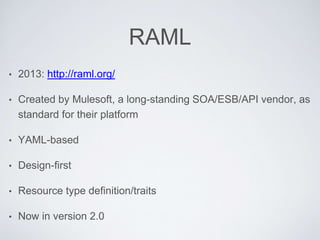

- 13. RAML • 2013: http://raml.org/ •Created by Mulesoft, a long-standing SOA/ESB/API vendor, as standard for their platform • YAML-based • Design-first • Resource type definition/traits • Now in version 2.0
- 14. CURRENT STATE • Swagger& RAML are in version 2.0 • Swagger is the only player not profiting directly from the spec, powered through partnerships • Swagger has an incredible following in the OSS community • Swagger added design-first later, RAML was design-first up- front • RAML seems to be well received by the enterprise community • Blueprint continues to gain adopters; recent additions of hypermedia
- 15. TRENDS Design-first + Mocking •Start slow to go fast • Get API client feedback on mock APIs • Real usability is only measurable with tactile feedback • Weakness: multi-scenario and errors are hard to mock

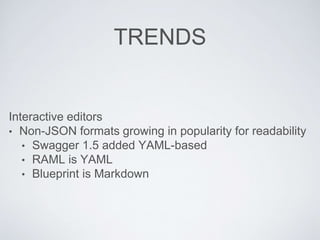

- 16. TRENDS Interactive editors • Non-JSONformats growing in popularity for readability • Swagger 1.5 added YAML-based • RAML is YAML • Blueprint is Markdown
- 17.

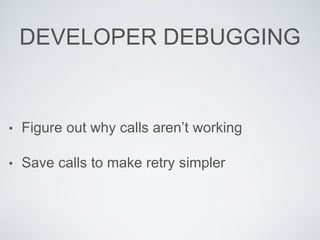

- 19. DEVELOPER DEBUGGING • Figureout why calls aren’t working • Save calls to make retry simpler

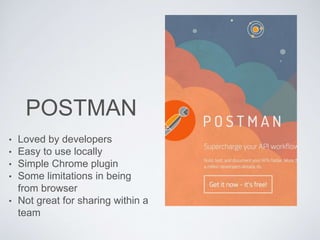

- 20. POSTMAN • Loved bydevelopers • Easy to use locally • Simple Chrome plugin • Some limitations in being from browser • Not great for sharing within a team

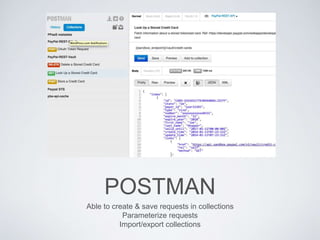

- 21. POSTMAN Able to create& save requests in collections Parameterize requests Import/export collections

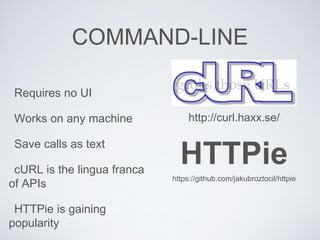

- 22. COMMAND-LINE Requires no UI Workson any machine Save calls as text cURL is the lingua franca of APIs HTTPie is gaining popularity http://curl.haxx.se/ HTTPie https://github.com/jakubroztocil/httpie
- 23.
- 24.
- 25. CURL - PHPNATIVE Also batteries included in many other languages

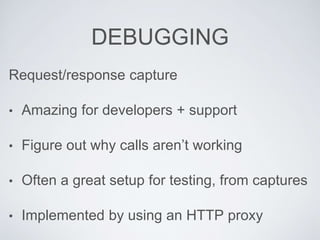

- 26. DEBUGGING Request/response capture • Amazingfor developers + support • Figure out why calls aren’t working • Often a great setup for testing, from captures • Implemented by using an HTTP proxy
- 27.

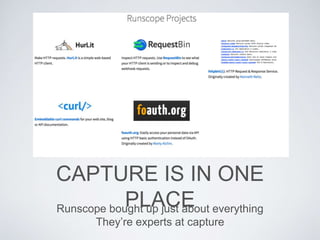

- 28. CAPTURE IS INONE PLACERunscope bought up just about everything They’re experts at capture

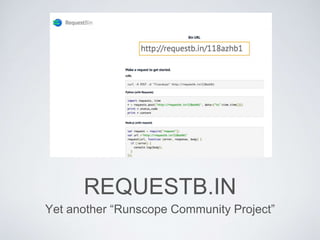

- 29. REQUESTB.IN Yet another “RunscopeCommunity Project”
- 30. HURL.IT Yet another “RunscopeCommunity Project”
- 31. RUNSCOPE Simple to changeyour hostname to Runscope's Locally hosted proxy available Great for debugging webhooks
- 32. TESTING API tests areabout consumers making calls
- 33. LOTS OF DEVELOPMENTAPI testingis still rather cutting edge Many new options, not many clear picks
- 34. UNIT TESTING ISNOT ACCEPTANCE TESTING Only an API consumer is an effective API test
- 35. AC IS PROBABLYNOT FROM PRODUCT MANAGERS They don’t usually understand APIs http://apiux.com/2014/02/13/api-product-manager/
- 36. BALLMER GETS IT APIsare the developers’ world
- 37. TESTING TOOLS There’s noreason to have a buggy API Work like a craftsman
- 38.
- 39.
- 40. CURL FOR API TESTINGDeathby a thousand paper cuts

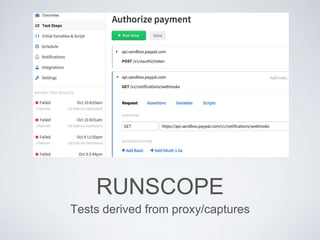

- 41. RUNSCOPE Tests derived fromproxy/captures

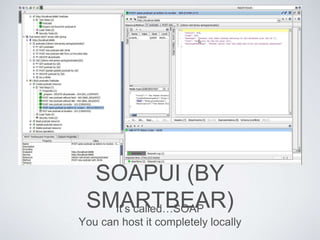

- 42. SOAPUI (BY SMARTBEAR)It’s called…SOAP Youcan host it completely locally

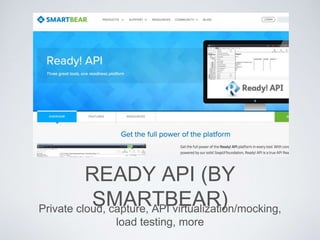

- 43. READY API (BY SMARTBEAR)Privatecloud, capture, API virtualization/mocking, load testing, more
- 44. ANALYTICS Measure what youtreasure
- 45. ANALYTICS Before you doanything: KPIs for APIs by John Musser • Formerly of ProgrammableWeb • Now runs API Science https://www.youtube.com/watch ?v=UFjgbsRrLHw http://www.slideshare.net/jmuss er/kpis-for-apis

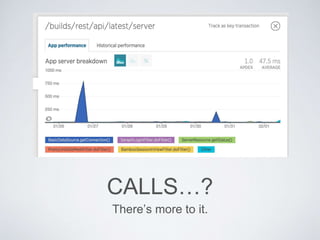

- 46.
- 47. MEASUREMENT OVERLOAD • Performance, defectrate, stability, support tickets • Customer satisfaction/NPS, adoption, churn • Channel performance, revenue, market share

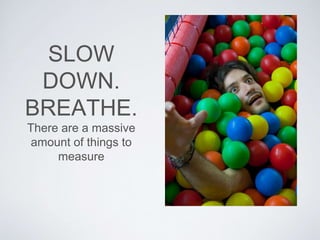

- 48. SLOW DOWN. BREATHE. There are amassive amount of things to measure
- 49. DEFINE YOUR FUNNELS Where do yougain value?
- 50.
- 51. VOLUME IS NOTVALUE High call volume doesn’t mean you’re doing it right

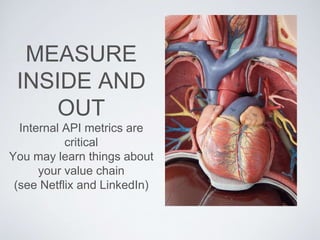

- 52. MEASURE INSIDE AND OUT Internal APImetrics are critical You may learn things about your value chain (see Netflix and LinkedIn)

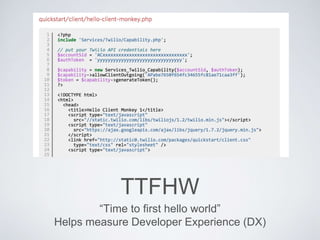

- 53. TTFHW “Time to firsthello world” Helps measure Developer Experience (DX)
- 54. MICROSERVICES Optimize your scale Scaleup where volume calls for it

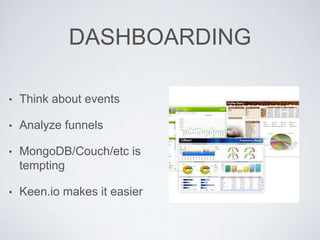

- 55. DASHBOARDING • Think aboutevents • Analyze funnels • MongoDB/Couch/etc is tempting • Keen.io makes it easier
- 56. PERFORMANCE METRICS • APIManagement Vendors • All provide this core functionality • DIY: Often fits into existing metrics • Mongo/Couch solutions abound • Often standard web metrics platforms will do the trick
- 57.
- 58.
- 59. MORE STUFF THAN YOU THINK Routing/Provisioning Packaging Ratelimiting Event processing Monitoring Analytics Security/Auth Caching Geodistribution

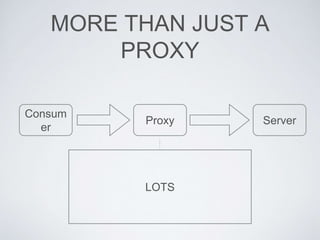

- 60. MORE THAN JUSTA PROXY Consum er Proxy Server LOTS
- 61. TIME TO MARKET DIY: • Biginvestment • Long timeline • Ongoing maintenance • NGINX leading solutions for proxy aspect
