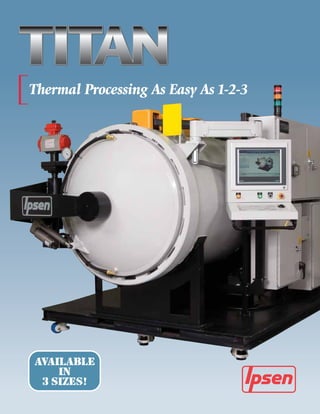

Thermal Processing As Easy As 1-2-3




AVAILABLE
    IN
 3 SIZES!

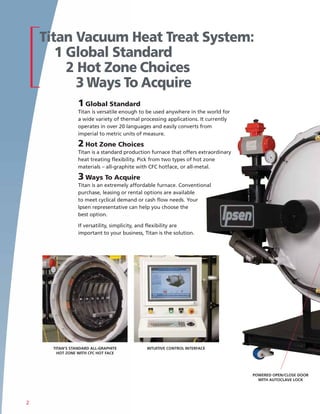

Titan Vacuum Heat Treat System:
       1 Global Standard
         2 Hot Zone Choices
           3 Ways To Acquire
                1 Global Standard
                Titan is versatile enough to be used anywhere in the world for
                a wide variety of thermal processing applications. It currently
                operates in over 20 languages and easily converts from
                imperial to metric units of measure.

                2 Hot Zone Choices
                Titan is a standard production furnace that offers extraordinary
                heat treating flexibility. Pick from two types of hot zone
                materials – all-graphite with CFC hotface, or all-metal.

                3 Ways To Acquire
                Titan is an extremely affordable furnace. Conventional
                purchase, leasing or rental options are available
                to meet cyclical demand or cash flow needs. Your
                Ipsen representative can help you choose the
                best option.

                If versatility, simplicity, and flexibility are
                important to your business, Titan is the solution.




     TITAN’S STANDARD ALL-GRAPHITE           INTUITIVE CONTROL INTERFACE
       HOT ZONE WITH CFC HOT FACE




                                                                                   POWERED OPEN/CLOSE DOOR
                                                                                     WITH AUTOCLAVE LOCK




2

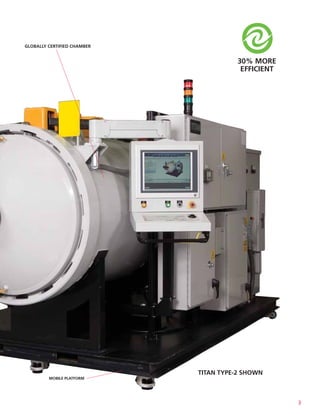

GLOBALLY CERTIFIED CHAMBER


                                        30% MORE
                                         EFFICIENT




                             TITAN TYPE-2 SHOWN
         MOBILE PLATFORM




                                                     3

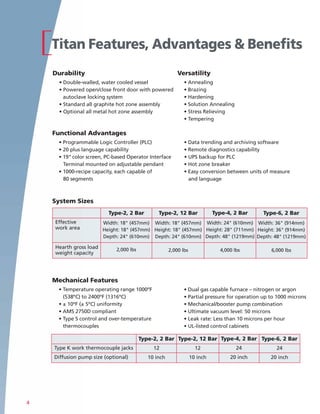

Titan Features, Advantages & Benefits
    Durability                                            Versatility
      • Double-walled, water cooled vessel                   • Annealing
      • Powered open/close front door with powered           • Brazing
        autoclave locking system                             • Hardening
      • Standard all graphite hot zone assembly              • Solution Annealing
      • Optional all metal hot zone assembly                 • Stress Relieving
                                                             • Tempering

    Functional Advantages
     • Programmable Logic Controller (PLC)                   • Data trending and archiving software
     • 20 plus language capability                           • Remote diagnostics capability
     • 19” color screen, PC-based Operator Interface         • UPS backup for PLC
       Terminal mounted on adjustable pendant                • Hot zone breaker
     • 1000-recipe capacity, each capable of                 • Easy conversion between units of measure
       80 segments                                             and language



    System Sizes
                          Type-2, 2 Bar         Type-2, 12 Bar              Type-4, 2 Bar     Type-6, 2 Bar
    Effective           Width: 18" (457mm) Width: 18" (457mm) Width: 24" (610mm) Width: 36" (914mm)
    work area           Height: 18" (457mm) Height: 18" (457mm) Height: 28" (711mm) Height: 36" (914mm)
                        Depth: 24" (610mm) Depth: 24" (610mm) Depth: 48" (1219mm) Depth: 48" (1219mm)

    Hearth gross load        2,000 lbs                2,000 lbs               4,000 lbs          6,000 lbs
    weight capacity




    Mechanical Features
     • Temperature operating range 1000ºF                    • Dual gas capable furnace – nitrogen or argon
       (538ºC) to 2400ºF (1316ºC)                            • Partial pressure for operation up to 1000 microns
     • ± 10ºF (± 5ºC) uniformity                             • Mechanical/booster pump combination
     • AMS 2750D compliant                                   • Ultimate vacuum level: 50 microns
     • Type S control and over-temperature                   • Leak rate: Less than 10 microns per hour
       thermocouples                                         • UL-listed control cabinets

                                         Type-2, 2 Bar Type-2, 12 Bar Type-4, 2 Bar Type-6, 2 Bar
    Type K work thermocouple jacks            12                    12               24            24
    Diffusion pump size (optional)          10 inch               10 inch         20 inch        20 inch




4

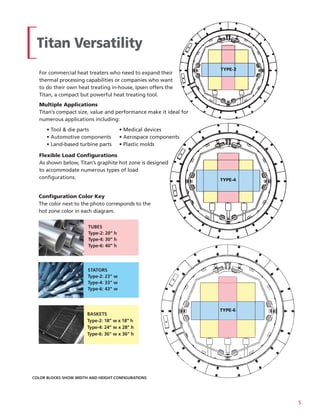

Titan Versatility
                                                                  TYPE-2
  For commercial heat treaters who need to expand their
  thermal processing capabilities or companies who want
  to do their own heat treating in-house, Ipsen offers the
  Titan, a compact but powerful heat treating tool.
  Multiple Applications
  Titan’s compact size, value and performance make it ideal for
  numerous applications including:
      • Tool & die parts               • Medical devices
      • Automotive components          • Aerospace components
      • Land-based turbine parts       • Plastic molds

  Flexible Load Configurations
  As shown below, Titan’s graphite hot zone is designed
  to accommodate numerous types of load
  configurations.                                                 TYPE-4


  Configuration Color Key
  The color next to the photo corresponds to the
  hot zone color in each diagram.

                       TUBES
                       Type-2: 20” h
                       Type-4: 30” h
                       Type-6: 40” h




                       STATORS
                       Type-2: 23” w
                       Type-4: 33” w
                       Type-6: 43” w



                                                                  TYPE-6
                       BASKETS
                       Type-2: 18” w x 18” h
                       Type-4: 24” w x 28” h
                       Type-6: 36” w x 36” h




COLOR BLOCKS SHOW WIDTH AND HEIGHT CONFIGURATIONS




                                                                           5

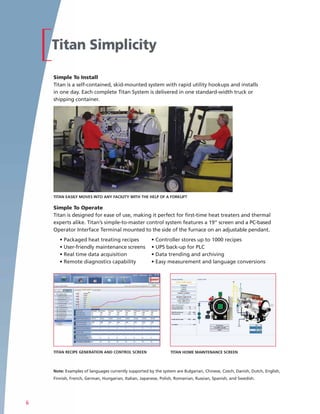

Titan Simplicity

    Simple To Install
    Titan is a self-contained, skid-mounted system with rapid utility hookups and installs
    in one day. Each complete Titan System is delivered in one standard-width truck or
    shipping container.




    TITAN EASILY MOVES INTO ANY FACILITY WITH THE HELP OF A FORKLIFT

    Simple To Operate
    Titan is designed for ease of use, making it perfect for first-time heat treaters and thermal
    experts alike. Titan’s simple-to-master control system features a 19” screen and a PC-based
    Operator Interface Terminal mounted to the side of the furnace on an adjustable pendant.
       • Packaged heat treating recipes               • Controller stores up to 1000 recipes
       • User-friendly maintenance screens            • UPS back-up for PLC
       • Real time data acquisition                   • Data trending and archiving
       • Remote diagnostics capability                • Easy measurement and language conversions




    TITAN RECIPE GENERATION AND CONTROL SCREEN                 TITAN HOME MAINTENANCE SCREEN



    Note: Examples of languages currently supported by the system are Bulgarian, Chinese, Czech, Danish, Dutch, English,
    Finnish, French, German, Hungarian, Italian, Japanese, Polish, Romanian, Russian, Spanish, and Swedish.




6

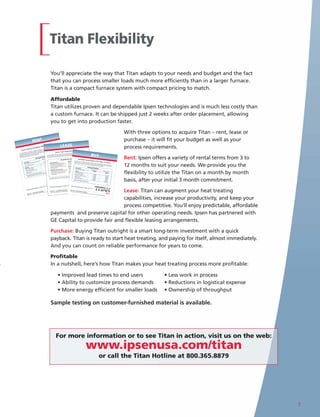

Titan Flexibility

                                                                                           You’ll appreciate the way that Titan adapts to your needs and budget and the fact
                                                                                           that you can process smaller loads much more efficiently than in a larger furnace.
                                                                                           Titan is a compact furnace system with compact pricing to match.

                                                                                           Affordable
                                                                                           Titan utilizes proven and dependable Ipsen technologies and is much less costly than
                                                                                           a custom furnace. It can be shipped just 2 weeks after order placement, allowing
                                                                                           you to get into production faster.

                                                                                                                                                                                                                                                                                           With three options to acquire Titan – rent, lease or
                                    RENT                                                                                                                                                                                                                                                   purchase – it will fit your budget as well as your
                                                                                         It

                               Flexib
                                           ility W
                                                           hen Yo
                                                                         u Need
                                                                         the Ipse
                                                                                 n Tita
                                                                                       n is the .
                                                                                        one day
                                                                                ning in you the
                                                                                                                        LEASE                                                                                                                                                              process requirements.
                  eating
                                                                needs,
                                                       treating         and run         ws
    Heat Tr
                                                r heat you’ll be up solution allo mitment.
                                         to you          ,              al
                                                                                                           ncial Success
                                                                                    com
                                solution of installation nt. Our rent al 3 month
                                                                                            Drive Your Fina
                           term                       eme
                    a short gn and ease order plac            your initi
            ing for
                    pact desi
                                         r            s after                                                                    equipment
    ’re look                      ks afte
                                 wee           h basi                                                            the impact your           with                  and
If you With its com       is two
                                              ont
                                       th-by-m .                                                                                           competing in                                  has partnered
 answer. shipping time n on a mon cellation
 Standard of using a
                       Tita    ice of
                                      can                                        Ipsen underst
                                                                                                  ands the environ
                                                                                                       in increasing
                                                                                                                         ment you’re
                                                                                                                         your product
                                                                                                                nch l solutions to meet the objectiv
                                                                                                                                                                    itiveness. Ipsen
                                                                                                                                           ivity and compet es that drive your busines
                                                                                                                                                                                                       s.
                                                                                                                                                                                                                     BUY
                                                                                                                                                                                                                                                                                           Rent: Ipsen offers a variety of rental terms from 3 to
           ty          days not                                    le            choices can have Que
  flexibili require 30
   We only                                     ng           Schedu                GE Capital to
                                                                                                 12-Bar
                                                                                                   provide financia
                                                                                                           $10,000
                                             Prici                      Quench
                                                                 2-Bar
                                                                                                         13,95
                                                                                                                0/mo
                                                                                                                               Benefits             Of Leasing                 Reliable
                                                                         $10,000                        $                                                                               Performa
                                                                                                                                                                               – Fair Market
                                                                                                                                                                                                  Value (FMV)
                                                     fee)                 ,850/m
                                                                                   o                                                                   Standard Lease Looking for an afford
                                                                                                                                                                                  n
                                                                                                                                                                                                nce For Yea
           Descrip
                    tion                 (one-ti
                                                 me                   $11
                                                                                       Cash Manag $
                                                                                                          ement /m
                                                                                                               300
                                                                                                                        o                                                     Ipsen                e       rs To Com
                                                                                                                                                       • 60 month duratio ’s Titan vacuuat able long term invest
                                                                                                                                                                               options availabl m heat treat
                              ent Fee                                                                                                ts                                     elarger furna                           e           ment with


                                                                                                                                                                                                                                                                                           12 months to suit your needs. We provide you the
                    Agreem                                                                                 afforda/ble paymen and ..... • Early purchas
                                                                                                                      mo                                                                     ce to make             system. Titan             a quick payba
           Rental                                                                         Predictable, $1,875
                                   nace*                                          mo •                                    ion process                     36 & 48 months                                  your heat               proce
                                                                                                                                                                                                                      treating applic sses smaller loadsck? Look no furthe
                           m Fur                                           $300/        • Accelerate
                                                                                                          the acquisito
                                                                                                                     5/m
                                                                                                               $37restrictions
                   Vacuu                                                         5/mo                                                                                        Options                                                  ation more             more efficie         r than
            Titan                                                         $1,37            overcome budget 50/mo lines for other .... End Of Lease                                                                                                  profitable.            ntly than
                                                                                                                                                                                                                                                                                      a
                                                                                                                $7 credit
                                                                                    mo • Preserve cash and                                               • Purchase                                                 Pricing Sch
             Optio
                     ns             em                                       $375/
                             r Syst                                                  mo operating
                                                                                                          needs                                          • Renewal
                                                                                                                                                                                  Descriptio
                                                                                                                                                                                                                                        edule
                     Loade                                                    $650/
                                                                                                                                                                                                n
              Titan                ystem                                                                                      ience                                              Titan Vacuu
                          uum S                 ols                                                 lity And Conven -07 the flexibility ..
                                                                                                                                                         • Return                               m Furna                      2-Bar Quen
               Hig h Vac             ert Contr                                           Flexibit.                      2009
                                                                                                                                                                              lease duratio
                                                                                                                                                                                               ns are ce*                                   ch
                                                                                                                  s you with


                                                                                                                                                                                                                                                                                           flexibility to utilize the Titan on a month by month
                            TM Exp                                                                                      2009-02
                        rof                                                               shipmen
                                                                                            Leasing provide                                               Non-standard Options                                                                                12-Bar Quen
                Vacu-P                                                            Furnace •                             business grows                                                                                            $238,000
                                                                                                                                                                                                                                   000
                              em                              e.         Vacuum             to  upgrade as your                        one    ........... also available. Titan Loa                                                                                         ch
                       r Syst                             zon      Titan
                                                  hite hot nce of itions app
                                                                                ly.                               simplified into                                                          der Sapplies.
                 Wate                                                                     • Entire solution                                                                  standard warranty ystem
                                                                                                                                                           Note: One year High Va                           2009-02
                                                                                                                                                                                                                                                                   $280,000
                                                                                                                                                                                                                                                                     00
                                         with grap in adva       cond                                                                                                                    cuum Sys
                                  ished e required terms and                                        payment                                                                                         tem
                             furn
                      c unit of insuranc ent rental
                                                                                             easy                                                                              Vacu-Prof TM                                        $ 0,000
                                                                                                                                                                                                              finance
                * Basi     te           ipm                                                                                                                                                   Excommitment to
                                                                                                                                                                                              or pert C
                  Certifica dard equ                                                                                                                                          Waan approval            ontrols                   $0 0, 000                           $0,0 00
                         stan                                                                                                                                 does not represent ter Syst
                   Ipsen                                                                                                         promotional
                                                                                                                                              purposes and                                 em
                                                                                                                   herein is for                         t/credit approval. Al                                                    $ 0 0,0 0                        $ 00,000
                                                                                                                                       final investmen                          l Metal H



                                                                                                                                                                                                                                                                                           basis, after your initial 3 month commitment.
                                                                                                      n contained       are subject to                                                      ot Zone
                                                                                      The informatio       transactions                                                                                                         $ 00,800
                                                                                      by GE. All financing                                                                                                                                                          $0, 000
                                                                                                                                                                           * Basic unit
                                                                                                                                                                            Note:       furnished                               $ 00,000                          $ 00,000
                                                                                                                                                                        One year                  with
                                                                                                                                                                                             graphite
                                                                                                                                                                                   standard           hot zone.
                                                                                                                                                                                            warranty                                                           $00,000
                                                                                                                                                                                                      applies.


                                                                                                                                                                                                                                                                    2009-07


                                                  -3                                                  ssing As                    Easy As 1-2-3Thermal Proc
                                         sy As 1-2                                       Thermal Proce                                                     essing As Easy
                                  g As Ea                                                                                                                                 As
                         Processin                                                                                                                                                                                1-2-3

                                                                                                                         Lease: Titan can augment your heat treating
                                                                                                                    sa.com
                 Thermal                                                                   • Ema
                                                                                                  il: titan
                                                                                                           @ipsenu
                                                                                                                           .com/titan            Ipsen,9501 • Email: titan@ipsenusa.c
                                                                                                                                                                                          om
                                                                                                        www.ipsenusa                                      Inc. • www
                                                                  n                  Ipsen, Inc. •
                                                                                 437.9501                                at 800.365.8879
                                                                                                                                         • Fax: 877.437.                .ipsenusa.c
                                                       .com/tita        Fax: 877.                      Hotline toll-free
                                                                                                                                                 Call the Titan                       om/titan
                                              senusa             8879 •               Call the Titan
                                                                                                                                                                Hotline toll-fre
                                    www.ip               800.365.                                                                                                               e at 800.36
                             Inc. •              free at                                                                                                                                   5.8879 • Fax:
                    Ipsen,             line toll-                                                                                                                                                        877.437.9501
                              Titan Hot                                                                                                                                                                               • Email: titan@
                     Call the                                                                                                                                                                                                        ipsenusa.com




                                                                                                                         capabilities, increase your productivity, and keep your
                                                                                                                         process competitive. You’ll enjoy predictable, affordable
                                                                                           payments and preserve capital for other operating needs. Ipsen has partnered with
                                                                                           GE Capital to provide fair and flexible leasing arrangements.

                                                                                           Purchase: Buying Titan outright is a smart long-term investment with a quick
                                                                                           payback. Titan is ready to start heat treating, and paying for itself, almost immediately.
                                                                                           And you can count on reliable performance for years to come.

                                                                                           Profitable
                                                                                           In a nutshell, here’s how Titan makes your heat treating process more profitable:

                                                                                                                • Improved lead times to end users                                                                                                                                                          • Less work in process
                                                                                                                • Ability to customize process demands                                                                                                                                                      • Reductions in logistical expense
                                                                                                                • More energy efficient for smaller loads                                                                                                                                                   • Ownership of throughput

                                                                                           Sample testing on customer-furnished material is available.




                                                                                                           For more information or to see Titan in action, visit us on the web:
                                                                                                                                                                                                      www.ipsenusa.com/titan
                                                                                                                                                                                                                                             or call the Titan Hotline at 800.365.8879




                                                                                                                                                                                                                                                                                                                                                    7
Titan Options

            • Diffusion pump                • 2000 lb or 3000 lb
              with high vacuum                capacity
              valve                         • Electric lift –
            • Holding pump                    Type-2
            • Piping and valving            • Manual lift –
                                              Type 4 or 6
                                            • Built-in charger




      HIGH VACUUM                      LOADER


                 • Single closed-
                                                • Molybdenum and
                   loop system
                                                  stainless steel
                 • 350 gallon
                   reservoir tank                 shields
                 • Pump station                 • Molybdenum
                   with heat                      hearth
                   exchanger                      posts and rails
                 • Type-2                       • Stainless steel
                   furnaces only                  frame

        WATER



                • 220-460 Volts
                • 50/60 HZ
                • 3 Phase           METAL HOT ZONE




        POWER




                                                                    8

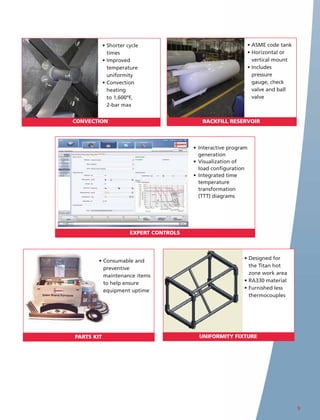

• Shorter cycle                                  • ASME code tank
              times                                          • Horizontal or
            • Improved                                         vertical mount
              temperature                                    • Includes
              uniformity                                       pressure
            • Convection                                       gauge, check
              heating                                          valve and ball
              to 1,600ºF,                                      valve
              2-bar max


CONVECTION                                  BACKFILL RESERVOIR



                                         • Interactive program
                                           generation
                                         • Visualization of
                                           load configuration
                                         • Integrated time
                                           temperature
                                           transformation
                                           (TTT) diagrams




                       EXPERT CONTROLS




        • Consumable and                                    • Designed for
          preventive                                          the Titan hot
          maintenance items                                   zone work area
          to help ensure                                    • RA330 material
          equipment uptime                                  • Furnished less
                                                              thermocouples




PARTS KIT                                  UNIFORMITY FIXTURE




                                                                                9

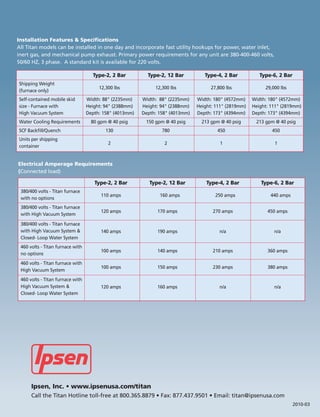

Installation Features & Specifications
All Titan models can be installed in one day and incorporate fast utility hookups for power, water inlet,
inert gas, and mechanical pump exhaust. Primary power requirements for any unit are 380-400-460 volts,
50/60 HZ, 3 phase. A standard kit is available for 220 volts.

                                    Type-2, 2 Bar          Type-2, 12 Bar          Type-4, 2 Bar           Type-6, 2 Bar
Shipping Weight
                                       12,300 lbs             12,300 lbs              27,800 lbs             29,000 lbs
(furnace only)
Self-contained mobile skid        Width: 88" (2235mm)    Width: 88" (2235mm)    Width: 180" (4572mm)    Width: 180" (4572mm)
size - Furnace with               Height: 94" (2388mm)   Height: 94" (2388mm)   Height: 111" (2819mm)   Height: 111" (2819mm)
High Vacuum System                Depth: 158" (4013mm)   Depth: 158" (4013mm)   Depth: 173" (4394mm)    Depth: 173" (4394mm)
Water Cooling Requirements          80 gpm @ 40 psig      150 gpm @ 40 psig       213 gpm @ 40 psig      213 gpm @ 40 psig
SCF Backfill/Quench                       130                    780                     450                    450
Units per shipping
                                           2                      2                       1                      1
container


Electrical Amperage Requirements
(Connected load)

                                     Type-2, 2 Bar          Type-2, 12 Bar          Type-4, 2 Bar          Type-6, 2 Bar
 380/400 volts - Titan furnace
                                        110 amps                160 amps                250 amps               440 amps
 with no options
 380/400 volts - Titan furnace
                                        120 amps               170 amps               270 amps                450 amps
 with High Vacuum System

 380/400 volts - Titan furnace
 with High Vacuum System &              140 amps               190 amps                   n/a                    n/a
 Closed- Loop Water System
 460 volts - Titan furnace with
                                        100 amps               140 amps               210 amps                360 amps
 no options
 460 volts - Titan furnace with
                                        100 amps               150 amps               230 amps                380 amps
 High Vacuum System
 460 volts - Titan furnace with
 High Vacuum System &                   120 amps               160 amps                   n/a                    n/a
 Closed- Loop Water System




      Ipsen, Inc. • www.ipsenusa.com/titan
      Call the Titan Hotline toll-free at 800.365.8879 • Fax: 877.437.9501 • Email: titan@ipsenusa.com
                                                                                                                           2010-03

More Related Content

Viewers also liked

Research Paper
Research PaperResearch Paper
Research Paper
Derek Storms

Experiences with new modular vacuum heat treatment systems in the automotive ...
Experiences with new modular vacuum heat treatment systems in the automotive ...Experiences with new modular vacuum heat treatment systems in the automotive ...
Experiences with new modular vacuum heat treatment systems in the automotive ...
Thu Nguyen

State of the Art in Vacuum Arc remelting and Electro Slag Remelting Process -...
State of the Art in Vacuum Arc remelting and Electro Slag Remelting Process -...State of the Art in Vacuum Arc remelting and Electro Slag Remelting Process -...
State of the Art in Vacuum Arc remelting and Electro Slag Remelting Process -...
Thu Nguyen

Effect of heat treatment, water activity and storage temperature on the oxida...
Effect of heat treatment, water activity and storage temperature on the oxida...Effect of heat treatment, water activity and storage temperature on the oxida...
Effect of heat treatment, water activity and storage temperature on the oxida...
Omar Zeballos

ALD France nitriding process and furnaces
ALD France nitriding process and furnacesALD France nitriding process and furnaces
ALD France nitriding process and furnaces
ALD France

Graffitis sexto a
Graffitis sexto aGraffitis sexto a
Graffitis sexto a
Maria Eva Aguilar Llano

Webinar: Herramientas de Autor para el diseño de OA para EaD
Webinar: Herramientas de Autor para el diseño de OA para EaD Webinar: Herramientas de Autor para el diseño de OA para EaD
Webinar: Herramientas de Autor para el diseño de OA para EaD
Raymond Marquina

Preguntas Frecuentes GPSur
Preguntas Frecuentes GPSurPreguntas Frecuentes GPSur
Preguntas Frecuentes GPSur
contactogpsur

Ciberseguridad, la asignatura pendiente.
Ciberseguridad, la asignatura pendiente.Ciberseguridad, la asignatura pendiente.
Ciberseguridad, la asignatura pendiente.
APD Asociación para el Progreso de la Dirección

Jungheinrich Company Presentation
Jungheinrich Company PresentationJungheinrich Company Presentation
Jungheinrich Company Presentation
Company Spotlight

Tobias McVey Opera Software Big Data for LinkMedical Mars 2016
Tobias McVey Opera Software Big Data for LinkMedical Mars 2016Tobias McVey Opera Software Big Data for LinkMedical Mars 2016
Tobias McVey Opera Software Big Data for LinkMedical Mars 2016Tobias McVey

Udidac tic sac30
Udidac tic sac30Udidac tic sac30
Udidac tic sac30
sac30

Carola Vives paisajismo y jardinería- prensa
Carola Vives  paisajismo y jardinería-  prensaCarola Vives  paisajismo y jardinería-  prensa
Carola Vives paisajismo y jardinería- prensa
Carola Vives

Published patent and design registration information december 14th, 2012
Published patent and design registration information   december 14th, 2012Published patent and design registration information   december 14th, 2012
Published patent and design registration information december 14th, 2012
InvnTree IP Services Pvt. Ltd.

(60kz) Taller de Origami
(60kz) Taller de Origami(60kz) Taller de Origami
FinagleCon_2015_Pinterest
FinagleCon_2015_PinterestFinagleCon_2015_Pinterest
FinagleCon_2015_Pinterest
Yongsheng Wu

Como Prepararse para la Inspección Orgánica
Como Prepararse para la Inspección OrgánicaComo Prepararse para la Inspección Orgánica
Como Prepararse para la Inspección Orgánica
Gardening

Sargasso Company Presentation EN
Sargasso Company Presentation ENSargasso Company Presentation EN
Sargasso Company Presentation EN
Joao Bola

Mundo de arena
Mundo de arena Mundo de arena
Mundo de arena
analuace03

ISD2016_Solution_G_Stefan_Reiner
ISD2016_Solution_G_Stefan_ReinerISD2016_Solution_G_Stefan_Reiner
ISD2016_Solution_G_Stefan_Reiner
InfoSocietyDays


Viewers also liked (20)

Research Paper
Research PaperResearch Paper
Research Paper

Experiences with new modular vacuum heat treatment systems in the automotive ...
Experiences with new modular vacuum heat treatment systems in the automotive ...Experiences with new modular vacuum heat treatment systems in the automotive ...
Experiences with new modular vacuum heat treatment systems in the automotive ...

State of the Art in Vacuum Arc remelting and Electro Slag Remelting Process -...
State of the Art in Vacuum Arc remelting and Electro Slag Remelting Process -...State of the Art in Vacuum Arc remelting and Electro Slag Remelting Process -...
State of the Art in Vacuum Arc remelting and Electro Slag Remelting Process -...

Effect of heat treatment, water activity and storage temperature on the oxida...
Effect of heat treatment, water activity and storage temperature on the oxida...Effect of heat treatment, water activity and storage temperature on the oxida...
Effect of heat treatment, water activity and storage temperature on the oxida...

ALD France nitriding process and furnaces
ALD France nitriding process and furnacesALD France nitriding process and furnaces
ALD France nitriding process and furnaces

Graffitis sexto a
Graffitis sexto aGraffitis sexto a
Graffitis sexto a

Webinar: Herramientas de Autor para el diseño de OA para EaD
Webinar: Herramientas de Autor para el diseño de OA para EaD Webinar: Herramientas de Autor para el diseño de OA para EaD
Webinar: Herramientas de Autor para el diseño de OA para EaD

Preguntas Frecuentes GPSur
Preguntas Frecuentes GPSurPreguntas Frecuentes GPSur
Preguntas Frecuentes GPSur

Ciberseguridad, la asignatura pendiente.
Ciberseguridad, la asignatura pendiente.Ciberseguridad, la asignatura pendiente.
Ciberseguridad, la asignatura pendiente.

Jungheinrich Company Presentation
Jungheinrich Company PresentationJungheinrich Company Presentation
Jungheinrich Company Presentation

Tobias McVey Opera Software Big Data for LinkMedical Mars 2016
Tobias McVey Opera Software Big Data for LinkMedical Mars 2016Tobias McVey Opera Software Big Data for LinkMedical Mars 2016
Tobias McVey Opera Software Big Data for LinkMedical Mars 2016

Udidac tic sac30
Udidac tic sac30Udidac tic sac30
Udidac tic sac30

Carola Vives paisajismo y jardinería- prensa
Carola Vives  paisajismo y jardinería-  prensaCarola Vives  paisajismo y jardinería-  prensa
Carola Vives paisajismo y jardinería- prensa

Published patent and design registration information december 14th, 2012
Published patent and design registration information   december 14th, 2012Published patent and design registration information   december 14th, 2012
Published patent and design registration information december 14th, 2012

(60kz) Taller de Origami
(60kz) Taller de Origami(60kz) Taller de Origami
(60kz) Taller de Origami

FinagleCon_2015_Pinterest
FinagleCon_2015_PinterestFinagleCon_2015_Pinterest
FinagleCon_2015_Pinterest

Como Prepararse para la Inspección Orgánica
Como Prepararse para la Inspección OrgánicaComo Prepararse para la Inspección Orgánica
Como Prepararse para la Inspección Orgánica

Sargasso Company Presentation EN
Sargasso Company Presentation ENSargasso Company Presentation EN
Sargasso Company Presentation EN

Mundo de arena
Mundo de arena Mundo de arena
Mundo de arena

ISD2016_Solution_G_Stefan_Reiner
ISD2016_Solution_G_Stefan_ReinerISD2016_Solution_G_Stefan_Reiner
ISD2016_Solution_G_Stefan_Reiner


Similar to Titan Brochure

Eta lyra series reflow oven
Eta lyra series reflow ovenEta lyra series reflow oven
Eta lyra series reflow oven
Carrie Zhang

ETA IR Oven Introduction
ETA IR Oven IntroductionETA IR Oven Introduction
ETA IR Oven Introduction
Jenny Long

Eta draco series reflow oven
Eta draco series reflow ovenEta draco series reflow oven
Eta draco series reflow oven
Mark Tung

Eta draco series reflow oven
Eta draco series reflow ovenEta draco series reflow oven
Eta draco series reflow oven
Carrie Zhang

Eta draco series reflow oven
Eta draco series reflow ovenEta draco series reflow oven
Eta draco series reflow oven
Lucy Xiao

Folder Rubbens transfer fryer EN
Folder Rubbens transfer fryer ENFolder Rubbens transfer fryer EN
Folder Rubbens transfer fryer EN
Rubbens grootkeukens

Allwin21 and main products
Allwin21 and main productsAllwin21 and main products
Allwin21 and main products
Peter Chen

Rigid stirling cooler factory
Rigid stirling cooler factoryRigid stirling cooler factory
Rigid stirling cooler factory
Ann Wee (RIGID HVAC)

Pyrosales Catalogue - Total Sensor Solution Providers
Pyrosales Catalogue - Total Sensor Solution ProvidersPyrosales Catalogue - Total Sensor Solution Providers
Pyrosales Catalogue - Total Sensor Solution Providers
PYROSALES

Laboratory Equipments
Laboratory EquipmentsLaboratory Equipments
Laboratory Equipments
acmasindia

Laboratory Equipments
Laboratory EquipmentsLaboratory Equipments
Laboratory Equipments
acmasindia

AGI MILLTEC RICE MILLING .pdf
AGI MILLTEC RICE MILLING .pdfAGI MILLTEC RICE MILLING .pdf
AGI MILLTEC RICE MILLING .pdf
Milltec Machinery Ltd

Tk60880 ut 800-ut-1200_(01-2012)-en_a4
Tk60880 ut 800-ut-1200_(01-2012)-en_a4Tk60880 ut 800-ut-1200_(01-2012)-en_a4
Tk60880 ut 800-ut-1200_(01-2012)-en_a4
amicof

Recommended machines to support your industry
Recommended machines to support your industryRecommended machines to support your industry
Recommended machines to support your industry
WJ2014

TT_BlueBook
TT_BlueBookTT_BlueBook
TT_BlueBook
Gerry Devenish

Service ariston depok 0813-8024-0365
Service ariston depok 0813-8024-0365Service ariston depok 0813-8024-0365
Service ariston depok 0813-8024-0365
komporariston

Harga water heater ariston 081313462267
Harga water heater ariston 081313462267Harga water heater ariston 081313462267
Hot air oven manufacturers in bangalore texonics
Hot air oven manufacturers in bangalore texonicsHot air oven manufacturers in bangalore texonics
Hot air oven manufacturers in bangalore texonics
texonics

AES CAPABILITIES Brochure
AES CAPABILITIES BrochureAES CAPABILITIES Brochure
AES CAPABILITIES Brochure
Jason Wood

TRANE_Sintesis_Brochure
TRANE_Sintesis_BrochureTRANE_Sintesis_Brochure
TRANE_Sintesis_Brochure
Angie Wolf


Similar to Titan Brochure (20)

Eta lyra series reflow oven
Eta lyra series reflow ovenEta lyra series reflow oven
Eta lyra series reflow oven

ETA IR Oven Introduction
ETA IR Oven IntroductionETA IR Oven Introduction
ETA IR Oven Introduction

Eta draco series reflow oven
Eta draco series reflow ovenEta draco series reflow oven
Eta draco series reflow oven

Eta draco series reflow oven
Eta draco series reflow ovenEta draco series reflow oven
Eta draco series reflow oven

Eta draco series reflow oven
Eta draco series reflow ovenEta draco series reflow oven
Eta draco series reflow oven

Folder Rubbens transfer fryer EN
Folder Rubbens transfer fryer ENFolder Rubbens transfer fryer EN
Folder Rubbens transfer fryer EN

Allwin21 and main products
Allwin21 and main productsAllwin21 and main products
Allwin21 and main products

Rigid stirling cooler factory
Rigid stirling cooler factoryRigid stirling cooler factory
Rigid stirling cooler factory

Pyrosales Catalogue - Total Sensor Solution Providers
Pyrosales Catalogue - Total Sensor Solution ProvidersPyrosales Catalogue - Total Sensor Solution Providers
Pyrosales Catalogue - Total Sensor Solution Providers

Laboratory Equipments
Laboratory EquipmentsLaboratory Equipments
Laboratory Equipments

Laboratory Equipments
Laboratory EquipmentsLaboratory Equipments
Laboratory Equipments

AGI MILLTEC RICE MILLING .pdf
AGI MILLTEC RICE MILLING .pdfAGI MILLTEC RICE MILLING .pdf
AGI MILLTEC RICE MILLING .pdf

Tk60880 ut 800-ut-1200_(01-2012)-en_a4
Tk60880 ut 800-ut-1200_(01-2012)-en_a4Tk60880 ut 800-ut-1200_(01-2012)-en_a4
Tk60880 ut 800-ut-1200_(01-2012)-en_a4

Recommended machines to support your industry
Recommended machines to support your industryRecommended machines to support your industry
Recommended machines to support your industry

TT_BlueBook
TT_BlueBookTT_BlueBook
TT_BlueBook

Service ariston depok 0813-8024-0365
Service ariston depok 0813-8024-0365Service ariston depok 0813-8024-0365
Service ariston depok 0813-8024-0365

Harga water heater ariston 081313462267
Harga water heater ariston 081313462267Harga water heater ariston 081313462267
Harga water heater ariston 081313462267

Hot air oven manufacturers in bangalore texonics
Hot air oven manufacturers in bangalore texonicsHot air oven manufacturers in bangalore texonics
Hot air oven manufacturers in bangalore texonics

AES CAPABILITIES Brochure
AES CAPABILITIES BrochureAES CAPABILITIES Brochure
AES CAPABILITIES Brochure

TRANE_Sintesis_Brochure
TRANE_Sintesis_BrochureTRANE_Sintesis_Brochure
TRANE_Sintesis_Brochure


Titan Brochure

  • 1. Thermal Processing As Easy As 1-2-3 AVAILABLE IN 3 SIZES!
  • 2. Titan Vacuum Heat Treat System: 1 Global Standard 2 Hot Zone Choices 3 Ways To Acquire 1 Global Standard Titan is versatile enough to be used anywhere in the world for a wide variety of thermal processing applications. It currently operates in over 20 languages and easily converts from imperial to metric units of measure. 2 Hot Zone Choices Titan is a standard production furnace that offers extraordinary heat treating flexibility. Pick from two types of hot zone materials – all-graphite with CFC hotface, or all-metal. 3 Ways To Acquire Titan is an extremely affordable furnace. Conventional purchase, leasing or rental options are available to meet cyclical demand or cash flow needs. Your Ipsen representative can help you choose the best option. If versatility, simplicity, and flexibility are important to your business, Titan is the solution. TITAN’S STANDARD ALL-GRAPHITE INTUITIVE CONTROL INTERFACE HOT ZONE WITH CFC HOT FACE POWERED OPEN/CLOSE DOOR WITH AUTOCLAVE LOCK 2
  • 3. GLOBALLY CERTIFIED CHAMBER 30% MORE EFFICIENT TITAN TYPE-2 SHOWN MOBILE PLATFORM 3
  • 4. Titan Features, Advantages & Benefits Durability Versatility • Double-walled, water cooled vessel • Annealing • Powered open/close front door with powered • Brazing autoclave locking system • Hardening • Standard all graphite hot zone assembly • Solution Annealing • Optional all metal hot zone assembly • Stress Relieving • Tempering Functional Advantages • Programmable Logic Controller (PLC) • Data trending and archiving software • 20 plus language capability • Remote diagnostics capability • 19” color screen, PC-based Operator Interface • UPS backup for PLC Terminal mounted on adjustable pendant • Hot zone breaker • 1000-recipe capacity, each capable of • Easy conversion between units of measure 80 segments and language System Sizes Type-2, 2 Bar Type-2, 12 Bar Type-4, 2 Bar Type-6, 2 Bar Effective Width: 18" (457mm) Width: 18" (457mm) Width: 24" (610mm) Width: 36" (914mm) work area Height: 18" (457mm) Height: 18" (457mm) Height: 28" (711mm) Height: 36" (914mm) Depth: 24" (610mm) Depth: 24" (610mm) Depth: 48" (1219mm) Depth: 48" (1219mm) Hearth gross load 2,000 lbs 2,000 lbs 4,000 lbs 6,000 lbs weight capacity Mechanical Features • Temperature operating range 1000ºF • Dual gas capable furnace – nitrogen or argon (538ºC) to 2400ºF (1316ºC) • Partial pressure for operation up to 1000 microns • ± 10ºF (± 5ºC) uniformity • Mechanical/booster pump combination • AMS 2750D compliant • Ultimate vacuum level: 50 microns • Type S control and over-temperature • Leak rate: Less than 10 microns per hour thermocouples • UL-listed control cabinets Type-2, 2 Bar Type-2, 12 Bar Type-4, 2 Bar Type-6, 2 Bar Type K work thermocouple jacks 12 12 24 24 Diffusion pump size (optional) 10 inch 10 inch 20 inch 20 inch 4
  • 5. Titan Versatility TYPE-2 For commercial heat treaters who need to expand their thermal processing capabilities or companies who want to do their own heat treating in-house, Ipsen offers the Titan, a compact but powerful heat treating tool. Multiple Applications Titan’s compact size, value and performance make it ideal for numerous applications including: • Tool & die parts • Medical devices • Automotive components • Aerospace components • Land-based turbine parts • Plastic molds Flexible Load Configurations As shown below, Titan’s graphite hot zone is designed to accommodate numerous types of load configurations. TYPE-4 Configuration Color Key The color next to the photo corresponds to the hot zone color in each diagram. TUBES Type-2: 20” h Type-4: 30” h Type-6: 40” h STATORS Type-2: 23” w Type-4: 33” w Type-6: 43” w TYPE-6 BASKETS Type-2: 18” w x 18” h Type-4: 24” w x 28” h Type-6: 36” w x 36” h COLOR BLOCKS SHOW WIDTH AND HEIGHT CONFIGURATIONS 5
  • 6. Titan Simplicity Simple To Install Titan is a self-contained, skid-mounted system with rapid utility hookups and installs in one day. Each complete Titan System is delivered in one standard-width truck or shipping container. TITAN EASILY MOVES INTO ANY FACILITY WITH THE HELP OF A FORKLIFT Simple To Operate Titan is designed for ease of use, making it perfect for first-time heat treaters and thermal experts alike. Titan’s simple-to-master control system features a 19” screen and a PC-based Operator Interface Terminal mounted to the side of the furnace on an adjustable pendant. • Packaged heat treating recipes • Controller stores up to 1000 recipes • User-friendly maintenance screens • UPS back-up for PLC • Real time data acquisition • Data trending and archiving • Remote diagnostics capability • Easy measurement and language conversions TITAN RECIPE GENERATION AND CONTROL SCREEN TITAN HOME MAINTENANCE SCREEN Note: Examples of languages currently supported by the system are Bulgarian, Chinese, Czech, Danish, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Polish, Romanian, Russian, Spanish, and Swedish. 6
  • 7. Titan Flexibility You’ll appreciate the way that Titan adapts to your needs and budget and the fact that you can process smaller loads much more efficiently than in a larger furnace. Titan is a compact furnace system with compact pricing to match. Affordable Titan utilizes proven and dependable Ipsen technologies and is much less costly than a custom furnace. It can be shipped just 2 weeks after order placement, allowing you to get into production faster. With three options to acquire Titan – rent, lease or RENT purchase – it will fit your budget as well as your It Flexib ility W hen Yo u Need the Ipse n Tita n is the . one day ning in you the LEASE process requirements. eating needs, treating and run ws Heat Tr r heat you’ll be up solution allo mitment. to you , al ncial Success com solution of installation nt. Our rent al 3 month Drive Your Fina term eme a short gn and ease order plac your initi ing for pact desi r s after equipment ’re look ks afte wee h basi the impact your with and If you With its com is two ont th-by-m . competing in has partnered answer. shipping time n on a mon cellation Standard of using a Tita ice of can Ipsen underst ands the environ in increasing ment you’re your product nch l solutions to meet the objectiv itiveness. Ipsen ivity and compet es that drive your busines s. BUY Rent: Ipsen offers a variety of rental terms from 3 to ty days not le choices can have Que flexibili require 30 We only ng Schedu GE Capital to 12-Bar provide financia $10,000 Prici Quench 2-Bar 13,95 0/mo Benefits Of Leasing Reliable $10,000 $ Performa – Fair Market Value (FMV) fee) ,850/m o Standard Lease Looking for an afford n nce For Yea Descrip tion (one-ti me $11 Cash Manag $ ement /m 300 o Ipsen e rs To Com • 60 month duratio ’s Titan vacuuat able long term invest options availabl m heat treat ent Fee ts elarger furna e ment with 12 months to suit your needs. We provide you the Agreem afforda/ble paymen and ..... • Early purchas mo ce to make system. Titan a quick payba Rental Predictable, $1,875 nace* mo • ion process 36 & 48 months your heat proce treating applic sses smaller loadsck? Look no furthe m Fur $300/ • Accelerate the acquisito 5/m $37restrictions Vacuu 5/mo Options ation more more efficie r than Titan $1,37 overcome budget 50/mo lines for other .... End Of Lease profitable. ntly than a $7 credit mo • Preserve cash and • Purchase Pricing Sch Optio ns em $375/ r Syst mo operating needs • Renewal Descriptio edule Loade $650/ n Titan ystem ience Titan Vacuu uum S ols lity And Conven -07 the flexibility .. • Return m Furna 2-Bar Quen Hig h Vac ert Contr Flexibit. 2009 lease duratio ns are ce* ch s you with flexibility to utilize the Titan on a month by month TM Exp 2009-02 rof shipmen Leasing provide Non-standard Options 12-Bar Quen Vacu-P Furnace • business grows $238,000 000 em e. Vacuum to upgrade as your one ........... also available. Titan Loa ch r Syst zon Titan hite hot nce of itions app ly. simplified into der Sapplies. Wate • Entire solution standard warranty ystem Note: One year High Va 2009-02 $280,000 00 with grap in adva cond cuum Sys ished e required terms and payment tem furn c unit of insuranc ent rental easy Vacu-Prof TM $ 0,000 finance * Basi te ipm Excommitment to or pert C Certifica dard equ Waan approval ontrols $0 0, 000 $0,0 00 stan does not represent ter Syst Ipsen promotional purposes and em herein is for t/credit approval. Al $ 0 0,0 0 $ 00,000 final investmen l Metal H basis, after your initial 3 month commitment. n contained are subject to ot Zone The informatio transactions $ 00,800 by GE. All financing $0, 000 * Basic unit Note: furnished $ 00,000 $ 00,000 One year with graphite standard hot zone. warranty $00,000 applies. 2009-07 -3 ssing As Easy As 1-2-3Thermal Proc sy As 1-2 Thermal Proce essing As Easy g As Ea As Processin 1-2-3 Lease: Titan can augment your heat treating sa.com Thermal • Ema il: titan @ipsenu .com/titan Ipsen,9501 • Email: titan@ipsenusa.c om www.ipsenusa Inc. • www n Ipsen, Inc. • 437.9501 at 800.365.8879 • Fax: 877.437. .ipsenusa.c .com/tita Fax: 877. Hotline toll-free Call the Titan om/titan senusa 8879 • Call the Titan Hotline toll-fre www.ip 800.365. e at 800.36 Inc. • free at 5.8879 • Fax: Ipsen, line toll- 877.437.9501 Titan Hot • Email: titan@ Call the ipsenusa.com capabilities, increase your productivity, and keep your process competitive. You’ll enjoy predictable, affordable payments and preserve capital for other operating needs. Ipsen has partnered with GE Capital to provide fair and flexible leasing arrangements. Purchase: Buying Titan outright is a smart long-term investment with a quick payback. Titan is ready to start heat treating, and paying for itself, almost immediately. And you can count on reliable performance for years to come. Profitable In a nutshell, here’s how Titan makes your heat treating process more profitable: • Improved lead times to end users • Less work in process • Ability to customize process demands • Reductions in logistical expense • More energy efficient for smaller loads • Ownership of throughput Sample testing on customer-furnished material is available. For more information or to see Titan in action, visit us on the web: www.ipsenusa.com/titan or call the Titan Hotline at 800.365.8879 7
  • 8. Titan Options • Diffusion pump • 2000 lb or 3000 lb with high vacuum capacity valve • Electric lift – • Holding pump Type-2 • Piping and valving • Manual lift – Type 4 or 6 • Built-in charger HIGH VACUUM LOADER • Single closed- • Molybdenum and loop system stainless steel • 350 gallon reservoir tank shields • Pump station • Molybdenum with heat hearth exchanger posts and rails • Type-2 • Stainless steel furnaces only frame WATER • 220-460 Volts • 50/60 HZ • 3 Phase METAL HOT ZONE POWER 8
  • 9. • Shorter cycle • ASME code tank times • Horizontal or • Improved vertical mount temperature • Includes uniformity pressure • Convection gauge, check heating valve and ball to 1,600ºF, valve 2-bar max CONVECTION BACKFILL RESERVOIR • Interactive program generation • Visualization of load configuration • Integrated time temperature transformation (TTT) diagrams EXPERT CONTROLS • Consumable and • Designed for preventive the Titan hot maintenance items zone work area to help ensure • RA330 material equipment uptime • Furnished less thermocouples PARTS KIT UNIFORMITY FIXTURE 9
  • 10. Installation Features & Specifications All Titan models can be installed in one day and incorporate fast utility hookups for power, water inlet, inert gas, and mechanical pump exhaust. Primary power requirements for any unit are 380-400-460 volts, 50/60 HZ, 3 phase. A standard kit is available for 220 volts. Type-2, 2 Bar Type-2, 12 Bar Type-4, 2 Bar Type-6, 2 Bar Shipping Weight 12,300 lbs 12,300 lbs 27,800 lbs 29,000 lbs (furnace only) Self-contained mobile skid Width: 88" (2235mm) Width: 88" (2235mm) Width: 180" (4572mm) Width: 180" (4572mm) size - Furnace with Height: 94" (2388mm) Height: 94" (2388mm) Height: 111" (2819mm) Height: 111" (2819mm) High Vacuum System Depth: 158" (4013mm) Depth: 158" (4013mm) Depth: 173" (4394mm) Depth: 173" (4394mm) Water Cooling Requirements 80 gpm @ 40 psig 150 gpm @ 40 psig 213 gpm @ 40 psig 213 gpm @ 40 psig SCF Backfill/Quench 130 780 450 450 Units per shipping 2 2 1 1 container Electrical Amperage Requirements (Connected load) Type-2, 2 Bar Type-2, 12 Bar Type-4, 2 Bar Type-6, 2 Bar 380/400 volts - Titan furnace 110 amps 160 amps 250 amps 440 amps with no options 380/400 volts - Titan furnace 120 amps 170 amps 270 amps 450 amps with High Vacuum System 380/400 volts - Titan furnace with High Vacuum System & 140 amps 190 amps n/a n/a Closed- Loop Water System 460 volts - Titan furnace with 100 amps 140 amps 210 amps 360 amps no options 460 volts - Titan furnace with 100 amps 150 amps 230 amps 380 amps High Vacuum System 460 volts - Titan furnace with High Vacuum System & 120 amps 160 amps n/a n/a Closed- Loop Water System Ipsen, Inc. • www.ipsenusa.com/titan Call the Titan Hotline toll-free at 800.365.8879 • Fax: 877.437.9501 • Email: titan@ipsenusa.com 2010-03
