1. Thread & Concurrency
Onkar Deshpande

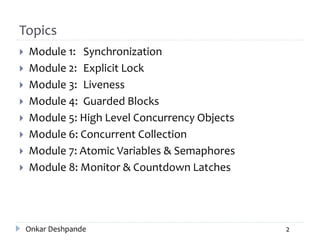

2. Topics
 Module 1: Synchronization
 Module 2: Explicit Lock
 Module 3: Liveness
 Module 4: Guarded Blocks
 Module 5: High Level Concurrency Objects
 Module 6: Concurrent Collection
 Module 7: Atomic Variables & Semaphores
 Module 8: Monitor & Countdown Latches
Onkar Deshpande 2

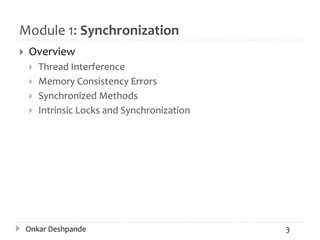

3. Module 1: Synchronization
 Overview
 Thread Interference
 Memory Consistency Errors
 Synchronized Methods
 Intrinsic Locks and Synchronization
Onkar Deshpande 3

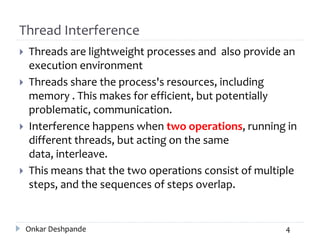

4. Thread Interference
 Threads are lightweight processes and also provide an
execution environment
 Threads share the process's resources, including
memory . This makes for efficient, but potentially
problematic, communication.
 Interference happens when two operations, running in
different threads, but acting on the same
data, interleave.
 This means that the two operations consist of multiple
steps, and the sequences of steps overlap.
Onkar Deshpande 4

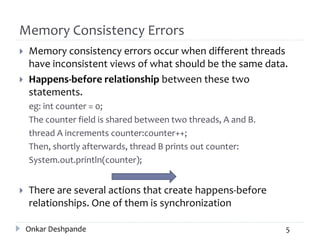

5. Memory Consistency Errors
 Memory consistency errors occur when different threads
have inconsistent views of what should be the same data.
 Happens-before relationship between these two
statements.
eg: int counter = 0;
The counter field is shared between two threads, A and B.
thread A increments counter:counter++;
Then, shortly afterwards, thread B prints out counter:
System.out.println(counter);
 There are several actions that create happens-before
relationships. One of them is synchronization
Onkar Deshpande 5

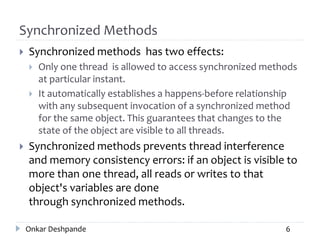

6. Synchronized Methods
 Synchronized methods has two effects:
 Only one thread is allowed to access synchronized methods
at particular instant.
 It automatically establishes a happens-before relationship
with any subsequent invocation of a synchronized method
for the same object. This guarantees that changes to the
state of the object are visible to all threads.
 Synchronized methods prevents thread interference
and memory consistency errors: if an object is visible to
more than one thread, all reads or writes to that
object's variables are done
through synchronized methods.
Onkar Deshpande 6

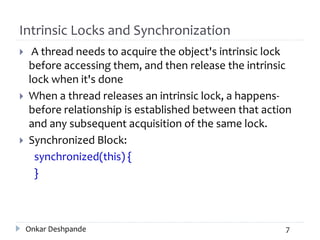

7. Intrinsic Locks and Synchronization
 A thread needs to acquire the object's intrinsic lock
before accessing them, and then release the intrinsic
lock when it's done
 When a thread releases an intrinsic lock, a happens-
before relationship is established between that action
and any subsequent acquisition of the same lock.
 Synchronized Block:
synchronized(this) {
}
Onkar Deshpande 7

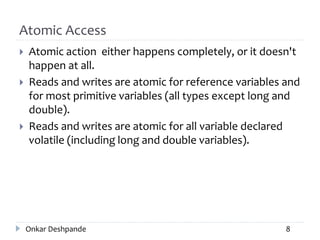

8. Atomic Access
 Atomic action either happens completely, or it doesn't
happen at all.
 Reads and writes are atomic for reference variables and
for most primitive variables (all types except long and
double).
 Reads and writes are atomic for all variable declared
volatile (including long and double variables).
Onkar Deshpande 8

9. Atomic Access
 Using volatile variables reduces the risk of memory
consistency errors, because any write to a volatile
variable establishes a happens-before relationship with
subsequent reads of that same variable.
 Simple atomic variable access is more efficient than
accessing these variables through synchronized code,
Onkar Deshpande 9

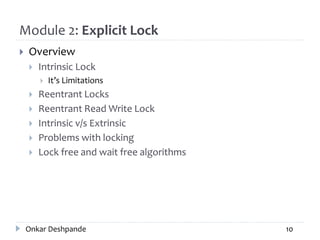

10. Module 2: Explicit Lock
 Overview
 Intrinsic Lock
 It’s Limitations
 Reentrant Locks
 Reentrant Read Write Lock
 Intrinsic v/s Extrinsic
 Problems with locking
 Lock free and wait free algorithms
Onkar Deshpande 10

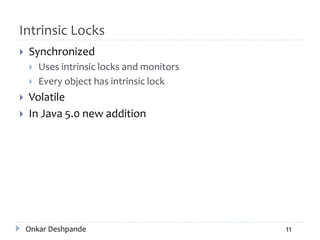

11. Intrinsic Locks
 Synchronized
 Uses intrinsic locks and monitors
 Every object has intrinsic lock
 Volatile
 In Java 5.0 new addition
Onkar Deshpande 11

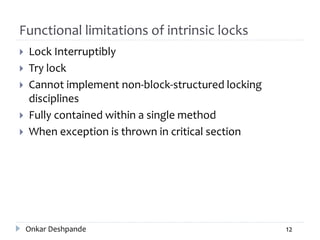

12. Functional limitations of intrinsic locks
 Lock Interruptibly
 Try lock
 Cannot implement non-block-structured locking
disciplines
 Fully contained within a single method
 When exception is thrown in critical section
Onkar Deshpande 12

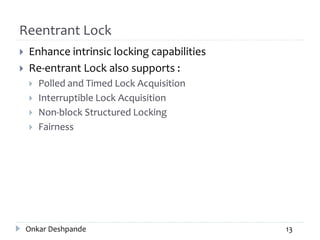

13. Reentrant Lock
 Enhance intrinsic locking capabilities
 Re-entrant Lock also supports :
 Polled and Timed Lock Acquisition
 Interruptible Lock Acquisition
 Non-block Structured Locking
 Fairness
Onkar Deshpande 13

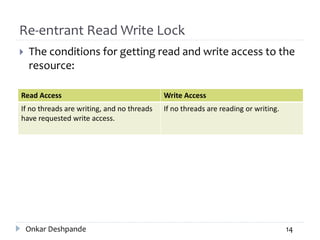

14. Re-entrant Read Write Lock
 The conditions for getting read and write access to the
resource:
Read Access Write Access
If no threads are writing, and no threads
have requested write access.
If no threads are reading or writing.
Onkar Deshpande 14

15. Intrinsic v/s Extrinsic
 Same mechanism for locking
 Performance improvement is purely subjective
 Extrinsic locks give a more explicit control mechanism
for better handling of deadlocks, starvation, and so on.
Onkar Deshpande 15

16. Problems with locking
 Performance degradation
 Priority Inversion
 Deadlock
 Heavy weight stuff
Onkar Deshpande 16

17. Lock-free and wait-free algorithms
 Also known as Non-blocking algorithms
 Based on CAS
 Java.util.concurrent package
Onkar Deshpande 17

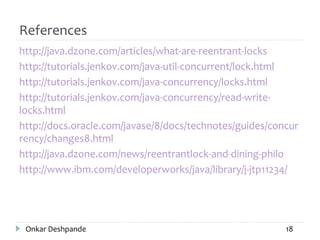

18. References
http://java.dzone.com/articles/what-are-reentrant-locks
http://tutorials.jenkov.com/java-util-concurrent/lock.html
http://tutorials.jenkov.com/java-concurrency/locks.html
http://tutorials.jenkov.com/java-concurrency/read-write-
locks.html
http://docs.oracle.com/javase/8/docs/technotes/guides/concur
rency/changes8.html
http://java.dzone.com/news/reentrantlock-and-dining-philo
http://www.ibm.com/developerworks/java/library/j-jtp11234/
Onkar Deshpande 18

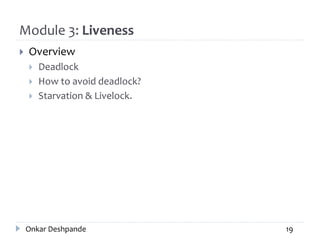

19. Module 3: Liveness
 Overview
 Deadlock
 How to avoid deadlock?
 Starvation & Livelock.
Onkar Deshpande 19

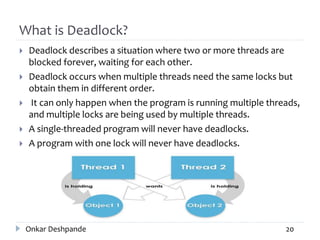

20. What is Deadlock?
 Deadlock describes a situation where two or more threads are
blocked forever, waiting for each other.
 Deadlock occurs when multiple threads need the same locks but
obtain them in different order.
 It can only happen when the program is running multiple threads,
and multiple locks are being used by multiple threads.
 A single-threaded program will never have deadlocks.
 A program with one lock will never have deadlocks.
Onkar Deshpande 20

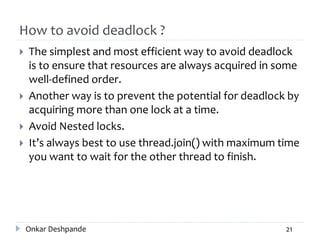

21. How to avoid deadlock ?
 The simplest and most efficient way to avoid deadlock
is to ensure that resources are always acquired in some
well-defined order.
 Another way is to prevent the potential for deadlock by
acquiring more than one lock at a time.
 Avoid Nested locks.
 It’s always best to use thread.join() with maximum time
you want to wait for the other thread to finish.
Onkar Deshpande 21

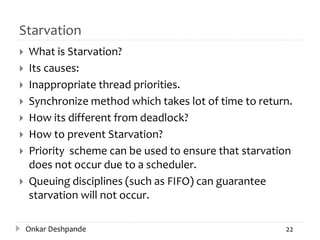

22. Starvation
 What is Starvation?
 Its causes:
 Inappropriate thread priorities.
 Synchronize method which takes lot of time to return.
 How its different from deadlock?
 How to prevent Starvation?
 Priority scheme can be used to ensure that starvation
does not occur due to a scheduler.
 Queuing disciplines (such as FIFO) can guarantee
starvation will not occur.
Onkar Deshpande 22

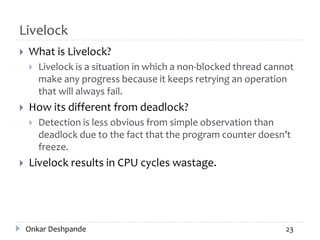

23. Livelock
 What is Livelock?
 Livelock is a situation in which a non-blocked thread cannot
make any progress because it keeps retrying an operation
that will always fail.
 How its different from deadlock?
 Detection is less obvious from simple observation than
deadlock due to the fact that the program counter doesn’t
freeze.
 Livelock results in CPU cycles wastage.
Onkar Deshpande 23

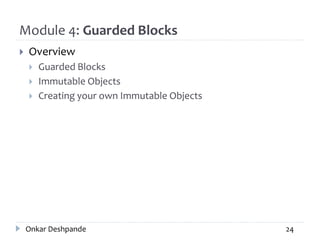

24. Module 4: Guarded Blocks
 Overview
 Guarded Blocks
 Immutable Objects
 Creating your own Immutable Objects
Onkar Deshpande 24

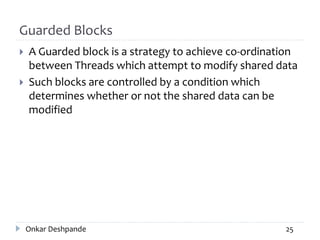

25. Guarded Blocks
 A Guarded block is a strategy to achieve co-ordination
between Threads which attempt to modify shared data
 Such blocks are controlled by a condition which
determines whether or not the shared data can be
modified
Onkar Deshpande 25

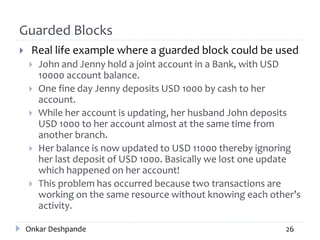

26. Guarded Blocks
 Real life example where a guarded block could be used
 John and Jenny hold a joint account in a Bank, with USD
10000 account balance.
 One fine day Jenny deposits USD 1000 by cash to her
account.
 While her account is updating, her husband John deposits
USD 1000 to her account almost at the same time from
another branch.
 Her balance is now updated to USD 11000 thereby ignoring
her last deposit of USD 1000. Basically we lost one update
which happened on her account!
 This problem has occurred because two transactions are
working on the same resource without knowing each other’s
activity.
Onkar Deshpande 26

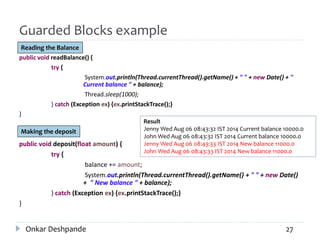

27. Guarded Blocks example
public void readBalance() {
try {
System.out.println(Thread.currentThread().getName() + " " + new Date() + "
Current balance " + balance);
Thread.sleep(1000);
} catch (Exception ex) {ex.printStackTrace();}
}
public void deposit(float amount) {
try {
balance += amount;
System.out.println(Thread.currentThread().getName() + " " + new Date()
+ " New balance " + balance);
} catch (Exception ex) {ex.printStackTrace();}
}
Onkar Deshpande 27
Reading the Balance
Making the deposit
Result
Jenny Wed Aug 06 08:43:32 IST 2014 Current balance 10000.0
John Wed Aug 06 08:43:32 IST 2014 Current balance 10000.0
Jenny Wed Aug 06 08:43:33 IST 2014 New balance 11000.0
John Wed Aug 06 08:43:33 IST 2014 New balance 11000.0

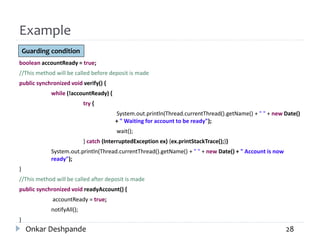

28. Example
boolean accountReady = true;
//This method will be called before deposit is made
public synchronized void verify() {
while (!accountReady) {
try {
System.out.println(Thread.currentThread().getName() + " " + new Date()
+ " Waiting for account to be ready");
wait();
} catch (InterruptedException ex) {ex.printStackTrace();}}
System.out.println(Thread.currentThread().getName() + " " + new Date() + " Account is now
ready");
}
//This method will be called after deposit is made
public synchronized void readyAccount() {
accountReady = true;
notifyAll();
}
Onkar Deshpande 28
Guarding condition

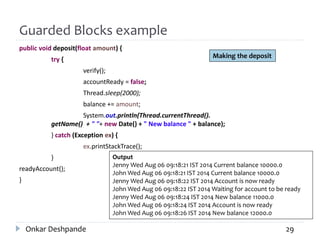

29. Guarded Blocks example
public void deposit(float amount) {
try {
verify();
accountReady = false;
Thread.sleep(2000);
balance += amount;
System.out.println(Thread.currentThread().
getName() + " "+ new Date() + " New balance " + balance);
} catch (Exception ex) {
ex.printStackTrace();
}
readyAccount();
}
Onkar Deshpande 29
Output
Jenny Wed Aug 06 09:18:21 IST 2014 Current balance 10000.0
John Wed Aug 06 09:18:21 IST 2014 Current balance 10000.0
Jenny Wed Aug 06 09:18:22 IST 2014 Account is now ready
John Wed Aug 06 09:18:22 IST 2014 Waiting for account to be ready
Jenny Wed Aug 06 09:18:24 IST 2014 New balance 11000.0
John Wed Aug 06 09:18:24 IST 2014 Account is now ready
John Wed Aug 06 09:18:26 IST 2014 New balance 12000.0
Making the deposit

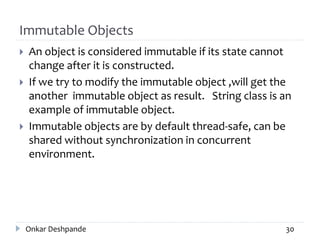

30. Immutable Objects
 An object is considered immutable if its state cannot
change after it is constructed.
 If we try to modify the immutable object ,will get the
another immutable object as result. String class is an
example of immutable object.
 Immutable objects are by default thread-safe, can be
shared without synchronization in concurrent
environment.
Onkar Deshpande 30

31. Creating your own Immutable Objects
 Set the values of properties using constructor only,
Avoid setters for fields.
 Create a final class . Make all fields final and private.
 If the instance fields include references to mutable
objects, don't allow those objects to be changed:
 Don't provide methods that modify the mutable objects.
 Don't share references to the mutable objects. Never store
references to external, mutable objects passed to the
constructor; if necessary, create copies, and store references
to the copies. Similarly, create copies of your internal
mutable objects when necessary to avoid returning the
originals in your methods.
Onkar Deshpande 31

32. Module 5: High Level Concurrency Objects
 Overview
 Lock Objects
 Threads pools with the Executor Framework
 Thread Pools
 Executor Framework
 Executers Interfaces
 Benefits
 Fork & Join
32Onkar Deshpande 32

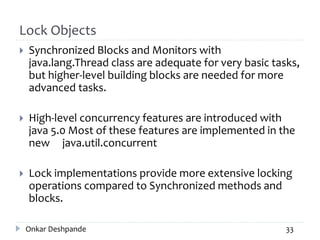

33. Lock Objects
 Synchronized Blocks and Monitors with
java.lang.Thread class are adequate for very basic tasks,
but higher-level building blocks are needed for more
advanced tasks.
 High-level concurrency features are introduced with
java 5.0 Most of these features are implemented in the
new java.util.concurrent
 Lock implementations provide more extensive locking
operations compared to Synchronized methods and
blocks.
Onkar Deshpande 33

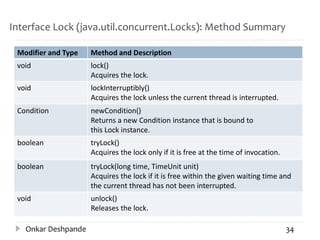

34. Interface Lock (java.util.concurrent.Locks): Method Summary
Modifier and Type Method and Description
void lock()
Acquires the lock.
void lockInterruptibly()
Acquires the lock unless the current thread is interrupted.
Condition newCondition()
Returns a new Condition instance that is bound to
this Lock instance.
boolean tryLock()
Acquires the lock only if it is free at the time of invocation.
boolean tryLock(long time, TimeUnit unit)
Acquires the lock if it is free within the given waiting time and
the current thread has not been interrupted.
void unlock()
Releases the lock.
Onkar Deshpande 34

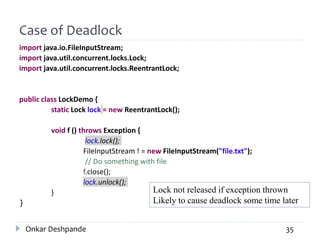

35. Case of Deadlock
import java.io.FileInputStream;
import java.util.concurrent.locks.Lock;
import java.util.concurrent.locks.ReentrantLock;
public class LockDemo {
static Lock lock = new ReentrantLock();
void f () throws Exception {
lock.lock();
FileInputStream f = new FileInputStream("file.txt");
// Do something with file
f.close();
lock.unlock();
}
}
Lock not released if exception thrown
Likely to cause deadlock some time later
Onkar Deshpande 35

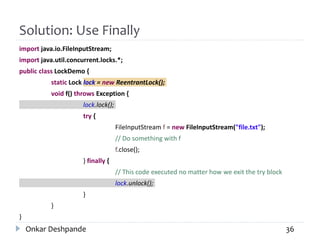

36. Solution: Use Finally
import java.io.FileInputStream;
import java.util.concurrent.locks.*;
public class LockDemo {
static Lock lock = new ReentrantLock();
void f() throws Exception {
lock.lock();
try {
FileInputStream f = new FileInputStream("file.txt");
// Do something with f
f.close();
} finally {
// This code executed no matter how we exit the try block
lock.unlock();
}
}
}
Onkar Deshpande 36

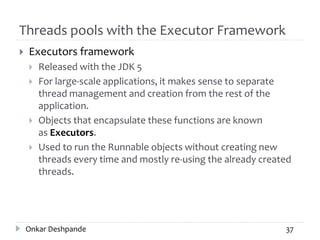

37. Threads pools with the Executor Framework
 Executors framework
 Released with the JDK 5
 For large-scale applications, it makes sense to separate
thread management and creation from the rest of the
application.
 Objects that encapsulate these functions are known
as Executors.
 Used to run the Runnable objects without creating new
threads every time and mostly re-using the already created
threads.
Onkar Deshpande 37

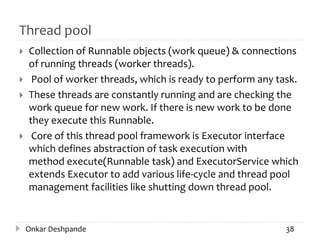

38. Thread pool
 Collection of Runnable objects (work queue) & connections
of running threads (worker threads).
 Pool of worker threads, which is ready to perform any task.
 These threads are constantly running and are checking the
work queue for new work. If there is new work to be done
they execute this Runnable.
 Core of this thread pool framework is Executor interface
which defines abstraction of task execution with
method execute(Runnable task) and ExecutorService which
extends Executor to add various life-cycle and thread pool
management facilities like shutting down thread pool.
Onkar Deshpande 38

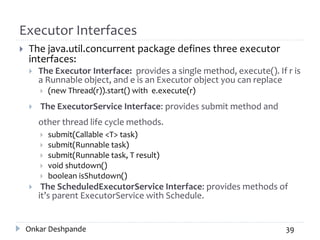

39. Executor Interfaces
 The java.util.concurrent package defines three executor
interfaces:
 The Executor Interface: provides a single method, execute(). If r is
a Runnable object, and e is an Executor object you can replace
 (new Thread(r)).start() with e.execute(r)
 The ExecutorService Interface: provides submit method and
other thread life cycle methods.
 submit(Callable <T> task)
 submit(Runnable task)
 submit(Runnable task, T result)
 void shutdown()
 boolean isShutdown()
 The ScheduledExecutorService Interface: provides methods of
it’s parent ExecutorService with Schedule.
Onkar Deshpande 39

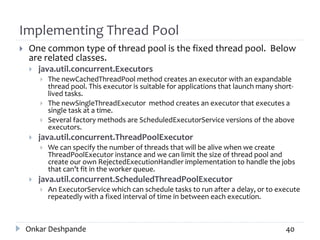

40. Implementing Thread Pool
 One common type of thread pool is the fixed thread pool. Below
are related classes.
 java.util.concurrent.Executors
 The newCachedThreadPool method creates an executor with an expandable
thread pool. This executor is suitable for applications that launch many short-
lived tasks.
 The newSingleThreadExecutor method creates an executor that executes a
single task at a time.
 Several factory methods are ScheduledExecutorService versions of the above
executors.
 java.util.concurrent.ThreadPoolExecutor
 We can specify the number of threads that will be alive when we create
ThreadPoolExecutor instance and we can limit the size of thread pool and
create our own RejectedExecutionHandler implementation to handle the jobs
that can’t fit in the worker queue.
 java.util.concurrent.ScheduledThreadPoolExecutor
 An ExecutorService which can schedule tasks to run after a delay, or to execute
repeatedly with a fixed interval of time in between each execution.
Onkar Deshpande 40

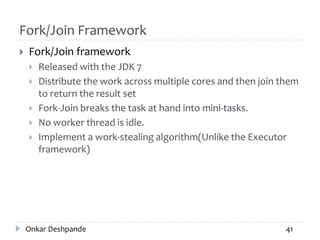

41. Fork/Join Framework
 Fork/Join framework
 Released with the JDK 7
 Distribute the work across multiple cores and then join them
to return the result set
 Fork-Join breaks the task at hand into mini-tasks.
 No worker thread is idle.
 Implement a work-stealing algorithm(Unlike the Executor
framework)
Onkar Deshpande 41

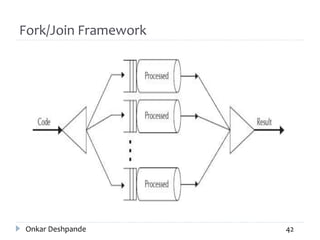

42. Fork/Join Framework
Onkar Deshpande 42

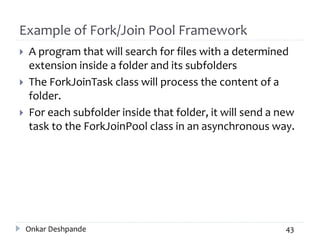

43. Example of Fork/Join Pool Framework
 A program that will search for files with a determined
extension inside a folder and its subfolders
 The ForkJoinTask class will process the content of a
folder.
 For each subfolder inside that folder, it will send a new
task to the ForkJoinPool class in an asynchronous way.
Onkar Deshpande 43

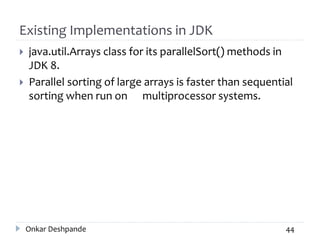

44. Existing Implementations in JDK
 java.util.Arrays class for its parallelSort() methods in
JDK 8.
 Parallel sorting of large arrays is faster than sequential
sorting when run on multiprocessor systems.
Onkar Deshpande 44

45. References
docs.oracle.com
www.vogella.com/tutorials/JavaConcurrency/arti
cle.html
www.howtodoinjava.com/2013/03/12/java-
executor-framework-tutorial-and-best-practices/
www.javarevisited.blogspot.in/2013/07/how-to-
create-thread-pools-in-java-executors-
framework-example-tutorial.html
Onkar Deshpande 45

46. Module 6: Concurrent Collection
 Overview
 What are Concurrent Collections?
 Need of Concurrent Collections
 Concurrent Collection Classes
 Example
Onkar Deshpande 46

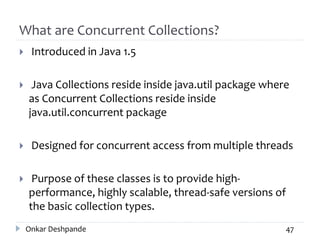

47. What are Concurrent Collections?
 Introduced in Java 1.5
 Java Collections reside inside java.util package where
as Concurrent Collections reside inside
java.util.concurrent package
 Designed for concurrent access from multiple threads
 Purpose of these classes is to provide high-
performance, highly scalable, thread-safe versions of
the basic collection types.
Onkar Deshpande 47

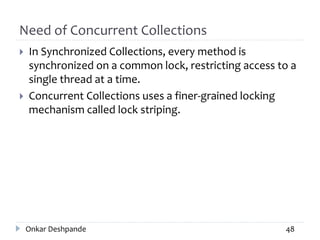

48. Need of Concurrent Collections
 In Synchronized Collections, every method is
synchronized on a common lock, restricting access to a
single thread at a time.
 Concurrent Collections uses a finer-grained locking
mechanism called lock striping.
Onkar Deshpande 48

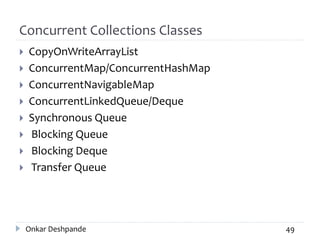

49. Concurrent Collections Classes
 CopyOnWriteArrayList
 ConcurrentMap/ConcurrentHashMap
 ConcurrentNavigableMap
 ConcurrentLinkedQueue/Deque
 Synchronous Queue
 Blocking Queue
 Blocking Deque
 Transfer Queue
Onkar Deshpande 49

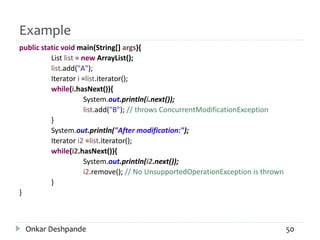

50. Example
public static void main(String[] args){
List list = new ArrayList();
list.add("A");
Iterator i =list.iterator();
while(i.hasNext()){
System.out.println(i.next());
list.add("B"); // throws ConcurrentModificationException
}
System.out.println("After modification:");
Iterator i2 =list.iterator();
while(i2.hasNext()){
System.out.println(i2.next());
i2.remove(); // No UnsupportedOperationException is thrown
}
}
Onkar Deshpande 50

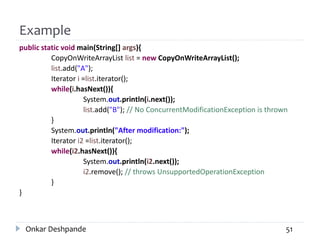

51. Example
public static void main(String[] args){
CopyOnWriteArrayList list = new CopyOnWriteArrayList();
list.add("A");
Iterator i =list.iterator();
while(i.hasNext()){
System.out.println(i.next());
list.add("B"); // No ConcurrentModificationException is thrown
}
System.out.println("After modification:");
Iterator i2 =list.iterator();
while(i2.hasNext()){
System.out.println(i2.next());
i2.remove(); // throws UnsupportedOperationException
}
}
Onkar Deshpande 51

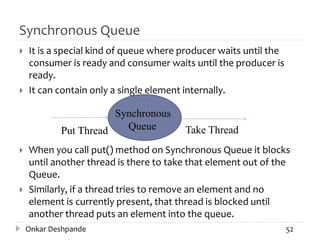

52. Synchronous Queue
 It is a special kind of queue where producer waits until the
consumer is ready and consumer waits until the producer is
ready.
 It can contain only a single element internally.
 When you call put() method on Synchronous Queue it blocks
until another thread is there to take that element out of the
Queue.
 Similarly, if a thread tries to remove an element and no
element is currently present, that thread is blocked until
another thread puts an element into the queue.
Onkar Deshpande 52
Put Thread Take Thread
Synchronous
Queue

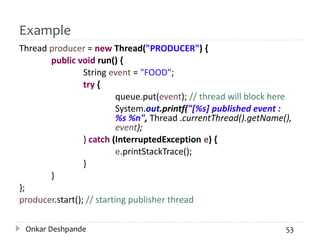

53. Example
Thread producer = new Thread("PRODUCER") {
public void run() {
String event = "FOOD";
try {
queue.put(event); // thread will block here
System.out.printf("[%s] published event :
%s %n", Thread .currentThread().getName(),
event);
} catch (InterruptedException e) {
e.printStackTrace();
}
}
};
producer.start(); // starting publisher thread
Onkar Deshpande 53

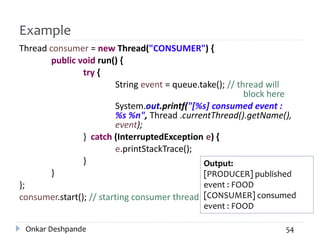

54. Example
Thread consumer = new Thread("CONSUMER") {
public void run() {
try {
String event = queue.take(); // thread will
block here
System.out.printf("[%s] consumed event :
%s %n", Thread .currentThread().getName(),
event);
} catch (InterruptedException e) {
e.printStackTrace();
}
}
};
consumer.start(); // starting consumer thread
Onkar Deshpande 54
Output:
[PRODUCER] published
event : FOOD
[CONSUMER] consumed
event : FOOD

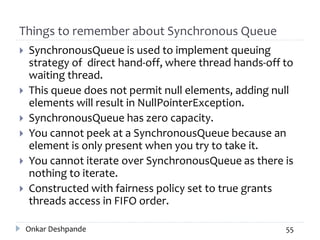

55. Things to remember about Synchronous Queue
 SynchronousQueue is used to implement queuing
strategy of direct hand-off, where thread hands-off to
waiting thread.
 This queue does not permit null elements, adding null
elements will result in NullPointerException.
 SynchronousQueue has zero capacity.
 You cannot peek at a SynchronousQueue because an
element is only present when you try to take it.
 You cannot iterate over SynchronousQueue as there is
nothing to iterate.
 Constructed with fairness policy set to true grants
threads access in FIFO order.
Onkar Deshpande 55

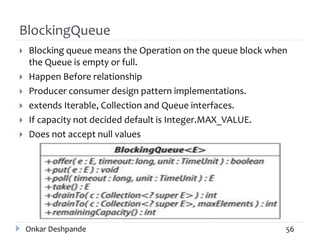

56. BlockingQueue
 Blocking queue means the Operation on the queue block when
the Queue is empty or full.
 Happen Before relationship
 Producer consumer design pattern implementations.
 extends Iterable, Collection and Queue interfaces.
 If capacity not decided default is Integer.MAX_VALUE.
 Does not accept null values
Onkar Deshpande 56

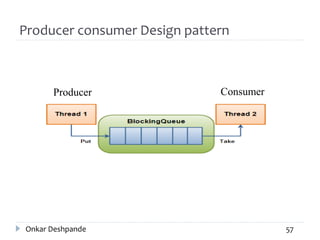

57. Producer consumer Design pattern
Producer Consumer
Onkar Deshpande 57

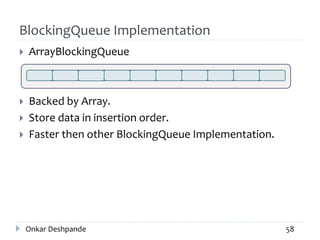

58. BlockingQueue Implementation
 ArrayBlockingQueue
 Backed by Array.
 Store data in insertion order.
 Faster then other BlockingQueue Implementation.
Onkar Deshpande 58

59. BlockingQueue Implementation
 LinkedBlockingQueue
 Backed by Linked Node
 Store data on insertion order
 Slower then other BlockingQueue Implementation.
Onkar Deshpande 59

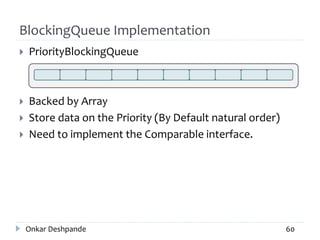

60. BlockingQueue Implementation
 PriorityBlockingQueue
 Backed by Array
 Store data on the Priority (By Default natural order)
 Need to implement the Comparable interface.
Onkar Deshpande 60

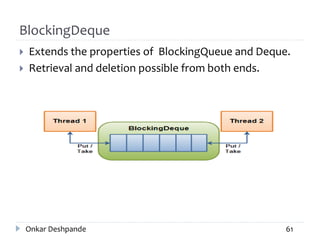

61. BlockingDeque
 Extends the properties of BlockingQueue and Deque.
 Retrieval and deletion possible from both ends.
Onkar Deshpande 61

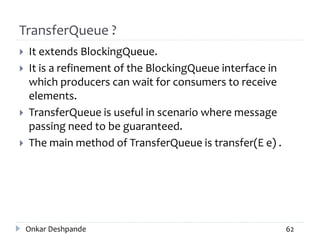

62. TransferQueue ?
 It extends BlockingQueue.
 It is a refinement of the BlockingQueue interface in
which producers can wait for consumers to receive
elements.
 TransferQueue is useful in scenario where message
passing need to be guaranteed.
 The main method of TransferQueue is transfer(E e) .
Onkar Deshpande 62

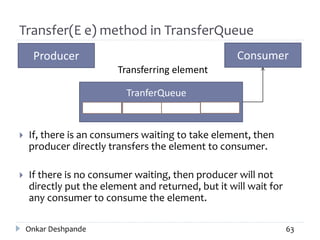

63. Transfer(E e) method in TransferQueue
 If, there is an consumers waiting to take element, then
producer directly transfers the element to consumer.
 If there is no consumer waiting, then producer will not
directly put the element and returned, but it will wait for
any consumer to consume the element.
Onkar Deshpande 63
Producer Consumer
TranferQueue
Transferring element

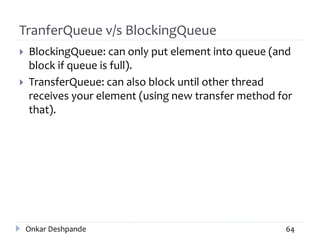

64. TranferQueue v/s BlockingQueue
 BlockingQueue: can only put element into queue (and
block if queue is full).
 TransferQueue: can also block until other thread
receives your element (using new transfer method for
that).
Onkar Deshpande 64

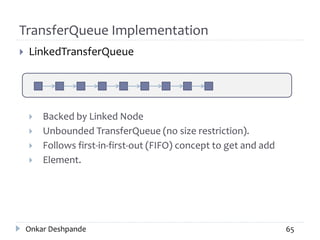

65. TransferQueue Implementation
 LinkedTransferQueue
 Backed by Linked Node
 Unbounded TransferQueue (no size restriction).
 Follows first-in-first-out (FIFO) concept to get and add
 Element.
Onkar Deshpande 65

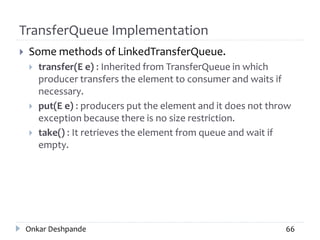

66. TransferQueue Implementation
 Some methods of LinkedTransferQueue.
 transfer(E e) : Inherited from TransferQueue in which
producer transfers the element to consumer and waits if
necessary.
 put(E e) : producers put the element and it does not throw
exception because there is no size restriction.
 take() : It retrieves the element from queue and wait if
empty.
Onkar Deshpande 66

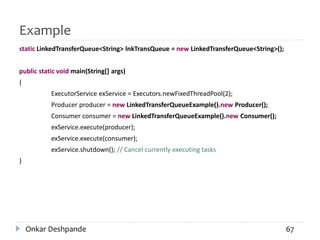

67. Example
static LinkedTransferQueue<String> lnkTransQueue = new LinkedTransferQueue<String>();
public static void main(String[] args)
{
ExecutorService exService = Executors.newFixedThreadPool(2);
Producer producer = new LinkedTransferQueueExample().new Producer();
Consumer consumer = new LinkedTransferQueueExample().new Consumer();
exService.execute(producer);
exService.execute(consumer);
exService.shutdown(); // Cancel currently executing tasks
}
Onkar Deshpande 67

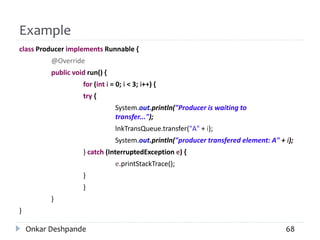

68. Example
class Producer implements Runnable {
@Override
public void run() {
for (int i = 0; i < 3; i++) {
try {
System.out.println("Producer is waiting to
transfer...");
lnkTransQueue.transfer("A" + i);
System.out.println("producer transfered element: A" + i);
} catch (InterruptedException e) {
e.printStackTrace();
}
}
}
}
Onkar Deshpande 68

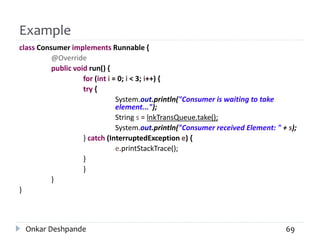

69. Example
class Consumer implements Runnable {
@Override
public void run() {
for (int i = 0; i < 3; i++) {
try {
System.out.println("Consumer is waiting to take
element...");
String s = lnkTransQueue.take();
System.out.println("Consumer received Element: " + s);
} catch (InterruptedException e) {
e.printStackTrace();
}
}
}
}
Onkar Deshpande 69

70. Output
Output:
Producer is waiting to transfer...
Consumer is waiting to take element...
Consumer received Element: A0
Consumer is waiting to take element...
producer transfered element: A0
Producer is waiting to transfer...
producer transfered element: A1
Producer is waiting to transfer...
Consumer received Element: A1
Consumer is waiting to take element...
Consumer received Element: A2
producer transfered element: A2
Onkar Deshpande 70

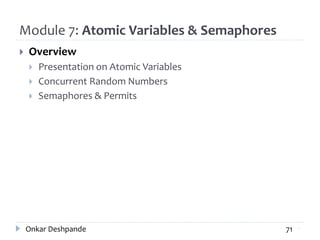

71. Module 7: Atomic Variables & Semaphores
 Overview
 Presentation on Atomic Variables
 Concurrent Random Numbers
 Semaphores & Permits
71Onkar Deshpande 71

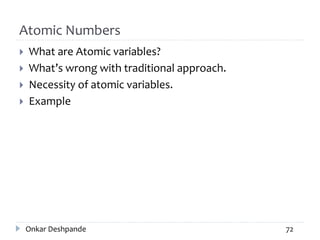

72. Atomic Numbers
 What are Atomic variables?
 What’s wrong with traditional approach.
 Necessity of atomic variables.
 Example
Onkar Deshpande 72

73. Example
public void increment() {
boolean valueChanged = false;
while(!valueChanged) {
int currentVal = count.get();
int nextVal = currentVal + 1;
if(count.compareAndSet(currentVal,nextVal)) {
valueChanged = true;
}
}
}
//Non-blocking CAS approach
Onkar Deshpande 73

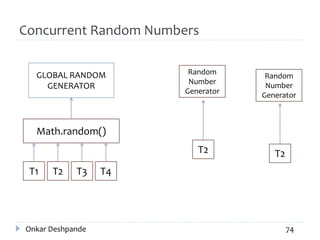

74. Concurrent Random Numbers
Onkar Deshpande 74
GLOBAL RANDOM
GENERATOR
Math.random()
T1 T2 T3 T4
Random
Number
Generator
T2
Random
Number
Generator
T2

75. Math.random() v/s ThreadLocalRandom
 Random Number Generator
 Overheads / Performance
 Use Case scenario
 When Used
ThreadLocalRandom.current().nextDouble();
 Time required to calculate Random number by t1 :: 379
 Time required to calculate Random number by t2 :: 401
 Time required to calculate Random number by t3 :: 400
 When Used Math.random();
 Time required to calculate Random number by t1 :: 430
 Time required to calculate Random number by t2 :: 464
 Time required to calculate Random number by t3 :: 576
Onkar Deshpande 75

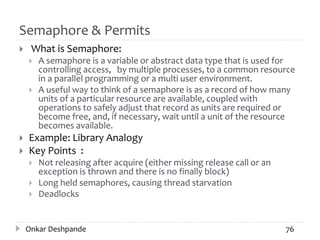

76. Semaphore & Permits
 What is Semaphore:
 A semaphore is a variable or abstract data type that is used for
controlling access, by multiple processes, to a common resource
in a parallel programming or a multi user environment.
 A useful way to think of a semaphore is as a record of how many
units of a particular resource are available, coupled with
operations to safely adjust that record as units are required or
become free, and, if necessary, wait until a unit of the resource
becomes available.
 Example: Library Analogy
 Key Points :
 Not releasing after acquire (either missing release call or an
exception is thrown and there is no finally block)
 Long held semaphores, causing thread starvation
 Deadlocks
Onkar Deshpande 76

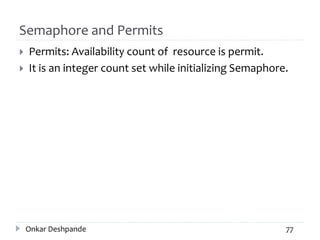

77. Semaphore and Permits
 Permits: Availability count of resource is permit.
 It is an integer count set while initializing Semaphore.
Onkar Deshpande 77

78. Reference
 http://www.javacodegeeks.com/2011/09/java-
concurrency-tutorial-semaphores.html
 http://www.javaworld.com/article/2077413/learn-
java/semaphore.html
 http://docs.oracle.com/javase/8/docs/api/java/util/concu
rrent/ThreadLocalRandom.html
 http://www.e-zest.net/blog/writing-thread-safe-
programs-using-atomic-variables/
 http://baptiste-wicht.com/posts/2010/09/java-
concurrency-atomic-variables.html
Onkar Deshpande 78

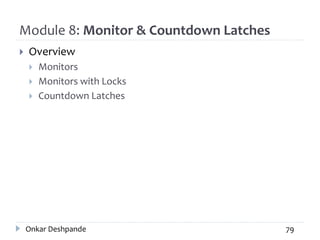

79. Module 8: Monitor & Countdown Latches
 Overview
 Monitors
 Monitors with Locks
 Countdown Latches
Onkar Deshpande 79

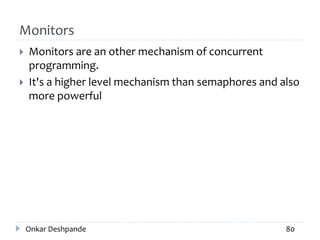

80. Monitors
 Monitors are an other mechanism of concurrent
programming.
 It's a higher level mechanism than semaphores and also
more powerful
Onkar Deshpande 80

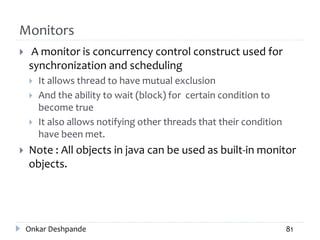

81. Monitors
 A monitor is concurrency control construct used for
synchronization and scheduling
 It allows thread to have mutual exclusion
 And the ability to wait (block) for certain condition to
become true
 It also allows notifying other threads that their condition
have been met.
 Note : All objects in java can be used as built-in monitor
objects.
Onkar Deshpande 81

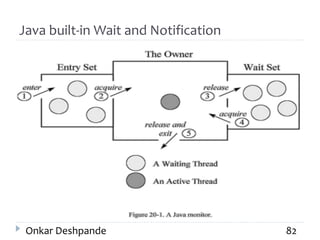

82. Java built-in Wait and Notification
Onkar Deshpande 82

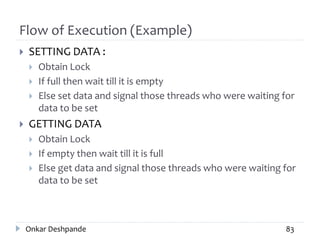

83. Flow of Execution (Example)
 SETTING DATA :
 Obtain Lock
 If full then wait till it is empty
 Else set data and signal those threads who were waiting for
data to be set
 GETTING DATA
 Obtain Lock
 If empty then wait till it is full
 Else get data and signal those threads who were waiting for
data to be set
Onkar Deshpande 83

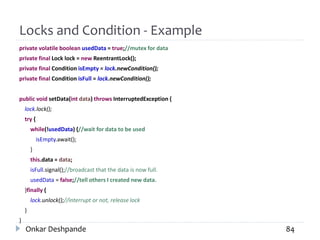

84. Locks and Condition - Example
private volatile boolean usedData = true;//mutex for data
private final Lock lock = new ReentrantLock();
private final Condition isEmpty = lock.newCondition();
private final Condition isFull = lock.newCondition();
public void setData(int data) throws InterruptedException {
lock.lock();
try {
while(!usedData) {//wait for data to be used
isEmpty.await();
}
this.data = data;
isFull.signal();//broadcast that the data is now full.
usedData = false;//tell others I created new data.
}finally {
lock.unlock();//interrupt or not, release lock
}
}
Onkar Deshpande 84

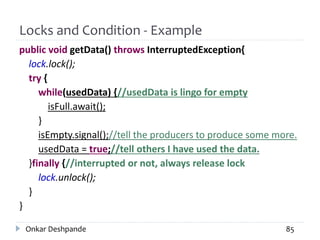

85. Locks and Condition - Example
public void getData() throws InterruptedException{
lock.lock();
try {
while(usedData) {//usedData is lingo for empty
isFull.await();
}
isEmpty.signal();//tell the producers to produce some more.
usedData = true;//tell others I have used the data.
}finally {//interrupted or not, always release lock
lock.unlock();
}
}
Onkar Deshpande 85

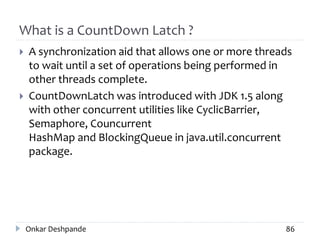

86. What is a CountDown Latch ?
 A synchronization aid that allows one or more threads
to wait until a set of operations being performed in
other threads complete.
 CountDownLatch was introduced with JDK 1.5 along
with other concurrent utilities like CyclicBarrier,
Semaphore, Councurrent
HashMap and BlockingQueue in java.util.concurrent
package.
Onkar Deshpande 86

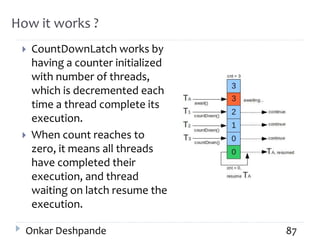

87. How it works ?
 CountDownLatch works by
having a counter initialized
with number of threads,
which is decremented each
time a thread complete its
execution.
 When count reaches to
zero, it means all threads
have completed their
execution, and thread
waiting on latch resume the
execution.
Onkar Deshpande 87

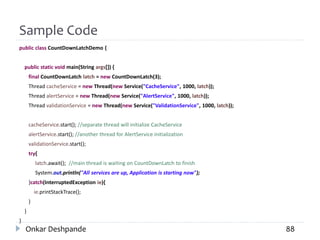

88. Sample Code
public class CountDownLatchDemo {
public static void main(String args[]) {
final CountDownLatch latch = new CountDownLatch(3);
Thread cacheService = new Thread(new Service("CacheService", 1000, latch));
Thread alertService = new Thread(new Service("AlertService", 1000, latch));
Thread validationService = new Thread(new Service("ValidationService", 1000, latch));
cacheService.start(); //separate thread will initialize CacheService
alertService.start(); //another thread for AlertService initialization
validationService.start();
try{
latch.await(); //main thread is waiting on CountDownLatch to finish
System.out.println("All services are up, Application is starting now");
}catch(InterruptedException ie){
ie.printStackTrace();
}
}
}
Onkar Deshpande 88

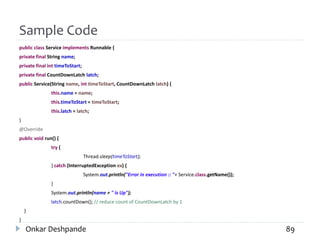

89. Sample Code
public class Service implements Runnable {
private final String name;
private final int timeToStart;
private final CountDownLatch latch;
public Service(String name, int timeToStart, CountDownLatch latch) {
this.name = name;
this.timeToStart = timeToStart;
this.latch = latch;
}
@Override
public void run() {
try {
Thread.sleep(timeToStart);
} catch (InterruptedException ex) {
System.out.println("Error in execution :: "+ Service.class.getName());
}
System.out.println(name + " is Up");
latch.countDown(); // reduce count of CountDownLatch by 1
}
}
Onkar Deshpande 89

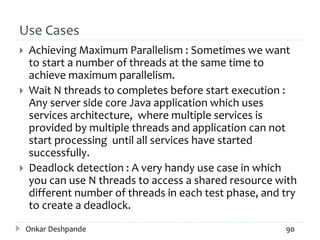

90. Use Cases
 Achieving Maximum Parallelism : Sometimes we want
to start a number of threads at the same time to
achieve maximum parallelism.
 Wait N threads to completes before start execution :
Any server side core Java application which uses
services architecture, where multiple services is
provided by multiple threads and application can not
start processing until all services have started
successfully.
 Deadlock detection : A very handy use case in which
you can use N threads to access a shared resource with
different number of threads in each test phase, and try
to create a deadlock.
Onkar Deshpande 90

91. Thank You
Onkar Deshpande 91
