Hebei Nuo'an Technology Co,.Ltd provides information on their thickness measuring instruments, including the NA-MT-01 and NA-MT-02 models. The document describes the key features of the instruments such as their measuring range of 0.75-300mm, accuracy of 0.01mm, ability to measure different materials, and interfaces to communicate measurements to a PC. It also lists the company contact information and technical specifications of the instruments.

1. Hebei Nuo'an Technology Co,.Ltd.
YOURYOUR SECURITYSECURITY ISIS MYMY PROMISEPROMISE
Address: No.319 Xiangjiang Road,Shijiazhuang Economic & Technological Development
Zone,Hebei Province,China Zip code:050000
Contact:Snowden.Dong Cell phone # & Whatsapp:8615373631559
Tell:+86-311-85058333 Fax:+86-311-85968011-809
Mailbox:dxfy40@163.com Skype: snowden.dong

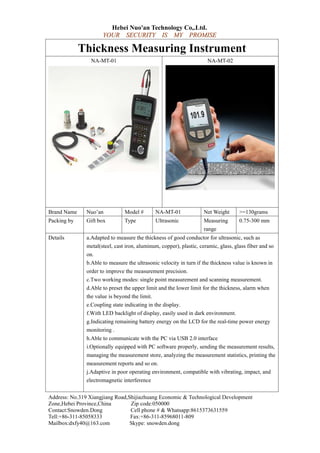

Thickness Measuring Instrument
NA-MT-01 NA-MT-02
Brand Name Nuo’an Model # NA-MT-01 Net Weight >=130grams
Packing by Gift box Type Ultrasonic Measuring
range
0.75-300 mm
Details a.Adapted to measure the thickness of good conductor for ultrasonic, such as
metal(steel, cast iron, aluminum, copper), plastic, ceramic, glass, glass fiber and so
on.
b.Able to measure the ultrasonic velocity in turn if the thickness value is known in
order to improve the measurement precision.
c.Two working modes: single point measurement and scanning measurement.
d.Able to preset the upper limit and the lower limit for the thickness, alarm when
the value is beyond the limit.
e.Coupling state indicating in the display.
f.With LED backlight of display, easily used in dark environment.
g.Indicating remaining battery energy on the LCD for the real-time power energy
monitoring .
h.Able to communicate with the PC via USB 2.0 interface
i.Optionally equipped with PC software properly, sending the measurement results,
managing the measurement store, analyzing the measurement statistics, printing the
measurement reports and so on.
j.Adaptive in poor operating environment, compatible with vibrating, impact, and
electromagnetic interference

2. Hebei Nuo'an Technology Co,.Ltd.
YOURYOUR SECURITYSECURITY ISIS MYMY PROMISEPROMISE
Address: No.319 Xiangjiang Road,Shijiazhuang Economic & Technological Development
Zone,Hebei Province,China Zip code:050000
Contact:Snowden.Dong Cell phone # & Whatsapp:8615373631559
Tell:+86-311-85058333 Fax:+86-311-85968011-809
Mailbox:dxfy40@163.com Skype: snowden.dong

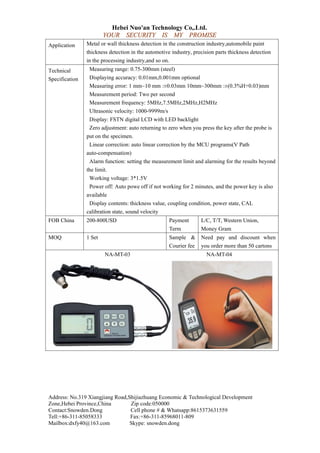

Application Metal or wall thickness detection in the construction industry,automobile paint
thickness detection in the automotive industry, precision parts thickness detection
in the processing industry,and so on.
Technical
Specification
Measuring range: 0.75-300mm (steel)
Displaying accuracy: 0.01mm,0.001mm optional
Measuring error: 1 mm~10 mm :±0.03mm 10mm~300mm :±(0.3%H+0.03)mm
Measurement period: Two per second
Measurement frequency: 5MHz,7.5MHz,2MHz,H2MHz
Ultrasonic velocity: 1000-9999m/s
Display: FSTN digital LCD with LED backlight
Zero adjustment: auto returning to zero when you press the key after the probe is
put on the specimen.
Linear correction: auto linear correction by the MCU programs(V Path
auto-compensation)
Alarm function: setting the measurement limit and alarming for the results beyond
the limit.
Working voltage: 3*1.5V
Power off: Auto powe off if not working for 2 minutes, and the power key is also
available
Display contents: thickness value, coupling condition, power state, CAL
calibration state, sound velocity
FOB China 200-800USD Payment
Term
L/C, T/T, Western Union,
Money Gram
MOQ 1 Set Sample &
Courier fee
Need pay and discount when
you order more than 50 cartons
NA-MT-03 NA-MT-04
