1. Ring Documentation, Release 1.7

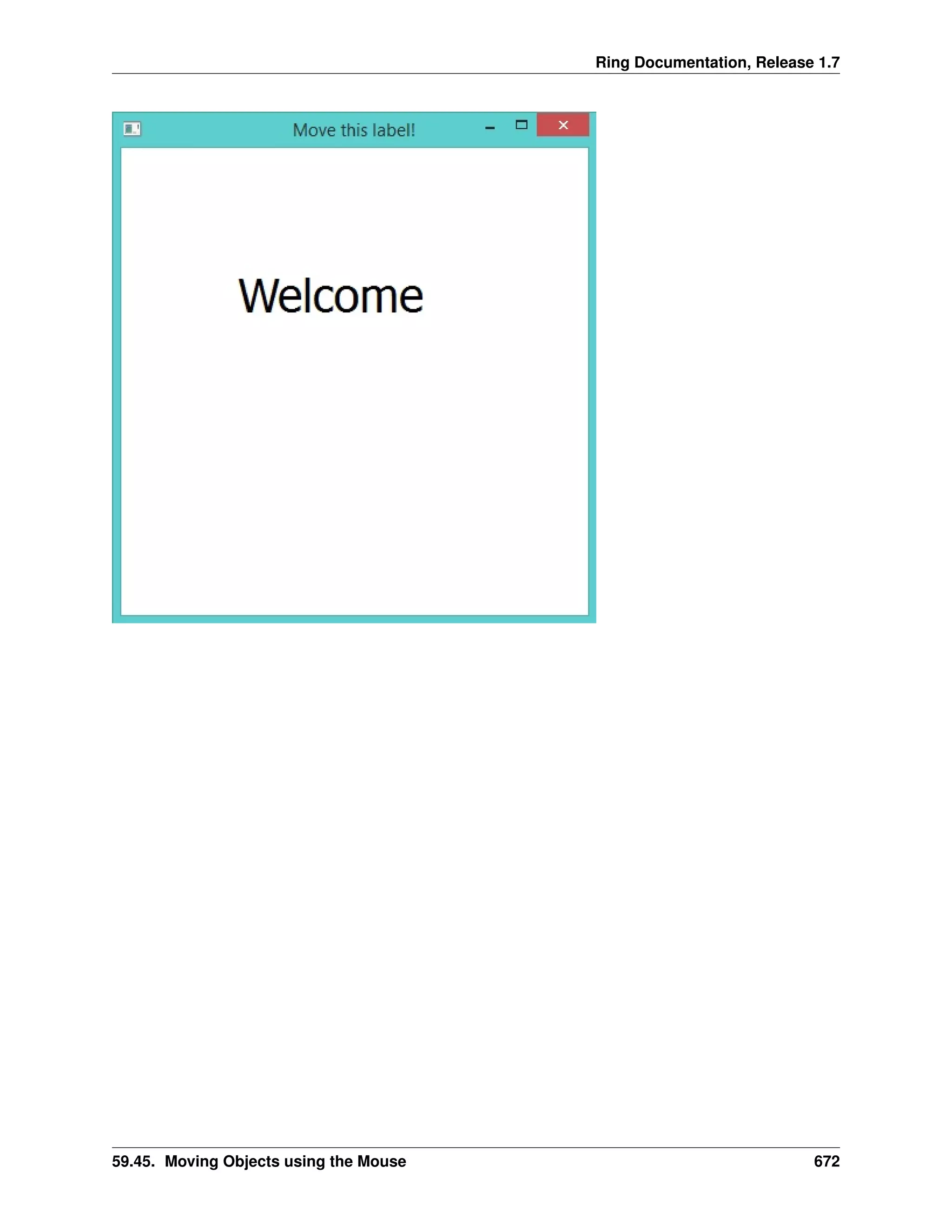

59.45. Moving Objects using the Mouse 672

2. Ring Documentation, Release 1.7

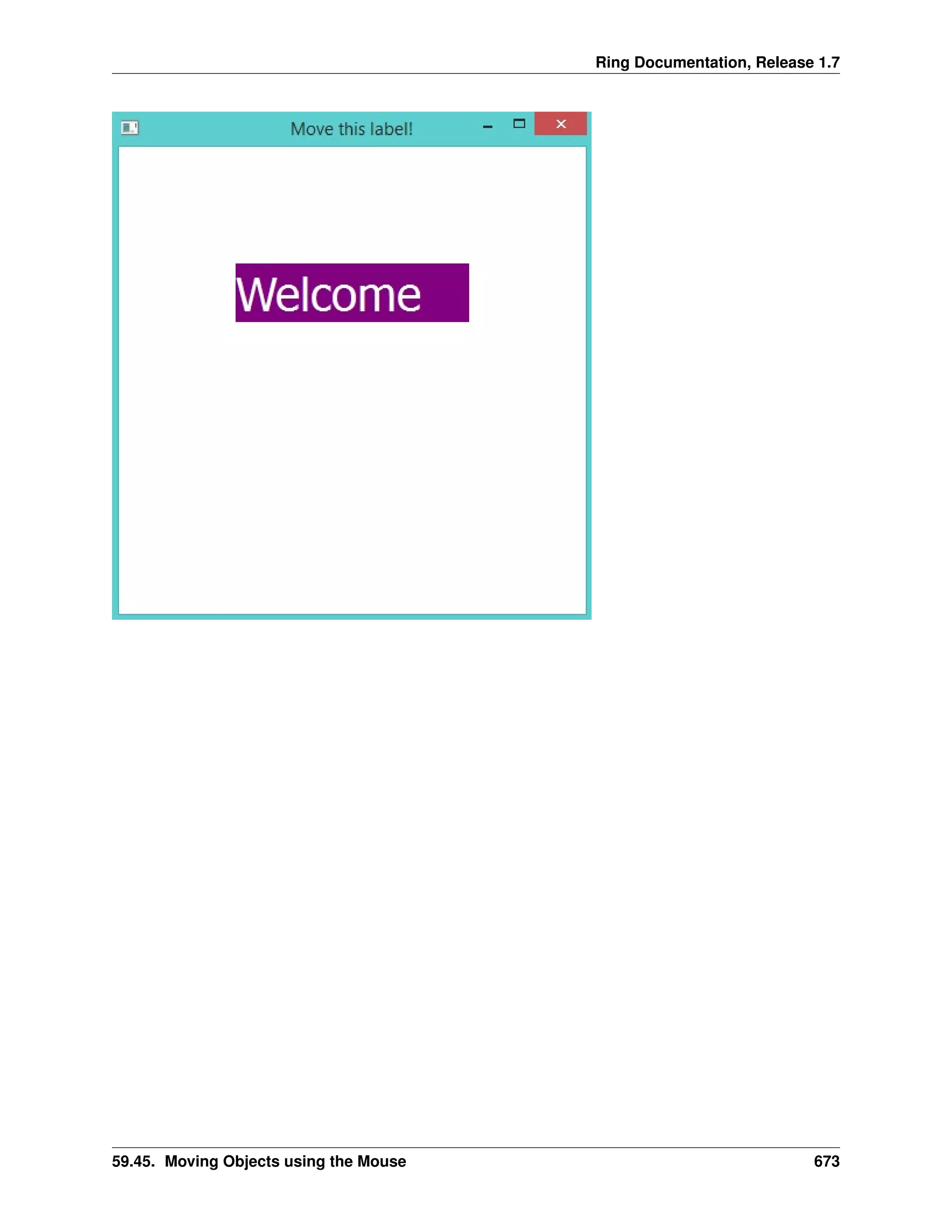

59.45. Moving Objects using the Mouse 673

3. Ring Documentation, Release 1.7
59.46 Inheritance from GUI Classes
Example :
Load "guilib.ring"
New MyWindow()
new qApp { exec() }
class mywindow from qwidget
Func init
super.init()
setwindowtitle("First Window")
setgeometry(100,100,400,400)
setstylesheet("background-color: purple;")
settooltip("my first window!")
show()
The application during the runtime
59.46. Inheritance from GUI Classes 674

4. Ring Documentation, Release 1.7
59.47 Using QDesktopWidget Class
In the next example we will learn about using the QDesktopWidget class
Load "guilib.ring"
New qApp {
win1 = New qWidget()
{
resize(400,400)
btn1 = new qPushbutton(win1)
{
setText("Center")
move(100,100)
resize(100,30)
setClickEvent("pCenter()")
}
Show()
}
exec()
}
Func pCenter
oDesktop = new qDesktopWidget()
59.47. Using QDesktopWidget Class 675

5. Ring Documentation, Release 1.7
oRect = oDesktop.screenGeometry( oDesktop.primaryScreen() )
win1.move((oRect.width()-win1.width()) /2 , (oRect.Height()-win1.Height())/2 )
win1.show()
The application during the runtime
59.48 Rotate Text
The next example rotate text using a Timer.
Load "guilib.ring"
nAngle = 0
New qapp {
win1 = new qwidget() {
setwindowtitle("Rotate Text")
resize(800,600)
label1 = new qlabel(win1) {
settext("")
myfilter = new qallevents(win1)
myfilter.setMouseButtonPressevent("pClick()")
installeventfilter(myfilter)
}
new qtimer(win1) {
setinterval(50)
59.48. Rotate Text 676

6. Ring Documentation, Release 1.7
settimeoutevent("pTime()")
start()
}
pDraw()
L1 = new qVBoxLayout() { AddWidget(Label1) } SetLayout(L1)
showMaximized()
}
exec()
}
Func pDraw
p1 = new qpicture()
color = new qcolor() {
setrgb(0,0,255,255)
}
pen = new qpen() {
setcolor(color)
setwidth(50)
}
painter = new qpainter() {
begin(p1)
setpen(pen)
myfont = font()
myfont.setpointsize(50)
setfont(myfont)
rotate(nAngle)
drawtext(350,0*nAngle,"welcome")
drawtext(0,0*nAngle,"welcome")
endpaint()
}
label1 {
setpicture(p1)
show()
}
Func pClick
win1 { setwindowtitle("Click Event") }
Func pTime
nAngle++
if nAngle = 90
nAngle = 10
ok
pDraw()
The application during the runtime
59.48. Rotate Text 677

7. Ring Documentation, Release 1.7
59.49 Change Focus
The next example change the focus using the ENTER key.
load "guilib.ring"
new qApp {
win = new qWidget() {
resize(600,600)
SetWindowTitle("Change Focus")
text1 = new qLineEdit(win)
text2 = new qLineEdit(win)
text3 = new qLineEdit(win)
text4 = new qLineEdit(win)
layout1 = new qVBoxLayout() {
AddWidget(text1)
AddWidget(text2)
AddWidget(text3)
AddWidget(text4)
}
setLayout(Layout1)
59.49. Change Focus 678

8. Ring Documentation, Release 1.7
aList = [text1,text2,text3,text4]
oFilter = new qallevents(win)
oFilter.setKeyPressEvent("pWork()")
installeventfilter(oFilter)
show()
}
exec()
}
func pWork
nCode = oFilter.getkeycode()
if nCode = 16777220 # ENTER Key
for x=1 to len(aList)
if aList[x].HasFocus()
t = x+1
if t > len(aList) t=1 ok
aList[t].SetFocus(0)
exit
ok
next
ok
59.50 Regular Expressions
The next example uses the Regular Expressions classes.
load "guilib.ring"
new qApp
{
see "Using Regular Expressions" + nl
exp = new qregularexpression() {
setPattern("dd w+")
see pattern() + nl
match = match("33 one",0,0,0)
see match.hasmatch() + nl
match = match("3 one",0,0,0)
see match.hasmatch() + nl
match = match("welcome 11 one",0,0,0)
see match.hasmatch() + nl
matched = match.captured(0)
see matched + nl
}
exp = new qregularexpression() {
setPattern("^(dd)/(dd)/(dddd)$")
see pattern() + nl
match = match("08/12/1985",0,0,0)
see match.hasmatch() + nl
day = match.captured(1)
month = match.captured(2)
year = match.captured(3)
see day + nl + month + nl + year + nl
see "(" + match.capturedStart(1) + "," + match.capturedEnd(1)+ ")" + nl
see "(" + match.capturedStart(2) + "," + match.capturedEnd(2)+ ")" + nl
see "(" + match.capturedStart(3) + "," + match.capturedEnd(3)+ ")" + nl
59.50. Regular Expressions 679

9. Ring Documentation, Release 1.7
}
}
Output
Using Regular Expressions
dd w+
1
0
1
11 one
^(dd)/(dd)/(dddd)$
1
08
12
1985
(0,2)
(3,5)
(6,10)
59.51 Simple Client and Server Example
In this section we will learn about creating simple Client and Server Application
Load "guilib.ring"
new qApp {
oClient = new Client { client() }
oServer = new Server { server() }
exec()
}
Class Client
win1 lineedit1 cOutput=""
oTcpSocket
func client
win1 = new qwidget()
new qpushbutton(win1) {
setgeometry(50,50,100,30)
settext("connect")
setclickevent("oClient.Connect()")
}
lineedit1 = new qtextedit(win1) {
setGeometry(150,50,200,300)
}
win1 {
setwindowtitle("client")
setgeometry(10,100,400,400)
show()
59.51. Simple Client and Server Example 680

10. Ring Documentation, Release 1.7
}
func connect
cOutput = "Connect to host 127.0.0.1 port 9999" + nl
lineedit1.settext(cOutput)
oTcpSocket = new qTcpSocket(win1) {
setconnectedevent("oClient.pConnected()")
setreadyreadevent("oClient.pRead()")
connecttohost("127.0.0.1",9999,3,0)
waitforconnected(5000)
}
func pConnected
cOutput += "Connected!" + nl
lineedit1.settext(cOutput)
func pRead
cOutput += "Ready Read!" + nl
lineedit1.settext(cOutput)
cOutput += oTcpSocket.readall().data() + nl
lineedit1.settext(cOutput)
Class Server
win1 lineedit1
oTcpServer oTcpClient
cOutput = ""
func server
win1 = new qwidget()
lineedit1 = new qtextedit(win1) {
setGeometry(150,50,200,300)
}
win1 {
setwindowtitle("Server")
setgeometry(450,100,400,400)
show()
}
oTcpServer = new qTcpServer(win1) {
setNewConnectionEvent("oServer.pNewConnection()")
oHostAddress = new qHostAddress()
oHostAddress.SetAddress("127.0.0.1")
listen(oHostAddress,9999)
}
cOutput = "Server Started" + nl +
"listen to port 9999" + nl
lineedit1.settext(cOutput)
Func pNewConnection
oTcpClient = oTcpServer.nextPendingConnection()
59.51. Simple Client and Server Example 681
