A stack is a last-in/first-out data structure that allows operations such as push (insert), pop (remove), peek (view top element), isfull, and isempty. Stacks can be implemented using arrays or linked lists, with specific methods to handle operation complexities. Implementation involves checking conditions like stack fullness and emptiness for successful push and pop operations.

1. Unit II - Stack
Data Structures BCS301

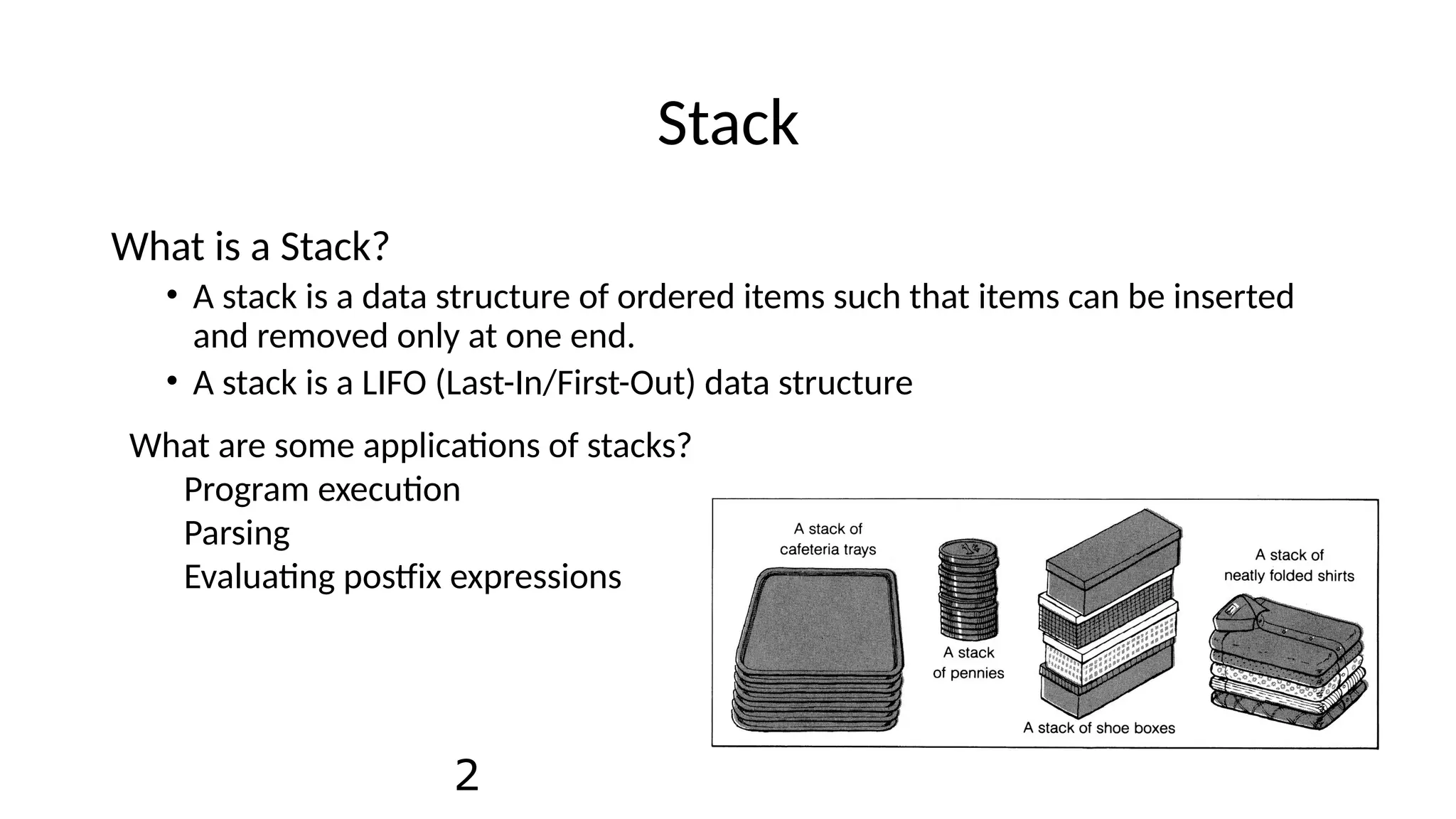

2. Stack
What is a Stack?
• A stack is a data structure of ordered items such that items can be inserted
and removed only at one end.
• A stack is a LIFO (Last-In/First-Out) data structure
2
What are some applications of stacks?
Program execution
Parsing
Evaluating postfix expressions

3. Stack Representation & Basic Operations
Stack operations may involve initializing the stack, using it and
then de-initializing it. Apart from these basic stuffs, a stack is
used for the following two primary operations −
•push() − Pushing (storing) an element on the stack.
•pop() − Removing (accessing) an element from the stack.
To use a stack efficiently, we need to check the status of stack
as well. For the same purpose, the following functionality is
added to stacks −
•peek() − get the top data element of the stack, without
removing it.
•isFull() − check if stack is full.
•isEmpty() − check if stack is empty.

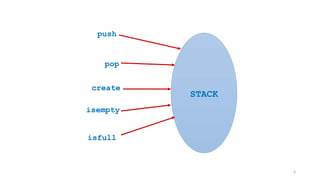

4. 4
STACK
push
create
pop
isfull
isempty

5. Stack- Abstract Data Types (ADTs)
• An abstract data type (ADT) is an abstraction of a data structure. It is a
specification of a collection of data and the operations that can be
performed on it.
• An ADT specifies:
• Data stored - A finite sequence of elements.
• Operations on the data
• Create
• Push: Insert element at top
• Top: Return top element
• Pop: Remove and return top element
• IsEmpty: test for emptyness
• Error conditions associated with operations
5

6. Stack implementation using Array
•In the array implementation, we would:
•Declare an array of fixed size (which determines the maximum size
of the stack).
•Keep a variable which always points to the “top” of the stack.
•Contains the array index of the “top” element.

7. Implementing a Stack
• There are two ways we can implement a stack:
• Using an array
• Using a linked list
7

8. Push Operation
The process of putting a new data element onto stack is known as a Push Operation. Push
operation involves a series of steps −
•Step 1 − Checks if the stack is full.
•Step 2 − If the stack is full, produces an error and exit.
•Step 3 − If the stack is not full, increments top to point next empty space.
•Step 4 − Adds data element to the stack location, where top is pointing.
•Step 5 − Returns success.
Stack[1:n]; // Array of size n.
top = 0; // initial value of top is 0.
Push(data, top)
{
if (top = = n){
Print: “stack is full”;
}
top = top + 1;
stack[top] = data
}

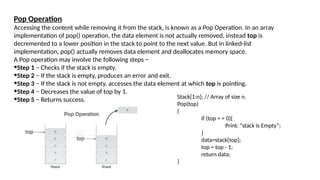

9. Pop Operation
Accessing the content while removing it from the stack, is known as a Pop Operation. In an array
implementation of pop() operation, the data element is not actually removed, instead top is
decremented to a lower position in the stack to point to the next value. But in linked-list
implementation, pop() actually removes data element and deallocates memory space.
A Pop operation may involve the following steps −
•Step 1 − Checks if the stack is empty.
•Step 2 − If the stack is empty, produces an error and exit.
•Step 3 − If the stack is not empty, accesses the data element at which top is pointing.
•Step 4 − Decreases the value of top by 1.
•Step 5 − Returns success. Stack[1:n]; // Array of size n.
Pop(top)
{
if (top = = 0){
Print: “stack is Empty”;
}
data=stack[top];
top = top - 1;
return data;
}

10. Implementation by Linked Lists
• Can use a Linked List as implementation of stack
9/23/2020 CS 201
Top of Stack = Front of Linked-List
StackLL
lst
a1 a2 a3 a4
head
LinkedListItr

12. Push Operation:
Struct node {
int data;
struct node * next;
};
Struct node *top = NULL; // top is initially null
Push(top, data)
{
struct node * temp = Getnode(); // allocate memory
if (temp = = NULL){
Print: “Overflow”;
}
temp - > data = data;
temp -> next = top;
top = temp;
}

13. Pop Operation:
Struct node {
int data;
struct node * next;
};
Struct node *top = NULL; // top is initially null
Pop(top)
{
int item;
if (top = = NULL){
Print: “Underflow”;
}
item = top -> data;
top = top -> next;
return item;
}

14. Stack Summary
• Stack Operation Complexity for Different
Implementations
Vectors 14
Array
Fixed-Size
Array
Expandable (doubling
strategy)
List
Singly-
Linked
Pop() O(1) O(1) O(1)
Push(o) O(1) O(n) Worst Case
O(1) Best Case
O(1) Average Case
O(1)
