This document describes the Epsilon Pattern Language, a hybrid OCL-based pattern matching language that is modeling-technology independent and supports pattern matching across multiple heterogeneous models. It allows users to declaratively describe patterns and export detected pattern instances to downstream model-to-model or model-to-text transformations. An example demonstrates finding attributes that can be pulled up to a common supertype using EPL.

1. The Epsilon Pattern Language
Dimitris Kolovos, Richard Paige
May 22, 2017
Department of Computer Science
University of York
9th Workshop on Modelling in Software Engineering (MiSE)
ICSE 2017, Buneos Aires, Argentina

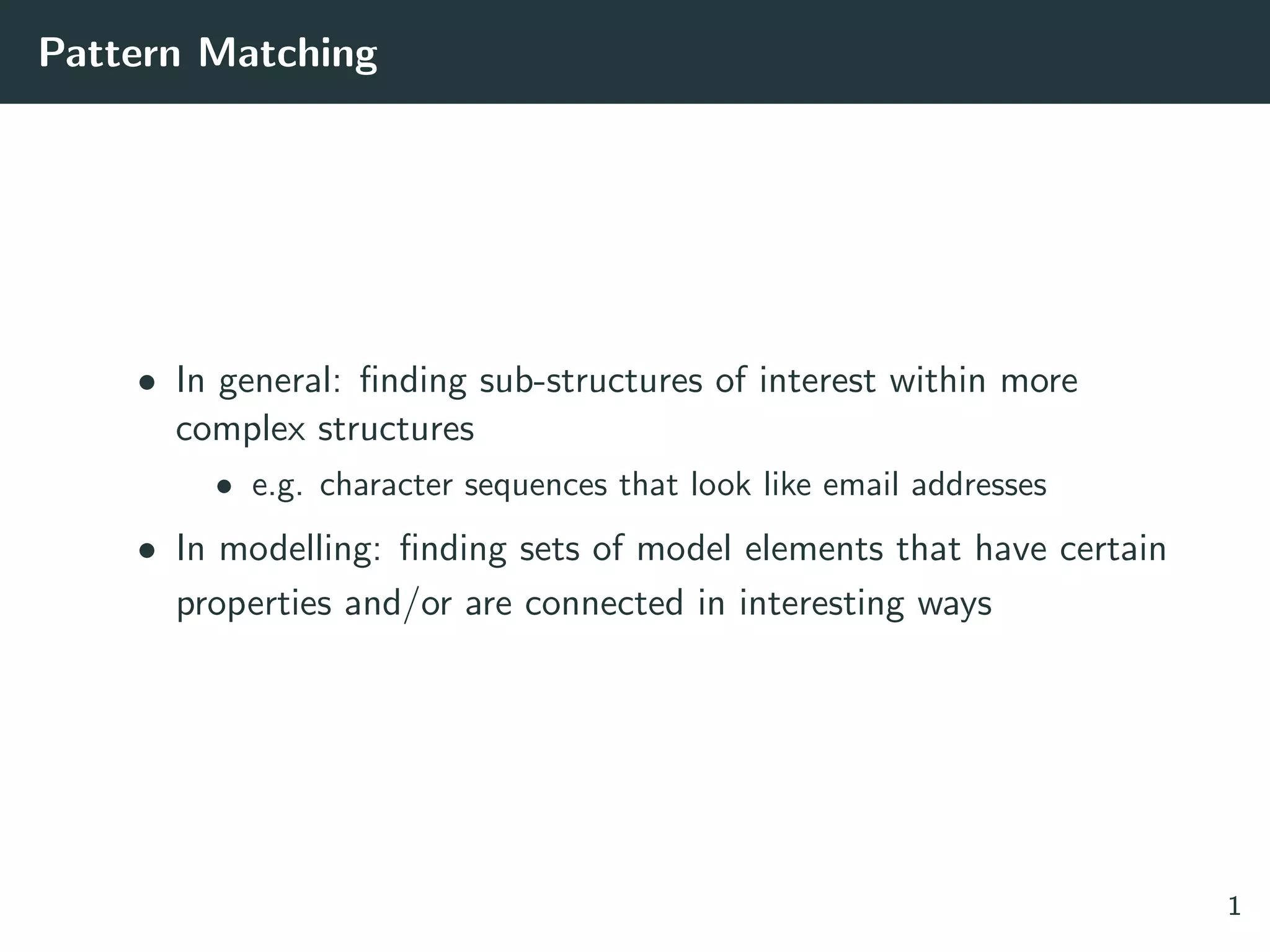

2. Pattern Matching
• In general: finding sub-structures of interest within more
complex structures
• e.g. character sequences that look like email addresses
• In modelling: finding sets of model elements that have certain
properties and/or are connected in interesting ways
1

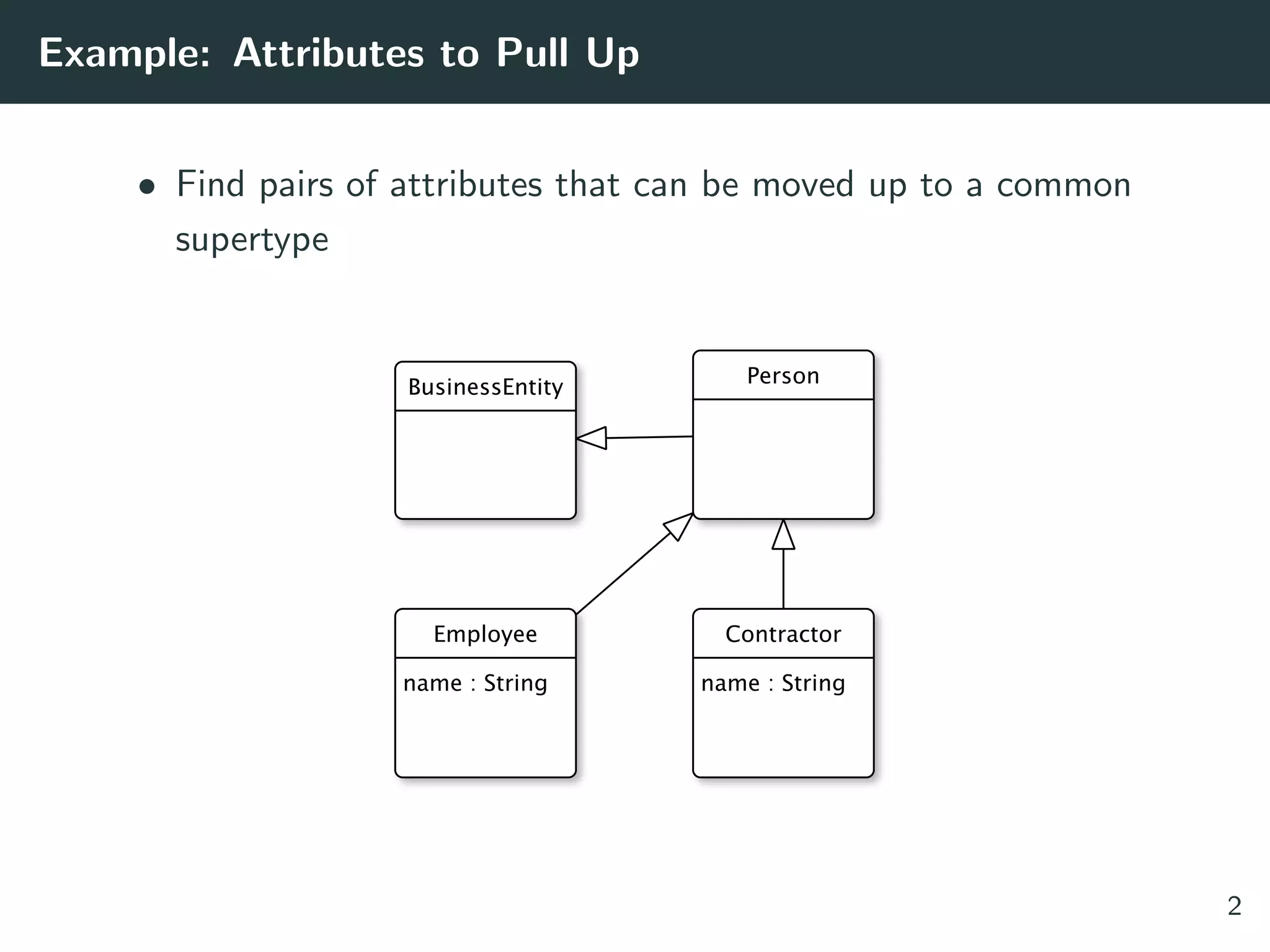

3. Example: Attributes to Pull Up
• Find pairs of attributes that can be moved up to a common
supertype
2

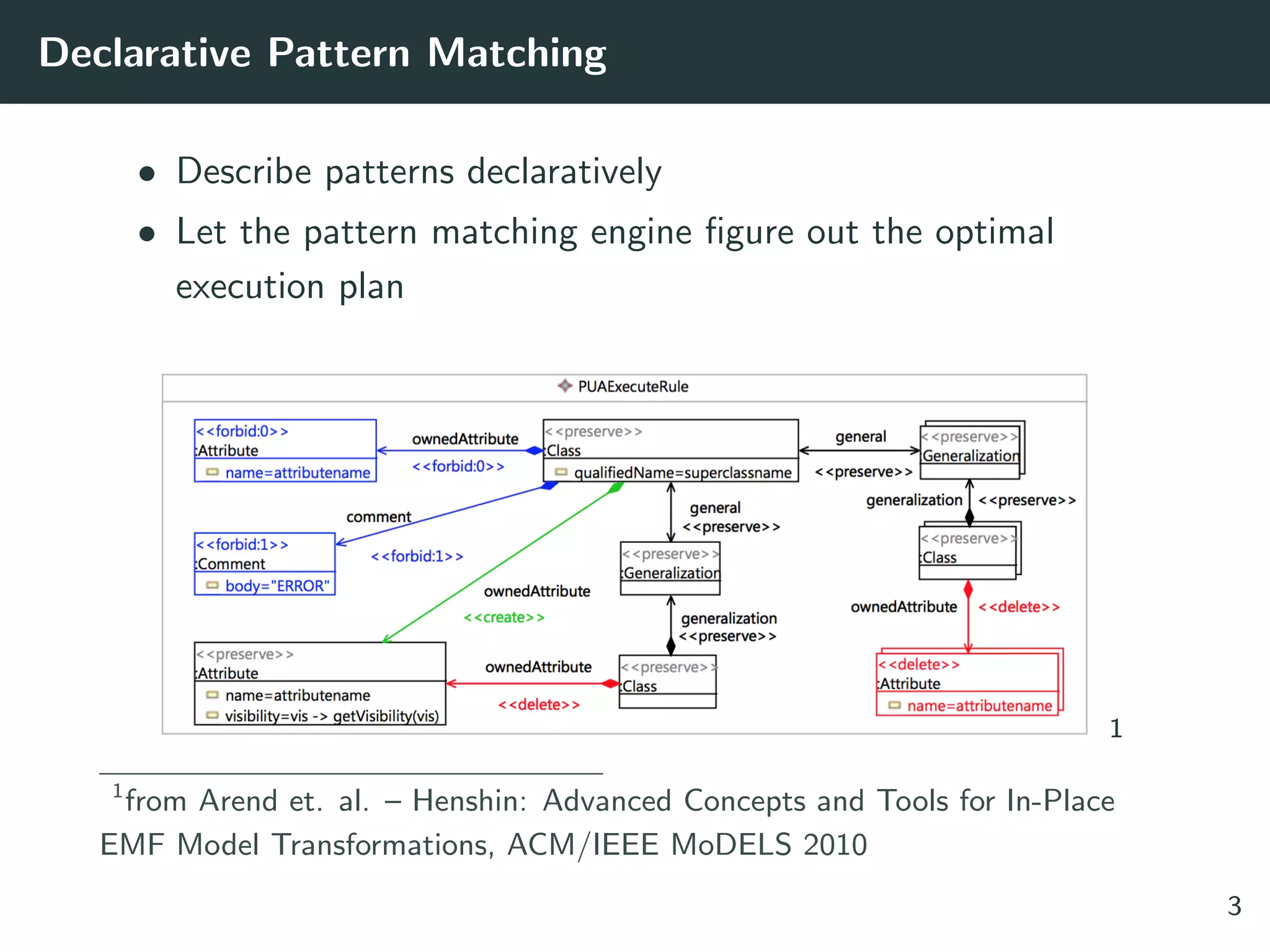

4. Declarative Pattern Matching
• Describe patterns declaratively
• Let the pattern matching engine figure out the optimal
execution plan
1
1
from Arend et. al. – Henshin: Advanced Concepts and Tools for In-Place
EMF Model Transformations, ACM/IEEE MoDELS 2010
3

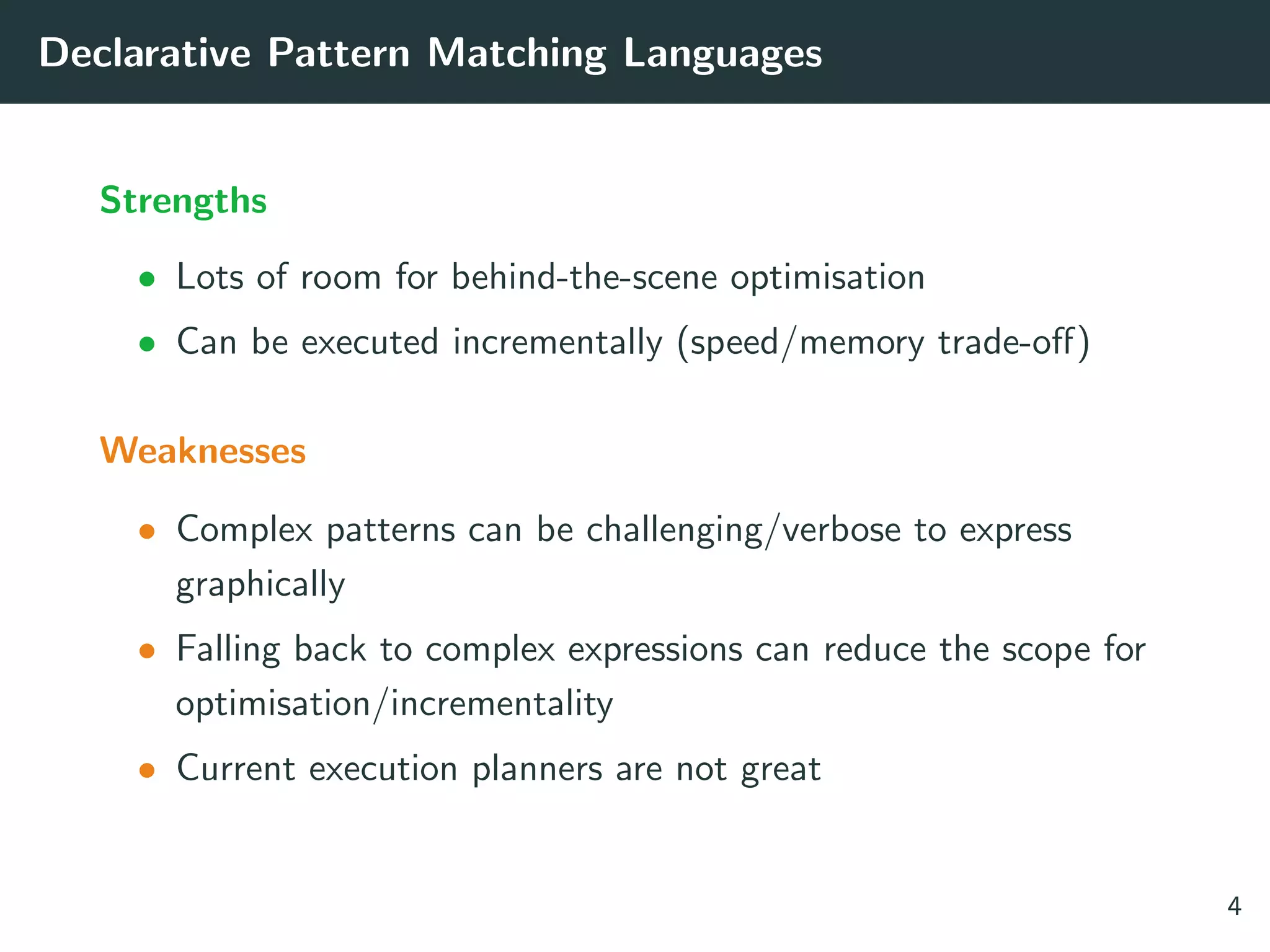

5. Declarative Pattern Matching Languages
Strengths
• Lots of room for behind-the-scene optimisation
• Can be executed incrementally (speed/memory trade-off)
Weaknesses
• Complex patterns can be challenging/verbose to express
graphically
• Falling back to complex expressions can reduce the scope for
optimisation/incrementality
• Current execution planners are not great
4

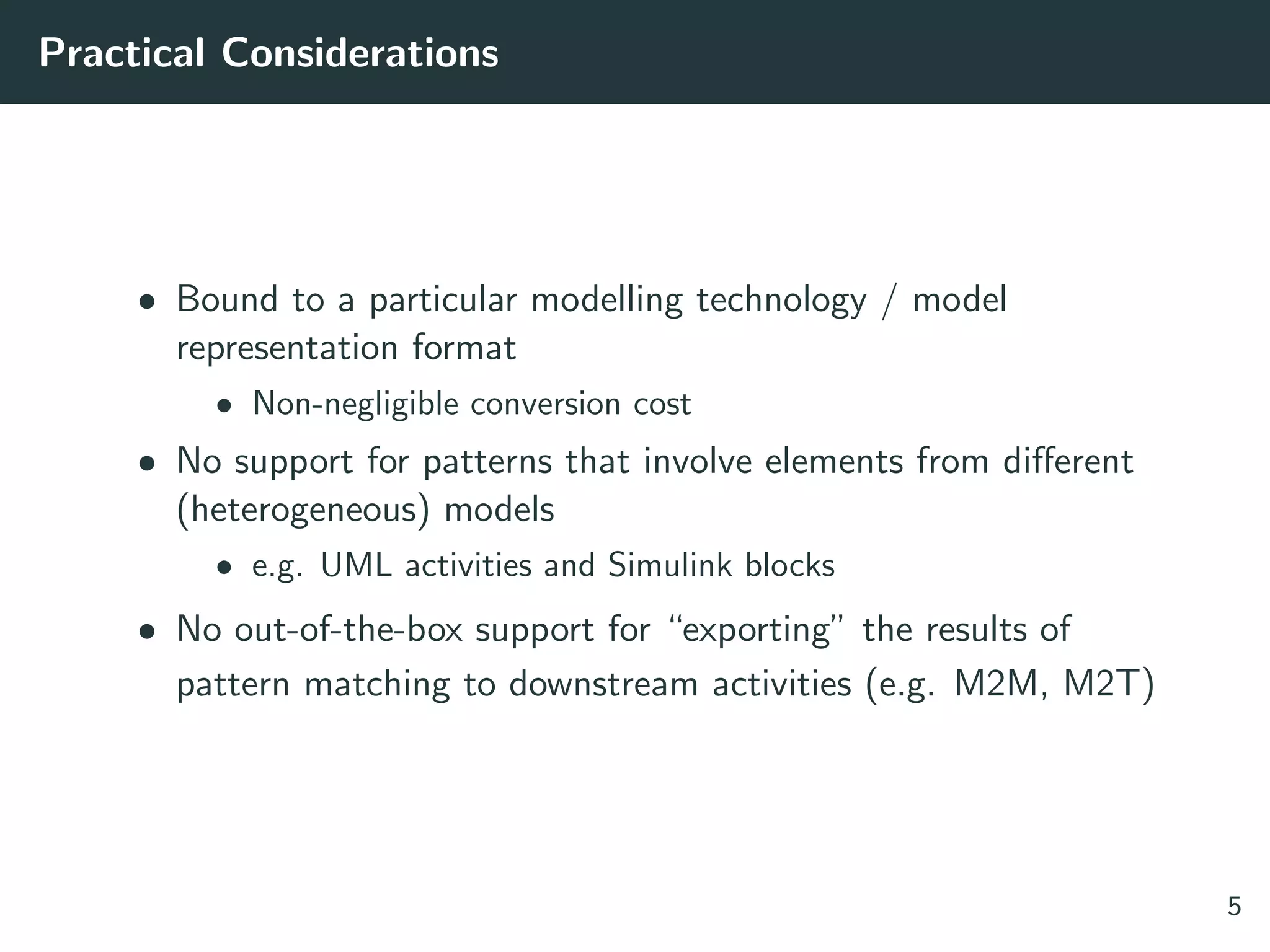

6. Practical Considerations
• Bound to a particular modelling technology / model
representation format
• Non-negligible conversion cost
• No support for patterns that involve elements from different
(heterogeneous) models
• e.g. UML activities and Simulink blocks
• No out-of-the-box support for “exporting” the results of
pattern matching to downstream activities (e.g. M2M, M2T)
5

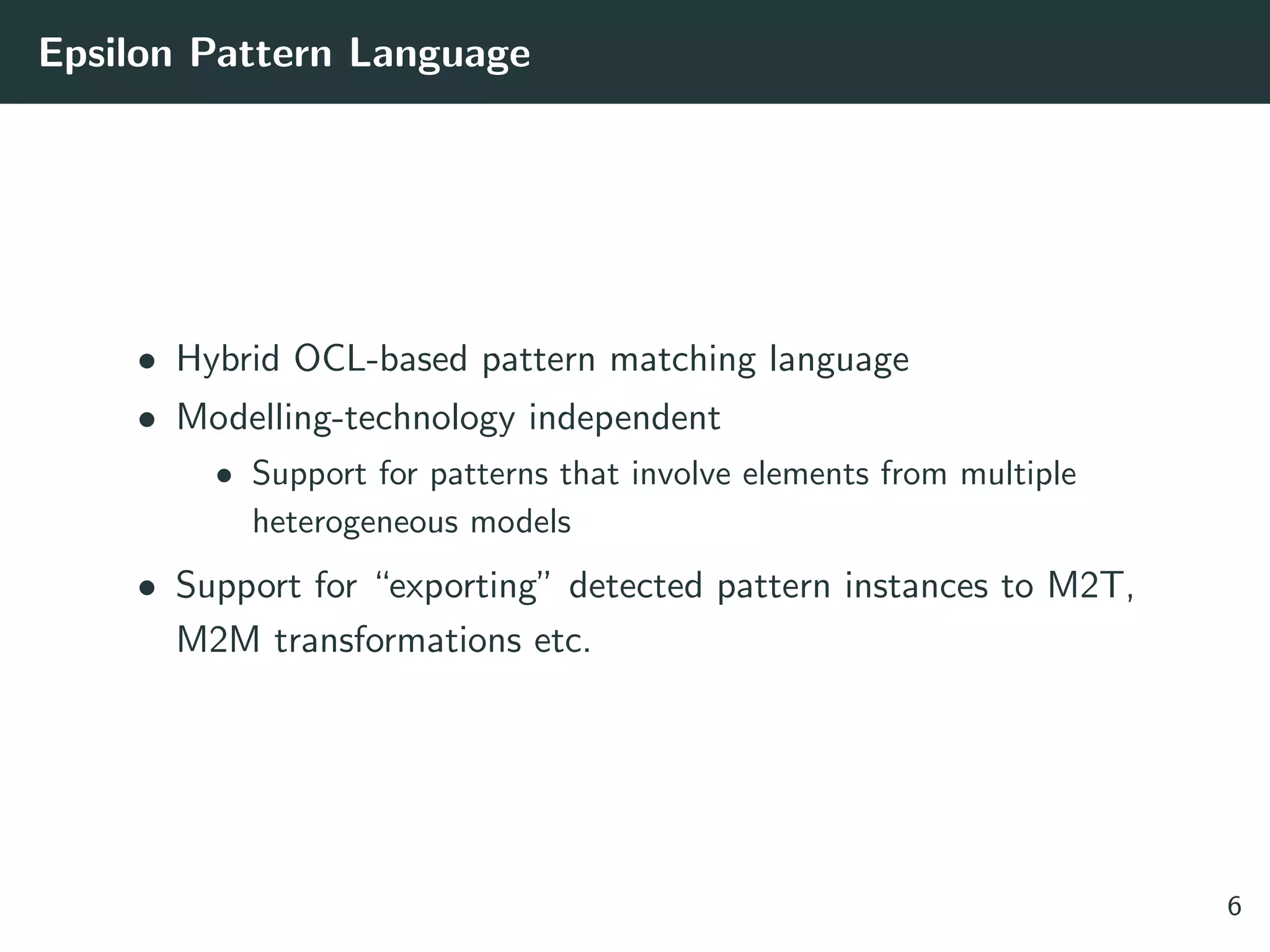

7. Epsilon Pattern Language
• Hybrid OCL-based pattern matching language
• Modelling-technology independent
• Support for patterns that involve elements from multiple
heterogeneous models
• Support for “exporting” detected pattern instances to M2T,
M2M transformations etc.
6

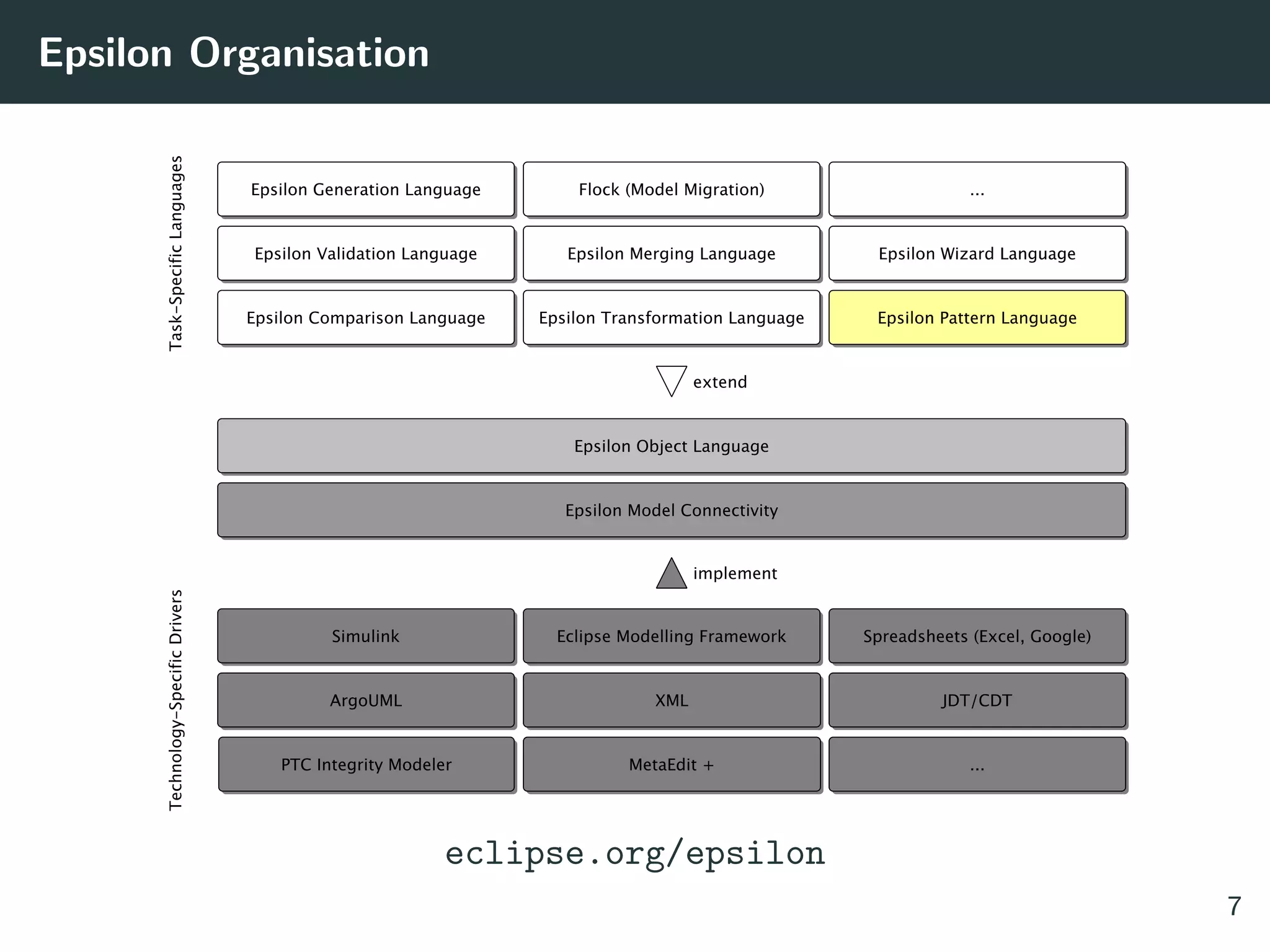

8. Epsilon Organisation
eclipse.org/epsilon
7

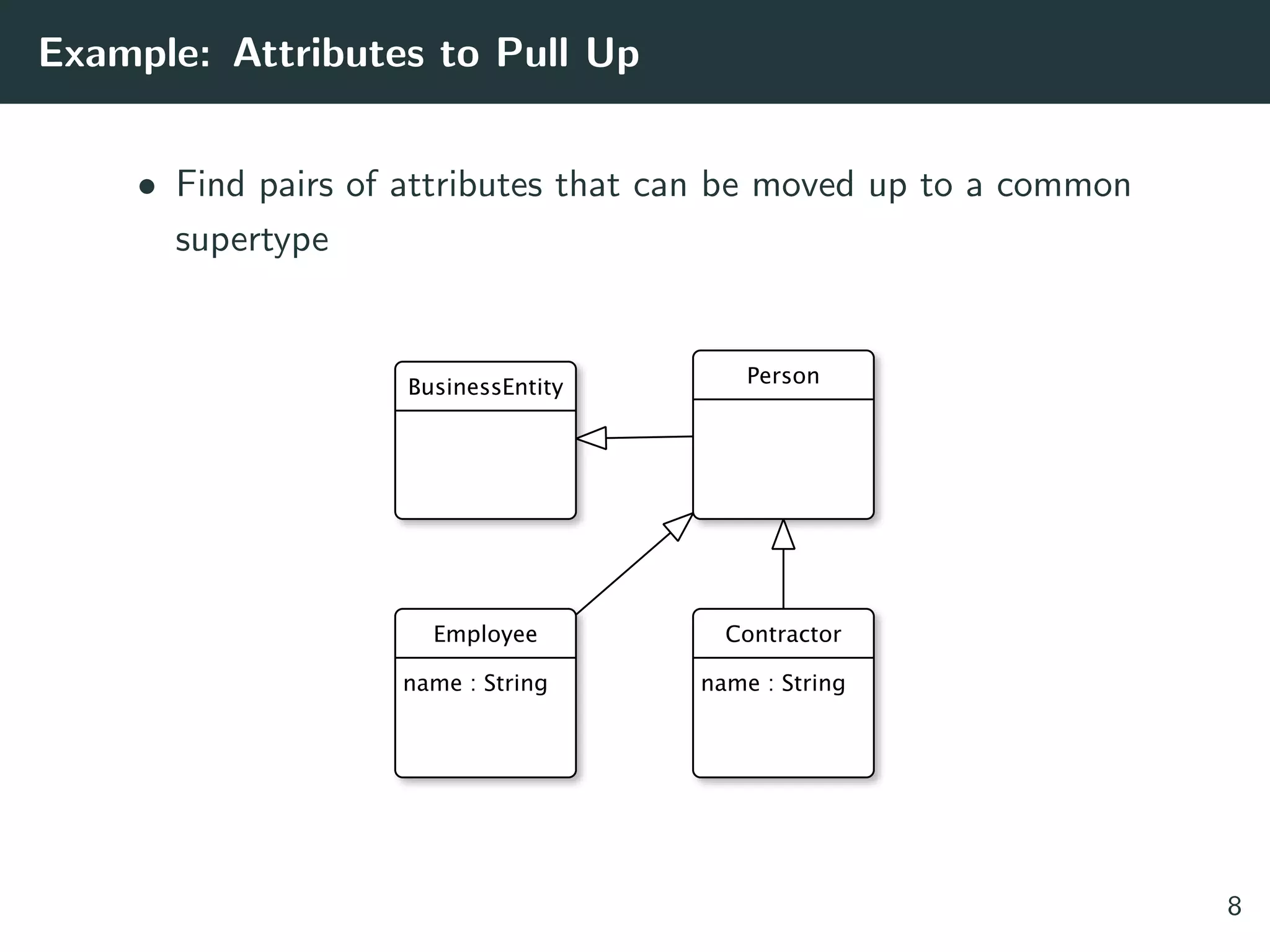

9. Example: Attributes to Pull Up
• Find pairs of attributes that can be moved up to a common
supertype
8

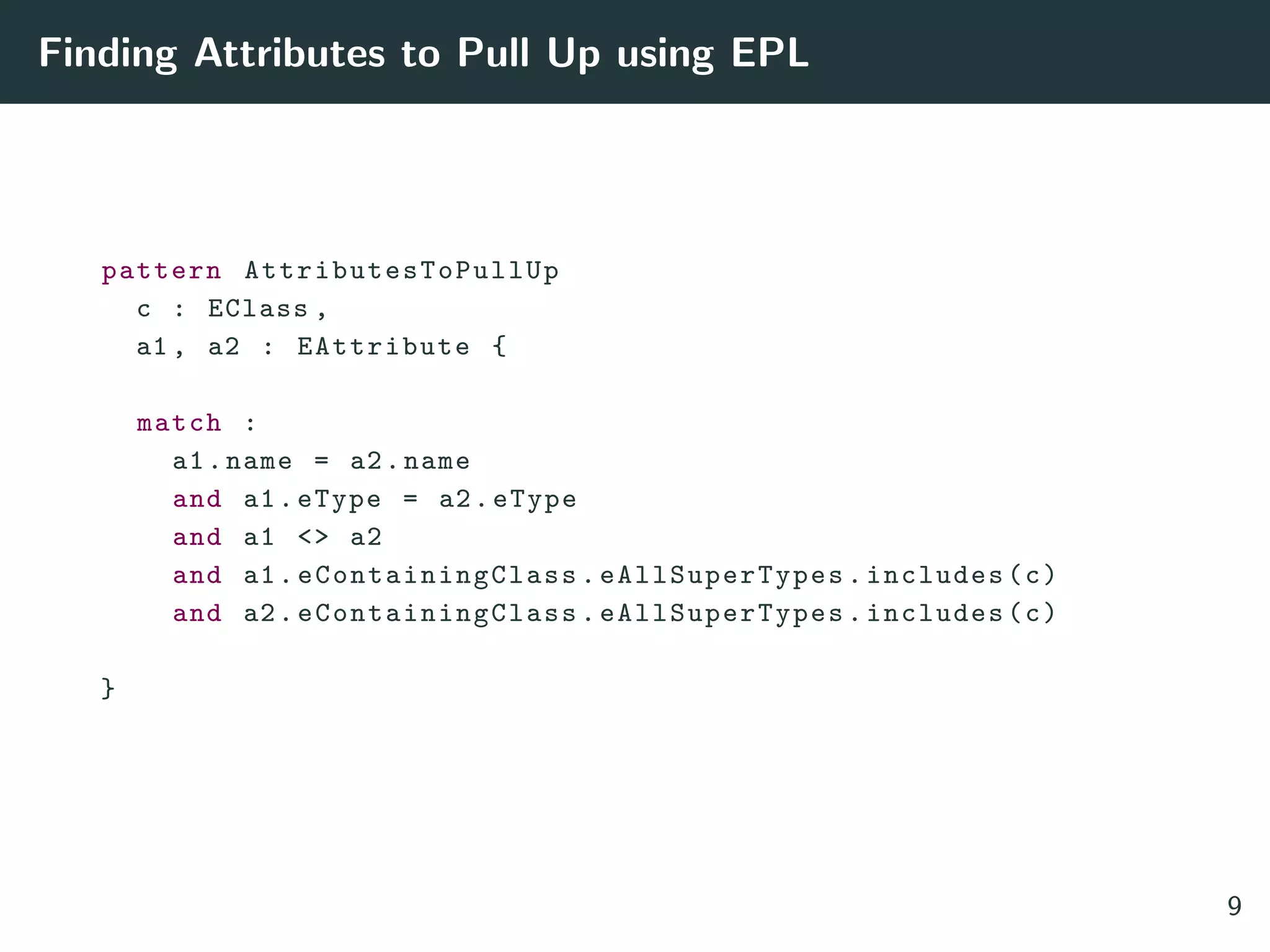

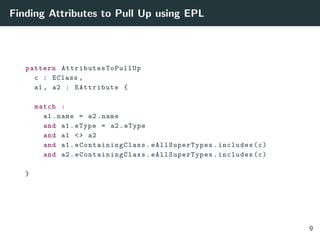

10. Finding Attributes to Pull Up using EPL
pattern AttributesToPullUp
c : EClass ,
a1 , a2 : EAttribute {
match :
a1.name = a2.name
and a1.eType = a2.eType
and a1 <> a2
and a1. eContainingClass . eAllSuperTypes .includes(c)
and a2. eContainingClass . eAllSuperTypes .includes(c)
}
9

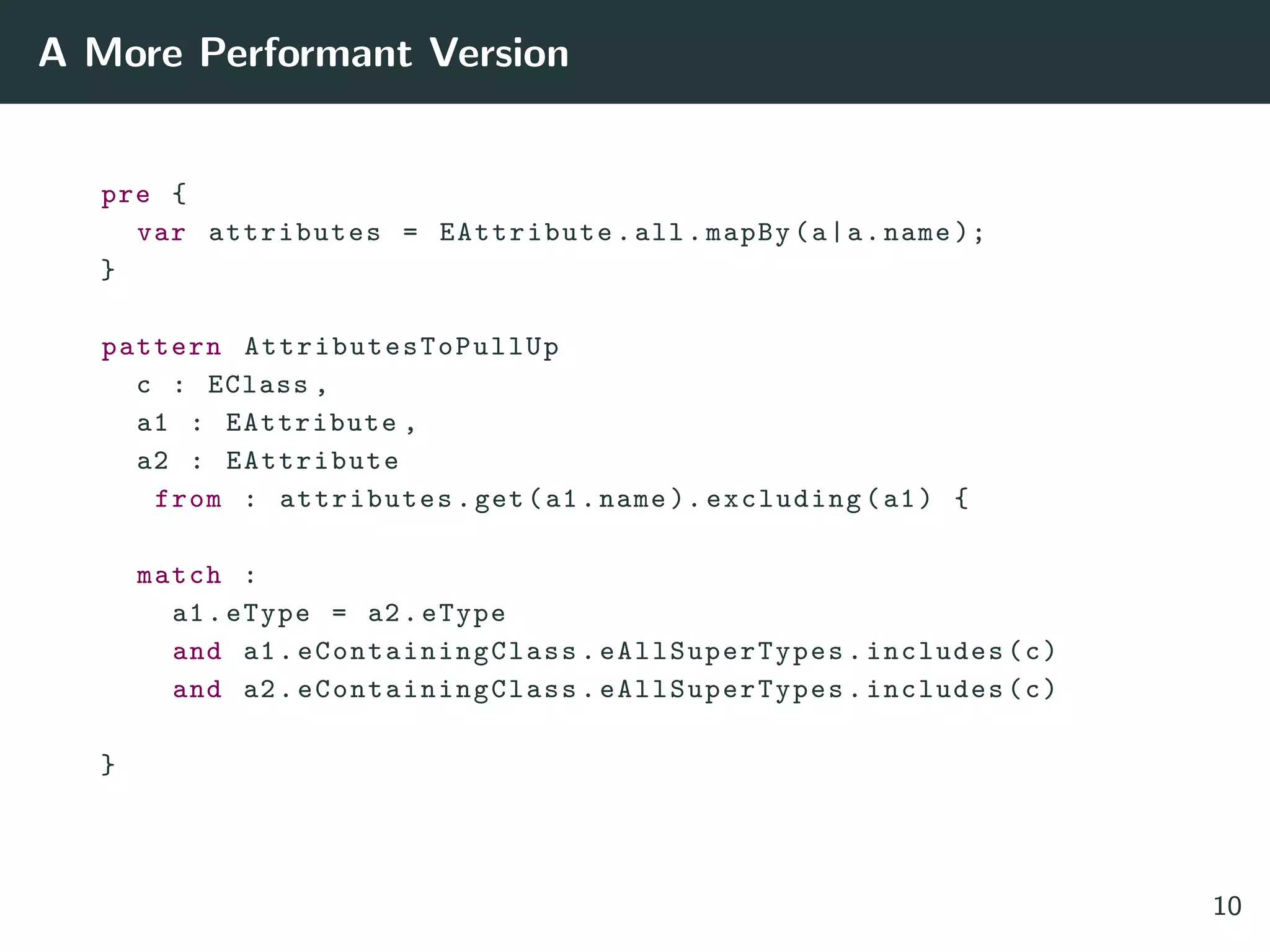

11. A More Performant Version
pre {
var attributes = EAttribute.all.mapBy(a|a.name );
}
pattern AttributesToPullUp
c : EClass ,
a1 : EAttribute ,
a2 : EAttribute
from : attributes.get(a1.name ). excluding(a1) {
match :
a1.eType = a2.eType
and a1. eContainingClass . eAllSuperTypes .includes(c)
and a2. eContainingClass . eAllSuperTypes .includes(c)
}
10

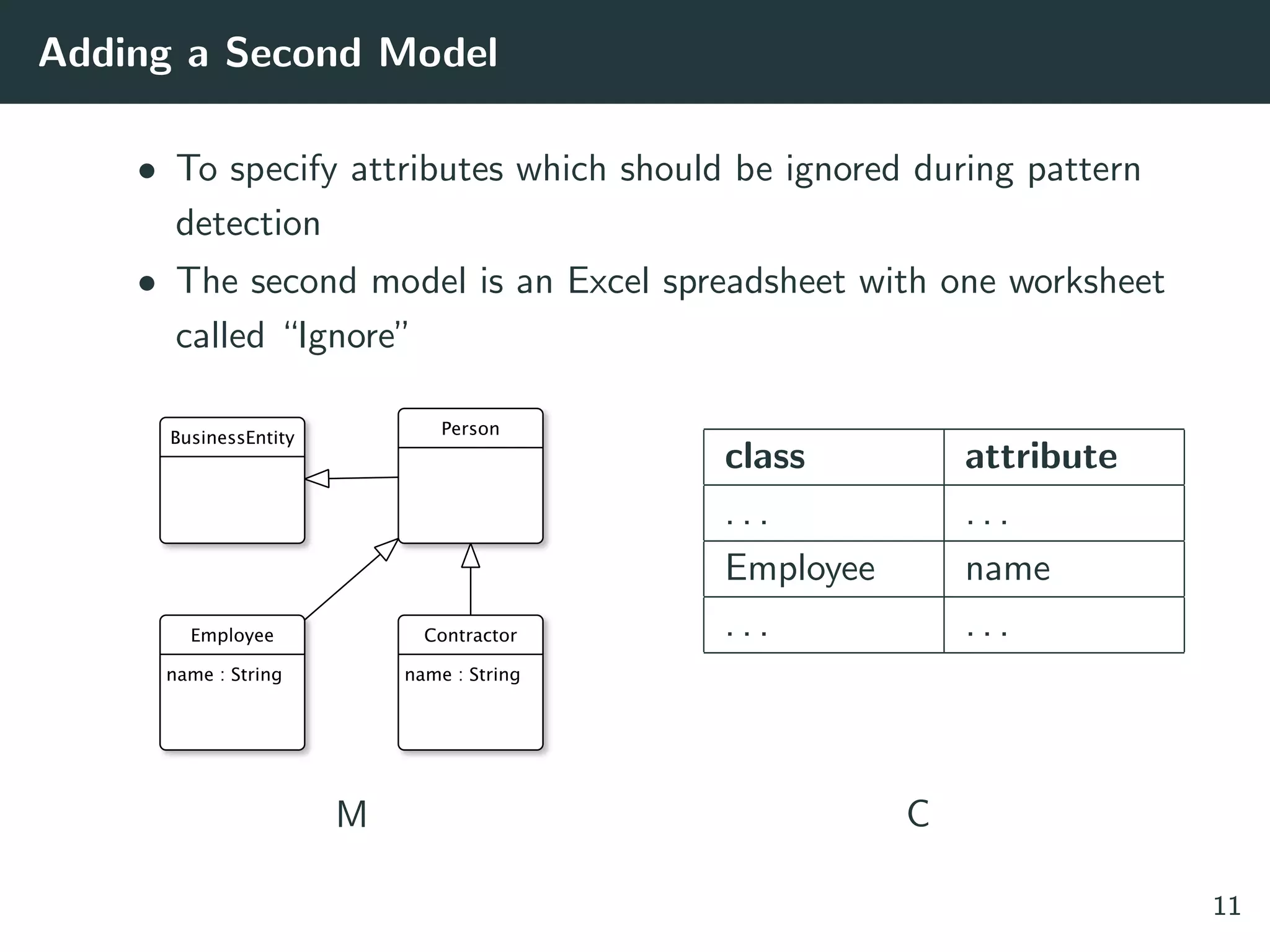

12. Adding a Second Model
• To specify attributes which should be ignored during pattern
detection
• The second model is an Excel spreadsheet with one worksheet
called “Ignore”
M
class attribute
. . . . . .
Employee name
. . . . . .
C
11

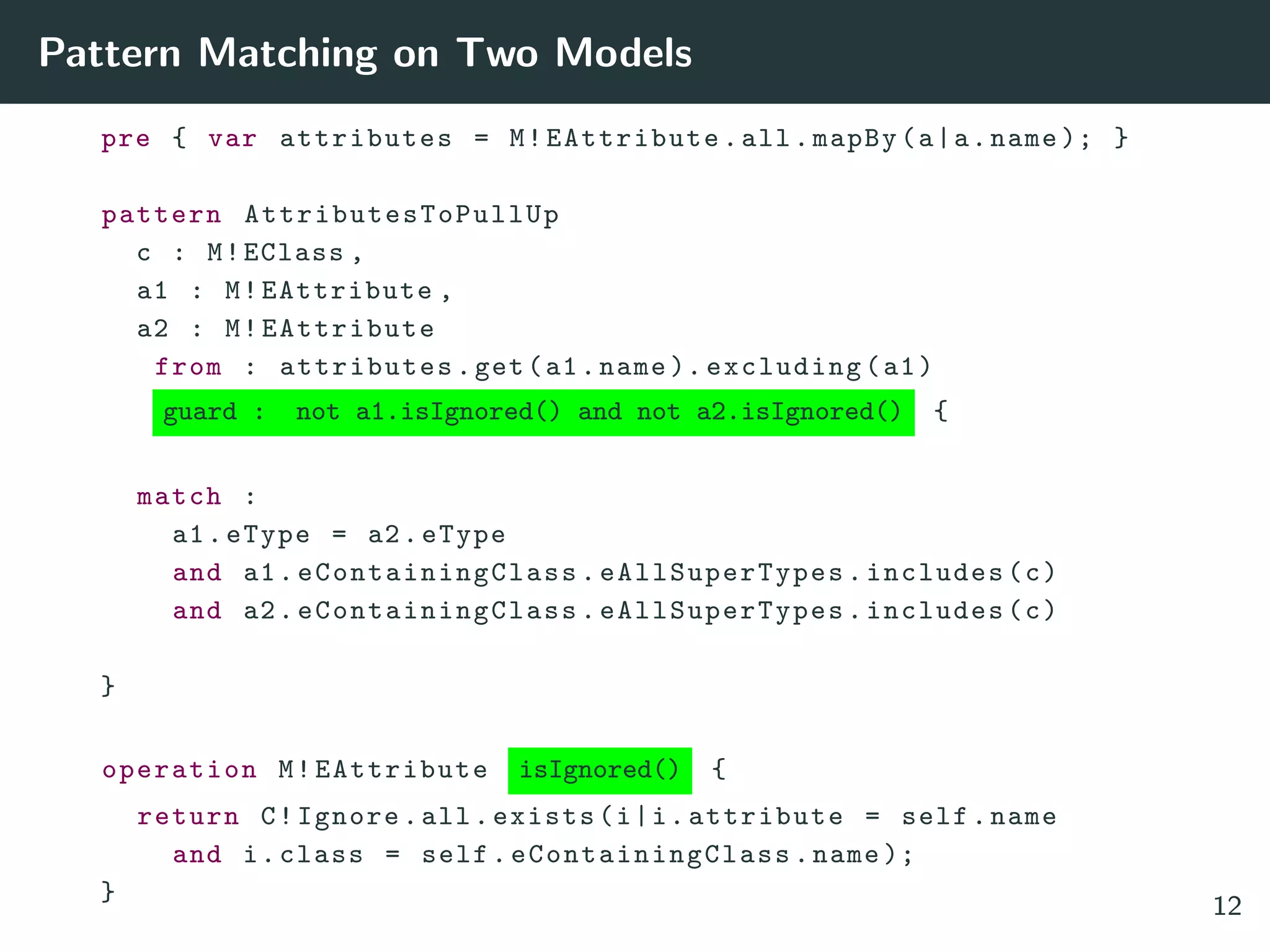

13. Pattern Matching on Two Models
pre { var attributes = M!EAttribute.all.mapBy(a|a.name ); }
pattern AttributesToPullUp
c : M!EClass ,
a1 : M!EAttribute ,
a2 : M!EAttribute
from : attributes.get(a1.name ). excluding(a1)
guard : not a1.isIgnored() and not a2.isIgnored() {
match :
a1.eType = a2.eType
and a1. eContainingClass . eAllSuperTypes .includes(c)
and a2. eContainingClass . eAllSuperTypes .includes(c)
}
operation M!EAttribute isIgnored() {
return C!Ignore.all.exists(i|i.attribute = self.name
and i.class = self. eContainingClass .name );
}
12

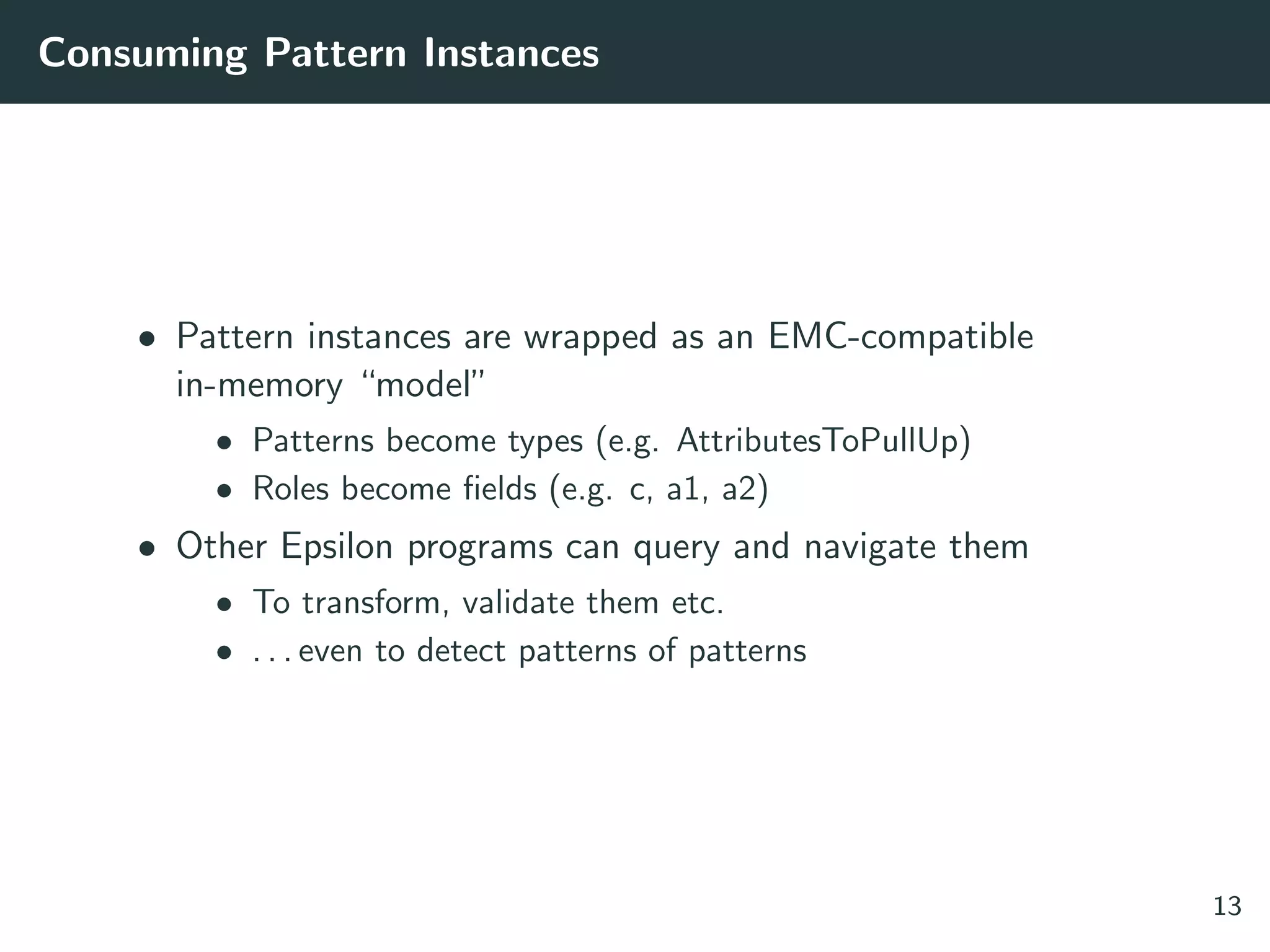

14. Consuming Pattern Instances
• Pattern instances are wrapped as an EMC-compatible
in-memory “model”
• Patterns become types (e.g. AttributesToPullUp)
• Roles become fields (e.g. c, a1, a2)
• Other Epsilon programs can query and navigate them
• To transform, validate them etc.
• . . . even to detect patterns of patterns
13

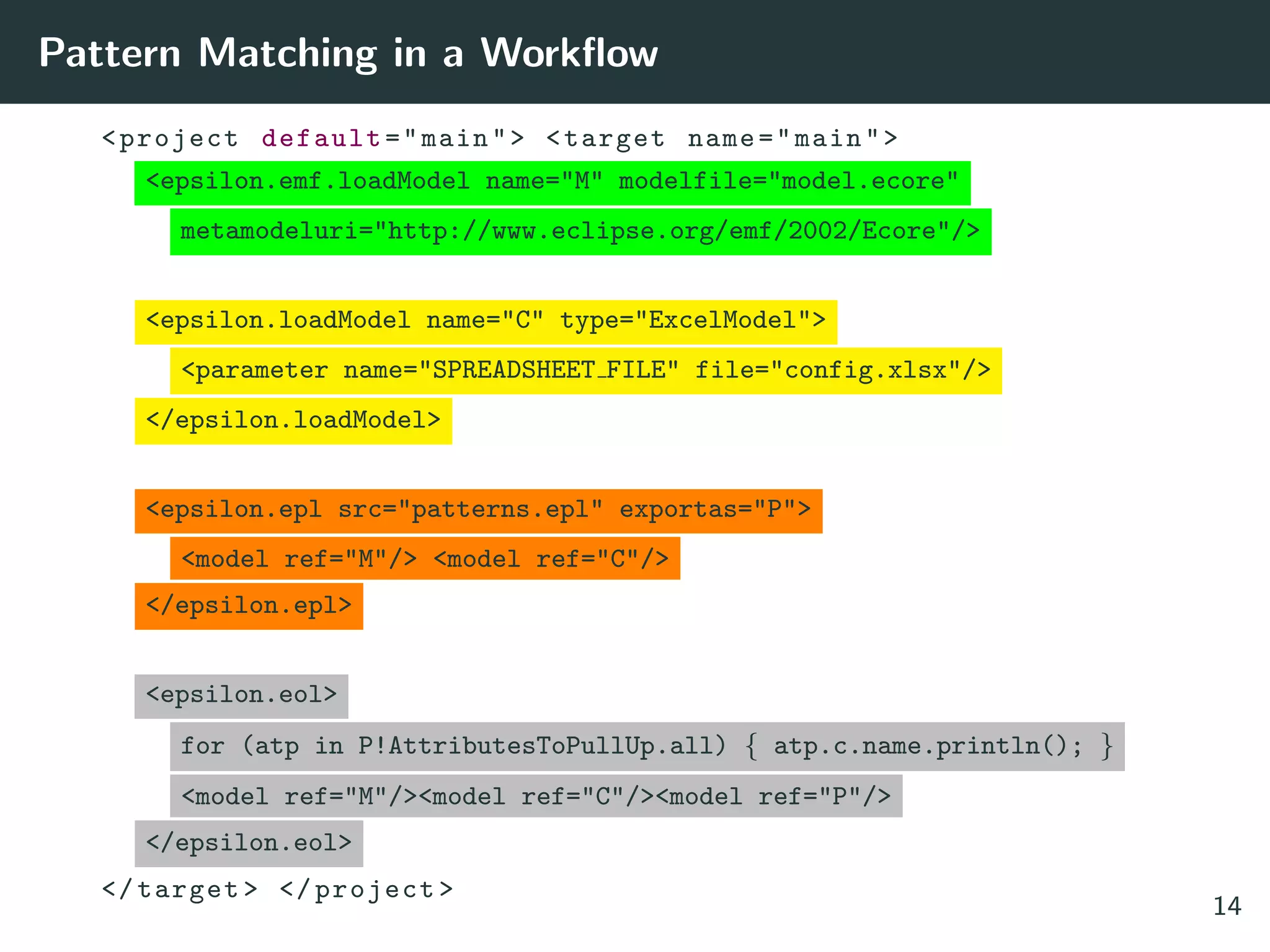

15. Pattern Matching in a Workflow
<project default="main"> <target name="main">
<epsilon.emf.loadModel name="M" modelfile="model.ecore"
metamodeluri="http://www.eclipse.org/emf/2002/Ecore"/>
<epsilon.loadModel name="C" type="ExcelModel">
<parameter name="SPREADSHEET FILE" file="config.xlsx"/>
</epsilon.loadModel>
<epsilon.epl src="patterns.epl" exportas="P">
<model ref="M"/> <model ref="C"/>
</epsilon.epl>
<epsilon.eol>
for (atp in P!AttributesToPullUp.all) { atp.c.name.println(); }
<model ref="M"/><model ref="C"/><model ref="P"/>
</epsilon.eol>
</target > </project >
14

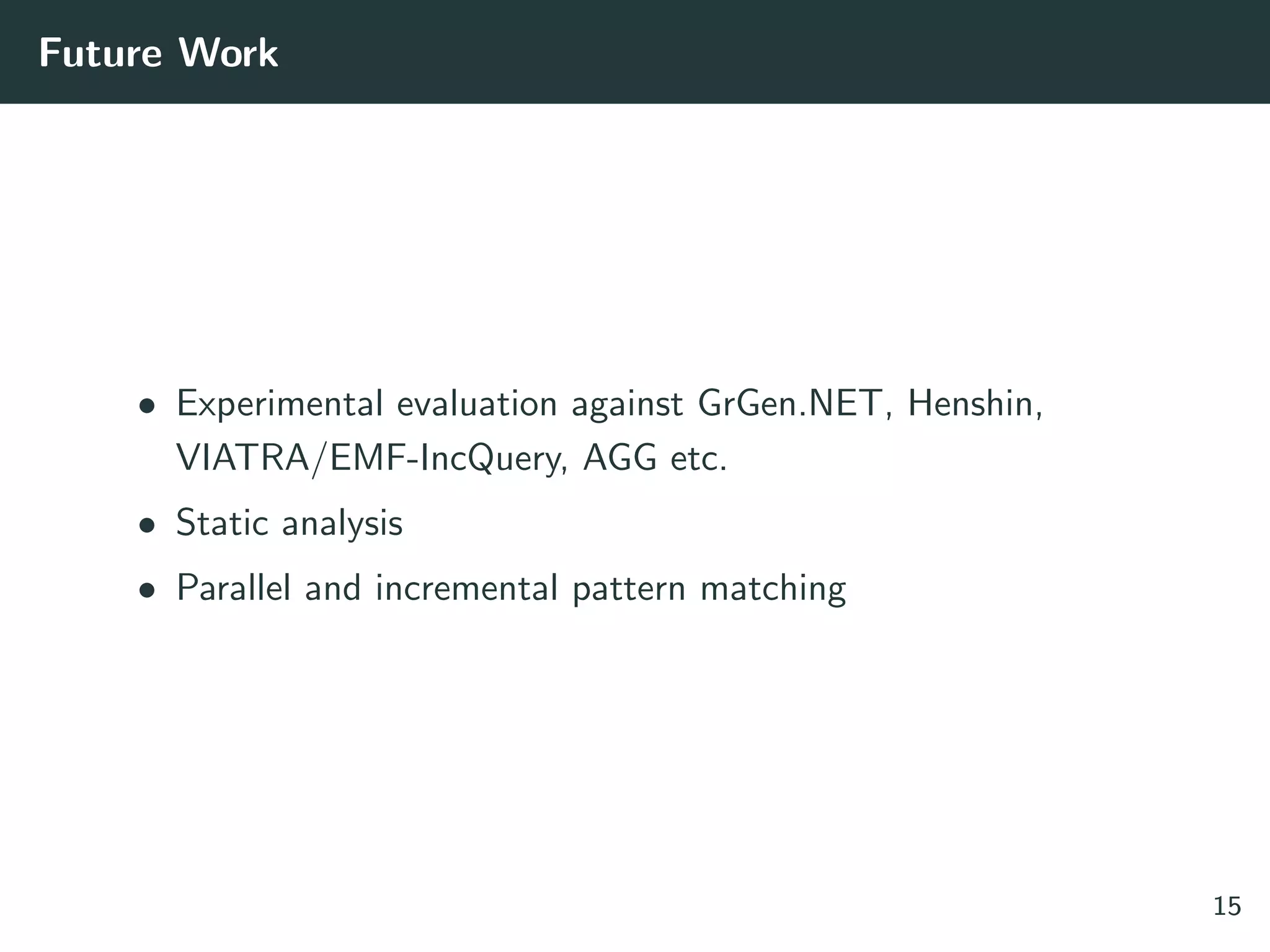

16. Future Work
• Experimental evaluation against GrGen.NET, Henshin,
VIATRA/EMF-IncQuery, AGG etc.
• Static analysis
• Parallel and incremental pattern matching
15

17. Summary
• Hybrid OCL-based pattern matching language
• Modelling-technology independent
• Support for “exporting” detected patterns to downstream
model management programs
eclipse.org/epsilon
16
