Cloud OS development

sean666666@gmail.com, 2013 P1
Cloud OS development
Sean Chang
2013/6

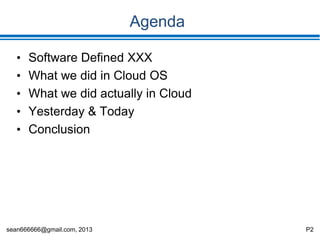

Agenda
• Software Defined XXX
• What we did in Cloud OS
• What we did actually in Cloud
• Yesterday & Today
• Conclusion

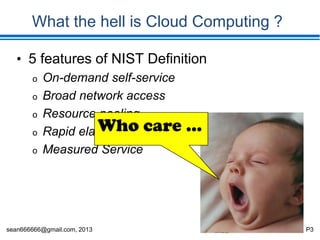

What the hell is Cloud Computing ?
• 5 features of NIST Definition
o On-demand self-service
o Broad network access
o Resource pooling
o Rapid elasticity
o Measured Service

Who care …

Cloud computing is…(personal defininition)
App, Web…anything provide fantastic user experience
anytime/anywhere/any-device.

Leading character(legecy…)
Photo：
- www.bulandwaterandair.com
- www.countryfarm.url.tw

IaaS with Software
• Software Defined XXX

IaaS Roadmap
…
Networking
Storage
Virtualization
Photo：
- www.slashgear.com
- softwarestrategiesblog.com/
Data Center

Our Cloud OS
COS
Cloud OS

Targets
• Design criterion
o Adapt multiple enterprise scale from 1 physical
machines to over thousands machines.
o Fast deploy
– One disc & scripts & inventories
o Tightly but loosely software design components
for both of all-in-one one stop shopping and
single patent module.
o Allow cloud computing resources scale
horizontal and vertical dynamically without
timeout service.

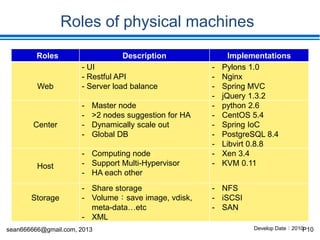

Physical machine roles
Roles Description Implementations
Web
- UI
- Restful API
- Server load balance
- Pylons 1.0
- Nginx
- Spring MVC
- jQuery 1.3.2
Center
- Master node
- >2 nodes suggestion for HA
- Dynamically scale out
- Global DB
- python 2.6
- CentOS 5.4
- Spring IoC
- PostgreSQL 8.4
- Libvirt 0.8.8
Host
- Computing node
- Support Multi-Hypervisor
- HA each other
- Xen 3.4
- KVM 0.11
Storage
- Share storage
- Volume：save image, vdisk,
meta-data…etc
- XML
- NFS
- iSCSI
- SAN
Develop Date：2010

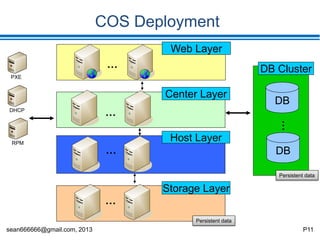

COS Deployment
Web Layer
Center Layer
Host Layer
Storage Layer
DB
…
…
…
DB
DB Cluster
…
…
Persistent data
Persistent data
PXE
DHCP
RPM

COS operations
• Software-defined Cloud OS
• Enable with python environment
• Fast & auto deploy
• Machines’ role play defined by asking Center with configurations
• Machines’ role convert dynamically
• Machines’ HA by heartbeat
• VMs service also have HA
• Master & Slave

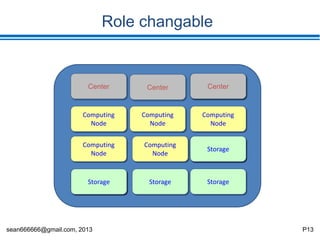

Role changable
Center
Computing
Node
Storage
Center
Computing
Node
Storage
Computing
Node
Computing
Node
Computing
Node
Computing
Node
Computing
Node
Computing
Node
Center
Storage
Storage

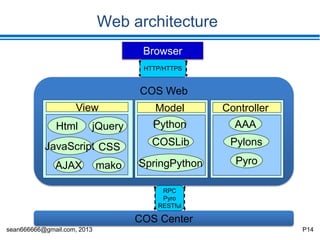

Web architecture
COS Web
View Controller
COS Center
Browser
JavaScript
jQueryHtml
CSS
AJAX mako
RPC
Pyro
RESTful
Model
HTTP/HTTPS
SpringPython
Python
COSLib
AAA
Pylons
Pyro

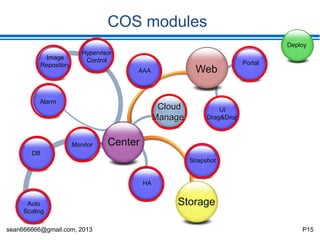

COS modules
Cloud
Manager
Hypervisor
ControlImage
Repository
Snapshot
DB
HA
Monitor
Auto
Scaling
Alarm
Portal
AAA
UI
Drag&Drop
Web
Center
Storage
Deploy

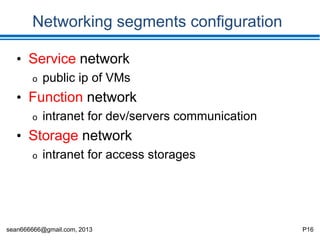

Networking segments configuration
• Service network
o public ip of VMs
• Function network
o intranet for dev/servers communication
• Storage network
o intranet for access storages

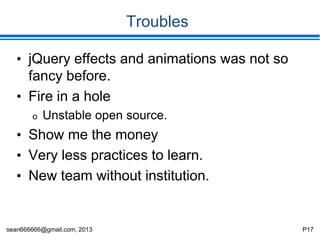

Troubles
• jQuery effects and animations was not so
fancy before.
• Fire in a hole
o Unstable open source.
• Show me the money
• Very less practices to learn.
• New team without institution.

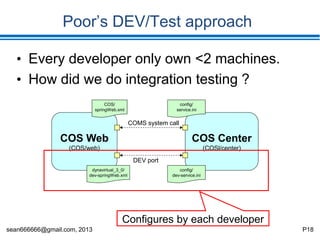

Poor’s DEV/Test approach
• Every developer only own <2 machines.
• How did we do integration testing ?
COS Web
(COS/web)
COS Center
(COSl/center)
COMS system call
DEV port
COS/
springWeb.xml
dynavirtual_3_0/
dev-springWeb.xml
config/
dev-service.ini
config/
service.ini
Configures by each developer

Poor’s teamwork approaches
• Free Git server
o Customized it
– Combine requirement forms
– Build configuration management institution
• Free issue tracking system
o Integrated with Git

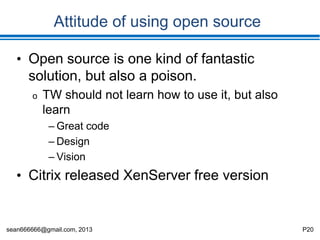

Attitude of using open source
• Open source is one kind of fantastic
solution, but also a poison.
• Taiwan should not only learn how to use it,
but also learn more spirits inside.
o Write the great code
o Design & Architecture
o Vision

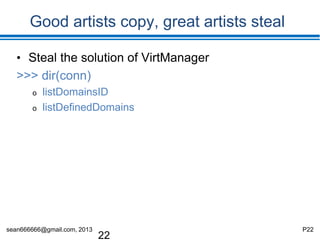

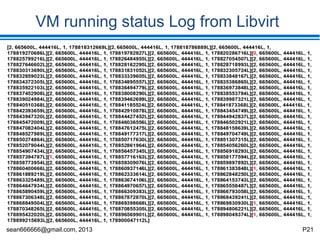

VM running status Log from Libvirt

23
Good artists copy, great artists steal
• Steal the solution of VirtManager
>>> dir(conn)
o listDomainsID
o listDefinedDomains

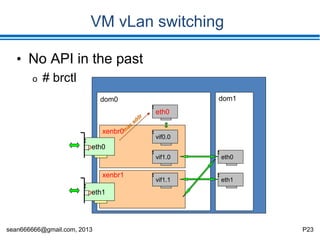

VM vLan switching
• No API in the past
o # brctl
peth0
peth1
eth0
vif0.0
vif1.0
xenbr0
xenbr1
dom0 dom1
eth0
eth1vif1.1

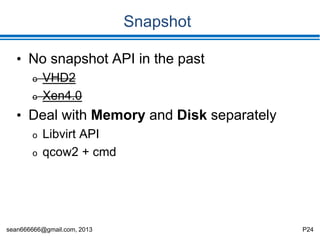

Snapshot
• No snapshot API in the past
o VHD2
o Xen4.0
• Deal with Memory and Disk separately
o Libvirt API
o qcow2 + cmd

Hardware Stress Issues
• Pay bananas, get monkeys
o Network cards
– We broken 3 ethernet cards in one day…
o Storage
– NFS ?
– ZFS ?
– NetAPP ?
– Microsoft Storage Sever 2012 ?

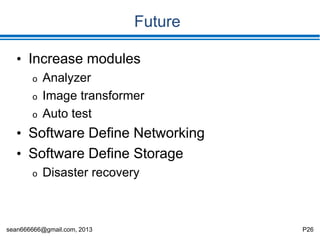

Future
• Increase modules
o Analyzer
o Image transformer
o Auto test
• Software Define Networking
• Software Define Storage
o Disaster recovery

Do we really earn money ?
• Business model ?
Photo: abcnews.go.com

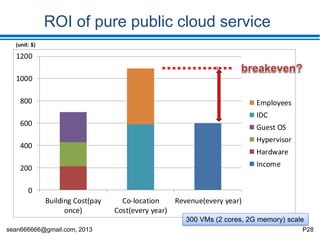

ROI of pure public cloud service
0
200
400
600
800
1000
1200
CAPEX OPEX Revenue(every year)
Employees
IDC
Guest OS
Hypervisor
Hardware
Income
300 VMs (2 cores, 2G memory) scale
(unit: $)

ROI in large scale
0
10000
20000
30000
40000
50000
60000
70000
80000
CAPEX OPEX Revenue(every year)
Employees
IDC
Guest OS
Hypervisor
Hardware
Income
30,000 VMs scale
(unit: $)

CAPEX
Hypervisor
Hardware
Guest OS

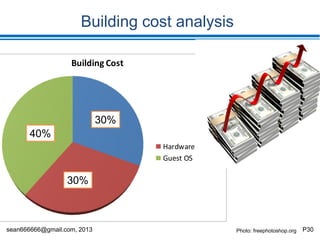

CAPEX analysis
30%
30%
40%
Photo: freephotoshop.org

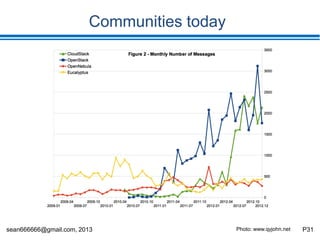

Communities today
Photo: www.qyjohn.net

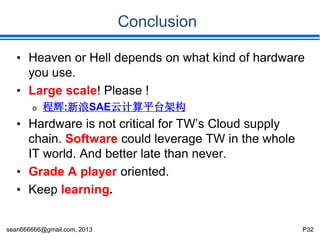

Conclusion
• Heaven or Hell depends on what kind of hardware
you use.
• Large scale! Please !
o 程辉:新浪SAE云计算平台架构
• Hardware is not critical for TW’s Cloud supply
chain. Software could leverage TW in the whole
IT world. And better late than never.
• Grade A player oriented.
• Keep learning.

Keep walking …
