The Bleeding Edge
This document discusses the technology stack choices made by jClarity to build their performance monitoring solution. They chose AngularJS for the client, MongoDB for the database, Vert.x for the server framework, and Chef for configuration management. While these "bleeding edge" technologies provided advantages in certain areas, they also had immaturities and lack of tooling support. jClarity evaluated options using a weighted scoring system and prototyped the top choices. Their methodology focuses on an a la carte open source approach with commercial funding and strong community involvement rather than vendor lock-in.
More Related Content
The Bleeding Edge
- 1. The Bleeding Edge RichardWarburton and Martijn Verburg http://www.jclarity.com
- 2. "Toto, I’ve afeeling we’re not in Kansas anymore" - Dorothy, Wizard of Oz

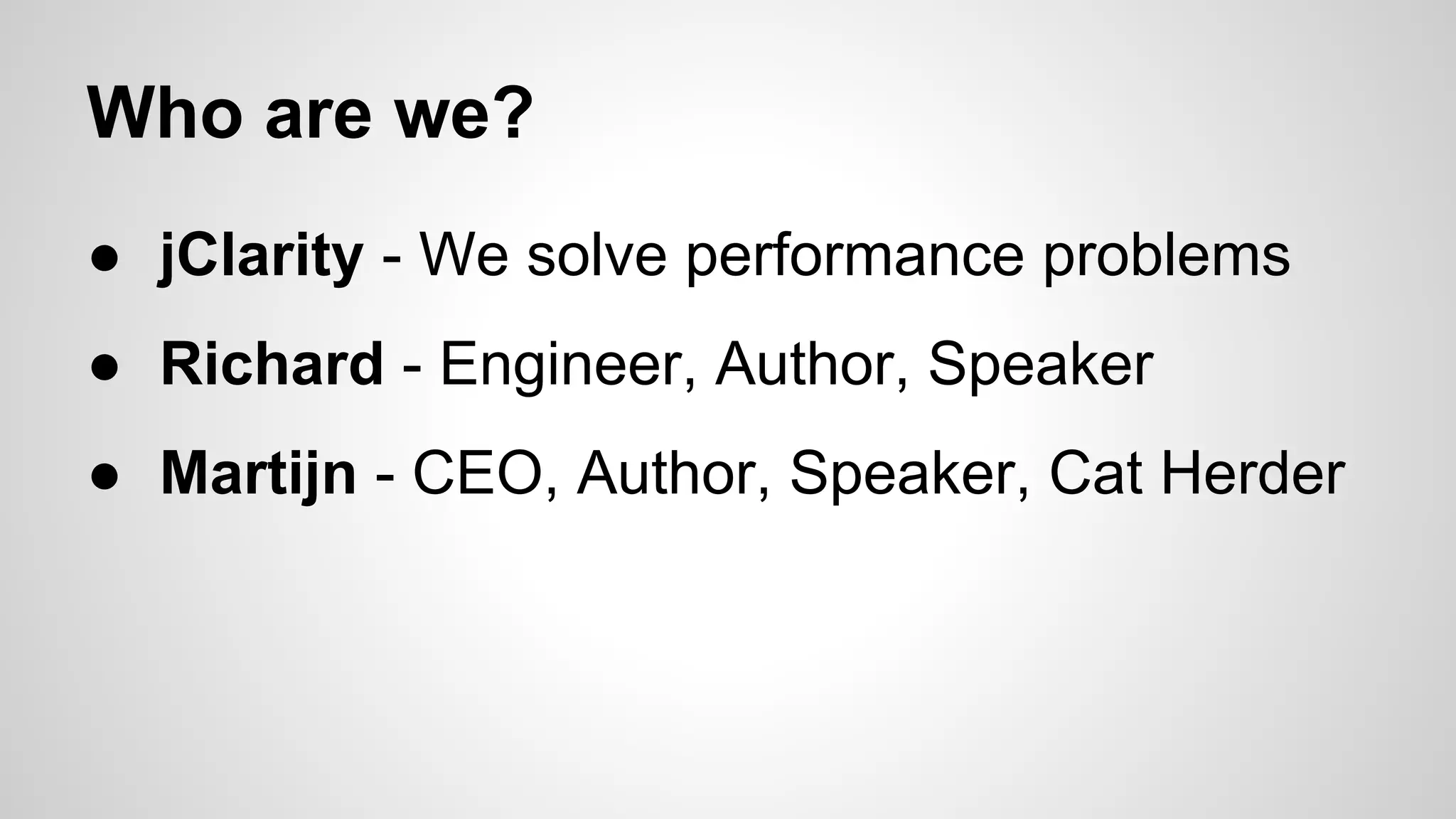

- 3. Who are we? ●jClarity - We solve performance problems ● Richard - Engineer, Author, Speaker ● Martijn - CEO, Author, Speaker, Cat Herder

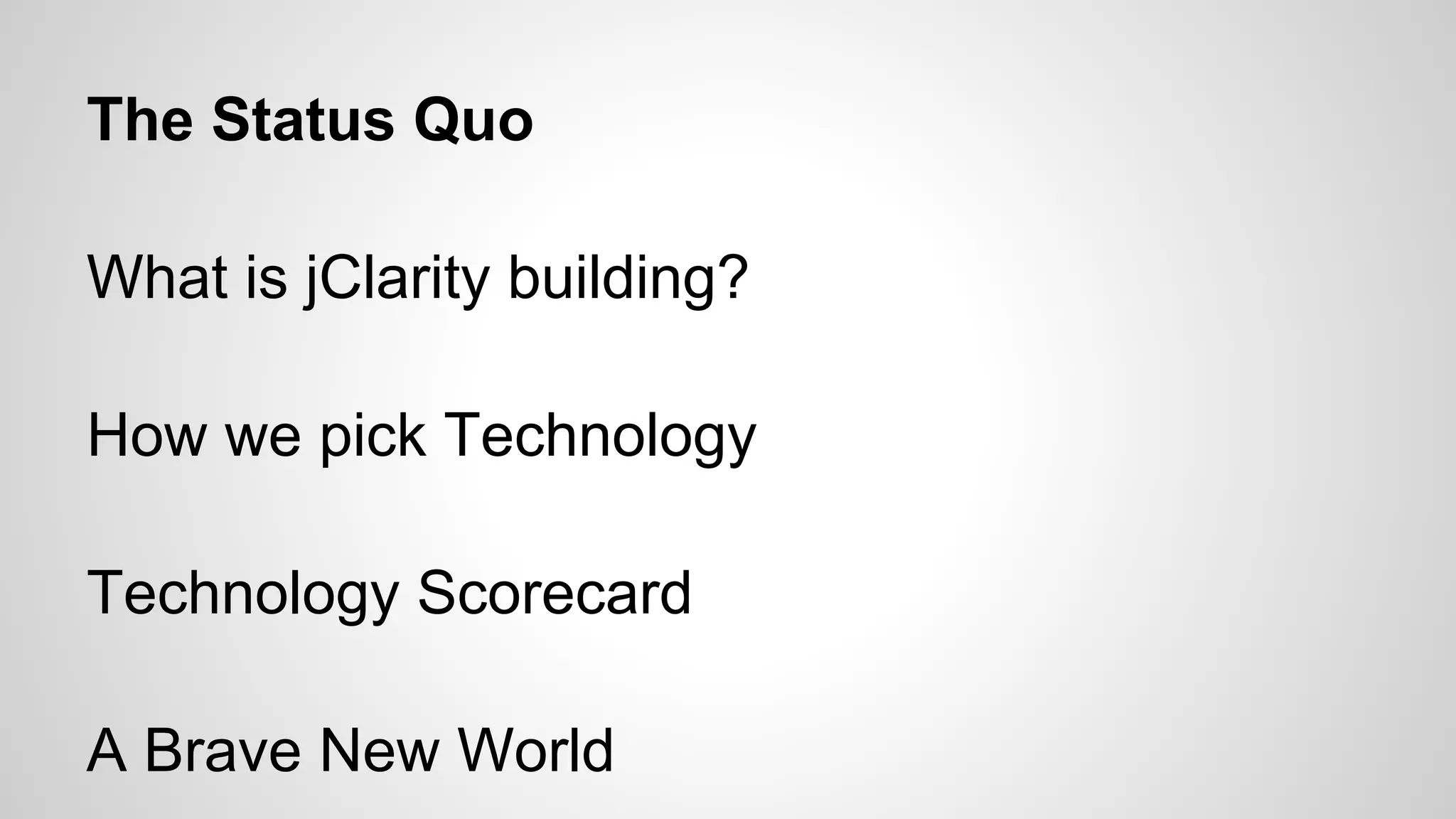

- 4. The Status Quo Whatis jClarity building? How we pick Technology Technology Scorecard A Brave New World

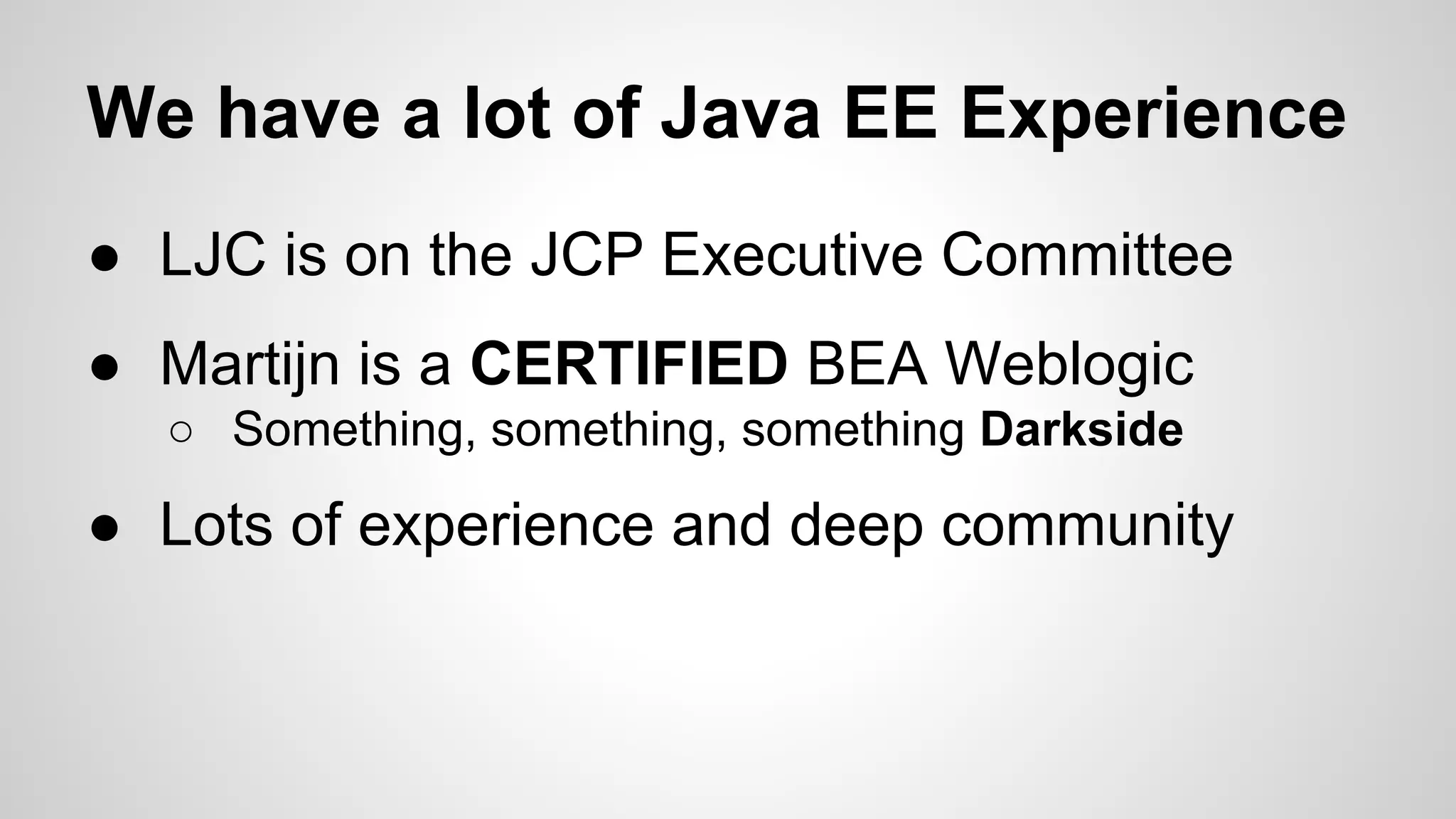

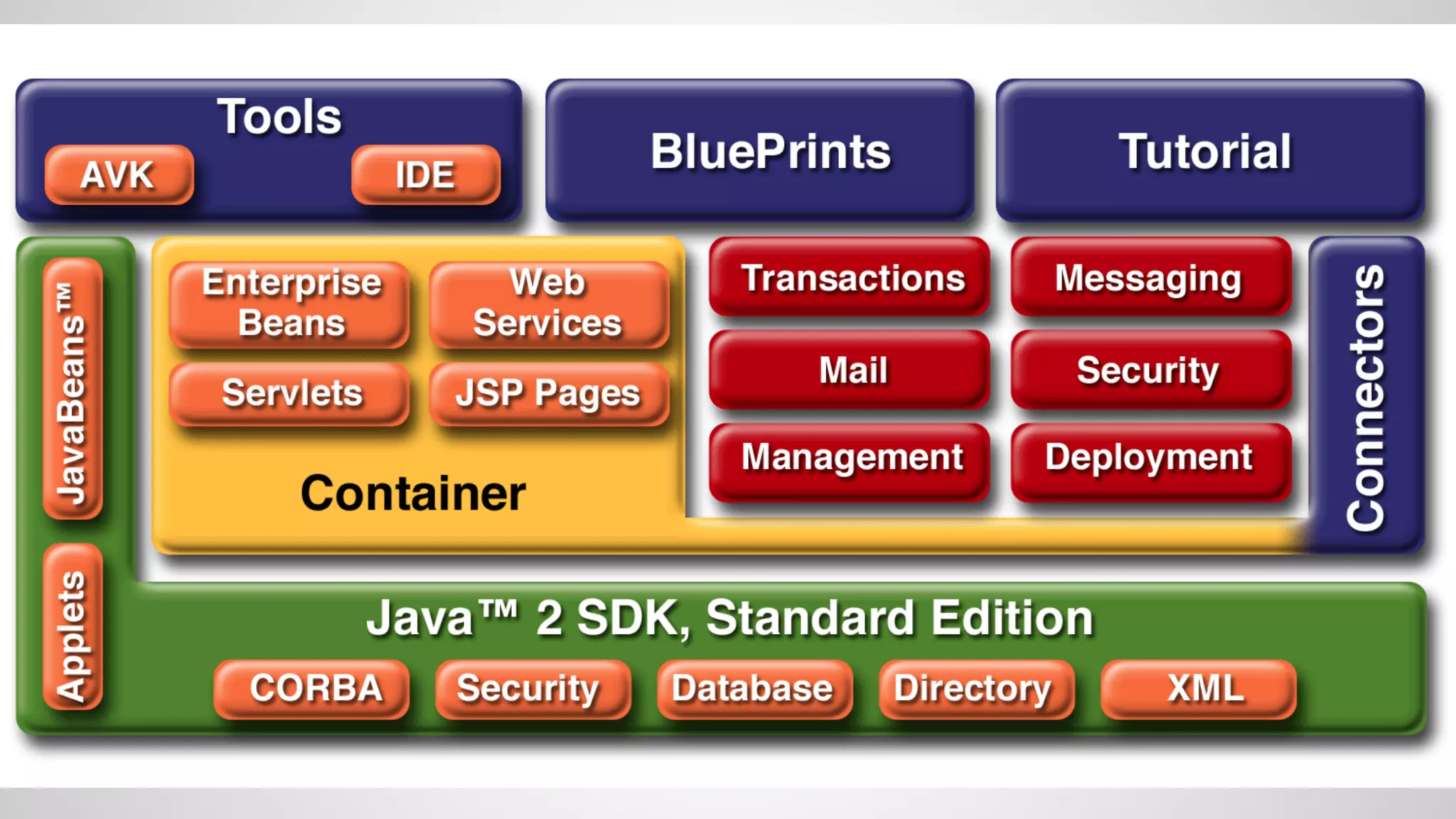

- 6. We have alot of Java EE Experience ● LJC is on the JCP Executive Committee ● Martijn is a CERTIFIED BEA Weblogic ○ Something, something, something Darkside ● Lots of experience and deep community

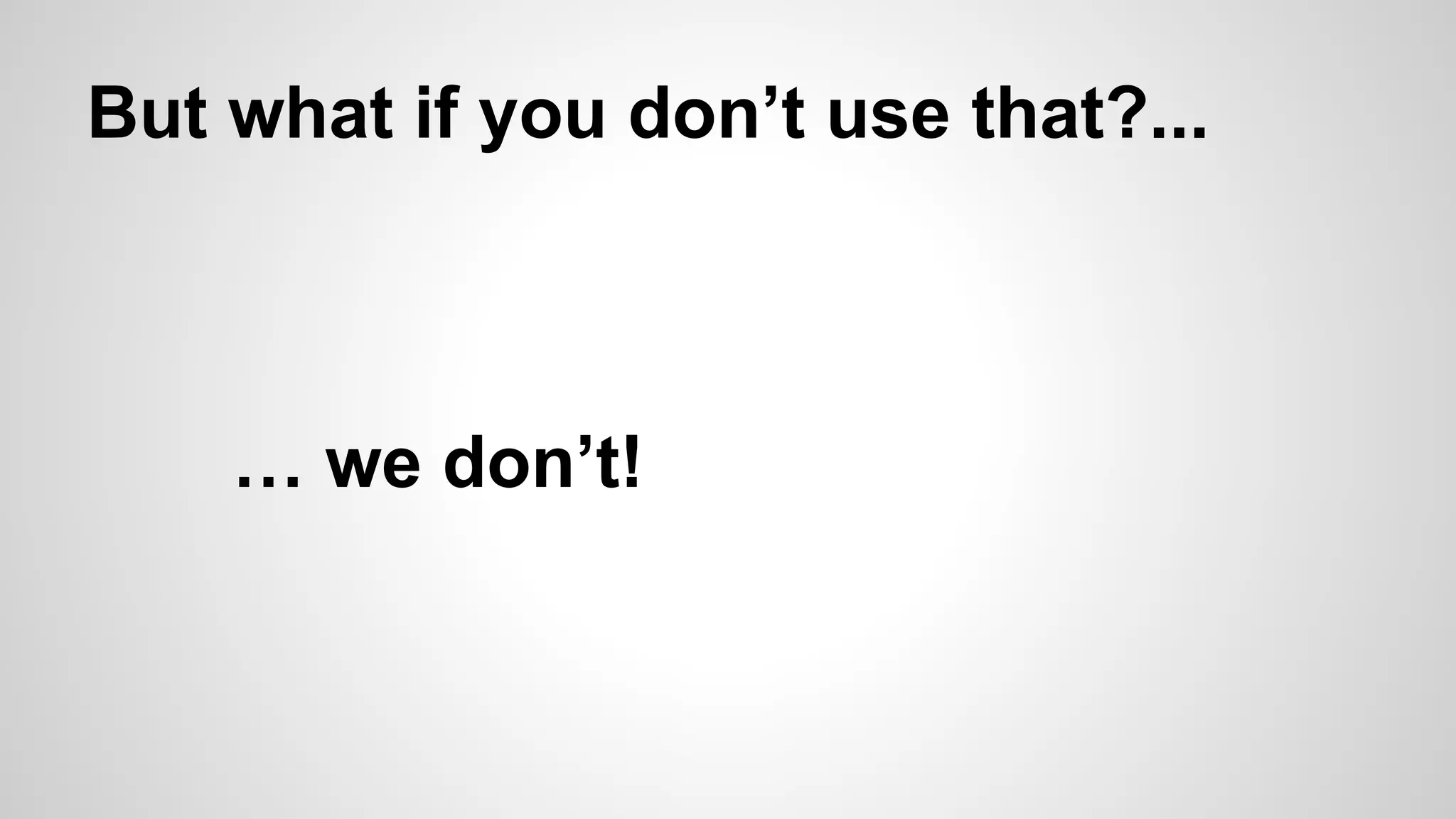

- 7. But what ifyou don’t use that?... … we don’t!

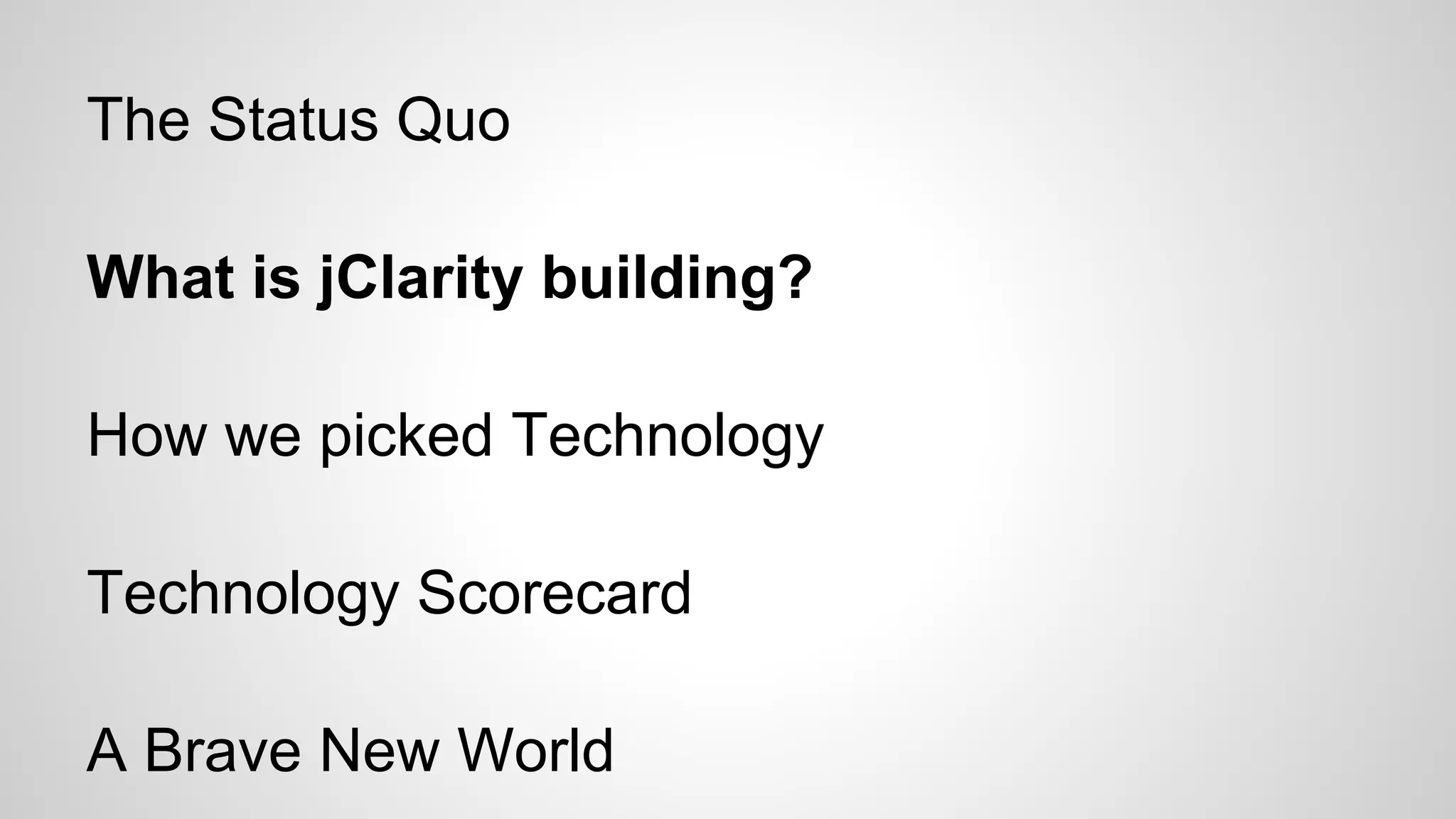

- 8. The Status Quo Whatis jClarity building? How we picked Technology Technology Scorecard A Brave New World

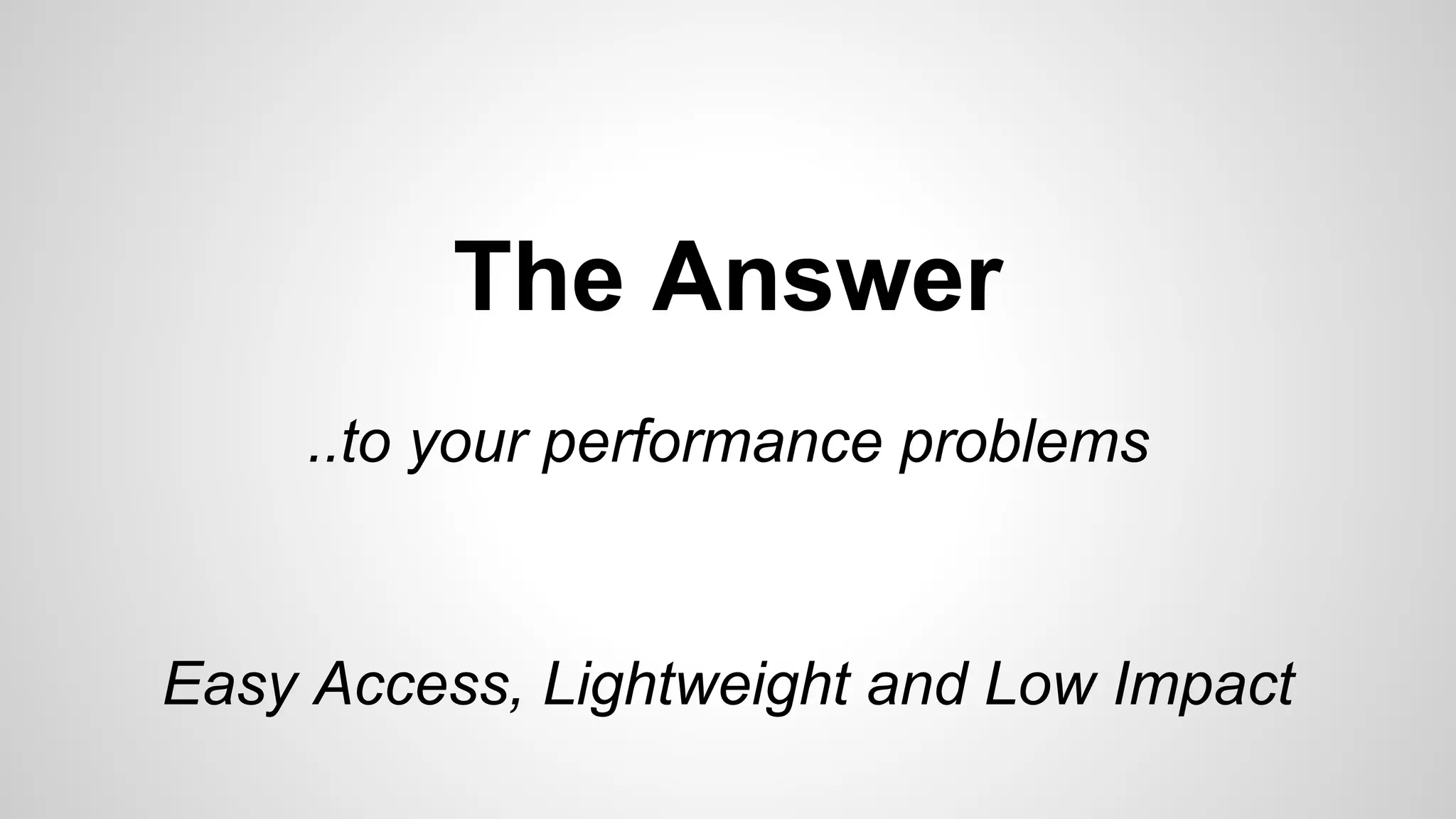

- 9. The Answer ..to yourperformance problems Easy Access, Lightweight and Low Impact

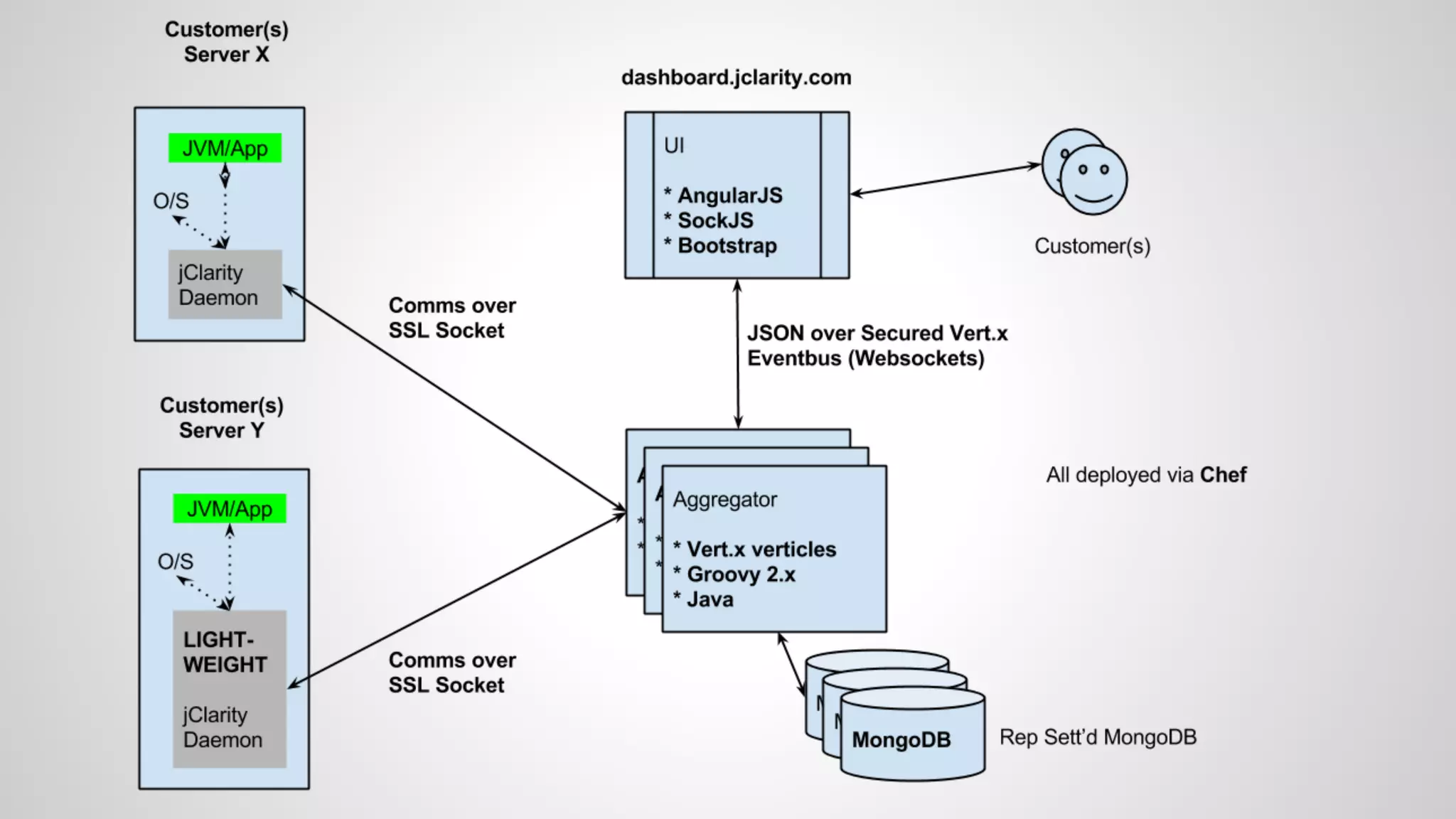

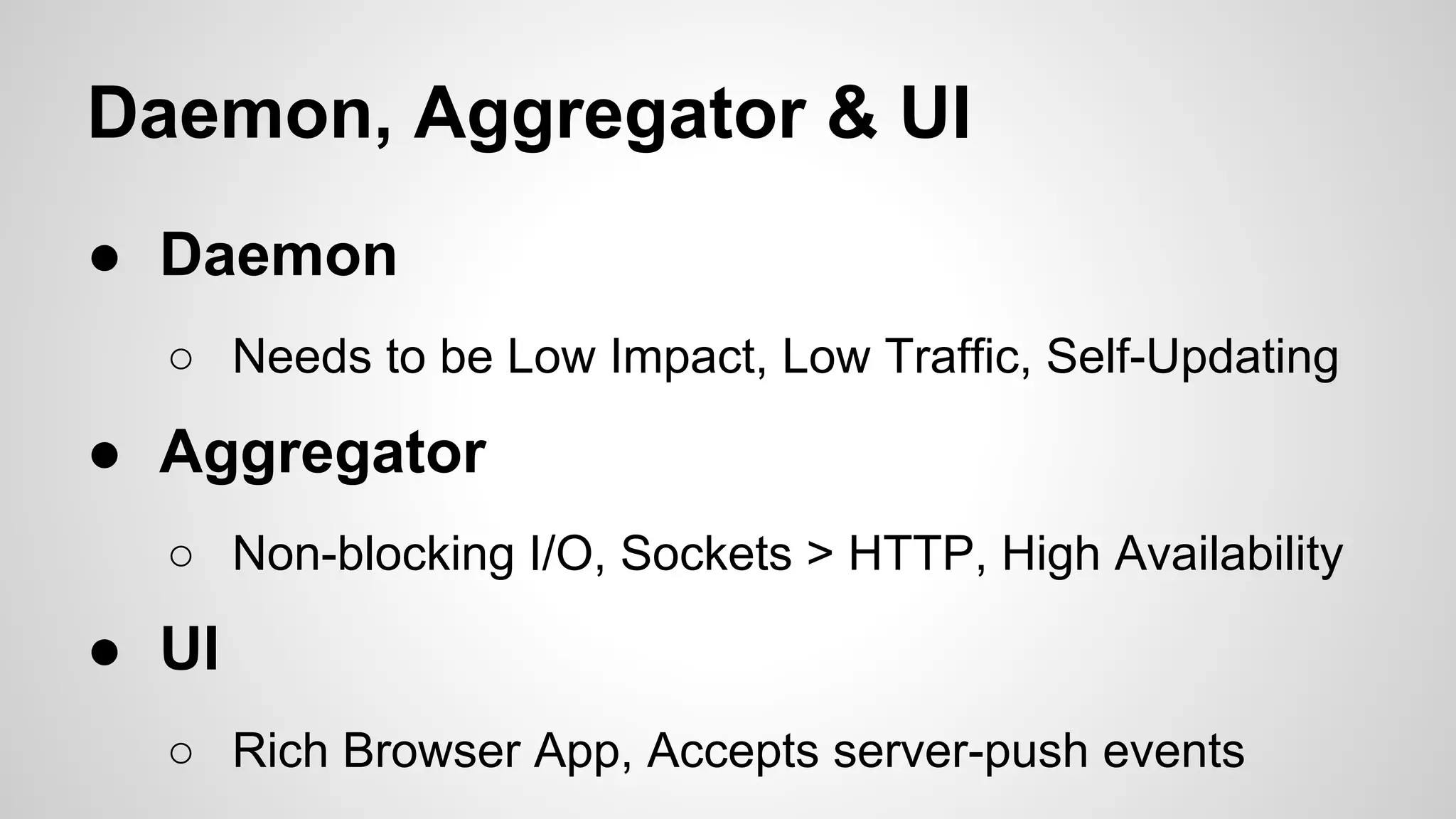

- 11. Daemon, Aggregator &UI ● Daemon ○ Needs to be Low Impact, Low Traffic, Self-Updating ● Aggregator ○ Non-blocking I/O, Sockets > HTTP, High Availability ● UI ○ Rich Browser App, Accepts server-push events

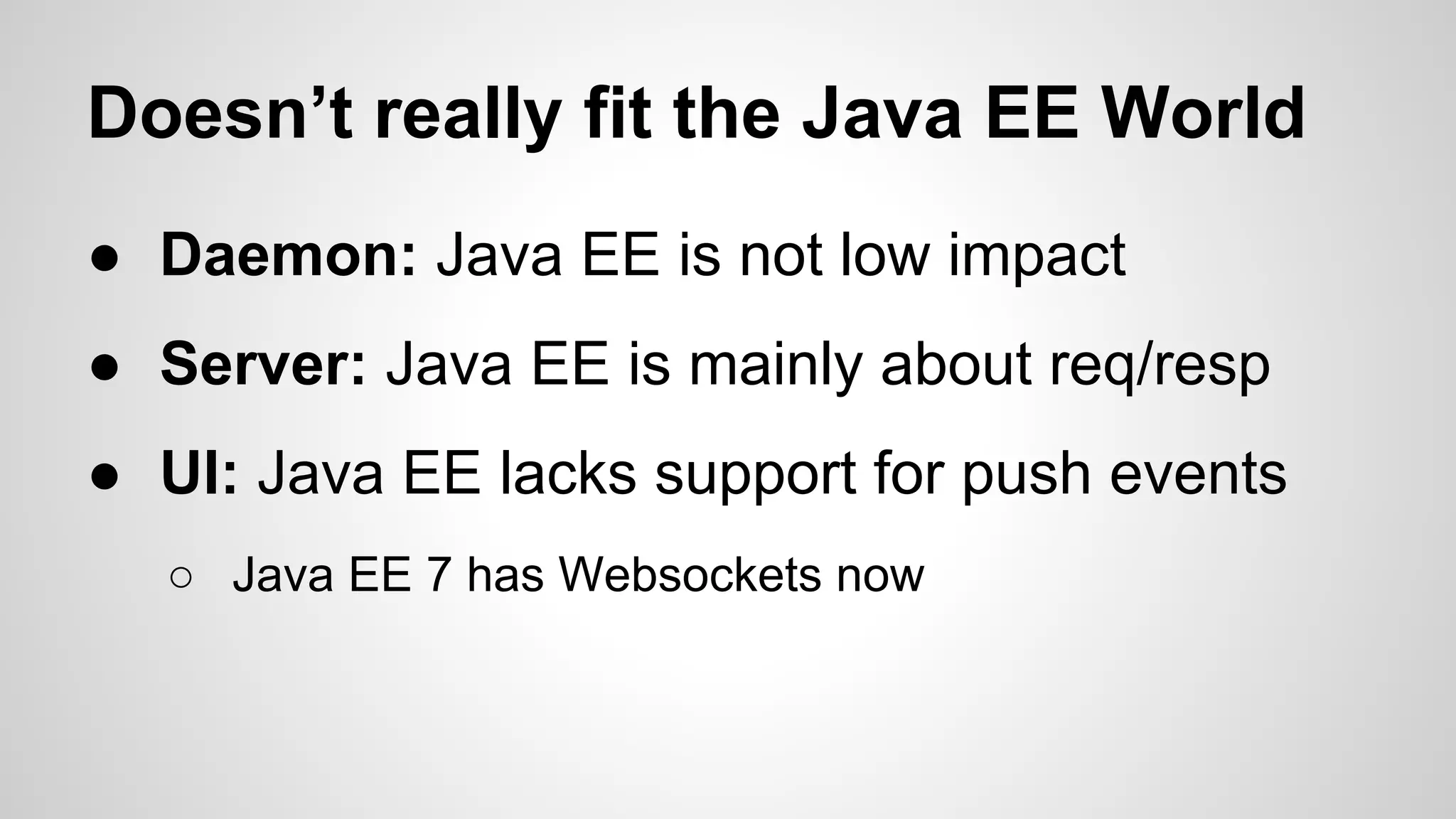

- 12. Doesn’t really fitthe Java EE World ● Daemon: Java EE is not low impact ● Server: Java EE is mainly about req/resp ● UI: Java EE lacks support for push events ○ Java EE 7 has Websockets now

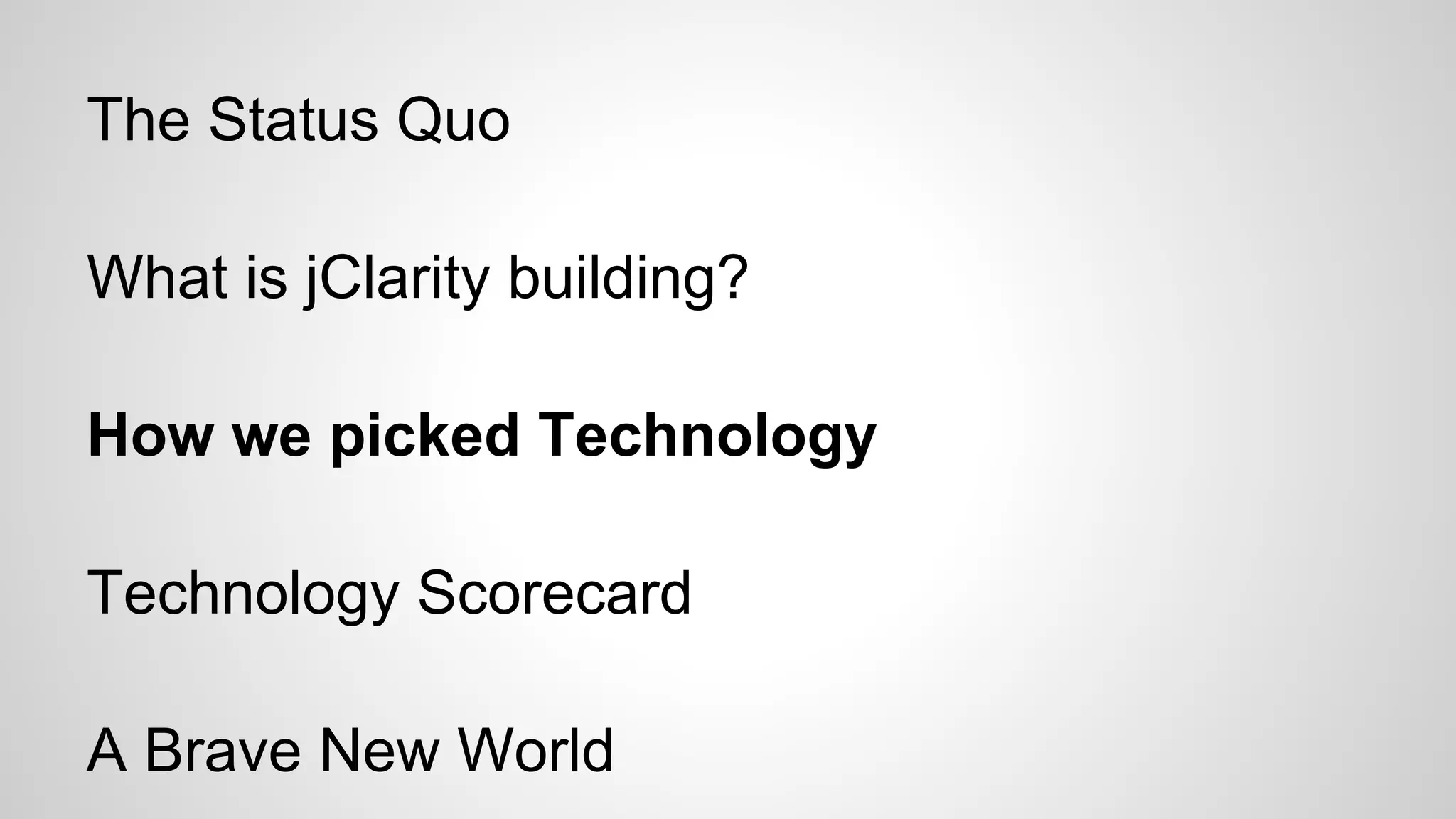

- 13. The Status Quo Whatis jClarity building? How we picked Technology Technology Scorecard A Brave New World

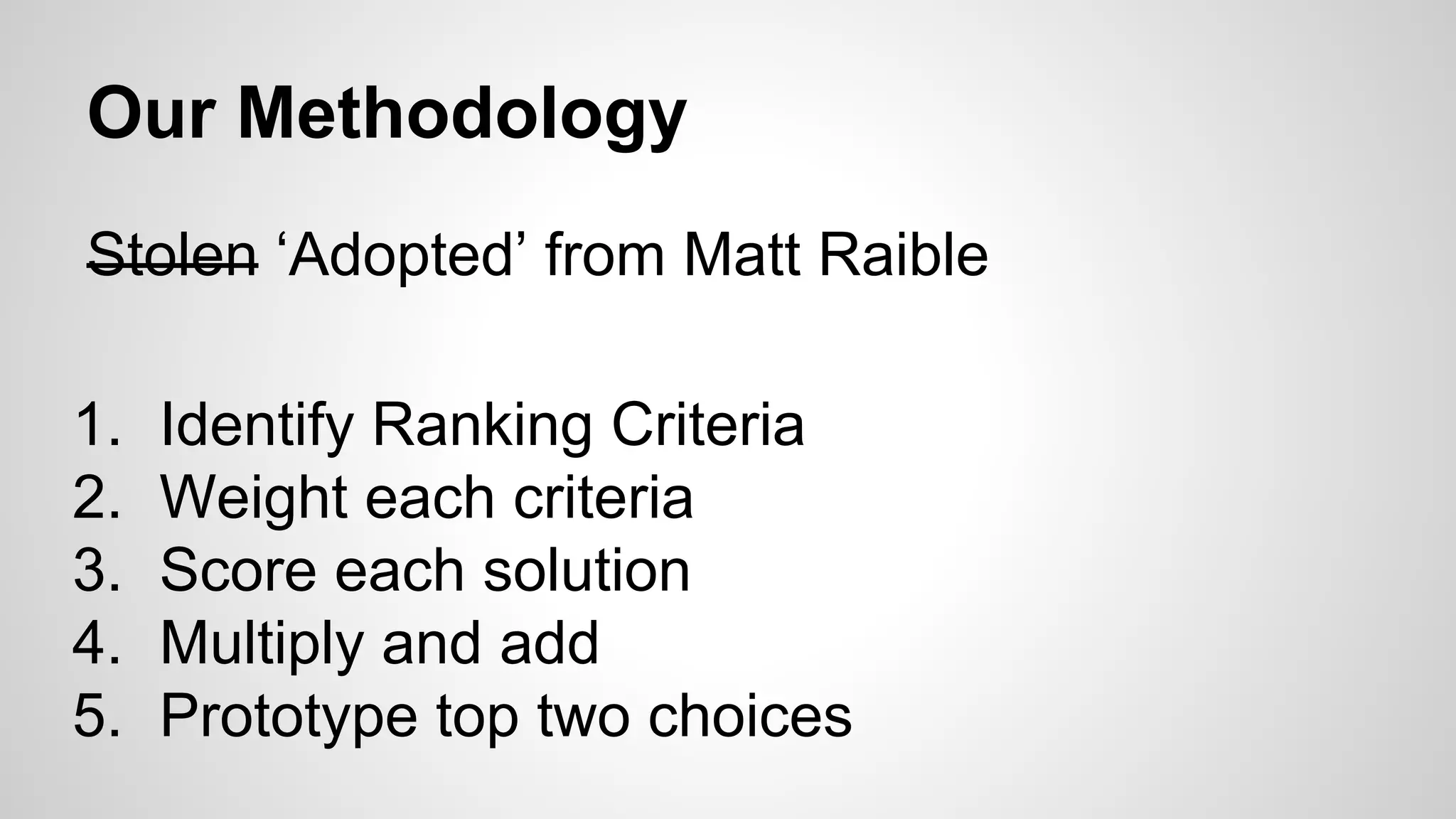

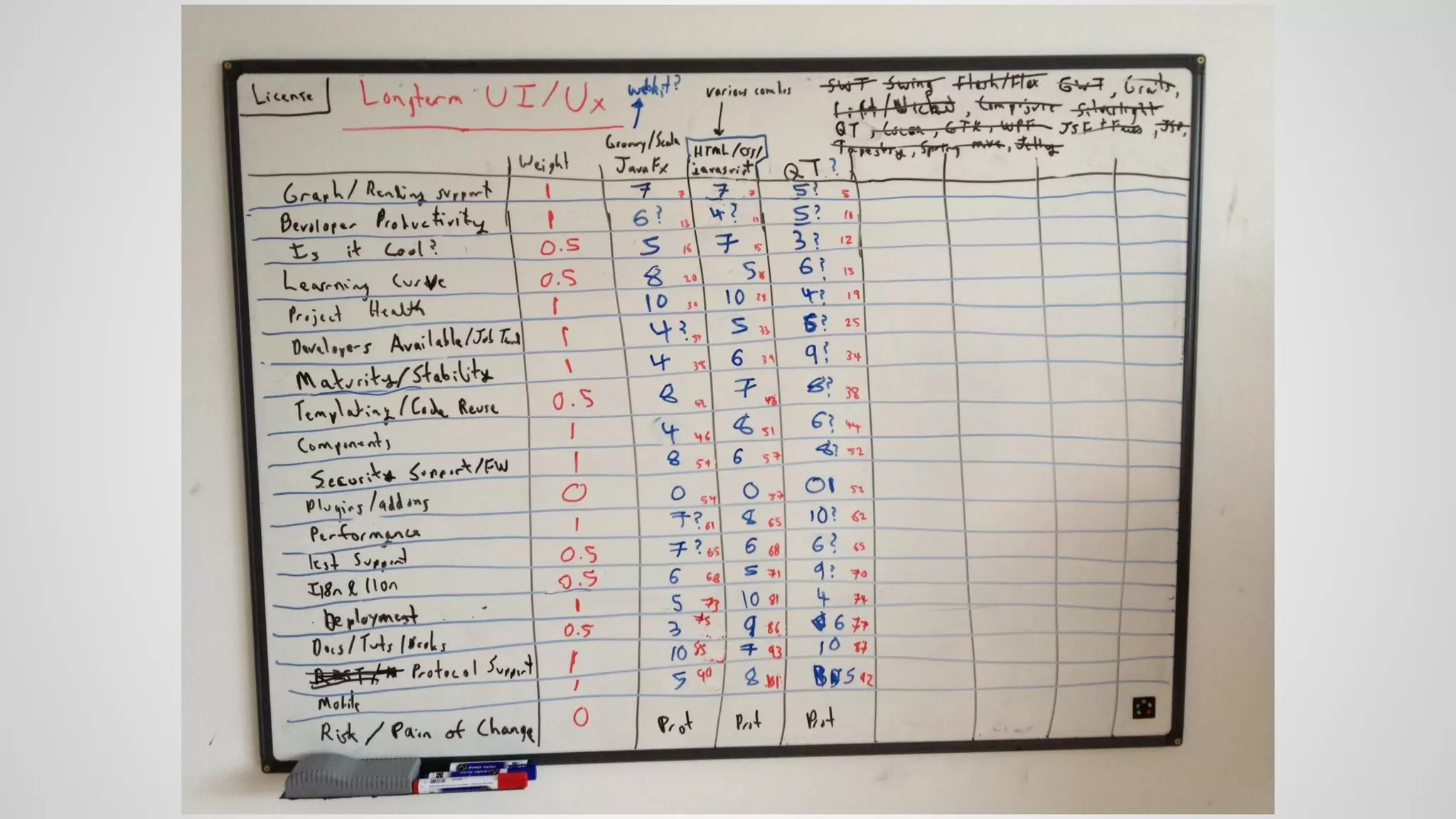

- 15. Our Methodology Stolen ‘Adopted’from Matt Raible 1. 2. 3. 4. 5. Identify Ranking Criteria Weight each criteria Score each solution Multiply and add Prototype top two choices

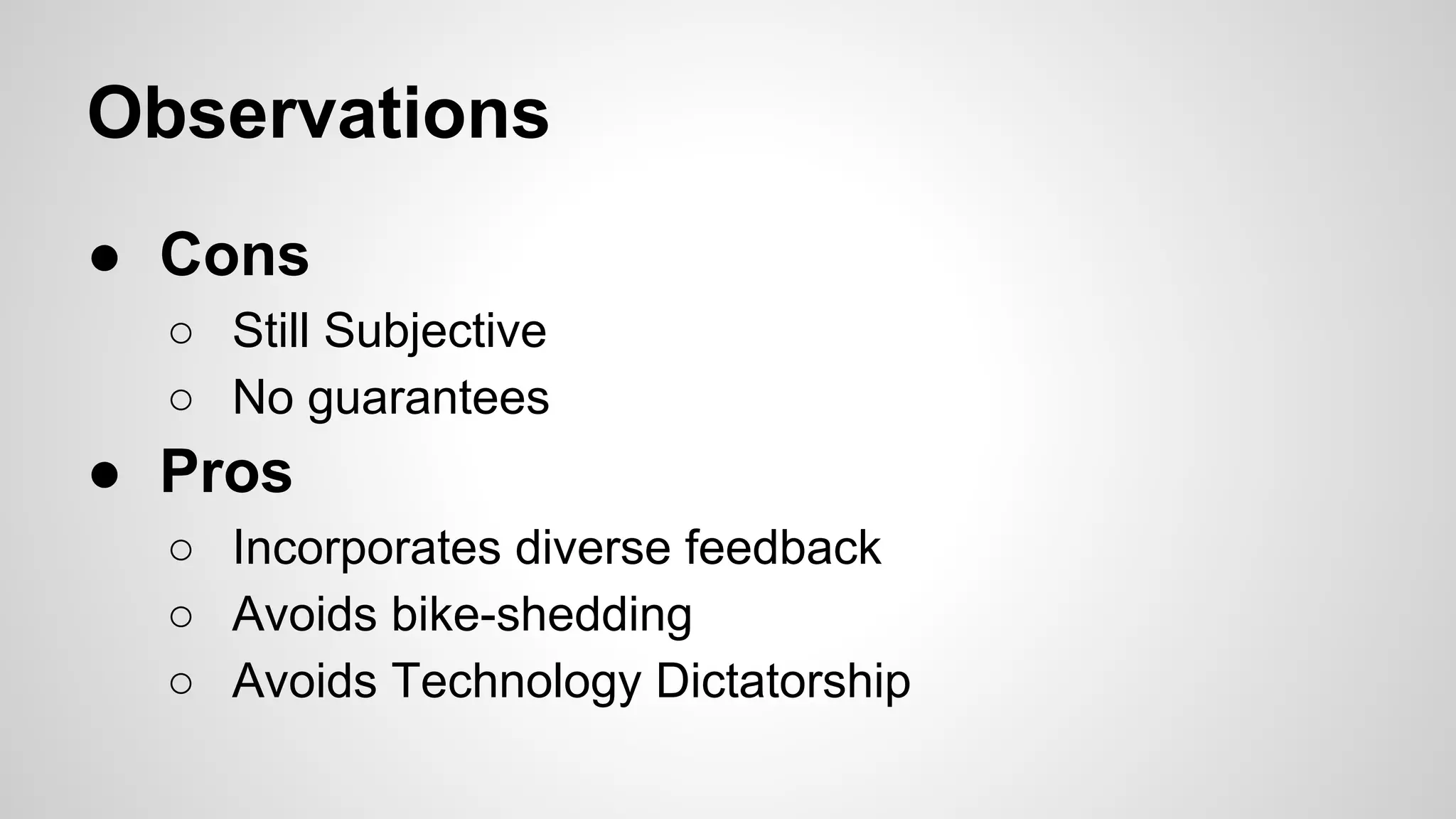

- 17. Observations ● Cons ○ StillSubjective ○ No guarantees ● Pros ○ Incorporates diverse feedback ○ Avoids bike-shedding ○ Avoids Technology Dictatorship

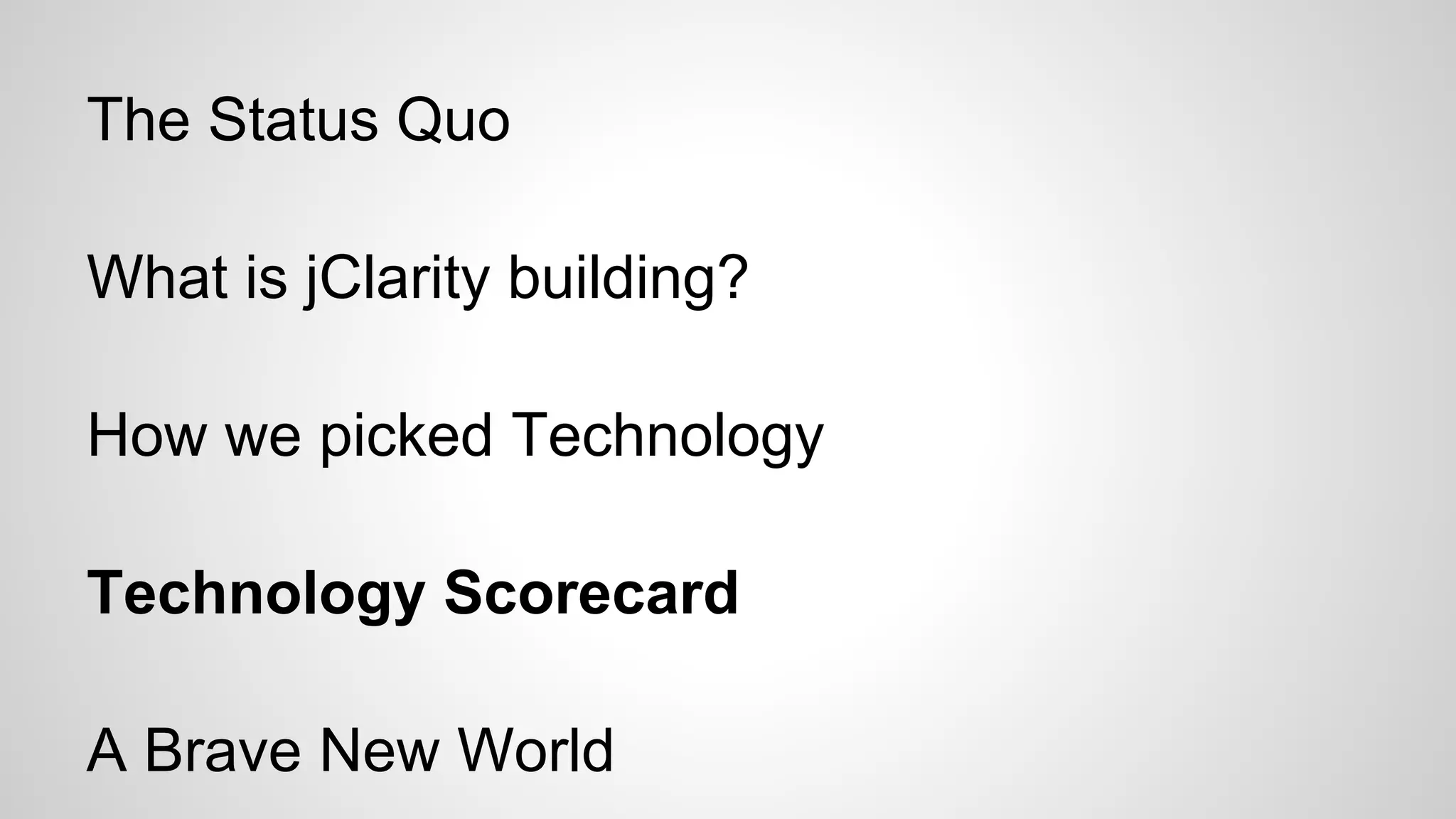

- 18. The Status Quo Whatis jClarity building? How we picked Technology Technology Scorecard A Brave New World
- 19. What Tech Stackdid we pick?

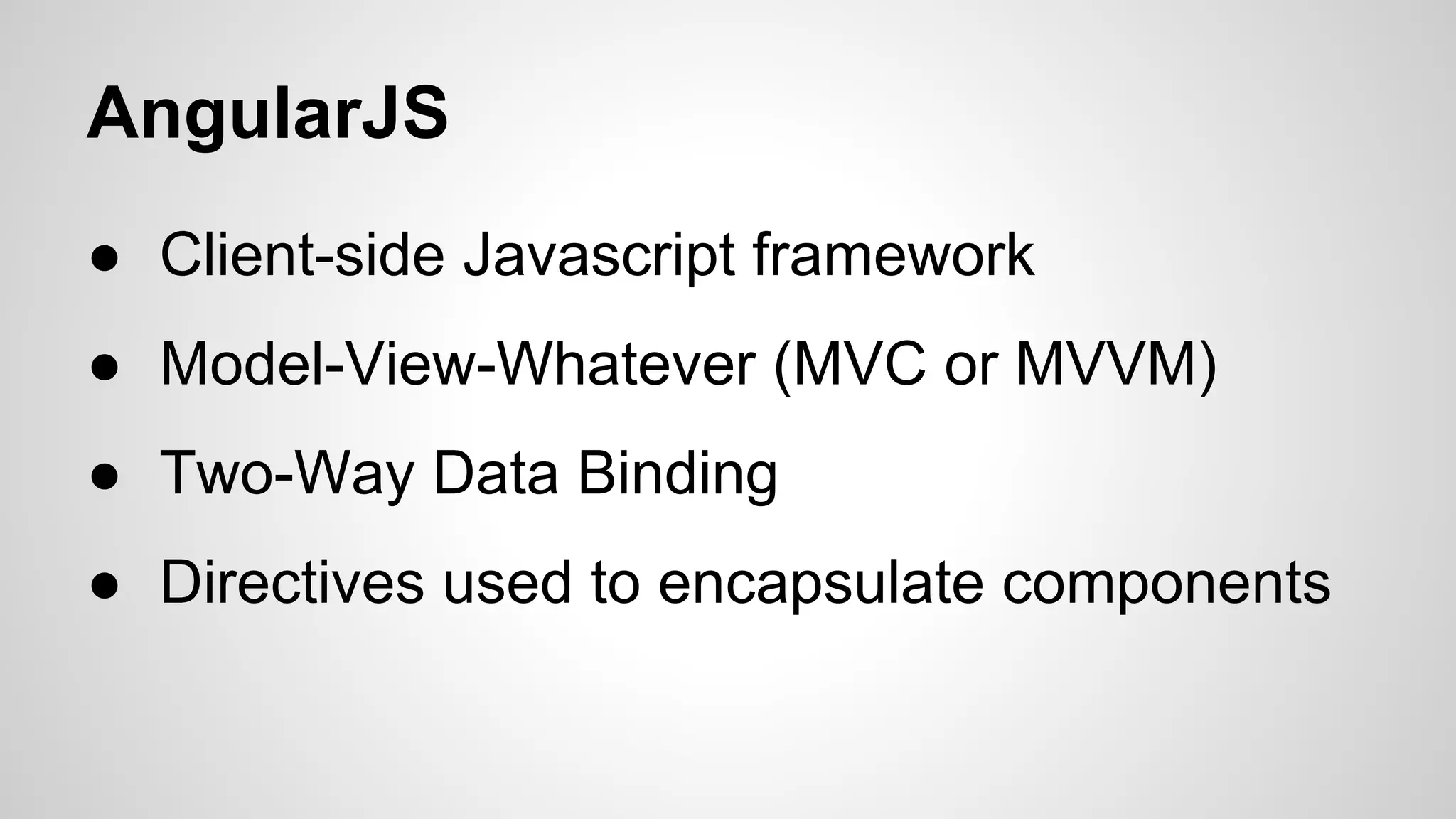

- 21. AngularJS ● Client-side Javascriptframework ● Model-View-Whatever (MVC or MVVM) ● Two-Way Data Binding ● Directives used to encapsulate components

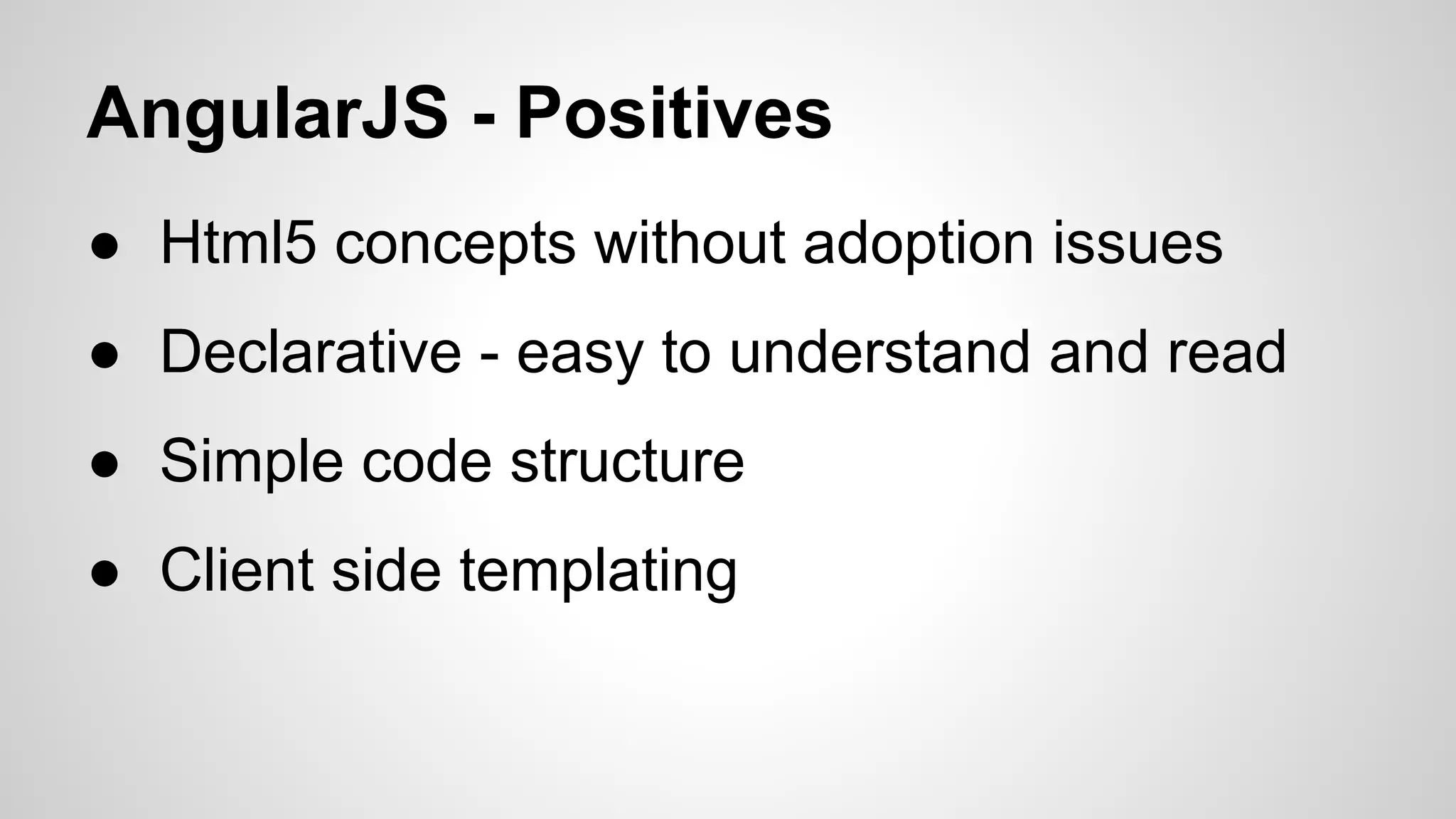

- 22. AngularJS - Positives ●Html5 concepts without adoption issues ● Declarative - easy to understand and read ● Simple code structure ● Client side templating

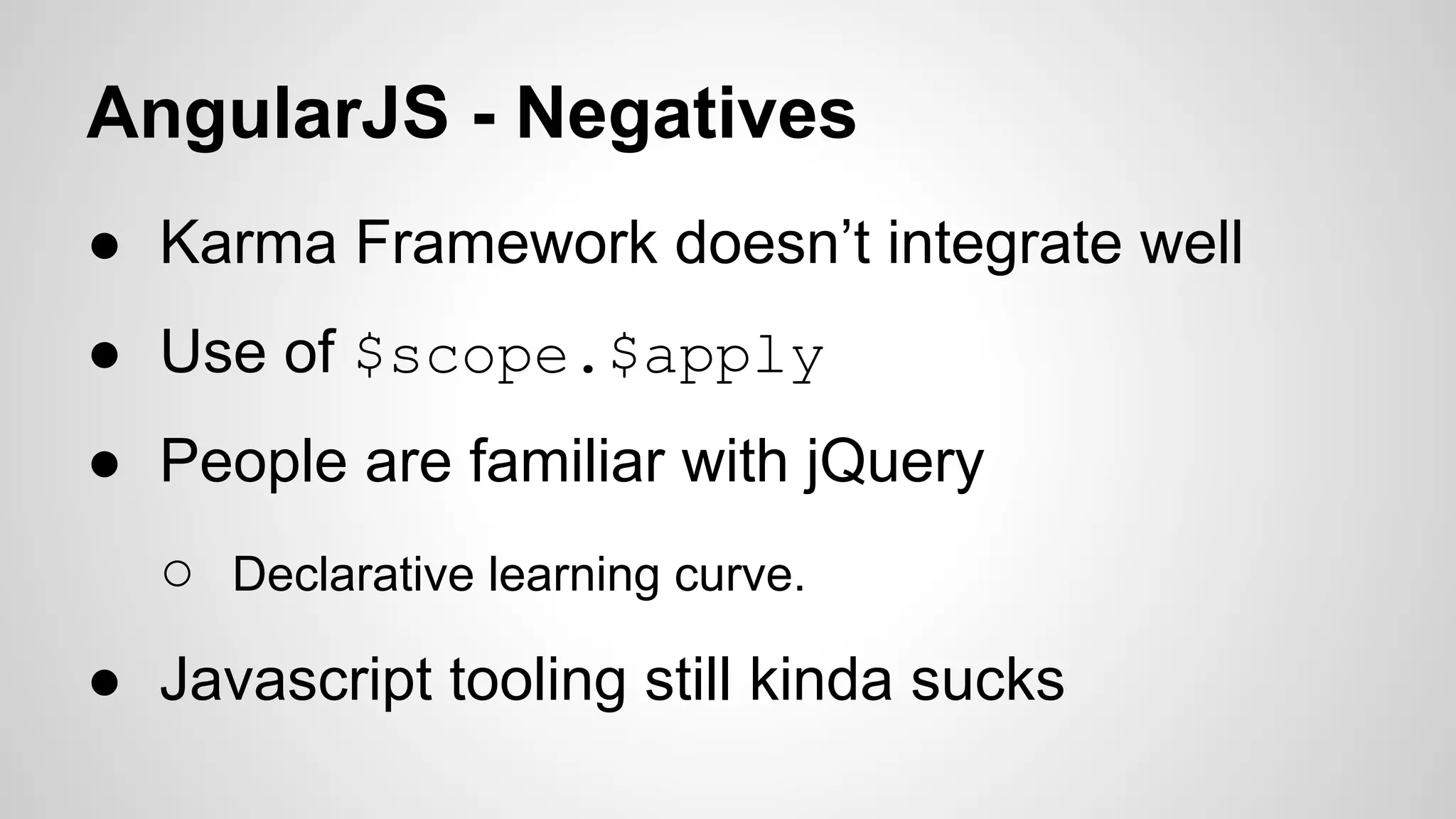

- 23. AngularJS - Negatives ●Karma Framework doesn’t integrate well ● Use of $scope.$apply ● People are familiar with jQuery ○ Declarative learning curve. ● Javascript tooling still kinda sucks

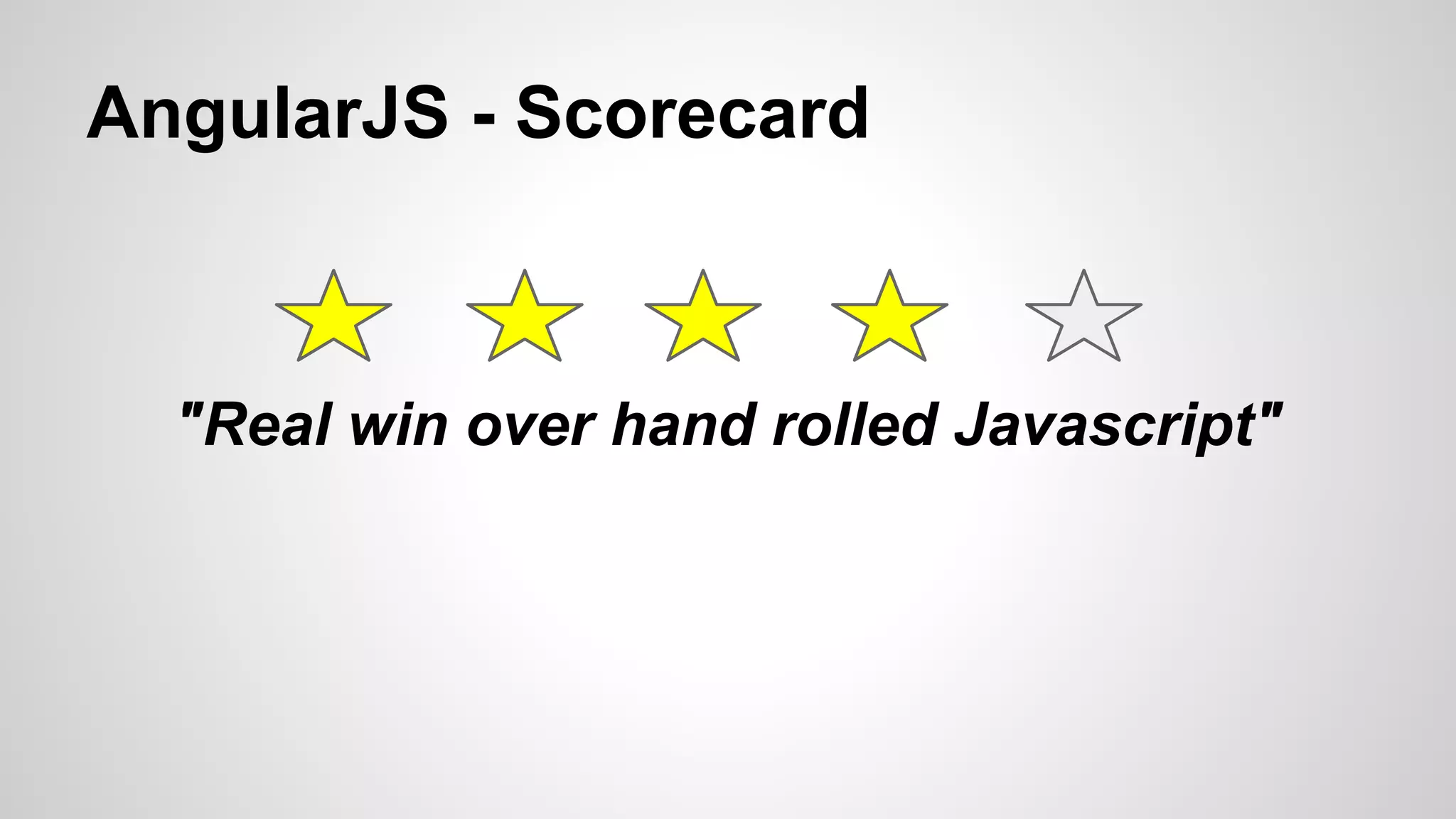

- 24. AngularJS - Scorecard "Realwin over hand rolled Javascript"

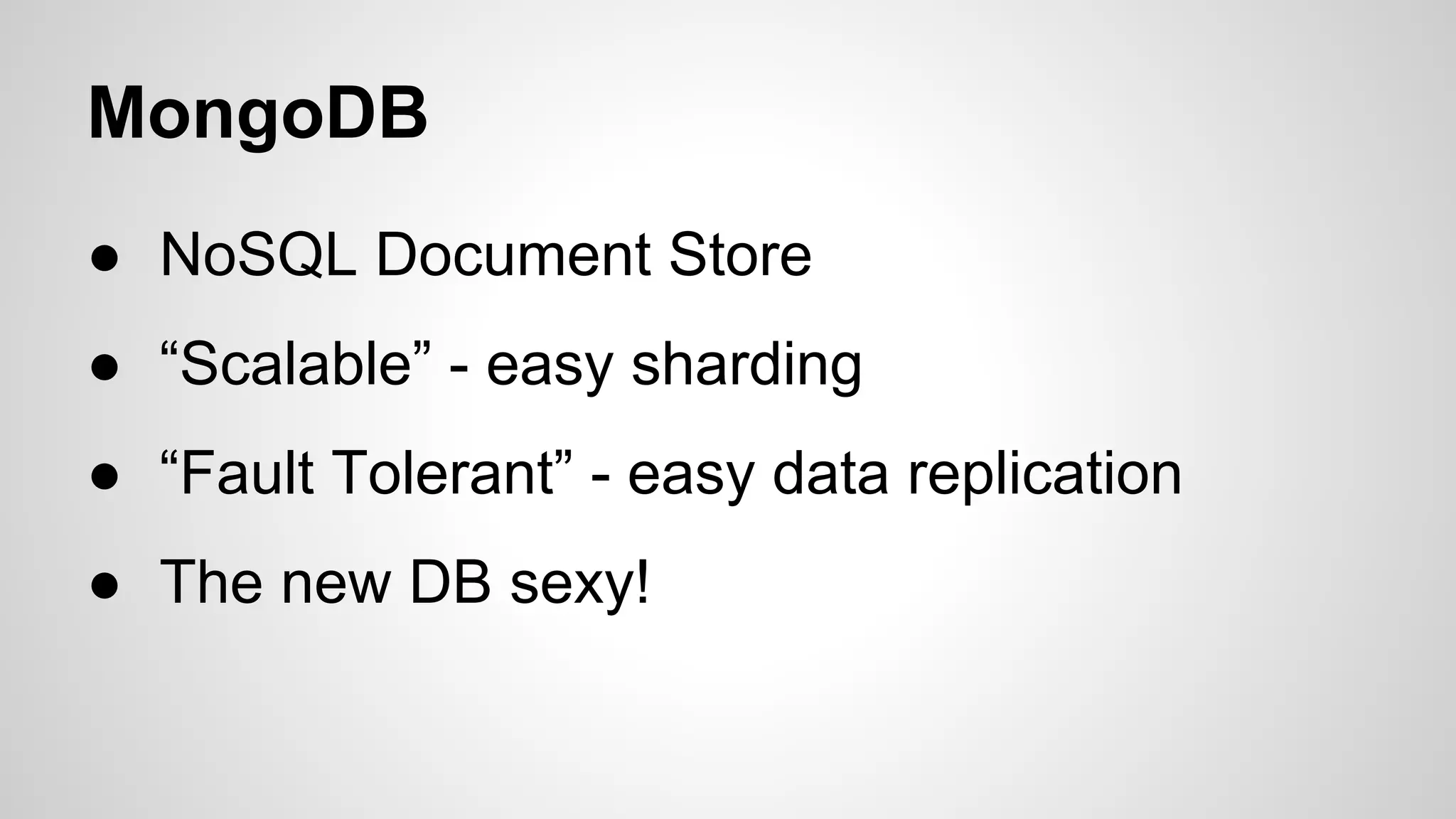

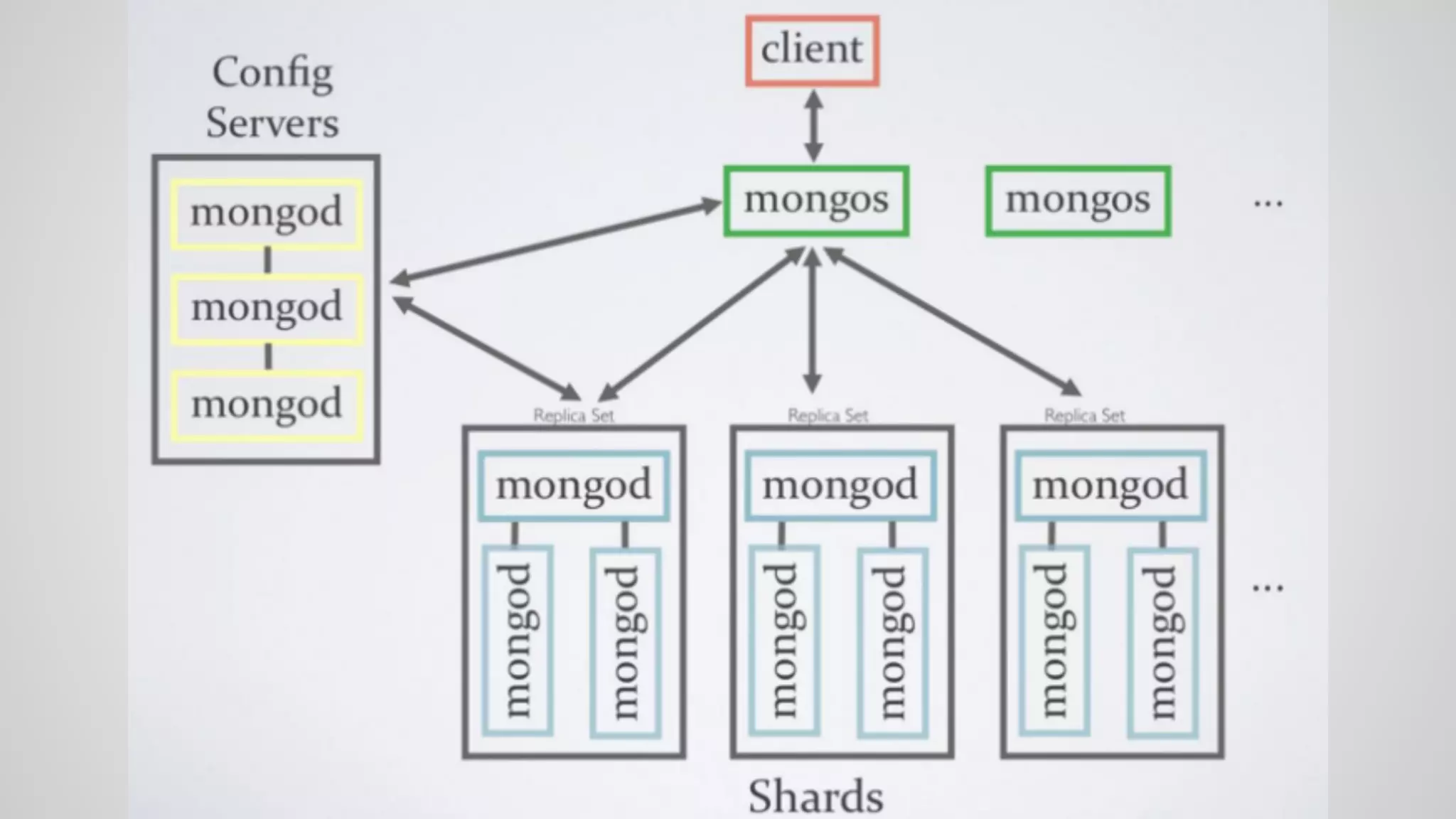

- 25. MongoDB ● NoSQL DocumentStore ● “Scalable” - easy sharding ● “Fault Tolerant” - easy data replication ● The new DB sexy!

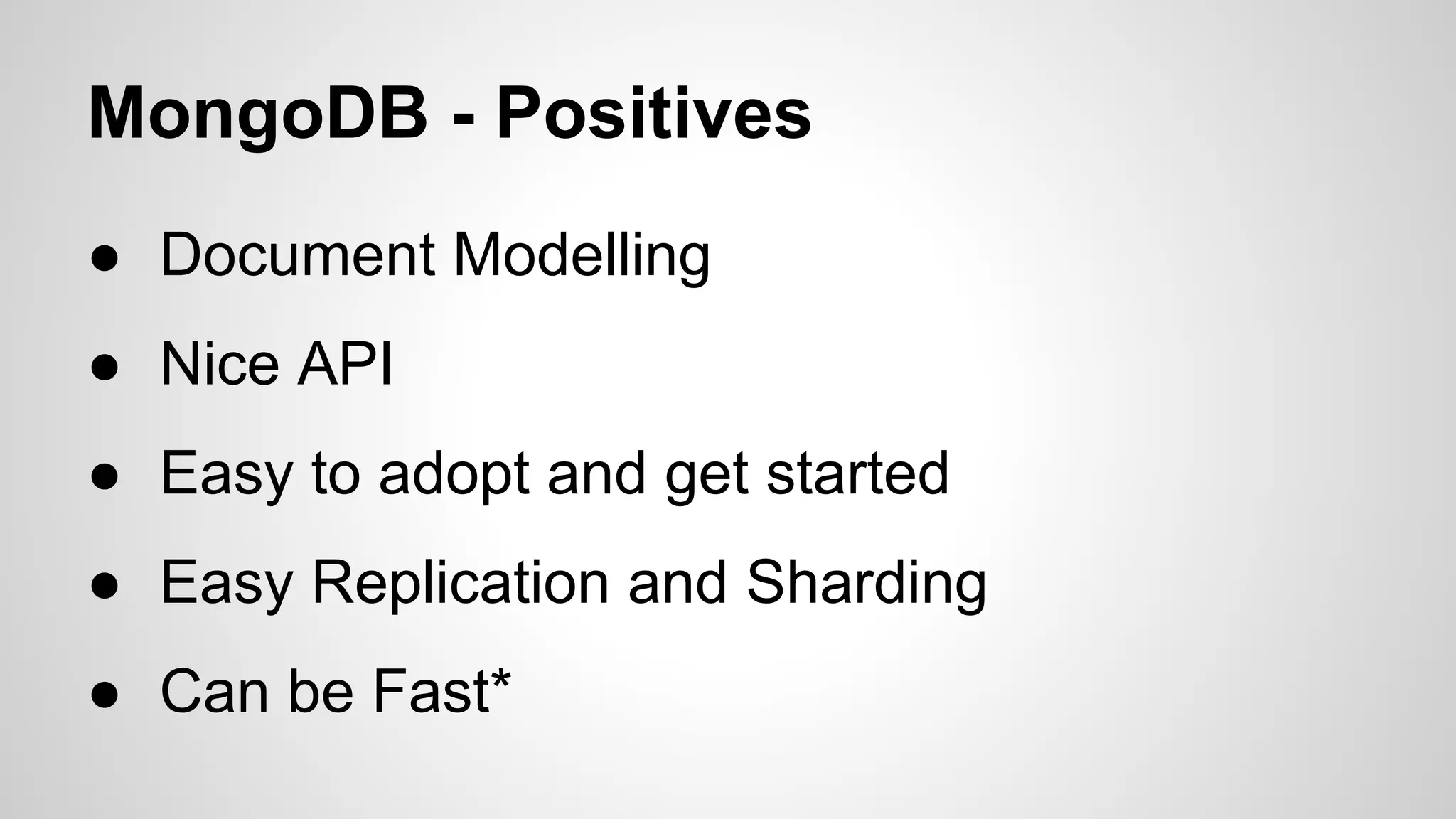

- 27. MongoDB - Positives ●Document Modelling ● Nice API ● Easy to adopt and get started ● Easy Replication and Sharding ● Can be Fast*

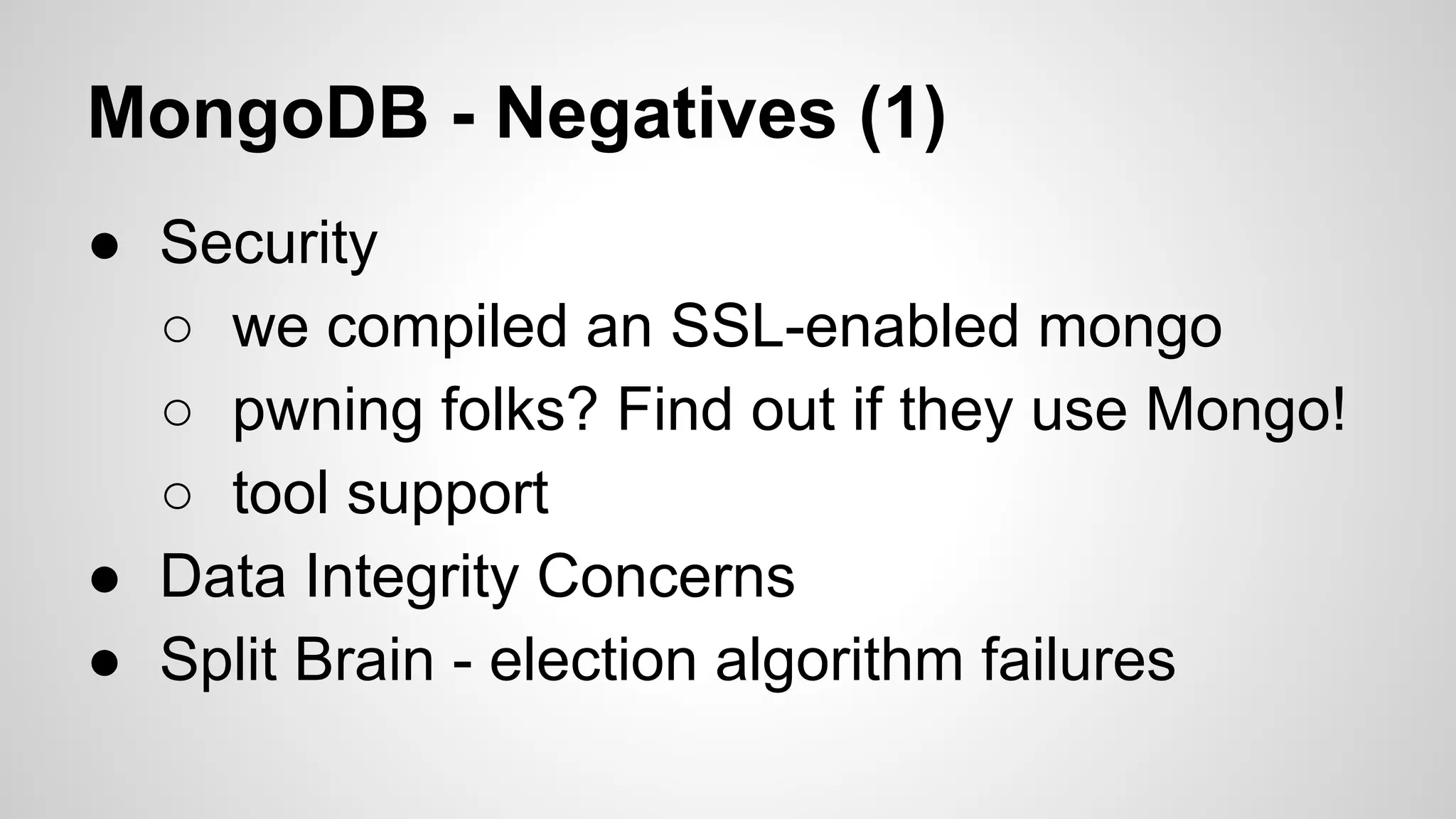

- 28. MongoDB - Negatives(1) ● Security ○ we compiled an SSL-enabled mongo ○ pwning folks? Find out if they use Mongo! ○ tool support ● Data Integrity Concerns ● Split Brain - election algorithm failures

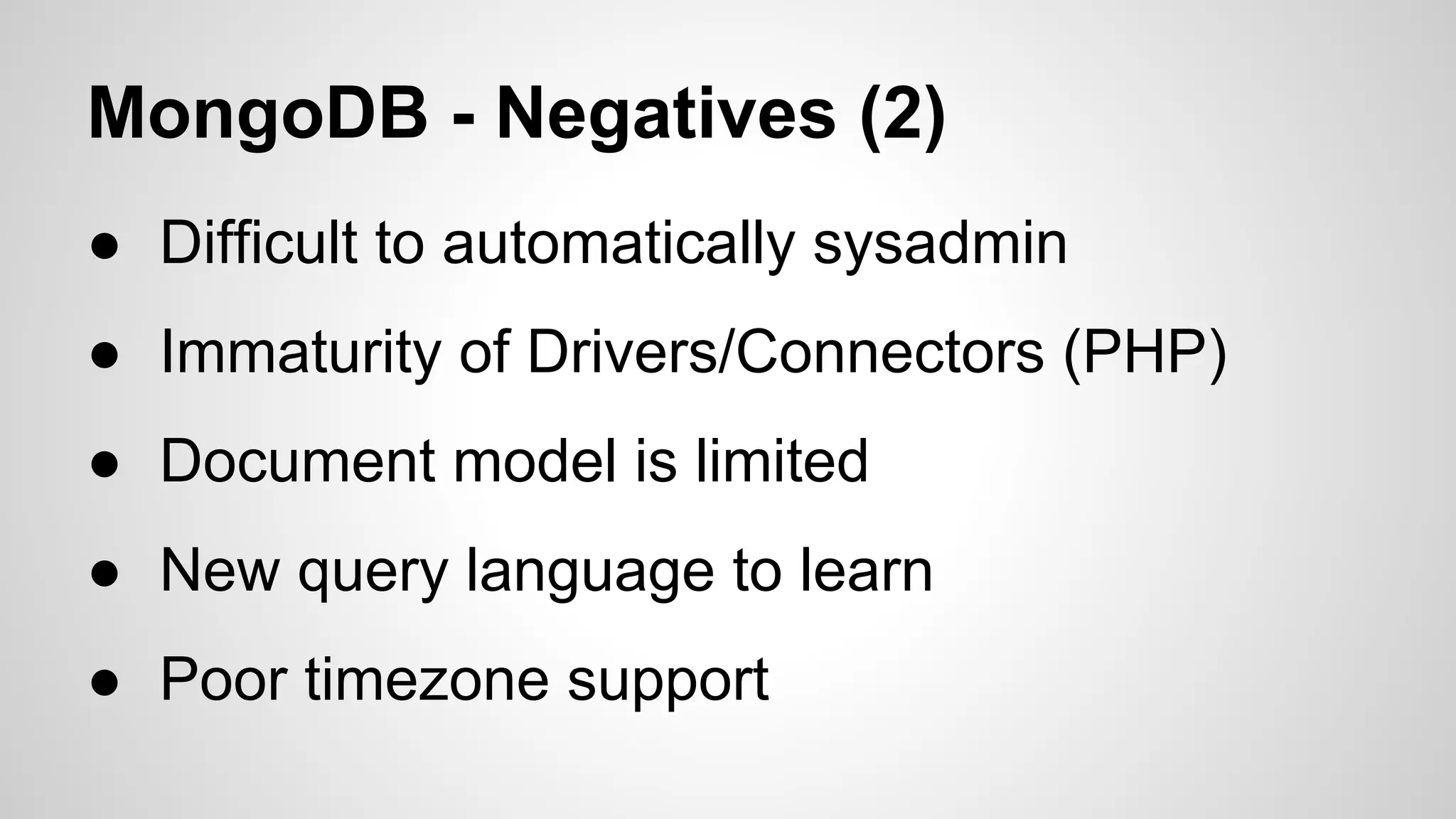

- 29. MongoDB - Negatives(2) ● Difficult to automatically sysadmin ● Immaturity of Drivers/Connectors (PHP) ● Document model is limited ● New query language to learn ● Poor timezone support

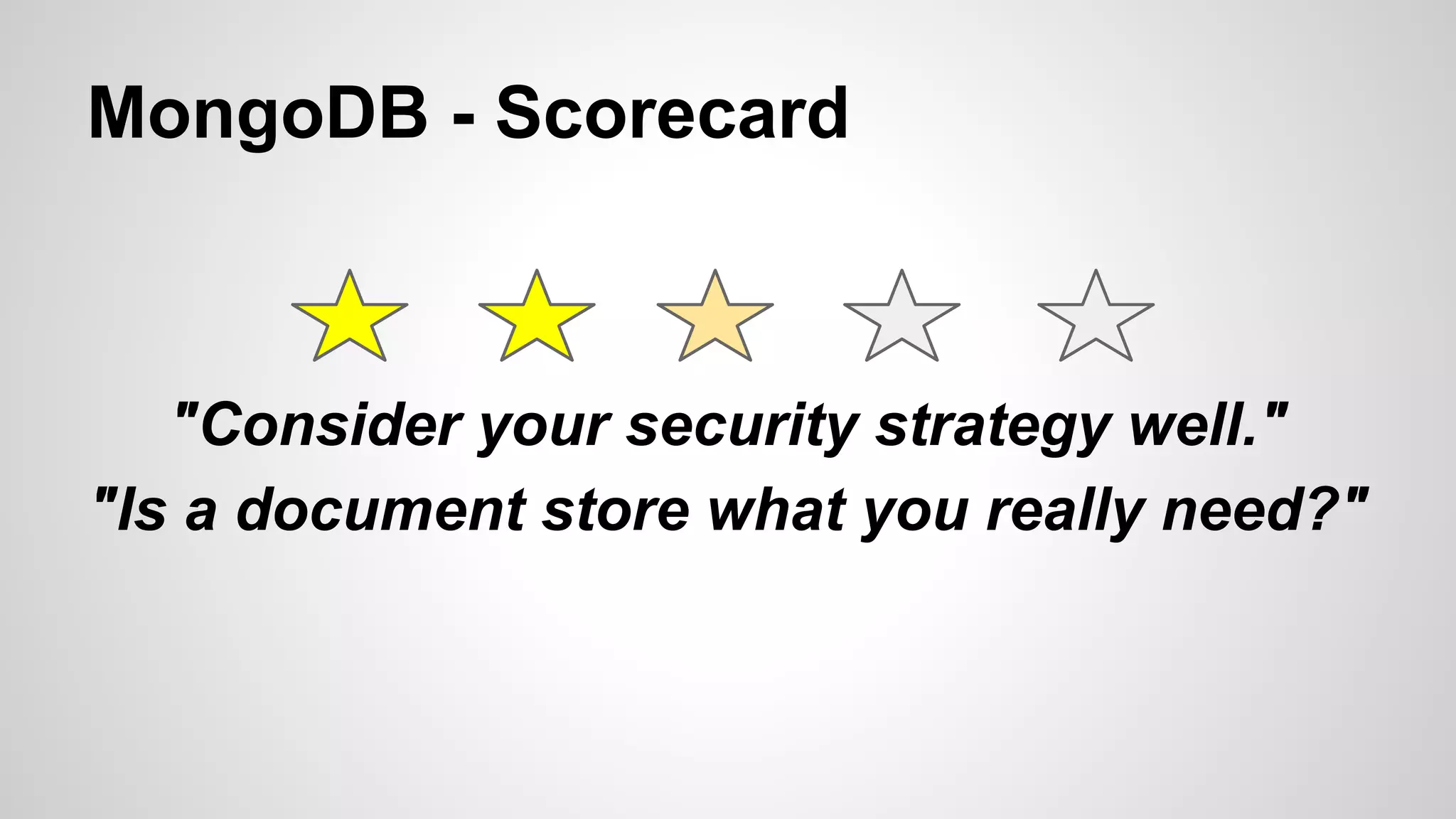

- 30. MongoDB - Scorecard "Consideryour security strategy well." "Is a document store what you really need?"

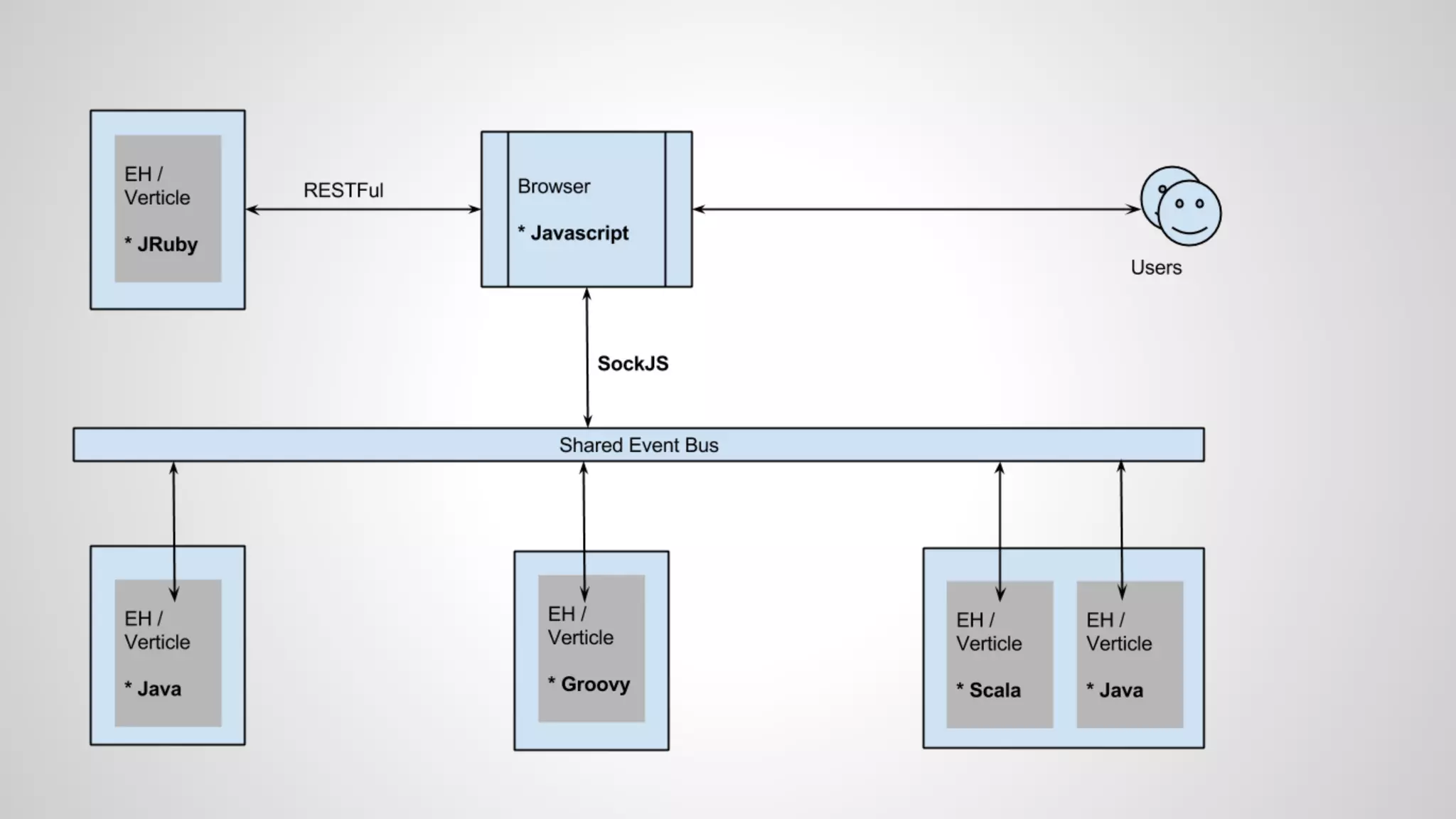

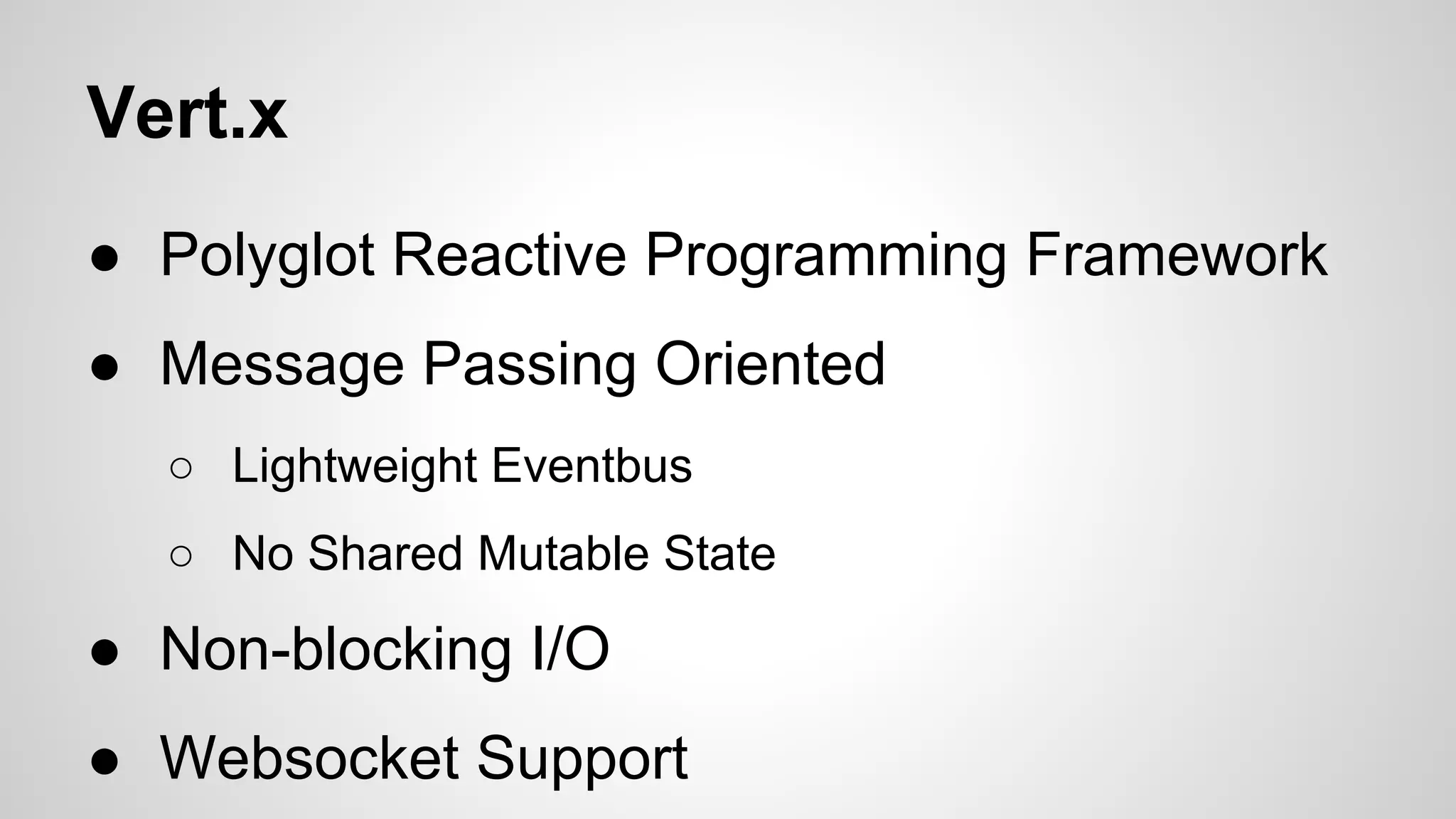

- 31. Vert.x ● Polyglot ReactiveProgramming Framework ● Message Passing Oriented ○ Lightweight Eventbus ○ No Shared Mutable State ● Non-blocking I/O ● Websocket Support

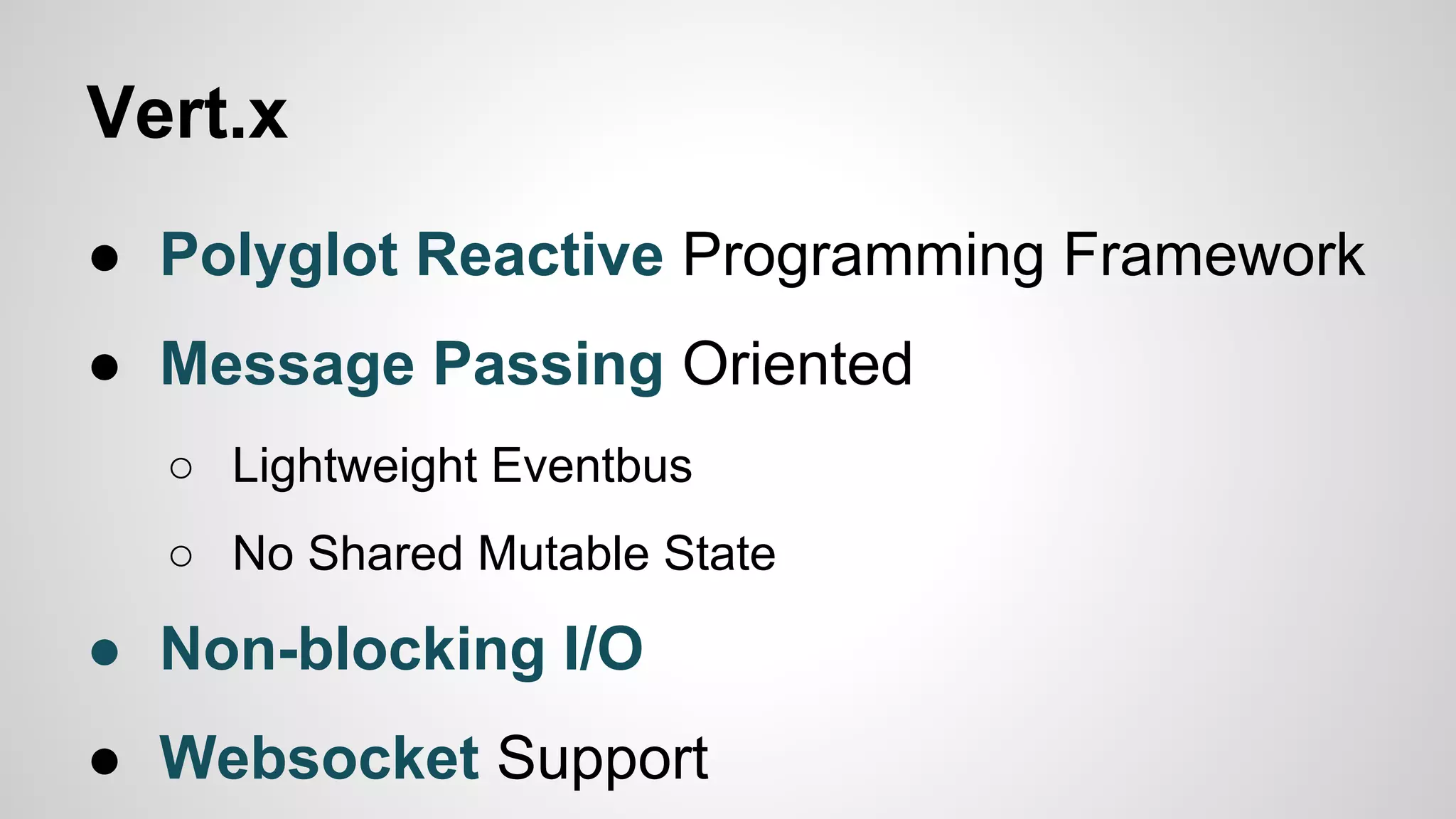

- 32. Vert.x ● Polyglot ReactiveProgramming Framework ● Message Passing Oriented ○ Lightweight Eventbus ○ No Shared Mutable State ● Non-blocking I/O ● Websocket Support

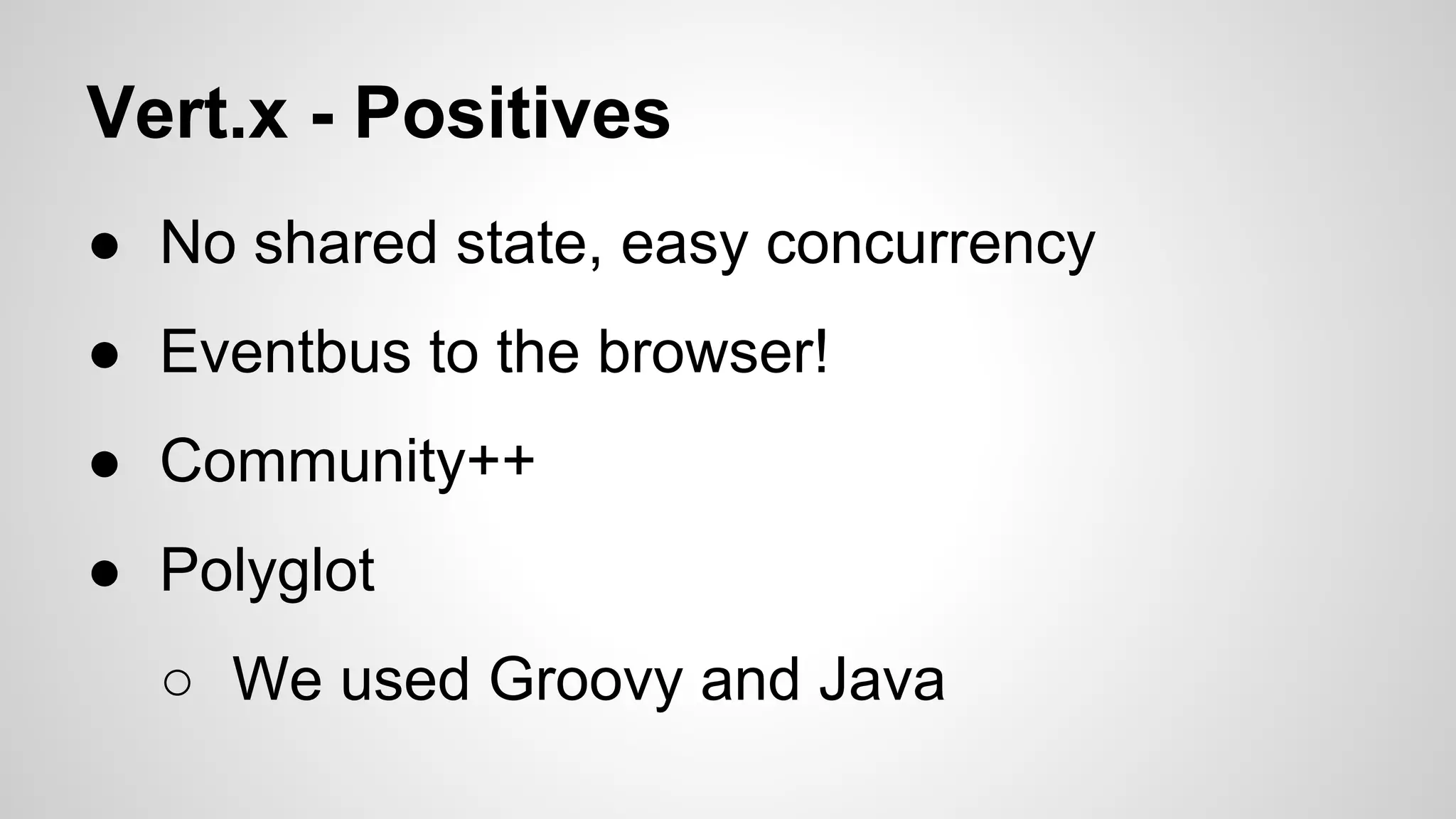

- 34. Vert.x - Positives ●No shared state, easy concurrency ● Eventbus to the browser! ● Community++ ● Polyglot ○ We used Groovy and Java

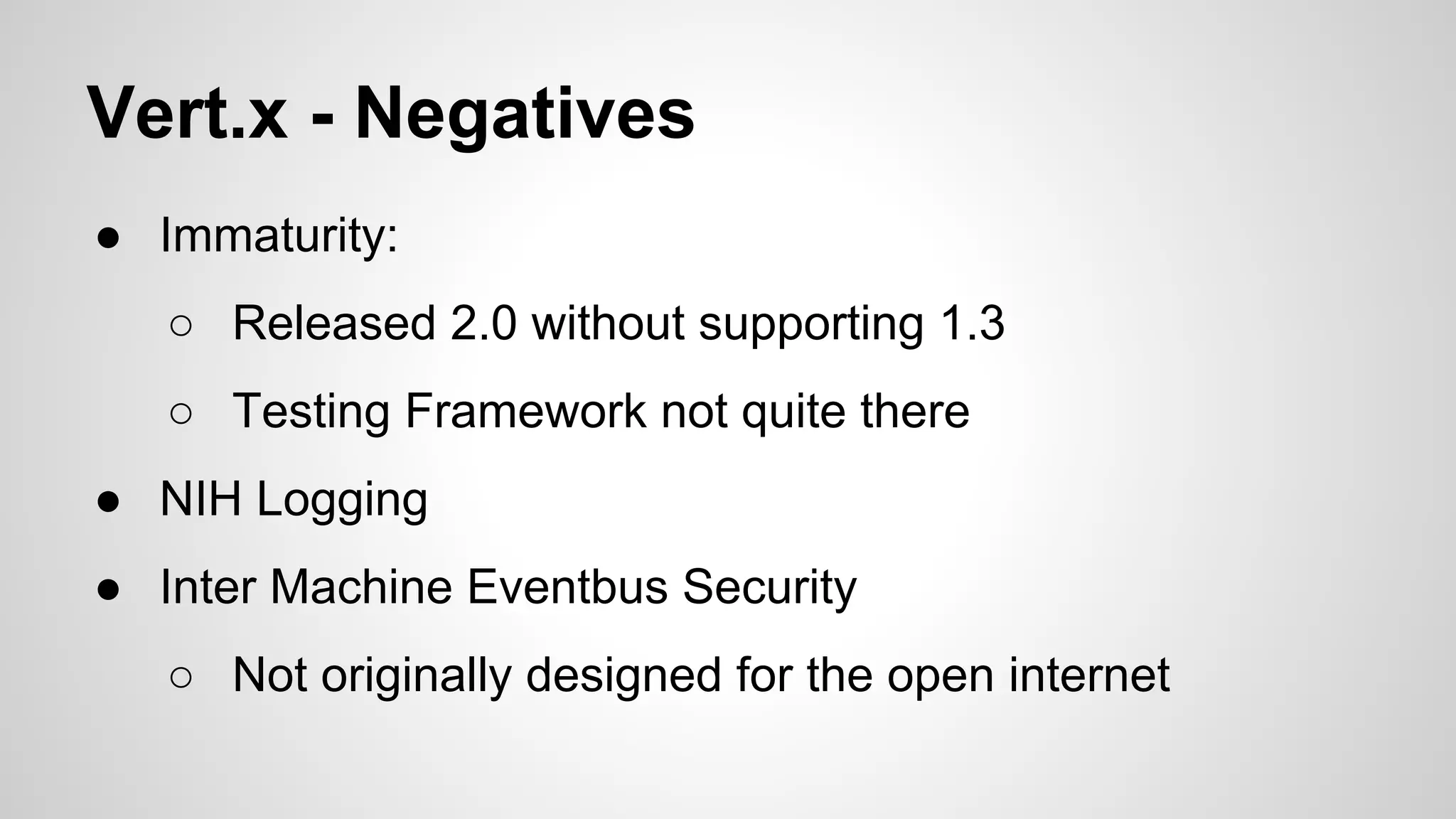

- 35. Vert.x - Negatives ●Immaturity: ○ Released 2.0 without supporting 1.3 ○ Testing Framework not quite there ● NIH Logging ● Inter Machine Eventbus Security ○ Not originally designed for the open internet

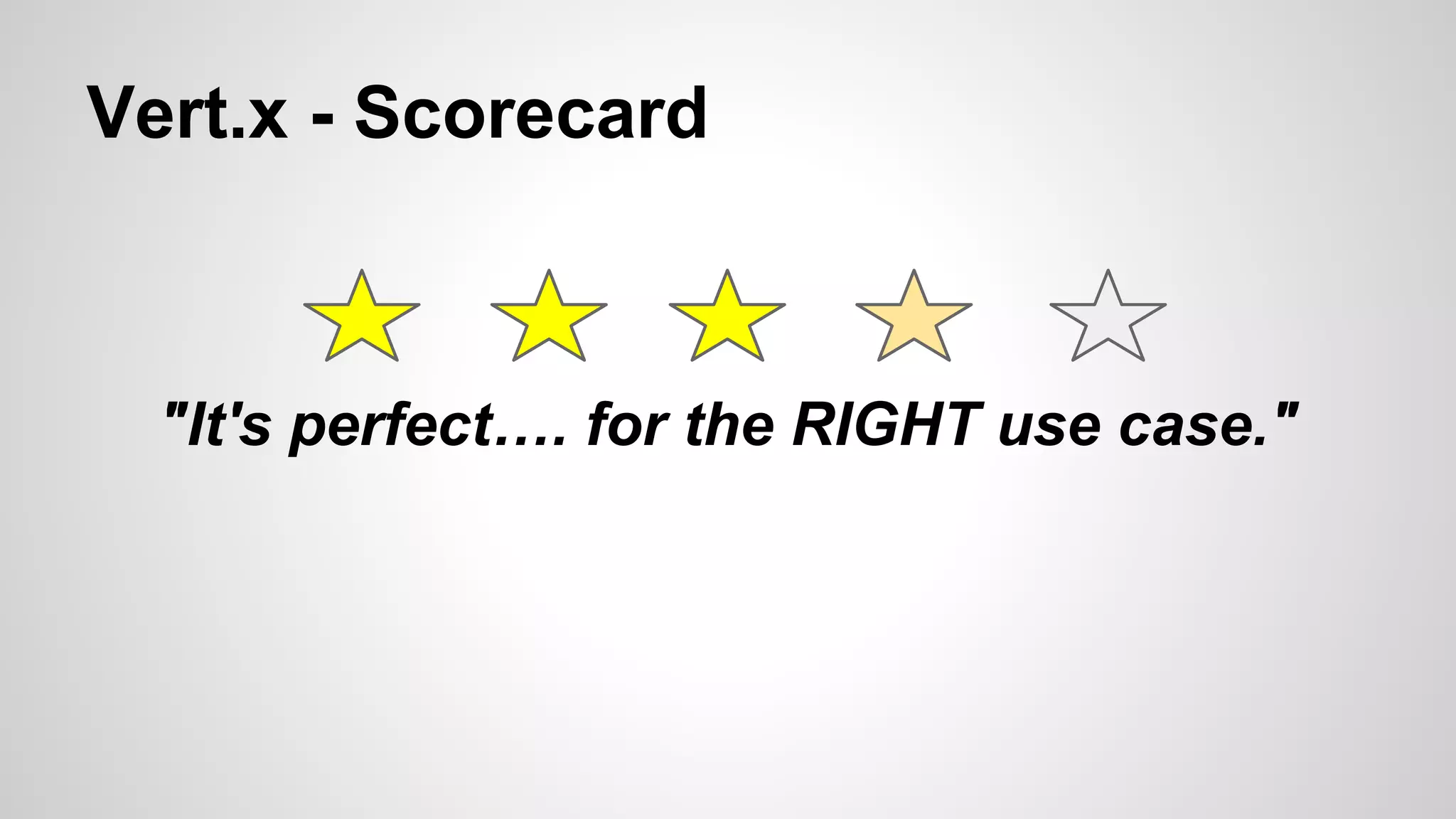

- 36. Vert.x - Scorecard "It'sperfect…. for the RIGHT use case."
- 37. Chef ● Automates serverconfiguration ○ Centralised repo of pre-built recipes ○ Ruby based DSL ● Can also automate application deployment ○ Run update to deploy config/binaries

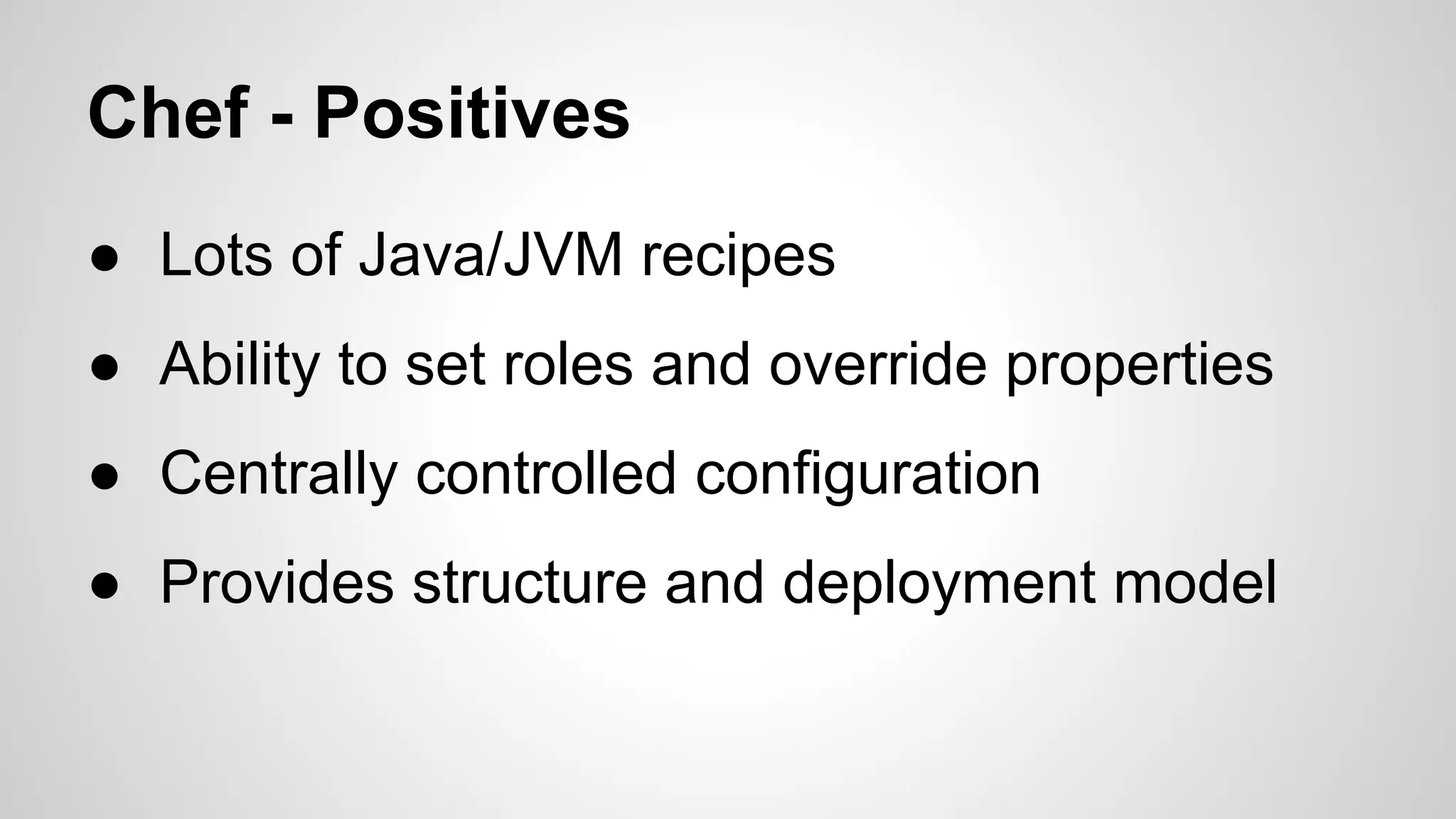

- 38. Chef - Positives ●Lots of Java/JVM recipes ● Ability to set roles and override properties ● Centrally controlled configuration ● Provides structure and deployment model

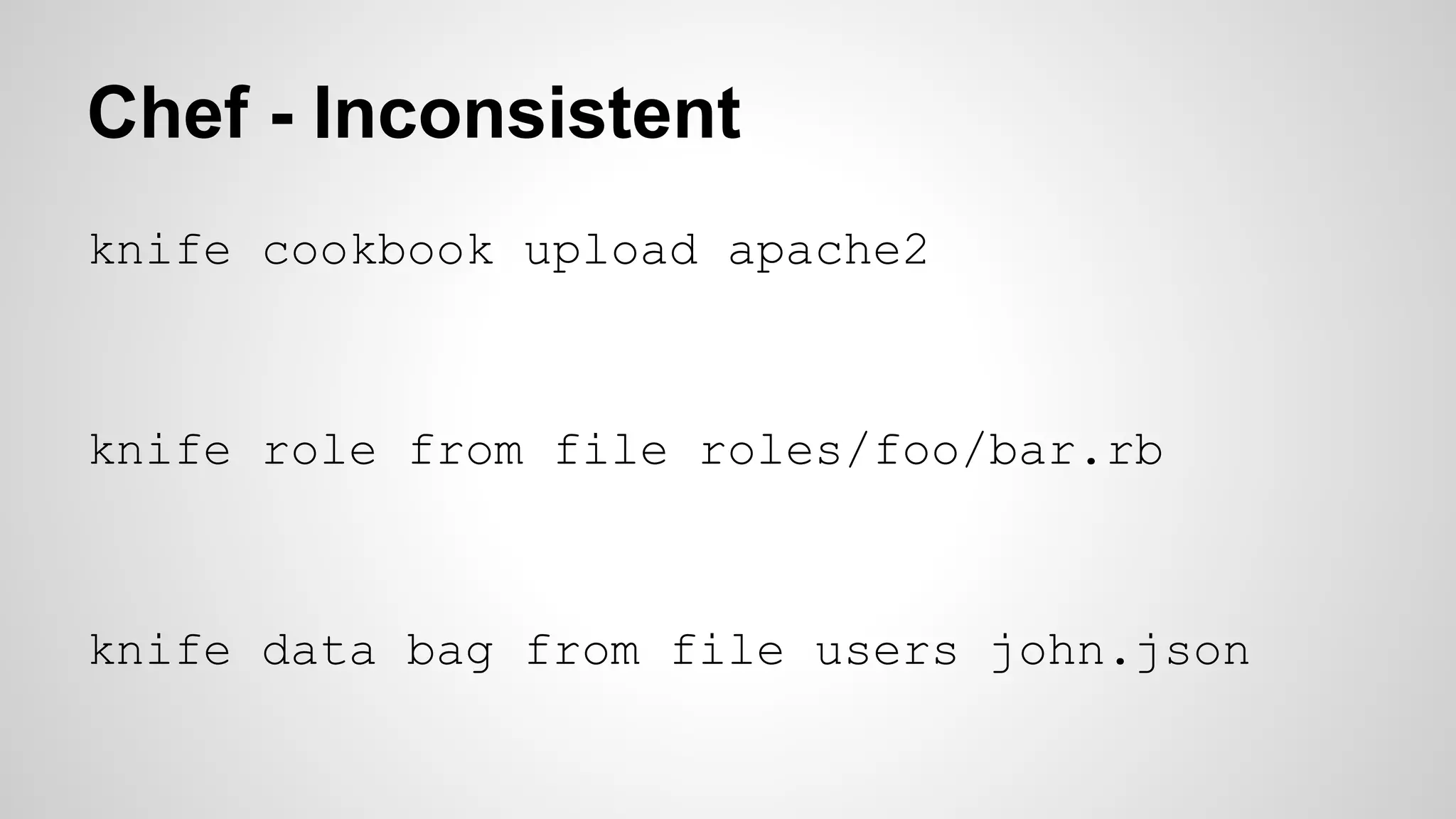

- 39. Chef - Inconsistent knifecookbook upload apache2 knife role from file roles/foo/bar.rb knife data bag from file users john.json

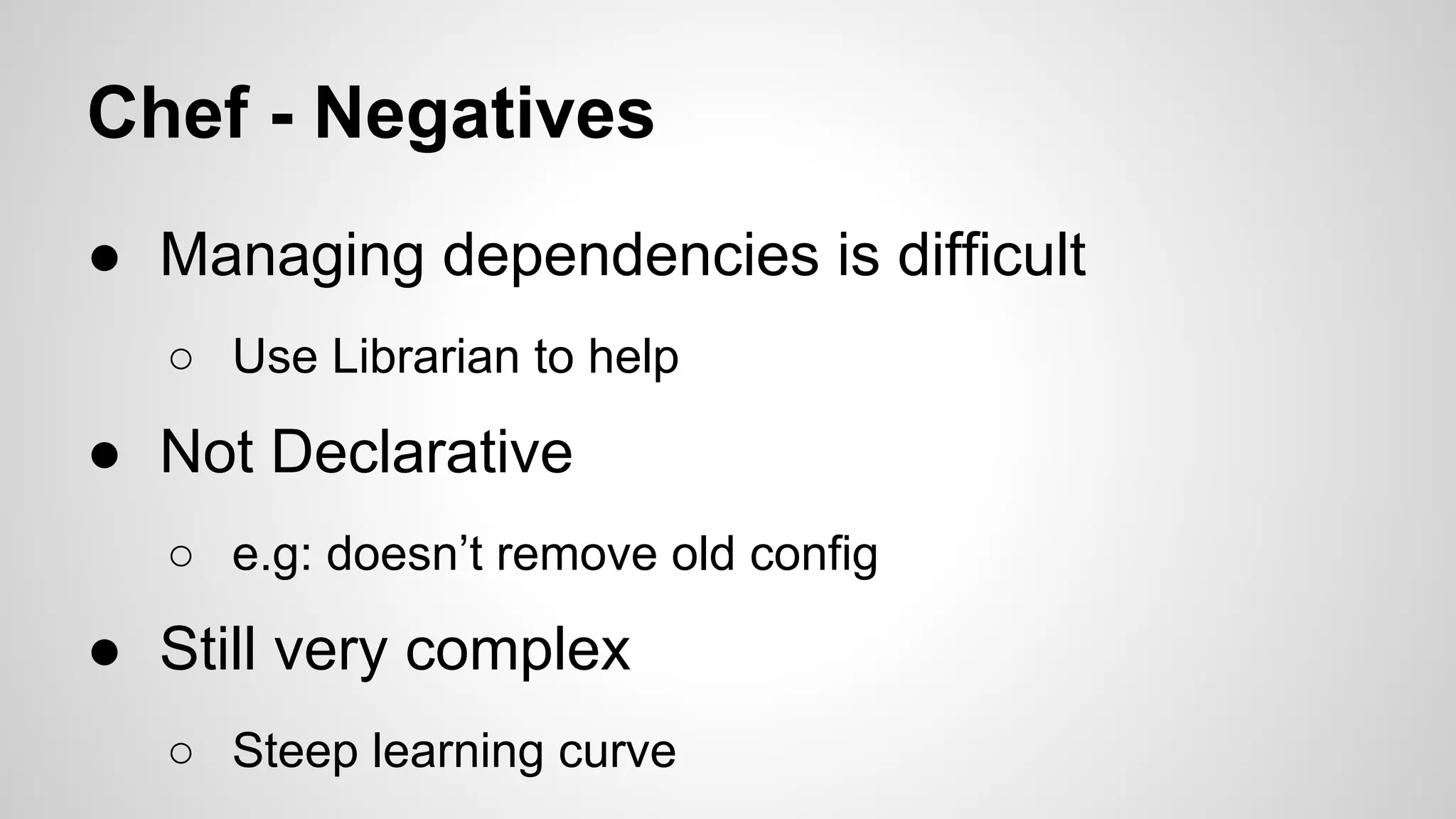

- 40. Chef - Negatives ●Managing dependencies is difficult ○ Use Librarian to help ● Not Declarative ○ e.g: doesn’t remove old config ● Still very complex ○ Steep learning curve

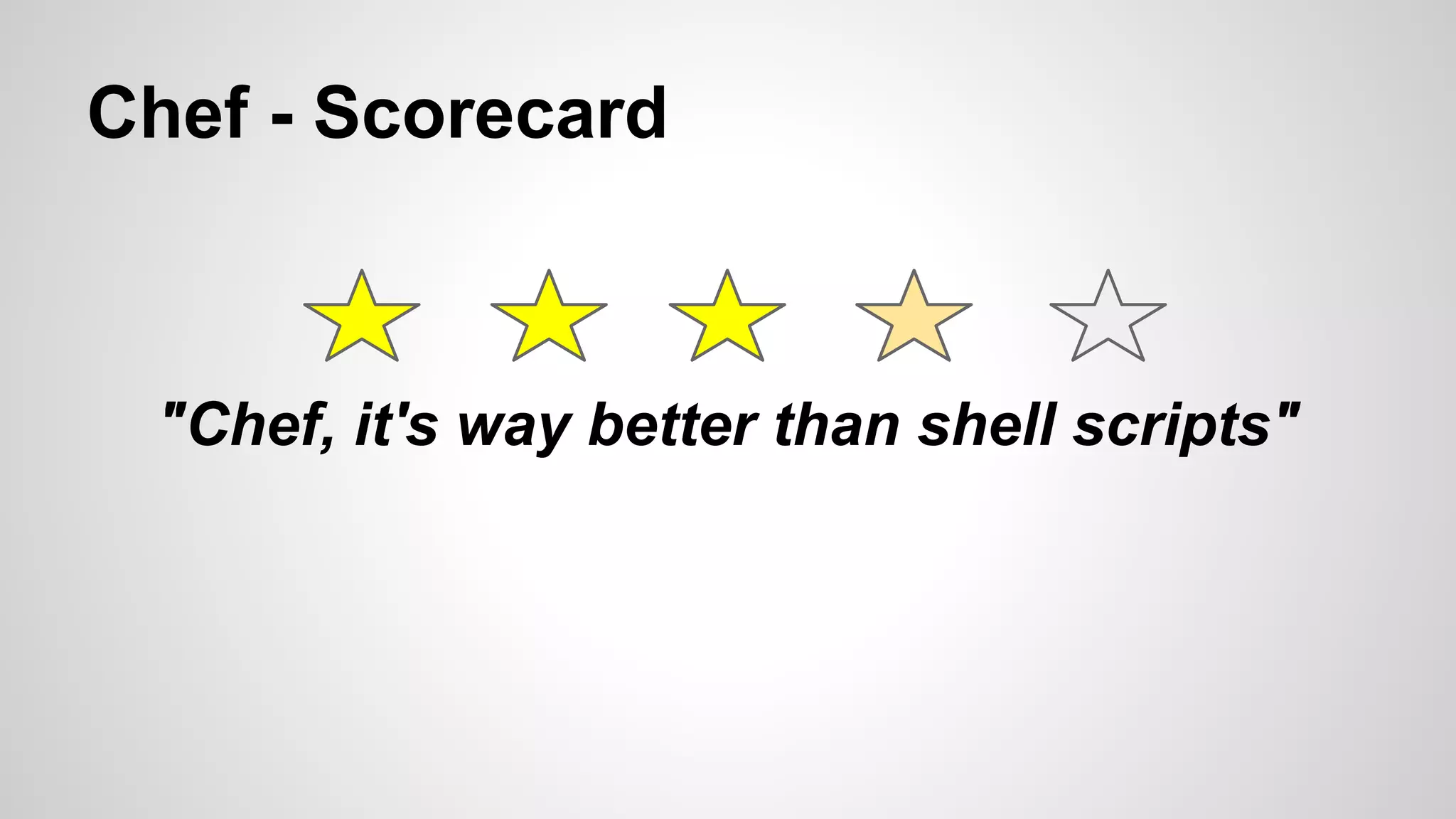

- 41. Chef - Scorecard "Chef,it's way better than shell scripts"

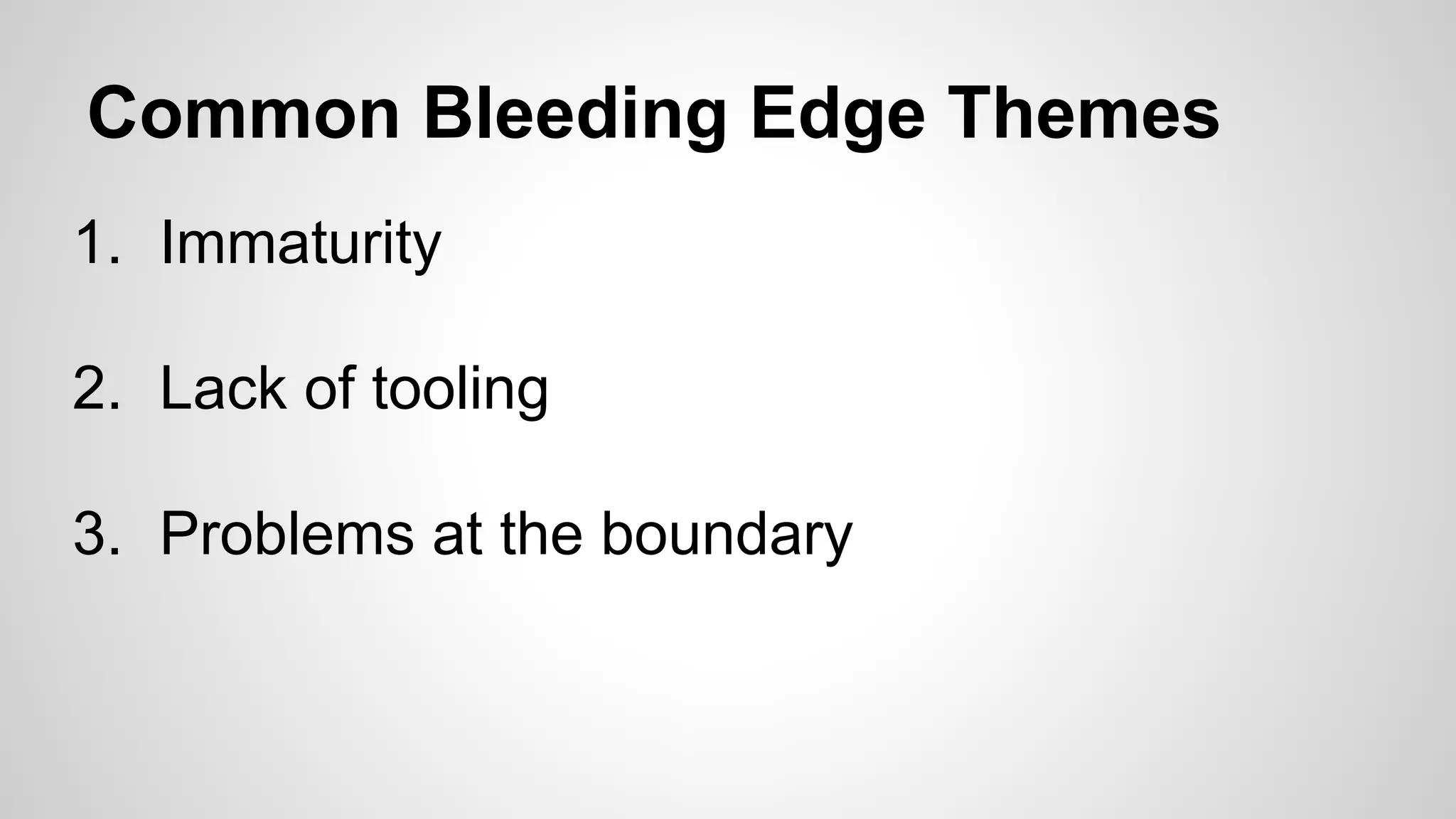

- 42. Common Bleeding EdgeThemes 1. Immaturity 2. Lack of tooling 3. Problems at the boundary

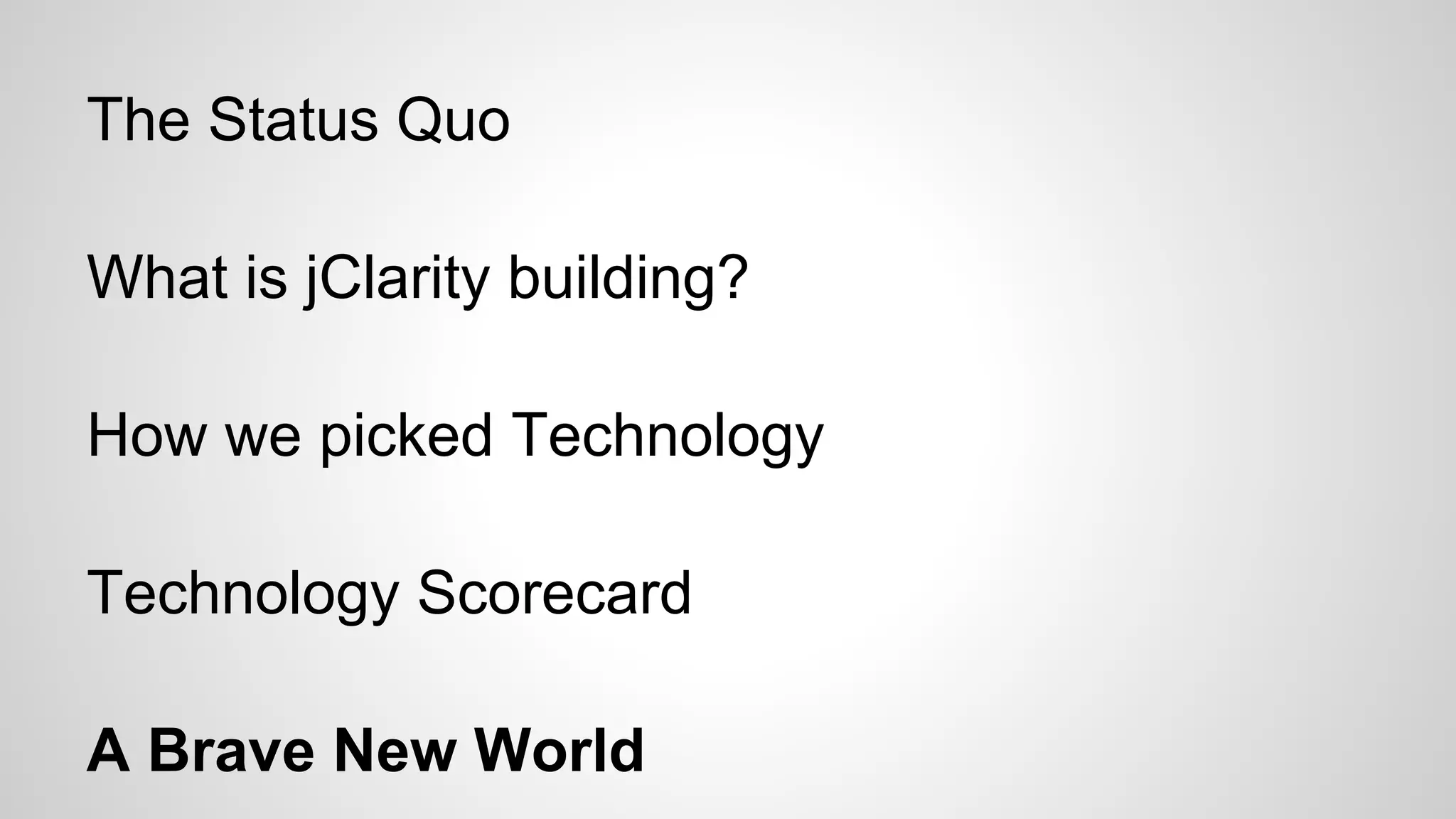

- 43. The Status Quo Whatis jClarity building? How we picked Technology Technology Scorecard A Brave New World
- 45.

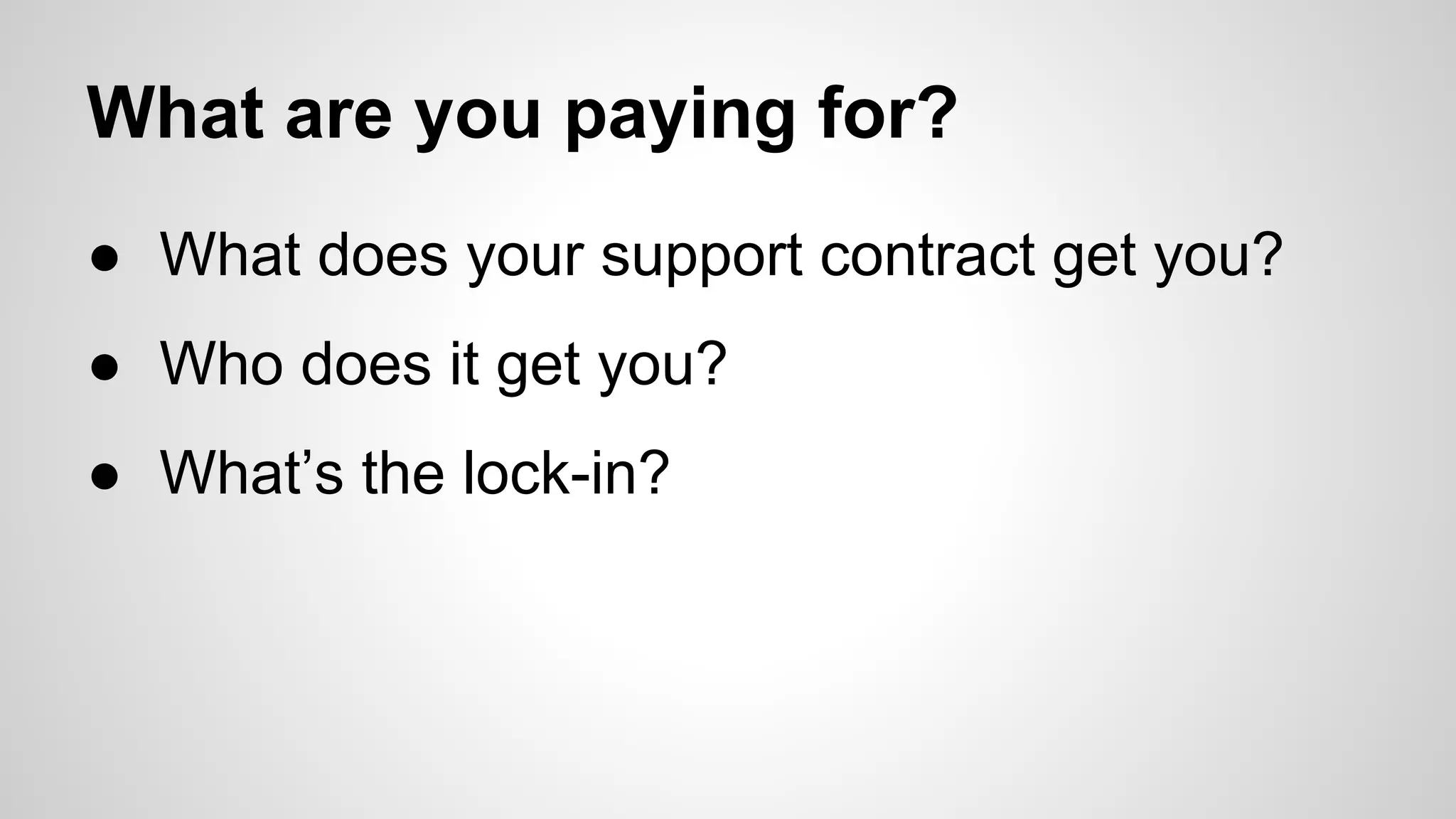

- 46. What are youpaying for? ● What does your support contract get you? ● Who does it get you? ● What’s the lock-in?

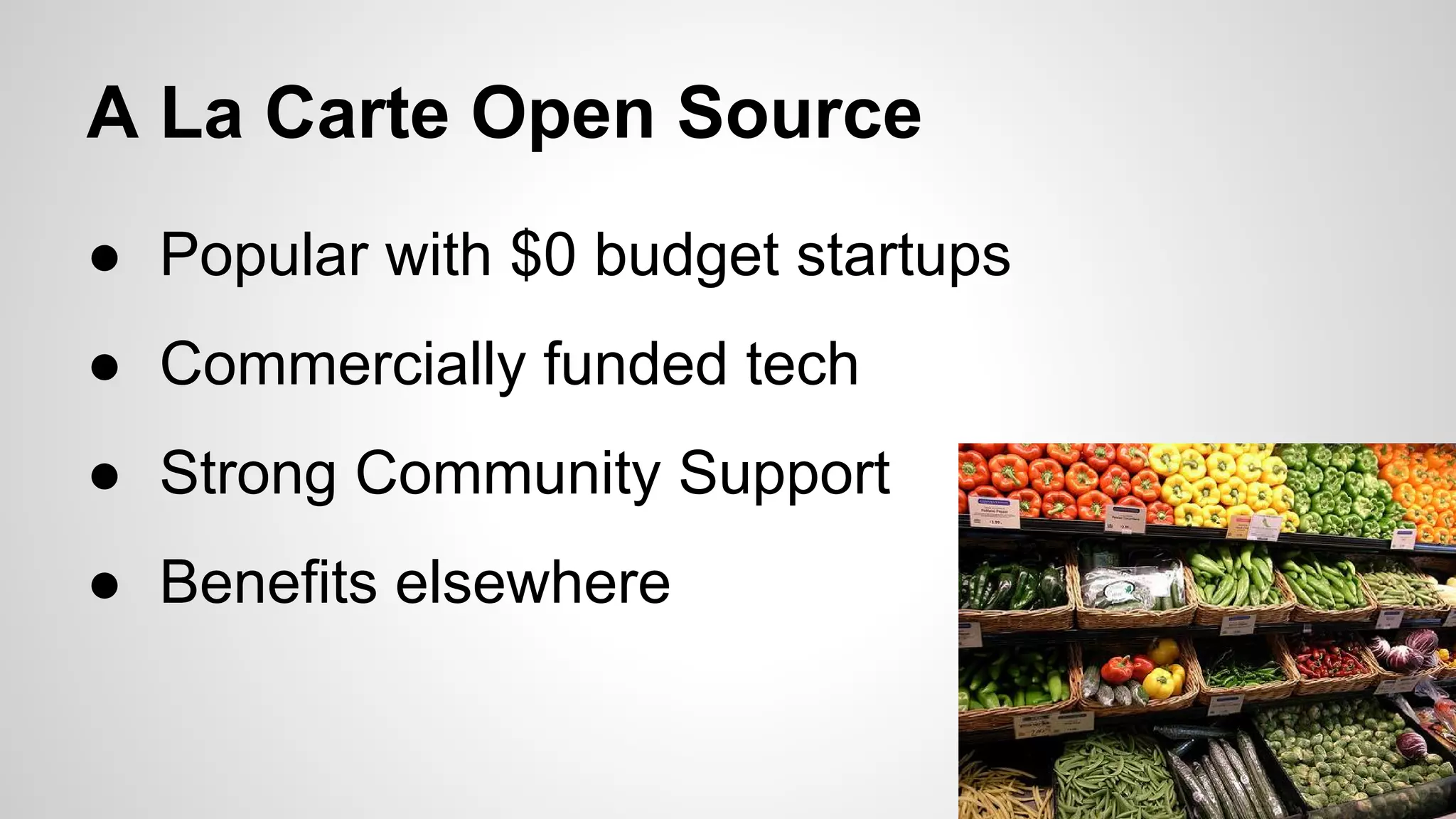

- 47. A La CarteOpen Source ● Popular with $0 budget startups ● Commercially funded tech ● Strong Community Support ● Benefits elsewhere

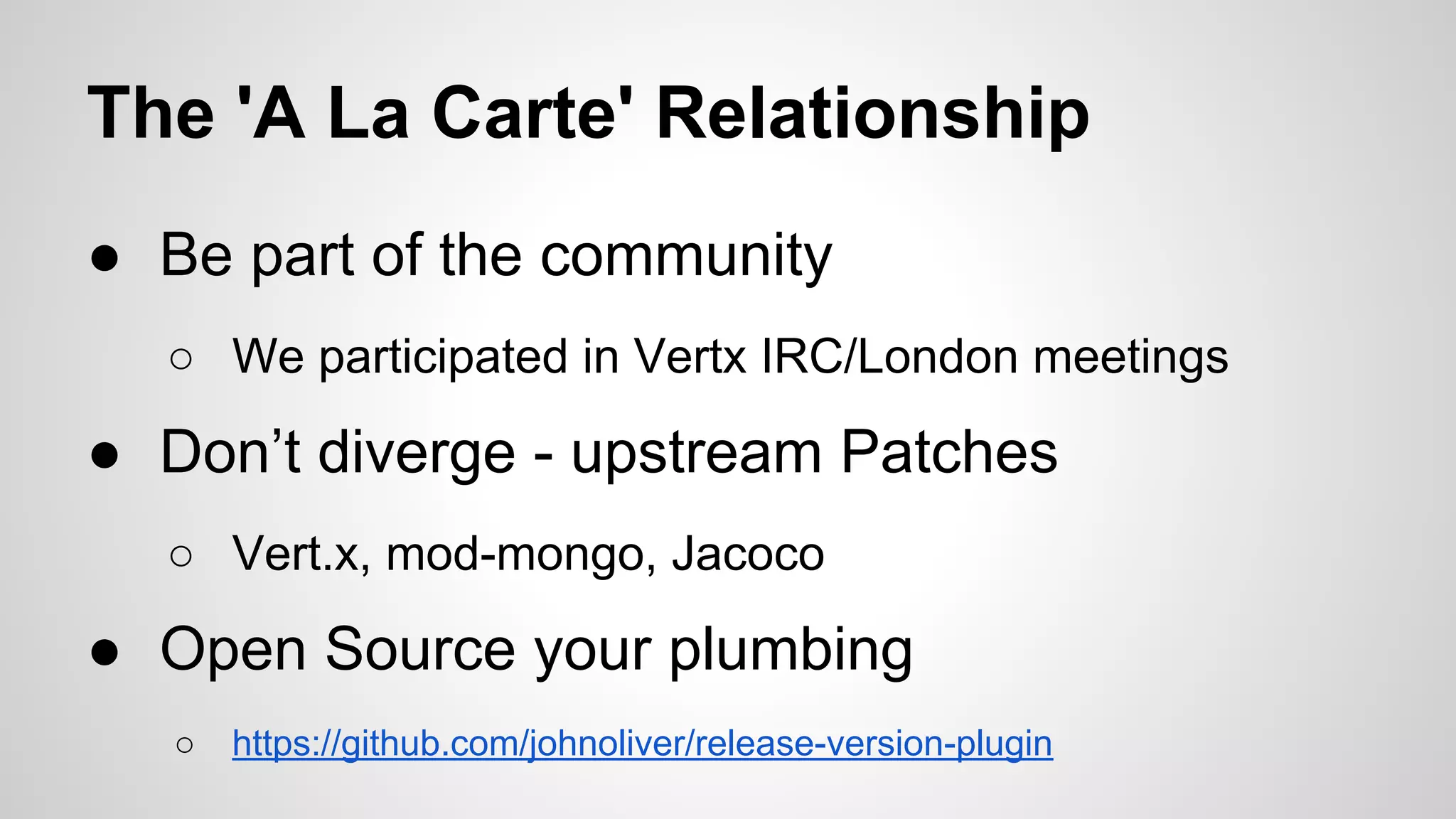

- 48. The 'A LaCarte' Relationship ● Be part of the community ○ We participated in Vertx IRC/London meetings ● Don’t diverge - upstream Patches ○ Vert.x, mod-mongo, Jacoco ● Open Source your plumbing ○ https://github.com/johnoliver/release-version-plugin

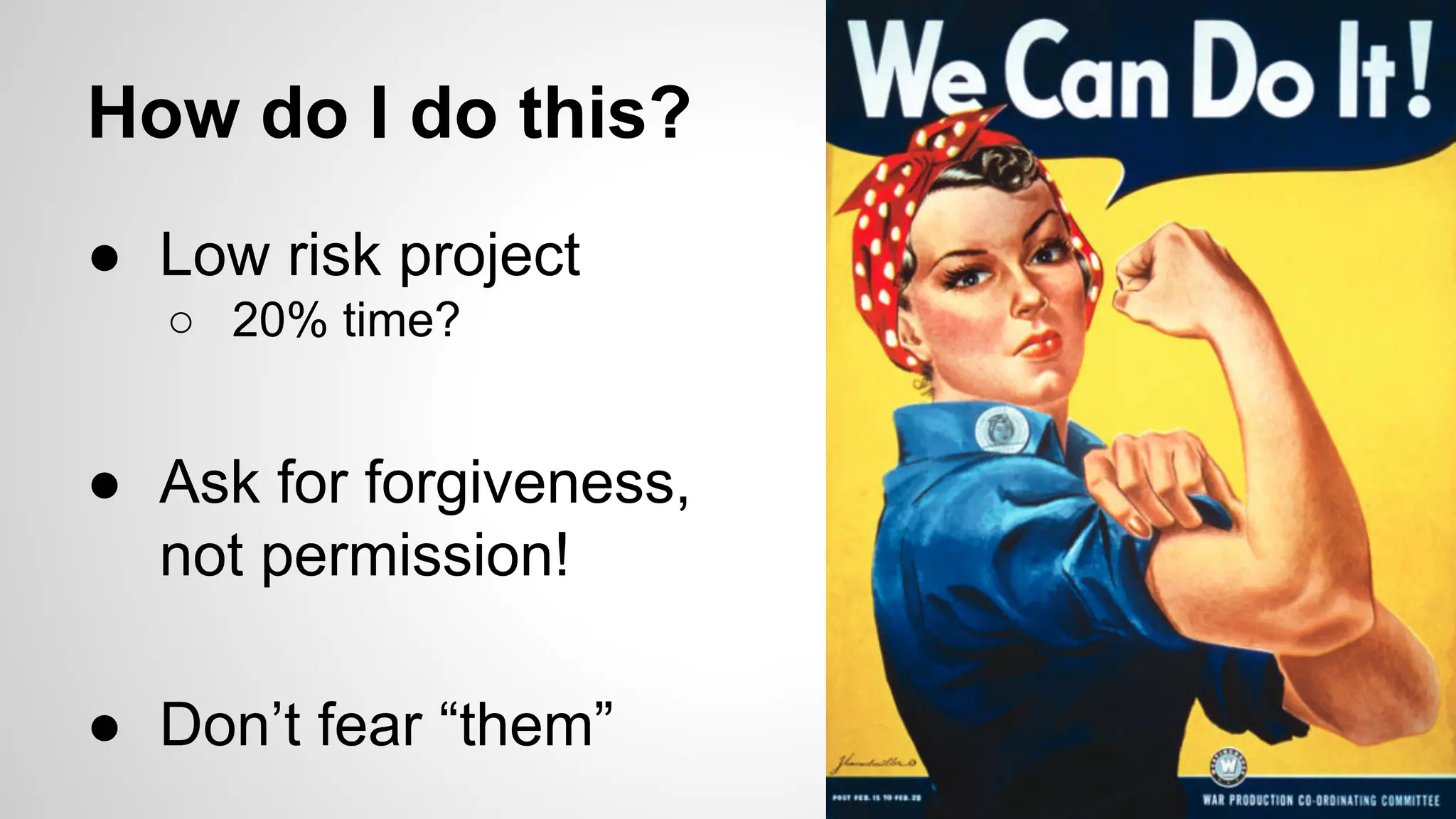

- 49. How do Ido this? ● Low risk project ○ 20% time? ● Ask for forgiveness, not permission! ● Don’t fear “them”

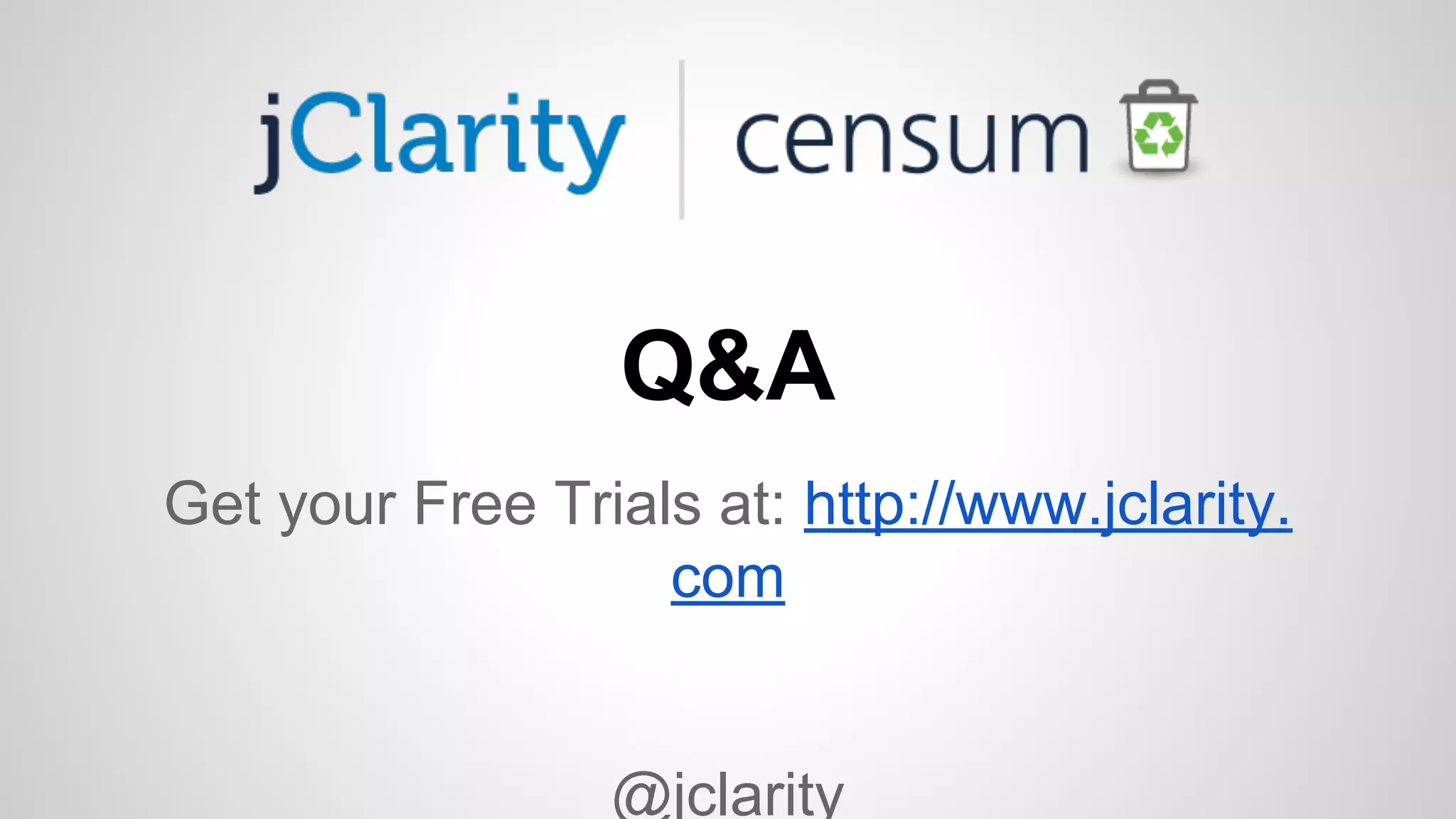

- 51. Q&A Get your FreeTrials at: http://www.jclarity. com @jclarity
