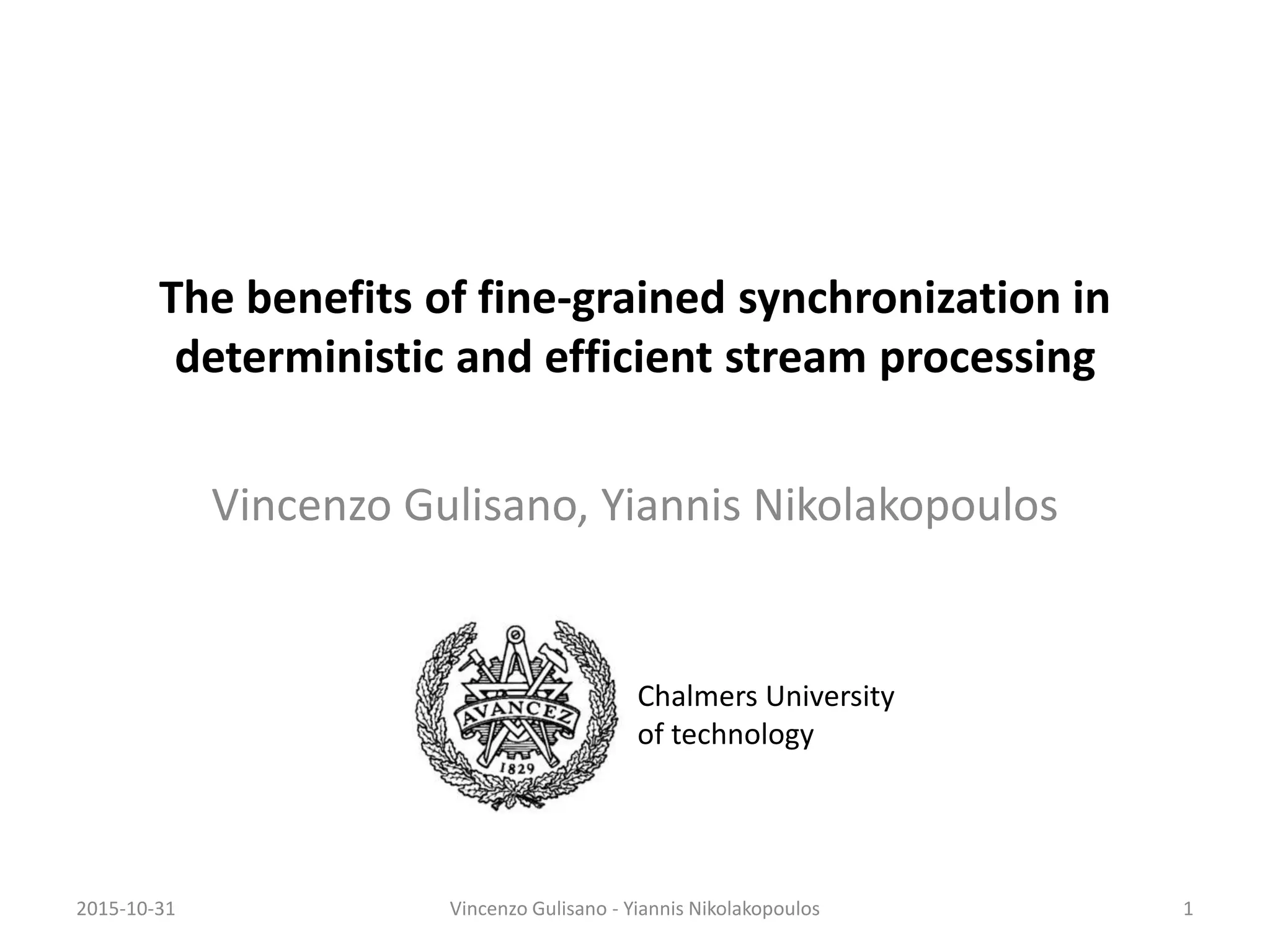

The benefits of fine-grained synchronization in deterministic and efficient stream processing
- 1. The benefits of fine-grained synchronization in deterministic and efficient stream processing Vincenzo Gulisano, Yiannis Nikolakopoulos 2015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos 1 Chalmers University of technology

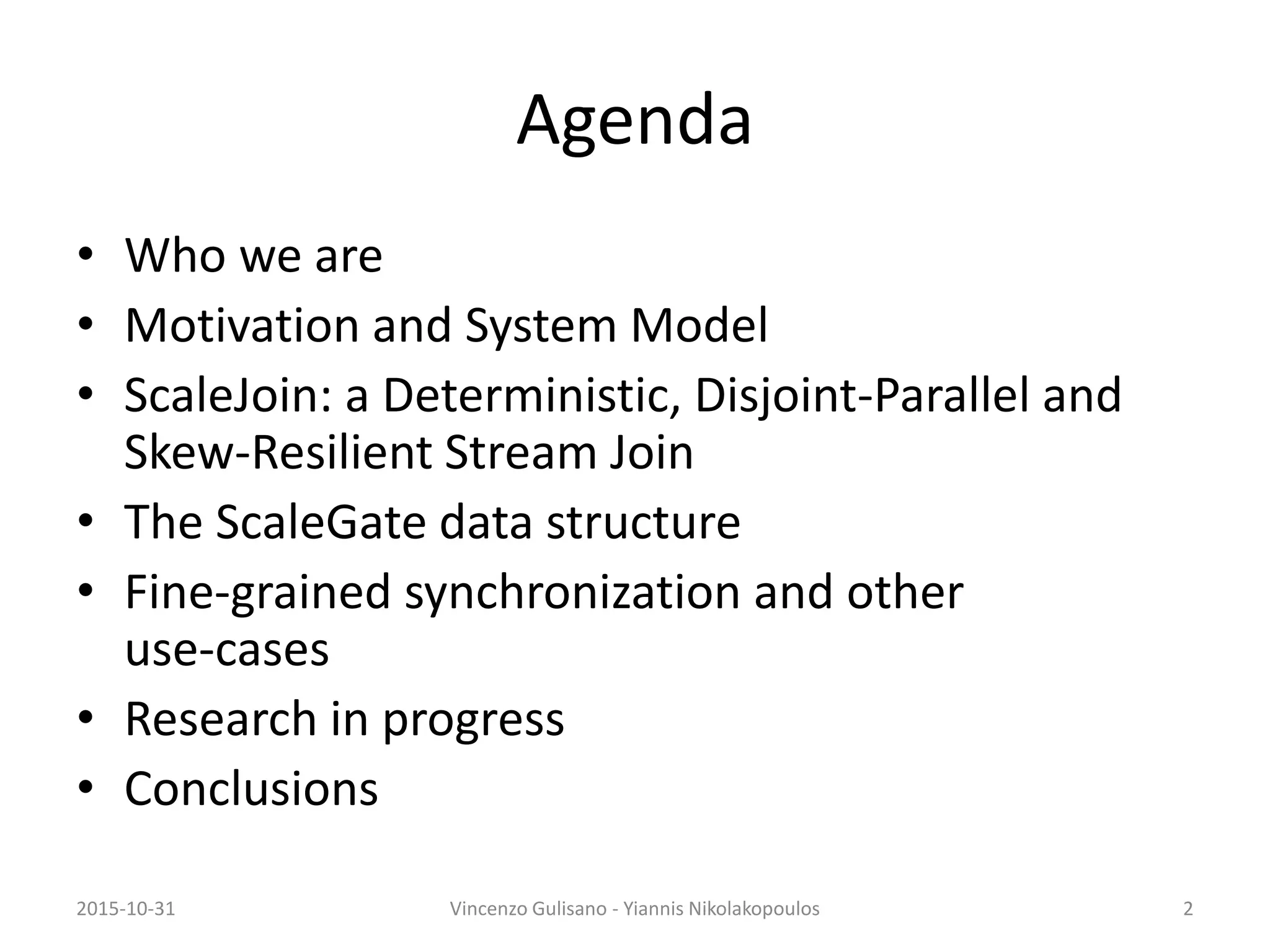

- 2. Agenda • Who we are • Motivation and System Model • ScaleJoin: a Deterministic, Disjoint-Parallel and Skew-Resilient Stream Join • The ScaleGate data structure • Fine-grained synchronization and other use-cases • Research in progress • Conclusions 2015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos 2
- 3. Agenda • Who we are • Motivation and System Model • ScaleJoin: a Deterministic, Disjoint-Parallel and Skew-Resilient Stream Join • The ScaleGate data structure • Fine-grained synchronization and other use-cases • Research in progress • Conclusions 2015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos 3
- 4. Who we are Chalmers university Computer Science and Engineering department Distributed Computing and Systems research group 2015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos 4
- 5. Who we are • 12 PhD degrees awarded • ~20 researchers, 3 Postdocs and 10 PhD students. • acknowledged internationally as leading group in practical multicore synchronization algorithms and programming (results adopted by Java JDK, C++, Intel, NVIDIA) • extensive network of academic and industrial collaborations and has been continuously supported by national and international projects 2015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos 5 Distributed Computing and Systems research group

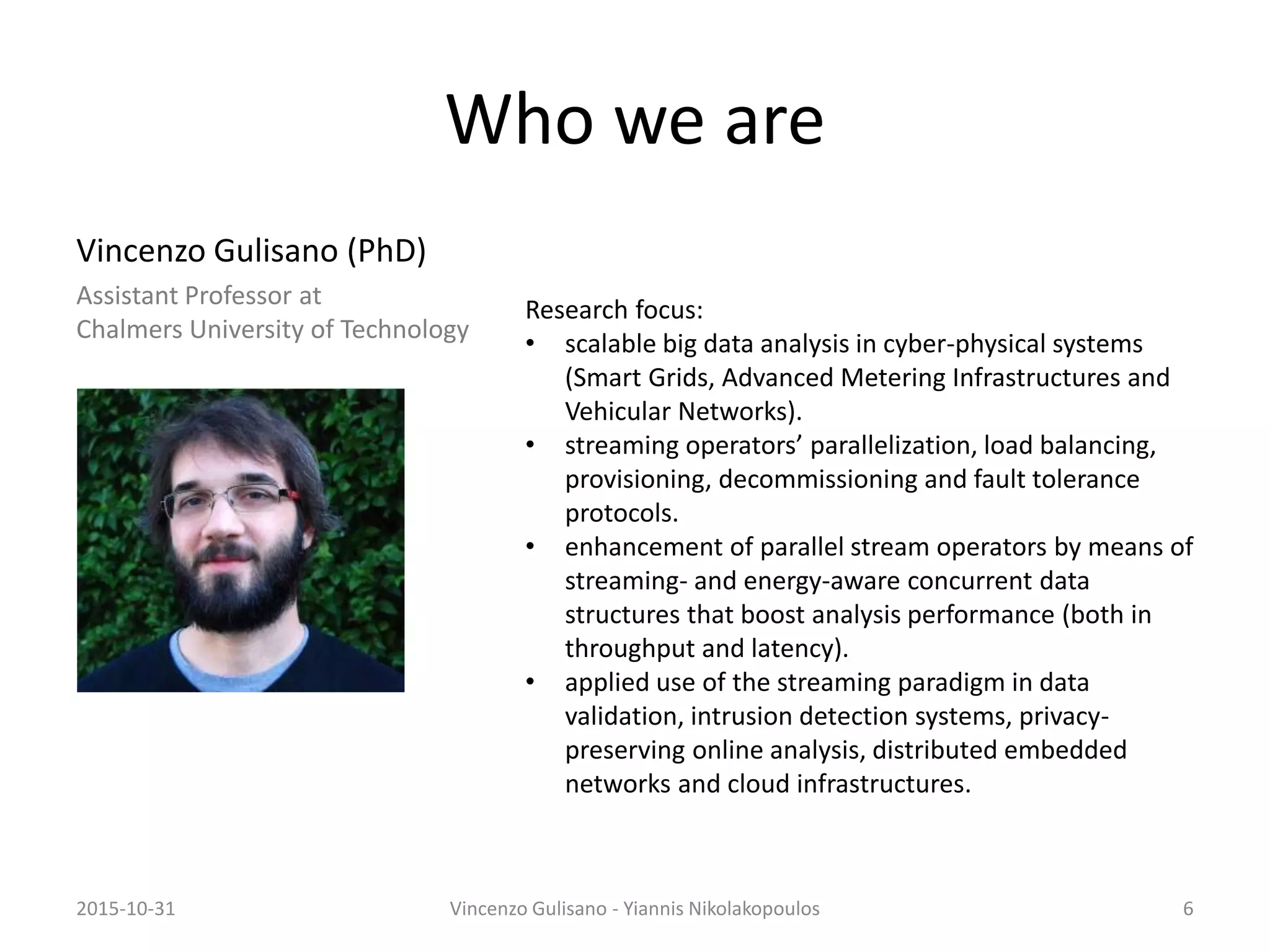

- 6. Who we are Vincenzo Gulisano (PhD) Assistant Professor at Chalmers University of Technology Research focus: • scalable big data analysis in cyber-physical systems (Smart Grids, Advanced Metering Infrastructures and Vehicular Networks). • streaming operators’ parallelization, load balancing, provisioning, decommissioning and fault tolerance protocols. • enhancement of parallel stream operators by means of streaming- and energy-aware concurrent data structures that boost analysis performance (both in throughput and latency). • applied use of the streaming paradigm in data validation, intrusion detection systems, privacy- preserving online analysis, distributed embedded networks and cloud infrastructures. 2015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos 6
- 7. Who we are Yiannis Nikolakopoulos PhD Student 2015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos 7 Research interests: • Parallel and distributed computing • Shared memory concurrent data structures • Multicore/Manycore systems • Consistency problems • Synchronization • Data Streaming: operator parallelism & scalability
- 8. Agenda • Who we are • Motivation and System Model • ScaleJoin: a Deterministic, Disjoint-Parallel and Skew-Resilient Stream Join • The ScaleGate data structure • Fine-grained synchronization and other use-cases • Research in progress • Conclusions 2015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos 8

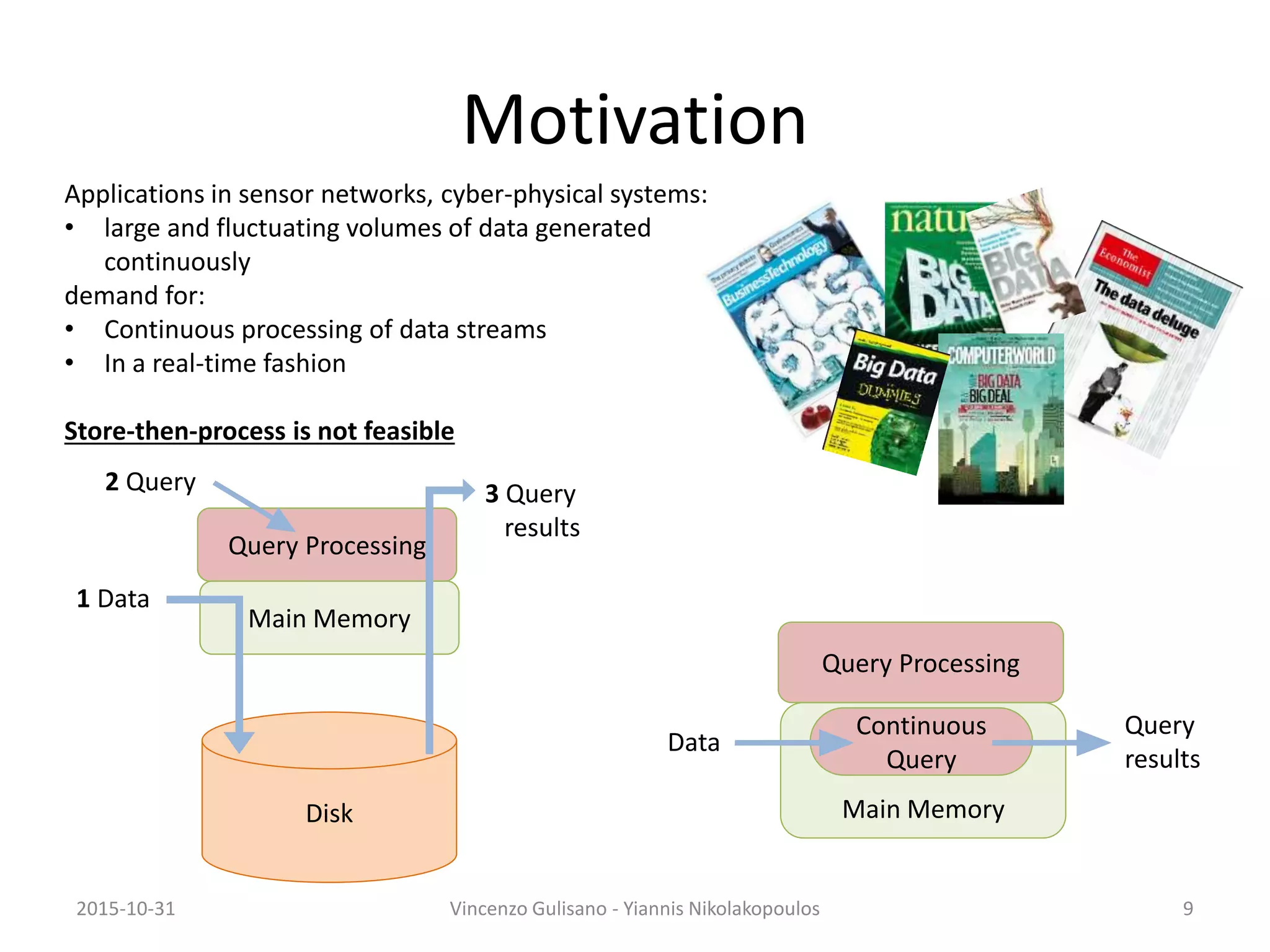

- 9. Motivation Applications in sensor networks, cyber-physical systems: • large and fluctuating volumes of data generated continuously demand for: • Continuous processing of data streams • In a real-time fashion Store-then-process is not feasible Main Memory 1 Data Query Processing 3 Query results 2 Query Main Memory Query Processing Disk Main Memory Query Processing Continuous Query Data Query results 2015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos 9

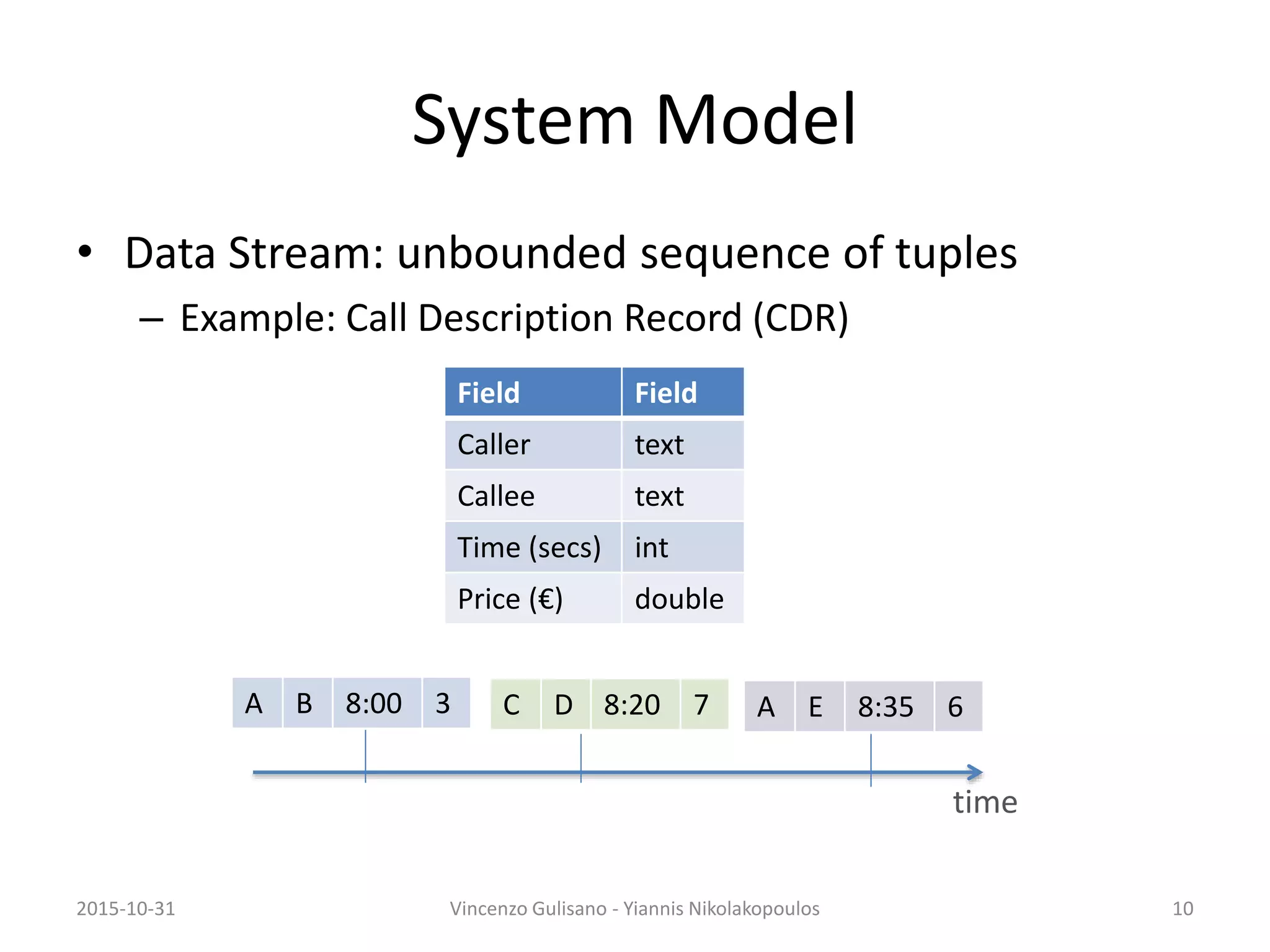

- 10. System Model • Data Stream: unbounded sequence of tuples – Example: Call Description Record (CDR) time Field Field Caller text Callee text Time (secs) int Price (€) double A B 8:00 3 C D 8:20 7 A E 8:35 6 102015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos

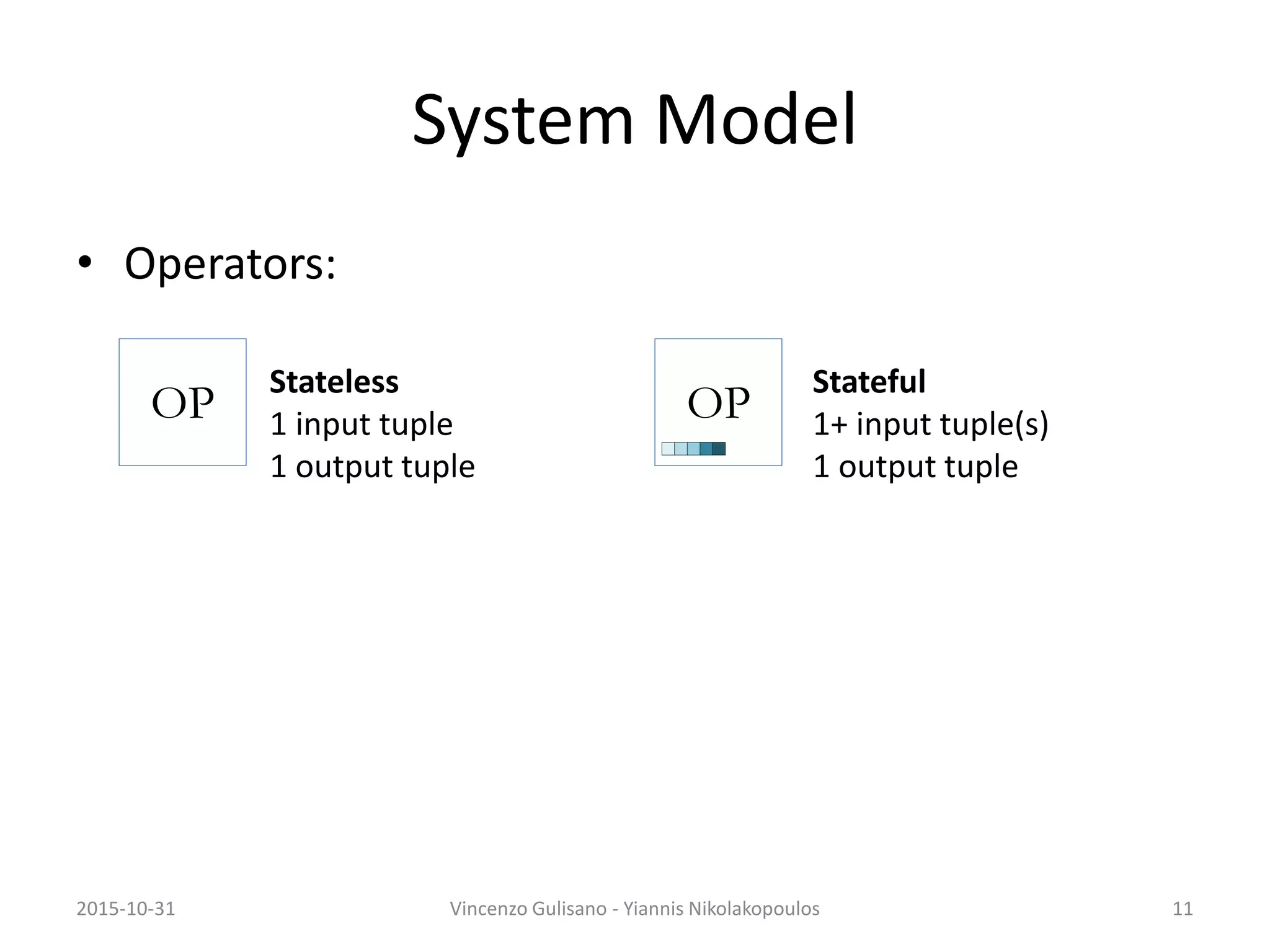

- 11. System Model • Operators: OP Stateless 1 input tuple 1 output tuple OP Stateful 1+ input tuple(s) 1 output tuple 112015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos

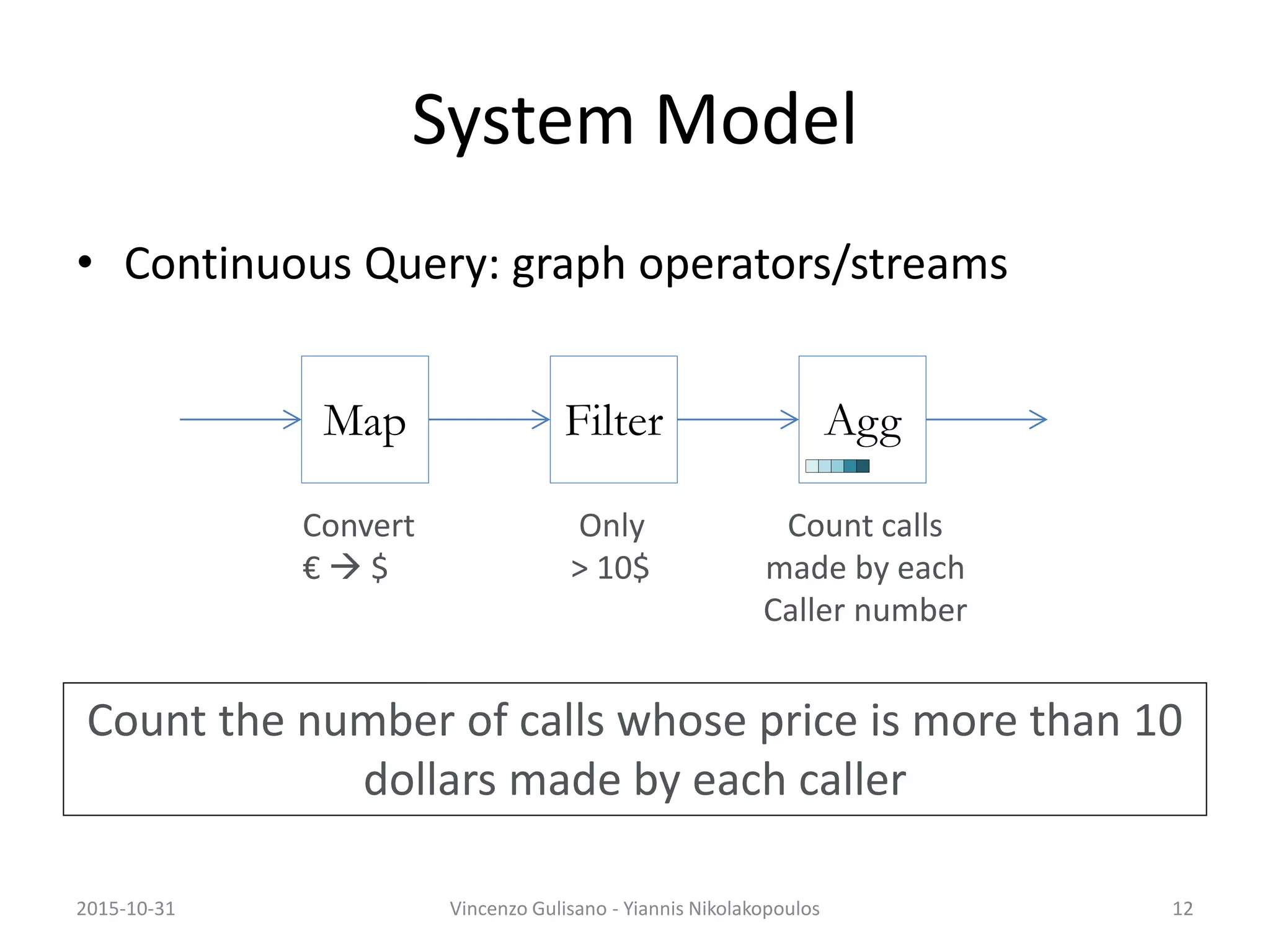

- 12. System Model • Continuous Query: graph operators/streams Convert € $ Only > 10$ Count calls made by each Caller number Map Filter Agg 122015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos Count the number of calls whose price is more than 10 dollars made by each caller

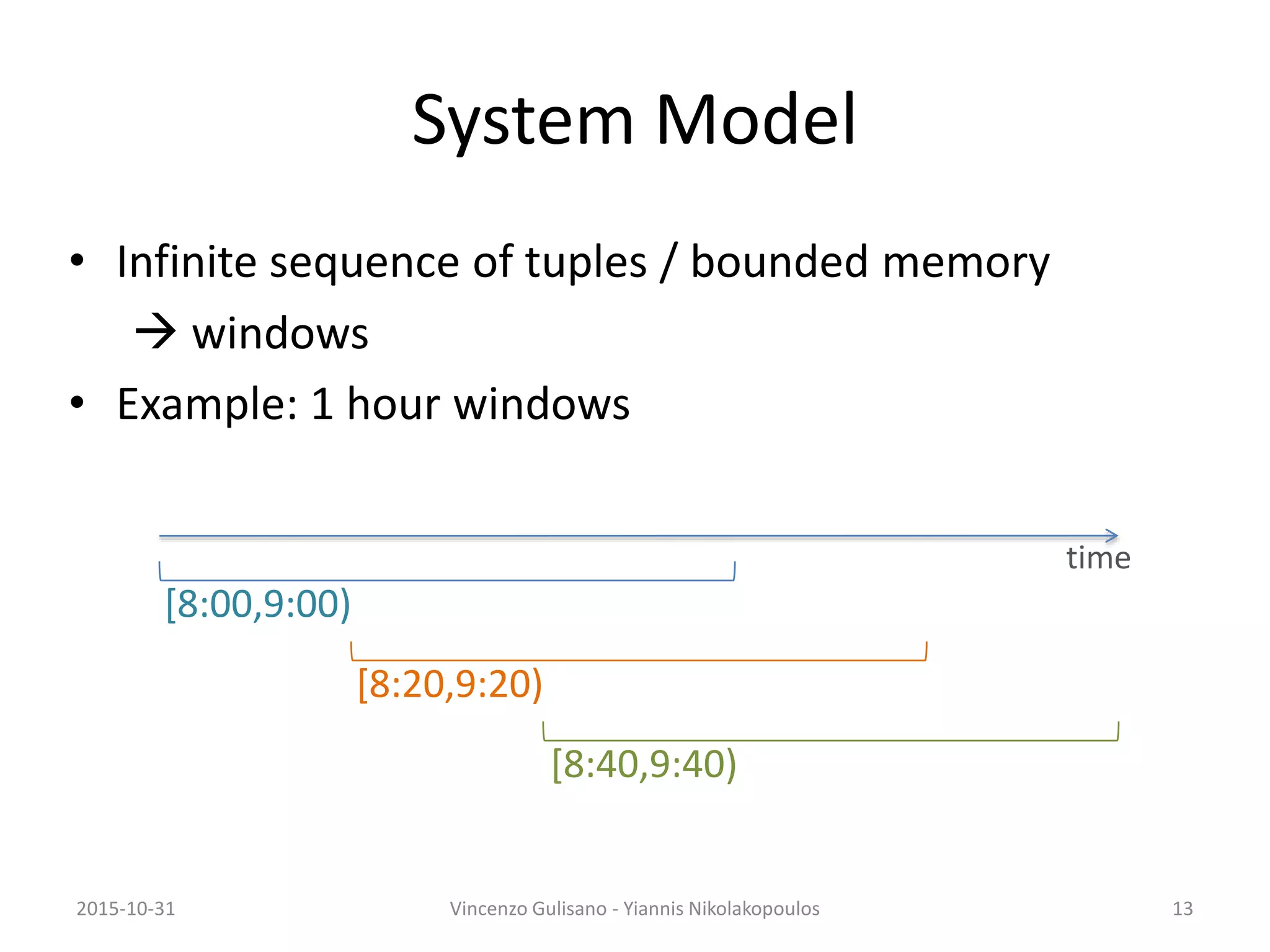

- 13. System Model • Infinite sequence of tuples / bounded memory windows • Example: 1 hour windows time [8:00,9:00) [8:20,9:20) [8:40,9:40) 132015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos

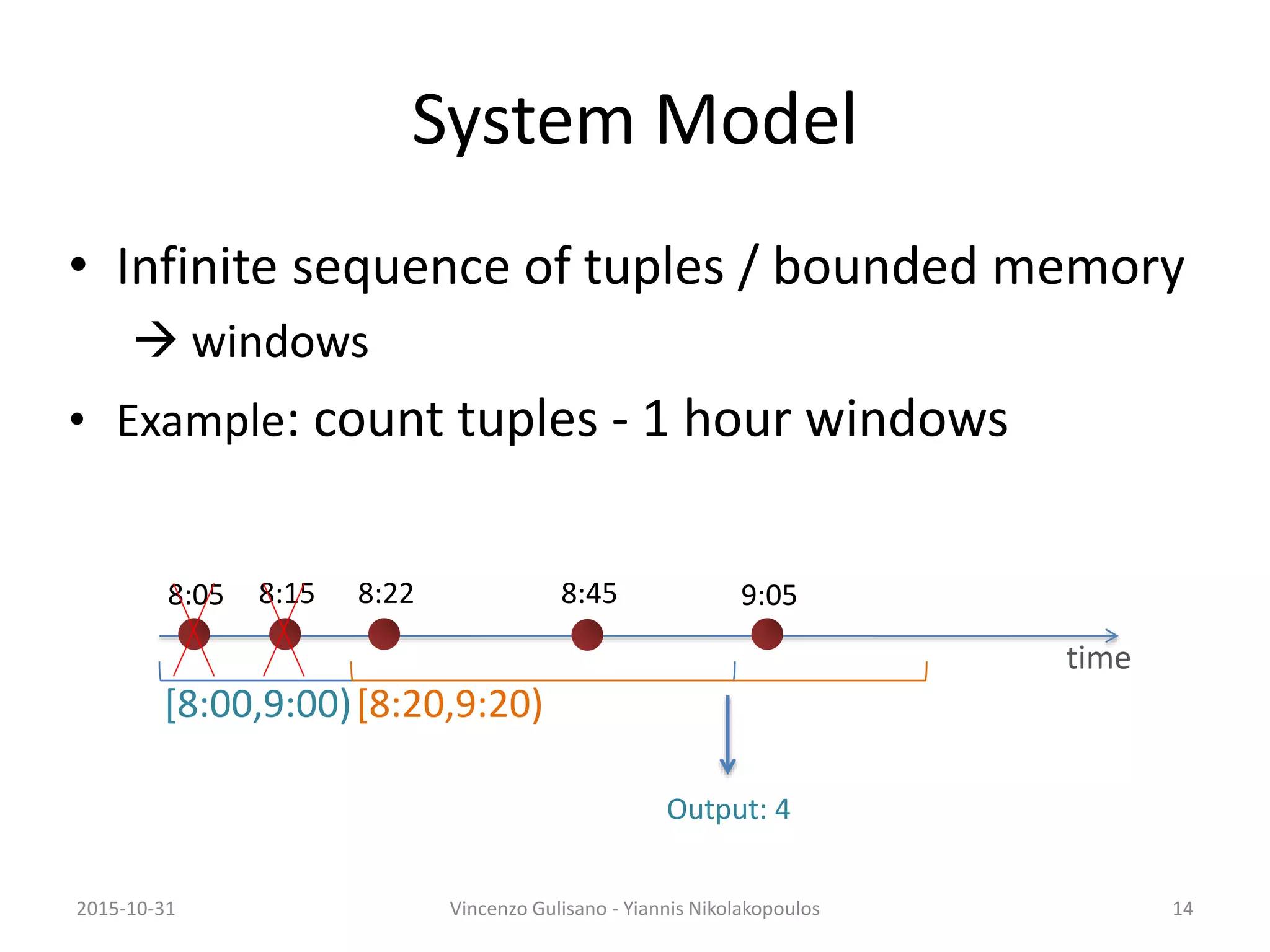

- 14. System Model • Infinite sequence of tuples / bounded memory windows • Example: count tuples - 1 hour windows time [8:00,9:00) 8:05 8:15 8:22 8:45 9:05 Output: 4 14 [8:20,9:20) 2015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos

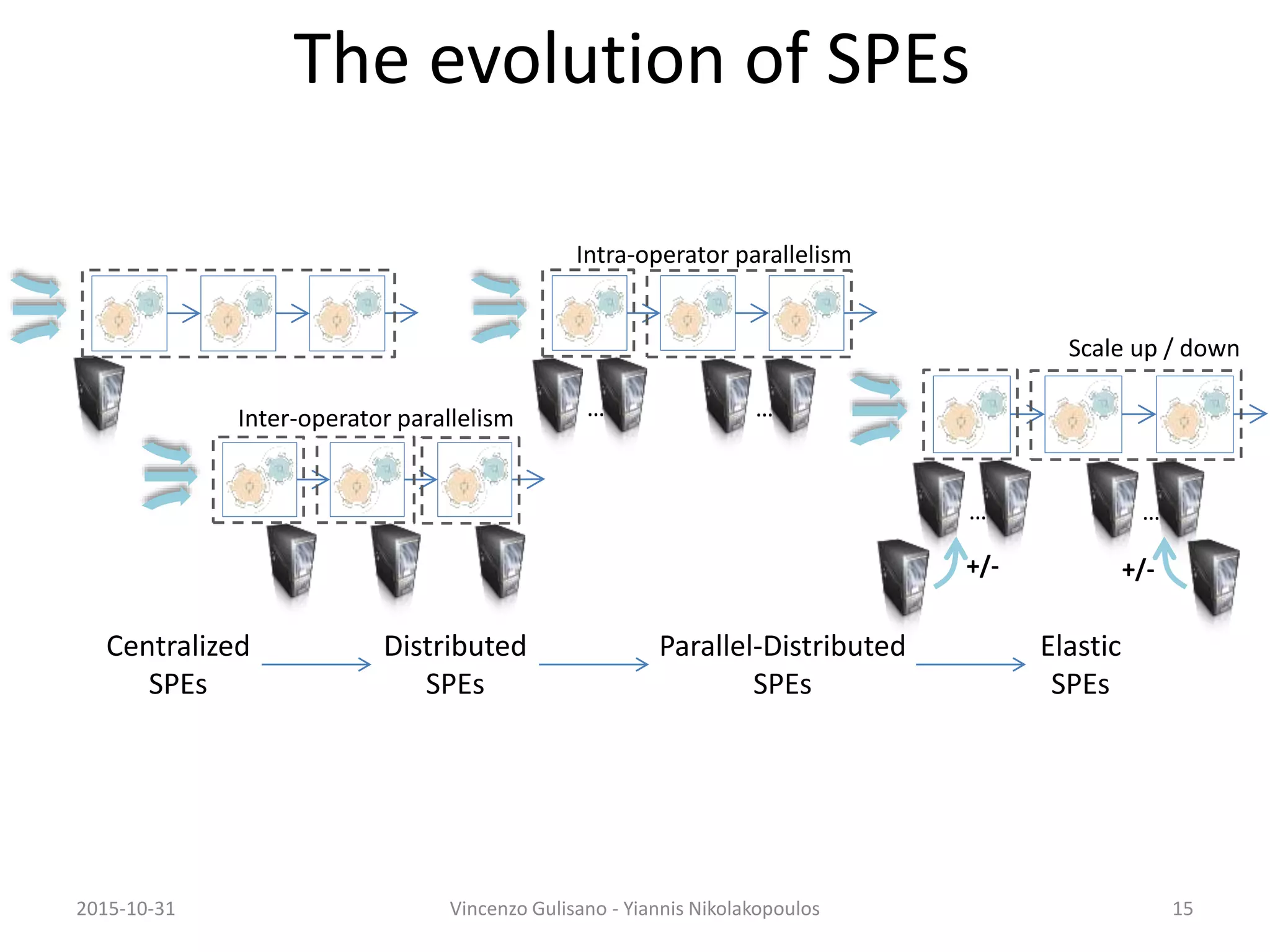

- 15. The evolution of SPEs Centralized SPEs Distributed SPEs Parallel-Distributed SPEs Elastic SPEs 2015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos 15 Inter-operator parallelism … … Intra-operator parallelism … … +/- +/- Scale up / down

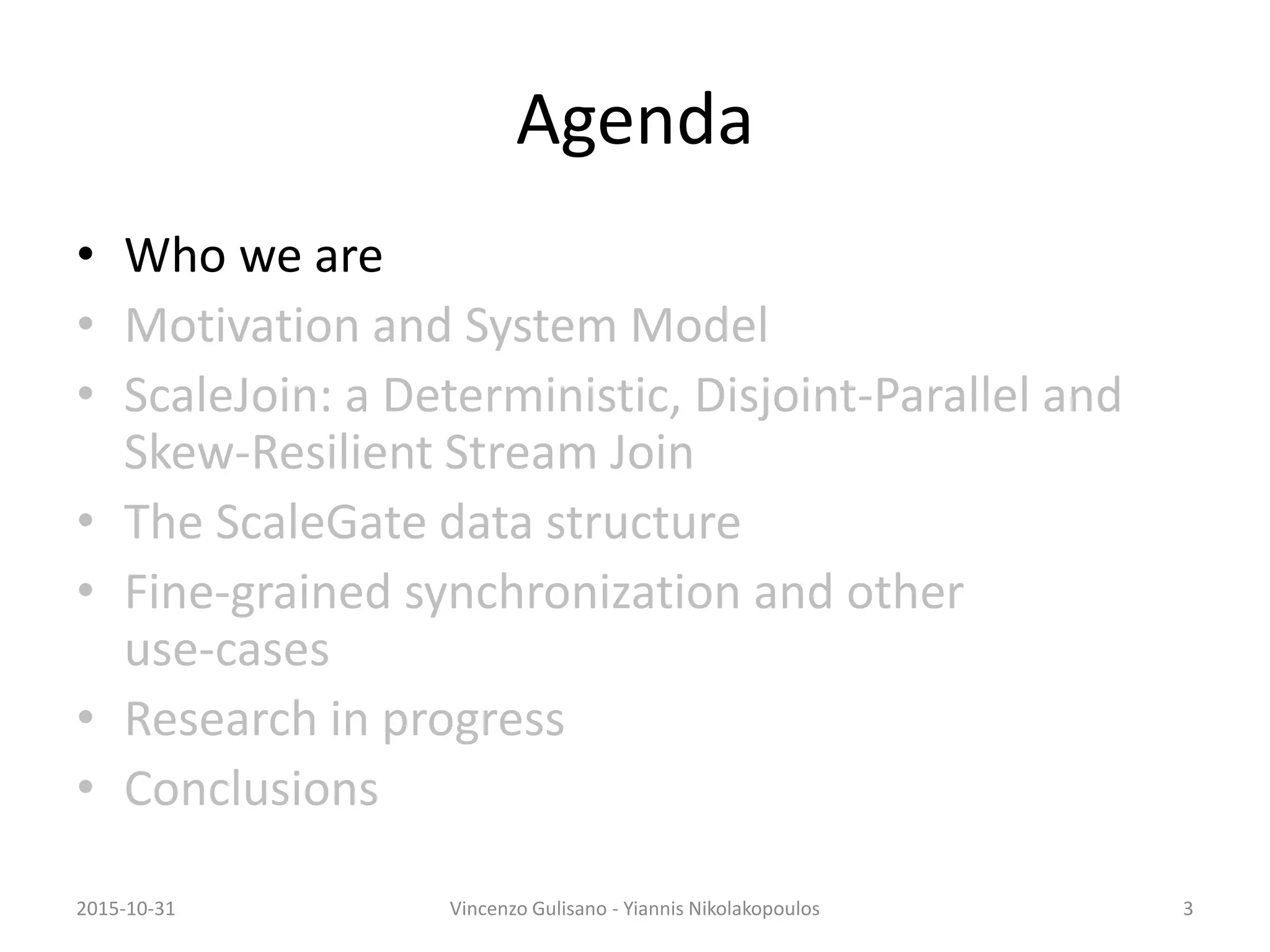

- 16. Agenda • Who we are • Motivation and System Model • ScaleJoin: a Deterministic, Disjoint-Parallel and Skew-Resilient Stream Join • The ScaleGate data structure • Fine-grained synchronization and other use-cases • Research in progress • Conclusions 2015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos 16

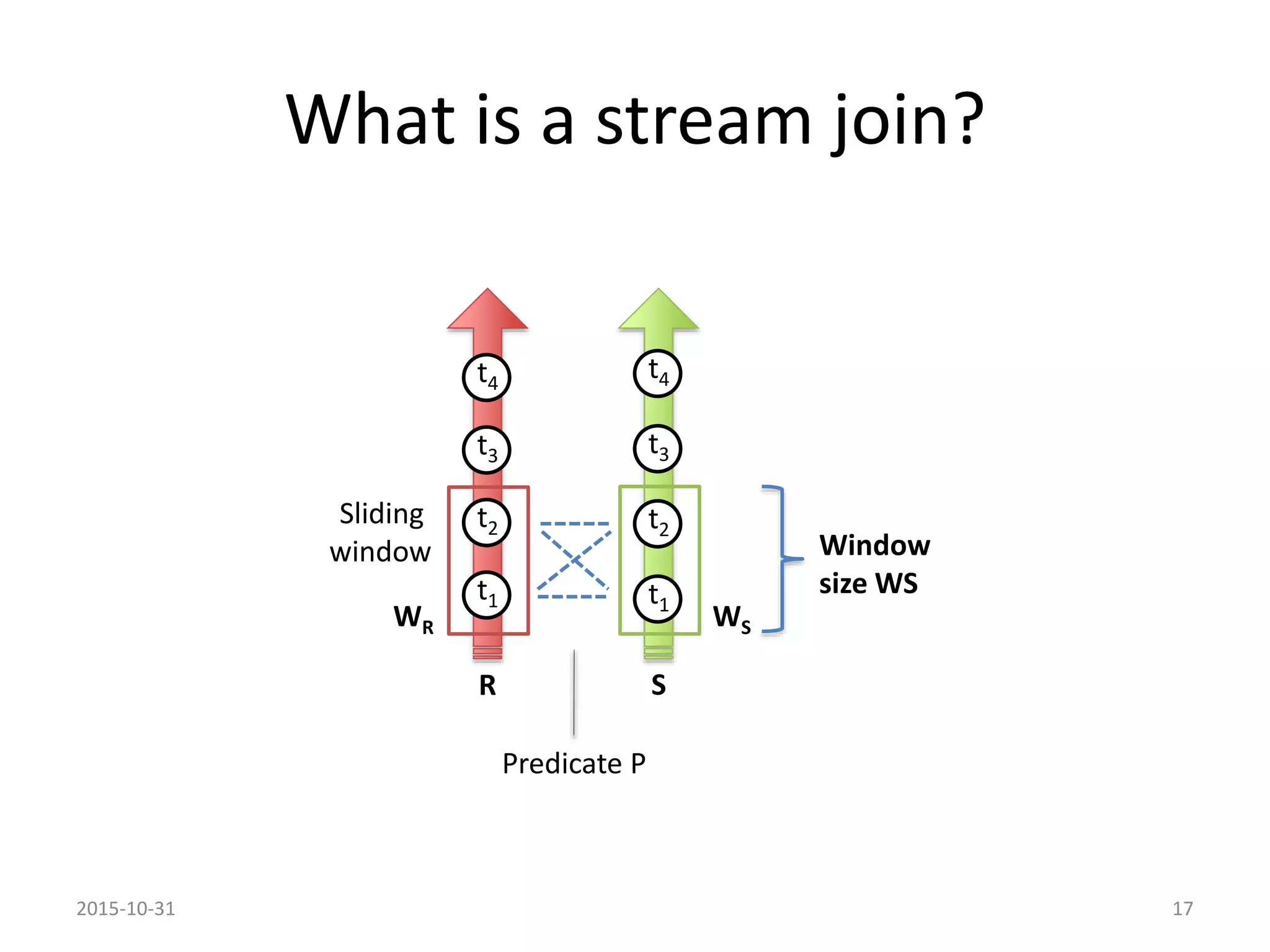

- 17. What is a stream join? 2015-10-31 17 t1 t2 t3 t4 t1 t2 t3 t4 R S Sliding window Window size WS WSWR Predicate P

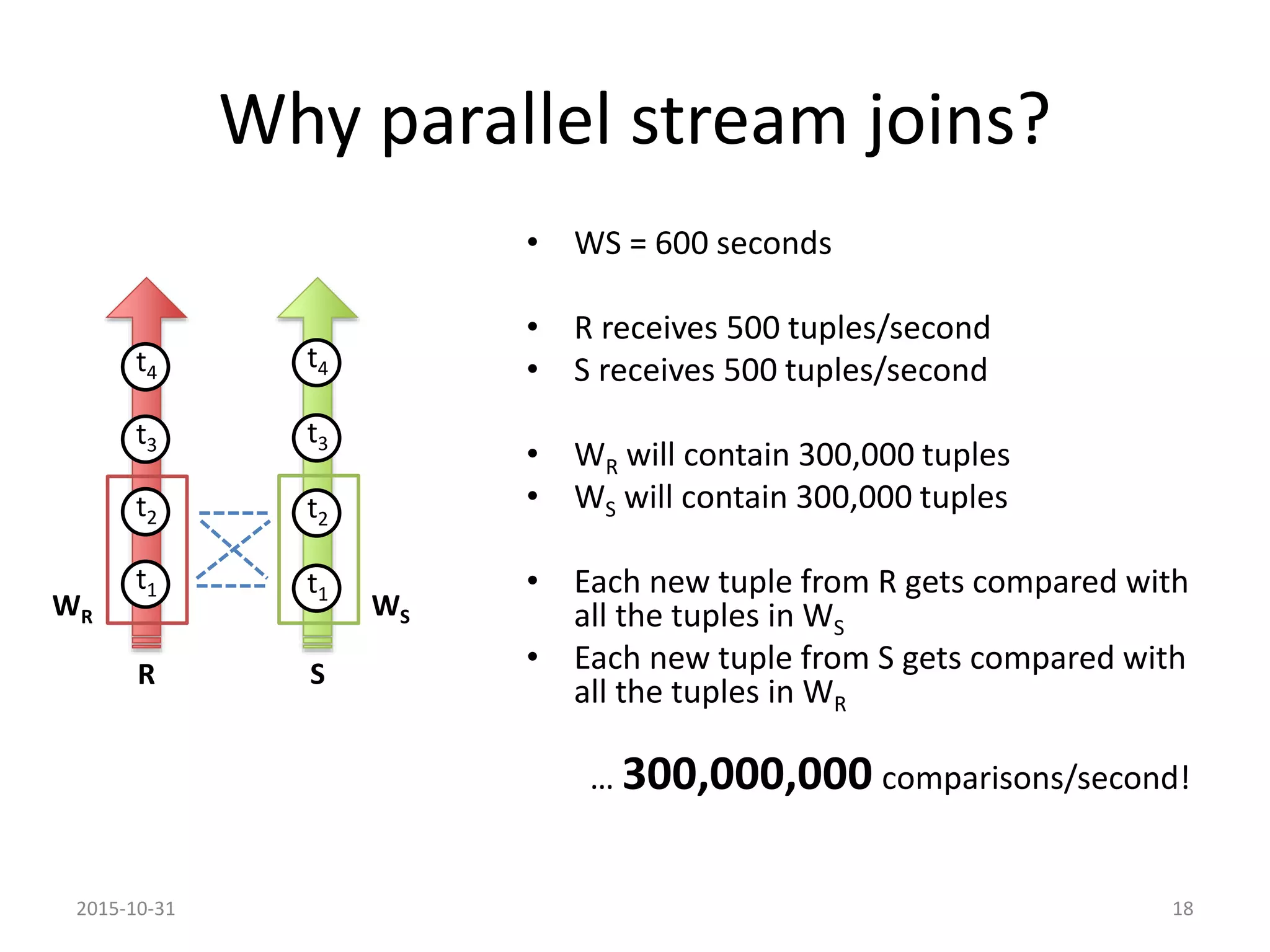

- 18. Why parallel stream joins? • WS = 600 seconds • R receives 500 tuples/second • S receives 500 tuples/second • WR will contain 300,000 tuples • WS will contain 300,000 tuples • Each new tuple from R gets compared with all the tuples in WS • Each new tuple from S gets compared with all the tuples in WR … 300,000,000 comparisons/second! t1 t2 t3 t4 t1 t2 t3 t4 R S WSWR 2015-10-31 18

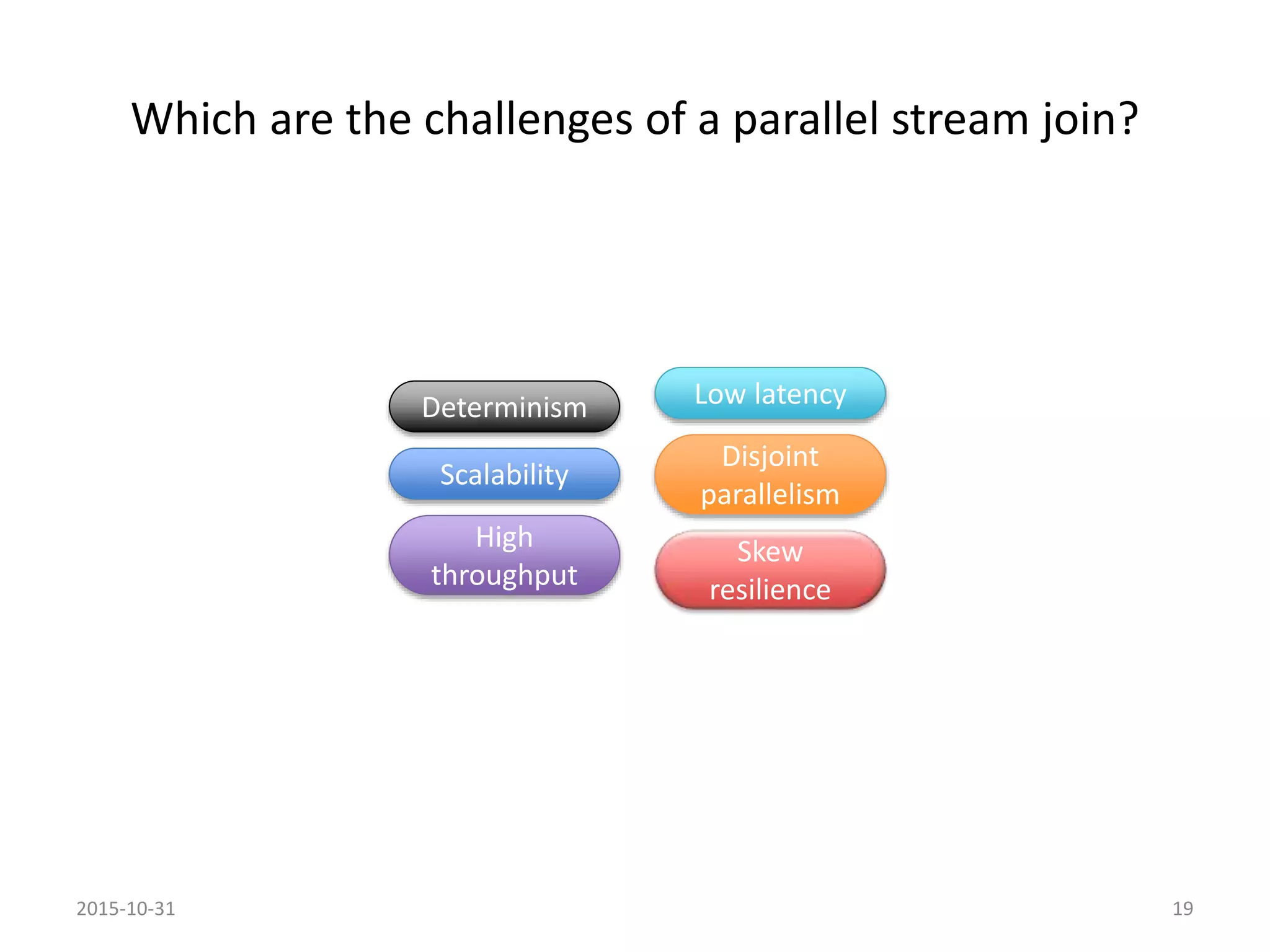

- 19. Which are the challenges of a parallel stream join? Scalability High throughput Low latency Disjoint parallelism Skew resilience Determinism 2015-10-31 19

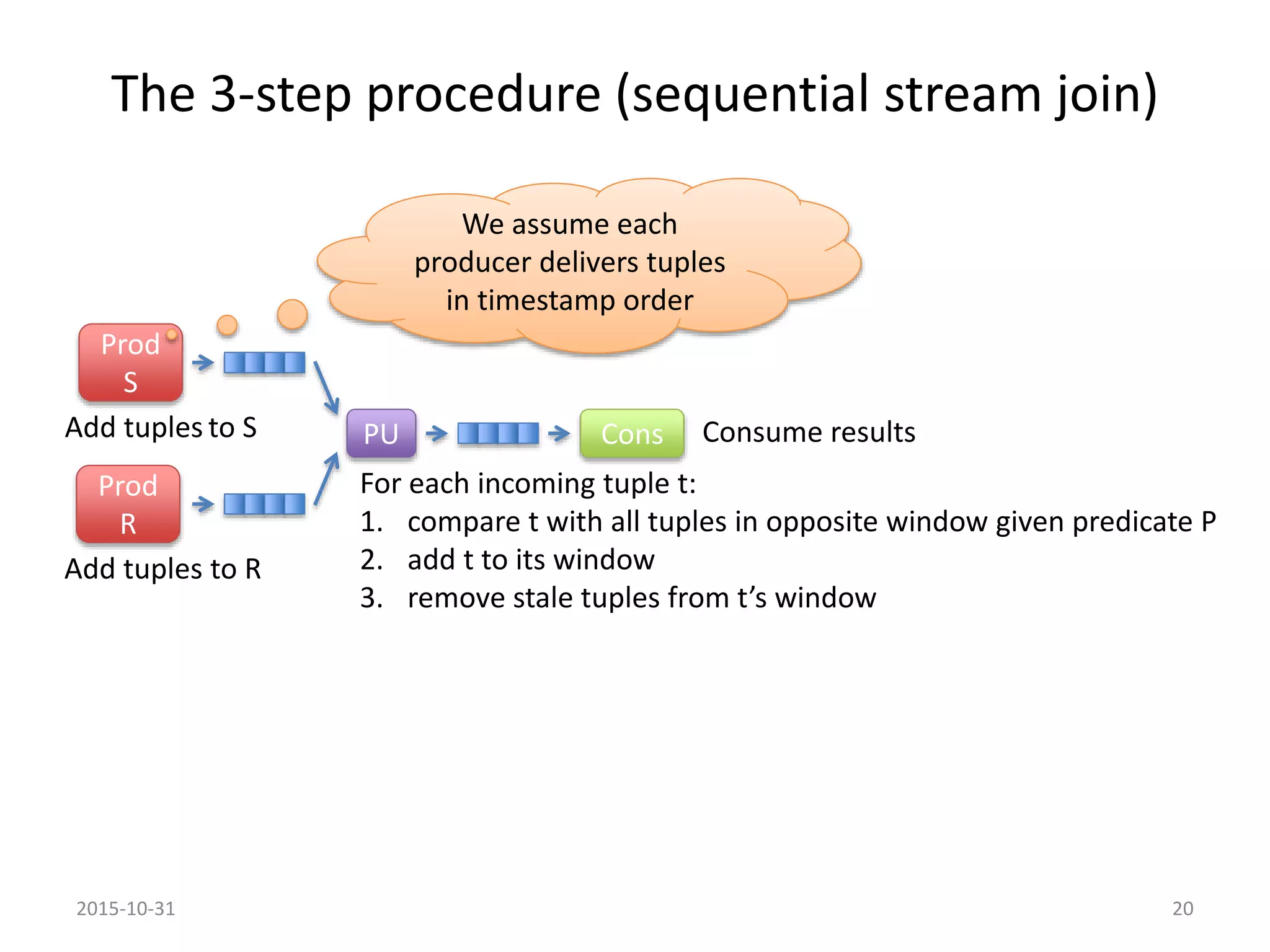

- 20. The 3-step procedure (sequential stream join) For each incoming tuple t: 1. compare t with all tuples in opposite window given predicate P 2. add t to its window 3. remove stale tuples from t’s window Add tuples to S Add tuples to R Prod R Prod S Consume resultsConsPU 2015-10-31 20 We assume each producer delivers tuples in timestamp order

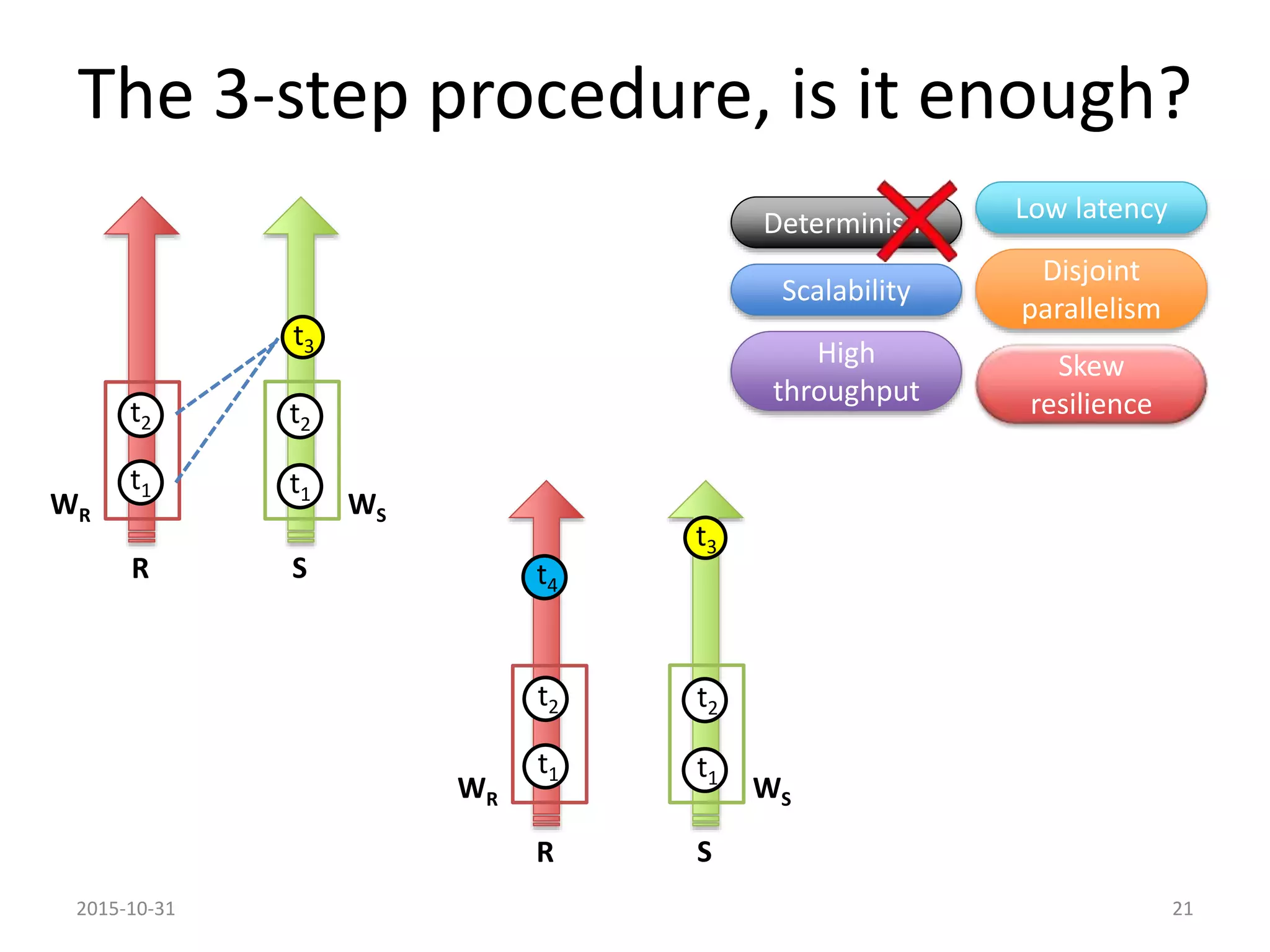

- 21. The 3-step procedure, is it enough? Scalability High throughput Low latency Disjoint parallelism Skew resilience Determinism 2015-10-31 21 t1 t2 t1 t2 R S WSWR t3 t1 t2 t1 t2 R S WSWR t4 t3

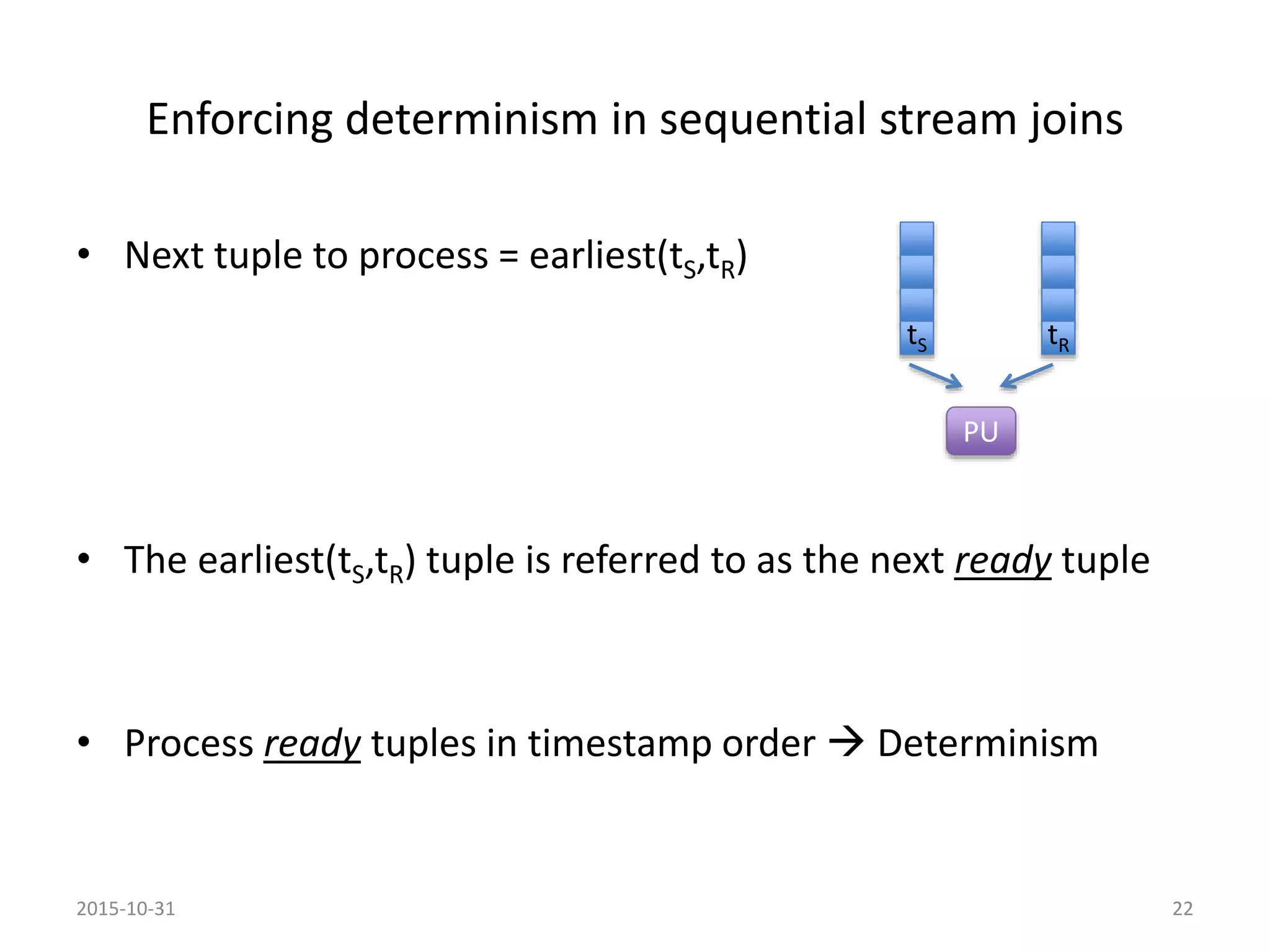

- 22. Enforcing determinism in sequential stream joins • Next tuple to process = earliest(tS,tR) • The earliest(tS,tR) tuple is referred to as the next ready tuple • Process ready tuples in timestamp order Determinism PU tS tR 2015-10-31 22

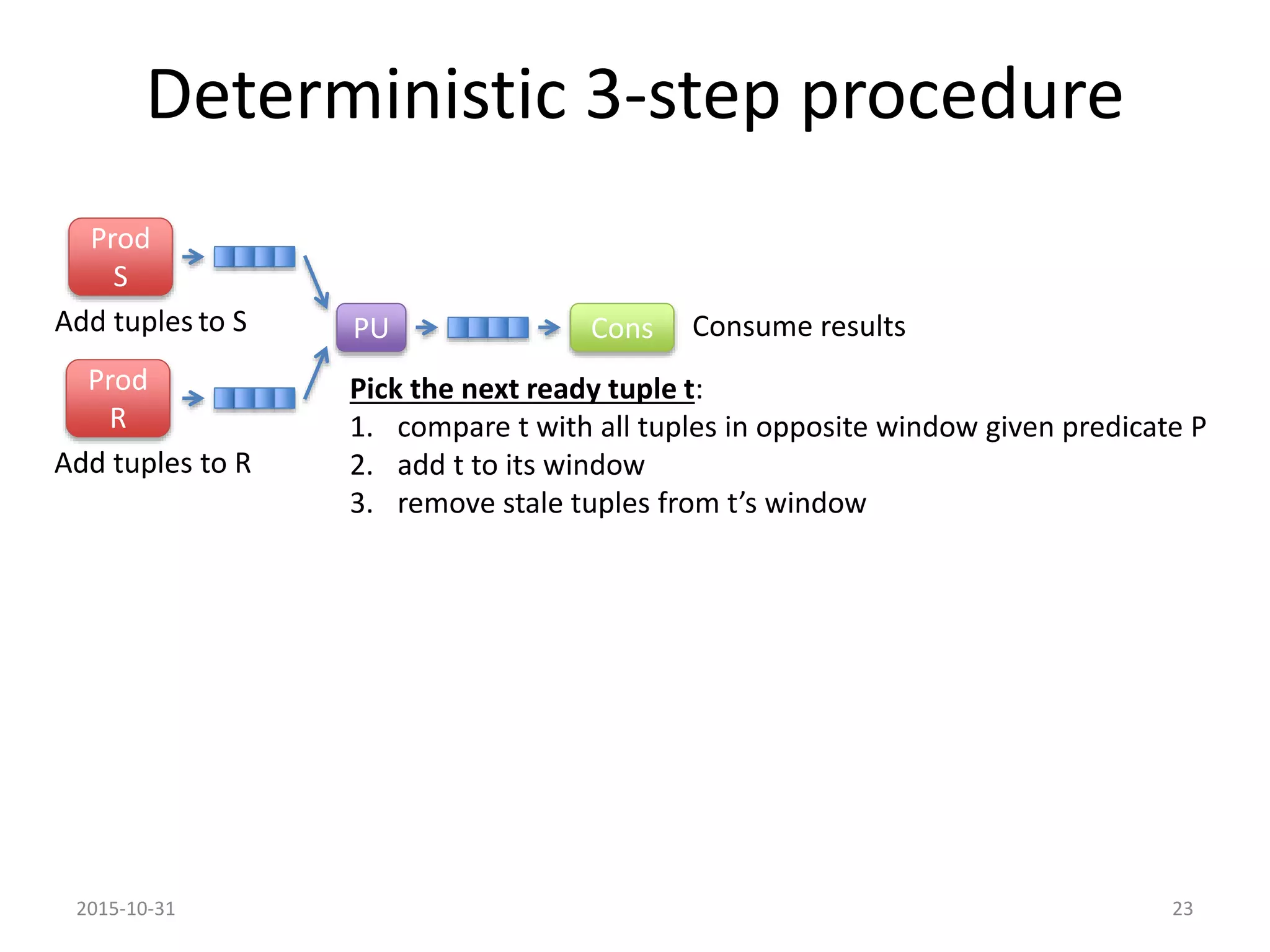

- 23. Deterministic 3-step procedure Pick the next ready tuple t: 1. compare t with all tuples in opposite window given predicate P 2. add t to its window 3. remove stale tuples from t’s window Add tuples to S Add tuples to R Prod R Prod S Consume resultsConsPU 2015-10-31 23

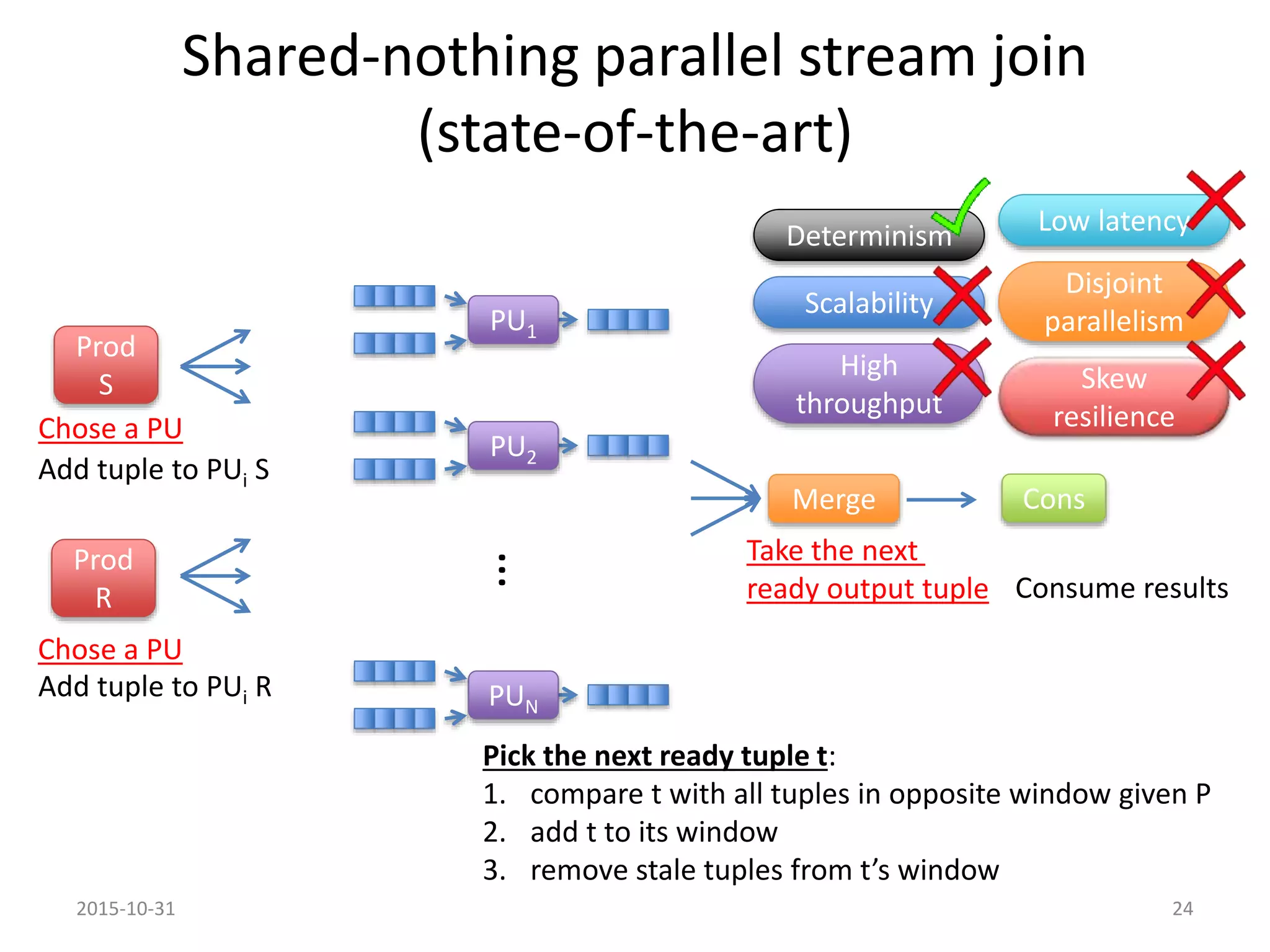

- 24. Shared-nothing parallel stream join (state-of-the-art) Prod R Prod S PU1 PU2 PUN … Cons Add tuple to PUi S Add tuple to PUi R Consume results Pick the next ready tuple t: 1. compare t with all tuples in opposite window given P 2. add t to its window 3. remove stale tuples from t’s window Chose a PU Chose a PU Take the next ready output tuple Scalability High throughput Low latency Disjoint parallelism Skew resilience Determinism 2015-10-31 24 Merge

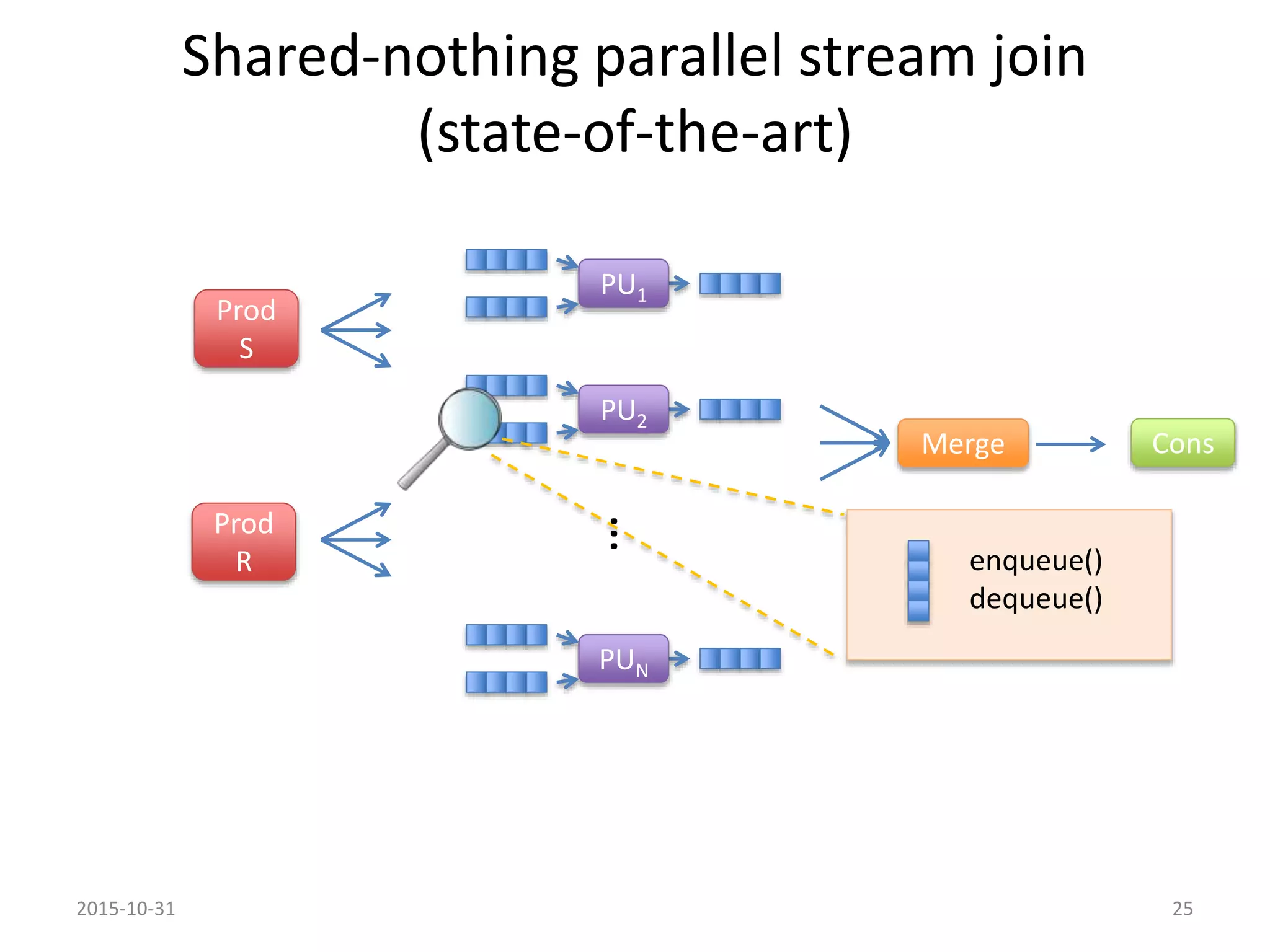

- 25. Shared-nothing parallel stream join (state-of-the-art) Prod R Prod S PU1 PU2 PUN … 2015-10-31 25 enqueue() dequeue() ConsMerge

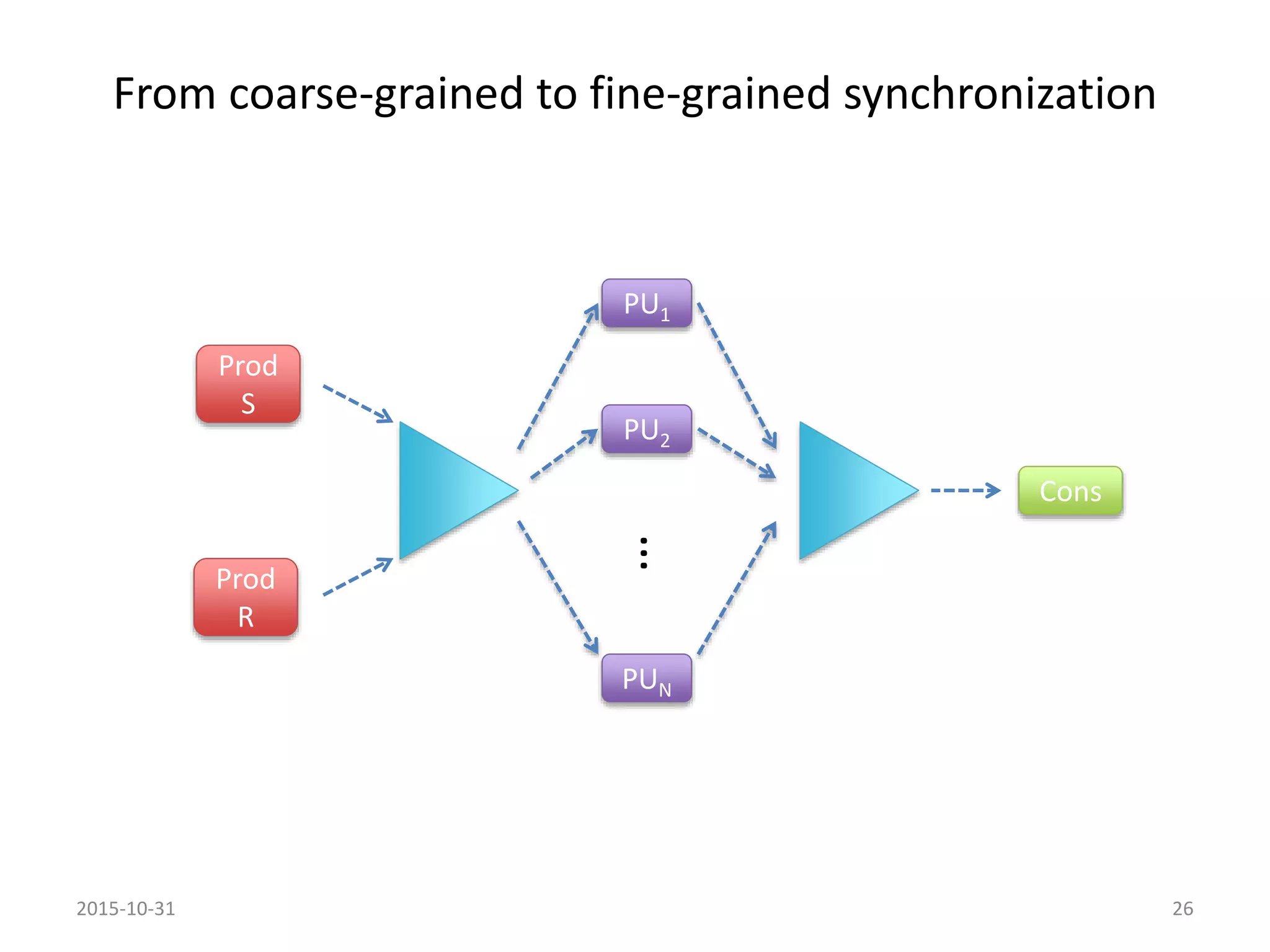

- 26. From coarse-grained to fine-grained synchronization Prod R Prod S PU1 PU2 PUN … Cons 2015-10-31 26

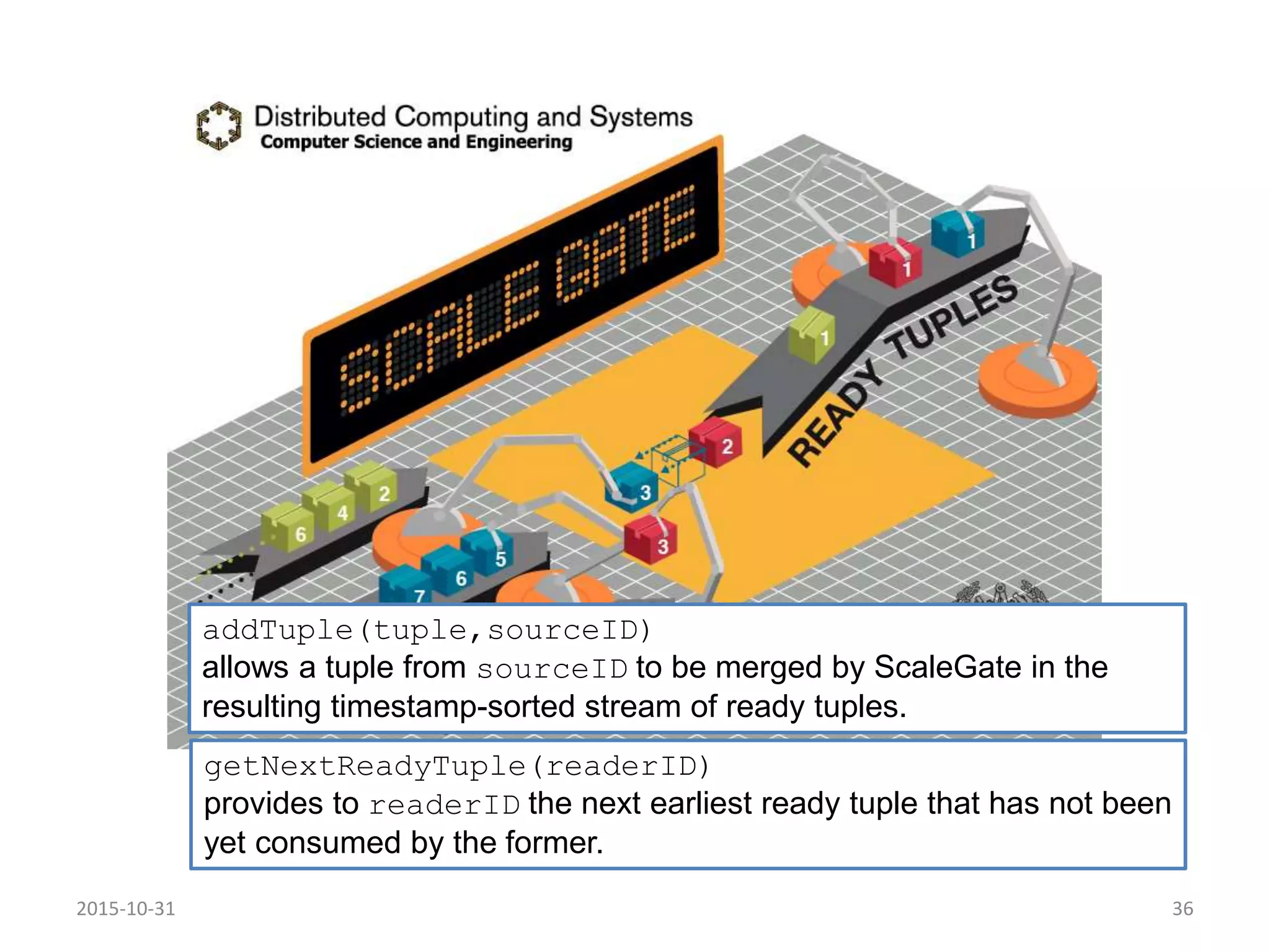

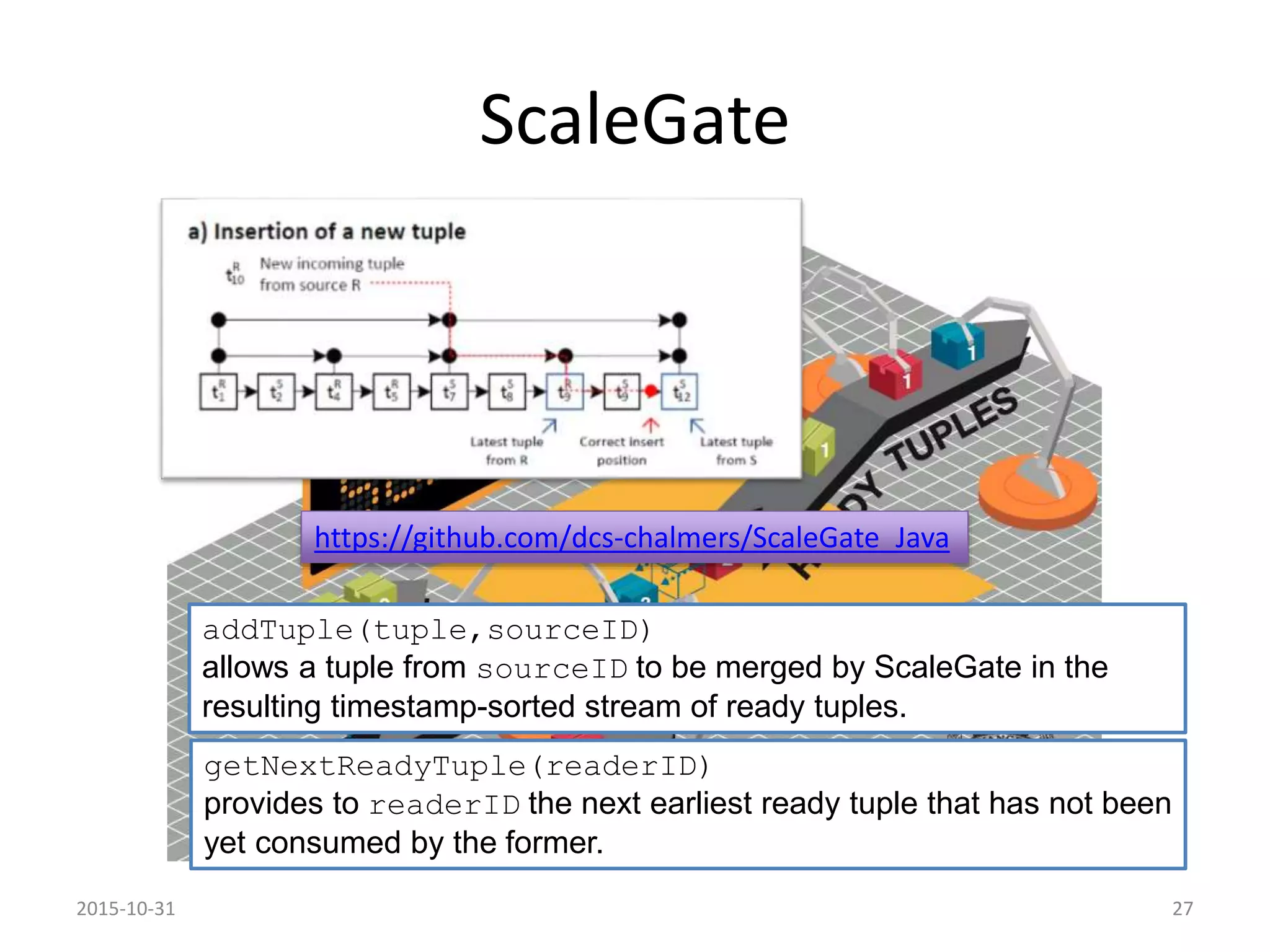

- 27. ScaleGate 2015-10-31 27 addTuple(tuple,sourceID) allows a tuple from sourceID to be merged by ScaleGate in the resulting timestamp-sorted stream of ready tuples. getNextReadyTuple(readerID) provides to readerID the next earliest ready tuple that has not been yet consumed by the former. https://github.com/dcs-chalmers/ScaleGate_Java

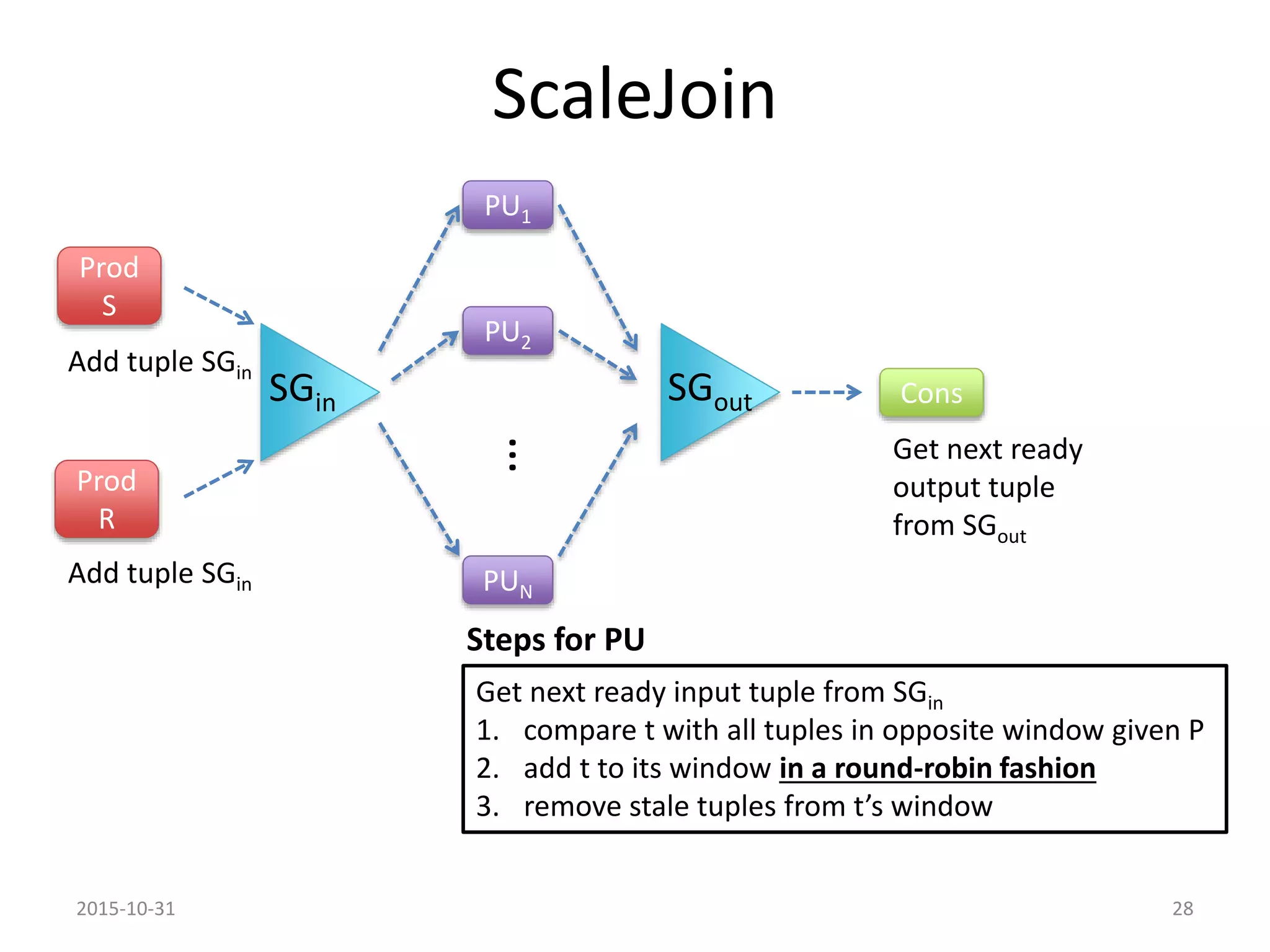

- 28. ScaleJoin Prod R Prod S PU1 PU2 PUN … Cons Add tuple SGin Add tuple SGin Get next ready output tuple from SGout Get next ready input tuple from SGin 1. compare t with all tuples in opposite window given P 2. add t to its window in a round-robin fashion 3. remove stale tuples from t’s window 2015-10-31 28 SGin SGout Steps for PU

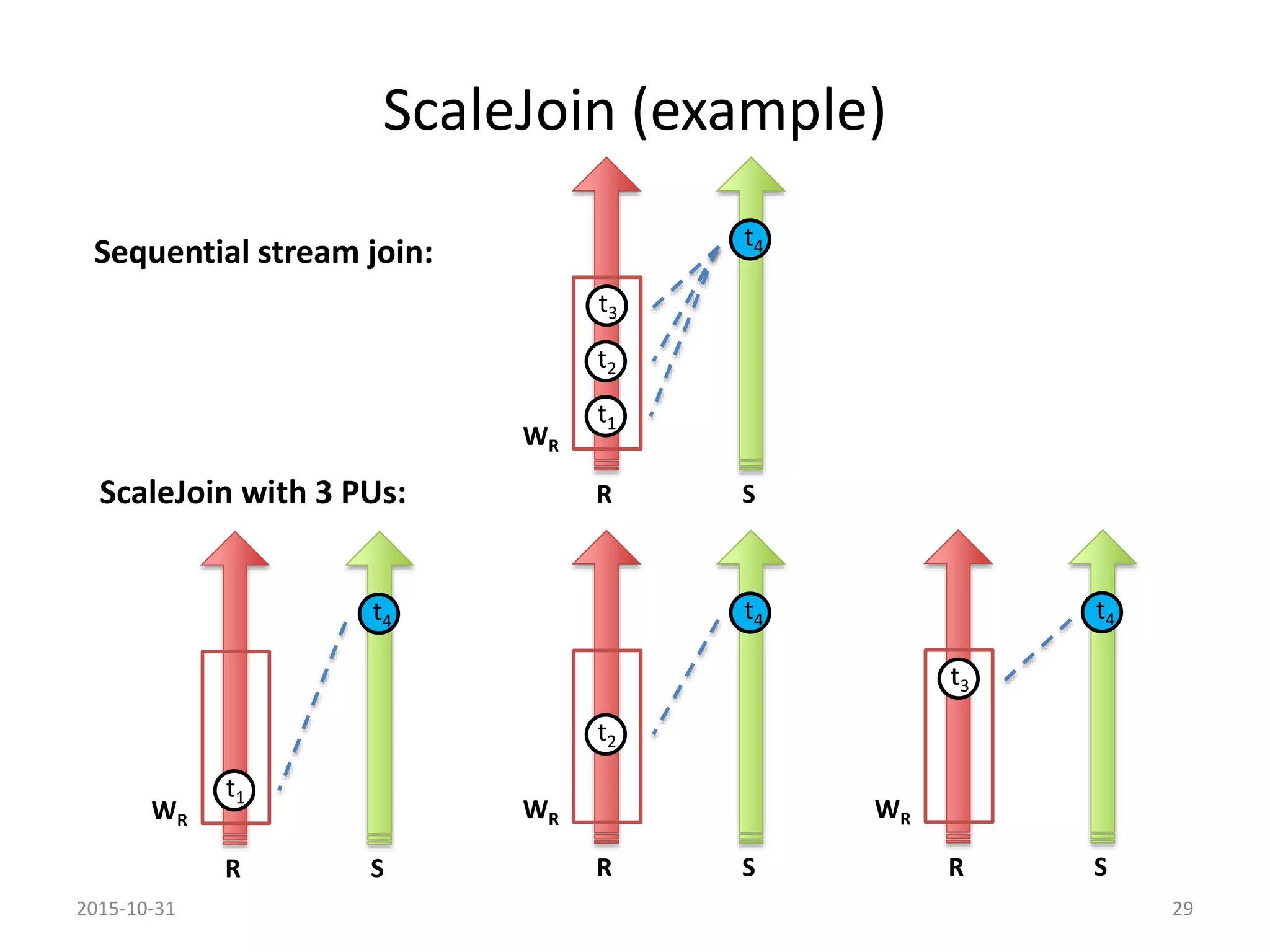

- 29. 2015-10-31 29 t1 t2 R S WR t3 t4 R S t4 t1 WR R S t4 t2 WR R S t4 WR t3 Sequential stream join: ScaleJoin with 3 PUs: ScaleJoin (example)

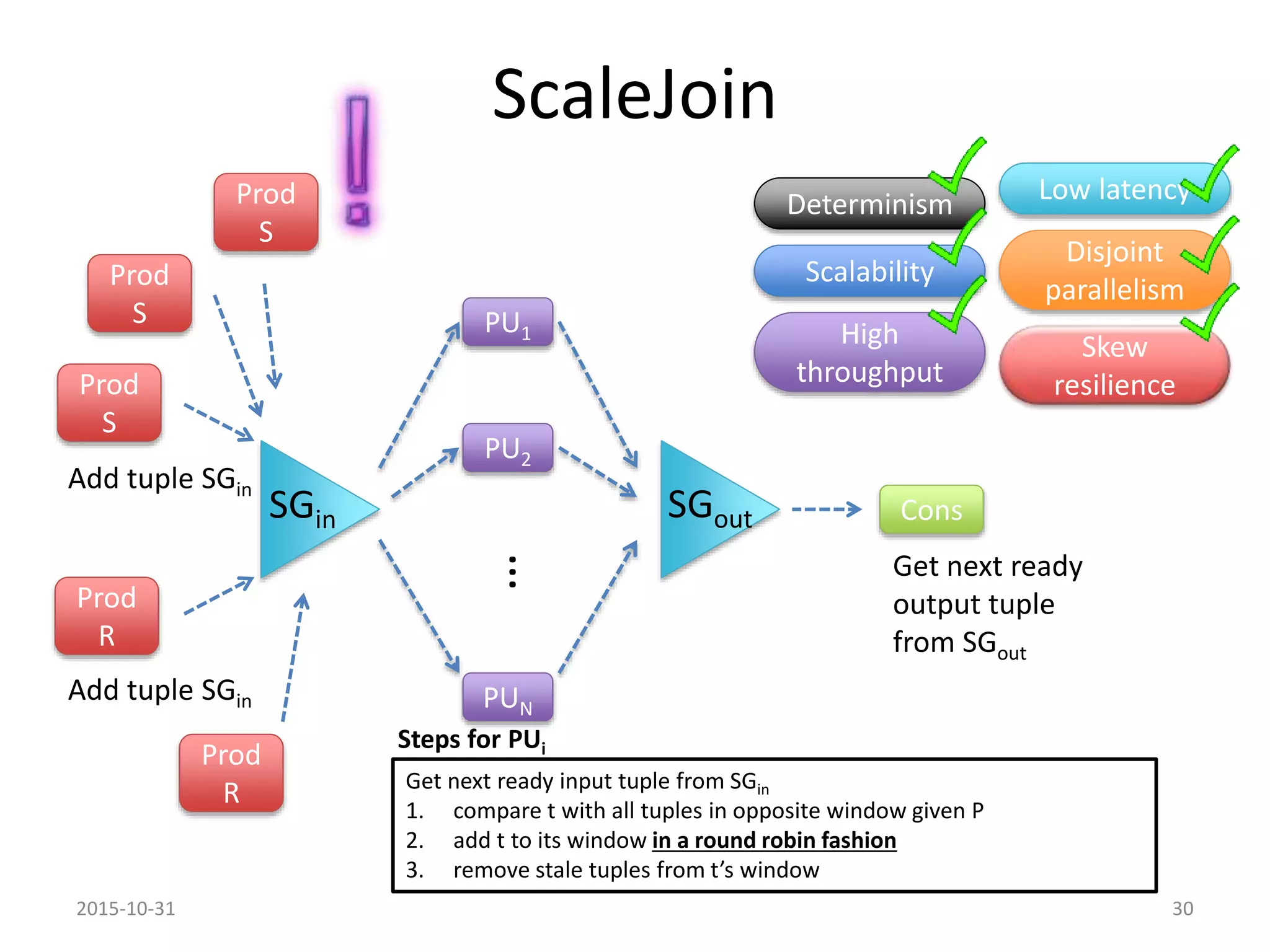

- 30. ScaleJoin Prod R Prod S PU1 PU2 PUN … Cons Add tuple SGin Add tuple SGin Get next ready output tuple from SGout 2015-10-31 30 SGin SGout Scalability High throughput Low latency Disjoint parallelism Skew resilience Determinism Prod S Prod S Prod R Get next ready input tuple from SGin 1. compare t with all tuples in opposite window given P 2. add t to its window in a round robin fashion 3. remove stale tuples from t’s window Steps for PUi

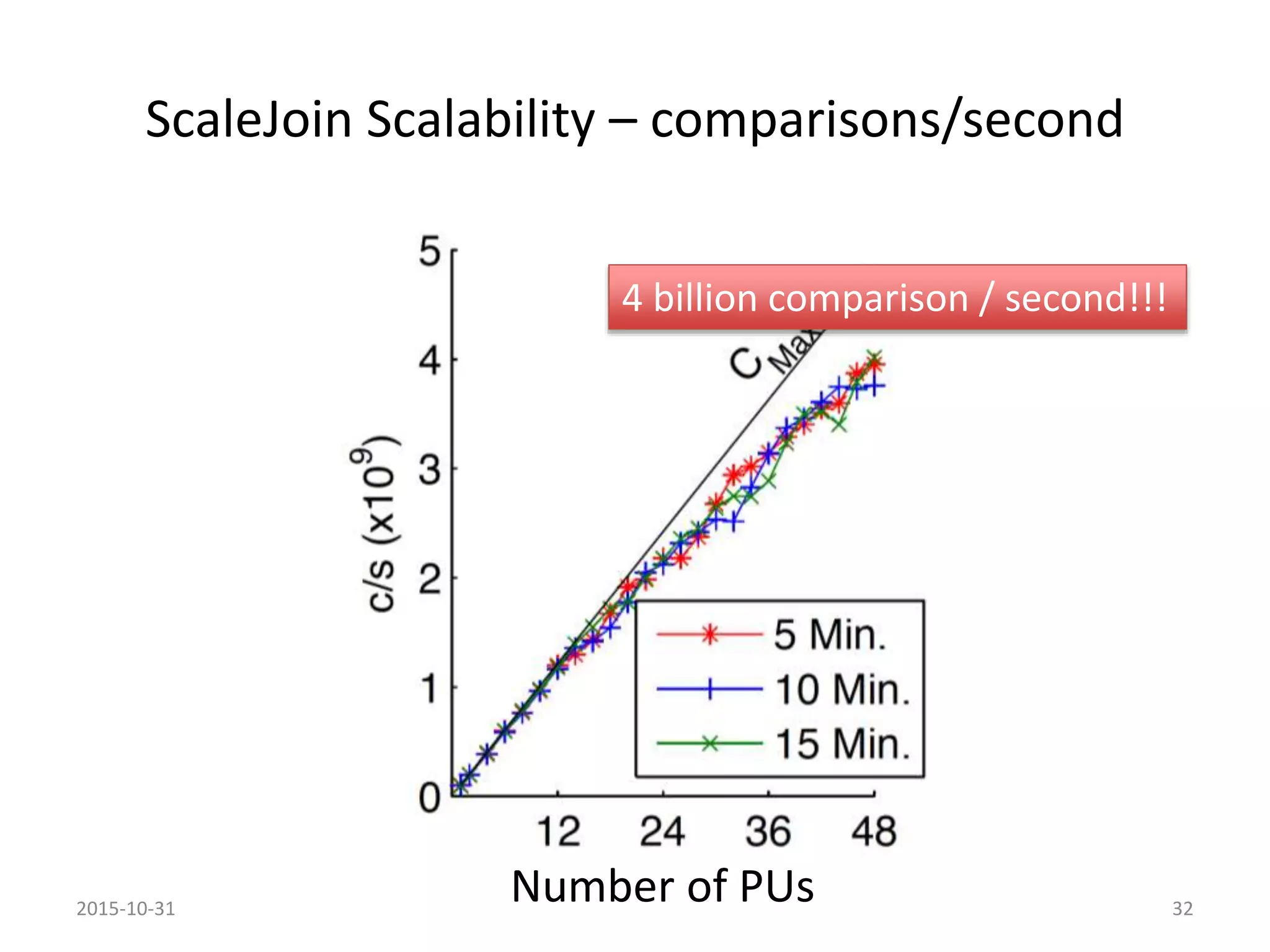

- 31. ScaleJoin Scalability – comparisons/second 2015-10-31 32 Number of PUs 4 billion comparison / second!!!

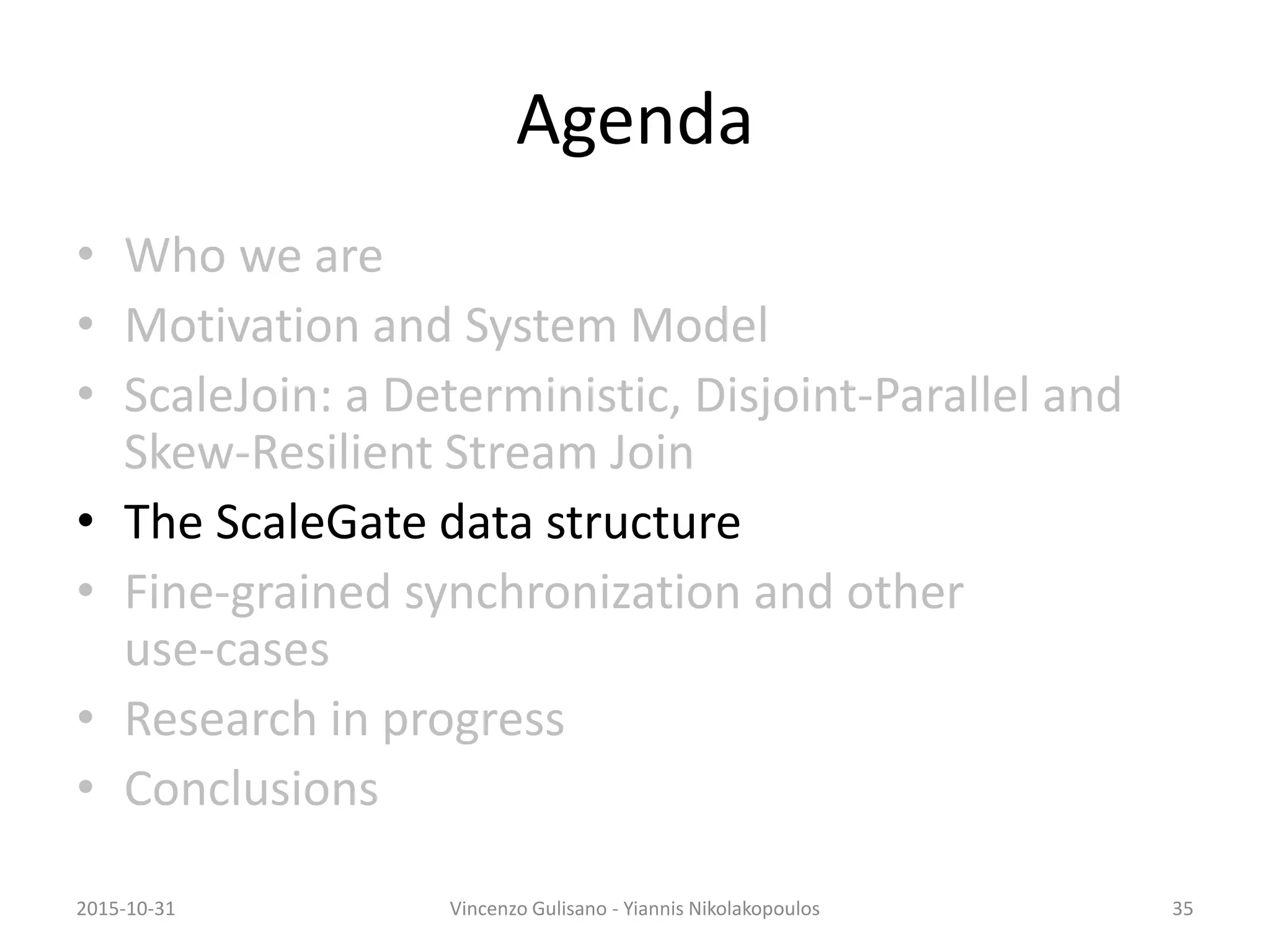

- 32. Agenda • Who we are • Motivation and System Model • ScaleJoin: a Deterministic, Disjoint-Parallel and Skew-Resilient Stream Join • The ScaleGate data structure • Fine-grained synchronization and other use-cases • Research in progress • Conclusions 2015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos 35
- 33. 2015-10-31 36 addTuple(tuple,sourceID) allows a tuple from sourceID to be merged by ScaleGate in the resulting timestamp-sorted stream of ready tuples. getNextReadyTuple(readerID) provides to readerID the next earliest ready tuple that has not been yet consumed by the former.

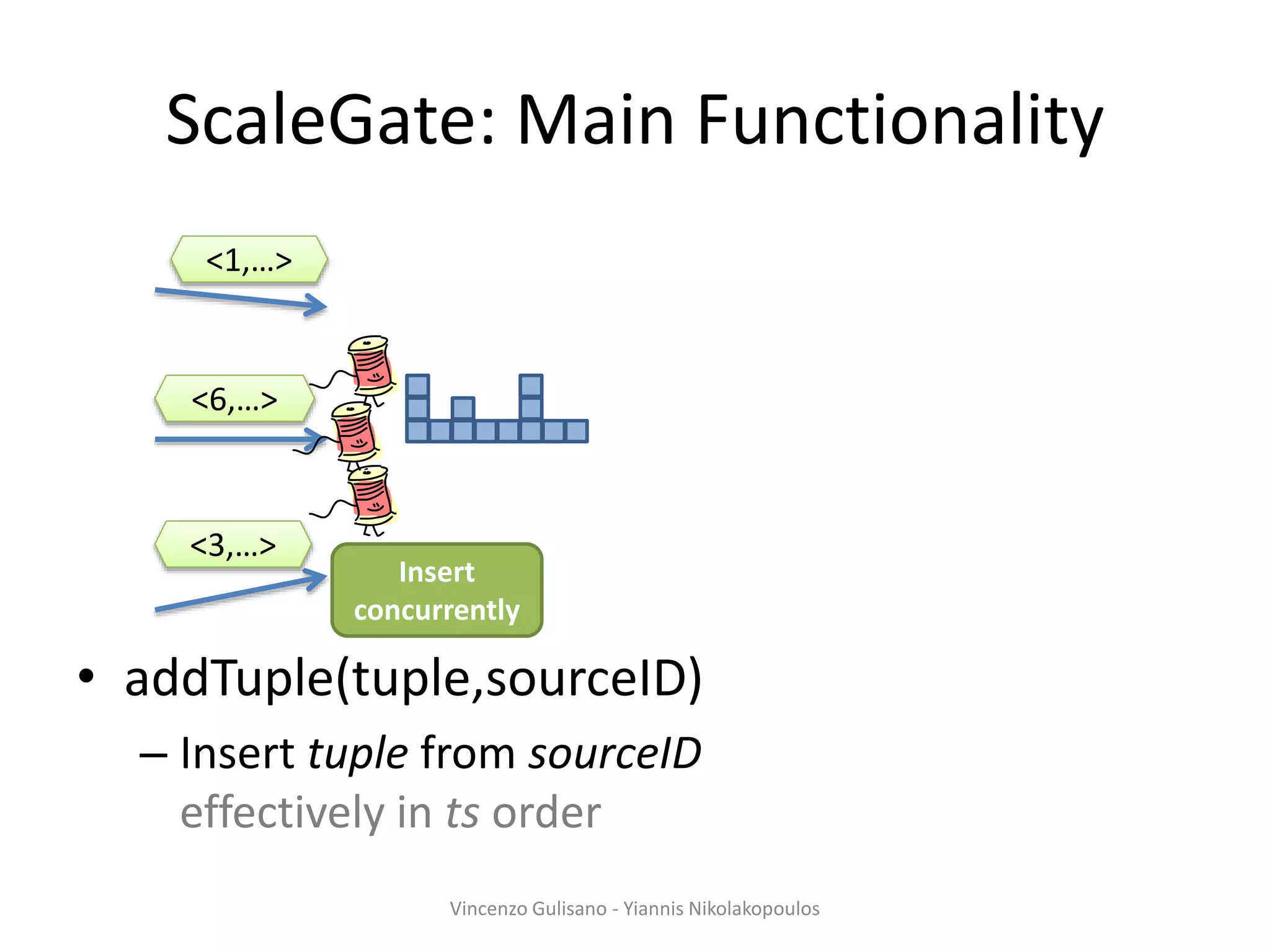

- 34. ScaleGate: Main Functionality • addTuple(tuple,sourceID) – Insert tuple from sourceID effectively in ts order Vincenzo Gulisano - Yiannis Nikolakopoulos <6,…> <1,…> <3,…> Insert concurrently

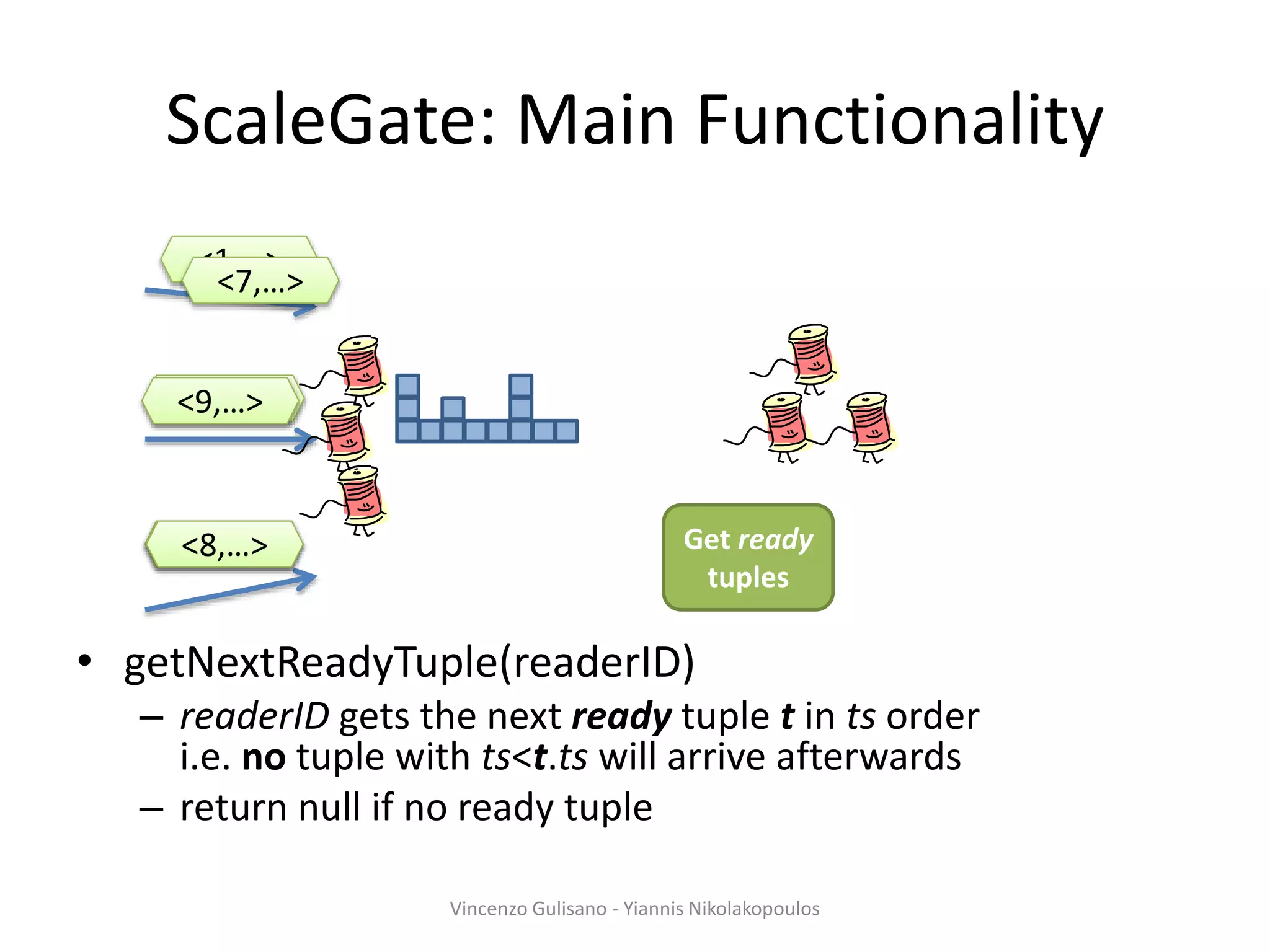

- 35. ScaleGate: Main Functionality • getNextReadyTuple(readerID) – readerID gets the next ready tuple t in ts order i.e. no tuple with ts<t.ts will arrive afterwards – return null if no ready tuple Vincenzo Gulisano - Yiannis Nikolakopoulos <1,…> Get ready tuples <6,…> <3,…> <7,…> <9,…> <8,…>

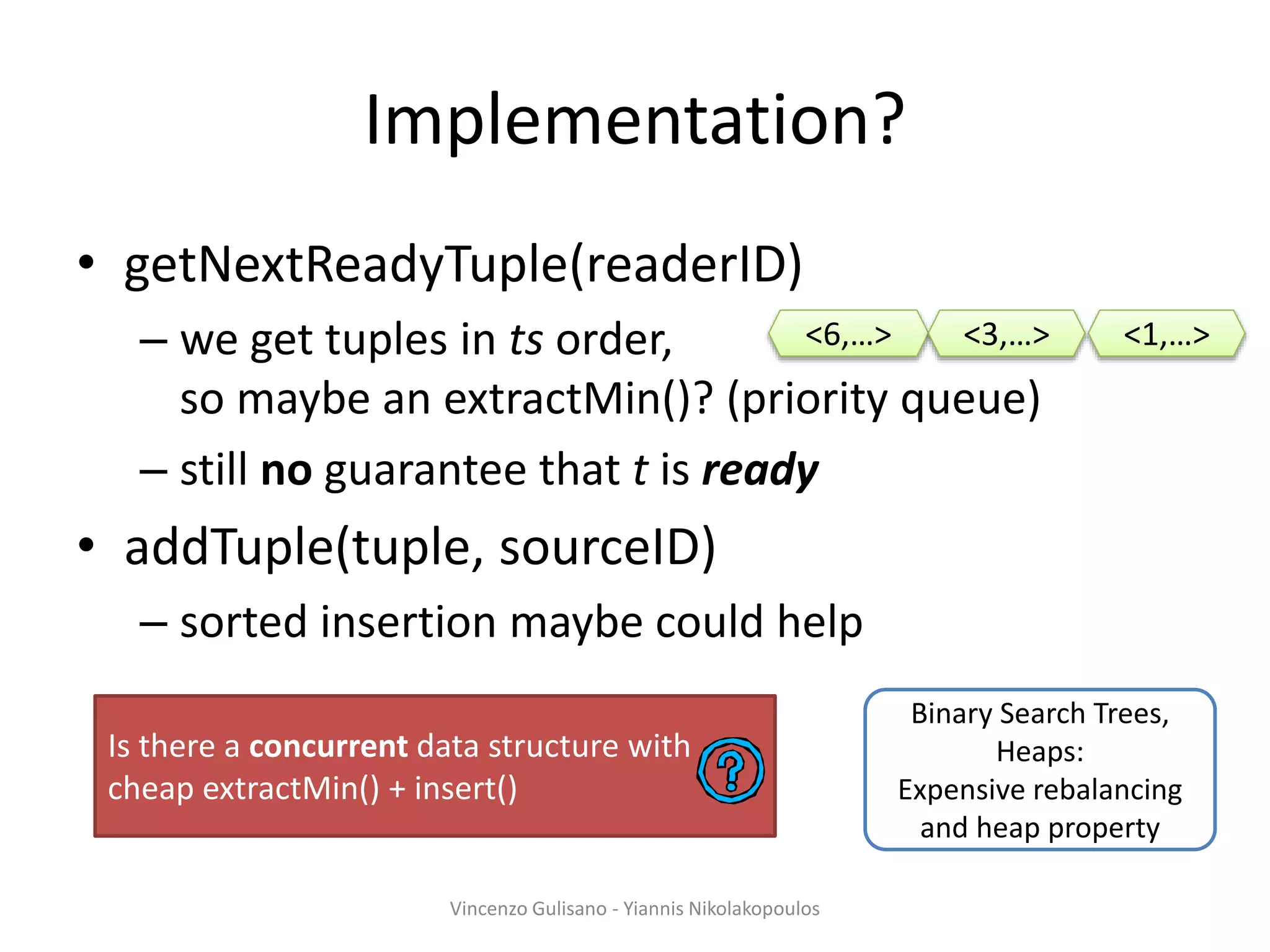

- 36. Implementation? • getNextReadyTuple(readerID) – we get tuples in ts order, so maybe an extractMin()? (priority queue) – still no guarantee that t is ready • addTuple(tuple, sourceID) – sorted insertion maybe could help Vincenzo Gulisano - Yiannis Nikolakopoulos <6,…> <1,…><3,…> Is there a concurrent data structure with cheap extractMin() + insert() Binary Search Trees, Heaps: Expensive rebalancing and heap property

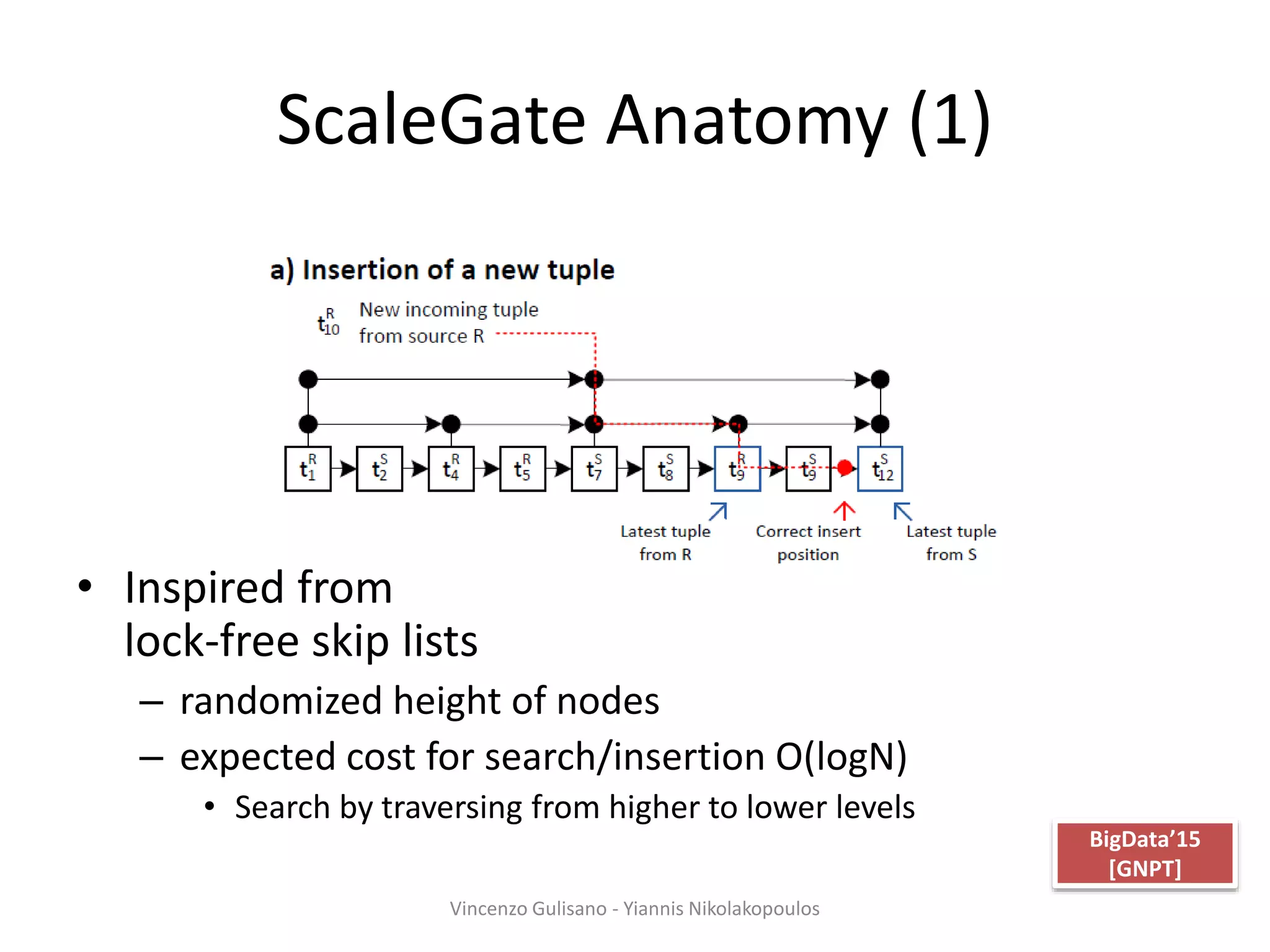

- 37. ScaleGate Anatomy (1) • Inspired from lock-free skip lists – randomized height of nodes – expected cost for search/insertion O(logN) • Search by traversing from higher to lower levels Vincenzo Gulisano - Yiannis Nikolakopoulos BigData’15 [GNPT]

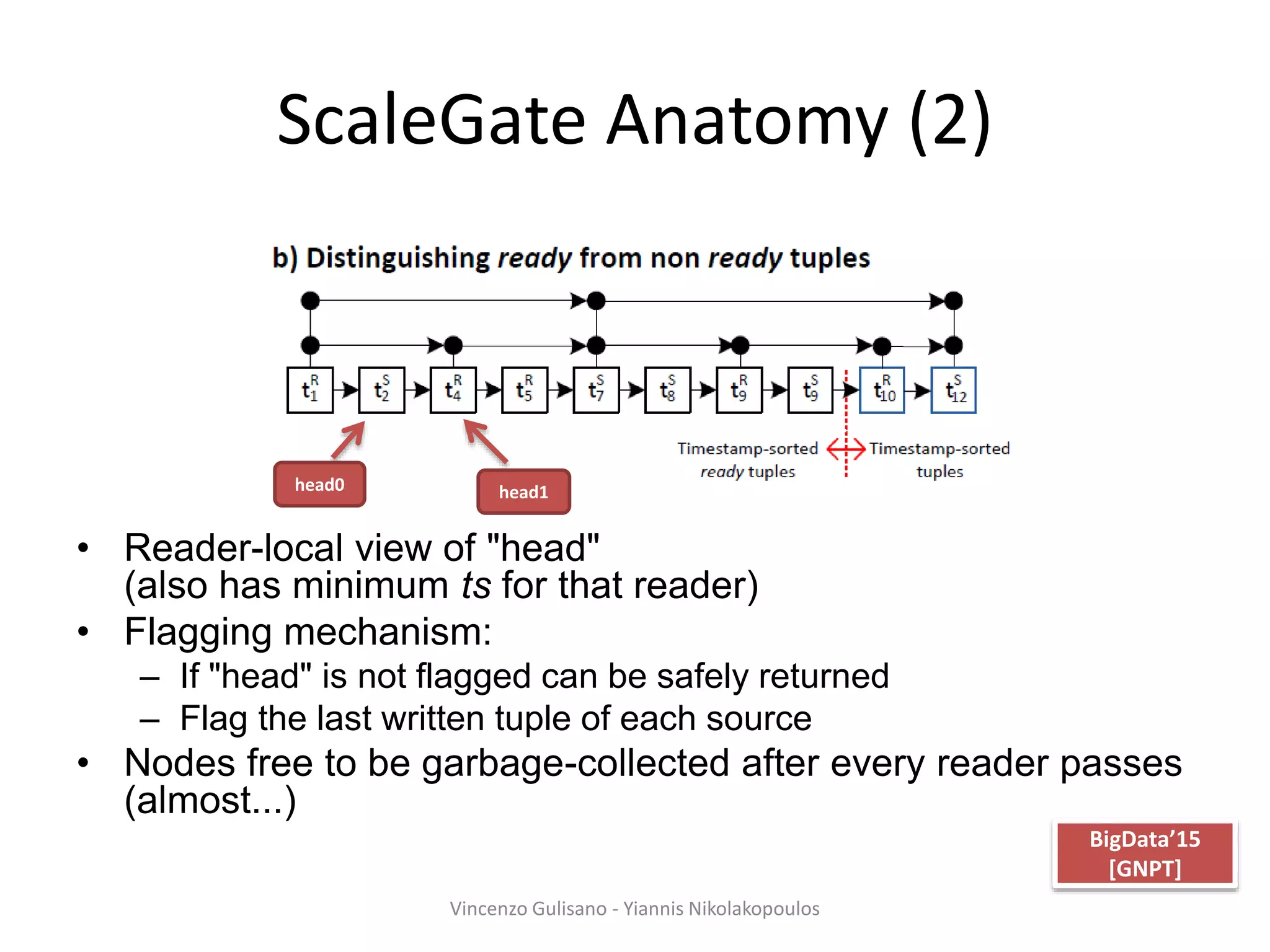

- 38. ScaleGate Anatomy (2) • Reader-local view of "head" (also has minimum ts for that reader) • Flagging mechanism: – If "head" is not flagged can be safely returned – Flag the last written tuple of each source • Nodes free to be garbage-collected after every reader passes (almost...) Vincenzo Gulisano - Yiannis Nikolakopoulos head0 head1 BigData’15 [GNPT]

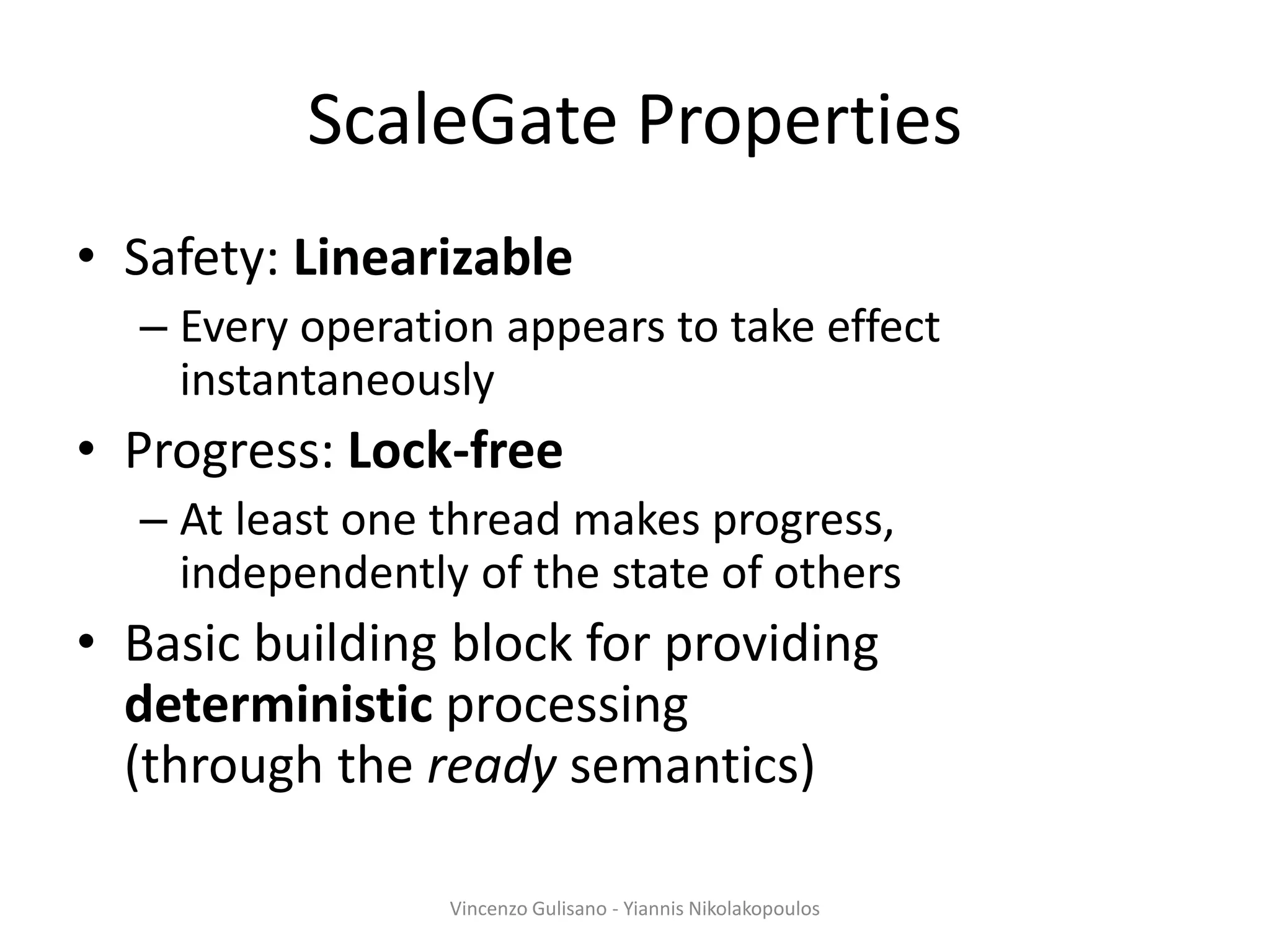

- 39. ScaleGate Properties • Safety: Linearizable – Every operation appears to take effect instantaneously • Progress: Lock-free – At least one thread makes progress, independently of the state of others • Basic building block for providing deterministic processing (through the ready semantics) Vincenzo Gulisano - Yiannis Nikolakopoulos

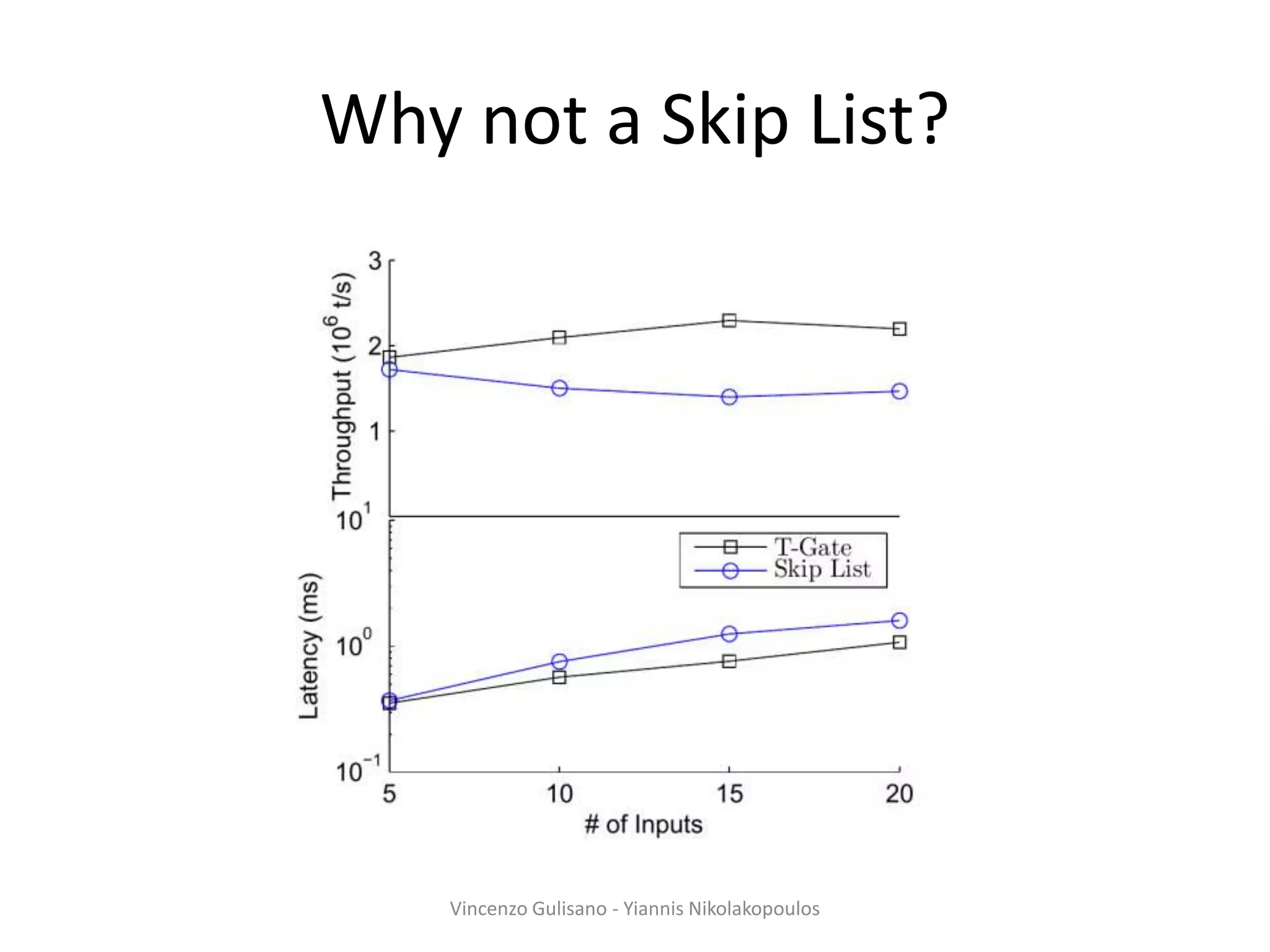

- 40. Why not a Skip List? Vincenzo Gulisano - Yiannis Nikolakopoulos
- 41. Agenda • Who we are • Motivation and System Model • ScaleJoin: a Deterministic, Disjoint-Parallel and Skew- Resilient Stream Join • The ScaleGate data structure • Fine-grained synchronization and other use-cases – Streaming Aggregation – Towards real-time analytics – Some ongoing work • Research in progress • Conclusions 2015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos 44

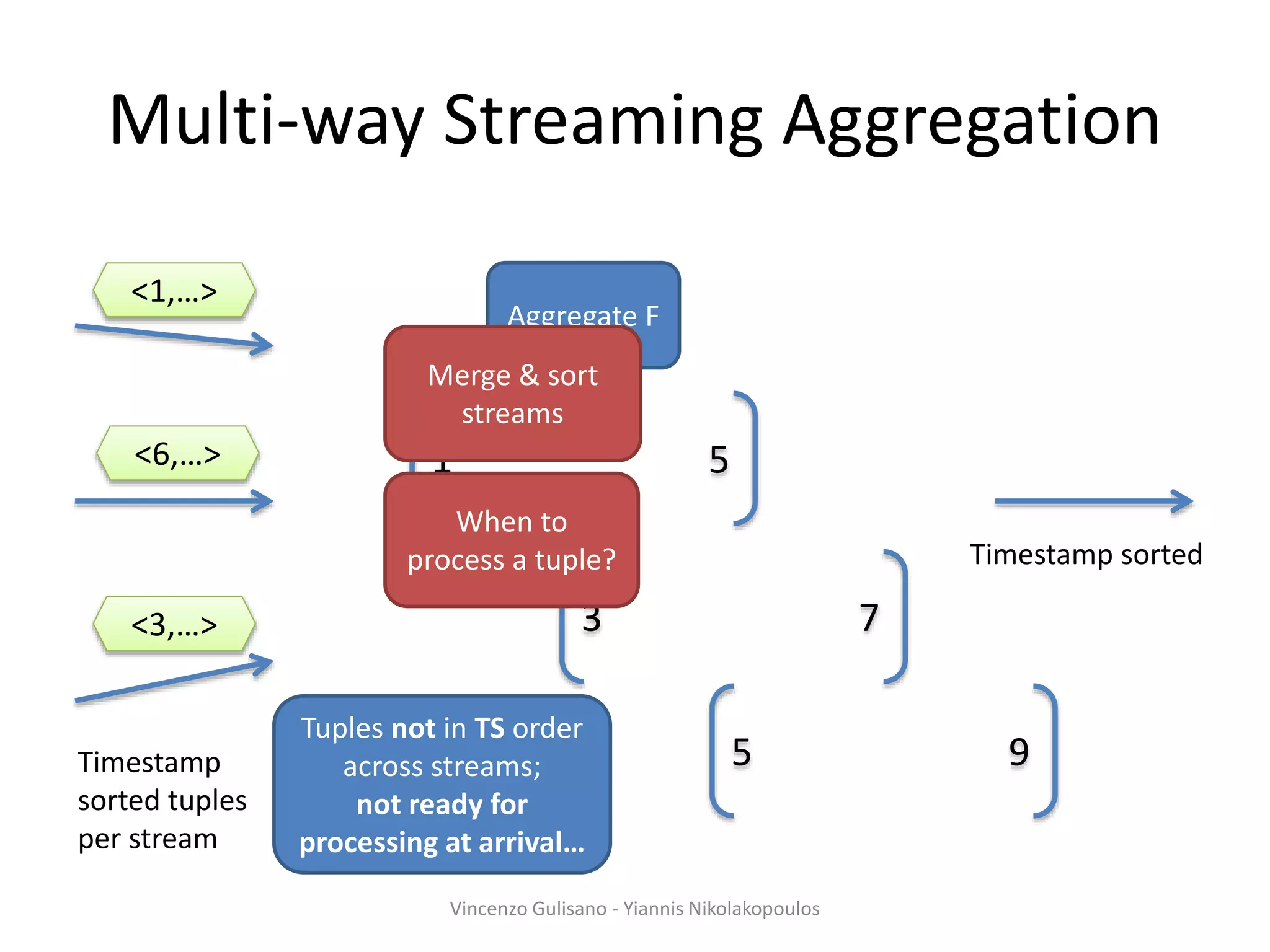

- 42. Timestamp sorted Multi-way Streaming Aggregation 1 5 Aggregate F 3 7 5 9 <6,…> <1,…> <3,…> When to process a tuple? Tuples not in TS order across streams; not ready for processing at arrival… Merge & sort streams Timestamp sorted tuples per stream Vincenzo Gulisano - Yiannis Nikolakopoulos

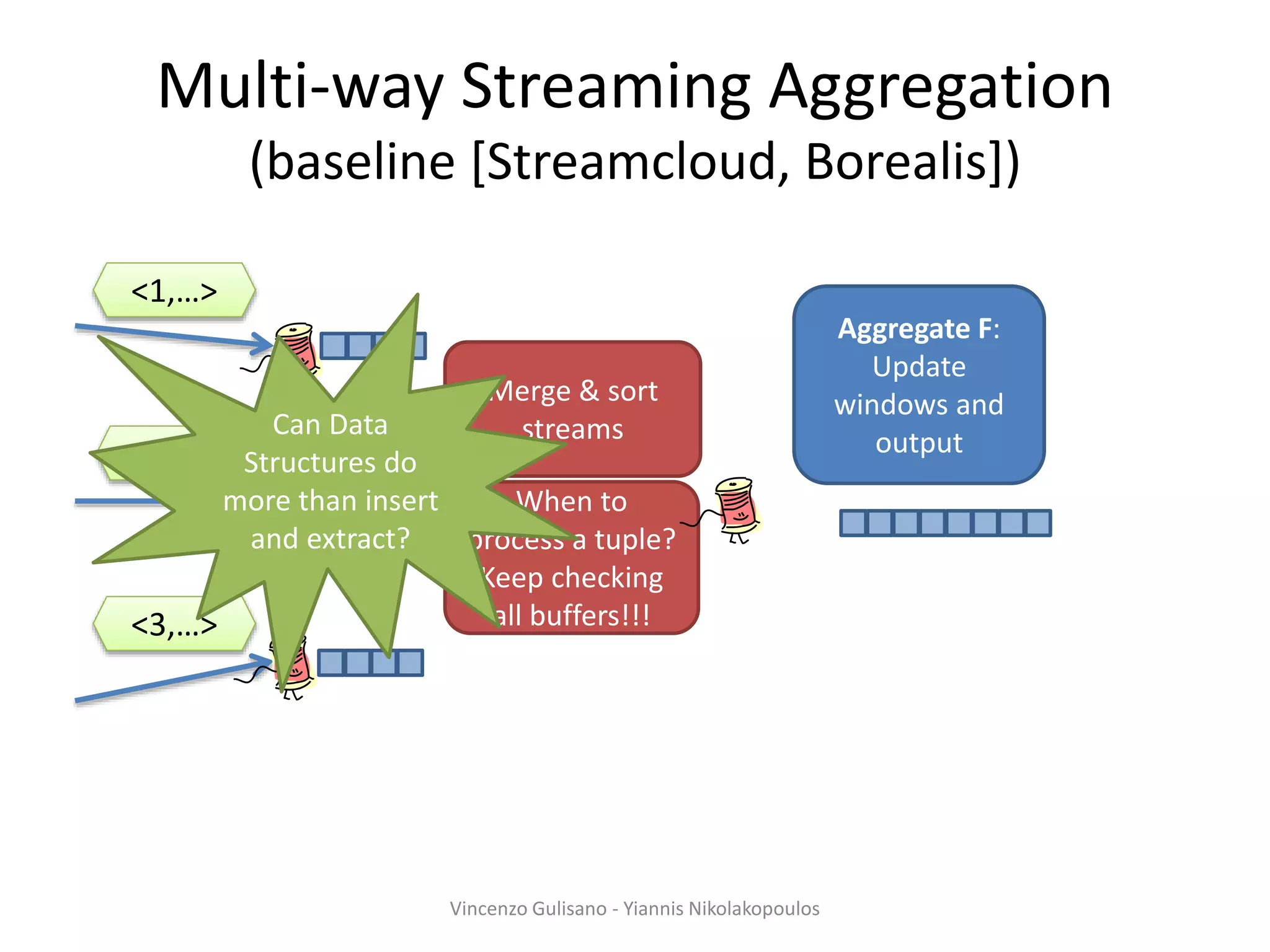

- 43. Multi-way Streaming Aggregation (baseline [Streamcloud, Borealis]) Vincenzo Gulisano - Yiannis Nikolakopoulos Aggregate F: Update windows and output<6,…> <1,…> <3,…> When to process a tuple? Keep checking all buffers!!! Merge & sort streamsCan Data Structures do more than insert and extract?

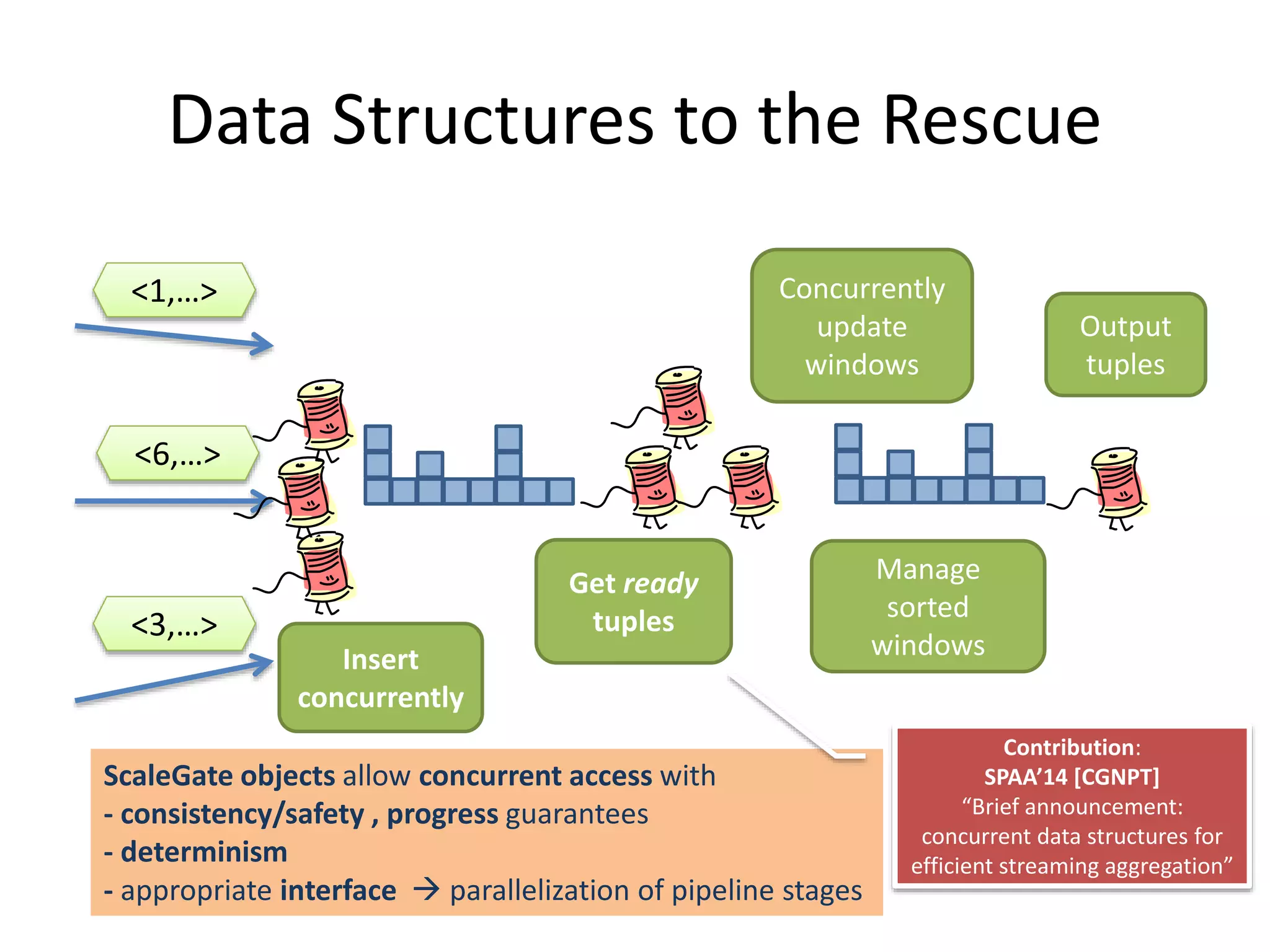

- 44. Data Structures to the Rescue <6,…> <1,…> <3,…> Insert concurrently Concurrently update windows Get ready tuples Manage sorted windows Output tuples ScaleGate objects allow concurrent access with - consistency/safety , progress guarantees - determinism - appropriate interface parallelization of pipeline stages Contribution: SPAA’14 [CGNPT] “Brief announcement: concurrent data structures for efficient streaming aggregation”

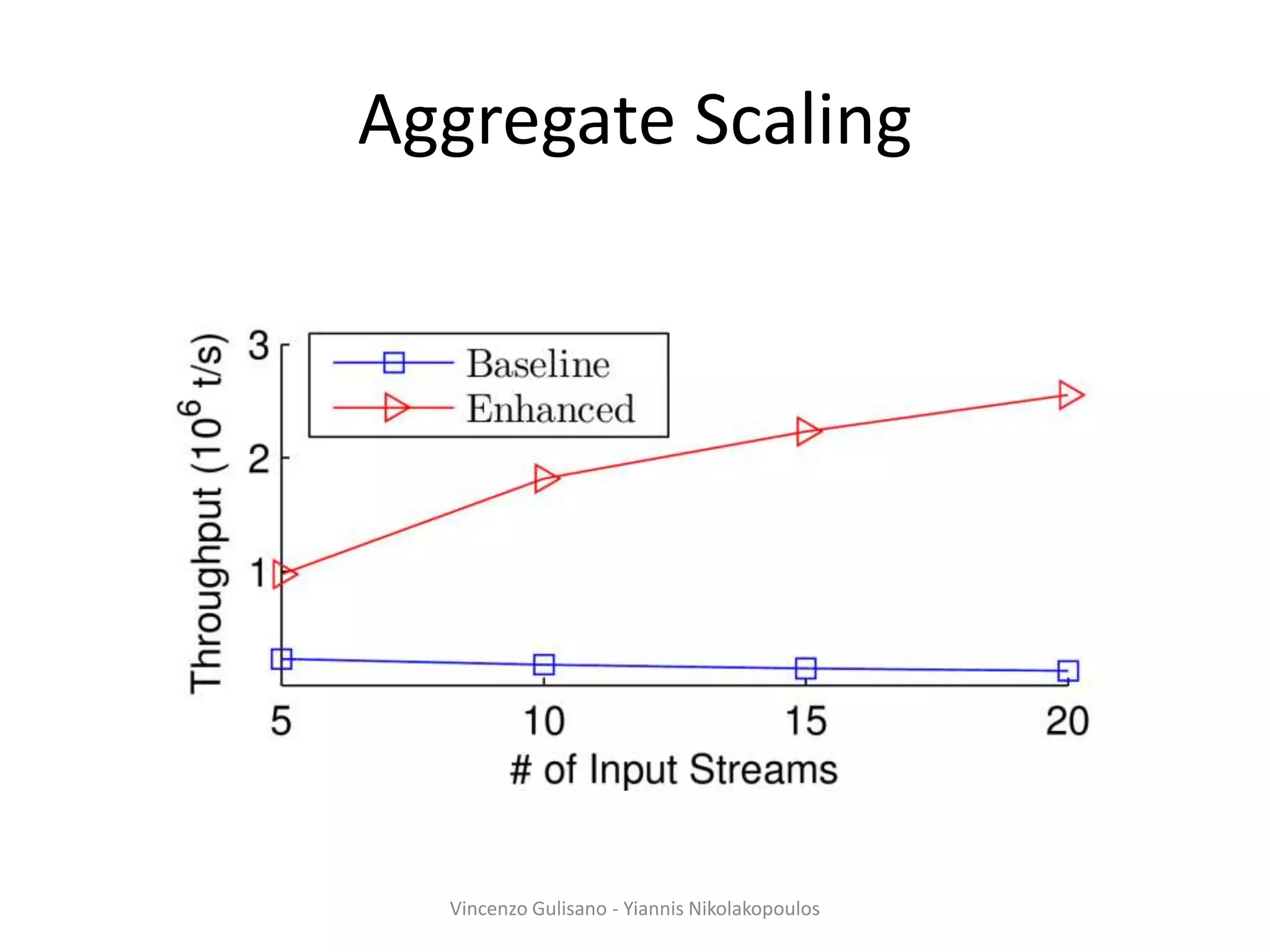

- 45. Aggregate Scaling Vincenzo Gulisano - Yiannis Nikolakopoulos

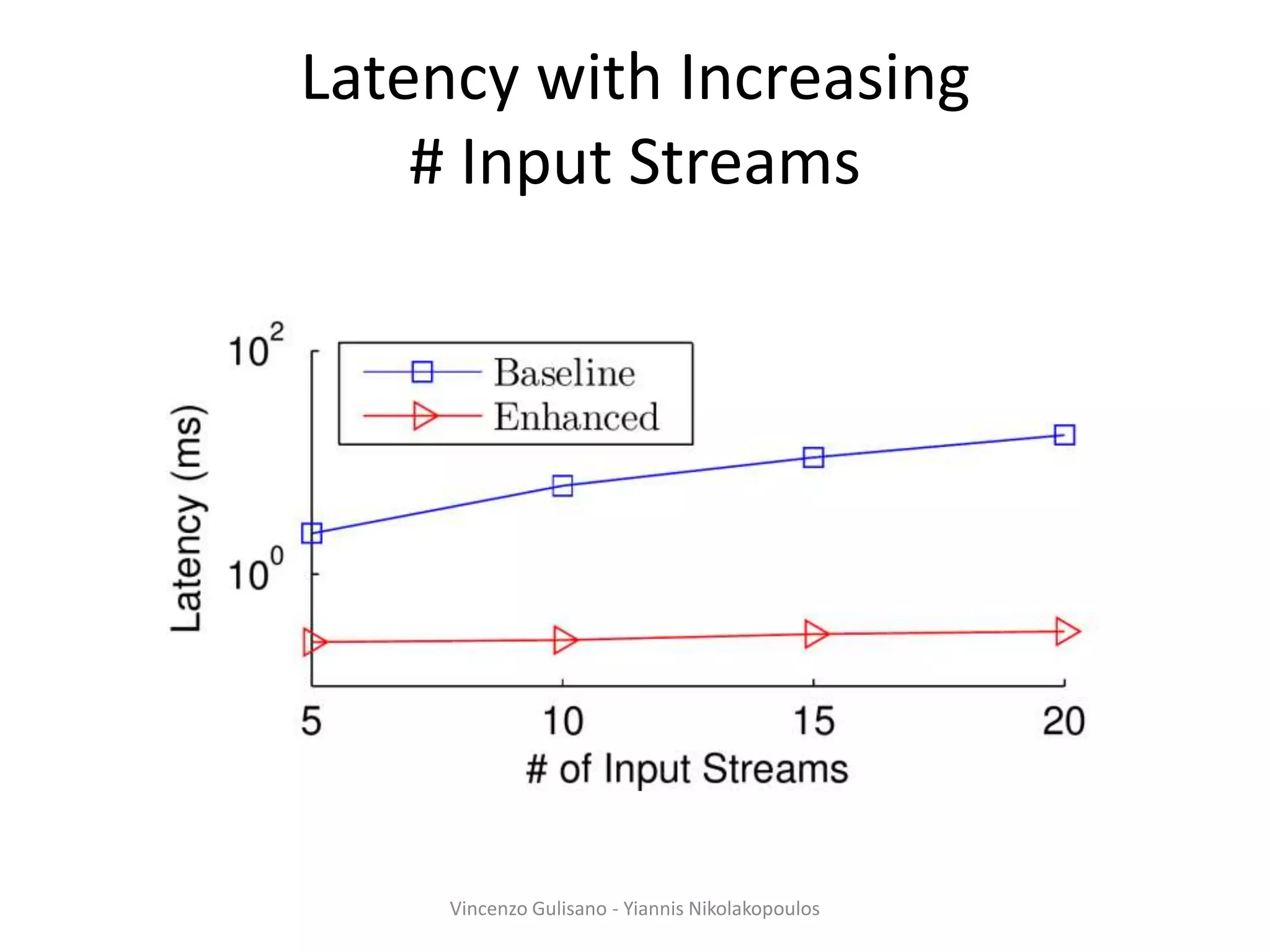

- 46. Latency with Increasing # Input Streams Vincenzo Gulisano - Yiannis Nikolakopoulos

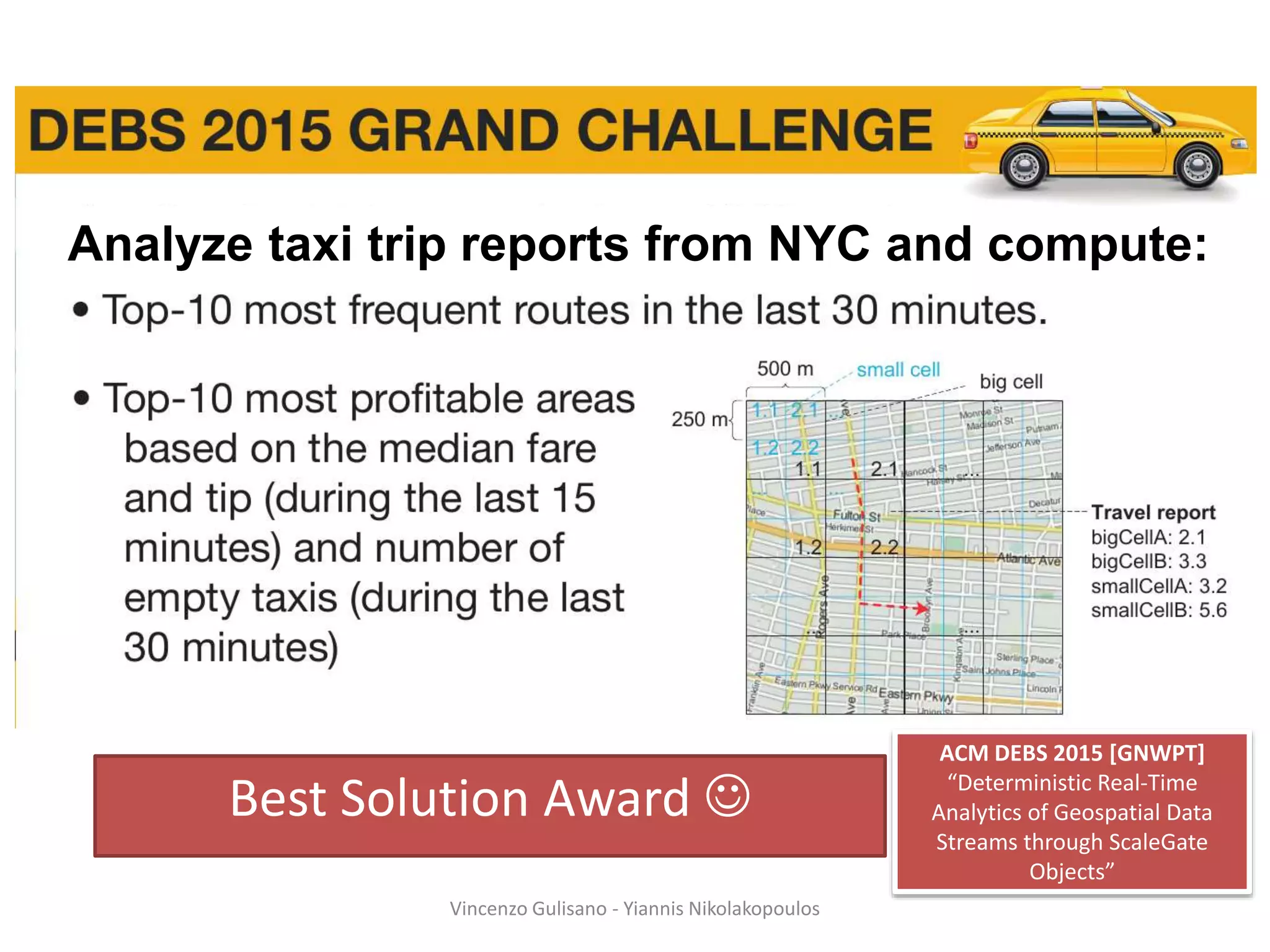

- 47. Best Solution Award Vincenzo Gulisano - Yiannis Nikolakopoulos Analyze taxi trip reports from NYC and compute: ACM DEBS 2015 [GNWPT] “Deterministic Real-Time Analytics of Geospatial Data Streams through ScaleGate Objects”

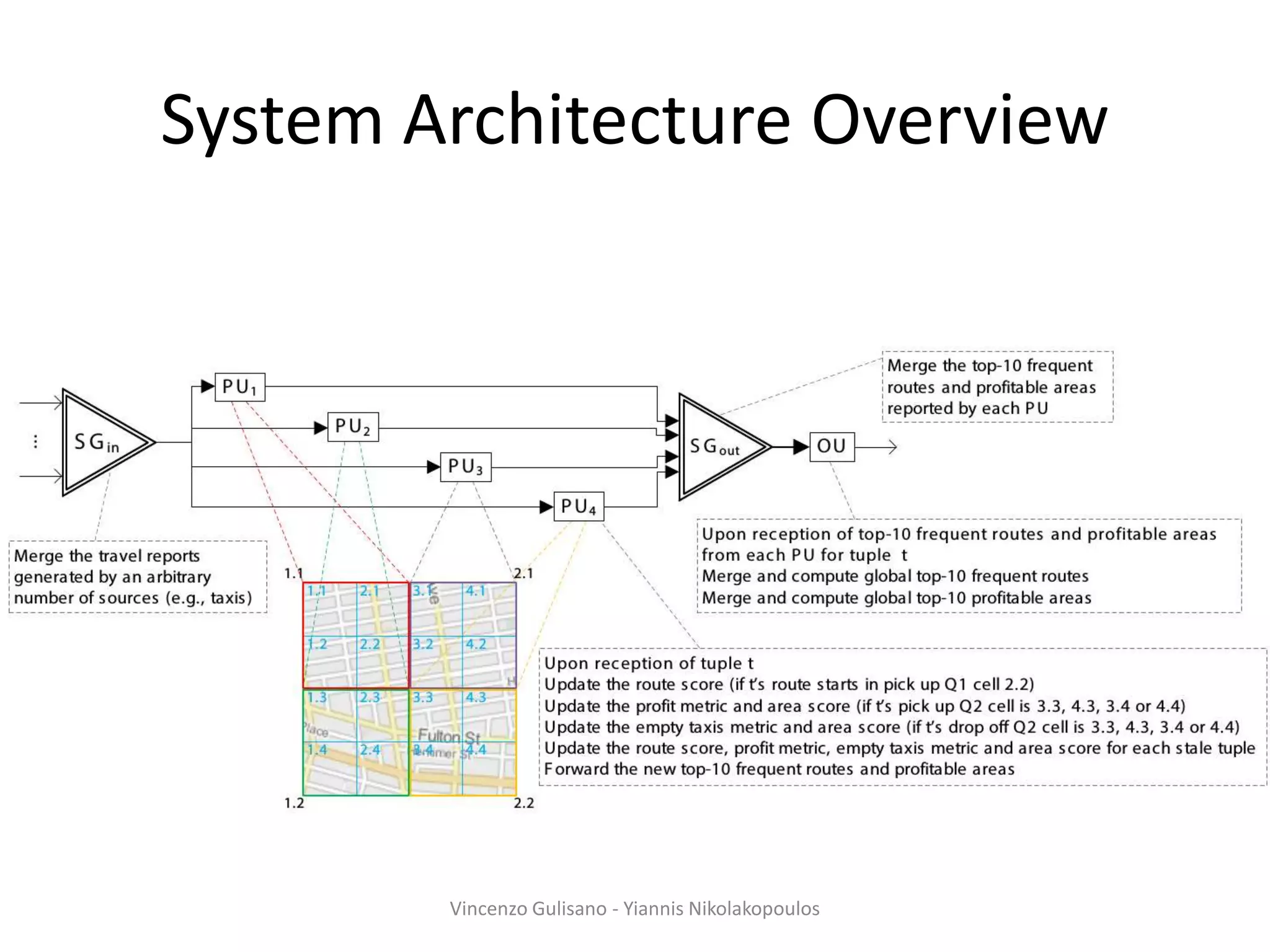

- 48. System Architecture Overview Vincenzo Gulisano - Yiannis Nikolakopoulos

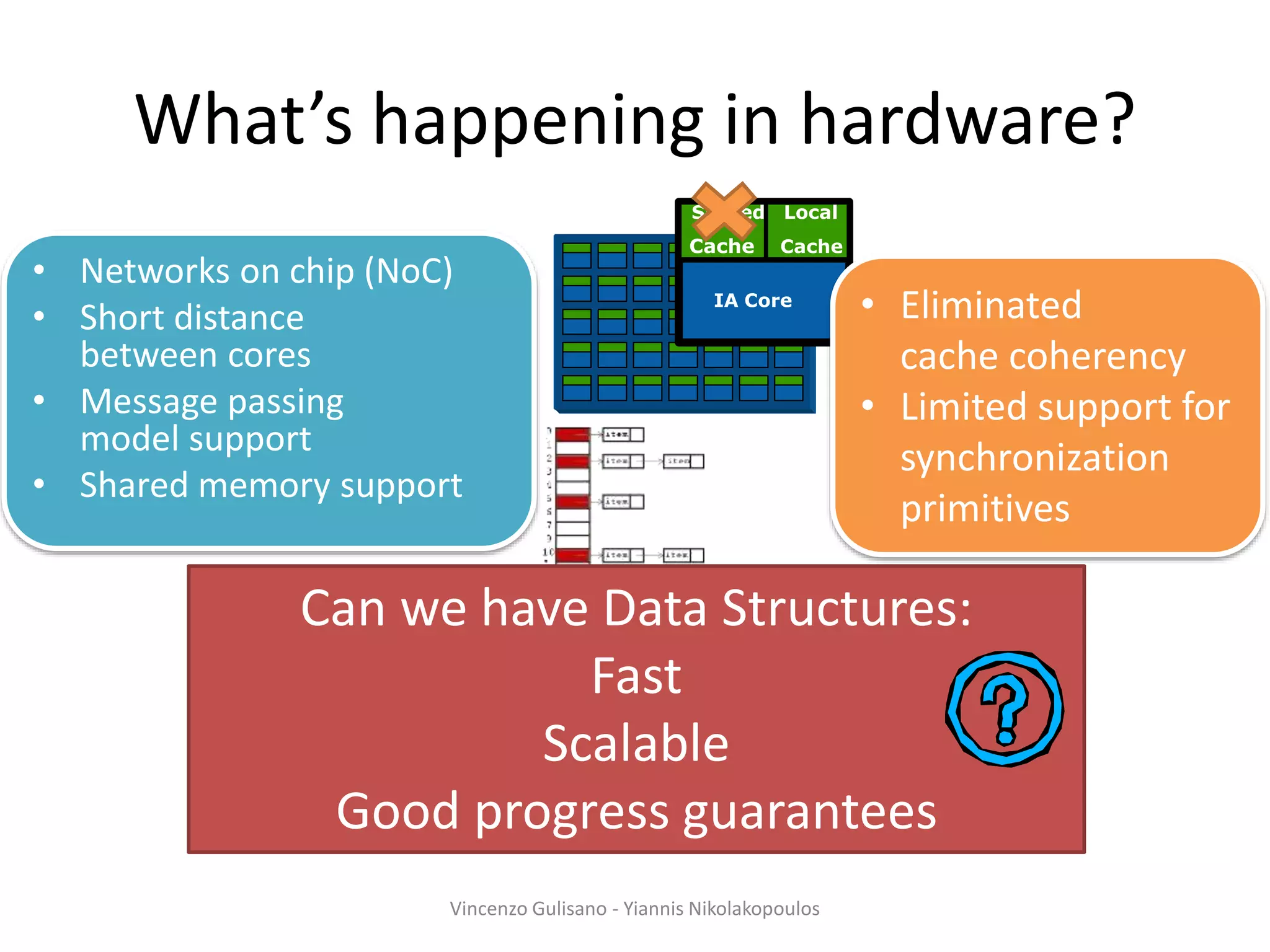

- 49. • Networks on chip (NoC) • Short distance between cores • Message passing model support • Shared memory support Can we have Data Structures: Fast Scalable Good progress guarantees Cache Cache IA Core Shared Local • Eliminated cache coherency • Limited support for synchronization primitives What’s happening in hardware? Vincenzo Gulisano - Yiannis Nikolakopoulos

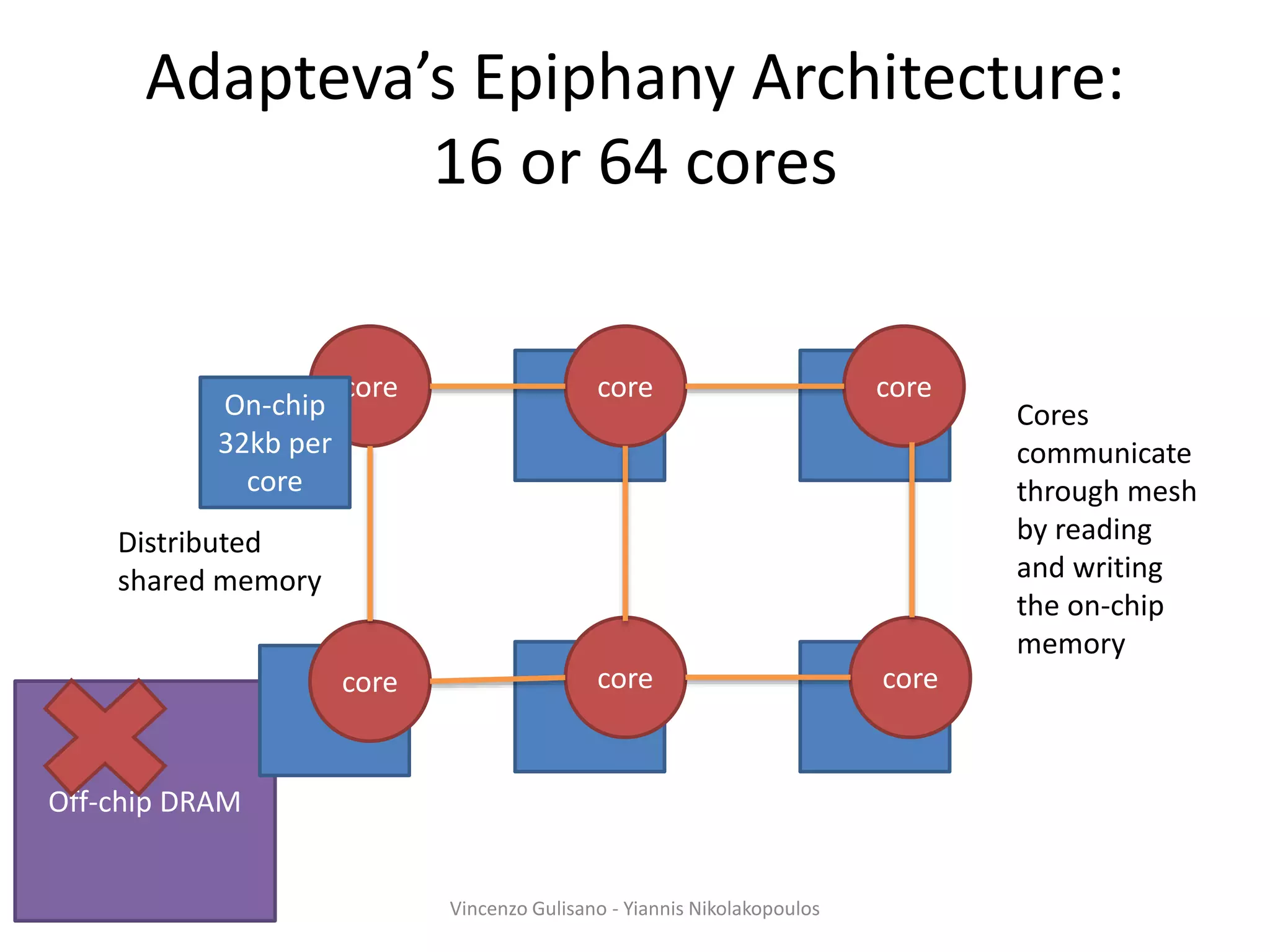

- 50. Off-chip DRAM Adapteva’s Epiphany Architecture: 16 or 64 cores core core On-chip 32kb per core core core core core Cores communicate through mesh by reading and writing the on-chip memory Vincenzo Gulisano - Yiannis Nikolakopoulos Distributed shared memory

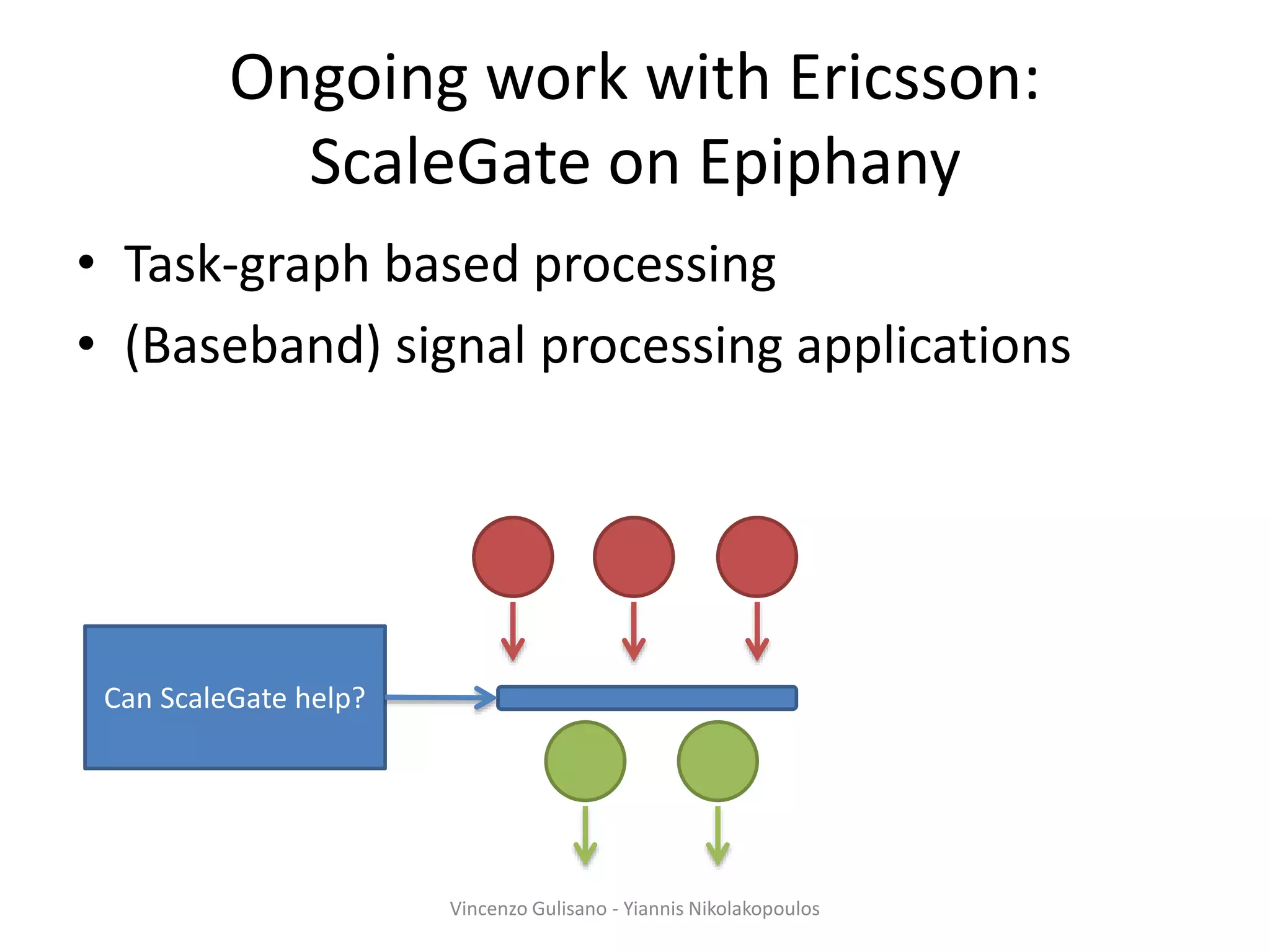

- 51. Ongoing work with Ericsson: ScaleGate on Epiphany • Task-graph based processing • (Baseband) signal processing applications Vincenzo Gulisano - Yiannis Nikolakopoulos Can ScaleGate help?

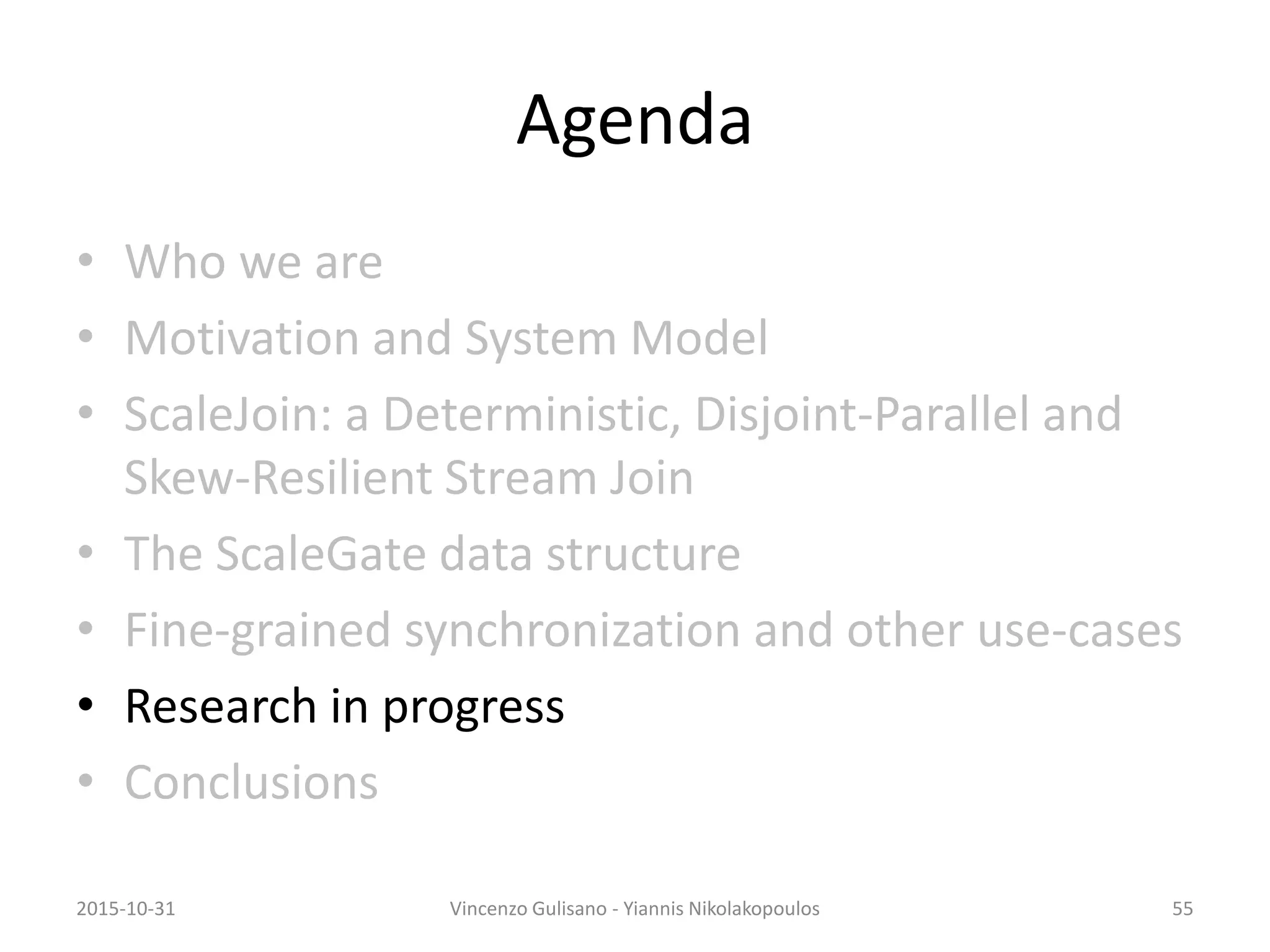

- 52. Agenda • Who we are • Motivation and System Model • ScaleJoin: a Deterministic, Disjoint-Parallel and Skew-Resilient Stream Join • The ScaleGate data structure • Fine-grained synchronization and other use-cases • Research in progress • Conclusions 2015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos 55

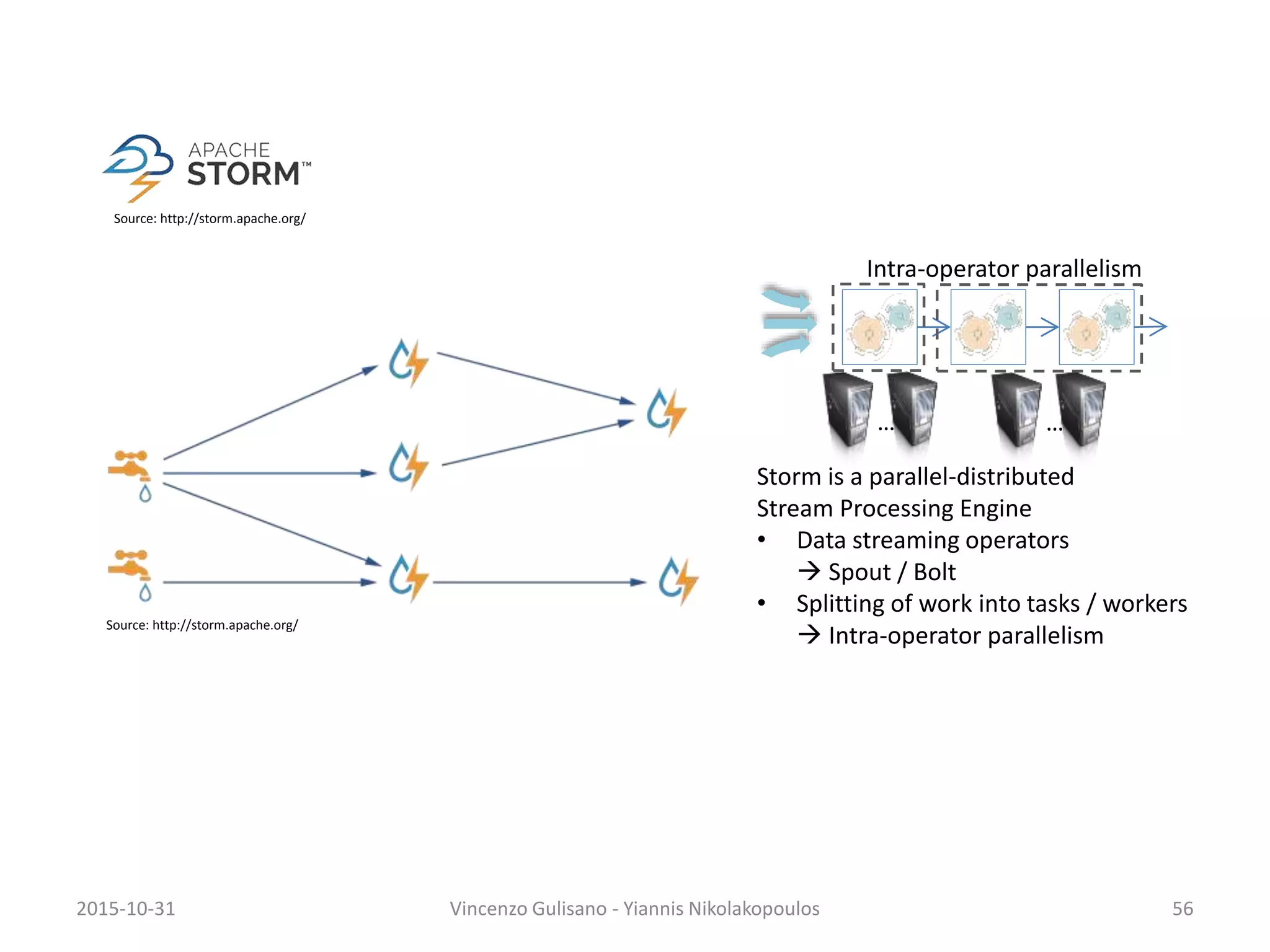

- 53. 2015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos 56 Source: http://storm.apache.org/ Source: http://storm.apache.org/ … … Intra-operator parallelism Storm is a parallel-distributed Stream Processing Engine • Data streaming operators Spout / Bolt • Splitting of work into tasks / workers Intra-operator parallelism

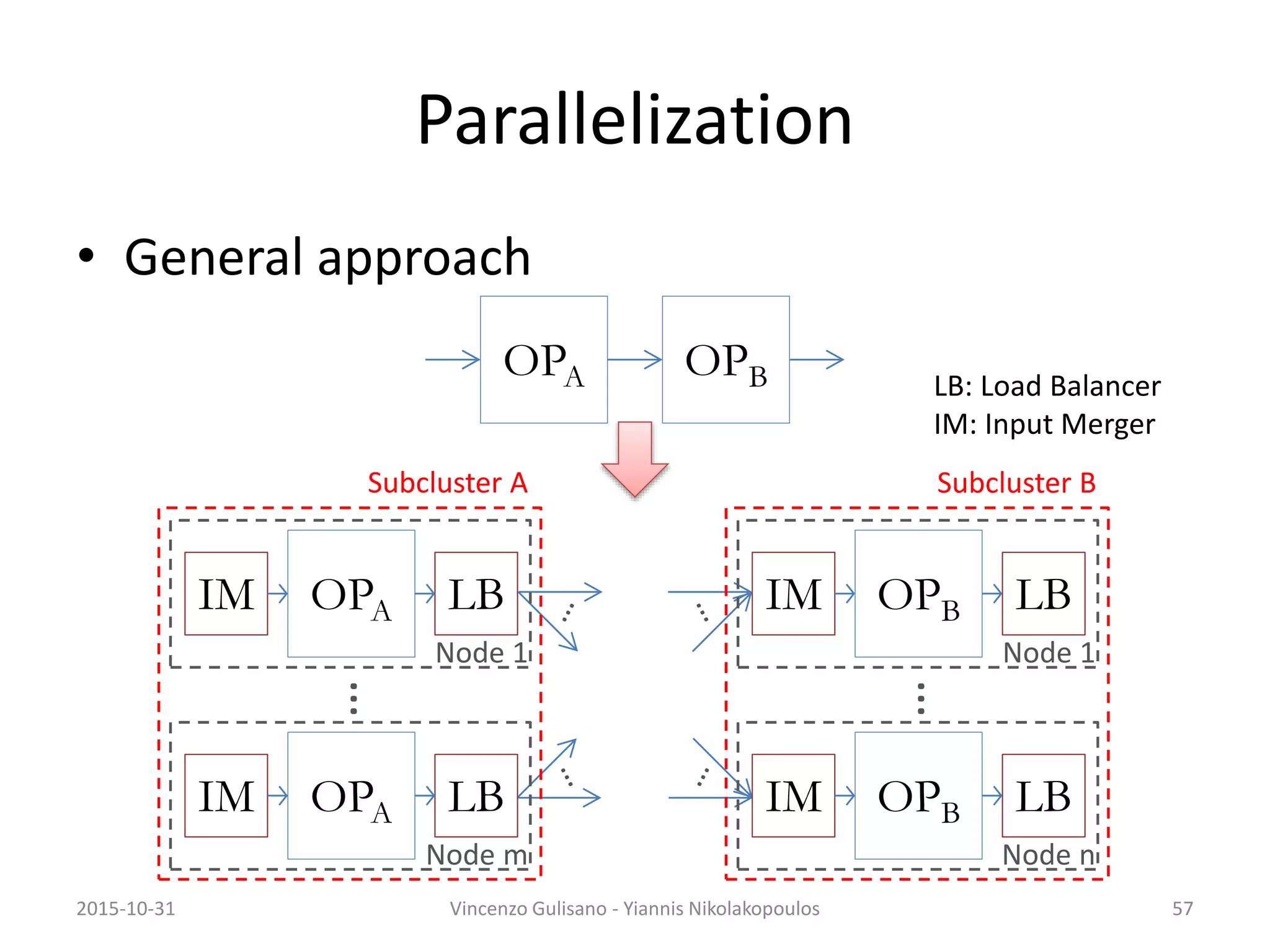

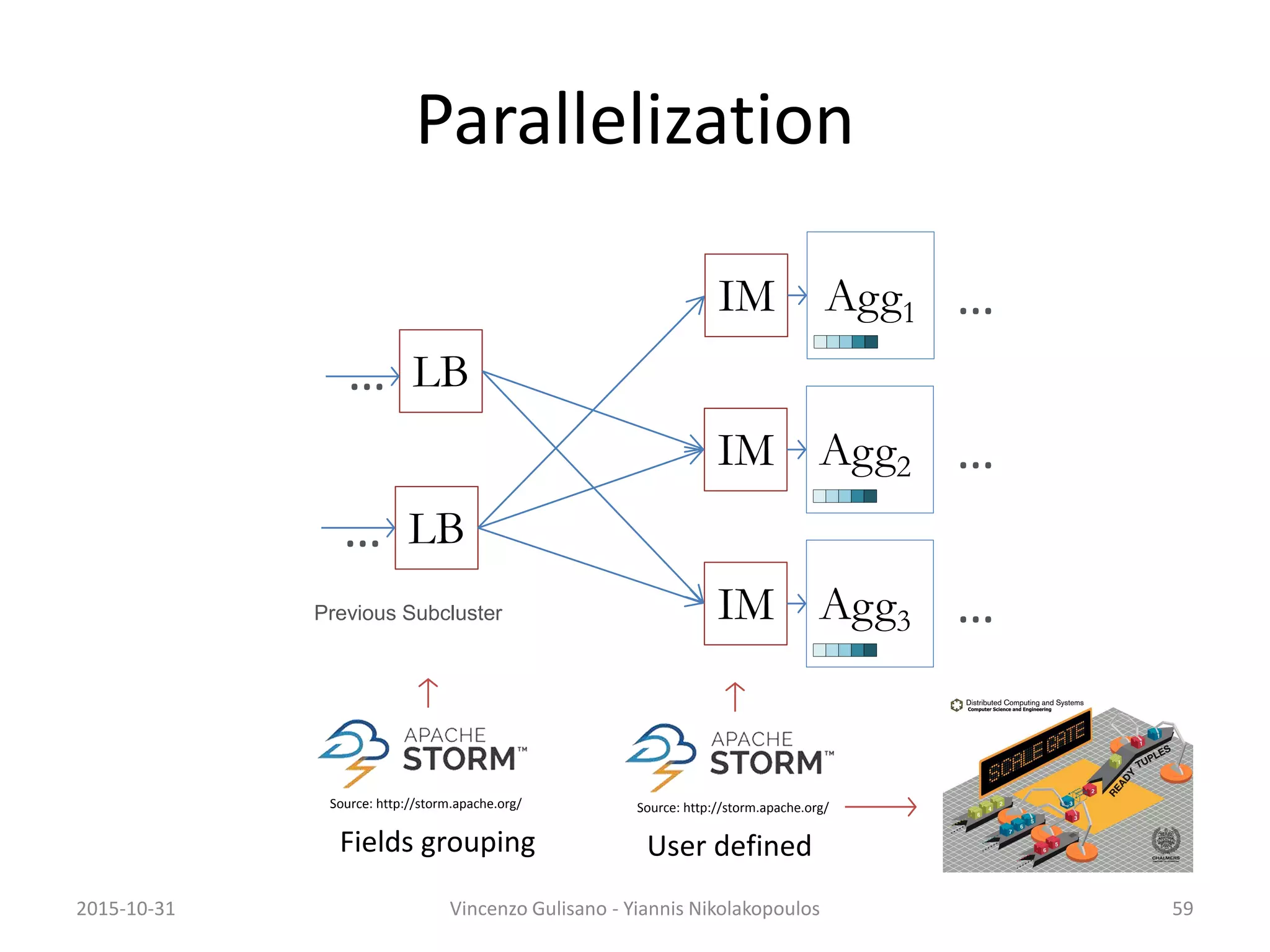

- 54. Parallelization • General approach LB: Load Balancer IM: Input Merger OPA OPB OPA LBIM Node 1 OPA LBIM Node m … Subcluster A OPB LBIM Node 1 OPB LBIM Node n … Subcluster B 572015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos

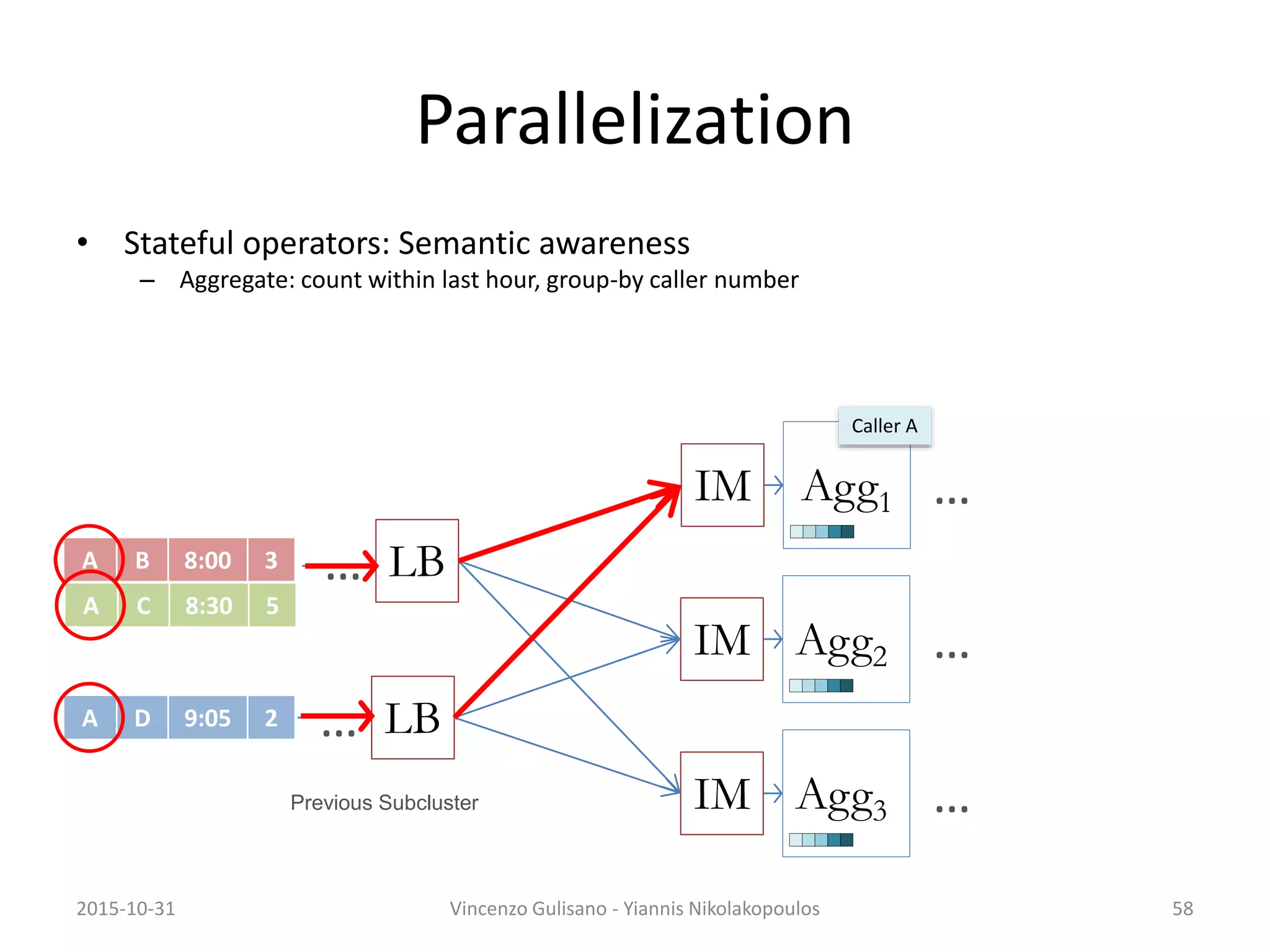

- 55. Parallelization • Stateful operators: Semantic awareness – Aggregate: count within last hour, group-by caller number Previous Subcluster LB… LB… IM Agg1 IM Agg2 IM Agg3 … … … Caller A A B 8:00 3 58 A C 8:30 5 A D 9:05 2 2015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos
- 56. Parallelization Previous Subcluster LB… LB… IM Agg1 IM Agg2 IM Agg3 … … … 592015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos Source: http://storm.apache.org/ Fields grouping Source: http://storm.apache.org/ User defined

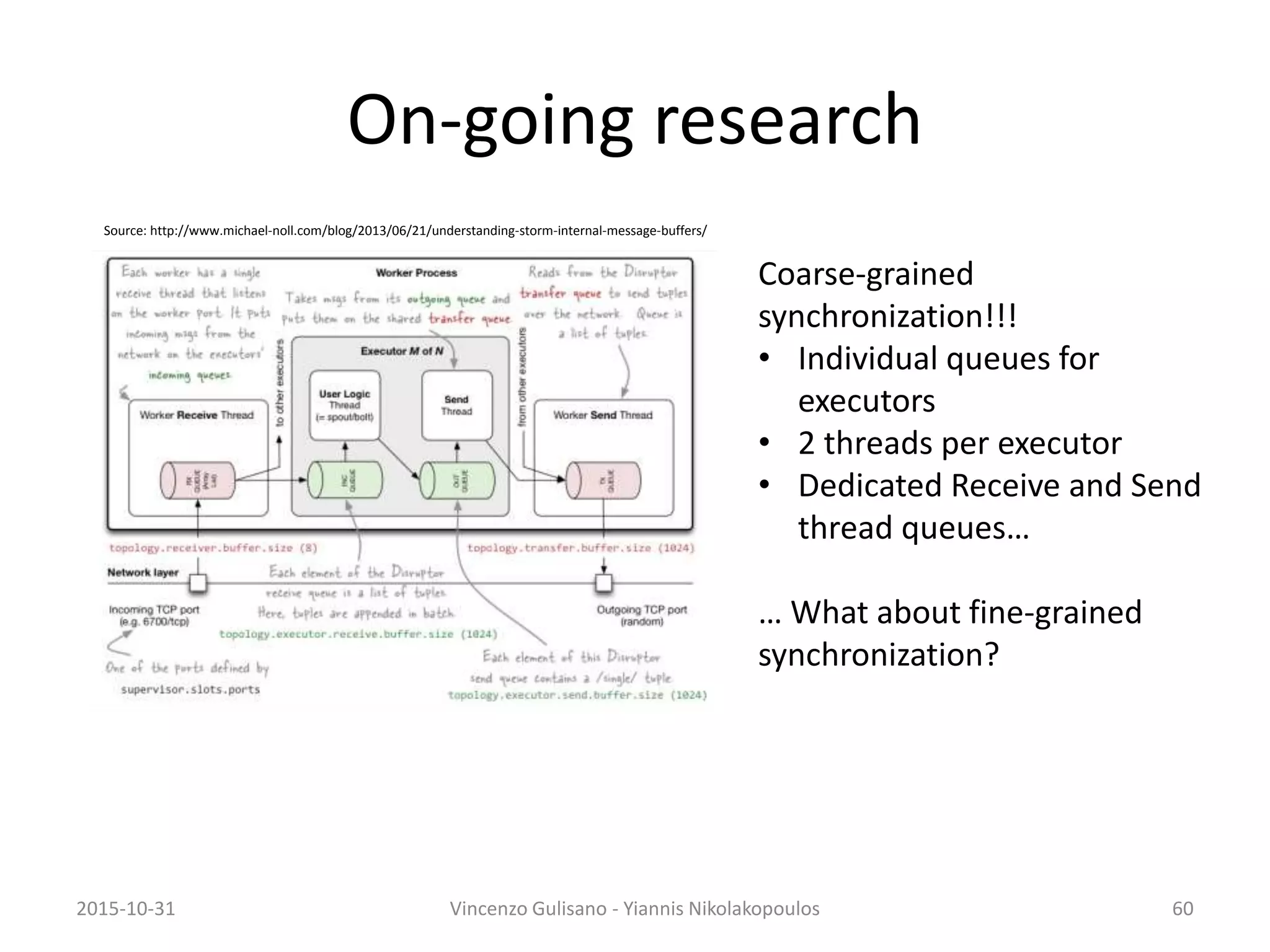

- 57. On-going research 2015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos 60 Source: http://www.michael-noll.com/blog/2013/06/21/understanding-storm-internal-message-buffers/ Coarse-grained synchronization!!! • Individual queues for executors • 2 threads per executor • Dedicated Receive and Send thread queues… … What about fine-grained synchronization?
- 58. Agenda • Who we are • Motivation and System Model • ScaleJoin: a Deterministic, Disjoint-Parallel and Skew-Resilient Stream Join • The ScaleGate data structure • Fine-grained synchronization and other use-cases • Research in progress • Conclusions 2015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos 61
- 59. 2015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos 62 1.Parallel stream joins 2.Parallel stream aggregation 3.“Ad-hoc” streaming applications 4.Determinism in Storm … https://github.com/dcs-chalmers/ScaleGate_Java
- 60. The benefits of fine-grained synchronization in deterministic and efficient stream processing Vincenzo Gulisano, Yiannis Nikolakopoulos 2015-10-31 Vincenzo Gulisano - Yiannis Nikolakopoulos 63 Chalmers University of technology Thank you! Questions?

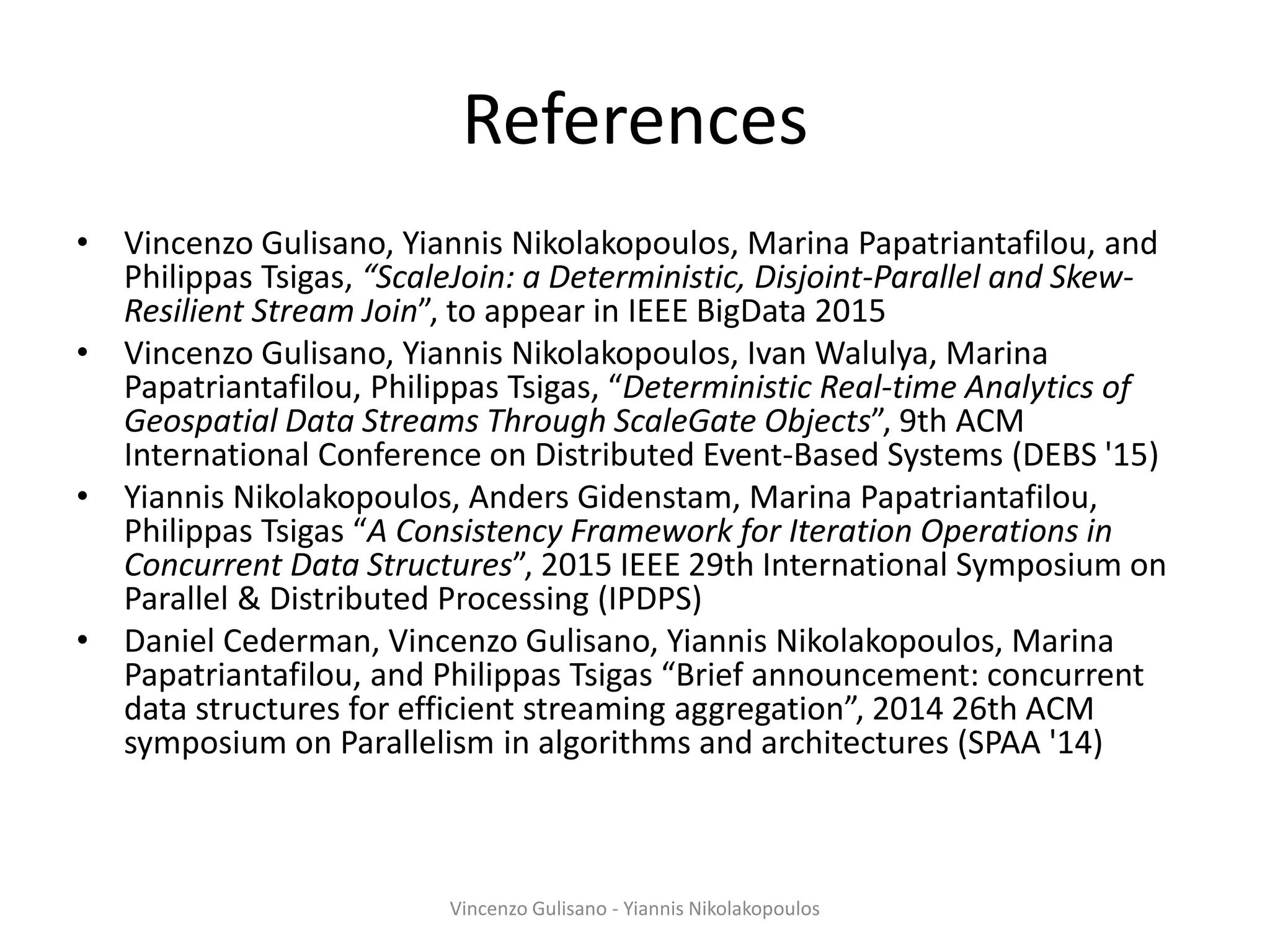

- 61. References • Vincenzo Gulisano, Yiannis Nikolakopoulos, Marina Papatriantafilou, and Philippas Tsigas, “ScaleJoin: a Deterministic, Disjoint-Parallel and Skew- Resilient Stream Join”, to appear in IEEE BigData 2015 • Vincenzo Gulisano, Yiannis Nikolakopoulos, Ivan Walulya, Marina Papatriantafilou, Philippas Tsigas, “Deterministic Real-time Analytics of Geospatial Data Streams Through ScaleGate Objects”, 9th ACM International Conference on Distributed Event-Based Systems (DEBS '15) • Yiannis Nikolakopoulos, Anders Gidenstam, Marina Papatriantafilou, Philippas Tsigas “A Consistency Framework for Iteration Operations in Concurrent Data Structures”, 2015 IEEE 29th International Symposium on Parallel & Distributed Processing (IPDPS) • Daniel Cederman, Vincenzo Gulisano, Yiannis Nikolakopoulos, Marina Papatriantafilou, and Philippas Tsigas “Brief announcement: concurrent data structures for efficient streaming aggregation”, 2014 26th ACM symposium on Parallelism in algorithms and architectures (SPAA '14) Vincenzo Gulisano - Yiannis Nikolakopoulos
Editor's Notes
- So, why are we in need of scalable parallelization approaches for stream joins? Present example
- …
- So, let’s see how stream joins are actually implemented Example But wait, what happens if we get tuples in another order? Mmmmhhh
- So, let’s see how stream joins are actually implemented Example But wait, what happens if we get tuples in another order? Mmmmhhh
- Ok, so deterministic 3-step procedure looks like this Now let’s try to parallelize this, and let’s do it as it has been done before
- Ok, so deterministic 3-step procedure looks like this Now let’s try to parallelize this, and let’s do it as it has been done before First, we need to do more operations, this affects the latency for sure But what’s worst is that we introduce a new bottleneck, the output thread and ready tuples And this actually breaks disjoint parallelism too… Finally, is not really skew-resilient So, what’s the problem? Are we doing it in the wrong way or are we forgetting something? Look at the data structures, we parallelize by parallelizing the computation, but what about the communication?
- The queues! We parallelized the computation, but overlooked the communication We are still using a queue with its methods enqueue and dequeue
- Let’s be creative, let’s assume they actually share something more powerful, that let’s them communicate and synchronize in a more efficient way What do we want from such communication and synchronization ds?
- Then we can do something like that…
- Here we can basically discuss why this addresses the different challenges, one by one… It gets even better, you can even have multiple physical producers for S and R!!!! And this is actually important because in the real world it will be like that!
- OK, so this is the benchmark we used… Implemented in Java And we evaluated it with 2 different systems (SAY WHY TWO SYSTEMS IF THEY ASK OR JUST SAY IT?)…
- Here we want to check the number of comparisons per second sustained by ScaleJoin After checking the ones obtained for a single thread, we computed the expected max and then observed ones for 3 different window sizes As you can see… Up to 4 billion comparison/second!
- This is the processing latency we get (in milliseconds) As you can see, even when we have 48 PUs (and notice that this means more threads than cores, since we have also injectors and receivers…) less than 60 – Actually, when we do not spawn too many threads we are talking of 30 milliseconds Might seem counterintuitive that latency grows with PU, but that’s because of determinism!
- In this case we have two different rates for R and S (notice actually the multiple physical streams!) and then peaks over time As you can see, comparisons of course increase when we have a peak, but nevertheless the overall work is very well balanced, the standard deviation among the Pus is less than 0.2% even during the spikes!!! Skew-resilience!
- Determinism
- When to process: we are sure a lower TS tuple will not come from other input streams
- Remove red clouds
- make sure to make clear that this is an "abstraction" of the results ()
- Number of input streams
- Here we could have some discussion about this general structure of the SPE Lots of queues and threads, can we see problems in this? What could we do by doing stuff in the right way?
