This document contains a summary and overview of Thin Film Technology Corporation's (TFT) products and capabilities for 2009. It highlights four newer products: passive equalizers, high speed Bessel filters, 20 GHz and 10GHz crossover chips, and high power chip resistors. TFT specializes in designing, simulating, and manufacturing thin film passive electrical components and offers custom design support from prototype to mass production. The presentation provides examples of TFT's signal integrity solutions and technical capabilities.

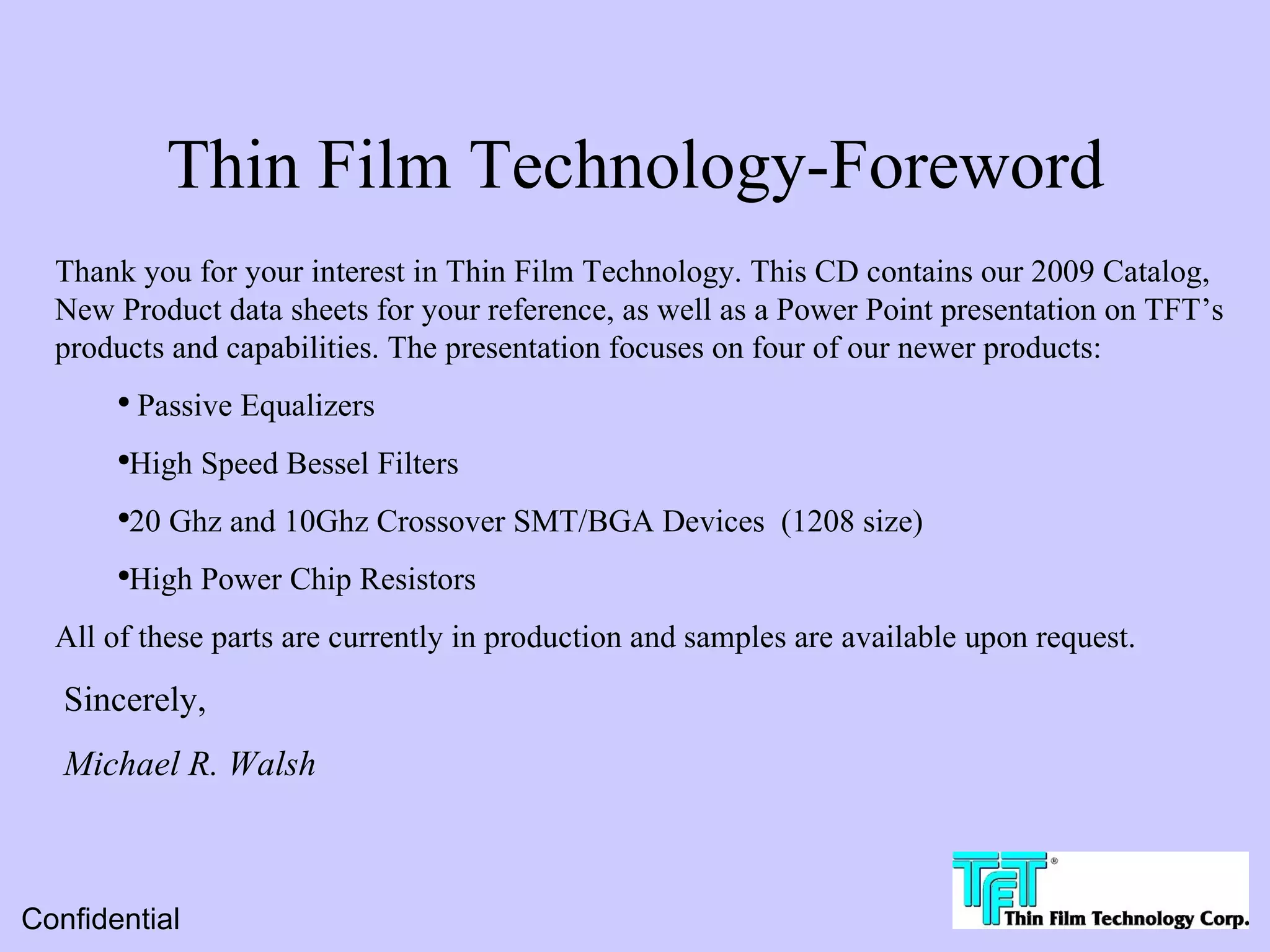

1. Thin Film Technology-Foreword
Thank you for your interest in Thin Film Technology. This CD contains our 2009 Catalog,
New Product data sheets for your reference, as well as a Power Point presentation on TFT’s
products and capabilities. The presentation focuses on four of our newer products:
●
Passive Equalizers
●
High Speed Bessel Filters
●
20 Ghz and 10Ghz Crossover SMT/BGA Devices (1208 size)
●
High Power Chip Resistors
All of these parts are currently in production and samples are available upon request.
Sincerely,
Michael R. Walsh
Confidential

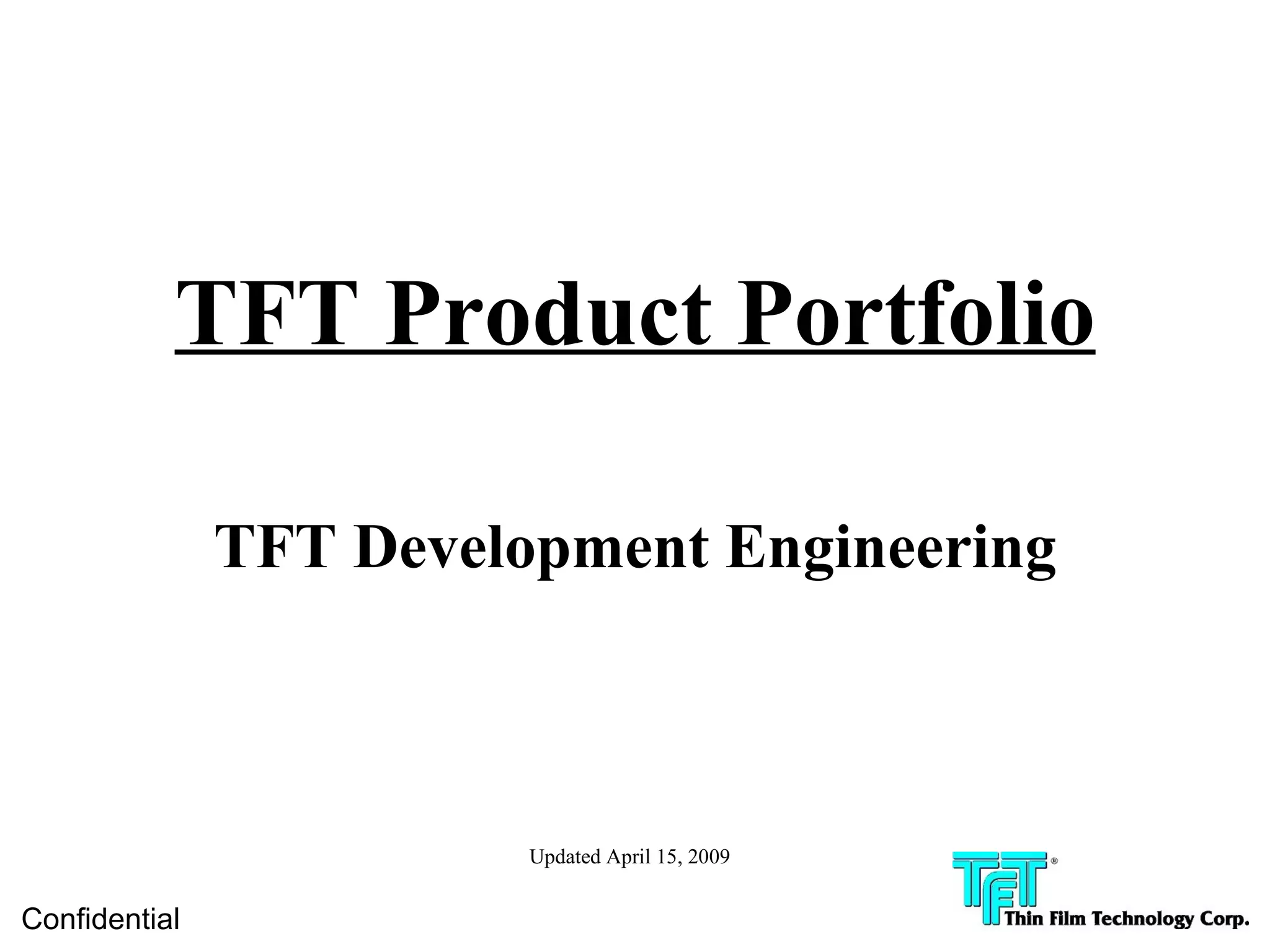

2. TFT Product Portfolio
TFT Development Engineering
Updated April 15, 2009
Confidential

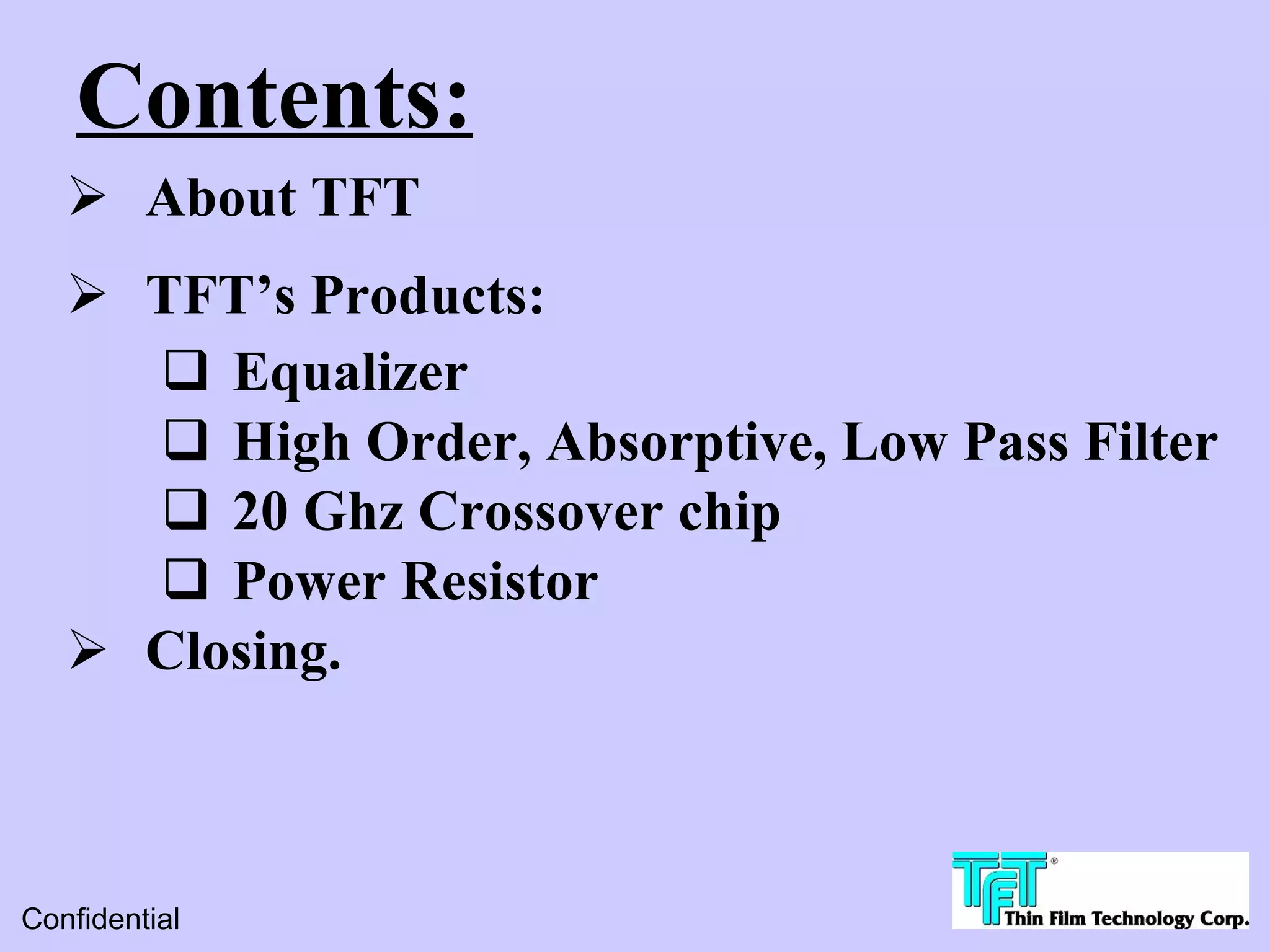

3. Contents:
 About TFT
 TFT’s Products:
 Equalizer
 High Order, Absorptive, Low Pass Filter
 20 Ghz Crossover chip
 Power Resistor
 Closing.
Confidential

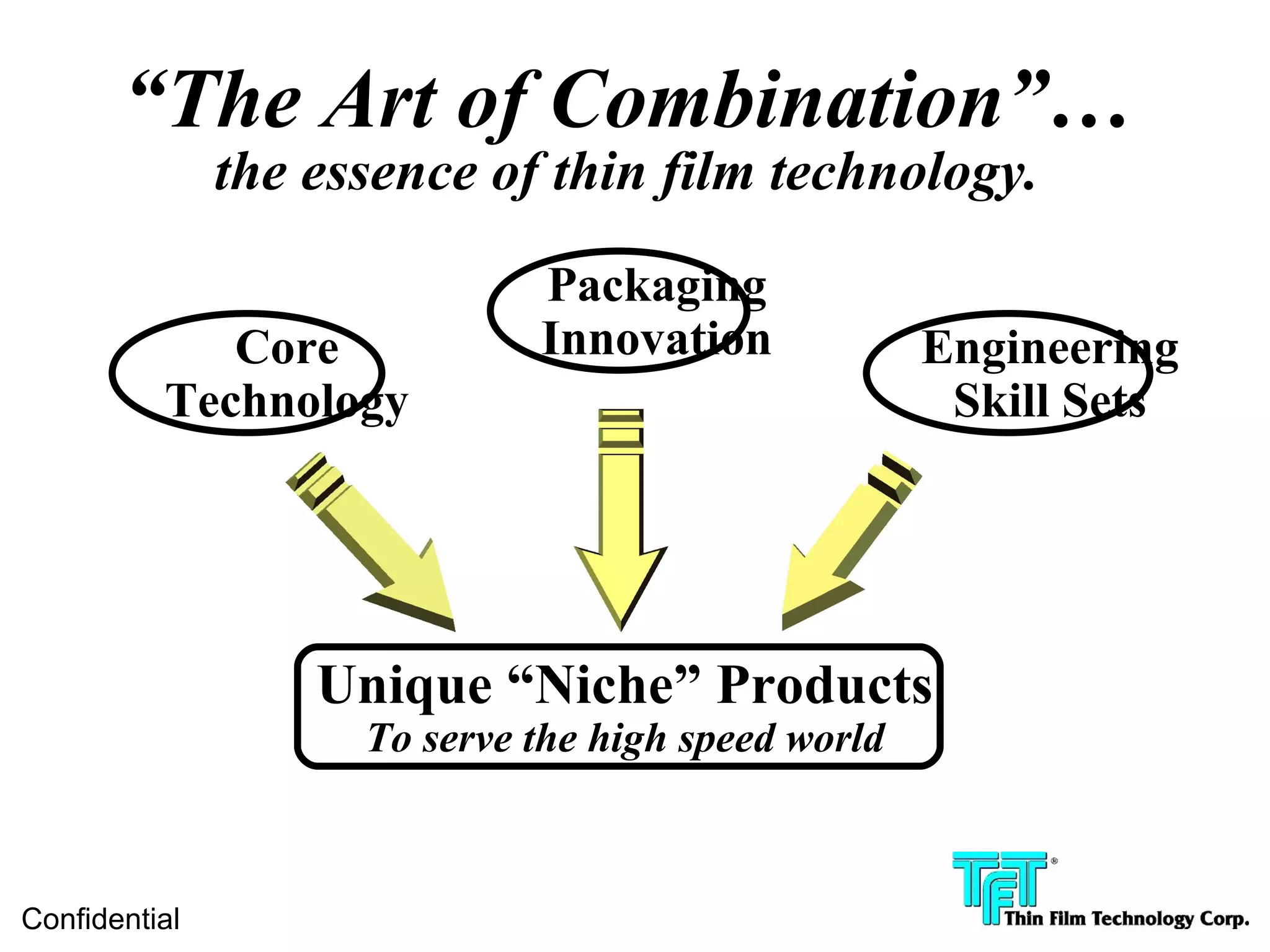

4. “The Art of Combination”…
the essence of thin film technology.
Packaging
Core Innovation Engineering
Technology Skill Sets
Unique “Niche” Products
To serve the high speed world
Confidential

5. TFT Capabilities:
 Design
 Simulation
 Components
 Package and footprint
optimization
 BGA, Wirebond
 Process
 Proto to Mass Production
 Validation Testing
 CMM’s and Measurement
Confidential

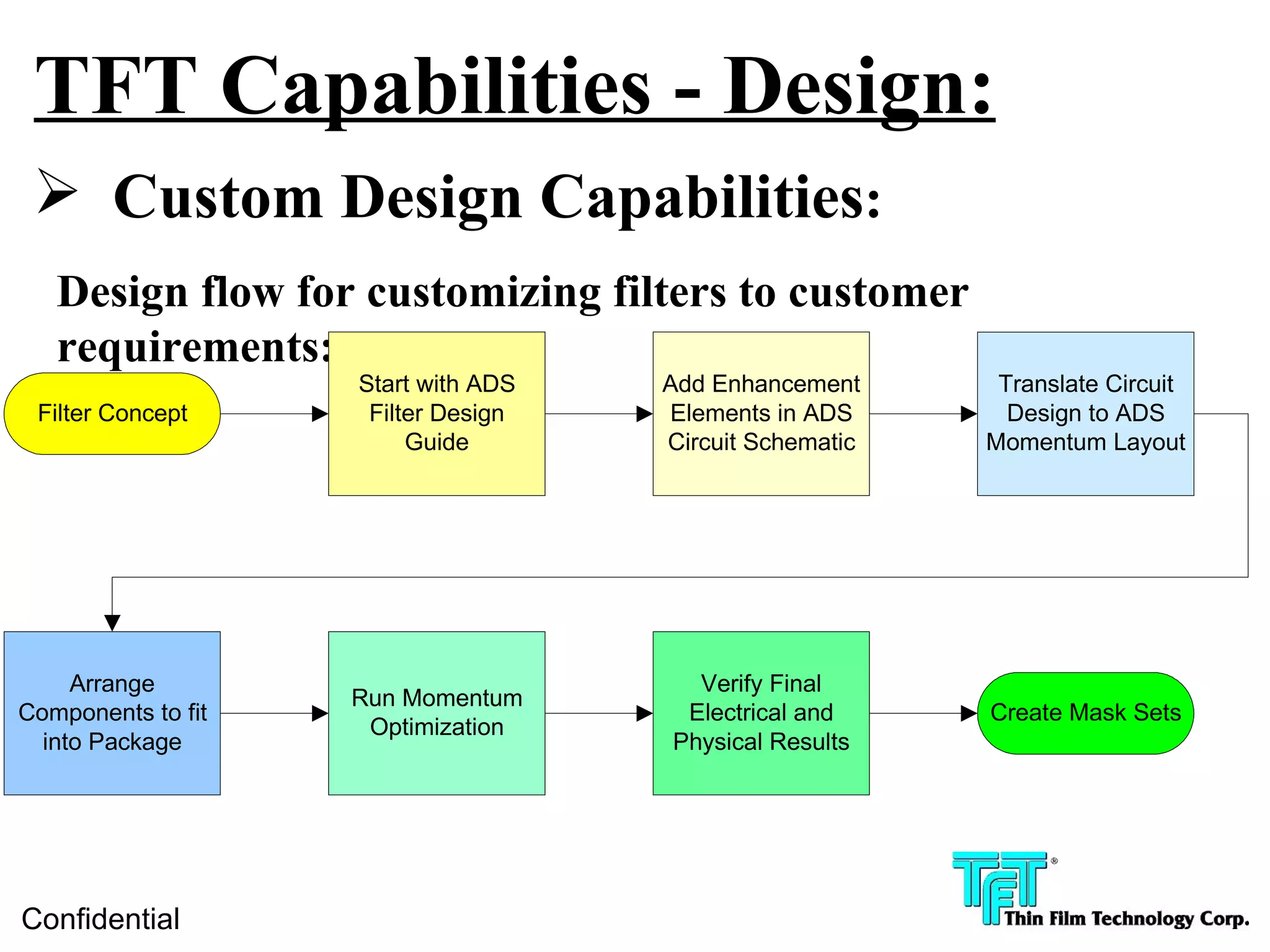

6. TFT Capabilities - Design:
 Custom Design Capabilities:
Design flow for customizing filters to customer
requirements:
Start with ADS Add Enhancement Translate Circuit
Filter Concept Filter Design Elements in ADS Design to ADS
Guide Circuit Schematic Momentum Layout
Arrange Verify Final
Run Momentum
Components to fit Electrical and Create Mask Sets
Optimization
into Package Physical Results
Confidential

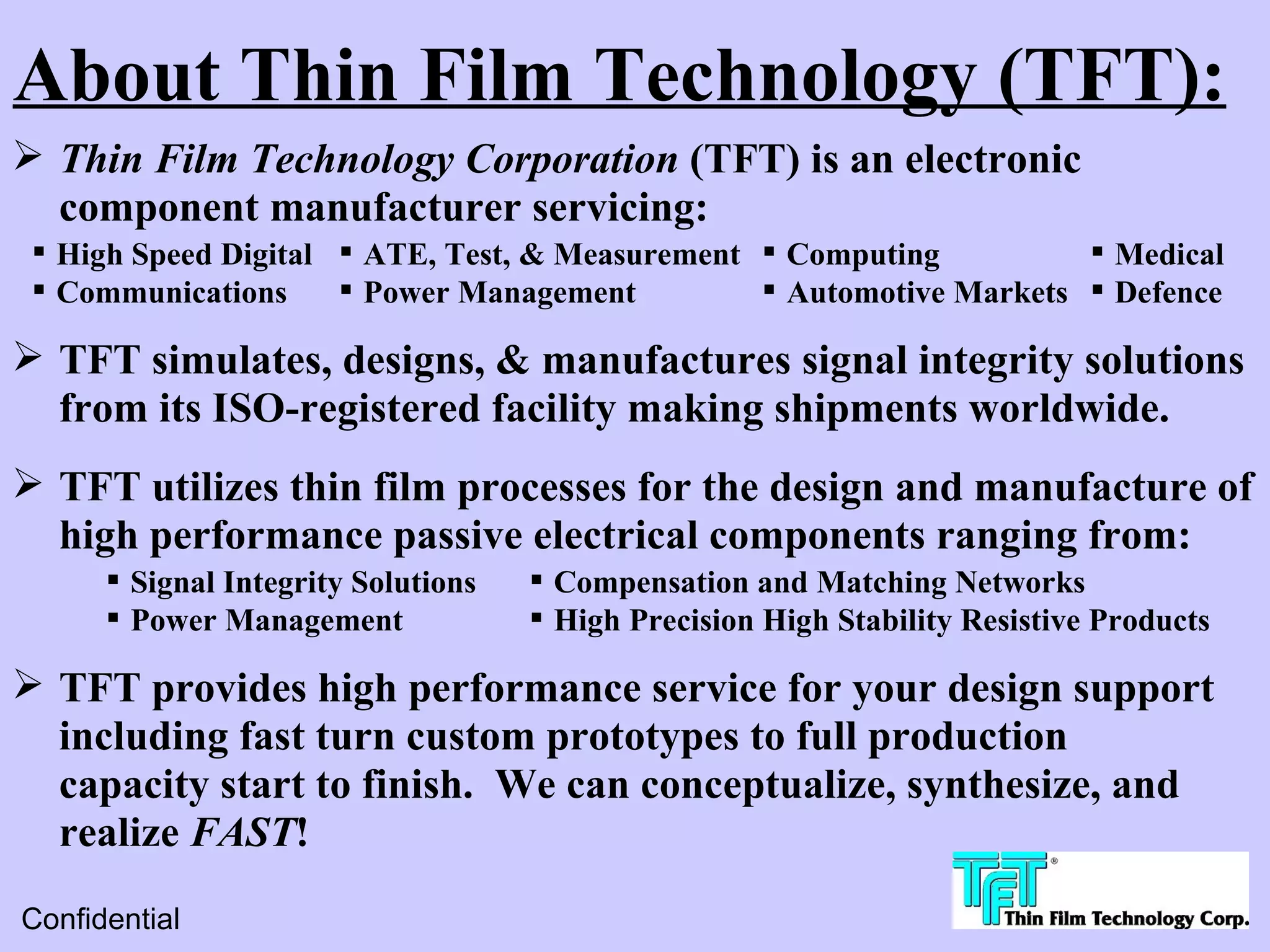

7. About Thin Film Technology (TFT):
 Thin Film Technology Corporation (TFT) is an electronic
component manufacturer servicing:
 High Speed Digital  ATE, Test, & Measurement  Computing  Medical
 Communications  Power Management  Automotive Markets  Defence
 TFT simulates, designs, & manufactures signal integrity solutions
from its ISO-registered facility making shipments worldwide.
 TFT utilizes thin film processes for the design and manufacture of
high performance passive electrical components ranging from:
 Signal Integrity Solutions  Compensation and Matching Networks
 Power Management  High Precision High Stability Resistive Products
 TFT provides high performance service for your design support
including fast turn custom prototypes to full production
capacity start to finish. We can conceptualize, synthesize, and
realize FAST!
Confidential

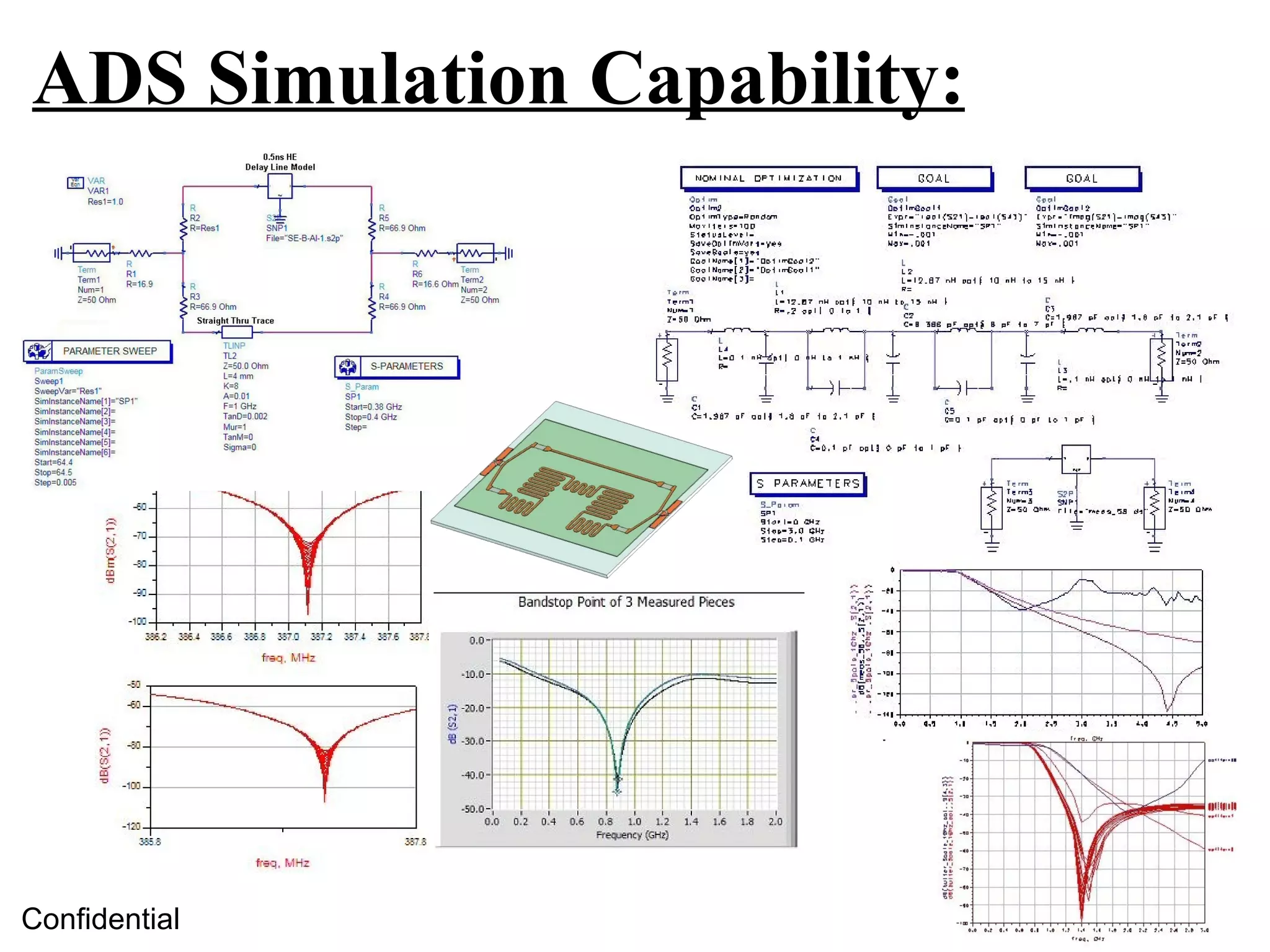

8. ADS Simulation Capability:
Confidential

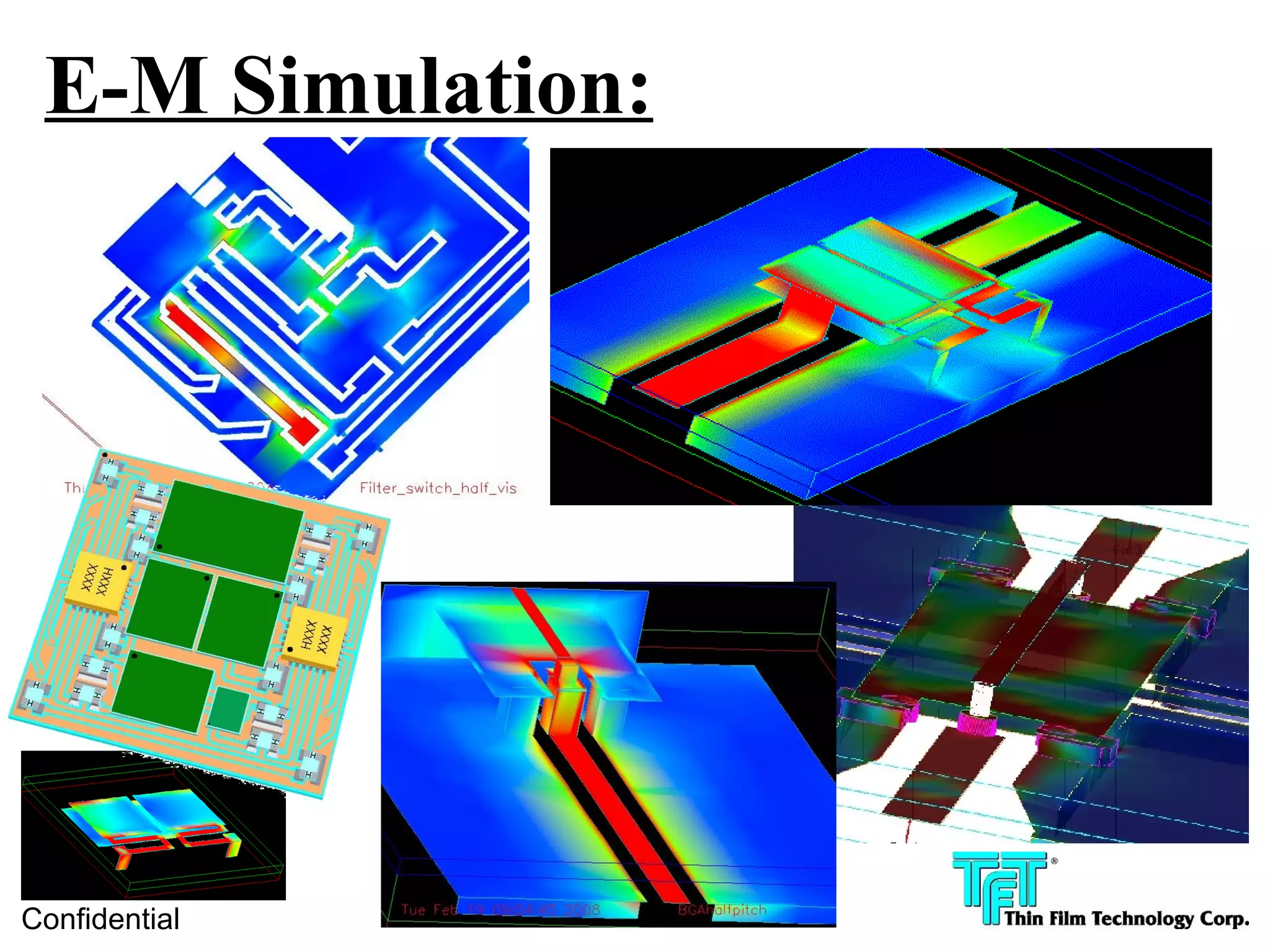

9. E-M Simulation:
Confidential

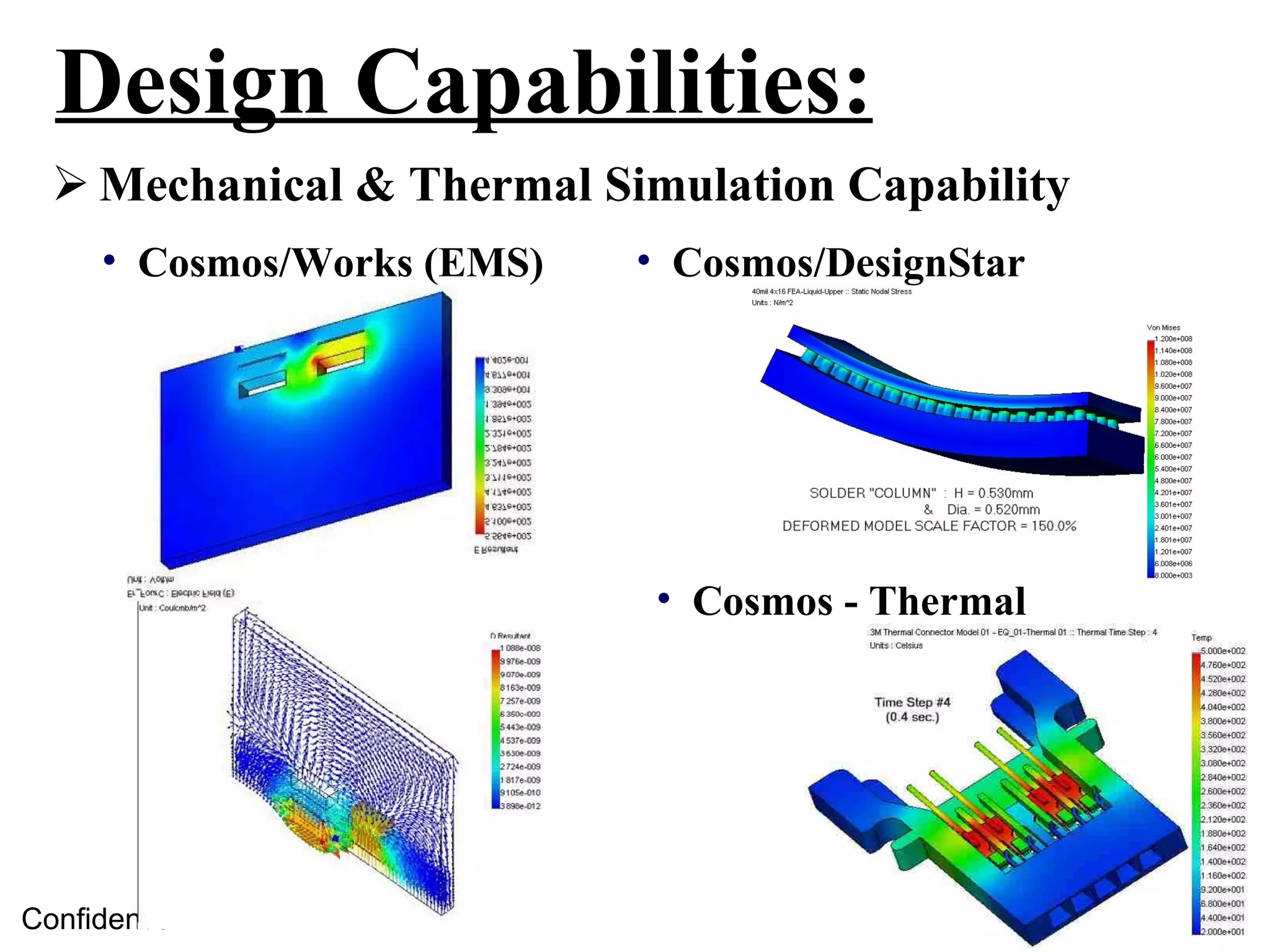

10. Design Capabilities:
 Mechanical & Thermal Simulation Capability
• Cosmos/Works (EMS) • Cosmos/DesignStar
• Cosmos - Thermal
Confidential

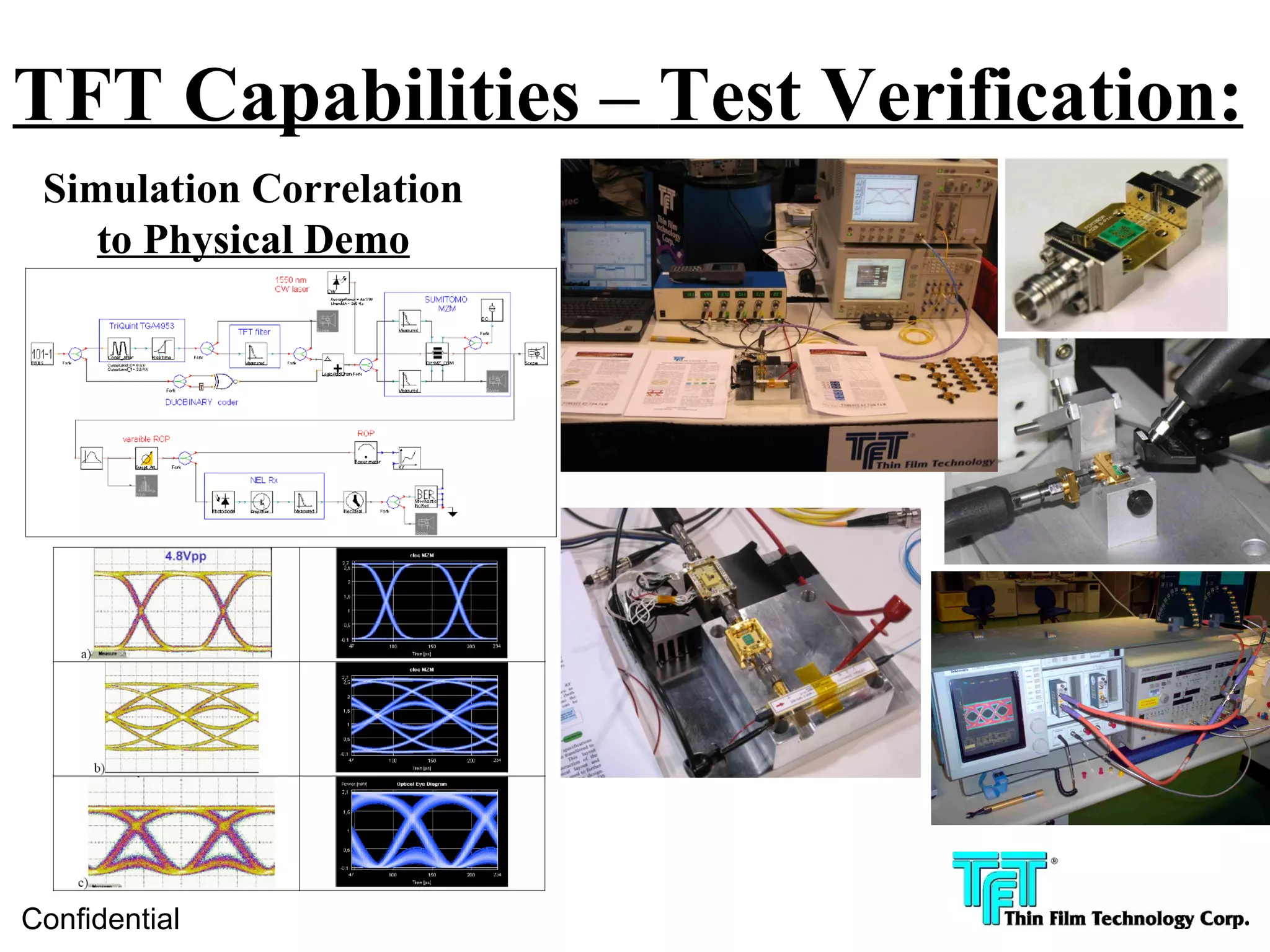

11. TFT Capabilities – Test Verification:
Simulation Correlation
to Physical Demo
Confidential

12. TFT Passive Equalizers
Confidential

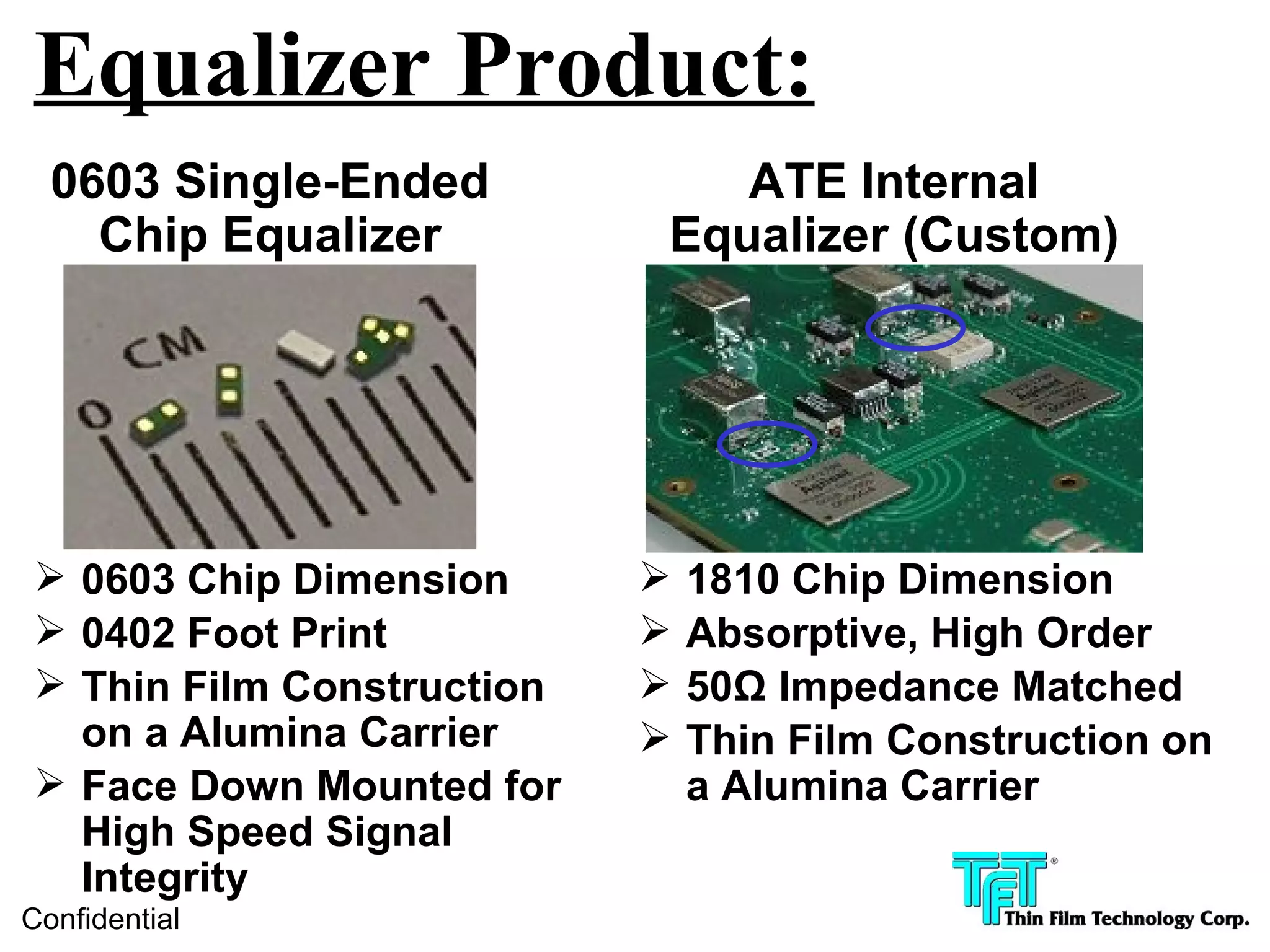

13. Equalizer Product:
0603 Single-Ended ATE Internal
Chip Equalizer Equalizer (Custom)
 0603 Chip Dimension  1810 Chip Dimension
 0402 Foot Print  Absorptive, High Order
 Thin Film Construction  50Ω Impedance Matched
on a Alumina Carrier  Thin Film Construction on
 Face Down Mounted for a Alumina Carrier
High Speed Signal
Integrity
Confidential

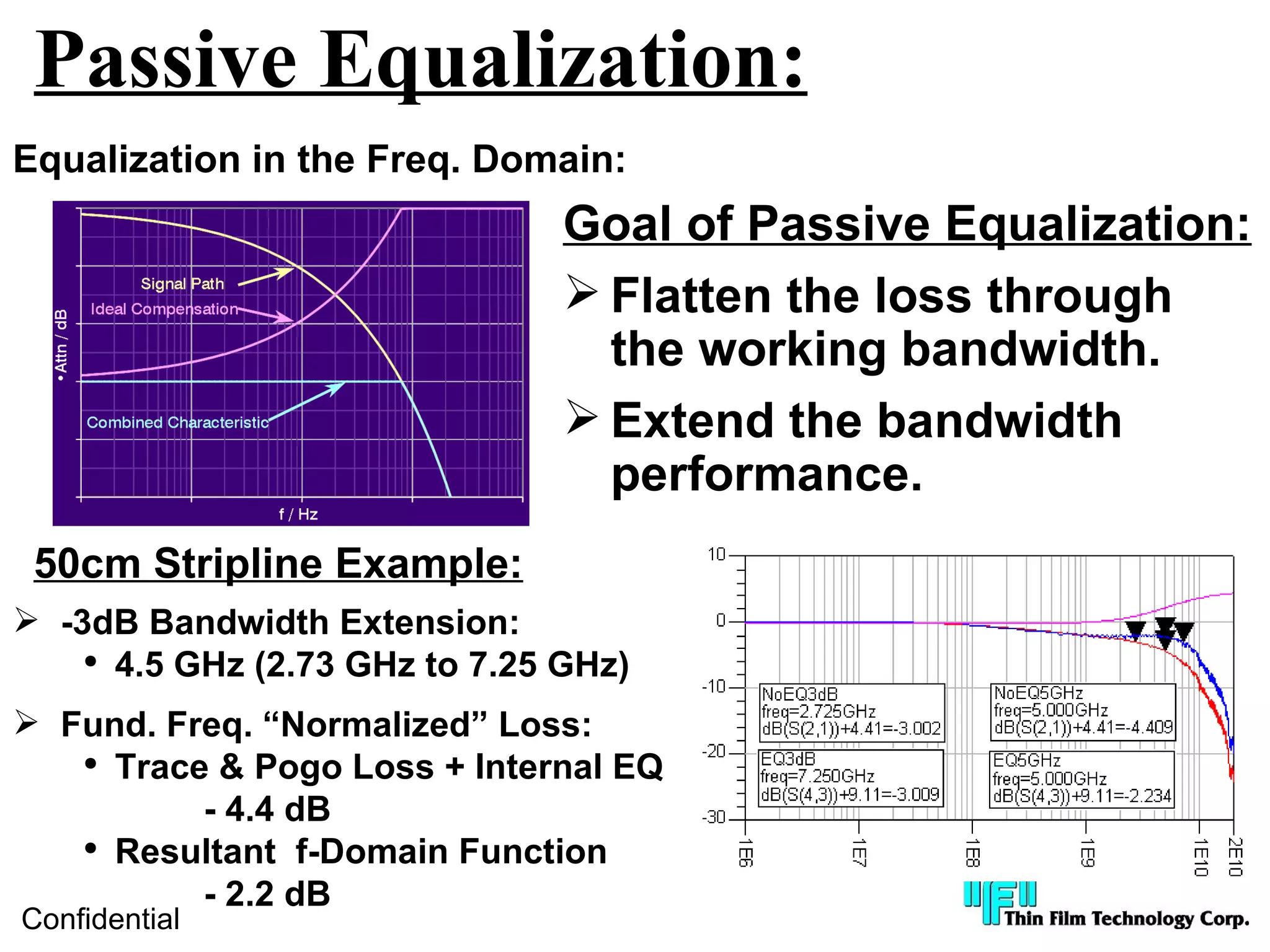

14. Passive Equalization:
Equalization in the Freq. Domain:
Goal of Passive Equalization:
 Flatten the loss through
the working bandwidth.
 Extend the bandwidth
performance.
50cm Stripline Example:
 -3dB Bandwidth Extension:
●
4.5 GHz (2.73 GHz to 7.25 GHz)
 Fund. Freq. “Normalized” Loss:
●
Trace & Pogo Loss + Internal EQ
- 4.4 dB
●
Resultant f-Domain Function
- 2.2 dB
Confidential

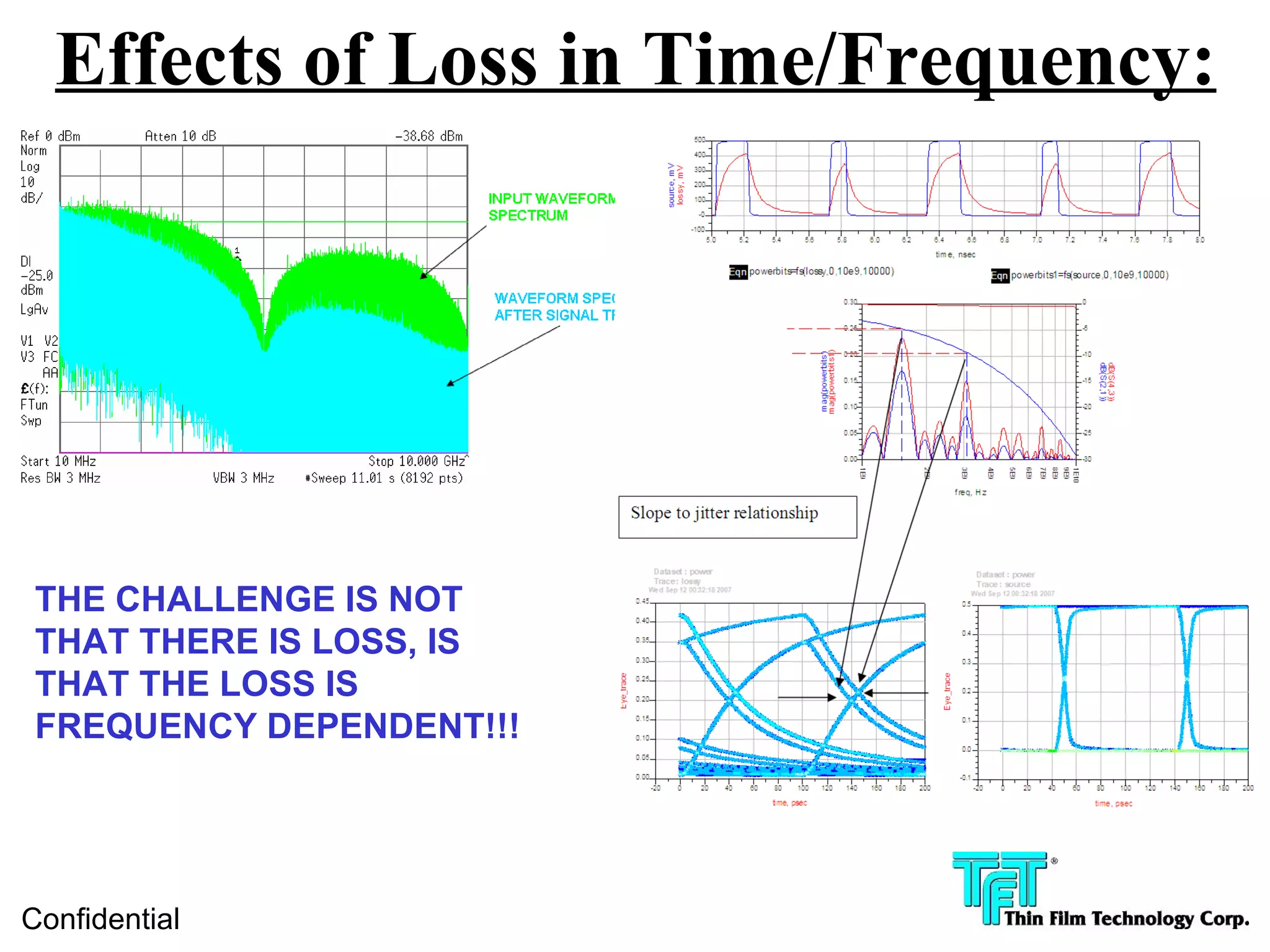

15. Effects of Loss in Time/Frequency:
THE CHALLENGE IS NOT
THAT THERE IS LOSS, IS
THAT THE LOSS IS
FREQUENCY DEPENDENT!!!
Confidential

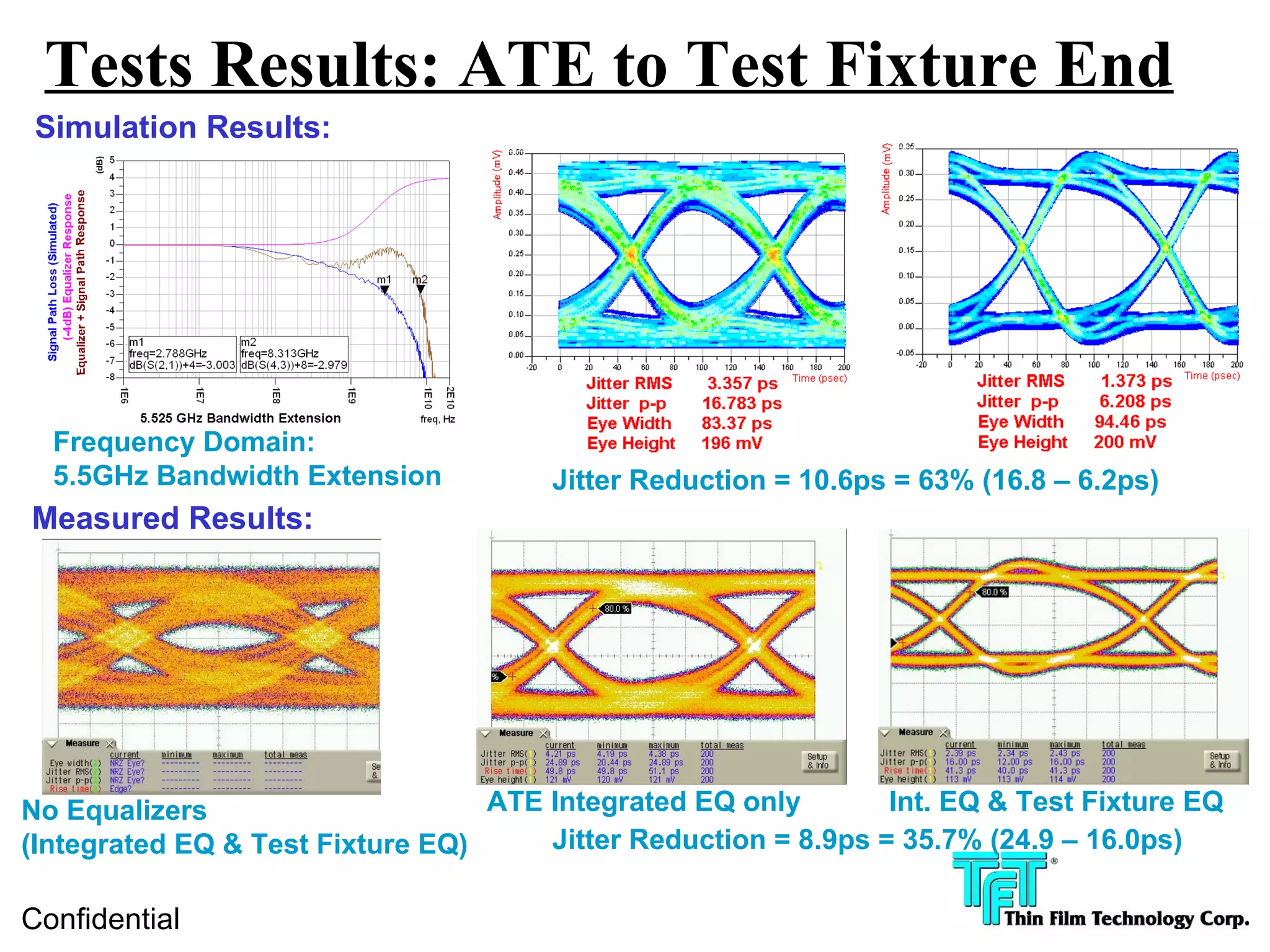

16. Tests Results: ATE to Test Fixture End
Simulation Results:
Frequency Domain:
5.5GHz Bandwidth Extension Jitter Reduction = 10.6ps = 63% (16.8 – 6.2ps)
Measured Results:
No Equalizers ATE Integrated EQ only Int. EQ & Test Fixture EQ
(Integrated EQ & Test Fixture EQ) Jitter Reduction = 8.9ps = 35.7% (24.9 – 16.0ps)
Confidential

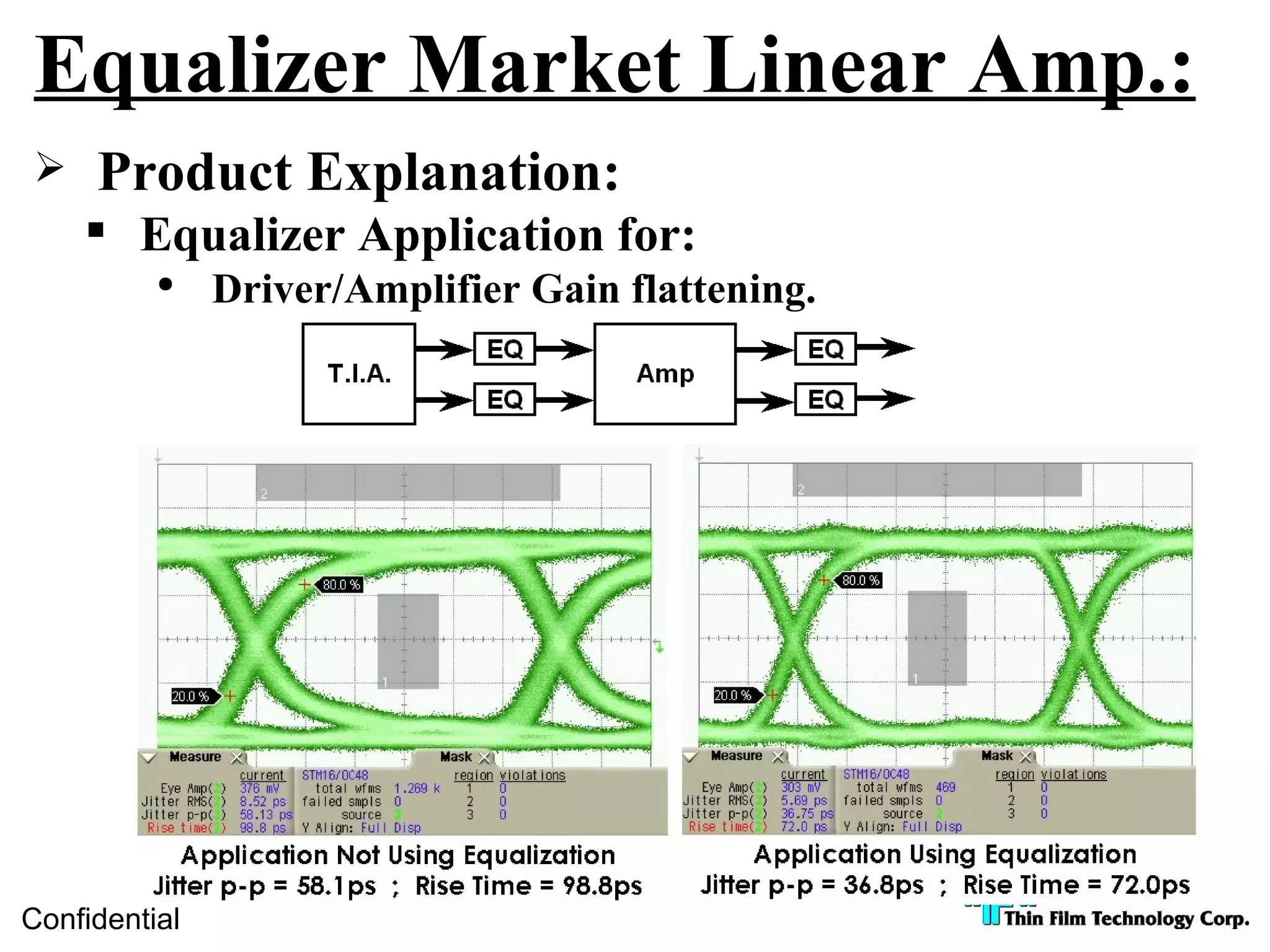

17. Equalizer Market Linear Amp.:
 Product Explanation:
 Equalizer Application for:
●
Driver/Amplifier Gain flattening.
Confidential

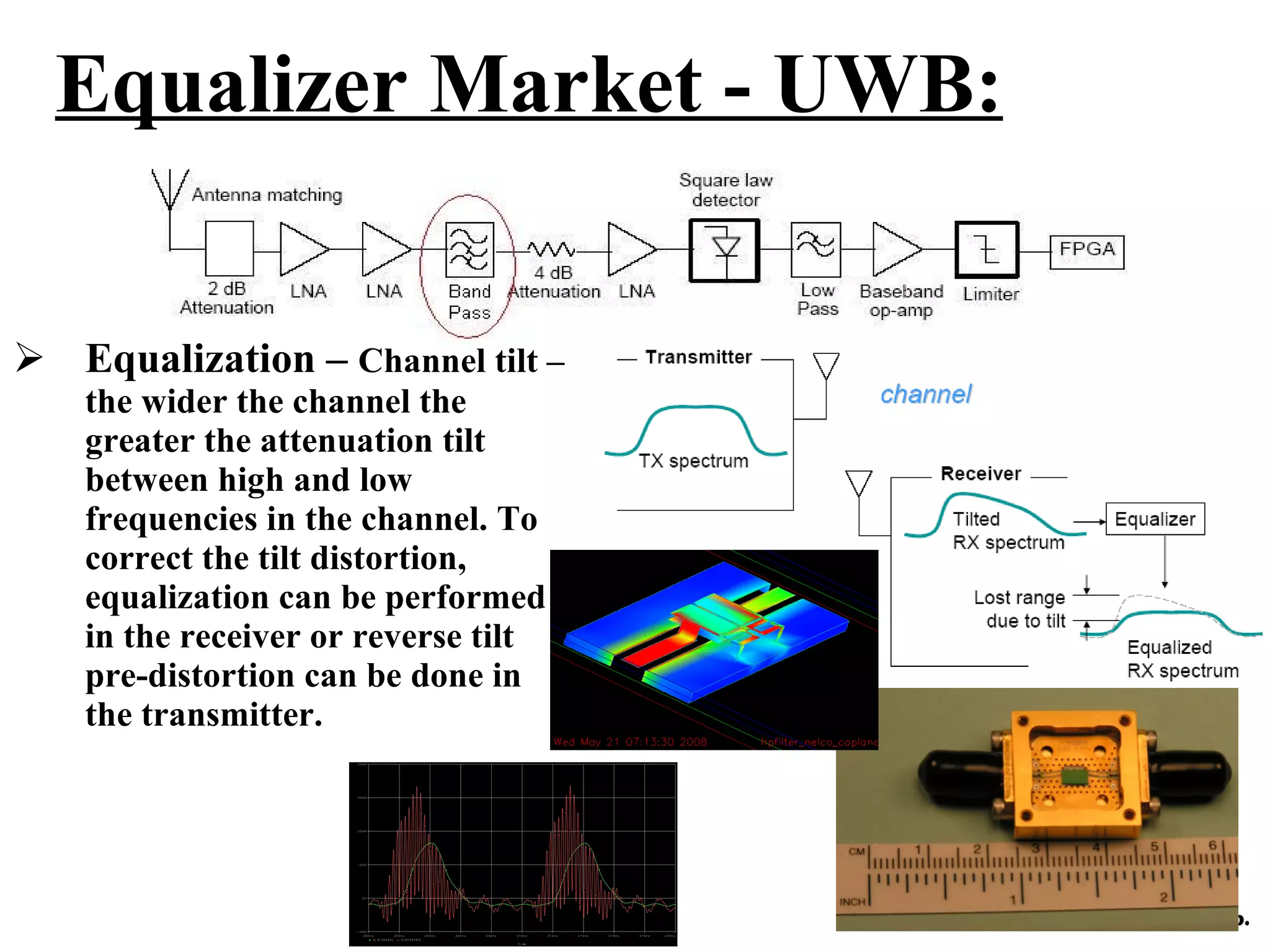

18. Equalizer Market - UWB:
 Equalization – Channel tilt –
the wider the channel the
greater the attenuation tilt
between high and low
frequencies in the channel. To
correct the tilt distortion,
equalization can be performed
in the receiver or reverse tilt
pre-distortion can be done in
the transmitter.
4 0 mV
3 0 mV
2 0 mV
1 0 mV
0V
Confidential - 1 0 mV
200ns
V ( N1 3 6 4 4 5 )
202ns
V( N1 5 0 4 8 5 )
204ns 206ns 208ns 210ns 212ns 214ns 216ns 218ns 220ns
T i me

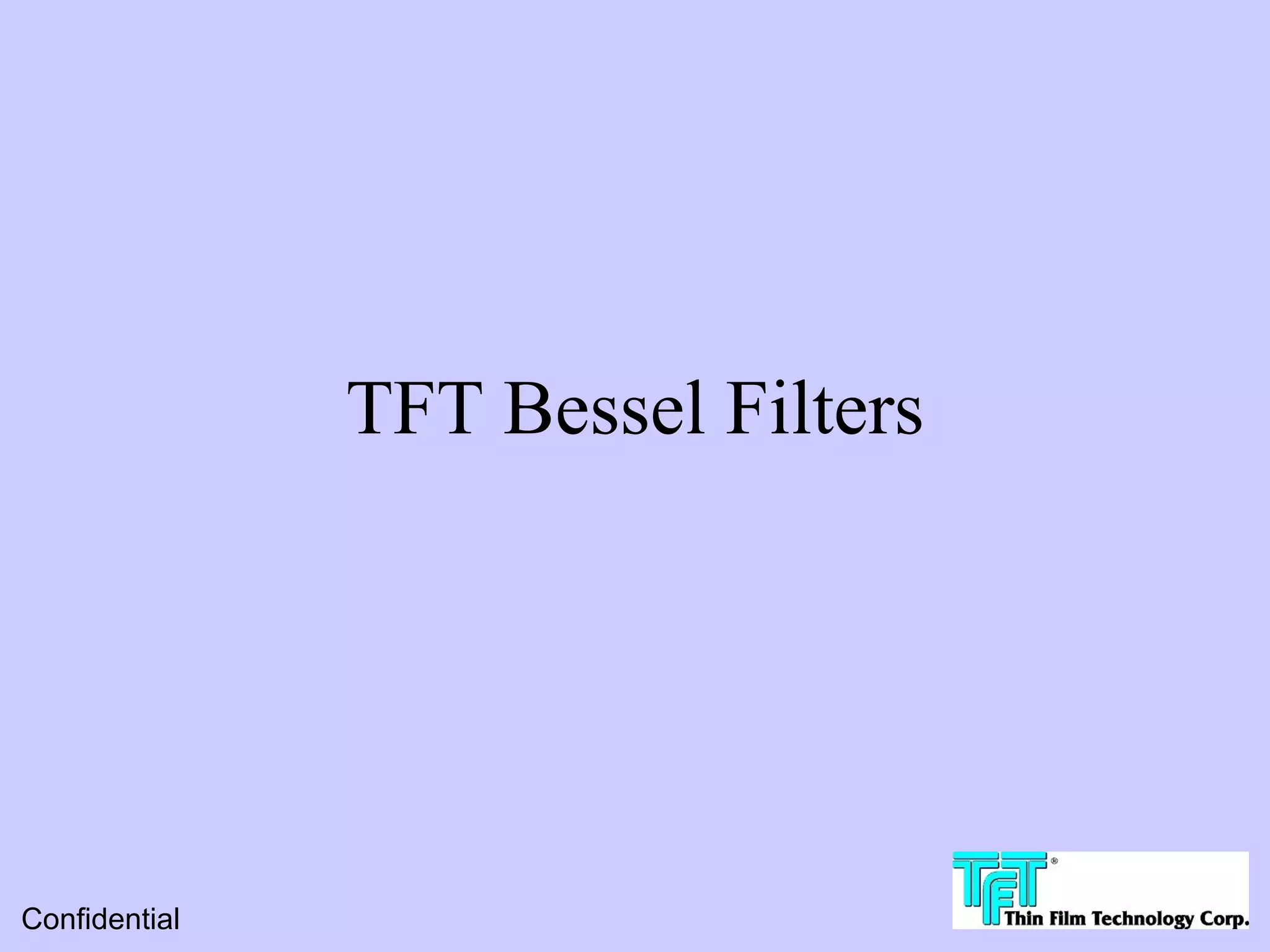

19. TFT Bessel Filters
Confidential

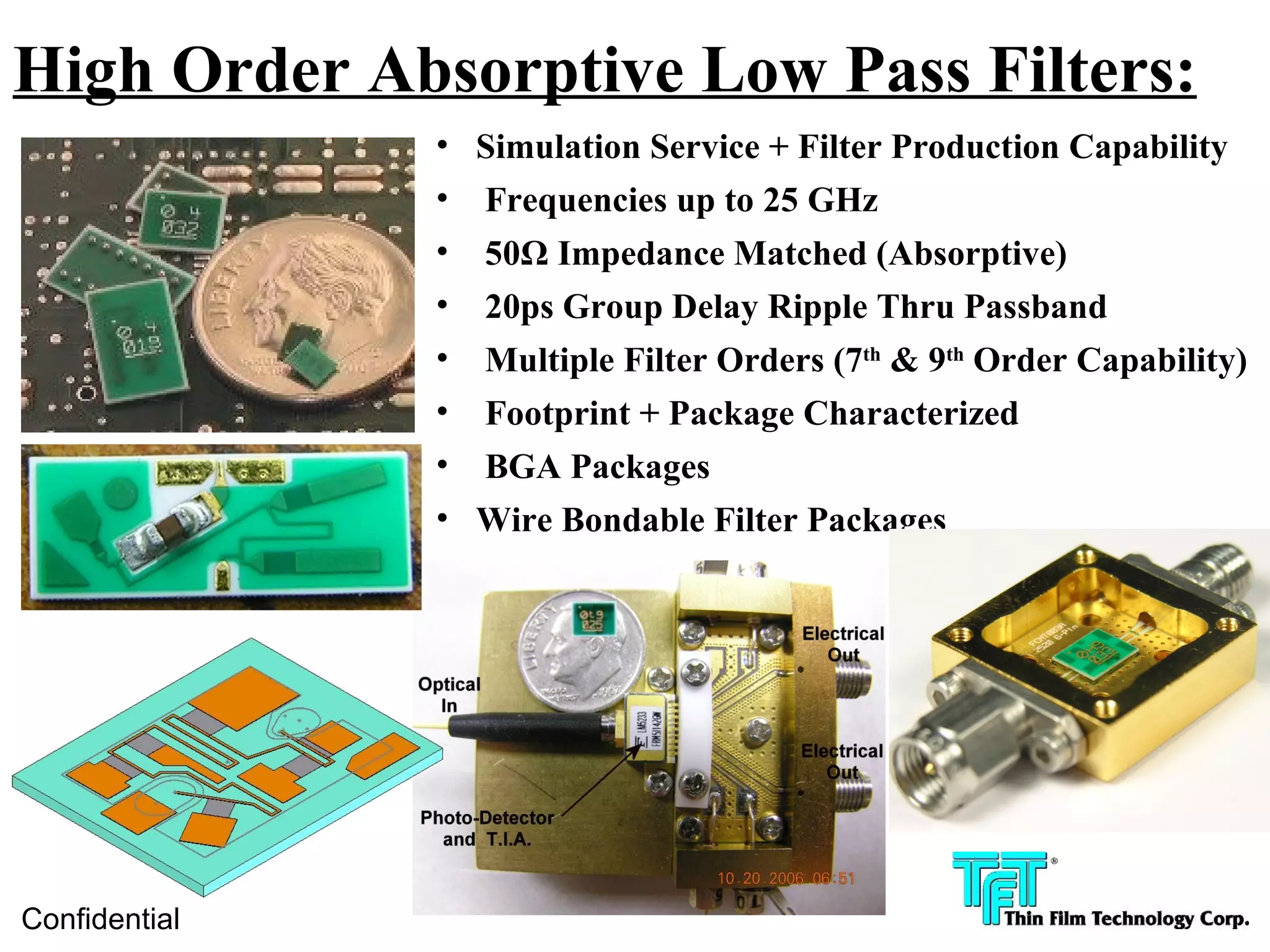

20. High Order Absorptive Low Pass Filters:
• Simulation Service + Filter Production Capability
• Frequencies up to 25 GHz
• 50Ω Impedance Matched (Absorptive)
• 20ps Group Delay Ripple Thru Passband
• Multiple Filter Orders (7th & 9th Order Capability)
• Footprint + Package Characterized
• BGA Packages
• Wire Bondable Filter Packages
Confidential

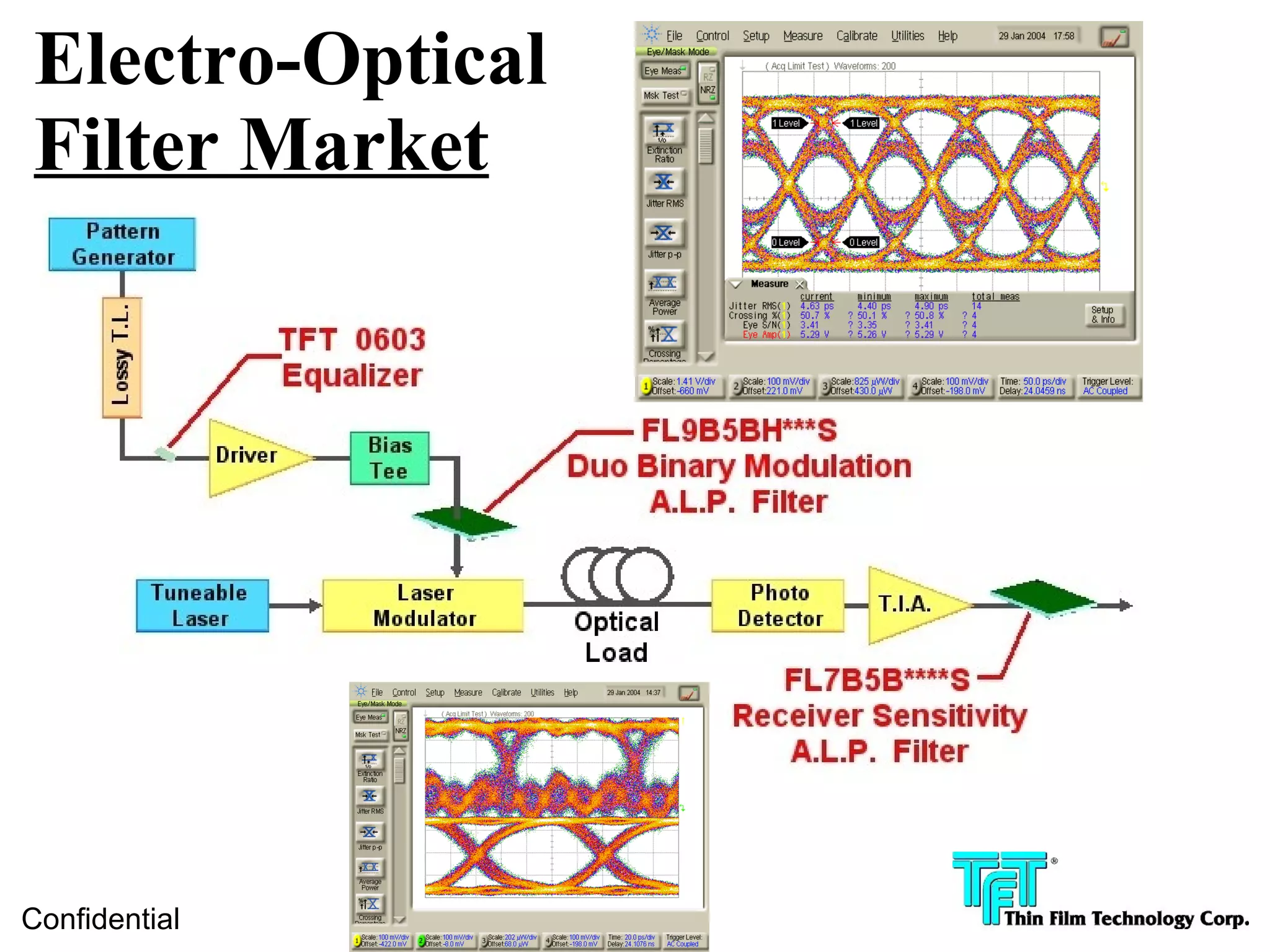

21. Electro-Optical
Filter Market
Confidential

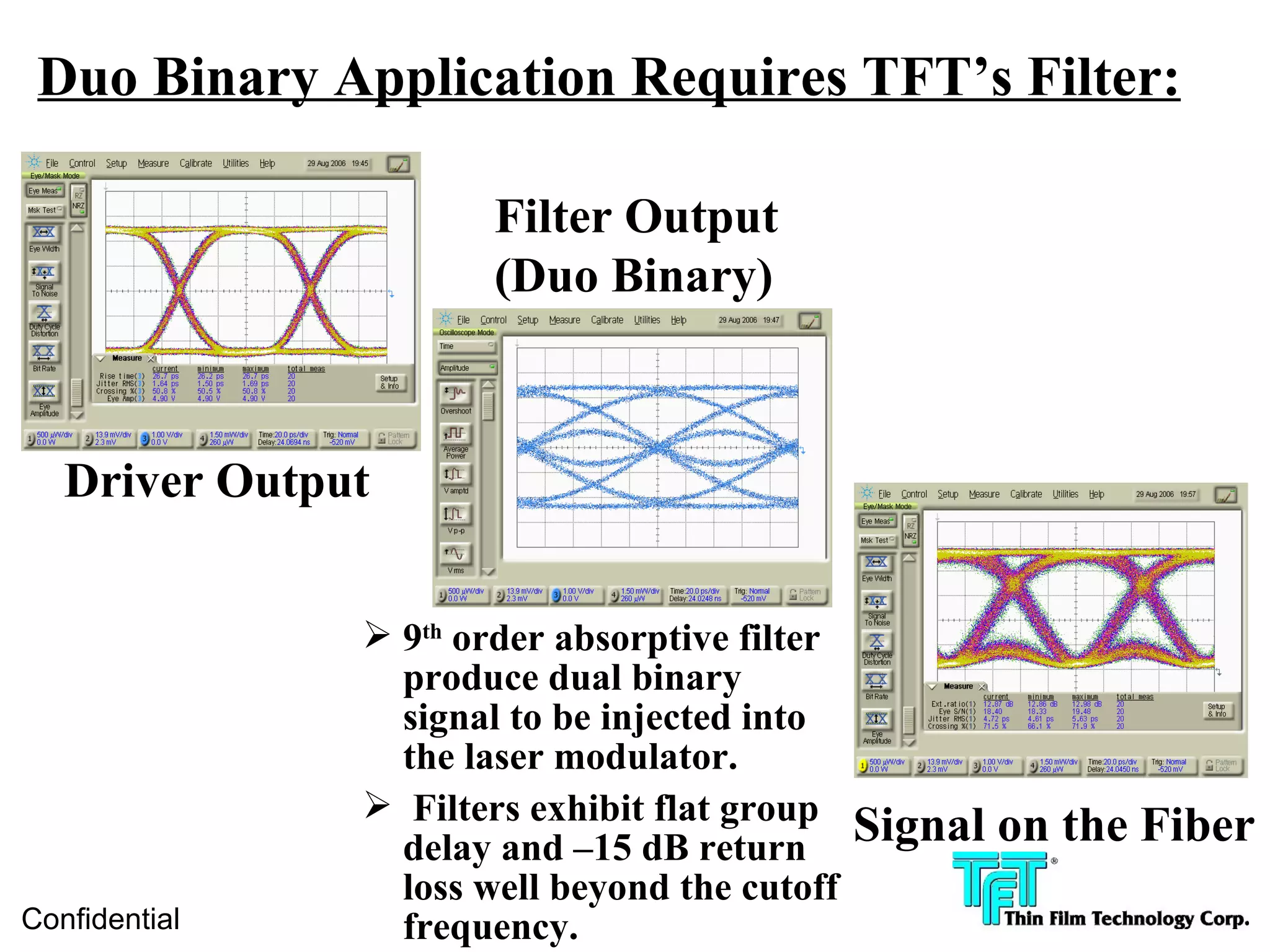

22. Duo Binary Application Requires TFT’s Filter:
Filter Output
(Duo Binary)
Driver Output
 9th order absorptive filter
produce dual binary
signal to be injected into
the laser modulator.
 Filters exhibit flat group
delay and –15 dB return Signal on the Fiber
loss well beyond the cutoff
Confidential frequency.

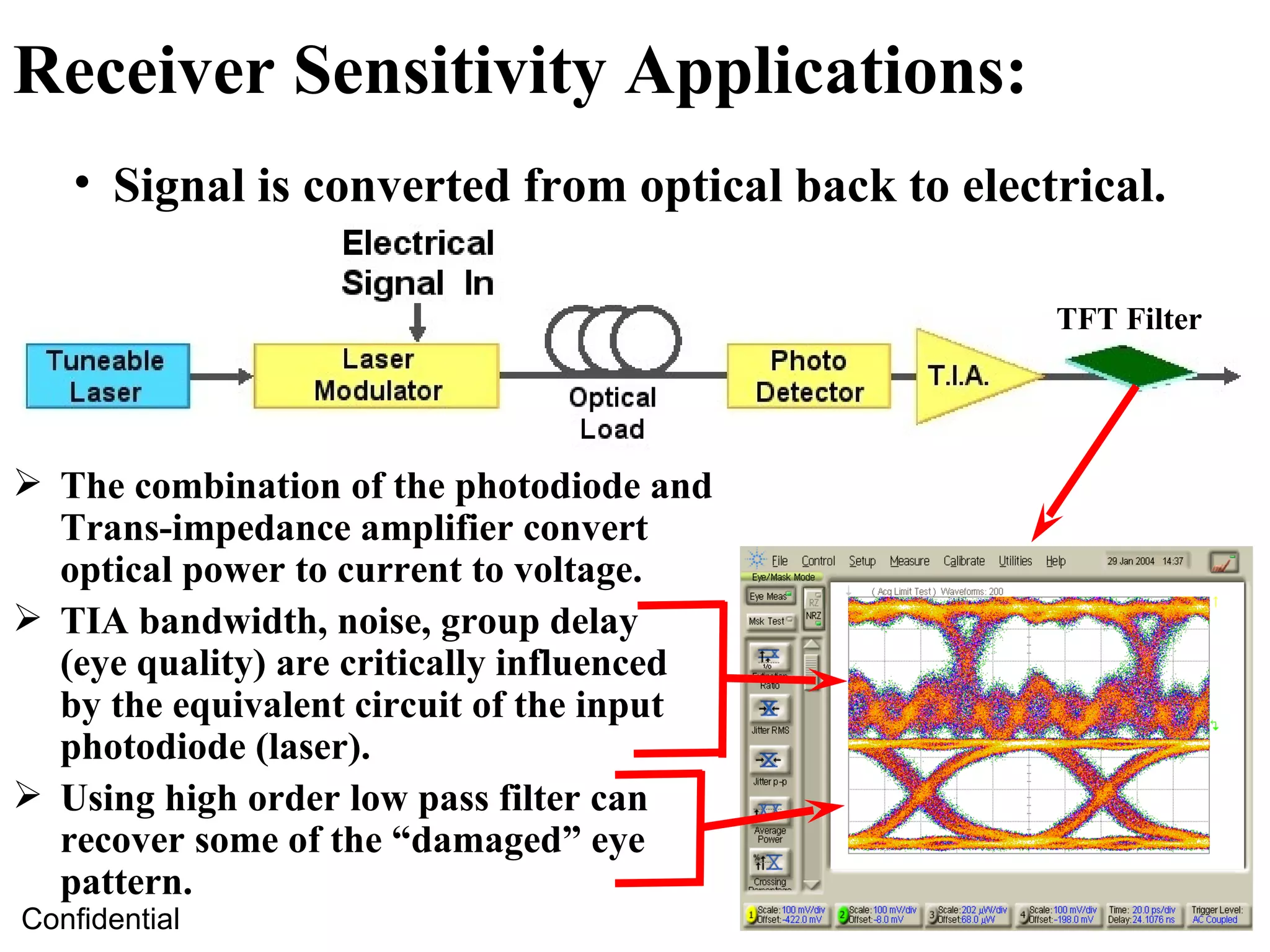

23. Receiver Sensitivity Applications:
• Signal is converted from optical back to electrical.
TFT Filter
 The combination of the photodiode and
Trans-impedance amplifier convert
optical power to current to voltage.
 TIA bandwidth, noise, group delay
(eye quality) are critically influenced
by the equivalent circuit of the input
photodiode (laser).
 Using high order low pass filter can
recover some of the “damaged” eye
pattern.
Confidential

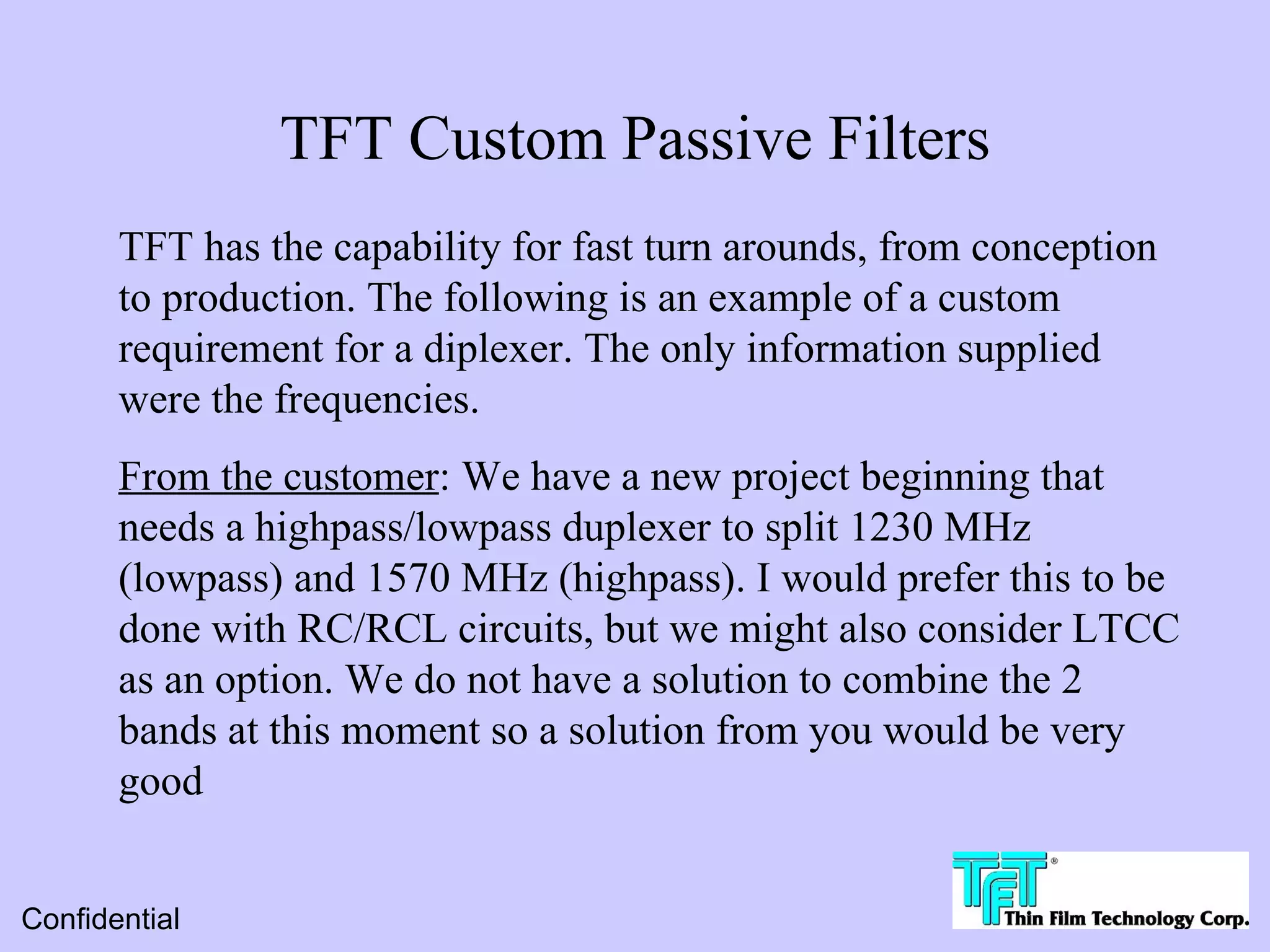

24. TFT Custom Passive Filters
TFT has the capability for fast turn arounds, from conception
to production. The following is an example of a custom
requirement for a diplexer. The only information supplied
were the frequencies.
From the customer: We have a new project beginning that
needs a highpass/lowpass duplexer to split 1230 MHz
(lowpass) and 1570 MHz (highpass). I would prefer this to be
done with RC/RCL circuits, but we might also consider LTCC
as an option. We do not have a solution to combine the 2
bands at this moment so a solution from you would be very
good
Confidential

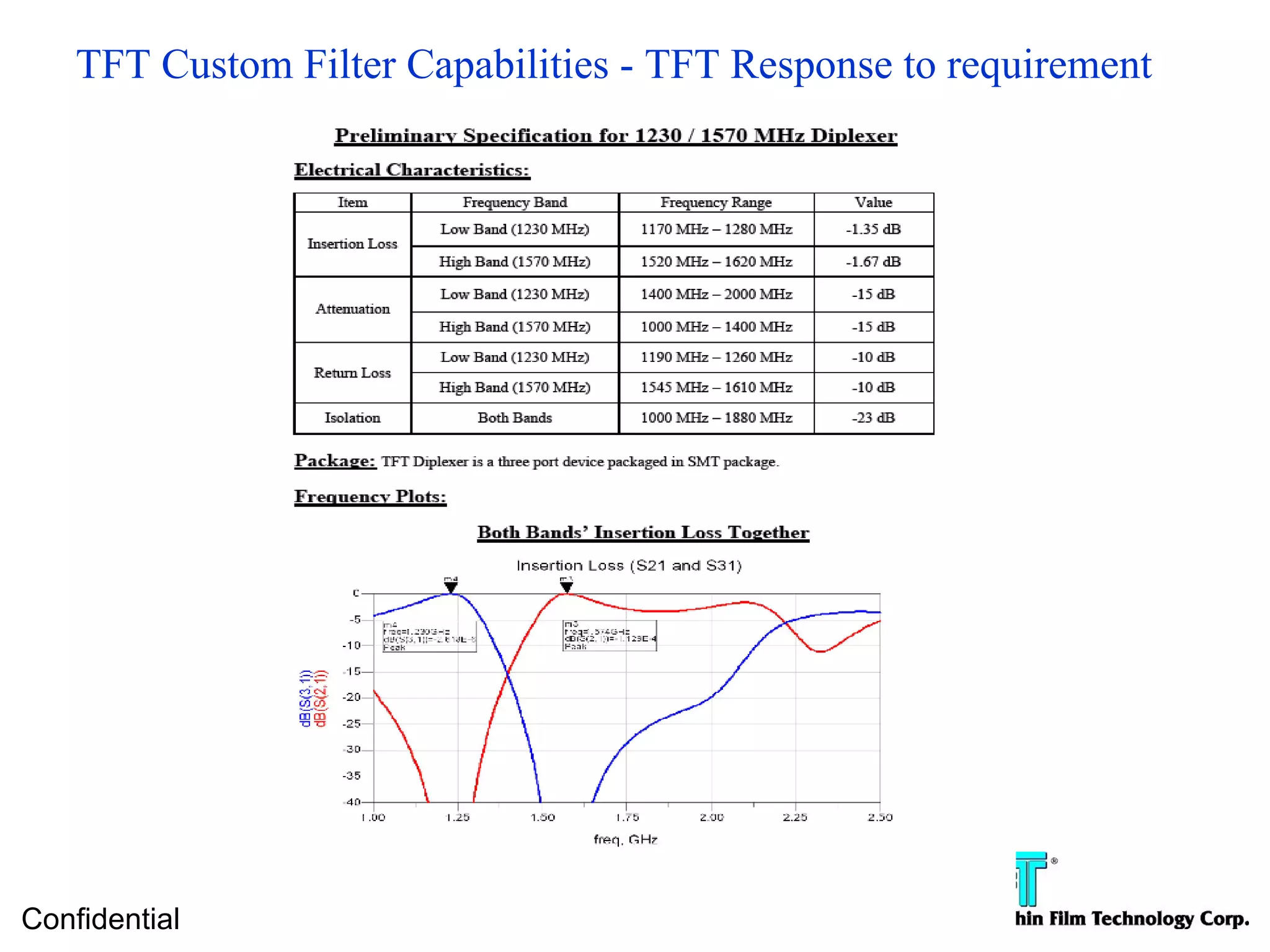

25. TFT Custom Filter Capabilities - TFT Response to requirement
Confidential

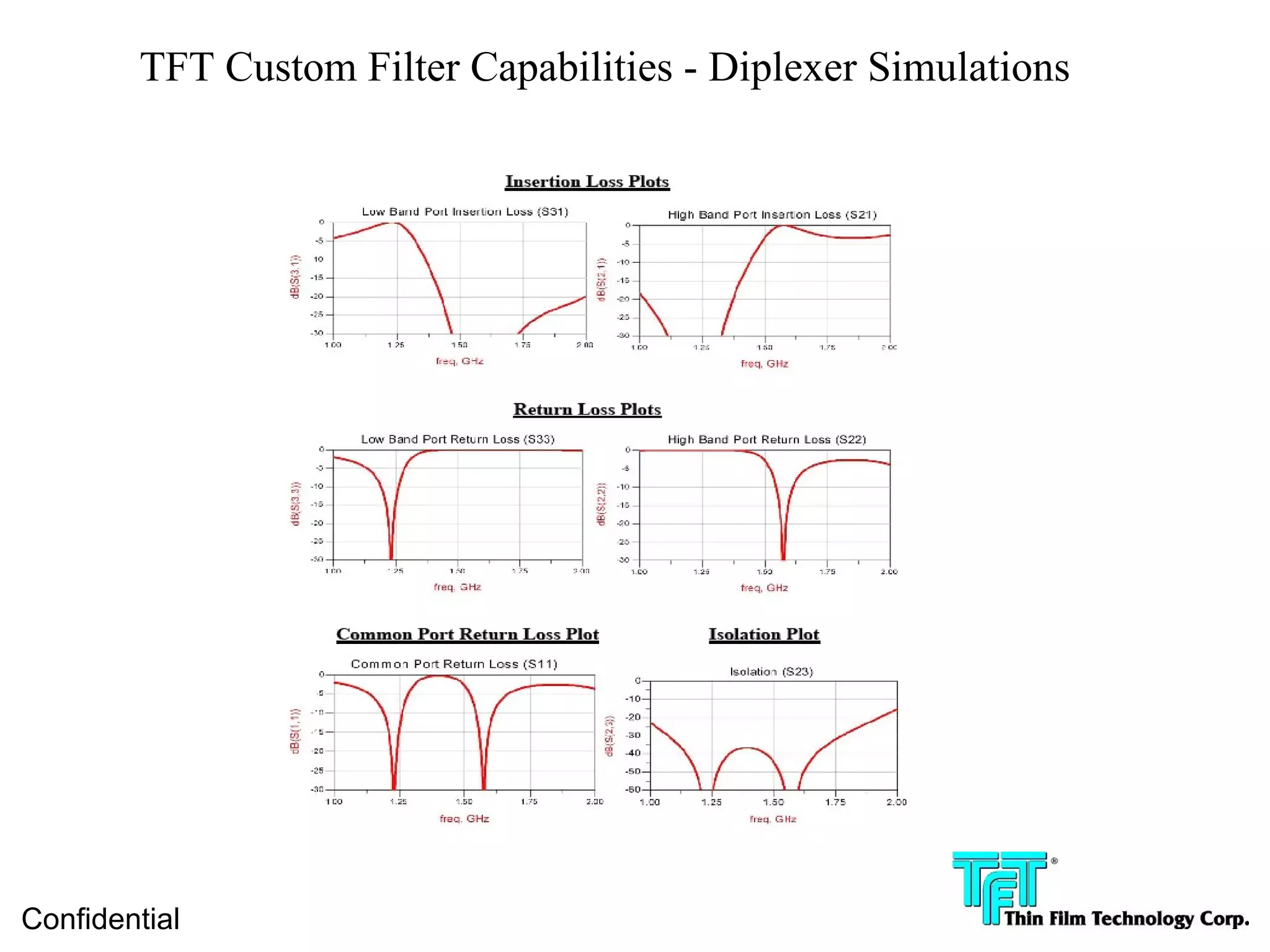

26. TFT Custom Filter Capabilities - Diplexer Simulations
Confidential

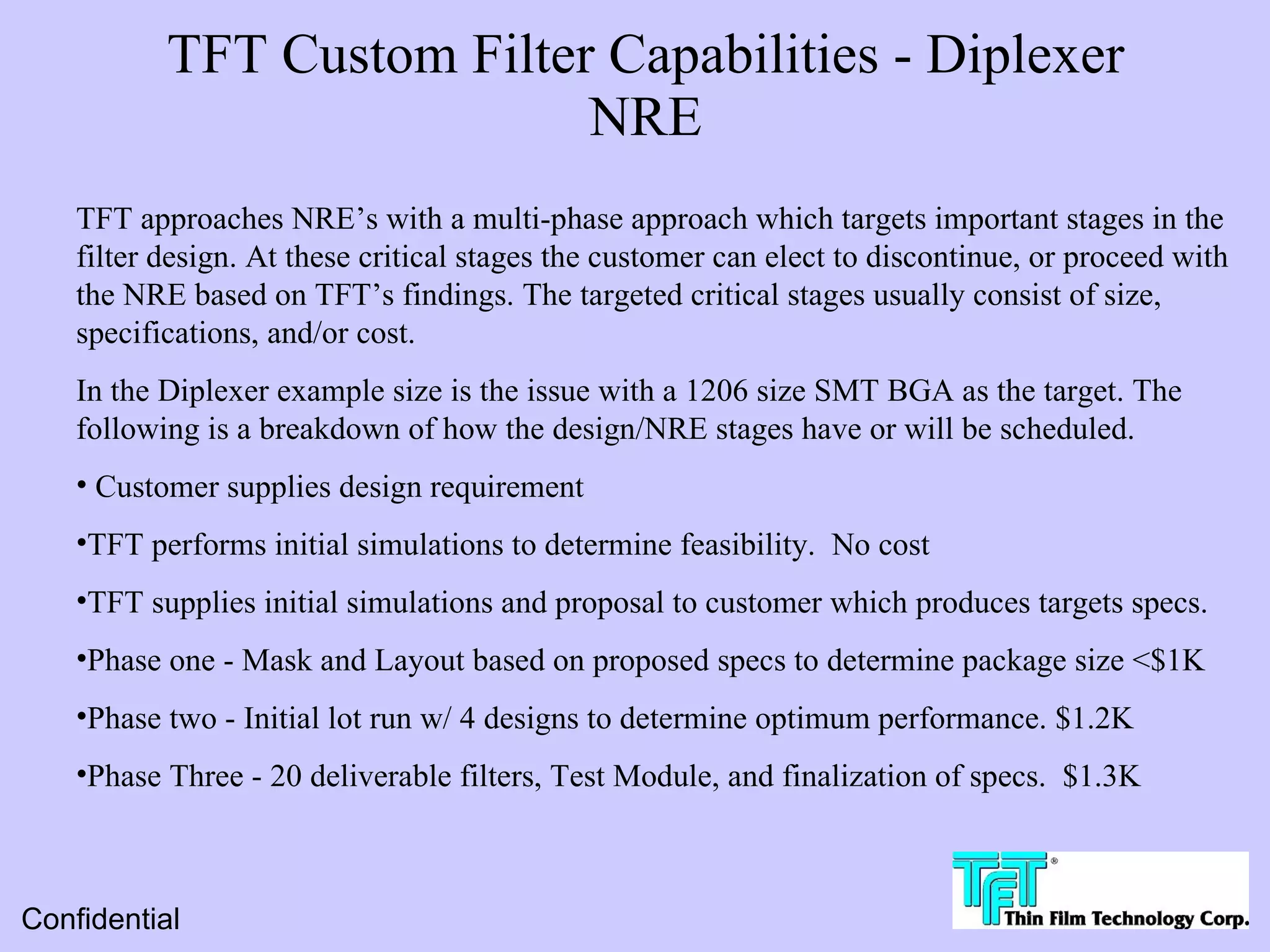

27. TFT Custom Filter Capabilities - Diplexer
NRE
TFT approaches NRE’s with a multi-phase approach which targets important stages in the
filter design. At these critical stages the customer can elect to discontinue, or proceed with
the NRE based on TFT’s findings. The targeted critical stages usually consist of size,
specifications, and/or cost.
In the Diplexer example size is the issue with a 1206 size SMT BGA as the target. The
following is a breakdown of how the design/NRE stages have or will be scheduled.
• Customer supplies design requirement
•TFT performs initial simulations to determine feasibility. No cost
•TFT supplies initial simulations and proposal to customer which produces targets specs.
•Phase one - Mask and Layout based on proposed specs to determine package size <$1K
•Phase two - Initial lot run w/ 4 designs to determine optimum performance. $1.2K
•Phase Three - 20 deliverable filters, Test Module, and finalization of specs. $1.3K
Confidential

28. TFT 10 Ghz & 20 Ghz
Crossover Chip
Confidential

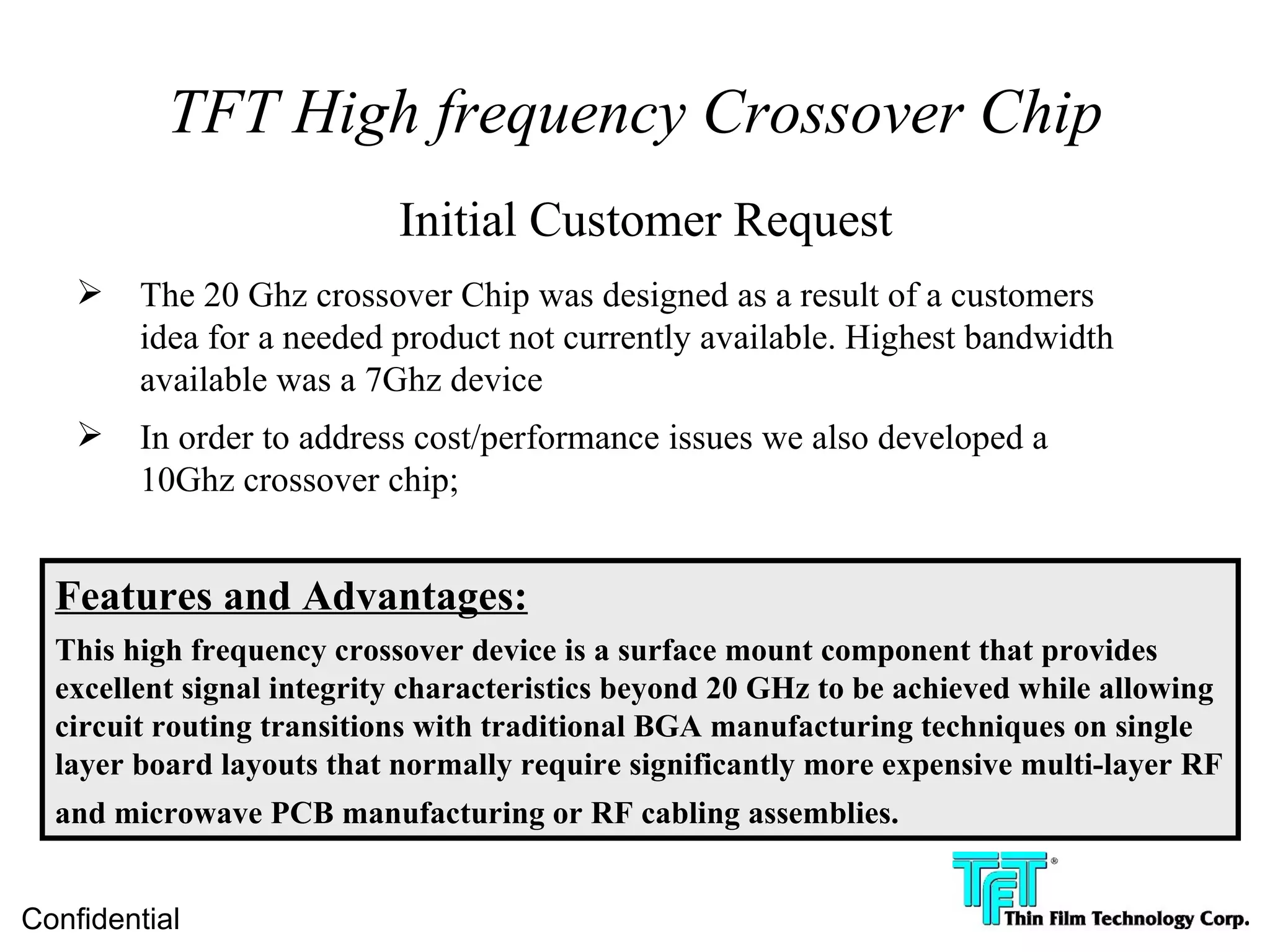

29. TFT High frequency Crossover Chip
Initial Customer Request
 The 20 Ghz crossover Chip was designed as a result of a customers
idea for a needed product not currently available. Highest bandwidth
available was a 7Ghz device
 In order to address cost/performance issues we also developed a
10Ghz crossover chip;
Features and Advantages:
This high frequency crossover device is a surface mount component that provides
excellent signal integrity characteristics beyond 20 GHz to be achieved while allowing
circuit routing transitions with traditional BGA manufacturing techniques on single
layer board layouts that normally require significantly more expensive multi-layer RF
and microwave PCB manufacturing or RF cabling assemblies.
Confidential

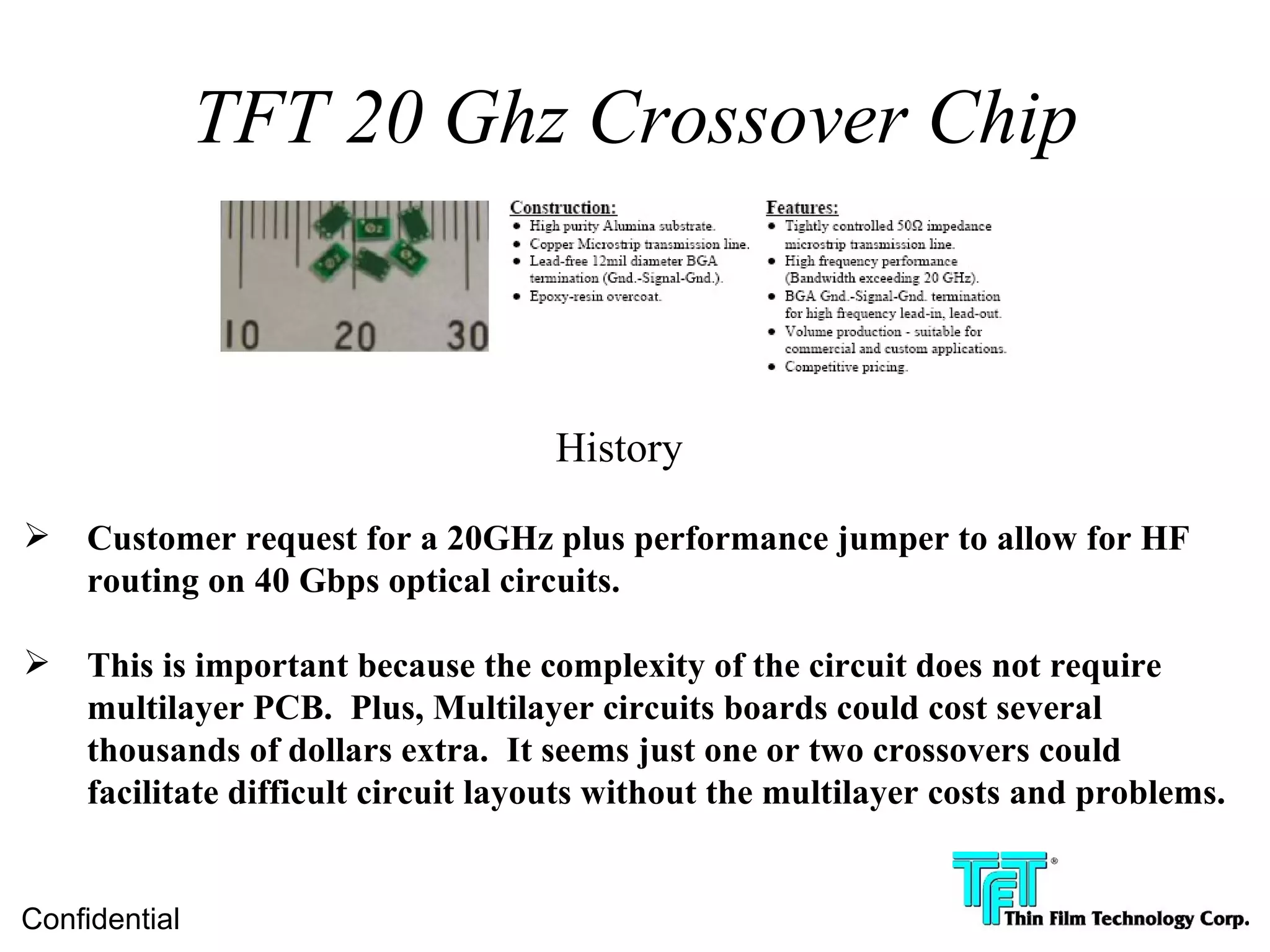

30. TFT 20 Ghz Crossover Chip
History
 Customer request for a 20GHz plus performance jumper to allow for HF
routing on 40 Gbps optical circuits.
 This is important because the complexity of the circuit does not require
multilayer PCB. Plus, Multilayer circuits boards could cost several
thousands of dollars extra. It seems just one or two crossovers could
facilitate difficult circuit layouts without the multilayer costs and problems.
Confidential

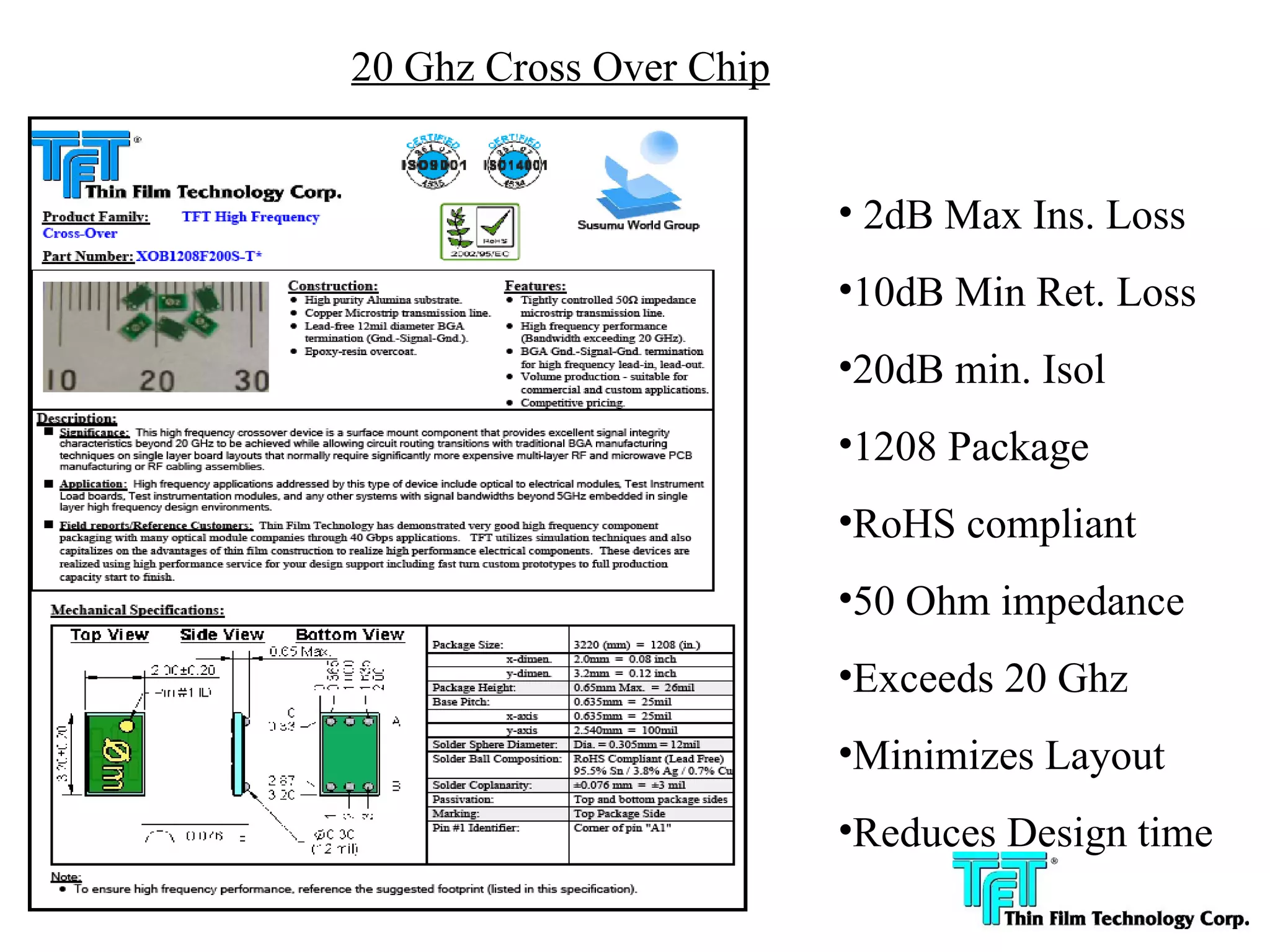

31. 20 Ghz Cross Over Chip
• 2dB Max Ins. Loss
•10dB Min Ret. Loss
•20dB min. Isol
•1208 Package
•RoHS compliant
•50 Ohm impedance
•Exceeds 20 Ghz
•Minimizes Layout
•Reduces Design time
Confidential

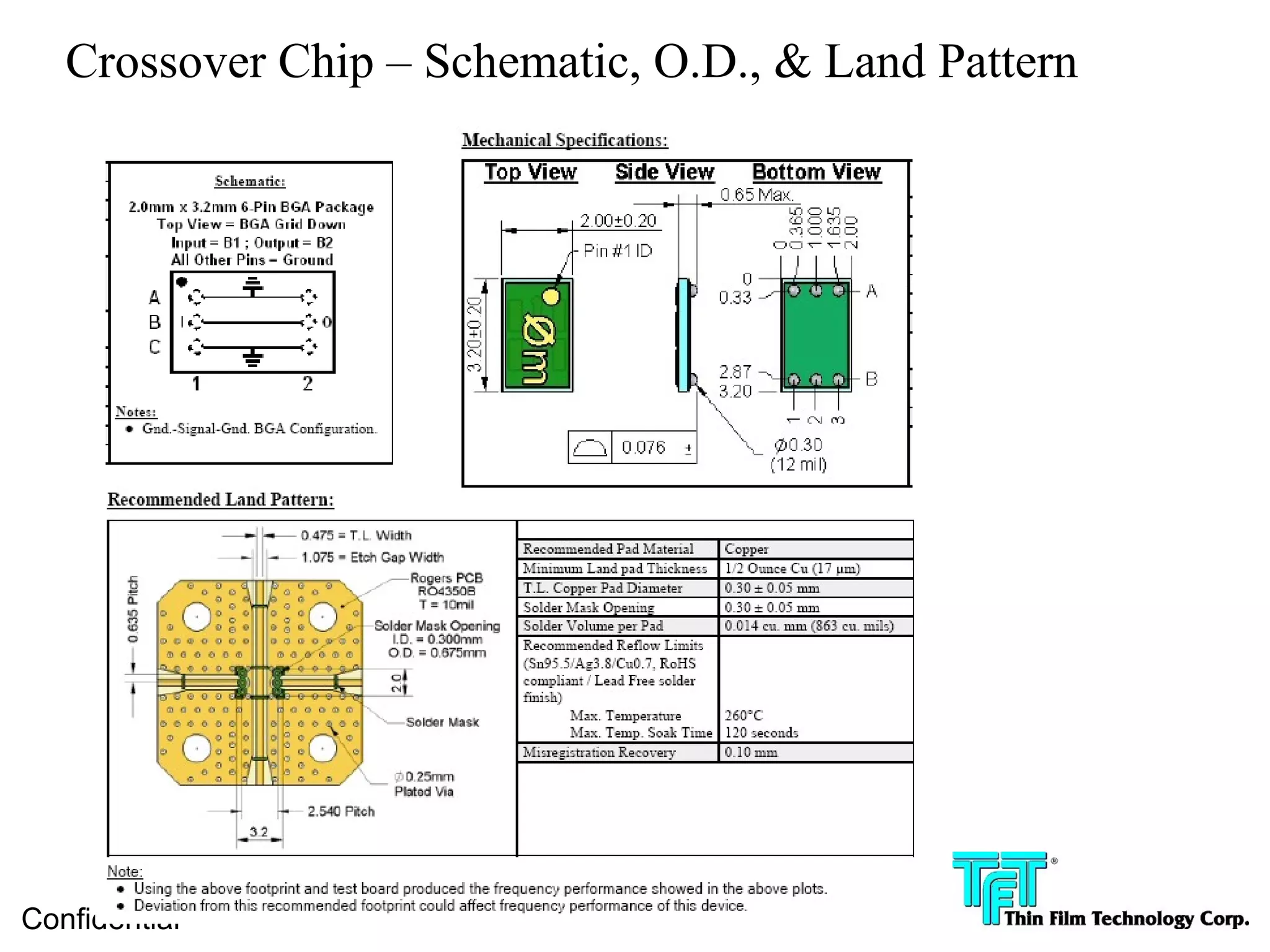

32. Crossover Chip – Schematic, O.D., & Land Pattern
Confidential

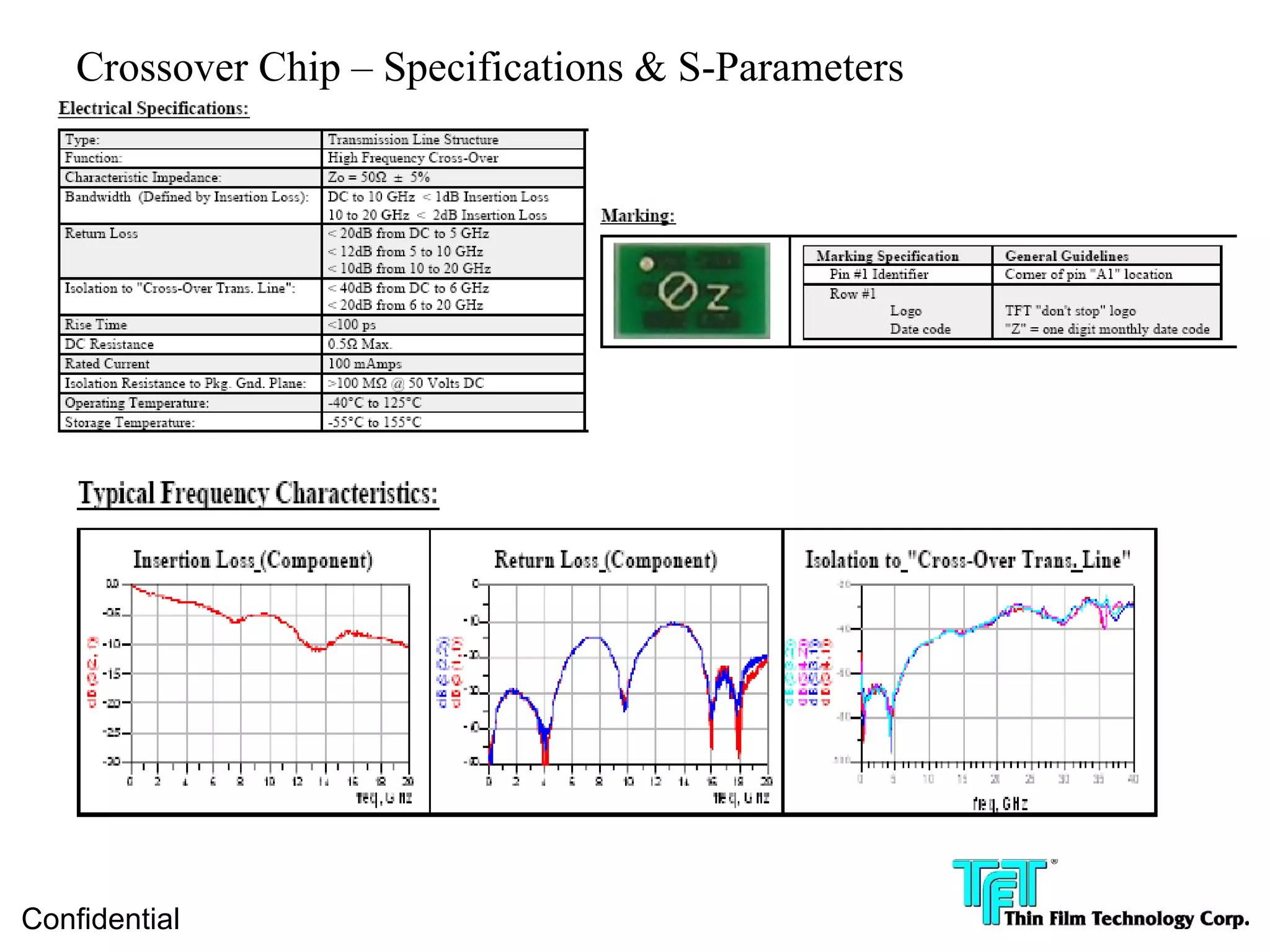

33. Crossover Chip – Specifications & S-Parameters
Confidential

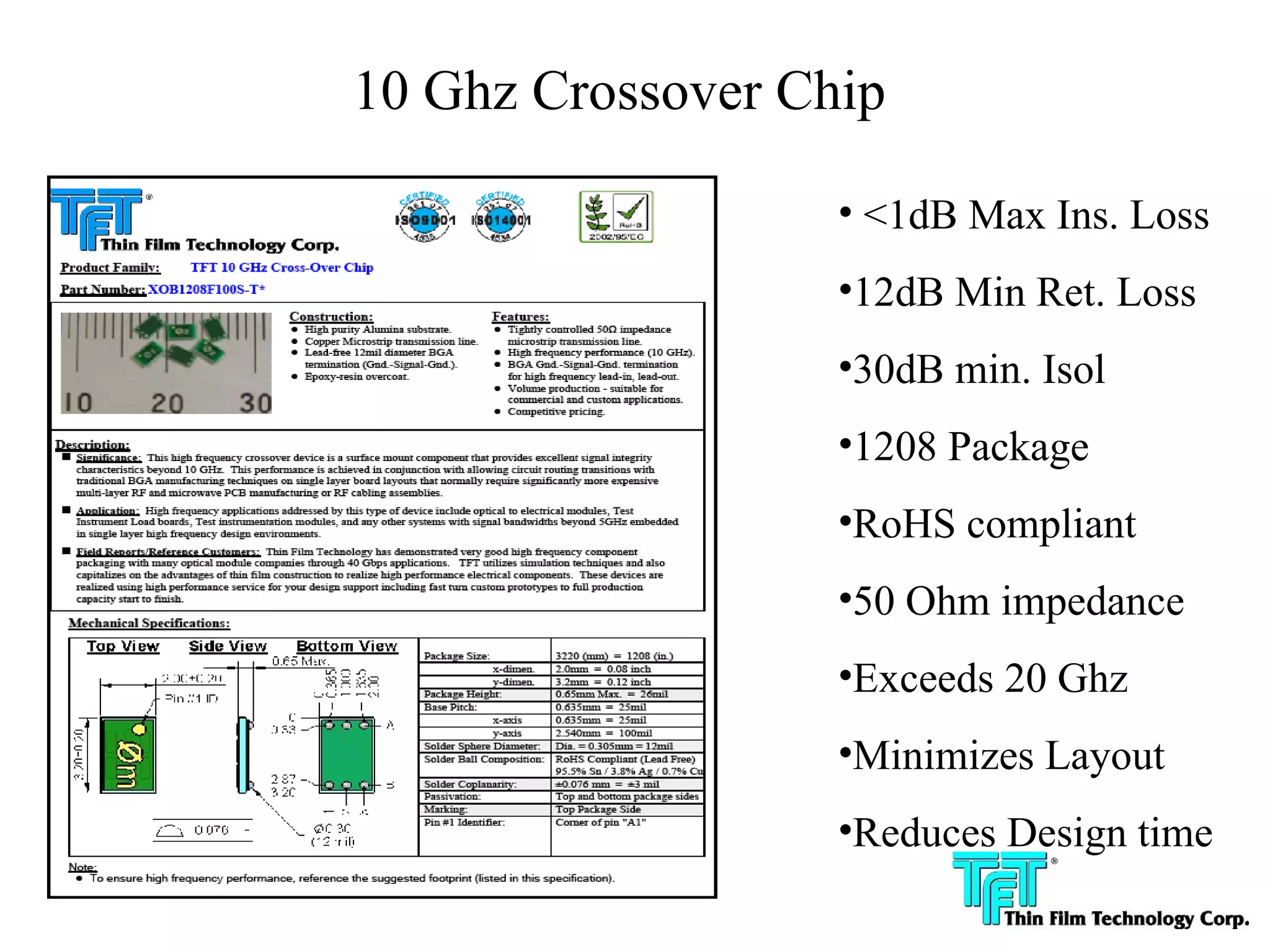

34. 10 Ghz Crossover Chip
• <1dB Max Ins. Loss
•12dB Min Ret. Loss
•30dB min. Isol
•1208 Package
•RoHS compliant
•50 Ohm impedance
•Exceeds 20 Ghz
•Minimizes Layout
•Reduces Design time
Confidential

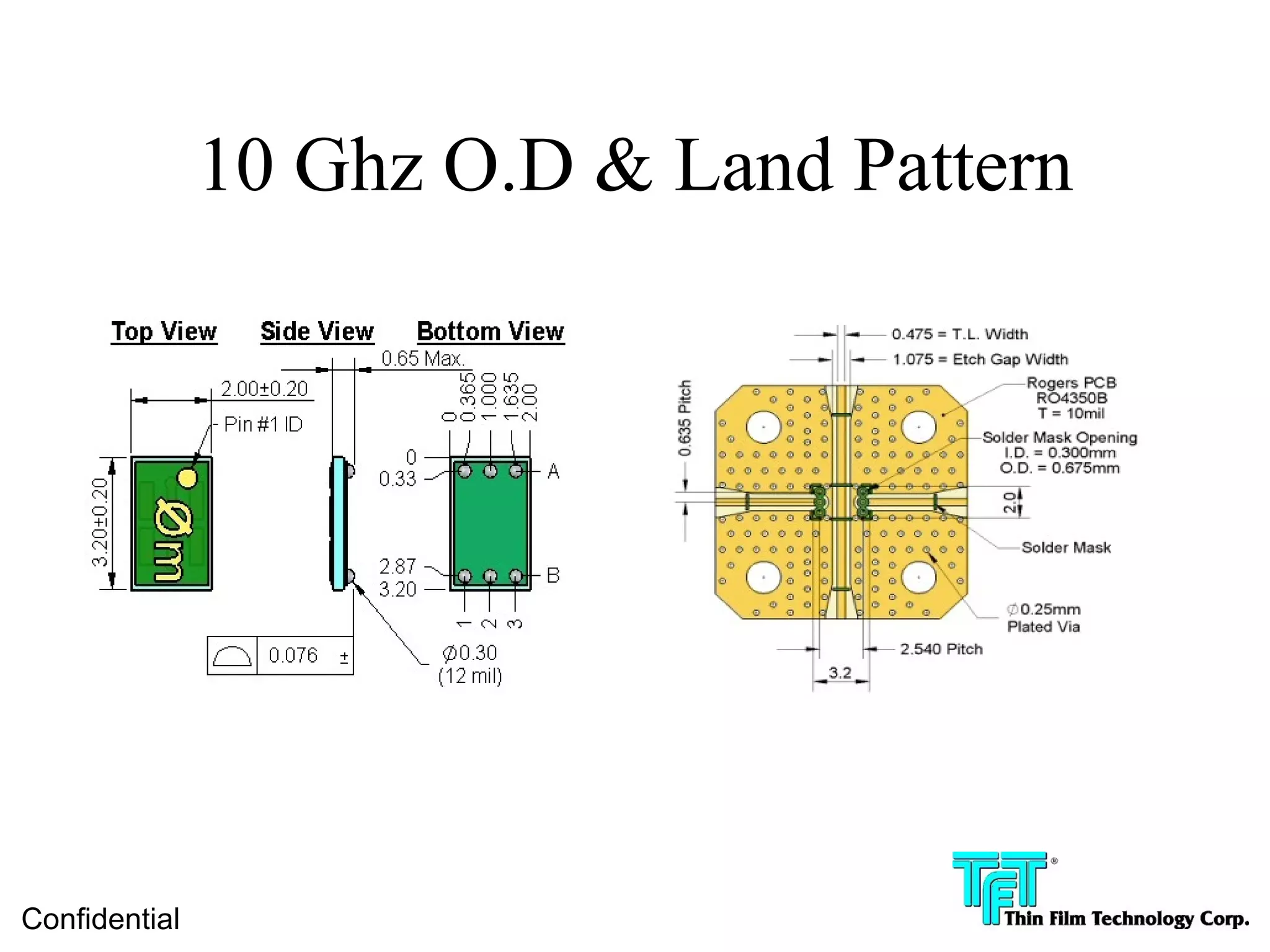

35. 10 Ghz O.D & Land Pattern
Confidential

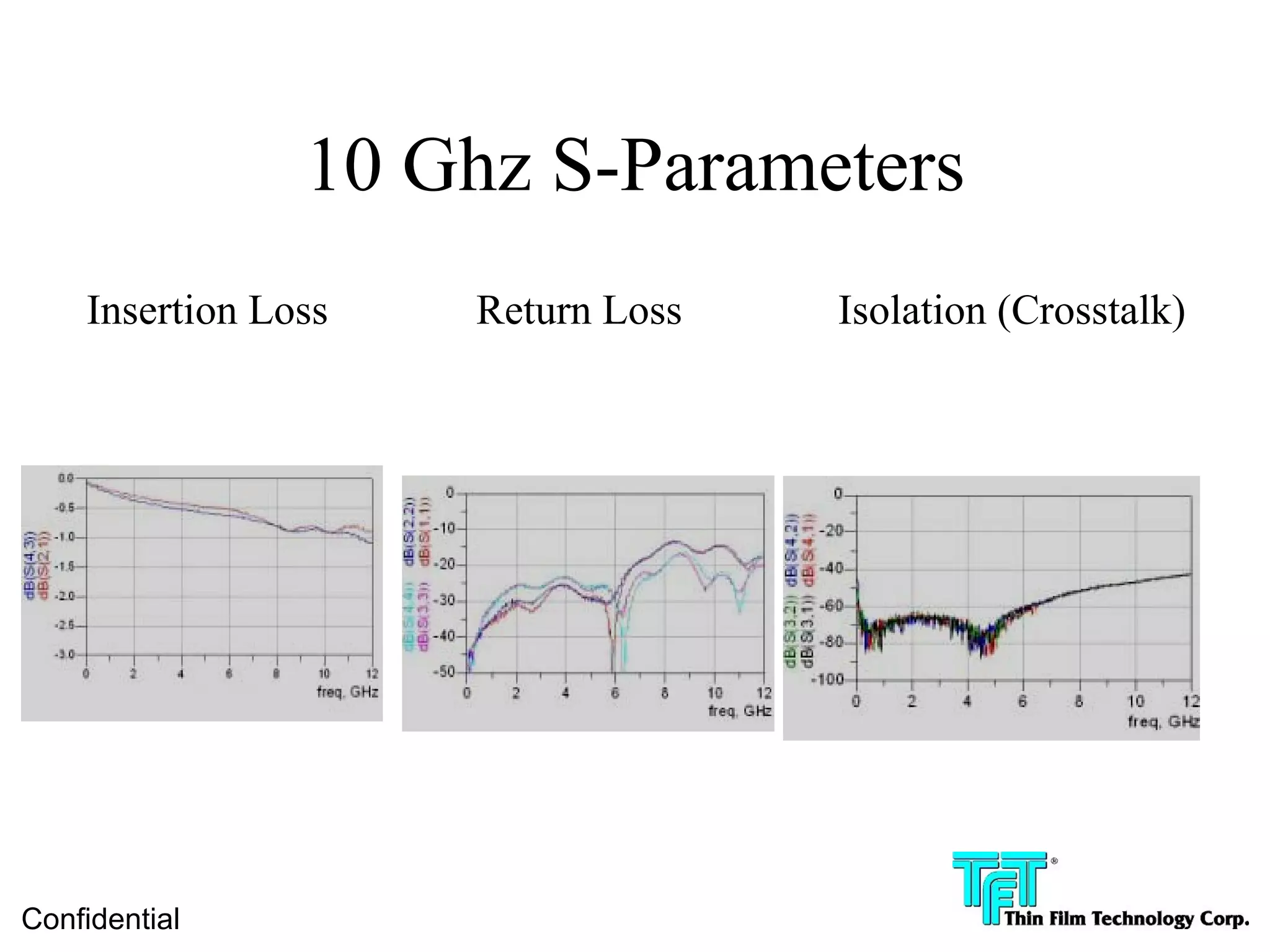

36. 10 Ghz S-Parameters
Insertion Loss Return Loss Isolation (Crosstalk)
Confidential

37. TFT High Power Chip Resistors
Confidential

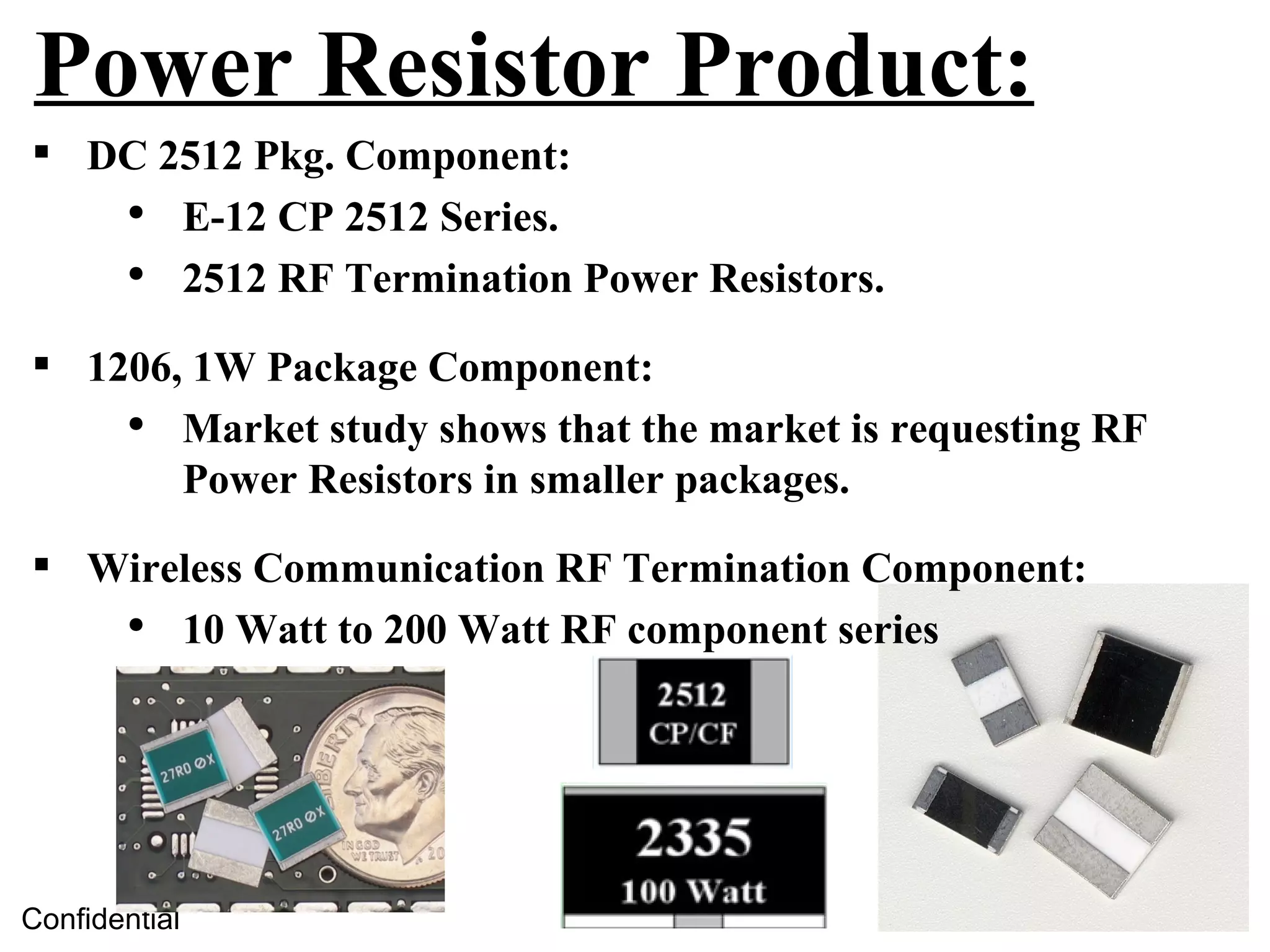

38. Power Resistor Product:
 DC 2512 Pkg. Component:
●
E-12 CP 2512 Series.
●
2512 RF Termination Power Resistors.
 1206, 1W Package Component:
●
Market study shows that the market is requesting RF
Power Resistors in smaller packages.
 Wireless Communication RF Termination Component:
●
10 Watt to 200 Watt RF component series
Confidential

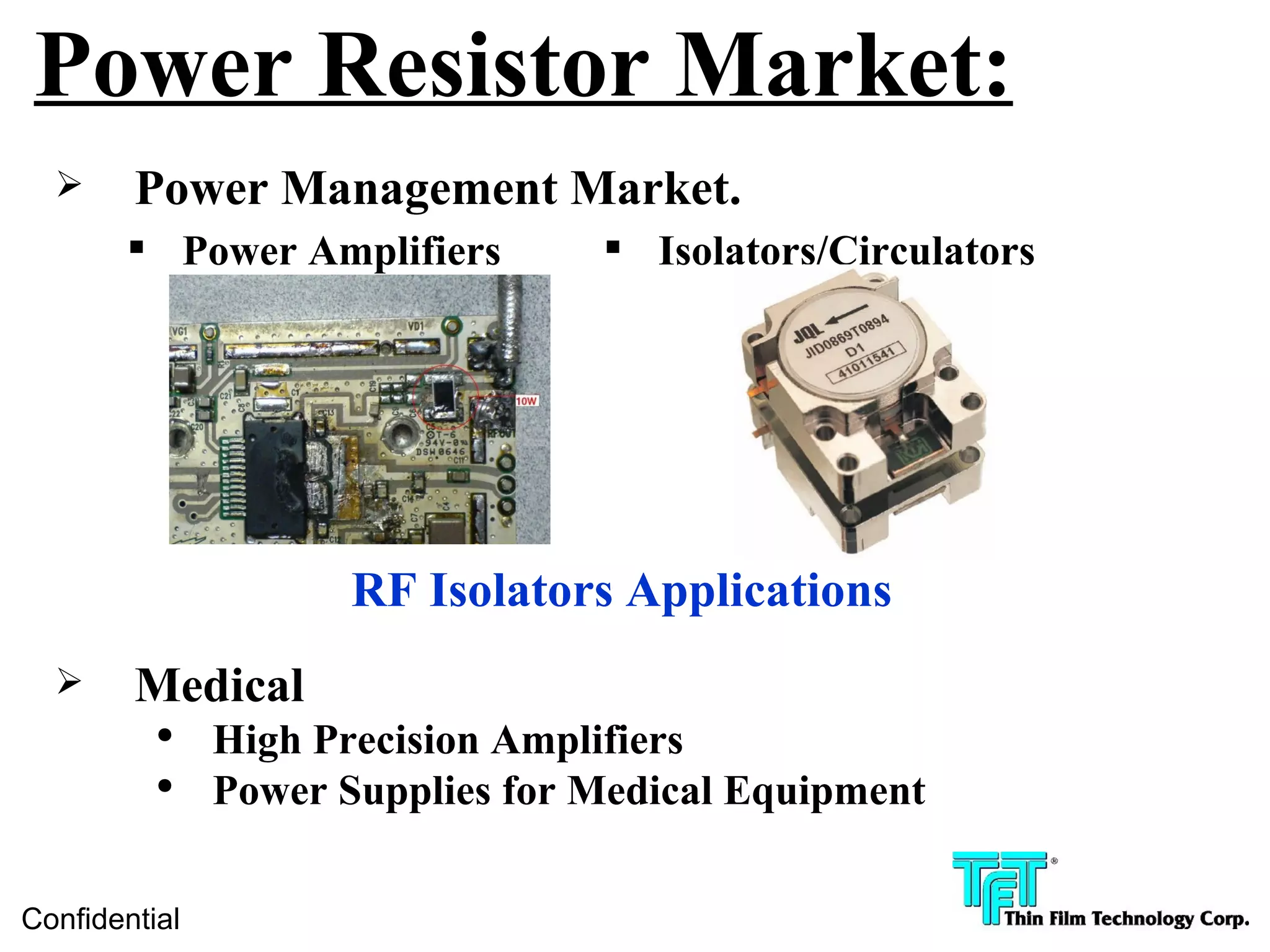

39. Power Resistor Market:
 Power Management Market.
 Power Amplifiers  Isolators/Circulators
RF Isolators Applications
 Medical
●
High Precision Amplifiers
●
Power Supplies for Medical Equipment
Confidential

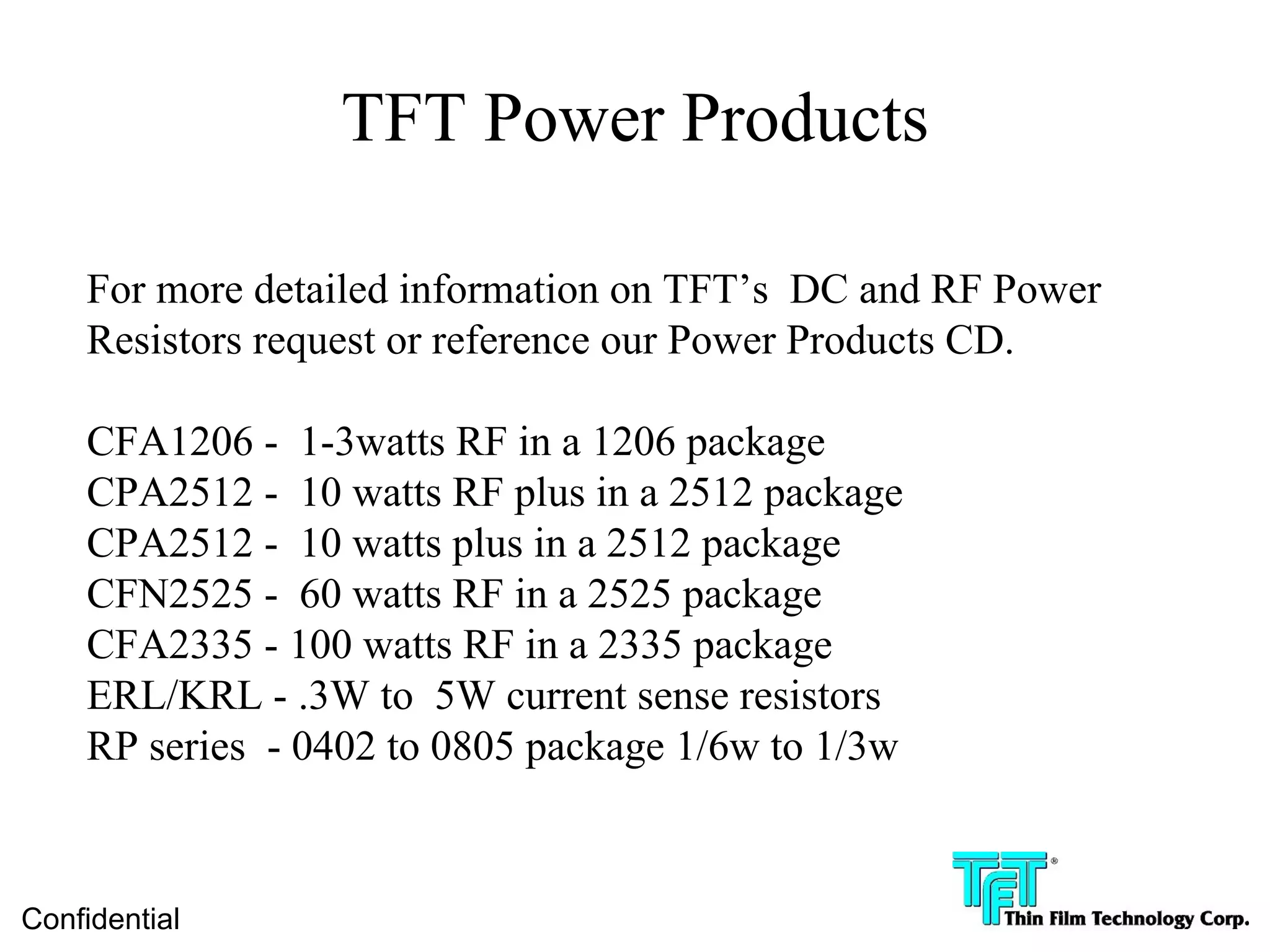

40. TFT Power Products
For more detailed information on TFT’s DC and RF Power
Resistors request or reference our Power Products CD.
CFA1206 - 1-3watts RF in a 1206 package
CPA2512 - 10 watts RF plus in a 2512 package
CPA2512 - 10 watts plus in a 2512 package
CFN2525 - 60 watts RF in a 2525 package
CFA2335 - 100 watts RF in a 2335 package
ERL/KRL - .3W to 5W current sense resistors
RP series - 0402 to 0805 package 1/6w to 1/3w
Confidential

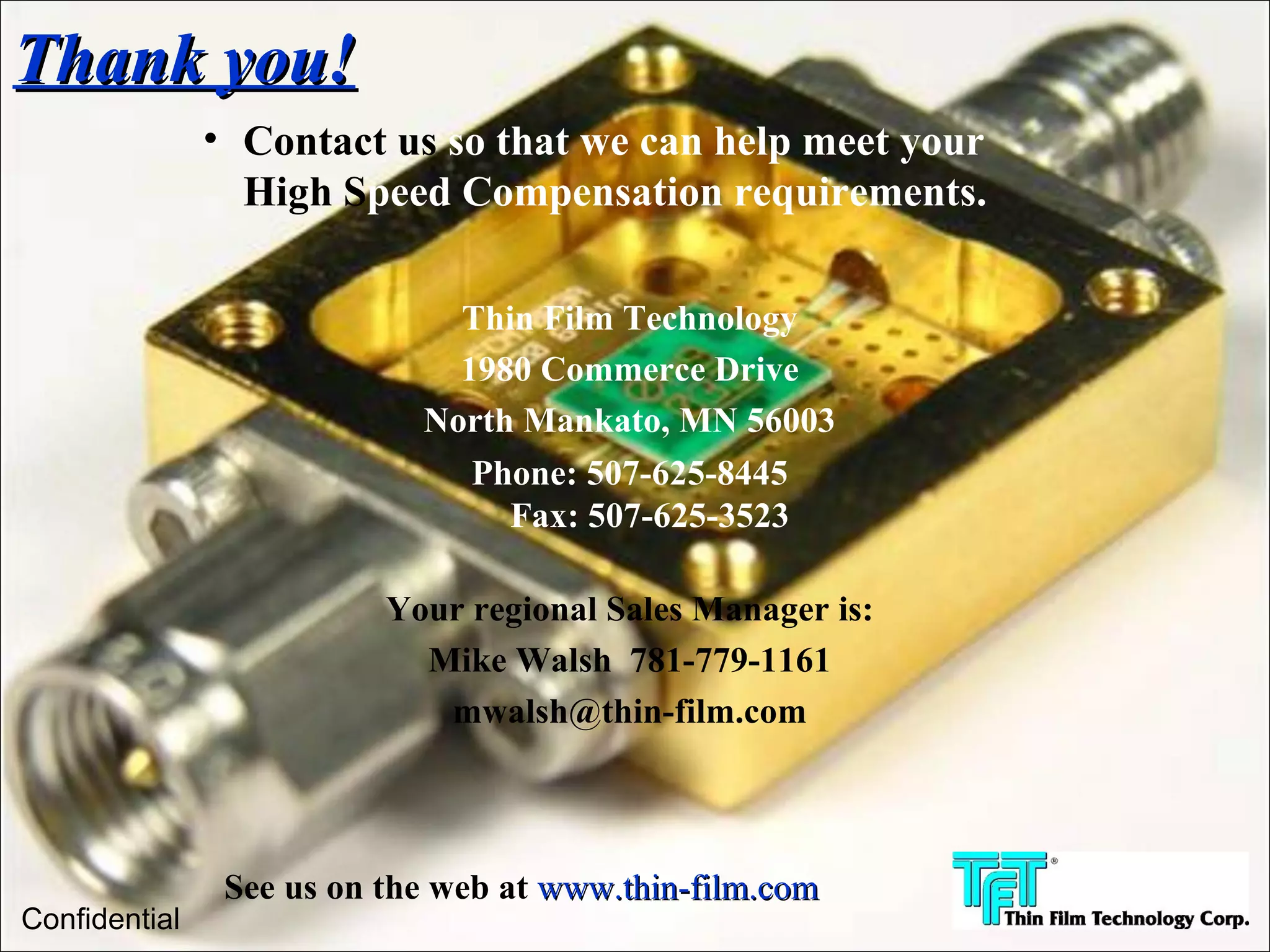

41. Thank you!
• Contact us so that we can help meet your
High Speed Compensation requirements.
Thin Film Technology
1980 Commerce Drive
North Mankato, MN 56003
Phone: 507-625-8445
Fax: 507-625-3523
Your regional Sales Manager is:
Mike Walsh 781-779-1161
mwalsh@thin-film.com
See us on the web at www.thin-film.com
Confidential
