TERRAFORM 0.13:
RISE OF THE MODULES_
Marko Bevc
BUILDING
BLOCKS_
“Abstraction of common blocks of
configuration into a reusable
infrastructure elements.”
— @sheriffjackson, 2018 blog
DRY code – Don’t Repeat Yourself
Everything is a module!
ABOUT
ME_ ●
Senior IT Consultant at The Scale Factory (DevOps consultancy,
AWS advanced consulting partner and K8s service provider)
●
IT system engineering and design background with extensive
Linux and virtualization experience
●
Certifications and competencies: AWS, CKA, RHEL, Hashi stack
●
Open source contributor and supporter
●
Fan of automation/simplifying things, hiking, cycling and travelling

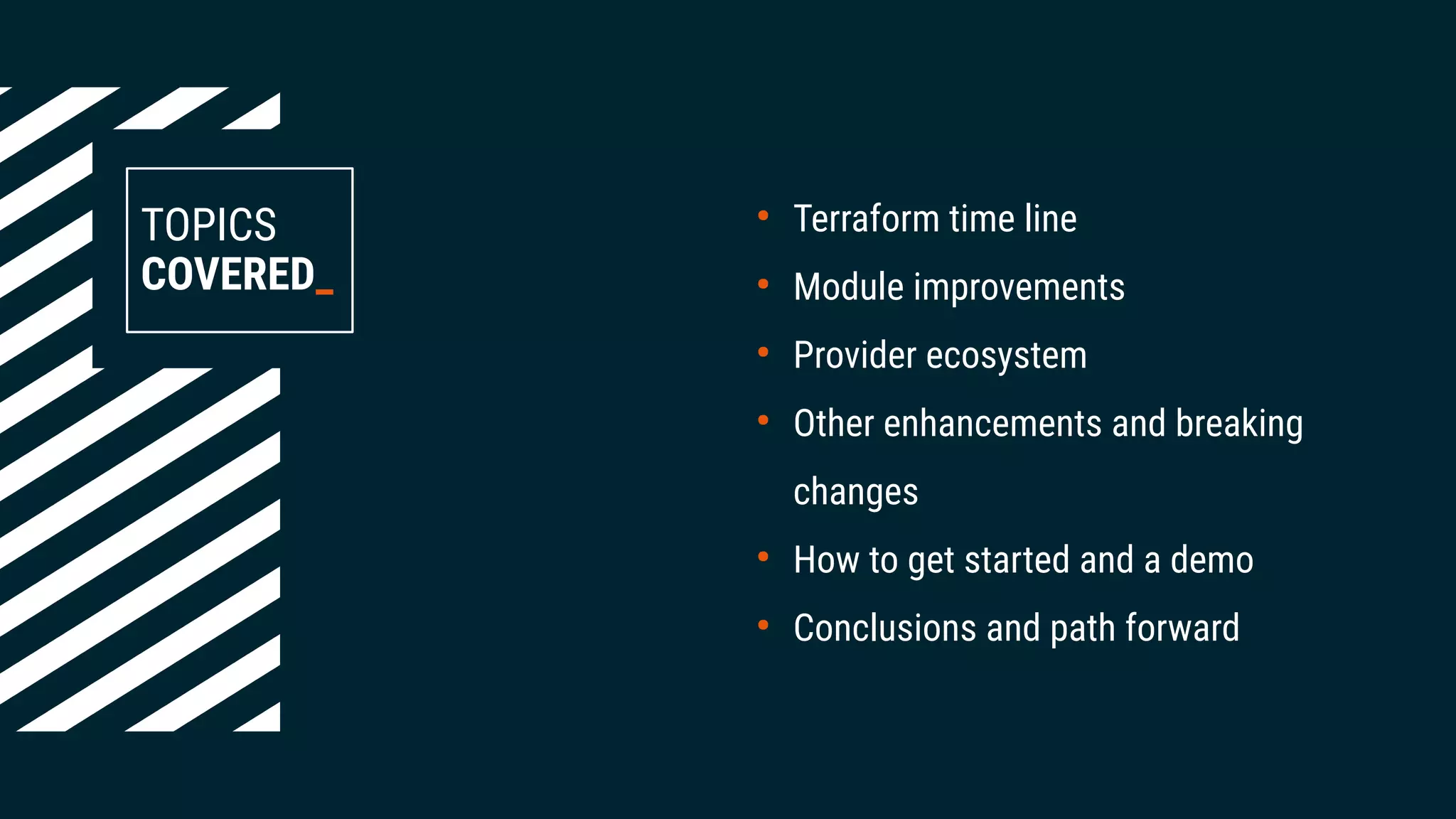

TOPICS
COVERED_
●
Terraform time line
●
Module improvements
●
Provider ecosystem
●
Other enhancements and breaking
changes
●
How to get started and a demo
●
Conclusions and path forward
TERRAFORM
TIME LINE_
• Pre-v0.10 era (provisioners, state ENV, remote
state and locking)
• Period v0.10 – v0.11 (workspaces, core/provider
split, TF registry (private), module providers,
streamlined APPLY)
• Big changes with v0.12 (HCL2: 1st
class
expressions, gen.types, iterations/dyn.blocks,
structural plans and better error messages)
• Module and provider improvements in v0.13
HISTORY
2014 (initial v0.1.0) 2020 (v0.13) v0.14..1.0*2017 (v0.9-0.11) 2019 (v0.12)

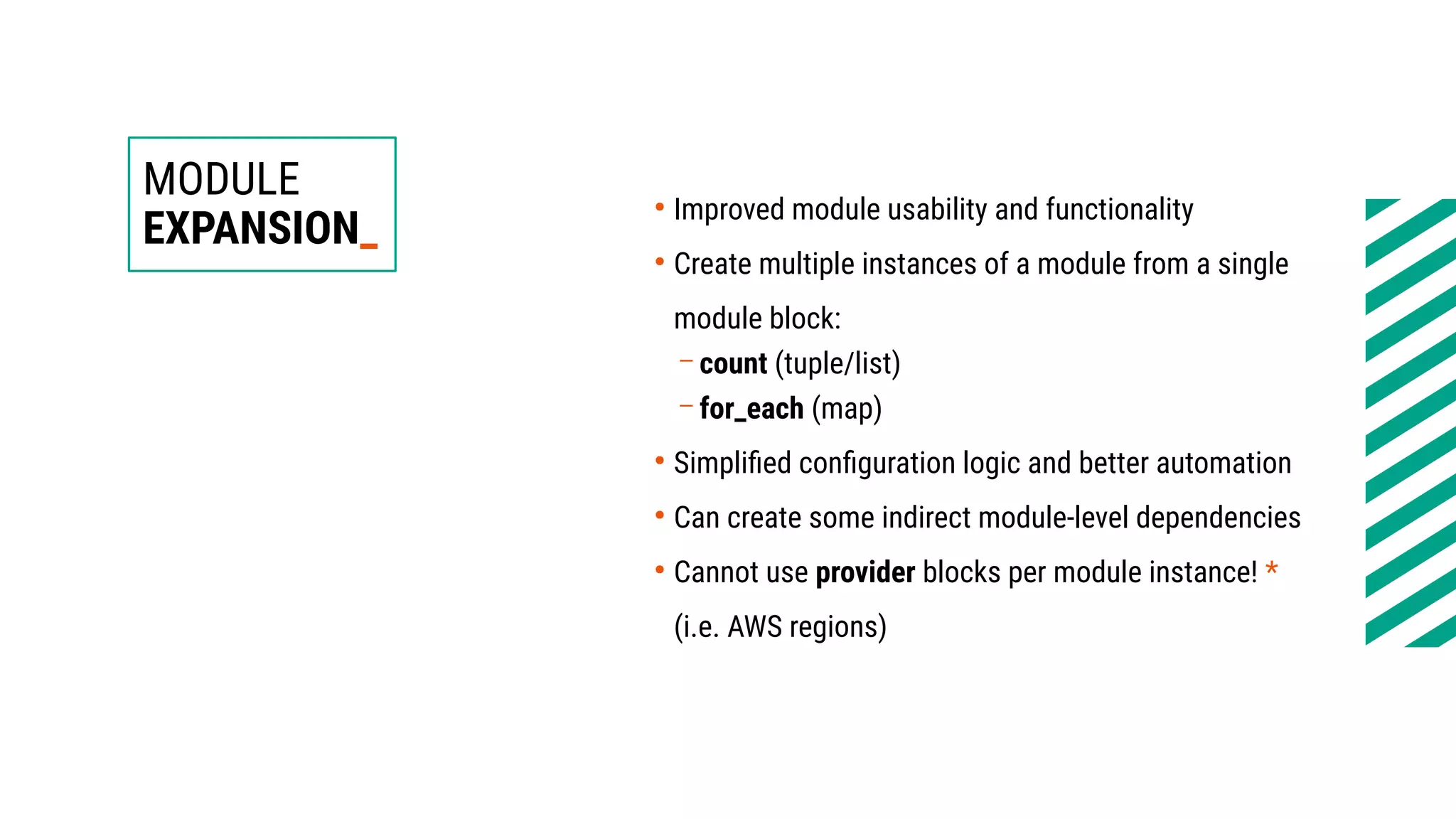

MODULE
EXPANSION_
●
Improved module usability and functionality
●
Create multiple instances of a module from a single
module block:
– count (tuple/list)
– for_each (map)
●
Simplified configuration logic and better automation
●
Can create some indirect module-level dependencies
●
Cannot use provider blocks per module instance! *
(i.e. AWS regions)

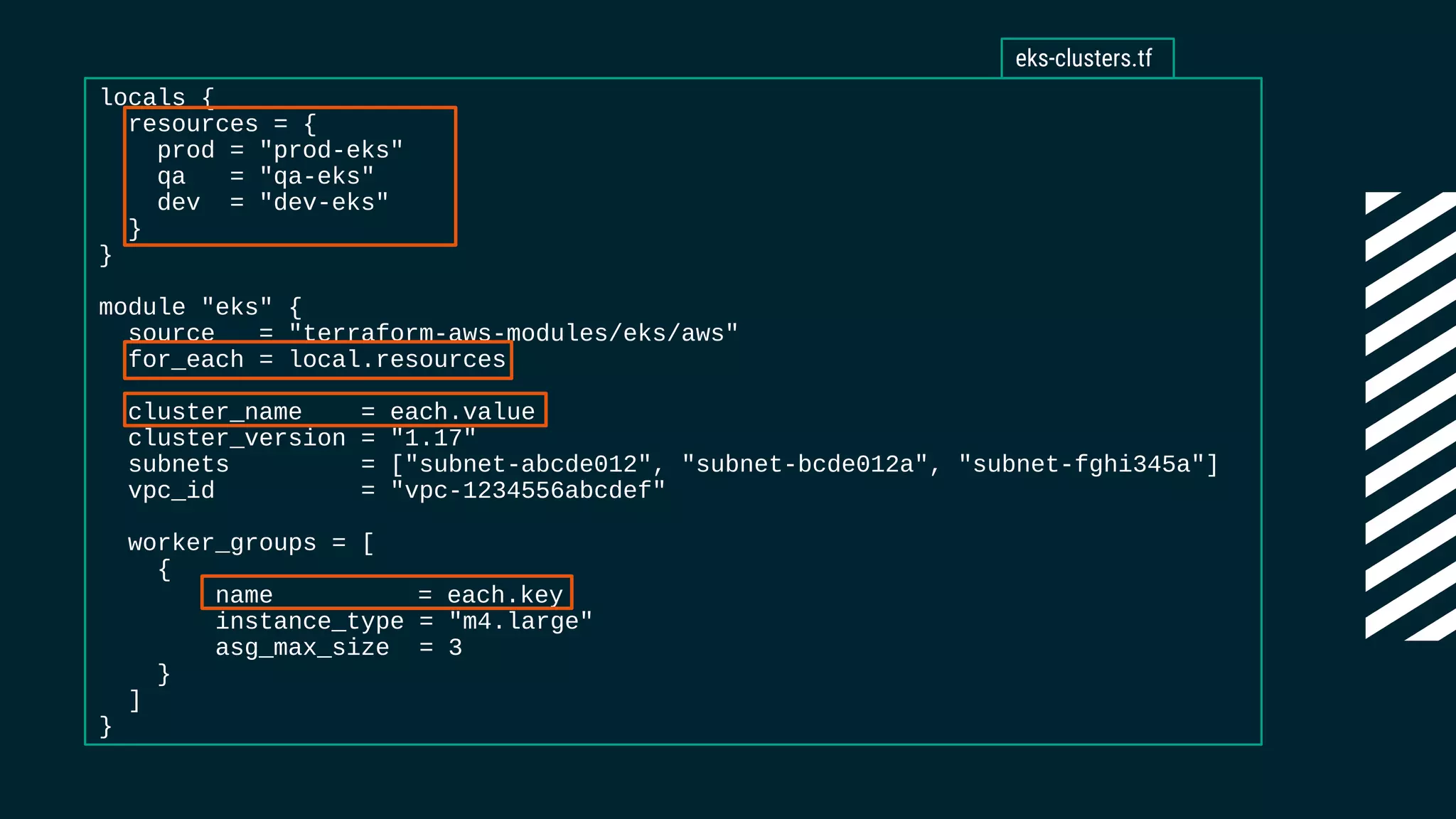

locals {
resources = {
prod = "prod-eks"
qa = "qa-eks"
dev = "dev-eks"
}
}
module "eks" {
source = "terraform-aws-modules/eks/aws"
for_each = local.resources
cluster_name = each.value
cluster_version = "1.17"
subnets = ["subnet-abcde012", "subnet-bcde012a", "subnet-fghi345a"]
vpc_id = "vpc-1234556abcdef"
worker_groups = [
{
name = each.key
instance_type = "m4.large"
asg_max_size = 3
}
]
}
eks-clusters.tf
MODULE
DEPENDENCIES_
• Dependencies types:
– implicit
– explicit
• Previously module instances were NOT nodes in dependency graph
(just separate namespaces, dependencies via I/O values)
• depends_on meta-argument ensures order of module resource
changes – create after any dependent resource changes have been
applied
• Far more coarse declaration of dependency than encouraged – last
resort! (*auto deps: easier to maintain and maximise concurrency)

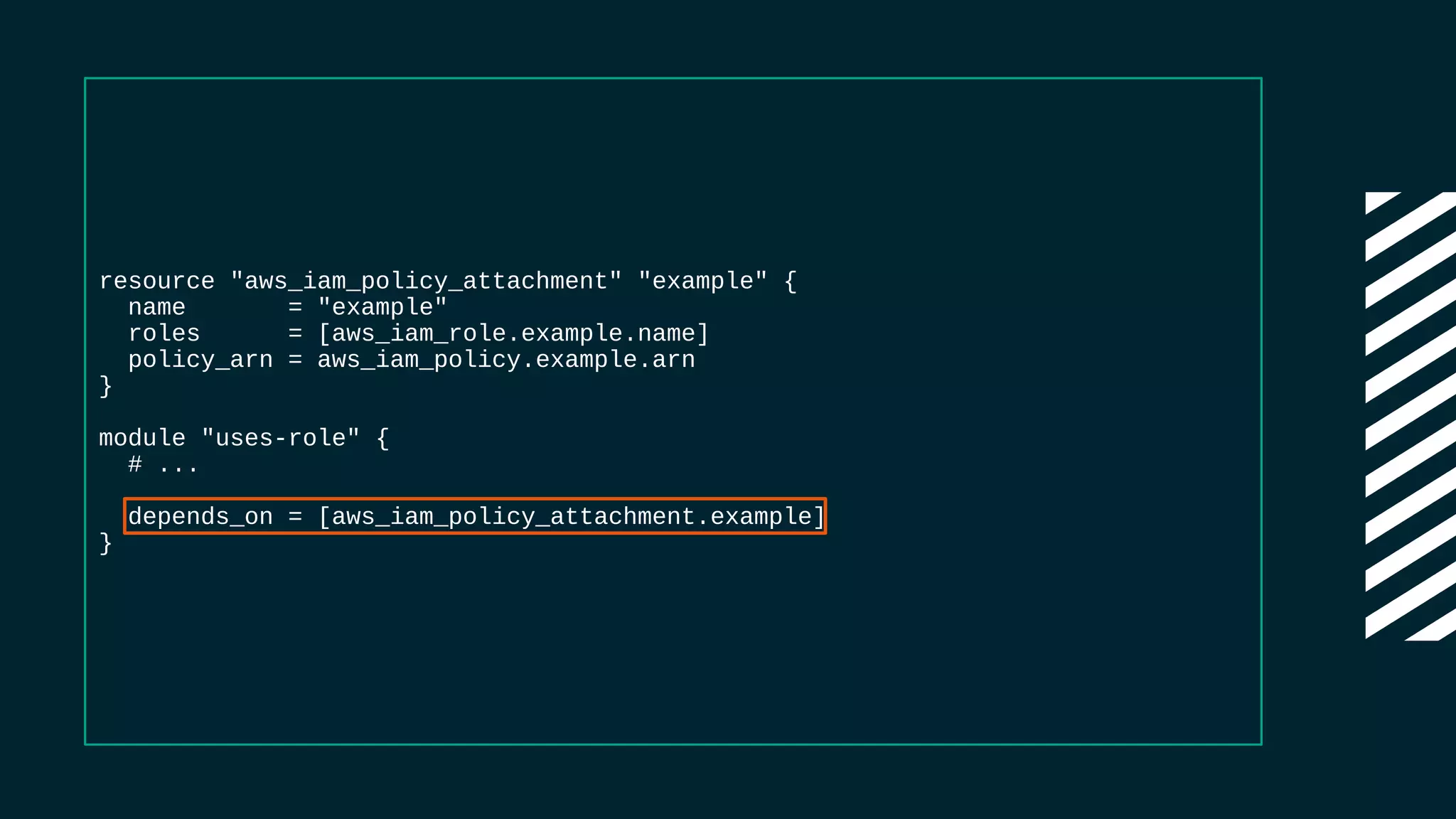

resource "aws_iam_policy_attachment" "example" {
name = "example"
roles = [aws_iam_role.example.name]
policy_arn = aws_iam_policy.example.arn
}
module "uses-role" {
# ...
depends_on = [aws_iam_policy_attachment.example]
}

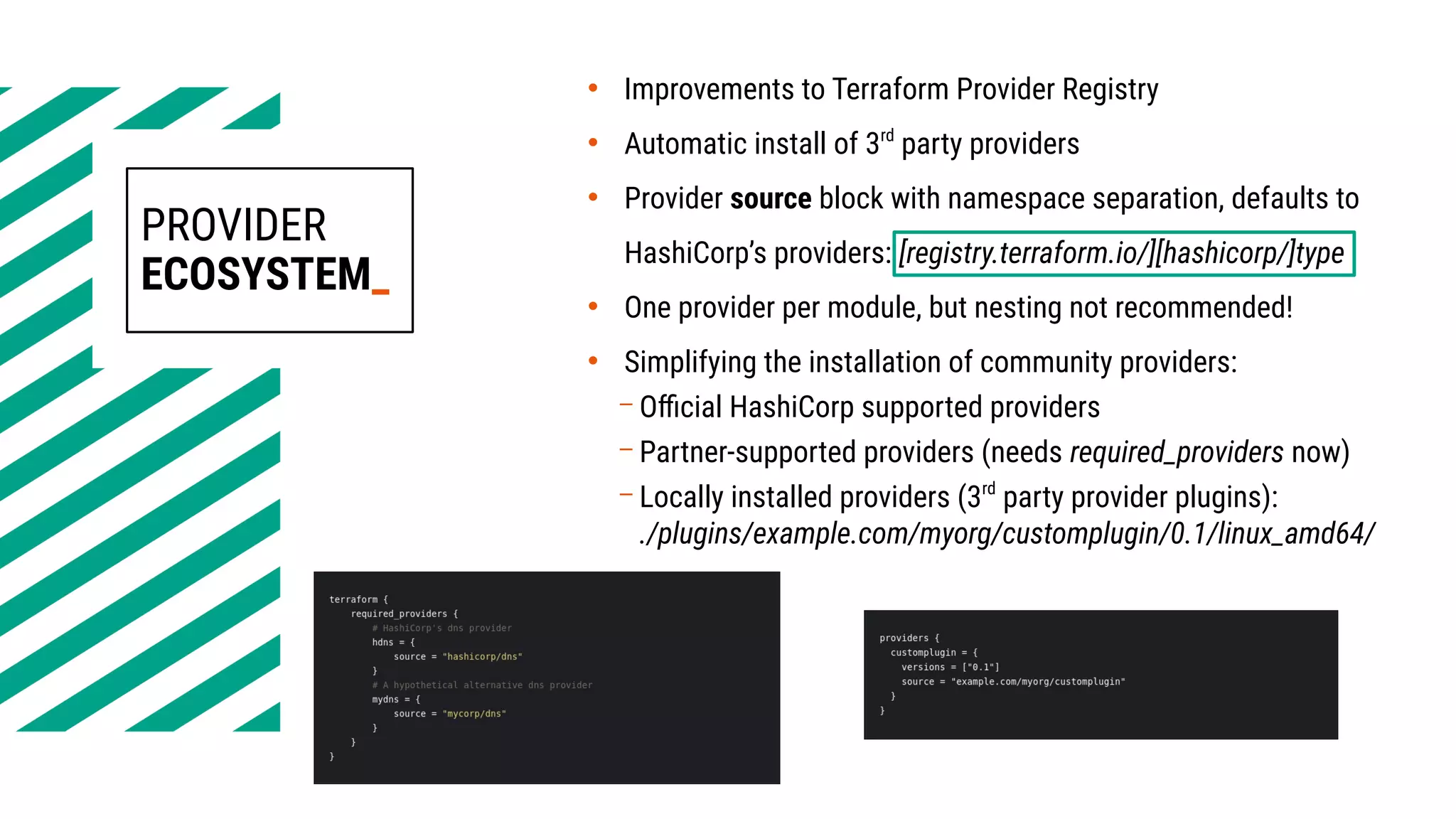

PROVIDER
ECOSYSTEM_
• Improvements to Terraform Provider Registry
• Automatic install of 3rd
party providers
• Provider source block with namespace separation, defaults to
HashiCorp’s providers: [registry.terraform.io/][hashicorp/]type
• One provider per module, but nesting not recommended!
• Simplifying the installation of community providers:
– Official HashiCorp supported providers
– Partner-supported providers (needs required_providers now)
– Locally installed providers (3rd
party provider plugins):
./plugins/example.com/myorg/customplugin/0.1/linux_amd64/

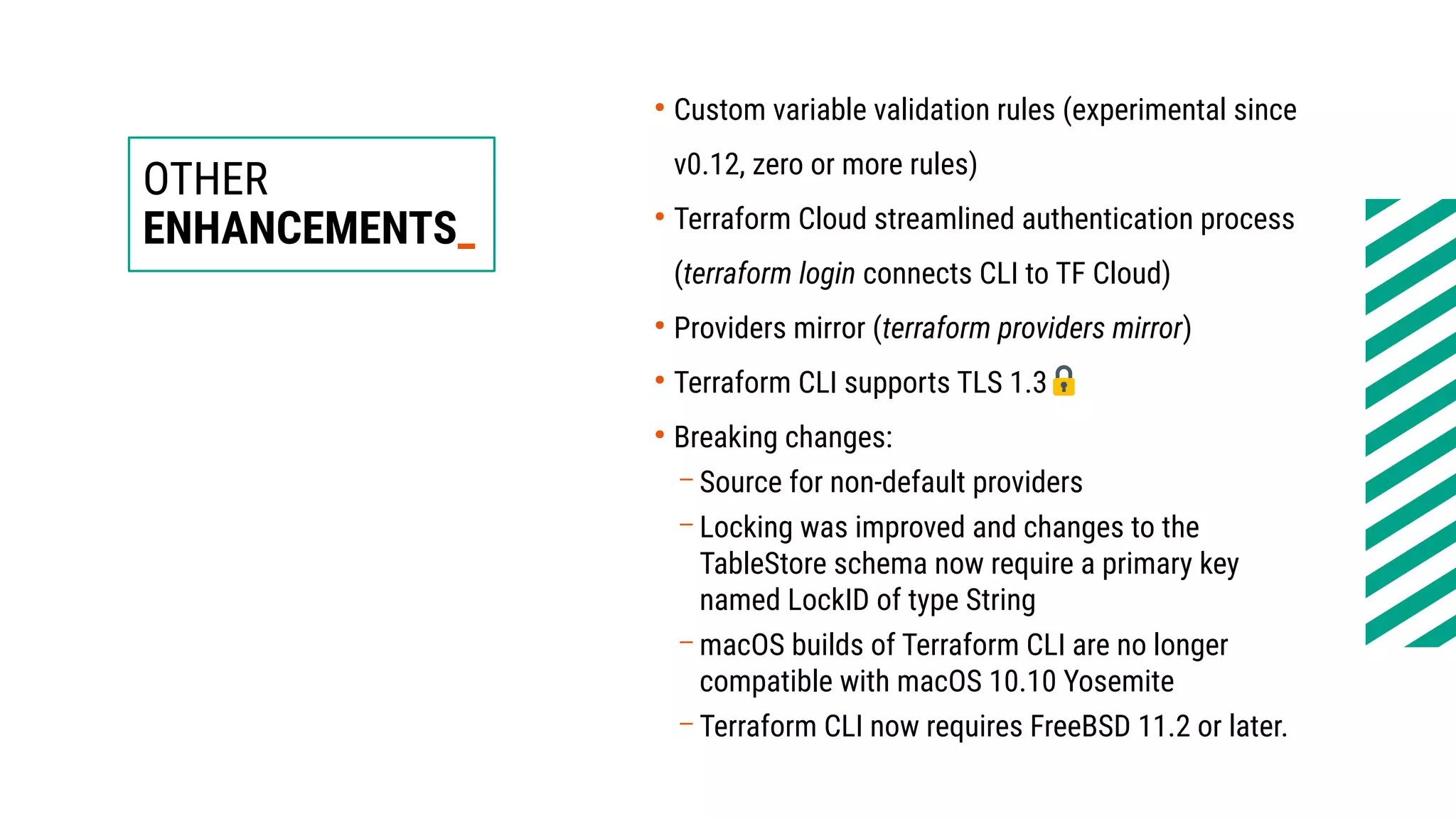

OTHER
ENHANCEMENTS_
●
Custom variable validation rules (experimental since
v0.12, zero or more rules)
●
Terraform Cloud streamlined authentication process
(terraform login connects CLI to TF Cloud)
●
Providers mirror (terraform providers mirror)
●
Terraform CLI supports TLS 1.3
●
Breaking changes:
– Source for non-default providers
– Locking was improved and changes to the
TableStore schema now require a primary key
named LockID of type String
– macOS builds of Terraform CLI are no longer
compatible with macOS 10.10 Yosemite
– Terraform CLI now requires FreeBSD 11.2 or later.

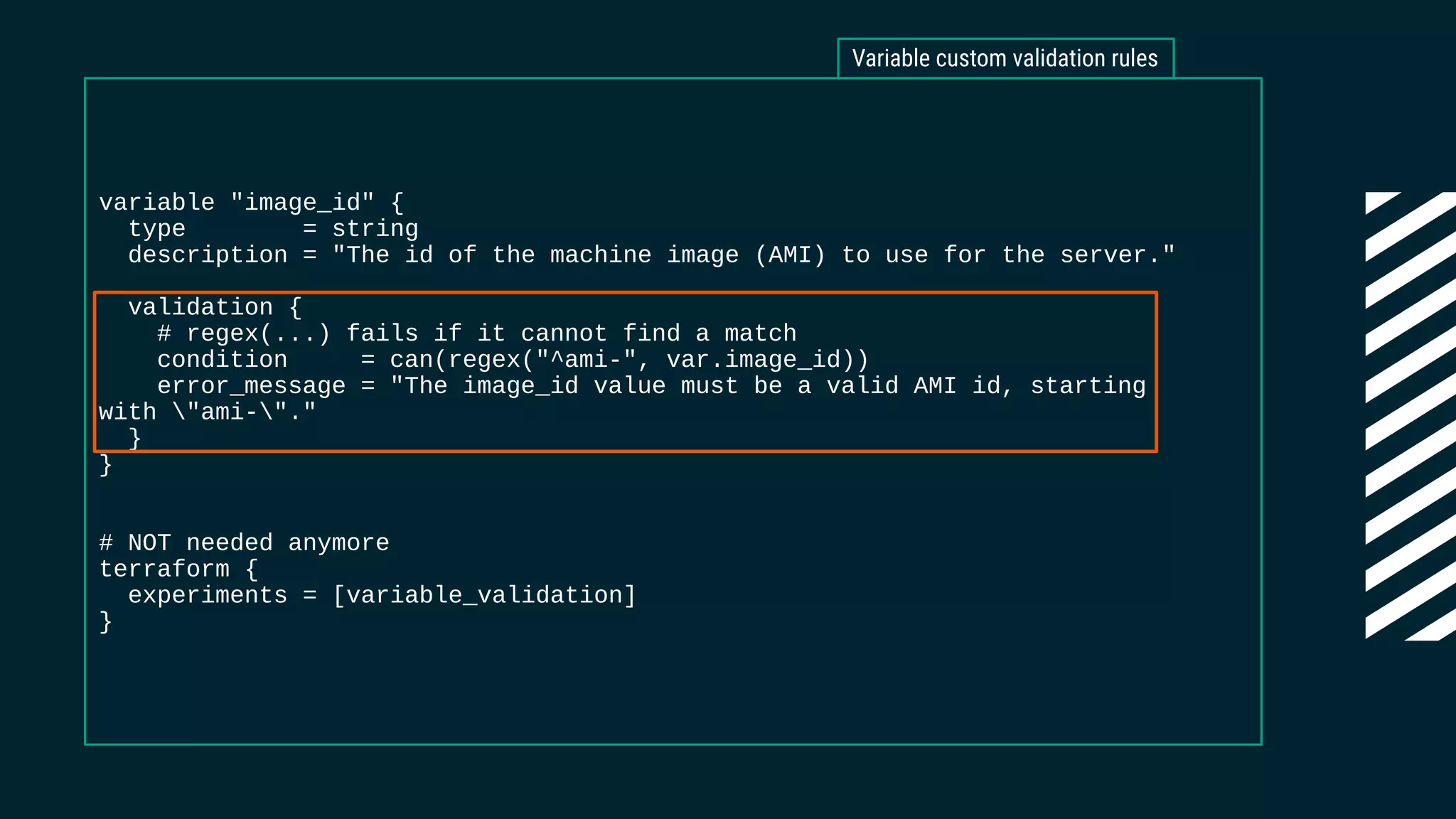

variable "image_id" {
type = string
description = "The id of the machine image (AMI) to use for the server."
validation {
# regex(...) fails if it cannot find a match
condition = can(regex("^ami-", var.image_id))
error_message = "The image_id value must be a valid AMI id, starting
with "ami-"."
}
}
# NOT needed anymore
terraform {
experiments = [variable_validation]
}
Variable custom validation rules

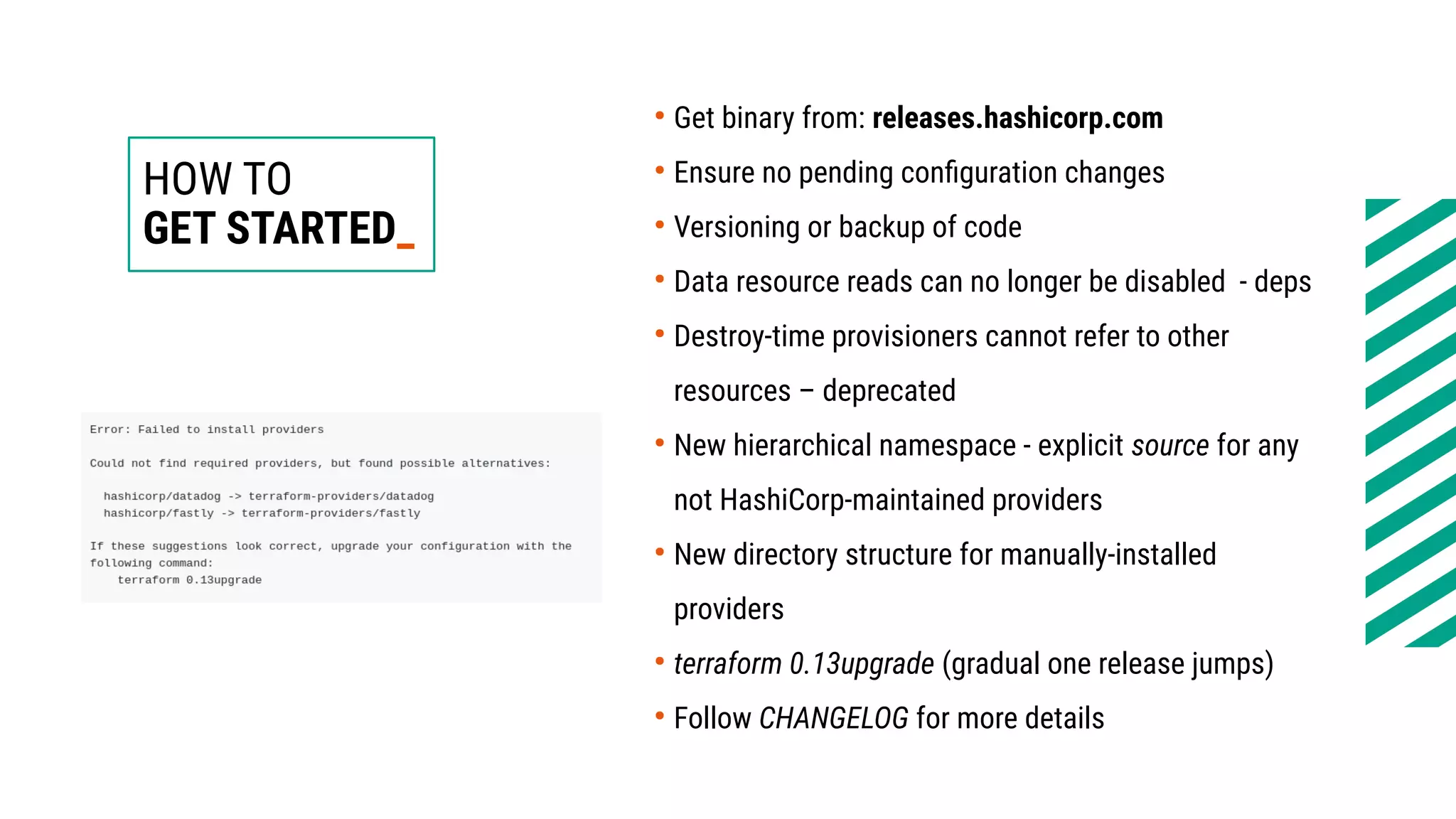

HOW TO
GET STARTED_
●
Get binary from: releases.hashicorp.com
●
Ensure no pending configuration changes
●
Versioning or backup of code
●
Data resource reads can no longer be disabled - deps
●
Destroy-time provisioners cannot refer to other
resources – deprecated
●
New hierarchical namespace - explicit source for any
not HashiCorp-maintained providers
●
New directory structure for manually-installed
providers
●
terraform 0.13upgrade (gradual one release jumps)
●
Follow CHANGELOG for more details
TIME FOR
DEMO!_

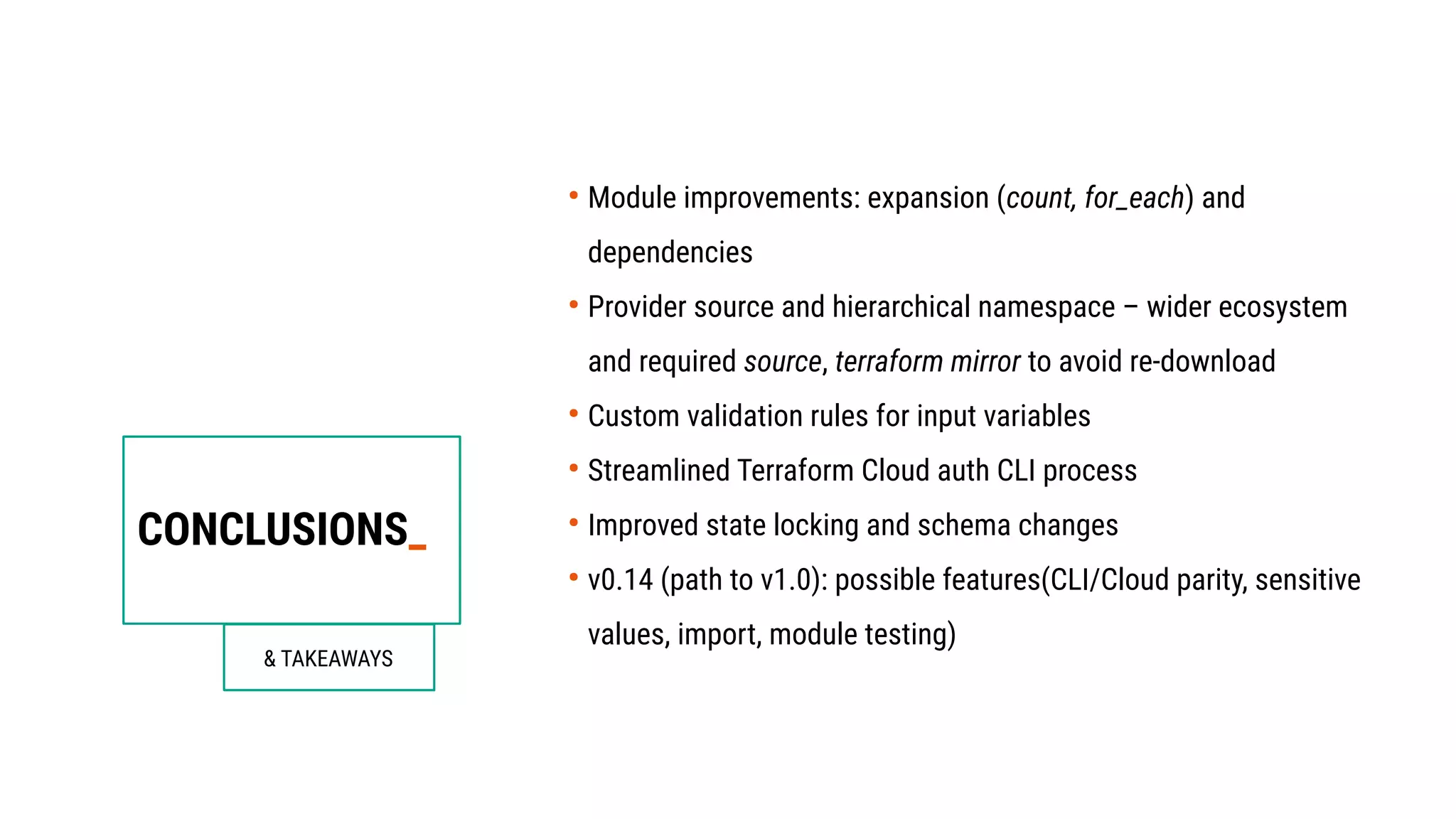

CONCLUSIONS_
& TAKEAWAYS
●
Module improvements: expansion (count, for_each) and
dependencies
●
Provider source and hierarchical namespace – wider ecosystem
and required source, terraform mirror to avoid re-download
●
Custom validation rules for input variables
●
Streamlined Terraform Cloud auth CLI process
●
Improved state locking and schema changes
●
v0.14 (path to v1.0): possible features(CLI/Cloud parity, sensitive
values, import, module testing)
●

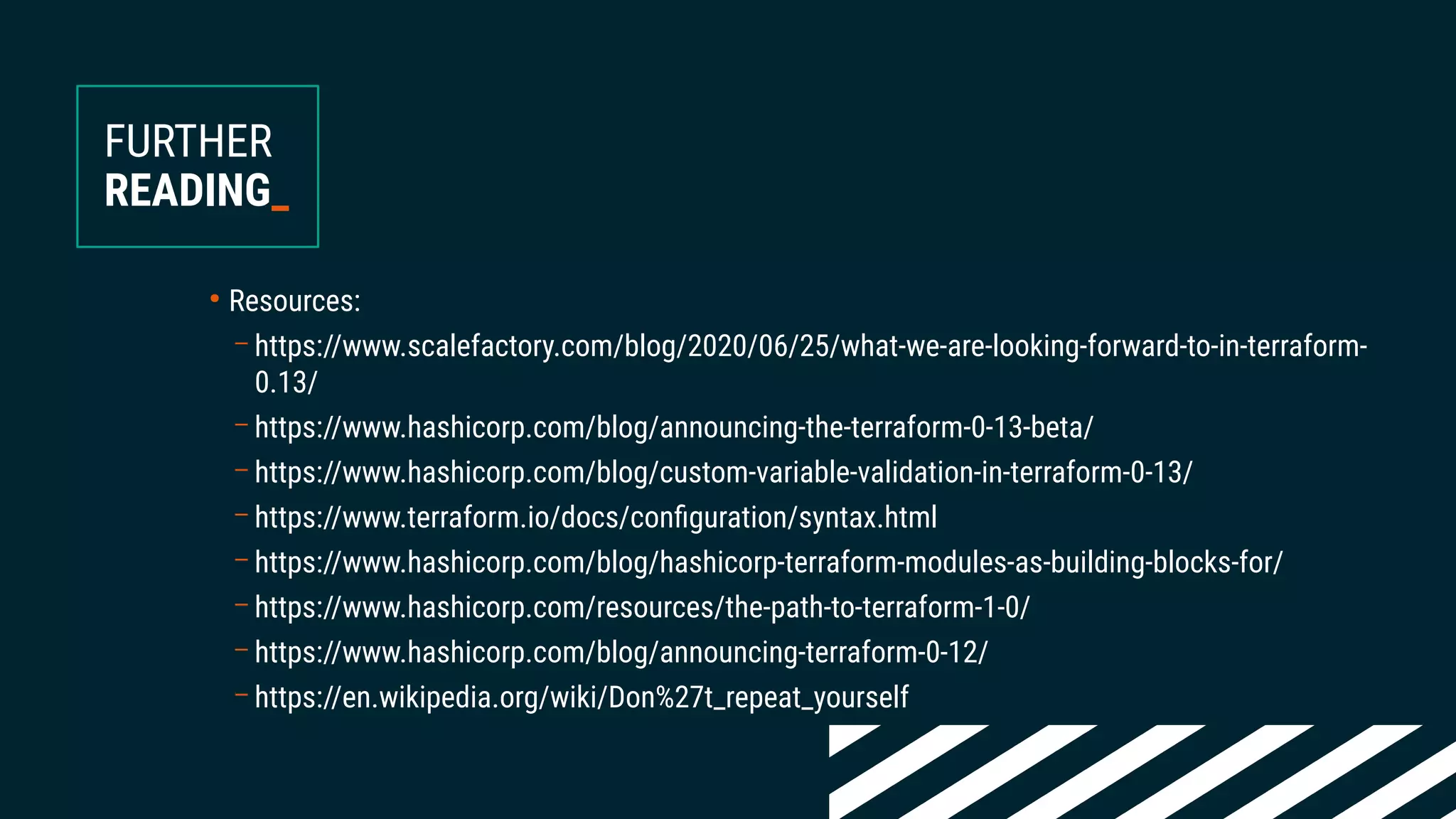

Resources:
– https://www.scalefactory.com/blog/2020/06/25/what-we-are-looking-forward-to-in-terraform-
0.13/
– https://www.hashicorp.com/blog/announcing-the-terraform-0-13-beta/
– https://www.hashicorp.com/blog/custom-variable-validation-in-terraform-0-13/
– https://www.terraform.io/docs/configuration/syntax.html
– https://www.hashicorp.com/blog/hashicorp-terraform-modules-as-building-blocks-for/
– https://www.hashicorp.com/resources/the-path-to-terraform-1-0/
– https://www.hashicorp.com/blog/announcing-terraform-0-12/
– https://en.wikipedia.org/wiki/Don%27t_repeat_yourself
FURTHER
READING_
KEEP IN
TOUCH_
https://www.scalefactory.com/
@_MarkoB
@mbevc1
@mbevc1
https://www.linkedin.com/in/marko-bevc/
https://www.scalefactory.com/Web:
Twitter:
GitHub:
GitLab:
LinkedIn:
