The document provides key features and specifications for the HEXA vehicle. It has a 2.2L diesel engine that produces 156 horsepower. Additional features include 4x2 or 4x4 drive, 19-inch alloy wheels, 6-speed manual or automatic transmission, double wishbone front suspension, power windows and locks, 6 airbags, and a 10-speaker audio system with Bluetooth and navigation. The HEXA is over 4.7 meters long and seats 6 or 7 people with various comfort and convenience features throughout the cabin.

1. POWER PACKED
FEATURE LOADED
ADRENALINE PUMPED

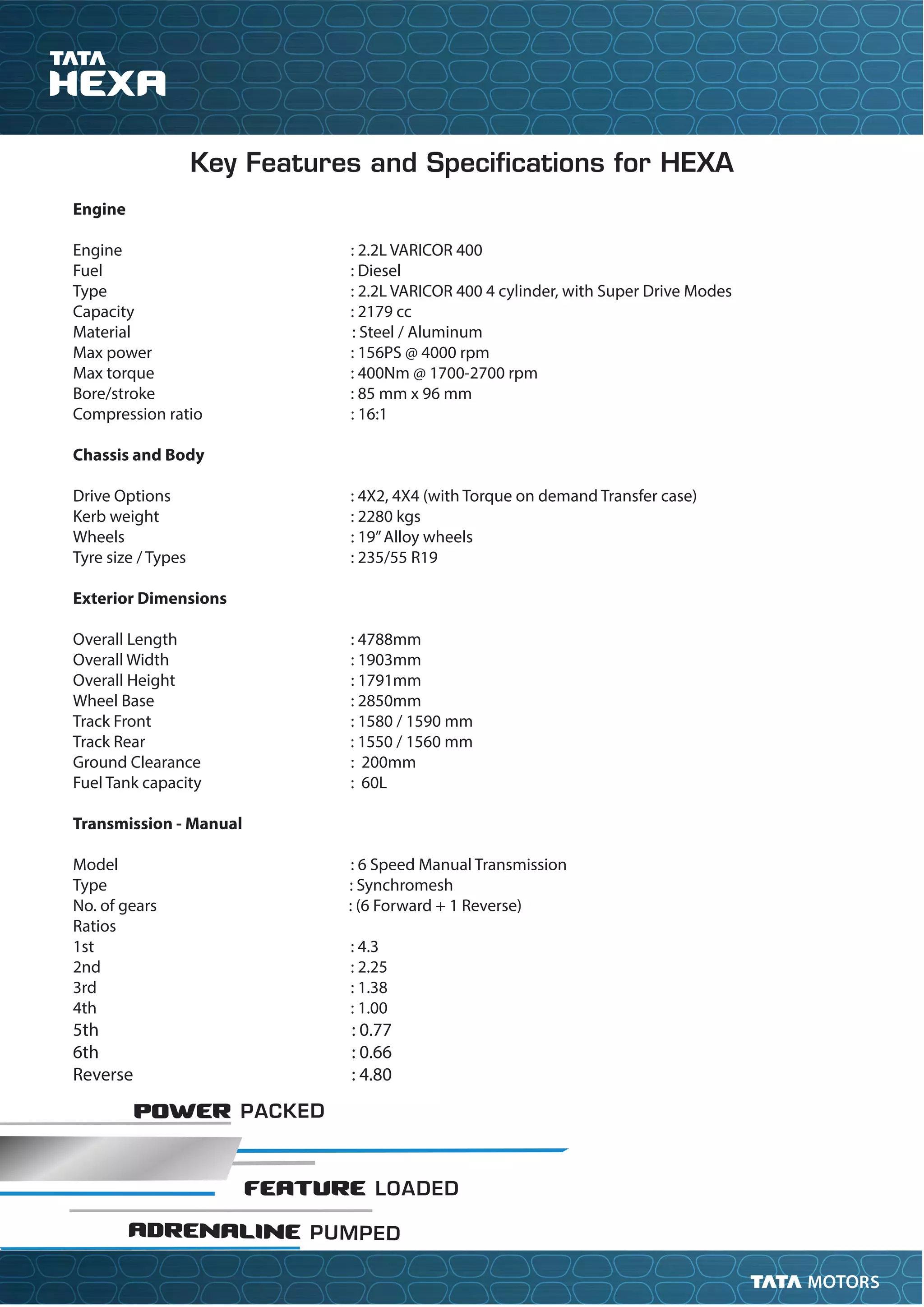

Key Features and Specifications for HEXA
Engine
Engine : 2.2L VARICOR 400
Fuel : Diesel
Type : 2.2L VARICOR 400 4 cylinder, with Super Drive Modes
Capacity : 2179 cc
Material : Steel / Aluminum
Max power : 156PS @ 4000 rpm
Max torque : 400Nm @ 1700-2700 rpm
Bore/stroke : 85 mm x 96 mm
Compression ratio : 16:1
Chassis and Body
Drive Options : 4X2, 4X4 (with Torque on demand Transfer case)
Kerb weight : 2280 kgs
Wheels : 19”Alloy wheels
Tyre size / Types : 235/55 R19
Exterior Dimensions
Overall Length : 4788mm
Overall Width : 1903mm
Overall Height : 1791mm
Wheel Base : 2850mm
Track Front : 1580 / 1590 mm
Track Rear : 1550 / 1560 mm
Ground Clearance : 200mm
Fuel Tank capacity : 60L
Transmission - Manual
Model : 6 Speed Manual Transmission
Type : Synchromesh
No. of gears : (6 Forward + 1 Reverse)
Ratios
1st : 4.3
2nd : 2.25
3rd : 1.38
4th : 1.00
5th : 0.77
6th : 0.66
Reverse : 4.80

2. POWER PACKED
FEATURE LOADED
ADRENALINE PUMPED

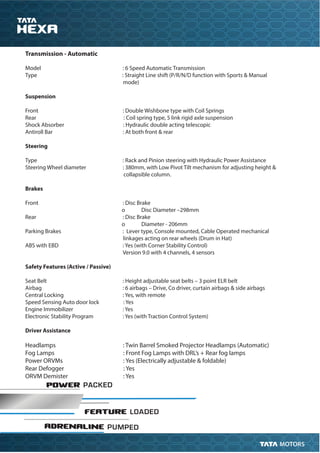

Transmission - Automatic
Model : 6 Speed Automatic Transmission
Type : Straight Line shift (P/R/N/D function with Sports & Manual
mode)
Suspension
Front : Double Wishbone type with Coil Springs
Rear : Coil spring type, 5 link rigid axle suspension
Shock Absorber : Hydraulic double acting telescopic
Antiroll Bar : At both front & rear
Steering
Type : Rack and Pinion steering with Hydraulic Power Assistance
Steering Wheel diameter : 380mm, with Low Pivot Tilt mechanism for adjusting height &
collapsible column.
Brakes
Front : Disc Brake
o Disc Diameter –298mm
Rear : Disc Brake
o Diameter - 206mm
Parking Brakes : Lever type, Console mounted, Cable Operated mechanical
linkages acting on rear wheels (Drum in Hat)
ABS with EBD : Yes (with Corner Stability Control)
Version 9.0 with 4 channels, 4 sensors
Safety Features (Active / Passive)
Seat Belt : Height adjustable seat belts – 3 point ELR belt
Airbag : 6 airbags – Drive, Co driver, curtain airbags & side airbags
Central Locking : Yes, with remote
Speed Sensing Auto door lock : Yes
Engine Immobilizer : Yes
Electronic Stability Program : Yes (with Traction Control System)
Driver Assistance
Headlamps : Twin Barrel Smoked Projector Headlamps (Automatic)
Fog Lamps : Front Fog Lamps with DRL’s + Rear fog lamps
Power ORVMs : Yes (Electrically adjustable & foldable)
Rear Defogger : Yes
ORVM Demister : Yes

3. POWER PACKED
FEATURE LOADED
ADRENALINE PUMPED

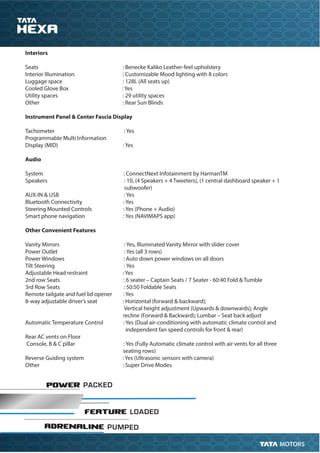

Interiors
Seats : Benecke Kaliko Leather-feel upholstery
Interior Illumination : Customizable Mood lighting with 8 colors
Luggage space : 128L (All seats up)
Cooled Glove Box : Yes
Utility spaces : 29 utility spaces
Other : Rear Sun Blinds
Instrument Panel & Center Fascia Display
Tachometer : Yes
Programmable Multi Information
Display (MID) : Yes
Audio
System : ConnectNext Infotainment by HarmanTM
Speakers : 10, (4 Speakers + 4 Tweeters), (1 central dashboard speaker + 1
subwoofer)
AUX-IN & USB : Yes
Bluetooth Connectivity : Yes
Steering Mounted Controls : Yes (Phone + Audio)
Smart phone navigation : Yes (NAVIMAPS app)
Other Convenient Features
Vanity Mirrors : Yes, Illuminated Vanity Mirror with slider cover
Power Outlet : Yes (all 3 rows)
Power Windows : Auto down power windows on all doors
Tilt Steering : Yes
Adjustable Head restraint : Yes
2nd row Seats : 6 seater – Captain Seats / 7 Seater - 60:40 Fold & Tumble
3rd Row Seats : 50:50 Foldable Seats
Remote tailgate and fuel lid opener : Yes
8-way adjustable driver’s seat : Horizontal (forward & backward);
Vertical height adjustment (Upwards & downwards); Angle
recline (Forward & Backward); Lumbar – Seat back adjust
Automatic Temperature Control : Yes (Dual air-conditioning with automatic climate control and
independent fan speed controls for front & rear)
Rear AC vents on Floor
Console, B & C pillar : Yes (Fully Automatic climate control with air vents for all three
seating rows)
Reverse Guiding system : Yes (Ultrasonic sensors with camera)
Other : Super Drive Modes
