Tacker is an OpenStack-based NFV orchestration framework that deploys and operates virtual network functions (VNFs). The presentation summarized Tacker's contributions in the OpenStack Queens release, including multiple flow classifiers per VNF forwarding graph, symmetric VNFFG, VNFFG updating, and a Zabbix plugin for VNF monitoring. It also previewed upcoming features in OpenStack Rocky such as container-based VNFs using Kubernetes, and hybrid VNF deployment across Kubernetes and OpenStack.
More Related Content
Similar to Tacker vancouver project update
Tacker vancouver project update
- 1. Tacker Project Update, OpenStackSummit Vancouver May 2018 Yong Sheng Gong - 99Cloud Dharmendra Kushwaha – NEC Cong Phuoc Hoang - IISTRC
- 2.

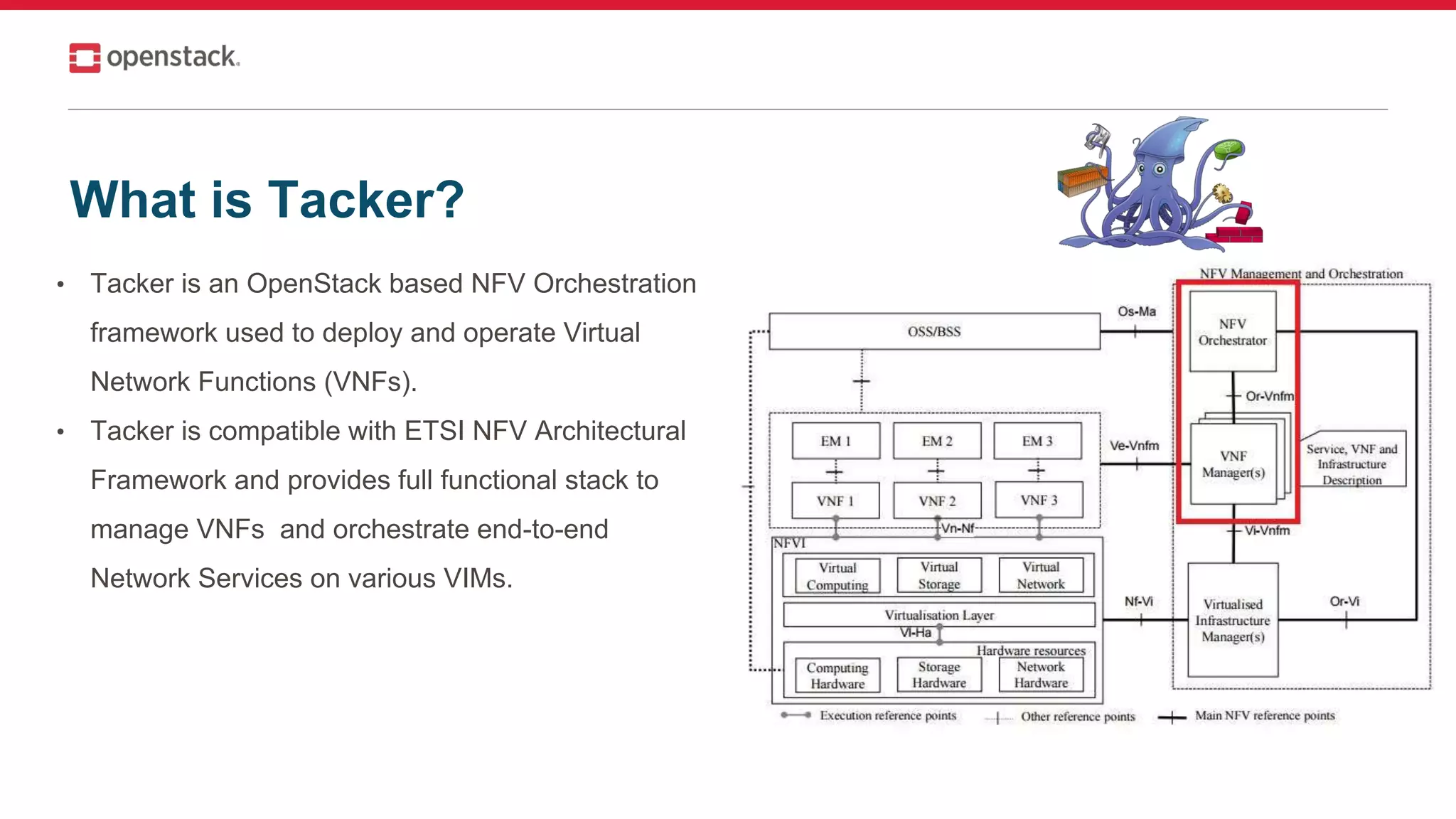

- 3. What is Tacker? •Tacker is an OpenStack based NFV Orchestration framework used to deploy and operate Virtual Network Functions (VNFs). • Tacker is compatible with ETSI NFV Architectural Framework and provides full functional stack to manage VNFs and orchestrate end-to-end Network Services on various VIMs.

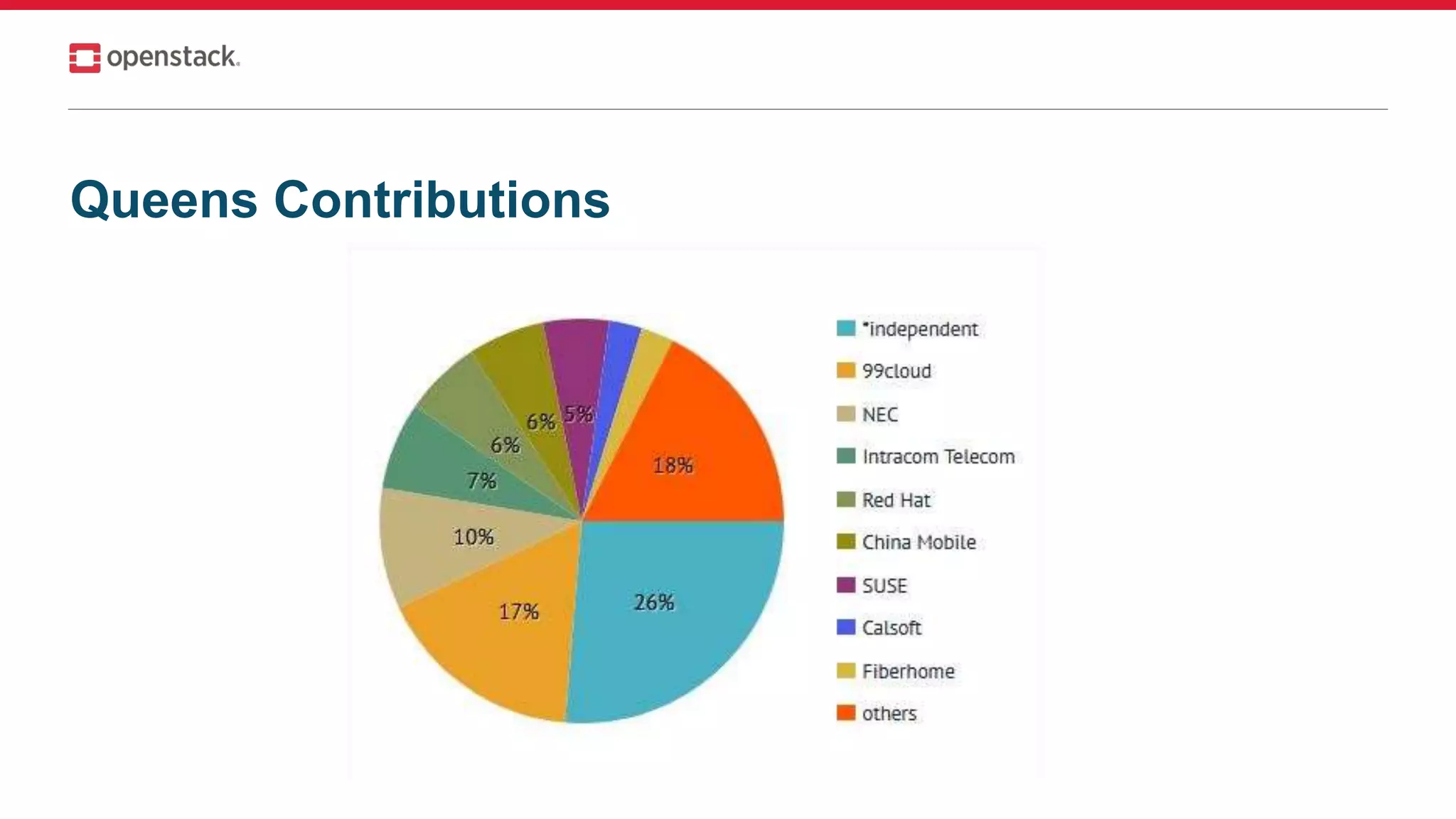

- 4.

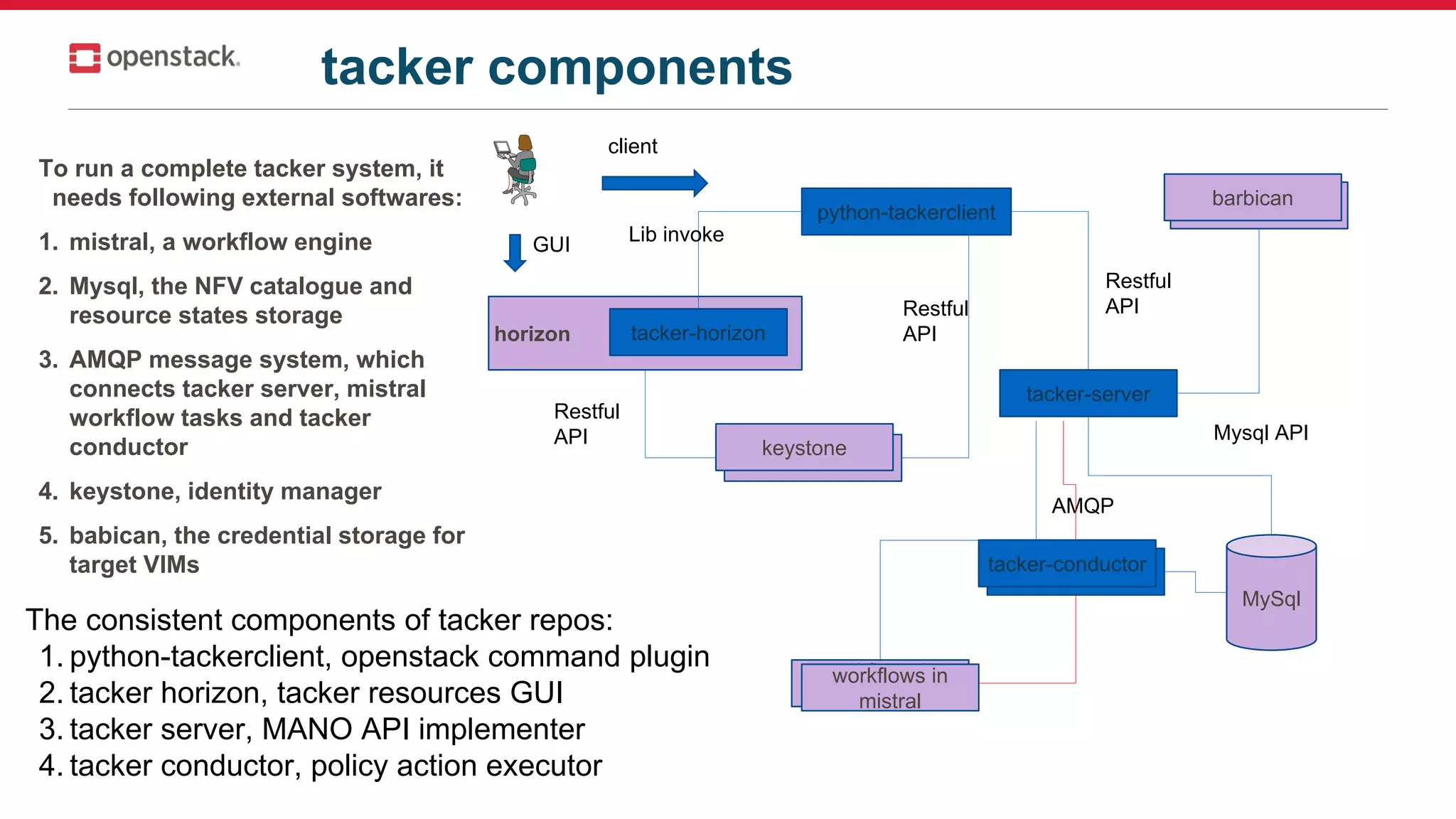

- 5. keystone horizon tacker-horizon tacker-server python-tackerclient MySql Restful API Restful API Restful API Lib invoke MysqlAPI client GUI workflows in mistral barbican tacker-conductor AMQP tacker-conductor workflows in mistral barbican keystone tacker components To run a complete tacker system, it needs following external softwares: 1. mistral, a workflow engine 2. Mysql, the NFV catalogue and resource states storage 3. AMQP message system, which connects tacker server, mistral workflow tasks and tacker conductor 4. keystone, identity manager 5. babican, the credential storage for target VIMs The consistent components of tacker repos: 1. python-tackerclient, openstack command plugin 2. tacker horizon, tacker resources GUI 3. tacker server, MANO API implementer 4. tacker conductor, policy action executor

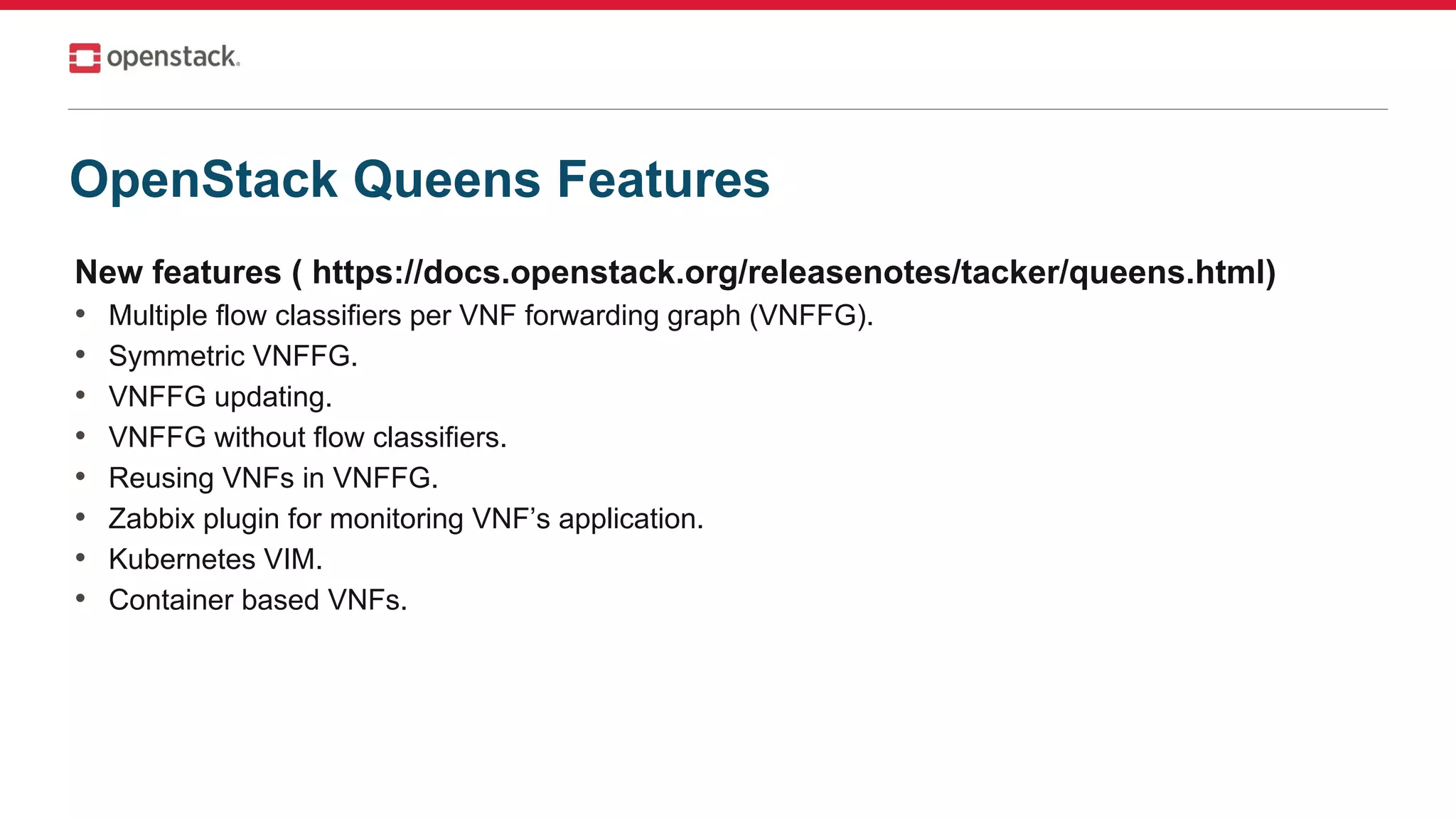

- 6. New features (https://docs.openstack.org/releasenotes/tacker/queens.html) • Multiple flow classifiers per VNF forwarding graph (VNFFG). • Symmetric VNFFG. • VNFFG updating. • VNFFG without flow classifiers. • Reusing VNFs in VNFFG. • Zabbix plugin for monitoring VNF’s application. • Kubernetes VIM. • Container based VNFs. OpenStack Queens Features

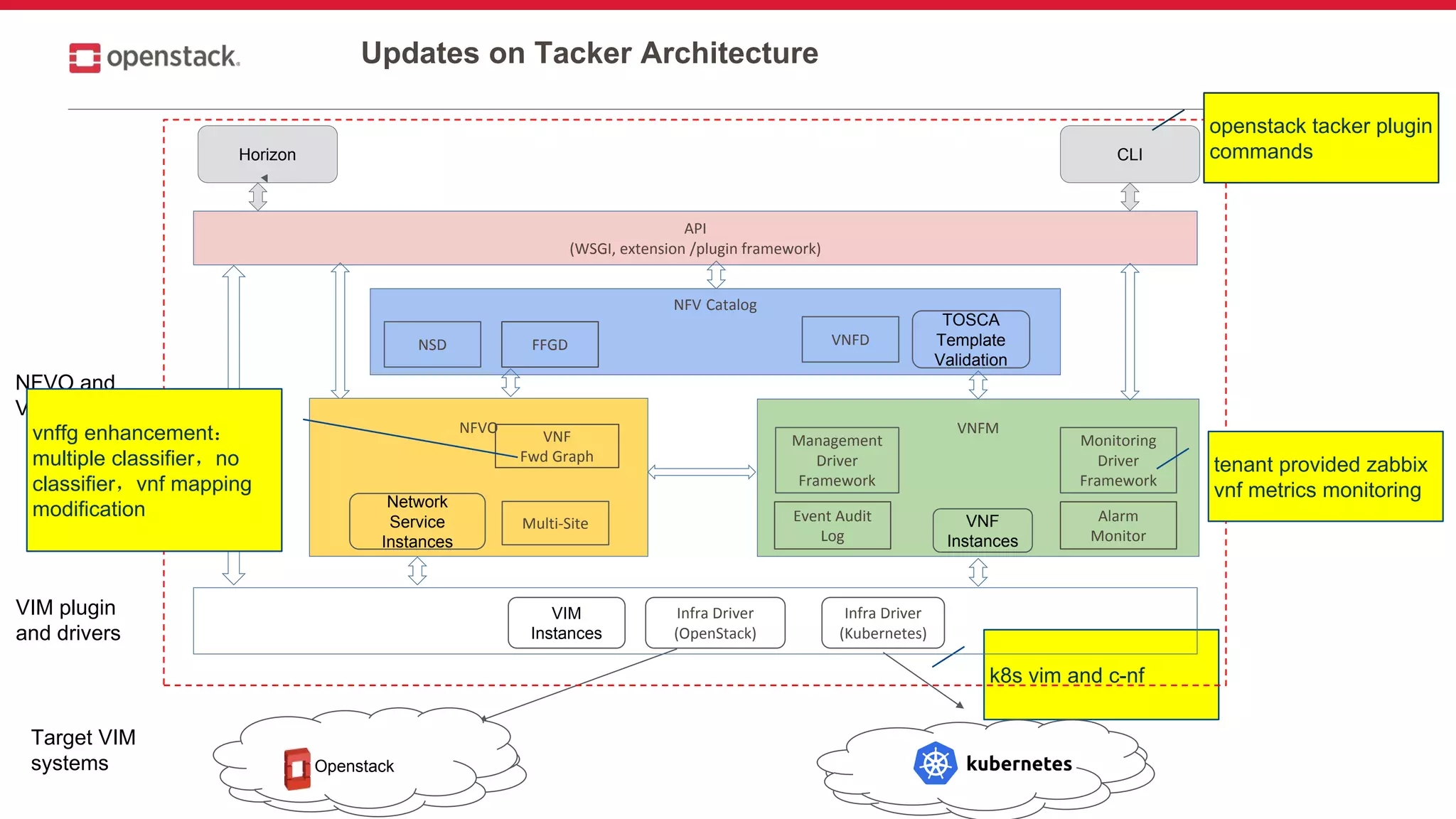

- 7. Updates on TackerArchitecture k8s vim and c-nf VIM plugin and drivers NFVO and VNFM API (WSGI, extension /plugin framework) NFV Catalog VNFDNSD FFGD VNFM Management Driver Framework Monitoring Driver Framework VNF Instances TOSCA Template Validation NFVO Multi-Site VNF Fwd Graph Network Service Instances VIM Instances Horizon CLI Alarm Monitor Event Audit Log Infra Driver (OpenStack) Infra Driver (Kubernetes) Target VIM systems k8s clusterOpenstack tenant provided zabbix vnf metrics monitoring vnffg enhancement： multiple classifier，no classifier，vnf mapping modification openstack tacker plugin commands
- 8. tacker vim-register aaa tackervnfd-create xxx tacker vnf-create yyy tacker vnffg-create zzz openstack vim register aaa openstack vnf descriptor create xxx openstack vnf create yyy openstack vnf graph descriptor create zzz Will be removed after Rocky version is released Update on tacker python client

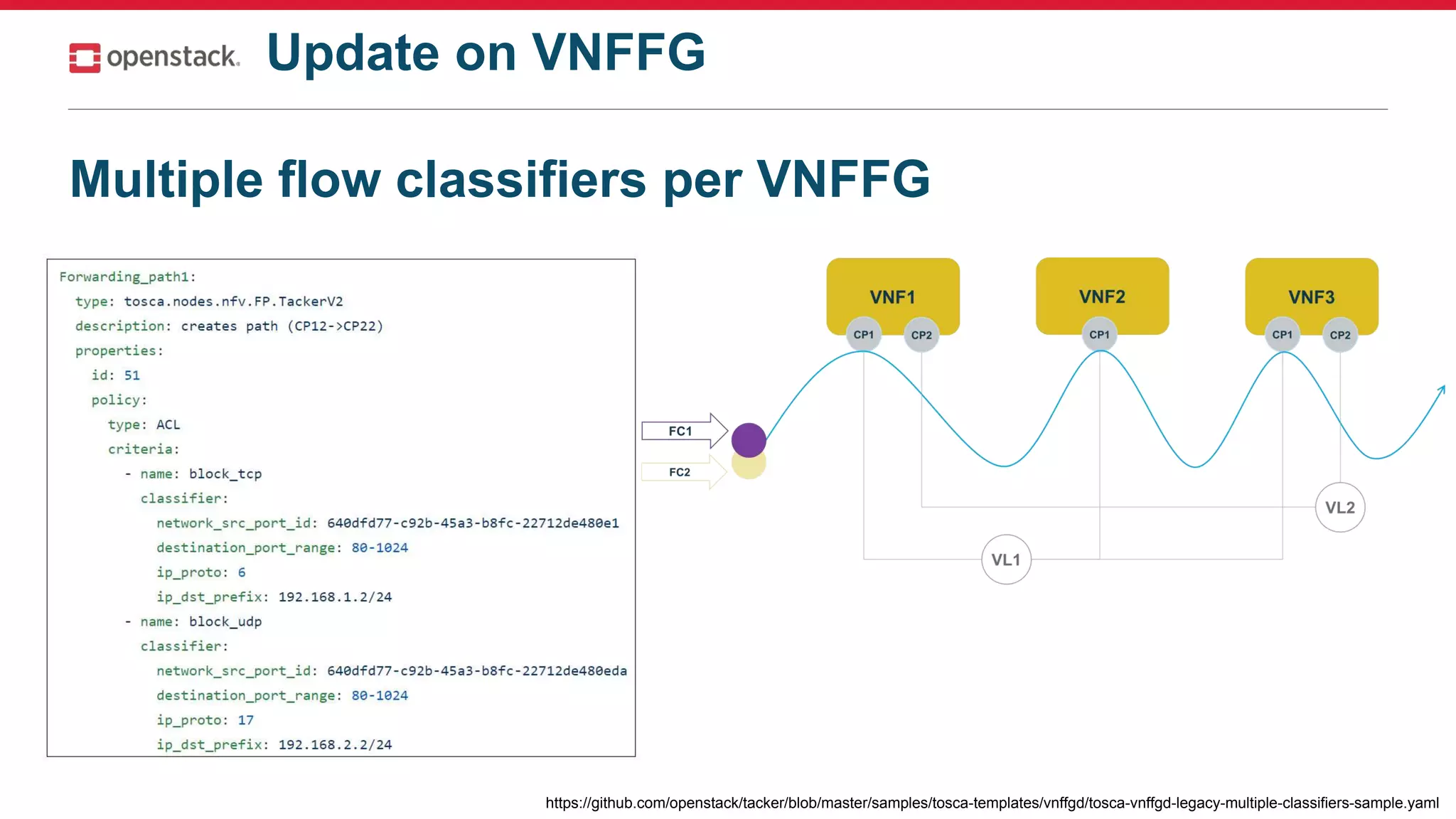

- 9. Multiple flow classifiersper VNFFG https://github.com/openstack/tacker/blob/master/samples/tosca-templates/vnffgd/tosca-vnffgd-legacy-multiple-classifiers-sample.yaml Update on VNFFG

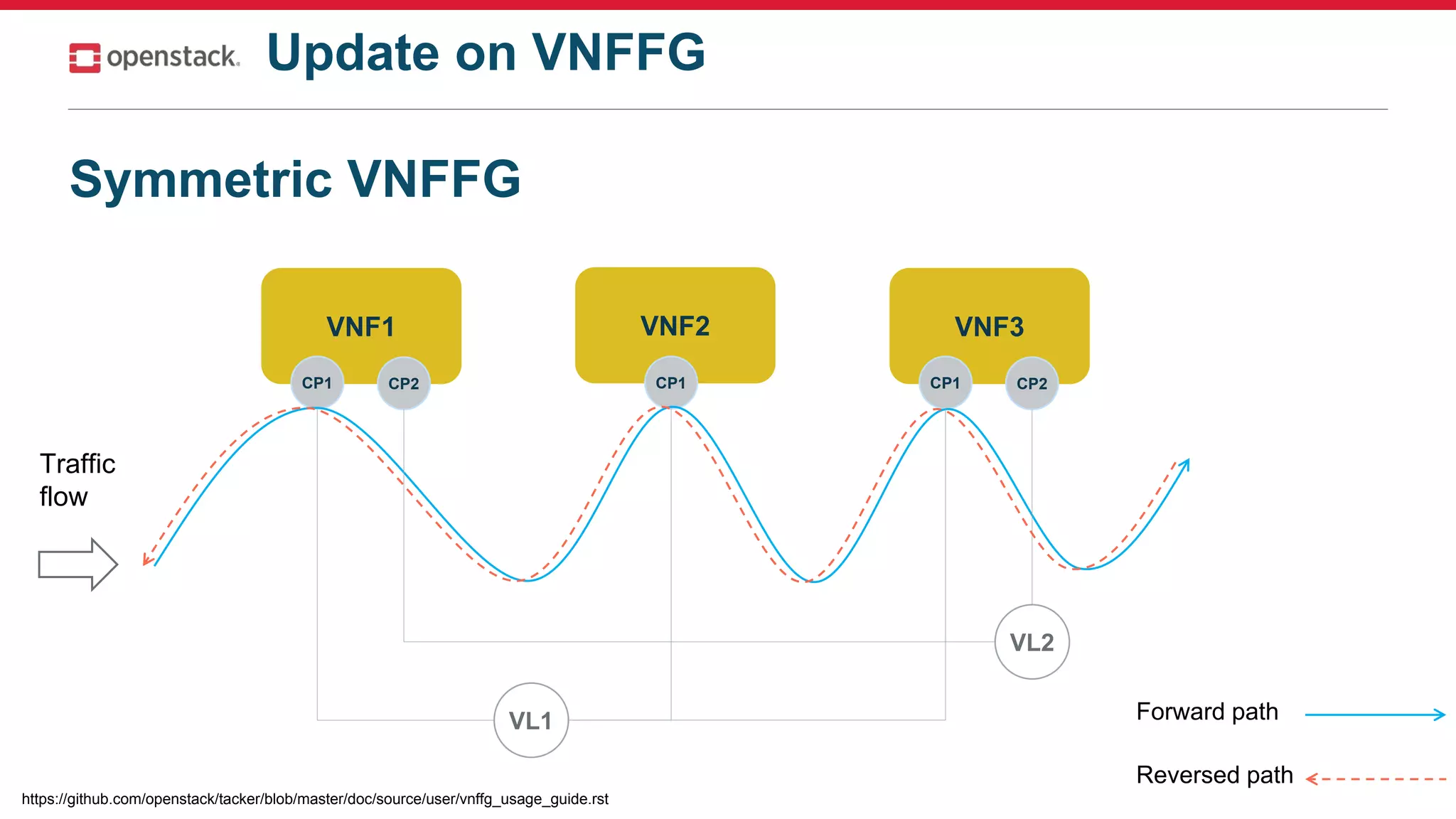

- 10. Symmetric VNFFG VNF1 CP1 VNF2 CP1 VNF3 CP1 CP2CP2 VL1 VL2 Traffic flow Forwardpath Reversed path https://github.com/openstack/tacker/blob/master/doc/source/user/vnffg_usage_guide.rst Update on VNFFG
- 11.

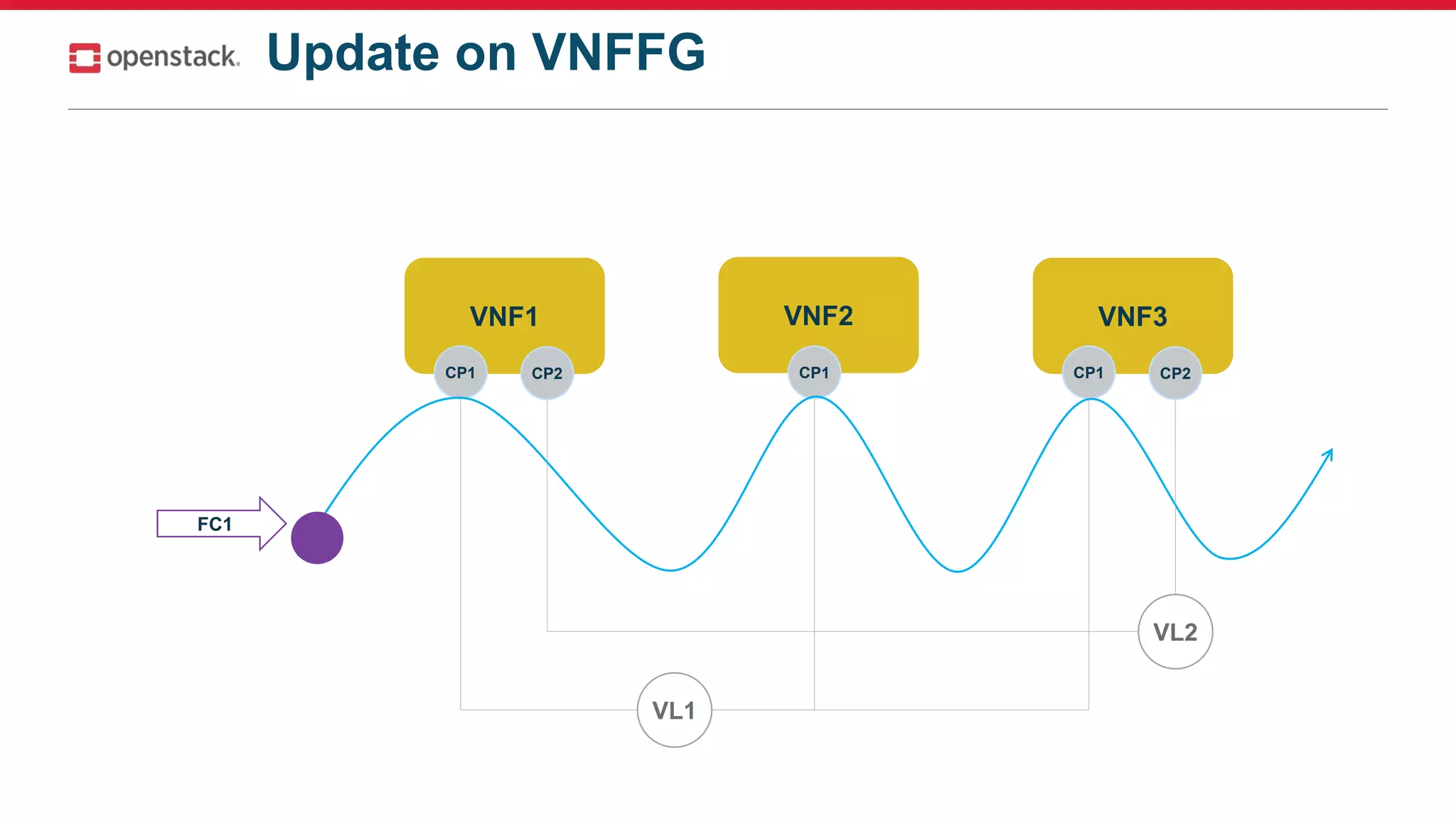

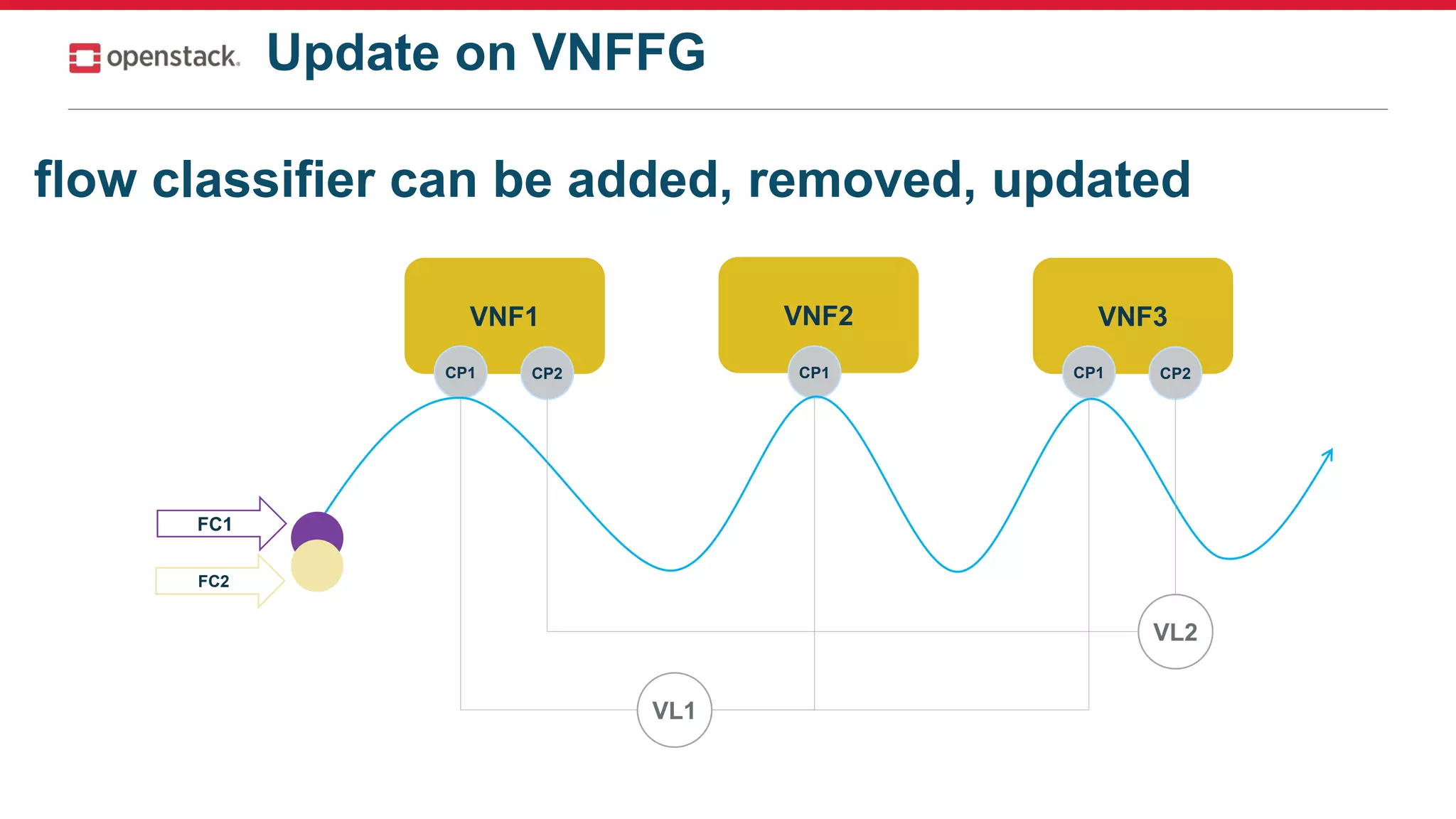

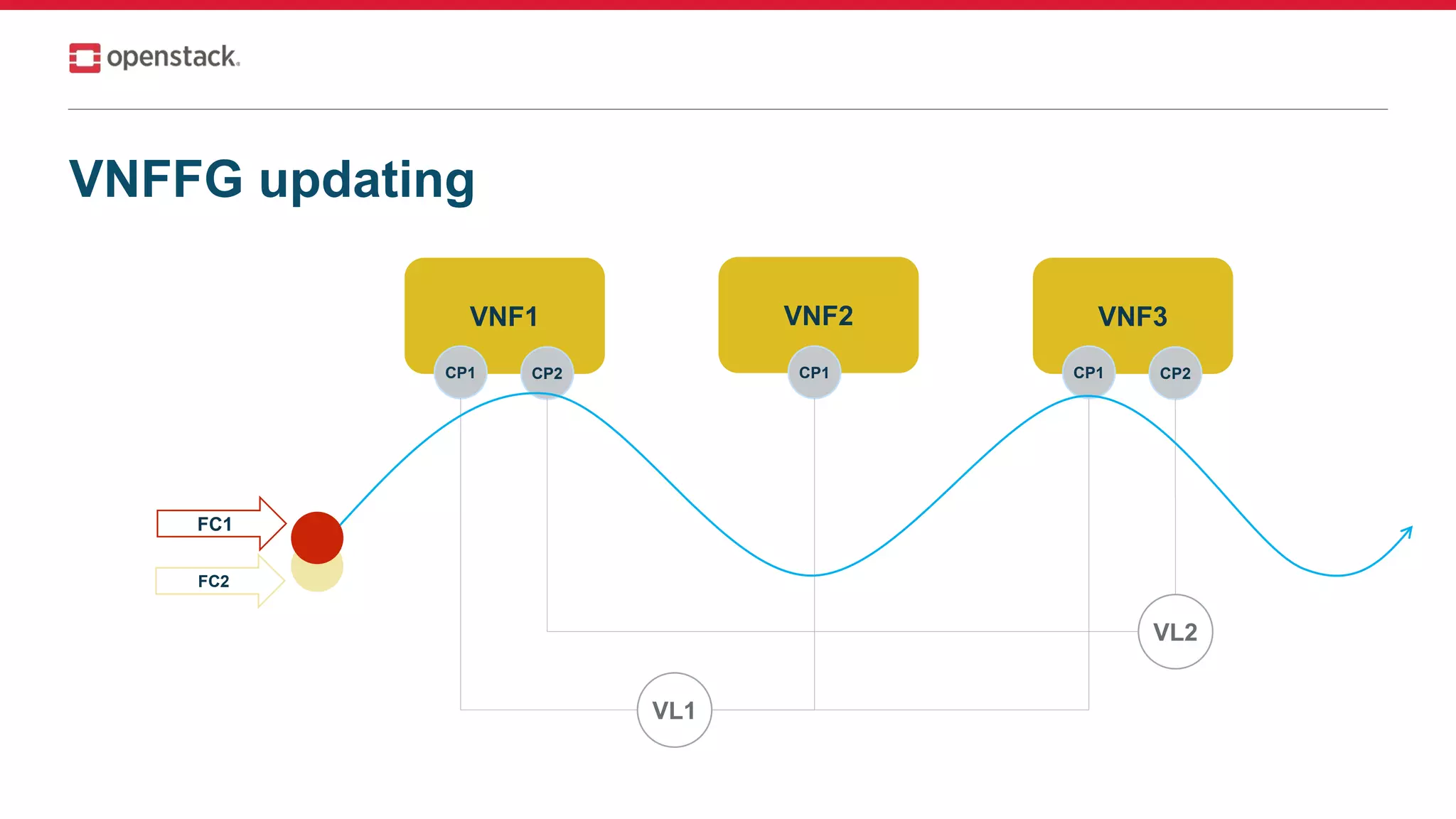

- 12. flow classifier canbe added, removed, updated VNF1 CP1 VNF2 CP1 VNF3 CP1 CP2CP2 VL1 VL2 FC1 FC2 Update on VNFFG
- 13.

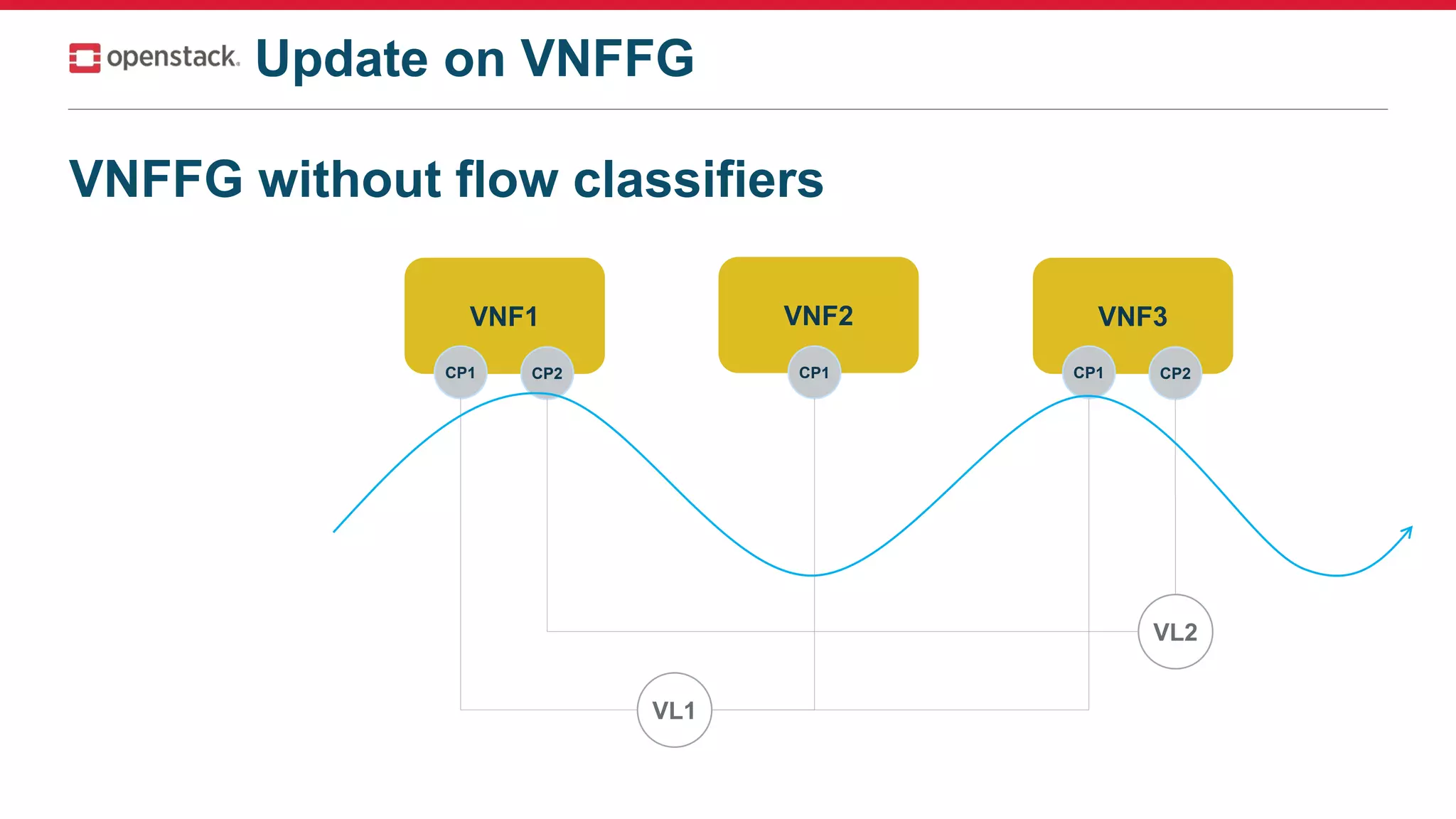

- 14. VNFFG without flowclassifiers VNF1 CP1 VNF2 CP1 VNF3 CP1 CP2CP2 VL1 VL2 Update on VNFFG

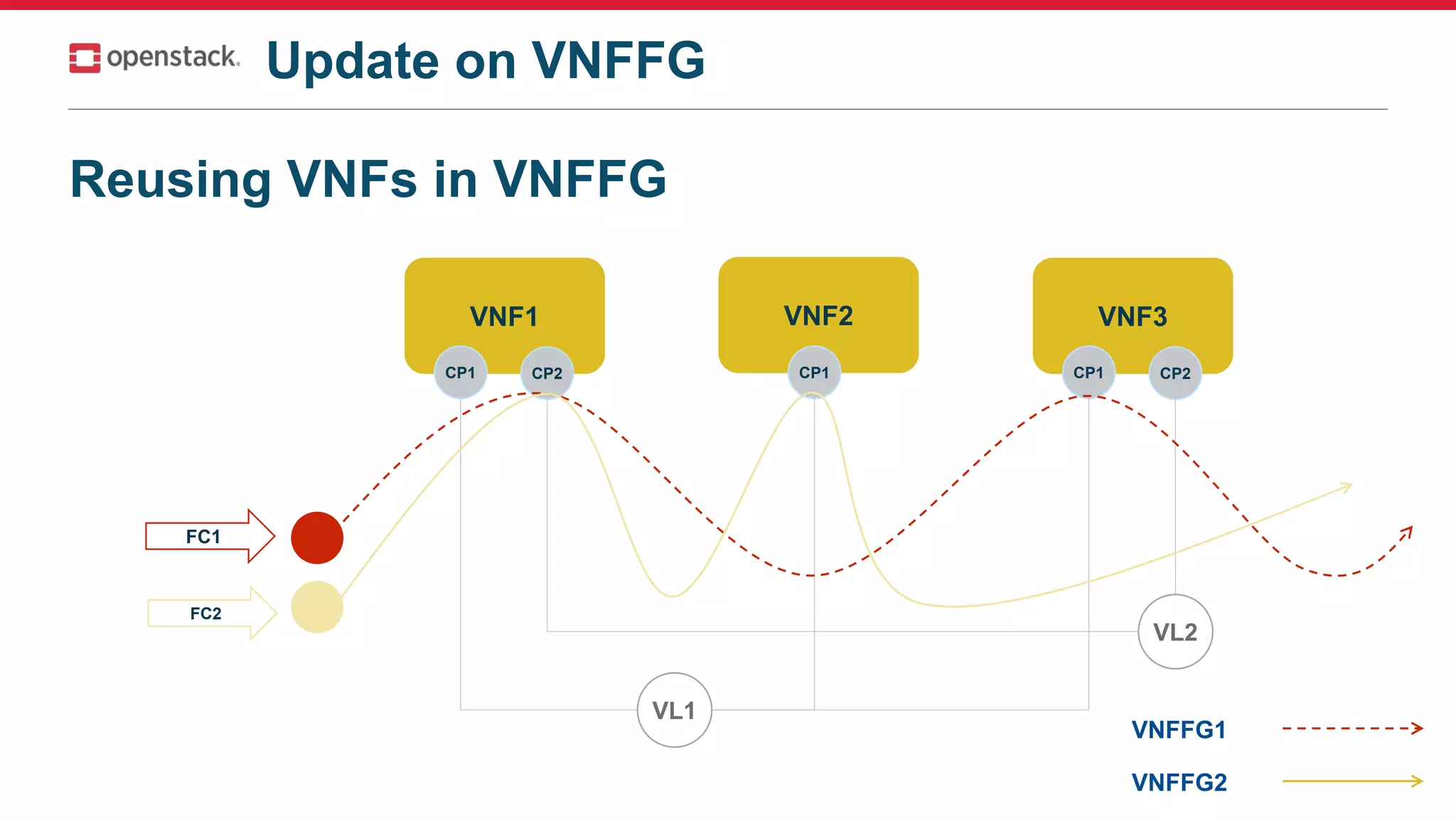

- 15. Reusing VNFs inVNFFG VNF1 CP1 VNF2 CP1 VNF3 CP1 CP2CP2 VL1 VL2 FC1 FC2 VNFFG1 VNFFG2 Update on VNFFG

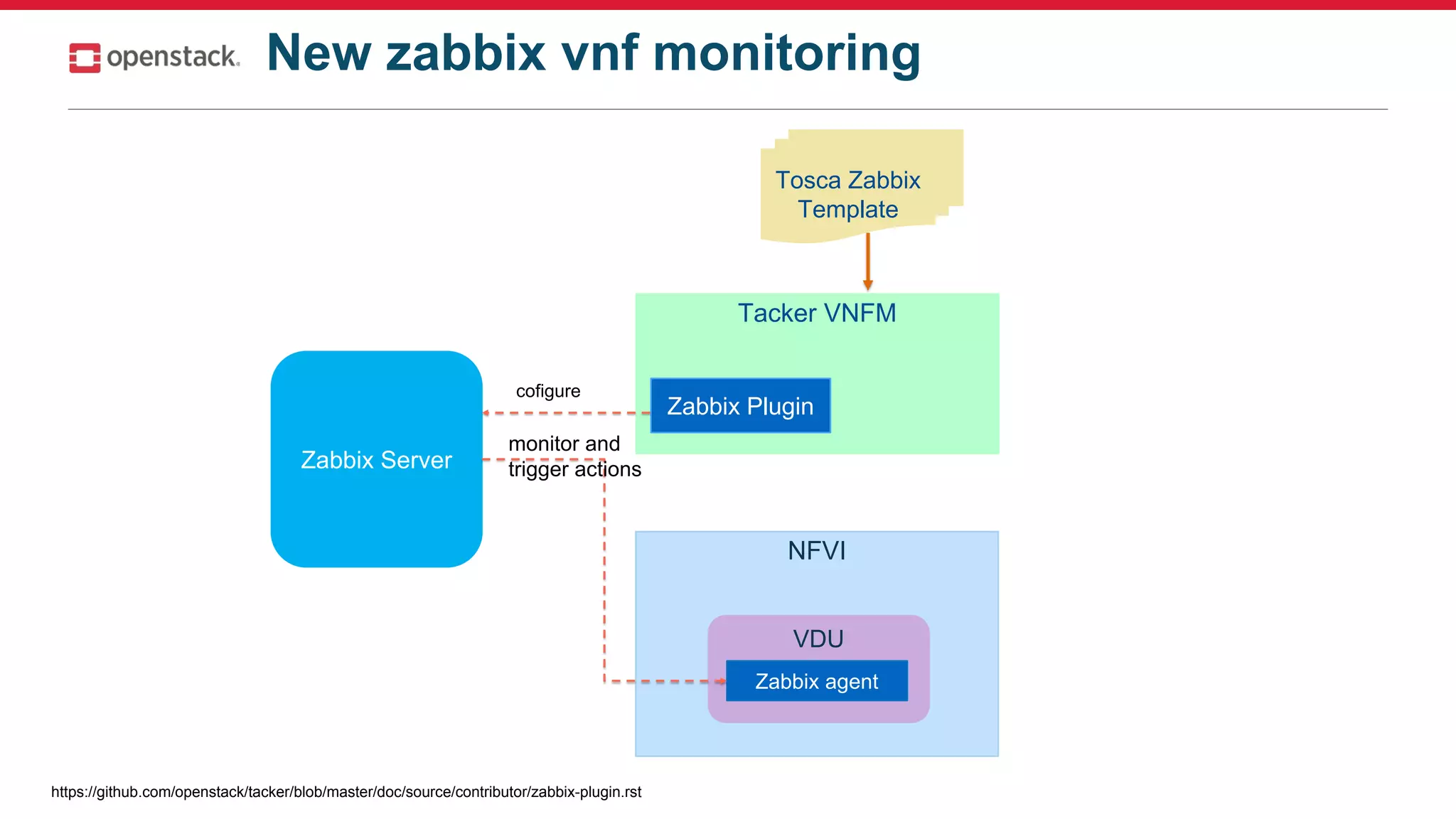

- 16. NFVI VDU Zabbix agent Tacker VNFM ZabbixPlugin Zabbix Server Tosca Zabbix Template https://github.com/openstack/tacker/blob/master/doc/source/contributor/zabbix-plugin.rst New zabbix vnf monitoring cofigure monitor and trigger actions

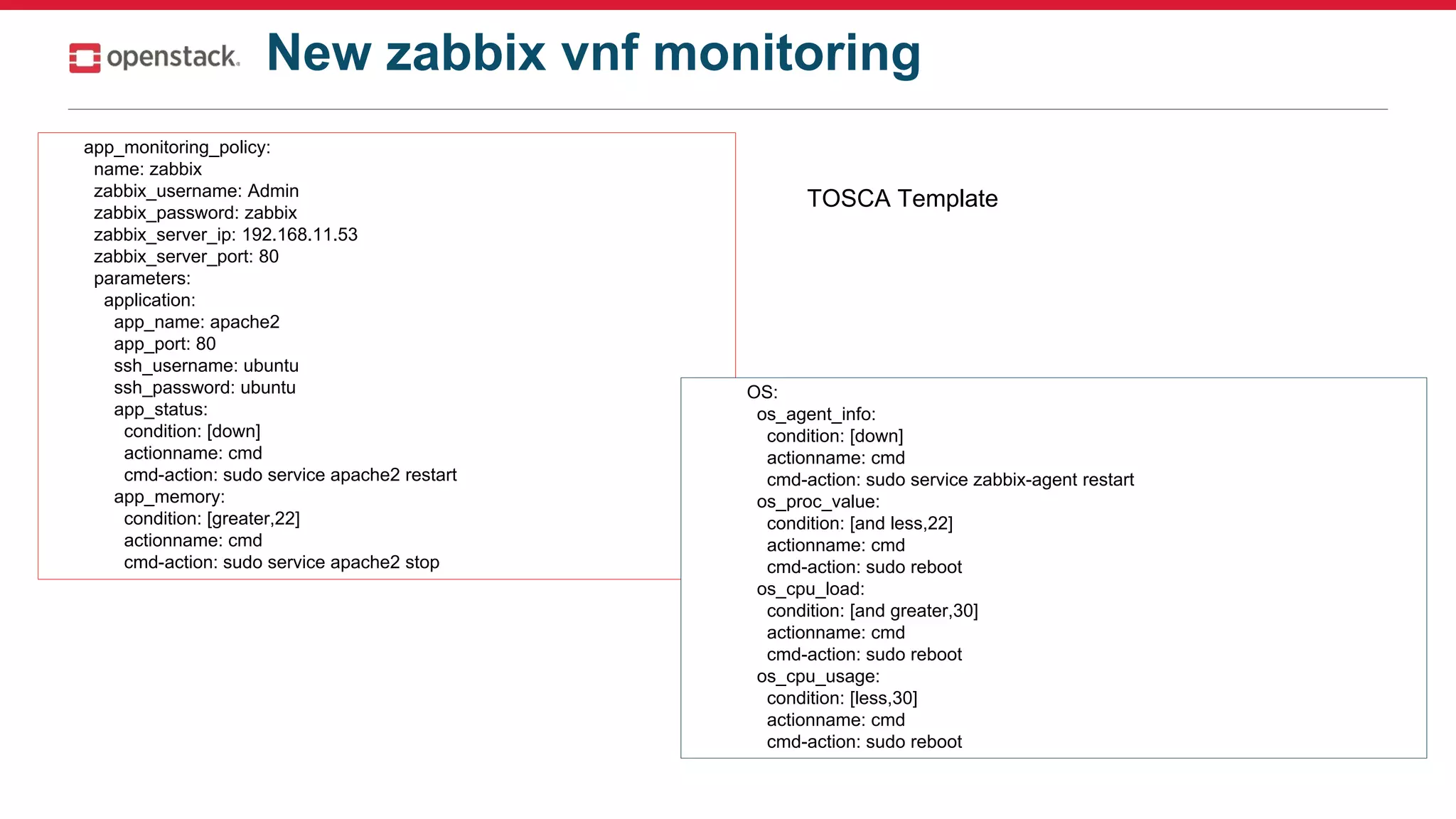

- 17. New zabbix vnfmonitoring app_monitoring_policy: name: zabbix zabbix_username: Admin zabbix_password: zabbix zabbix_server_ip: 192.168.11.53 zabbix_server_port: 80 parameters: application: app_name: apache2 app_port: 80 ssh_username: ubuntu ssh_password: ubuntu app_status: condition: [down] actionname: cmd cmd-action: sudo service apache2 restart app_memory: condition: [greater,22] actionname: cmd cmd-action: sudo service apache2 stop OS: os_agent_info: condition: [down] actionname: cmd cmd-action: sudo service zabbix-agent restart os_proc_value: condition: [and less,22] actionname: cmd cmd-action: sudo reboot os_cpu_load: condition: [and greater,30] actionname: cmd cmd-action: sudo reboot os_cpu_usage: condition: [less,30] actionname: cmd cmd-action: sudo reboot TOSCA Template

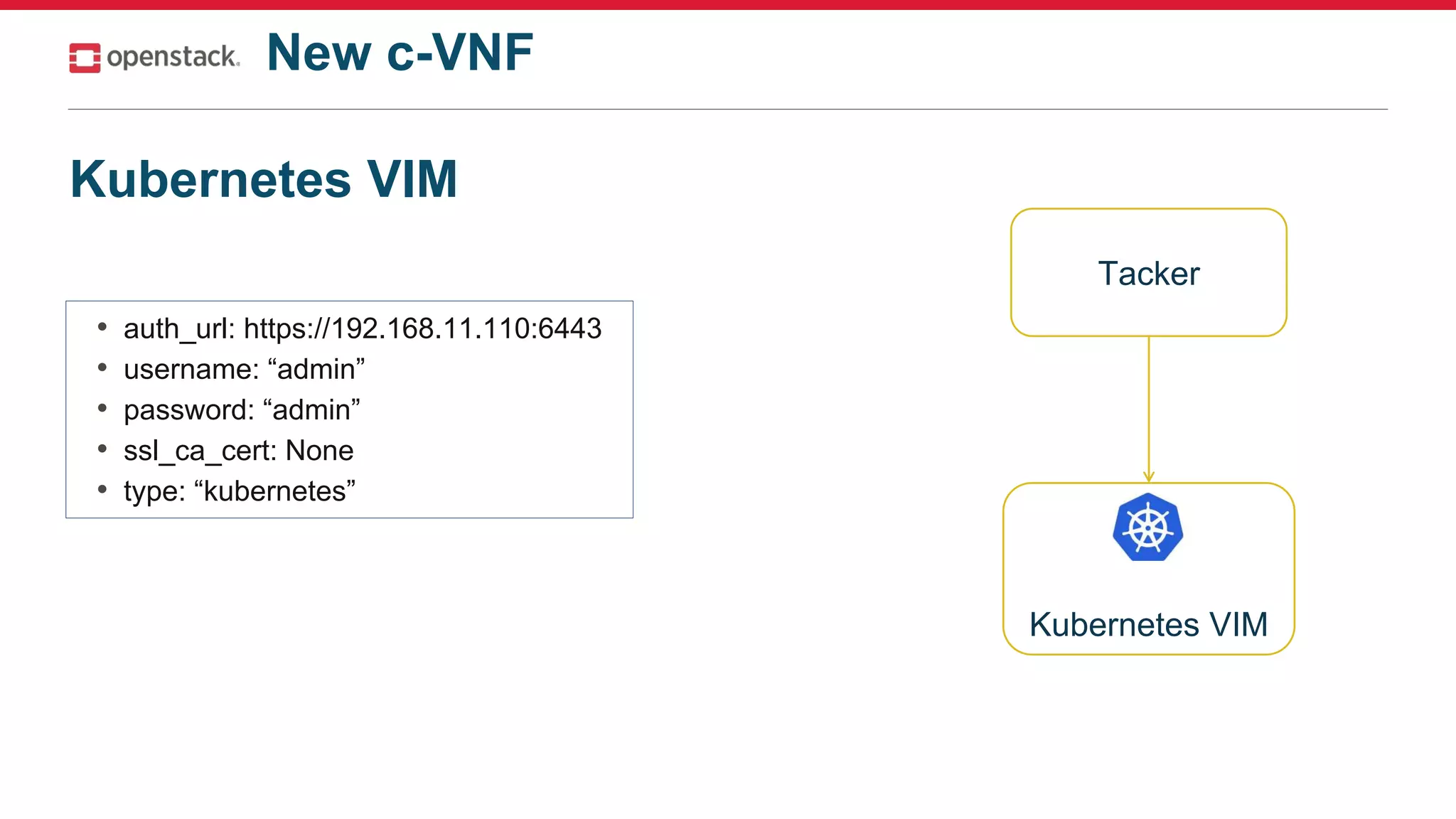

- 18. Kubernetes VIM Kubernetes VIM •auth_url: https://192.168.11.110:6443 • username: “admin” • password: “admin” • ssl_ca_cert: None • type: “kubernetes” Tacker New c-VNF

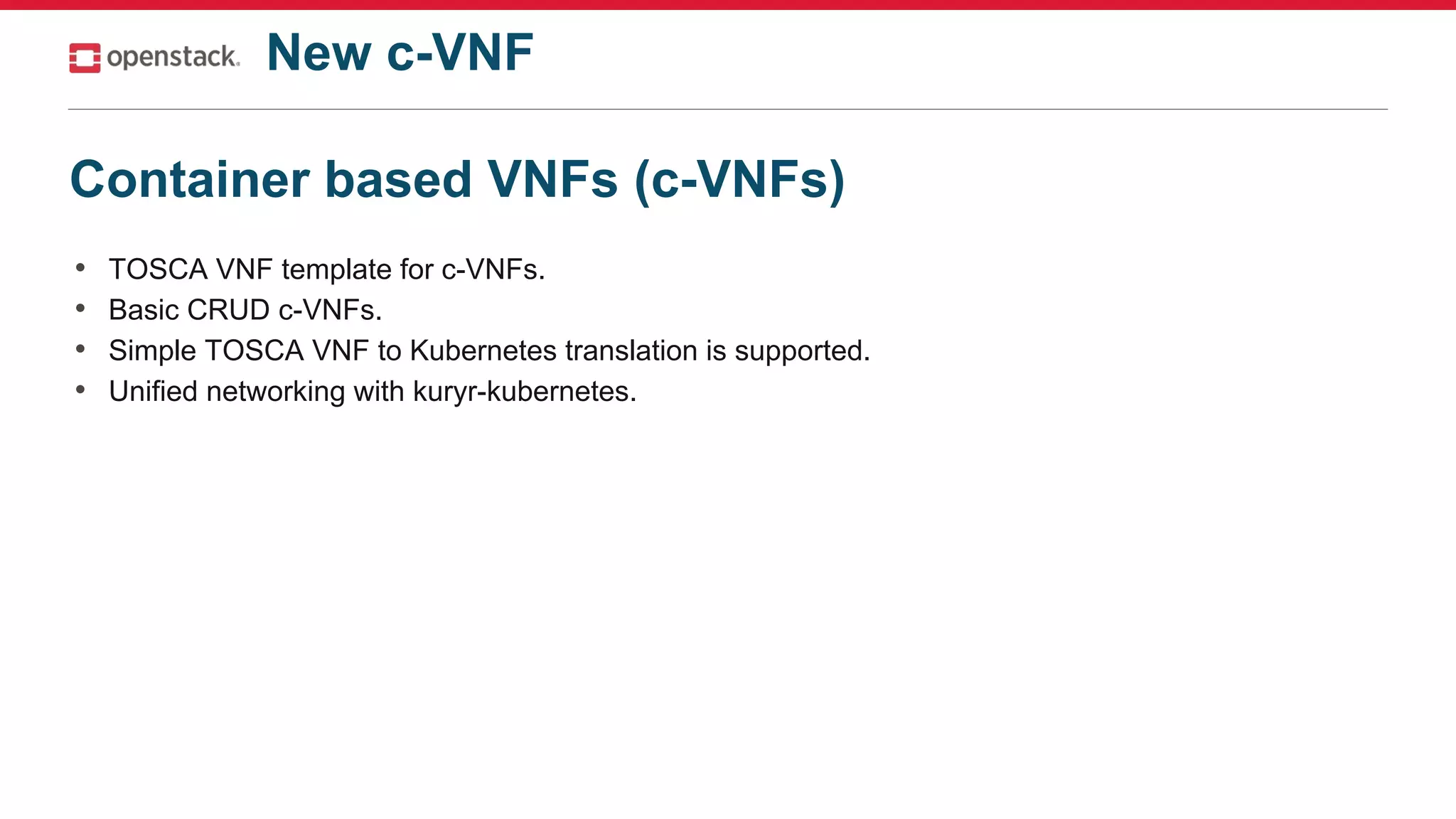

- 19. Container based VNFs(c-VNFs) • TOSCA VNF template for c-VNFs. • Basic CRUD c-VNFs. • Simple TOSCA VNF to Kubernetes translation is supported. • Unified networking with kuryr-kubernetes. New c-VNF

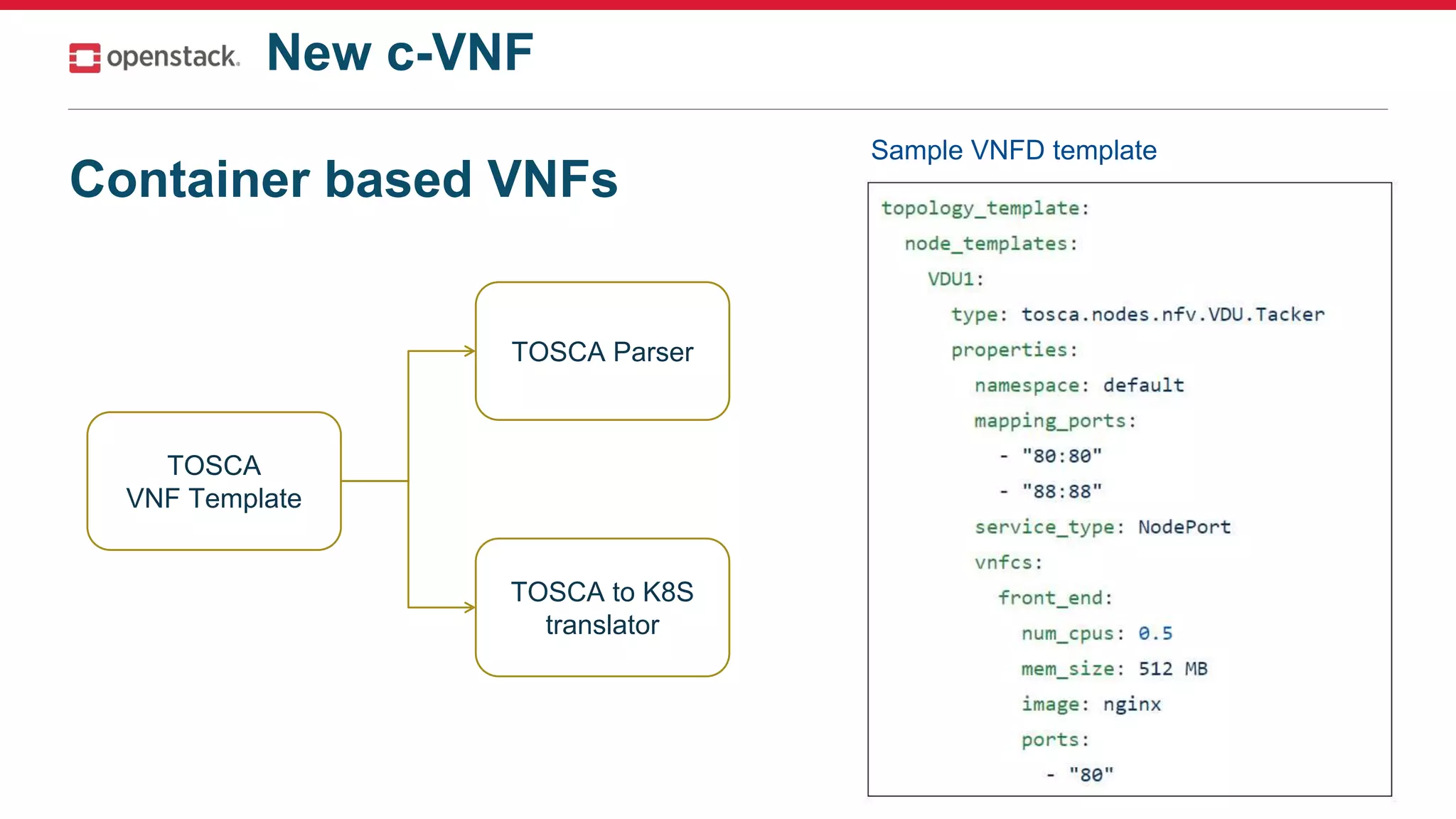

- 20. Container based VNFs TOSCA VNFTemplate TOSCA Parser TOSCA to K8S translator Sample VNFD template New c-VNF

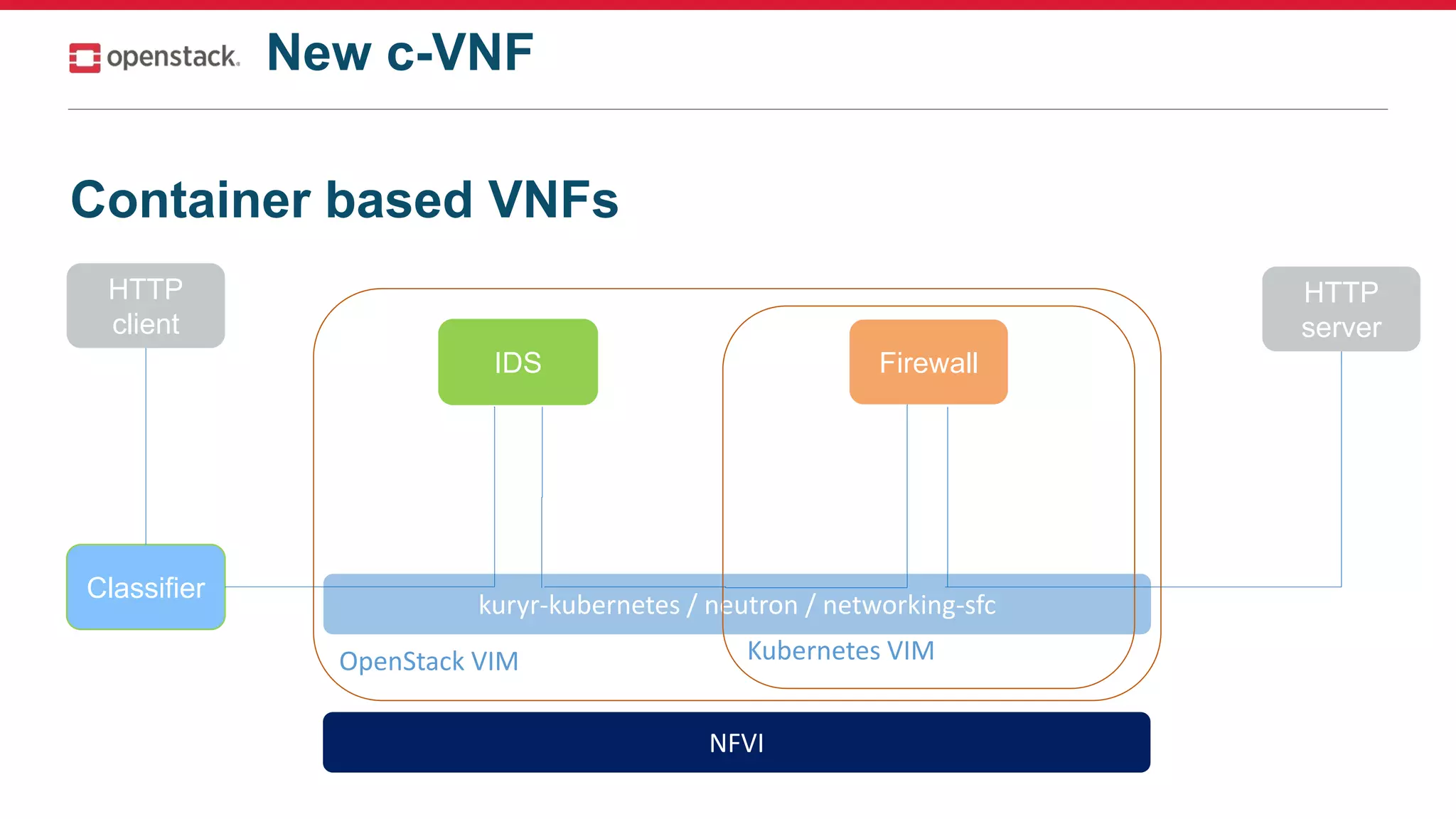

- 21. Container based VNFs IDSFirewall kuryr-kubernetes / neutron / networking-sfc Kubernetes VIMOpenStack VIM NFVI Classifier HTTP server HTTP client New c-VNF
- 22. OpenStack Rocky • SFCfeature for hybrid container and VM based VNFs (with Kuryr-kubernetes and networking-sfc) • Mistral workflow for VNF monitoring • Resource reservation for VNFs (with Blazar) • Clustering feature • Multiple forwarding path in VNFFG • VNFFG support in network service • Doc cleanup & bug fix

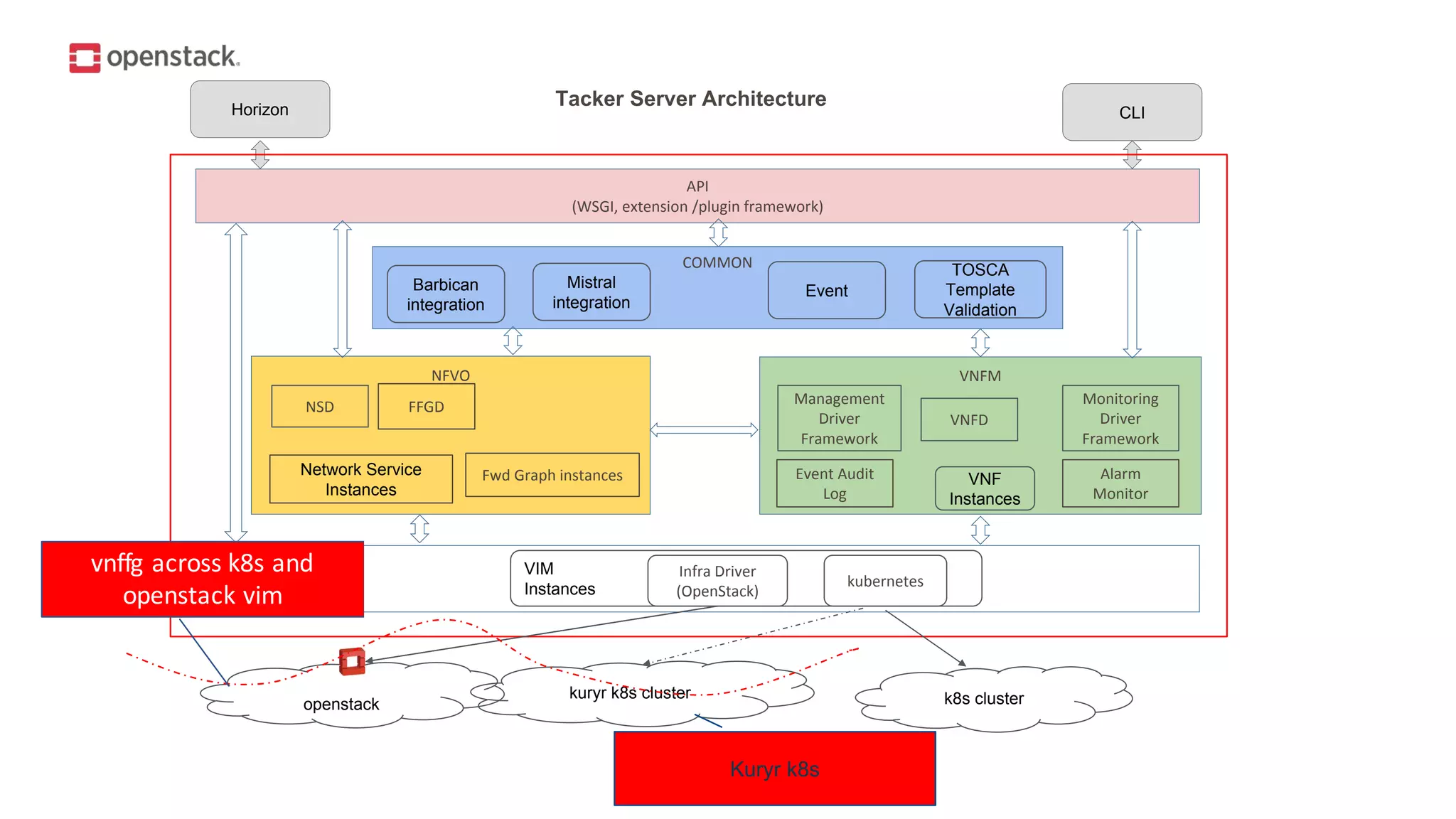

- 23. NFVO VNFM API (WSGI, extension/plugin framework) COMMON VNFD NSD FFGD Management Driver Framework Monitoring Driver Framework VNF Instances TOSCA Template Validation Fwd Graph instances VIM Instances CLI Alarm Monitor Event Audit Log Infra Driver (OpenStack) Tacker Server Architecture kubernetes Event Network Service Instances Mistral integration Barbican integration Horizon VIM openstack k8s clusterkuryr k8s cluster Kuryr k8s vnffg across k8s and openstack vim

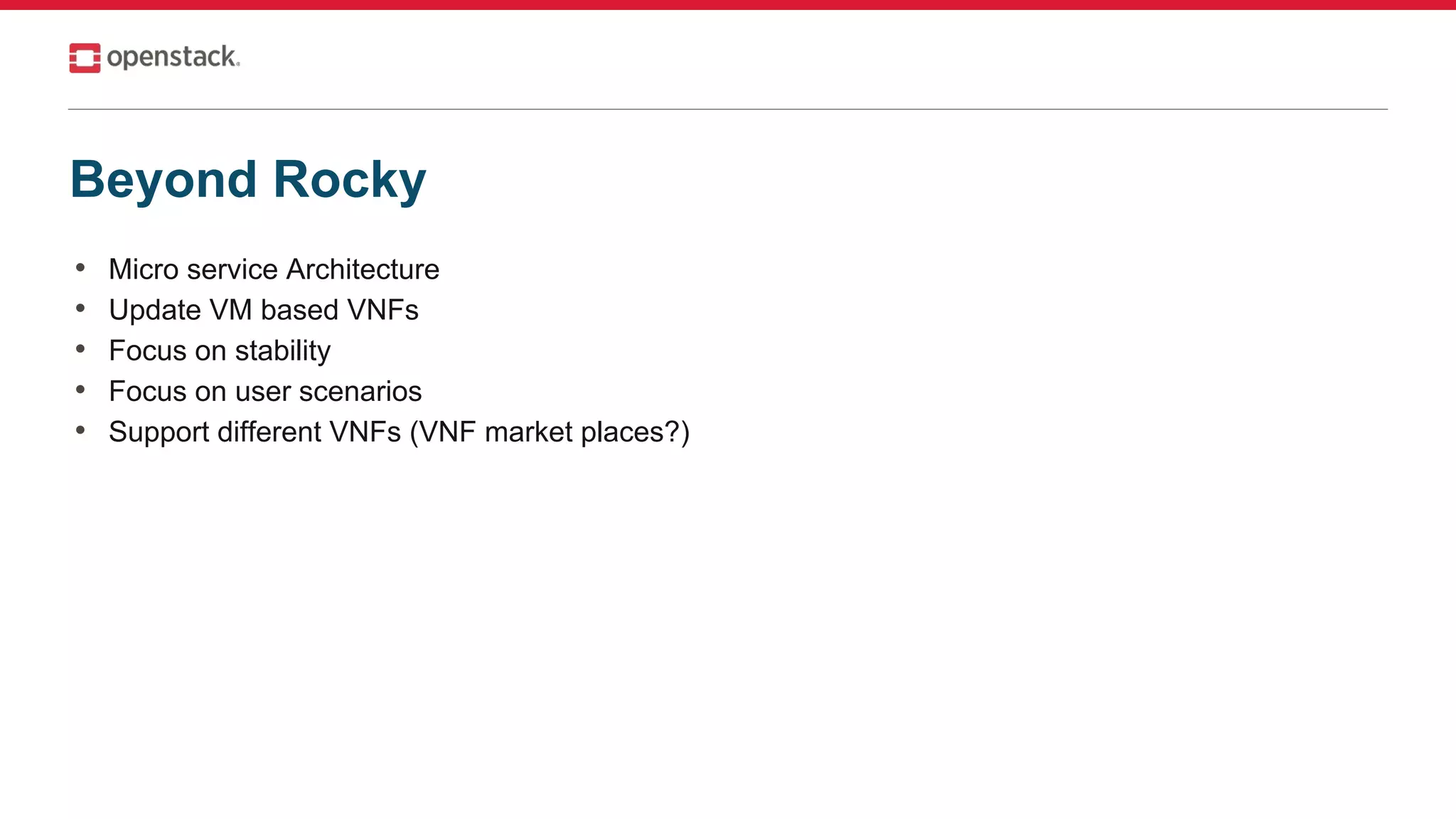

- 24. Beyond Rocky • Microservice Architecture • Update VM based VNFs • Focus on stability • Focus on user scenarios • Support different VNFs (VNF market places?)

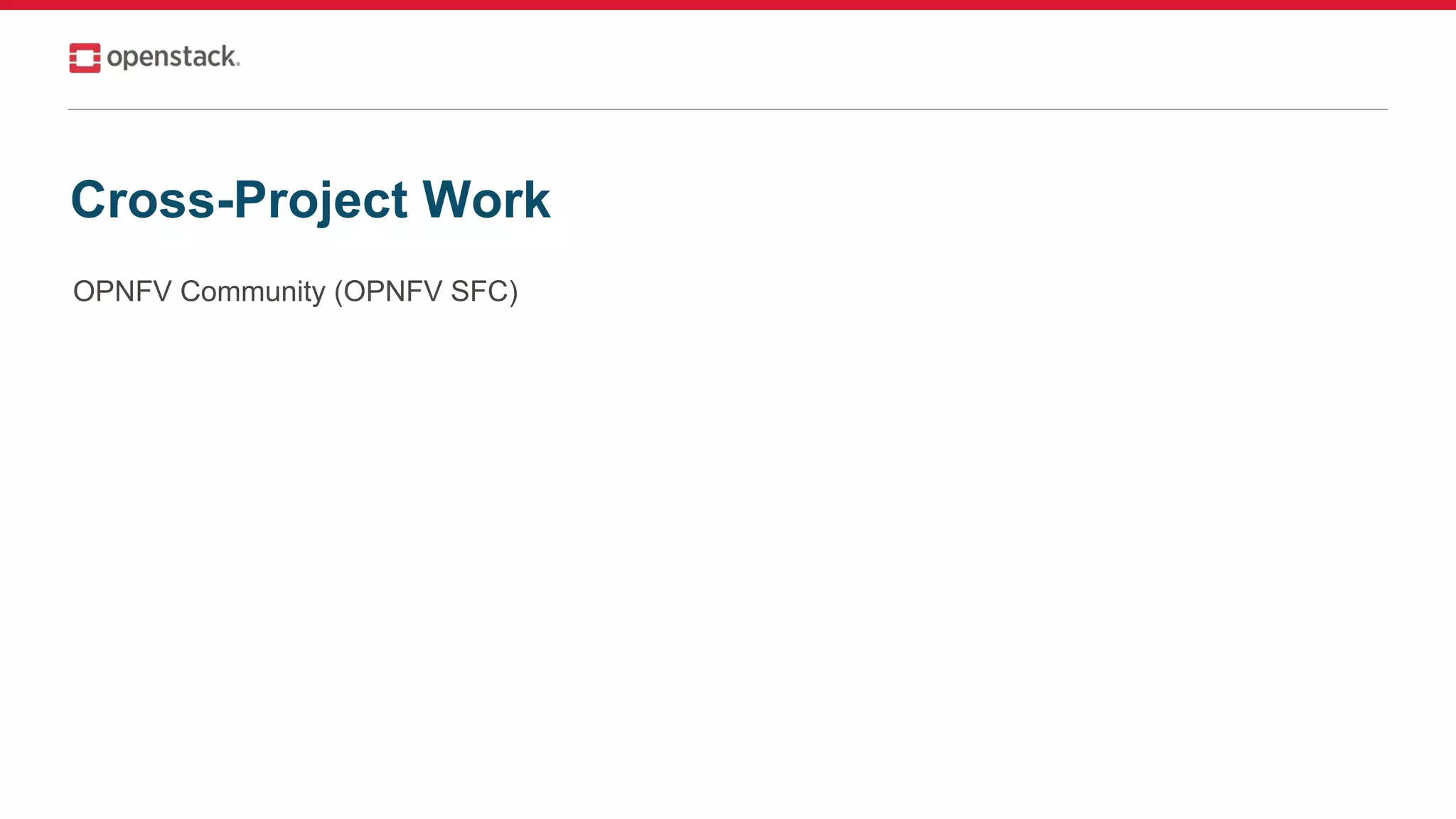

- 25. Cross-Project Work OPNFV Community(OPNFV SFC)

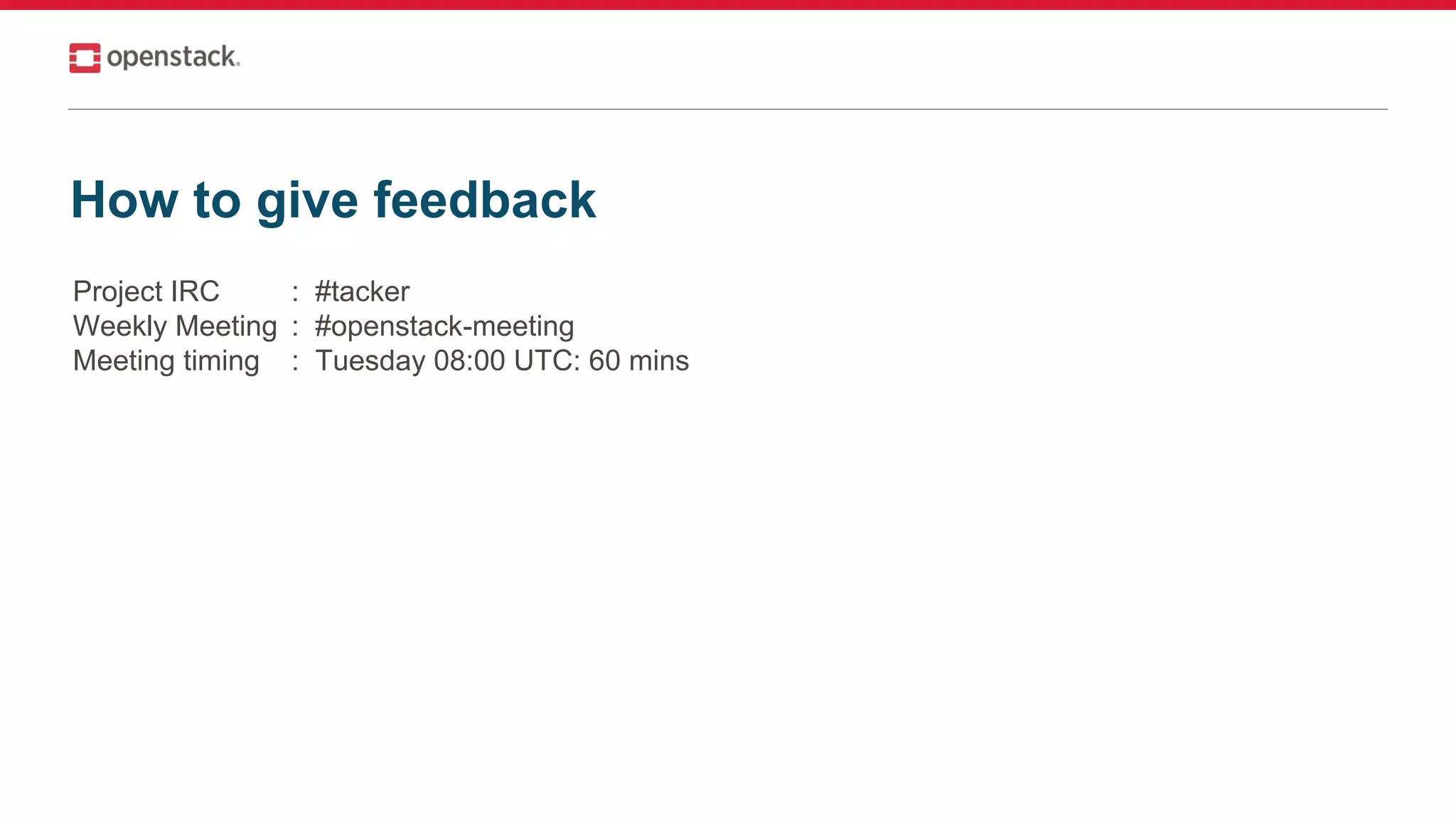

- 26. How to givefeedback Project IRC : #tacker Weekly Meeting : #openstack-meeting Meeting timing : Tuesday 08:00 UTC: 60 mins

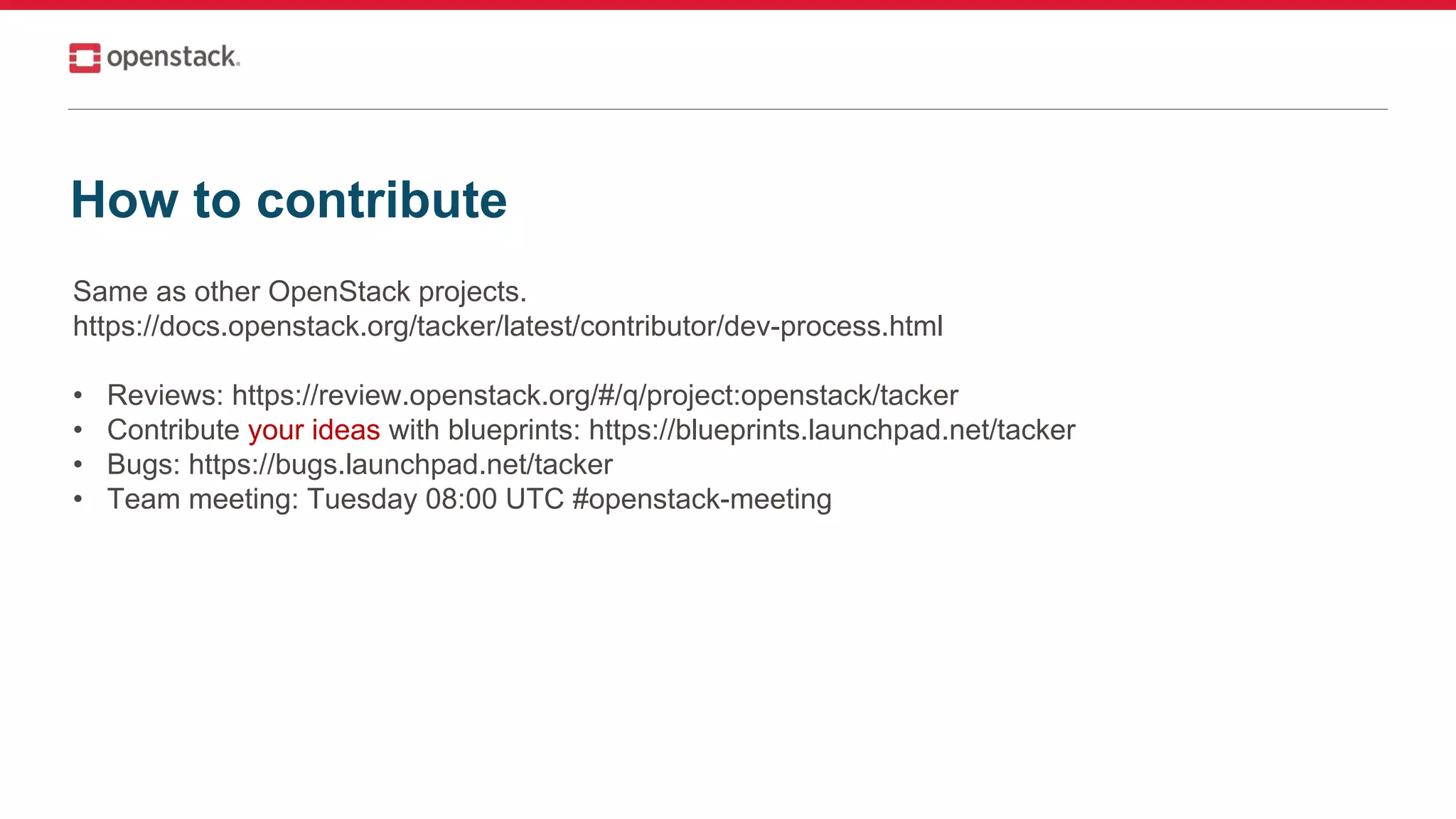

- 27. How to contribute Sameas other OpenStack projects. https://docs.openstack.org/tacker/latest/contributor/dev-process.html • Reviews: https://review.openstack.org/#/q/project:openstack/tacker • Contribute your ideas with blueprints: https://blueprints.launchpad.net/tacker • Bugs: https://bugs.launchpad.net/tacker • Team meeting: Tuesday 08:00 UTC #openstack-meeting
- 28. @OpenStack Q&A Thank you! openstack openstackOpenStackFoundation
