The document describes the new Tobin Ellis Signature Cocktail Station, a bar equipment line created through a collaboration between bartender Tobin Ellis and equipment manufacturer Perlick. The station features innovative design elements aimed at improving bartender ergonomics and efficiency in high-volume cocktail making. Key features include refrigerated drawers, an insulated bottle well, sectioned cold plate ice bin, curved speed rail, and slanted speed rack.

1. Quality & Innovation
that inspires
Contact Perlick today to learn more.
perlick.com • 800.558.5592
Perlick’s new Tobin Ellis Signature Cocktail Station is a breakthrough achievement in underbar
design resulting from an ambitious collaboration between 6-time national bartending champion
and celebrated bar designer, Tobin Ellis and the award-winning engineering team at Perlick.
“Together, we’ve built a cocktail station that’s perfect for everything from craft cocktail bars to
high-volume nightclubs and 5-star/5-diamond hotel environments. It’s the tricked-out station
every serious bartender has dreamt about and every savvy operator has hoped for.”
Tobin Ellis

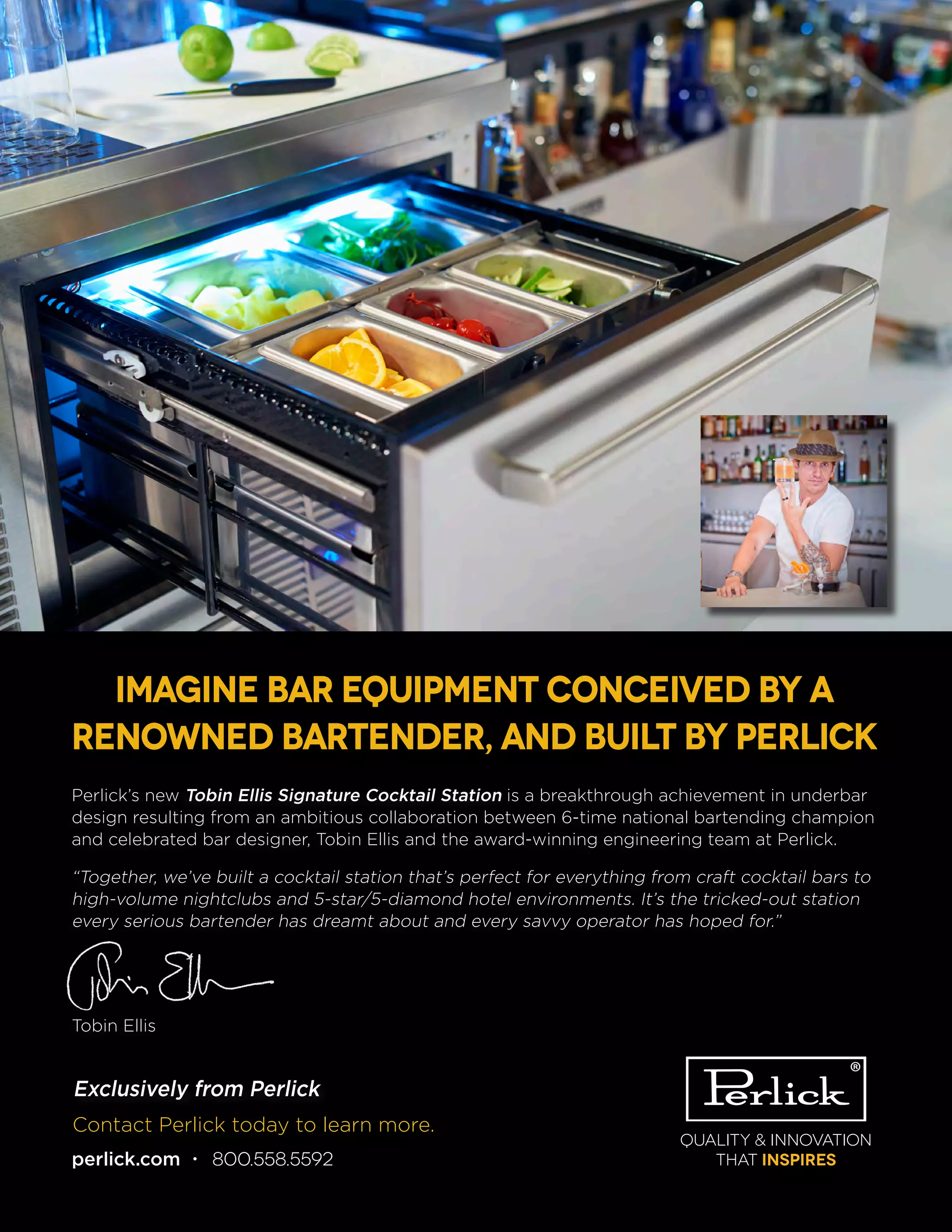

Imagine bar equipment conceived by a
renowned bartender, and built by Perlick
Exclusively from Perlick

2. PERLICK CORPORATION 8300 W. Good Hope Rd., Milwaukee, WI 53223 • 800.558.5592 • perlick.com

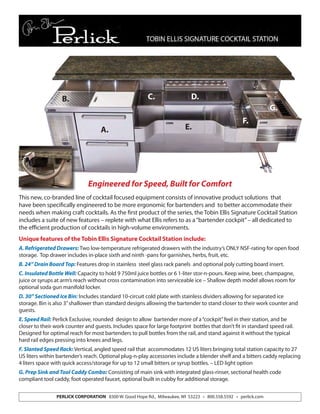

This new, co-branded line of cocktail focused equipment consists of innovative product solutions that
have been specifically engineered to be more ergonomic for bartenders and to better accommodate their
needs when making craft cocktails. As the first product of the series, the Tobin Ellis Signature Cocktail Station
includes a suite of new features – replete with what Ellis refers to as a“bartender cockpit”– all dedicated to
the efficient production of cocktails in high-volume environments.
Unique features of the Tobin Ellis Signature Cocktail Station include:
A. Refrigerated Drawers: Two low-temperature refrigerated drawers with the industry’s ONLY NSF-rating for open food
storage. Top drawer includes in-place sixth and ninth -pans for garnishes, herbs, fruit, etc.
B. 24” Drain Board Top: Features drop in stainless steel glass rack panels and optional poly cutting board insert.
C. Insulated Bottle Well: Capacity to hold 9 750ml juice bottles or 6 1-liter stor-n-pours. Keep wine, beer, champagne,
juice or syrups at arm’s reach without cross contamination into serviceable ice – Shallow depth model allows room for
optional soda gun manifold locker.
D. 30” Sectioned Ice Bin: Includes standard 10-circuit cold plate with stainless dividers allowing for separated ice
storage. Bin is also 3”shallower than standard designs allowing the bartender to stand closer to their work counter and
guests.
E. Speed Rail: Perlick Exclusive, rounded design to allow bartender more of a“cockpit”feel in their station, and be
closer to their work counter and guests. Includes space for large footprint bottles that don’t fit in standard speed rail.
Designed for optimal reach for most bartenders to pull bottles from the rail, and stand against it without the typical
hard rail edges pressing into knees and legs.
F. Slanted Speed Rack: Vertical, angled speed rail that accommodates 12 US liters bringing total station capacity to 27
US liters within bartender’s reach. Optional plug-n-play accessories include a blender shelf and a bitters caddy replacing
4 liters space with quick access/storage for up to 12 small bitters or syrup bottles. – LED light option
G. Prep Sink and Tool Caddy Combo: Consisting of main sink with integrated glass-rinser, sectional health code
compliant tool caddy, foot operated faucet, optional built in cubby for additional storage.
Engineered for Speed, Built for Comfort
A.
B.
E.
C. D.
F.
G.

3. PERLICK CORPORATION 8300 W. Good Hope Rd., Milwaukee, WI 53223 • 800.558.5592 • perlick.com

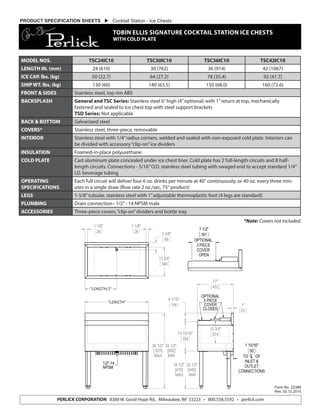

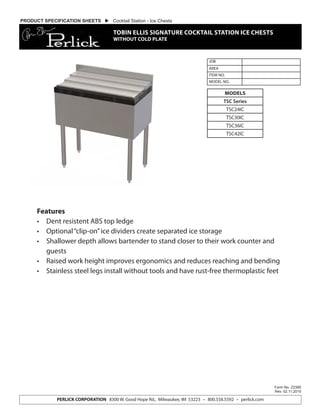

Cocktail Station - Ice Chests (17”Depth)
Part No. Description List Price
Ice Cap.
(lbs.) Length
Ship Wt.
(lbs.)
TSC24IC Ice Chest, No Cold Plate, 24” $1,092.00 50 24” 60
TSC24IC10 Ice Chest, With Cold Plate, 24” $2,632.00 50 24” 130
TSC30IC Ice Chest, No Cold Plate 30” $1,213.00 64 30” 70
TSC30IC10 Ice Chest, With Cold Plate, 30” $2,749.00 64 30” 140
TSC36IC Ice Chest, No Cold Plate, 36” $1,333.00 78 36” 80
TSC36IC10 Ice Chest, With Cold Plate, 36” $2,870.00 78 36” 150
TSC42IC Ice Chest, No Cold Plate, 24” $1,452.00 92 42” 90
TSC42IC10 Ice Chest, With Cold Plate, 42” $2,993.00 92 42” 160
Part No. Description List Price Length
BBS36C
Back Bar, Self Contained, 2 Drawer - Solid Stainless Steel, Drainboard
Top with 4 Glass Racks
$5,442.00 36”
Part No. Description List Price
BBC-GR Garnish/Ingredient Rack for Combination of Sixth and Ninth size pans $175.00
BBC-P6 Pan, Sixth-Size (6-15/16” x 6-3/8”), Stainless Steel $33.00
BBC-P9 Pan, Ninth-Size (6-15/16” x 4-1/4”), Stainless Steel $40.00
BBC-CB Cutting Board, White, 17” x 13” x 1/2”, with handle hole and drip channel $99.00
BBC-KH Knife Holder, Resin, Clips onto Drawer Frame (Holds 3 Knives) $25.00
BBC-TH Tong Holder, Stainless Steel, Clips onto Drawer Frame $25.00
Accessories - Refrigerated Drawer Cabinet

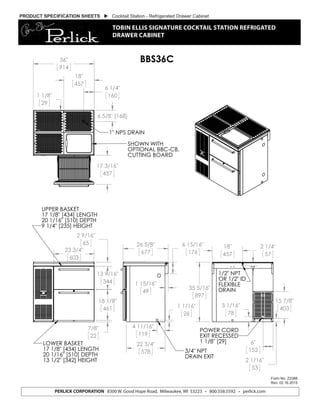

Cocktail Station - Refrigerated Drawer Cabinet
Accessories - Ice Chest Covers
Accessories Bottle Tray (universal to all Perlick Ice Chests)
Accessories - Ice Chest Dividers*
Part No. Description List Price
ICC-C24 Covers, 3 Piece, Sliding, 24” $193.00
ICC-C30 Covers, 3 Piece, Sliding, 30” $224.00
ICC-C36 Covers, 3 Piece, Sliding, 36” $255.00
ICC-C42 Covers, 3 Piece, Sliding, 42” $286.00
Part No. Description List Price
ICBT-7 Bottle Tray, 24”, 7 Bottles $130.00
ICBT-9 Bottle Tray, 30”, 9 Bottles $140.00
Part No. Description List Price
ICC-TSC Ice Divider, Cocktail Station Ice Chests $68.00
* Cocktail Station Ice Chests can be divided in half, thirds or quarters. Note: 24” Ice Chest can only be divided in half.

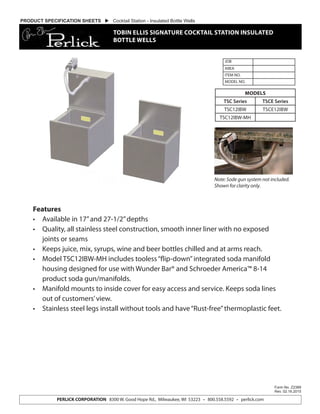

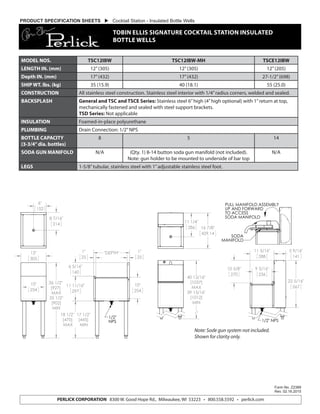

Cocktail Station - Insulated Bottle Well
Cocktail Station - Preconfigured Assemblies
Part No. Description List Price Length Ship Wt. (lbs.)
TSC12IBW Insulated Bottle Well, 12” (17” Depth) $880.00 12” 35
TSC12IBW-MH Insulated Bottle Well, w/Manifold Housing, 12” (17” Depth) $1,555.00 12” 50
TSCE12IBW Insulated Bottle Well, Extended Depth, 12” (27-1/2” Depth) $1,030.00 12” 55
Part No. Description List Price Length Ship Wt. (lbs.)
BBS36C-A
Back Bar, Self Contained, Drainboard Top w/Glass Racks and
Accessories
$6,508.00 36” 285
PTE68-A
Cocktail Station, 12” Insulated Bottle Well, 30” Cold Plate Ice
Chest, 8” Slanted Liquor Rack, 18” Prep Sink, Speed Rail and
Accessories
$9,053.00 68” 300
PTE80-A
Cocktail Station, 2 - 12” Insulated Bottle Wells, Manifold
Holder, 30” Cold Plate Ice Chest, 8” Slanted Liquor Rack,
18” Prep Sink, Speed Rail and Accessories
$10,901.00 80” 355
TSC12IBW
TSC12IBW-MH
ICC-TSC
ICBT-7
ICC-C24
BBS36C
Shown with
the BBS-CB
cutting board
TSC30IC
Shown with (2) ICC-TSC Ice Dividers

4. PERLICK CORPORATION 8300 W. Good Hope Rd., Milwaukee, WI 53223 • 800.558.5592 • perlick.com

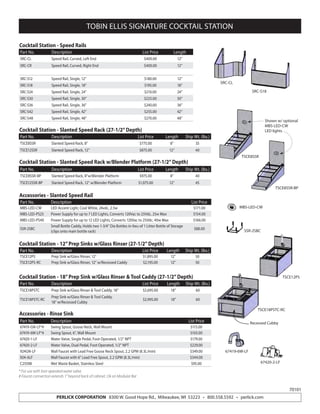

TOBIN ELLIS SIGNATURE COCKTAIL STATION
Accessories - Slanted Speed Rail
Part No. Description List Price
MBS-LED-CW LED Accent Light, Cool White, 24vdc, 2.5w $171.00
MBS-LED-PS25 Power Supply for up to 7 LED Lights, Converts 120Vac to 25Vdc, 25w Max $154.00
MBS-LED-PS40 Power Supply for up to 12 LED Lights, Converts 120Vac to 25Vdc, 40w Max $166.00
SSR-2SBC
Small Bottle Caddy, Holds two 1-3/4” Dia Bottles in-lieu-of 1 Litter Bottle of Storage
(clips onto main bottle rack)
$88.00

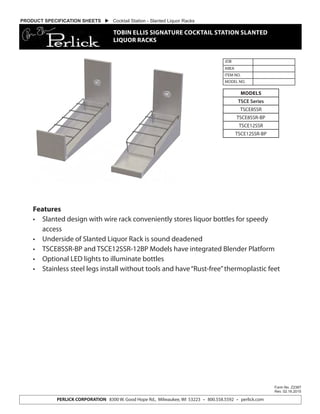

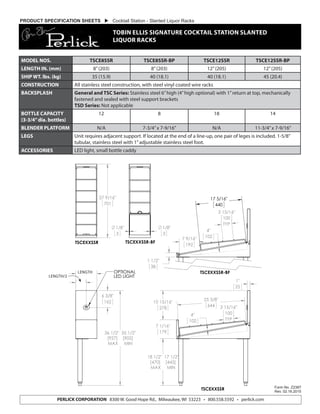

Cocktail Station - Slanted Speed Rack (27-1/2”Depth)
Cocktail Station - Slanted Speed Rack w/Blender Platform (27-1/2”Depth)

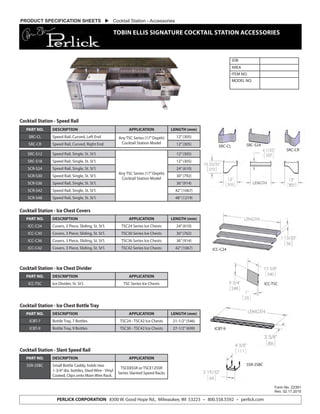

Cocktail Station - Speed Rails
Part No. Description List Price Length Ship Wt. (lbs.)
TSCE8SSR Slanted Speed Rack, 8” $775.00 8” 35
TSCE12SSR Slanted Speed Rack, 12” $875.00 12” 40
Part No. Description List Price Length Ship Wt. (lbs.)
TSCE8SSR-BP Slanted Speed Rack, 8”w/Blender Platform $975.00 8” 40
TSCE12SSR-BP Slanted Speed Rack, 12” w/Blender Platform $1,075.00 12” 45
Part No. Description List Price Length
SRC-CL Speed Rail, Curved, Left End $400.00 12”
SRC-CR Speed Rail, Curved, Right End $400.00 12”
SRC-S12 Speed Rail, Single, 12” $180.00 12”
SRC-S18 Speed Rail, Single, 18” $195.00 18”
SRC-S24 Speed Rail, Single, 24” $210.00 24”
SRC-S30 Speed Rail, Single, 30” $225.00 30”
SRC-S36 Speed Rail, Single, 36” $240.00 36”
SRC-S42 Speed Rail, Single, 42” $255.00 42”
SRC-S48 Speed Rail, Single, 48” $270.00 48”

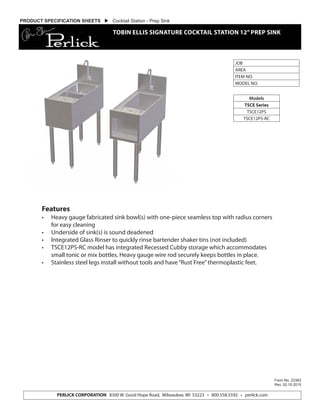

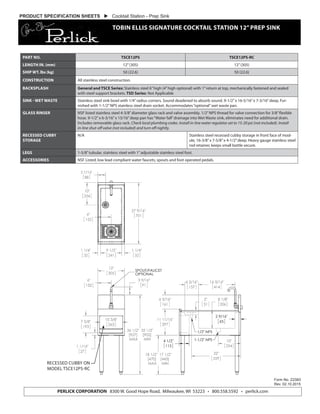

Cocktail Station - 12”Prep Sinks w/Glass Rinser (27-1/2”Depth)

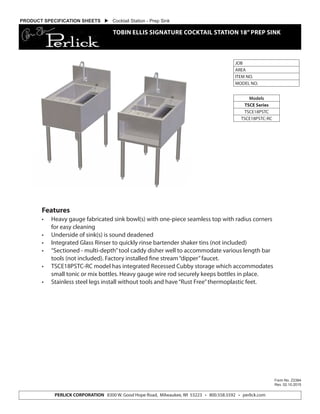

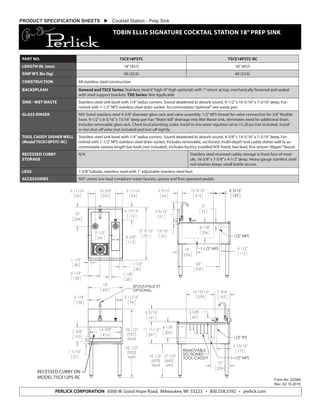

Cocktail Station - 18”Prep Sink w/Glass Rinser & Tool Caddy (27-1/2”Depth)
Part No. Description List Price Length Ship Wt. (lbs.)
TSCE12PS Prep Sink w/Glass Rinser, 12” $1,895.00 12” 50
TSCE12PS-RC Prep Sink w/Glass Rinser, 12” w/Recessed Caddy $2,195.00 12” 50
Part No. Description List Price Length Ship Wt. (lbs.)
TSCE18PSTC Prep Sink w/Glass Rinser & Tool Caddy, 18” $2,695.00 18” 60
TSCE18PSTC-RC
Prep Sink w/Glass Rinser & Tool Caddy,
18” w/Recessed Cubby
$2,995.00 18” 60
Accessories - Rinse Sink
Part No. Description List Price
67419-GN-LF*# Swing Spout, Goose Neck, Wall Mount $115.00
67419-6W-LF*# Swing Spout, 6”, Wall Mount $103.00
67420-1-LF Water Valve, Single Pedal, Foot Operated, 1/2” NPT $179.00
67420-2-LF Water Valve, Dual Pedal, Foot Operated, 1/2” NPT $229.00
924GN-LF Wall Faucet with Lead Free Goose Neck Spout, 2.2 GPM (8.3L/min) $349.00
924-6LF Wall Faucet with 6” Lead Free Spout, 2.2 GPM (8.3L/min) $344.00
C25598 Wet Waste Basket, Stainless Steel $95.00
* For use with foot operated water valve.
# Faucet connection extends 1” beyond back of cabinet. Ok on Modular Bar
SRC-CL
SRC-S18
TSCE8SSR
TSCE8SSR-BP
Shown w/ optional
MBS-LED-CW
LED lights
MBS-LED-CW
SSR-2SBC
TSCE12PS
TSCE18PSTC-RC
Recessed Cubby
67419-6W-LF
67420-2-LF
70101

5. JOB
AREA
ITEM NO.
MODEL NO.
Form No. Z2390
Rev. 02.17.2015
PERLICK CORPORATION 8300 W. Good Hope Rd., Milwaukee, WI 53223 • 800.558.5592 • perlick.com
MODEL
BBS36C-A 2 Drawer, Supreme
MODEL
PTE68-A Cocktail Station, 68”

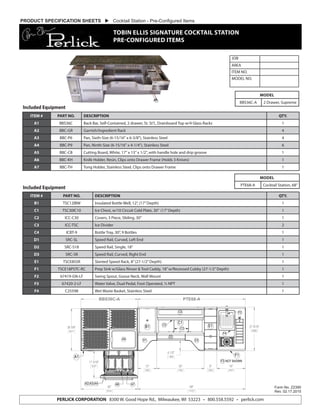

PRODUCT SPECIFICATION SHEETS  Cocktail Station - Pre-Configured Items
TOBIN ELLIS SIGNATURE COCKTAIL STATION
PRE-CONFIGURED ITEMS
27 9/16"
699
18"
457
8"
203
30"
762
12"
305
36"
914
6 1/2"
165
17 3/16"
437
26 5/8"
677
68"
1727
BBS36C-A PTE68-A
A5 D1
D2
F3 NOT SHOWN
C4
C1
F4
C2
F1
F2
E1
D3
C3
A2 A3 A4 A6 A7
A1
B1
PTE68A Plan View
ITEM # PART NO. DESCRIPTION QTY.
A1 BBS36C Back Bar, Self-Contained, 2 drawer, St. St’l., Drainboard Top w/4 Glass Racks 1
A2 BBC-GR Garnish/Ingredient Rack 4
A3 BBC-P6 Pan, Sixth-Size (6-15/16" x 6-3/8"), Stainless Steel 4
A4 BBC-P9 Pan, Ninth-Size (6-15/16" x 4-1/4"), Stainless Steel 6
A5 BBC-CB Cutting Board, White, 17" x 13" x 1/2", with handle hole and drip groove 1
A6 BBC-KH Knife Holder, Resin, Clips onto Drawer Frame (Holds 3 Knives) 1
A7 BBC-TH Tong Holder, Stainless Steel, Clips onto Drawer Frame 1
ITEM # PART NO. DESCRIPTION QTY.
B1 TSC12IBW Insulated Bottle Well, 12”, (17”Depth) 1
C1 TSC30IC10 Ice Chest, w/10 Circuit Cold Plate, 30” (17”Depth) 1
C2 ICC-C30 Covers, 3 Piece, Sliding, 30” 1
C3 ICC-TSC Ice Divider 2
C4 ICBT-9 Bottle Tray, 30”, 9 Bottles 1
D1 SRC-SL Speed Rail, Curved, Left End 1
D2 SRC-S18 Speed Rail, Single, 18” 1
D3 SRC-SR Speed Rail, Curved, Right End 1
E1 TSCE8SSR Slanted Speed Rack, 8”(27-1/2”Depth) 1
F1 TSCE18PSTC-RC Prep Sink w/Glass Rinser & Tool Caddy, 18”w/Recessed Cubby (27-1/2”Depth) 1
F2 67419-GN-LF Swing Spout, Goose Neck, Wall Mount 1
F3 67420-2-LF Water Valve, Dual Pedal, Foot Operated, ½ NPT 1
F4 C25598 Wet Waste Basket, Stainless Steel 1
Included Equipment
Included Equipment

6. Form No. Z2390
Rev. 02.17.2015
PERLICK CORPORATION 8300 W. Good Hope Rd., Milwaukee, WI 53223 • 800.558.5592 • perlick.com

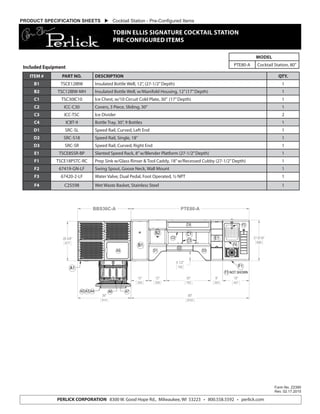

PRODUCT SPECIFICATION SHEETS  Cocktail Station - Pre-Configured Items
TOBIN ELLIS SIGNATURE COCKTAIL STATION
PRE-CONFIGURED ITEMS
MODEL
PTE80-A Cocktail Station, 80”
27 9/16"
699
18"
457
8"
203
30"
762
36"
914
6 1/2"
165
26 5/8"
677
80"
2032
12"
305
12"
305
BBS36C-A PTE80-A
A1
B1
B2 C1
E1
F1
F3 NOT SHOWN
A5 D1
D2
D3
F2
A6 A7
C2
C3
F4
A2 A3 A4
C3
C4
PTE80A Plan View
ITEM # PART NO. DESCRIPTION QTY.
B1 TSCE12IBW Insulated Bottle Well, 12”, (27-1/2”Depth) 1
B2 TSC12IBW-MH Insulated Bottle Well, w/Manifold Housing, 12”(17”Depth) 1
C1 TSC30IC10 Ice Chest, w/10 Circuit Cold Plate, 30” (17”Depth) 1
C2 ICC-C30 Covers, 3 Piece, Sliding, 30” 1
C3 ICC-TSC Ice Divider 2
C4 ICBT-9 Bottle Tray, 30”, 9 Bottles 1
D1 SRC-SL Speed Rail, Curved, Left End 1
D2 SRC-S18 Speed Rail, Single, 18” 1
D3 SRC-SR Speed Rail, Curved, Right End 1
E1 TSCE8SSR-BP Slanted Speed Rack, 8”w/Blender Platform (27-1/2”Depth) 1
F1 TSCE18PSTC-RC Prep Sink w/Glass Rinser & Tool Caddy, 18”w/Recessed Cubby (27-1/2”Depth) 1
F2 67419-GN-LF Swing Spout, Goose Neck, Wall Mount 1
F3 67420-2-LF Water Valve, Dual Pedal, Foot Operated, ½ NPT 1
F4 C25598 Wet Waste Basket, Stainless Steel 1
Included Equipment

7. PERLICK CORPORATION 8300 W. Good Hope Road, Milwaukee, WI 53223 • 800.558.5592 • perlick.com
Form No. Z2388
Rev. 02.16.2015

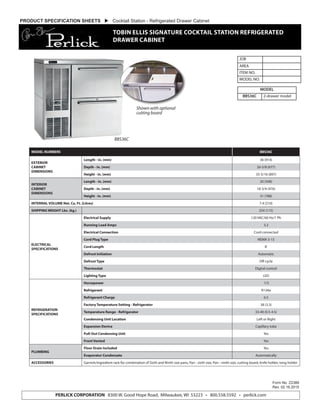

PRODUCT SPECIFICATION SHEETS  Cocktail Station - Refrigerated Drawer Cabinet
TOBIN ELLIS SIGNATURE COCKTAIL STATION REFRIGERATED
DRAWER CABINET
MODEL NUMBERS BBS36C
EXTERIOR
CABINET
DIMENSIONS
Length - in. (mm) 36 (914)
Depth - in. (mm) 26-5/8 (677)
Height - in. (mm) 35-5/16 (897)
INTERIOR
CABINET
DIMENSIONS
Length - in. (mm) 20 (508)
Depth - in. (mm) 18-3/4 (476)
Height - in. (mm) 31 (788)
INTERNAL VOLUME Net. Cu. Ft. (Litres) 7.4 (210)
SHIPPING WEIGHT Lbs. (kg.) 254 (115)
ELECTRICAL
SPECIFICATIONS
Electrical Supply 120 VAC/60 Hz/1 Ph
Running Load Amps 3.2
Electrical Connection Cord connected
Cord Plug Type NEMA 5-15
Cord Length 8'
Defrost Initiation Automatic
Defrost Type Off cycle
Thermostat Digital control
Lighting Type LED
REFRIGERATION
SPECIFICATIONS
Horsepower 1/5
Refrigerant R134a
Refrigerant Charge 6.5
Factory Temperature Setting - Refrigerator 38 (3.3)
Temperature Range - Refrigerator 33-40 (0.5-4.5)
Condensing Unit Location Left or Right
Expansion Device Capillary tube
Pull-Out Condensing Unit Yes
Front Vented Yes
PLUMBING
Floor Drain Included Yes
Evaporator Condensate Automatically
ACCESSORIES Garnish/ingredient rack for combination of Sixth and Ninth size pans, Pan - sixth size, Pan - ninth size, cutting board, knife holder, tong holder
JOB
AREA
ITEM NO.
MODEL NO.
MODEL
BBS36C 2-drawer model
BBS36C
Shown with optional
cutting board

8. PRODUCT SPECIFICATION SHEETS  Cocktail Station - Refrigerated Drawer Cabinet
TOBIN ELLIS SIGNATURE COCKTAIL STATION REFRIGATED
DRAWER CABINET
Form No. Z2388
Rev. 02.16.2015
13 9/16"
344
18 1/8"
461
7/8"
22
2 9/16"
65
23 3/4"
603
LOWER BASKET
17 1/8" [434] LENGTH
20 1/16" [510] DEPTH
13 1/2" [342] HEIGHT
UPPER BASKET
17 1/8" [434] LENGTH
20 1/16" [510] DEPTH
9 1/4" [235] HEIGHT
4 11/16"
119
1 1/16"
26
22 3/4"
578
1 15/16"
49
26 5/8"
677
6 15/16"
176
3/4" NPT
DRAIN EXIT
36"
914
17 3/16"
437
6 1/4"
160
6 5/8" [168]
1 1/8"
29
18"
457
1" NPS DRAIN
SHOWN WITH
OPTIONAL BBC-CB,
CUTTING BOARD
6"
152
3 1/16"
78
35 5/16"
897
15 7/8"
403
2 1/16"
53
2 1/4"
57
18"
457
1/2" NPT
OR 1/2" ID
FLEXIBLE
DRAIN
POWER CORD
EXIT RECESSED
1 1/8" [29]
BBS36C
8300 W. Good Hope Road Milwaukee, WI 53223 Phone 800-558-5592 Fax 414-353-7069
Toll Free 800-558-5592 E-mail:Perlick@perlick.com www. Perlick.com
PERLICK CORPORATION 8300 W. Good Hope Road, Milwaukee, WI 53223 • 800.558.5592 • perlick.com

9. Features
• Available in 17”and 27-1/2”depths
• Quality, all stainless steel construction, smooth inner liner with no exposed
joints or seams
• Keeps juice, mix, syrups, wine and beer bottles chilled and at arms reach.
• Model TSC12IBW-MH includes tooless“flip-down”integrated soda manifold
housing designed for use with Wunder Bar® and Schroeder America™ 8-14
product soda gun/manifolds.
• Manifold mounts to inside cover for easy access and service. Keeps soda lines
out of customers’view.
• Stainless steel legs install without tools and have“Rust-free”thermoplastic feet.
JOB
AREA
ITEM NO.
MODEL NO.
Form No. Z2389
Rev. 02.16.2015
PERLICK CORPORATION 8300 W. Good Hope Rd., Milwaukee, WI 53223 • 800.558.5592 • perlick.com
MODELS
TSC Series TSCE Series
TSC12IBW TSCE12IBW
TSC12IBW-MH
PRODUCT SPECIFICATION SHEETS  Cocktail Station - Insulated Bottle Wells
TOBIN ELLIS SIGNATURE COCKTAIL STATION INSULATED
BOTTLE WELLS
Note: Sode gun system not included.
Shown for clarity only.

10. Form No. Z2389
Rev. 02.16.2015
PERLICK CORPORATION 8300 W. Good Hope Rd., Milwaukee, WI 53223 • 800.558.5592 • perlick.com
PRODUCT SPECIFICATION SHEETS  Cocktail Station - Insulated Bottle Wells
TOBIN ELLIS SIGNATURE COCKTAIL STATION INSULATED
BOTTLE WELLS
MODEL NOS. TSC12IBW TSC12IBW-MH TSCE12IBW
LENGTH IN. (mm) 12”(305) 12”(305) 12”(205)
Depth IN. (mm) 17”(432) 17”(432) 27-1/2”(698)
SHIP WT. lbs. (kg) 35 (15.9) 40 (18.1) 55 (25.0)
CONSTRUCTION All stainless steel construction. Stainless steel interior with 1/4”radius corners, welded and sealed.
BACKSPLASH General and TSC and TSCE Series: Stainless steel 6”high (4”high optional) with 1”return at top,
mechanically fastened and sealed with steel support brackets.
TSD Series: Not applicable
INSULATION Foamed-in-place polyurethane
PLUMBING Drain Connection: 1/2”NPS
BOTTLE CAPACITY
(3-3/4”dia. bottles)
8 5 14
SODA GUN MANIFOLD N/A (Qty. 1) 8-14 button soda gun manifold (not included).
Note: gun holder to be mounted to underside of bar top
N/A
LEGS 1-5/8”tubular, stainless steel with 1”adjustable stainless steel foot.
Note: Sode gun system not included.
Shown for clarity only.
12"
305
36 1/2"
[927]
MAX
35 1/2"
[902]
MIN
10"
254
18 1/2" 17 1/2"
[470] [445]
MAX MIN
11 11/16"
297
6 5/16"
160
1"
25
"DEPTH"1"
25
10"
254
1/2"
NPS
8 7/16"
214
6"
152
TSC12IBW_and_TSCE12IBW
MODEL NO. DESCRIPTION "A"
TSC12IBW INSULATED BOTTLE WELL 16 7/8"
[429]
TSCE12IBW INSULATED BOTTLE WELL,
EXTENDED DEPTH
27 5/8"
[701]
8300 W. Good Hope Road Milwaukee, WI 53223 Phone 800-558-5592 Fax 414-353-7069
Toll Free 800-558-5592 E-mail:Perlick@perlick.com www. Perlick.com
40 13/16"
[1037]
MAX
39 13/16"
[1012]
MIN
10 5/8"
270
22 5/16"
567
9 5/16"
236
5 9/16"
141
11 5/16"
288
1/2" NPS
11 1/4"
286 16 7/8"
429.14
SODA
MANIFOLD
PULL MANIFOLD ASSEMBLY
UP AND FORWARD
TO ACCESS
SODA MANIFOLD
TSC12IBW-MH
8300 W. Good Hope Road Milwaukee, WI 53223 Phone 800-558-5592 Fax 414-353-7069
Toll Free 800-558-5592 E-mail:Perlick@perlick.com www. Perlick.com

11. Features
• Dent resistent ABS top ledge
• Optional“clip-on”ice dividers create separated ice storage
• Shallower depth allows bartender to stand closer to their work counter and
guests
• Raised work height improves ergonomics and reduces reaching and bending
• Stainless steel legs install without tools and have rust-free thermoplastic feet
JOB
AREA
ITEM NO.
MODEL NO.
Form No. Z2385
Rev. 02.11.2015
PERLICK CORPORATION 8300 W. Good Hope Rd., Milwaukee, WI 53223 • 800.558.5592 • perlick.com
MODELS
TSC Series
TSC24IC
TSC30IC
TSC36IC
TSC42IC
PRODUCT SPECIFICATION SHEETS  Cocktail Station - Ice Chests
TOBIN ELLIS SIGNATURE COCKTAIL STATION ICE CHESTS
WITHOUT COLD PLATE

12. *Note: Covers not included.
Form No. Z2385
Rev. 02.11.2015
PERLICK CORPORATION 8300 W. Good Hope Rd., Milwaukee, WI 53223 • 800.558.5592 • perlick.com
PRODUCT SPECIFICATION SHEETS  Cocktail Station - Ice Chests
TOBIN ELLIS SIGNATURE COCKTAIL STATION ICE CHESTS
WITHOUT COLD PLATE
“LENGTH”
“LENGTH/2”
MODEL NOS. TSC24IC TSC30IC TSC36IC TSC42IC
LENGTH IN. (mm) 24 (610) 30 (762) 36 (914) 42 (1067)
ICE CAP. lbs. (kg) 50 (22.7) 64 (27.2) 78 (35.4) 92 (41.7)
SHIP WT. lbs. (kg) 60 (27.2) 70 (31.8) 80 (36.3) 90 (40.8)
FRONT & SIDES Stainless steel, top rim ABS
BACKSPLASH General and TSC Series: Stainless steel 6”high (4”optional) with 1”return at top, mechanically
fastened and sealed to ice chest top with steel support brackets
TSD Series: Not applicable
BACK & BOTTOM Galvanized steel
COVERS* Stainless steel, three-piece, removable
INTERIOR Stainless steel with 1/4”radius corners, welded and sealed with non-exposed cold plate. Interiors can
be divided with accessory“clip-on”ice dividers
INSULATION Foamed-in-place polyurethane
LEGS 1-5/8”tubular, stainless steel with 1”adjustable thermoplastic foot (4 legs are standard)
PLUMBING Drain connection– 1/2”- 14 NPSM male
ACCESSORIES Three-piece covers,“clip-on”dividers and bottle tray

13. Features
• Patented design conceals cold plate under liner for improved sanitation
• Dent resistent ABS top ledge
• Optional“clip-on”ice dividers create separated ice storage
• Shallower depth allows bartender to stand closer to their work counter and
guests
• Raised work height improves ergonomics and reduces reaching and bending
• Stainless steel legs install without tools and have rust-free thermoplastic feet
JOB
AREA
ITEM NO.
MODEL NO.
Form No. Z2386
Rev. 02.12.2015
PERLICK CORPORATION 8300 W. Good Hope Rd., Milwaukee, WI 53223 • 800.558.5592 • perlick.com
MODELS
TSC Series
TSC24IC10
TSC30IC10
TSC36IC10
TSC42IC10
PRODUCT SPECIFICATION SHEETS  Cocktail Station - Ice Chests
TOBIN ELLIS SIGNATURE COCKTAIL STATION ICE CHESTS
WITH COLD PLATE

14. *Note: Covers not included.
Form No. Z2386
Rev. 02.12.2015
PERLICK CORPORATION 8300 W. Good Hope Rd., Milwaukee, WI 53223 • 800.558.5592 • perlick.com
PRODUCT SPECIFICATION SHEETS  Cocktail Station - Ice Chests
TOBIN ELLIS SIGNATURE COCKTAIL STATION ICE CHESTS
WITH COLD PLATE
“LENGTH”
“LENGTH/2”
MODEL NOS. TSC24IC10 TSC30IC10 TSC36IC10 TSC42IC10
LENGTH IN. (mm) 24 (610) 30 (762) 36 (914) 42 (1067)
ICE CAP. lbs. (kg) 50 (22.7) 64 (27.2) 78 (35.4) 92 (41.7)
SHIP WT. lbs. (kg) 130 (60) 140 (63.5) 150 (68.0) 160 (72.6)
FRONT & SIDES Stainless steel, top rim ABS
BACKSPLASH General and TSC Series: Stainless steel 6”high (4”optional) with 1”return at top, mechanically
fastened and sealed to ice chest top with steel support brackets
TSD Series: Not applicable
BACK & BOTTOM Galvanized steel
COVERS* Stainless steel, three-piece, removable
INTERIOR Stainless steel with 1/4”radius corners, welded and sealed with non-exposed cold plate. Interiors can
be divided with accessory“clip-on”ice dividers
INSULATION Foamed-in-place polyurethane
COLD PLATE Cast aluminum plate concealed under ice chest liner. Cold plate has 2 full-length circuits and 8 half-
length circuits. Connections - 5/16”O.D. stainless steel tubing with swaged end to accept standard 1/4”
I.D. beverage tubing
OPERATING
SPECIFICATIONS
Each full circuit will deliver four 6 oz. drinks per minute at 40° continuously, or 40 oz. every three min-
utes in a single draw (flow rate 2 oz./sec, 75° product)
LEGS 1-5/8”tubular, stainless steel with 1”adjustable thermoplastic foot (4 legs are standard)
PLUMBING Drain connection– 1/2”- 14 NPSM male
ACCESSORIES Three-piece covers,“clip-on”dividers and bottle tray

15. Features
• Slanted design with wire rack conveniently stores liquor bottles for speedy
access
• Underside of Slanted Liquor Rack is sound deadened
• TSCE8SSR-BP and TSCE12SSR-12BP Models have integrated Blender Platform
• Optional LED lights to illuminate bottles
• Stainless steel legs install without tools and have“Rust-free”thermoplastic feet
JOB
AREA
ITEM NO.
MODEL NO.
Form No. Z2387
Rev. 02.16.2015
PERLICK CORPORATION 8300 W. Good Hope Rd., Milwaukee, WI 53223 • 800.558.5592 • perlick.com
MODELS
TSCE Series
TSCE8SSR
TSCE8SSR-BP
TSCE12SSR
TSCE12SSR-BP
PRODUCT SPECIFICATION SHEETS  Cocktail Station - Slanted Liquor Racks
TOBIN ELLIS SIGNATURE COCKTAIL STATION SLANTED
LIQUOR RACKS

16. Form No. Z2387
Rev. 02.16.2015
PERLICK CORPORATION 8300 W. Good Hope Rd., Milwaukee, WI 53223 • 800.558.5592 • perlick.com
PRODUCT SPECIFICATION SHEETS  Cocktail Station - Slanted Liquor Racks
TOBIN ELLIS SIGNATURE COCKTAIL STATION SLANTED
LIQUOR RACKS
36 1/2" 35 1/2"
[927] [902]
MAX MIN
"A"
"A/2"
6 3/8"
162
OPTIONAL
LED LIGHT
18 1/2" 17 1/2"
[470] [445]
MAX MIN
7 1/16"
179
1"
25
10 15/16"
278
25 3/8"
644 3 15/16"
100
TYP
4"
102
TSCEXXSSR
27 9/16"
701
TSCEXXSSR
1 1/2"
38
7 9/16"
192
3 15/16"
100
TYP
4"
102
17 5/16"
440
TSCEXXSSR-BF
1/8"
3
1/8"
3
TSCEXXSSR-BF
TSCEXXSSR
8300 W. Good Hope Road Milwaukee, WI 53223 Phone 800-558-5592 Fax 414-353-7069
MODEL NOS. TSCE8SSR TSCE8SSR-BP TSCE12SSR TSCE12SSR-BP
LENGTH IN. (mm) 8”(203) 8”(203) 12”(205) 12”(205)
SHIP WT. lbs. (kg) 35 (15.9) 40 (18.1) 40 (18.1) 45 (20.4)
CONSTRUCTION All stainless steel construction, with steel vinyl coated wire racks
BACKSPLASH General and TSC Series: Stainless steel 6”high (4”high optional) with 1”return at top, mechanically
fastened and sealed with steel support brackets
TSD Series: Not applicable
BOTTLE CAPACITY
(3-3/4”dia. bottles)
12 8 18 14
BLENDER PLATFORM N/A 7-3/4”x 7-9/16” N/A 11-3/4”x 7-9/16”
LEGS Unit requires adjacent support. If located at the end of a line-up, one pair of leges is included. 1-5/8”
tubular, stainless steel with 1”adjustable stainless steel foot.
ACCESSORIES LED light, small bottle caddy
LENGTH
LENGTH/2

17. PERLICK CORPORATION 8300 W. Good Hope Road, Milwaukee, WI 53223 • 800.558.5592 • perlick.com
JOB
AREA
ITEM NO.
MODEL NO.
Models
TSCE Series
TSCE12PS
TSCE12PS-RC
Form No. Z2383
Rev. 02.10.2015
PRODUCT SPECIFICATION SHEETS  Cocktail Station - Prep Sink
TOBIN ELLIS SIGNATURE COCKTAIL STATION 12”PREP SINK
Features
• Heavy gauge fabricated sink bowl(s) with one-piece seamless top with radius corners
for easy cleaning
• Underside of sink(s) is sound deadened
• Integrated Glass Rinser to quickly rinse bartender shaker tins (not included)
• TSCE12PS-RC model has integrated Recessed Cubby storage which accommodates
small tonic or mix bottles. Heavy gauge wire rod securely keeps bottles in place.
• Stainless steel legs install without tools and have“Rust Free”thermoplastic feet.

18. PRODUCT SPECIFICATION SHEETS  Cocktail Station - Prep Sink
TOBIN ELLIS SIGNATURE COCKTAIL STATION 12”PREP SINK
Form No. Z2383
Rev. 02.10.2015
PERLICK CORPORATION 8300 W. Good Hope Road, Milwaukee, WI 53223 • 800.558.5592 • perlick.com
PART NO. TSCE12PS TSCE12PS-RC
LENGTH IN. (mm) 12”(305) 12”(305)
SHIP WT. lbs (kg) 50 (22.6) 50 (22.6)
CONSTRUCTION All stainless steel construction.
BACKSPLASH General and TSCE Series: Stainless steel 6”high (4”high optional) with 1”return at top, mechanically fastened and sealed
with steel support brackets. TSD Series: Not Applicable
SINK - WET WASTE Stainless steel sink bowl with 1/4”radius corners. Sound deadened to absorb sound. 9-1/2”x 16-5/16”x 7-3/16”deep. Fur-
nished with 1-1/2”NPS stainless steel drain socket. Accommodates“optional”wet waste pan.
GLASS RINSER NSF listed stainless steel 4-3/8”diameter glass rack and valve assembly. 1/2”NPS thread for valve connection for 3/8”flexible
hose. 9-1/2”x 6-3/16”x 15/16”deep pan has“Water fall”drainage into Wet Waste sink, eliminates need for additional drain.
Includes removable glass rack. Check local plumbing codes. Install in-line water regulator set to 15-20 psi (not included). Install
in-line shut-off valve (not included) and turn off nightly.
RECESSED CUBBY
STORAGE
N/A Stainless steel recessed cubby storage in front face of mod-
ule, 16-3/8”x 7-5/8”x 4-1/2”deep. Heavy gauge stainless steel
rod retainer, keeps small bottle secure.
LEGS 1-5/8”tubular, stainless steel with 1”adjustable stainless steel foot.
ACCESSORIES NSF Listed, low lead compliant water faucets, spouts and foot operated pedals.
RECESSED CUBBY ON
MODEL TSCE12PS-RC

19. PERLICK CORPORATION 8300 W. Good Hope Road, Milwaukee, WI 53223 • 800.558.5592 • perlick.com
JOB
AREA
ITEM NO.
MODEL NO.
Models
TSCE Series
TSCE18PSTC
TSCE18PSTC-RC
Form No. Z2384
Rev. 02.10.2015
PRODUCT SPECIFICATION SHEETS  Cocktail Station - Prep Sink
TOBIN ELLIS SIGNATURE COCKTAIL STATION 18”PREP SINK
Features
• Heavy gauge fabricated sink bowl(s) with one-piece seamless top with radius corners
for easy cleaning
• Underside of sink(s) is sound deadened
• Integrated Glass Rinser to quickly rinse bartender shaker tins (not included)
• “Sectioned - multi-depth”tool caddy disher well to accommodate various length bar
tools (not included). Factory installed fine stream“dipper”faucet.
• TSCE18PSTC-RC model has integrated Recessed Cubby storage which accommodates
small tonic or mix bottles. Heavy gauge wire rod securely keeps bottles in place.
• Stainless steel legs install without tools and have“Rust Free”thermoplastic feet.

20. PRODUCT SPECIFICATION SHEETS  Cocktail Station - Prep Sink
TOBIN ELLIS SIGNATURE COCKTAIL STATION 18”PREP SINK
Form No. Z2384
Rev. 02.10.2015
PERLICK CORPORATION 8300 W. Good Hope Road, Milwaukee, WI 53223 • 800.558.5592 • perlick.com
PART NO. TSCE18PSTC TSCE18PSTC-RC
LENGTH IN. (mm) 18”(457) 18”(457)
SHIP WT. lbs (kg) 60 (22.6) 60 (22.6)
CONSTRUCTION All stainless steel construction.
BACKSPLASH General and TSCE Series: Stainless steel 6”high (4”high optional) with 1”return at top, mechanically fastened and sealed
with steel support brackets. TSD Series: Not Applicable
SINK - WET WASTE Stainless steel sink bowl with 1/4”radius corners. Sound deadened to absorb sound. 9-1/2”x 16-5/16”x 7-3/16”deep. Fur-
nished with 1-1/2”NPS stainless steel drain socket. Accommodates“optional”wet waste pan.
GLASS RINSER NSF listed stainless steel 4-3/8”diameter glass rack and valve assembly. 1/2”NPS thread for valve connection for 3/8”flexible
hose. 9-1/2”x 6-3/16”x 15/16”deep pan has“Water fall”drainage into Wet Waste sink, eliminates need for additional drain.
Includes removable glass rack. Check local plumbing codes. Install in-line water regulator set to 15-20 psi (not included). Install
in-line shut-off valve (not included) and turn off nightly.
TOOL CADDY DISHER WELL
(Model TSCD18PSTC-RC)
Stainless steel sink bowl with 1/4”radius corners. Sound deadened to absorb sound. 4-3/8”c 14-5/16”x 7-3/16”deep. Fur-
nished with 1-1/2”NPS stainless steel drain socket. Includes removable, sectioned, multi-depth tool caddy disher well to ac-
commodate various length bar tools (not included). Includes factory installed NSF listed, low-lead, fine stream“dipper”faucet.
RECESSED CUBBY
STORAGE
N/A Stainless steel recessed cubby storage in front face of mod-
ule, 16-3/8”x 7-5/8”x 4-1/2”deep. Heavy gauge stainless steel
rod retainer, keeps small bottle secure.
LEGS 1-5/8”tubular, stainless steel with 1”adjustable stainless steel foot.
ACCESSORIES NSF Listed, low lead compliant water faucets, spouts and foot operated pedals.
RECESSED CUBBY ON
MODEL TSCE12PS-RC

21. JOB
AREA
ITEM NO.
MODEL NO.
Form No. Z2391
Rev. 02.17.2015
PERLICK CORPORATION 8300 W. Good Hope Rd., Milwaukee, WI 53223 • 800.558.5592 • perlick.com
PRODUCT SPECIFICATION SHEETS  Cocktail Station - Accessories
TOBIN ELLIS SIGNATURE COCKTAIL STATION ACCESSORIES
PART NO. DESCRIPTION APPLICATION LENGTH (mm)
SRC-CL Speed Rail, Curved, Left End Any TSC Series (17”Depth)
Cocktail Station Model
12”(305)
SRC-CR Speed Rail, Curved, Right End 12”(305)
PART NO. DESCRIPTION APPLICATION LENGTH (mm)
ICC-C24 Covers, 3 Piece, Sliding, St. St’l. TSC24 Series Ice Chests 24”(610)
ICC-C30 Covers, 3 Piece, Sliding, St. St’l. TSC30 Series Ice Chests 30”(762)
ICC-C36 Covers, 3 Piece, Sliding, St. St’l. TSC36 Series Ice Chests 36”(914)
ICC-C42 Covers, 3 Piece, Sliding, St. St’l. TSC42 Series Ice Chests 42”(1067)
PART NO. DESCRIPTION APPLICATION LENGTH (mm)
ICBT-7 Bottle Tray, 7 Bottles TSC24 - TSC42 Ice Chests 21-1/2”(546)
ICBT-9 Bottle Tray, 9 Bottles TSC30 - TSC42 Ice Chests 27-1/2”(699)
PART NO. DESCRIPTION APPLICATION
ICC-TSC Ice Divider, St. St’l. TSC Series Ice Chests
PART NO. DESCRIPTION APPLICATION
SSR-2SBC Small Bottle Caddy, holds two
1-3/4”dia. bottles, Steel Wire - Vinyl
Coated, Clips onto Main Wire Rack.
TSCE8SSR or TSCE12SSR
Series Slanted Speed Racks
SRC-S12 Speed Rail, Single, St. St’l.
Any TSC Series (17”Depth)
Cocktail Station Model
12”(305)
SRC-S18 Speed Rail, Single, St. St’l. 12”(305)
SCR-S24 Speed Rail, Single, St. St’l. 24”(610)
SCR-S30 Speed Rail, Single, St. St’l. 30”(792)
SCR-S36 Speed Rail, Single, St. St’l. 36”(914)
SCR-S42 Speed Rail, Single, St. St’l. 42”(1067)
SCR-S48 Speed Rail, Single, St. St’l. 48”(1219)
Cocktail Station - Speed Rail
Cocktail Station - Ice Chest Covers
Cocktail Station - Ice Chest Bottle Tray
Cocktail Station - Ice Chest Divider
Cocktail Station - Slant Speed Rail
ICC-TSC
ICC-C24
ICBT-9
SSR-2SBC
SRC-CL SRC-S24
SRC-CR
LENGTH
