The document discusses process synchronization and solutions to the critical section problem. It describes a bounded buffer problem where a producer and consumer access shared data concurrently. Without synchronization, the final value of shared data like a counter could be incorrect. It presents Peterson's algorithm and solutions using test-and-set and compare-and-swap hardware instructions to synchronize processes and ensure mutual exclusion. Finally, it introduces mutex locks and semaphores as synchronization tools provided by operating systems to solve the critical section problem.

1. Operating
Systems
Process Synchronization

2. Process
Synchronization
 Concurrent access to shared
data may result in data
inconsistency.
 Maintaining data consistency
requires mechanisms to ensure
that cooperating processes
access shared data
sequentially.

3. Bounded-Buffer Problem
Shared data
#define BUFFER_SIZE 10
typedef struct {
. . .
} item;
item buffer[BUFFER_SIZE];
int in = 0, out = 0;
int counter = 0;

4. Producer process
item nextProduced;
…
while (1) {
while (counter == BUFFER_SIZE) ;
buffer[in] = nextProduced;
in = (in + 1) % BUFFER_SIZE;
counter++;
}
Bounded-Buffer Problem

5. Bounded-Buffer Problem
Consumer process
item nextConsumed;
while (1) {
while (counter == 0) ;
nextConsumed = buffer[out];
out = (out + 1) % BUFFER_SIZE;
counter--;
}

6.  “counter++” in assembly language
MOV R1, counter
INC R1
MOV counter, R1
 “counter--” in assembly language
MOV R2, counter
DEC R2
MOV counter, R2
Bounded-Buffer Problem

7.  If both the producer and consumer
attempt to update the buffer
concurrently, the machine language
statements may get interleaved.
 Interleaving depends upon how the
producer and consumer processes
are scheduled.
Bounded-Buffer Problem

8.  Assume counter is initially 5. One
interleaving of statements is:
producer: MOV
INC
R1, counter
R1
(R1 = 5)
(R1 = 6)
consumer: MOV
DEC
R2, counter
R2
(R2 = 5)
(R2 = 4)
producer: MOV counter, R1 (counter = 6)
consumer: MOV counter, R2 (counter = 4)
 The value of count may be either 4 or 6,
where the correct result should be 5.
Bounded-Buffer Problem

9.  Race Condition: The situation
where several processes access
and manipulate shared data
concurrently, the final value of the
data depends on which process
finishes last.
Process
Synchronization

10.  Critical Section: A piece of code
in a cooperating process in which
the process may updates shared
data (variable, file, database, etc.).
 Critical Section Problem:
Serialize executions of critical
sections in cooperating processes
Process
Synchronization

11.  More Examples
Bank transactions
Airline reservation
Process
Synchronization

12. Bank Transactions
Balance
Deposit Withdrawal
MOV A, Balance
ADD A, Deposited
MOV Balance, A
MOV B, Balance
SUB B, Withdrawn
MOV Balance, B
D W

13.  Bank Transactions
Current balance = Rs. 50,000
Check deposited = Rs. 10,000
ATM withdrawn = Rs. 5,000
Bank Transactions

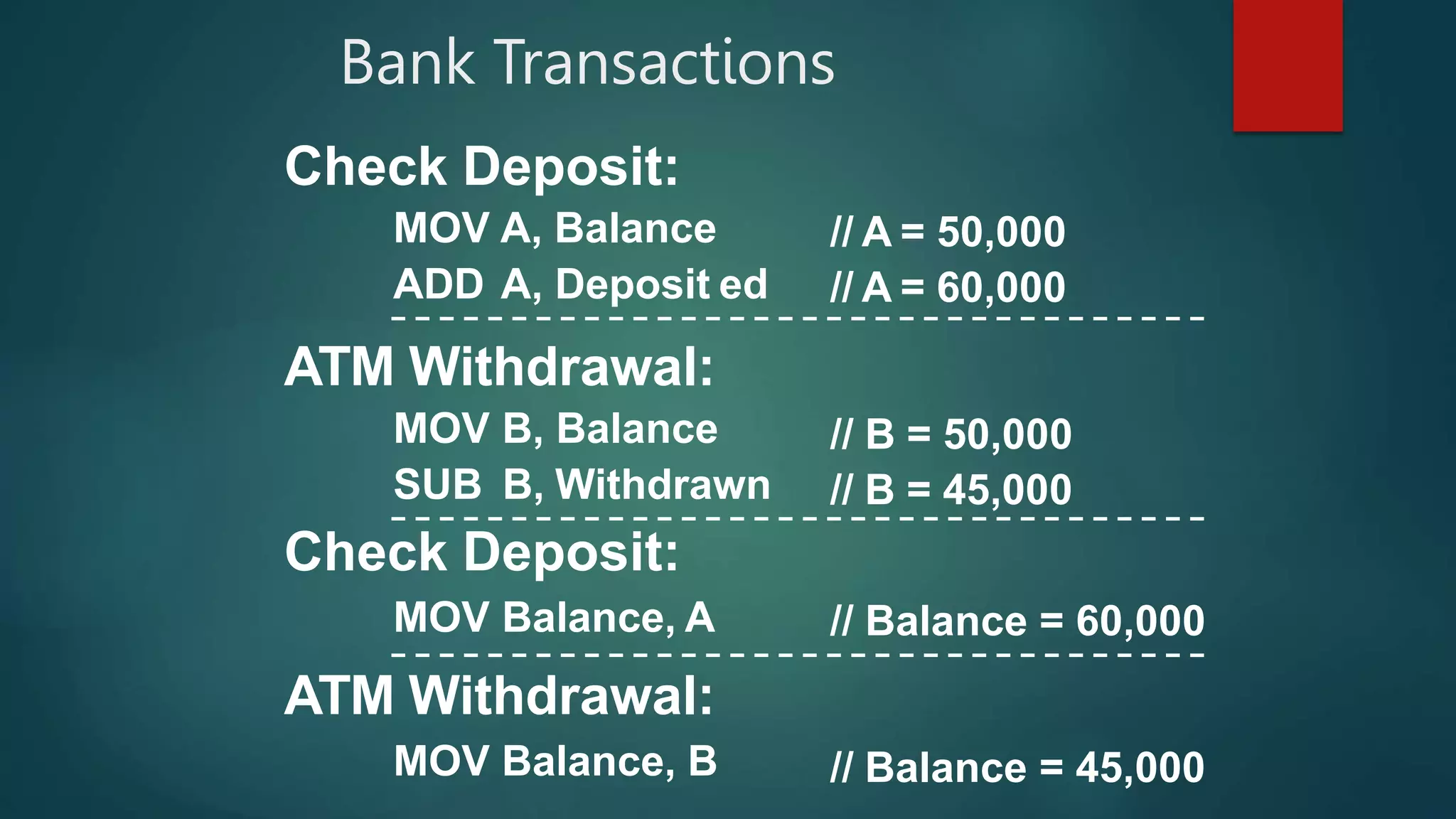

14. Bank Transactions
Check Deposit:
MOV A, Balance
ADD A, Deposit ed
ATM Withdrawal:
MOV B, Balance
SUB B, Withdrawn
Check Deposit:
MOV Balance, A
ATM Withdrawal:
MOV Balance, B
// A = 50,000
// A = 60,000
// B = 50,000
// B = 45,000
// Balance = 60,000
// Balance = 45,000

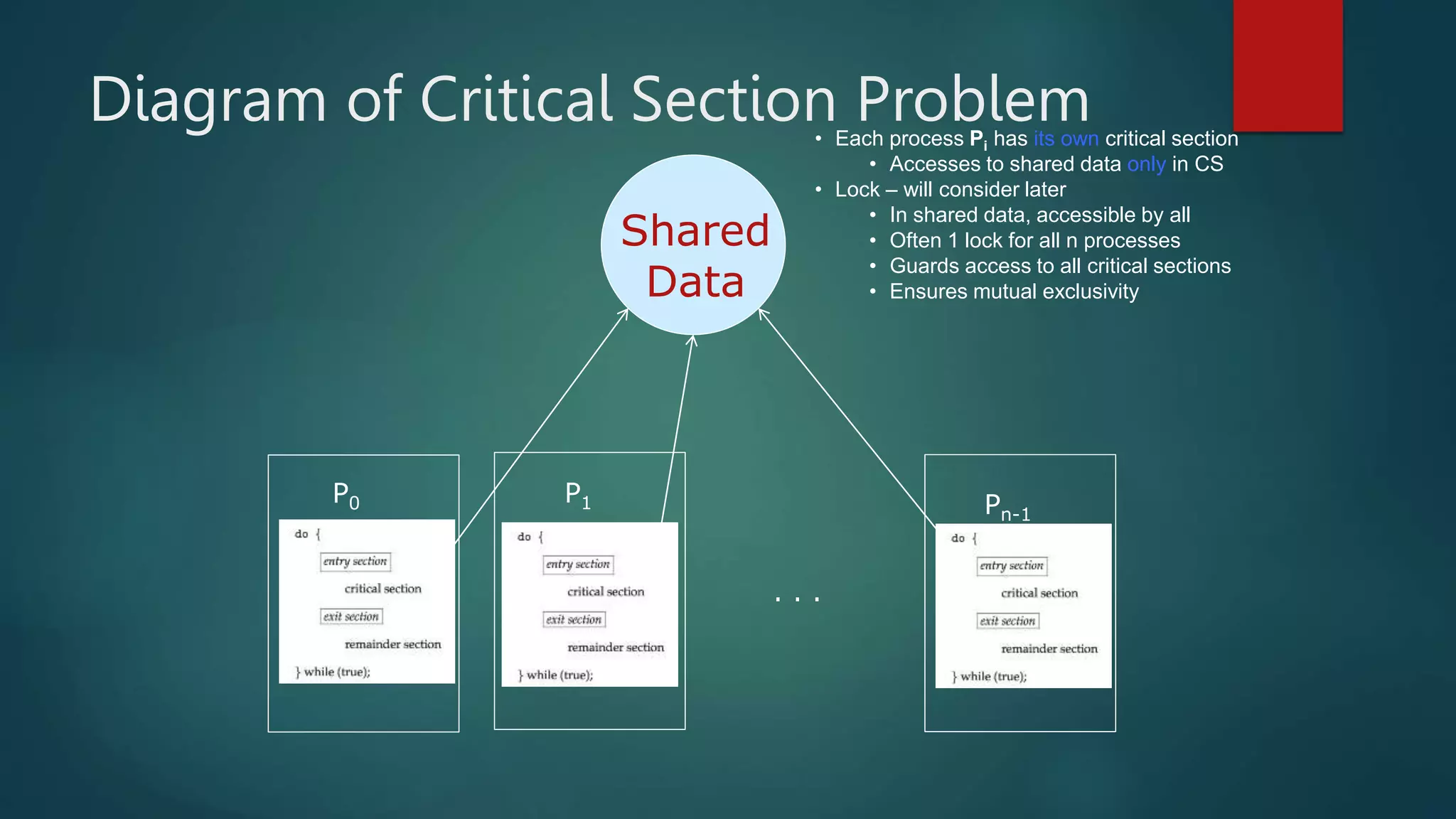

15. Diagram of Critical Section Problem
P0 P1 Pn-1
Shared
Data
• Each process Pi has its own critical section
• Accesses to shared data only in CS
• Lock – will consider later
• In shared data, accessible by all
• Often 1 lock for all n processes
• Guards access to all critical sections
• Ensures mutual exclusivity
. . .

16.  Software based solutions
 Hardware based solutions
 Operating system based
solution
Solution of the Critical Problem

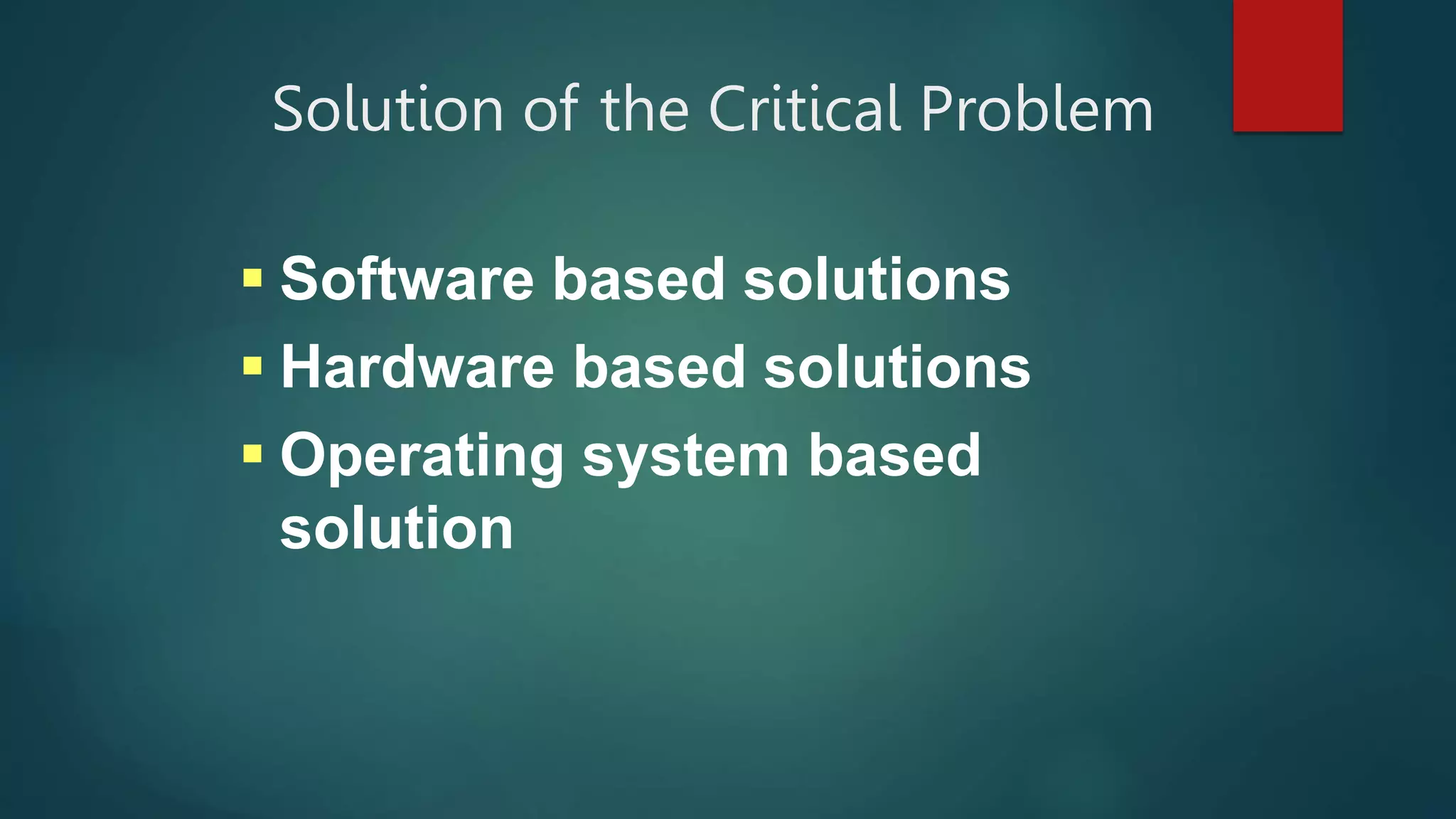

17.  Software based solutions
 Hardware based solutions
 Operating system based
solution
Solution of the Critical Problem

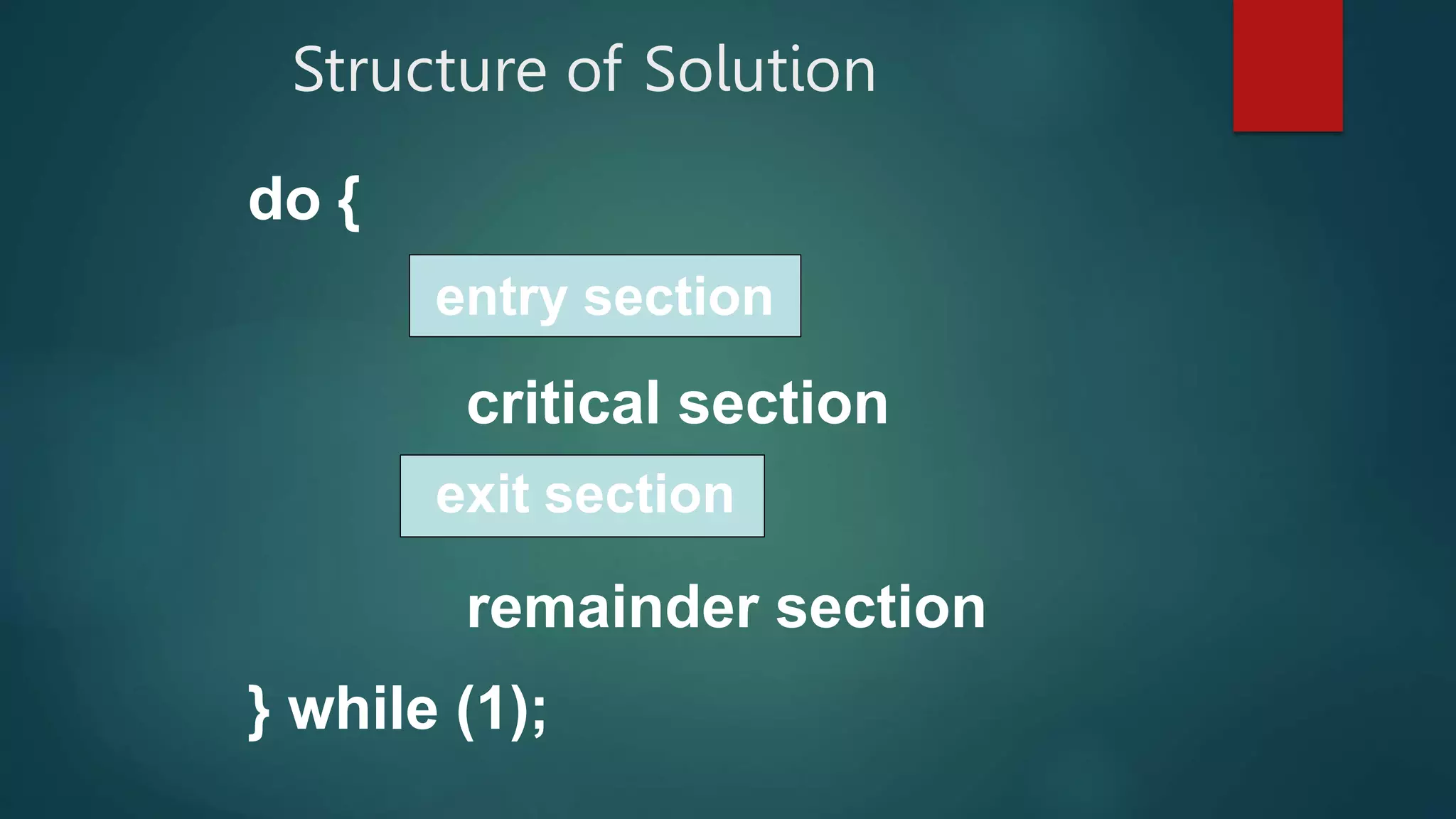

18. do {
critical section
remainder section
} while (1);
entry section
exit section
Structure of Solution

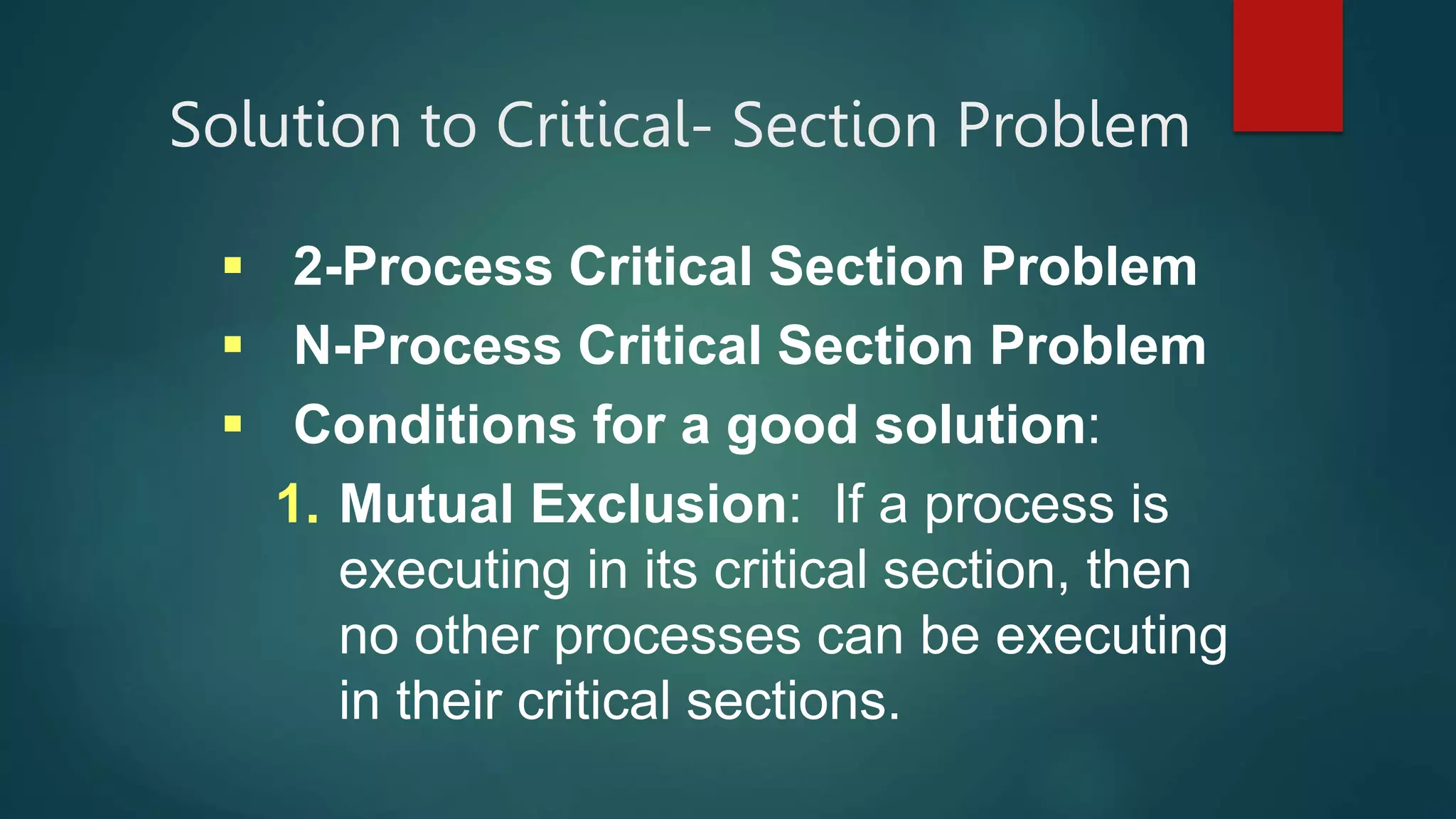

19. Solution to Critical- Section Problem
 2-Process Critical Section Problem
 N-Process Critical Section Problem
 Conditions for a good solution:
1. Mutual Exclusion: If a process is
executing in its critical section, then
no other processes can be executing
in their critical sections.

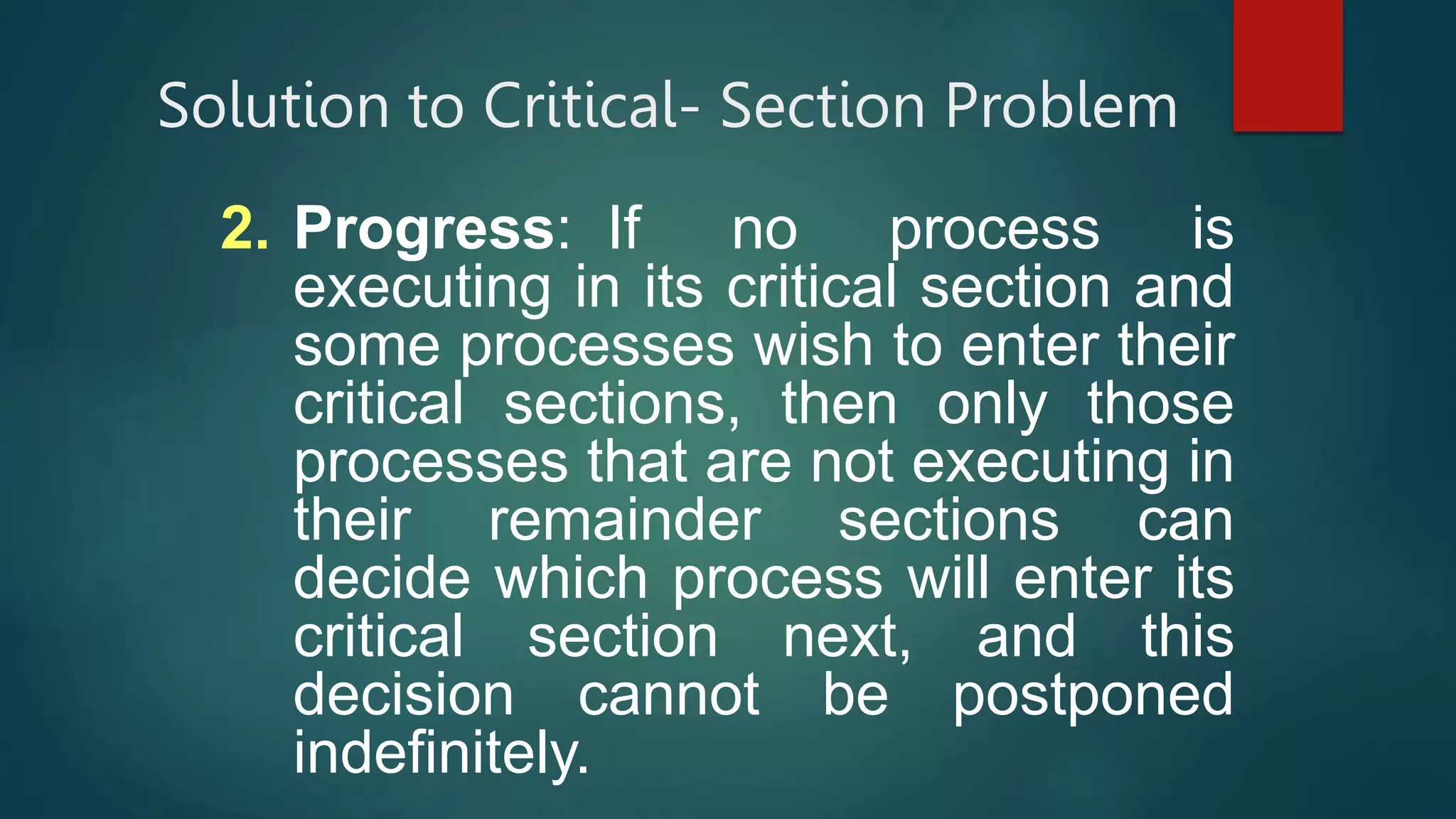

20. Solution to Critical- Section Problem
2. Progress: If no process is
executing in its critical section and
some processes wish to enter their
critical sections, then only those
processes that are not executing in
their remainder sections can
decide which process will enter its
critical section next, and this
decision cannot be postponed
indefinitely.

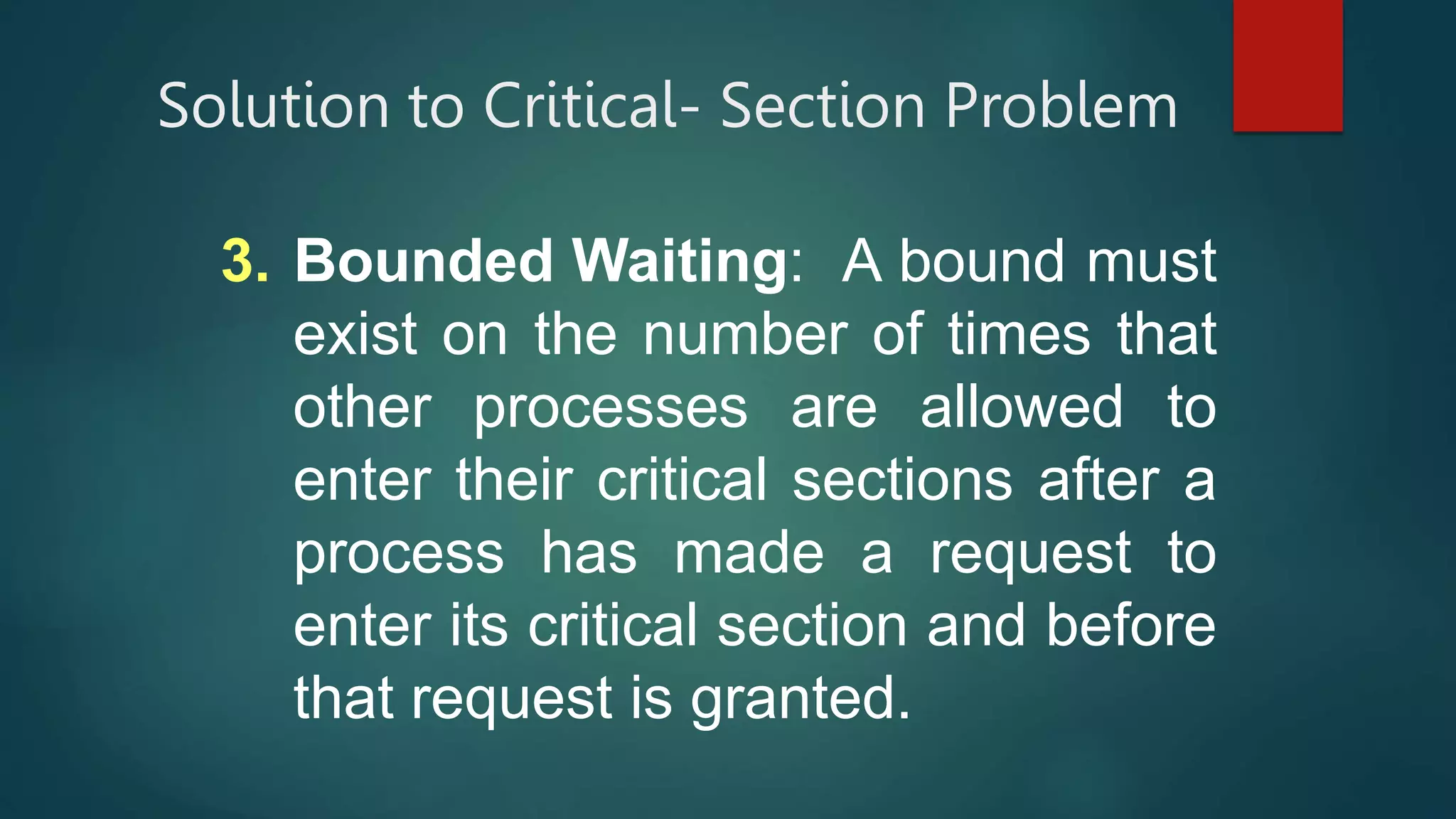

21. Solution to Critical- Section Problem
3. Bounded Waiting: A bound must
exist on the number of times that
other processes are allowed to
enter their critical sections after a
process has made a request to
enter its critical section and before
that request is granted.

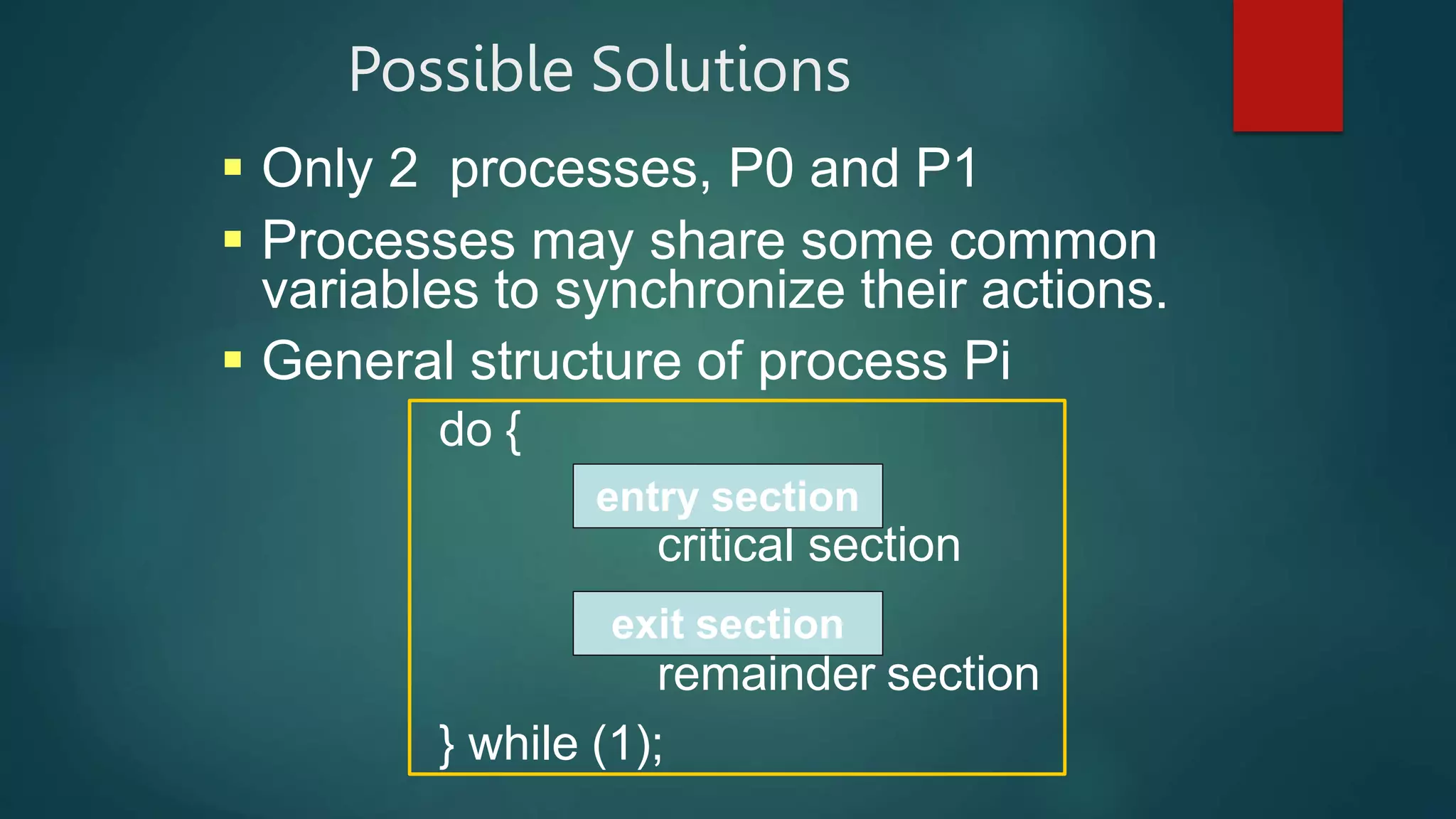

22. Possible Solutions
 Only 2 processes, P0 and P1
 Processes may share some common
variables to synchronize their actions.
 General structure of process Pi
do {
critical section
remainder section
} while (1);
entry section
exit section

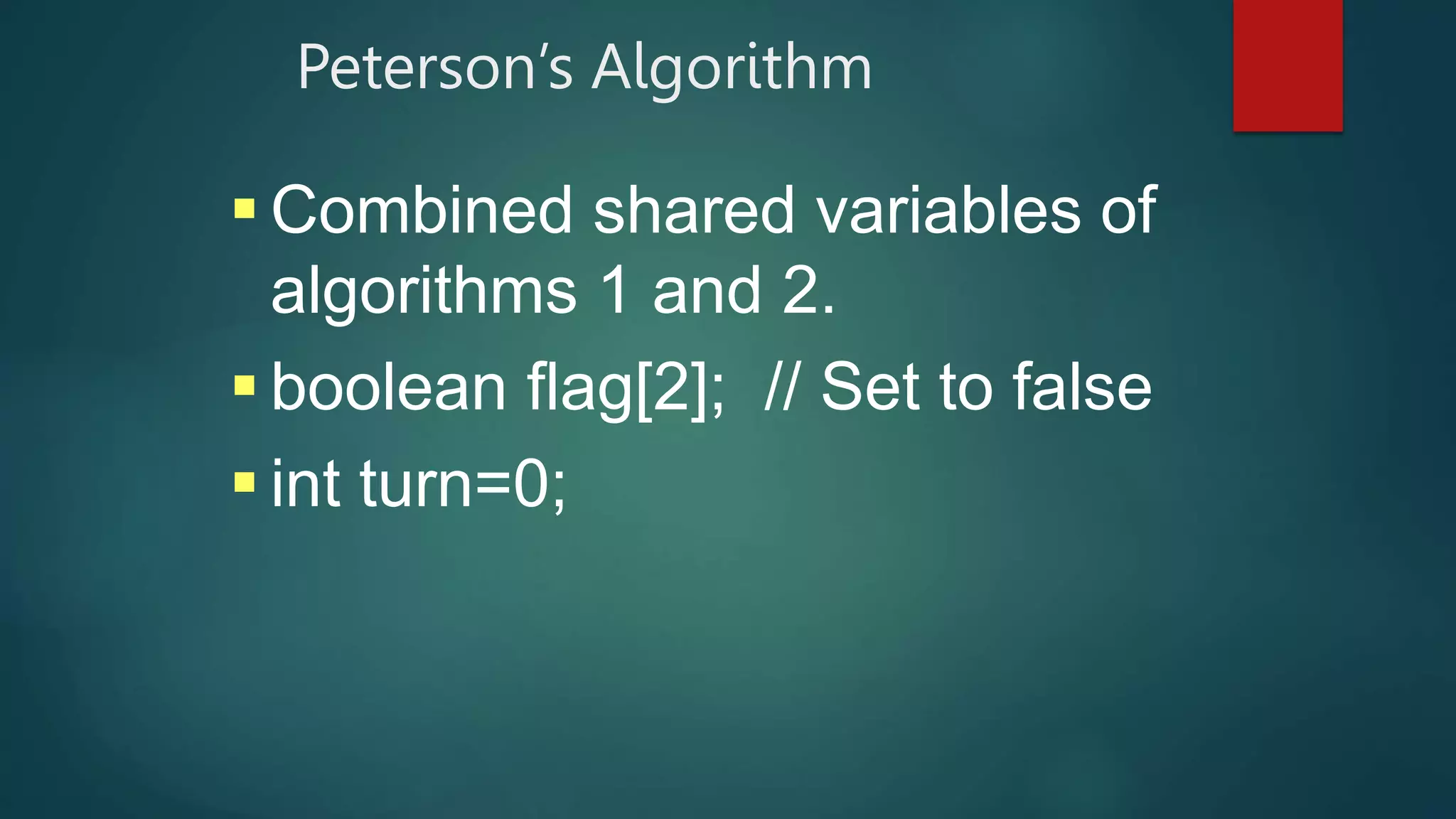

23. Peterson’s Algorithm
 Combined shared variables of
algorithms 1 and 2.
 boolean flag[2]; // Set to false
 int turn=0;

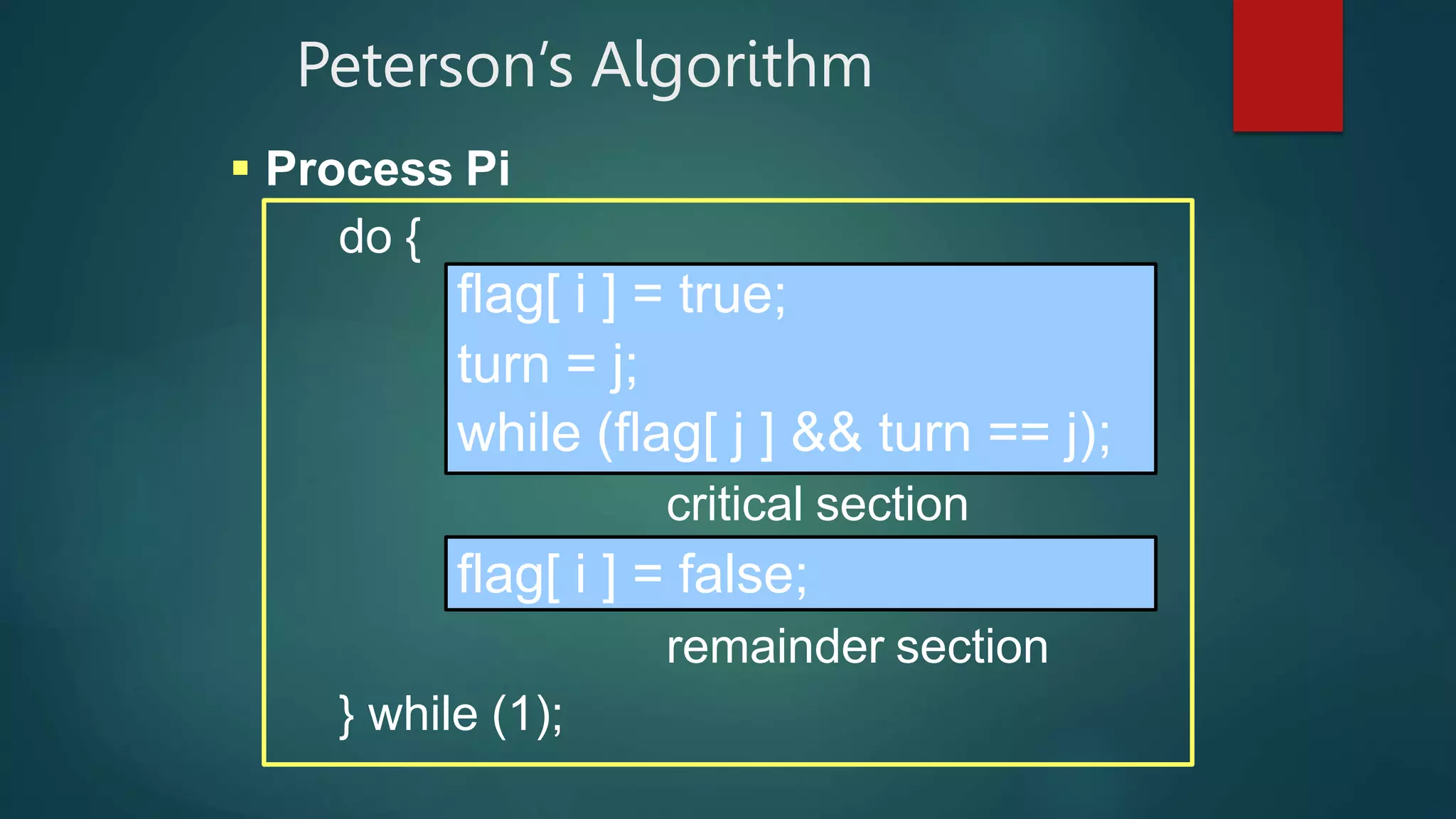

24. Peterson’s Algorithm
 Process Pi
do {
critical section
remainder section
} while (1);
flag[ i ] = true;
turn = j;
while (flag[ j ] && turn == j);
flag[ i ] = false;

25. Peterson’s Algorithm
 Meets all three requirements:
Mutual Exclusion: ‘turn’ can have
one value at a given time (0 or 1)
Bounded-waiting: At most one
entry by a process and then the
second process enters into its
CS

26. Peterson’s Algorithm
 Progress: Exiting process sets
its ‘flag’ to false … comes back
quickly and set it to true again
… but sets turn to the number
of the other process

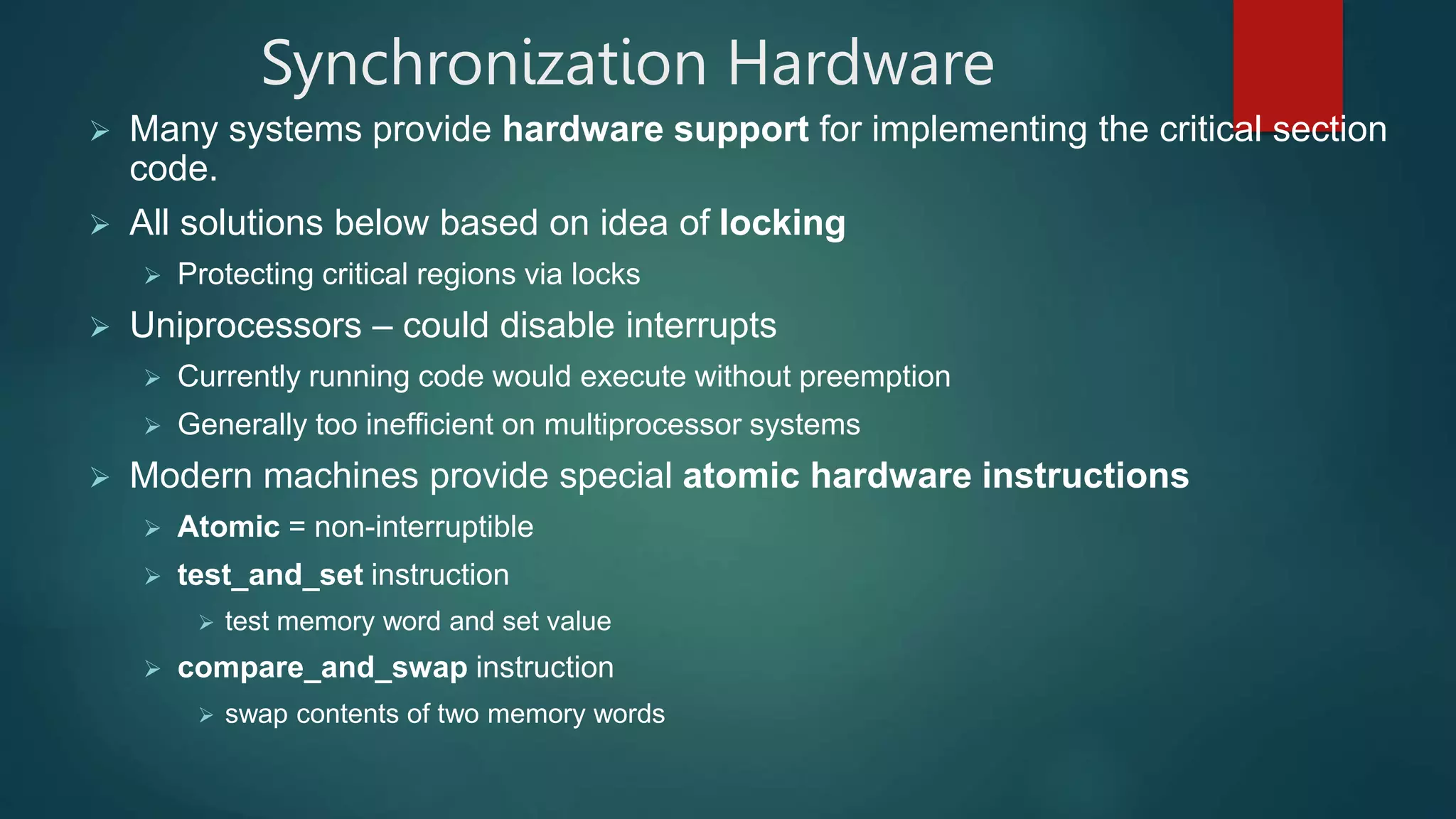

27. Synchronization Hardware
 Many systems provide hardware support for implementing the critical section
code.
 All solutions below based on idea of locking
 Protecting critical regions via locks
 Uniprocessors – could disable interrupts
 Currently running code would execute without preemption
 Generally too inefficient on multiprocessor systems
 Modern machines provide special atomic hardware instructions
 Atomic = non-interruptible
 test_and_set instruction
 test memory word and set value
 compare_and_swap instruction
 swap contents of two memory words

28. Solution to Critical-section Problem
Using Locks
while (true) {
acquire lock
critical section
release lock
remainder section
}

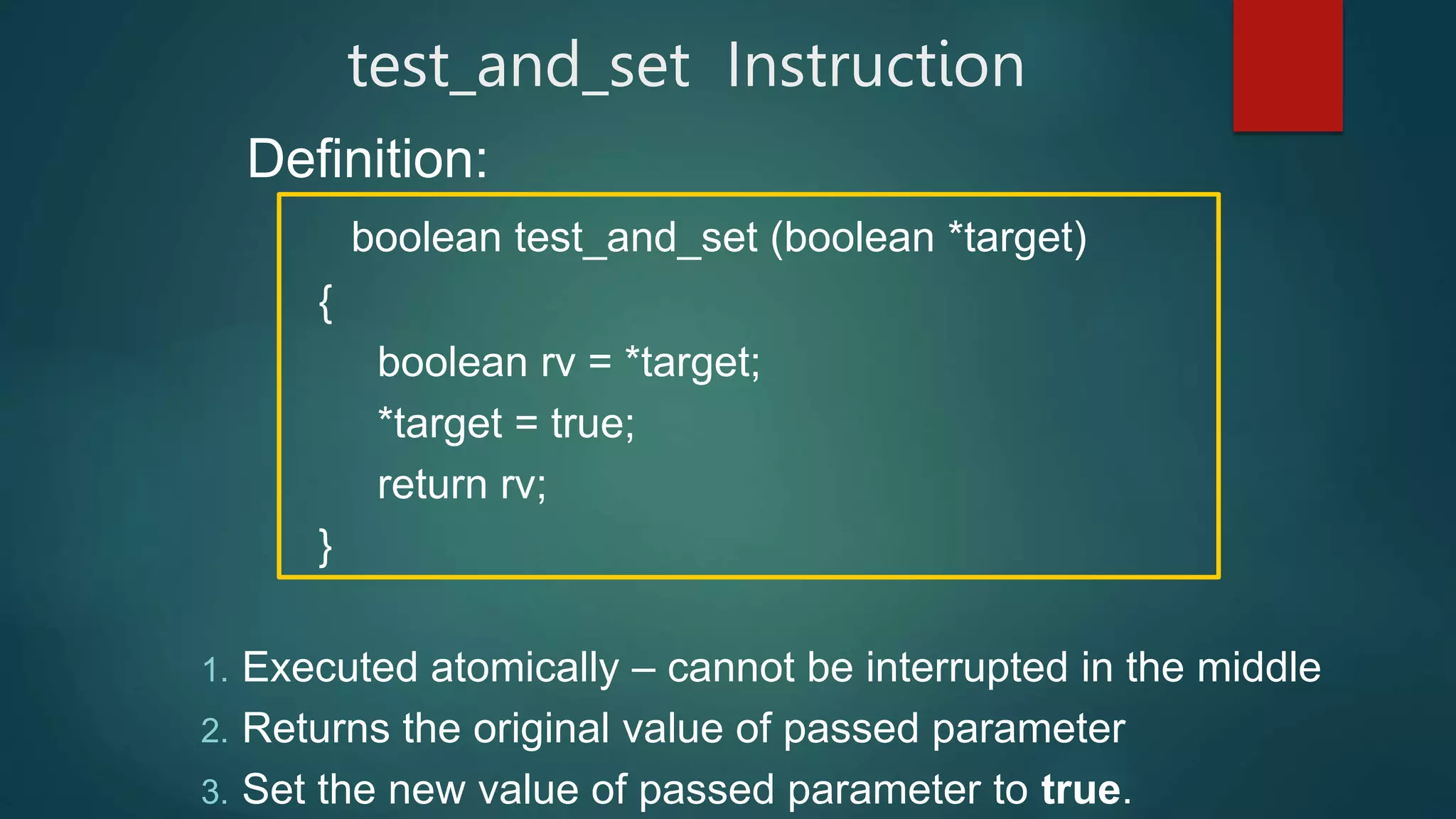

29. test_and_set Instruction
Definition:
boolean test_and_set (boolean *target)
{
boolean rv = *target;
*target = true;
return rv;
}
1. Executed atomically – cannot be interrupted in the middle
2. Returns the original value of passed parameter
3. Set the new value of passed parameter to true.

30. Solution using test_and_set()
 Shared Boolean variable lock
 initialized lock = false
 unlocked initially
while (true) {
while (test_and_set(&lock));
/* critical section */
lock = false;
/* remainder section */
}

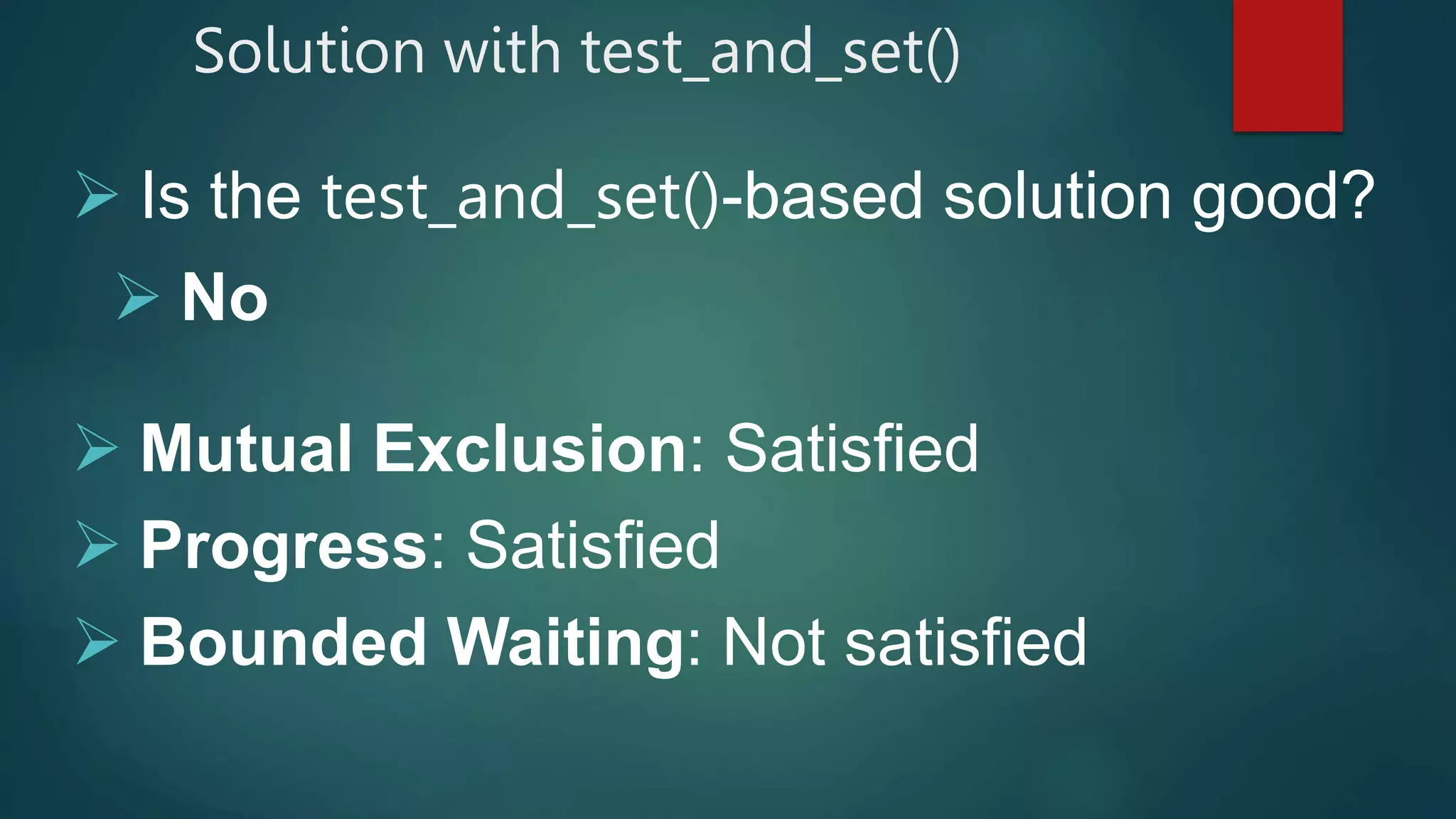

31.  Is the test_and_set()-based solution good?
 No
 Mutual Exclusion: Satisfied
 Progress: Satisfied
 Bounded Waiting: Not satisfied
Solution with test_and_set()

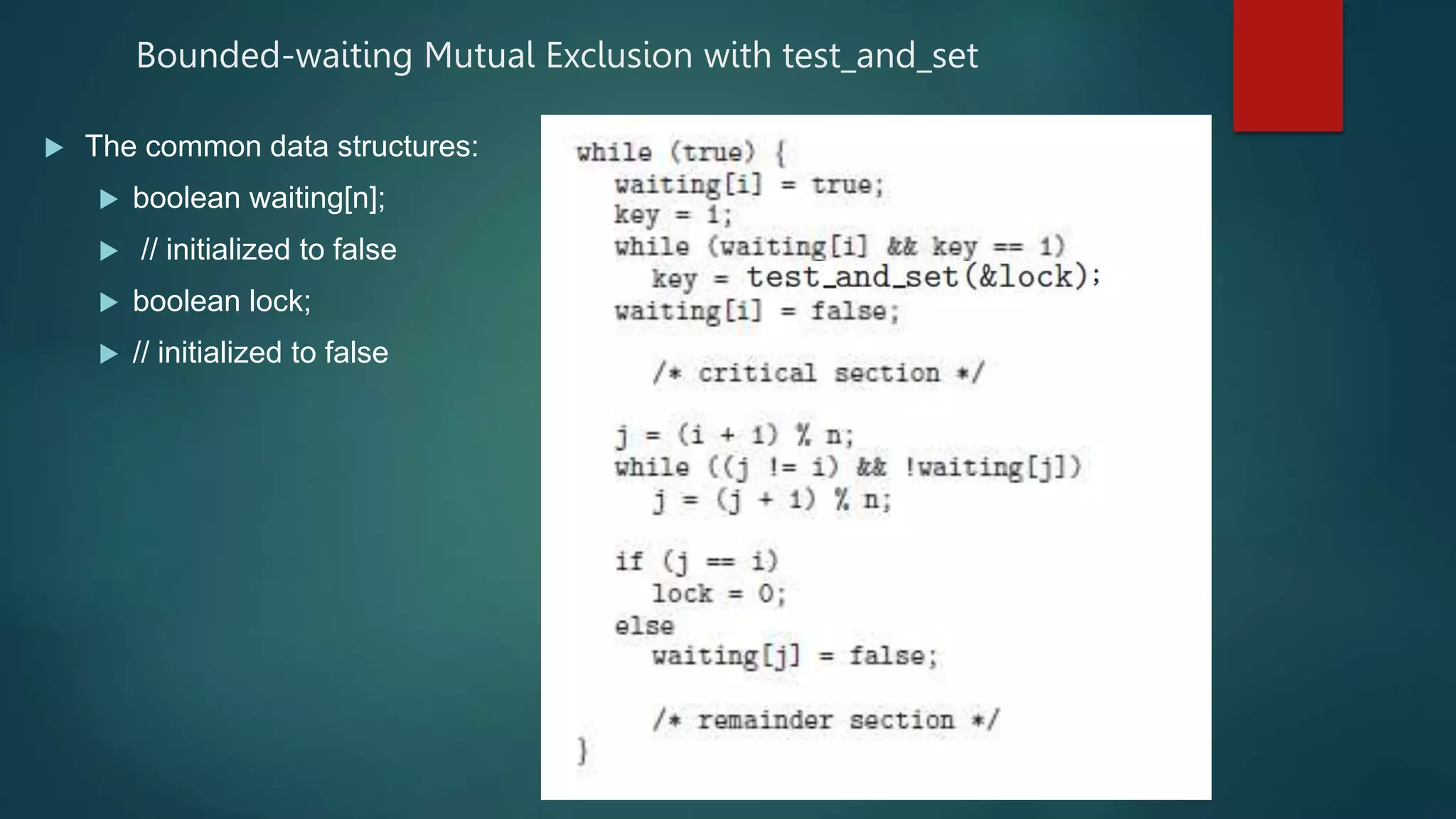

32. Bounded-waiting Mutual Exclusion with test_and_set
 The common data structures:
 boolean waiting[n];
 // initialized to false
 boolean lock;
 // initialized to false

33. Swaps atomically
int compare and swap(int *value, int expected,
int new value)
{
int temp = *value;
if (*value == expected)
*value = new value;
return temp;
}
compare and swap Instruction

34. Structure for Pi
Solution with compare and swap
while (true) {
while (compare and swap(&lock, 0, 1) != 0);
/* critical section */
lock = 0;
/* remainder section */
}

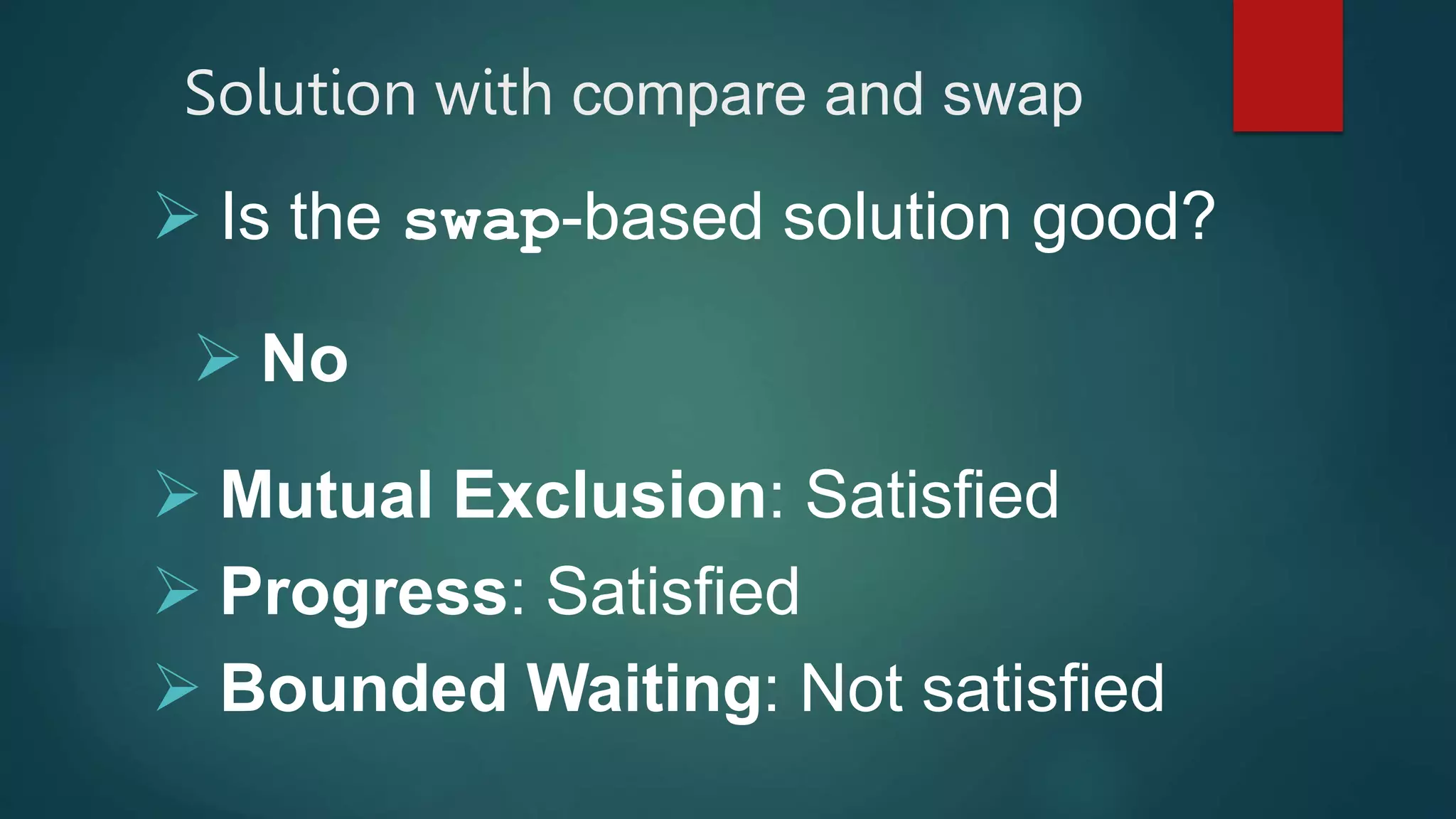

35.  Is the swap-based solution good?
 No
 Mutual Exclusion: Satisfied
 Progress: Satisfied
 Bounded Waiting: Not satisfied
Solution with compare and swap

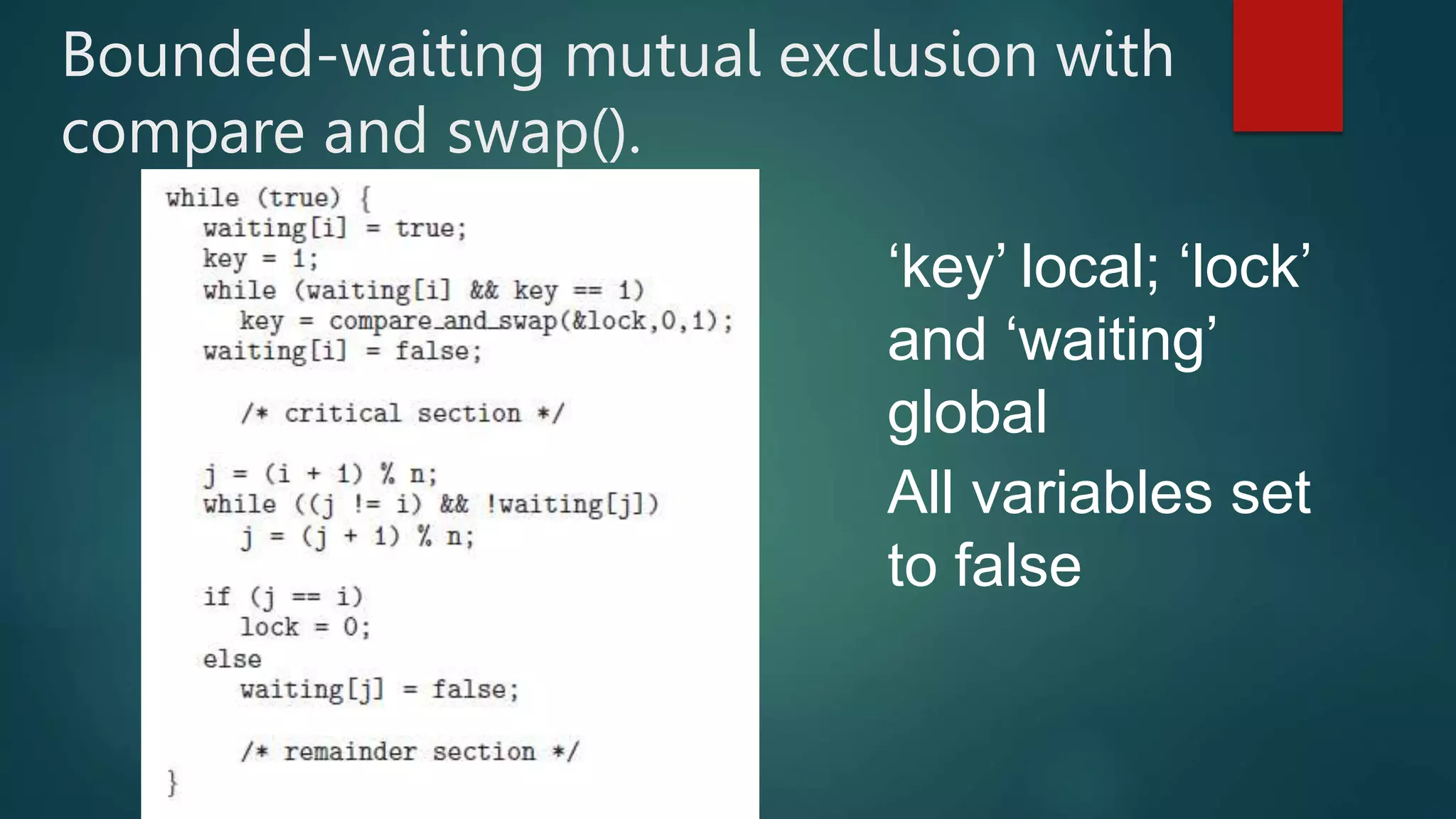

36. Bounded-waiting mutual exclusion with
compare and swap().
‘key’ local; ‘lock’
and ‘waiting’
global
All variables set
to false

37. Mutex Locks
 Previous solutions are complicated and generally inaccessible to application
programmers
 OS designers build software tools to solve critical section problem
 Simplest is mutex lock
 Boolean variable indicating if lock is available or not
 Protect a critical section by
 First acquire() a lock
 Then release() the lock
 Calls to acquire() and release() must be atomic
 Usually implemented via hardware atomic instructions such as compare-and-swap.
 But this solution requires busy waiting
 This lock therefore called a spinlock

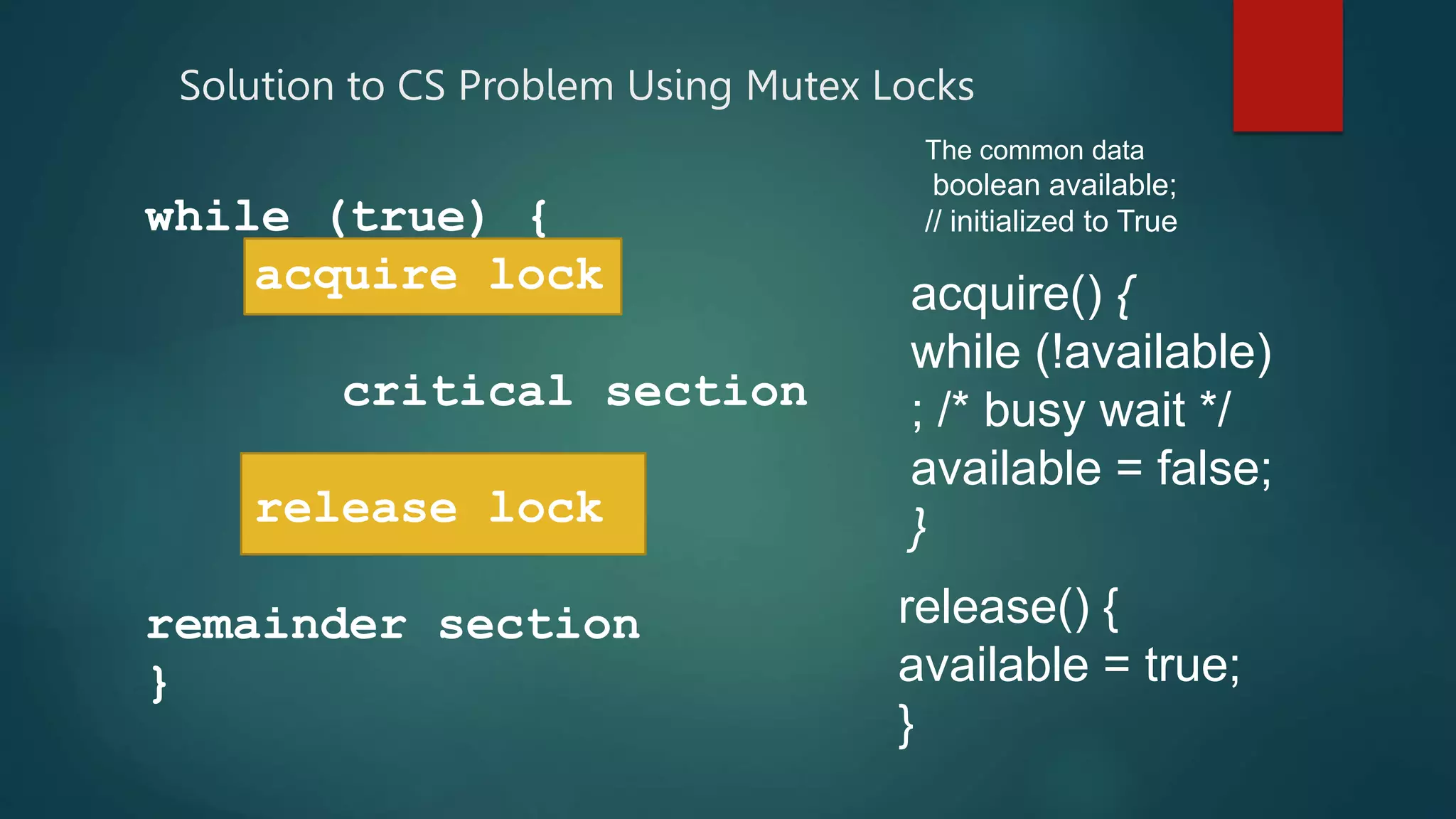

38. Solution to CS Problem Using Mutex Locks
while (true) {
acquire lock
critical section
release lock
remainder section
}
acquire() {
while (!available)
; /* busy wait */
available = false;
}
release() {
available = true;
}
The common data
boolean available;
// initialized to True

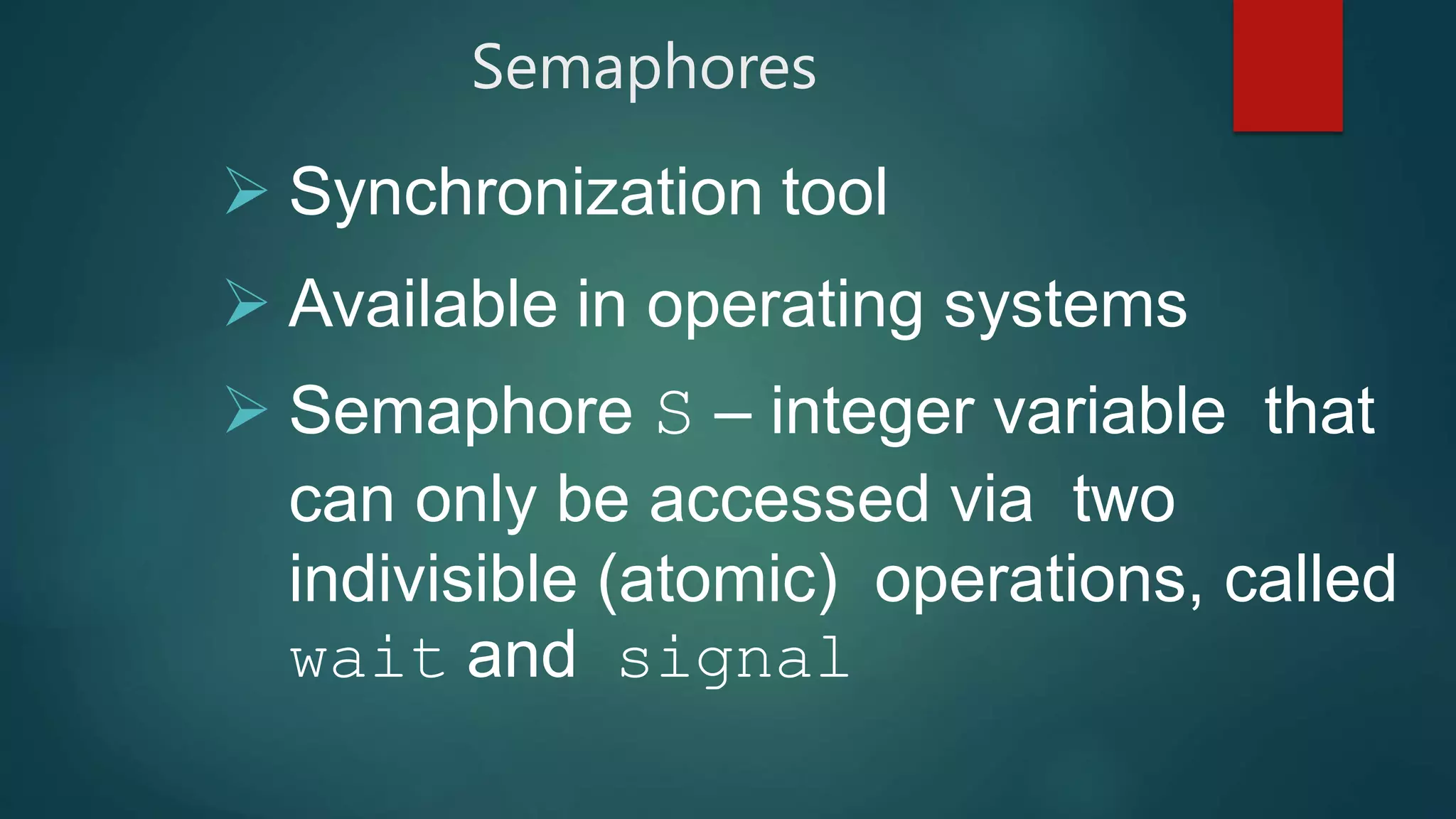

39. Semaphores
 Synchronization tool
 Available in operating systems
 Semaphore S – integer variable that
can only be accessed via two
indivisible (atomic) operations, called
wait and signal

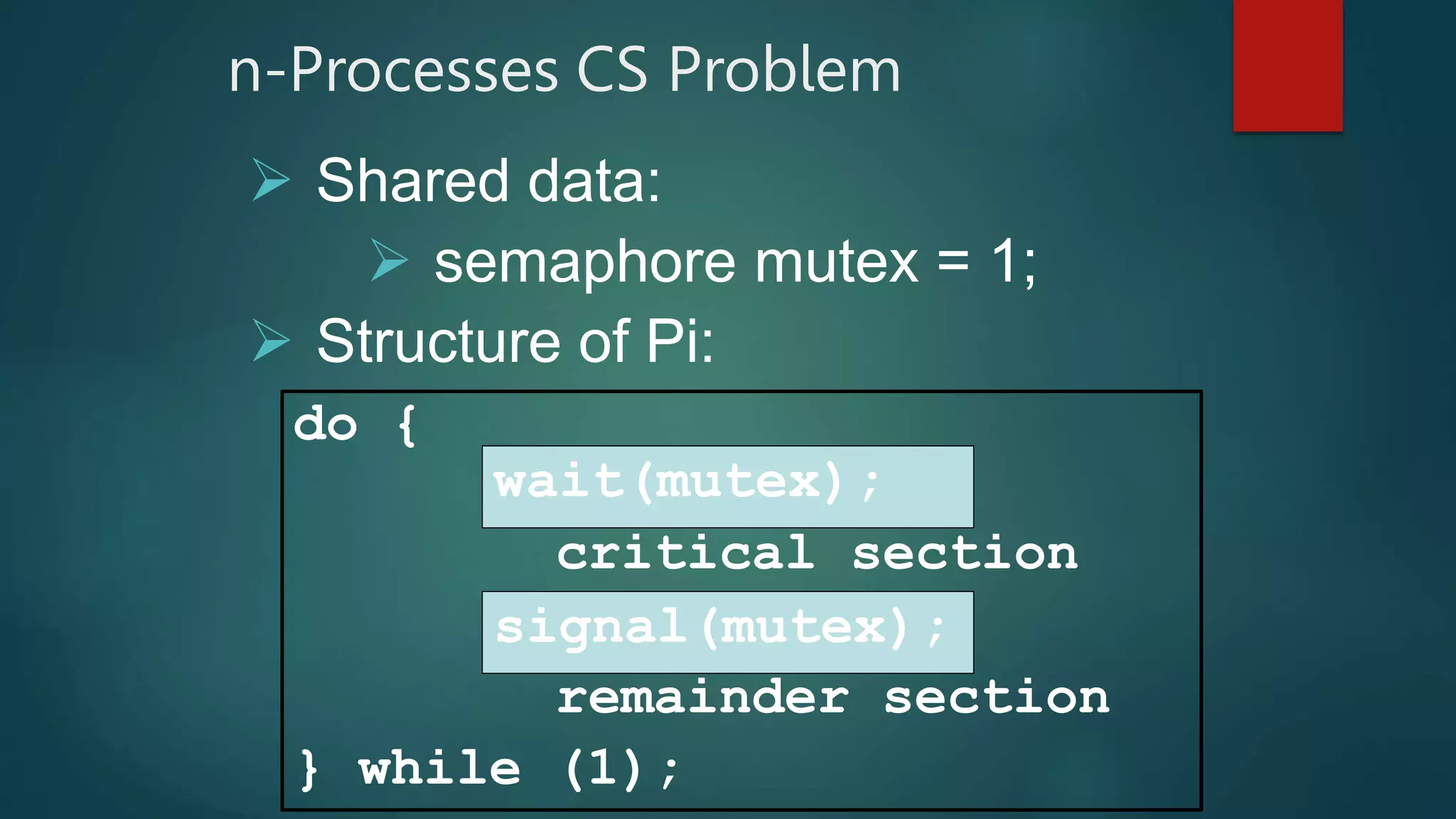

40. n-Processes CS Problem
 Shared data:
 semaphore mutex = 1;
 Structure of Pi:
do {
critical section
remainder section
} while (1);
wait(mutex);
signal(mutex);

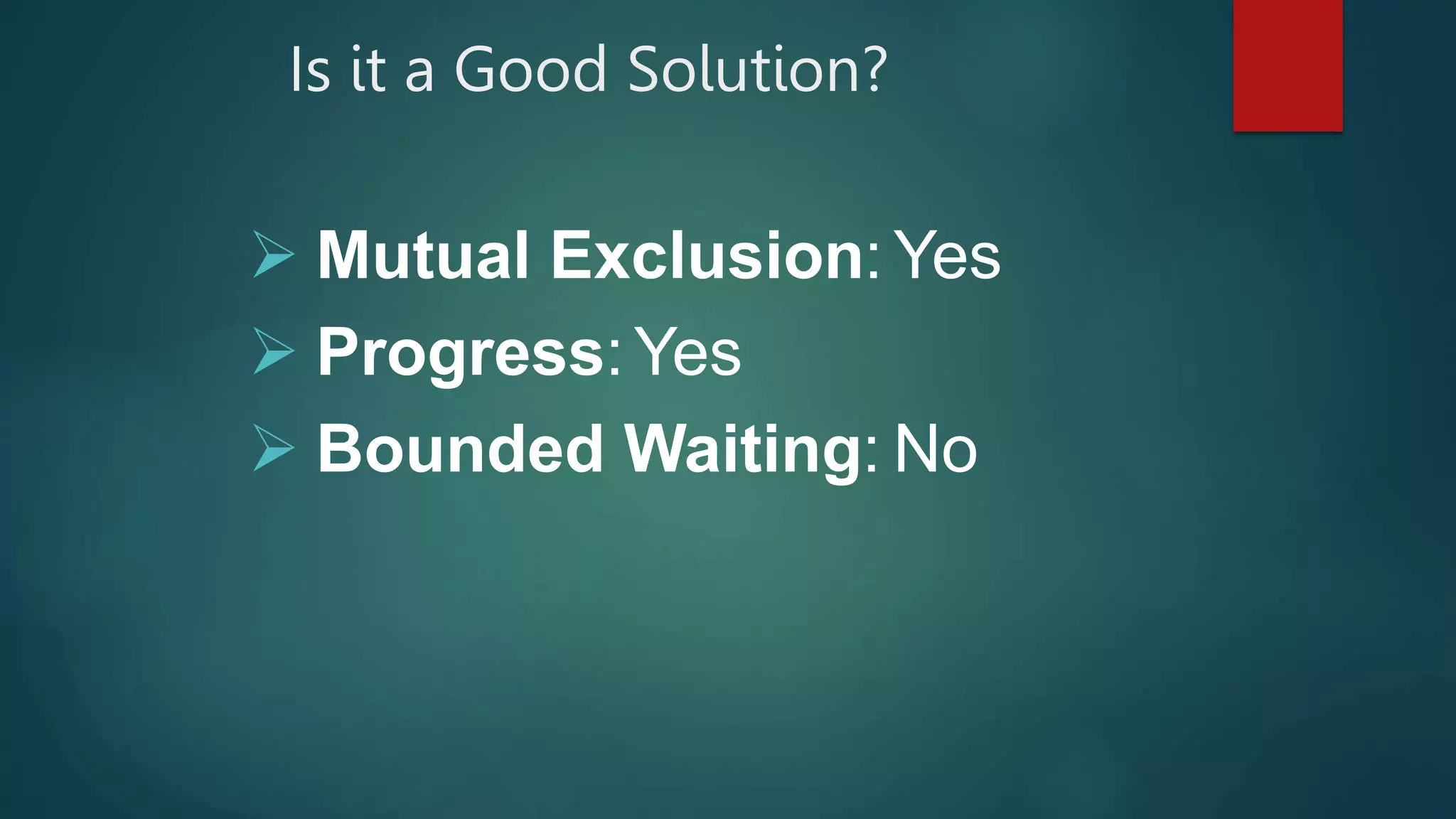

41. Is it a Good Solution?
 Mutual Exclusion: Yes
 Progress:Yes
 Bounded Waiting: No

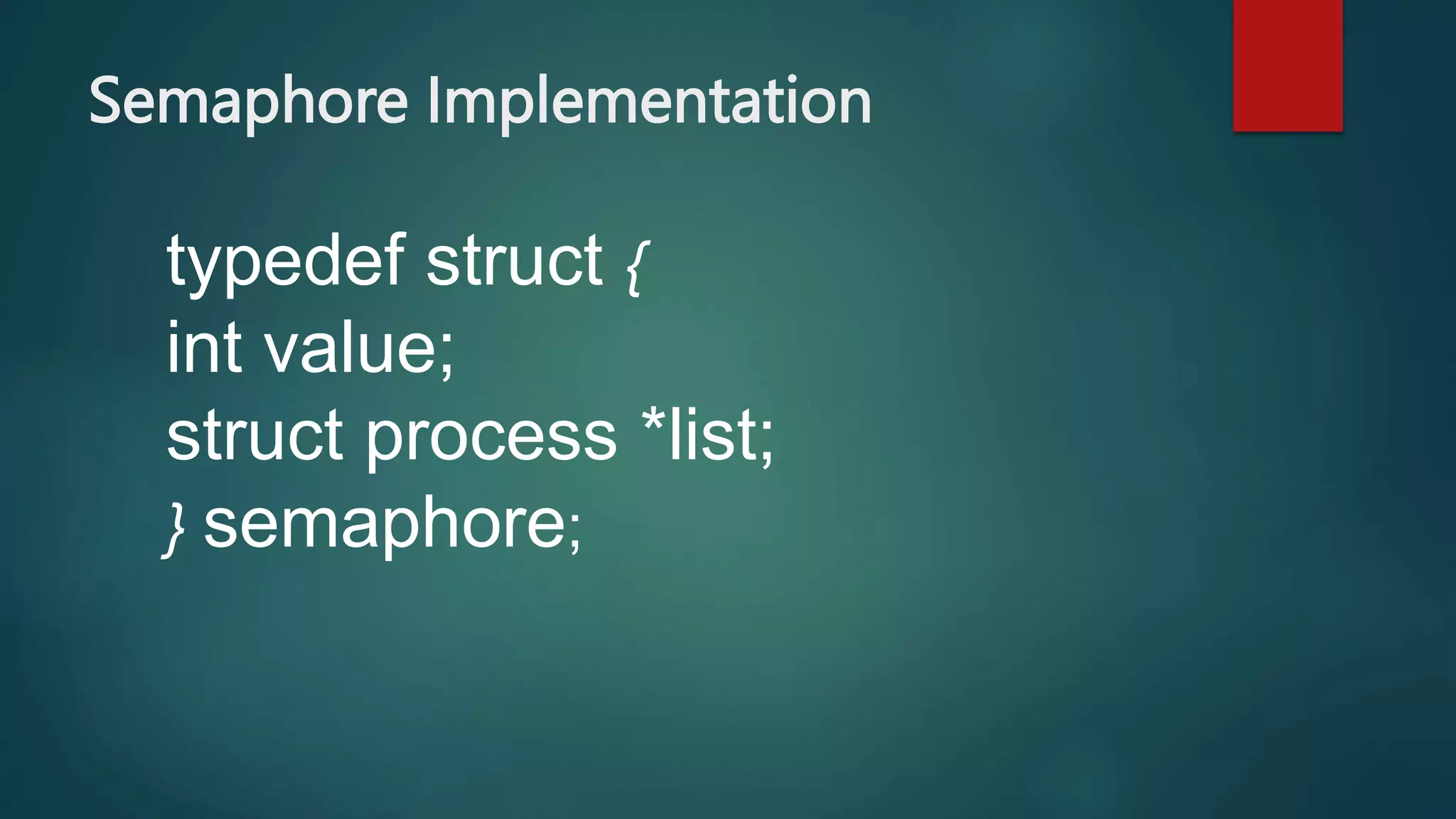

42. Semaphore Implementation
typedef struct {
int value;
struct process *list;
} semaphore;

43. Now, the wait() semaphore operation can
be defined as
wait(semaphore *S) {
S->value--;
if (S->value < 0) {
add this process to S->list;
sleep();
}
}

44. signal() semaphore operation
can be defined as
signal(semaphore *S) {
S->value++;
if (S->value <= 0) {
remove a process P from S->list;
wakeup(P);
}
}
