The document details the Synaps POE outdoor network interface box, designed for outdoor video and network security with features such as built-in backup, safeguarding for up to 4 devices, and protection against electrical disturbances. It is compact, lightweight, and designed for easy installation, offering compatibility with various equipment like cameras and routers. Additional benefits include remote supervision capabilities and a maintenance-free design for 10 years.

1. 2years
W
ARRA
NTY
SLAT- 11, rue Jean Elysée Dupuy
BP 66- 69543 Champagne au Mont d’Or Cedex FRANCE
Tel.: +33 478 66 63 60- Fax: +33 478 47 54 33 • E-mail: comm@slat.fr- www.slat.com
Designed to meet outdoor video, along with WiFi and Mesh
network security requirements.

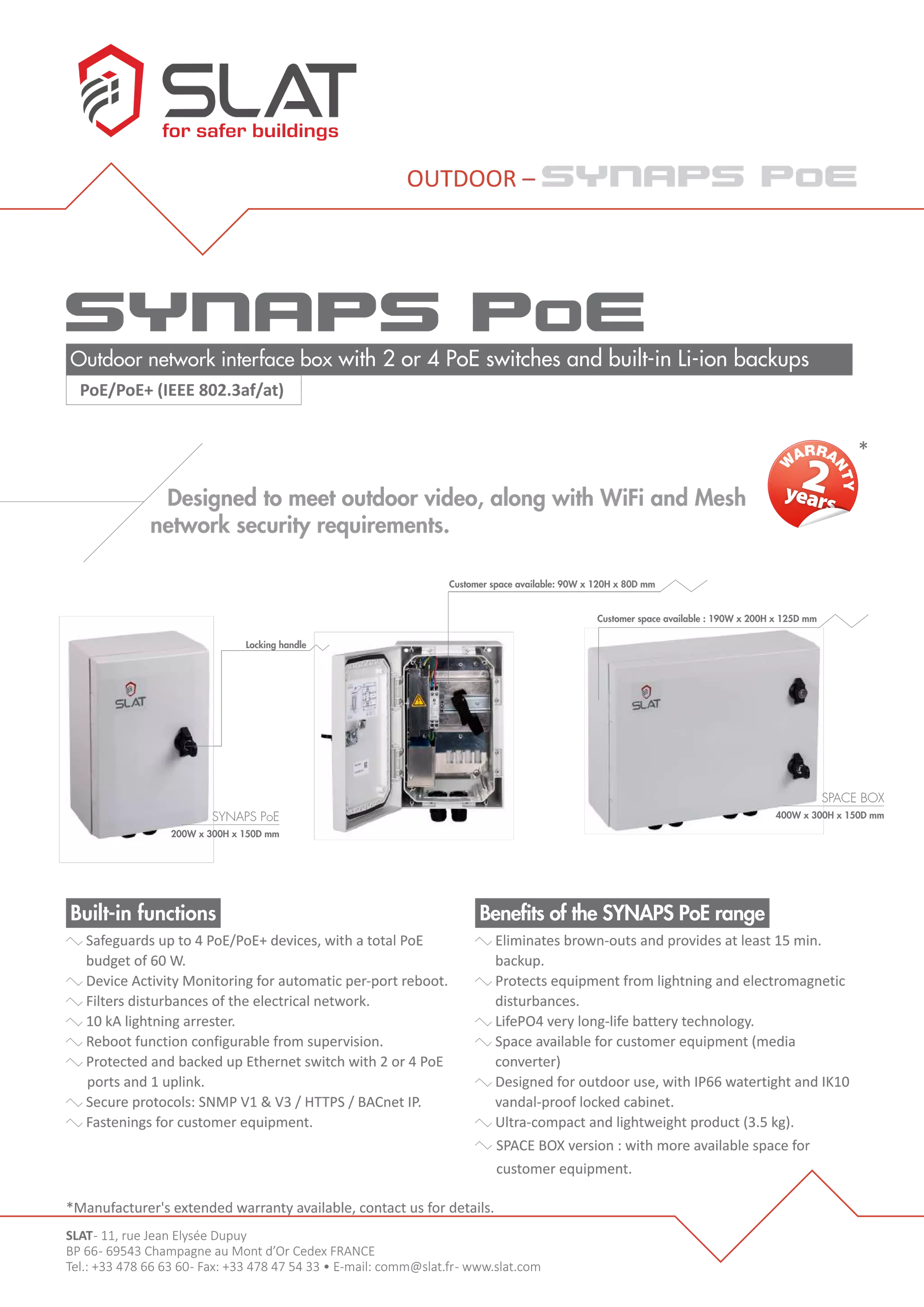

synaps poe
Outdoor network interface box with 2 or 4 PoE switches and built-in Li-ion backups
OUTDOOR – synaps poe
PoE/PoE+ (IEEE 802.3af/at)
SYNAPS PoE
200W x 300H x 150D mm
Built-in functions
Safeguards up to 4 PoE/PoE+ devices, with a total PoE
budget of 60 W.
Device Activity Monitoring for automatic per-port reboot.
Filters disturbances of the electrical network.
10 kA lightning arrester.
Reboot function configurable from supervision.
Protected and backed up Ethernet switch with 2 or 4 PoE
ports and 1 uplink.
Secure protocols: SNMP V1 V3 / HTTPS / BACnet IP.
Fastenings for customer equipment.
Benefits of the SYNAPS PoE range
Eliminates brown-outs and provides at least 15 min.
backup.
Protects equipment from lightning and electromagnetic
disturbances.
LifePO4 very long-life battery technology.
Space available for customer equipment (media
converter)
Designed for outdoor use, with IP66 watertight and IK10
vandal-proof locked cabinet.
Ultra-compact and lightweight product (3.5 kg).
SPACE BOX version : with more available space for
customer equipment.
Locking handle
Customer space available: 90W x 120H x 80D mm
*
*Manufacturer's extended warranty available, contact us for details.
Customer space available : 190W x 200H x 125D mm
SPACE BOX
400W x 300H x 150D mm

2. SLAT- 11, rue Jean Elysée Dupuy
BP 66- 69543 Champagne au Mont d’Or Cedex FRANCE
Tel.: +33 478 66 63 60- Fax: +33 478 47 54 33 • E-mail: comm@slat.fr- www.slat.com

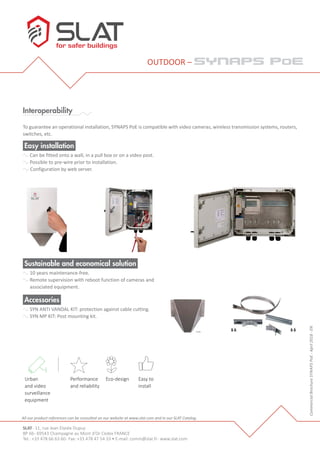

OUTDOOR – synaps poe
Interoperability
To guarantee an operational installation, SYNAPS PoE is compatible with video cameras, wireless transmission systems, routers,
switches, etc.
Sustainable and economical solution
10 years maintenance-free.
Remote supervision with reboot function of cameras and
associated equipment.
Performance
et fiabilité
Éco-
conception
Facilité
d’installation
Equipement urbain
et
vidéoprotection
CommercialBrochureSYNAPSPoE-April2018-EN
Accessories
SYN ANTI VANDAL KIT: protection against cable cutting.
SYN MP KIT: Post mounting kit.
All our product references can be consulted on our website at www.slat.com and in our SLAT Catalog.
Easy installation
Can be fitted onto a wall, in a pull box or on a video post.
Possible to pre-wire prior to installation.
Configuration by web server.
Urban
and video
surveillance
equipment
Performance
and reliability
Eco-design Easy to
install
