Understanding Power over Ethernet (PoE): A
Beginner's Guide
Introduction
Have you ever struggled with tangled wires and a lack of power outlets when setting up your
network devices? Power over Ethernet (PoE) eliminates these headaches! This innovative technology
delivers both data and electrical power over a single Ethernet cable. Imagine powering your devices
like security cameras and VoIP phones simply by connecting them with an Ethernet cable – that's the
magic of PoE.
PoE technology offers a multitude of benefits for your network. Here are some of the key
advantages:
• Simplified Installation: No more searching for spare power outlets! PoE eliminates the
need for separate power supplies and adapters, streamlining installation and reducing cable
clutter.
• Reduced Costs: Say goodbye to the extra expense of purchasing and installing additional
power outlets. PoE minimizes infrastructure costs and simplifies network maintenance.
• Increased Flexibility: PoE-powered devices can be placed virtually anywhere with an

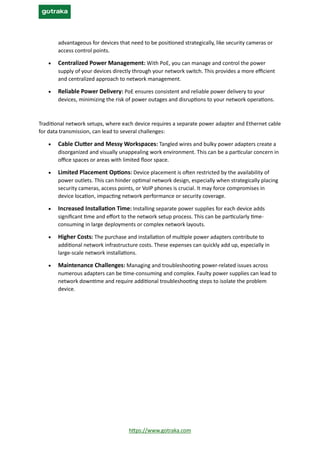

Ethernet cable, offering greater freedom in device placement. This is particularly

advantageous for devices that need to be positioned strategically, like security cameras or
access control points.
• Centralized Power Management: With PoE, you can manage and control the power
supply of your devices directly through your network switch. This provides a more efficient
and centralized approach to network management.
• Reliable Power Delivery: PoE ensures consistent and reliable power delivery to your
devices, minimizing the risk of power outages and disruptions to your network operations.
Traditional network setups, where each device requires a separate power adapter and Ethernet cable
for data transmission, can lead to several challenges:
• Cable Clutter and Messy Workspaces: Tangled wires and bulky power adapters create a
disorganized and visually unappealing work environment. This can be a particular concern in
office spaces or areas with limited floor space.
• Limited Placement Options: Device placement is often restricted by the availability of
power outlets. This can hinder optimal network design, especially when strategically placing
security cameras, access points, or VoIP phones is crucial. It may force compromises in
device location, impacting network performance or security coverage.
• Increased Installation Time: Installing separate power supplies for each device adds
significant time and effort to the network setup process. This can be particularly time-
consuming in large deployments or complex network layouts.
• Higher Costs: The purchase and installation of multiple power adapters contribute to
additional network infrastructure costs. These expenses can quickly add up, especially in
large-scale network installations.
• Maintenance Challenges: Managing and troubleshooting power-related issues across
numerous adapters can be time-consuming and complex. Faulty power supplies can lead to
network downtime and require additional troubleshooting steps to isolate the problem
device.

How PoE Simplifies Network Installation and Management
PoE technology elegantly solves these challenges by integrating power delivery with data
transmission over a single Ethernet cable. This offers several advantages for network installation and
management:
• Simplified Installation: PoE eliminates the need for separate power outlets and adapters.
This translates to a cleaner and faster installation process with less cable clutter. Network
technicians only need to run a single Ethernet cable to each device, streamlining the setup
process.
• Flexibility in Device Placement: PoE-powered devices are not restricted by the availability
of power outlets. They can be placed virtually anywhere with an Ethernet cable, offering
greater freedom for optimal network design. This is particularly beneficial for strategically
positioning devices like security cameras or access points for maximum coverage.
• Reduced Costs: By eliminating the need for separate power supplies, PoE minimizes
infrastructure costs associated with traditional network setups. This can lead to significant
savings, especially in large-scale deployments.
• Centralized Power Management: With PoE, network switches can manage and control
the power supply of connected devices. This centralized approach simplifies network
management and allows for easier troubleshooting of power-related issues.
• Reliable Power Delivery: PoE ensures consistent and reliable power delivery to your
devices, minimizing the risk of power outages caused by faulty power adapters. This
translates to a more stable and reliable network operation.
How Does PoE Work?
The magic of PoE lies in its ability to combine data and electrical power delivery over a single
Ethernet cable. Here's a simplified breakdown:
• Standard Ethernet Cable: The standard Ethernet cable (typically Cat5e or Cat6) used in
PoE applications already has eight wires within its sheath. Traditionally, only four of these
wires are used for data transmission in a network.
• PoE Technology: PoE technology utilizes all eight wires in the Ethernet cable. Four wires
continue to carry data signals as usual, while the remaining four wires are used to deliver
low-voltage DC power to the connected device.
Here's the key point: The PoE-enabled device (like a security camera) has special circuitry that can
detect and extract the DC power from the additional four wires while simultaneously receiving data
through the traditional four wires – all through the same Ethernet cable!

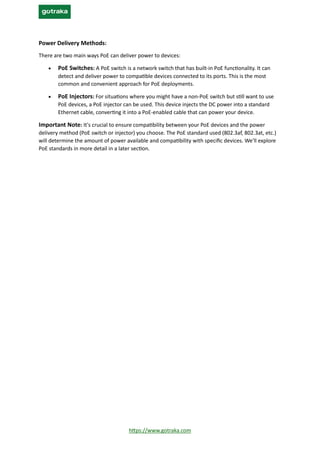

Power Delivery Methods:
There are two main ways PoE can deliver power to devices:
• PoE Switches: A PoE switch is a network switch that has built-in PoE functionality. It can
detect and deliver power to compatible devices connected to its ports. This is the most
common and convenient approach for PoE deployments.
• PoE Injectors: For situations where you might have a non-PoE switch but still want to use
PoE devices, a PoE injector can be used. This device injects the DC power into a standard
Ethernet cable, converting it into a PoE-enabled cable that can power your device.
Important Note: It's crucial to ensure compatibility between your PoE devices and the power
delivery method (PoE switch or injector) you choose. The PoE standard used (802.3af, 802.3at, etc.)
will determine the amount of power available and compatibility with specific devices. We'll explore
PoE standards in more detail in a later section.

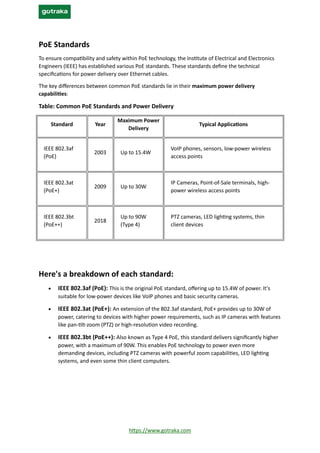

PoE Standards
To ensure compatibility and safety within PoE technology, the Institute of Electrical and Electronics
Engineers (IEEE) has established various PoE standards. These standards define the technical
specifications for power delivery over Ethernet cables.
The key differences between common PoE standards lie in their maximum power delivery
capabilities:
Table: Common PoE Standards and Power Delivery
Standard Year
Maximum Power
Delivery
Typical Applications
IEEE 802.3af
(PoE)
2003 Up to 15.4W
VoIP phones, sensors, low-power wireless
access points
IEEE 802.3at
(PoE+)
2009 Up to 30W
IP Cameras, Point-of-Sale terminals, high-
power wireless access points
IEEE 802.3bt
(PoE++)
2018
Up to 90W
(Type 4)
PTZ cameras, LED lighting systems, thin
client devices
Here's a breakdown of each standard:
• IEEE 802.3af (PoE): This is the original PoE standard, offering up to 15.4W of power. It's
suitable for low-power devices like VoIP phones and basic security cameras.
• IEEE 802.3at (PoE+): An extension of the 802.3af standard, PoE+ provides up to 30W of
power, catering to devices with higher power requirements, such as IP cameras with features
like pan-tilt-zoom (PTZ) or high-resolution video recording.
• IEEE 802.3bt (PoE++): Also known as Type 4 PoE, this standard delivers significantly higher
power, with a maximum of 90W. This enables PoE technology to power even more
demanding devices, including PTZ cameras with powerful zoom capabilities, LED lighting
systems, and even some thin client computers.

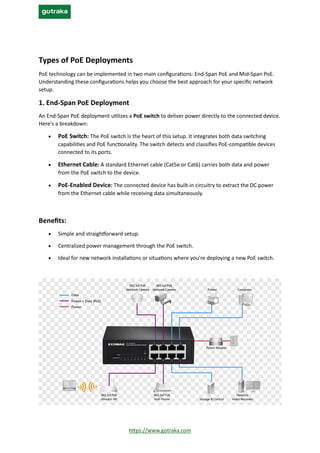

Types of PoE Deployments
PoE technology can be implemented in two main configurations: End-Span PoE and Mid-Span PoE.
Understanding these configurations helps you choose the best approach for your specific network
setup.
1. End-Span PoE Deployment
An End-Span PoE deployment utilizes a PoE switch to deliver power directly to the connected device.
Here's a breakdown:
• PoE Switch: The PoE switch is the heart of this setup. It integrates both data switching
capabilities and PoE functionality. The switch detects and classifies PoE-compatible devices
connected to its ports.
• Ethernet Cable: A standard Ethernet cable (Cat5e or Cat6) carries both data and power
from the PoE switch to the device.
• PoE-Enabled Device: The connected device has built-in circuitry to extract the DC power
from the Ethernet cable while receiving data simultaneously.
Benefits:
• Simple and straightforward setup.
• Centralized power management through the PoE switch.
• Ideal for new network installations or situations where you're deploying a new PoE switch.

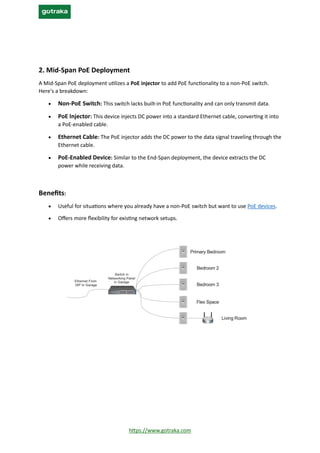

2. Mid-Span PoE Deployment
A Mid-Span PoE deployment utilizes a PoE injector to add PoE functionality to a non-PoE switch.
Here's a breakdown:
• Non-PoE Switch: This switch lacks built-in PoE functionality and can only transmit data.
• PoE Injector: This device injects DC power into a standard Ethernet cable, converting it into
a PoE-enabled cable.
• Ethernet Cable: The PoE injector adds the DC power to the data signal traveling through the
Ethernet cable.
• PoE-Enabled Device: Similar to the End-Span deployment, the device extracts the DC
power while receiving data.
Benefits:
• Useful for situations where you already have a non-PoE switch but want to use PoE devices.
• Offers more flexibility for existing network setups.

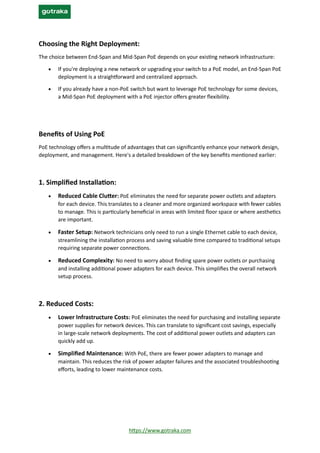

Choosing the Right Deployment:
The choice between End-Span and Mid-Span PoE depends on your existing network infrastructure:
• If you're deploying a new network or upgrading your switch to a PoE model, an End-Span PoE
deployment is a straightforward and centralized approach.
• If you already have a non-PoE switch but want to leverage PoE technology for some devices,
a Mid-Span PoE deployment with a PoE injector offers greater flexibility.
Benefits of Using PoE
PoE technology offers a multitude of advantages that can significantly enhance your network design,
deployment, and management. Here's a detailed breakdown of the key benefits mentioned earlier:
1. Simplified Installation:
• Reduced Cable Clutter: PoE eliminates the need for separate power outlets and adapters
for each device. This translates to a cleaner and more organized workspace with fewer cables
to manage. This is particularly beneficial in areas with limited floor space or where aesthetics
are important.
• Faster Setup: Network technicians only need to run a single Ethernet cable to each device,
streamlining the installation process and saving valuable time compared to traditional setups
requiring separate power connections.
• Reduced Complexity: No need to worry about finding spare power outlets or purchasing
and installing additional power adapters for each device. This simplifies the overall network
setup process.
2. Reduced Costs:
• Lower Infrastructure Costs: PoE eliminates the need for purchasing and installing separate
power supplies for network devices. This can translate to significant cost savings, especially
in large-scale network deployments. The cost of additional power outlets and adapters can
quickly add up.
• Simplified Maintenance: With PoE, there are fewer power adapters to manage and
maintain. This reduces the risk of power adapter failures and the associated troubleshooting
efforts, leading to lower maintenance costs.

3. Flexibility in Device Placement:
• Strategic Positioning: PoE-powered devices are not restricted by the availability of power
outlets. They can be placed virtually anywhere with an Ethernet cable, offering greater
freedom for optimal network design. This is particularly advantageous for devices that need
to be positioned strategically, like:
o Security cameras: PoE allows for cameras to be placed in optimal locations for
maximum surveillance coverage, regardless of power outlet placement.
o Wireless Access Points (WAPs): Strategic placement of WAPs ensures optimal Wi-Fi
signal strength throughout the network. PoE eliminates limitations imposed by
power outlet locations.
o VoIP Phones: PoE allows for VoIP phones to be positioned conveniently for users,
even in areas where power outlets might be scarce.
• Scalability: Adding new PoE devices to your network is a breeze. Simply run an Ethernet
cable to the desired location and connect the device. This simplifies network expansion
compared to traditional setups where power outlet availability might limit scalability.
4. Centralized Power Management:
• Simplified Control: With PoE, network switches can manage and control the power supply
of connected devices. This centralized approach allows for:
o Remote Power Cycling: Network administrators can remotely reboot PoE-powered
devices through the switch interface, eliminating the need for physical access to each
device for troubleshooting purposes.
o Power Monitoring: Some PoE switches offer power usage monitoring for each
connected device. This allows for better energy management and identification of
potential power consumption issues.
• Improved Security: Centralized power management can enhance security by allowing you
to disable power to specific devices remotely if needed.
5. Reliable Power Delivery:
• Consistent Power Supply: PoE ensures consistent and reliable low-voltage DC power
delivery to your devices. This minimizes the risk of power outages caused by faulty power
adapters or overloaded circuits. Consistent power supply translates to a more stable and
reliable network operation.
• Reduced Downtime: Reliable power delivery helps to prevent network disruptions and
device malfunctions that can lead to downtime. This is crucial for applications where uptime
is critical, such as security systems or VoIP communication.

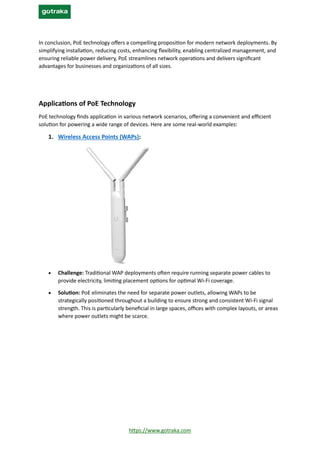

In conclusion, PoE technology offers a compelling proposition for modern network deployments. By
simplifying installation, reducing costs, enhancing flexibility, enabling centralized management, and
ensuring reliable power delivery, PoE streamlines network operations and delivers significant
advantages for businesses and organizations of all sizes.
Applications of PoE Technology
PoE technology finds application in various network scenarios, offering a convenient and efficient
solution for powering a wide range of devices. Here are some real-world examples:
1. Wireless Access Points (WAPs):
• Challenge: Traditional WAP deployments often require running separate power cables to
provide electricity, limiting placement options for optimal Wi-Fi coverage.
• Solution: PoE eliminates the need for separate power outlets, allowing WAPs to be
strategically positioned throughout a building to ensure strong and consistent Wi-Fi signal
strength. This is particularly beneficial in large spaces, offices with complex layouts, or areas
where power outlets might be scarce.

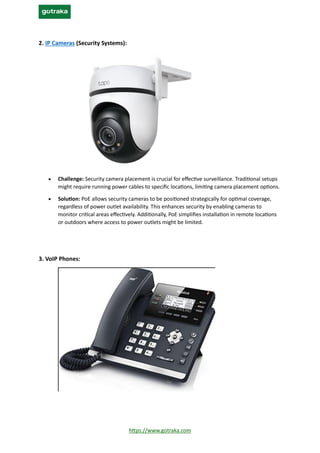

2. IP Cameras (Security Systems):
• Challenge: Security camera placement is crucial for effective surveillance. Traditional setups
might require running power cables to specific locations, limiting camera placement options.
• Solution: PoE allows security cameras to be positioned strategically for optimal coverage,
regardless of power outlet availability. This enhances security by enabling cameras to
monitor critical areas effectively. Additionally, PoE simplifies installation in remote locations
or outdoors where access to power outlets might be limited.
3. VoIP Phones:

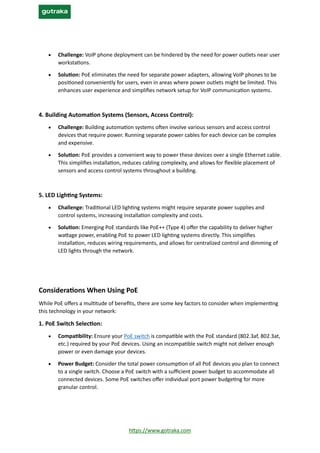

• Challenge: VoIP phone deployment can be hindered by the need for power outlets near user
workstations.
• Solution: PoE eliminates the need for separate power adapters, allowing VoIP phones to be
positioned conveniently for users, even in areas where power outlets might be limited. This
enhances user experience and simplifies network setup for VoIP communication systems.
4. Building Automation Systems (Sensors, Access Control):
• Challenge: Building automation systems often involve various sensors and access control
devices that require power. Running separate power cables for each device can be complex
and expensive.
• Solution: PoE provides a convenient way to power these devices over a single Ethernet cable.
This simplifies installation, reduces cabling complexity, and allows for flexible placement of
sensors and access control systems throughout a building.
5. LED Lighting Systems:
• Challenge: Traditional LED lighting systems might require separate power supplies and
control systems, increasing installation complexity and costs.
• Solution: Emerging PoE standards like PoE++ (Type 4) offer the capability to deliver higher
wattage power, enabling PoE to power LED lighting systems directly. This simplifies
installation, reduces wiring requirements, and allows for centralized control and dimming of
LED lights through the network.
Considerations When Using PoE
While PoE offers a multitude of benefits, there are some key factors to consider when implementing
this technology in your network:
1. PoE Switch Selection:
• Compatibility: Ensure your PoE switch is compatible with the PoE standard (802.3af, 802.3at,
etc.) required by your PoE devices. Using an incompatible switch might not deliver enough
power or even damage your devices.
• Power Budget: Consider the total power consumption of all PoE devices you plan to connect
to a single switch. Choose a PoE switch with a sufficient power budget to accommodate all
connected devices. Some PoE switches offer individual port power budgeting for more
granular control.

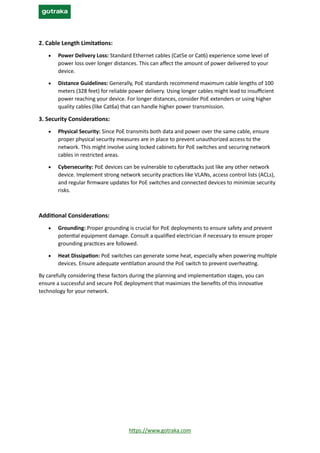

2. Cable Length Limitations:
• Power Delivery Loss: Standard Ethernet cables (Cat5e or Cat6) experience some level of
power loss over longer distances. This can affect the amount of power delivered to your
device.
• Distance Guidelines: Generally, PoE standards recommend maximum cable lengths of 100
meters (328 feet) for reliable power delivery. Using longer cables might lead to insufficient
power reaching your device. For longer distances, consider PoE extenders or using higher
quality cables (like Cat6a) that can handle higher power transmission.
3. Security Considerations:
• Physical Security: Since PoE transmits both data and power over the same cable, ensure
proper physical security measures are in place to prevent unauthorized access to the
network. This might involve using locked cabinets for PoE switches and securing network
cables in restricted areas.
• Cybersecurity: PoE devices can be vulnerable to cyberattacks just like any other network
device. Implement strong network security practices like VLANs, access control lists (ACLs),
and regular firmware updates for PoE switches and connected devices to minimize security
risks.
Additional Considerations:
• Grounding: Proper grounding is crucial for PoE deployments to ensure safety and prevent
potential equipment damage. Consult a qualified electrician if necessary to ensure proper
grounding practices are followed.
• Heat Dissipation: PoE switches can generate some heat, especially when powering multiple
devices. Ensure adequate ventilation around the PoE switch to prevent overheating.
By carefully considering these factors during the planning and implementation stages, you can
ensure a successful and secure PoE deployment that maximizes the benefits of this innovative
technology for your network.

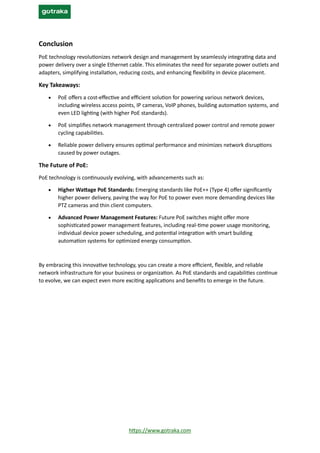

Conclusion
PoE technology revolutionizes network design and management by seamlessly integrating data and
power delivery over a single Ethernet cable. This eliminates the need for separate power outlets and
adapters, simplifying installation, reducing costs, and enhancing flexibility in device placement.
Key Takeaways:
• PoE offers a cost-effective and efficient solution for powering various network devices,
including wireless access points, IP cameras, VoIP phones, building automation systems, and
even LED lighting (with higher PoE standards).
• PoE simplifies network management through centralized power control and remote power
cycling capabilities.
• Reliable power delivery ensures optimal performance and minimizes network disruptions
caused by power outages.
The Future of PoE:
PoE technology is continuously evolving, with advancements such as:
• Higher Wattage PoE Standards: Emerging standards like PoE++ (Type 4) offer significantly
higher power delivery, paving the way for PoE to power even more demanding devices like
PTZ cameras and thin client computers.
• Advanced Power Management Features: Future PoE switches might offer more
sophisticated power management features, including real-time power usage monitoring,
individual device power scheduling, and potential integration with smart building
automation systems for optimized energy consumption.
By embracing this innovative technology, you can create a more efficient, flexible, and reliable
network infrastructure for your business or organization. As PoE standards and capabilities continue
to evolve, we can expect even more exciting applications and benefits to emerge in the future.

Understanding Power over Ethernet - A Beginner's Guide - Gotraka

Recommended

Recommended

More Related Content

Similar to Understanding Power over Ethernet - A Beginner's Guide - Gotraka

Similar to Understanding Power over Ethernet - A Beginner's Guide - Gotraka (20)

Recently uploaded

Recently uploaded (20)

Understanding Power over Ethernet - A Beginner's Guide - Gotraka
