Stream upload and asynchronous job processing in large scale systems
This document discusses an asynchronous job processing system developed by VNG for Zalo. It allows for parallel stream uploads and background processing of large amounts of data. The key points are: 1. It uses a job server and distributed worker model to process jobs asynchronously in a reliable, scalable, and high performance manner. 2. Jobs are collected, then processed by workers and responded to. The system supports both single and batch jobs to efficiently handle large volumes of uploads. 3. It was implemented using C/C++ for high performance and includes features like load balancing, failover, recovery from failures, and a job state system to reliably process all jobs.
Stream upload and asynchronous job processing in large scale systems
- 1. Stream Upload And AsynchronousJob Processing System Lê Bá Minh – minhlb@vng.com.vn Technical Manager – Zalo Team - VNG
- 2. Agenda • 1/ Whywe need an Asynchronous Job Processing System? • 2/ How it works ? • 3/ Application • 4/ Q &A
- 3. Parallel Stream Upload •Data is separated in chunks
- 4. Facts • Zalo StreamUpload • Background continuous Voice Upload • Background Image upload • … • Facts (now) • 1M voices /day • 800K images /day • Peak: 500 Chunks/second • Expect: • Scalable (more than 5000 chunks/second) • High performance

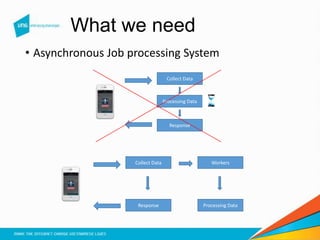

- 5. What we need •Asynchronous Job processing System Collect Data Processing Data Response Collect Data Processing DataResponse Workers

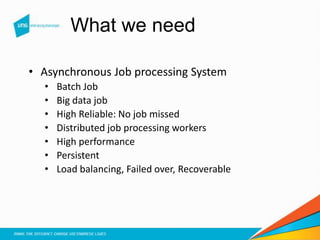

- 6. What we need •Asynchronous Job processing System • Batch Job • Big data job • High Reliable: No job missed • Distributed job processing workers • High performance • Persistent • Load balancing, Failed over, Recoverable

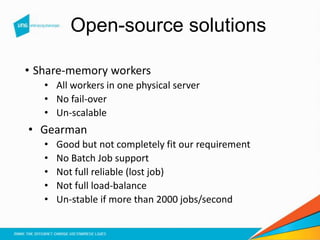

- 7. Open-source solutions • Share-memoryworkers • All workers in one physical server • No fail-over • Un-scalable • Gearman • Good but not completely fit our requirement • No Batch Job support • Not full reliable (lost job) • Not full load-balance • Un-stable if more than 2000 jobs/second

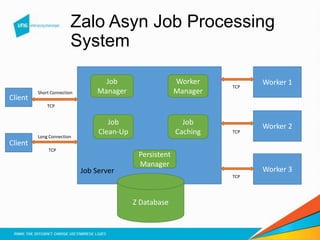

- 8. Zalo Asyn JobProcessing System Client Client Worker 1 Worker 2 Worker 3 Z Database Short Connection Long Connection TCP TCP Worker Manager Job Caching Job Manager Persistent Manager Job Clean-Up Job Server TCP TCP TCP

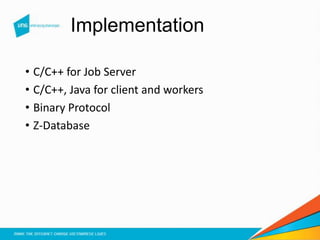

- 9. Implementation • C/C++ forJob Server • C/C++, Java for client and workers • Binary Protocol • Z-Database

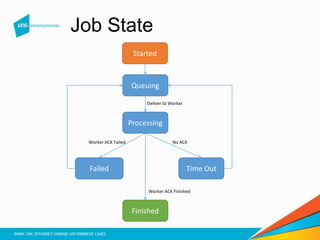

- 10. Job State Queuing Processing Failed TimeOut Finished Deliver to Worker Worker ACK Failed Worker ACK Finished No ACK Started

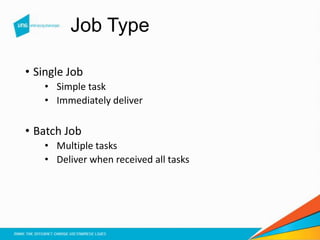

- 11. Job Type • SingleJob • Simple task • Immediately deliver • Batch Job • Multiple tasks • Deliver when received all tasks

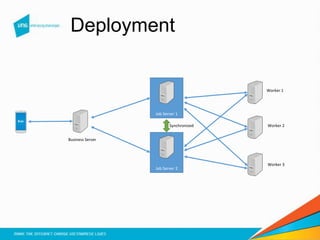

- 12. Deployment Job Server 1 JobServer 2 Synchronized Business Server Worker 1 Worker 2 Worker 3
- 13. Applications • Using forall Asynchronous job processing in Zalo: voice upload, image upload, feed processing… • Benchmark (single server) • 50K images/seconds (640x480) • 50k voices/seconds (30s) • Advantages • Batch Jobs • Never lost job • Worker can restart or stop any time • Fail-over, Load Balancing, Quick recover in failure • Issue • Job duplication (handled by worker)
- 14.
