1. ST6000TBH
(产品型号展示优化词：2W/5W backpack COFDM wireless mobile
video transmitter and receiver ST6000TBH)
Features：
■COFDM modulation, Stable
transmission
■MPEG-2 video
compression, DVD video
quality
■Lithium battery for power
supply
■Mobile and NLOS(Non
line-of-sight) transmission
■Great security by
encryption of AES 128
bit/ALLTECH Basic Scrambling
■Low system latency
■Modular design, compact structure, small cubage
■Several wavebands available: VHF/L/ S
■Strong casing with built-in cooling plates, waterproof and shockproof
■In LOS (line-of-sight)environment, the transmission range is up to 80km
Specifications:
Transmitter Specification
Modulation COFDM
DC Input DC12.5V-DC14.8V
Working Current ≤2A@DC12.5V
Constellation
QPSK、16QAM、64QAM (optional)
FEC 1/2,2/3,3/4,5/6,7/8 (optional)
www.ttbvision.com

2. Guard Interval 1/32,1/16,1/8,1/4 (optional)
Carrier 2k
Bandwidth 2/4/8M(optional)
Frequency 325-399MHz, 400-500MHz, 500-760MHz, 760-
860MHz
A/V Interface BNC/RCA
Power Output 27-33dBm (adjustable)in 1dB step
Flatness ≤2dB(within full frequency range), ≤0.5dB(within
20MHz)
CNR ≥-30dBm @ 30dB power output
Second
Harmonic
≤-43dB
Video Harmonic 1Vp-p @ 75Ω, PAL
CBER <2.0E-4
Video
Compression
MPEG-2 4: 2: 0
Resolution 720*576@8MHz
Video Rate 2-20Mbps(MAX)
Casing
Protection
IP66(dustproof, waterproof)
Battery 12.6V/10Ah
Frame Weight 1.1kg
Dimension 230*160*70mm
www.ttbvision.com

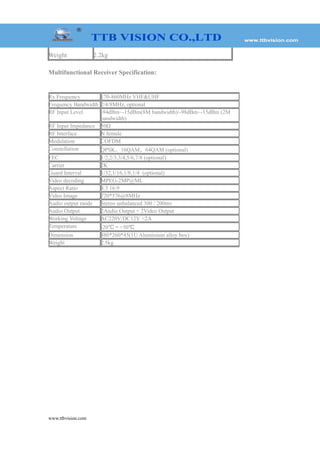

3. Weight 2.2kg
Multifunctional Receiver Specification:
www.ttbvision.com
Rx Frequency 170-860MHz VHF&UHF
Frequency Bandwidth 2/4/8MHz, optional
RF Input Level -94dBm~-15dBm(8M bandwidth)/-98dBm~-15dBm (2M
bandwidth)
RF Input Impedance 50Ω
RF Interface N female
Modulation COFDM
Constellation QPSK、16QAM、64QAM (optional)
FEC 1/2,2/3,3/4,5/6,7/8 (optional)
Carrier 2K
Guard Interval 1/32,1/16,1/8,1/4 (optional)
Video decoding MPEG-2MP@ML
Aspect Ratio 4:3 16:9
Video Image 720*576@8MHz
Audio output mode Stereo unbalanced 300 / 200mv
Audio Output 2Audio Output + 2Video Output
Working Voltage AC220V/DC12V <2A
Temperature -20℃～+50℃
Dimension 480*260*45(1U Aluminium alloy box)
Weight 2.5kg
