The document summarizes the specifications of the KJ-R8192RX6 300M Wireless N USB Module. It supports IEEE 802.11n, 802.11g, and 802.11b protocols and has a USB 2.0 interface. It operates in the 2.4-2.4835GHz frequency range across 1-11 channels and uses OFDM, DBPSK, DQPSK, and CCK data modulation. The module supports infrastructure and ad-hoc working modes with a transmitting rate ranging from 1-135Mbps and has a sensitivity of -76dBm at 135Mbps. It has an indoor transmission distance of up to 100m and outdoor distance of up to 300m.

1. KJ-R8192RX6
(产品型号展示优化词：300M Wireless N USB Module KJ-R8192RX6)
Features：
Product Application
·Digital products (Printer, Digital
camera, Digital photo frame)
·Game player
·Consumptive electronic device
and intelligent appliances(such as
TV, DVD player, media player,
etc)
·Tablet , notebook, E book
·Smart phone and other mobile applications
Specifications:
Item Description
Protocol/standards IEEE 802 .11n, IEEE 802 .11g , IEEE 802 .11b
Interface type USB2 .0
Frequency range 2 .4-2 .4835GHZ
Channels 1- 11（America , Canada）;
1- 13（China , Europe）;
1- 14 （Japan）
Data modulation OFDM/DBPSK/DQPSK/CCK
Working mode Infrastructure , Ad- Hoc
Transmitting rate 135/54/48/36/24/18/12/9/6 /1M （self-adapting）
Spread spectrum DSSS
Sensitivity @ PER 54/135M:-76dBm@ 10%PER;
11M:-85dBm@8%PER;
6 M: -88dBm@ 10%PER;
1M: -90dBm@8%PER;
RF Power 135M:15dBm;54 M:15dBm;11M:17dBm
Throughput 90Mbps(External antenna ,damping 50dbm in Shielding
box )
Antenna connection m PCB board load antenna
www.ttbvision.com

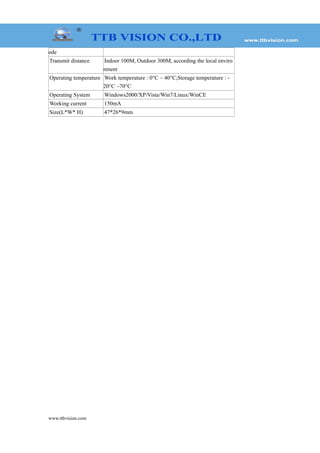

2. ode
Transmit distance Indoor 100M, Outdoor 300M, according the local enviro
nment
Operating temperature Work temperature : 0°C ~ 40°C;Storage temperature : -
20°C ~70°C
Operating System Windows2000/XP/Vista/Win7/Linux/WinCE
Working current 150mA
Size(L*W* H) 47*26*9mm
www.ttbvision.com
