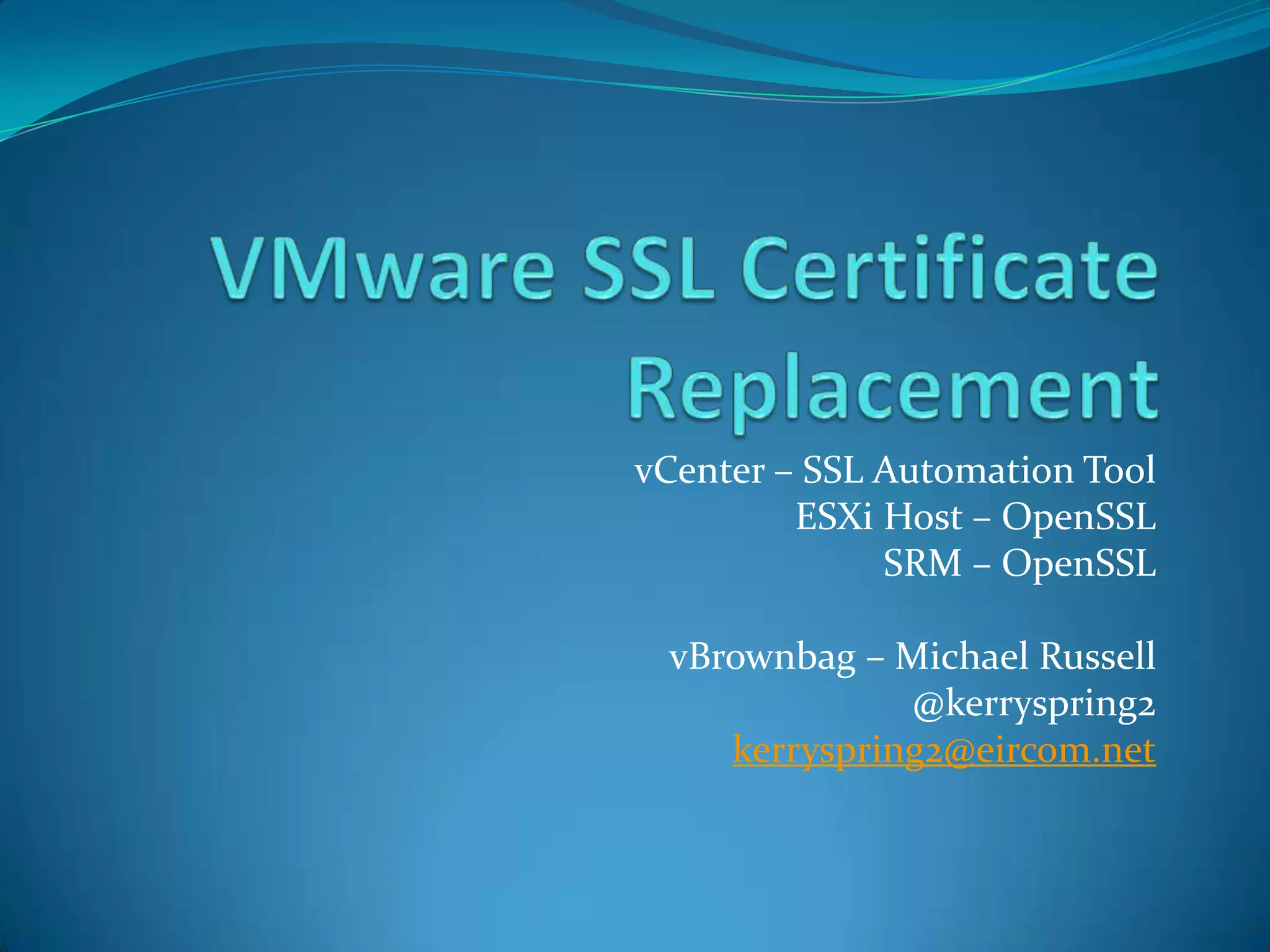

1. vCenter – SSL Automation Tool
ESXi Host – OpenSSL
SRM – OpenSSL
vBrownbag – Michael Russell
@kerryspring2
kerryspring2@eircom.net

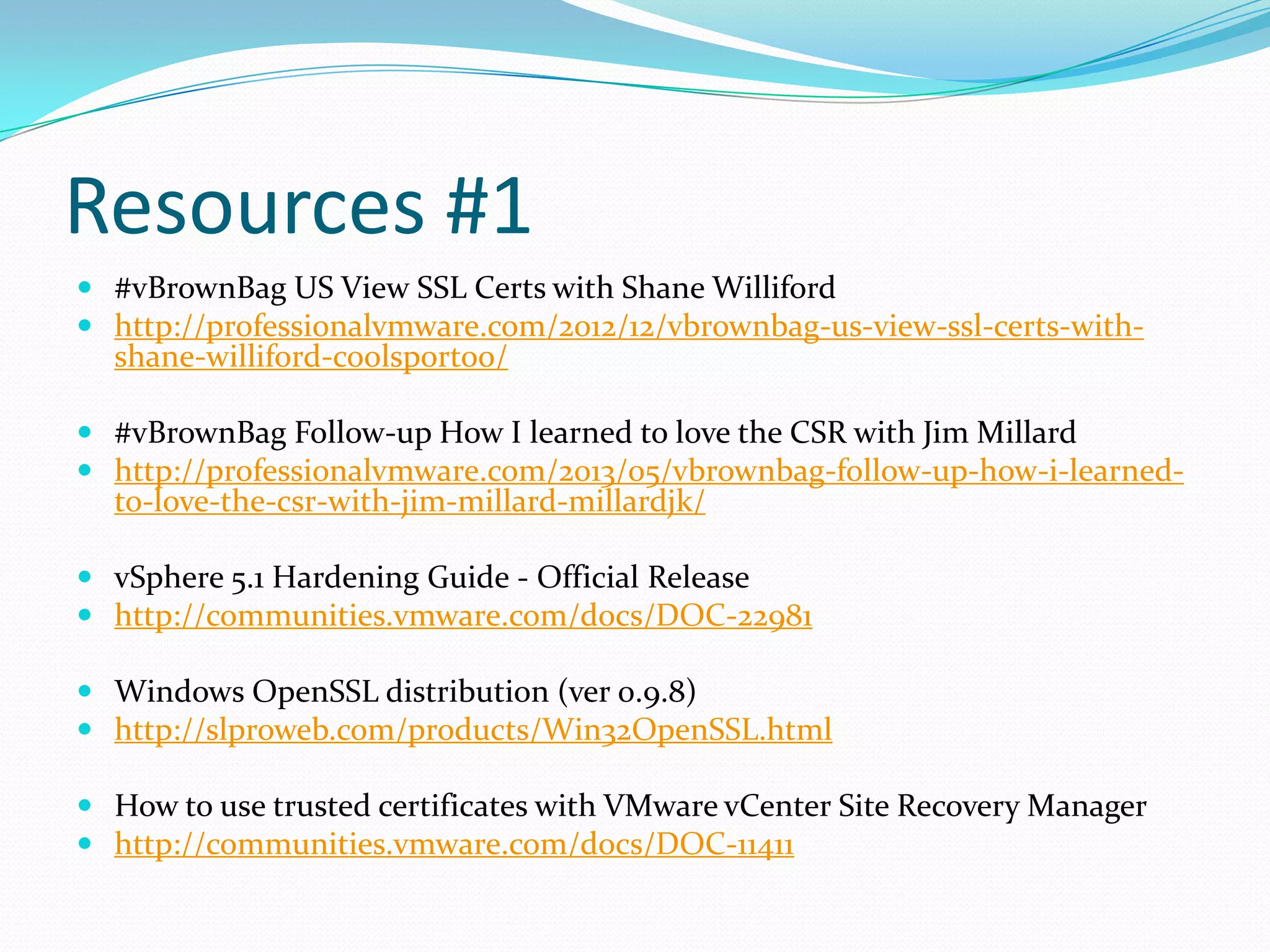

2. Resources #1
 #vBrownBag US View SSL Certs with Shane Williford
 http://professionalvmware.com/2012/12/vbrownbag-us-view-ssl-certs-with-
shane-williford-coolsportoo/
 #vBrownBag Follow-up How I learned to love the CSR with Jim Millard
 http://professionalvmware.com/2013/05/vbrownbag-follow-up-how-i-learned-
to-love-the-csr-with-jim-millard-millardjk/
 vSphere 5.1 Hardening Guide - Official Release
 http://communities.vmware.com/docs/DOC-22981
 Windows OpenSSL distribution (ver 0.9.8)
 http://slproweb.com/products/Win32OpenSSL.html
 How to use trusted certificates with VMware vCenter Site Recovery Manager
 http://communities.vmware.com/docs/DOC-11411

3. Resources #2
 vCenter Certificate Automation Tool Download
 https://my.vmware.com/group/vmware/get-download?downloadGroup=SSL-TOOL-101
 Generating certificates for use with the VMware SSL Certificate Automation Tool
 http://kb.vmware.com/kb/2044696
 Deploying and using the SSL Certificate Automation Tool (& Known Issues)
 http://kb.vmware.com/kb/2041600
 Process for Replacing SSL Certificates - vSphere 5 (7 Parts) - Julian Wood
 http://www.wooditwork.com/2011/11/30/vsphere-5-certificates-1-installing-a-root-
certificate-authority-3/
 vCenter 5.1 U1 installation including SSL replacement (15 Parts) - Derek Seaman
 http://www.derekseaman.com/2012/09/vmware-vcenter-51-installation-part-1.html

4. SSL Automation Tool Notes
 Microsoft Certificate Server SHA-1 vs SHA2-256
 Duplicate Template – Windows Server 2003 Enterprise
 Windows Server 2003 CA Server must be Enterprise Edition
 Deploy Root Certificate to Servers with vCenter components
 Generate chain.pem files from root64.cer & rui.crt
 Add Extensions: Allow Encryption of User Data (vCenter/ESXi)
/Client Authentication (SRM)
 OpenSSL v 0.9.8 – Copy OpenSSL DLLs to binaries (/bin) dir
 Certificate Tool vs vSphere Upgrades
http://kb.vmware.com/kb/2048202
 SSO user is admin@system-domain
 vCenter Database Password = ?
 Update Manager installation – Register FQDN, not IP Address

5. ESXi Hosts – SSL Notes
 ESXi Host HA Issues: http://kb.vmware.com/kb/2006210
 perl HostReconnect.pl --server <ip address> --username
administrator@lab.local
 vMA permit Winscp:
http://communities.vmware.com/message/2020784
sudo vi /etc/host.allow
add the following line;
sshd: ALL: ALLOW
then save the file :WQ!
 OpenSSL Commands to generate CSR:
 openssl req -new -nodes -out rui.csr -keyout rui.key -config
openssl.cfg
 Drop rui.crt & rui.key into /etc/vmware/ssl

6. ESXi Hosts – OpenSSL.cfg
 default_bits = 2048 (Change from 1024)
 default_keyfile = rui.key (Change from privkey.pem)
 req_extensions = v3_req (Remove # at start of line)
 countryName_default = IE (Update to your Country Code)
 stateOrProvinceName_default = Leinster (Update)
 localityName_default = Dublin (Add & Update)
 0.organizationName_default = Lab (Update to your Company Name)
 organizationalUnitName_default = IT (Update & Remove # at start of line)
 [ v3_req]
 subjectAltName = @alt_names (Add this under “keyUsage =“ line)
 [alt_names]
 DNS.1 = iedubdc2esx01.lab.local (Use FQDN here)
 DNS.2 = iedubdc2esx01 (Use Shorter Netbios Name here)

7. SRM – OpenSSL.cfg
 OpenSSL Command to export certificate file for SRM:
 openssl pkcs12 -export -in rui.crt -inkey rui.key -name rui -
passout pass:testpassword -out rui.p12
 OpenSSL.cfg changes:
 [ v3_req]
 extendedKeyUsage = serverAuth, clientAuth (Add under
“keyUsage =“ entry)
 [alt_names]
 DNS.1 = iedubdc2vc01.lab.local (Use FQDN of SRM Server
here)
 DNS.2 = iedubdc2esx01 (Delete this line)
