V21 时尚安防闹钟说
明书

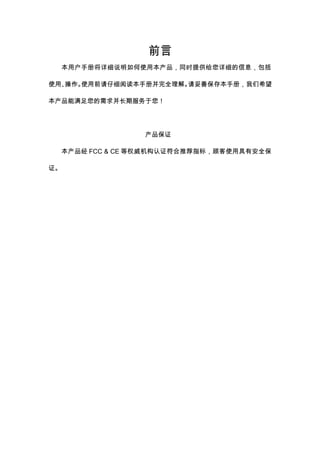

前言
本用户手册将详细说明如何使用本产品,同时提供给您详细的信息,包括
使用、操作。使用前请仔细阅读本手册并完全理解。请妥善保存本手册,我们希望
本产品能满足您的需求并长期服务于您!
产品保证
本产品经FCC & CE等权威机构认证符合推荐指标,顾客使用具有安全保
证。
电子闹钟操作说明
一、产品结构
:数码显示管 140°A+级全波超广角高清镜头 遥控接收头 闹铃,报时指示灯
/ 充电,工作指示灯 报时按钮 TIME键 DOWN键 UP 键 SET键 MODE 喇叭 电
池盖
二、功能介绍:
◇ 时间显示功能,显示当前时间、年、月、日。
◇ 闹铃和贪睡功能,可设置闹钤和贪睡时间间隔(1-60分钟)。
◇ 语音报时功能,语音播报当前时间。
◇ 温度功能,侦测当前环境温度。
◇ 自然声音欣赏功能,可设置欣赏时间(10-60分钟)
三、功能设置:
1、当前时间设置:
◇ 在时间显示模式按”SET”键进入年份设置,屏幕显示”2010”并闪烁,通过
“UP”.DOWN键的配合进行设置
◇ 再按”SET”键依次设置月→日→小时→分钟,设置时相应位置的数字会闪烁.
时间模式 设置年份 设置月份
设置日期 设置小时 设置分钟
◇ 按“MODE”键退出时间设置,显示设置好的时间。
2、闹铃时间设置
◇ 在当前时间模式按”MODE”进入闹铃设置模式,显示”- -:- -“
◇ 按”SET”键第一次设置闹铃小时,按第二次设置闹铃分钟,按第三次设置贪睡时
间间隔(1-60分钟),按第四次设置闹铃声音,通过“UP” “DOWN”进行选择
闹铃模式. 设置闹钟小时 设置闹钟分钟
设置
贪睡时间间隔 设置闹钟音乐
◇ 按“MODE”键退出闹铃设置,显示当前时间模式。
◇ 在闹铃模式按”UP”键可打开或关闭闹铃,贪睡功能开启时“ ”符号会闪烁
闹铃关闭 闹铃开启 贪睡功能开启
◇ 按“MODE”键返回时间模式。
3、在当前时间模式:按“UP”键可进行12/24小时转换;按“DOWN”键可进行温度:
摄氏(℃)/华氏(℉)度的转换
12小时制
24小时制
摄氏温度
华氏温度

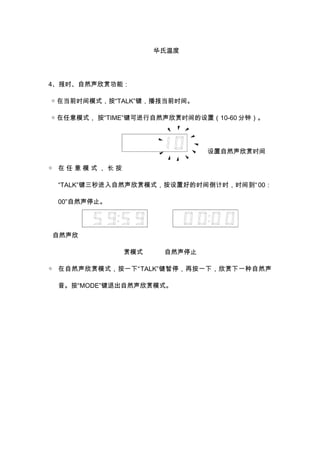

4、报时、自然声欣赏功能:
◇ 在当前时间模式,按“TALK”键,播报当前时间。
◇ 在任意模式, 按“TIME”键可进行自然声欣赏时间的设置(10-60分钟)。
设置自然声欣赏时间
◇ 在任意模式, 长按
“TALK”键三秒进入自然声欣赏模式,按设置好的时间倒计时,时间到“ 00:
00”自然声停止。
自然声欣
赏模式 自然声停止
◇ 在自然声欣赏模式,按一下“TALK”键暂停,再按一下,欣赏下一种自然声
音。按“MODE”键退出自然声欣赏模式。
录影安防闹钟产品简介
本产品是一款外置T F卡存储器的高清30帧(1280x720),H.264格式遥
控摄像监控钟,集摄像、录音、移动侦测、网络聊天、电子闹钟、存储于一身的多功
能高科技新产品。本产品配备高容量电池,可供24小时以上连续录像、60小时以
上连续录音,长达14天的移动侦测监控。500万像素高清晰录像,录音、多国语
言电子报时,最高支持32GB TF卡,可供长时间工作,遥控操作更方便。隐蔽性
强,是居家防盗、监控取证的最佳工具。
一、操作说明
1、打开后盖,插入TF卡,开启“ON“开机
2、 用遥控器对准本机接收头轻按开机,蓝灯亮,进入待机状态
3、 按进入录像,蓝灯闪三下后自灭进入工作状态,停止按,蓝灯亮
4、 按进入录音,蓝灯闪二下后自灭进入工作状态,停止按,蓝灯亮
5、 按进入拍照 蓝灯慢闪一次
6 、移动侦测 按 进入自动感应
摄像功能,停止按 ,蓝灯亮
7 、按关机,蓝灯灭
8 、在机器处于ON状态下,先插入USB线然后开摇控。此时机器进入U盘模式。
9 、网络摄像功能使用:在使用前请按步骤先安装光盘中的驱动软件;
装完驱动后,机器在ON状态下并用摇控先打开,插入USB线连接电脑。
此时进入PC CAM模式
10、充电:在总开关拨到OFF一端时,插入USB充电器,此时红灯亮,充满后
红灯灭。使用电脑USB也同样可以充电。
11、复位:当产品因非法操作或其它未明原因停止响应时,把拨动开关打到
OFF状态。然后再打到ON就可以对本产品进行复位。
12、当电池低电量时,蓝灯会不停闪动,此时应马上充电。当无电时,文件会自
动保存。
13、时间设置:在本机的内存卡上新建一个名为“time”的文本档,
进入文本档将当前的年月日时间编译到文本档内,中间以空格
键隔开。如:2012 06 02 12:00 然后保存这个文档,重新开机
录制就是当前编译的时间。

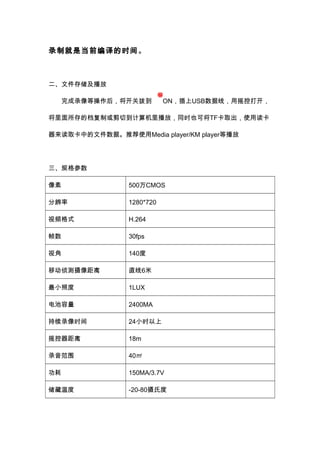

二、文件存储及播放
完成录像等操作后,将开关拨到ON,插上USB数据线,用摇控打开,
将里面所存的档复制或剪切到计算机里播放,同时也可将TF卡取出,使用读卡
器来读取卡中的文件数据。推荐使用Media player/KM player等播放
三、规格参数
像素500万CMOS
分辨率1280*720
视频格式H.264
帧数30fps
视角140度
移动侦测摄像距离直线6米
最小照度1LUX
电池容量2400MA
持续录像时间24小时以上
摇控器距离18m
录音范围40㎡
功耗150MA/3.7V
储藏温度-20-80摄氏度
操作温度-10-60摄氏度
操作湿度15-85%RH
记忆卡类型TF卡
记忆卡容量最大支持32GB
播放软件Media player/KMplayer
等USB界面USB1.1/2.0
操作系统2000/XP/Visat32
存储消耗1GB/40分钟
充电时间4小时左右

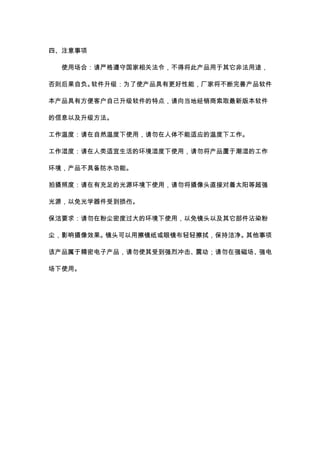

四、注意事项
使用场合:请严格遵守国家相关法令,不得将此产品用于其它非法用途,
否则后果自负。软件升级:为了使产品具有更好性能,厂家将不断完善产品软件
本产品具有方便客户自己升级软件的特点,请向当地经销商索取最新版本软件
的信息以及升级方法。
工作温度:请在自然温度下使用,请勿在人体不能适应的温度下工作。
工作湿度:请在人类适宜生活的环境湿度下使用,请勿将产品置于潮湿的工作
环境,产品不具备防水功能。
拍摄照度:请在有充足的光源环境下使用,请勿将摄像头直接对着太阳等超强
光源,以免光学器件受到损伤。
保洁要求:请勿在粉尘密度过大的环境下使用,以免镜头以及其它部件沾染粉
尘,影响摄像效果。镜头可以用擦镜纸或眼镜布轻轻擦拭,保持洁净。其他事项
该产品属于精密电子产品,请勿使其受到强烈冲击、震动;请勿在强磁场、强电
场下使用。
Mlutifunction Clock
DVR
User Manual
Profile
This manual introduce how to operate this product and the details information
about this product. Before you start to operate it, please be sure that you read
this manual and understand it completely and correctly.Wish it can bring to
reasonable and favotable.
Warranty
This product is with CE,FCC and RohS.
1、Structure
2、Introduction
◇ Date and Time Display
◇ Alarm Function and Snooze Function,the interval(1-60minutes)
◇ Voice Broadcast the present time.
◇ Tempreture Display
◇ Natural Sound Broadcast(Interval 10-60minutes)
3、Time:

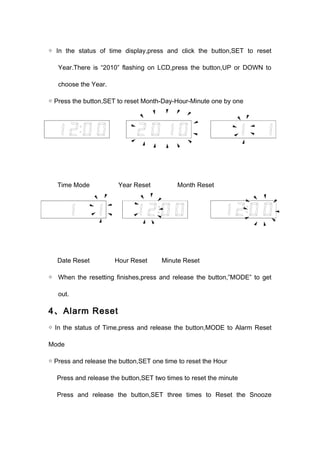

◇ In the status of time display,press and click the button,SET to reset
Year.There is “2010” flashing on LCD,press the button,UP or DOWN to
choose the Year.
◇ Press the button,SET to reset Month-Day-Hour-Minute one by one
Time Mode Year Reset Month Reset
Date Reset Hour Reset Minute Reset
◇ When the resetting finishes,press and release the button,”MODE” to get
out.
4、Alarm Reset
◇ In the status of Time,press and release the button,MODE to Alarm Reset
Mode
◇ Press and release the button,SET one time to reset the Hour
Press and release the button,SET two times to reset the minute
Press and release the button,SET three times to Reset the Snooze
Mode(Time Interval,1-60mnutes)
Press and release the button,SET four times to reset Alarm Ring,press the
button,UP or the button,DOWN to choose.
Alarm Mode Hour Reset Minute Reset
Snooze
Mode Time Interval Alarm Ring
◇ Press and release the button,“MODE” to get out,the present time display
on LCD.
◇ In the status of Alarm,press and release the button,UP to turn on or
turn off Alarm.When the Snooze Function on,the “ ” will flash.
Alarm Off Alarm On Snooze On
◇ Press and release the button,“MODE” to get back to the time reset mode.
◇ In the time mode,press the button,”UP” to choose the time mode(12 or
24),press the button,DOWN to choose ℃ or ℉
12Mode
24Mode
Celsius Fahrenheit
5、Timekeeping,Natural Sound
◇ In the time mode,press and release the button,TALK to talk the present
time.
◇ In any mode status,press and release the button,TIME to reset the Natural
Sound(10-60minutes)
Natural Sound Time Reset
◇ In any mode,press the button,TALK for three senconds to Natural Sound
Listenning Mode,the interval time will countdown.
Natural Sound Mode Natural Sound Stop
◇ In the mode of Natural Sound Mode,press and release the button,TALK to
pause,press and release again to choose the next Natural Sound.Press
and release the button,MODE to get out.
Notice:On the Display,there are two signes,one is PM and the other is
“”.Pleasepay attention to the following picture:

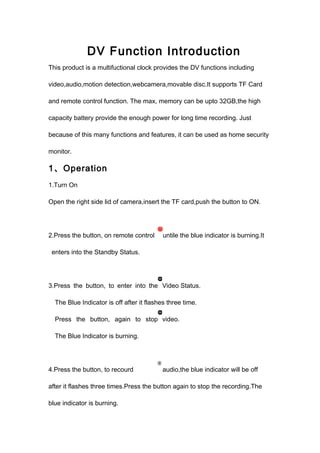

DV Function Introduction
This product is a multifuctional clock provides the DV functions including
video,audio,motion detection,webcamera,movable disc.It supports TF Card
and remote control function. The max, memory can be upto 32GB,the high
capacity battery provide the enough power for long time recording. Just
because of this many functions and features, it can be used as home security
monitor.
1、Operation
1.Turn On
Open the right side lid of camera,insert the TF card,push the button to ON.
2.Press the button, on remote control untile the blue indicator is burning.It
enters into the Standby Status.
3.Press the button, to enter into the Video Status.
The Blue Indicator is off after it flashes three time.
Press the button, again to stop video.
The Blue Indicator is burning.
4.Press the button, to recourd audio,the blue indicator will be off
after it flashes three times.Press the button again to stop the recording.The
blue indicator is burning.
5. Press the button, to shoot a image,the blue indicator will flash one
time.
6.Press the button, to start this function,press and release the button again to
stop it.The blue indicator will be burning.
7.Press the button, to turn off the camera,the blue indicator will be off.
8.Push the button to ON,connect the camera and PC,then,press and
release the button, on remote control.
9. Using webcam: first install the driver on the CD-ROM before use; after installation,
when the device is ON, turn on with remote control, plug in USB cable and connect to
computer. Then the device enters PC CAM mode.
10. Recharge: turn the master switch to OFF, plug in the USB charger to turn on the red light.
When recharging is finished, the red light goes off. A computer’s USB port can also be used
to charge the device.
11. Reset: when the device does not respond due to incorrect operation or unknown cause, turn
the slide switch to OFF, then turn to ON to reset the device.
12. With low battery the blue light flickers, the device should be recharged promptly. When the
battery’s going empty, files will be saved automatically.
13. Setting time: create a new text file name “time” in the device’s memory card, open the file
and write the current year, month, day and time, each separated with a space, into the file, for
example: 2012 06 02 12:00. Then save this file, restart the device to record, the time will be
the edited time/
2、Specifications
Pixels 5.0 Mega CMOS
Video Resolution 1280*720
Video Form H.264
FPS 30fps
View Angle 140°
Motion Detection
Direct 6 meters
Distance
Low Illumination 1LUX
Battery Capacity 2400MA
Recording Time More than 24 hours
Remote Control Distance 18m
Recording Audio Area 40㎡
Power Consumption 150MA/3.7V
Store Tempreture -20-80℃
Operation Tempreture -10-60℃
Operation Humidity 15-85%RH
Memory TF Card
Max. 32GB
Software Media player/KMplayer
Data Transfer Interface USB1.1/2.0
Operation System 2000/XP/Visat32
Memory Consumption 1GB/40min
Charge Time About 4 hours
Notice
Place of using:It can not be used in the ileagle place,before use it,please pay
attention to the law.
Software Update:The factory will improve the software in order to improve the
service and using feels of this products.Please try to contact your seller to get
the neweast software.
Working Tempreture:Please use it in the suitable tempreture which the man
can bear.
Working Humidity:Please do not use it in humidity place.
LUX:Please use it in the place with enough light,please do not make the lens
straigh to strong light source.
Clearance:Please do not use it in the derty place,please clear it with soft cloth
and clear it smothly.Please do not use it in strong magnetic field or strong
electic field.

More Related Content

Similar to HD spy clock camera new 1080P clock camera new technology new spy clock camera

Spy motion detection clock camera dvr t1000
Spy motion detection clock camera dvr t1000Spy motion detection clock camera dvr t1000
Spy motion detection clock camera dvr t1000
george david

Spy motion detection clock camera dvr t1000
Spy motion detection clock camera dvr t1000Spy motion detection clock camera dvr t1000
Spy motion detection clock camera dvr t1000
george david

super HD spy camera watch W6000 7000
super HD spy camera watch W6000 7000super HD spy camera watch W6000 7000
super HD spy camera watch W6000 7000
george david

spy watch camera specification W6000 7000
spy watch camera specification  W6000 7000spy watch camera specification  W6000 7000
spy watch camera specification W6000 7000
george david

HD Watch spy camera user guide Y7000
HD Watch spy camera user guide Y7000HD Watch spy camera user guide Y7000
HD Watch spy camera user guide Y7000
george david

1280x720P camera watch spy watch W8000 9000
1280x720P camera watch spy watch W8000 90001280x720P camera watch spy watch W8000 9000
1280x720P camera watch spy watch W8000 9000
george david

Hd ir camera watch
Hd ir camera watchHd ir camera watch
Hd ir camera watch
george david

Watch spy camera user guide Sc1031 1032
Watch spy camera user guide Sc1031 1032Watch spy camera user guide Sc1031 1032
Watch spy camera user guide Sc1031 1032
george david

H800 car video recorder user manual
H800 car video recorder user manualH800 car video recorder user manual
H800 car video recorder user manual
george david

H800 car video recorder user manual
H800 car video recorder user manualH800 car video recorder user manual
H800 car video recorder user manual
george david

HD 1080P spy watch camera specification Y8000
HD 1080P spy watch camera specification  Y8000HD 1080P spy watch camera specification  Y8000
HD 1080P spy watch camera specification Y8000
george david

Spy watch camera spy watch ,watch camera ,watch cam Y8000
Spy watch camera spy watch ,watch camera ,watch cam Y8000Spy watch camera spy watch ,watch camera ,watch cam Y8000
Spy watch camera spy watch ,watch camera ,watch cam Y8000
george david

spy watch camera specification Y4000 5000
spy watch camera specification  Y4000 5000spy watch camera specification  Y4000 5000
spy watch camera specification Y4000 5000
george david

Camera HD spy watch Y4000 5000
Camera HD spy watch Y4000 5000Camera HD spy watch Y4000 5000
Camera HD spy watch Y4000 5000
george david

808 #18 DR32 DVR English User Manual
808 #18 DR32 DVR English User Manual808 #18 DR32 DVR English User Manual
808 #18 DR32 DVR English User Manual
dashcamtalk

Vox Stomp lab.pdf
Vox Stomp lab.pdfVox Stomp lab.pdf
Vox Stomp lab.pdf
Randykybo

Yulass digital voice recorder product's manual
Yulass digital voice recorder product's manual Yulass digital voice recorder product's manual
Yulass digital voice recorder product's manual
Yulasscom

720 p hd professional spy pen camera
720 p hd professional spy pen camera 720 p hd professional spy pen camera
720 p hd professional spy pen camera george david

07d0135ae9f4506e76dfae7671daa88f
07d0135ae9f4506e76dfae7671daa88f07d0135ae9f4506e76dfae7671daa88f
07d0135ae9f4506e76dfae7671daa88fguest57cf51


Similar to HD spy clock camera new 1080P clock camera new technology new spy clock camera (20)

Spy motion detection clock camera dvr t1000
Spy motion detection clock camera dvr t1000Spy motion detection clock camera dvr t1000
Spy motion detection clock camera dvr t1000

Spy motion detection clock camera dvr t1000
Spy motion detection clock camera dvr t1000Spy motion detection clock camera dvr t1000
Spy motion detection clock camera dvr t1000

super HD spy camera watch W6000 7000
super HD spy camera watch W6000 7000super HD spy camera watch W6000 7000
super HD spy camera watch W6000 7000

spy watch camera specification W6000 7000
spy watch camera specification  W6000 7000spy watch camera specification  W6000 7000
spy watch camera specification W6000 7000

HD Watch spy camera user guide Y7000
HD Watch spy camera user guide Y7000HD Watch spy camera user guide Y7000
HD Watch spy camera user guide Y7000

1280x720P camera watch spy watch W8000 9000
1280x720P camera watch spy watch W8000 90001280x720P camera watch spy watch W8000 9000
1280x720P camera watch spy watch W8000 9000

Hd ir camera watch
Hd ir camera watchHd ir camera watch
Hd ir camera watch

Sc1031 1032
Sc1031 1032Sc1031 1032
Sc1031 1032

Watch spy camera user guide Sc1031 1032
Watch spy camera user guide Sc1031 1032Watch spy camera user guide Sc1031 1032
Watch spy camera user guide Sc1031 1032

H800 car video recorder user manual
H800 car video recorder user manualH800 car video recorder user manual
H800 car video recorder user manual

H800 car video recorder user manual
H800 car video recorder user manualH800 car video recorder user manual
H800 car video recorder user manual

HD 1080P spy watch camera specification Y8000
HD 1080P spy watch camera specification  Y8000HD 1080P spy watch camera specification  Y8000
HD 1080P spy watch camera specification Y8000

Spy watch camera spy watch ,watch camera ,watch cam Y8000
Spy watch camera spy watch ,watch camera ,watch cam Y8000Spy watch camera spy watch ,watch camera ,watch cam Y8000
Spy watch camera spy watch ,watch camera ,watch cam Y8000

spy watch camera specification Y4000 5000
spy watch camera specification  Y4000 5000spy watch camera specification  Y4000 5000
spy watch camera specification Y4000 5000

Camera HD spy watch Y4000 5000
Camera HD spy watch Y4000 5000Camera HD spy watch Y4000 5000
Camera HD spy watch Y4000 5000

808 #18 DR32 DVR English User Manual
808 #18 DR32 DVR English User Manual808 #18 DR32 DVR English User Manual
808 #18 DR32 DVR English User Manual

Vox Stomp lab.pdf
Vox Stomp lab.pdfVox Stomp lab.pdf
Vox Stomp lab.pdf

Yulass digital voice recorder product's manual
Yulass digital voice recorder product's manual Yulass digital voice recorder product's manual
Yulass digital voice recorder product's manual

720 p hd professional spy pen camera
720 p hd professional spy pen camera 720 p hd professional spy pen camera
720 p hd professional spy pen camera

07d0135ae9f4506e76dfae7671daa88f
07d0135ae9f4506e76dfae7671daa88f07d0135ae9f4506e76dfae7671daa88f
07d0135ae9f4506e76dfae7671daa88f


More from george david

Toothbrush hd camera user guide
Toothbrush hd camera user guideToothbrush hd camera user guide
Toothbrush hd camera user guide
george david

Shaving cream Super HD spy camera hidden camera HD
Shaving cream Super HD spy camera hidden camera HDShaving cream Super HD spy camera hidden camera HD
Shaving cream Super HD spy camera hidden camera HD
george david

Clock(p2 p) wifi hidden clock camera spy radio clock camera
Clock(p2 p) wifi hidden clock camera spy radio clock camera Clock(p2 p) wifi hidden clock camera spy radio clock camera
Clock(p2 p) wifi hidden clock camera spy radio clock camera
george david

wifi hidden clock camera spy radio clock camera
wifi hidden clock camera spy radio clock camera wifi hidden clock camera spy radio clock camera
wifi hidden clock camera spy radio clock camera
george david

bathroom hidden camera Lynx hd camera user guide how to use a bathroom spy ca...
bathroom hidden camera Lynx hd camera user guide how to use a bathroom spy ca...bathroom hidden camera Lynx hd camera user guide how to use a bathroom spy ca...
bathroom hidden camera Lynx hd camera user guide how to use a bathroom spy ca...
george david

shampoo Bathroom Shower gel hd camera user guide
shampoo Bathroom Shower gel hd camera user guideshampoo Bathroom Shower gel hd camera user guide
shampoo Bathroom Shower gel hd camera user guide
george david

face wash face care spy camera Aqua boss camera user guide(nrc)
face wash face care spy camera Aqua boss camera user guide(nrc)face wash face care spy camera Aqua boss camera user guide(nrc)
face wash face care spy camera Aqua boss camera user guide(nrc)
george david

hidden camera hair gel hidden camera bathroom Syoss hd camera user guide(nrg)
hidden camera hair gel hidden camera bathroom Syoss hd camera user guide(nrg)hidden camera hair gel hidden camera bathroom Syoss hd camera user guide(nrg)
hidden camera hair gel hidden camera bathroom Syoss hd camera user guide(nrg)
george david

Povos trimmer hd camera user guide
Povos trimmer hd camera user guidePovos trimmer hd camera user guide
Povos trimmer hd camera user guide
george david

Nivea shower gel hd camera user guide
Nivea shower gel hd camera user guideNivea shower gel hd camera user guide
Nivea shower gel hd camera user guide
george david

Palmolive hd camera user guide
Palmolive hd camera user guidePalmolive hd camera user guide
Palmolive hd camera user guide
george david

Conpu air purifier hd camera user guide
Conpu air purifier hd camera user guideConpu air purifier hd camera user guide
Conpu air purifier hd camera user guide
george david

shower radio camera I form radio user guide
shower radio camera I form radio user guideshower radio camera I form radio user guide
shower radio camera I form radio user guide
george david

Lcd radio hd camera user guide
Lcd radio hd camera user guideLcd radio hd camera user guide
Lcd radio hd camera user guide
george david

Axe men's fragrance camera user guide
Axe men's fragrance camera user guideAxe men's fragrance camera user guide
Axe men's fragrance camera user guide
george david

Men tholatum shower gel hd camera user guide
Men tholatum shower gel hd camera user guideMen tholatum shower gel hd camera user guide
Men tholatum shower gel hd camera user guide
george david

shower spy camera toilet spy camera Adidas pulse hd camera user guide (rc)
shower spy camera toilet spy camera Adidas pulse hd camera user guide (rc)shower spy camera toilet spy camera Adidas pulse hd camera user guide (rc)
shower spy camera toilet spy camera Adidas pulse hd camera user guide (rc)
george david

HD bathroom hidden camera Adidas pulse body spray hd camera user guide
HD bathroom hidden camera Adidas pulse body spray hd camera user guideHD bathroom hidden camera Adidas pulse body spray hd camera user guide
HD bathroom hidden camera Adidas pulse body spray hd camera user guide
george david

HD spy camera bathroom 409 hd spy camera user guide
HD spy camera bathroom 409 hd spy camera user guideHD spy camera bathroom 409 hd spy camera user guide
HD spy camera bathroom 409 hd spy camera user guide
george david

toilet cleaner bathroom spy camera 409 hd camera user guide
toilet cleaner bathroom spy camera 409 hd camera user guidetoilet cleaner bathroom spy camera 409 hd camera user guide
toilet cleaner bathroom spy camera 409 hd camera user guide
george david


More from george david (20)

Toothbrush hd camera user guide
Toothbrush hd camera user guideToothbrush hd camera user guide
Toothbrush hd camera user guide

Shaving cream Super HD spy camera hidden camera HD
Shaving cream Super HD spy camera hidden camera HDShaving cream Super HD spy camera hidden camera HD
Shaving cream Super HD spy camera hidden camera HD

Clock(p2 p) wifi hidden clock camera spy radio clock camera
Clock(p2 p) wifi hidden clock camera spy radio clock camera Clock(p2 p) wifi hidden clock camera spy radio clock camera
Clock(p2 p) wifi hidden clock camera spy radio clock camera

wifi hidden clock camera spy radio clock camera
wifi hidden clock camera spy radio clock camera wifi hidden clock camera spy radio clock camera
wifi hidden clock camera spy radio clock camera

bathroom hidden camera Lynx hd camera user guide how to use a bathroom spy ca...
bathroom hidden camera Lynx hd camera user guide how to use a bathroom spy ca...bathroom hidden camera Lynx hd camera user guide how to use a bathroom spy ca...
bathroom hidden camera Lynx hd camera user guide how to use a bathroom spy ca...

shampoo Bathroom Shower gel hd camera user guide
shampoo Bathroom Shower gel hd camera user guideshampoo Bathroom Shower gel hd camera user guide
shampoo Bathroom Shower gel hd camera user guide

face wash face care spy camera Aqua boss camera user guide(nrc)
face wash face care spy camera Aqua boss camera user guide(nrc)face wash face care spy camera Aqua boss camera user guide(nrc)
face wash face care spy camera Aqua boss camera user guide(nrc)

hidden camera hair gel hidden camera bathroom Syoss hd camera user guide(nrg)
hidden camera hair gel hidden camera bathroom Syoss hd camera user guide(nrg)hidden camera hair gel hidden camera bathroom Syoss hd camera user guide(nrg)
hidden camera hair gel hidden camera bathroom Syoss hd camera user guide(nrg)

Povos trimmer hd camera user guide
Povos trimmer hd camera user guidePovos trimmer hd camera user guide
Povos trimmer hd camera user guide

Nivea shower gel hd camera user guide
Nivea shower gel hd camera user guideNivea shower gel hd camera user guide
Nivea shower gel hd camera user guide

Palmolive hd camera user guide
Palmolive hd camera user guidePalmolive hd camera user guide
Palmolive hd camera user guide

Conpu air purifier hd camera user guide
Conpu air purifier hd camera user guideConpu air purifier hd camera user guide
Conpu air purifier hd camera user guide

shower radio camera I form radio user guide
shower radio camera I form radio user guideshower radio camera I form radio user guide
shower radio camera I form radio user guide

Lcd radio hd camera user guide
Lcd radio hd camera user guideLcd radio hd camera user guide
Lcd radio hd camera user guide

Axe men's fragrance camera user guide
Axe men's fragrance camera user guideAxe men's fragrance camera user guide
Axe men's fragrance camera user guide

Men tholatum shower gel hd camera user guide
Men tholatum shower gel hd camera user guideMen tholatum shower gel hd camera user guide
Men tholatum shower gel hd camera user guide

shower spy camera toilet spy camera Adidas pulse hd camera user guide (rc)
shower spy camera toilet spy camera Adidas pulse hd camera user guide (rc)shower spy camera toilet spy camera Adidas pulse hd camera user guide (rc)
shower spy camera toilet spy camera Adidas pulse hd camera user guide (rc)

HD bathroom hidden camera Adidas pulse body spray hd camera user guide
HD bathroom hidden camera Adidas pulse body spray hd camera user guideHD bathroom hidden camera Adidas pulse body spray hd camera user guide
HD bathroom hidden camera Adidas pulse body spray hd camera user guide

HD spy camera bathroom 409 hd spy camera user guide
HD spy camera bathroom 409 hd spy camera user guideHD spy camera bathroom 409 hd spy camera user guide
HD spy camera bathroom 409 hd spy camera user guide

toilet cleaner bathroom spy camera 409 hd camera user guide
toilet cleaner bathroom spy camera 409 hd camera user guidetoilet cleaner bathroom spy camera 409 hd camera user guide
toilet cleaner bathroom spy camera 409 hd camera user guide


HD spy clock camera new 1080P clock camera new technology new spy clock camera

  • 2. 前言 本用户手册将详细说明如何使用本产品,同时提供给您详细的信息,包括 使用、操作。使用前请仔细阅读本手册并完全理解。请妥善保存本手册,我们希望 本产品能满足您的需求并长期服务于您! 产品保证 本产品经FCC & CE等权威机构认证符合推荐指标,顾客使用具有安全保 证。
  • 3. 电子闹钟操作说明 一、产品结构 :数码显示管 140°A+级全波超广角高清镜头 遥控接收头 闹铃,报时指示灯 / 充电,工作指示灯 报时按钮 TIME键 DOWN键 UP 键 SET键 MODE 喇叭 电 池盖 二、功能介绍: ◇ 时间显示功能,显示当前时间、年、月、日。 ◇ 闹铃和贪睡功能,可设置闹钤和贪睡时间间隔(1-60分钟)。
  • 4. ◇ 语音报时功能,语音播报当前时间。 ◇ 温度功能,侦测当前环境温度。 ◇ 自然声音欣赏功能,可设置欣赏时间(10-60分钟) 三、功能设置: 1、当前时间设置: ◇ 在时间显示模式按”SET”键进入年份设置,屏幕显示”2010”并闪烁,通过 “UP”.DOWN键的配合进行设置 ◇ 再按”SET”键依次设置月→日→小时→分钟,设置时相应位置的数字会闪烁. 时间模式 设置年份 设置月份 设置日期 设置小时 设置分钟 ◇ 按“MODE”键退出时间设置,显示设置好的时间。 2、闹铃时间设置 ◇ 在当前时间模式按”MODE”进入闹铃设置模式,显示”- -:- -“
  • 5. ◇ 按”SET”键第一次设置闹铃小时,按第二次设置闹铃分钟,按第三次设置贪睡时 间间隔(1-60分钟),按第四次设置闹铃声音,通过“UP” “DOWN”进行选择 闹铃模式. 设置闹钟小时 设置闹钟分钟 设置 贪睡时间间隔 设置闹钟音乐 ◇ 按“MODE”键退出闹铃设置,显示当前时间模式。 ◇ 在闹铃模式按”UP”键可打开或关闭闹铃,贪睡功能开启时“ ”符号会闪烁 闹铃关闭 闹铃开启 贪睡功能开启 ◇ 按“MODE”键返回时间模式。 3、在当前时间模式:按“UP”键可进行12/24小时转换;按“DOWN”键可进行温度: 摄氏(℃)/华氏(℉)度的转换 12小时制 24小时制 摄氏温度
  • 6. 华氏温度 4、报时、自然声欣赏功能: ◇ 在当前时间模式,按“TALK”键,播报当前时间。 ◇ 在任意模式, 按“TIME”键可进行自然声欣赏时间的设置(10-60分钟)。 设置自然声欣赏时间 ◇ 在任意模式, 长按 “TALK”键三秒进入自然声欣赏模式,按设置好的时间倒计时,时间到“ 00: 00”自然声停止。 自然声欣 赏模式 自然声停止 ◇ 在自然声欣赏模式,按一下“TALK”键暂停,再按一下,欣赏下一种自然声 音。按“MODE”键退出自然声欣赏模式。
  • 7. 录影安防闹钟产品简介 本产品是一款外置T F卡存储器的高清30帧(1280x720),H.264格式遥 控摄像监控钟,集摄像、录音、移动侦测、网络聊天、电子闹钟、存储于一身的多功 能高科技新产品。本产品配备高容量电池,可供24小时以上连续录像、60小时以 上连续录音,长达14天的移动侦测监控。500万像素高清晰录像,录音、多国语 言电子报时,最高支持32GB TF卡,可供长时间工作,遥控操作更方便。隐蔽性 强,是居家防盗、监控取证的最佳工具。
  • 8. 一、操作说明 1、打开后盖,插入TF卡,开启“ON“开机 2、 用遥控器对准本机接收头轻按开机,蓝灯亮,进入待机状态 3、 按进入录像,蓝灯闪三下后自灭进入工作状态,停止按,蓝灯亮 4、 按进入录音,蓝灯闪二下后自灭进入工作状态,停止按,蓝灯亮 5、 按进入拍照 蓝灯慢闪一次 6 、移动侦测 按 进入自动感应 摄像功能,停止按 ,蓝灯亮 7 、按关机,蓝灯灭 8 、在机器处于ON状态下,先插入USB线然后开摇控。此时机器进入U盘模式。 9 、网络摄像功能使用:在使用前请按步骤先安装光盘中的驱动软件; 装完驱动后,机器在ON状态下并用摇控先打开,插入USB线连接电脑。 此时进入PC CAM模式 10、充电:在总开关拨到OFF一端时,插入USB充电器,此时红灯亮,充满后 红灯灭。使用电脑USB也同样可以充电。 11、复位:当产品因非法操作或其它未明原因停止响应时,把拨动开关打到 OFF状态。然后再打到ON就可以对本产品进行复位。 12、当电池低电量时,蓝灯会不停闪动,此时应马上充电。当无电时,文件会自 动保存。 13、时间设置:在本机的内存卡上新建一个名为“time”的文本档, 进入文本档将当前的年月日时间编译到文本档内,中间以空格 键隔开。如:2012 06 02 12:00 然后保存这个文档,重新开机
  • 9. 录制就是当前编译的时间。 二、文件存储及播放 完成录像等操作后,将开关拨到ON,插上USB数据线,用摇控打开, 将里面所存的档复制或剪切到计算机里播放,同时也可将TF卡取出,使用读卡 器来读取卡中的文件数据。推荐使用Media player/KM player等播放 三、规格参数 像素500万CMOS 分辨率1280*720 视频格式H.264 帧数30fps 视角140度 移动侦测摄像距离直线6米 最小照度1LUX 电池容量2400MA 持续录像时间24小时以上 摇控器距离18m 录音范围40㎡ 功耗150MA/3.7V 储藏温度-20-80摄氏度
  • 10. 操作温度-10-60摄氏度 操作湿度15-85%RH 记忆卡类型TF卡 记忆卡容量最大支持32GB 播放软件Media player/KMplayer 等USB界面USB1.1/2.0 操作系统2000/XP/Visat32 存储消耗1GB/40分钟 充电时间4小时左右
  • 11. 四、注意事项 使用场合:请严格遵守国家相关法令,不得将此产品用于其它非法用途, 否则后果自负。软件升级:为了使产品具有更好性能,厂家将不断完善产品软件 本产品具有方便客户自己升级软件的特点,请向当地经销商索取最新版本软件 的信息以及升级方法。 工作温度:请在自然温度下使用,请勿在人体不能适应的温度下工作。 工作湿度:请在人类适宜生活的环境湿度下使用,请勿将产品置于潮湿的工作 环境,产品不具备防水功能。 拍摄照度:请在有充足的光源环境下使用,请勿将摄像头直接对着太阳等超强 光源,以免光学器件受到损伤。 保洁要求:请勿在粉尘密度过大的环境下使用,以免镜头以及其它部件沾染粉 尘,影响摄像效果。镜头可以用擦镜纸或眼镜布轻轻擦拭,保持洁净。其他事项 该产品属于精密电子产品,请勿使其受到强烈冲击、震动;请勿在强磁场、强电 场下使用。
  • 12. Mlutifunction Clock DVR User Manual
  • 13.
  • 14. Profile This manual introduce how to operate this product and the details information about this product. Before you start to operate it, please be sure that you read this manual and understand it completely and correctly.Wish it can bring to reasonable and favotable. Warranty This product is with CE,FCC and RohS.
  • 15. 1、Structure 2、Introduction ◇ Date and Time Display ◇ Alarm Function and Snooze Function,the interval(1-60minutes) ◇ Voice Broadcast the present time. ◇ Tempreture Display ◇ Natural Sound Broadcast(Interval 10-60minutes) 3、Time:
  • 16. ◇ In the status of time display,press and click the button,SET to reset Year.There is “2010” flashing on LCD,press the button,UP or DOWN to choose the Year. ◇ Press the button,SET to reset Month-Day-Hour-Minute one by one Time Mode Year Reset Month Reset Date Reset Hour Reset Minute Reset ◇ When the resetting finishes,press and release the button,”MODE” to get out. 4、Alarm Reset ◇ In the status of Time,press and release the button,MODE to Alarm Reset Mode ◇ Press and release the button,SET one time to reset the Hour Press and release the button,SET two times to reset the minute Press and release the button,SET three times to Reset the Snooze
  • 17. Mode(Time Interval,1-60mnutes) Press and release the button,SET four times to reset Alarm Ring,press the button,UP or the button,DOWN to choose. Alarm Mode Hour Reset Minute Reset Snooze Mode Time Interval Alarm Ring ◇ Press and release the button,“MODE” to get out,the present time display on LCD. ◇ In the status of Alarm,press and release the button,UP to turn on or turn off Alarm.When the Snooze Function on,the “ ” will flash. Alarm Off Alarm On Snooze On ◇ Press and release the button,“MODE” to get back to the time reset mode. ◇ In the time mode,press the button,”UP” to choose the time mode(12 or 24),press the button,DOWN to choose ℃ or ℉ 12Mode
  • 18. 24Mode Celsius Fahrenheit 5、Timekeeping,Natural Sound ◇ In the time mode,press and release the button,TALK to talk the present time. ◇ In any mode status,press and release the button,TIME to reset the Natural Sound(10-60minutes) Natural Sound Time Reset ◇ In any mode,press the button,TALK for three senconds to Natural Sound Listenning Mode,the interval time will countdown. Natural Sound Mode Natural Sound Stop ◇ In the mode of Natural Sound Mode,press and release the button,TALK to pause,press and release again to choose the next Natural Sound.Press and release the button,MODE to get out. Notice:On the Display,there are two signes,one is PM and the other is
  • 19. “”.Pleasepay attention to the following picture:
  • 20. DV Function Introduction This product is a multifuctional clock provides the DV functions including video,audio,motion detection,webcamera,movable disc.It supports TF Card and remote control function. The max, memory can be upto 32GB,the high capacity battery provide the enough power for long time recording. Just because of this many functions and features, it can be used as home security monitor. 1、Operation 1.Turn On Open the right side lid of camera,insert the TF card,push the button to ON. 2.Press the button, on remote control untile the blue indicator is burning.It enters into the Standby Status. 3.Press the button, to enter into the Video Status. The Blue Indicator is off after it flashes three time. Press the button, again to stop video. The Blue Indicator is burning. 4.Press the button, to recourd audio,the blue indicator will be off after it flashes three times.Press the button again to stop the recording.The blue indicator is burning.
  • 21. 5. Press the button, to shoot a image,the blue indicator will flash one time. 6.Press the button, to start this function,press and release the button again to stop it.The blue indicator will be burning. 7.Press the button, to turn off the camera,the blue indicator will be off. 8.Push the button to ON,connect the camera and PC,then,press and release the button, on remote control. 9. Using webcam: first install the driver on the CD-ROM before use; after installation, when the device is ON, turn on with remote control, plug in USB cable and connect to computer. Then the device enters PC CAM mode. 10. Recharge: turn the master switch to OFF, plug in the USB charger to turn on the red light. When recharging is finished, the red light goes off. A computer’s USB port can also be used to charge the device. 11. Reset: when the device does not respond due to incorrect operation or unknown cause, turn the slide switch to OFF, then turn to ON to reset the device. 12. With low battery the blue light flickers, the device should be recharged promptly. When the battery’s going empty, files will be saved automatically. 13. Setting time: create a new text file name “time” in the device’s memory card, open the file and write the current year, month, day and time, each separated with a space, into the file, for example: 2012 06 02 12:00. Then save this file, restart the device to record, the time will be the edited time/ 2、Specifications
  • 22. Pixels 5.0 Mega CMOS Video Resolution 1280*720 Video Form H.264 FPS 30fps View Angle 140° Motion Detection Direct 6 meters Distance Low Illumination 1LUX Battery Capacity 2400MA Recording Time More than 24 hours Remote Control Distance 18m Recording Audio Area 40㎡ Power Consumption 150MA/3.7V Store Tempreture -20-80℃ Operation Tempreture -10-60℃ Operation Humidity 15-85%RH Memory TF Card Max. 32GB Software Media player/KMplayer Data Transfer Interface USB1.1/2.0 Operation System 2000/XP/Visat32
  • 23. Memory Consumption 1GB/40min Charge Time About 4 hours Notice Place of using:It can not be used in the ileagle place,before use it,please pay attention to the law. Software Update:The factory will improve the software in order to improve the service and using feels of this products.Please try to contact your seller to get the neweast software. Working Tempreture:Please use it in the suitable tempreture which the man can bear. Working Humidity:Please do not use it in humidity place. LUX:Please use it in the place with enough light,please do not make the lens straigh to strong light source. Clearance:Please do not use it in the derty place,please clear it with soft cloth and clear it smothly.Please do not use it in strong magnetic field or strong electic field.
