This document contains cost models for land-based and offshore wind turbines. For a land-based 1.5 MW turbine with a 70m rotor and 65m hub height, the turbine capital cost is $990,578 and the total installed cost is $1,364,330. For an offshore 3 MW turbine with a 90m rotor and 80m hub height, the turbine capital cost is $2,263,103 and the total installed cost is $5,282,529. The document provides cost breakdowns by turbine component and balance of station costs for both configurations.

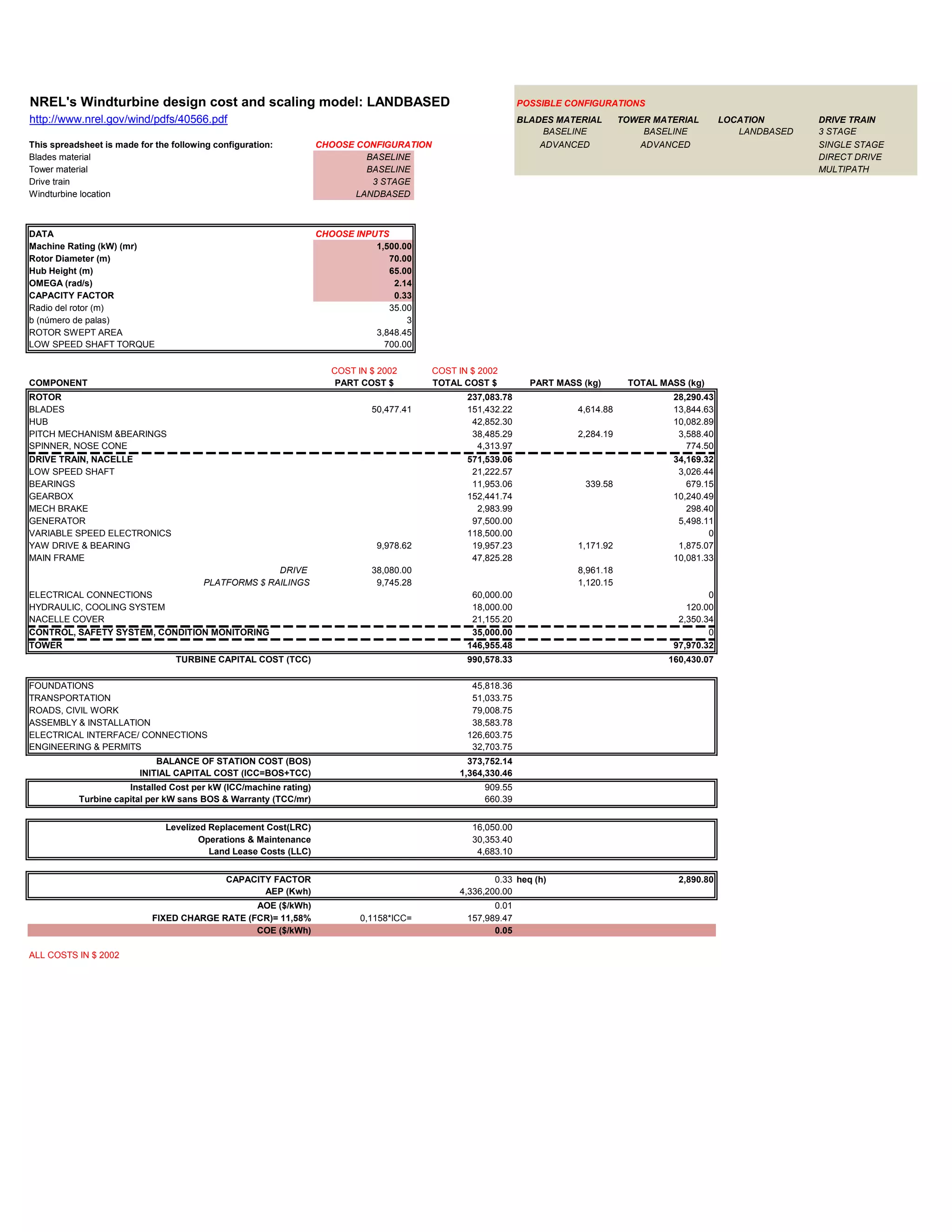

1. NREL's Windturbine design cost and scaling model: LANDBASED POSSIBLE CONFIGURATIONS
http://www.nrel.gov/wind/pdfs/40566.pdf BLADES MATERIAL TOWER MATERIAL LOCATION DRIVE TRAIN
BASELINE BASELINE LANDBASED 3 STAGE
This spreadsheet is made for the following configuration: CHOOSE CONFIGURATION ADVANCED ADVANCED SINGLE STAGE
Blades material BASELINE DIRECT DRIVE
Tower material BASELINE MULTIPATH
Drive train 3 STAGE
Windturbine location LANDBASED
DATA CHOOSE INPUTS
Machine Rating (kW) (mr) 1,500.00
Rotor Diameter (m) 70.00
Hub Height (m) 65.00
OMEGA (rad/s) 2.14
CAPACITY FACTOR 0.33
Radio del rotor (m) 35.00
b (número de palas) 3
ROTOR SWEPT AREA 3,848.45
LOW SPEED SHAFT TORQUE 700.00
COST IN $ 2002 COST IN $ 2002
COMPONENT PART COST $ TOTAL COST $ PART MASS (kg) TOTAL MASS (kg)
ROTOR 237,083.78 28,290.43
BLADES 50,477.41 151,432.22 4,614.88 13,844.63
HUB 42,852.30 10,082.89
PITCH MECHANISM &BEARINGS 38,485.29 2,284.19 3,588.40
SPINNER, NOSE CONE 4,313.97 774.50
DRIVE TRAIN, NACELLE 571,539.06 34,169.32
LOW SPEED SHAFT 21,222.57 3,026.44
BEARINGS 11,953.06 339.58 679.15
GEARBOX 152,441.74 10,240.49
MECH BRAKE 2,983.99 298.40
GENERATOR 97,500.00 5,498.11
VARIABLE SPEED ELECTRONICS 118,500.00 0
YAW DRIVE & BEARING 9,978.62 19,957.23 1,171.92 1,875.07
MAIN FRAME 47,825.28 10,081.33
DRIVE 38,080.00 8,961.18
PLATFORMS $ RAILINGS 9,745.28 1,120.15
ELECTRICAL CONNECTIONS 60,000.00 0
HYDRAULIC, COOLING SYSTEM 18,000.00 120.00
NACELLE COVER 21,155.20 2,350.34
CONTROL, SAFETY SYSTEM, CONDITION MONITORING 35,000.00 0
TOWER 146,955.48 97,970.32
TURBINE CAPITAL COST (TCC) 990,578.33 160,430.07
FOUNDATIONS 45,818.36
TRANSPORTATION 51,033.75
ROADS, CIVIL WORK 79,008.75
ASSEMBLY & INSTALLATION 38,583.78
ELECTRICAL INTERFACE/ CONNECTIONS 126,603.75
ENGINEERING & PERMITS 32,703.75
BALANCE OF STATION COST (BOS) 373,752.14
INITIAL CAPITAL COST (ICC=BOS+TCC) 1,364,330.46
Installed Cost per kW (ICC/machine rating) 909.55
Turbine capital per kW sans BOS & Warranty (TCC/mr) 660.39
Levelized Replacement Cost(LRC) 16,050.00
Operations & Maintenance 30,353.40
Land Lease Costs (LLC) 4,683.10
CAPACITY FACTOR 0.33 heq (h) 2,890.80
AEP (Kwh) 4,336,200.00
AOE ($/kWh) 0.01
FIXED CHARGE RATE (FCR)= 11,58% 0,1158*ICC= 157,989.47
COE ($/kWh) 0.05
ALL COSTS IN $ 2002

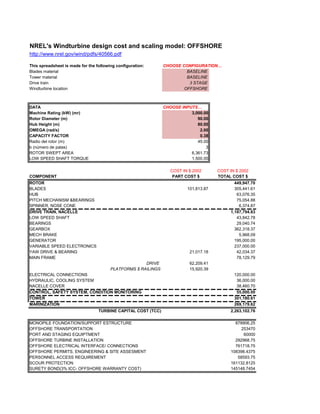

2. NREL's Windturbine design cost and scaling model: OFFSHORE
http://www.nrel.gov/wind/pdfs/40566.pdf
This spreadsheet is made for the following configuration: CHOOSE CONFIGURATION…
Blades material BASELINE
Tower material BASELINE
Drive train 3 STAGE
Windturbine location OFFSHORE
DATA CHOOSE INPUTS…
Machine Rating (kW) (mr) 3,000.00
Rotor Diameter (m) 90.00
Hub Height (m) 80.00
OMEGA (rad/s) 2.00
CAPACITY FACTOR 0.38
Radio del rotor (m) 45.00
b (número de palas) 3
ROTOR SWEPT AREA 6,361.73
LOW SPEED SHAFT TORQUE 1,500.00
COST IN $ 2002 COST IN $ 2002
COMPONENT PART COST $ TOTAL COST $
ROTOR 449,947.70
BLADES 101,813.87 305,441.61
HUB 63,076.35
PITCH MECHANISM &BEARINGS 75,054.88
SPINNER, NOSE CONE 6,374.87
DRIVE TRAIN, NACELLE 1,187,794.83
LOW SPEED SHAFT 43,842.78
BEARINGS 29,040.74
GEARBOX 362,318.37
MECH BRAKE 5,968.09
GENERATOR 195,000.00
VARIABLE SPEED ELECTRONICS 237,000.00
YAW DRIVE & BEARING 21,017.18 42,034.37
MAIN FRAME 78,129.79
DRIVE 62,209.41
PLATFORMS $ RAILINGS 15,920.39
ELECTRICAL CONNECTIONS 120,000.00
HYDRAULIC, COOLING SYSTEM 36,000.00
NACELLE COVER 38,460.70
CONTROL, SAFETY SYSTEM, CONDITION MONITORING 55,000.00
TOWER 301,180.61
MARINIZATION 269,179.62
TURBINE CAPITAL COST (TCC) 2,263,102.76
MONOPILE FOUNDATION/SUPPORT ESTRUCTURE 878906.25
OFFSHORE TRANSPORTATION 253470
PORT AND STAGING EQUIPTMENT 60000
OFFSHORE TURBINE INSTALLATION 292968.75
OFFSHORE ELECTRICAL INTERFACE/ CONNECTIONS 761718.75
OFFSHORE PERMITS, ENGINEERING & SITE ASSESMENT 108398.4375
PERSONNEL ACCESS REQUIREMENT 58593.75
SCOUR PROTECTION 161132.8125
SURETY BOND(3% ICC- OFFSHORE WARRANTY COST) 145148.7454

3. BALANCE OF STATION COST (BOS) 2720337.495
OFFSHORE WARRANTY PREMIUM 299088.4708
INITIAL CAPITAL COST (ICC=BOS+TCC) 5282528.728
Installed Cost per kW 1760.842909
Turbine capital per kW sans BOS & Warranty 754.3675874
Levelized Replacement Cost(LRC) 49804.6875
Operations & Maintenance per turbine/year 195714.1406
Land Lease Costs (LLC) 10822.20912
CAPACITY FACTOR 0.38
AEP (Kwh) 10,020,564.00
AOE ($/kWh) 0.025581498
FIXED CHARGE RATE (FCR)= 11,58% 0,1158*ICC= 611716.8268
COE ($/kWh) 0.086627645
ALL COSTS IN $ 2002

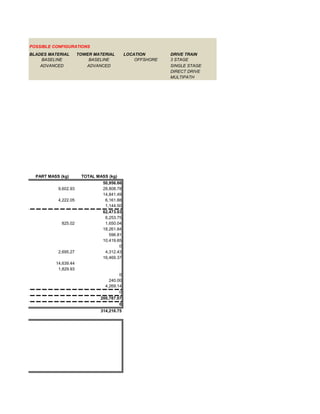

4. POSSIBLE CONFIGURATIONS
BLADES MATERIAL TOWER MATERIAL LOCATION DRIVE TRAIN
BASELINE BASELINE OFFSHORE 3 STAGE
ADVANCED ADVANCED SINGLE STAGE
DIRECT DRIVE
MULTIPATH
PART MASS (kg) TOTAL MASS (kg)
50,956.66
9,602.93 28,808.78
14,841.49
4,222.05 6,161.88
1,144.50
62,473.03
6,253.75
825.02 1,650.04
18,261.84
596.81
10,419.65
0
2,695.27 4,312.43
16,469.37
14,639.44
1,829.93
0
240.00
4,269.14
0
200,787.07
0
314,216.75

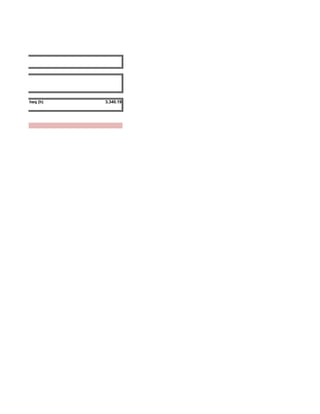

5. heq (h) 3,340.19
