This session will cover the ins and outs of SPMetal, a tool which ships with SharePoint 2010. SPMetal allows developers compile-time access to SharePoint lists, content types and columns. This allows for type-safe access to columns/fields on a SharePoint site. Additionally, developers can write LINQ queries against these lists using SPMetal which speeds up query writing tremendously. We will cover adding support for complex column types (Managed Metadata, Publishing HTML, etc) which aren’t supported by SPMetal out of the box. Lastly we will also touch upon performance considerations and other best practices when coding with SPMetal.

1. SPMetal
Pranav Sharma
http://pranavsharma.info
Senior SharePoint Consultant
Portal Solutions
http://www.portalsolutions.net
Twitter: @ePranav

2. What is SPMetal and LINQ?
“SPMetal is a command-line tool that generates entity classes, which provide an object-
oriented interface to the Microsoft SharePoint Foundation content databases. These
classes are primarily used in LINQ to SharePoint queries; but they are also used to add,
delete, and change list items with concurrency conflict resolution. Finally, they can be
used as an alternative to the regular SharePoint Foundation object model for
referencing content.
The tool is included with SharePoint Foundation and is located in
%ProgramFiles%Common FilesMicrosoft Sharedweb server extensions14BIN”
Language-Integrated Query (LINQ) is a set of features that extends powerful query
capabilities to the language syntax of C# and VB. LINQ introduces standard, easily-
learned patterns for querying and updating data, and the technology can be extended to
support potentially any kind of data store” (MSDN)

3. Let’s create a sample list

4. Setting up SPMetal
 Create PreBuild.bat and save with encoding: Unicode (UTF-8 without
signature) – codepage 65001
 Include generated codefile in project
 Add project reference to Microsoft.SharePoint.Linq.dll
 Sign project using key file

5. Options (1 of 3)
Option Value definition Example Comments
web The complete, /web:http://ContosoServer/ Required. You can have port numbers in the server name; for
absolute URL of Marketing example, /web:http://ContosoServer:5555/Marketing.
the Web site Do not include the home page or any other page in the URL.
whose data is
modeled by the
entity classes.
code The relative or /code:MarketingSite.cs If this option is not used, the generated code is streamed to standard
absolute path and output.
file name of the If no file name extension is specified or the file name extension is not
output file. either "cs" or "vb", the language option must be used.
The file name (exclusive of the extension) is also used to form the
beginning of the name of a class that derives fromDataContext; in this
example the class is namedMarketingSiteDataContext. The derived
class represents the lists and data of the whole Web site, so choose a
file name that conveys that meaning. (You can override this naming
behavior with an SPMetal Parameters XML file.)
language The programming /language:csharp The only possible values are "csharp" and "vb".
language of the If the value of the code option has either "cs" or "vb" as a file name
generated code. extension, SPMetal can infer the language and thelanguage option is not
needed.
namespace The namespace /namespace:Contoso.TeamA If this option is not used, the generated code specifies no namespace
that contains the ctivityReports and the compiled assembly treats the default namespace specified in
entity class the properties of the Visual Studio project as the namespace of the
declarations. generated classes.

6. Options (2 of 3)
Option Value definition Example Comments
useremoteapi No value. /useremoteapi This option signals that the value of the web parameter
points to a server that is not the one on which SPMetal
is running. One possible use for this parameter is to
generate code against a Web site on an online
deployment of SharePoint to which you intend to upload
your solution as a sandboxed solution.
user The user in whose context /user:Contosobob Use this option if you do not want SPMetal to run in
SPMetal executes. your own context. Specify the domain.
password The password for the user /password:$5U+ryz Use in conjunction with the user option.
specified in theuser option.
serialization Specifies whether objects /serialization:unidirectional The only possible values are "unidirectional" and
that instantiate the "none". Specify "unidirectional" if you want the objects
generated classes are to be serializable. SPMetal adds appropriate attributes
serializable. from theSystem.Runtime.Serialization namespace to the
class and property declarations and adds handlers for
the Deserializing event.
If this option is not used, "none" is assumed.
parameters Identifies the path and name /parameters:MarketingSite.xml You typically will not reuse exactly the same parameters
of an XML file that contains XML file for different Web sites, so name the file the
overrides of SPMetal default same as the Web site.
settings. For more information about the parameters file,
see Overriding SPMetal Defaults by Using a Parameters
XML File.

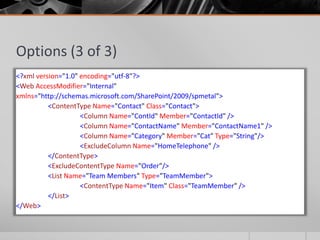

7. Options (3 of 3)
<?xml version="1.0" encoding="utf-8"?>
<Web AccessModifier="Internal"
xmlns="http://schemas.microsoft.com/SharePoint/2009/spmetal">
<ContentType Name="Contact" Class="Contact">
<Column Name="ContId" Member="ContactId" />
<Column Name="ContactName" Member="ContactName1" />
<Column Name="Category" Member="Cat" Type="String"/>
<ExcludeColumn Name="HomeTelephone" />
</ContentType>
<ExcludeContentType Name="Order"/>
<List Name="Team Members" Type="TeamMember">
<ContentType Name="Item" Class="TeamMember" />
</List>
</Web>

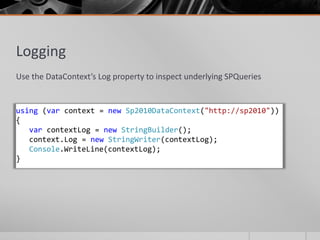

8. Logging
Use the DataContext’s Log property to inspect underlying SPQueries
using (var context = new Sp2010DataContext("http://sp2010"))
{
var contextLog = new StringBuilder();
context.Log = new StringWriter(contextLog);
Console.WriteLine(contextLog);
}

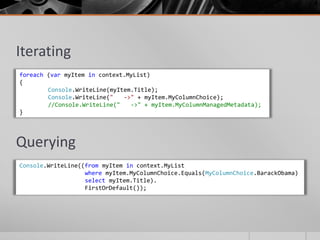

9. Iterating
foreach (var myItem in context.MyList)
{
Console.WriteLine(myItem.Title);
Console.WriteLine(" ->" + myItem.MyColumnChoice);
//Console.WriteLine(" ->" + myItem.MyColumnManagedMetadata);
}
Querying
Console.WriteLine((from myItem in context.MyList
where myItem.MyColumnChoice.Equals(MyColumnChoice.BarackObama)
select myItem.Title).
FirstOrDefault());

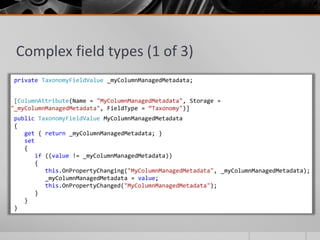

10. Complex field types (1 of 3)
private TaxonomyFieldValue _myColumnManagedMetadata;
[ColumnAttribute(Name = "MyColumnManagedMetadata", Storage =
"_myColumnManagedMetadata", FieldType = “Taxonomy")]
public TaxonomyFieldValue MyColumnManagedMetadata
{
get { return _myColumnManagedMetadata; }
set
{
if ((value != _myColumnManagedMetadata))
{
this.OnPropertyChanging("MyColumnManagedMetadata", _myColumnManagedMetadata);
_myColumnManagedMetadata = value;
this.OnPropertyChanged("MyColumnManagedMetadata");
}
}
}

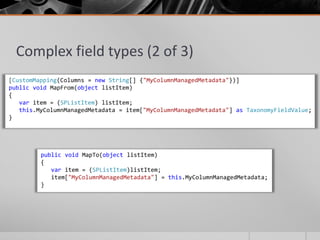

11. Complex field types (2 of 3)
[CustomMapping(Columns = new String[] {"MyColumnManagedMetadata"})]
public void MapFrom(object listItem)
{
var item = (SPListItem) listItem;
this.MyColumnManagedMetadata = item["MyColumnManagedMetadata"] as TaxonomyFieldValue;
}
public void MapTo(object listItem)
{
var item = (SPListItem)listItem;
item["MyColumnManagedMetadata"] = this.MyColumnManagedMetadata;
}

12. Complex field types (3 of 3)
public void Resolve(RefreshMode mode, object originalListItem, object databaseListItem)
{
var origItem = (SPListItem) originalListItem;
var dbItem = (SPListItem) databaseListItem;
var origValue = (TaxonomyFieldValue) origItem["MyColumnManagedMetadata"];
var dbValue = (TaxonomyFieldValue) dbItem["MyColumnManagedMetadata"];
if (mode == RefreshMode.KeepCurrentValues ||
(mode == RefreshMode.KeepChanges &&
MyColumnManagedMetadata != origValue))
{
dbItem["MyColumnManagedMetadata"] = MyColumnManagedMetadata;
} else if (mode == RefreshMode.OverwriteCurrentValues ||
(mode == RefreshMode.KeepChanges &&
MyColumnManagedMetadata == origValue &&
MyColumnManagedMetadata != dbValue))
{
MyColumnManagedMetadata = dbValue;
}
}

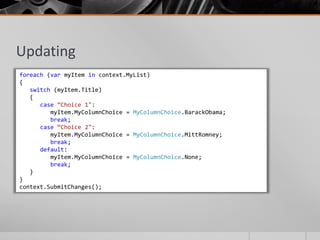

13. Updating
foreach (var myItem in context.MyList)
{
switch (myItem.Title)
{
case “Choice 1":
myItem.MyColumnChoice = MyColumnChoice.BarackObama;
break;
case “Choice 2":
myItem.MyColumnChoice = MyColumnChoice.MittRomney;
break;
default:
myItem.MyColumnChoice = MyColumnChoice.None;
break;
}
}
context.SubmitChanges();

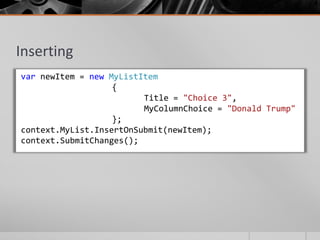

14. Inserting
var newItem = new MyListItem
{
Title = "Choice 3",
MyColumnChoice = "Donald Trump"
};
context.MyList.InsertOnSubmit(newItem);
context.SubmitChanges();

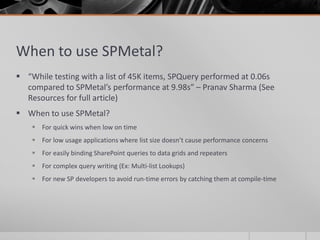

15. When to use SPMetal?
 “While testing with a list of 45K items, SPQuery performed at 0.06s
compared to SPMetal’s performance at 9.98s” – Pranav Sharma (See
Resources for full article)
 When to use SPMetal?
 For quick wins when low on time
 For low usage applications where list size doesn’t cause performance concerns
 For easily binding SharePoint queries to data grids and repeaters
 For complex query writing (Ex: Multi-list Lookups)
 For new SP developers to avoid run-time errors by catching them at compile-time

16. Resources
 SPMetal (MSDN) http://bit.ly/icXOmf
 How to: Use SPMetal (MSDN) http://bit.ly/hLPbjo
 Overriding SPMetal Defaults by Using a Parameters XML File (MSDN)
http://bit.ly/M3zSyH
 SPMetal and the Managed Metadata Column http://bit.ly/HteBbp
 Large list performance: SPMetal vs. SPQuery http://bit.ly/sYvAEL
