This document introduces Spiralite®, an innovative non-metal ducting and insulation system that is over 80% lighter than traditional insulated steel ducting. Spiralite® ducts are made from high density closed cell phenolic insulation boards sandwiched between foil laminates, creating a continuous airtight barrier. This makes installation quicker and easier than traditional ductwork, reduces costs, and provides better energy efficiency and carbon savings over the lifetime of the HVAC system. Spiralite® ducting addresses shortcomings of steel ducting by being lighter, more efficient to transport and install, and fully recyclable.

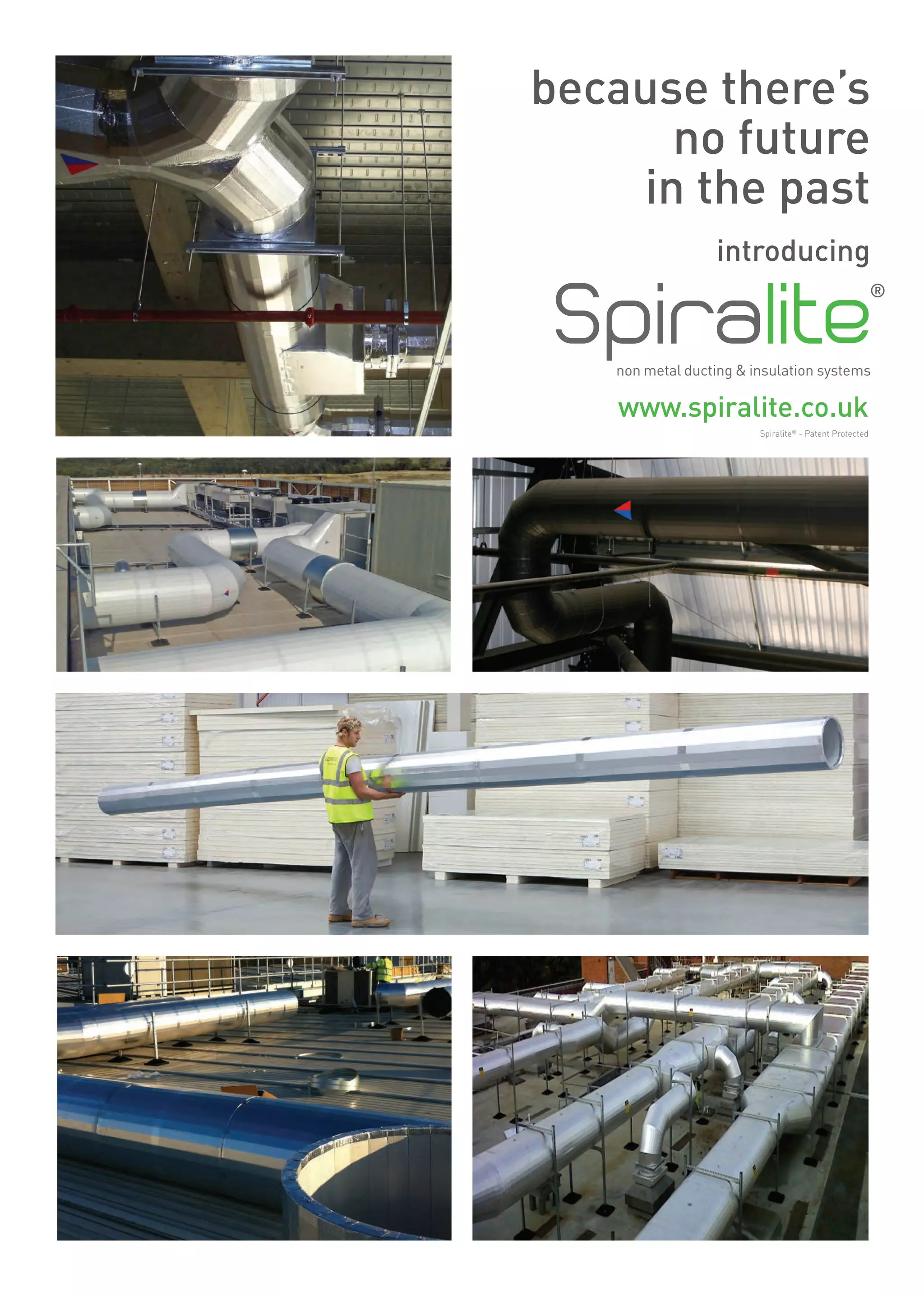

1. because there’s
no future
in the past
introducing
®
non metal ducting & insulation systems
because there’s
no future
in the past
introducing
www.spiralite.co.uk
Spiralite®
- Patent Protected

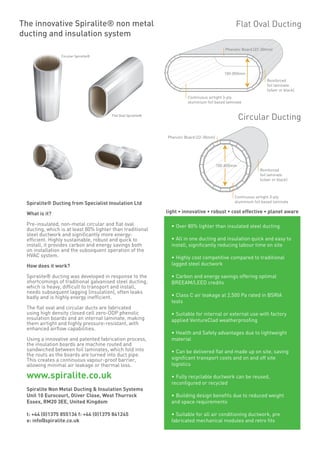

2. • Over 80% lighter than insulated steel ducting
• All in one ducting and insulation quick and easy to
install, significantly reducing labour time on site
• Highly cost competitive compared to traditional
lagged steel ductwork
• Carbon and energy savings offering optimal
BREEAM/LEED credits
• Class C air leakage at 2,500 Pa rated in BSRIA
tests
• Suitable for internal or external use with factory
applied VentureClad weatherproofing
• Health and Safety advantages due to lightweight
material
• Can be delivered flat and made up on site, saving
significant transport costs and on and off site
logistics
• Fully recyclable ductwork can be reused,
reconfigured or recycled
• Building design benefits due to reduced weight
and space requirements
• Suitable for all air conditioning ductwork, pre
fabricated mechanical modules and retro fits
The innovative Spiralite® non metal
ducting and insulation system
light • innovative • robust • cost effective • planet aware
Spiralite® Ducting from Specialist Insulation Ltd
What is it?
Pre-insulated, non-metal circular and flat oval
ducting, which is at least 80% lighter than traditional
steel ductwork and significantly more energy-
efficient. Highly sustainable, robust and quick to
install, it provides carbon and energy savings both
on installation and the subsequent operation of the
HVAC system.
How does it work?
Spiralite® ducting was developed in response to the
shortcomings of traditional galvanised steel ducting,
which is heavy, difficult to transport and install,
needs subsequent lagging (insulation), often leaks
badly and is highly energy inefficient.
The flat oval and circular ducts are fabricated
using high density closed cell zero-ODP phenolic
insulation boards and an internal laminate, making
them airtight and highly pressure-resistant, with
enhanced airflow capabilities.
Using a innovative and patented fabrication process,
the insulation boards are machine routed and
sandwiched between foil laminates, which fold into
the routs as the boards are turned into duct pipe.
This creates a continuous vapour-proof barrier,
allowing minimal air leakage or thermal loss.
www.spiralite.co.uk
Spiralite Non Metal Ducting & Insulation Systems
Unit 10 Eurocourt, Oliver Close, West Thurrock
Essex, RM20 3EE, United Kingdom
t: +44 (0)1375 855136 f: +44 (0)1375 841245
e: info@spiralite.co.uk
Spiralite®
- Tried and tested
light • innovative • robust • cost effective • planet aware
The innovative Spiralite®
non metal
ducting and insulation system
Spiralite Non Metal Ducting & Insulation Systems
Unit 10 Eurocourt, Oliver Close, West Thurrock
Essex, RM20 3EE, United Kingdom
t: +44 (01375 855136 f: +44 (0)1375 841245 e: info@spiralite.co.uk
Spir
light • innovative • robust • cost effective • planet aware
Spiralite concertina V2:Layout 1 14/3/12 10:25 Page 6
Circular Spiralite®
Circular Spiralite®
• Over 80% lighter than insulated steel ducting
• All in one ducting and insulation quick and easy to
install, significantly reducing labour time on site
• Highly cost competitive compared to traditional
lagged steel ductwork
• Carbon and energy savings offering optimal
BREEAM/LEED credits
• Class C air leakage at 2,500 Pa rated in BSRIA tests
• Suitable for internal or external use with
factory-applied VentureClad weatherproofing
• Health and Safety advantages due to lightweight
material
• Can be delivered flat and made up on site, saving
significant transport costs and on- and off-site
logistics
• Fully recyclable – ductwork can be reused,
reconfigured or recycled
• Building design benefits due to reduced weight
and space requirements
• Suitable for all air-conditioning ductwork,
pre-fabricated mechanical modules and retro-fits
Flat Oval Spiralite®
®
non metal ducting & insulation systems
because there’s
no future
in the past
introducing
www.spiralite.co.uk
Spiralite®
- Patent Protected
Flat Oval Spiralite®
Circular Spiralite®
te concertina V2:Layout 1 14/3/12 10:25 Page 1
Flat Oval Ducting
100-850mm
Phenolic Board (22-30mm)
Reinforced
foil laminate
(silver or black)
Continuous airtight 3-ply
aluminium foil based laminate
Circular Ducting
100-850mm
Continuous airtight 3-ply
aluminium foil based laminate
Phenolic Board (22-30mm)
Reinforced
foil laminate
(silver or black)
Flat Oval Ducting
100-850mm
Phenolic Boa
Continuous airtight 3-ply
aluminium foil based laminate
Circular Ducting
100-850mm
Continu
aluminiu
Phenolic Board (22-30mm)
Flat Oval Ducting
100-850mm
Phenolic Board (22-30mm)
Reinforced
foil laminate
(silver or black)
Continuous airtight 3-ply
aluminium foil based laminate
Circular Ducting
100-850mm
Continuous airtight 3-ply
aluminium foil based laminate
Phenolic Board (22-30mm)
Reinforced
foil laminate
(silver or black)
Flat Oval Ducting
100-850mm
Phenolic Bo
Continuous airtight 3-ply
aluminium foil based laminate
Circular Ducting
100-850mm
Contin
alumin
Phenolic Board (22-30mm)
