Speciality Polyamides for Metal Replacement
- 1. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013 1 Erico SPINI, Radici Plastics MKT Director

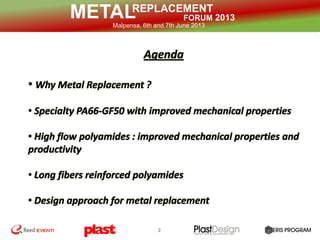

- 2. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013 2
- 3. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013

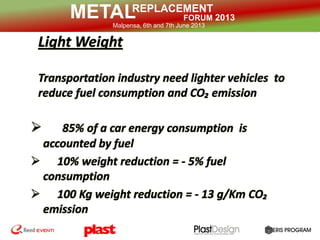

- 4. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013

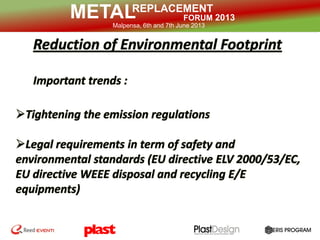

- 5. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013

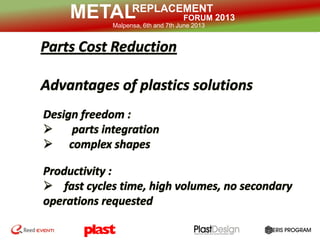

- 6. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013

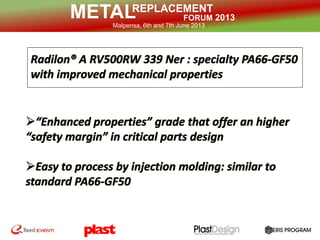

- 7. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013
- 8. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013
- 9. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013

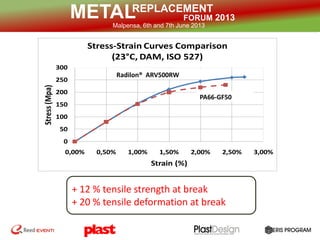

- 10. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013 0 50 100 150 200 250 300 0,00% 0,50% 1,00% 1,50% 2,00% 2,50% 3,00% Stress(Mpa) Strain (%) Stress-Strain Curves Comparison (23°C, DAM, ISO 527) PA66-GF50 Radilon® ARV500RW + 12 % tensile strength at break + 20 % tensile deformation at break

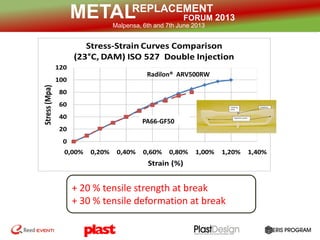

- 11. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013 0 20 40 60 80 100 120 0,00% 0,20% 0,40% 0,60% 0,80% 1,00% 1,20% 1,40% Stress(Mpa) Strain (%) Stress-Strain Curves Comparison (23°C, DAM) ISO 527 Double Injection Radilon® ARV500RW PA66-GF50 + 20 % tensile strength at break + 30 % tensile deformation at break
- 12. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013 Radilon® A RV500 RW blk 339 offers higher stress and strain at break versus standard PA66-GF50 at high speed and therefore absorbs more energy in case of impact. 0,00 50,00 100,00 150,00 200,00 250,00 300,00 350,00 0,00% 0,50% 1,00% 1,50% 2,00% 2,50% 3,00% Stress(Mpa) Strain (%) Stress-Strain Curve Comparison at Different Speeds (23°C, DAM, ISO 527) Rad A RV500RW : 1 mm/sec Rad A RV500RW : 100 mm/sec PA66-GF50 : 1 mm/sec PA66-GF50 : 100 mm/sec
- 13. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013 0 20 40 60 80 100 120 2 3 4 5 6 7 Smax(Mpa) Cycles to Failure (Millions) Fatigue Behaviour Wöhler Diagram - Sinusoidal Displacement, 5hz, R= min stress/max stress =0.1 23°C - RH50 (water content 1.24 %) PA66-GF50 Radilon® ARV500RW Radilon® A RV500 RW blk 339 higher performances versus standard grades are fully confirmed in case of long term dynamic loading (fatigue)

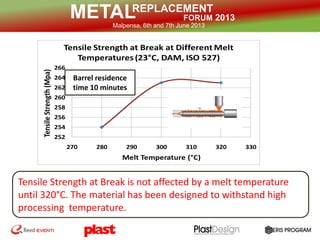

- 14. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013 Tensile Strength at Break is not affected by a melt temperature until 320°C. The material has been designed to withstand high processing temperature. 252 254 256 258 260 262 264 266 270 280 290 300 310 320 330 TensileStrength(Mpa) Melt Temperature (°C) Tensile Strength at Break at Different Melt Temperatures (23°C, DAM, ISO 527) Barrel residence time 10 minutes

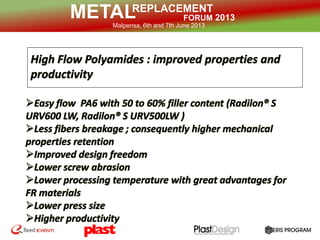

- 15. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013

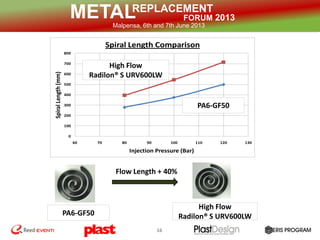

- 16. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013 16 Flow Length + 40% 0 100 200 300 400 500 600 700 800 60 70 80 90 100 110 120 130 SpiralLength(mm) Injection Pressure (Bar) Spiral Length Comparison High Flow Radilon® S URV600LW PA6-GF50 High Flow Radilon® S URV600LW PA6-GF50

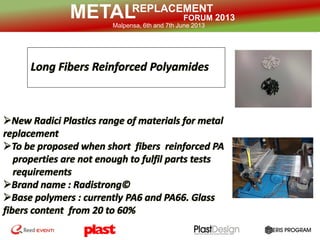

- 17. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013
- 18. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013

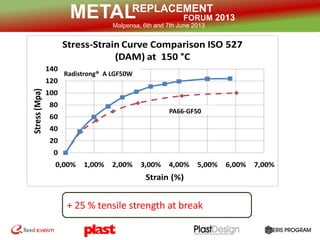

- 19. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013 0 20 40 60 80 100 120 140 0,00% 1,00% 2,00% 3,00% 4,00% 5,00% 6,00% 7,00% Stress(Mpa) Strain (%) Stress-Strain Curve Comparison ISO 527 (DAM) at 150 °C Radistrong® A LGF50W PA66-GF50 + 25 % tensile strength at break

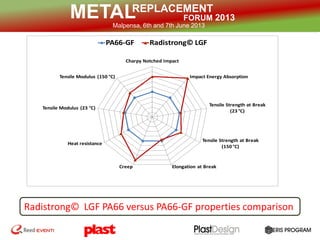

- 20. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013 Radistrong© LGF PA66 versus PA66-GF properties comparison Charpy Notched Impact Impact Energy Absorption Tensile Strength at Break (23 °C) Tensile Strength at Break (150 °C) Elongation at BreakCreep Heat resistance Tensile Modulus (23 °C) Tensile Modulus (150 °C) PA66-GF Radistrong© LGF

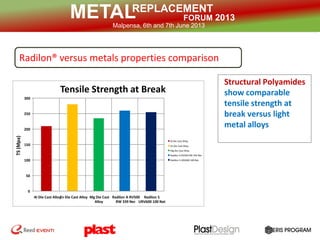

- 21. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013 Metal Replacement Structural Polyamides show comparable tensile strength at break versus light metal alloys 0 50 100 150 200 250 300 Al Die Cast AlloyZn Die Cast Alloy Mg Die Cast Alloy Radilon A RV500 RW 339 Ner Radilon S URV600 100 Nat TS(Mpa) Tensile Strength at Break Al Die Cast Alloy Zn Die Cast Alloy Mg Die Cast Alloy Radilon A RV500 RW 339 Ner Radilon S URV600 100 Nat Radilon® versus metals properties comparison

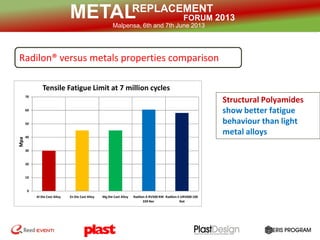

- 22. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013 Metal Replacement Structural Polyamides show better fatigue behaviour than light metal alloys 0 10 20 30 40 50 60 70 Al Die Cast Alloy Zn Die Cast Alloy Mg Die Cast Alloy Radilon A RV500 RW 339 Ner Radilon S URV600 100 Nat Mpa Tensile Fatigue Limit at 7 million cycles Radilon® versus metals properties comparison

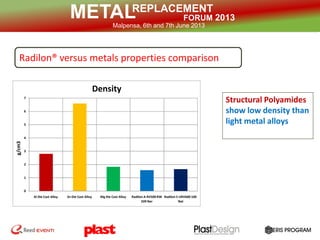

- 23. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013 Metal Replacement Structural Polyamides show low density than light metal alloys 0 1 2 3 4 5 6 7 Al Die Cast Alloy Zn Die Cast Alloy Mg Die Cast Alloy Radilon A RV500 RW 339 Ner Radilon S URV600 100 Nat g/cm3 Density Radilon® versus metals properties comparison

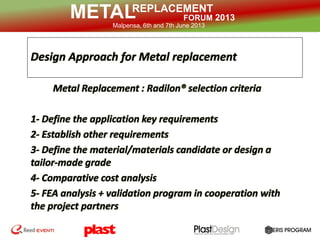

- 24. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013 Metal Replacement Typical Targets

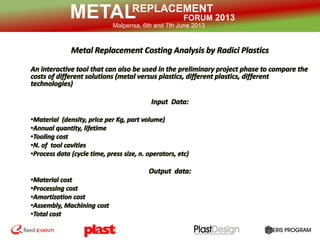

- 25. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013 Metal Replacement Typical Targets
- 26. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013 Metal Replacement Typical Targets Part name : Transmission Reaction Bracket Parts/year : 150000 Life time : 6 years Materials : Radilon® A RV500RW versus Aluminium Cost (€) Radilon® A RV500RW Tool cavities : 2 Aluminium Tool cavities : 2 Material 1 0,8 Processing 0,3 1,1 Assembly & Finishing 0,15 Machining 0,35 Tool Amortization 0,1 0,28 Total cost 1,55 2,53

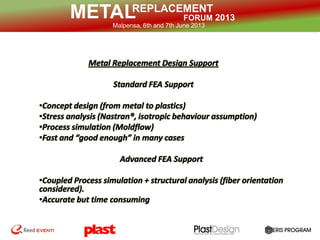

- 27. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013 Metal Replacement Typical Targets
- 28. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013 Metal Replacement Typical Targets Virtual design from metal to plastics through optimization step. Interactive collaboration with development partners in : 1- part design optimization 2- stress analysis 3- process analysis STEP 1 STEP 2

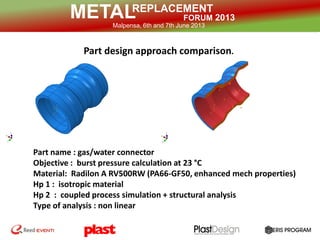

- 29. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013 Metal Replacement Typical Targets Part design approach comparison. Part name : gas/water connector Objective : burst pressure calculation at 23 °C Material: Radilon A RV500RW (PA66-GF50, enhanced mech properties) Hp 1 : isotropic material Hp 2 : coupled process simulation + structural analysis Type of analysis : non linear

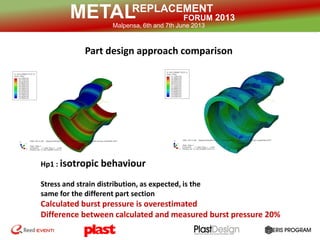

- 30. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013 Metal Replacement Typical Targets Part design approach comparison Hp1 : isotropic behaviour Stress and strain distribution, as expected, is the same for the different part section Calculated burst pressure is overestimated Difference between calculated and measured burst pressure 20%

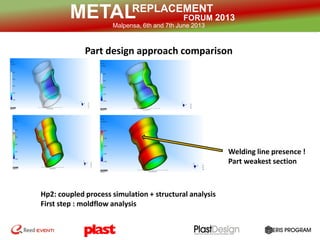

- 31. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013 Metal Replacement Typical Targets Part design approach comparison Hp2: coupled process simulation + structural analysis First step : moldflow analysis Welding line presence ! Part weakest section

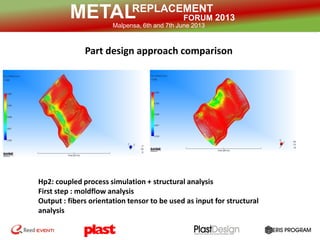

- 32. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013 Metal Replacement Typical Targets Part design approach comparison Hp2: coupled process simulation + structural analysis First step : moldflow analysis Output : fibers orientation tensor to be used as input for structural analysis

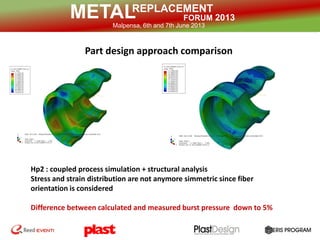

- 33. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013 Metal Replacement Typical Targets Part design approach comparison Hp2 : coupled process simulation + structural analysis Stress and strain distribution are not anymore simmetric since fiber orientation is considered Difference between calculated and measured burst pressure down to 5%

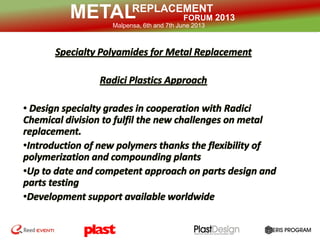

- 34. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013 Metal Replacement Typical Targets
- 35. REPLACEMENT FORUM 2013METALMalpensa, 6th and 7th June 2013 35 Erico SPINI, Radici Plastics MKT Director
