1. ÅNGLES FORMED BY TRANSVERSALS
A.R. Torreliza
Quarter 3 SY 2023-2024

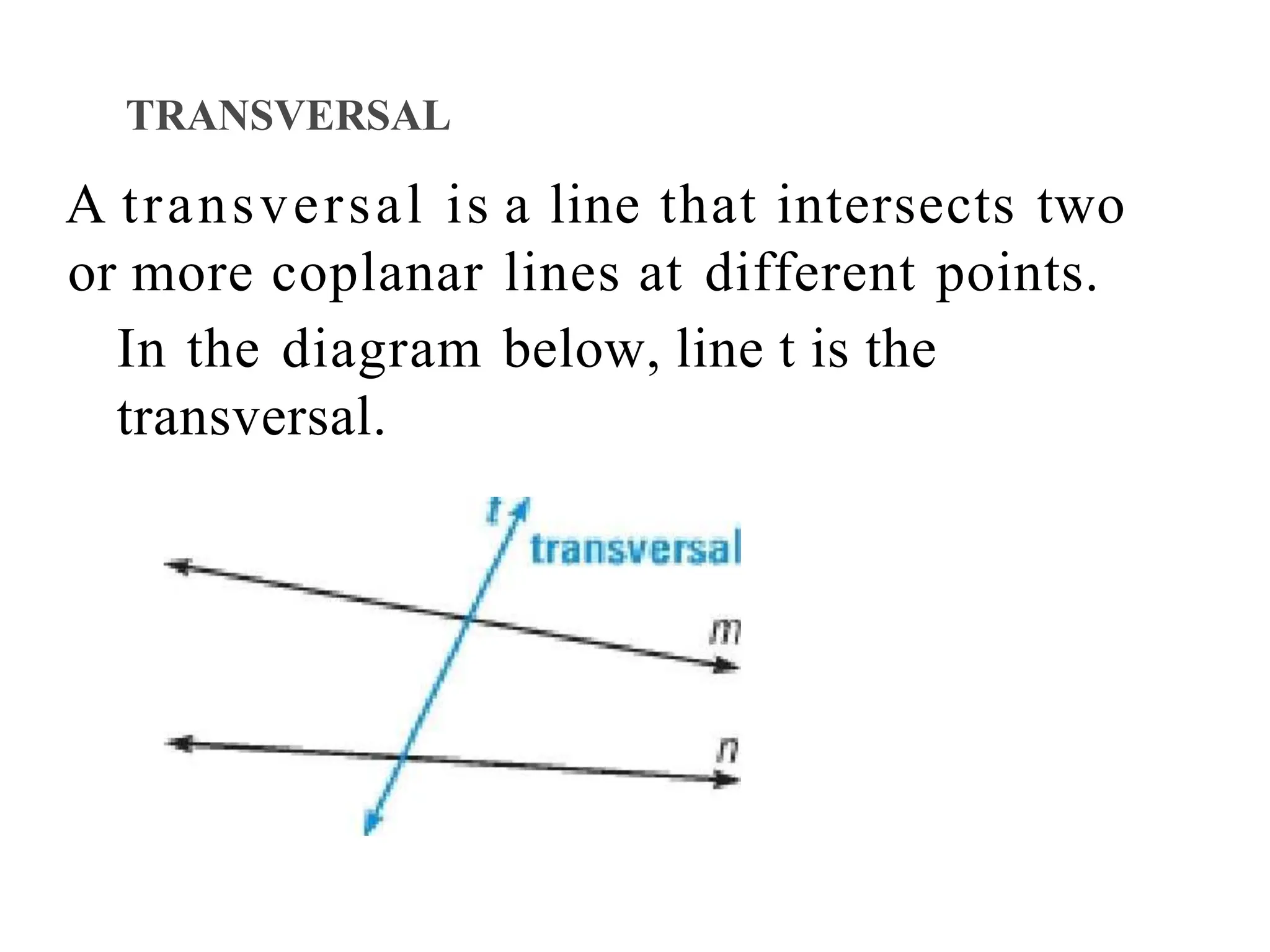

2. TRANSVERSAL
A transversal is a line that intersects two
or more coplanar lines at different points.
In the diagram below, line t is the
transversal.

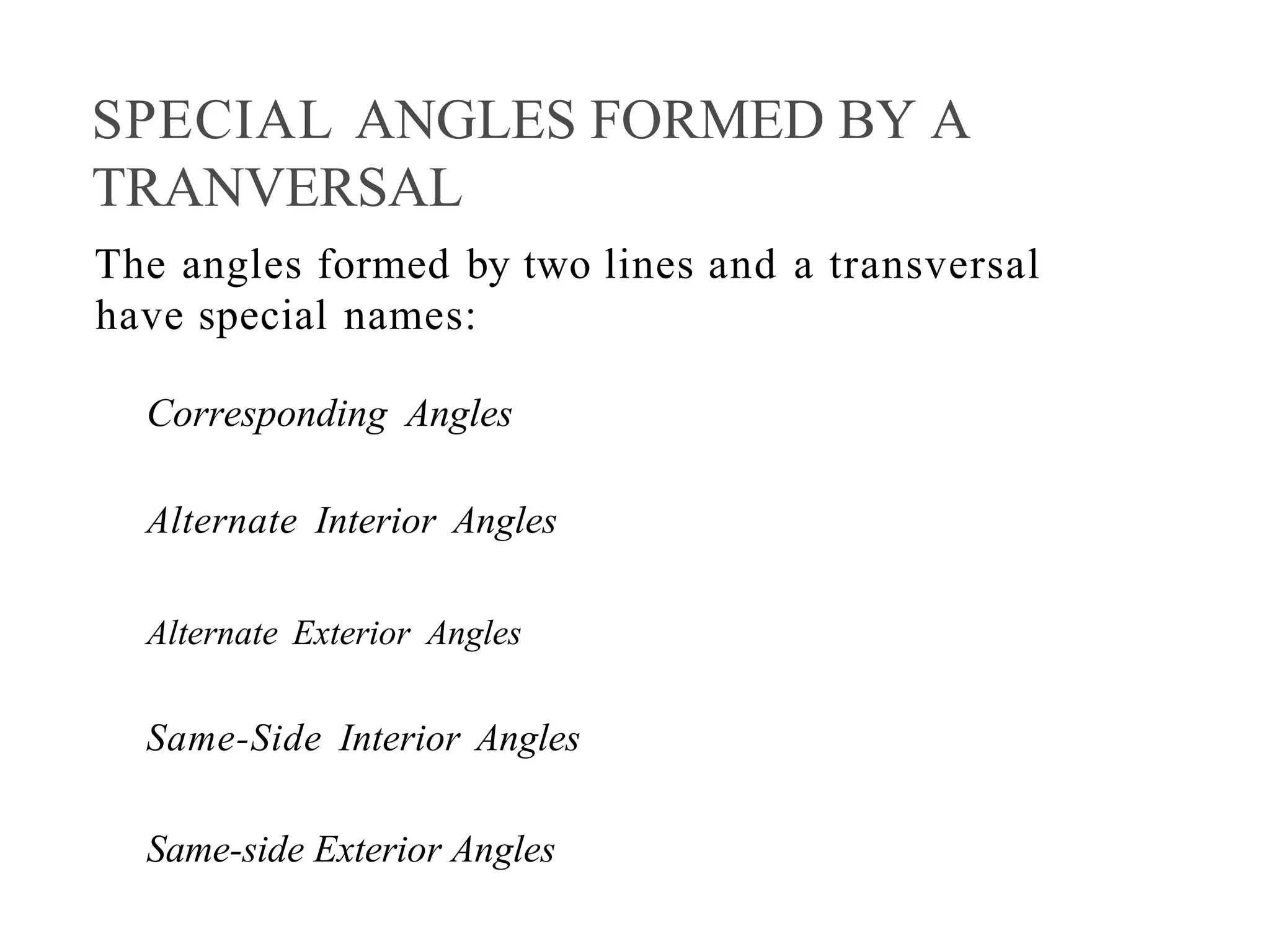

3. SPECIAL ANGLES FORMED BY A
TRANVERSAL
The angles formed by two lines and a transversal
have special names:
Corresponding Angles
Alternate Interior Angles
Alternate Exterior Angles
Same-Side Interior Angles
Same-side Exterior Angles

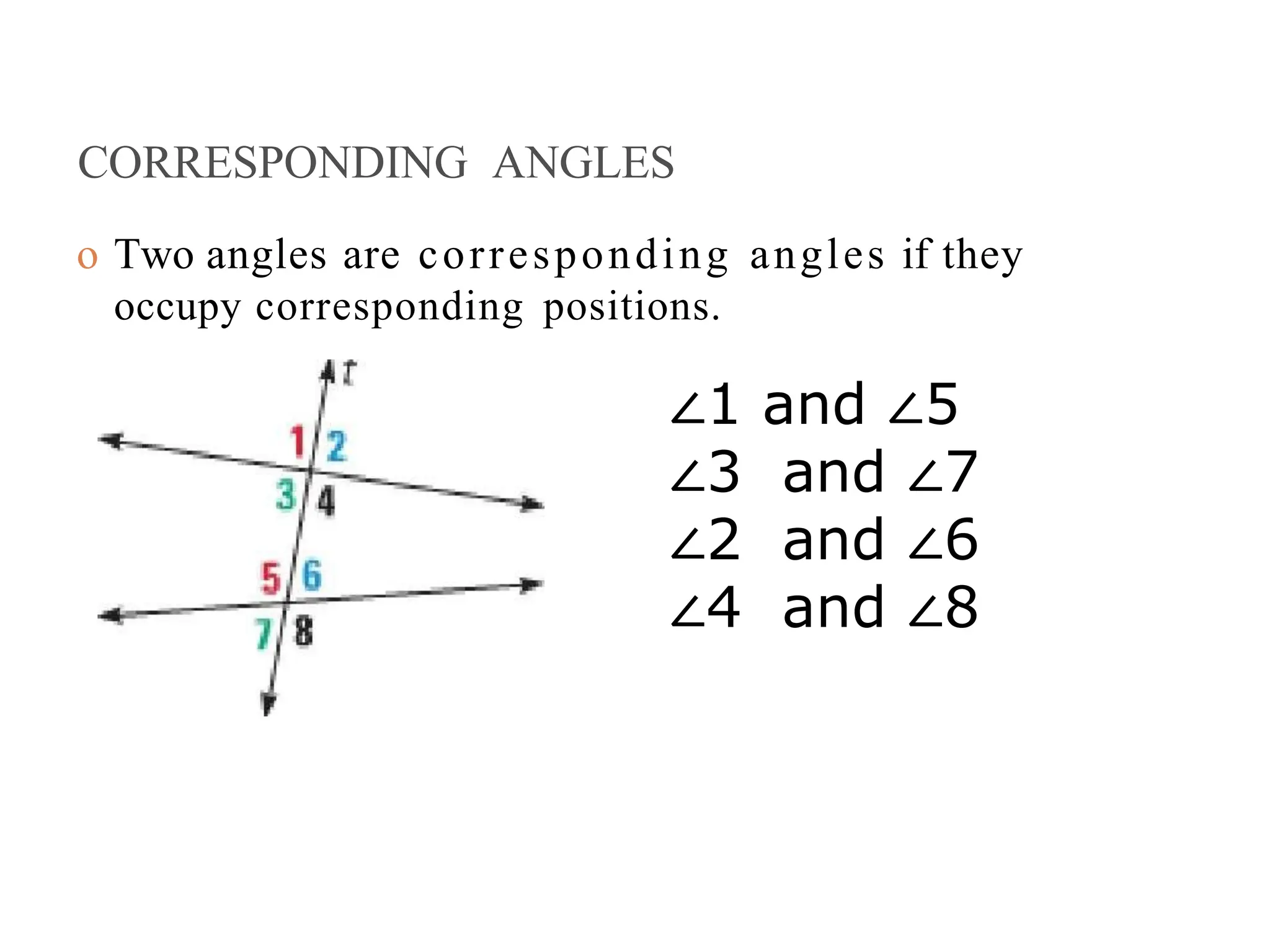

4. CORRESPONDING ANGLES
o Two angles are corresponding angles if they
occupy corresponding positions.
∠1 and ∠5
∠3 and ∠7
∠2 and ∠6
∠4 and ∠8

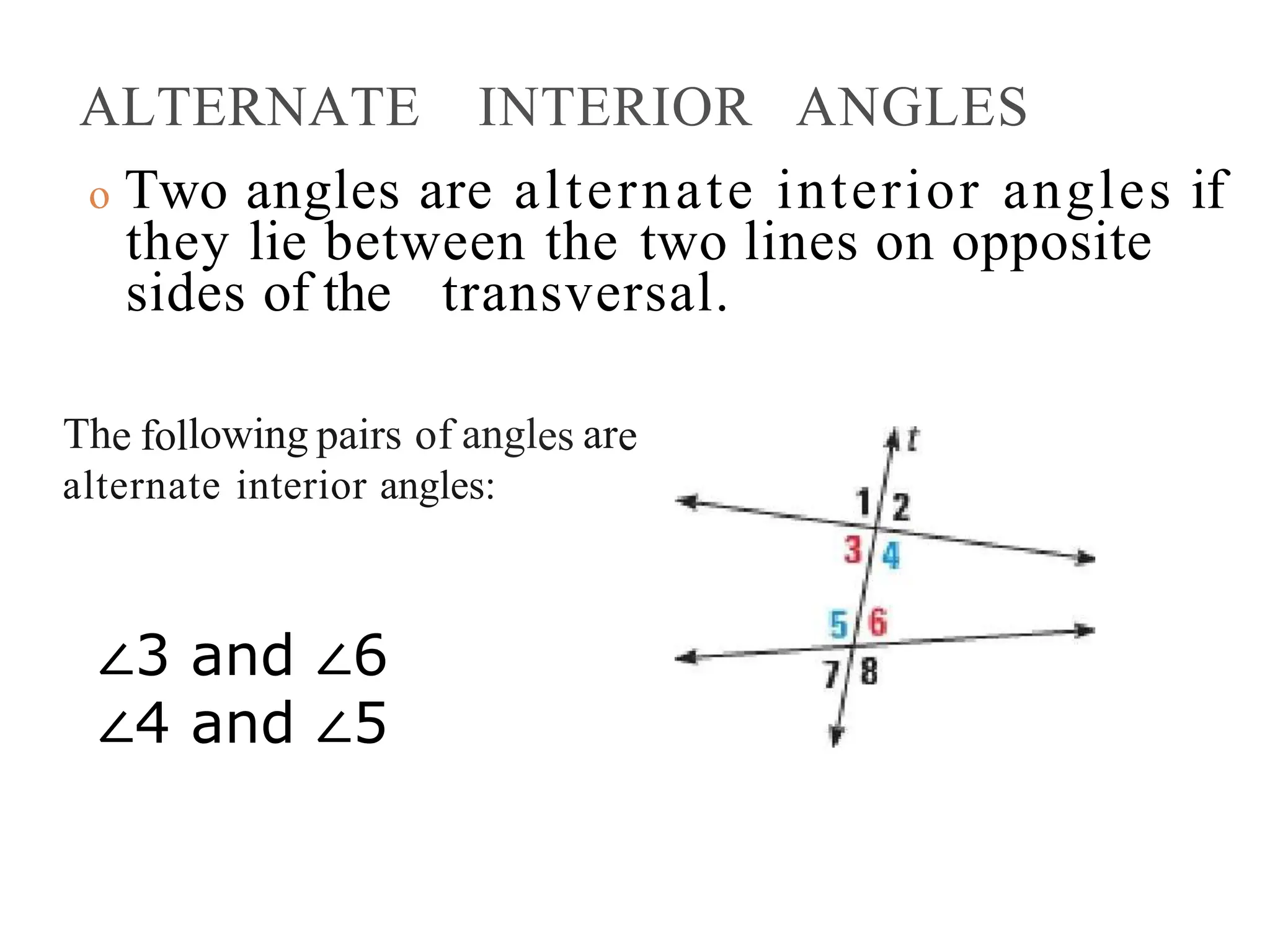

5. ALTERNATE INTERIOR ANGLES
o Two angles are alternate interior angles if
they lie between the two lines on opposite
sides of the transversal.
The following pairs of angles are
alternate interior angles:
∠3 and ∠6
∠4 and ∠5

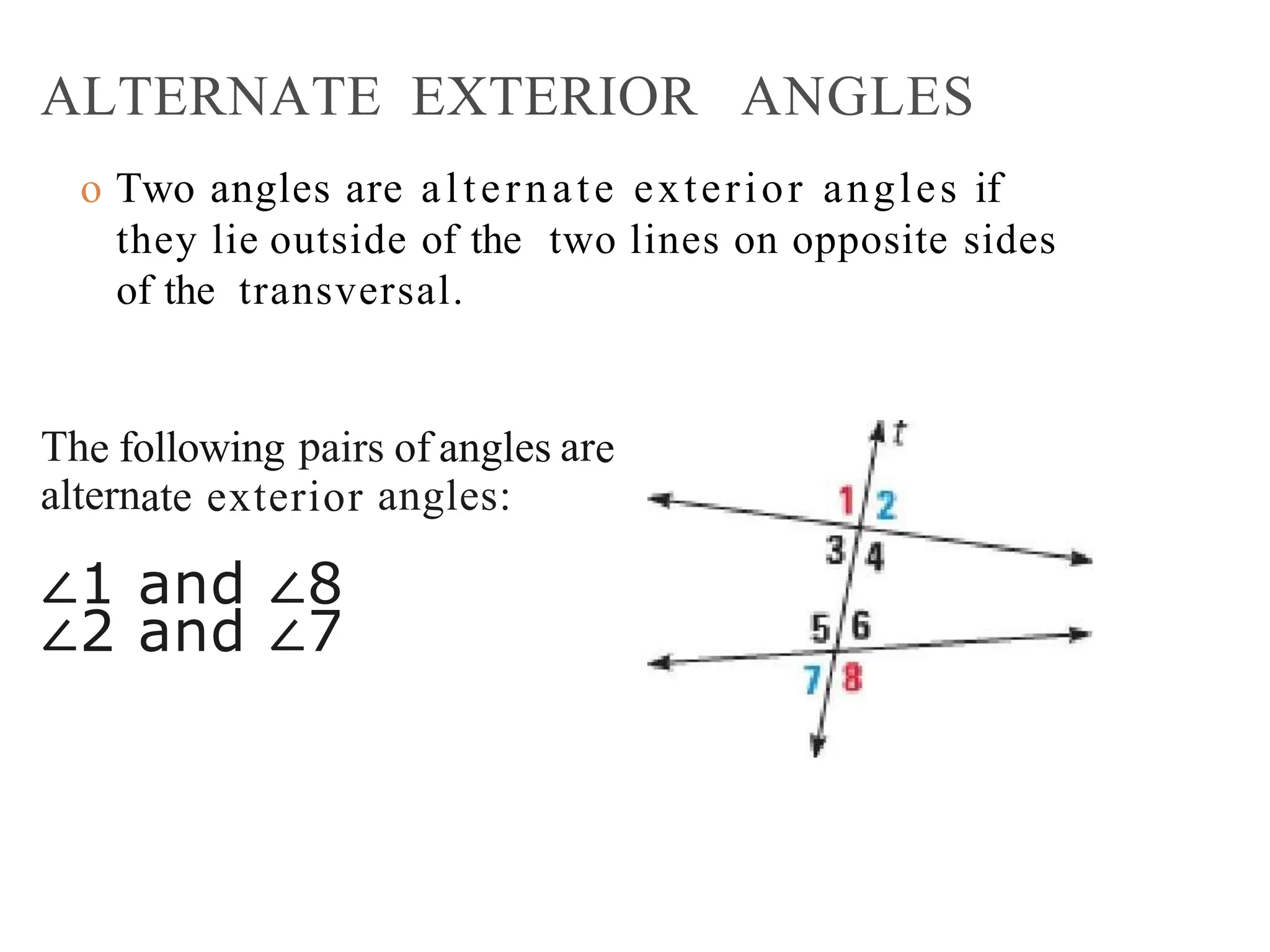

6. ALTERNATE EXTERIOR ANGLES
o Two angles are alternate exterior angles if
they lie outside of the two lines on opposite sides
of the transversal.
The following pairs of angles are
alternate exterior angles:
∠1 and ∠8
∠2 and ∠7

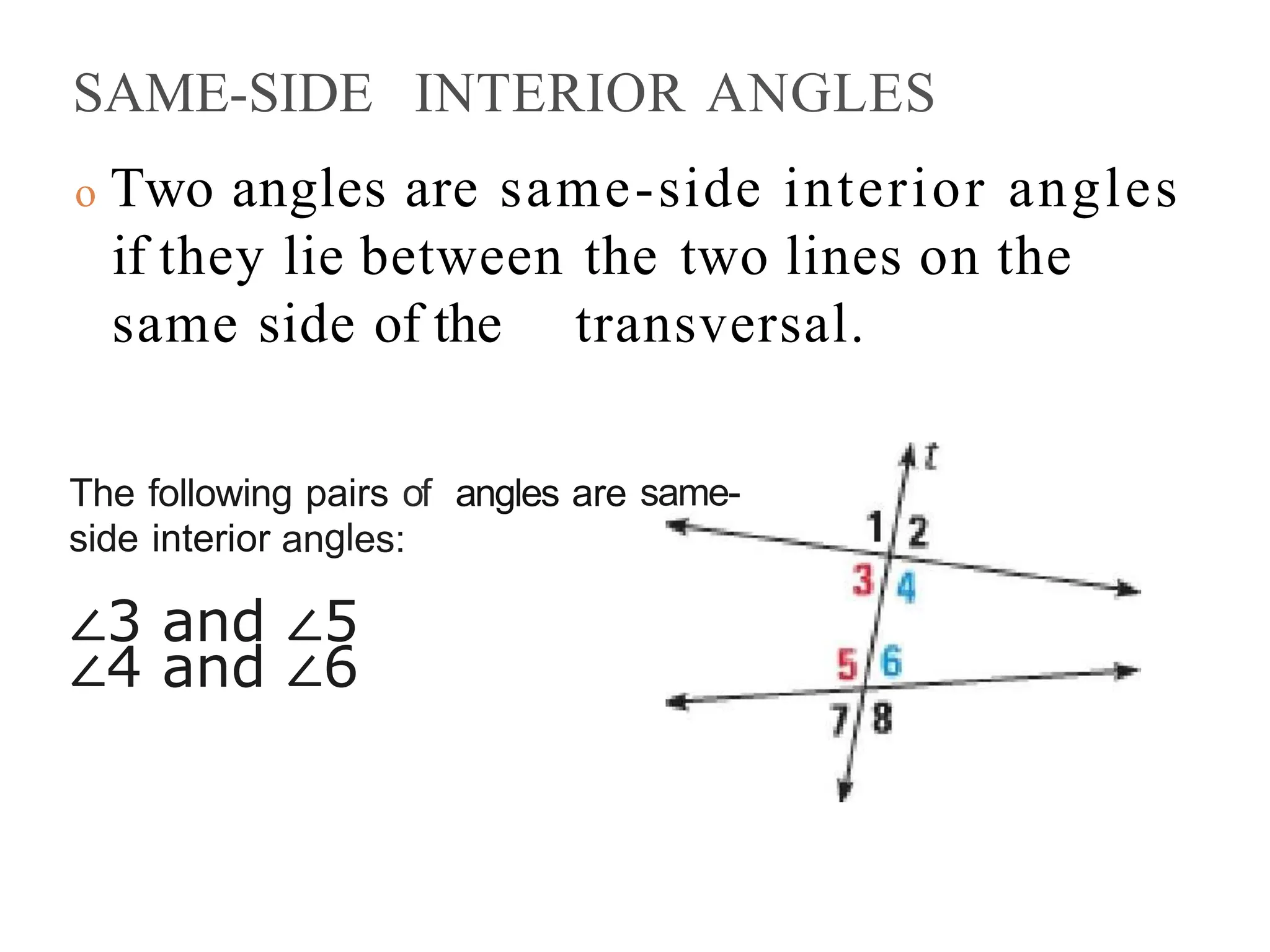

7. SAME-SIDE INTERIOR ANGLES
o Two angles are same-side interior angles
if they lie between the two lines on the
same side of the transversal.
The following pairs of angles are same-
side interior angles:
∠3 and ∠5
∠4 and ∠6

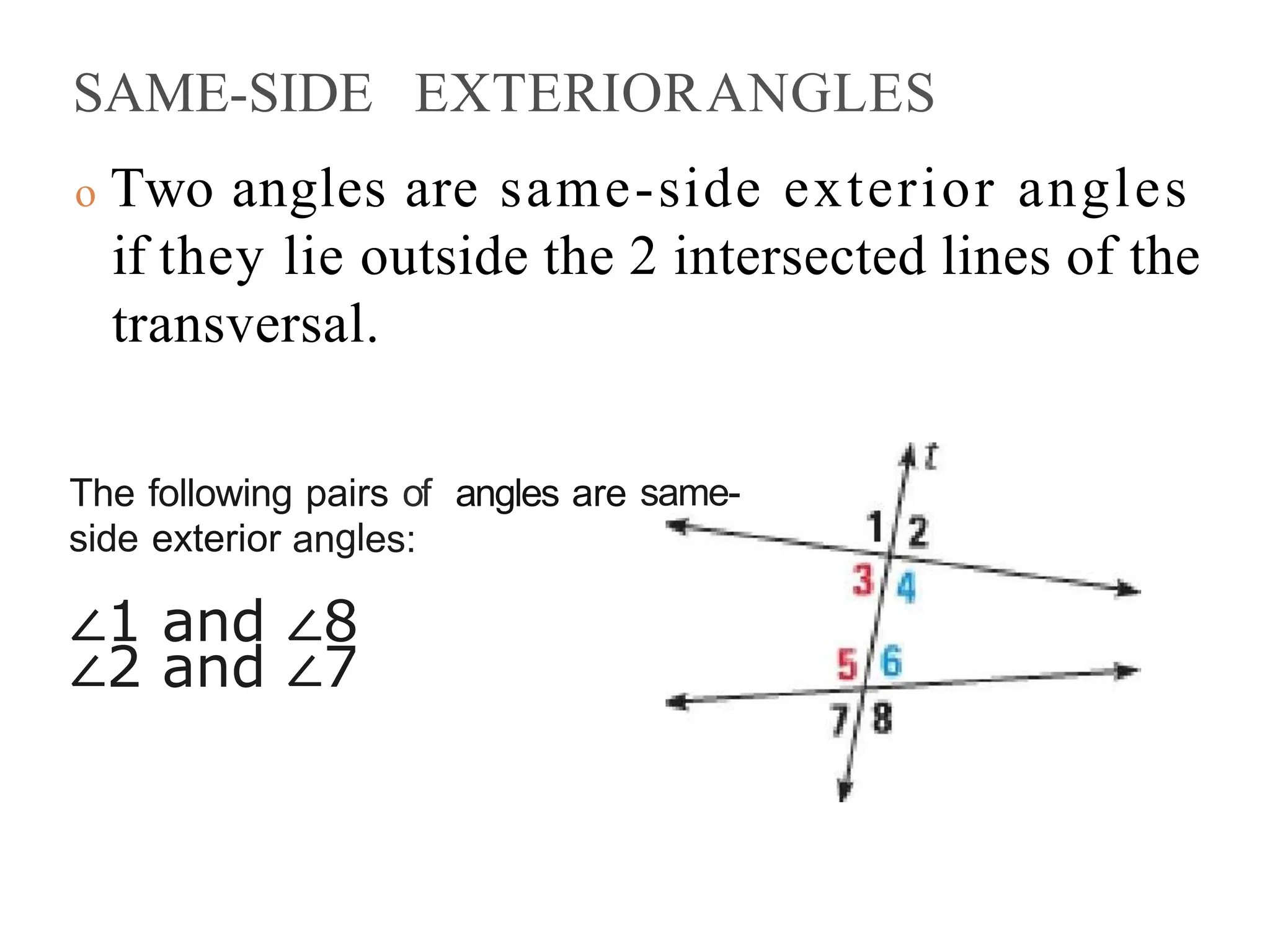

8. SAME-SIDE EXTERIORANGLES
o Two angles are same-side exterior angles
if they lie outside the 2 intersected lines of the
transversal.
The following pairs of angles are same-
side exterior angles:
∠1 and ∠8
∠2 and ∠7

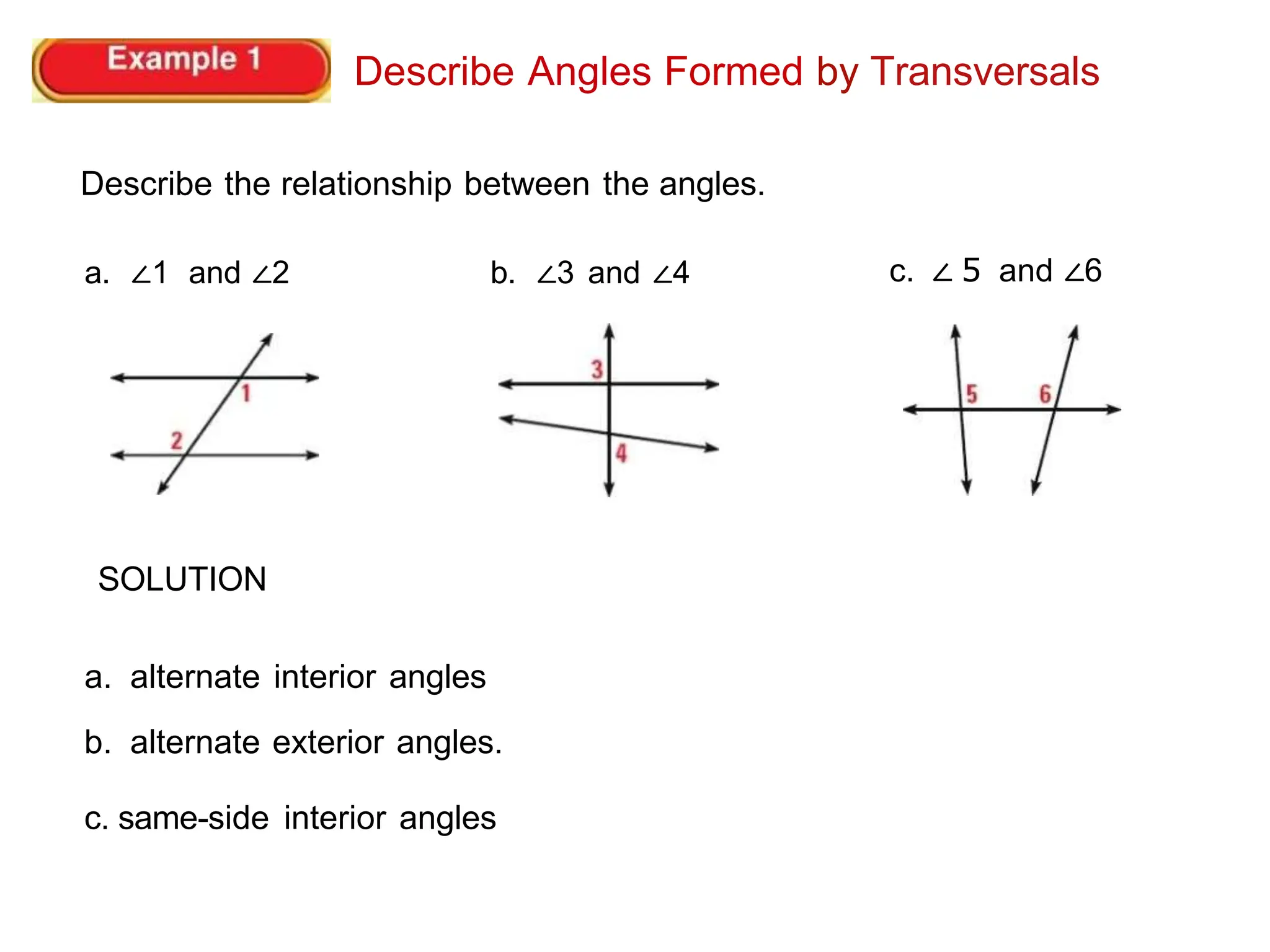

9. Describe Angles Formed by Transversals
Describe the relationship between the angles.
a. ∠1 and ∠2 b. ∠3 and ∠4
SOLUTION
a. alternate interior angles
b. alternate exterior angles.
c. same-side interior angles
c. ∠ 5 and ∠6

10. Identify Angles Formed by Transversals
List all pairs of angles that fit the
description.
a. corresponding
b. alternate exterior
c. alternate interior
d. same-side interior
SOLUTION
a. corresponding
∠1 and ∠5
∠3 and ∠7
∠2 and ∠6
∠4 and ∠8 Top view of cor

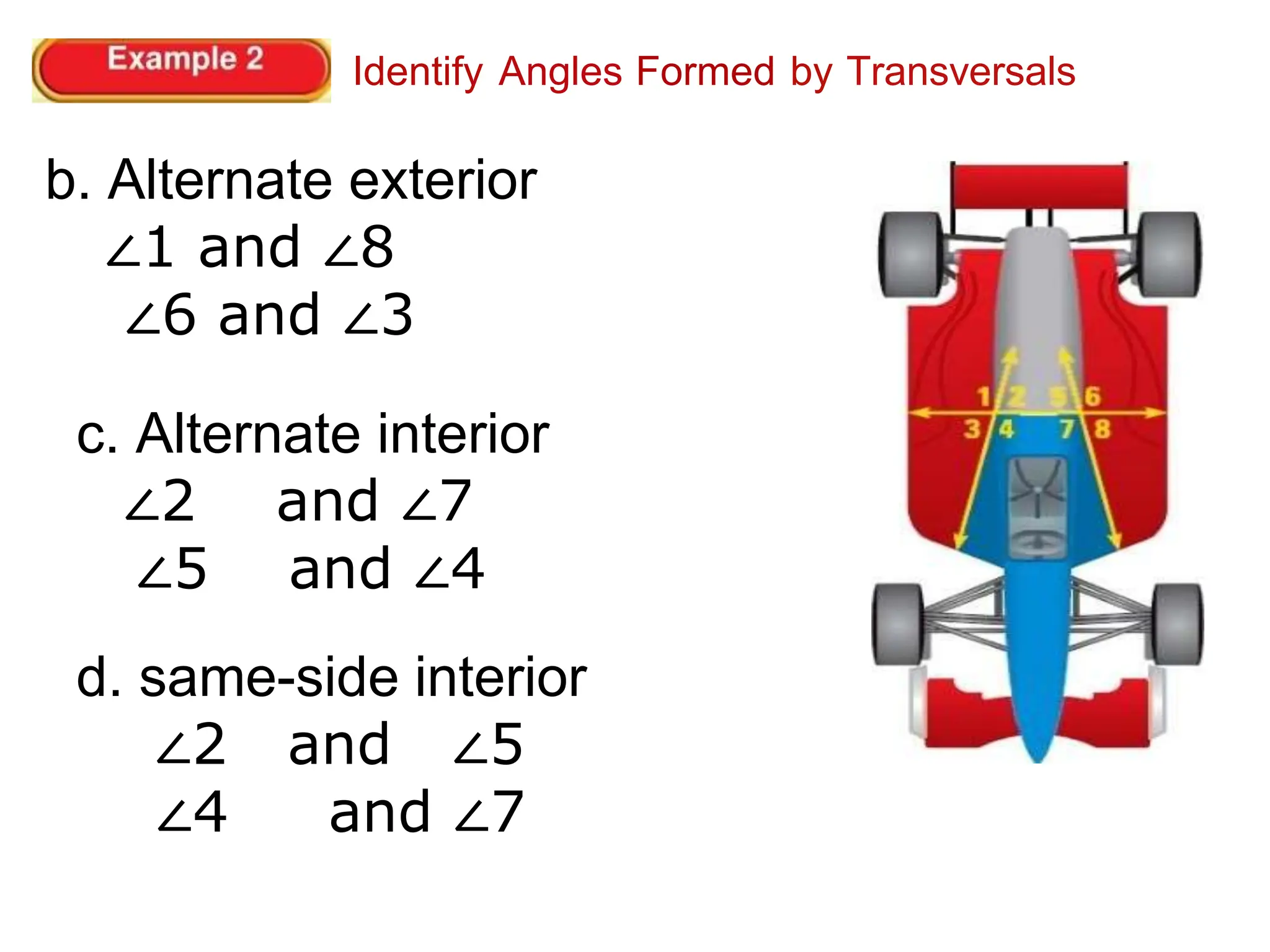

11. Identify Angles Formed by Transversals
b. Alternate exterior
∠1 and ∠8
∠6 and ∠3
c. Alternate interior
∠2 and ∠7
∠5 and ∠4
d. same-side interior
∠2 and ∠5
∠4 and ∠7

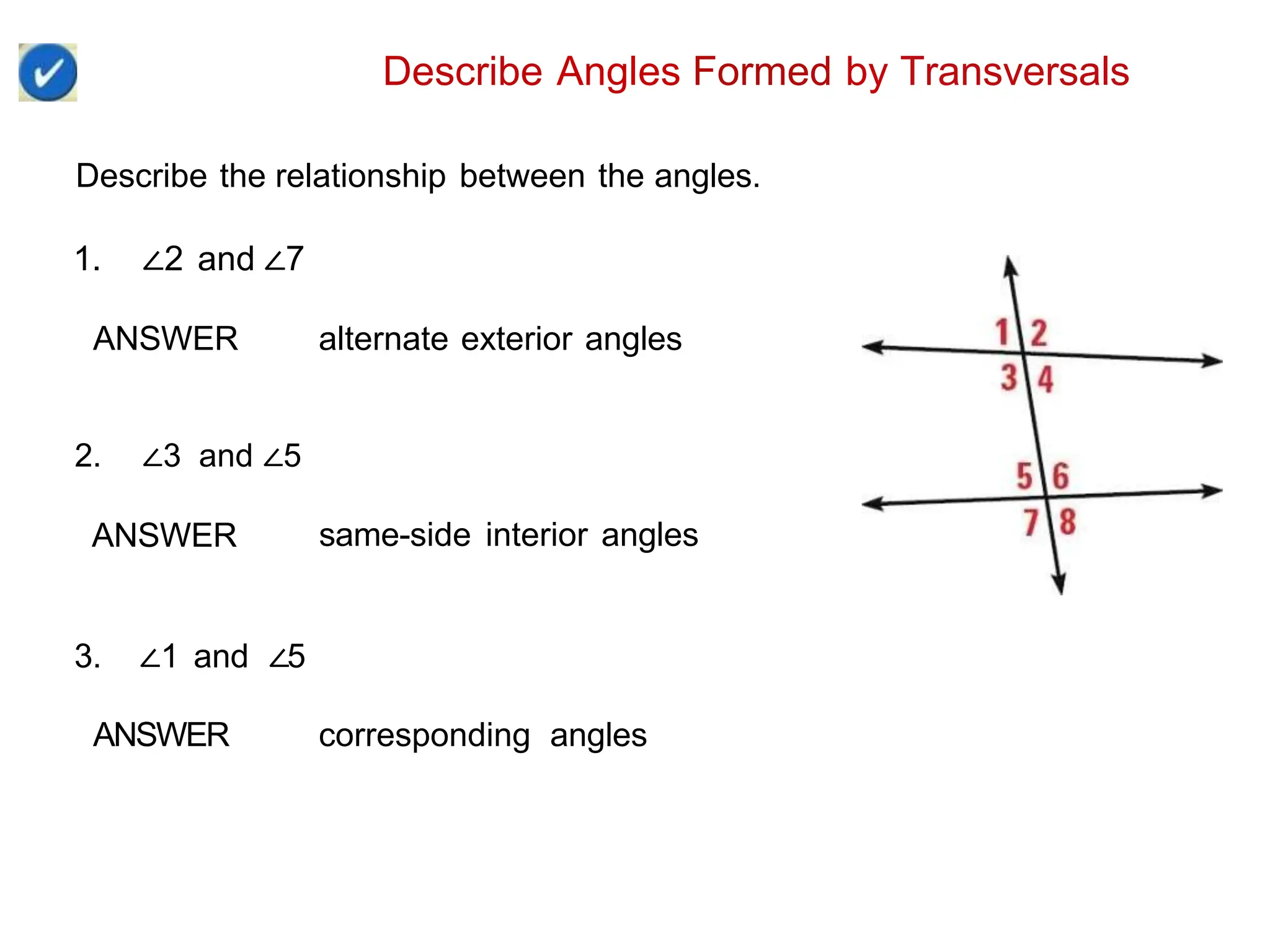

12. Describe Angles Formed by Transversals
Describe the relationship between the angles.
1. ∠2 and ∠7
ANSWER alternate exterior angles
2. ∠3 and ∠5
ANSWER same-side interior angles
3. ∠1 and ∠5
ANSWER corresponding angles

13. Describe Angles Formed by Transversals
Describe the relationship between the angles.
4. ∠4 and ∠5
ANSWER alternate interior angles
5. ∠4 and ∠8
ANSWER corresponding angles
6. ∠4 and ∠6
ANSWER same-side interior angles

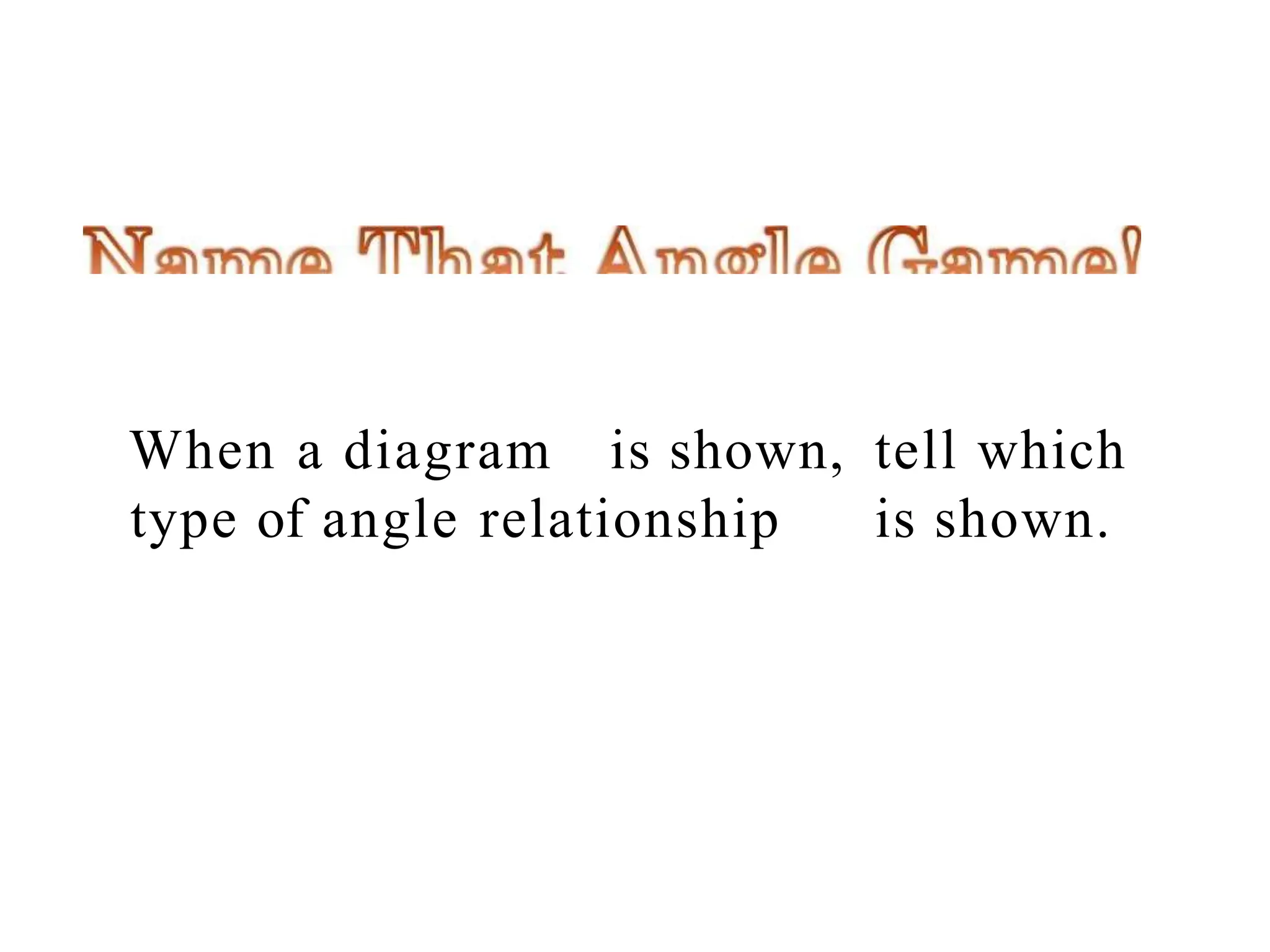

14. When a diagram is shown, tell which
type of angle relationship is shown.

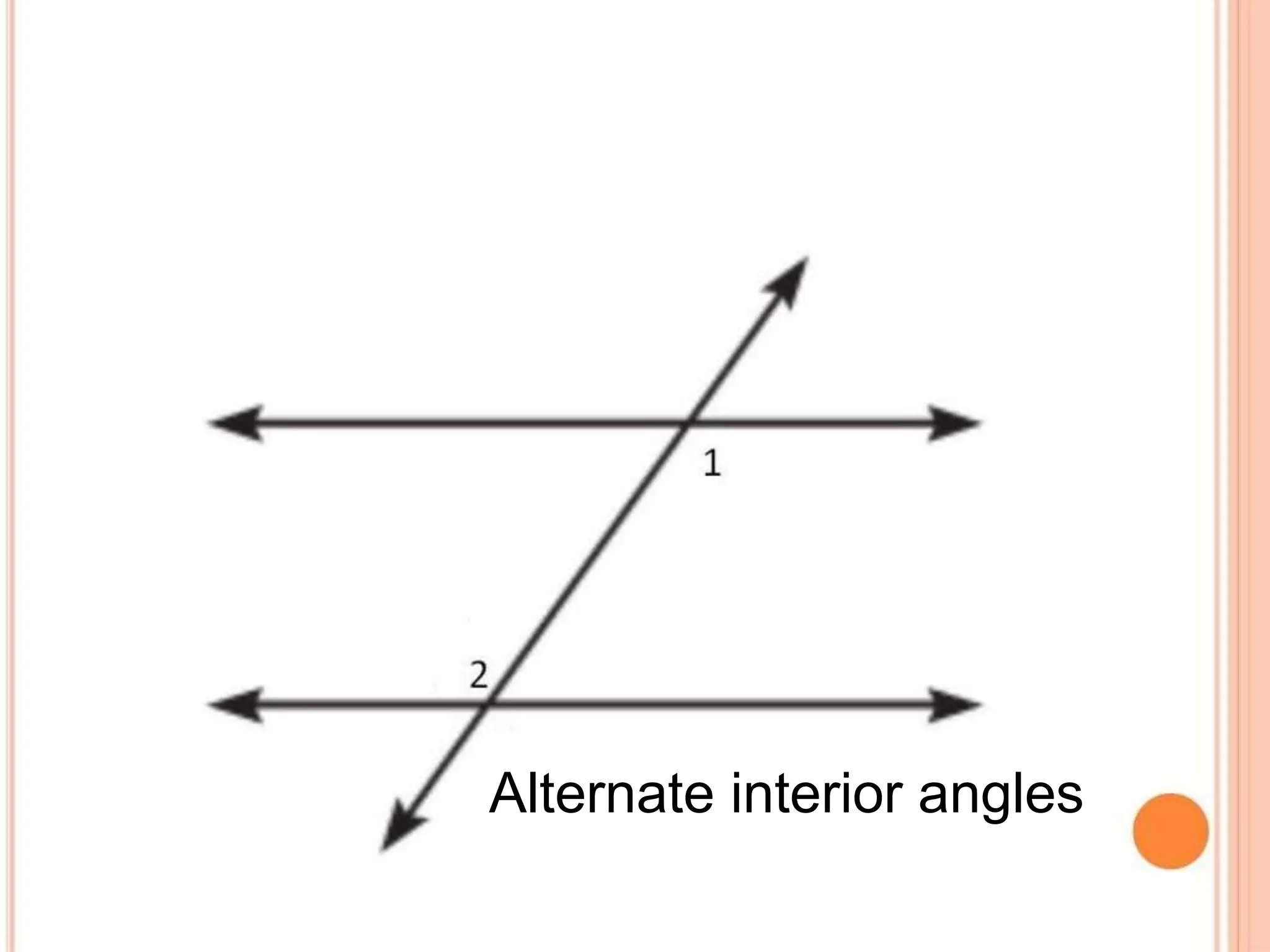

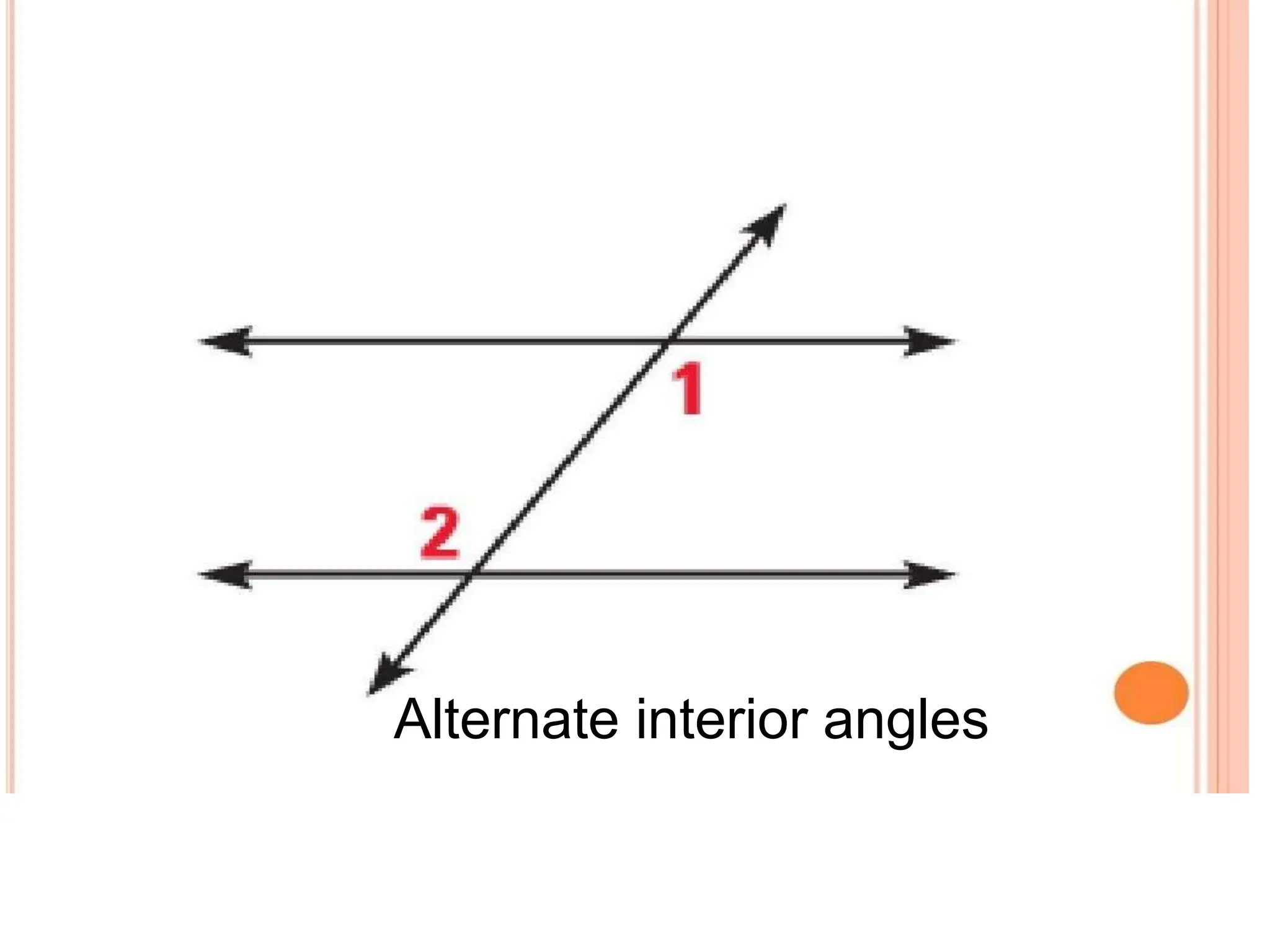

15. Alternate interior angles

16. Alternate exterior angles

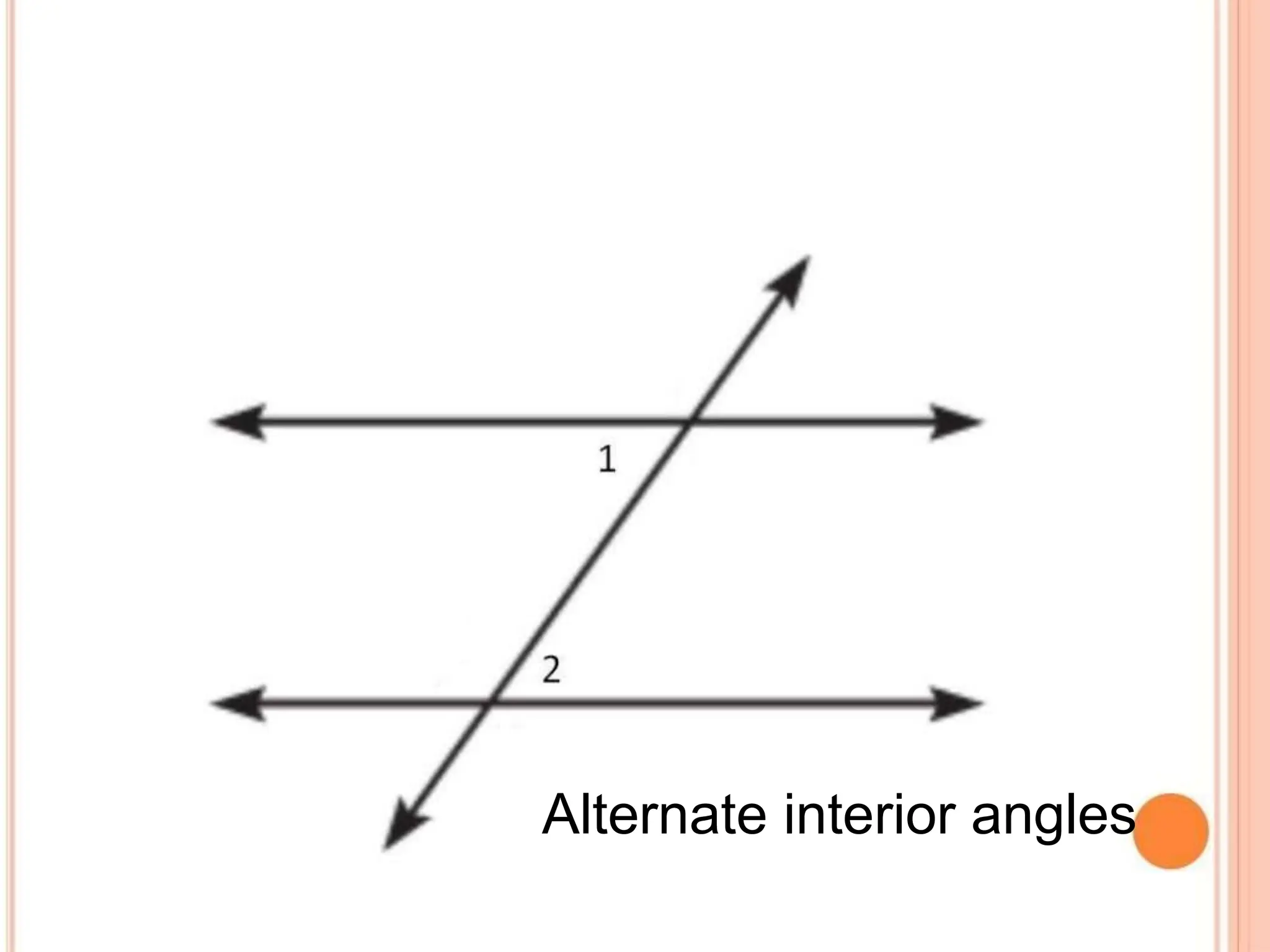

17. Alternate interior angles

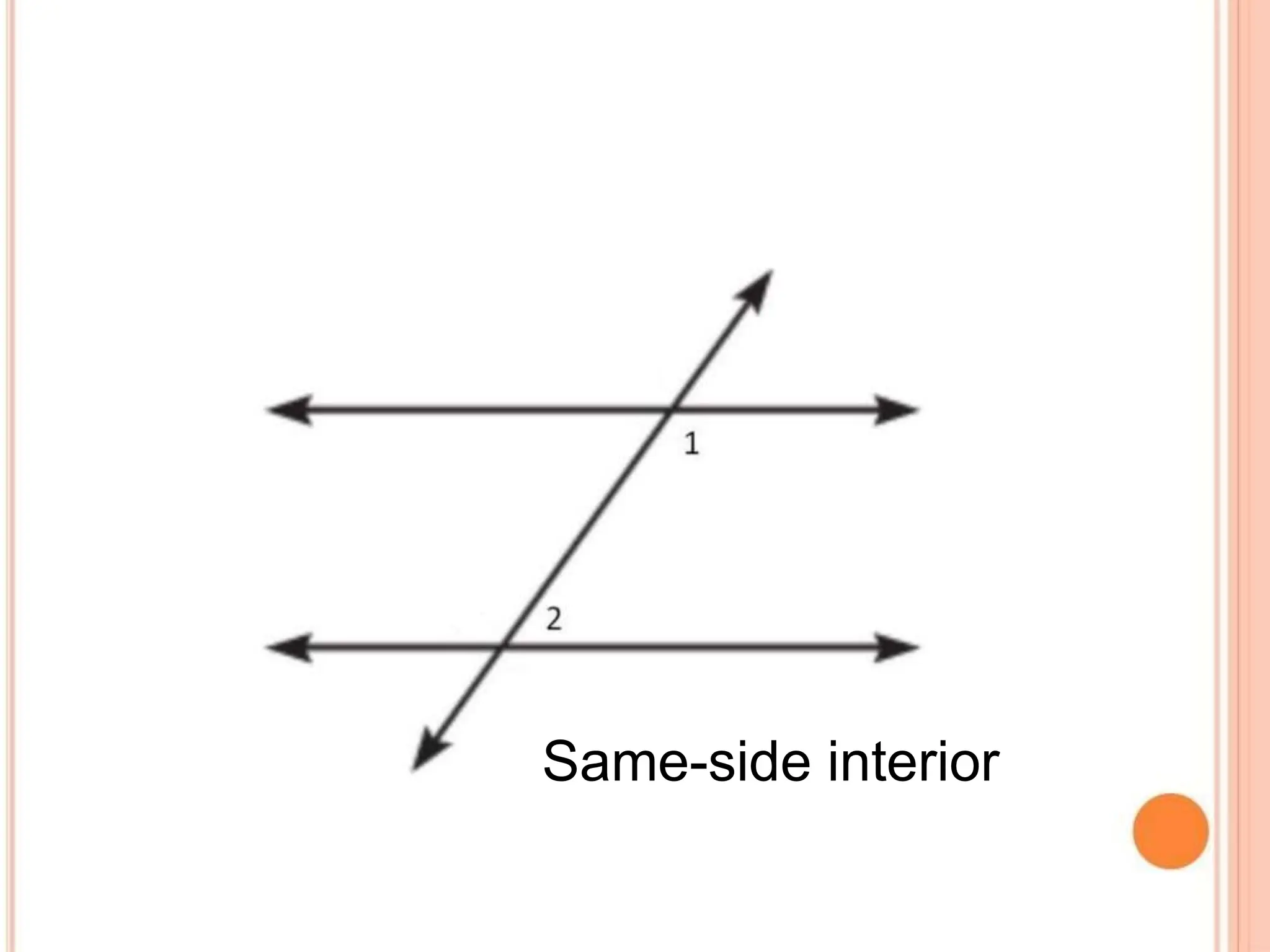

18. Same-side interior

19. Alternate interior angles

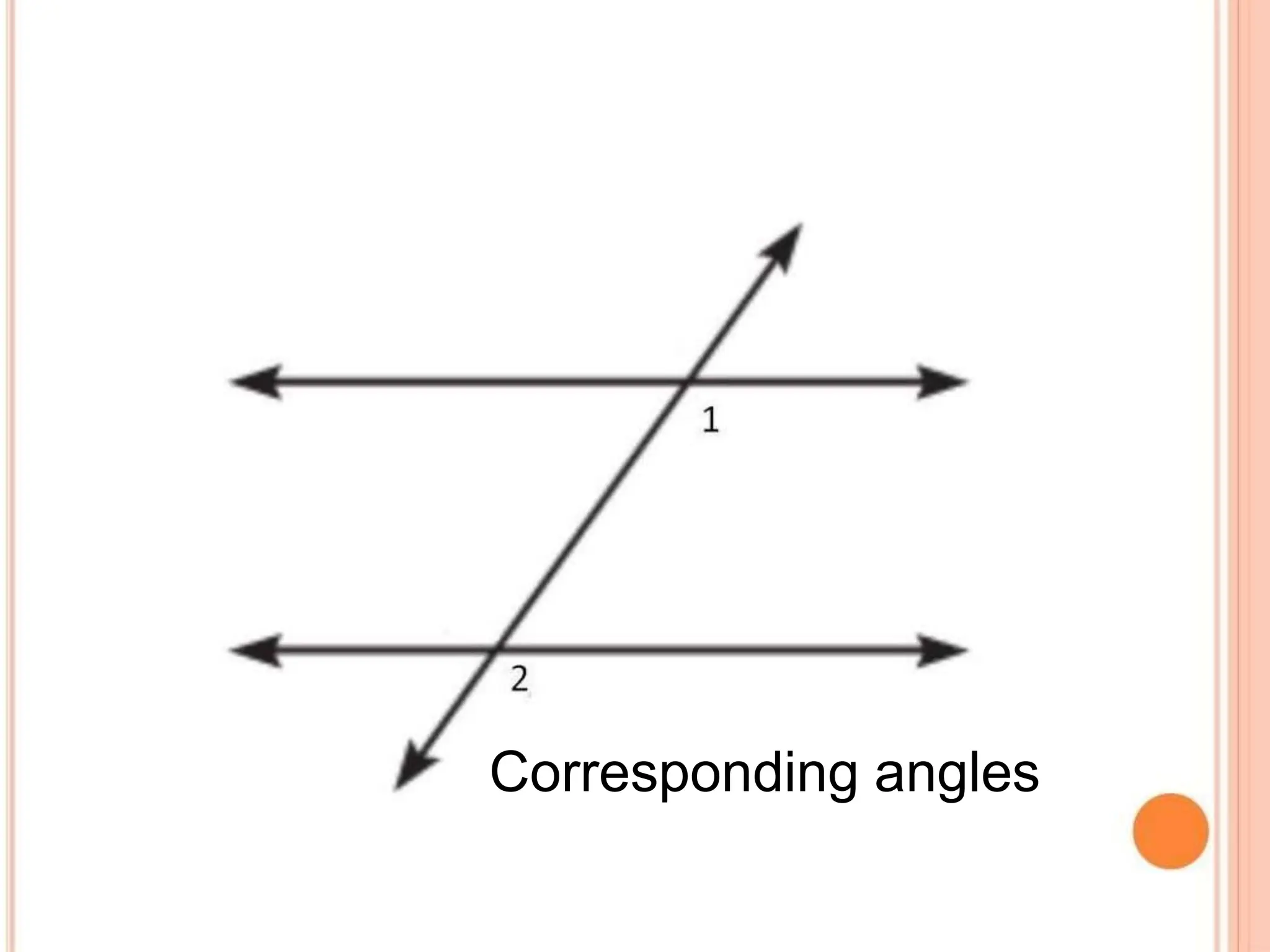

20. Corresponding angles
