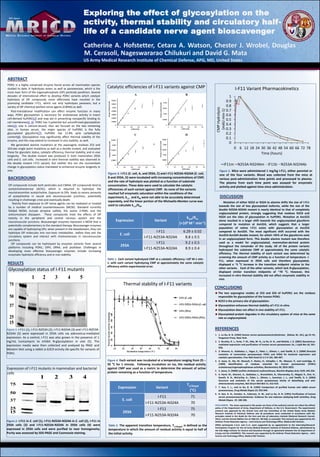

1. Exploring the effect of glycosylation on the
activity, thermal stability and circulatory half-
life of a candidate nerve agent bioscavenger
Catherine A. Hofstetter, Cetara A. Watson, Chester J. Wrobel, Douglas
M. Cerasoli, Nageswararao Chilukuri and David G. Mata
US Army Medical Research Institute of Chemical Defense, APG, MD, United States
BACKGROUND
ABSTRACT
OP compounds include both pesticides and CWNA. OP compounds bind to
acetylcholinesterase (AChE), which is required to hydrolyze the
neurotransmitter acetylcholine. Exposure to OPs leads to excess amounts
of acetylcholine in neural and neuromuscular junctions, potentially
resulting in cholinergic crisis and eventually death.
Toxicity from exposure to OP nerve agents can be mediated or treated
by a number of medical countermeasures (MCM). Standard currently
fielded MCMs include atropine sulfate, the oxime 2-PAM, and the
anticonvulsant diazapam. These compounds treat the effects of OP
toxicity in the peripheral and central nervous system and the
neuromuscular junctions. Bioscavenger enzymes represent a MCM that is
potentially complementary to the standard therapy. Bioscavenger enzymes
are capable of hydrolyzing OPs; when present in the bloodstream, they can
hydrolyze OP molecules into non-toxic metabolites before they exit the
circulatory system and interact with cholinesterases in neuromuscular
junctions.
OP compounds can be hydrolyzed by enzymes variants from several
platforms including PON1, OPH, OPAA, and prolidase. Challenges in
developing more effective bioscavenger enzymes include increasing
enzymatic hydrolytic efficiency and in vivo stability.
Figure 3. text
PON1 is a highly conserved enzyme found across all mammalian species
studied to date. It hydrolyzes esters as well as paraoxonase, which is the
more toxic form of the organophosphate (OP) pesticide parathion. Several
decades of international effort to develop PON1 variants which catalyze
hydrolysis of OP compounds more effectively have resulted in the
promising candidate I-F11, which not only hydrolyzes paraoxon, but a
variety of OP chemical warfare nerve agents (CWNA) as well.
Post-translational modification can affect enzyme function in many
ways. PON1 glycosylation is necessary for arylesterase activity in insect
cell-derived huPON1(2) and may aid in preventing nonspecific binding to
cell membranes(5, 6). PON1 has 3 potential but unconfirmed glycosylation
sites(1); one is calcium-bound, thus we focused on the two remaining
sites. In human serum, the major species of huPON1 is the fully
glycosylated glycoform(7); huPON1 has 15.8% w/w carbohydrate
content(8). Glycosylation may significantly affect thermal stability of the
enzyme, and this may extend to increased in vivo stability as well.
We generated alanine mutations at the asparagine residues 253 and
324,two single point mutations as well as a double mutant, and evaluated
these for glycolytic status, catalytic efficiency, thermal stability, and in vivo
longevity. The double mutant was produced in both mammalian 293A
cells and E. coli cells. Increased in vitro thermal stability was observed in
the double mutant I-F11 variant, but neither this nor the concomitant
change in glycosylation status translated to enhanced enzyme longevity in
vivo.
RESULTS
1: I-F11
2: I-F11-N253A
3: I-F11-N324A
4: I-F11-N253A-N324A
5: I-F11 + 1 mg/mL tunicamycin
1 2 3 4 5
75
50
37
25
15
Glycosylation status of I-F11 mutants
Figure 1. I-F11 (1), I-F11-N253A (2), I-F11-N324A (3) and I-F11-N253A-
N324A (5) were expressed in 293A cells via adenovirus-mediated
expression. As a control, I-F11 was also grown in the presence of 1
mg/mL tunicamycin to inhibit N-glycosylation in vivo (5). The
expression media were then collected and analyzed by PAGE and
Western blot using a rabbit α-G3C9 activity Ab specific for variants of
PON1.
Table 1. Each variant hydrolyzed CMP at a catalytic efficiency >106 M-1 min-
1, with each variant hydrolyzing CMP at approximately the same catalytic
efficiency within experimental error.
Expression Variant
kcat/Km
(×106 M-1 min-1)
E. coli
I-F11 6.29 ± 0.02
I-F11-N253A-N324A 8.8 ± 0.5
293A
I-F11 9.2 ± 0.5
I-F11-N253A-N324A 8.9 ± 0.4
1 2 3 4
75
50
37
25
15
1: I-F11 (E. coli)
2: I-F11-N253A-N324A (E. coli)
3: I-F11 (293A)
4: I-F11-N253A-N324A (293A)
Expression of I-F11 mutants in mammalian and bacterial
cells
Figure 2. I-F11 in E. coli (1), I-F11-N253A-N324A in E. coli (2), I-F11 in
293A cells (3) and I-F11-N253A-N324A in 293A cells (4) were
expressed in 293A cells and were purified to near homogeneity.
Purity was assessed by SDS-PAGE and Coomassie staining.
Catalytic efficiencies of I-F11 variants against CMP
A B
C D
Figure 3. I-F11 (E. coli, A, and 293A, C) and I-F11-N253A-N324A (E. coli,
B and 293A, D) were incubated with increasing concentrations of CMP,
and the rate of hydrolysis was plotted as a function of substrate
concentration. These data were used to calculate the catalytic
efficiencies of each variant against CMP. As none of the variants
reached full enzymatic saturation within the conditions of the
experiment, kcat and KM were not able to be accurately determined
separately, and the linear portion of the Michaelis-Menten curve was
used to calculate kcat/KM.
CONCLUSIONS
The two asparagine resides at 253 and 324 of huPON1 are the residues
responsible for glycosylation of the human PON1.
N253 is the primary site of glycosylation.
Glycosylation enhances thermal stability of I-F11 in vitro.
Glycosylation does not affect in vivo stability of I-F11.
Glycosylated protein degrades in the circulatory system of mice at the same
rate as unglycosylated.
DISCLAIMERS. The views expressed in this poster are those of the author(s) and do not reflect the official
policy of the Department of Army, Department of Defense, or the U.S. Government. The experimental
protocol was approved by the Animal Care and Use Committee at the United States Army Medical
Research Institute of Chemical Defense and all procedures were conducted in accordance with the
principles stated in the Guide for the Care and Use of Laboratory Animals (National Research Council,
2011), and the Animal Welfare Act of 1966 (P.L. 89-544), as amended. This research was supported by the
Defense Threat Reduction Agency – Joint Science and Technology Office, Medical S&T Division.
ORISE participants C.A.H. and C.L.C. were supported by an appointment to the Internship/Research
Participation Program for the US Army Medical Research Institute of Chemical Defense, administered by
the Oak Ridge Institute for Science and Education through an agreement between the US Department of
Energy and the USAMRICD. This research was supported by the Defense Threat Reduction Agency – Joint
Science and Technology Office, Medical S&T Division.
Mutation of either N253 or N324 to alanine shifts the size of I-F11
towards the size of less glycosylated isoforms, while the size of the
double N253A-N324A mutant is nearly identical to that of completely
unglycosylated protein, strongly suggesting that residues N253 and
N324 are the sites of glycosylation in huPON1. Mutation at Asn253
alone resulted in a larger shift towards the unglycosylated glycoform
compared to mutation at Asn324, which suggests that a larger
population of native I-F11 exists with glycosylation at Asn253
compared to Asn324. The most significant shift occurred with the
Asn253-Asn324 double mutant, for which >95% of the glycoforms exist
in an unglycosylated form. This double alanine mutant was therefore
used as a model for unglycosylated, mammalian-derived protein
throughout the remainder of the study. All of the protein variants
hydrolyzed the substrate CMP at approximately the same catalytic
efficiency. The thermal stability of each variant was determined by
screening the amount of CMP activity as a function of temperature. I-
F11, when expressed in 293A cells and therefore glycosylated,
displayed a ~5 °C increase in the transition midpoint relative to the
other variants. Each of the other variants, which lack N-glycosylation,
displayed similar transition midpoints of ~70 °C. However, this
increased in vitro thermal stability did not affect enzymatic stability in
vivo.
DISCUSSION
