ecommerce application solution approach and architecture

1. Solution Approach
- Cloud based application
- Secured from Internet through Azure WAF, VPN, subnets & API Management using Azure AD/OAuth 2.0
- Microservices architecture
- NoSQL datastore like Azure Cosmos, RavenDB with features like external replication for horizontal scaling/scale-out
functionality to support millions and millions of customers hitting the website.

2. Logical architecture
Bounded Context
Search Browse Cart Orders Recommendations
Wish List Admin
.WAR or .EAR file
Search – 5 million requests per minute
Recommendations – Compute heavy
Orders – Mostly Writes, few Queries
Admin – 5 requests per minute
Search
ElasticSearch
Bounded Context
Browse
Redis
Bounded Context
Recommendations
Cassandra
Bounded Context
Reviews
SQL
Bounded Context
Cart
Redis
Bounded Context
Orders
SQL
Modeling
Product
group category
SKU
Monolith application
Microservices application
Shipping
address customer
Shipping
company
Order
sku
customer
address
record
Performance Scalability Capacity Availability Reliability Recoverability Maintainability Servicability Security
Regulatory Manageability Environmental Data Integrity Usability Interoperability
NFR’s

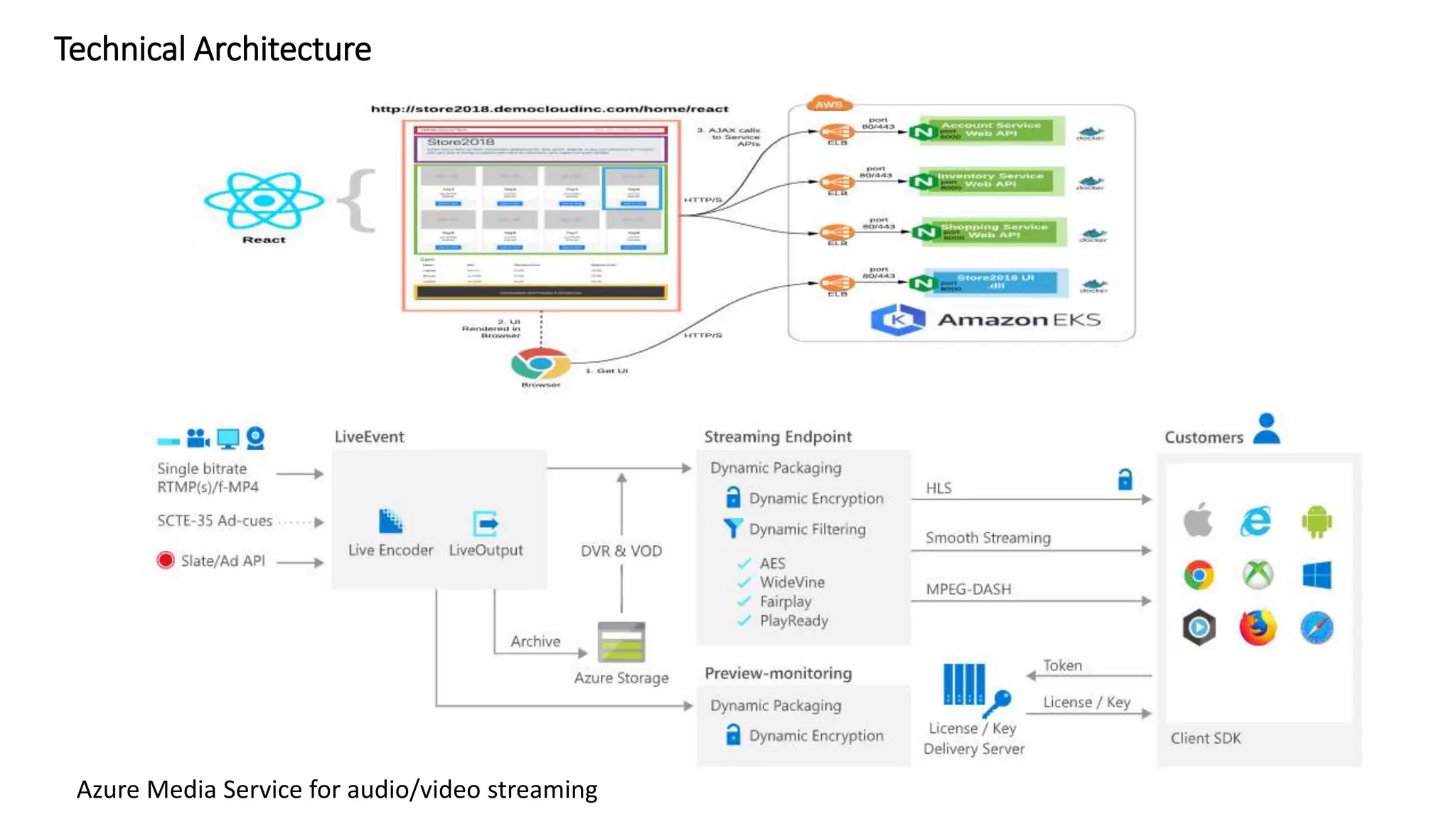

3. Technical Architecture
Azure Media Service for audio/video streaming

4. High level risks in such a program
- Cost optimization (TCO) on Cloud
- Testing environments
- Infrastructure-as-a-code
- Complexity in microservices communication
- Need to go for Service Mesh/Istio for cross-cutting concerns like
logging, configuration, security, service discovery etc.
- Training on Cloud/New Technologies for developers
- Continuous Integration/Continuous Depoyment(CI/CD) using Azure
DevOps. Setting up build and release pipeline.
- DevSecOps with code on demand and cloud native applications
- 12 factor cloud native application
- Inventory availability from various vendors
- API integration issues with various vendors
