Soil Stabilization Techniques for Improved Road Construction (2).pdf
The document discusses soil stabilization techniques essential for improving road construction, emphasizing the need for strong foundations to support heavy traffic and reduce maintenance costs. It details various methods, including mechanical, chemical, and polymeric stabilization, and highlights the environmental benefits of using eco-friendly stabilizers. The document also outlines the application process, including site assessment, mixing, compacting, and curing to ensure effective soil stabilization.
More Related Content
Similar to Soil Stabilization Techniques for Improved Road Construction (2).pdf
Soil Stabilization Techniques for Improved Road Construction (2).pdf
- 1. www.envirotacinc.com SOIL STABILIZATION TECHNIQUES FORIMPROVED ROAD CONSTRUCTION

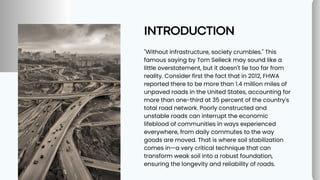

- 2. "Without infrastructure, societycrumbles." This famous saying by Tom Selleck may sound like a little overstatement, but it doesn't lie too far from reality. Consider first the fact that in 2012, FHWA reported there to be more than 1.4 million miles of unpaved roads in the United States, accounting for more than one-third at 35 percent of the country's total road network. Poorly constructed and unstable roads can interrupt the economic lifeblood of communities in ways experienced everywhere, from daily commutes to the way goods are moved. That is where soil stabilization comes in—a very critical technique that can transform weak soil into a robust foundation, ensuring the longevity and reliability of roads. INTRODUCTION
- 3. Soil stabilization isa method aimed at improving the physical properties of soil, enhancing its strength, durability, or load- bearing capacity by adding physical, chemical, or biological agents. In terms of road construction, soil stabilization means a methodology oriented towards providing a solid base capable of withstanding heavy traffic while countering hostile environments. UNDERSTANDING SOIL STABILIZATION TECHNIQUES WHAT IS SOIL STABILIZATION?
- 4. KEY TECHNIQUES IN SOILSTABILIZATION It physically changes the constitution of the soil by mixing it with other materials, mostly gravel or sand. It tries to improve the mechanical properties of the soil, such as its density and cohesion. Introducing additives like lime, cement, or fly ash to soil for modification creates a stable matrix by reacting with natural particles. For example, lime can increase soil pH to form cementitious compounds, improving strength. Polymer-based stabilizers from companies like EP&A and Envirotac Inc. enhance soil resistance to erosion and increase load-bearing capacity. These environmentally friendly products are used for building road infrastructure. Mechanical Stabilization 01. Chemical Stabilization 02. Polymeric Stabilization 03.
- 5. ENHANCING ROAD DURABILITY Stabilizedsoil provides a firm base, and this forms the basis of life for the road. More so, the enhanced load-bearing capacity of the soil enables the roads to support heavy traffic without deforming. That is the case in areas of weak or expansive soils, which shrink and swell. WHY SOIL STABILIZATION IS NECESSARY
- 6. Well-stabilized roads requirefewer maintenance and repair frequencies. That, in addition to the multifarious advantages enumerated above, will elongate the life expectancy of the road while saving governments and municipalities a lot in terms of cost. As an example, the plasticity index of the soil can be reduced by adding lime to it; this minimizes shrink-swell behavior, hence reducing the occurrence of cracks and potholes. Utilizing soil stabilization services can significantly contribute to these maintenance cost savings. REDUCING MAINTENANCE COSTS
- 7. ENVIRONMENTAL BENEFITS Environmentally friendlystabilizers: Envirotac Inc. offers environment-friendly dust control solutions, thereby reducing the organization's footprint on the environment during the road-making process. These dust control products aim at dust reduction, soil erosion prevention, and lowering the carbon footprint created by conventional methodologies in road building. The use of sustainable materials helps safeguard one's surroundings and promotes greener construction practices.
- 8. SITE ASSESSMENT ANDSOIL TESTING The initial step in soil stabilization methods involves assessing and testing the soil to understand its type, moisture content, compaction level, and selecting the suitable treatment method. CHOOSING THE RIGHT STABILIZATION METHOD Experienced engineers or soil stabilization services can assess soil to determine the best approach for a project. Clayey soils may need lime for chemical stabilization, while sandy soils could require mechanical stabilization with aggregates. HOW TO UTILIZE SOIL STABILIZATION TECHNIQUES FOR IMPROVED ROAD CONSTRUCTION
- 9. APPLICATION PROCESS PREPARATION Clear thesite of vegetation, debris, and any unsuitable materials. Level the area to ensure uniform application of stabilizers. COMPACTION After mixing, compact the soil using rollers to achieve the desired density and strength. Proper compaction is vital to eliminate air gaps and ensure a stable foundation. MIXING For chemical stabilization, evenly distribute the chosen additive (e.g., lime, cement) over the soil surface and mix thoroughly using machinery such as rotavators or graders. CURING Allow the stabilized soil to cure, which may involve keeping the soil moist for a specific period to enable chemical reactions to complete. This step is particularly important for chemical stabilization methods.
