Software Architecture Design: User Interface. User Analysis, User Profile, Design Model, etc. Presented in 3rd year of Bachelor of Science in Software Engineering (BSSE) course at Institute of Information Technology, University of Dhaka (IIT, DU).

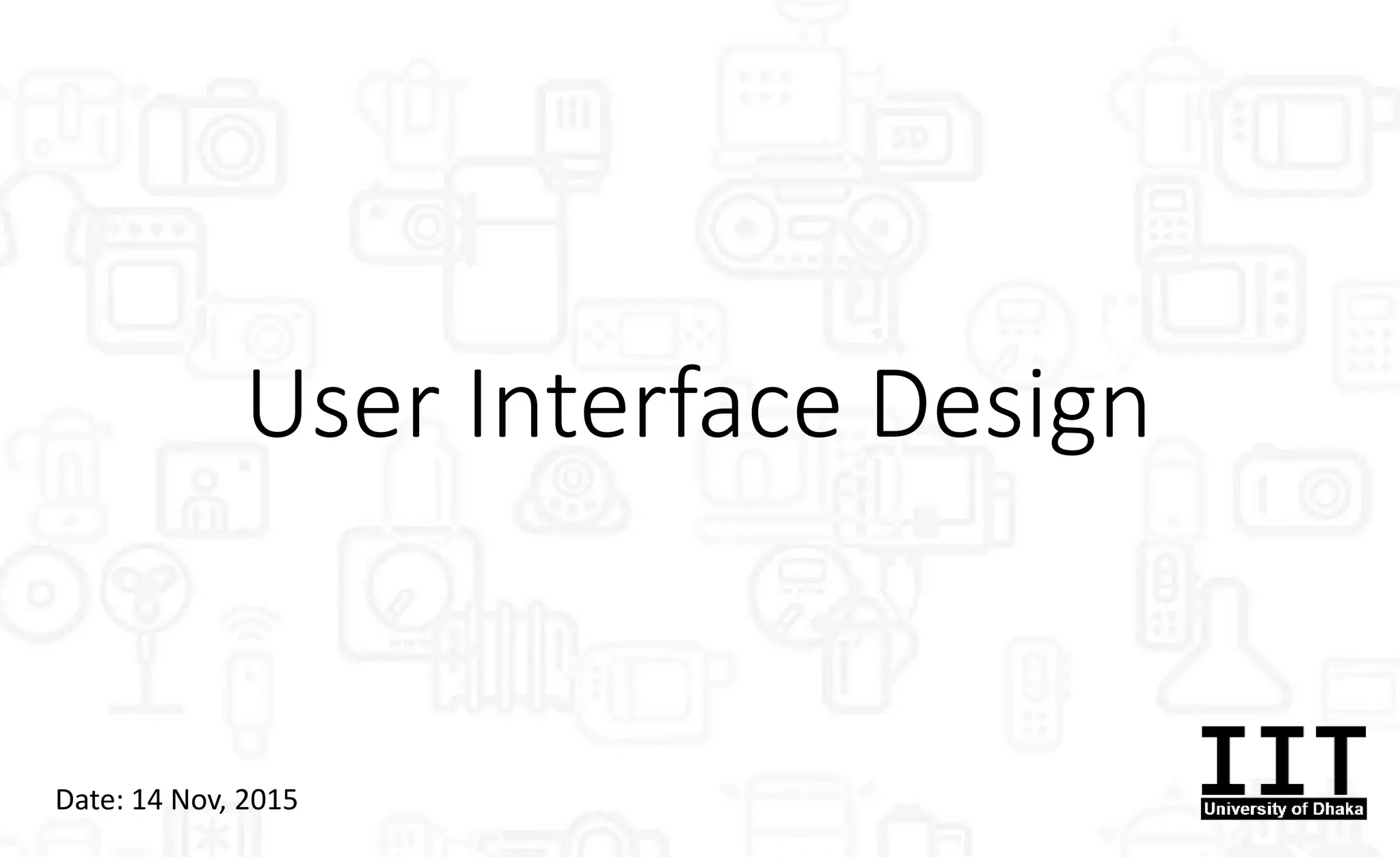

1. User Interface Design
Date: 14 Nov, 2015

2. Submitted to
Md. Nurul Ahad Tawhid
Lecturer
Institute of Information Technology, DU
Submitted by
Minhas Kamal BSSE-0509
Mostaque Ahmed BSSE-0530
Saif Uddin Mahmud BSSE-0524

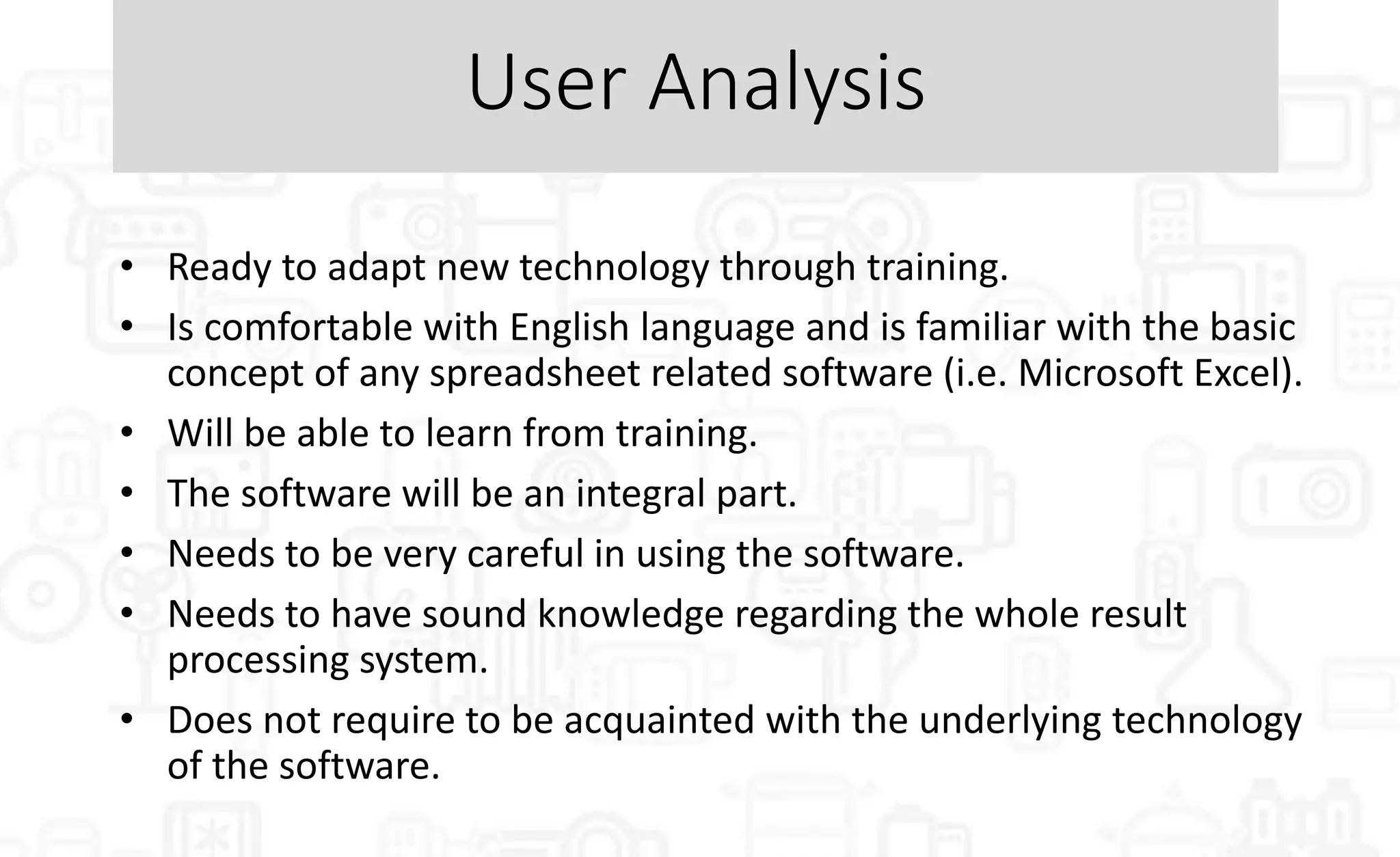

3. User Analysis
• Ready to adapt new technology through training.
• Is comfortable with English language and is familiar with the basic
concept of any spreadsheet related software (i.e. Microsoft Excel).
• Will be able to learn from training.
• The software will be an integral part.
• Needs to be very careful in using the software.
• Needs to have sound knowledge regarding the whole result
processing system.
• Does not require to be acquainted with the underlying technology
of the software.

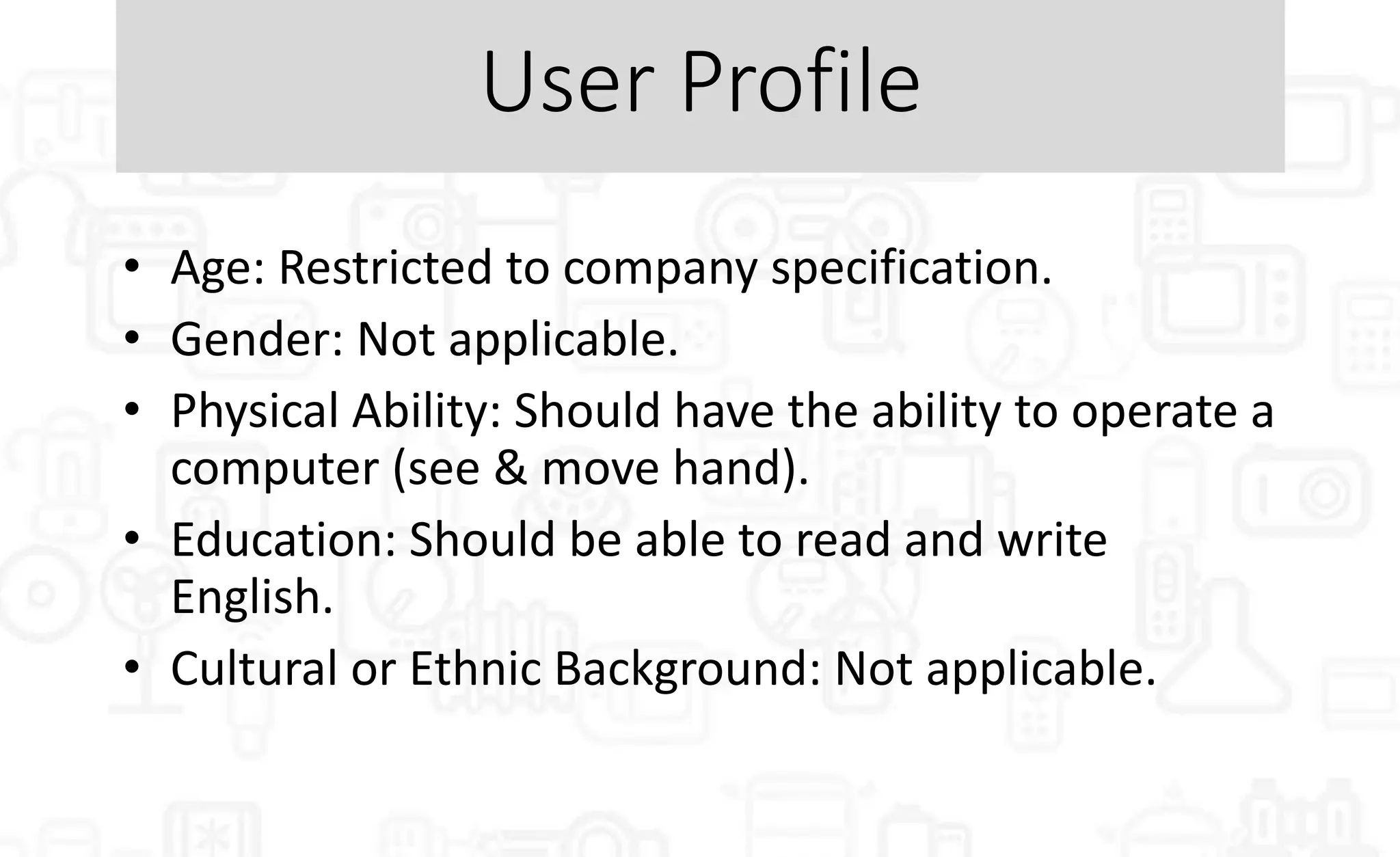

4. User Profile
• Age: Restricted to company specification.
• Gender: Not applicable.
• Physical Ability: Should have the ability to operate a
computer (see & move hand).
• Education: Should be able to read and write
English.
• Cultural or Ethnic Background: Not applicable.

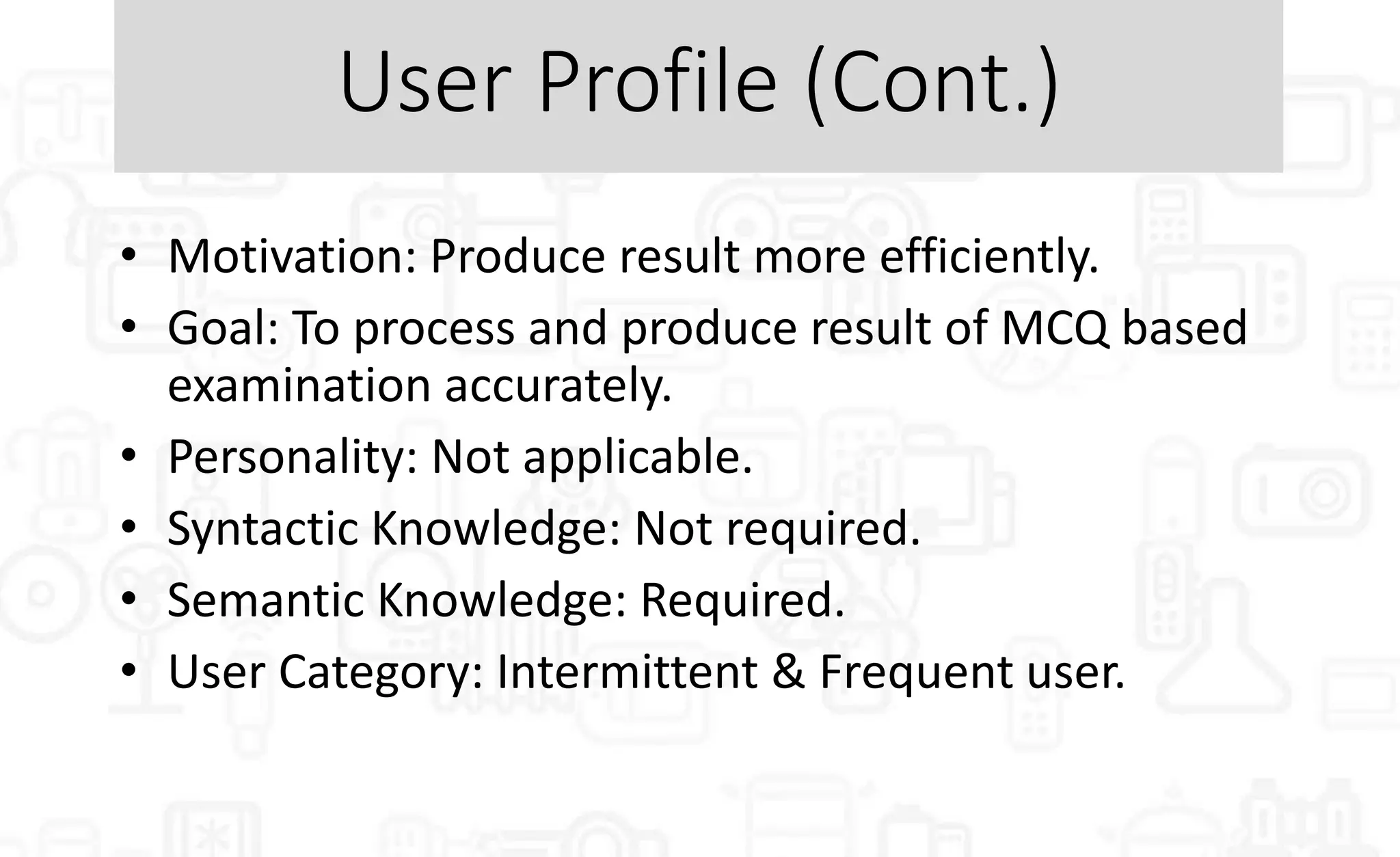

5. User Profile (Cont.)
• Motivation: Produce result more efficiently.
• Goal: To process and produce result of MCQ based
examination accurately.
• Personality: Not applicable.
• Syntactic Knowledge: Not required.
• Semantic Knowledge: Required.
• User Category: Intermittent & Frequent user.

6. Analyze
Data
Define
Table
Generate
Report
Define
Report
Construct
Database
Process
Define
Analyze
Data
Design Model

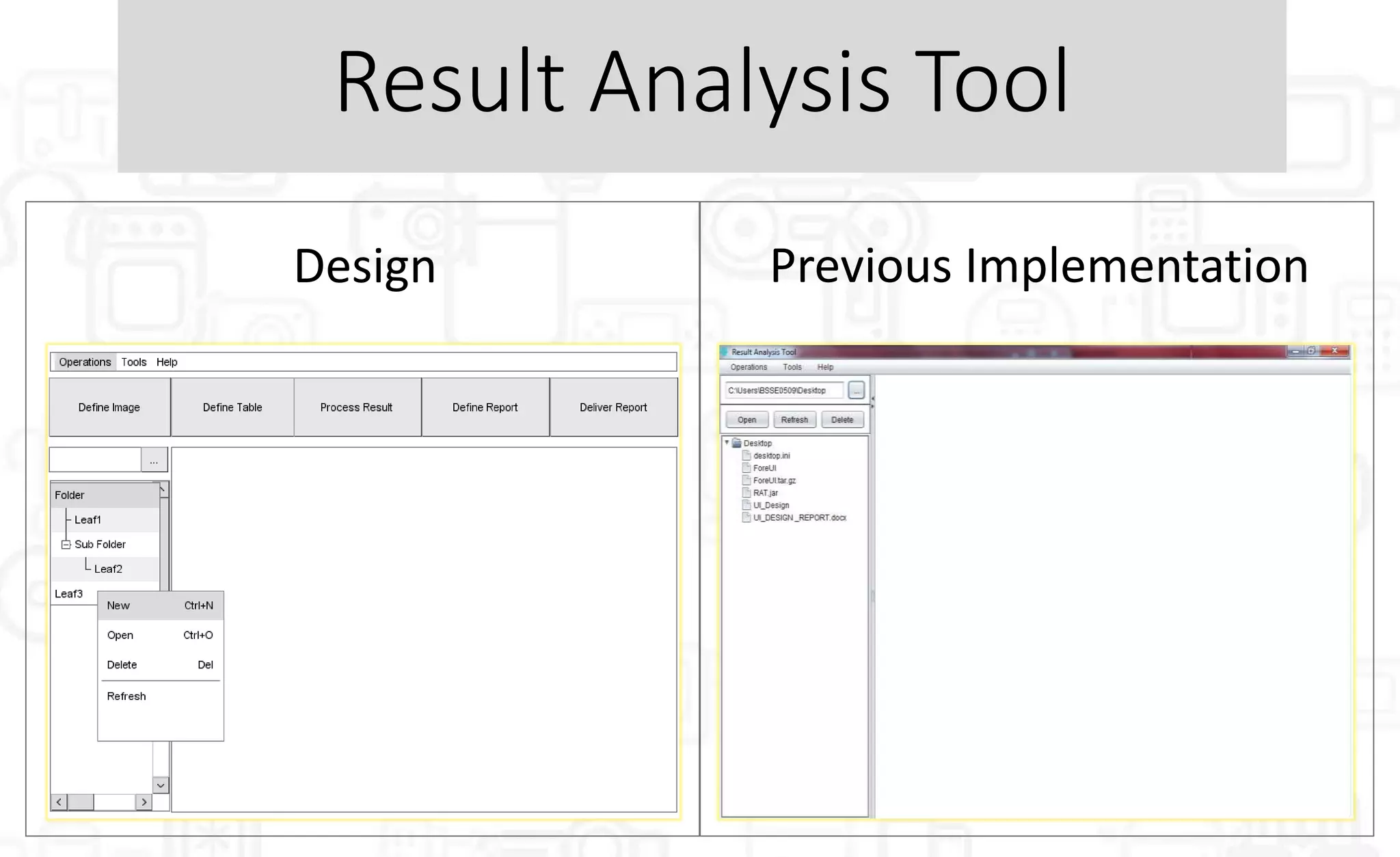

7. Result Analysis Tool
Design Previous Implementation

8. Process
Define
Analyze
Data
Image Processing
Define Image Process Image Analyze Data

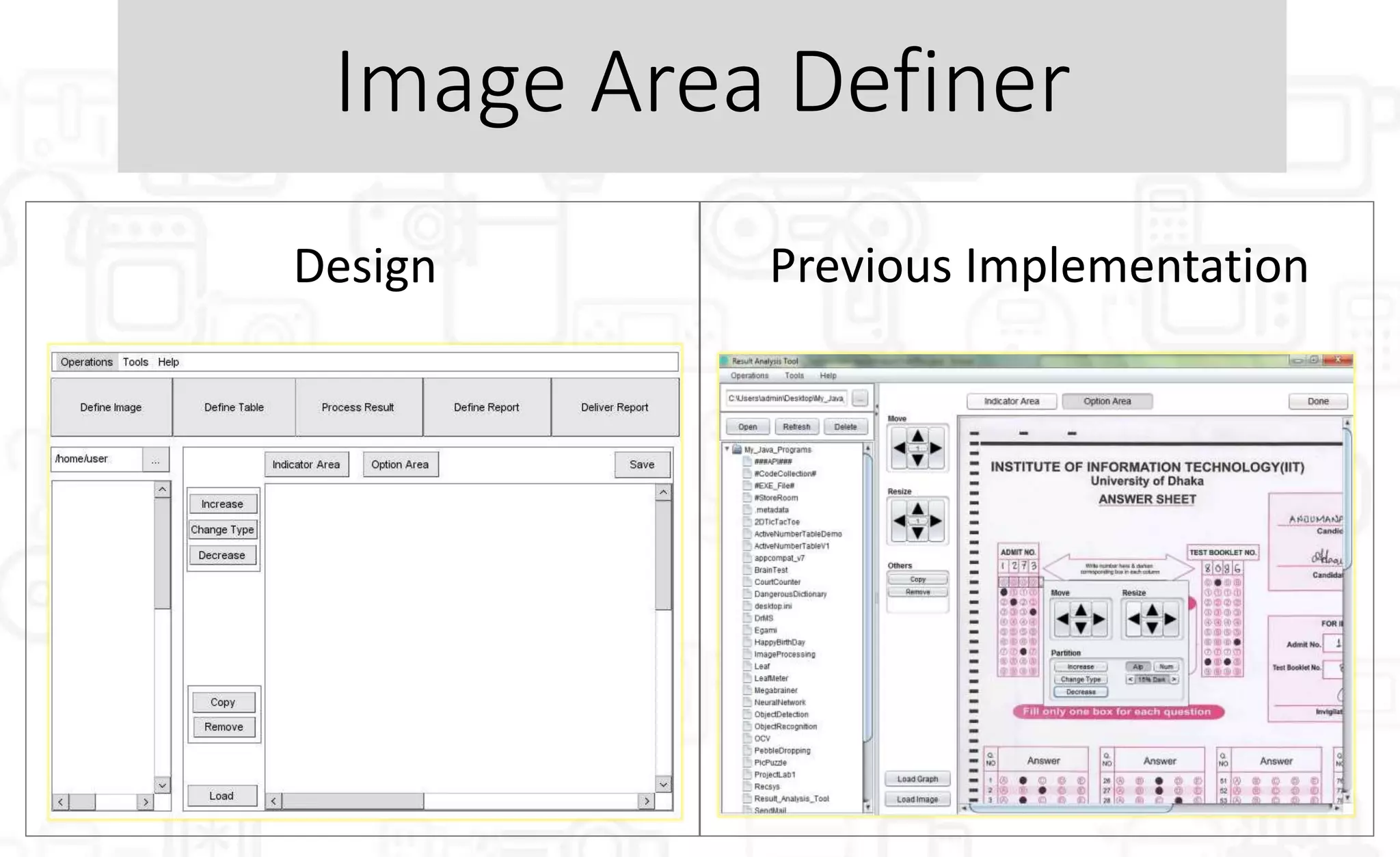

9. Image Area Definer
Design Previous Implementation

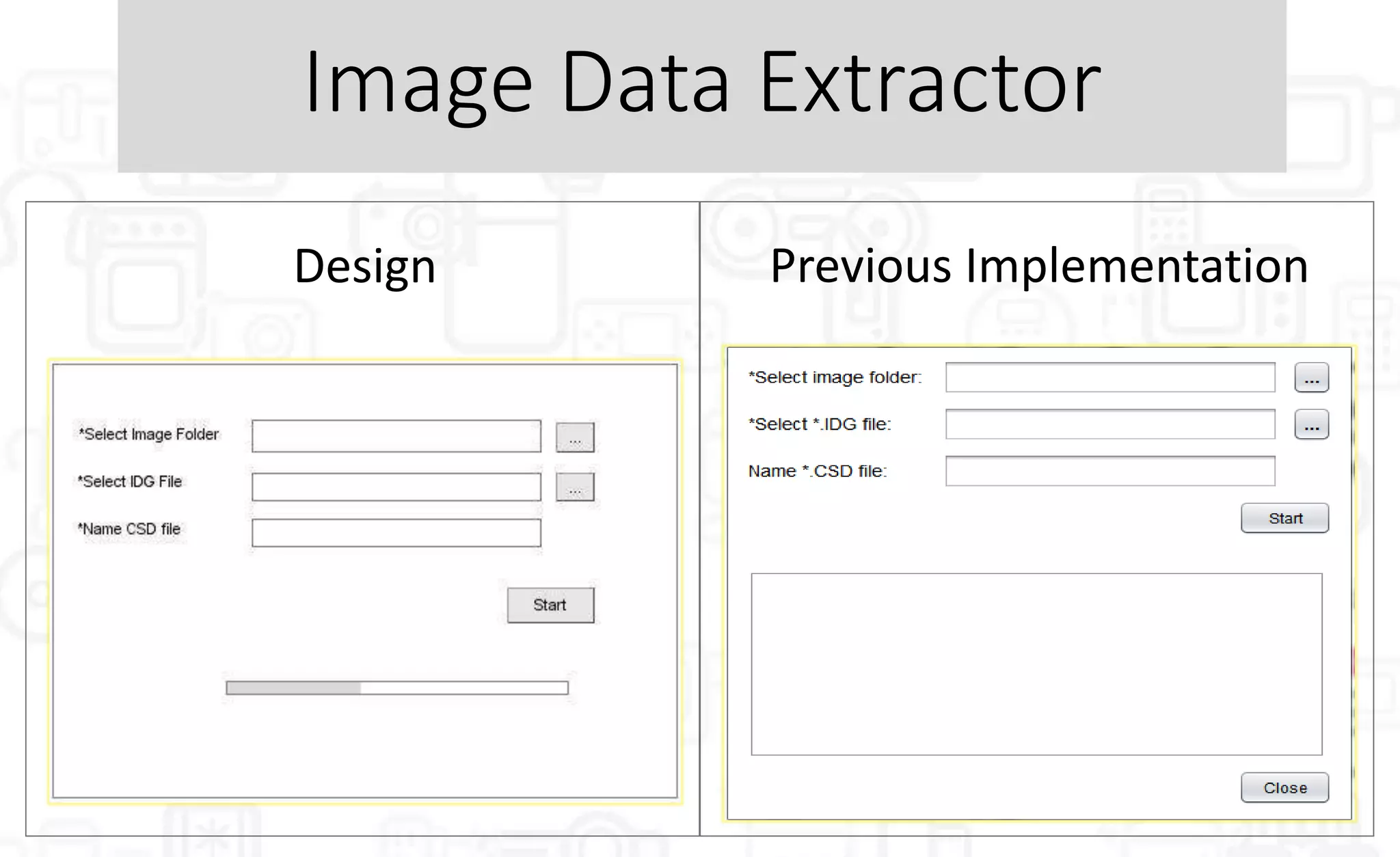

10. Image Data Extractor
Design Previous Implementation

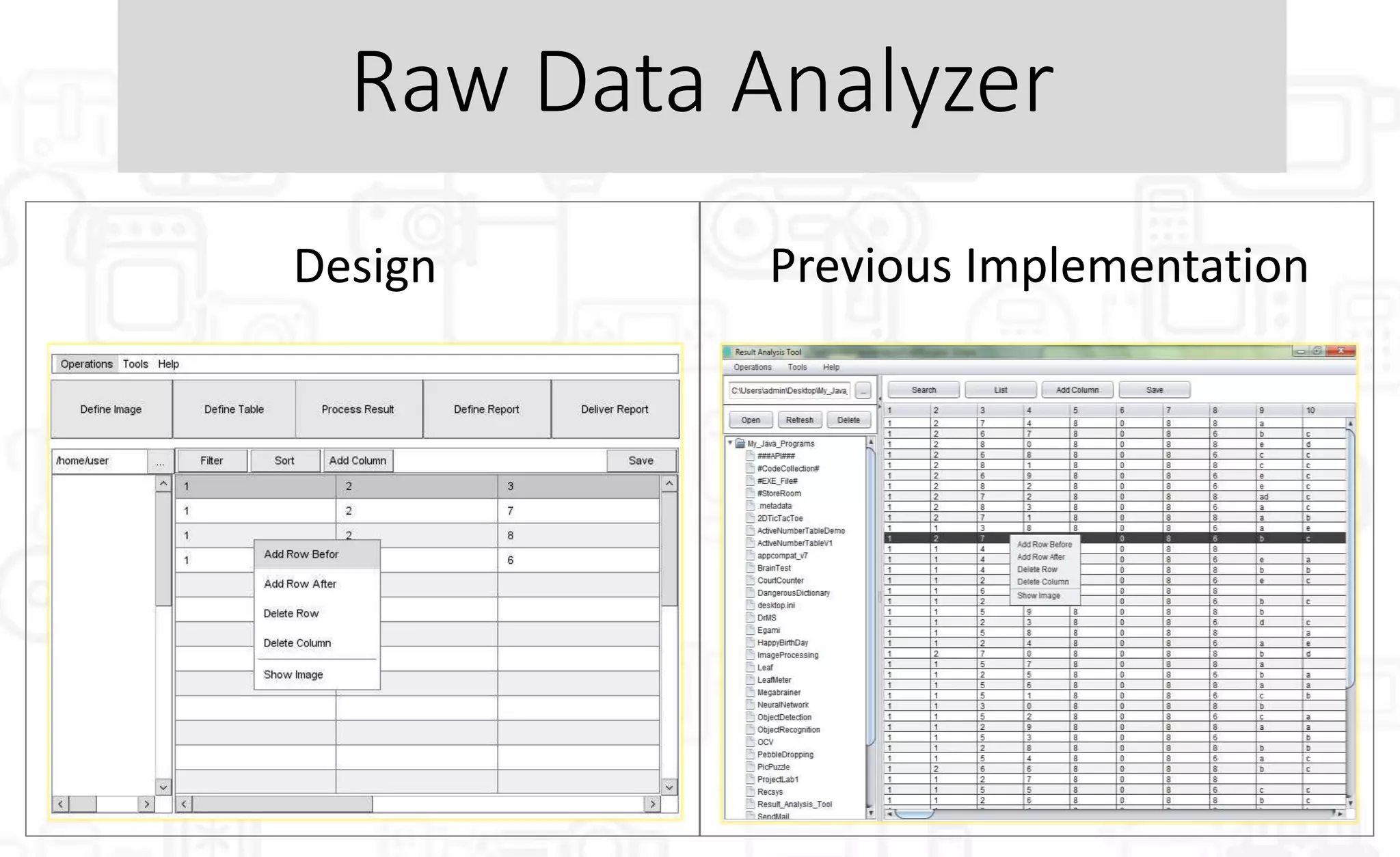

11. Raw Data Analyzer
Design Previous Implementation

12. Analyze
Data
Define
Table
Construct
Database

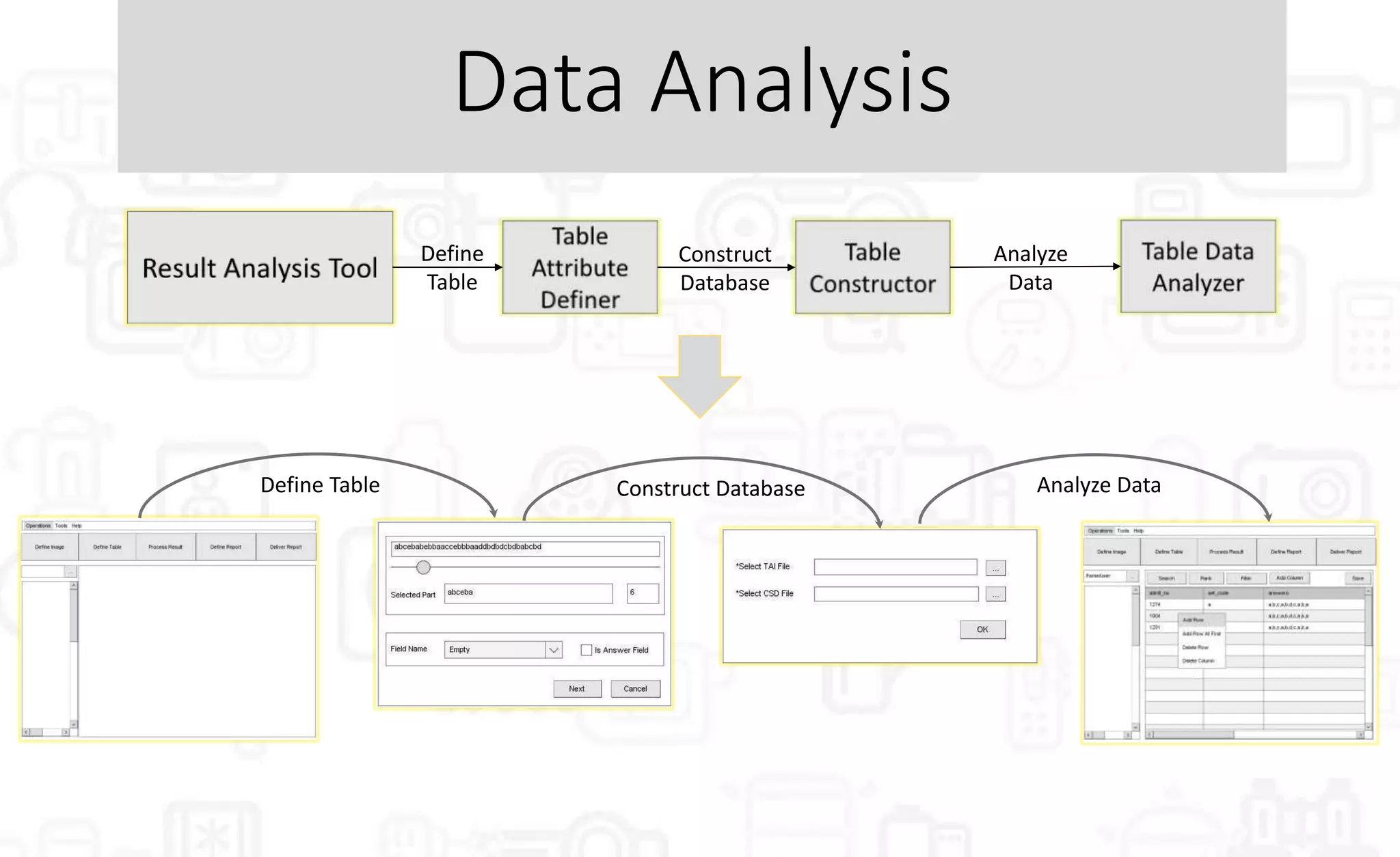

Data Analysis
Define Table Construct Database Analyze Data

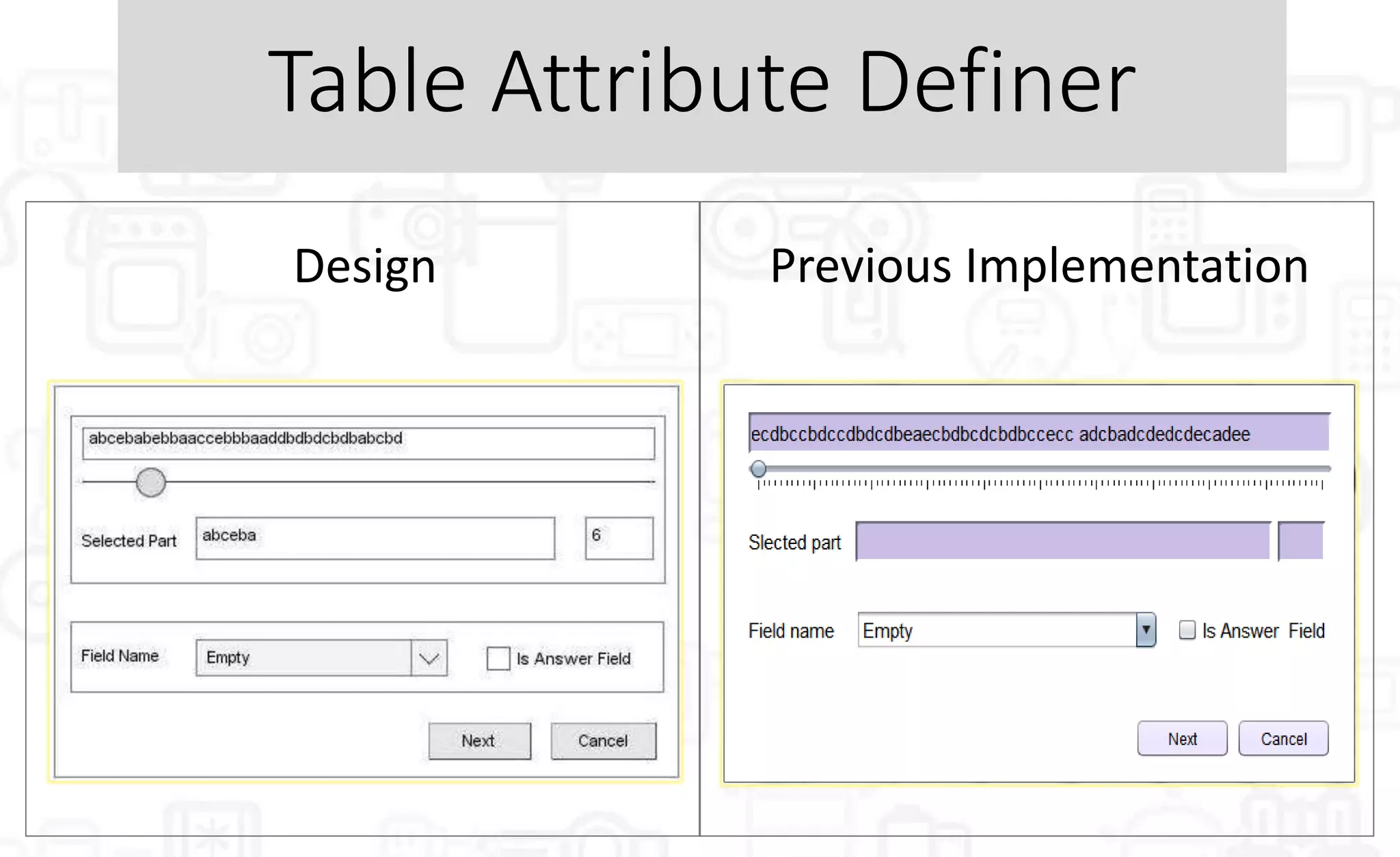

13. Table Attribute Definer
Design Previous Implementation

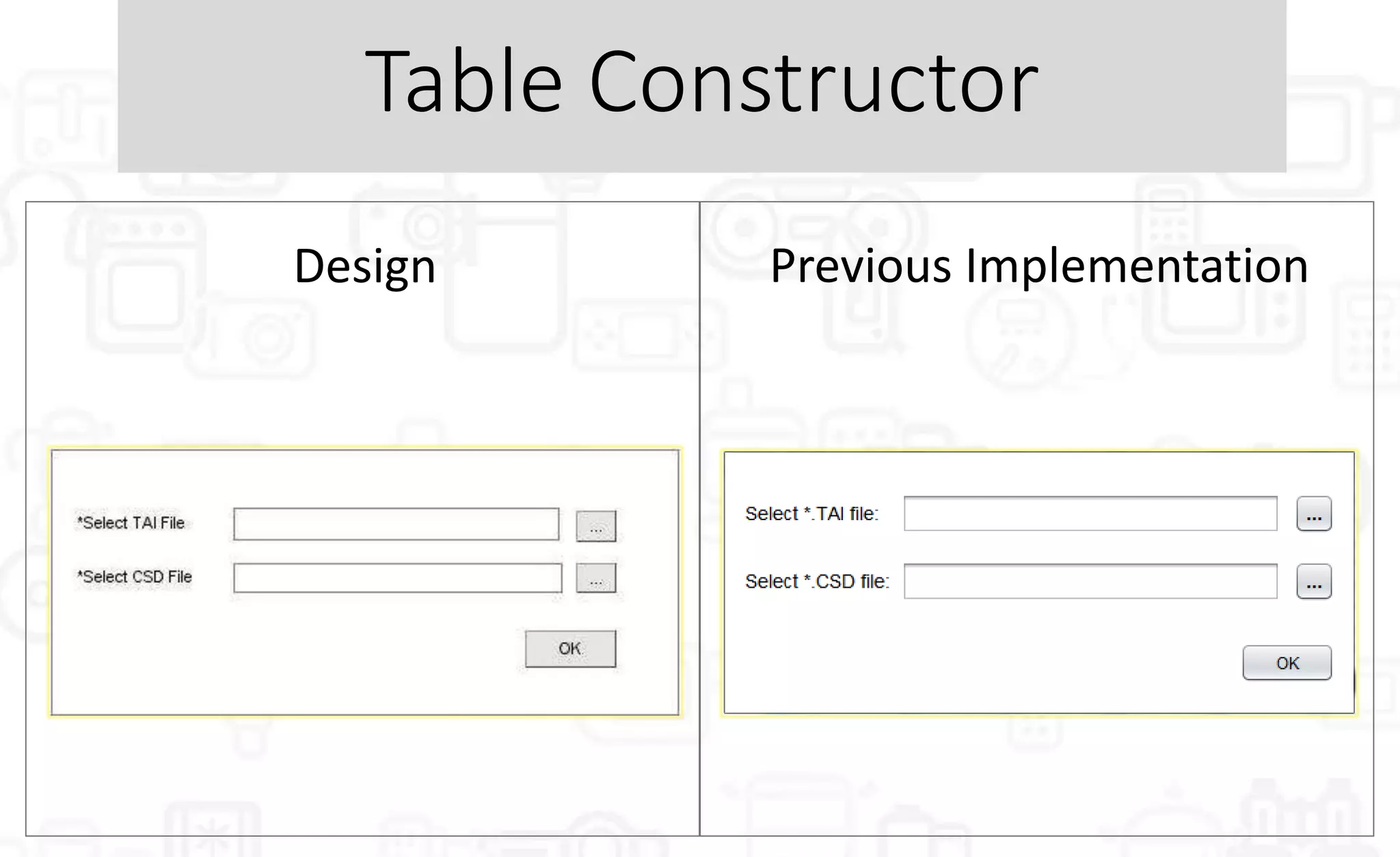

14. Table Constructor
Design Previous Implementation

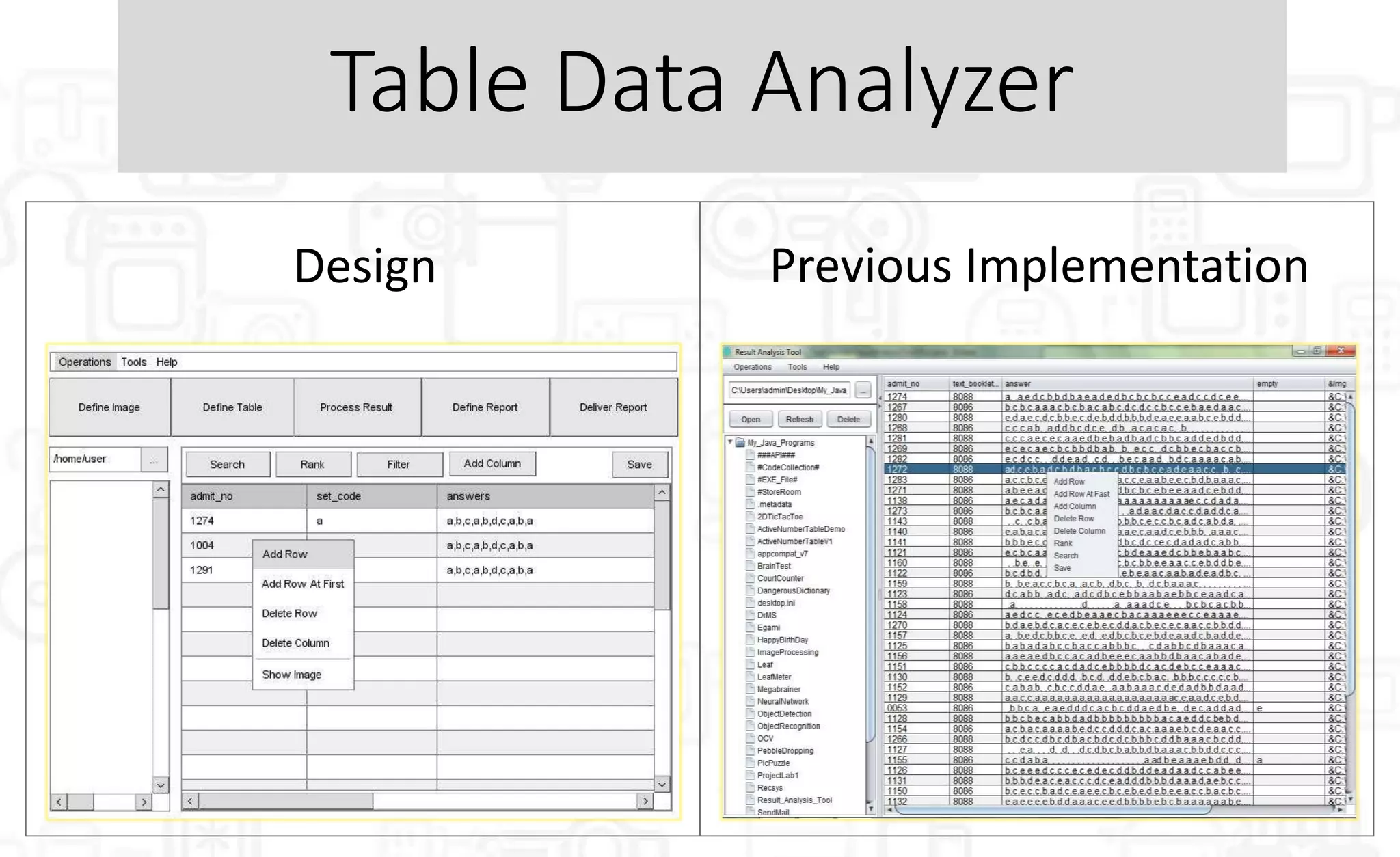

15. Table Data Analyzer
Design Previous Implementation

16. Process
Result

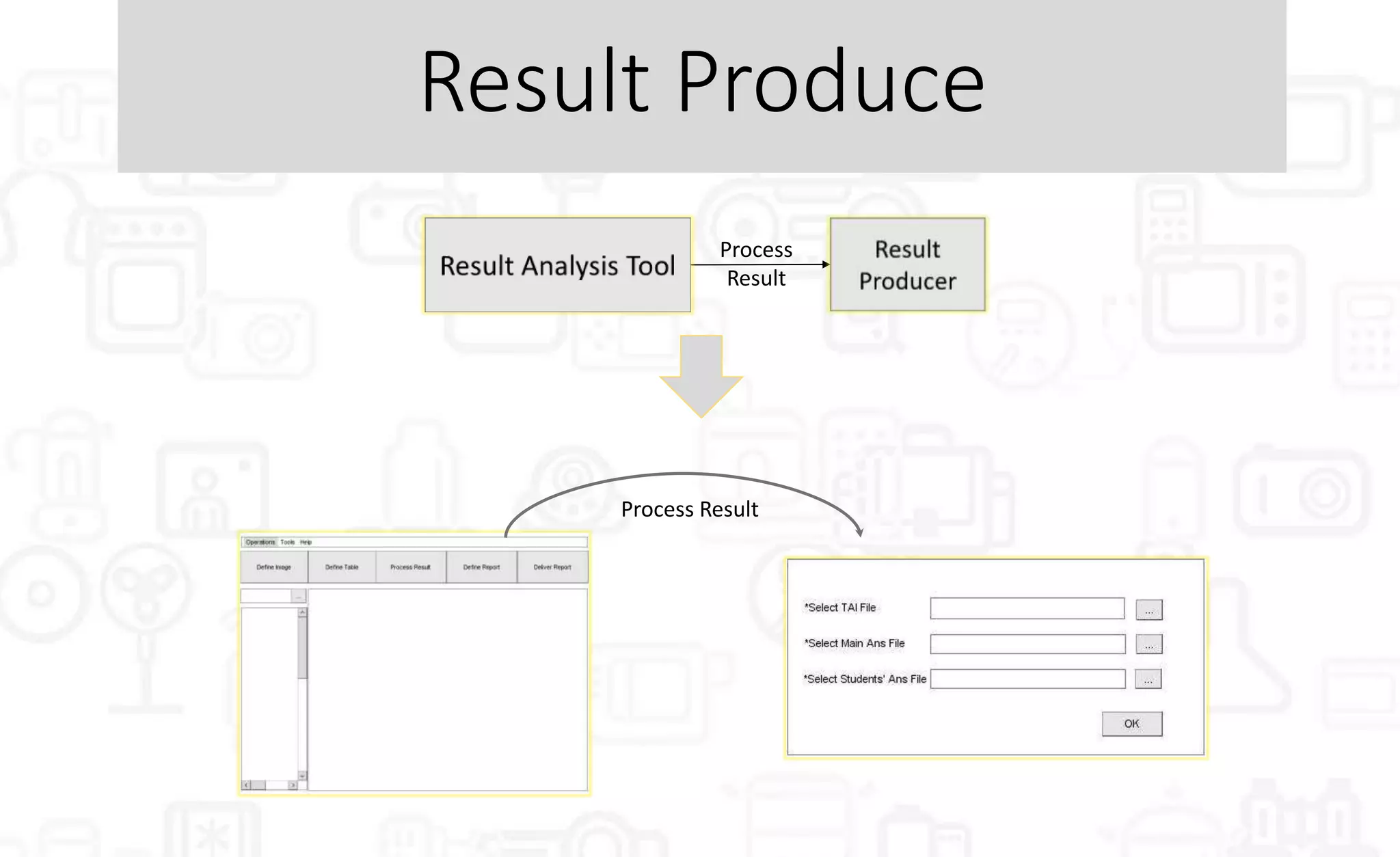

Result Produce
Process Result

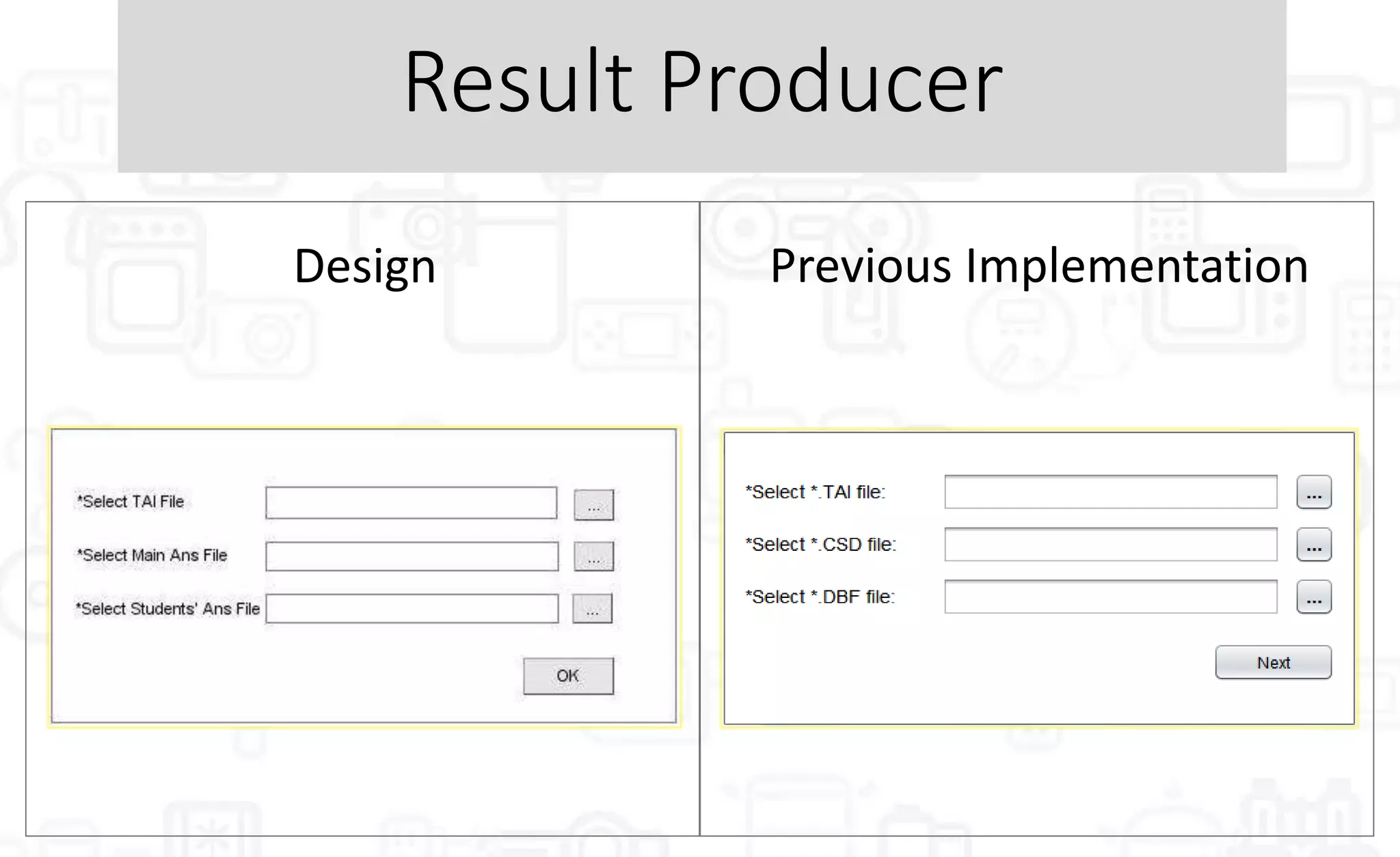

17. Result Producer
Design Previous Implementation

18. Generate
Report
Define
Report

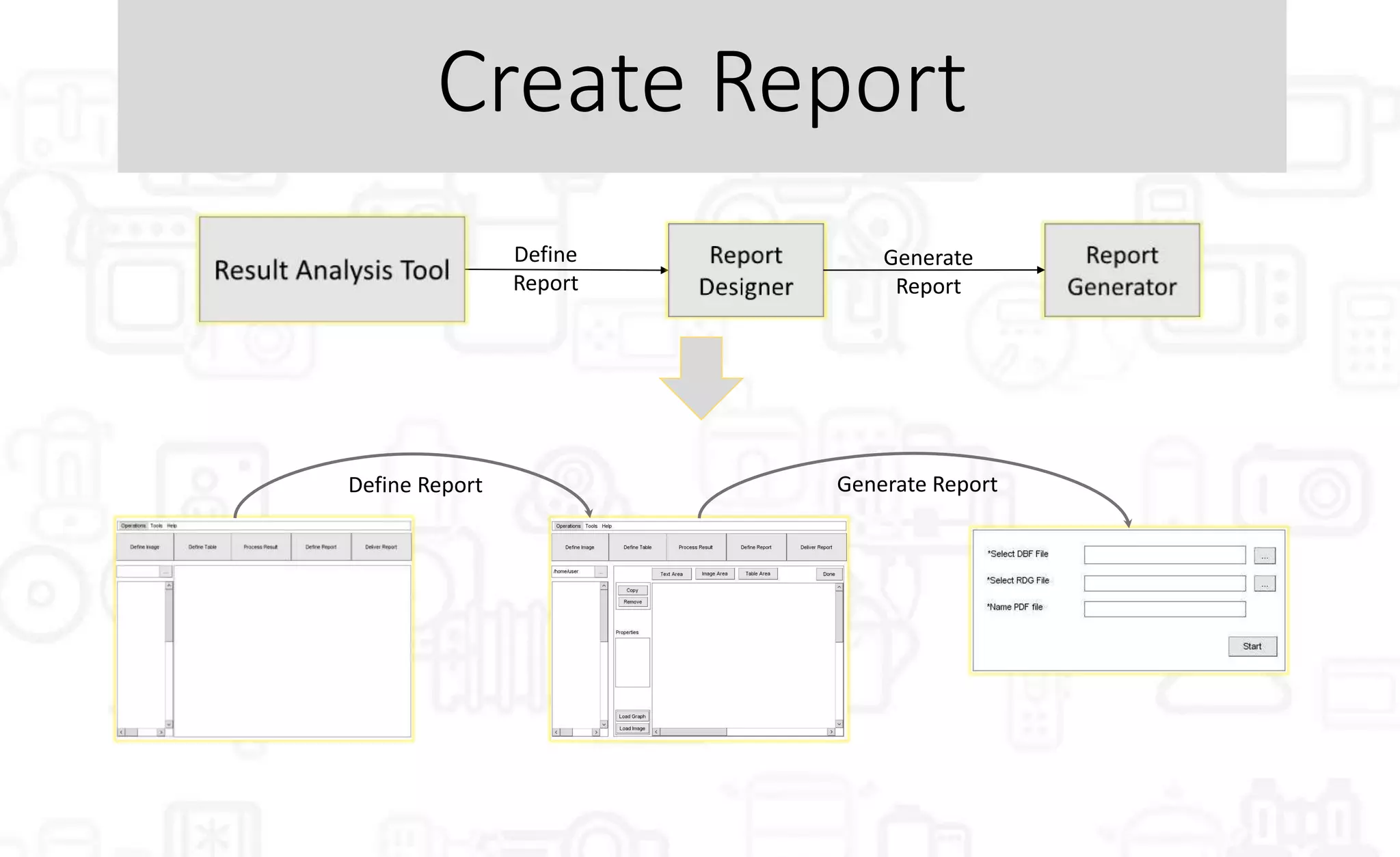

Create Report
Define Report Generate Report

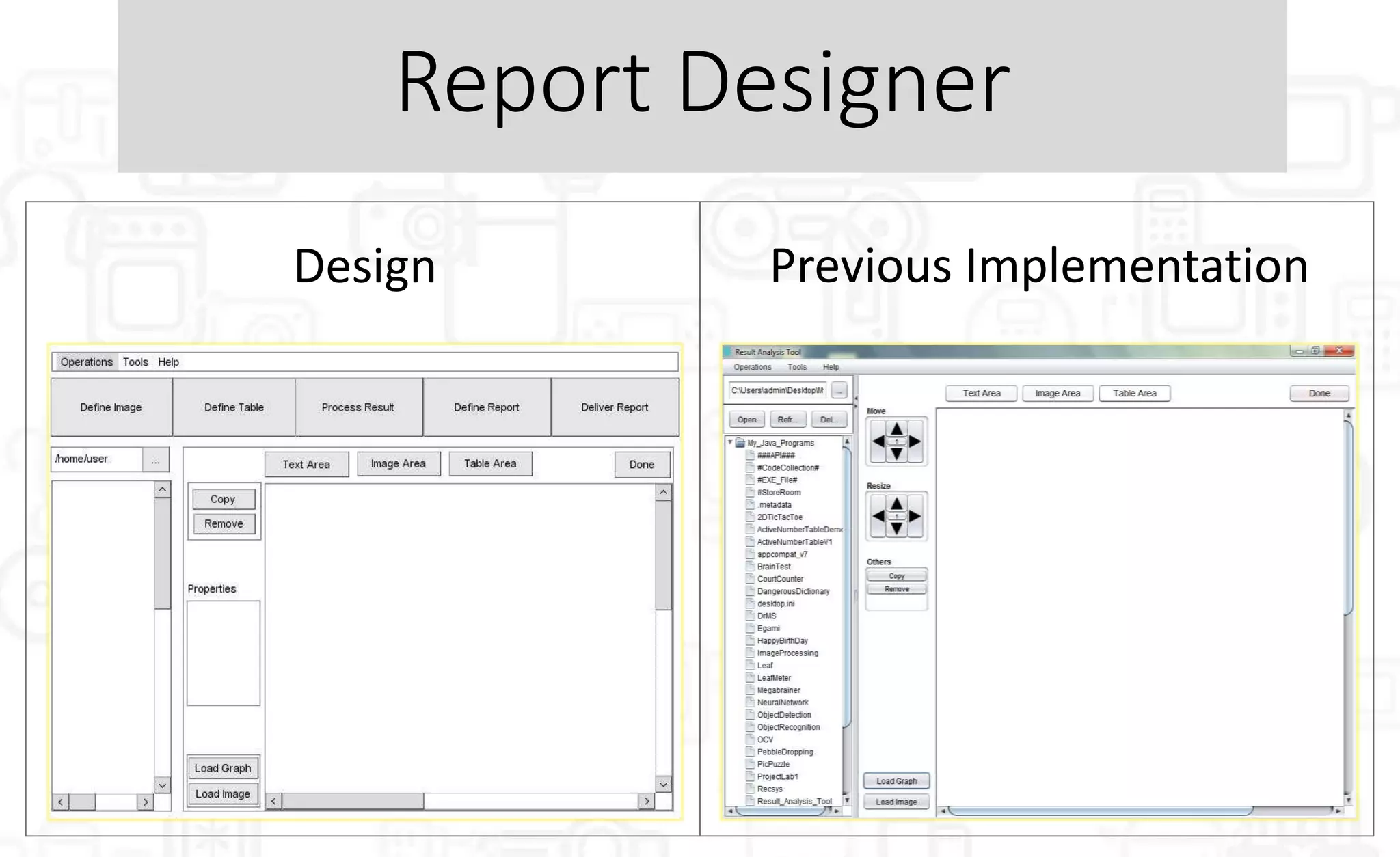

19. Report Designer
Design Previous Implementation

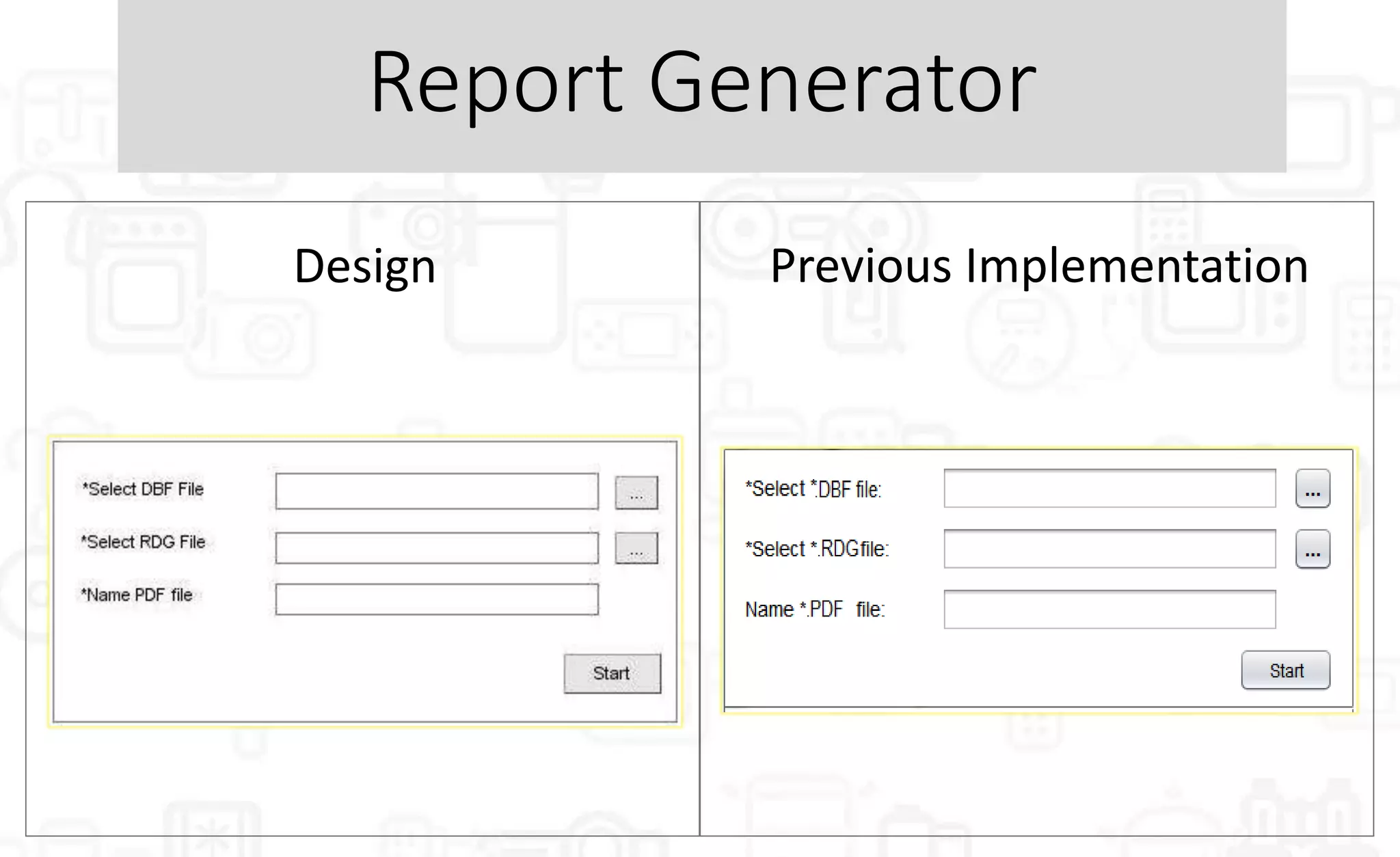

20. Report Generator
Design Previous Implementation

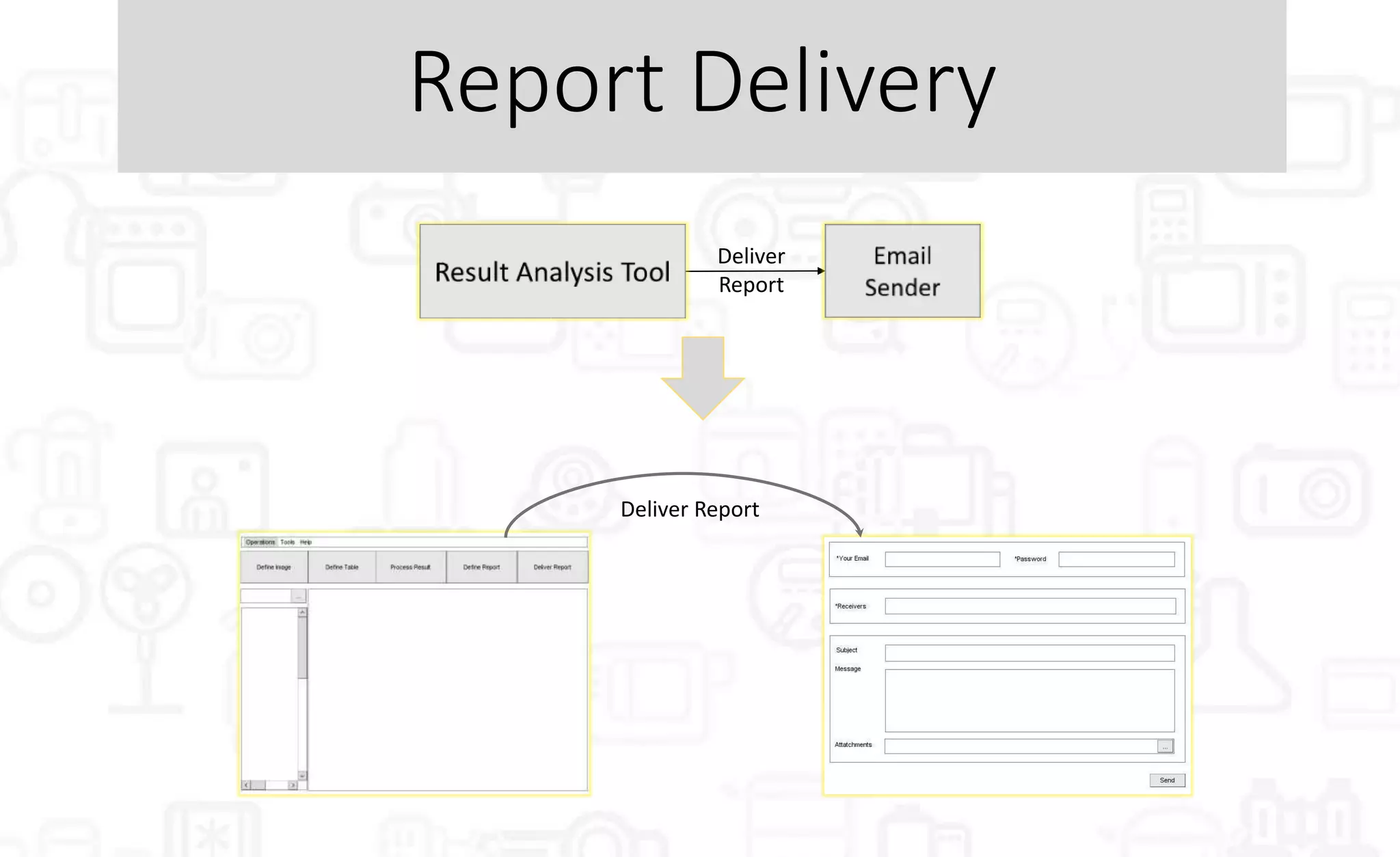

21. Deliver
Report
Report Delivery
Deliver Report

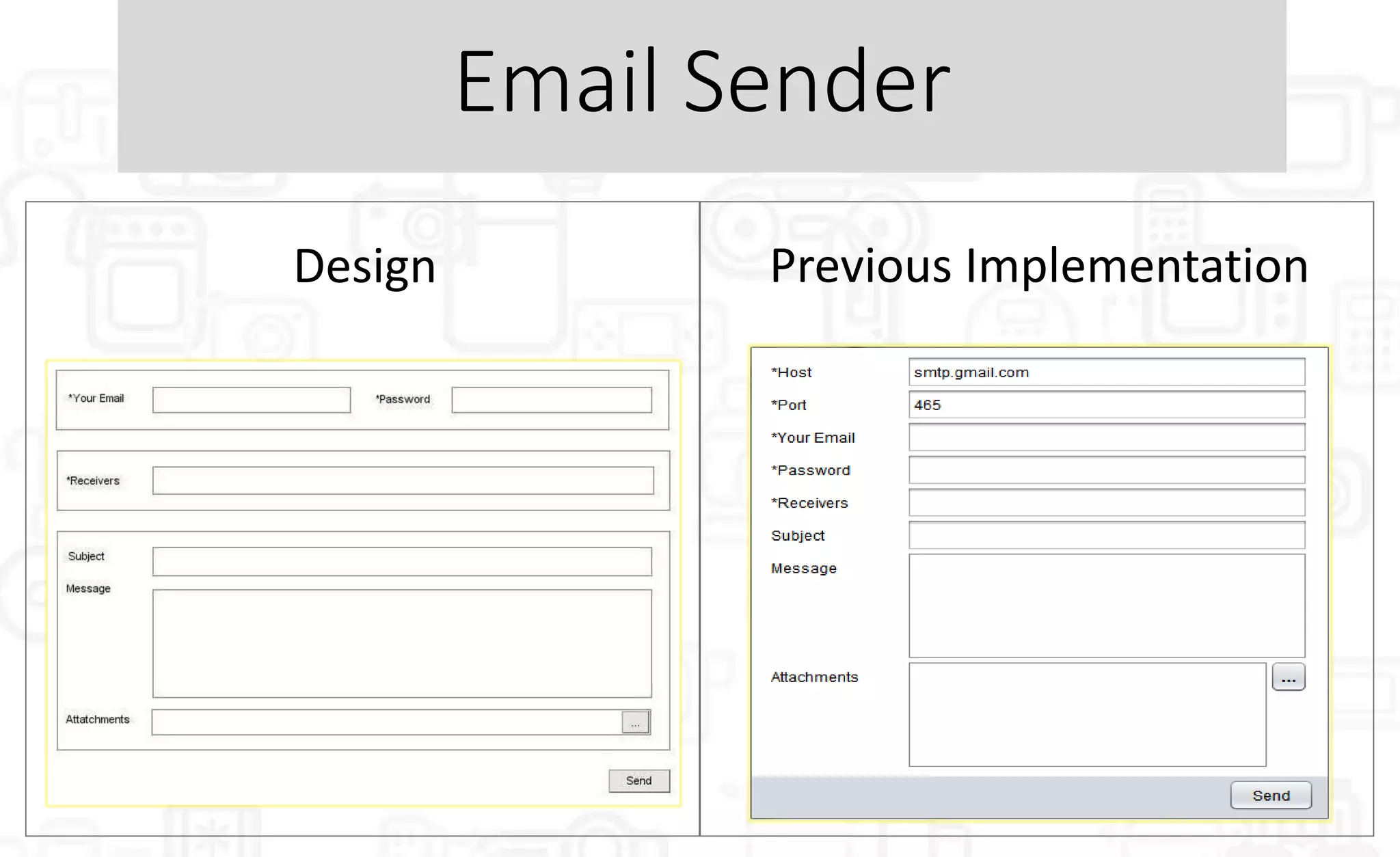

22. Email Sender
Design Previous Implementation
