1. Introduction to
Engineering Design
Project work
Smart ticket Provider.
Submitted by
Vinoth.E.
Reg no. : 123017051.

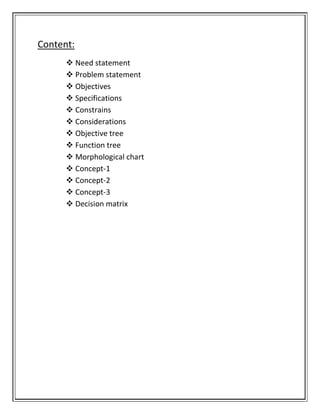

2. Content:
 Need statement
 Problem statement
 Objectives
 Specifications
 Constrains
 Considerations
 Objective tree
 Function tree
 Morphological chart
 Concept-1
 Concept-2
 Concept-3
 Decision matrix

3. Need statement:
We are facing a problem in our daily life which pay a way to raise of a product to
upgrade over the problem. The passengers traveling in the bus faces a major issue of
collecting ticket from the conductor. During more people in the bus the providing of
tickets to each person becomes more complicated.
So this problem made me to think a product which will help the passenger and
conductor in providing tickets to the passengers in much effective way.
It is also easy to handle and compactable.

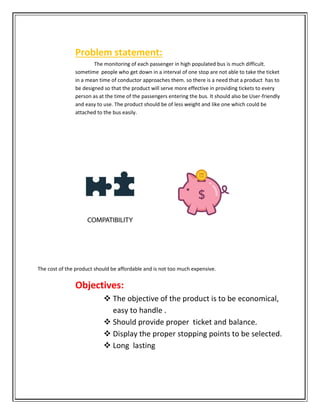

4. Problem statement:
The monitoring of each passenger in high populated bus is much difficult.
sometime people who get down in a interval of one stop are not able to take the ticket
in a mean time of conductor approaches them. so there is a need th
be designed so that the product will serve more effective in providing tickets to every
person as at the time of the passengers entering the bus. It should also be User
and easy to use. The product should be of less weight and
attached to the bus easily.
The cost of the product should be affordable and is not too much expensive.
Objectives:
 The objective of the product is to be economical,
easy to handle .
 Should provide proper ticket and
 Display the proper stopping points to be selected.
 Long lasting
Problem statement:
The monitoring of each passenger in high populated bus is much difficult.
sometime people who get down in a interval of one stop are not able to take the ticket
in a mean time of conductor approaches them. so there is a need that a product has to
be designed so that the product will serve more effective in providing tickets to every
person as at the time of the passengers entering the bus. It should also be User
and easy to use. The product should be of less weight and like one which could be
attached to the bus easily.
The cost of the product should be affordable and is not too much expensive.
Objectives:
The objective of the product is to be economical,
easy to handle .
Should provide proper ticket and balance.
Display the proper stopping points to be selected.
Long lasting
The monitoring of each passenger in high populated bus is much difficult.
sometime people who get down in a interval of one stop are not able to take the ticket
at a product has to
be designed so that the product will serve more effective in providing tickets to every
person as at the time of the passengers entering the bus. It should also be User-friendly
like one which could be
The objective of the product is to be economical,
balance.
Display the proper stopping points to be selected.

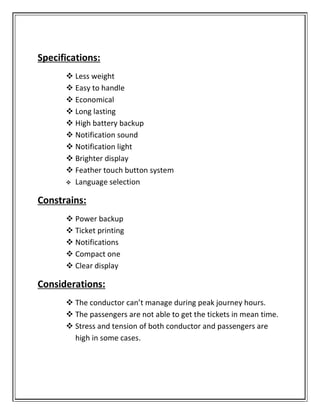

5. Specifications:
 Less weight
 Easy to handle
 Economical
 Long lasting
 High battery backup
 Notification sound
 Notification light
 Brighter display
 Feather touch button system
 Language selection
Constrains:
 Power backup
 Ticket printing
 Notifications
 Compact one
 Clear display
Considerations:
 The conductor can’t manage during peak journey hours.
 The passengers are not able to get the tickets in mean time.
 Stress and tension of both conductor and passengers are
high in some cases.

6. Objective tree:
Smart ticket
provider
Cost efficient
Affordable
less selling cost
low market cost
Low maintanance
cost
Integrity Efficient
low battery
consuption
Convenience
Less weight
Compactable Easily attachable
Easy of use
Fewer operations simple controls
Require less
technical
knowledge

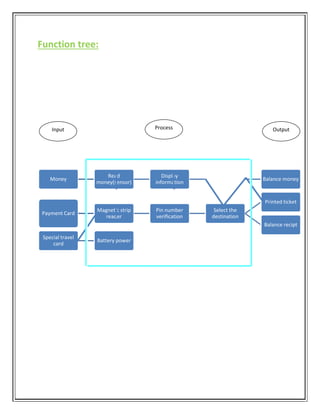

7. Function tree:
Money
Read
money(sensor)
Display
information
Balance money
Payment Card
Magnetic strip
reader
Pin number
verification
Select the
destination
Printed ticket
Balance recipt
Special travel
card
Battery power
Input Process Output

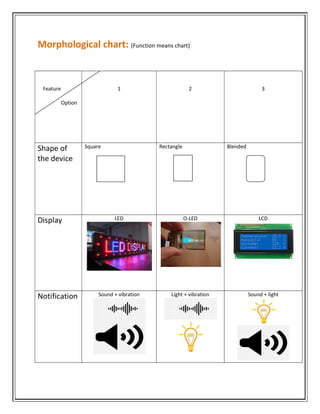

8. Morphological chart: (Function means chart)
Feature
Option
1 2 3
Shape of
the device
Square Rectangle Blended
Display LED O-LED LCD
Notification Sound + vibration Light + vibration Sound + light

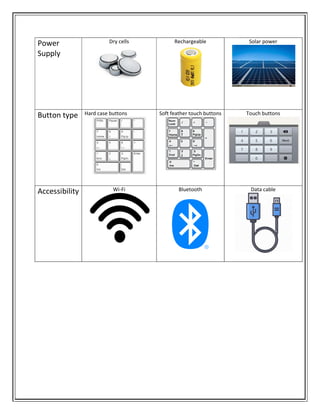

9. Power
Supply
Dry cells
Button type Hard case buttons
Accessibility Wi-
Dry cells Rechargeable
Hard case buttons Soft feather touch buttons
-Fi Bluetooth
Solar power
Touch buttons
Data cable

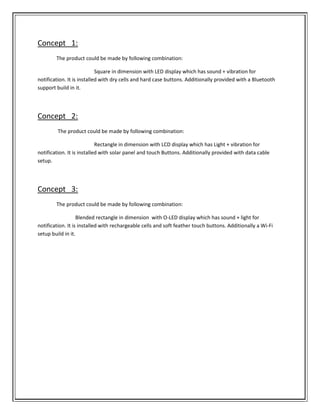

10. Concept 1:
The product could be made by following combination:
Square in dimension with LED display which has sound + vibration for
notification. It is installed with dry cells and hard case buttons. Additionally provided with a Bluetooth
support build in it.
Concept 2:
The product could be made by following combination:
Rectangle in dimension with LCD display which has Light + vibration for
notification. It is installed with solar panel and touch Buttons. Additionally provided with data cable
setup.
Concept 3:
The product could be made by following combination:
Blended rectangle in dimension with O-LED display which has sound + light for
notification. It is installed with rechargeable cells and soft feather touch buttons. Additionally a Wi-Fi
setup build in it.

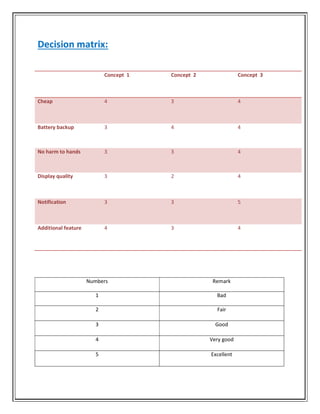

11. Decision matrix:
Concept 1 Concept 2 Concept 3
Cheap 4 3 4
Battery backup 3 4 4
No harm to hands 3 3 4
Display quality 3 2 4
Notification 3 3 5
Additional feature 4 3 4
Numbers Remark
1 Bad
2 Fair
3 Good
4 Very good
5 Excellent

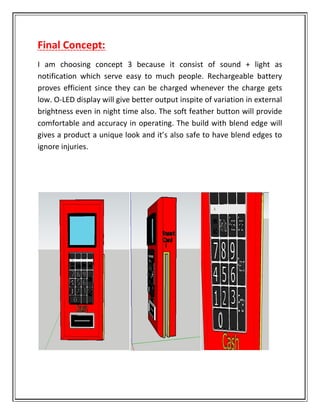

12. Final Concept:
I am choosing concept 3 because it consist of sound + light as
notification which serve easy to much people. Rechargeable battery
proves efficient since they can be charged whenever the charge gets
low. O-LED display will give better output inspite of variation in external
brightness even in night time also. The soft feather button will provide
comfortable and accuracy in operating. The build with blend edge will
gives a product a unique look and it’s also safe to have blend edges to
ignore injuries.
