1. Drinking
fountains
2016

2. - The sanitization system fits the water quality determined
by means of laboratory analysis.
110.6 cm
100cm
65cm
115.7cm
38 cm
85cm
20 cm
110.6cm
96.7cm
32.5 cm
Stainless steel T-304
of food grade with P3
finishing, 18-gauge
(1.21 mm thick).
It includes stainless steel faucets, sanitization system and
drainage system faucets.
- This model requires to level the desired location to properly
attach the device.

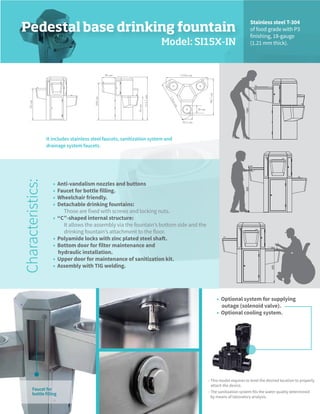

Characteristics: Model: SI15X-IN
Pedestal base drinking fountain
Faucet for
bottle filling
• Anti-vandalism nozzles and buttons
• Faucet for bottle filling.
• Wheelchair friendly.
• Detachable drinking fountains:
Those are fixed with screws and locking nuts.
• “C”-shaped internal structure:
It allows the assembly via the fountain’s bottom side and the
drinking fountain’s attachment to the floor.
• Polyamide locks with zinc plated steel shaft.
• Bottom door for filter maintenance and
hydraulic installation.
• Upper door for maintenance of sanitization kit.
• Assembly with TIG welding.
• Optional system for supplying
outage (solenoid valve).
• Optional cooling system.

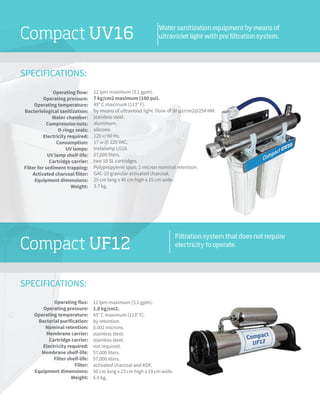

3. SPECIFICATIONS:
Compact UV16
SPECIFICATIONS:
Compact UF12
Water sanitization equipment by means of
ultraviolet light with pre filtration system.
Filtration system that does not require
electricity to operate.
12 lpm maximum (3.1 gpm).
1.0 kg/cm2.
45° C maximum (113° F).
by retention.
0.002 microns.
stainless steel.
stainless steel.
not required.
57,000 liters.
57,000 liters.
activated charcoal and KDF.
50 cm long x 23 cm high x 19 cm wide.
5.0 kg.
Operating flux:
Operating pressure:
Operating temperature:
Bacterial purification:
Nominal retention:
Membrane carrier:
Cartridge carrier:
Electricity required:
Membrane shelf-life:
Filter shelf-life:
Filter:
Equipment dimensions:
Weight:
12 lpm maximum (3.1 gpm).
7 kg/cm2 maximum (100 psi).
45° C maximum (113° F).
by means of ultraviolet light. Dose of 30 μJ/cm2@254 NM.
stainless steel.
aluminum.
silicone.
120 v/ 60 Hz.
17 w @ 120 VAC.
Instalamp LG18.
57,000 liters.
two 10 SL cartridges.
Polypropylene spun. 1 micron nominal retention.
GAC-10 granular activated charcoal.
25 cm long x 45 cm high x 15 cm wide.
3.7 kg.
Operating flow:
Operating pressure:
Operating temperature:
Bacteriological sanitization:
Water chamber:
Compression nuts:
O-rings seals:
Electricity required:
Consumption:
UV lamps:
UV lamp shelf-life:
Cartridge carrier:
Filter for sediment trapping:
Activated charcoal filter:
Equipment dimensions:
Weight:

4. They comply with sanitization and quality specifications of:
Compact 3UV
EN022016.02
Our drinking fountains satisfy the NOM 244-SSA1-2008.
SPECIFICATIONS:
• Removes water chlorine, odor and taste by
means of UV light.
• Removes viruses and bacteria as water flows by.
• Operation flow: 3.8 lpm (1.0 gpm).
• GS-10-SED filter: for sediment trapping.
• Nominal retention: up to 5 microns, NSF.
• Filter: ICF-10 of granular activated charcoal
of coconut shell, NSF.
• Purifier: ultraviolet light with water chamber in
T-304 stainless steel with high-purity quartz tube.
• Includes installation, operation and maintenance
instructions.
ADVISING
We determine the customer’s specific needs. We clarify
your doubts and we offer a comprehensive solution,
mainly by suggesting equipment according to the
quality of the local network and its requirements.
MAINTENANCE AND FIXING SOLUTIONS
• Maintenance depends on the area where the drinking
fountain is installed.
• Replacement of the sediment filter cartridge when
water flow decreases.
• Change of cartridges when the water has bad taste
and odor.
• Replacement of the UV germicidal lamp every 12
months at most.
1-YEAR WARRANTY
We cover any components’ manufacturing defect during
the service and maintenance time hired by the company.
The warranty won’t be valid if a third-party individual
alters, modifies or carries out operations in the drinking
fountains and filters’ internal systems.
SUPPORT
We provide continuous support for solving questions
about the systems’ operation or any flaws of the filtration
systems and drinking fountains.
Water filtration and purification system with visual
signal that turns off when the germicidal lamp burns out.
