The document outlines desktop experiments on shock damping and attenuation using hammer 'tap' testing and a steel pipe setup. It describes the use of a MIDE Slam Stick model C data logger to measure acceleration signals and process data for calculating attenuation and damping percentages. The findings indicate a material damping rate of 0.87% based on the experiments conducted.

1. Shock Damping and Attenuation
Desktop Experiments
3/23/2017 rev A
Don Blanchet
3B Associates
dwb3298@verizon.net

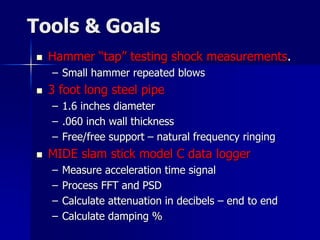

2. Tools & Goals
 Hammer “tap” testing shock measurements.
– Small hammer repeated blows
 3 foot long steel pipe
– 1.6 inches diameter
– .060 inch wall thickness
– Free/free support – natural frequency ringing
 MIDE slam stick model C data logger
– Measure acceleration time signal
– Process FFT and PSD
– Calculate attenuation in decibels – end to end
– Calculate damping %

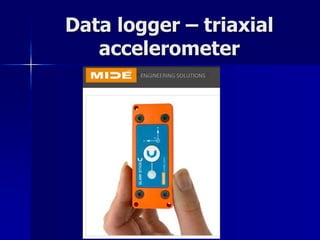

3. Data logger – triaxial
accelerometer

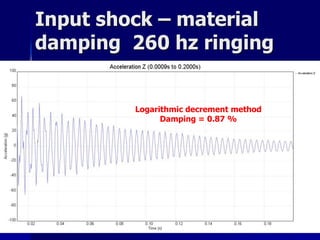

4. Input shock – material
damping 260 hz ringing
Logarithmic decrement method
Damping = 0.87 %

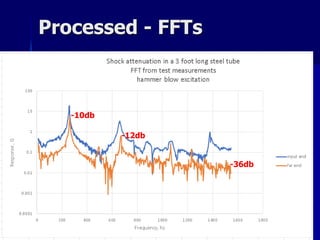

5. Processed - FFTs
-10db
-12db
-36db

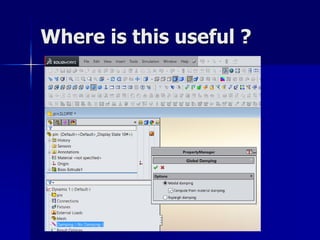

6. Where is this useful ?

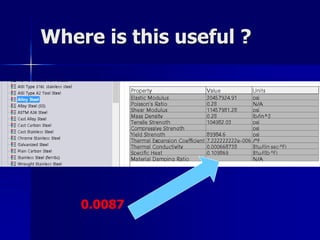

7. Where is this useful ?
0.0087
