This document describes a C++ class called SharedMemoryHashTable that implements a hash table using shared memory rather than heap memory. Two blocks of shared memory are used to store the hash table buckets and linked list nodes for collisions. The class allows processes to insert, find, and delete items in the shared hash table. It was tested on Linux using g++ and allows storing arbitrary data types that provide a default constructor and string conversion operator.

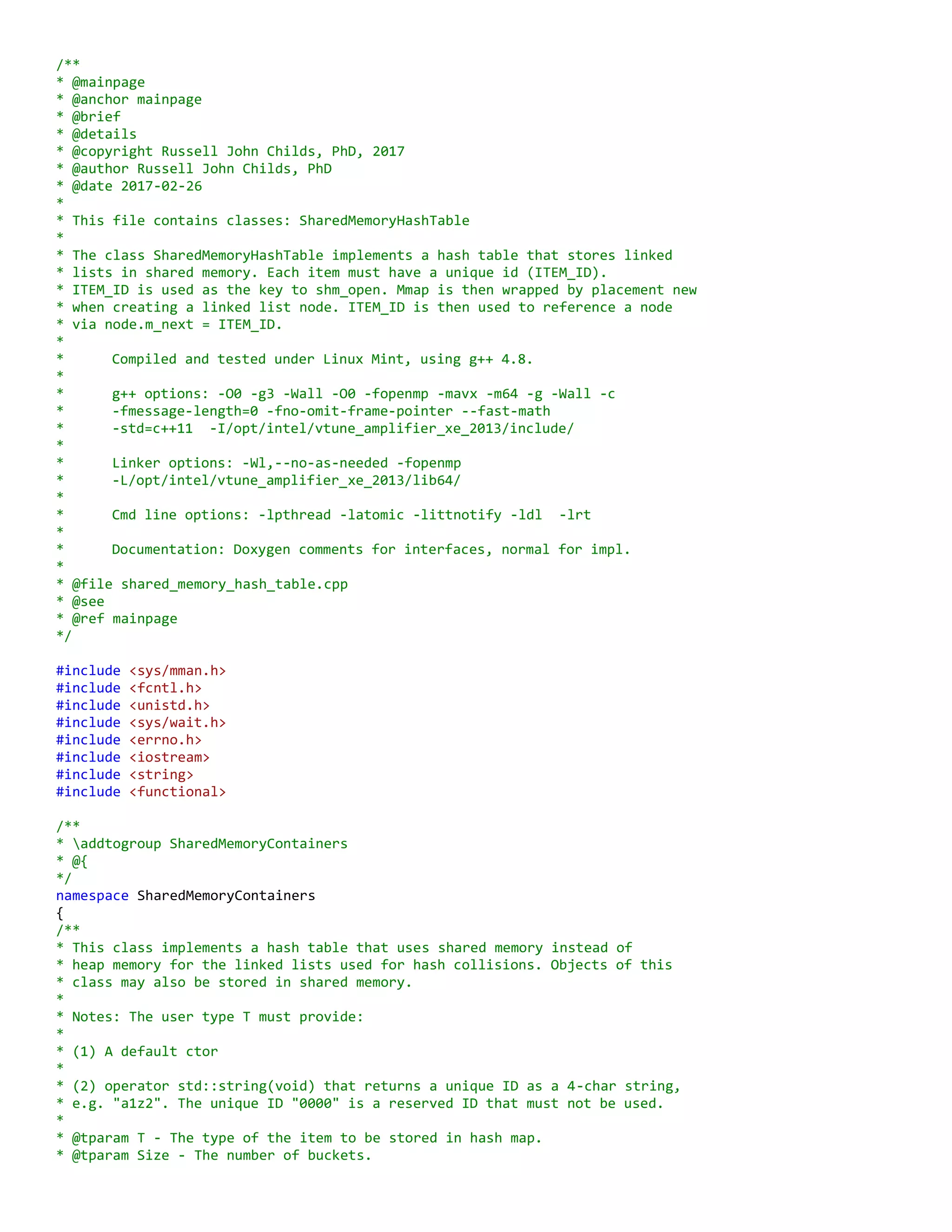

1. /**
* @mainpage
* @anchor mainpage
* @brief
* @details
* @copyright Russell John Childs, PhD, 2017
* @author Russell John Childs, PhD
* @date 2017-02-26
*
* This file contains classes: SharedMemoryHashTable
*
* SharedMemoryHashTable implements a hash table using shared memory instead of
* heap memory. Two blocks of shared memory are created. The first is for the
* buckets. The second is "heap memory" for the linked list nodes that hold hash
* collisions. Each node contains a "next pointer" that holds the array index
* into the second block where the next node in the linked list resides. A C++
* placement new is used to initialise each node in shared memory. A simple
* memory management model is used for new/delete on Shared Memory involving a
* linked list of free memory slots that may be pushed and popped.
*
* Currently, only a subset of the interface for std::unordered_set/map is
* offered (insertions+deletions). In a future release, STL Allocators will be
* implemented that allow Shared Memory to be used for STL container classes.
*
* Compiled and tested under Linux Mint, using g++ 4.8.
*
* g++ options: -O0 -g3 -Wall -O0 -fopenmp -mavx -m64 -g -Wall -c
* -fmessage-length=0 -fno-omit-frame-pointer --fast-math
* -std=c++11 -I/opt/intel/vtune_amplifier_xe_2013/include/
*
* Linker options: -Wl,--no-as-needed -fopenmp
* -L/opt/intel/vtune_amplifier_xe_2013/lib64/
*
* Cmd line options: -lpthread -latomic -littnotify -ldl -lrt
*
* Documentation: Doxygen comments for interfaces, normal for impl.
*
* @file shared_memory_hash_table.cpp
* @see
* @ref mainpage
*/
#include <sys/mman.h>
#include <fcntl.h>
#include <unistd.h>
#include <sys/wait.h>
#include <errno.h>
#include <iostream>
#include <string>
#include <functional>
/**
* addtogroup SharedMemoryContainers
* @{
*/
namespace SharedMemoryContainers
{
/**
* This class implements a hash table using shared memory instead of
* heap memory. Two blocks of shared memory are created. The first is for the
* buckets. The second is "heap memory" for the linked list nodes that hold hash
* collisions. Each node contains a "next pointer" that holds the array index
* into the second block where the next node in the linked list resides. A C++
* placement new is used to initialise each node in shared memory. A simple

2. * memory management model is used for new/delete on Shared Memory involving a
* linked list of free memory slots that may be pushed and popped.
*
* Currently, only a subset of the interface for std::unordered_set/map is
* offered (insertions+deletions). In a future release, STL Allocators will be
* implemented that allow Shared Memory to be used for STL container classes.
*
* Notes: The user type T must provide:
*
* (1) A default ctor
*
* (2) operator std::string(void) that returns a unique ID as an std::string of
* the form "/key" where key is some set of chars excluding '/'.
*
* @tparam T - The type of the item to be stored in hash map.
* @tparam Size - The number of buckets.
* @tparam NumItems - Number of items to be stored.
*
*/

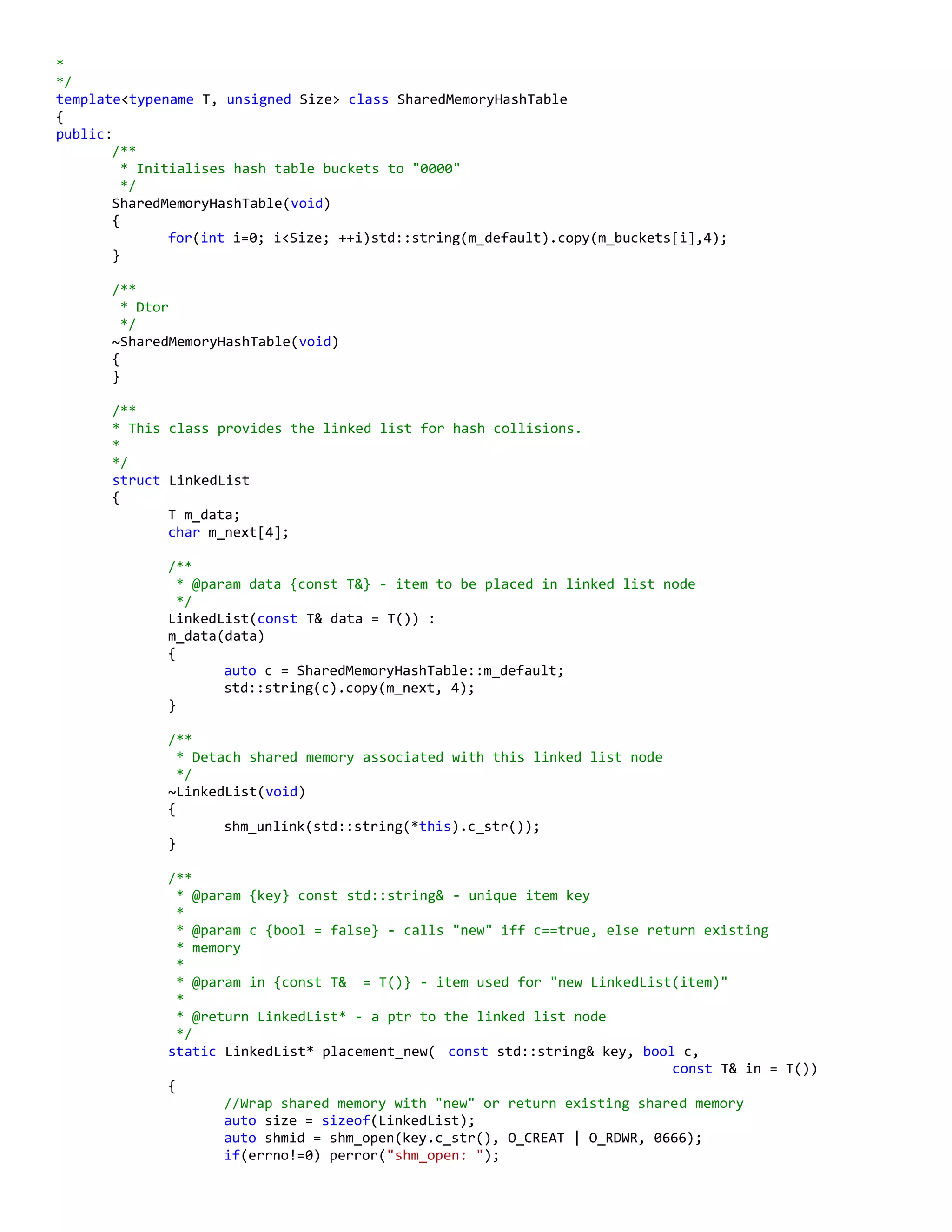

template<typename T,unsigned Size,unsigned NumItems> class SharedMemoryHashTable
{
public:
/**
* Creates or accesses hash table in shared memory
*
* @param init {bool = false} - true iff hash table is being created, false
* if it already exists and is being accessed by a process.
*
* @param key {const std::string&="/shared_memory_hash_table"} - unique key
* for the shared memory of the form "/key" where key is some set of chars
* excluding '/'.
*
*/
SharedMemoryHashTable(
bool init = false, const std::string& key="/shared_memory_hash_table") :
m_key(key.c_str()),
m_buckets(0),
m_shared(0),
m_free(0)
{
//Shared memory for buckets
auto size = sizeof(unsigned)*Size;
auto shmid = shm_open(key.c_str(), O_CREAT | O_RDWR, 0666);
if(errno!=0) perror("shm_open: ");
ftruncate(shmid,size);
auto prot = PROT_READ | PROT_WRITE;
m_buckets=
static_cast<unsigned*>(mmap(0,size,prot,MAP_SHARED,shmid,0));
if(init) for(unsigned i=0; i<Size; ++i) m_buckets[i]=0;
close(shmid);
//Shared memory for linked list nodes
size = sizeof(LinkedList)*(NumItems+1);
shmid = shm_open((key+"nodes").c_str(), O_CREAT | O_RDWR, 0666);
if(errno!=0) perror("shm_open: ");
ftruncate(shmid,size);
m_shared=static_cast<LinkedList*>(mmap(0,size,prot,MAP_SHARED,shmid,0));
//Stored "ptr" to free memory in m_shared[0] so all processes see it
m_free = &m_shared->m_next;
close(shmid);
//Create "heap" of free memory (linked list of free slots)
if(init)
{
for(unsigned i=1; i <= NumItems; ++i)
{

3. (m_shared+*m_free)->m_next = i;
*m_free = i;
}
m_free = &(m_shared->m_next=1);
}
}
/**
* Detach shared memory associated with this hash table
*/
~SharedMemoryHashTable(void)
{
munmap(m_shared, NumItems*sizeof(LinkedList));
munmap(m_buckets, sizeof(unsigned)*Size);
shm_unlink(m_key.c_str());
shm_unlink((m_key+"nodes").c_str());
}
/**
* This class provides the linked list for hash collisions.
*
*/
struct LinkedList
{
T m_data;
unsigned m_next;
/**
* @param data {const T&} - item to be placed in linked list node
*/
LinkedList(const T& data = T()) :
m_data(data),
m_next(0)
{
}
/**
* Dtor
*/
~LinkedList(void)
{
}
};
/**
* @param key {const std::string&} - unique item id to be searched for
*
* @return T* - reference to item with specified id or NULL if not found
*
*/
T* find(const std::string& key)
{
T* ret_val = 0;
//Convert key to bucket array index
auto index = std::hash<std::string>{}(key)%Size;
//Search for key
auto next = m_buckets[index];
while( next != 0 && ret_val==0)
{
//If key found ...
if(std::string((m_shared+next)->m_data)==key)
{
//Return value = found item

4. ret_val = &(m_shared+next)->m_data;
}
//Keep traversing linked list
next=(m_shared+next)->m_next;
}
return ret_val;
}
/**
* @param key {const std::string&} - unique item id
*
* @param in {const T&} - item to be inserted
*
* @return std::pair<T*, bool> - {existing_item_address, false} iff item
* already exists, {inserted_item_address, true} if item does not exist
*
*/
std::pair<T*, bool> insert(const std::string& key, const T& in)
{
//Get item if it exists, or NULL
T* ret_val = find(key);
bool is_success = false;
//If item does not exist, create it on the Shared Memory "heap"
if(ret_val==0)
{
//Convert key to bucket array index
auto index = std::hash<std::string>{}(key)%Size;
//Create new linked list node and return reference to stored item
unsigned free_slot = *m_free;
*m_free = (m_shared+*m_free)->m_next;
LinkedList* linked_list =new(m_shared+free_slot) LinkedList(in);
linked_list->m_next=m_buckets[index];
m_buckets[index]=free_slot;
//new item and success
ret_val = &linked_list->m_data;
is_success = true;
}
return std::make_pair(ret_val, is_success);
}
/**
* @param key {const std::string&} - unique item id
*
* @return T& - reference to item with specified id
*
*/
T& operator[](const std::string& key)
{
return *insert(key, T()).first;
}
/**
* @param key {const std::string&} - unique item id
*
* @param in {const T&} - item to be inserted
*
* @return std::pair<T*, bool> - {existing_item_address, false} iff item
* already exists, {inserted_item_address, true} if item does not exist
*
*/
void erase(const std::string& key)
{
//Convert key to bucket array index
auto index = std::hash<std::string>{}(key)%Size;

5. //Search for key
auto prev = m_buckets[index];
auto next = prev;
while( next != 0 )
{
//If key found ...
if(std::string((m_shared+next)->m_data)==key)
{
//delete found item
if(prev==m_buckets[index]) m_buckets[index] =
((m_shared+prev)->m_next=(m_shared+next)->m_next);
(m_shared+next)->m_next = *m_free;
*m_free = next;
}
//Keep traversing linked list
prev = next;
next=(m_shared+next)->m_next;
}
}
private:
std::string m_key;
unsigned* m_buckets;
LinkedList* m_shared;
unsigned* m_free;
};
}
/**
* @}
*/
int main(void)
{
using namespace SharedMemoryContainers;
//Raw Data
struct RawData
{
unsigned m_user_id;
unsigned m_dest_id;
std::string m_branch;
operator std::string(void)
{
return std::string(m_branch);
}
};
//Create a 100-bucket hash table
const int buckets = 100;
const int items = 5;
typedef SharedMemoryHashTable<RawData, buckets, items> Table;
Table shared_memory_hash_table(true);
//Parent process
unsigned user_id = 0;
unsigned dest_id = 1000;
//Insert values into shared memory hash table
std::cout << "=====================================" << std::endl;
std::cout << "Inserting values via parent process" << std::endl;
//Loop over keys
for(std::string str : {"a", "bb", "ccc", "dddd", "eeeee"})

6. {
//Insert item into hash table
RawData raw_data = RawData{user_id++, dest_id--, str};
//str.copy(raw_data.m_branch, str.size());
if(str == "a")
{
shared_memory_hash_table.insert(raw_data.m_branch, raw_data);
}
else
{
shared_memory_hash_table[raw_data.m_branch]=raw_data;
}
std::cout << "hash_table[" << raw_data.m_branch << "]={"
<< raw_data.m_user_id << ", "
<< raw_data.m_dest_id << ", "
<< raw_data.m_branch << "}"
<< std::endl;
//Validate insertion
std::cout << "Verify: hash_table[" << raw_data.m_branch << "] == {"
<< shared_memory_hash_table[raw_data.m_branch].m_user_id << ", "
<< shared_memory_hash_table[raw_data.m_branch].m_dest_id << ", "
<< shared_memory_hash_table[raw_data.m_branch].m_branch << "}"
<< std::endl;
}
//Fork child process
pid_t p_id = fork();
if (p_id == 0)
{
Table shared_memory_hash_table;
//Extract values from shared memory hash table
std::cout << "=====================================" << std::endl;
std::cout << "Extracting values via child process" << std::endl;
//Loop over keys
for(std::string str : {"a", "bb", "ccc", "dddd", "eeeee"})
{
//Find item for given key
auto& item = shared_memory_hash_table[str.c_str()];
std::cout << "hash_table[" << str << "] == {"
<< item.m_user_id << ", "
<< item.m_dest_id << ", "
<< item.m_branch << "}"
<< std::endl;
}
std::cout << "=====================================" << std::endl;
std::cout << "deleting key="bb" via child process" << std::endl;
shared_memory_hash_table.erase("bb");
std::cout << "Extracting values left via child process" << std::endl;
for(std::string str : {"a", "bb", "ccc", "dddd", "eeeee"})
{
//Find item for given key
auto item = shared_memory_hash_table.find(str.c_str());
if(item !=0)
{
std::cout << "hash_table[" << str << "] == {"
<< item->m_user_id << ", "
<< item->m_dest_id << ", "
<< item->m_branch << "}"
<< std::endl;
}
else
{
std::cout << str << " not found in hash table." << std::endl;
}

7. }
std::cout << "=====================================" << std::endl;
}
else
{
int status;
waitpid(p_id, &status, 0);
std::cout << "=====================================" << std::endl;
std::cout << "Extracting values left via parent process" << std::endl;
for(std::string str : {"a", "bb", "ccc", "dddd", "eeeee"})
{
//Find item for given key
auto item = shared_memory_hash_table.find(str.c_str());
if(item !=0)
{
std::cout << "hash_table[" << str << "] == {"
<< item->m_user_id << ", "
<< item->m_dest_id << ", "
<< item->m_branch << "}"
<< std::endl;
}
else
{
std::cout << str << " not found in hash table." << std::endl;
}
}
}
return 0;
}
