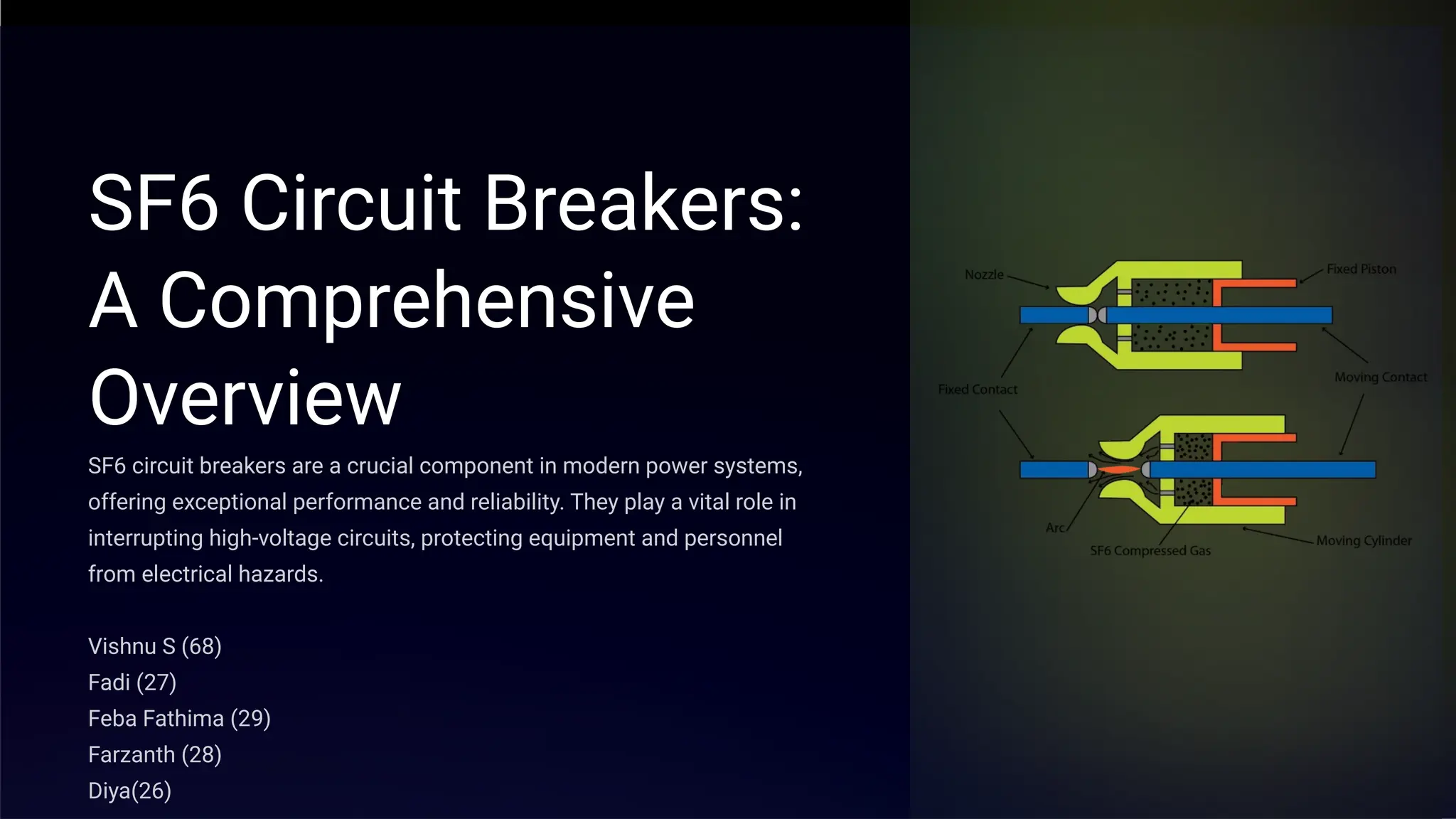

1. SF6 Circuit Breakers:
A Comprehensive
Overview
SF6 circuit breakers are a crucial component in modern power systems,
offering exceptional performance and reliability. They play a vital role in
interrupting high-voltage circuits, protecting equipment and personnel
from electrical hazards.
Vishnu S (68)
Fadi (27)
Feba Fathima (29)
Farzanth (28)
Diya(26)

2. Construction of SF6 Circuit
Breaker
The SF6 circuit breakers consist of two main parts
• Interrupter Unit
• Gas System
Interrupter Unit
• The interrupter unit consists of two types of
current-carrying contacts i.e. the fixed and movable
contact. The fixed contacts as its name suggest do
not move while the movable contact moves back
and forth using an arm actuated by a mechanism.
• There is a vent for the inlet and outlet of the
pressurized SF6 gas to cool off the arc as well as
extinguish it.
Gas System
• The SF6 is a very expensive gas and the emission of its
product gases is hazardous for the environment. Therefore,
a closed gas system is used, where the used SF6 is
recombined for reuse. Its pressure is also maintained as its
dielectric strength greatly depends upon it.

3. Working Principle of SF6 Circuit
Breakers
1 Arc Initiation
When a fault occurs, the circuit breaker contacts open, creating an arc between them.
2 SF6 Gas Dissociation
The arc causes the SF6 gas to dissociate, creating free electrons and ions that
conduct the current.
3 Arc Quenching
The circuit breaker's design forces the arc into a chamber filled with SF6 gas,
extinguishing the arc by disrupting the current path.
4 Gas Recovery
The SF6 gas recombines, restoring its insulating properties, ready for the next
operation.

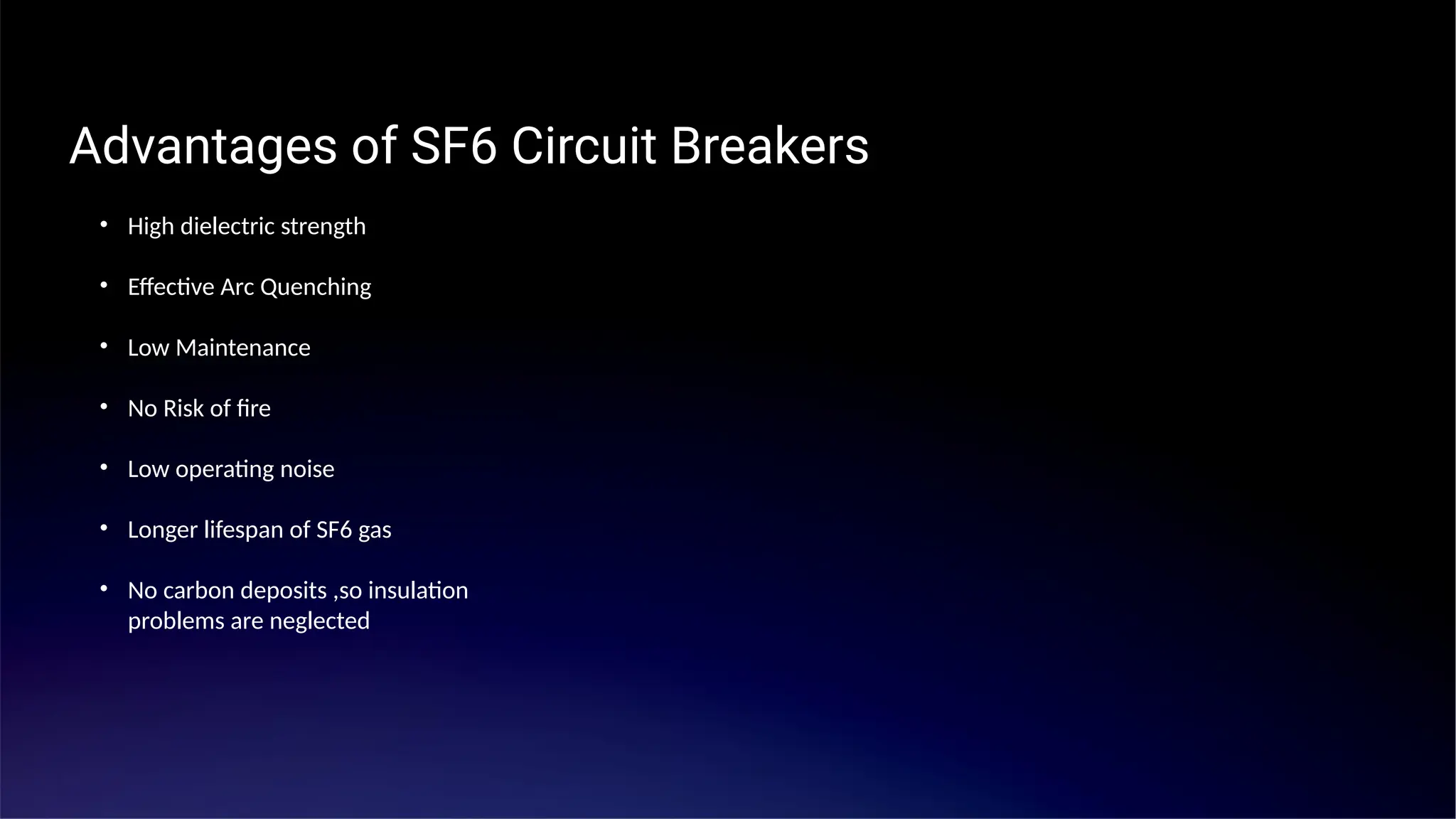

4. Advantages of SF6 Circuit Breakers
• High dielectric strength
• Effective Arc Quenching
• Low Maintenance
• No Risk of fire
• Low operating noise
• Longer lifespan of SF6 gas
• No carbon deposits ,so insulation
problems are neglected

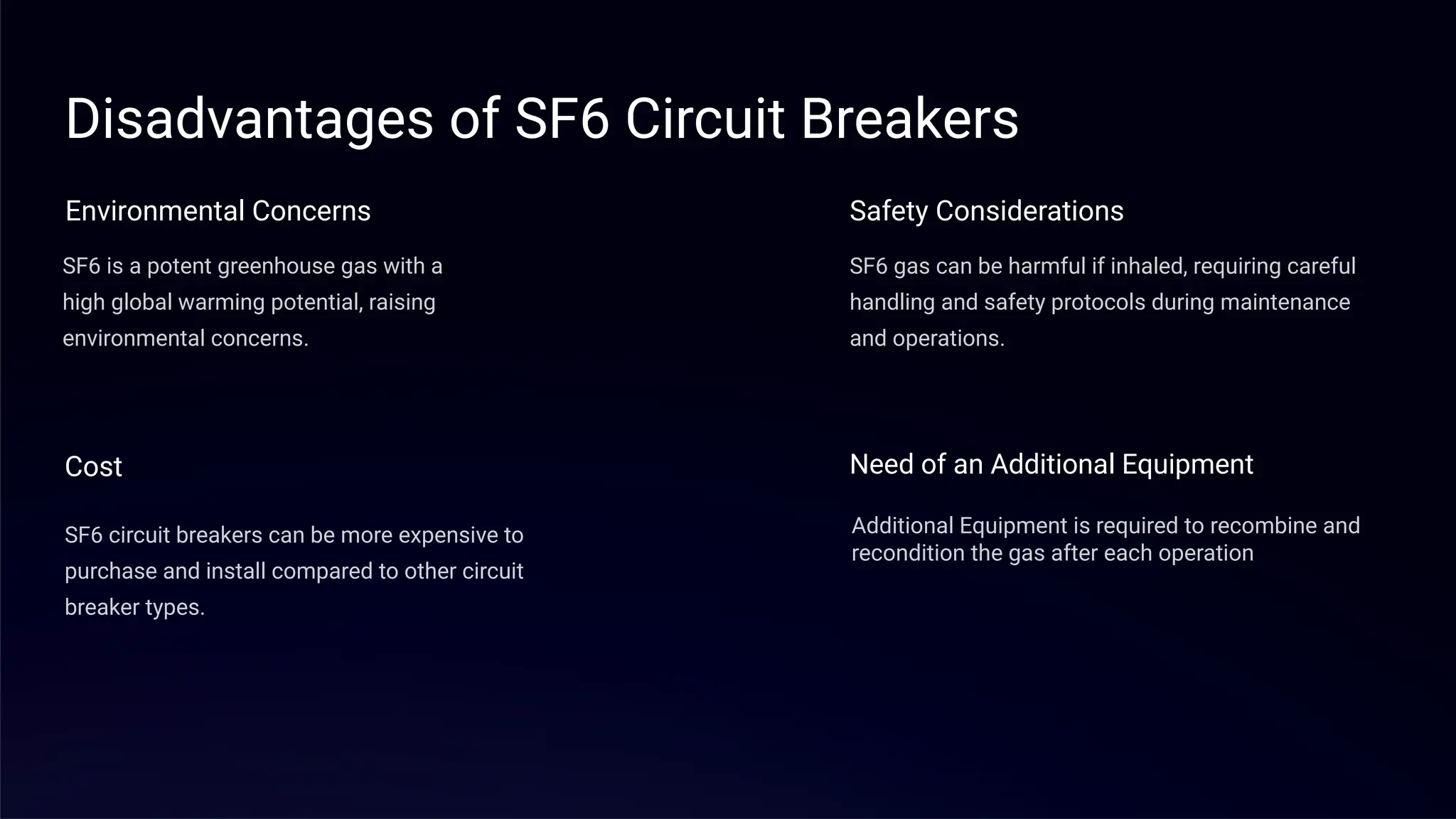

5. Disadvantages of SF6 Circuit Breakers
Environmental Concerns
SF6 is a potent greenhouse gas with a
high global warming potential, raising
environmental concerns.
Cost
SF6 circuit breakers can be more expensive to
purchase and install compared to other circuit
breaker types.
Safety Considerations
SF6 gas can be harmful if inhaled, requiring careful
handling and safety protocols during maintenance
and operations.
Additional Equipment is required to recombine and
recondition the gas after each operation
Need of an Additional Equipment

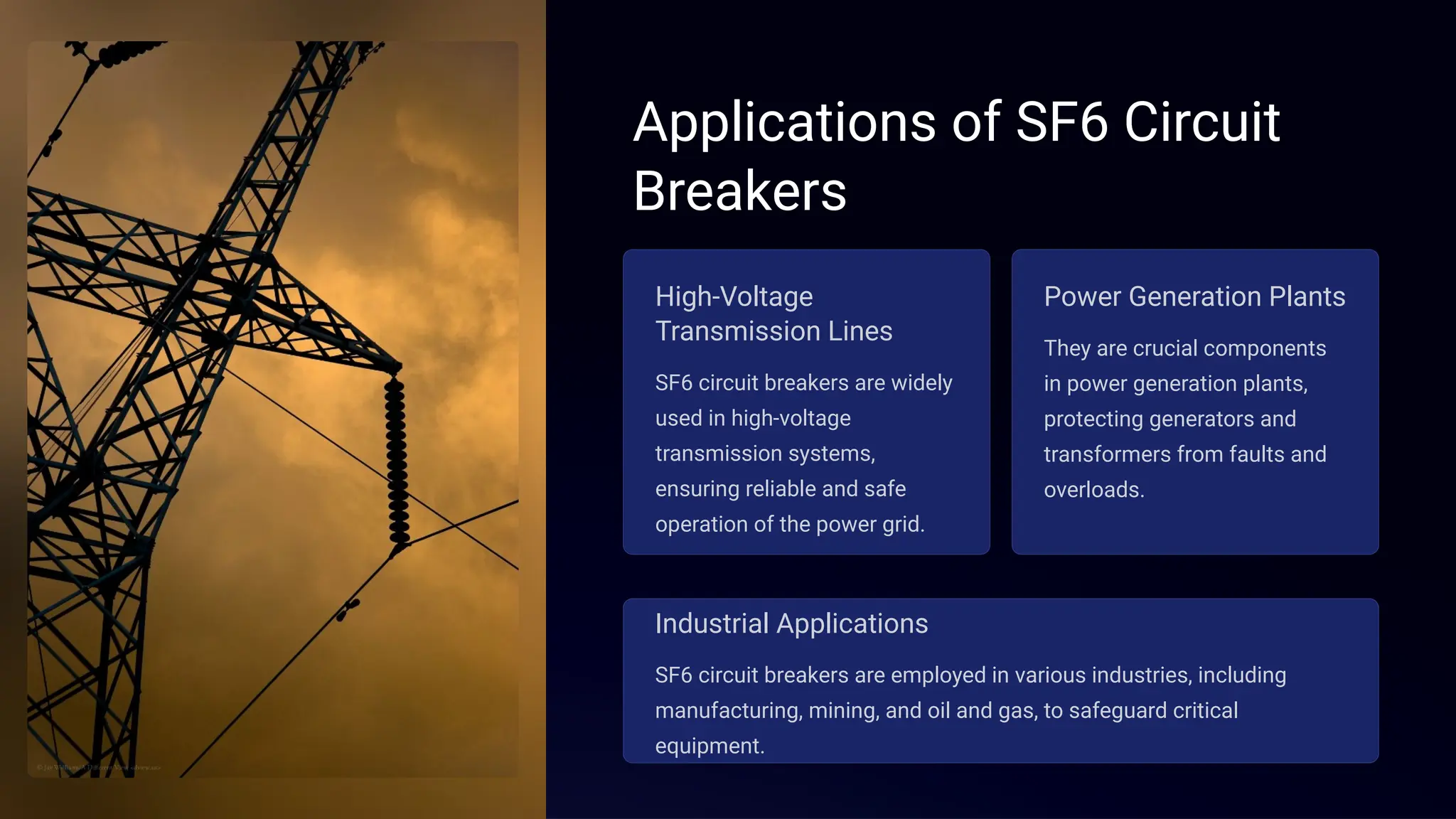

6. Applications of SF6 Circuit
Breakers
High-Voltage
Transmission Lines
SF6 circuit breakers are widely
used in high-voltage
transmission systems,
ensuring reliable and safe
operation of the power grid.
Power Generation Plants
They are crucial components
in power generation plants,
protecting generators and
transformers from faults and
overloads.
Industrial Applications
SF6 circuit breakers are employed in various industries, including
manufacturing, mining, and oil and gas, to safeguard critical
equipment.

7. Maintenance and Safety Considerations
Regular Inspections
Periodic inspections are
essential to ensure the
integrity of the circuit breaker
and the SF6 gas system.
Gas Leakage Testing
Leakage tests help identify
and address any leaks in the
SF6 gas system, minimizing
environmental impact.
Contact Cleaning
Cleaning and lubricating the
circuit breaker contacts helps
maintain their performance
and prevent arcing issues.
Safety Training
Proper safety training is
crucial for personnel working
with SF6 circuit breakers,
emphasizing safe handling
and emergency procedures.

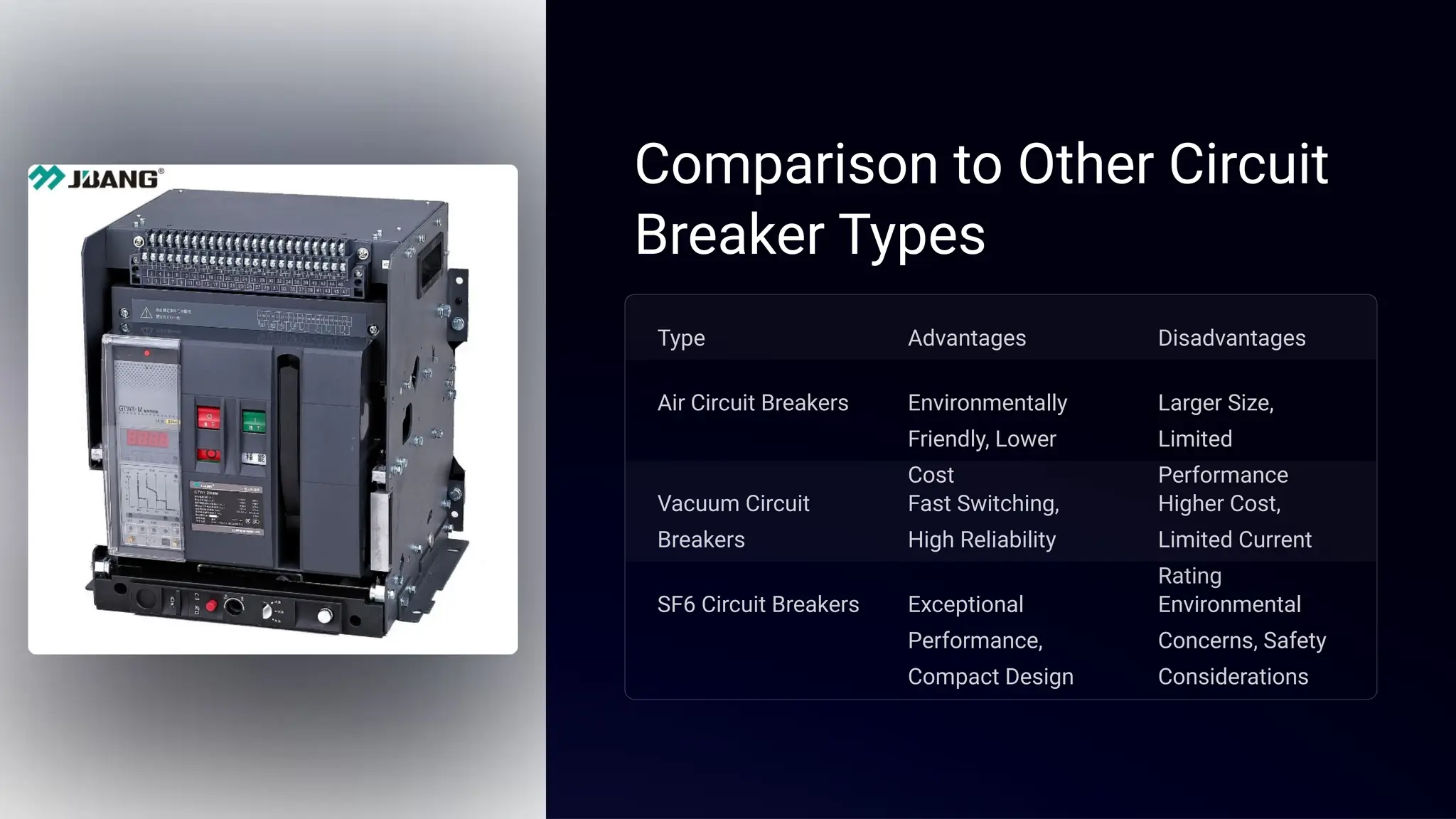

8. Comparison to Other Circuit
Breaker Types
Type Advantages Disadvantages
Air Circuit Breakers Environmentally
Friendly, Lower
Cost
Larger Size,
Limited
Performance
Vacuum Circuit
Breakers
Fast Switching,
High Reliability
Higher Cost,
Limited Current
Rating
SF6 Circuit Breakers Exceptional
Performance,
Compact Design
Environmental
Concerns, Safety
Considerations

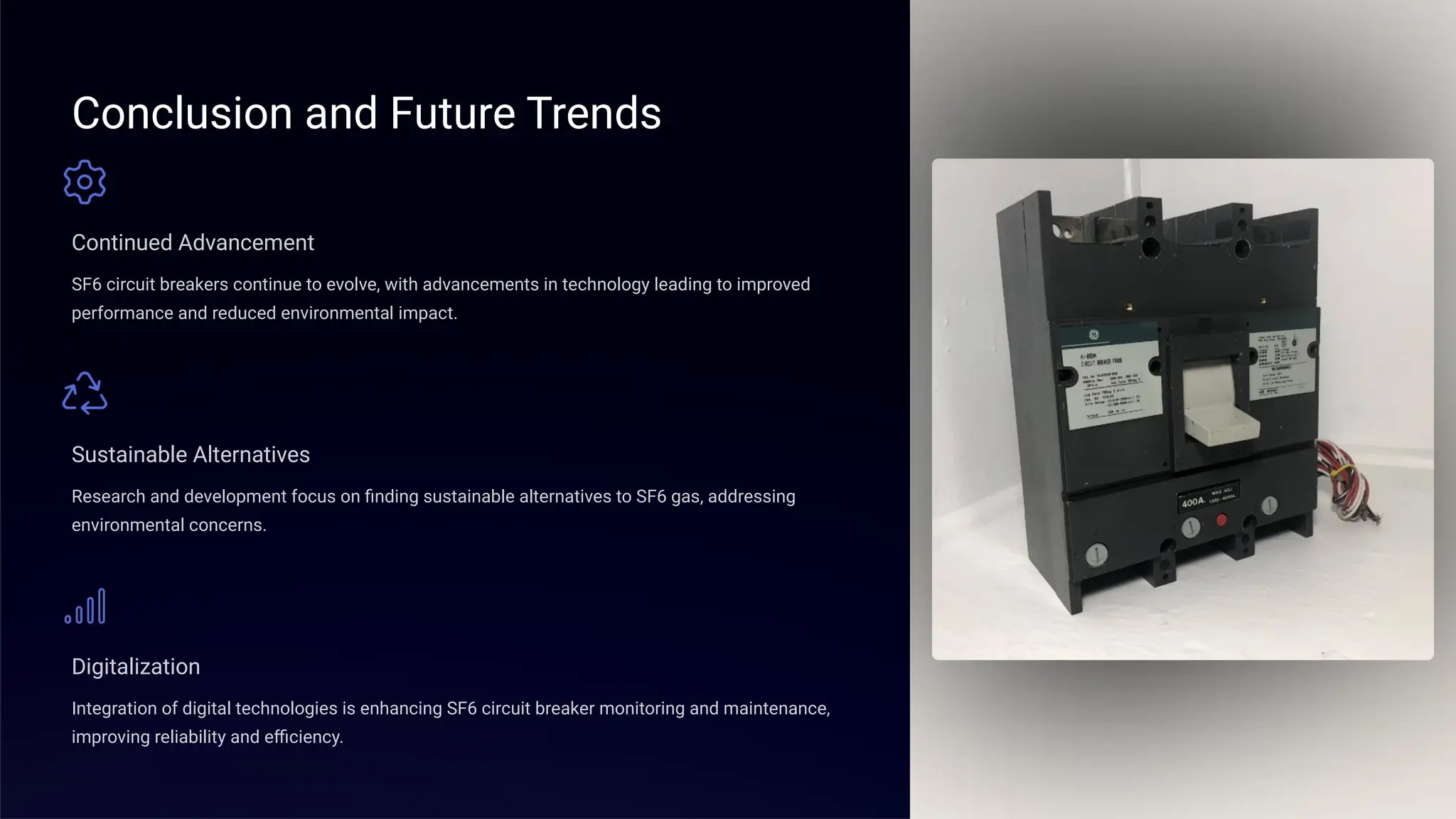

9. Conclusion and Future Trends
Continued Advancement
SF6 circuit breakers continue to evolve, with advancements in technology leading to improved
performance and reduced environmental impact.
Sustainable Alternatives
Research and development focus on finding sustainable alternatives to SF6 gas, addressing
environmental concerns.
Digitalization
Integration of digital technologies is enhancing SF6 circuit breaker monitoring and maintenance,
improving reliability and efficiency.
