1. Page 1 of 2
Faculty of Construction Project Management
Program: CPMT
Course Number CON 2023
Section Number
Course Title Advanced Blueprint Reading and
Drafting
Semester/Year Winter 2017
Instructor Mahsa Amirliravi
ASSIGNMENT No. 3
Assignment Title LAB 3
Submission Date 22/2/2017
Due Date 23/02/2017
Student Name SETHULAKSHMI SHAJI
Student ID C0690216
Signature* SETHULAKSHMI
STEP 1: Draw a line of 18’ and then 20’ and create a rectangle of 18’ X 20’.

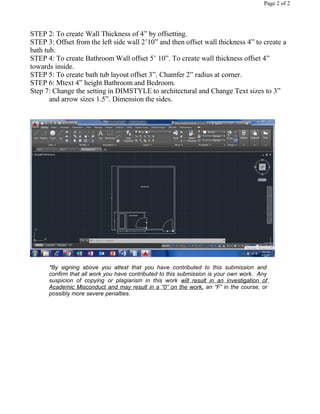

2. Page 2 of 2
STEP 2: To create Wall Thickness of 4” by offsetting.
STEP 3: Offset from the left side wall 2’10” and then offset wall thickness 4” to create a
bath tub.
STEP 4: To create Bathroom Wall offset 5’ 10”. To create wall thickness offset 4”
towards inside.
STEP 5: To create bath tub layout offset 3”. Chamfer 2” radius at corner.
STEP 6: Mtext 4” height Bathroom and Bedroom.
Step 7: Change the setting in DIMSTYLE to architectural and Change Text sizes to 3”
and arrow sizes 1.5”. Dimension the sides.
*By signing above you attest that you have contributed to this submission and
confirm that all work you have contributed to this submission is your own work. Any
suspicion of copying or plagiarism in this work will result in an investigation of
Academic Misconduct and may result in a “0” on the work, an “F” in the course, or
possibly more severe penalties.
