Service Worker allows web applications to work offline by intercepting network requests, caching responses, and serving cached responses when there is no network connection. It runs in the background and can handle events like fetch requests and push notifications. Key concepts include registering a service worker script, caching assets on install and user demand, and responding to fetch events by checking the cache first before making network requests. Common patterns are caching static resources on install, caching dynamic resources on each request, and migrating caches on activate. Service workers enable new capabilities like push notifications and progressive web apps.

1. Service Worker
Reliability bits

2. Jungkee Song
Senior engineer at Samsung
Web standards author
Chromium contributor
Email: jungkee.song@samsung.com
GitHub: @jungkees

4. Samsung Internet
4.0 shipped SW!

5. Service Worker
Reliability
Progressive Web Apps

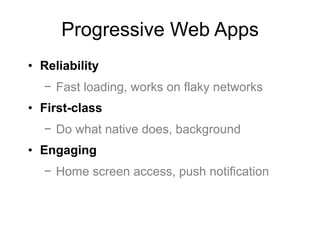

7. Progressive Web Apps
• Reliability
− Fast loading, works on flaky networks
• First-class
− Do what native does, background
• Engaging
− Home screen access, push notification

8. Progressive Web Apps

9. Service Worker
What to solve
Problems

10. Problems
Not only
But ..

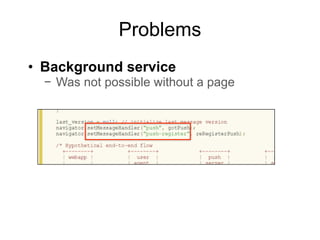

11. Problems
• Background service
− Was not possible without a page

12. The Total Game Changer!
https://youtu.be/QiXLaisCq10
Udacity Offline-First Web Applications Trailer

13. Service Worker
Concepts
What to solve

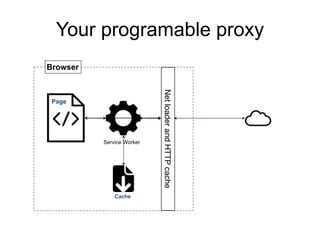

14. Your programable proxy
Page
Browser
Service Worker
Cache
NetloaderandHTTPcache

15. Service Worker
Concept
Script runs in the background

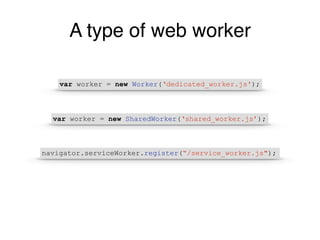

16. A type of web worker
var worker = new Worker(‘dedicated_worker.js');
var worker = new SharedWorker(‘shared_worker.js’);
navigator.serviceWorker.register(“/service_worker.js");

17. Service Worker
Event-driven
Responds to events

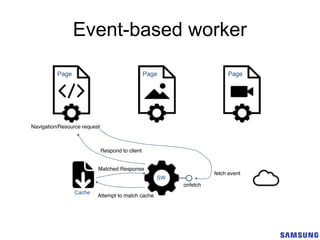

18. fetch event
Navigation/Resource request
onfetch
Page
SW
Cache
Attempt to match cache
Matched Response
Respond to client
Page Page
Event-based worker

19. Service Worker
Power matters
Intentionally short lifetime

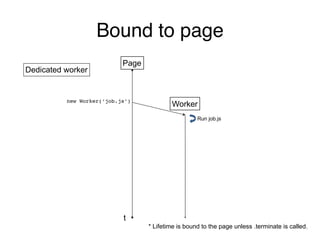

20. Bound to page
Page
Worker
new Worker(‘job.js’)
Run job.js
t
Dedicated worker
* Lifetime is bound to the page unless .terminate is called.

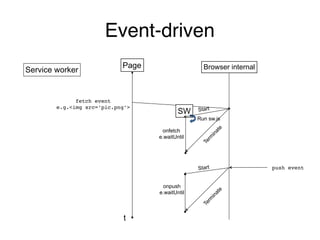

21. Event-driven
Page
SW
fetch event
e.g.<img src=‘pic.png’>
Run sw.js
Browser internal
t
Service worker
Term
inate
Start
onfetch
e.waitUntil
push eventStart
Term
inate
onpush
e.waitUntil

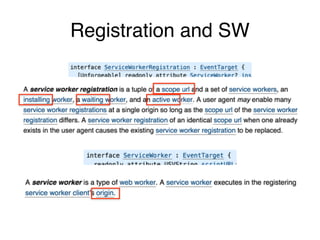

22. Registration and SW

23. registration active worker waiting worker installing worker
ServiceWorkerRegistration
active
active
installing
Persistent
Client scope
fetch install
registration.active
Browser
Internals
Script
Surface
registration.active
registration.installing
ServiceWorkerRegistration
ServiceWorker
ServiceWorker
ServiceWorker
Page Page

24. Service Worker
Make it secure
HTTPS

25. HTTPS
• SW allows powerful stuffs
− Intercept requests and fabricate your
own responses
• Need to guarantee it has not been tempered
during its own fetch
− localhost is allowed during development
− HTTPS setup is needed to deploy

26. Service Worker
Get it ready
Install and Update

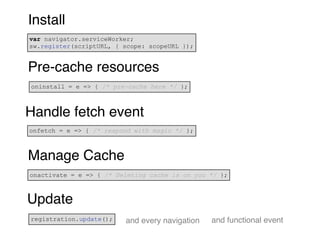

27. and every navigation and functional event
Install
var navigator.serviceWorker;
sw.register(scriptURL, { scope: scopeURL });
Pre-cache resources
oninstall = e => { /* pre-cache here */ };
Handle fetch event
onfetch = e => { /* respond with magic */ };
Manage Cache
onactivate = e => { /* Deleting cache is on you */ };
Update
registration.update();

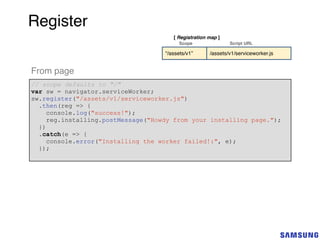

28. “/assets/v1” /assets/v1/serviceworker.js
[ Registration map ]
Scope Script URL
Register
From page
// scope defaults to "/"
var sw = navigator.serviceWorker;
sw.register("/assets/v1/serviceworker.js")
.then(reg => {
console.log("success!");
reg.installing.postMessage("Howdy from your installing page.");
})
.catch(e => {
console.error("Installing the worker failed!:", e);
});

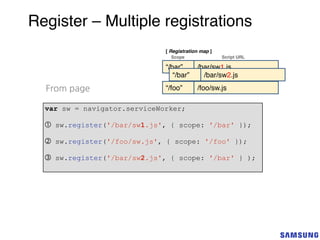

29. “/bar” /bar/sw1.js
[ Registration map ]
Scope Script URL
“/foo” /foo/sw.js
Register – Multiple registrations
From page
var sw = navigator.serviceWorker;
① sw.register('/bar/sw1.js', { scope: '/bar' });
② sw.register('/foo/sw.js', { scope: '/foo' });
③ sw.register('/bar/sw2.js', { scope: '/bar' } );
“/bar” /bar/sw2.js

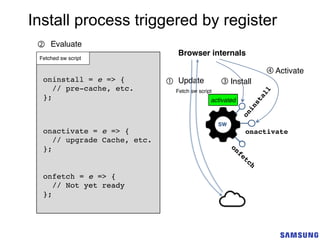

30. onactivate
SW
oninstall
onfetch
Browser internals
oninstall = e => {
// pre-cache, etc.
};
onactivate = e => {
// upgrade Cache, etc.
};
onfetch = e => {
// Not yet ready
};
Fetched sw script
Fetch sw script
Update① ③ Install
④ Activate
onfetch
onfetch = e => {
// Not yet ready
};
Install process triggered by register
Evaluate②
installinginstalledactivated

31. Service Worker
How interception work
Client matching
&
Subresource request

32. onfetch
sw.js
Cache
Attempt to match cache
Matched response
Respond to client
“/” /sw.js
[ Registration map ]
Scope Script URL
“/foo” /foo/sw.js
Page
Navigate https://example.com/index.html
fetch event
Scope matching
Run SW
Client matching (navigation)

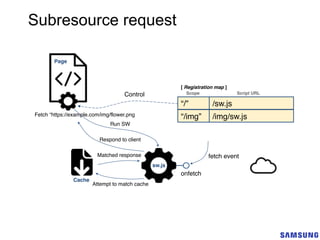

33. onfetch
sw.js
Cache
Attempt to match cache
Matched response
Respond to client
“/” /sw.js
[ Registration map ]
Scope Script URL
“/img” /img/sw.js
Page
Fetch “https://example.com/img/flower.png
fetch event
Control
Run SW
Subresource request

34. Service Worker
How to handle fetch
Patterns

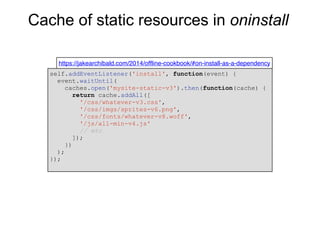

35. Cache of static resources in oninstall
https://jakearchibald.com/2014/offline-cookbook/#on-install-as-a-dependency
self.addEventListener('install', function(event) {
event.waitUntil(
caches.open('mysite-static-v3').then(function(cache) {
return cache.addAll([
'/css/whatever-v3.css',
'/css/imgs/sprites-v6.png',
'/css/fonts/whatever-v8.woff',
'/js/all-min-v4.js'
// etc
]);
})
);
});

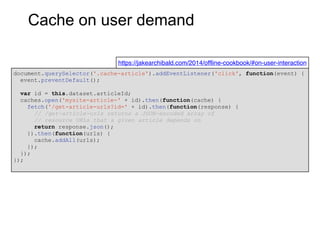

36. Cache on user demand
document.querySelector('.cache-article').addEventListener('click', function(event) {
event.preventDefault();
var id = this.dataset.articleId;
caches.open('mysite-article-' + id).then(function(cache) {
fetch('/get-article-urls?id=' + id).then(function(response) {
// /get-article-urls returns a JSON-encoded array of
// resource URLs that a given article depends on
return response.json();
}).then(function(urls) {
cache.addAll(urls);
});
});
});
https://jakearchibald.com/2014/offline-cookbook/#on-user-interaction

37. Cache of dynamic resource
https://jakearchibald.com/2014/offline-cookbook/#on-network-response
self.addEventListener('fetch', function(event) {
event.respondWith(
caches.open('mysite-dynamic').then(function(cache) {
return cache.match(event.request).then(function (response) {
return response || fetch(event.request).then(function(response) {
cache.put(event.request, response.clone());
return response;
});
});
})
);
});

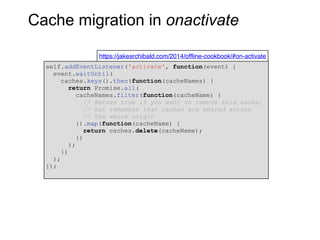

38. Cache migration in onactivate
https://jakearchibald.com/2014/offline-cookbook/#on-activate
self.addEventListener('activate', function(event) {
event.waitUntil(
caches.keys().then(function(cacheNames) {
return Promise.all(
cacheNames.filter(function(cacheName) {
// Return true if you want to remove this cache,
// but remember that caches are shared across
// the whole origin
}).map(function(cacheName) {
return caches.delete(cacheName);
})
);
})
);
});

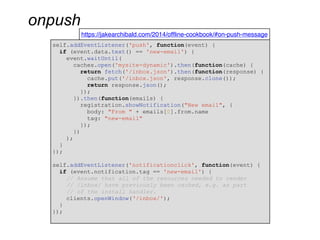

39. onpush
https://jakearchibald.com/2014/offline-cookbook/#on-push-message
self.addEventListener('push', function(event) {
if (event.data.text() == 'new-email') {
event.waitUntil(
caches.open('mysite-dynamic').then(function(cache) {
return fetch('/inbox.json').then(function(response) {
cache.put('/inbox.json', response.clone());
return response.json();
});
}).then(function(emails) {
registration.showNotification("New email", {
body: "From " + emails[0].from.name
tag: "new-email"
});
})
);
}
});
self.addEventListener('notificationclick', function(event) {
if (event.notification.tag == 'new-email') {
// Assume that all of the resources needed to render
// /inbox/ have previously been cached, e.g. as part
// of the install handler.
clients.openWindow(‘/inbox/');
}
});

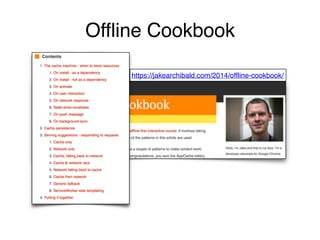

40. Offline Cookbook
https://jakearchibald.com/2014/offline-cookbook/

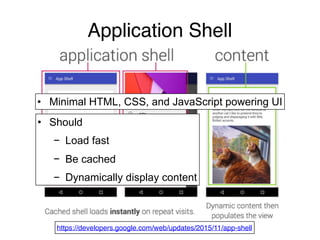

41. Application Shell
• Minimal HTML, CSS, and JavaScript powering UI
• Should
− Load fast
− Be cached
− Dynamically display content
https://developers.google.com/web/updates/2015/11/app-shell

42. Service Worker
Yeah, it works!
Demo

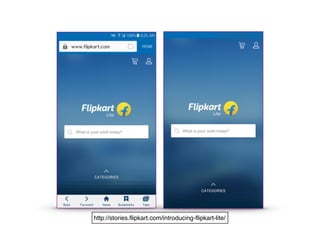

43. http://stories.flipkart.com/introducing-flipkart-lite/

44. Service Worker
Yeah, we want more!
Status

45. Standards
Implementation
4th WD in June 2105
Plan a CR in the 3Q of this year
4.0 40+ 44 32+

46. Service Worker
And.. Your turn!
In the wild

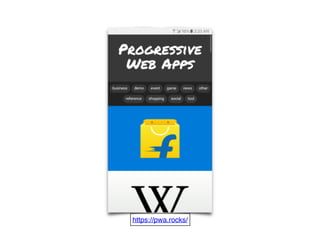

47. https://pwa.rocks/

48. Service Worker
V2 stuffs
Future

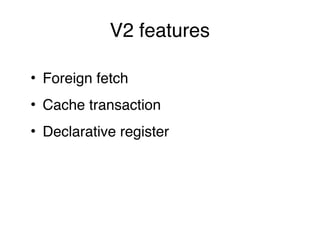

49. V2 features
• Foreign fetch
• Cache transaction
• Declarative register
